CN102178437A - Telescopic multifunctional clothes hanger - Google Patents

Abstract

A retractable and multifunctional clothes drying rack, comprising a main frame body, two ends of the main frame body are provided with sub-frame bodies that can be stretched on the main frame body, a hook is provided in the middle of the main frame body, and an arc-shaped seal is provided inside the hook , the arc-shaped block blocks the opening of the hook. The main frame body is provided with a connecting rod, and the sub-frame body is nested on the connecting rod. Both ends of the main frame body are M-shaped, and the sub-frame body is J-shaped. A curved portion is provided at the end of the hook, and the curved portion is tilted toward the outside of the hook, and there is a gap between the arc-shaped block and the curved portion for the clothesline to pass through. The inner side of the hook of this retractable multifunctional hanger is provided with an arc-shaped block, which can effectively prevent the hanger from falling, and the position-adjustable sub-rack body can effectively prevent the clothes from being stretched by the hanger, which is simple and practical.

Description

A retractable multifunctional drying rack

technical field

The invention relates to daily necessities, in particular to a retractable multifunctional clothes drying rack for drying clothes.

Background technique

The structure of a common clothes hanger comprises a frame body and a hook, and the hook is fixed above the frame body. The frame body is used to prevent the clothes from falling, and the hook is used to prevent the clothes hanger from falling. However, the frame structure is simple and the length is fixed, so it is difficult to adapt to all clothes of different sizes. Clothes that are too large may fall off the rack; clothes with a neckline that is too small may be deformed by the overgrown rack. It is easy to cause the clothes to fall or the clothes to be seriously deformed, which will bring certain losses.

Contents of the invention

The purpose of the present invention is to provide a retractable multifunctional clothes hanger, which can effectively prevent clothes from being blown off by the wind or deformed. The clothes hanger can also hang several clothes at the same time, making reasonable and full use of space and resources.

The technical scheme that the present invention adopts for solving its technical problem is,

A retractable and multifunctional clothes drying rack, comprising a main frame body, two ends of the main frame body are provided with sub-frame bodies that can be stretched on the main frame body, a hook is provided in the middle of the main frame body, and an arc-shaped seal is provided inside the hook , the arc-shaped block blocks the opening of the hook.

Further, the main frame body is provided with a connecting rod, and the sub-frame body is nested on the connecting rod.

Further, both ends of the main frame body are M-shaped, and the sub-frame body is J-shaped.

Further, the end of the hook is provided with a curved part, and the curved part is tilted to the outside of the hook, and there is a gap between the arc-shaped block and the curved part for the clothesline to pass through.

When in use, hang the clothes on the sub-frame, and then adjust the position of the sub-frame according to the size of the neckline of the clothes, or hang a piece of clothing on the sub-frame according to the above method, and then hang another piece of clothing on the main frame. on the frame.

The beneficial effect of the present invention is that the inner side of the retractable multifunctional clothes hanger is provided with an arc-shaped block, which can effectively prevent the clothes hanger from falling, and the position-adjustable sub-rack body can effectively prevent the clothes from being enlarged by the clothes hanger, which is simple and practical .

Description of drawings

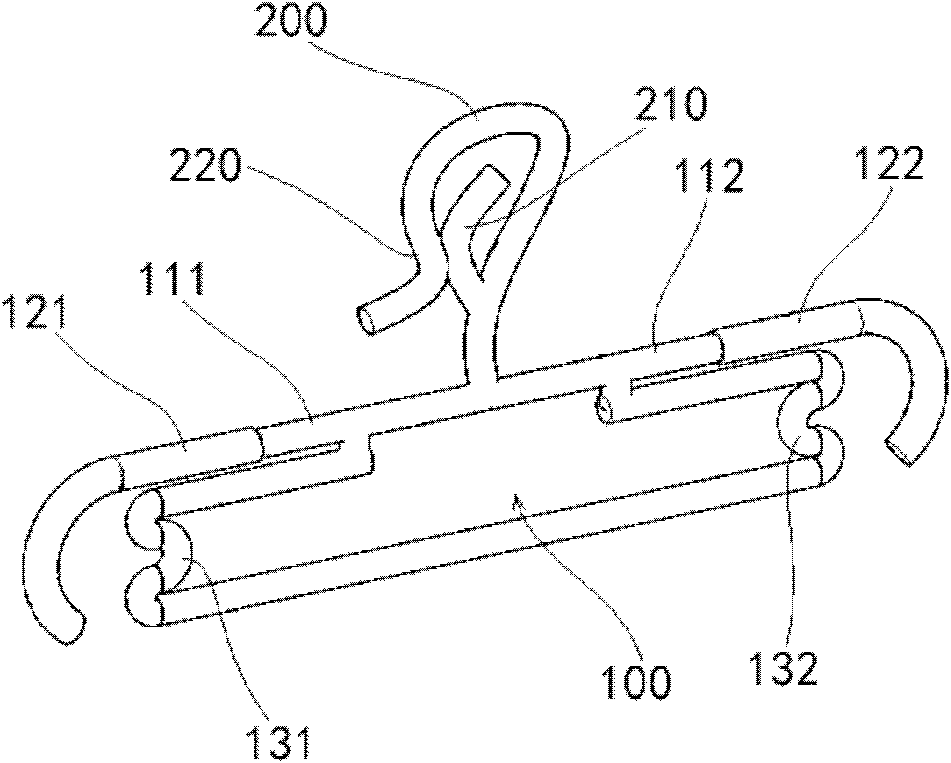

Fig. 1 is a schematic diagram of the shrinkage state of the telescopic multifunctional clothes hanger proposed by the present invention;

Fig. 2 is a schematic diagram of the extended state of the retractable multifunctional clothes drying rack.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the present invention easy to understand, the present invention will be further elaborated below in conjunction with illustrations and specific embodiments.

As shown in Fig. 1 and Fig. 2, a kind of retractable multifunctional clothes drying rack proposed by the present invention includes a main frame body 100, and the two ends of the main frame body 100 are provided with a sub-frame body 121 and a sub-frame that can be telescopic on the main frame body body 122, the middle part of the main frame body 100 is provided with a hook 200, the inside of the hook 200 is provided with an arc-shaped block 210, and the arc-shaped block 210 blocks the opening of the hook 200.

The main frame body 100 is provided with a connecting rod 111 and a connecting rod 112 , the sub-frame body 121 is nested on the connecting rod 111 , and the sub-frame body 122 is nested on the connecting rod 112 .

The end 131 and the end 132 of the main frame body 100 are M-shaped, and the sub-frame body 121 and the sub-frame body 122 are J-shaped.

A curved portion 220 is provided at the end of the hook 200, and the curved portion 220 is tilted toward the outside of the hook. There is a gap between the arc-shaped block 210 and the curved portion 220 for the clothesline to pass through.

When in use, hang the clothes on the sub-frame, and then adjust the position of the sub-frame according to the size of the neckline of the clothes, or hang a piece of clothing on the sub-frame according to the above method, and then hang another piece of clothing on the main frame. on the frame.

The inner side of the hook of this retractable multifunctional hanger is provided with an arc-shaped block, which can effectively prevent the hanger from falling, and the position-adjustable sub-rack body can effectively prevent the clothes from being stretched by the hanger, which is simple and practical.

The basic principles, main features and advantages of the present invention have been shown and described above. Those skilled in the industry should understand that the present invention is not limited by the above-mentioned embodiments, and that described in the above-mentioned embodiments and the description only illustrates the principles of the present invention, and the present invention also has various aspects without departing from the spirit and scope of the present invention. Variations and improvements all fall within the scope of the claimed invention. The protection scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. A retractable multifunctional clothes hanger, characterized in that it comprises a main frame body, the two ends of the main frame body are provided with sub-frame bodies that can expand and contract on the main frame body, the middle part of the main frame body is provided with a hook, and the inside of the hook An arc-shaped block is arranged, and the arc-shaped block blocks the opening of the hook. 2. A retractable multifunctional clothes drying rack according to claim 1, characterized in that, the main frame body is provided with a connecting rod, and the sub-frame body is nested on the connecting rod. 3. A retractable multifunctional clothes drying rack according to claim 1 or 2, characterized in that the two ends of the main frame body are M-shaped, and the sub-frame body is J-shaped. 4. A retractable multi-functional clothes drying rack according to claim 1, characterized in that, the end of the hook is provided with a curved portion, and the curved portion is tilted toward the outside of the hook, and the arc-shaped block and the curved portion Leave a gap in between for the clothesline to pass through.
