The invention discloses a combined operating tool assembly, which comprises a tool box. A general operating rod (1) and six operating heads are arranged in the tool box. The bottom part of each operating head is detachably connected with the general operating rod (1). The operating head and the general operating rod (1) are detachably connected to realize the replacement of the operating head according to demands. Six operating heads comprise a cylindrical operating head (2), an L-shaped operating head (3), a T-shaped operating head (4), a straight-rod type operating head (5), a wrench-type operating head (6) and a contact-type operating head (7). The combined operating tool assembly is convenient to carry and use, the operating delay time is greatly reduced, the working efficiency is improved, the operating time of accident handling is shortened and a guarantee for the safe operation of the power grid is provided.
Description
Technical field
The present invention relates to a kind of combined operation multiplexer assembly.
Background technology
" grid switching operation " often all is electric operating, " grid switching operation " that can be not all can electric operating, isolating switch for ground connection plug-in strip and old electric substation, " grid switching operation " all still need use hook stick manually to carry out, because the specifications and models of plug-in strip is different, so it also is varied, multifarious causing hook stick, thereby causes the delay of operating time.Because the substation facilities model is many and disunity, so the operative employee's utensil that needs is also corresponding more.Operating personnel during to the operation of each electric substation required instrument be unfamiliar with, if few ribbon gymnastics is made instrument during execute-in-place, not only to come and go operation class and take worker's operation tool, and incur loss through delay electric power feeding time and cause the amount of power supply loss.If misoperation fault also might take place in wrong band Work tool during execute-in-place.Come and go by the Work tool burden in order to alleviate operating personnel, prevent the generation of misoperation fault, make various hook stick Work tools into multifunctional assembled operative employee's utensil.
Summary of the invention
The invention provides a kind of combined operation instrument assembly, it not only is easy to carry, and easy to use, and the operating delay reduces significantly, has improved operating efficiency, has shortened the operating time of accident treatment, for the safe operation of electrical network provides safeguard.
The present invention has adopted following technical scheme: a kind of combined operation instrument assembly, it comprises the tool box, in the tool box, be provided with universal action bars and six operating heads, the bottom of each operating head and universal action bars are realized removably connecting, the detachable realization operating head of operating head and universal action bars is changed as required, and six operating heads comprise tubular operating head, L type operating head, T type operating head, straight rod type operating head, key-type operating head and contact type operating head.
The bottom of described each operating head by threaded engagement and universal action bars for removably connecting.The bottom of described each operating head and the head of universal action bars are dismountable grafting.Described universal action bars is telescopic action bars.Be with insulating sleeve on the described universal action bars.
The present invention has following beneficial effect: the present invention is made up of an action bars and six operating heads, can realize eight functions such as manual operation plug-in strip and switch energy storage by different matched combined, satisfy the operational requirements of manual plug-in strip, solve the various heaviness of manual plug-in strip operating grip.The present invention uses telescopic action bars, can prolong or shorten action bars as required like this, can make hook stick that the longer arm of force has been arranged, and rotation is got up more laborsaving.The present invention can finish the grid switching operation of an on-electric equipment fast, can effectively solve the many and heavy phenomenon of execute-in-place rod, and saved greatly the time of operating, improve the efficient of routine work, shortened the operating time of some accident treatment, for the safe operation of electrical network provides very strong guarantee, guaranteed safety in production.
Description of drawings

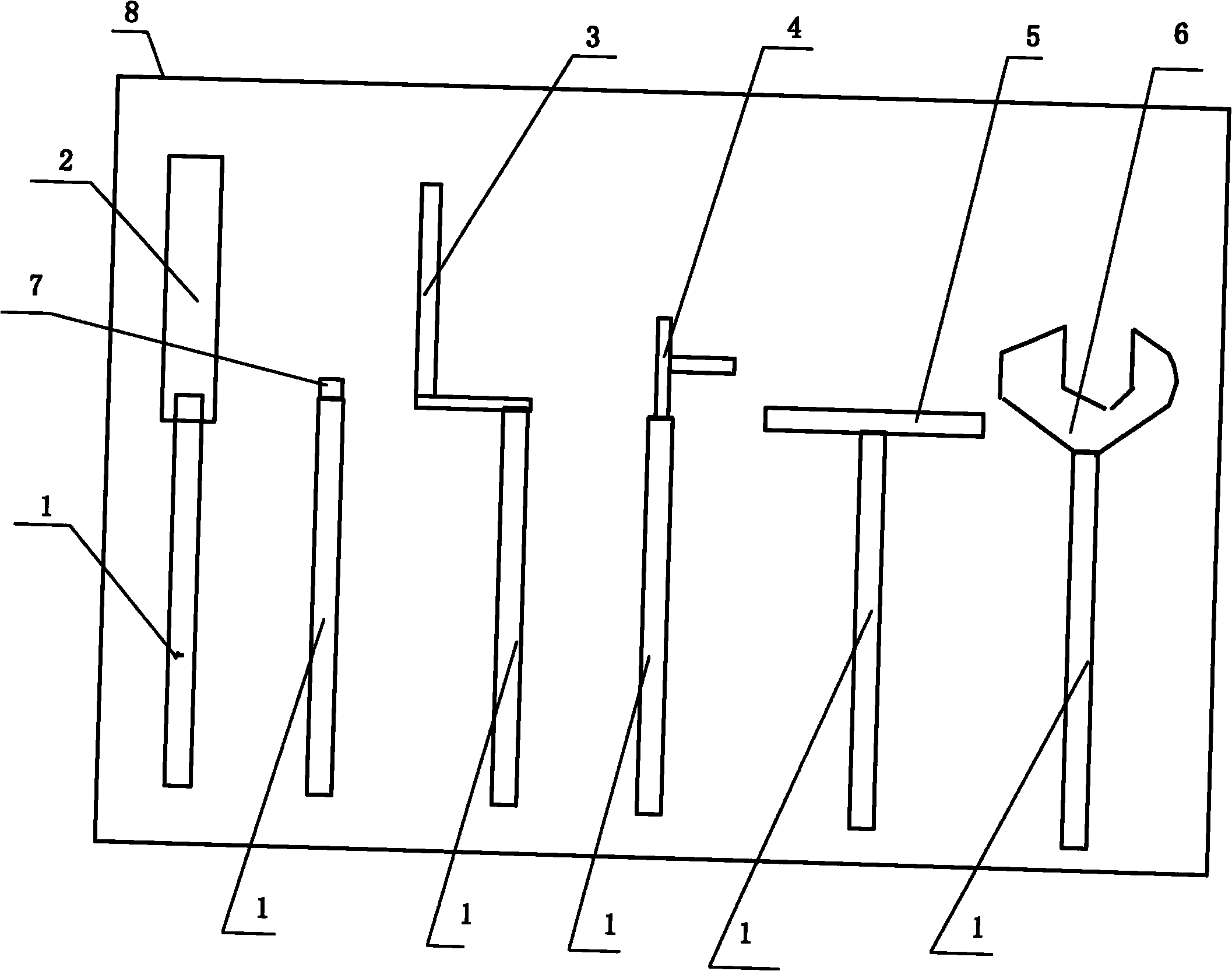

The structural representation that Fig. 1 is connected with universal action bars for each operating head of the present invention
Embodiment
In Fig. 1, the present invention is a kind of combined operation instrument assembly, it comprises tool box 8, in tool box 8, be provided with universal action bars 1 and six operating heads, universal action bars 1 is telescopic action bars, be with insulating sleeve on the universal action bars 1, the bottom of each operating head and universal action bars 1 are realized removably connecting, the detachable realization operating head of operating head and universal action bars 1 is changed as required, six operating heads comprise tubular operating head 2, L type operating head 3, T type operating head 4, straight rod type operating head 5, key-type operating head 6 and contact type operating head 7, for removably connecting, the bottom of each operating head can be dismountable grafting with the head of universal action bars 1 also by threaded engagement and universal action bars 1 in the bottom of each operating head.
Claims (5)
1. combined operation instrument assembly, it is characterized in that it comprises tool box (8), in tool box (8), be provided with universal action bars (1) and six operating heads, the bottom of each operating head and universal action bars (1) are realized removably connecting, the detachable realization operating head of operating head and universal action bars (1) is changed as required, and six operating heads comprise tubular operating head (2), L type operating head (3), T type operating head (4), straight rod type operating head (5), key-type operating head (6) and contact type operating head (7).
2. combined operation instrument assembly according to claim 1, the bottom that it is characterized in that described each operating head by threaded engagement and universal action bars (1) for removably connecting.
3. combined operation instrument assembly according to claim 1 is characterized in that the bottom of described each operating head and the head of universal action bars (1) are dismountable grafting.
4. combined operation instrument assembly according to claim 1 is characterized in that described universal action bars (1) is telescopic action bars.
5. composite type grid switching operation rod according to claim 1 is characterized in that being with insulating sleeve on the universal action bars (1).
