Abstract
The invention discloses a device for cleaning dust deposited in a pipeline. A plurality of blowing pipes are fixedly mounted on an airflow pipeline, one end of each blowing pipe is extended out of the airflow pipeline, and the extended end of each blowing pipe is communicated with a blowing branch pipe through a high-pressure hose, the other end of the blowing branch pipe is communicated with the pulse valve of an electromagnetic pulse valve, the pulse valve is also communicated with an air supply branch pipe, the air supply branch pipe is communicated with an air supply pipeline, and an electromagnetic valve is mounted on the pulse valve and is connected with a controller through a control cable. The device provided by the invention has a simple structure and is convenient to install and use, and can impact deposited soot and raise and carry away dust through the instantaneous expansion of compressed air, so as to avoid the normal movement of dust gas in the pipeline due to the dust. In addition, the device has the advantages of low energy consumption and low cost, and is convenient in operation and maintenance.
Description
Technical field
The present invention relates generally to the treating apparatus of industrial dust-contained airflow pipeline dust stratification, relates in particular to a kind of pipeline dust stratification clearing apparatus.
Background technology
Often utilize pipeline to carry dust-contained airflow in the commercial Application, to improve ventilation or to see material off; But in actual applications, often because the pipeline angle of inclination is too small, conveyance conduit is long or air current flow speed is slow excessively, and the gravitational settling effect of dust self, cause the part dust granules to be deposited in the pipeline; In time do not clear up as dust stratification, can get more and more, cause the pipe ventilated area to reduce, resistance increases, and influences flowing of air-flow; Cause obstruction when serious, influence the operation of upstream and downstream equipment, so that cause the accident.Dust stratification often adopts by perforate and carries out artificial deashing after occurring, work under bad environment, and link is loaded down with trivial details, and workload is big; The dust of drawing out also needs to carry and handle; Perhaps adopt the mechanical type scraper plate to remove, fault is many, the energy consumption height.If dangerous gas or dust can cause gas or dust to reveal, so that cause personal injury even accident.
Summary of the invention
The objective of the invention is in order to remedy the deficiency of prior art, a kind of pipeline dust stratification clearing apparatus is provided, be a kind ofly to utilize pulse valve moment to eject gases at high pressure, utilize the gas after high pressure discharges to impact the dust of deposition then, the dust that gas rapid movement through expanding drive is simultaneously kicked up moves forward, this plant energy consumption is low, and is quick and convenient and easy to control.
The present invention is achieved through the following technical solutions:
A kind of pipeline dust stratification clearing apparatus, it is characterized in that: on airflow line, be installed with a plurality of winding-up pipes, one end of described winding-up pipe stretches out airflow line, and external part links by high-pressure hose and winding-up arm respectively, the other end UNICOM of described winding-up arm is in the pulse valve of electromagnetic impulse valve, and pulse valve also is linked with gas manifold, and described gas manifold UNICOM is in supply air line, and the magnetic valve on the described pulse valve is connected in controller by the control cable.
Described pipeline dust stratification clearing apparatus is characterized in that: described winding-up pipe is made up of the spout of straight tube, 90 ° of elbows, band corner cut, and airflow line is stretched out in described straight tube end, and links by the high-pressure hose that has clip and the arm of jetting.
Described pipeline dust stratification clearing apparatus is characterized in that: the spout center line of described winding-up pipe and the central lines of airflow line.
The present invention in use, can be according to what of the length of airflow line and dust stratification, high-pressure hose, winding-up pipe, the control cable of a plurality of gas manifolds, pulse valve, winding-up arm, strip slip-collar can be installed on supply air line, and unified access controller is to realize the segmentation cleaning.Simultaneously can select compressed-air actuated kind according to the character of gas in the airflow line and dust; General application of compressed air is as source of the gas; As inflammable and explosive gas or dust, can adopt inert gas as compressed gas source.
The present invention adopts high-pressure hose to connect and can be easy for installation and removal, the corner cut angle of described spout can design according to the character of dust and the distance of spout and dust stratification, make the air-flow of ejection aim at the ducted dust stratification face of dust-contained airflow, described controller can be according to the start and stop of actual conditions automatic or manual control magnetic valve, and described junction all utilizes corresponding encapsulant to seal.
Advantage of the present invention is:
The present invention is simple in structure, easy to install, and the instantaneous expansion by Compressed Gas impacts dust stratification, the dust and take away dust kicked up, and can avoid dust to influence dusty gas in ducted normal operation; While less energy consumption, low, the convenient operating maintenance of cost.
Description of drawings

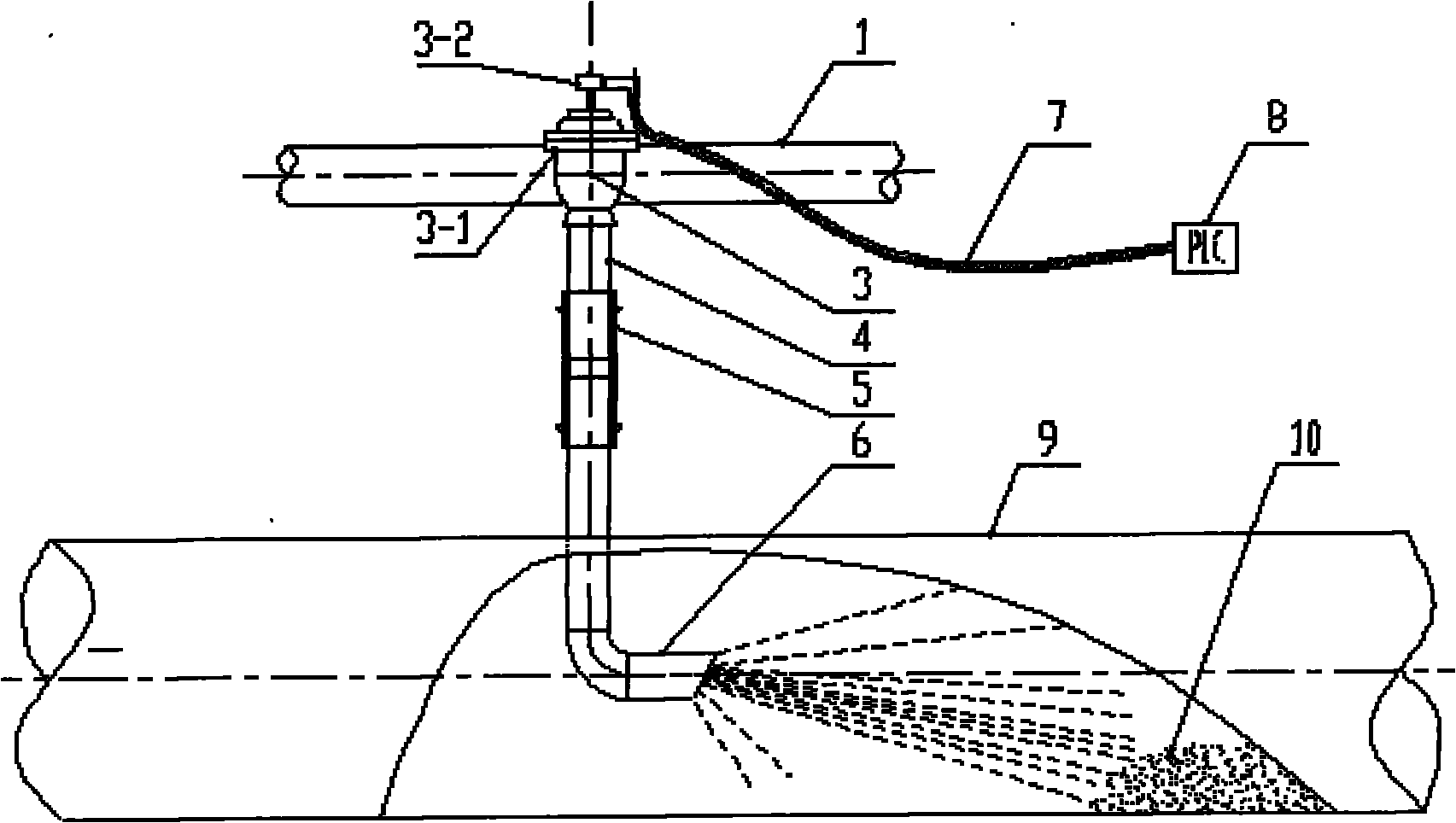

Fig. 1 is a front view of the present invention.
Fig. 2 is a vertical view of the present invention.
The specific embodiment
A kind of pipeline dust stratification clearing apparatus, be included in and be installed with a plurality of winding-up pipes 6 on the airflow line 9 that has dust stratification 10, winding-up pipe 6 is made up of the spout of straight tube, 90 ° of elbows, band corner cut, airflow line is stretched out in the straight tube end, and link with winding-up arm 4 by the high-pressure hose 5 that has clip, the other end UNICOM of winding-up arm 4 is in the pulse valve 3-1 of electromagnetic impulse valve 3, and pulse valve 3-1 also is linked with gas manifold 2, and the magnetic valve 3-2 of electromagnetic impulse valve 3 is connected in controller 8 by control cable 7; The spout center line of described winding-up pipe 6 and the central lines of airflow line 9.
In airflow line 9, there is dust stratification 10 to occur, can be by the magnetic valve 32 on the controller 8 startup electromagnetic impulse valves 3, open pulse valve 3-1, in airflow line 9, spray into Compressed Gas with the extremely short time, Compressed Gas expands rapidly in airflow line 9 when spraying to dust stratification 10, kick up wind speed in the dust stratification 10 and the pipeline 9 that increases sharply drives dust-contained airflow and moves forward; Like this, ducted dust stratification 10 is eliminated very soon; In actual applications, can suitably arrange a plurality of clearing apparatus according to the length of pipeline 9.
Claims (3)
1. pipeline dust stratification clearing apparatus, it is characterized in that: on airflow line, be installed with a plurality of winding-up pipes, one end of described winding-up pipe stretches out airflow line, and external part links by high-pressure hose and winding-up arm respectively, the other end UNICOM of described winding-up arm is in the pulse valve of electromagnetic impulse valve, and pulse valve also is linked with gas manifold, and described gas manifold UNICOM is in supply air line, and the magnetic valve on the described electromagnetic impulse valve is connected in controller by the control cable.
2. pipeline dust stratification clearing apparatus according to claim 1, it is characterized in that: described winding-up pipe is made up of the spout of straight tube, 90 ° of elbows, band corner cut, airflow line is stretched out in described straight tube end, and links with the winding-up arm by the high-pressure hose that has clip.
3. pipeline dust stratification clearing apparatus according to claim 1 is characterized in that: the spout center line of described winding-up pipe and the central lines of airflow line.
