Abstract
The invention discloses a combination cubic socket. The socket mainly comprises a plug, a socket shell, type A reeds, type B reeds, type C reeds and a type D reed, wherein four type A reeds are connected with socket holes on four surfaces of the socket shell through buckles on the socket shell respectively; each type A reed is connected with jacks on two opposite surfaces; the type B reeds are connected with grounding holes on the four surfaces of the socket shell through the buckles; two type C reeds are connected with the plug and a live wire hole and a neutral wire hole on the socket opposite to the plug and are fixed on the socket shell through the buckles; the type D reed is connected with the plug and a grounding hole on the socket opposite to the plug and is fixed on the socket shell through a buckle; and the plug is fixed with the socket shell through the buckle. Internal reeds are spliced, so that complex internal wiring of the conventional socket is eliminated and the socket has a simpler and more reliable structure. Due to the design of a cube, sockets are not mutually influenced, portability is high and a plurality of sockets can be combined for using.
Description
Technical field
The present invention relates to a kind of composite type cubic socket.Simplified internal structure with reed structure, cube structure makes each jack be independent of each other, and can a plurality of receptacle combinations, adapts to different occasions and requirement and very strong portability is arranged.
Background technology
Socket is as device commonly used in the life, can expand a jack and be a plurality of jacks, frequency of utilization is very high in daily life, but the electrical equipment that ought use simultaneously is many and appliance plug volume all bigger the time, bring the utilance problem of a jack, a common plug may take the position of two to three jacks, after such plug inserts other plug just can not insert or can not be complete insert and cause the loose contact phenomenon, cause the unnecessary waste and the potential safety hazard in space.Simultaneously, present most sockets inside all is to adopt lead to connect, and the heat that produces when connecting high-power electric appliance may burn the rubber layer of lead outer wrapping, brings serious safety problem.
Existing a kind of socket is that the spacing with jack widens the space hold problem that solves, and can cause the socket volume excessive like this, portable difference etc.
Summary of the invention
The objective of the invention is to overcome the deficiencies in the prior art, a kind of composite type cubic socket is provided.
Plant the composite type cubic socket and comprise plug, Socket casing, A type reed, the Type B reed, C type reed and D type reed, Socket casing is a cube structure, five faces are socket apertures, a face has square openings, fix by buckle and plug, A type reed is the mountain font structure, a slot and a wide mouth are arranged, A type reed has four, first A type reed slot contacts with the slot of second A type reed, the 3rd A type reed slot contacts with the slot of the 4th A type reed, first wide mouth of A type reed strides across the wide mouth of the 4th A type reed, second wide mouth of A type reed strides across the wide mouth of the 3rd A type reed, first A type reed end and second A type reed end are connected to four live wire holes by buckle, the 3rd A type reed end and the 4th A type reed end are connected to four null line holes by buckle, the Type B reed is cross structure, fixed by snap with the ground hole of four faces on the Socket casing, C type reed is inclined to one side U type structure, there be one wide mouthful, C type reed has two, the one C type reed passes the slit of first A type reed, under the elasticity of spring leaf effect, contact, second C type reed passes the slit of the 3rd A type reed, under the elasticity of spring leaf effect, contact, the wide mouth of C type reed strides across the Type B reed, the live wire hole of first C type reed attachment plug and the live wire hole of opposite socket, first C type reed two ends is fixed by snap on Socket casing, the null line hole of second C type reed attachment plug and the null line hole of opposite socket, second C type reed two ends is fixed by snap on Socket casing, D type reed is a U type structure, there be one wide mouthful, the wide mouth of D type reed strides across the 4th A type reed, D type reed passes the slit of Type B reed, under the elasticity of spring leaf effect, contact, the ground hole of D type reed attachment plug and the ground hole of opposite socket, D type reed and Socket casing are fixed by snap, and be fixed by snap with plug.
Combination usage of the present invention is that a plurality of sockets are stitched together arbitrarily, is combined into arbitrary shape, is applicable to different occasions.
The reed structure of inside of the present invention has saved the wiring of the complexity of conventional socket, simplified internal structure, it is convenient that assembling need not electric welding, cube structure makes each jack be independent of each other, five jacks can be worked simultaneously, and make the overall structure of socket compact more, good portability, a plurality of receptacle combinations can be used, adapt to different occasions and requirement.
Description of drawings

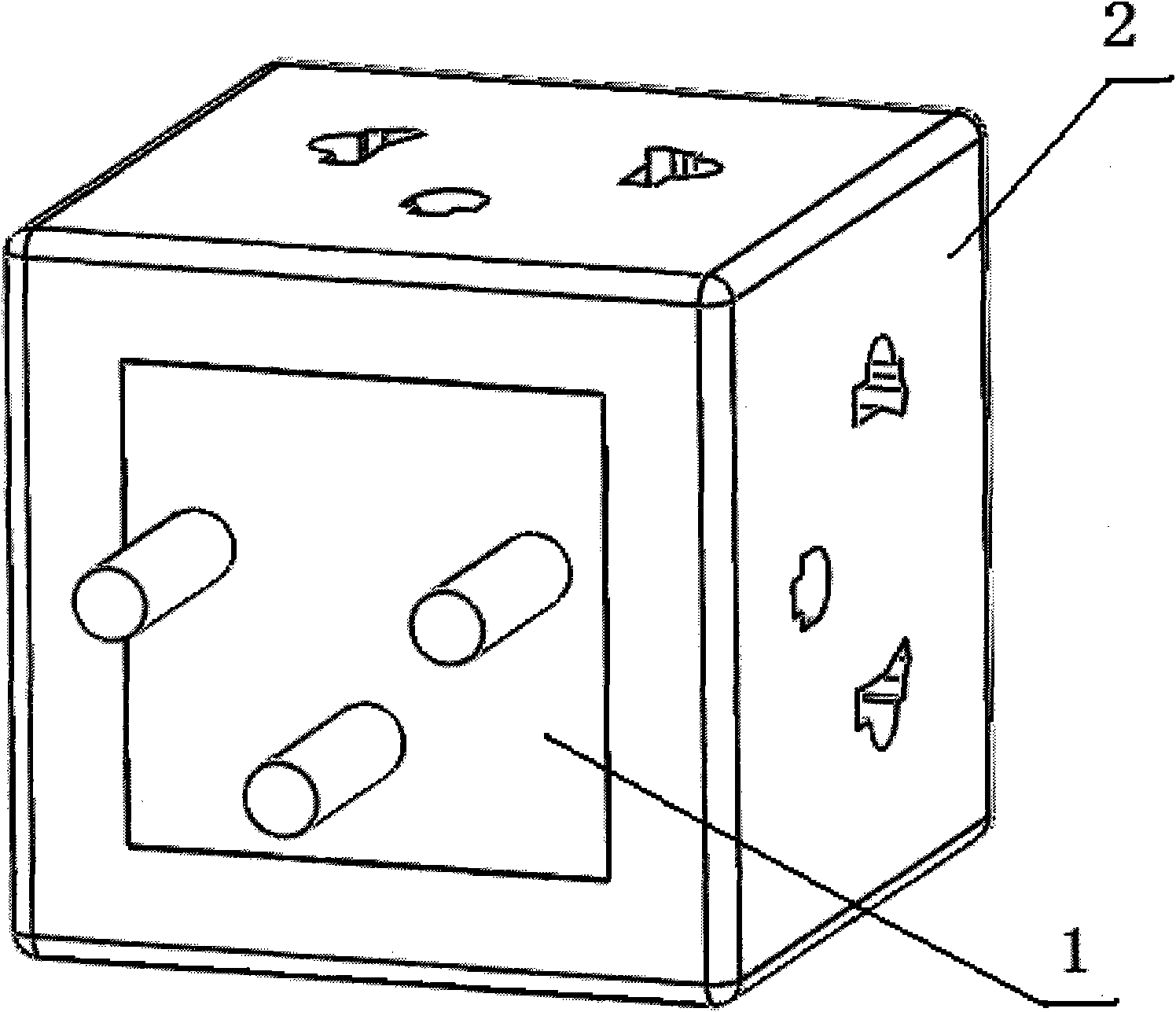

Fig. 1 is the structural representation of composite type cubic socket;
Fig. 2 is the internal view of composite type cubic socket;
Fig. 3 is the combination usage schematic diagram of composite type cubic socket;
Fig. 4 is an A type reed structure schematic diagram of the present invention;
Fig. 5 is a Type B reed structure schematic diagram of the present invention;
Fig. 6 is a C type reed structure schematic diagram of the present invention;
Fig. 7 is a D type reed structure schematic diagram of the present invention;
Embodiment
The composite type cubic socket comprises plug 1, Socket casing 2, A type reed 3, Type B reed 4, C type reed 5 and D type reed 6, Socket casing 2 is a cube structure, five faces are socket apertures, a face has square openings, fixing by buckle and plug 1, A type reed 3 is the mountain font structure, a slot and a wide mouth are arranged, A type reed 3 has four, first A type reed 3 slot contacts with the slot of second A type reed 3, the 3rd A type reed 3 slots contact with the slot of the 4th A type reed 3, first A type reed 3 wide mouth strides across the wide mouth of the 4th A type reed 3, second A type reed 3 wide mouth strides across the wide mouth of the 3rd A type reed 3, first A type reed 3 end and second A type reed 3 end are connected to four live wire holes by buckle, the 3rd A type reed 3 ends and the 4th A type reed 3 ends are connected to four null line holes by buckle, Type B reed 4 is cross structure, fixed by snap with the ground hole of four faces on the Socket casing 2, C type reed 5 is inclined to one side U type structure, there be one wide mouthful, C type reed 5 has two, the one C type reed 5 passes the slit of first A type reed 3, under the elasticity of spring leaf effect, contact, second C type reed 5 passes the slit of the 3rd A type reed 3, under the elasticity of spring leaf effect, contact, C type reed 5 wide mouths stride across Type B reed 4, the live wire hole of first C type reed 5 attachment plug 1 and the live wire hole of opposite socket, first C type reed 5 two ends is fixed by snap on Socket casing 2, the null line hole of second C type reed, 5 attachment plugs 1 and the null line hole of opposite socket, second C type reed 5 two ends is fixed by snap on Socket casing 2, D type reed 6 is a U type structure, there be one wide mouthful, D type reed 6 wide mouths stride across the 4th A type reed, D type reed 6 passes the slit of Type B reed 4, under the elasticity of spring leaf effect, contact, the ground hole of D type reed 6 attachment plugs 1 and the ground hole of opposite socket, D type reed 6 is fixed by snap with Socket casing 2, and is fixed by snap with plug 1.
The A type reed 3 of composite type cubic socket, Type B reed 4, C type reed 5 and D type reed 6 materials are copper, and the side of A type reed 3, C type reed 5 and D type reed 6 is H type structures.
The combination usage of composite type cubic socket is that a plurality of sockets are stitched together arbitrarily, is combined into arbitrary shape, is applicable to different occasions.
In the present invention, Socket casing and plug, the connected mode of reed can be taked other modes.The structure of other parts also can be done multi-form modification and conversion, and therefore any suitable modification and equivalent thereof all should be thought within the scope of the invention.
Claims (1)
1. composite type cubic socket, it is characterized in that comprising plug (1), Socket casing (2), A type reed (3), Type B reed (4), C type reed (5) and D type reed (6), Socket casing (2) is a cube structure, five faces are socket apertures, a face has square openings, fixing by buckle and plug (1), A type reed (3) is the mountain font structure, a slot and a wide mouth are arranged, A type reed (3) has four, first A type reed (3) slot contacts with the slot of second A type reed (3), the 3rd A type reed (3) slot contacts with the slot of the 4th A type reed (3), the wide mouth of first A type reed (3) strides across wide mouthful of the 4th A type reed (3), the wide mouth of second A type reed (3) strides across wide mouthful of the 3rd A type reed (3), first A type reed (3) is terminal and second A type reed (3) is terminal is connected to four live wire holes by buckle, the 3rd A type reed (3) is terminal and the 4th A type reed (3) is terminal is connected to four null line holes by buckle, Type B reed (4) is cross structure, fixed by snap with the ground hole of last four faces of Socket casing (2), C type reed (5) is inclined to one side U type structure, there be one wide mouthful, C type reed (5) has two, the one C type reed (5) passes the slit of first A type reed (3), under the elasticity of spring leaf effect, contact, second C type reed (5) passes the slit of the 3rd A type reed (3), under the elasticity of spring leaf effect, contact, the wide mouth of C type reed (5) strides across Type B reed (4), the live wire hole of first C type reed (5) attachment plug (1) and the live wire hole of opposite socket, first C type reed (5) two ends are fixed by snap on Socket casing (2), the null line hole of second C type reed (5) attachment plug (1) and the null line hole of opposite socket, second C type reed (5) two ends are fixed by snap on Socket casing (2), D type reed (6) is a U type structure, there be one wide mouthful, the wide mouth of D type reed (6) strides across the 4th A type reed, D type reed (6) passes the slit of Type B reed (4), under the elasticity of spring leaf effect, contact, the ground hole of D type reed (6) attachment plug (1) and the ground hole of opposite socket, D type reed (6) is fixed by snap with Socket casing (2), and is fixed by snap with plug (1).
