Abstract
The invention relates to a multi-function vacuum simmering and stir-frying pan which comprises a pan body, wherein the pan body comprises an insulation pan body and a heat-conduction pan bottom, the heat-conduction pan bottom comprises a soaking plate and a heat-transfer magnetic-conduction plate, the heat-transfer magnetic-conduction plate is positioned below the soaking plate and is attached to the soaking plate, the soaking plate and the heat-transfer magnetic-conduction plate are flat plates, the insulation pan body is in a double-layer vacuum structure, and the heat-conduction pan bottom is positioned at the lower end of the insulation pan body and is in sealing connection with the insulation pan body. The multi-function vacuum simmering and stir-frying pan solves the problems that the pan body is unevenly heated in the practical application process, the pan body is not energy-saving due to the very easy outward diffusion of heat, the processing and the production are difficult, and the operation is inconvenient. The multi-function vacuum simmering and stir-frying pan has the advantages of simple structure, easy implementation, environmental friendliness and energy saving, and can carry out heat preservation on a stir-fried meal. Besides, the added pan bottom and pan cover can also be used for other pan bodies.
Description
Technical field
The present invention relates to cooker, relate in particular to multi-function vacuum simmering and stir-frying pan.
Background technology
Before the present invention proposed, general frying pan was single layer structure mostly, on the one hand; Individual layer pot body heat transferring is fast, and the heat of thermal source passes to top very soon in the bottom of pot body, and it is inhomogeneous to cause a pot body to be heated; Be easy to produce oil smoke, environment is polluted, and the oil temperature is too high; Catch fire easily, not only waste oil and also can damage people's cognition; On the other hand, individual layer pot body rapid heat dissipation, heat are easy to toward external diffusion, and a pot body can not be incubated after having fried.
Chinese patent CN 201001616Y discloses a kind of temperature-equalizing energy-saving insulation frying pan in addition; It is a vacuum clip shell type structure; Be filled with high-efficiency heat conduction liquid in the interlayer, not enough below this frying pan exists: the one, owing to be filled with high-efficiency heat conduction liquid in the interlayer,, interlayer is difficult to realize so being evacuated; The 2nd, be high-efficiency heat conduction liquid owing to what fill in the interlayer, so the necessary horizontal positioned of pot body, it is inhomogeneous that the high-efficiency heat conduction liquid flow of not so filling causes a pot body to be heated, extremely inconvenience in the actual use.
Summary of the invention
The objective of the invention is in order to solve the deficiency that above-mentioned background technology exists, propose a kind of simple in structure, environmental protection, energy-conservation, fuel-economizing, the multi-function vacuum simmering and stir-frying pan that can be incubated and can on electromagnetic oven, use to the food after having fried.
For realizing above-mentioned purpose, the present invention adopts following technical scheme: multi-function vacuum simmering and stir-frying pan comprises a pot body; It is characterized in that forming at the bottom of said pot body is by fireless cooker body and heat-conducting pot, comprise soaking plate and heat transfer magnetic conductive board at the bottom of the heat-conducting pot, the heat transfer magnetic conductive board is positioned at below the soaking plate and is close to soaking plate; Soaking plate and heat transfer magnetic conductive board are dull and stereotyped; Fireless cooker is as the double-layer vacuum structure, and is positioned at fireless cooker body lower end at the bottom of the heat-conducting pot, and is tightly connected with the fireless cooker body.
In such scheme; Also comprise the bottom of a pan internal layer of being processed by corrosion resistant plate at the bottom of the said heat-conducting pot, the bottom of a pan internal layer is that the bottom surface is the drawing part of circular flat, the solid aluminium sheet of soaking plate for matching with internal layer bottom surface, the bottom of a pan; And the lower surface of internal layer bottom surface, the bottom of a pan and the upper surface of soaking plate connect and are tightly connected through covering back welding; Soaking plate lower surface and heat transfer magnetic conductive board upper surface connect and are tightly connected through covering back welding, because the heat transfer property of aluminium better and low price, so soaking plate is selected aluminium sheet for use; But because many degree absorption aluminium is harmful, so also must add one deck the bottom of a pan internal layer above the soaking plate.
In such scheme; Said fireless cooker body comprises a pot body inner bag, shell and oral area circle; Wherein pot body inner bag and shell upper end is tightly connected through the oral area circle, and pot body inner bag and shell lower end are tightly connected at the bottom of through brace and heat-conducting pot, and such design is processing of the present invention for ease.
In such scheme, said fireless cooker body be shaped as cylindrical or spherical or taper.
In such scheme, the more munificent degree of said soaking plate is 0.5mm～15mm.
In such scheme, the optimum thickness of said soaking plate is 4mm～10mm, and such thickness had both guaranteed the heat transfer property at the bottom of the heat-conducting pot, has guaranteed the thermally equivalent performance at the bottom of the heat-conducting pot again.
In such scheme, the present invention also comprises the double-layer vacuum heat insulation pedestal of open upper end lower end sealing, the base upper-end inner diameter greater than heat-conducting pot at the bottom of the bottom surface external diameter, such design is in order to prevent to have fried pot body scald human body or desktop after the dish.
In such scheme, the sidewall shape of said base is cylindrical or spherical or taper.
In such scheme; The present invention comprises that also cross section is the circular heat insulation pot cover of double-layer vacuum; The pot cover lower surface is provided with a circle seal boss; This boss matches with the internal diameter that fireless cooker is held on one's body, and the pot cover upper surface also is provided with the vacuum handle, and such design can let the present invention after having fried food, can also be incubated food.
Adopt the design of soaking plate and heat transfer magnetic conductive board combining structure at the bottom of the heat-conducting pot of the present invention; And the optimum thickness of soaking plate is 4mm～10mm, therefore, and can store heat at the bottom of the heat-conducting pot; The magnetic conductive board of thermally equivalent at the bottom of the heat-conducting pot, and heat transfer like this guaranteed the pot physical efficiency on electromagnetic oven, use; Particularly adopt fireless cooker as the double-layer vacuum structure Design, make the pot body have heat preservation effect; And the combination of these two kinds of structures has guaranteed that a pot body not only is heated and evenly can be incubated, but also has guaranteed to be processed into the easy realization of product; Base that adds in addition and pot cover can also further improve the heat-insulating property of pot body, and prevent pot a body scald human body or a desktop.Solved in the actual application and a pot body to occur and be heated inhomogeneously, be easy to produce oil smoke, environment is polluted, and the oil temperature has been too high, is easy to leak, not only waste oil also can be known from experience the problem that damages to the people; Also having solved Granted publication number realizes for the temperature-equalizing energy-saving insulation frying pan difficult processing of CN 201001616Y and must horizontal positioned cause awkward problem; Also having solved the pot body heat content is easy to toward external diffusion, not problem of energy saving.
The present invention's easy realization simple in structure, environmental protection, energy-conservation, fuel-economizing can also be incubated the food after having fried, and the bottom of a pan that adds and pot cover also are applicable to other pot body.
Description of drawings

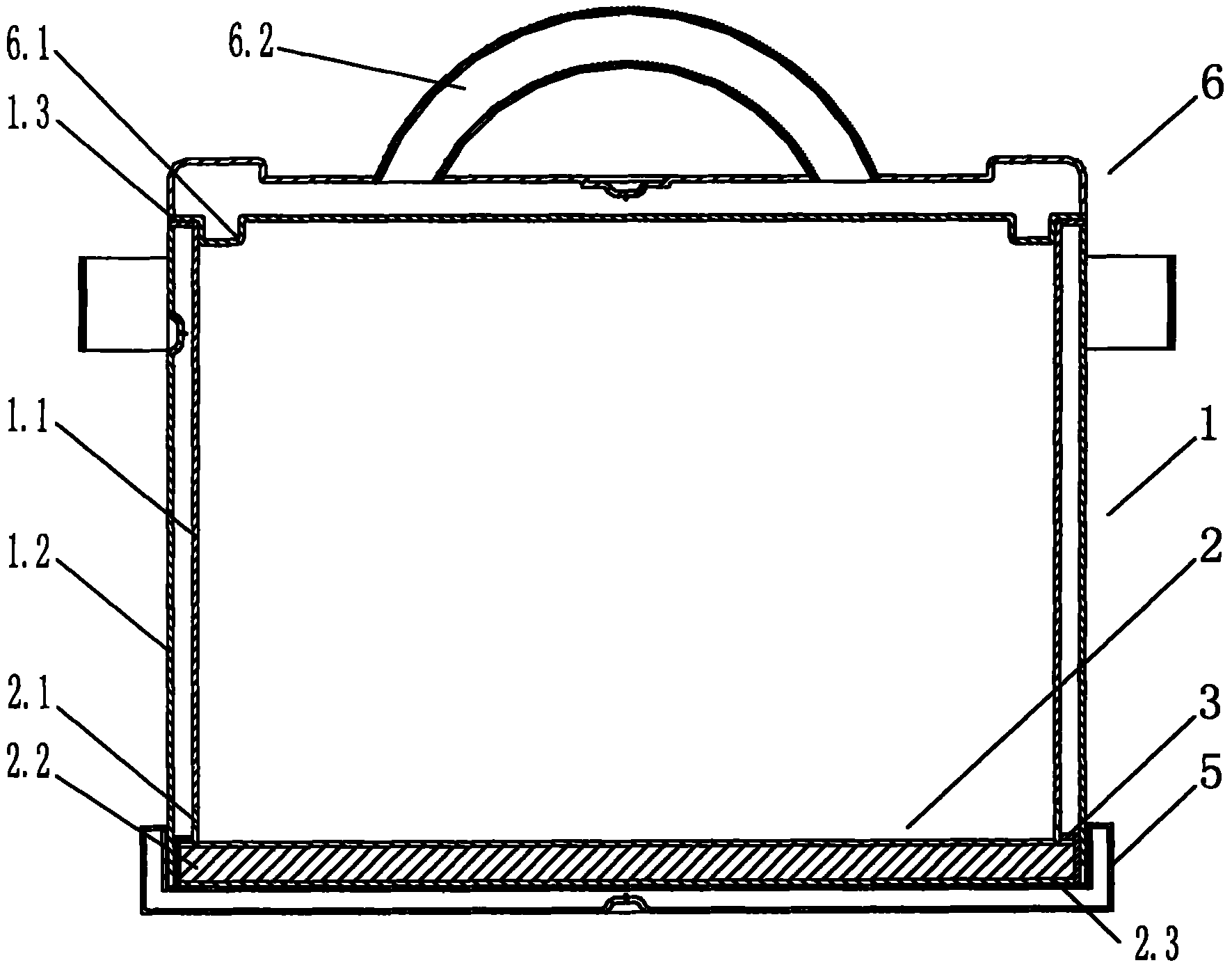

Fig. 1 is the profile of embodiment.
Fig. 2 is the profile of base.
The specific embodiment
Present embodiment comprises by the 2 pot bodies formed at the bottom of fireless cooker body 1 and the heat-conducting pot; 2 comprise soaking plate 2.2 and heat transfer magnetic conductive board 2.3 at the bottom of the heat-conducting pot; Heat transfer magnetic conductive board 2.3 is positioned at below the soaking plate 2.2 and is close to soaking plate 2.2, and soaking plate 2.2 is dull and stereotyped with heat transfer magnetic conductive board 2.3, and fireless cooker body 1 is the double-layer vacuum structure; And 2 are positioned at fireless cooker body 1 lower end at the bottom of the heat-conducting pot, and are tightly connected with fireless cooker body 1.2 also comprise the bottom of a pan internal layer of being processed by corrosion resistant plate 2.1 at the bottom of the said heat-conducting pot; The bottom of a pan internal layer 2.1 is the drawing part of circular flat for the bottom surface; The solid aluminium sheet of soaking plate 2.2 for matching with the bottom of a pan internal layer 2.1 bottom surfaces; And the lower surface of the bottom of a pan internal layer 2.1 bottom surfaces and the upper surface of soaking plate 2.2 connect and are tightly connected through covering back welding, and soaking plate 2.2 lower surfaces and heat transfer magnetic conductive board 2.3 upper surfaces connect and are tightly connected through covering back welding.2 go back the double-deck combining structure that directly adopts nontoxic soaking plate 2.2 and heat transfer magnetic conductive board 2.3 at the bottom of certain heat-conducting pot.The preferred thickness of said soaking plate 2.2 is 0.5mm～15mm.The optimum thickness of said soaking plate 2.2 is 4mm～10mm.
Above-mentioned fireless cooker body 1 comprises a pot body inner bag 1.1, shell 1.2 and oral area circle 1.3; Wherein pot body inner bag 1.1 is tightly connected through oral area circle 1.3 with shell 1.2 upper ends; Pot body inner bag 1.1 and shell 1.2 lower ends through brace 3 with 2 be tightly connected at the bottom of the heat-conducting pot, fireless cooker body 1 can also adopt monoblock type double-layer vacuum structure certainly.This fireless cooker body 1 be shaped as cylindrical or spherical or taper.
Present embodiment also comprises the double-layer vacuum heat insulation pedestal 5 of open upper end lower end sealing, base 5 upper-end inner diameter greater than heat-conducting pot at the bottom of 2 bottom surface external diameters.This base 5 can be made monoblock type double-layer vacuum structure, also can make split welded type double-layer vacuum structure.The sidewall shape of said base 5 is cylindrical or spherical or taper.This base 5 is not only applicable to the present invention, also is applicable to various pot bodies.
Present embodiment comprises that also cross section is the circular heat insulation pot cover 6 of double-layer vacuum, and pot cover 6 lower surfaces are provided with a circle seal boss 6.1, and this boss 6.1 matches with the internal diameter of pot body 1 upper end, and pot cover 6 upper surfaces also are provided with vacuum handle 6.2.This pot cover 6 can be made monoblock type double-layer vacuum structure, also can make split welded type double-layer vacuum structure, and the number of vacuum handle 6.2 designs according to actual needs.
Claims (5)
1. multi-function vacuum simmering and stir-frying pan comprises a pot body, it is characterized in that (2) are formed at the bottom of said pot body is by fireless cooker body (1) and heat-conducting pot; (2) comprise soaking plate (2.2) and heat transfer magnetic conductive board (2.3) at the bottom of the heat-conducting pot; Heat transfer magnetic conductive board (2.3) is positioned at below the soaking plate (2.2) and is close to soaking plate (2.2), and soaking plate (2.2) and heat transfer magnetic conductive board (2.3) are dull and stereotyped, and fireless cooker body (1) is the double-layer vacuum structure; And (2) are positioned at fireless cooker body (1) lower end at the bottom of the heat-conducting pot, and are tightly connected with fireless cooker body (1);
(2) also comprise the bottom of a pan internal layer of being processed by corrosion resistant plate (2.1) at the bottom of the said heat-conducting pot; The bottom of a pan internal layer (2.1) is the drawing part of circular flat for the bottom surface; The solid aluminium sheet of soaking plate (2.2) for matching with the bottom of a pan internal layer (2.1) bottom surface; And the lower surface of the bottom of a pan internal layer (2.1) bottom surface and the upper surface of soaking plate (2.2) connect and are tightly connected through covering back welding, and soaking plate (2.2) lower surface and heat transfer magnetic conductive board (2.3) upper surface connect and are tightly connected through covering back welding;
Said fireless cooker body (1) comprises a pot body inner bag (1.1), shell (1.2) and oral area circle (1.3); Wherein pot body inner bag (1.1) and shell (1.2) upper end is tightly connected through oral area circle (1.3), and pot body inner bag (1.1) and shell (1.2) lower end are tightly connected through brace (3) and (2) at the bottom of the heat-conducting pot;
The double-layer vacuum heat insulation pedestal (5) that also comprises open upper end lower end sealing, base (5) upper-end inner diameter greater than heat-conducting pot at the bottom of (2) bottom surface external diameter;
Comprise that also cross section is the circular heat insulation pot cover of double-layer vacuum (6), pot cover (6) lower surface is provided with a circle seal boss (6.1), and this boss (6.1) matches with the internal diameter of fireless cooker body (1) upper end, and pot cover (6) upper surface also is provided with vacuum handle (6.2).
2. multi-function vacuum simmering and stir-frying pan according to claim 1 is characterized in that cylindrical or spherical or the taper of being shaped as of said fireless cooker body (1).
3. multi-function vacuum simmering and stir-frying pan according to claim 1 and 2, the thickness that it is characterized in that said soaking plate (2.2) is 0.5mm～15mm.
4. multi-function vacuum simmering and stir-frying pan according to claim 1 and 2, the thickness that it is characterized in that said soaking plate (2.2) is 4mm～10mm.
5. multi-function vacuum simmering and stir-frying pan according to claim 1 and 2, the sidewall shape that it is characterized in that said base (5) is cylindrical or spherical or taper.
