Abstract
The embodiment of the invention discloses a packaging turnover frame for packaging electric equipment, comprising a base and at least one fixing frame, wherein the base is used for supporting the electric equipment; the fixing frame is used for fixing the electric equipment and comprises an upright post which is inserted into the base; and the base comprises a plurality of connecting piece groups, wherein the connecting piece groups respectively comprise a containing part and a supporting part, the containing part is provided with a containing groove, the upright post is inserted into a fixed cavity, the supporting part comprises a rotating shaft and an overturning part sleeved with the rotating shaft, the overturning part can rotate around the rotating shaft, and both ends of the overturning part are provided with a support table used for supporting the packaging turnover frame and a containing groove used for containing the upright post. The packaging turnover frame can be folded to be placed, thereby saving the cost. The embodiment of the invention also discloses a packaging turnover frame assembly and an electric equipment assembly which utilize the packaging turnover frame.
Description
Technical field
The present invention relates to the logistlcs technology field, relate in particular to a kind of frame packaging turnover, frame packaging turnover combination and electronic machine combination that is used to transport or deposit electronic machine.
Background technology
Along with the development of electronics industry globalization, electronic machine uses from making, process, be sold to formally, often will be all over the world through repeatedly transporting.And in the process of each transhipment, often need electronic machine is packed again, to be adapted to different traffic conditions.Like this, along with the frequent transhipment of large batch of electronic machine in global range, be very huge for the consumption of packing, do not meet the demand of current green industry.
Therefore, be necessary to provide a kind of frame packaging turnover of reusable electronic machine to reach correspondingly packing method.
Summary of the invention
The embodiment of the invention discloses a kind of frame packaging turnover, be used to pack electronic machine.Described frame packaging turnover comprises that one is used for the base of support electronic equipment, and at least one fixed frame that is used for fixing electronic machine.Described fixed frame comprises the column that is inserted on the described base.Described base comprises a plurality of attaching parts groups, wherein.Described a plurality of attaching parts group comprises a resettlement section and a support portion respectively, be provided with accepting groove in the described resettlement section, described column is inserted in the described lock chamber, described support portion comprises S. A. and is sheathed on upset portion on the described S. A., the turning part can be around described S. A. rotation, and the two ends of turning part are provided with the brace table that is used for described supporting package turnover rack and are used to accommodate the accepting groove of column.
The embodiment of the invention also discloses a kind of frame packaging turnover combination, be used to pack a plurality of electronic machines.Described frame packaging turnover combination comprises a plurality of frame packaging turnovers that are stacked together.Described frame packaging turnover comprises base and fixed frame.Described fixed frame comprises column.Described fixed frame is inserted on the described base by described column.Described base comprises a plurality of attaching parts groups.Described attaching parts group comprises that one is used to support the support portion of described fixed frame.Be provided with turnover accepting groove in the described support portion.Wherein, the end of the column of the frame packaging turnover that is in lower position in the described a plurality of frame packaging turnovers that are stacked together is fixed in the described accepting groove, is stacked in the frame packaging turnover of higher position with support.
The embodiment of the invention more provides the combination of a kind of electronic machine, comprises a base that is used for support electronic equipment, is placed in electronic machine on the described base, and at least one fixed frame that is used for fixing described electronic machine.Described fixed frame comprises the column that is inserted on the described base.Described base comprises a plurality of attaching parts groups.Described a plurality of attaching parts group comprises a resettlement section and a support portion respectively.Be provided with accepting groove in the described resettlement section.Described column is inserted in the described lock chamber.Described support portion comprises that a S. A. and is sheathed on the upset portion on the described S. A..The turning part can serve as the axle rotation with described S. A..The two ends of turning part are respectively equipped with the brace table that an accepting groove and is used for described supporting package turnover rack.
The frame packaging turnover of the embodiment of the invention is reusable, and can improve the degree of utilization of resource corresponding to the electronic machine of multiple dimensions, meets the requirement of green industry.Under the situation of needs, the frame packaging turnover of the embodiment of the invention can directly stack, and need not redesign the instrument of making or utilizing other, provides cost savings.
Description of drawings
In order to be illustrated more clearly in the embodiment of the invention or technical scheme of the prior art, to do to introduce simply to the accompanying drawing of required use in embodiment or the description of the Prior Art below, apparently, accompanying drawing in describing below only is some embodiments of the present invention, for those of ordinary skills, under the prerequisite of not paying creative work, can also obtain other accompanying drawing according to these accompanying drawings.
Fig. 1 is the assembled view of the frame packaging turnover of the embodiment of the invention;
Fig. 2 is the scheme drawing of base of the frame packaging turnover of the embodiment of the invention;
Fig. 3 is in the enlarged view of holding state for the support portion of the attaching parts group of the embodiment of the invention;
Scheme drawing when Fig. 4 is in coupled condition for the support portion of the embodiment of the invention; And
The scheme drawing that stacks into the frame packaging turnover combination of the frame packaging turnover of a plurality of embodiment of the invention when Fig. 5 is in coupled condition for support portion 244.
The specific embodiment
Below in conjunction with the accompanying drawing in the embodiment of the invention, the technical scheme in the embodiment of the invention is clearly and completely described, obviously, described embodiment only is the present invention's part embodiment, rather than whole embodiment.Based on the embodiment among the present invention, those of ordinary skills belong to the scope of protection of the invention not making the every other embodiment that is obtained under the creative work prerequisite.

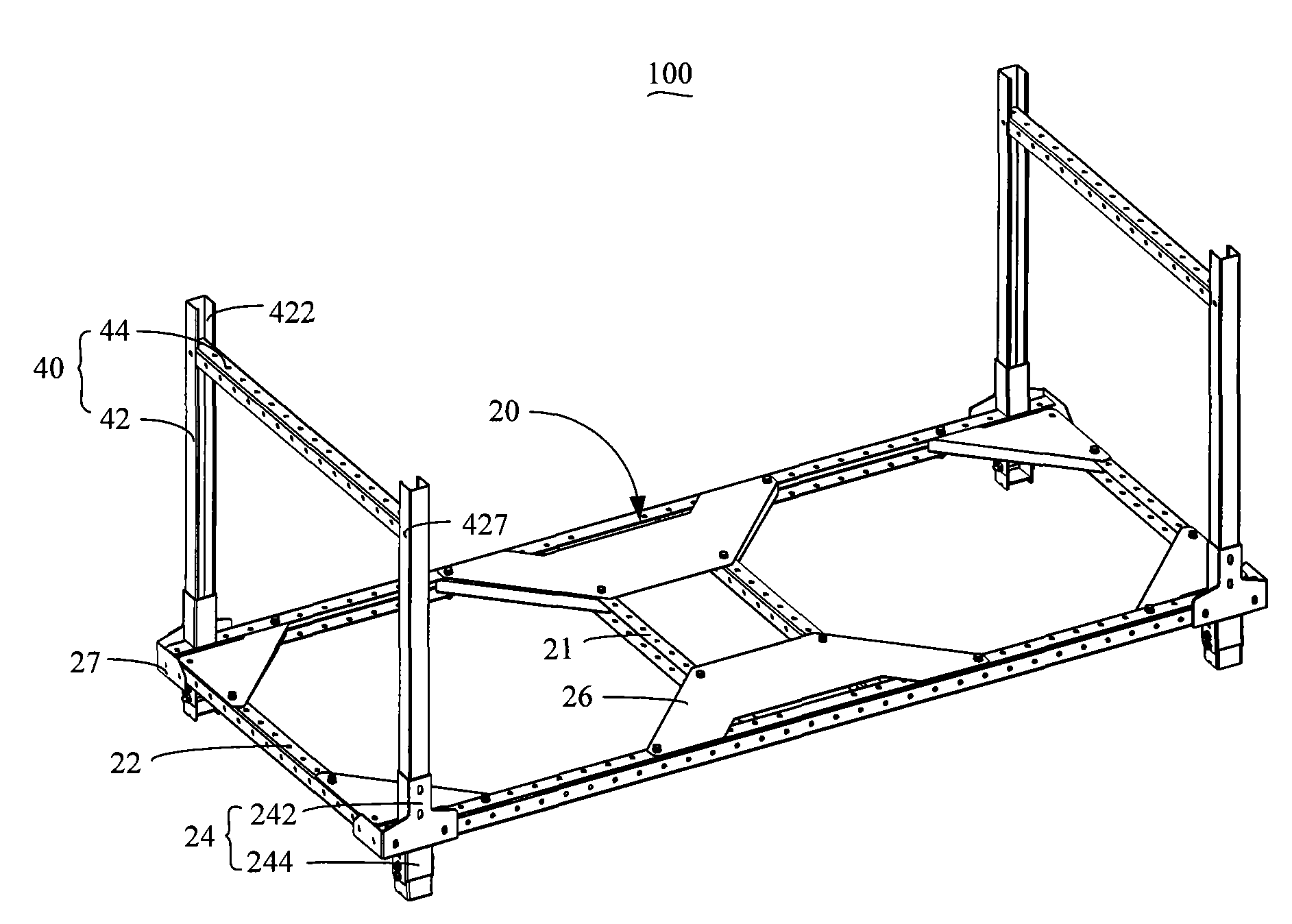

Please refer to Fig. 1, Figure 1 shows that the assembled view of the frame packaging turnover 100 of the embodiment of the invention.Described frame packaging turnover 100 comprise a base 20 that is used to load electronic machine, and a plurality of and described base 20 can plug bonded assembly fixed frame 40.Described a plurality of fixed frame 40 all is convexly set in a side of described base 20, is used for electronic machine is fixed in described base 20.
In the present embodiment, described fixed frame 40 is an arcuation, and described a plurality of fixed frame 40 is parallel to each other, to be used for the various piece of stationary electronic devices respectively.Described fixed frame 40 comprises a pair of column 42 that is inserted on the described base 20, and is located between the described column 42 and the back timber 44 of captiveing joint with described column 42.A relative side of a described column 42 is provided with chute 422, also is equiped with retaining element 427 on the sidepiece of a described column 42.The two ends of described back timber 44 are inserted in respectively in the chute 422 of a described column 42, and are fixed in wherein by described retaining element 427.More specifically, described retaining element 427 comprises bolt and is located at the bolt hole of described chute 422 sidepieces, described bolt is fixed in described back timber 44 between the described column 42 by described bolt hole, further, 422 sidepiece of the chute of described column 42 also can be provided with a plurality of bolts hole, thereby can adjust the height of described back timber 44 according to actual needs, with electronic machine corresponding to different size.
In other alternate embodiments, the frame packaging turnover of the embodiment of the invention can be equipped with the fixed frame 40 of multiple shape specification, and also can be inclined to certain angle mutually between described a plurality of fixed frame 40, with the electronic machine corresponding to various tool special shapes.
Described base 20 comprises a plurality of bottom girders 22, and described bottom girder 22 is provided with a plurality of bolts hole 222, and described base 20 is the framed structures that are spliced by bolt by described a plurality of bottom girders 22.In the present embodiment, described base 20 is a rectangle, and it comprises four end to end bottom girders 22, and in other alternate embodiments, described base 20 also can be other shapes such as circle, triangle, to be used to carry the electronic machine of different shape.In the present embodiment, be bolted to connection between described a plurality of bottom girders 22, and in other alternate embodiments, described bottom girder 22 keys also can wait other mode captive joints by welding.The frame packaging turnover 100 of the embodiment of the invention also can additionally set up a plurality of auxiliary bottom girders 21 in the inside of described base 20, to improve the weight capacity of base 20.
Also be overlapped with a plurality of stay bearing plates 26 on the described base 20, described a plurality of stay bearing plates 26 are fixedly connected between a plurality of bottom girders 22 by bolt 27, are used for the supplemental support electronic machine.
The periphery of described base 20 also is installed with a plurality of baffle plates 27, is used to prevent electronic machine landing from the described base 20.
Described base 20 also comprises a plurality of attaching parts groups 24, described a plurality of attaching parts groups 24 by bolt on bottom girder 22.Described attaching parts group 24 comprises fixed part 242 that is used for fixing fixed frame 40 and the support portion 244 that is used for supporting package turnover rack 100.In embodiments of the present invention, described fixed part 242 with state support portion 244 and captive joint with described base 20 respectively, and outstanding in the opposite direction respectively.In other alternate embodiments, described fixed part 242 and described support portion 244 also can be one-body molded, and with base 20 on a plurality of bottom girders 22 in several being bolted to connection.In the present embodiment, be equipped with a plurality of bolts hole on the bottom girder 22 of base 20, thereby the position of described a plurality of attaching parts group 24 on described base 20 can be adjusted according to actual needs.
Please refer to Fig. 2, Figure 2 shows that the scheme drawing of base of the frame packaging turnover of the embodiment of the invention.Described fixed part 242 is convexly set in the top of described base 20.Be provided with the lock chamber 2422 of the column 42 that is used to accommodate fixed frame 40 in the described fixed part 242, and the sidepiece of described fixed part 242 is provided with bolt hole, column 42 is fixed in the described lock chamber 2422 by bolt.
Described support portion 244 comprises Connection Block 2442, upset portion 2444 and two sidewalls 2446 that are fixed on the described Connection Block 2442.Described Connection Block 2442 is captiveed joint with base 20.In the present embodiment, described Connection Block 2442 separates with described fixed part 242, in other alternate embodiments, described fixed part 242 also can be captiveed joint with described Connection Block 2442 or be one-body molded, and is fixed on the described base 20 by described Connection Block 2442.
Described two side 2446 is set in parallel on the described Connection Block 2442, and is provided with a S. A. 2445 between the described two side 2446, and in the present embodiment, described S. A. 2445 is for being inserted in the bolt between the described two side 2446.
Turning part 2444 is located between the two side 2446, and be sheathed on the described S. A. 2445, thereby turning part 2444 can serve as that axle carries upset between the described two side 2446 with described S. A. 2445, and then switch between holding state and coupled condition according to the upset situation of turning part 2444 described support portion 244.Concrete, the two ends of turning part 2444 are respectively equipped with brace table 2452 and accepting groove 2454.Also be provided with location division 2453 on the brace table 2452 of turning part 2444 and the sidepiece of accepting groove 2454, also be provided with knock hole on the described two side, described location division 2453 can be the depression of being located at the through hole of turning part 2444 sidepieces or being located at 2444 two ends, turning part.Described support portion 244 also comprises locations 2457, when turning part 2444 turn to described accepting groove 2454 or brace table 2452 towards Connection Block 2442, described locations 2457 can pass described location division 2453 and described knock hole just, so that current location is fixed in turning part 2444.
Please, Figure 3 shows that the support portion 244 of attaching parts group 24 is in the enlarged view of holding state together with reference to Fig. 1 and Fig. 3.When described accepting groove 2454 during towards described Connection Block 2442,244 of described support portions are in holding state, and this moment, described brace table 2452 protruded in described support portion 244, to be used to support the frame packaging turnover 100 of the embodiment of the invention.
Please, Figure 4 shows that the scheme drawing when described support portion 244 is in coupled condition, the scheme drawing that stacks into the frame packaging turnover combination of the frame packaging turnover 100 of a plurality of embodiment of the invention when Fig. 5 is in coupled condition for support portion 244 together with reference to Fig. 4 and Fig. 5.When described support portion 244 was in coupled condition, the brace table 2452 of support portion 244 was towards described Connection Block 2442, and accepting groove 2452 is towards the outside of described support portion 244, to be used to accommodate the column 42 of the frame packaging turnover 100 that is placed in the below.What easily full of beard reached is in the present embodiment, can column 42 be fixed in the accepting groove 2452 by bolt, to improve the stability of overall architecture.
In actual applications, at first fixed frame 40 and attaching parts group 24 are taken off on base 20, electronic machine is placed on the base 20 then, again install attaching parts group 24 and fixed frame 40 according to the shape and size of electronic machine again, promptly finished the electronic machine combination of the frame packaging turnover of having used the embodiment of the invention.What easily full of beard reached is when transporting the electronic machine of same dimensions, before putting electronic machine, only to need to remove fixed frame 40 and get final product, to save more time.
Under obsolete situation, the combination of the electronic machine of the embodiment of the invention can be pulled down electronic machine by simple tools from the frame packaging turnover 100 of the embodiment of the invention, easy to operate.And because fixed frame 40 easy accessibility of frame packaging turnover 100 of the invention process, under obsolete situation, the frame packaging turnover 100 of the embodiment of the invention is deposited conveniently, and it is little to take up room.Under the situation of needs, the frame packaging turnover 100 of having reprinted the embodiment of the invention of electronic machine can also stack, to reduce the electronic machine transportation and to deposit space shared in the process.
In the process of the transportation of electronic machine, the frame packaging turnover 100 of the embodiment of the invention with firm being fixed on the base 20 of electronic machine, has guaranteed transporting safely of electronic machine by fixed frame 40 and baffle plate 27.
To sum up, the frame packaging turnover 100 of the embodiment of the invention is reusable, and can improve the degree of utilization of resource corresponding to the electronic machine of multiple dimensions, meets the requirement of green industry.Under the situation of needs, the frame packaging turnover 100 of the embodiment of the invention can directly stack, and need not redesign manufacturing or utilize extra supplemental support instrument, provides cost savings.
The above only is several embodiments of the present invention, and those skilled in the art can carry out various changes or modification to the present invention and do not break away from the spirit and scope of the present invention according to application documents are disclosed.
Claims (11)
1. a frame packaging turnover is used to pack electronic machine, comprises that one is used for the base of support electronic equipment, and at least one fixed frame that is used for fixing electronic machine, described fixed frame comprises the column that is inserted on the described base, it is characterized in that, described base comprises a plurality of attaching parts groups, wherein
Described a plurality of attaching parts group comprises a fixed part and a support portion respectively, described fixed part and described support portion are outstanding in the opposite direction respectively, be provided with lock chamber in the described fixed part, described column is inserted in the described lock chamber, described support portion comprises Connection Block, one S. A. and one is sheathed on the upset portion on the described S. A., described Connection Block is captiveed joint with described base, the turning part can serve as the axle rotation with described S. A., the two ends of turning part are respectively equipped with the brace table that an accepting groove and is used for described supporting package turnover rack, switch between holding state and coupled condition according to the upset situation of turning part described support portion, wherein, when described accepting groove during towards described Connection Block, described support portion is in holding state, described brace table protrudes in described support portion, to be used to support described frame packaging turnover; When described brace table during towards described Connection Block, described support portion is in coupled condition, and described accepting groove is towards the outside of described support portion, to be used to accommodate the column of another frame packaging turnover that is placed in described frame packaging turnover below.
2. frame packaging turnover as claimed in claim 1 is characterized in that the periphery of described base also is provided with baffle plate, is used to prevent electronic machine landing from the described base.
3. frame packaging turnover as claimed in claim 1 is characterized in that, described attaching parts group is selectable to be positioned on a plurality of positions of described base.
4. frame packaging turnover as claimed in claim 1 is characterized in that, described attaching parts group also comprises locations, is used to locate the turning part.
5. frame packaging turnover as claimed in claim 1 is characterized in that, also is overlapped with stay bearing plate on the described base, is used for the supplemental support electronic machine.
6. a frame packaging turnover combination is used to pack a plurality of electronic machines, it is characterized in that, described frame packaging turnover combination comprises a plurality of frame packaging turnovers that are stacked together, and described frame packaging turnover comprises:
Base and fixed frame,
Described fixed frame comprises column, and described fixed frame is inserted on the described base by described column,
Described base comprises a plurality of attaching parts groups, described attaching parts group comprises a fixed part and a support portion, described fixed part and described support portion are outstanding in the opposite direction respectively, be provided with lock chamber in the described fixed part, described column is inserted in the described lock chamber, described support portion comprises Connection Block, one S. A. and one is sheathed on the upset portion on the described S. A., described Connection Block is captiveed joint with described base, the turning part can serve as the axle rotation with described S. A., the two ends of turning part are respectively equipped with the brace table that an accepting groove and is used for described supporting package turnover rack, switch between holding state and coupled condition according to the upset situation of turning part described support portion, wherein, when described accepting groove during towards described Connection Block, described support portion is in holding state, described brace table protrudes in described support portion, to be used to support described frame packaging turnover; When described brace table during towards described Connection Block, described support portion is in coupled condition, and described accepting groove is towards the outside of described support portion, being used to accommodate the column of another frame packaging turnover that is placed in described frame packaging turnover below,
Wherein, the end of the column of the frame packaging turnover that is in lower position in the described a plurality of frame packaging turnovers that are stacked together is fixed in the accepting groove of the frame packaging turnover that is in the higher position, is stacked in the frame packaging turnover of higher position with support.
7. frame packaging turnover as claimed in claim 6 combination is characterized in that the periphery of described base also is provided with baffle plate, is used to prevent electronic machine landing from the described base.
8. frame packaging turnover combination as claimed in claim 6 is characterized in that, also is overlapped with stay bearing plate on the described base, is used for the supplemental support electronic machine.
9. electronic machine combination, comprise a base that is used for support electronic equipment, be placed in electronic machine on the described base, and at least one fixed frame that is used for fixing described electronic machine, described fixed frame comprises the column that is inserted on the described base, it is characterized in that, described base comprises a plurality of attaching parts groups, wherein
Described a plurality of attaching parts group comprises a fixed part and a support portion respectively, described fixed part and described support portion are outstanding in the opposite direction respectively, be provided with lock chamber in the described fixed part, described column is inserted in the described lock chamber, described support portion comprises Connection Block, one S. A. and one is sheathed on the upset portion on the described S. A., described Connection Block is captiveed joint with described base, the turning part can serve as the axle rotation with described S. A., the two ends of turning part are respectively equipped with the brace table that an accepting groove and is used for described supporting package turnover rack, switch between holding state and coupled condition according to the upset situation of turning part described support portion, wherein, when described accepting groove during towards described Connection Block, described support portion is in holding state, described brace table protrudes in described support portion, to be used to support described frame packaging turnover; When described brace table during towards described Connection Block, described support portion is in coupled condition, and described accepting groove is towards the outside of described support portion, to be used to accommodate the column of another frame packaging turnover that is placed in described frame packaging turnover below.
10. electronic machine as claimed in claim 9 combination is characterized in that, described attaching parts group is selectable to be positioned on a plurality of positions of described base.
11. electronic machine combination as claimed in claim 9 is characterized in that described attaching parts group also comprises locations, is used to locate the turning part.
