散热筋直驱永磁同步单轴承风力发电机，其包括端板(1)，机座(2)，定子(3)，转子(5)，端盖(6)，机座(2)与端板(1)相连，定子(3)固定在机座(2)内，其特征在于，机座(2)外侧圆周上设有散热筋(4)，定子(3)和转子(5)由两个同心圆筒构成，在它们相对的两个表面上分别设有绕组和永久磁铁，相对于定子(3)旋转的转子(5)紧固在轴承(8)的外圈上，轴承(8)的内圈与圆锥形支撑(7)连接，圆锥形支撑(7)与端板(1)连接，位于风机轮毂侧的轴承(8)侧面连接有制动器(9)。本发明结构简单紧凑，散热效果好，效率高，便于运输和安装。
A heat dissipation rib direct-drive permanent magnet synchronous single-bearing wind turbine, which includes an end plate (1), a frame (2), a stator (3), a rotor (5), an end cover (6), a frame (2) and an end plate The plates (1) are connected, and the stator (3) is fixed in the machine base (2). It is characterized in that a cooling rib (4) is provided on the outer circumference of the machine base (2), and the stator (3) and the rotor (5) are composed of two It consists of two concentric cylinders, and windings and permanent magnets are respectively provided on their two opposite surfaces. The rotor (5) rotating relative to the stator (3) is fastened on the outer ring of the bearing (8), and the bearing (8) The inner ring of the inner ring is connected with the conical support (7), the conical support (7) is connected with the end plate (1), and the side of the bearing (8) located on the hub side of the fan is connected with a brake (9). The invention has simple and compact structure, good heat dissipation effect, high efficiency, and is convenient for transportation and installation.
Description
技术领域Technical field
本发明涉及一种永磁同步风力发电机，尤其是涉及一种散热筋直驱永磁同步单轴承风力发电机。The invention relates to a permanent-magnet synchronous wind-driven generator, in particular to a heat-dissipating rib direct-drive permanent-magnet synchronous single-bearing wind-driven generator.
背景技术 Background technique
国内外各电机厂家研制的直驱式永磁发电机，经过实际运行，有的虽然已经并网发电，但运行还不稳定，可靠性有待进一步验证和提高，特别是，由于电机在电磁、发热及散热分析、支撑结构等方面还存在大量问题，使得电机性能指标较低、温升不可预测，控制特性不好，而且电机过重，运输和吊装十分不便，极容易在吊装过程中造成机械变形。例如，德国的Vensys公司生产和我国某公司引进的1.2MW直驱式永磁发电机采用外转子、内定子的结构，.虽然运行效率高，但自身散热能力很差，需采用内部辅助通风的散热形式，才能正常运行。The direct-drive permanent magnet generators developed by various motor manufacturers at home and abroad, after actual operation, although some have been connected to the grid for power generation, the operation is still unstable, and the reliability needs to be further verified and improved. There are still a lot of problems in heat dissipation analysis, support structure, etc., which make the performance index of the motor low, the temperature rise unpredictable, the control characteristics are not good, and the motor is too heavy, which is very inconvenient for transportation and hoisting, and it is very easy to cause mechanical deformation during the hoisting process . For example, the 1.2MW direct-drive permanent magnet generator produced by Vensys in Germany and imported by a company in my country adopts the structure of outer rotor and inner stator. Although the operating efficiency is high, its own heat dissipation capacity is very poor, and internal auxiliary ventilation is required. Only in the form of heat dissipation can it operate normally.
发明内容Contents of Invention
本发明的目的在于克服现有技术的缺点，提供一种结构简单紧凑，散热效果好，效率高，便于运输和安装的散热筋直驱永磁同步单轴承风力发电机。The purpose of the present invention is to overcome the shortcomings of the prior art, and provide a simple and compact structure, good heat dissipation effect, high efficiency, and easy transportation and installation of heat dissipation rib direct-drive permanent magnet synchronous single-bearing wind power generator.
本发明的目的是通过以下技术方案实现的：其包括包括端板，机座，定子，转子，端盖，机座与端板相连，定子固定在机座内，机座外侧圆周上设有散热筋，定子和转子由两个同心圆筒构成，在它们相对的两个表面上分别设有绕组和永久磁铁，相对于定子旋转的转子紧固在轴承的外圈上，轴承的内圈与圆锥形支撑连接，圆锥形支撑与端板连接，位于风机轮毂侧的轴承侧面连接有制动器。The purpose of the present invention is achieved through the following technical solutions: it includes an end plate, a machine base, a stator, a rotor, an end cover, the machine base is connected with the end plate, the stator is fixed in the machine base, and a heat dissipation device is provided on the outer circumference of the machine base. Ribs, the stator and the rotor are composed of two concentric cylinders, and windings and permanent magnets are respectively provided on their two opposite surfaces. The rotor rotating relative to the stator is fastened to the outer ring of the bearing, and the inner ring of the bearing is connected to the cone The conical support is connected with the end plate, and the side of the bearing on the hub side of the fan is connected with a brake.
本发明机座外侧设有散热筋，利用表面自然风冷却，提高散热能力，散热性能好，无需采用内部辅助通风的散热形式，解决了外转子风力发电机因采用内部通风，风沙对电枢绕组和永磁体的腐蚀问题，防护效果好；采用单轴承结构，使结构更加紧凑；采用圆锥形支撑固定结构，使得在电机内部形成较大空腔，方便风机轮毂的安装及轮毂、叶片内器件的日常维护，改善风机系统的热平衡，便于电流传导电缆的固定以及防雷击等；采用永磁材料形成磁场，减小了电机体积，提高了电机效率，增加了运行的可靠性和使用寿命；采用整体结构，便于现场安装和运输。The outer side of the machine base of the present invention is equipped with heat dissipation ribs, which can be cooled by natural wind on the surface to improve the heat dissipation performance, and the heat dissipation performance is good, without using the heat dissipation form of internal auxiliary ventilation, which solves the problem of wind and sand on the armature windings of the external rotor wind power generator due to the internal ventilation. And the corrosion problem of permanent magnets, the protection effect is good; the single bearing structure is adopted to make the structure more compact; the conical support and fixed structure is adopted to form a large cavity inside the motor, which is convenient for the installation of the fan hub and the daily maintenance of the components in the hub and blades Maintenance, improve the thermal balance of the fan system, facilitate the fixing of current conduction cables and lightning protection, etc.; use permanent magnet materials to form a magnetic field, reduce the size of the motor, improve the efficiency of the motor, and increase the reliability and service life of the operation; adopt the overall The structure is convenient for on-site installation and transportation.
附图说明Description of drawings

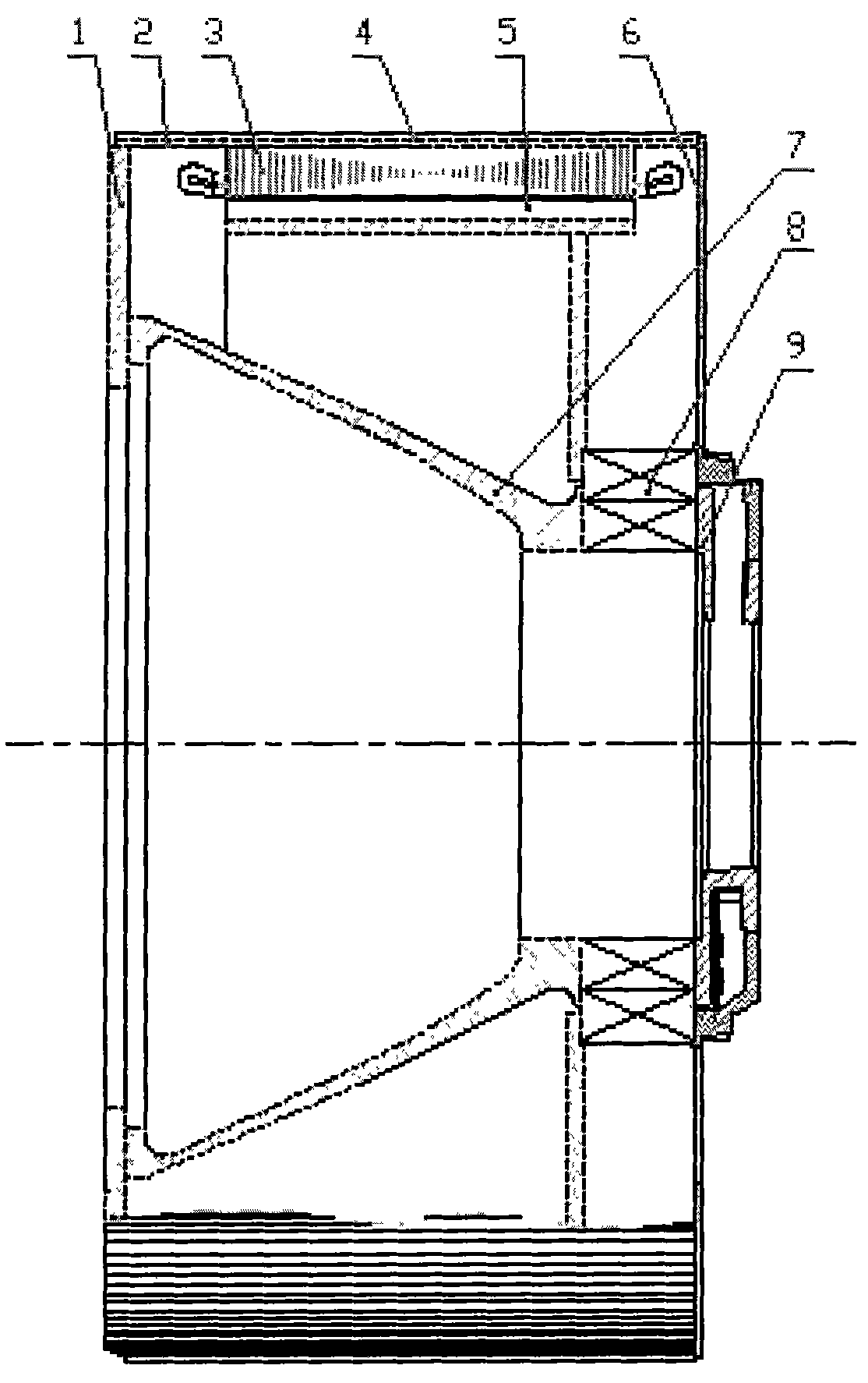

图1是本发明一实施例的结构示意图。Fig. 1 is a schematic structural diagram of an embodiment of the present invention.
具体实施方式 Detailed ways
下面结合附图和实施例对本发明作进一步详细说明。The present invention will be described in further detail below in conjunction with the accompanying drawings and embodiments.
参照附图，本实施例包括端板1，机座2，定子3，转子5，端盖6，机座2与端板1相连，机座2外侧圆周上有散热筋4，定子3和转子5由两个同心圆筒构成，在它们相对的两个表面上分别设有绕组和永久磁铁，定子3固定在机座2内，相对于定子3旋转的转子5紧固在轴承8的外圈上，轴承8的内圈与圆锥形支撑7连接，圆锥形支撑7与端板1连接，位于风机轮毂侧的轴承8侧面连接有制动器9。Referring to the accompanying drawings, this embodiment includes an end plate 1, a frame 2, a stator 3, a rotor 5, and an end cover 6. 5 is composed of two concentric cylinders, and windings and permanent magnets are respectively provided on their two opposite surfaces. The stator 3 is fixed in the frame 2, and the rotor 5 rotating relative to the stator 3 is fastened to the outer ring of the bearing 8 Above, the inner ring of the bearing 8 is connected to the conical support 7, the conical support 7 is connected to the end plate 1, and the side of the bearing 8 located on the hub side of the fan is connected to a brake 9.
本发明在与机舱和风机轮毂连接之前，可单独装配成整体。首先将定子3和机座2组装成一体，将圆锥形支撑固定在端板1上，然后将制动器9、轴承8、转子5组装后套入定子3内，固定在圆锥形支撑7上，这样电机就构成了一整体。接下来采用紧固件将此发电机与机舱连接，最后在发电机内部紧固发电机与风机轮毂之间的连接。Before the present invention is connected with the nacelle and the fan hub, it can be assembled separately into a whole. First, the stator 3 and the base 2 are assembled into one body, and the conical support is fixed on the end plate 1, then the brake 9, the bearing 8, and the rotor 5 are assembled and inserted into the stator 3, and fixed on the conical support 7, so that The motor forms a whole. The generator is then connected to the nacelle with fasteners, and finally the connection between the generator and the wind turbine hub is fastened inside the generator.
