Abstract
The invention relates to a cylinder weaving machine for removing crinkle which comprises a frame, an electricity motor, two initiative pressing roller, two driven pressing rollers, a fan, a guiding cloth roller, and a vent-pipe. The up end of the frame is provided with a guiding roller arranged with a cloth barrel on the down end. The inner of the cloth barrel is arranged with a vent-pipe of which down end communicated with the fan. The up end of the vent-pipe is provided with an air outlet. The two driven pressing rollers are fixed symmetrically on the two side of the vent-pipe via a bearing base. The frame is provided with two initiative pressing rollers driven by motor and opposite to the two driven pressing rollers. The two creases of the cloth are placed between the two groups of the initiative and the driven pressing rollers. The crease is planished by the press and the running of the initiative pressing rollers and the driven pressing rollers. The invention has the advantages of that simple configuration, reasonable design, high efficiency, low cost, and low damage to cloth.
Description
Affiliated technical field
The present invention relates to a kind of fabric device for de-wrinkling, particularly a kind of crimple eliminating machine for cylindrical shape knitting cloth.
Background technology
Along with the development of China's textile industry and improving constantly of people's living standard, particularly in line with international standards after, the outlet of textiles increases day by day, people are also more and more higher to the quality requirement of textiles.Yet, exist an insoluble problem for cylindrical knitted cloth: the crease that has a strong impact on the product appearance quality always.For this difficult problem, people have taked many measures, as: bleaching and dyeing before the processing with blank cloth open-width, with high-temperature shaping machine pre-setting; In bleaching and dyeing process, add softener, anti-creasing agent, strengthen and to bleaching and dyeing bath raio, to reduce extruding between cloth and the cloth etc.; Perhaps, after bleachinging and dyeing, adopt support width of cloth device, cloth is laterally strutted, increase fabric width, to remove crease.Chinese patent ZL200420062137.1 discloses the smooth collator of a kind of cylindrical knitted cloth, carry out powerful cross directional stretch with bleachinging and dyeing the moist cylindrical knitted cloth in processing back, the door width of cloth is expanded to original 1.5 to 2 times, this moment, the knitted cloth needle cycle changed, behind the support width of cloth in the knitting circle between yarn contact point move to both sides significantly, needle cycle middle part yarn almost is straightened, and then under the decatize condition, cloth is carried out longitudinal stretching, make and laterally return to the preceding fabric width of the support width of cloth, the needle cycle shape is also restored thereupon, to eliminate crease.Though it is smooth that the cloth after adopting above-mentioned smooth collator to bleaching and dyeing process carries out, and can remove crease,, the time that this moment, folding line formed is longer, and the cloth quality has been produced certain influence.And the powerful horizontal support width of cloth, longitudinal stretching cause injury once more to cloth.In addition, laterally supportting the width of cloth, longitudinal stretching needs carry out under the decatize condition, makes that the structure of smooth collator is comparatively complicated.
Summary of the invention
For overcoming the deficiencies in the prior art part, the invention provides a kind of simple in structure, reasonable in design, can before bleaching and dyeing process, use, the crimple eliminating machine for cylindrical shape knitting cloth little to cloth damage.
The technical solution adopted for the present invention to solve the technical problems is: comprise frame, motor, initiative compression roller, from dynamic pressure roller, blower fan, draw cloth rewinder roll, ventilation duct; The upper end of frame is equipped with by bearing and is drawn cloth rewinder roll, and this draws cloth rewinder roll and can rotate with the frictional force that itself and cloth produce, and will treat in the whole cloth introducing machine; The below of drawing cloth rewinder roll is provided with the cloth bucket, is provided with ventilation duct in the cloth bucket, and the lower end and the blower fan of ventilation duct interlink; The upper end of ventilation duct is provided with air outlet; Two both sides of being fixed in ventilation duct from dynamic pressure roller by bearing block symmetrically, on frame, be equipped with two by motor-driven initiative compression roller, two initiative compression rollers are corresponding from dynamic pressure roller with two, constitute two groups of driving and driven pressure rollers, the twice folding line of cloth places respectively between two groups of driving and driven pressure rollers, by pressure and initiative compression roller, from the rotation of dynamic pressure roller, cloth is moved downwards, and flatten crease.
Be equipped with in the upper end of ventilation duct and cloth can be supportted cylindrical circular width holder.
Above-mentioned initiative compression roller and motor are loaded on the motor frame regularly, and the two ends of this motor frame place in the chute on the frame, and the motor frame links to each other with cylinder on being fixed in frame.Like this,, drive the motor frame and in the chute of frame, move, thereby make the motion of initiative compression roller by the action of cylinder, realize initiative compression roller with from the pressing of dynamic pressure roller with separate.
Above-mentioned initiative compression roller is a rubber rollers.
Above-mentioned is steel rider from dynamic pressure roller.
During work, the cylindrical knitted cloth that preceding working procedure is come causes the top of frame through drawing cloth rewinder roll, cloth is supportted cylindrical with width holder, and the twice crease that makes cylindrical knitted cloth places two groups of initiative compression rollers respectively and between the dynamic pressure roller, regulate cylinder, initiative compression roller is pressed to from dynamic pressure roller, to the pressure that is fit to.Start blower fan, wind-force enters ventilation duct from the lower end of ventilation duct, and air outlet from its upper end blows out again, utilizes wind-force with columnar knitted cloth support De Gengkai.Starter motor. drive initiative compression roller and rotate, with being interposed in initiative compression roller and moving down from the cylindrical knitted cloth between the dynamic pressure roller, simultaneously, crease is flattened, the knitted cloth after the pressing falls in the cloth bucket.
Beneficial effect of the present invention is: utilize wind-force with cloth blow out cylindrical shape, the twice crease of cylindrical knitted cloth before adopting two groups of driving and driven pressure rollers to bleaching and dyeing process flattens processing, simple in structure, reasonable in design, can effectively remove crease, existing support width of cloth device is little to the injury of cloth, guaranteed the quality of knitted cloth, and high efficiency, processing cost is low, has improved economic benefit.
Description of drawings

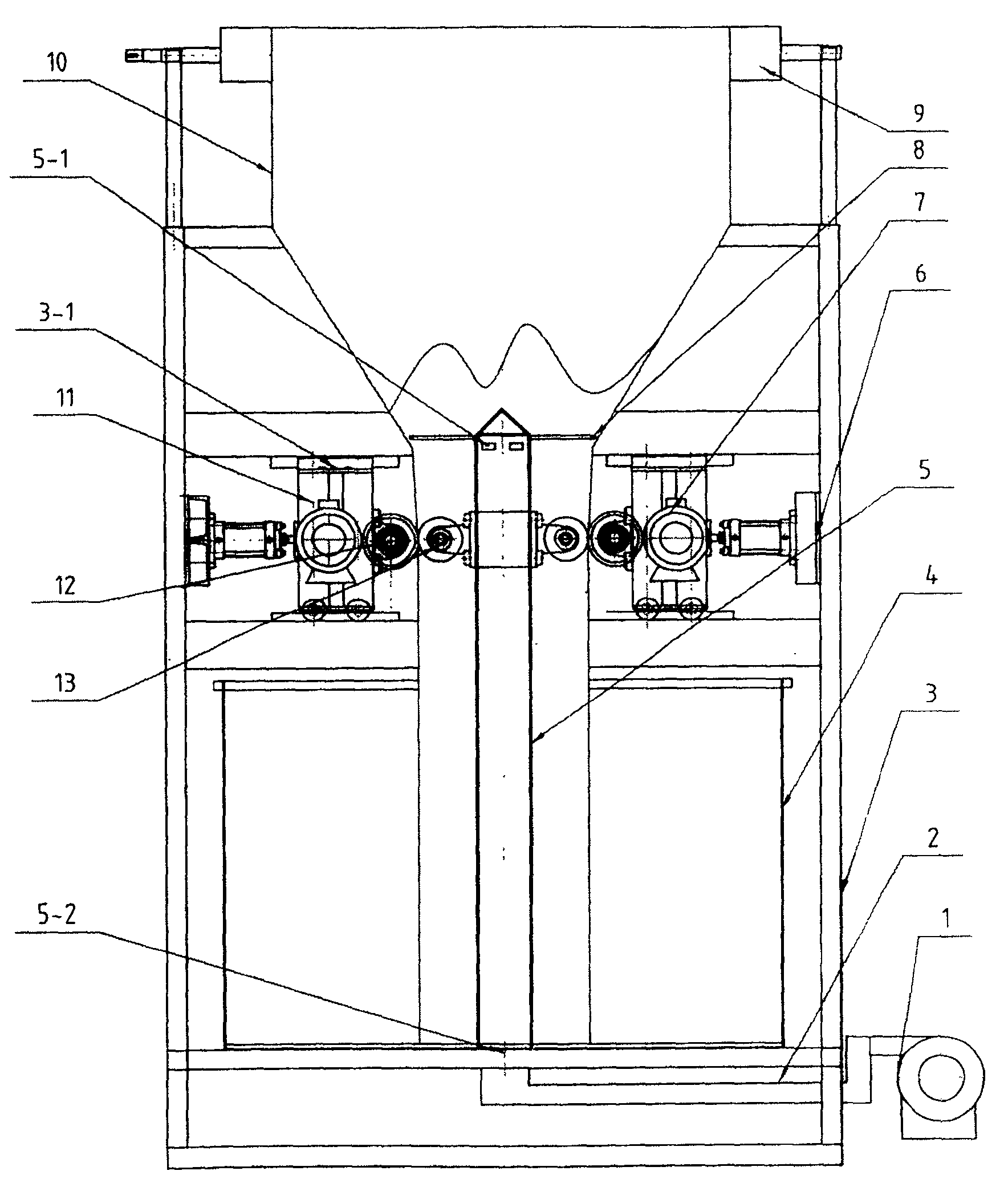

Fig. 1 is the structural representation of the embodiment of the invention.
Among the figure: for blower fan, 2 is that air channel, 3 is that frame, 3-1 are that chute, 4 is that cloth bucket, 5 is that ventilation duct, 5-1 are that air outlet, 5-2 are that air inlet, 6 is that cylinder, 7 is that motor, 8 width holders, 9 are that cloth, 11 is that motor frame, 12 is that initiative compression roller, 13 is from dynamic pressure roller for drawing cloth rewinder roll, 10.
The specific embodiment
The invention will be further described below in conjunction with drawings and Examples.
The present invention includes: comprise frame 3, motor 7, motor frame 11, initiative compression roller 12, from dynamic pressure roller 13, blower fan 1, air channel 2, draw cloth rewinder roll 9, ventilation duct 5, width holder 8 and cloth bucket 4; The upper end of frame 3 is equipped with by bearing and is drawn cloth rewinder roll 9, and this draws cloth rewinder roll 9 can be with in cloth to be put in order the 10 introducing machines, and it can rotate with the frictional force that itself and cloth 10 produces; The below of drawing cloth rewinder roll 9 is provided with cloth bucket 4, is provided with ventilation duct 5 in the cloth bucket 4 with one heart, and the bottom air inlet mouth 5-2 of the ventilation duct 5 of hollow interlinks by air channel 2 and blower fan 1; The upper end sealing of ventilation duct 5, the upper end sidewall is provided with several air outlets 5-1; Being equipped with in the upper end of ventilation duct 5 can be with the cylindrical circular annular width holder 8 of cloth 10 supports.Two be steel rider from dynamic pressure roller 13, be loaded on the both sides of ventilation duct 5 symmetrically by bearing block, be positioned at the below of width holder 8.Two for the initiative compression roller 12 of rubber rollers is loaded on the two motor framves 11 after 7 groupings link to each other with two motors regularly, and two motor framves 11, two both sides from dynamic pressure roller 13 that are placed in make initiative compression roller 12 with corresponding from dynamic pressure roller 13.The two ends of motor frame 11 place in the chute 3-1 on the frame 3, and motor frame 11 links to each other with cylinder 6 on being fixed in frame 3.
During work, the circular knitting cloth 10 that preceding working procedure is come causes the top of frame 3 through drawing cloth rewinder roll 9, and is with width holder 8 that cloth 10 supports are cylindrical, and make the twice crease of cloth 10 place two groups of initiative compression rollers 12 respectively and between the dynamic pressure roller 13.Regulate cylinder 6, drive motors frame 11 is pressed to from dynamic pressure roller 13 initiative compression roller 12, to the pressure that is fit to.Start blower fan 1, wind-force enters in the ventilation duct 5 from the lower end air inlet 5-2 of ventilation duct 5, and air outlet 5-1 from its upper end blows out again, utilizes wind-force with columnar knitting fabric 10 support De Gengkai.Starter motor 7 drives initiative compression roller 12 and rotates, and with being interposed in initiative compression roller 12 and moving down from the circular knitting cloth 10 between the dynamic pressure roller 13, simultaneously, crease is flattened, and the cloth 10 after the pressing falls in the cloth bucket 4.
Claims (4)
1, the cylindrical shape shrink removing machine of weaving cotton cloth is characterized in that: comprise frame, motor, initiative compression roller, from dynamic pressure roller, blower fan, draw cloth rewinder roll, ventilation duct; The upper end of frame is equipped with and is drawn cloth rewinder roll, will treat in the whole cloth introducing machine; The below of drawing cloth rewinder roll is provided with the cloth bucket, is provided with ventilation duct in the cloth bucket, and the lower end and the blower fan of ventilation duct interlink; The upper end of ventilation duct is provided with air outlet; Be equipped with in the upper end of ventilation duct and cloth can be supportted cylindrical circular width holder; Two both sides of being fixed in ventilation duct from dynamic pressure roller by bearing block symmetrically, on frame, be equipped with two by motor-driven initiative compression roller, two initiative compression rollers are corresponding from dynamic pressure roller with two, constitute two groups of driving and driven pressure rollers, the twice folding line of cloth places respectively between two groups of driving and driven pressure rollers, flattens crease by pressure.
2, the cylindrical shape according to claim 1 shrink removing machine of weaving cotton cloth, it is characterized in that: above-mentioned initiative compression roller and motor are loaded on the motor frame regularly, and the two ends of this motor frame place in the chute on the frame, and the motor frame links to each other with cylinder on being fixed in frame.
3, the cylindrical shape according to claim 1 shrink removing machine of weaving cotton cloth, it is characterized in that: above-mentioned initiative compression roller is a rubber rollers.
4, the cylindrical shape according to claim 1 shrink removing machine of weaving cotton cloth, it is characterized in that: above-mentioned is steel rider from dynamic pressure roller.
