Abstract
The present invention discloses a dust removing device for two-section type dust collectors, which comprises an upstream cyclone separator and a plurality of downstream cyclone separators, wherein the downstream cyclone separators are positioned at the lower part of the upstream cyclone separator; an air outlet of the upstream cyclone separator is communicated with air inlets of the downstream cyclone separators. The present invention can simultaneously increase air quantity, reduce the volume of the body, and maintain higher dust removing efficiency. Because the downstream cyclone separators adopt the diffusing type structure, when rotating in a barrel body, airflow is in a decelerating and centrifuging condition. The present invention has the advantages of low airflow pressure loss and good dust suction effect.
Description
Technical field
The present invention relates to a kind of dust collection unit of two segmentation type dust cleaner.
Background technology
In traditional dust catcher filter is installed, purpose is that the dirty air that will suck filters, therefore dust granule is stayed in the dust collect plant,, this type of dust catcher is after using a period of time, the user should clear up filter or change, otherwise, after the filter opening of filter is stopped up by thin dust, can increase the resistance of vacuum motor, severe patient even can burn out motor has not only brought trouble to the user, and can influence the performance and the life-span of dust catcher.
In recent years, manufacturer substitutes filter according to the principle of cyclonic separation with cyclone dust collector, has obtained dust removing effects preferably, therefore is widely applied on the dust catcher.This cyclone dust collector is provided with a conical shell that the upper end is big, the lower end is little in the dirt cup, the upper end of conical shell vertically is provided with a discharge pipe, the lower ending opening of conical shell is so that dust falls into dirt cup bottom, blast pipe also tangentially enters in the conical shell upper portion side wall, make the air-flow that has dust in conical shell, produce whirlwind, dust granule drops to the dust-collecting box bottom at action of centrifugal force lower edge conical shell sidewall, and the air-flow after the dedusting is upwards discharged through discharge pipe.
But cyclone dust collector also exists the bigger shortcoming of volume, and particularly the cyclone dust collector volume that uses on the large-scale dust catcher that the wind flow requirement is bigger is just bigger, not only increased cost, and the user uses also cumbersome.
Summary of the invention
The objective of the invention is: a kind of dust collection unit of two segmentation type dust cleaner is provided, this device comprises the downstream cyclone separator of a upstream cyclone and several underlyings, the air outlet of upstream cyclone is communicated with the air inlet of several downstream separator, can when not increasing body volume, improve air quantity, keep higher efficiency of dust collection.
Technical scheme of the present invention is: a kind of dust collection unit of two segmentation type dust cleaner, this device comprises a upstream cyclone and several downstream cyclone separators, the downstream cyclone separator is positioned at the below of upstream cyclone, and the air outlet of upstream cyclone is communicated with the air inlet of downstream cyclone separator.
The further technical scheme of the present invention is: a kind of dust collection unit of two segmentation type dust cleaner, this device comprises a upstream cyclone and several downstream cyclone separators, the downstream cyclone separator is positioned at the below of upstream cyclone, and the air outlet of upstream cyclone is communicated with the air inlet of downstream cyclone separator; Described upstream cyclone comprises a cylindrical shape dirt cup with whirlwind air inlet, the interior coaxial cylindrical shape filter mantle that is covered with aperture that is provided with of cylindrical shape dirt cup, the top of cylindrical shape dirt cup is provided with air outlet, the bottom is provided with the dust fall mouth, and the top end opening of cylindrical shape filter mantle also is connected with air outlet; Be covered with exterior cover pipeline on the described cylindrical shape dirt cup, air outlet is communicated with the air inlet of downstream cyclone separator with formed air channel, gap between the cylindrical shape dirt cup by exterior cover pipeline; The hypomere of described cylindrical shape dirt cup is funnel-form, and the inwall of funnel-form dirt cup is provided with the spiral vane that a circle is rotated down; The crown center of described exterior cover pipeline is provided with downward protrusion and part stretches into tapered protrusion in the cylindrical shape filter mantle.
The more detailed technical scheme of the present invention is: a kind of dust collection unit of two segmentation type dust cleaner, this device comprises a upstream cyclone and several downstream cyclone separators, the downstream cyclone separator is positioned at the below of upstream cyclone, and the air outlet of upstream cyclone is communicated with the air inlet of downstream cyclone separator; Described upstream cyclone comprises a cylindrical shape dirt cup with whirlwind air inlet, the interior coaxial cylindrical shape filter mantle that is covered with aperture that is provided with of cylindrical shape dirt cup, the top of cylindrical shape dirt cup is provided with air outlet, the bottom is provided with the dust fall mouth, and the top end opening of cylindrical shape filter mantle also is connected with air outlet; Be covered with exterior cover pipeline on the described cylindrical shape dirt cup, air outlet is communicated with the air inlet of downstream cyclone separator with formed air channel, gap between the cylindrical shape dirt cup by exterior cover pipeline; The hypomere of described cylindrical shape dirt cup is funnel-form, and the inwall of funnel-form dirt cup is provided with the spiral vane that a circle is rotated down; The crown center of described exterior cover pipeline is provided with downward protrusion and part stretches into tapered protrusion in the cylindrical shape filter mantle; Described downstream cyclone separator comprises that one has the cylindrical tube of whirlwind air inlet, and the lower end of cylindrical tube is connected with divergent-cone wall, and cylindrical tube is connected with the small end of divergent-cone wall, the interior coaxial discharge pipe that is provided with of cylindrical tube; Be provided with a double-deck fan housing between described upstream cyclone and several downstream cyclone separators, the inner ring of double-deck fan housing is outlet housing with in, the discharge pipe of downstream cyclone separator is communicated with outlet housing, the side of outlet housing is connected with exhaust duct, between the inner ring of double-deck fan housing and the outer ring is air intake cover, air intake cover is communicated with the air channel, the below of air intake cover is provided with the whirlwind cover, air intake cover is communicated with the whirlwind cover, and the epimere of the cylindrical tube of downstream cyclone separator and the whirlwind air inlet that is arranged on the epimere thereof are arranged in the whirlwind cover; The axial line that described several downstream cyclone separators that are positioned at the upstream cyclone below are arranged in upstream cyclone is on the same circumference in the center of circle, connect dividing plate between two adjacent downstream cyclone separators, form the control of dust tube in the middle of the dividing plate, the dust fall mouth of cylindrical shape dirt cup bottom passes double-deck fan housing from the middle part and the whirlwind cover is communicated with the control of dust tube; The bottom of described divergent-cone wall is provided with the umbrella shape reflecting disc, the center of umbrella shape reflecting disc is provided with return port, be provided with the dust fall annular space between the periphery of umbrella shape reflecting disc and the sidewall of divergent-cone wall, the bottom of divergent-cone wall is connected with dust hopper, and the bottom of dust hopper and middle part control of dust tube is provided with lower cover.
Advantage of the present invention is:
1. the present invention includes the downstream cyclone separator of a upstream cyclone and several underlyings, the air outlet of upstream separator is communicated with the air inlet of several downstream cyclone separators, can when not increasing body volume, improve air quantity, keep higher efficiency of dust collection.
2. because the air-out of upstream cyclone of the present invention enters the whirlwind air inlet of downstream cyclone separator from the interior road around the dirt cup, and several downstream cyclone separators are circle-shaped distribution, the centre is the control of dust tube of upstream cyclone, therefore structure is compact, and the layout of upstream cyclone and following cyclonic separation is more convenient.
3. the conical shell of downstream of the prior art cyclone separator all is funnel shaped, the whirlwind air inlet is positioned at the big end in top, rely on air-flow to quicken rotation and come dust-separating, so the pressure loss of air-flow is bigger, influenced the pick-up performance of dust catcher, and, the air-flow that quickens will sink to the fine dust of dirt cup bottom easily and kick up once more, discharge from discharge pipe with air-flow, produce secondary pollution, and downstream of the present invention cyclone separator adopts the diffusion type structure, conical shell is that the upper end is little, the shape that the lower end is big, the whirlwind air inlet is positioned at the top small end, and air-flow is the speed reducing centrifugal state when rotating in conical shell, make the stream pressure loss little, therefore can obtain pick-up performance preferably.
4. the air-flow rotary speed of cyclone separator bottom, downstream of the present invention is slower than top, therefore can avoid the dust of dirt cup bottom to produce dust raising phenomenon, thereby can not produce the situation of secondary pollution.
Description of drawings
The invention will be further described below in conjunction with drawings and Examples:
Fig. 1 is an assembling schematic diagram of the present invention;

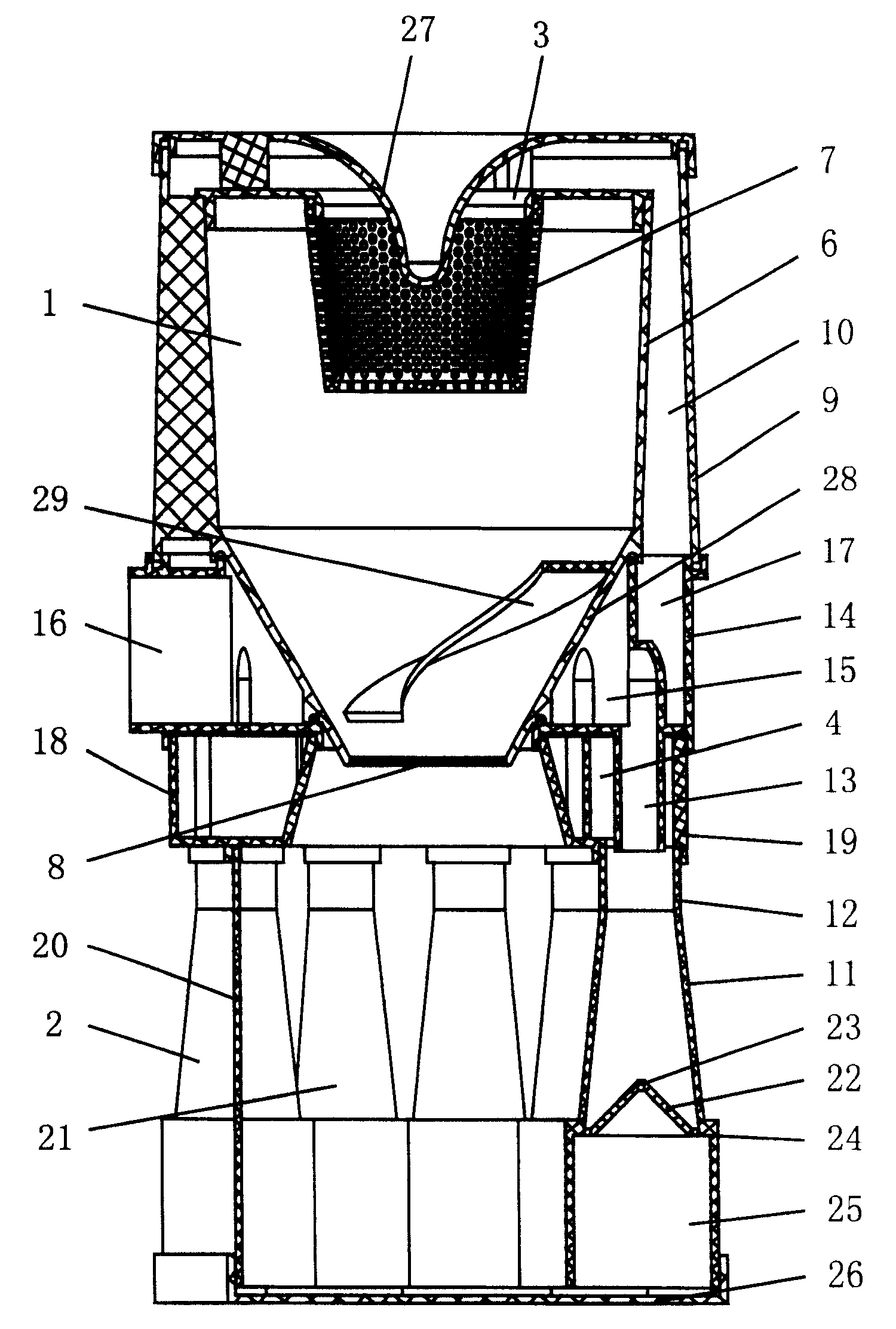

Fig. 2 looks cutaway view for master of the present invention;
Fig. 3 is an outline drawing of the present invention.
Wherein: 1 upstream cyclone; 2 downstream cyclone separators; 3 air outlets; 4 whirlwind air inlets; 5 whirlwind air inlets; 6 cylindrical shape dirt cups; 7 cylindrical shape filter mantles; 8 dust fall mouths; 9 exterior cover pipelines; 10 air channels; 11 divergent-cone walls; 12 cylindrical tubes; 13 discharge pipes; 14 double-deck fan housings; 15 outlet housings; 16 exhaust ducts; 17 air intake covers; 18 whirlwind covers; 19 epimeres; 20 dividing plates; 21 control of dust tubes; 22 umbrella shape reflecting discs; 23 return ports; 24 dust fall annular spaces; 25 dust hoppers; 26 lower covers; 27 tapered protrusion; 28 funnel-form dirt cups; 29 spiral vanes.
The specific embodiment
Embodiment: as Fig. 1, Fig. 2, shown in Figure 3, a kind of dust collection unit of two segmentation type dust cleaner, this device comprises a upstream cyclone 1 and nine downstream cyclone separators 2, downstream cyclone separator 2 is positioned at the below of upstream cyclone 1, and the axial line that is arranged in upstream cyclone 1 is on the same circumference in the center of circle;
Connect dividing plate 20 between nine downstream cyclone separators 2, form control of dust tube 21 in the middle of the dividing plate 20, the dust fall mouth 8 of cylindrical shape dirt cup 6 bottoms passes double-deck fan housing 14 from the middle part and whirlwind cover 18 is communicated with control of dust tube 21;
The bottom of divergent-cone wall 11 is provided with umbrella shape reflecting disc 22, the center of umbrella shape reflecting disc 22 is provided with return port 23, be provided with dust fall annular space 24 between the sidewall of the periphery of umbrella shape reflecting disc 22 and divergent-cone wall 12, the bottom of divergent-cone wall 12 is connected with dust hopper 25, and dust hopper 25 is provided with lower cover 26 with the bottom of middle part control of dust tube 21.
During use, the dirty air that contains dust enters the cylindrical shape dirt cup 6 from whirlwind air inlet 5, cinder dirt falls into control of dust tube 21 by dust fall mouth 8, thin dust and air continue to enter the inside of cylindrical shape filter mantle 7, and enter in the air channel 10 by the air outlet 3 of cylindrical shape dirt cup 6 upper ends, enter downwards the air intake cover 17 from air channel 10 again, enter then in the whirlwind air inlet 4 of each downstream cyclone separator 2, and in cylindrical tube 12, form whirlwind, in the whirlwind process, thin dust falls along the inwall of divergent-cone wall 11, enter the bottom of dust hopper 25 by dust fall annular space 24, the air that removes dust then upwards enters outlet housing 15 from discharge pipe 13, is concentrated by the exhaust duct on the outlet housing 15 16 and discharges.
Claims (8)
1. dust collection unit of two segmentation type dust cleaner, this device comprises a upstream cyclone (1) and several downstream cyclone separators (2), downstream cyclone separator (2) is positioned at the below of upstream cyclone (1), the air outlet (3) of upstream cyclone (1) is communicated with the air inlet (4) of downstream cyclone separator (2), it is characterized in that: described upstream cyclone (1) comprises a cylindrical shape dirt cup (6) with whirlwind air inlet (5), the interior coaxial cylindrical shape filter mantle (7) that is covered with aperture that is provided with of cylindrical shape dirt cup (6), the top of cylindrical shape dirt cup (6) is provided with air outlet (3), the bottom is provided with dust fall mouth (8), and the top end opening of cylindrical shape filter mantle (7) also is connected with air outlet (3).
2. dust collection unit of two segmentation type dust cleaner according to claim 1, it is characterized in that: be covered with exterior cover pipeline (9) on the described cylindrical shape dirt cup (6), air outlet (3) is communicated with the air inlet (4) of downstream cyclone separator (2) with formed air channel, gap (10) between the cylindrical shape dirt cup (6) by exterior cover pipeline (9).
3. dust collection unit of two segmentation type dust cleaner according to claim 1 is characterized in that: the hypomere of described cylindrical shape dirt cup (6) is funnel-form, and the inwall of funnel-form dirt cup (28) is provided with the spiral vane (29) that a circle is rotated down.
4. dust collection unit of two segmentation type dust cleaner according to claim 1 is characterized in that: the crown center of described exterior cover pipeline (9) is provided with downward protrusion and part stretches into tapered protrusion (27) in the cylindrical shape filter mantle (7).
5. dust collection unit of two segmentation type dust cleaner according to claim 1, it is characterized in that: described downstream cyclone separator (2) comprises that one has the cylindrical tube (12) of whirlwind air inlet (4), the lower end of cylindrical tube (12) is connected with divergent-cone wall (11), cylindrical tube (12) is connected with the small end of divergent-cone wall (11), the coaxial discharge pipe (13) that is provided with in the cylindrical tube (11).
6. according to claim 1 or 2 or 5 described dust collection unit of two segmentation type dust cleaner, it is characterized in that: be provided with a double-deck fan housing (14) between described upstream cyclone (1) and several downstream cyclone separators (2), the inner ring of double-deck fan housing (14) is outlet housing (15) with in, the discharge pipe (13) of downstream cyclone separator (2) is communicated with outlet housing (15), the side of outlet housing (15) is connected with exhaust duct (16), between the inner ring of double-deck fan housing (14) and the outer ring is air intake cover (17), air intake cover (17) is communicated with air channel (10), the below of air intake cover (17) is provided with whirlwind cover (18), air intake cover (17) is communicated with whirlwind cover (18), and the epimere (19) of the cylindrical tube (12) of downstream cyclone separator (2) and the whirlwind air inlet (4) that is arranged on the epimere (19) thereof are arranged in the whirlwind cover (18).
7. dust collection unit of two segmentation type dust cleaner according to claim 6, it is characterized in that: the axial line that described several downstream cyclone separators (2) that are positioned at upstream cyclone (1) below are arranged in upstream cyclone (1) is on the same circumference in the center of circle, connect dividing plate (20) between adjacent two downstream cyclone separators (2), form control of dust tube (21) in the middle of the dividing plate (20), the dust fall mouth (8) of cylindrical shape dirt cup (6) bottom passes double-deck fan housing (14) from the middle part and whirlwind cover (18) is communicated with control of dust tube (21).
8. dust collection unit of two segmentation type dust cleaner according to claim 5, it is characterized in that: the bottom of described divergent-cone wall (11) is provided with umbrella shape reflecting disc (22), the center of umbrella shape reflecting disc (22) is provided with return port (23), be provided with dust fall annular space (24) between the sidewall of the periphery of umbrella shape reflecting disc (22) and divergent-cone wall (12), the bottom of divergent-cone wall (12) is connected with dust hopper (25), and dust hopper (25) is provided with lower cover (26) with the bottom of middle part control of dust tube (21).
