CN2914561Y - Intelligent illumination control system - Google Patents
Intelligent illumination control system Download PDFInfo
- Publication number
- CN2914561Y CN2914561Y CNU2006200132054U CN200620013205U CN2914561Y CN 2914561 Y CN2914561 Y CN 2914561Y CN U2006200132054 U CNU2006200132054 U CN U2006200132054U CN 200620013205 U CN200620013205 U CN 200620013205U CN 2914561 Y CN2914561 Y CN 2914561Y
- Authority
- CN
- China
- Prior art keywords
- control system
- intelligent lighting
- lighting system
- control
- local control
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/40—Control techniques providing energy savings, e.g. smart controller or presence detection
Landscapes
- Circuit Arrangement For Electric Light Sources In General (AREA)
Abstract
The utility model relates to an intelligent illumination control system. The intelligent illumination control system comprises an AC power supply, an illuminator, a local control system between the AC power supply and the illuminator for controlling ON/OFF and brightness of the illuminator, and a remote control system connected with the local control system for controlling ON/OFF and brightness of the illuminator through the local control system. According to the invention, the ON/OFF and brightness of the illuminator can be conveniently controlled by local keys or by remote network. Meanwhile, the local control system adopts independent DC power supply, and the control portion is isolated by optical coupling to completely isolate strong and weak currents, thereby improving safety of the system.
Description
Technical field
The utility model relates to Lighting Control Assembly, more particularly, relates to a kind of intelligent lighting system.
Background technology
Along with network technology, development of computer and maturation, people have also realized convenience that high-tech brings to people's life and quick, have promoted the efficient of quality of life and work.Now, the maturation of microelectric technique and intelligent-induction and detection technology provides a good technical basis for Smart Home, the development of Internet and universal for Smart Home provides a good applied environment has also indicated a developing direction for home intelligence simultaneously.Lighting Control Assembly is as the important component part of household, and some can only be controlled in this locality, and some can only pass through Long-distance Control, and aspect the fail safe of system, consider thoughtful inadequately, can not satisfy the requirement of Smart Home.
The utility model content
The technical problems to be solved in the utility model is that the above-mentioned defective at prior art provides a kind of intelligent lighting system.
The technical scheme that its technical problem that solves the utility model adopts is: construct a kind of intelligent lighting system, comprise AC power and illuminating lamp, comprise that also being used between AC power and illuminating lamp control the local control system of luminous lamp switch and brightness, link to each other with described local control system, and can be by the tele-control system of described local control system control luminous lamp switch and brightness.
In intelligent lighting system described in the utility model, described local control system comprises, the button that is used for local manual operation control luminous lamp switch and brightness, be used for the local communication interface that communicates with tele-control system, the switch element that is used for circuit control luminous lamp switch and brightness, link to each other with described button, local communication interface, switch element, and according to the native processor of the order control switch unit operating state of described button or communication interface.
In intelligent lighting system described in the utility model, described local control system also comprises and is used to preserve described local control system ID number nonvolatile storage.Described each local control system has unique ID number.
In intelligent lighting system described in the utility model, described local communication interface is the RS485 interface.
In intelligent lighting system described in the utility model, described native processor is a single-chip microcomputer.
In intelligent lighting system described in the utility model, described local control system also comprises the DC power supply that is used to provide the needed power supply of described local control system work.
In intelligent lighting system described in the utility model, described switch element comprises and is used for the optocoupler that forceful electric power separates with light current, is connected in the break-make control assembly between AC power and the illuminating lamp.Adopt the light-coupled isolation strong and weak electricity, the fail safe that has improved system.
In intelligent lighting system described in the utility model, described break-make control assembly is a relay.
In intelligent lighting system described in the utility model, described break-make control assembly is a bidirectional triode thyristor.
In intelligent lighting system described in the utility model, tele-control system comprises and is used for the signal transceiver of communicating by letter with described local control system, be used to realize network interconnection, and will be forwarded to the central controller of described signal transceiver from the remote control command of Internet.
Intelligent lighting system described in the utility model can be by this locality button or control the switch and the brightness of illuminating lamp by long-range network settings, very easy to use.Simultaneously, local control system adopts independent DC power supply, and control section adopts optocoupler to isolate, and makes the strong and weak electricity of system separate fully, has improved the fail safe of system.The structure of local control system be according at present on the market the mechanical switch structure of standard design, can be installed at the bottom of standard mechanical switch or the supply socket in the box, easy for installation, simple.Structural material is PC strength of materials height, and is durable, good insulating.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples, in the accompanying drawing:

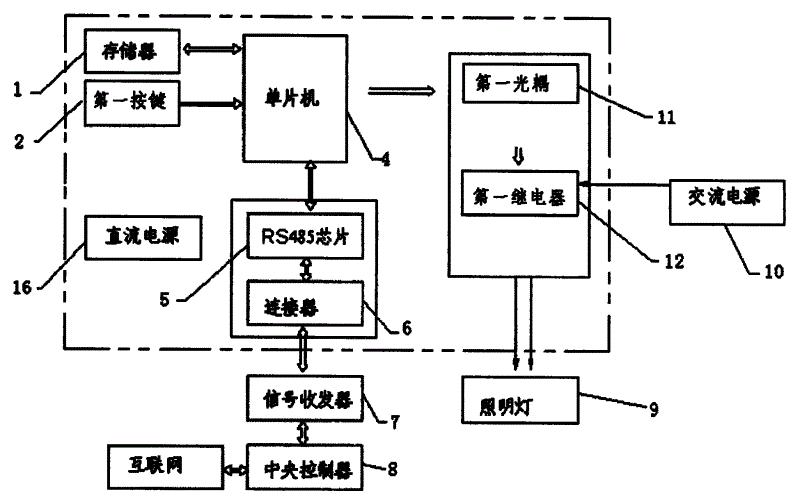

Fig. 1 is the theory diagram of first kind of embodiment of the present utility model;
Fig. 2 is the theory diagram of second kind of embodiment of the present utility model;
Fig. 3 is the theory diagram of the third embodiment of the present utility model.
Embodiment
As Fig. 1 is the theory diagram of first kind of embodiment of the present utility model, button is specially first button 2, RS485 chip 5 and connector 6 constitute local communication interface, first optocoupler 11 and first relay 12 constitute switch element, single-chip microcomputer 4 constitutes native processor, and nonvolatile storage is specially memory 1.First button 2, RS485 chip 5, connector 6, first optocoupler 11, first relay 12, single-chip microcomputer 4, memory 1 and DC power supply 16 constitute local control system.Illuminating lamp 9 is connected to AC power 10 by first relay 12 of local control system.Signal transceiver 7 and central controller 8 constitute tele-control system.The local control system of first kind of embodiment of the present utility model as shown in Figure 1 constitutes a single channel electronic switch Control Node, can control a loop.When using network control, come the switch command of automatic network to resolve by single-chip microcomputer 4 after, by control first optocoupler 11, control the break-make of first relay 12 by single-chip microcomputer, realize the break-make of loop.When using the button local operation, single-chip microcomputer 4 is judged the state of button, equally also is to pass through control first optocoupler 11 by single-chip microcomputer, controls the break-make of first relay 12, realizes the break-make of loop.During local control, during first button 2 on touching node, node makes illumination lamp ignition with regard to the conducting forceful electric power, and this moment, node just stopped to export forceful electric power if touch first button 2 on the node again, and illuminating lamp also just extinguishes.
As Fig. 2 is the theory diagram of second kind of embodiment of the present utility model, comparing with first kind of embodiment has increased by one second button 3, second optocoupler 13 and second relay 14, the local control system of second kind of embodiment constitutes two single channel electronic switch Control Node, can control two loops.When using this two-way electronic switch Control Node, during first button 2 on touching node, the node of first loop is with regard to the conducting forceful electric power, make the illumination lamp ignition of first loop, this moment is as if first button 2 that touches again on the node, node just stops to export forceful electric power, and the illuminating lamp of first loop also just extinguishes.During second button 3 on touching node, the node of second loop makes the illumination lamp ignition of second loop with regard to the conducting forceful electric power, and this moment, node just stopped to export forceful electric power if touch second button 3 on the node again, and the illuminating lamp of second loop also just extinguishes.
As Fig. 3 is the theory diagram of the third embodiment of the present utility model, compares with first kind of embodiment and has used bidirectional triode thyristor 15 to substitute first relay 12.The local control system of the third embodiment constitutes dimmable lamp electronic switch Control Node, can control a loop.During first button 2 on touching node, node makes illumination lamp ignition with regard to the conducting forceful electric power, and this moment, node just stopped to export forceful electric power if touch second button 3 on the node, and illuminating lamp also just extinguishes.Owing to used bidirectional triode thyristor 15, can illuminating lamp light gradually or extinguish operation gradually, be specially when under illuminating lamp extinguishes state, first button 2 is pinned when not putting, node just makes forceful electric power increase gradually, illuminating lamp on the loop is lighted gradually, more and more brighter to the back, reach the brightest up to illuminating lamp.When under the illumination lamp ignition state, second button to be pinned when not putting, node just makes forceful electric power weaken gradually, makes the illuminating lamp deepening gradually on the loop, and darkness deepens to the back, extinguishes at last up to illuminating lamp.
Claims (10)
1, a kind of intelligent lighting system, comprise AC power and illuminating lamp, it is characterized in that, comprise that also being used between AC power and illuminating lamp control the local control system of luminous lamp switch and brightness, link to each other with described local control system, and can be by the tele-control system of described local control system control luminous lamp switch and brightness.
2, intelligent lighting system according to claim 1, it is characterized in that, described local control system comprises, the button that is used for local manual operation control luminous lamp switch and brightness, be used for the local communication interface that communicates with tele-control system, be used for the switch element of circuit control luminous lamp switch and brightness, link to each other with described button, local communication interface, switch element, and according to the native processor of the order control switch unit operating state of described button or communication interface.
3, intelligent lighting system according to claim 1 is characterized in that, described local control system also comprises and is used to preserve described local control system ID number nonvolatile storage.
4, intelligent lighting system according to claim 2 is characterized in that, described local communication interface is the RS485 interface.
5, intelligent lighting system according to claim 2 is characterized in that, described native processor is a single-chip microcomputer.
6, intelligent lighting system according to claim 2 is characterized in that, described local control system also comprises the DC power supply that is used to provide the needed power supply of described local control system work.
7, intelligent lighting system according to claim 2 is characterized in that, described switch element comprises and is used for the optocoupler that forceful electric power separates with light current, is connected in the break-make control assembly between AC power and the illuminating lamp.
8, intelligent lighting system according to claim 7 is characterized in that, described break-make control assembly is a relay.
9, intelligent lighting system according to claim 7 is characterized in that, described break-make control assembly is a bidirectional triode thyristor.
10, intelligent lighting system according to claim 1, it is characterized in that, tele-control system comprises and is used for the signal transceiver of communicating by letter with described local control system, be used to realize network interconnection, and will be forwarded to the central controller of described signal transceiver from the remote control command of Internet.
