CN218958583U

CN218958583U - Portable power supply convenient for data line storage and use

Info

Publication number: CN218958583U
Application number: CN202223096780.3U
Authority: CN
Inventors: 陈雄杰
Original assignee: Shenzhen Cager Digital Technology Co ltd
Current assignee: Shenzhen Cager Digital Technology Co ltd
Priority date: 2022-11-22
Filing date: 2022-11-22
Publication date: 2023-05-02
Anticipated expiration: 2032-11-22

Abstract

The utility model discloses a portable power supply convenient for accommodating and using a data wire, which comprises a shell main body and a first fixing hole arranged on one side of the shell main body, wherein a first plug placing groove is further arranged on one side of the first fixing hole, a first fixing part is fixed in the first fixing hole, one end of a first wire is fixed in the first fixing hole by the first fixing part, the other end of the first wire penetrates through the first fixing hole, so that the first wire is in a bent ring shape, a first plug matched with the first plug placing groove is formed, and a limiting piece used for preventing the first plug from falling out of the first fixing hole is arranged on one side of the first plug placing groove. The portable power source solves the problems that a portable power source in the prior art is inconvenient to take and a data line is inconvenient to store.

Description

Portable power supply convenient for data line storage and use

Technical Field

The utility model relates to the field of mobile power supplies, in particular to a portable power supply convenient for data line storage and use.

Background

The definition of the mobile power supply is a large-capacity portable power supply which is convenient and easy to carry. The mobile power supply is a portable device integrating electricity storage, voltage boosting and charging management. The portable power source among the prior art adopts outside casing and inside charging assembly to constitute generally, is equipped with various grafting mouths around the outside casing, is connected with various consumer such as cell-phone, pad through the wire when using. The outer shell is smooth and round, and is generally directly held on the hand or placed in a bag when in use. If the mobile phone is used in hands, the mobile phone and the charger baby are held by one hand at the same time, so that the mobile phone is inconvenient to operate and the mobile phone is also risked to fall. If two hands are used for holding the mobile phone and the charger baby respectively, the other hand cannot be liberated.

Disclosure of Invention

The technical scheme aims to solve one of the technical problems in the related technology at least to a certain extent. Therefore, the utility model aims to provide a portable power supply which is convenient for accommodating and using a data line, and aims to solve the problems that a portable power supply in the prior art is inconvenient to take and the data line is inconvenient to accommodate.

In order to achieve the above-mentioned purpose, the present utility model provides a portable power supply which is convenient for receiving and using a data line, and includes a housing main body, and a first fixing hole provided on one side of the housing main body, wherein a first plug placing groove is provided on one side of the first fixing hole, a first fixing portion is fixed in the first fixing hole, one end of the first wire is fixed in the first fixing hole by the first fixing portion, the other end of the first wire passes through the first fixing hole, the first wire is in a curved ring shape, and a first plug matched with the first plug placing groove is formed, and a limiting piece for preventing the first plug from falling out of the first fixing hole is provided on one side of the first plug placing groove.

As a still further scheme of the utility model, the bottom side of the inner part of the first fixing hole is provided with a fixing seat, and the bottom of the first fixing part penetrates through the first fixing hole and then is connected with the fixing seat.

As still further aspects of the present utility model, the housing main body includes a bracket middle frame loaded with the internal element, and a face shell and a back shell respectively disposed at two sides of the bracket middle frame, the first fixing hole is disposed at a corner of the bracket middle frame, and the first plug placement groove is disposed at one side close to the first fixing hole.

As a still further scheme of the utility model, two ends of the other right-angle side of the middle frame of the bracket are respectively provided with a second fixing hole and a second plug placing groove, the second fixing holes are communicated with the second plug placing groove through a wire groove formed in the surface of the middle frame of the bracket, a second fixing part is arranged in the second fixing holes, a second wire matched with the wire groove is connected to the second fixing part, and a second plug matched with the second plug placing groove is arranged at the other end of the second wire.

As still further aspects of the present utility model, an elastic clip for preventing the second plug from being easily released when being stored is provided in the second plug placement groove.

As a still further proposal of the utility model, the inner side wall of the wire slot is provided with wire clamping positions which are used for preventing the second wire from easily loosening when being stored, the number of the wire clamping positions is at least 2, and the wire clamping positions are respectively arranged near the second plug placing slot and the second fixing hole.

As a still further proposal of the utility model, the middle frame of the bracket is an integral thermoplastic extrusion molding structure.

As still further aspects of the present utility model, the first fixing portion has a plug structure having a length, a width and a thickness greater than those of the first fixing hole, and the first wire passes through the first fixing portion to be connected to the internal element.

The beneficial effects of the utility model are as follows:

the portable power supply convenient for the storage and use of the data wire can serve as a hanging rope and a first lead wire component of a lead wire through arrangement, the power supply can be hung below a hand during use, a palm has the capability of holding equipment such as a mobile phone and the like, and the other end of the lead wire is connected with electric equipment. In addition, a second lead wire is also arranged and matched with the groove formed on the side edge of the shell, and can be completely contained in the groove after the use is finished. Because the plugs are arranged outside, the whole internal space of the product is more compact, and the appearance of the product can be made smaller.

Drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions of the utility models in the prior art, the following description will briefly explain the embodiments or the drawings needed in the description of the prior art, and it is obvious that the drawings in the following description are only some embodiments of the technical solutions of the present utility model, and other drawings can be obtained according to the structures shown in these drawings without inventive effort for a person skilled in the art.

Fig. 1 is a schematic view of the overall structure of a housing body and a first lead wire assembly according to the present utility model.

Fig. 2 is a schematic view of a preliminary disassembled structure of each part of a main body of a housing, a first lead assembly, and a second lead assembly according to the present utility model.

Fig. 3 is a schematic structural diagram of each of the first and second wires and the connection in the present utility model.

Fig. 4 is an enlarged schematic view of the second plug placement groove and the elastic clamping piece and the clamping line position in the present utility model.

Fig. 5 is a schematic view of a first plug placement groove and a first fixing hole according to the present utility model.

Fig. 6 is an enlarged schematic view of a connection portion of the first plug placement groove and the first fixing hole in the present utility model.

FIG. 7 is a schematic diagram of the overall structure of the product of the present utility model.

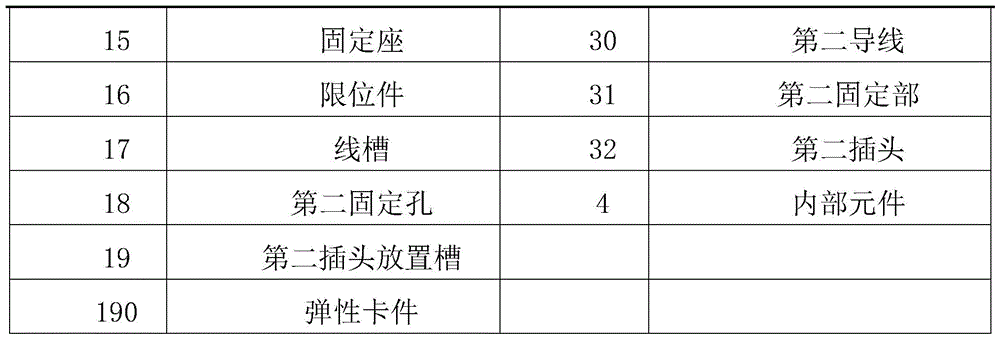

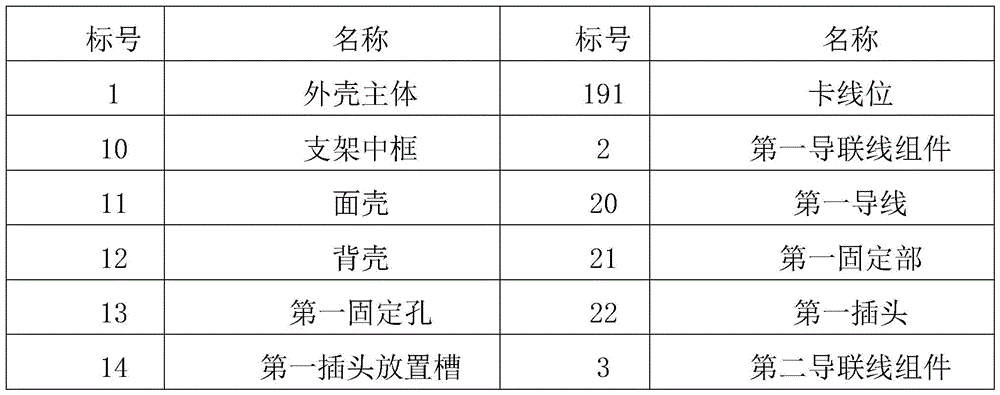

[ Main part/Assembly reference numerals Specification Table ]

/>

Detailed Description

In order to make the purposes of the technical scheme of the present utility model and the advantages of the technical scheme of the present utility model more clear, the technical scheme of the present utility model in the technical scheme embodiment of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the technical scheme embodiment of the present utility model. It is obvious that the described embodiments are only some embodiments of the technical solution of the utility model, but not all embodiments.

Based on the embodiments in the technical scheme of the utility model, all other embodiments obtained by a person of ordinary skill in the art without making creative efforts fall within the protection scope of the technical scheme of the utility model.

It should be noted that, in the embodiment of the present utility model, all directional indicators (such as up, down, left, right, front, and rear … …) are only used to explain the relative positional relationship, movement conditions, etc. between the components in a specific state (as shown in the drawings), and if the specific posture is changed, the directional indicators are correspondingly changed.

The description as to "first", "second", etc. in the present technical solution is only for descriptive purposes and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defining "a first" or "a second" may explicitly or implicitly include at least one such feature.

In the description of the embodiments of the present utility model, the meaning of "plurality" means at least two, for example, two, three, etc., unless explicitly defined otherwise.

In the technical solution of the present utility model, unless explicitly specified and limited otherwise, the terms "connected", "fixed", etc. are to be construed broadly, and for example, "fixed" may be a fixed connection, a removable connection, or an integral molding; can be mechanically or electrically connected; either directly or indirectly, through intermediaries, or both, may be in communication with each other or in interaction with each other, unless expressly defined otherwise. The specific meaning of the above terms in the technical solution of the present utility model can be understood by those skilled in the art according to specific circumstances.

In addition, the technical solutions of the present utility model may be combined with each other, but it is necessary to use those skilled in the art as a basis, and when the combination of the technical solutions of the present utility model contradicts or cannot be achieved, it should be considered that the combination of the technical solutions of the present utility model does not exist, and is not within the scope of protection required by the technical solutions of the present utility model.

Specific embodiments of the utility model are as follows:

referring to figures 1-7 of the drawings,

the main structure comprises:

the shell body 1 and set up in the first fixed orifices 13 of shell body 1 one side, first plug standing groove 14 has still been seted up to first fixed orifices 13 one side, first fixed part 21 is fixed with in the first fixed orifices 13 in the first fixed orifices 21, first wire 20 one end is fixed in the first fixed orifices 13 in the first fixed part 21, the other end of first wire 20 passes first fixed orifices 13, make first wire 20 be crooked cyclic annular, and form the first plug 22 with first plug standing groove 14 matching, first plug standing groove 14 one side is equipped with the locating part 16 that is used for preventing first plug 22 from deviating from in the first fixed orifices 13.

The working principle is as follows:

different from the structure with the data line on the market at present, this technical scheme adopts both can regard as the handle, also can regard as the lead wire of data line, connects consumer and charger main part. A fixing hole (first fixing hole 13) is formed in the body of the charger main body (preferably in the corner of the body), a cable (first wire 20) is inserted into the first fixing hole 13 and connected with the internal PCB, a first fixing portion 21 is disposed in the first fixing hole 13 to prevent the first wire 20 from falling out of the first fixing hole 13, the other end of the first wire 20 is inserted into the first fixing hole 13 again, and a first plug 22 is formed at one end, and the circuit is bent and just used as a handle. The first plug 22 is placed in the first plug placement groove 14 on one side when not in use. In use, the first plug 22 is removed from the first plug-receiving slot 14 and plugged into the powered device. The length may be extended by stretching the first plug 22, with the remainder serving as a handle. For example, when in use, the mobile phone can be held by hand, and the charger main body below the hand is hooked by the handle.

In a preferred embodiment of the utility model: the bottom side of the first fixing hole 13 is provided with a fixing seat 15, and the bottom of the first fixing part 21 passes through the first fixing hole 13 and then is connected with the fixing seat 15.

In a preferred embodiment of the utility model: the housing main body 1 includes a bracket center 10 loaded with the internal element 4, and a face shell 11 and a back shell 12 respectively provided on both sides of the bracket center 10, and a first fixing hole 13 is provided at a corner of the bracket center 10 and a first plug placing groove 14 is provided on one side close to the first fixing hole 13.

The scheme preferably adopts a three-layer shell, a bracket in the middle part and shells on two sides. In addition, it may be a one-piece shell. These grooves, wires may be provided on the sides or surfaces.

In a preferred embodiment of the utility model: the two ends of the other right-angle side of the middle frame 10 of the bracket are respectively provided with a second fixing hole 18 and a second plug placing groove 19, the second fixing holes 18 and the second plug placing groove 19 are communicated through a wire groove 17 formed in the surface of the middle frame 10 of the bracket, a second fixing part 31 is arranged in the second fixing holes 18, a second wire 30 matched with the wire groove 17 is connected to the second fixing part 31, and a second plug 32 matched with the second plug placing groove 19 is arranged at the other end of the second wire 30.

Besides the mode of adopting a handle, the scheme is characterized in that the other side of the charger main body is also provided with a wire slot 17 which can accommodate a whole wire, the wire slot 17 is right-angled, and the wire slot 17 is arranged on the right-angled side edge of the charger main body. The second wire 30 is matched with the wire slot 17, the second plug placing slot 19 and the second fixing hole 18 are respectively arranged at two ends of the wire slot 17, and the second plug 32 and the second fixing part 31 which are connected at two ends of the second wire 30 are matched with the wire slot. In use, the second plug 32 may be removed from the second plug receiving slot 19 and connected to the powered device. Since the wire slot 17 is formed at the side of the main body, the wire will not protrude when the second wire 30 is completely inserted. The box body and the frame body for containing the wires do not need to be additionally arranged.

In a preferred embodiment of the utility model: an elastic clip 190 for preventing the second plug 32 from easily coming loose when stored is provided in the second plug placement groove 19.

The provision of the resilient catch 190 facilitates as much gripping as possible when the second plug 32 is received. And can be smoothly taken out under the condition of slight force.

In a preferred embodiment of the utility model: the inner side wall of the wire slot 17 is provided with wire clamping positions 191 for preventing the second wires 30 from being easily loosened when being stored, the number of the wire clamping positions 191 is at least 2, and the wire clamping positions 191 are respectively arranged near the second plug placing slot 19 and the second fixing hole 18.

The wire clamping position 191 is beneficial to preventing the second wire 30 from loosening after being stored, and also can prevent from 'swelling' after being stored.

In a preferred embodiment of the utility model: the bracket center 10 is an integral thermoplastic extrusion structure.

In a preferred embodiment of the utility model: the first fixing portion 21 has a plug structure having a length, a width and a thickness larger than those of the first fixing hole, and the first lead wire 20 passes through the first fixing portion 21 to be connected to the internal element 4.

The foregoing description is only a preferred embodiment of the technical solution of the present utility model, and is not intended to limit the scope of the technical solution of the present utility model, and all the equivalent structural changes made by the technical solution description and the accompanying drawings or the direct/indirect application in other related technical fields are included in the scope of the technical solution of the present utility model.

Claims

1. A portable power supply convenient for data line storage and use is characterized by comprising

The shell main part, and set up in the first fixed orifices of shell main part one side, first plug standing groove has still been seted up to first fixed orifices one side, first fixed orifices internal fixation has first fixed part, first fixed part is fixed in first wire one end in the first fixed orifices, the other end of first wire passes first fixed orifices makes first wire is crooked cyclic annular to form with first plug that first plug standing groove matches, first plug standing groove one side is equipped with and is used for preventing first plug follow the locating part that deviate from in the first fixed orifices.

2. The portable power supply for storing and using a data line according to claim 1, wherein a fixing base is arranged at the bottom side inside the first fixing hole, and the bottom of the first fixing portion passes through the first fixing hole and then is connected with the fixing base.

3. The portable power supply according to claim 1, wherein the housing main body includes a frame in which the internal components are mounted, and a face case and a back case respectively disposed on both sides of the frame, the first fixing hole is formed in a corner of the frame, and the first plug placement groove is formed on a side close to the first fixing hole.

4. The portable power supply convenient for data line storage and use according to claim 3, wherein a second fixing hole and a second plug placing groove are respectively formed in two ends of the other right-angle side of the middle frame of the bracket, the second fixing hole is communicated with the second plug placing groove through a wire groove formed in the surface of the middle frame of the bracket, a second fixing portion is arranged in the second fixing hole, a second wire matched with the wire groove is connected to the second fixing portion, and a second plug matched with the second plug placing groove is arranged at the other end of the second wire.

5. The portable power supply of claim 4, wherein the second plug receiving slot is provided with an elastic clip for preventing the second plug from being easily released during receiving.

6. The portable power supply according to claim 4, wherein the wire slot is provided with wire clamping positions for preventing the second wires from being easily loosened during storage, the number of the wire clamping positions is at least 2, and the wire clamping positions are respectively arranged near the second plug placement groove and the second fixing hole.

7. A portable power supply for facilitating storage and use of a data line according to claim 3, wherein the cradle is a unitary thermoplastic extrusion.

8. The portable power supply of claim 1, wherein the first fixing portion has a plug structure with a length, a width and a thickness greater than the first fixing hole, and the first wire passes through the first fixing portion to be connected with the internal element.
