CN201886401U - Retractable external radiator for laptop - Google Patents
Retractable external radiator for laptop Download PDFInfo
- Publication number
- CN201886401U CN201886401U CN2010206272312U CN201020627231U CN201886401U CN 201886401 U CN201886401 U CN 201886401U CN 2010206272312 U CN2010206272312 U CN 2010206272312U CN 201020627231 U CN201020627231 U CN 201020627231U CN 201886401 U CN201886401 U CN 201886401U
- Authority
- CN
- China
- Prior art keywords
- heating radiator
- fan
- external heating
- blower tray
- sliding panel
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cooling Or The Like Of Electrical Apparatus (AREA)
Abstract
The utility model provides a retractable external radiator for a laptop, which comprises a sliding plate, a fan support and a radiating fan. The fan support is slidably connected with the sliding plate, the radiating fan is placed in the fan support, the sliding plate consists of two plate bodies, supporting legs and sliders are fixed on each plate body, the fan support is provided with slide grooves matching with the sliders, and the slide grooves and the sliders are fixed with each other via bosses and grooves. The retractable external radiator can be folded when not used, so that the volume of the total radiator is reduced by 1/3. Besides, the retractable external radiator can be placed into a laptop bag together with the laptop, and is convenient in carrying.
Description
Technical field
The utility model relates to a kind of heating radiator, the external heating radiator of particularly a kind of telescopic notebook.
Background technology
Notebook computer has advantage easy to carry, is subjected to consumers in general's welcome deeply, yet the heat dissipation problem of notebook computer is perplexing the consumer always, and the quality of heat dispersion will directly influence the serviceable life of notebook.
It is generally big or small with notebook that the external heating radiator of notebook in the market mostly is greatly, during use notebook computer is placed on the external heating radiator, dispel the heat by the high rotating speed fan that is provided with in the heating radiator, the volume of this heating radiator is bigger, and in the middle of practical application, notebook computer is to pay attention to very much portablely, and the shortcoming of the portability difference that the traditional notebook computer radiator brings greatly owing to volume is brought inconvenience to consumers in general.
The utility model content
The utility model provides a kind of telescopic notebook external heating radiator, and it can close up when not using, make entire radiator volume-diminished 1/3, can put in the laptop bags with notebook computer, be convenient for carrying.
The technical scheme that the utility model adopted is: the external heating radiator of a kind of telescopic notebook, comprise sliding panel, the blower tray that is connected with the sliding panel slidingtype, and place radiator fan in the blower tray, described sliding panel is made up of the two boards body, be fixed with feet and slide block on the every plate body, described blower tray is provided with the chute that is complementary with slide block, and described chute and slide block are fixed by boss and groove.
As preferred embodiment of the present utility model, described blower tray is provided with the U-lag with the feet coupling;
As preferred embodiment of the present utility model, described feet bottom is provided with the first cavernous body pad, and the upper surface of described every sliding panel is stained with the second cavernous body pad;
As preferred embodiment of the present utility model, described blower tray upper surface is provided with the latticed louvre of toroidal band, below this louvre fan protection figure, the die cavity that the dress fan electromotor is arranged in the described fan protection figure, one end of described USB plug is connected with fan electromotor with electric wire, and draws by the draw-in groove that is provided with on the fan protection figure;
As preferred embodiment of the present utility model, described heating radiator further includes sleeve, this jacket casing on described slide block, and by screw hole with screw fastening;
As preferred embodiment of the present utility model, described sleeve is provided with retaining figure.
The external heating radiator of the telescopic notebook of the utility model has the following advantages at least: the utility model heating radiator is fixed with slide block below sliding panel, this slide block can be free to slide in the chute on blower tray, therefore, when not making can with about two sliding panels close up, made the whole volume-diminished of this heating radiator 1/3, can put in the laptop bags with notebook computer, be easy to carry.
Description of drawings

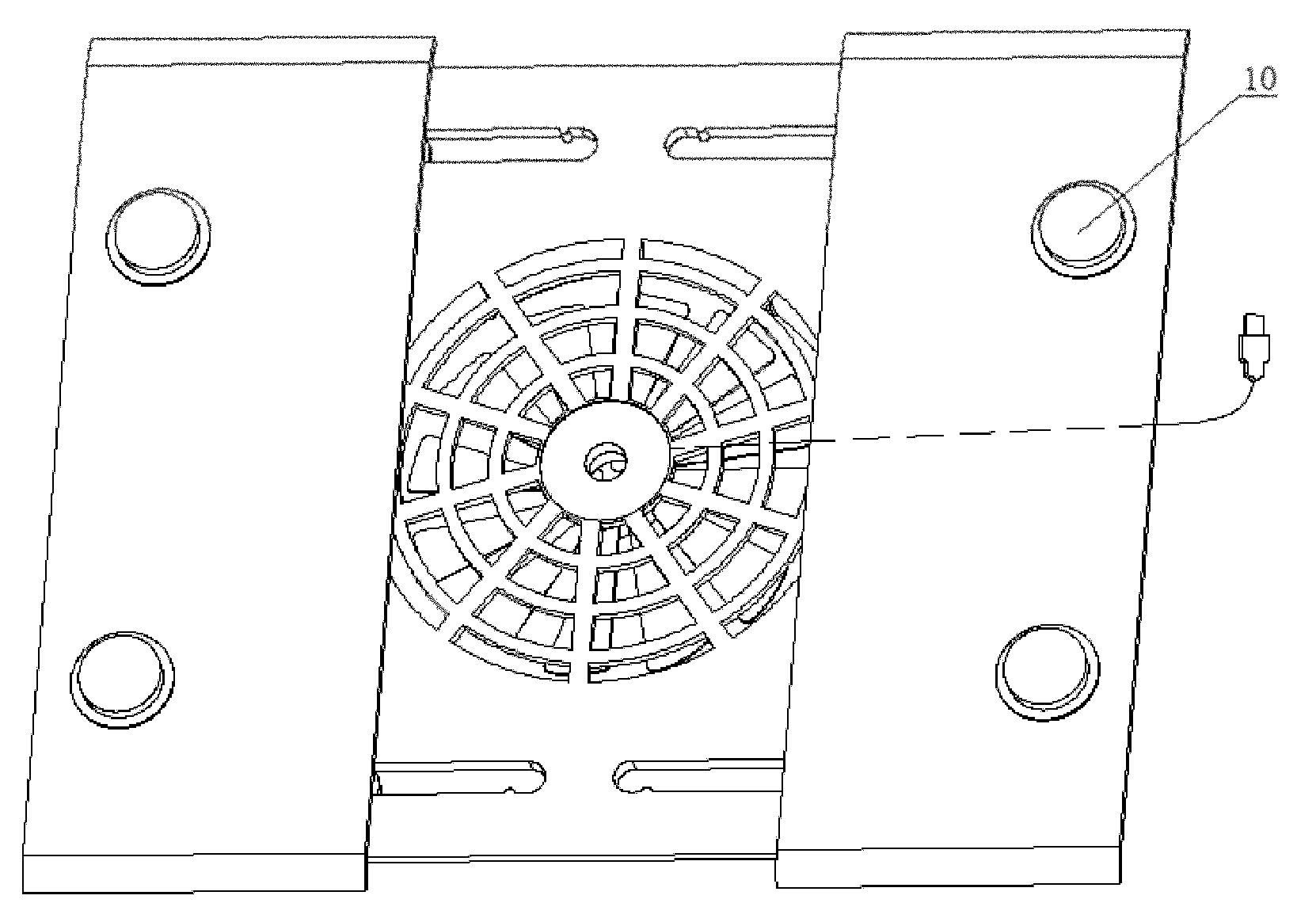

Fig. 1 is the perspective view of the external heating radiator of the telescopic notebook of the utility model;
Fig. 2 is the user mode figure of the external heating radiator of the telescopic notebook of the utility model;
Fig. 3 is the constitutional diagram of the external heating radiator of the telescopic notebook of the utility model when closing up;
Fig. 4 is the schematic perspective view of the sliding panel of the external heating radiator of the telescopic notebook of the utility model;
Fig. 5 is the schematic perspective view of the blower tray of the external heating radiator of the telescopic notebook of the utility model;
Fig. 6 is the schematic perspective view of the sleeve of the external heating radiator of the telescopic notebook of the utility model.
The label among the figure and the corresponding relation of element are as follows:
| 1 | Sliding panel | 2 | Sleeve |
| 3 | Blower tray | 4 | Radiator fan |
| 5 | Screw | 6 | Feet |
| 7 | USB plug | 8 | The first |
| 10 | The second cavernous body pad | 9 | |
| 11 | Groove | 12 | |
| 13 | Draw-in groove | 14 | U-lag |
Embodiment
As shown in Figures 1 to 4, the external heating radiator of the telescopic notebook of the utility model comprises sliding panel 1, sleeve 2, blower tray 3, radiator fan 4, feet 6, USB plug 7, slide block 9 and the first and second cavernous body pads 8,10.
Please in conjunction with Fig. 2, Fig. 3 and shown in Figure 4, described sliding panel 1 is identical two boards body, be fixed with two feets 6 on the every plate body, each feet 6 bottom is equipped with the first cavernous body pad 8, and the upper surface of two sliding panels 1 is stained with two second cavernous body pads 10 respectively, so, make notebook computer in use reduce friction, place more steady, in addition, slide block 9 also is installed on each plate body, and each slide block 9 is provided with first screw hole and groove 11.
Please in conjunction with shown in Figure 5, described blower tray 3 is respectively arranged with the chute of two sealings in both sides, the position of this chute is corresponding with slide block 9 positions of sliding panel 1, in addition, two ends in each chute are respectively arranged with boss 12, so, when described slide block 9 slides, reach the location of blower tray 3 and sliding panel 1 with the coupling of groove 11 by boss 12 in chute; Moreover described blower tray 3 also is provided with the U-lag 14 corresponding with the feet 6 of sliding panel 1, when sliding panel 1 when the centre closes up, described feet 6 finally stops in described U-shaped 14 grooves, thereby finishes the location of blower tray 3 and sliding panel 1; In addition; described blower tray 3 upper surfaces are provided with the latticed louvre of toroidal band; below this louvre fan protection figure; the die cavity that the dress fan electromotor is arranged in the described fan protection figure; described radiator fan 4 can safety high speed in fan protection figure running; one end of described USB plug 7 is connected with fan electromotor with electric wire, and draws by the draw-in groove 13 that is provided with on the fan protection figure.
Please described in conjunction with Fig. 6, described sleeve 2 one ends are provided with retaining figure, are provided with second screw hole below the retaining figure.During use, four sleeves 2 are enclosed within respectively on four slide blocks 9, and are with screw 5 that sleeve 2 and slide block 9 is fastening by first and second screw holes then.Owing on each sleeve 2 retaining figure is arranged all, therefore, can prevent to break away from the chute of above-mentioned slide block 9 from the blower tray 3, cause sliding panel 1 loosening unstable, moreover, because slide block 9 can be free to slide in four chutes on blower tray 3, therefore, makes the sliding panel 1 at two ends, the left and right sides telescopicly to spur.
Please in conjunction with Fig. 1, Fig. 2 and shown in Figure 5; described radiator fan 4 is installed in the fan protection figure below the latticed louvre of blower tray 3; the electric wire that links to each other with radiator fan 4 motors is pressed close to the lower surface of louvre and is stuck in the draw-in groove 13 of fan protection figure; prevent that electric wire from touching radiator fan 4; influence is normal to be used; the other end of electric wire connects USB plug 7, and this USB plug 7 directly is connected with the USB interface of notebook computer, is radiator fan 4 power supplies.
During use, as shown in Figures 2 and 3, with about two sliding panels 1 pulling to the left and right sides respectively, when the slide block 9 of sliding panel 1 bottom slides into the Far Left of the chute on the blower tray 3 and rightmost, groove 11 in four slide blocks 9 just in time with chute in corresponding the most left and rightmost boss 12 be meshed, prevent sliding panel 1 and blower tray 3 mutual slippages, influence is normally used; When not using, with about in the middle of two sliding panels 1 push to, when about two sliding panels 1 when the place closes up in the middle of blower tray 3, four slide block 9 interior just in time corresponding with centre in chute boss 12 of groove 11 are meshed, two sliding panel 1 four following feets 6 slip in the U-lag 14 of blower tray 3, make entire radiator volume-diminished 1/3, when not using, the volume of the external heating radiator of the scalable portable notebook computer of the utility model is compared with the external heating radiator of traditional notebook computer and is much smaller, can put in the laptop bags with notebook computer, be easy to carry, external form is more attractive in appearance.
The above only is a kind of embodiment of the present utility model, it or not whole or unique embodiment, the conversion of any equivalence that those of ordinary skills take technical solutions of the utility model by reading the utility model instructions is claim of the present utility model and contains.
Claims (6)
1. external heating radiator of telescopic notebook, it is characterized in that: comprise sliding panel (1), the blower tray (3) that is connected with sliding panel (1) slidingtype, and place radiator fan (4) in the blower tray (3), described sliding panel (1) is made up of the two boards body, be fixed with feet (6) and the described blower tray of slide block (9) (3) on every plate body and be provided with the chute that is complementary with slide block (9), described chute and slide block (9) are fixed by boss (12) and groove (11).
2. the external heating radiator of telescopic notebook as claimed in claim 1 is characterized in that: described blower tray (3) is provided with the U-lag with feet (6) coupling.
3. the external heating radiator of telescopic notebook as claimed in claim 1 or 2 is characterized in that: described feet (6) bottom is provided with the first cavernous body pad (8), and the upper surface of described every sliding panel (1) is stained with the second cavernous body pad (10) respectively.
4. the external heating radiator of telescopic notebook as claimed in claim 1; it is characterized in that: described blower tray (3) upper surface is provided with the latticed louvre of toroidal band; it below this louvre the fan protection circle; the die cavity that the dress fan electromotor is arranged in the described fan protection circle; one end of described USB plug (7) is connected with fan electromotor with electric wire, and draws by the draw-in groove (13) that is provided with on the fan protection circle.
5. the external heating radiator of telescopic notebook as claimed in claim 1 is characterized in that: described heating radiator further includes sleeve (2), and this sleeve (2) is enclosed within on the described slide block (9), and fastening with screw by screw hole.
6. the external heating radiator of telescopic notebook as claimed in claim 5 is characterized in that: described sleeve (2) is provided with back-up ring.
