Abstract
The invention discloses a remote medical service system which is characterized by comprising a portable medical apparatus used for collecting patient information, a hand-held diagnosis terminal used for sending diagnosis information and a remote medical server connected with a wireless access point. The remote medical server, the portable medical apparatus and the hand-held diagnosis terminal are respectively connected with a remote medical server network through communicating with the wireless access point; the portable medical apparatus sends collected patient information to the hand-held diagnosis terminal after the patient information is stored by the remote medical server; the hand-held diagnosis terminal receives the patient information and sends diagnosis information to the portable medical apparatus after the diagnosis information is stored by the remote medical server; and the remote medical server is used for storing patient information and diagnosis information. Compared with the prior art by which a doctor transmits diagnosis information by using a computer terminal to communicate with a local area network of a hospital, the system can realize mobile visiting and diagnosis and bidirectional communication between a doctor and a patient, and the doctor can carry out clinical diagnosis at any time and any place without being limited in a hospital, so that the convenience of diagnosis of the doctor can be greatly improved.
Description
Technical field
The invention belongs to the tele-medicine technical field, be specifically related to remote medical service system and remote medical service method that a kind of diagnosis terminal that utilizes network to carry out the tele-medicine service adopts wlan standard.
Background technology
China's region broadness, medical level have tangible regional difference, particularly vast rural area and outlying district, and medical skill is relatively backward.Address this problem, adopt the tele-medicine technology necessary.The Telemedicine System that has developed both at home and abroad comprises that TV monitoring, telephone remote diagnosis obtain certain application at present.Increasing hospital has developed the hospital management system of oneself, and hospital server is set in the hospital management system, and described hospital server and diagnosis terminal are connected to form the local area network (LAN) that can transmit diagnoses and treatment information mutually.Yet, surpass the medical services that to be correlated with in hospital's scope owing to be wired connection between hospital server and the diagnosis terminal; Hub, the switch that need be correlated with of wired connection in addition, the interface of these equipment is limited, though can add device extension, this all can increase the cost of hospital; And also can't carry out the mutual of diagnostic message with diagnosis terminal that hospital server is not connected.
Also develop some system such as Chinese patent application CN101491431 that utilize the Internet to carry out the tele-medicine service in the prior art and disclose a kind of Telemedicine System on July 29th, 2009, comprise portable medical instrument, hospital's wireless telecommunications system, hospital's medical server and the diagnosis terminal that to wear in human body, described medical instrument is worn on human body and gathers somatic data, and sends to hospital's wireless telecommunications system by wireless communication mode; Hospital's wireless telecommunications system sends the data that receive to the hospital medical server; Hospital's medical server sends data to the diagnosis terminal.The medical instrument of these Telemedicine System and hospital's communication apparatus wireless telecommunications, though solved the problem that it is difficult that the user seeks medical advice to a certain extent, yet basically, the diagnosis terminal still need with hospital server together, the doctor still is confined to bring some inconvenience to medical personnel in hospital or hospital's communication apparatus or the certain zone.
Along with the continuous development and the maturation of current wireless technology, WiFi (Wireless Fidelity, Wireless Fidelity) technology is applied in all trades and professions as a most popular technology of current wireless domain.It uses the communication of TCP standard, and technology maturation is reliable, and transmission rate is fast, and user's acceptance level is the highest, and used frequency range need not permission, and freely use in the whole world, is the preferred option of regional wireless telecommunications.The present invention researchs and develops new remote medical service system according to these technology makes the doctor can be more extensive and terminal diagnostics more easily.
Summary of the invention
The object of the invention is to provide a kind of remote medical service system, has solved when making things convenient for the patient to seek medical advice in the prior art, does not improve medical personnel's problems such as convenience.
In order to solve these problems of the prior art, technical scheme provided by the invention is:
A kind of remote medical service system, it is characterized in that described system comprises the portable medical instrument of being responsible for gathering patient information, the handheld type diagnosis terminal and the remote medical server that is connected with WAP (wireless access point) that sends diagnostic message, described remote medical server, described portable medical instrument, handheld type diagnosis terminal respectively by with the WAP (wireless access point) communication after be connected with the remote medical server network; Described portable medical instrument is transferred to handheld type diagnosis terminal with the patient information that collects after remote medical server stores; Described handheld type diagnosis terminal receives patient information and sends diagnostic message and be transferred to portable medical instrument after the remote medical server storage; Described remote medical server is responsible for storing patient information and diagnostic message.
Preferably, described system comprises several portable medical instrument and several handheld type diagnosis terminal; Several portable medical instrument are gathered patient signal and be transferred to several handheld type diagnosis terminal after the remote medical server classified and stored; Several handheld type diagnosis terminal send diagnostic message and be transferred to the remote medical service system that several handheld type diagnosis terminal form multi-to-multi after the remote medical server classified and stored.
Preferably, described portable medical instrument comprise the signal acquisition module of gathering patient information, signal processing module that patient information is handled and to the WIFI module of remote medical server transmission patient information.
Preferably, the external environment transducer of the environmental parameter that described signal acquisition module comprises the interior environmental sensor of gathering the physiology/pathological parameter of environment in the patient, gather patient's external environment of living in and the motion sensor of motion state, and give signal processing module with the patient information that collects.
Preferably, described signal processing module comprises that sampling keeps module, signal amplifier, analog to digital converter and microprocessor, and the patient information of described sampling maintenance module received signal acquisition module keeps converting digital signal to by analog to digital converter after signal amplifier amplifies and flows to microprocessor processes; Transmit data by wlan network between described WIFI module and WAP (wireless access point).
Preferably, the described patient information after will handling after described WIFI module and the WAP (wireless access point) communication transfers to remote medical server, and passes through the diagnostic result of wlan network receiving remote medical server storage.
As preferably, described portable medical instrument can also comprise instruction input module, display module and power module, be provided for gathering the transducer of physiology/pathological parameter in the signal acquisition module of portable medical instrument, gather the transducer of environmental parameter and the transducer of motion state, and give signal processing module the signal that collects; Power module is for each module provides the power supply support; Preferred, the transducer of described signal acquisition module comprises heart rate sensor, pre ure tra ducer, body temperature trans, respiration transducer, blood oxygen transducer, pulse transducer, blood glucose sensor, blood fat transducer, acceleration transducer, baroceptor, humidity sensor and temperature sensor.Microprocessor receives the digitized physiology/pathological parameter after analog to digital converter is changed in the described signal processing module, and to its analyze, computing and storage, give WIFI module by interface then, physiology/pathological parameter after the WIFI module will be handled is wirelessly transmitted to remote medical server, wireless receiving doctor's diagnostic result; Instruction input module comprises button, is used to control medical instrument operating state; Display module is used to show patient's physiology/pathological parameter, environmental parameter, motion state and diagnostic result.
Preferably, described handheld type diagnosis terminal comprises the MIM message input module that is used to import diagnostic message, display module and the WiFi module that shows patient information and diagnostic message; Receive the patient information that the remote medical server that is connected with the INTERNET network stores after the WAP (wireless access point) communication that described WiFi module and wlan network link to each other and send diagnostic message and be transferred to remote medical server, be transferred to the display module demonstration after the described patient information reception through WAP (wireless access point).
Preferably, built-in WIFI protocol stack of described WIFI module and serial ports host-host protocol are realized carrying out communication with WAP (wireless access point).Described WIFI protocol stack comprises IEEE 802.11a, IEEE 802.11b, IEEE802.11g and IEEE 802.11n standard.
Preferably, described handheld type diagnosis terminal also comprises microprocessor, memory and power module, behind the physiology/pathological parameter of WIFI module reception from the patient of remote medical server, show that by display module the doctor can diagnose the formation diagnostic message according to these patient informations; Microprocessor can be controlled the instruction of WIFI module, memory and display module and the input of process information input module; Memory can be used for storing embedded operation processing program and physiology/pathological parameter and corresponding diagnostic result; MIM message input module is used to import diagnostic result and inquiry patient information; Power module is for each module provides the power supply support.
Preferably, described remote medical server comprises patient information storehouse and information about doctor storehouse; After described remote medical server reception patient information or the diagnostic message information being analyzed classified and stored transmits corresponding information behind the patient information storehouse to handheld type diagnosis terminal or portable medical instrument.
Preferably, described remote medical server can have the software and hardware that is connected with the Internet network, and its internal configurations has physiology/pathological parameter calculation process software, real-time monitoring software, patient information storehouse and information about doctor storehouse.
Preferably, remote medical service system of the present invention can also comprise the all-purpose computer that is connected with remote medical server by the INTERNET network, and described all-purpose computer can be inquired about patient information (as physiology/pathological parameter, environmental parameter, motion state) or diagnostic message or information about doctor after by INTERNET network login remote access remote medical server.
Another object of the present invention is to provide a kind of remote medical service system of wlan standard that utilizes to carry out the tele-medicine service method, it is characterized in that said method comprising the steps of:
(1) patient gives remote medical server with patient information by Network Transmission after utilizing portable medical instrument to gather patient information;
(2) remote medical server is given handheld type diagnosis terminal with patient information by Network Transmission after receiving behind the patient information patient information being analyzed classified and stored;
(3) after handheld type diagnosis terminal received patient signal, the doctor imported diagnostic message and gives remote medical server with diagnostic message by Network Transmission;
(4) remote medical server is given portable medical instrument with diagnostic message by Network Transmission after receiving after the diagnostic message diagnostic message being analyzed classified and stored.
Preferably, described remote medical service method can carry out according to following steps:
The signal acquisition module collection patient's of portable medical instrument physiology/pathological parameter and environmental parameter, motion state, and with related data transmission to the WIFI module, the WIFI module is by wlan network and WAP (wireless access point) communication, interface by WAP (wireless access point) and Internet enters the Internet network, and is uploaded to remote medical server; Remote medical server is sorted out, is analyzed and store, and transfer data to wlan network by the interface of Internet and wlan network physiology/pathological parameter and environmental parameter, motion state; Handheld type diagnosis terminal receives data from wlan network by the WIFI module, and shows physiology/pathological parameter of patient and environmental parameter, motion state; The doctor inputs to handheld type diagnosis terminal by MIM message input module with diagnostic result, and sends to the WIFI module; Data enter the Internet network by the interface of wlan network and Internet, and are uploaded to remote medical server; Remote medical server is stored doctor's diagnostic result, by the Internet transmitted data on network, and enters WAP (wireless access point) by the interface of Internet and WAP (wireless access point); Portable medical instrument by and WAP (wireless access point) between communication receive data from remote medical server, and show the diagnostic result of doctor's feedback; The diagnostic result that all-purpose computer feeds back by physiology/pathological parameter, environmental parameter, motion state and the doctor who lands remote medical server visit patient.
Because diagnosis terminal and hospital server wired connection make doctor's diagnosis terminal and hospital server be bundled in certain zone (in hospital's scope), cause the doctor to carry out diagnoses and treatment and can not leave the relevant range in the prior art; And when hospital size was big, more wired connection networking needed higher cost, might form resource bottleneck with the equipment of similar hub or switch, caused information dropout etc.; And the present invention adopts handheld type diagnosis terminal, by directly communication between diagnosis terminal and WAP (wireless access point), improves bigger flexibility to the doctor; The doctor can carry out communication with WAP (wireless access point) whenever and wherever possible by handheld type diagnosis terminal in the effective coverage of WAP (wireless access point); And need not any equipment between handheld type diagnosis terminal, portable medical instrument and WAP (wireless access point), significantly reduced relevant costs such as wires design; In addition, with the direct communication of WAP (wireless access point) can be hospital server in the local area network (LAN), also can be other servers of outer net, realized effectively sharing of medical resource.
With respect to scheme of the prior art, advantage of the present invention is:
1. the WAP (wireless access point) of use wlan standard is set between the portable medical instrument of the handheld type diagnosis terminal of the remote medical service system medium-long range medical server of technical solution of the present invention and doctor's end and remote medical server and patient end, described handheld type diagnosis terminal, portable medical instrument is carried out communication with WAP (wireless access point) by the wifi agreement respectively, reduce handheld type diagnosis terminal, portable medical instrument relies on the restriction of space length, make the doctor have the place of wlan network to carry out terminal diagnostics any, needn't stick in hospital's scope, improve medical personnel's operating efficiency; Make patient have the place of wlan network to seek medical advice and medicine, make things convenient for the hospitalize interrogation any.
2, in optimal technical scheme of the present invention, adopt a plurality of portable medical instrument, a plurality of handheld type diagnosis terminal, between medical personnel and patient, set up a kind of remote medical service system of multi-to-multi, under the situation of medical care resource anxiety, can be beneficial to medical personnel's resource allocation timely and conveniently for patient provides the chance of seeking medical advice; And make things convenient for medical personnel that difficult and complicated illness is carried out collective's consultation of doctors research, and improve the active participation of medical personnel's consultation of doctors, reduce the mistaken diagnosis probability of difficult and complicated illness.
3. technical scheme of the present invention can realize remote diagnosis, and patient can realize communicating by letter with the other side in different separately zones by network with medical personnel, can realize sharing of medical resource.And the wlan network technology maturation, user's acceptance level is very high, makes handheld type diagnosis terminal can realize function in more zone, and doctor's zone is selected can be varied; And wlan network do not need frequency permission, and the whole world is free, helps the generally popularization that handheld type diagnosis terminal is carried out terminal diagnostics.
4, the all-purpose computer that passes through INTERNET network and remote medical server is set in the preferred technical solution of the present invention, conveniently inquires about patient information and Diagnostic Time.Remote medical server can be analyzed, be sorted out, stores patient information, diagnostic message and information about doctor, helps medical history data and shares the medical care resource allocation.
5, technical scheme of the present invention is owing to portable medical instrument, handheld type diagnosis terminal are communicated with each other by remote medical server, portable medical instrument, handheld type diagnosis terminal have equity in network, thereby realize the two-way communication between medical personnel and patient; Portable medical instrument, handheld type diagnosis terminal are all easy to carry in addition, realize seeking the mobility of doctor, diagnosis.
Description of drawings
Below in conjunction with drawings and Examples the present invention is further described:
Fig. 1 is the SNA schematic diagram of embodiments of the invention medium-long range medical service system;

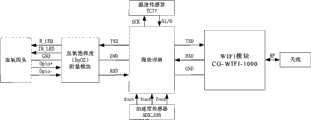

Fig. 2 is the structural representation of portable medical instrument in the embodiments of the invention;
Fig. 3 is the workflow diagram of portable medical instrument in the embodiments of the invention;
Fig. 4 is the surface chart of handheld type diagnosis terminal in the embodiments of the invention;
Fig. 5 is the workflow diagram of WIFI module in the embodiments of the invention.
Fig. 6 is the workflow diagram of handheld type diagnosis terminal in the embodiments of the invention.
Embodiment
Below in conjunction with specific embodiment such scheme is described further.Should be understood that these embodiment are used to the present invention is described and are not limited to limit the scope of the invention.The implementation condition that adopts among the embodiment can be done further adjustment according to the condition of concrete producer, and not marked implementation condition is generally the condition in the normal experiment.
Embodiment somewhere remote medical service system
As Fig. 1, the remote medical service system of present embodiment adopts network communicating system structure as shown in Figure 1, comprising portable medical instrument, remote medical server, handheld type diagnosis terminal, portable medical instrument is connected with remote medical server with the interface of INTERNET network by WAP (wireless access point) by after wlan network and the WAP (wireless access point) communication, described handheld type diagnosis terminal by wlan network be connected with remote medical server with INTERNET network that WLAN is communicated with.Described portable medical instrument is used to gather patient's physiology/pathological parameter and environmental parameter, motion state, and sends to remote medical server by wireless mode; Described remote medical server, link to each other with handheld type diagnosis terminal with portable medical instrument by the Internet network, the diagnostic result that is used for physiology/pathological parameter, environmental parameter, motion state and doctor to patient is sorted out, is analyzed and stores, and the data after will handling by network are sent to the handheld type diagnosis terminal of far-end; Described handheld type diagnosis terminal, physiology/pathological parameter that can long-range demonstration patient and environmental parameter, motion state, the doctor is by physiology/pathological parameter diagnosis patient's of the patient that consults handheld type diagnosis terminal and show the state of an illness, can import diagnostic result by handheld type diagnosis terminal, and diagnostic result be fed back its diagnostic result to portable medical instrument (patient end) by the mode of WIFI communication.
Remote medical service system moves as follows:
The signal acquisition module collection patient's of portable medical instrument physiology/pathological parameter and environmental parameter, motion state, and with related data transmission to the WIFI module, the WIFI module is by wlan network and WAP (wireless access point) communication, interface by WAP (wireless access point) and Internet enters the Internet network, and is uploaded to remote medical server; Remote medical server is sorted out, is analyzed and store, and transfer data to wlan network by the interface of Internet and wlan network physiology/pathological parameter and environmental parameter, motion state; Handheld type diagnosis terminal receives data from wlan network by the WIFI module, and shows physiology/pathological parameter of patient and environmental parameter, motion state; The doctor inputs to handheld type diagnosis terminal by MIM message input module with diagnostic result, and sends to the WIFI module; Data enter the Internet network by the interface of wlan network and Internet, and are uploaded to remote medical server; Remote medical server is stored doctor's diagnostic result, by the Internet transmitted data on network, and enters WAP (wireless access point) by the interface of Internet and WAP (wireless access point); Portable medical instrument by and WAP (wireless access point) between communication receive data from remote medical server, and show the diagnostic result of doctor's feedback; The diagnostic result that all-purpose computer feeds back by physiology/pathological parameter, environmental parameter, motion state and the doctor who lands remote medical server visit patient.
Below the various piece of remote medical service system is described in detail:
The portable medical instrument that present embodiment adopts comprises signal acquisition module, contains signal processing module, WIFI module, instruction input module, display module and the power module of microprocessor.Signal acquisition module comprises the transducer of collection physiology/pathological parameter, and gathers the transducer of environmental parameter and the transducer of motion state, and gives signal processing module with the signal that collects; Signal processing module comprises that amplifier, sampling keep module and analog to digital converter, are used for the signal that collects is handled; Mainly be that utilization oxygen saturation measurement module is gathered blood oxygen saturation and pulse frequency for physiology/pathological parameter collection in the present embodiment, mainly adopt acceleration transducer collection patient motion state for the detection of motion state, for the main serviceability temperature sensor acquisition of the collection of environmental parameter ambient temperature; Microprocessor receives digitized physiology/pathological parameter, and to its analyze, computing and storage, give WIFI module by interface module then; WIFI module WIFI module is by wlan network and WAP (wireless access point) communication, and the interface by WAP (wireless access point) and Internet enters the Internet network, and is uploaded to remote medical server; Instruction input module comprises button, is used to control medical instrument operating state; Display module is used to show physiology/pathological parameter, environmental parameter, motion state and diagnostic result; Power module is for each several part provides power supply.
Oxygen saturation measurement module (SpO2) is gathered blood oxygen saturation and pulse frequency, and the physical circuit connected mode as shown in Figure 2.It is little that it has a volume, installs flexibly, and characteristics such as high reliability and accuracy of measurement height can provide that blood oxygen saturation and pulse frequency are measured fast and accurately.In addition, its single supply 5V work, low power dissipation design can show plethysmography ripple and pulse intensity, has simple serial ports and connects, and is easy to integratedly, the communications protocol of communications protocol and BCI is compatibility fully.The measurement unit of blood oxygen saturation is %, and the measurement unit of pulse frequency is BPM.Serial communication adopts the RS232 mouth, supports that 4800/115200 baud rate is optional.Oxygen saturation measurement scope 0-100%, pulse frequency measuring range 25～250 times/minute.The resolution of blood oxygen saturation is 1%, and the resolution of pulse frequency is 1BPM.The certainty of measurement of blood oxygen saturation reaches ± and the certainty of measurement of 2% (70-100%) pulse frequency reaches ± 2% (25-250BPM).Blood oxygen saturation (SpO2) measurement module and microprocessor adopt the serial communication mode to be connected, and adopt 4 needle sockets, be used for upper machine communication and power supply is provided, and pinout is as follows: PIN1:TXD, PIN2:RXD, PIN3:GND, PIN4:+5V.Adopt 5 needle sockets to be connected, be defined as follows: R_LED: ruddiness output, IR_LED: infrared light output, GND: ground, Opto+: just import Opto-with probe; Input is negative.The serial communication data format is: start bit+8 bit data position+1 position of rest, no parity check; Baud rate can be set to: 4800baud, 115200baud.Blood oxygen saturation (SpO2) data that measurement module collected are: 5 byte formats, each second 60 bags, the 7th is sync bit.

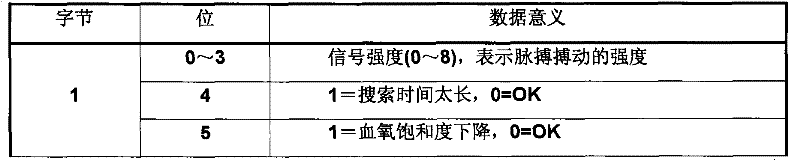

Wherein, particular content can for:
The temperature sensor that present embodiment adopts is the TC77 integrated digital temperature sensor that Microchip company produces, and adopts the output of 13 bit serial interface, and temperature data is got by hot sensing unit conversion.TC77 contains inside 13 ADC, and temperature resolution is 0.0625 ℃/LSB.In normal working conditions, quiescent current is 250 μ A (representative value).Other equipment are realized by SPI universal serial bus or Microwire compatibility interface with communicating by letter of TC77, this bus can be used for connecting a plurality of TC77, realize the multizone monitoring temperature, the low-power consumption shutdown mode is activated in the SHDN position among the configuration register CONFIG, and this moment, current drain only was 0.1 μ A (representative value).
The TC77 pinout is as follows: SI/O: serial data pin, SCK: serial clock, Vss: ground, CE: sheet choosing end (low level is effective), VDD: supply voltage (6.0V).The universal serial bus of TC77 comprises chip selection signal line CE, serial clock signal line SCK and serial data signal line SI/O, follows SPI or Mi-crowire interface standard agreement.When having a plurality of TC77 to be connected to serial clock and serial data signal line, CE is used to select some TC77 devices wherein, when CS is logical zero, be used for write device or from the device sense data synchronously; When CS was logical one, SCK was under an embargo.Intercommunication mutually between the trailing edge starter of CS, the rising edge of CS then stop the intercommunication mutually between device.
Power on or voltage when resetting, TC77 promptly is in the continuous temperature translative mode, power on or the first time effective temperature conversion of voltage when resetting can continue about 300ms, after the first time, temperature transition finished, the 2nd of temperature register is changed to logical one, and during first time temperature transition, the 2nd of temperature register is changed to logical zero, therefore, can judge whether temperature transition finishes for the first time by the state of the 2nd in monitor temperature register.TC77 adopts 13 complement of two's two's complements to represent temperature, and table 1 is listed to be relation between temperature, binary code complement code and the heuristicimal code of TC77.Least significant bit in the table (LSB) is 0.0625 ℃, and latter two LSB position (ascend the throne 1 and position 0) for ternary, in the table is " 1 ".Power on or the voltage reseting event after when taking place that temperature transition finishes for the first time, position 2 is changed to logical one.
The motion sensor that present embodiment adopts is the ADXL330 transducer.Its principle exists: any motion of human body from start to end, the acceleration at each position of its motion limbs is to change always.If repeat arbitrary action, the Changing Pattern of its acceleration also is very approaching.So,, just can exactly this characteristic point X, Y, three components of acceleration of Z in motion process be gathered out as long as 3-axis acceleration sensor is placed on certain characteristic point of tested person's limbs.Then, by component of acceleration is carried out mathematical computations, just can obtain information such as the movement locus of this point and dynamic process.The data that a plurality of characteristic point collected are carried out analysis-by-synthesis, just can draw the details of tested human motion, thereby realized the digitlization of movable information.
ADXL330 is the acceleration transducer of one three (x axle, y axle and Z axle) simulation output, measure the component of acceleration of any time three directions by DXL30, just can calculate information such as this moment the direction of motion of transducer place spatial point, locus, by to information processing, obtain the detailed data of this some action.A plurality of characteristic points to human body detect simultaneously, and data are carried out analysis-by-synthesis, just can obtain the information of human motion.ADXL330 is a thermal convection formula 3-axis acceleration sensor, the output of signal condition voltage is arranged, and maximum measuring range is ± 2g that the bandwidth of X and Y-axis is from 0.5Hz to 1600Hz, Z axle bandwidth has good zero g bias stability and good sensitivity accuracy from 0.5Hz to 550Hz.Utilize the integrated analog to digital converter of microprocessor internal that three outputs of acceleration transducer ADXL330 are gathered.
Portable medical instrument adopts above-mentioned sensor acquisition to need to send the data after the processing to remote medical server after physiology/pathological parameter of patient and environmental parameter, motion state in the present embodiment, as shown in Figure 3 the workflow diagram of portable medical instrument.In current region, there is under the situation more than an objective network WiFi module first available network that will be dynamically connected certainly.In use, the user only needs disposable when using first at least one group of basic parameter to be set.Afterwards, the WiFi module can be behind each electrification reset the automatic scan network, if detect the objective network that sets then connect automatically, and send the networking success message to portable medical instrument after successful connection, portable medical instrument can the normal transmission data after receiving this message.Under automatic networking pattern, module energy automatic scan objective network, broken string can reconnect automatically, need not any intervention of user (patient).When connection failure, network disconnected or rescan into objective network, the WiFi module can reconnect automatically.When the AP of objective network has closed or WiFi module when having left the wireless access point AP signal coverage areas, the WiFi module can enter the automatic scan state, up to scanning available network once more.
Under the networking state, the WiFi module is transmitted the valid data that receive automatically between UART user interface (Universal Asynchronous Receiver/Transmitter, universal asynchronous reception/dispensing device) and radio network interface.Be provided with according to the user, the WiFi module is supported the network data transmission of RAW/UDP/TCP/ (raw data format/User Datagram Protocol User Datagram Protoco (UDP)/TransmissionControl Protocol transmission control protocol), and data link layer can be carried out the data forwarding of UDP message form.When the link layer of WiFi module uses the UDP mode, IP address of equipment, server ip address and service port number information all must meet the setting of ICP/IP protocol regulation, if server is positioned at different subnets with the WiFi module, also subnet mask and gateway need be set, otherwise can't communicates by letter.
The handheld type diagnosis terminal that adopts in the present embodiment comprises the MIM message input module that is used to import diagnostic message, display module, WiFi module, microprocessor, memory and the power module that shows patient information and diagnostic message; Receive the patient information that the remote medical server that is connected with the INTERNET network stores after the WAP (wireless access point) communication that described WiFi module and wlan network link to each other and send diagnostic message and be transferred to remote medical server, be transferred to the display module demonstration after the described patient information reception through WAP (wireless access point).Built-in WIFI protocol stack of described WIFI module and serial ports host-host protocol are realized carrying out communication with WAP (wireless access point).Described WIFI protocol stack comprises IEEE 802.11a, IEEE 802.11b, IEEE802.11g and IEEE 802.11n standard.Behind the physiology/pathological parameter of WIFI module reception from the patient of remote medical server, show that by display module the doctor can diagnose the formation diagnostic message according to these patient informations; Microprocessor can be controlled the instruction of WIFI module, memory and display module and the input of process information input module; Memory can be used for storing embedded operation processing program and physiology/pathological parameter and corresponding diagnostic result; MIM message input module is used to import diagnostic result and inquiry patient information; Power module is for each module provides the power supply support.
Microprocessor adopts the S3C44B0 of Samsung in the present embodiment, and microprocessor comprises following function: (1.1) are to WiFi module transmitting control commands; (1.2) receive and resolve the message that the WiFi module sends; (1.3) be provided with and inquire about WiFi modules configured parameter; (1.4) transfer of data is carried out in communication and between WAP (wireless access point).Concrete operation interface is as shown in Figure 4:
The handheld type diagnosis terminal external form mainly is divided into key input part and menu display part.Key input part has: upper and lower, left and right, definite, cancellation, be total to six press keys, and the doctor can operate all menus with this six press keys.The menu display part is very color LCD display, it is available to have nine menus, is respectively: " server info ", " this machine information ", " current patient information ", " case history inquiry ", " case demonstration ", " diagnostic operation ", " search patient ", " drug information ", " other doctors "." server info " shows the information that remote server sends; " this machine information " shows the operating state and the configuration information of current machine; " current patient information " shows all information of current reception diagnosis patient, comprise name, age, sex, physiology pathological information, motion state, environmental parameter etc.; " case history inquiry " shows the physiology/pathology record of patient in a period of time; " case demonstration " shows relevant patient's information and diagnostic message; " diagnostic operation " input diagnostic result is clicked " determining " key then diagnostic result is sent to remote medical server; " search patient " searches other patients that current online needs are treated; " drug information " shows the information of relevant medicine and Medical Devices; " other doctors " shows current online other doctors' situation.
The WIFI module of portable medical instrument and handheld type diagnosis terminal can be identical in the present embodiment, also can be different; But it all is that data are radioed to WAP (wireless access point) by antenna by wlan network, and the interface by WAP (wireless access point) and Internet network, is transferred to remote medical server.
Preferably adopting same model in the present embodiment is the WiFi module of CG-WIFI-1000, this module has SOC chip (System on a Chip, system level chip), the cost performance height, stable performance, built-in WiFi protocol stack and serial ports host-host protocol comprise that ground, TX send, Rx receives and 4 ports of 5V power supply.The WiFi module has automatically and manual two kinds of networking patterns are selected for the user, in the present embodiment, adopts automatic networking pattern.Fig. 5 is the flow chart of WiFi module from the wlan network that is dynamically connected, and comprises step:
(2.1) WiFi electrification reset;
(2.2) scanning objective network;
(2.3) with the parameter comparison of scanning result and network settings,, return step 2, if coupling continues step 4 if do not mate;
(2.4) linking objective network;
(2.5) if the success of linking objective network has then connected wlan network, if the linking objective network failure then returns step 2 and rescans network.
Wherein, the parameter of network settings comprises:
1. the BSSID of objective network (Basic Service Set Identifier, BSSID), i.e. the MAC of the AP of objective network (Media Access Control, medium access control) address, each AP has unique MAC Address, to distinguish heterogeneous networks;
2. the channel number of objective network;
3. the SSID of objective network (Service Set Identifier, service set identifier), also be ESSID, be used for distinguishing different networks, SSID is broadcast out by AP usually, say that simply SSID is exactly the title of a local area network (LAN), only be set to the computer ability mutual communication of the value of the identical SSID of title;
4. Device IP, i.e. the IP address of WiFi module;
5. the IP address of remote medical server;
6. the port numbers of remote medical server.
The maximum 7 groups of basic parameters of the handheld type diagnosis terminal WiFi module support of present embodiment are provided with, and can connect 7 objective networks at most.In current region, there is under the situation more than an objective network WiFi module first available network that will be dynamically connected certainly.In use, the user only needs disposable when using first at least one group of basic parameter to be set.Afterwards, the WiFi module can be behind each electrification reset the automatic scan network, if detect the objective network that sets then connect automatically, and send the networking success message to medical personnel after successful connection, medical personnel can the normal transmission data after receiving this message.Under automatic networking pattern, module energy automatic scan objective network, broken string can reconnect automatically, need not any intervention of user.When connection failure, network disconnected or rescan into objective network, the WiFi module can reconnect automatically.When the AP of objective network has closed or WiFi module when having left the wireless access point AP signal coverage areas, the WiFi module can enter the automatic scan state, up to scanning available network once more.
Under the networking state, the WiFi module is transmitted the valid data that receive automatically between UART user interface (Universal Asynchronous Receiver/Transmitter, universal asynchronous reception/dispensing device) and radio network interface.Be provided with according to the user, the WiFi module is supported the network data transmission of RAW/UDP/TCP/ (raw data format/User Datagram Protocol User Datagram Protoco (UDP)/TransmissionControl Protocol transmission control protocol), and data link layer can be carried out the data forwarding of UDP message form.When the link layer of WiFi module uses the UDP mode, IP address of equipment, server ip address and service port number information all must meet the setting of ICP/IP protocol regulation, if server is positioned at different subnets with the WiFi module, also subnet mask and gateway need be set, otherwise can't communicates by letter.Fig. 6 is the flow chart of handheld type diagnosis terminal.
In the present embodiment, remote medical server comprises patient information storehouse and information about doctor storehouse; After described remote medical server reception patient information or the diagnostic message information being analyzed classified and stored transmits corresponding information behind the patient information storehouse to handheld type diagnosis terminal or portable medical instrument.Remote medical server has the software and hardware that is connected with the Internet network, and its internal configurations has physiology/pathological parameter calculation process software, real-time monitoring software, patient information storehouse and information about doctor storehouse.
Above-mentioned example only is explanation technical conceive of the present invention and characteristics, and its purpose is to allow the people who is familiar with this technology can understand content of the present invention and enforcement according to this, can not limit protection scope of the present invention with this.All equivalent transformations that spirit is done according to the present invention or modification all should be encompassed within protection scope of the present invention.
Claims (10)
1. remote medical service system, it is characterized in that described system comprises the portable medical instrument of being responsible for gathering patient information, the handheld type diagnosis terminal and the remote medical server that is connected with WAP (wireless access point) that sends diagnostic message, described remote medical server, described portable medical instrument, handheld type diagnosis terminal respectively by with the WAP (wireless access point) communication after be connected with the remote medical server network; Described portable medical instrument is transferred to handheld type diagnosis terminal with the patient information that collects after remote medical server stores; Described handheld type diagnosis terminal receives patient information and sends diagnostic message and be transferred to portable medical instrument after the remote medical server storage; Described remote medical server is responsible for storing patient information and diagnostic message.
2. remote medical service system according to claim 1 is characterized in that described system comprises several portable medical instrument and several handheld type diagnosis terminal; Several portable medical instrument are gathered patient signal and be transferred to several handheld type diagnosis terminal after the remote medical server classified and stored; Several handheld type diagnosis terminal send diagnostic message and be transferred to the remote medical service system that several handheld type diagnosis terminal form multi-to-multi after the remote medical server classified and stored.
3. remote medical service system according to claim 1 is characterized in that described portable medical instrument comprises the signal acquisition module of gathering patient information, signal processing module that patient information is handled and to the WIFI module of remote medical server transmission patient information.
4. remote medical service system according to claim 3, it is characterized in that described signal acquisition module comprises the interior environmental sensor of gathering the physiology/pathological parameter of environment in the patient, the external environment transducer of the environmental parameter of gathering patient's external environment of living in and the motion sensor of motion state, and give signal processing module with the patient information that collects.
5. remote medical service system according to claim 3, it is characterized in that described signal processing module comprises that sampling keeps module, signal amplifier, analog to digital converter and microprocessor, the patient information of described sampling maintenance module received signal acquisition module keeps converting digital signal to by analog to digital converter after signal amplifier amplifies and flows to microprocessor processes; Transmit data by wlan network between described WIFI module and WAP (wireless access point).
6. remote medical service system according to claim 5, described patient information after it is characterized in that will handling after described WIFI module and the WAP (wireless access point) communication transfers to remote medical server, and the diagnostic result by the storage of wlan network receiving remote medical server.
7. remote medical service system according to claim 1 is characterized in that described handheld type diagnosis terminal comprises the MIM message input module that is used to import diagnostic message, display module and the WiFi module that shows patient information and diagnostic message; Receive the patient information that the remote medical server that is connected with the INTERNET network stores after the WAP (wireless access point) communication that described WiFi module and wlan network link to each other and send diagnostic message and be transferred to remote medical server, be transferred to the display module demonstration after the described patient information reception through WAP (wireless access point).
8. according to claim 3 or 7 described remote medical service systems, it is characterized in that built-in WIFI protocol stack of described WIFI module and serial ports host-host protocol are realized and WAP (wireless access point) is carried out communication.
9. remote medical service system according to claim 1 is characterized in that described remote medical server comprises patient information storehouse and information about doctor storehouse; After described remote medical server reception patient information or the diagnostic message information being analyzed classified and stored transmits corresponding information behind the patient information storehouse to handheld type diagnosis terminal or portable medical instrument.
10. one kind is utilized the described remote medical service system of claim 1 to carry out the tele-medicine service method, it is characterized in that said method comprising the steps of:
(1) patient gives remote medical server with patient information by Network Transmission after utilizing portable medical instrument to gather patient information;
(2) remote medical server is given handheld type diagnosis terminal with patient information by Network Transmission after receiving behind the patient information patient information being analyzed classified and stored;
(3) after handheld type diagnosis terminal received patient signal, the doctor imported diagnostic message and gives remote medical server with diagnostic message by Network Transmission;
(4) remote medical server is given portable medical instrument with diagnostic message by Network Transmission after receiving after the diagnostic message diagnostic message being analyzed classified and stored.
