Abstract
The present invention relates to a kind of multi-functional integrated cleaning appliance all-in-one, it is at existing casing, wash basin and being positioned on the bases such as automatic washing machine main body of casing is improved, be that casing top is provided with and encloses frame, enclose at this and to be hinged with on frame and the corresponding cover plate of automatic washing machine main body, be distributed with gauge tap and water inlet interface, and also be provided with the drum clothes drying machine main body that is positioned at automatic washing machine main body one side in this casing, the front of this casing is provided with and the corresponding button fly front of drum clothes drying machine main body, and wash basin is seated in enclosing in the frame of this drum clothes drying machine main body top.Compared with prior art, because the present invention is combined into the integral piece that meets national safety standard with washing machine, wash basin and clothes drying machine dexterously, thereby has and occupy little space, cost of manufacture is low, function is complete, highly moderate, use save time, convenient, energy-conservation, easy for installation, vibration and noise are little, freight is low, the characteristics of whole style unanimity, and be worthy of popularization.
Description
Technical field
The present invention relates to a kind of cleaning appliance of washing and oven dry of clothes, specifically refer to a kind of subsidiary cleaning appliance all-in-one that wash basin is arranged.
Background technology
Along with the cold and Warm Changes in Northern in season, people can increase and decrease clothes thereupon.Usually, autumn and winter season clothing dress is more, and the clothing cleaning can depend on the laundry of automatic washing machine and the baking clothing of drum clothes drying machine more; And dress in spring and summer season is thiner, and people can get used to the thin clothing of smallclothes is placed on and simply clean in the wash basin, hanging drying then, and so both energy savings was convenient and swift again.Therefore in the Chinese city resident family, all have washing machine, clothes drying machine and wash basin facility usually, use for daily cleaning.
But commercially available common washing machine, drum clothes drying machine and wash basin all is absolute construction at present, and putting position disperses relatively, thereby can take bigger room space.And the water-in and water-out pipeline of washing machine and wash basin also is an independent distribution, and then causes the complexity of pipe arrangement.For the less resident of floor space, such defective can be more obvious.
Above-mentioned washing machine, drum clothes drying machine, the existing defective of the relatively independent structure of wash basin are embodied in some buildings, students' dormitory equally, because the student is in the stage of growing up, thereby the laundry that has often seldom, so drenched or outdoor sport when making clothing soaked with sweat when running into the rainy day clothing, worn after being badly in need of washing, drying.But owing to be the room of many people cohabit cohabitation, even living condition has been got well now, students has the joint hope of paying the bill to buy public cleaning appliance, also can be too big because of washing machine, drum clothes drying machine, wash basin footprint area, and can't be contained in the less dormitory and can not realize.
From as can be seen above, what occur at present all is single product, and the consumer suffers from the household appliances that can not find suitable own family.So reasonably the function combination is a main trend of electrical equipment development, also be to realize a kind of life idea of economizing on resources with resource consolidation.
For this reason, people design a kind of washing machine with wash basin, as Chinese patent Granted publication number " washing machine that has washing dish mounting structure " for CN2832876Y, in this patent documentation, disclose and a kind ofly be hinged with lavatory basin at washer body open topped place, open lavatory basin and expose the washing machine inlet, so that put into or take out clothes.Also just like Chinese patent Granted publication number " have and gargle the washing machine of washing the platform basin " for CN2464758Y, such washing machine mainly adopts the barrel roll laundry machine of open front, and on this barrel roll laundry machine top, be embedded one and gargle and wash the platform basin, and both shared sewers.Obviously, more above-mentioned dispersed structure is compared, and this will gargling washed the structure that platform basin and washing machine unite two into one, and saved the space to a certain extent, increased the usefulness of living space.
But anatomize, this structure that unites two into one still has following deficiency: for the former, because the use of lavatory basin and washing machine is subjected to certain restriction mutually, and the bottom of lavatory basin is connected with outlet pipe, if rotate lavatory basin repeatedly, be an impediment to the flexible rotation of lavatory basin on the one hand, also impair outlet pipe on the other hand.And for the latter, at first, exist the defective that washing table top is too high, be inconvenient to use, this is rotation at a high speed when dewatering because of barrel roll laundry machine, vibration when reducing high speed rotating, below turning barrel, be provided with above the vibration reduction and cushioning post of column and the outer bucket with the weight of a thickness,, and can increase along with the increase of the capacity of laundry so the whole height of barrel roll laundry machine is subjected to this structure qualification.As checking in minimum money barrel roll laundry machine (the model of drying function is not XQG50-E700, and the model of drying function is XQG50-HDB1000, and washing capacity the is 5.0 kilograms) height of company of Haier in 2007 on the net is 850 millimeters.The wash basin that uses in people's life at present is the 130-180 millimeter deeply, the water outlet section header height of wash basin bottom is 60 millimeter, the three combines total height will be between 930-1030, the general height of the 800-850 Wash Units of this use of being grown up highly head and shoulders above.For minor student, then more be unfavorable for using.Secondly, if will overcome above-mentioned defective, primarily be the whole height that reduces barrel roll laundry machine, promptly dwindle the turning barrel diameter.But because barrel roll laundry machine is to utilize clothing in the process of rolling, falls and sprinkle from eminence and fetch water face and clean clothing, the turning barrel of therefore crossing minor diameter can't make clothes roll, thereby reduce clean rate widely, and the advantage of forfeiture drum laundry.Moreover the cost height of barrel roll laundry machine own is cleaned ratio in full-automatic pulsator washing machine in same energy consumption and time.In view of above-mentioned all reasons, so do not see the washing machine that this belt transect wash basin is arranged on the existing market.
For satisfying people's living needs, the above-mentioned drum type washing machine that occurs on the market also has the higher type of technology content of drying function recently, though this washing machine has floor space characteristics little, easy to use, but because its shared storage clothing bucket, on the one hand cannot be while doing washing, dry by the fire clothing, promptly hindered people with the operation of doing washing, drying by the fire clothing in the period, done washing and dry by the fire clothing so that under equal conditions need spend more time.On the other hand, the barrel roll laundry machine of drying function, clothing is washed in turning barrel, dehydration and again in the drying course, hot blast is in drying clothes, must add the not most globule of dehydration on the oven dry storage clothing bucket, and the large tracts of land globule that does not flow to end in the water butt and the ponding that does not partly drain, so each oven dry, need the more time and more multipotency consume, cause the high drawback of its use cost thus.And because the complex structure of barrel roll laundry machine itself, again with the structure that goes up drying function, the manufacturing cost height, selling price is also very high, can only adapt to the minority people with higher consuming capacity.
Summary of the invention
Technical problem to be solved by this invention is the present situation at prior art, provide a kind of take up room little, cost is low and meet use height, can use simultaneously, energy-conservation multi-functional integrated cleaning appliance all-in-one
The present invention solves the problems of the technologies described above the technical scheme that is adopted: this multi-functional integrated cleaning appliance all-in-one comprises casing, wash basin and the automatic washing machine main body that is positioned at casing, be furnished with osculum in the described casing with wash basin, the outfall sewer that the drainpipe delivery port of spillway hole and automatic washing machine main body is connected, it is characterized in that: described casing top is provided with encloses frame, enclose at this and to be hinged with on frame and the corresponding cover plate of described automatic washing machine main body, be distributed with gauge tap and water inlet interface, and also be provided with the drum clothes drying machine main body that is positioned at described automatic washing machine main body one side in this casing, the front of this casing is provided with and the corresponding button fly front of described drum clothes drying machine main body, and described wash basin is seated in enclosing in the frame of this drum clothes drying machine main body top.
As a further improvement on the present invention, on the casing between wash basin and the drum clothes drying machine main body, be provided with the depository dish of drawer-type structure, can utilize this depository dish, collect some bath accessories.Perhaps erectly be fixed with the storage shelf that is positioned at position, wash basin back upper place on the frame enclosing, can also put some bath accessories or washing clothes by means of this storage shelf, make structure of the present invention compact more, function is more complete.
Preferably, tank surface above button fly front is fixed with water fender, the gauge tap panel of above-mentioned drum clothes drying machine main body is good on the casing under this water fender to be arranged on, and can stop effectively that like this current flow in drum clothes drying machine main body or the gauge tap panel.Equally, enclosing around the upper edge of wash basin or wash basin is provided with the waterproof flange on the frame, and this waterproof flange is arranged on the side at least, also can be designed to multiple tracks from inside to outside, can stop the outflow of water like this, makes structure and serviceability satisfy security needs.
Certainly, the gauge tap panel of above-mentioned drum clothes drying machine main body also can be arranged on separately and enclose on the frame, or unifies, integrally is arranged on the same control panel with the gauge tap of described automatic washing machine main body.
Very practical is, disposes the water pipe that the water inlet pipe with wash basin water inlet pipe and automatic washing machine main body is connected in casing, and the water inlet interface of main body links to each other with external water source, and just can reach is the purpose of wash basin and washing machine water supply simultaneously.Obviously, so both saved connection charge, convenient again the use.
In above-mentioned each scheme, described wash basin can be by corrosion resistant plate punch forming or injection molded with engineering plastics, and this wash basin is simple in structure, is convenient to make.Also can adopt the mode of inside and outside layer combination, being its ectomesoderm forms or with the punch forming of metal sheet metal with plastic injection-moulded, internal layer is then made the layer of paddling with corrosion resistant plate or pottery or glass, and internal layer embeds in the skin, and be fixed into one with sealing ring and bolt seal, to satisfy different users's hobby.Can also will enclose frame and wash basin with same corrosion resistant plate punch forming or with the same plastic injection-moulded part that is integral, such integral piece installs convenient, also more can prevent the seepage of sealing.
Comparatively convenient, practical is, also disposing promising tank and automatic washing machine main body in casing provides the Instant heating type hot-water apparatus of hot water, the cold water inlet hole that this Instant heating type hot-water apparatus is somebody's turn to do can be by cross current in the water inlet interface, and the control panel of this Instant heating type hot-water apparatus can be arranged on separately and encloses on the frame, also can be unified with the gauge tap of described automatic washing machine main body, integrally be arranged on the same control panel.In this programme, this Instant heating type hot-water apparatus can adopt the electric heating mode of heating, just by the respective switch on the operation control panel, the cold water that will flow through in the Instant heating type water generator housing is heated into temperature required hot water immediately, and this hot water can offer wash basin at the same time or separately and the automatic washing machine main body is used.
In order to reduce appliance plug, the power line of automatic washing machine main body, drum clothes drying machine main body and Instant heating type hot-water apparatus is connected on the same attaching plug, and is easy to operate like this, also reduced the distribution of external electric supply socket.
Compared with prior art, because the present invention is combined into the integral piece that meets national safety standard with washing machine, wash basin and clothes drying machine dexterously, thereby have following advantage: (1) had both satisfied desired the occupying little space of consumer like this, cost of manufacture is low, multiple functional requirement, can utilize simultaneously the height of clothes drying machine and wash basin to arrange in pairs or groups again, the height instructions for use in the time of can reaching people and wash one's face and rinse one's mouth.(2) will do washing and dry by the fire the clothing functional separation, can carry out simultaneously operating easily, and realize saving time, convenient, energy-conservation application target.(3) because it is an overall structure, not only easy for installation, and integral body to land area big, thereby can reduce automatic washing machine and operating vibration of drum clothes drying machine and noise, the while has also been reduced freight.(4) whole style unanimity can increase indoor layout effect.
Description of drawings

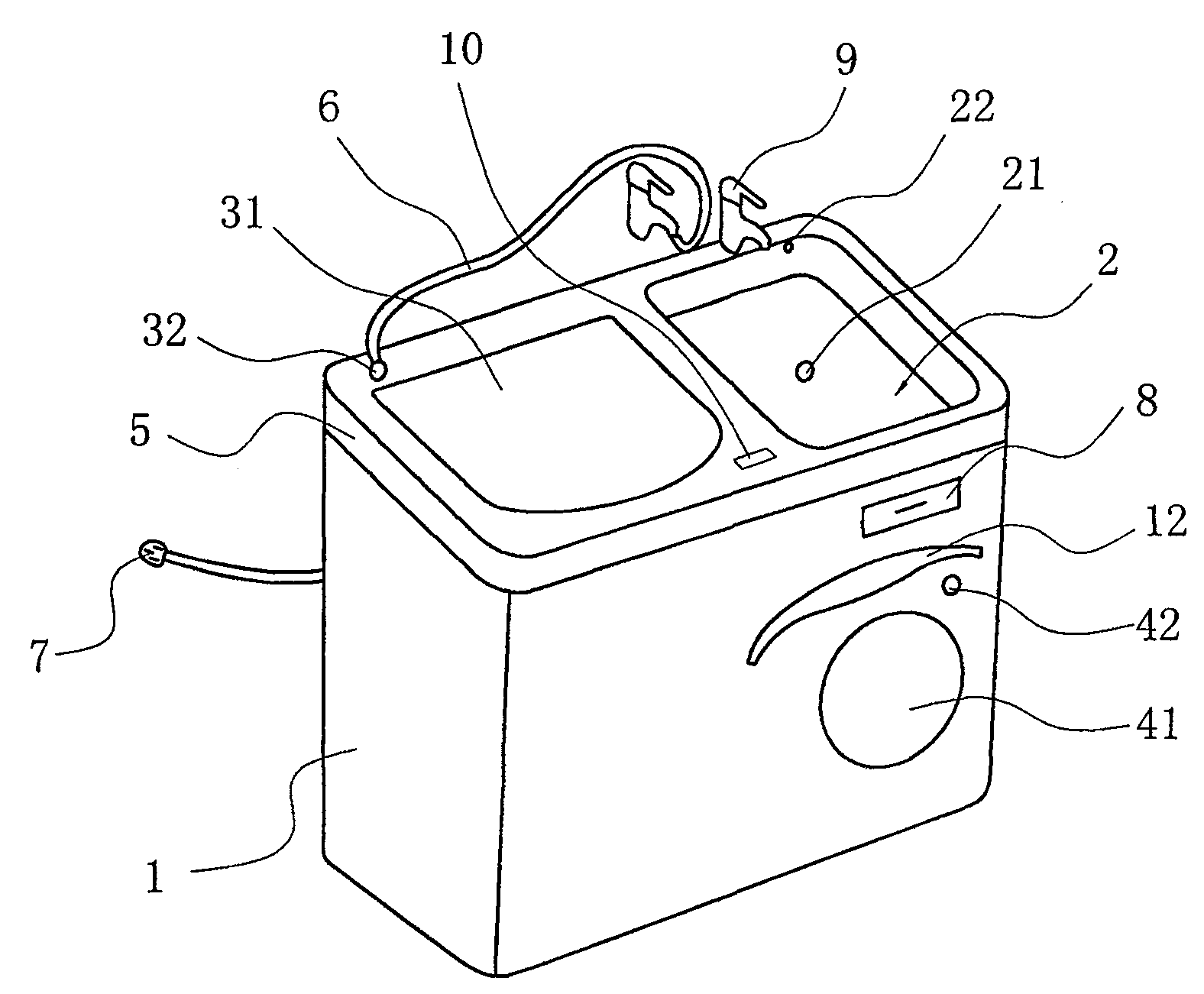

Fig. 1 is the stereogram of first embodiment of the invention;
Fig. 2 is the rearview of first embodiment of the invention;
Fig. 3 is the side view of first embodiment of the invention;
Fig. 4 is the rearview of second embodiment of the invention.
The specific embodiment
Embodiment describes in further detail the present invention below in conjunction with accompanying drawing.
Embodiment one, as shown in Figure 1 to Figure 3, automatic washing machine main body 3 placed side by side and drum clothes drying machine main body 4 that this cleaning appliance all-in-one comprises casing 1, wash basin 2 and is positioned at casing, automatic washing machine main body 3 adopts impeller-type or strand to mix formula automatic washing machine inner core, 4 of drum clothes drying machine main bodys adopt the drum baking laundry inner core of open front, because they all are conventional prior aries, are not described in detail in this.The top of casing 1 is provided with encloses frame 5, and the bottom is fixed on the base 12, in the present embodiment promptly, and by casing 1, enclose the shell that frame 5 and base 11 have formed this all-in-one.Certainly casing and base also can be made into integration.Be hinged with on the frame 5 and automatic washing machine main body 3 corresponding cover plates 31 above-mentioned enclosing, and the gauge tap and the water inlet interface 32 that are distributed with automatic washing machine main body 3, the front of this casing is provided with and drum clothes drying machine main body 4 corresponding button fly front 41 and gauge tap panels 42.Above-mentioned wash basin has apopore 21 and spillway hole 22, and it is seated in enclosing in the frame 5 of these drum clothes drying machine main body 4 tops, is enclosing the hose 9 that promising this wash basin water supply is installed on the frame 5.Simultaneously, be connected for convenience of the water-in and water-out of all-in-one and with the power supply in the external world, this all-in-one only is furnished with water inlet manifold 6, outfall sewer 20 and attaching plug 7, water inlet manifold 6 adopts flexible pipe, be connected on the water interface, and in casing with hose 9 water inlets of wash basin by cross current in the water inlet interface, water supply when so just can satisfy wash basin and laundry.And above-mentioned outfall sewer 20 is communicated with the drainpipe delivery port of osculum 21, spillway hole 22 and the automatic washing machine main body of above-mentioned wash basin by pipeline, the water of wash basin, automatic washing machine can be drained in the public sewer hole by this outfall sewer 20 like this.And automatic washing machine main body and drum clothes drying machine main body are used the power line of same heading power plug 7, can reduce power line socket and distribute.
In the present embodiment, also erectly be fixed with the storage shelf 30 that is positioned at position, wash basin 2 back upper place on the frame 5 enclosing, see also Fig. 2 and Fig. 3, and on the casing between wash basin 2 and the drum clothes drying machine main body 4, also be provided with the depository dish 8 of drawer-type structure, utilize this storage shelf 30 and depository dish 8, can place some bath accessories and washing clothes, thereby increase the storage function of this all-in-one.
In the process of using wash basin 2; in order to prevent in the water inflow bottom drum clothes drying machine main body 4 and in the gauge tap panel 42; casing 1 surface above button fly front 41 is fixed with water fender 12; gauge tap panel 42 is arranged on the casing 1 under this water fender; and enclosing around the wash basin have additional waterproof flange 51 on the frame, with the protection electric equipment.
In order to ensure global shape, above-mentionedly enclose that frame 5 and wash basin 2 adopts same corrosion resistant plate punch formings or with the same plastic injection-moulded part that is integral, and this overall structure more can effectively prevent the seepage of sealing, guarantee the safe in utilization of electrical equipment.
Embodiment two, as shown in Figure 4, itself and the above-mentioned first embodiment difference are: also dispose the Instant heating type hot-water apparatus 50 that promising wash basin 2 and automatic washing machine main body 3 provide hot water in casing 1, this Instant heating type hot-water apparatus adopts routine techniques, its cold water inlet hole is communicated in into water interface 32 by water pipe 60, the hot water outlet of this Instant heating type hot-water apparatus 50 is connected in the hot water inlet of hose 9 by first hot water pipeline 40, delivers in the turning barrel of automatic washing machine main body 3 by second hot water pipeline 70 simultaneously.32 interfaces of water inlet are delivered to cold water in the turning barrel of automatic washing machine main body 3 by a cold water pipes 80, and cold water control valve 90 is installed on cold water pipes.And the gauge tap of the control panel of Instant heating type hot-water apparatus 50 and automatic washing machine main body is unified, integrally is arranged on the same control panel 10, and is installed in described enclosing on the frame 5, sees also Fig. 1.And the power line of Instant heating type hot-water apparatus 50 also is connected on the above-mentioned attaching plug 7.
Embodiment three, it is in the above-mentioned second embodiment difference: the gauge tap of the control panel of Instant heating type hot-water apparatus 50, automatic washing machine main body, the gauge tap panel of drum clothes drying machine 42 are arranged on the same control panel by unified, this control panel then is installed in described enclosing on the frame 5, sees also Fig. 1.It is convenient to operate like this, also helps whole shape-designing.
Obviously, adopt the all-in-one of said structure, people can wash one's face and rinse one's mouth with wash basin simultaneously, utilize automatic washing machine to do washing, and dry by the fire clothing by the drum clothes drying machine, do not pin down mutually separately, and are convenient to use.And utilize Instant heating type hot-water apparatus to obtain hot water, can also utilize the clothes drying machine height generally to be lower than the characteristics of corresponding washing machine height, can produce the all-in-one of differing heights, use with the consumer who satisfies all ages and classes section student group or different regions, it is more fit to make that such all-in-one multifunctional machine uses, and has more practicality.
Claims (10)
1, a kind of multi-functional integrated cleaning appliance all-in-one, it comprises casing (1), wash basin (2) and be positioned at the automatic washing machine main body (3) of casing, be furnished with osculum (21) in the described casing (1) with wash basin, the outfall sewer (20) that the drainpipe delivery port of spillway hole (22) and automatic washing machine main body is connected, it is characterized in that: described casing (1) top is provided with encloses frame (5), enclose at this and to be hinged with on frame and the corresponding cover plate of described automatic washing machine main body (3) (31), be distributed with gauge tap and water inlet interface (32), and be provided with the drum clothes drying machine main body (4) that is positioned at described automatic washing machine main body (3) one sides in this casing (1), the front of this casing (1) is provided with and the described corresponding button fly front of drum clothes drying machine main body (41), and described wash basin (2) is seated in enclosing in the frame (5) of this drum clothes drying machine main body top.
2, multi-functional integrated cleaning appliance all-in-one according to claim 1, it is characterized in that: the casing between described wash basin and the drum clothes drying machine main body is provided with the depository dish (8) of drawer-type structure.
3, multi-functional integrated cleaning appliance all-in-one according to claim 1 is characterized in that: described enclosing also erectly is fixed with the storage shelf (30) that is positioned at described wash basin (2) position, back upper place on the frame (5).
4, multi-functional integrated cleaning appliance all-in-one according to claim 1 is characterized in that: the tank surface of described button fly front top is fixed with water fender (12).
5, multi-functional integrated cleaning appliance all-in-one according to claim 4 is characterized in that: the gauge tap panel (42) of drum clothes drying machine main body (4) is arranged on the casing (1) under the described water fender.
6, multi-functional integrated cleaning appliance all-in-one according to claim 1 is characterized in that: the upper edge of described wash basin (2) or described wash basin (2) frame (5) that encloses on every side is provided with waterproof flange (51).
7, according to the described multi-functional integrated cleaning appliance all-in-one of the arbitrary claim of claim 1 to 6, it is characterized in that: in described casing, dispose the water pipe that the water inlet pipe with wash basin water inlet pipe and automatic washing machine main body is connected.
8, according to the described multi-functional integrated cleaning appliance all-in-one of the arbitrary claim of claim 1 to 6, it is characterized in that: described wash basin (2) is by corrosion resistant plate punch forming or injection molded with engineering plastics; Or described wash basin (2) is by inside and outside layer combination, its ectomesoderm forms or with the punch forming of metal sheet metal with plastic injection-moulded, internal layer is then made the layer of paddling with corrosion resistant plate or pottery or glass, and described internal layer embeds in the above-mentioned skin, and is fixed into one with sealing ring and bolt seal; Or described wash basin (2) and enclose frame (5) with same corrosion resistant plate punch forming or with the same plastic injection-moulded part that is integral.
9, according to the described multi-functional integrated cleaning appliance all-in-one of the arbitrary claim of claim 1 to 6, it is characterized in that: also dispose the Instant heating type hot-water apparatus (50) that promising described wash basin (2) and automatic washing machine main body provide hot water in described casing (1), the cold water inlet hole of this Instant heating type hot-water apparatus is communicated in described water inlet interface (32) by water pipe (60).
10, multi-functional integrated cleaning appliance all-in-one according to claim 9, it is characterized in that: the power line of described automatic washing machine main body (3), drum clothes drying machine main body (4) and Instant heating type hot-water apparatus (50) is connected on the same attaching plug (7).
