Abstract
A kind of air purifier, it is characterized in that, comprise the suction grid that guiding sucks from rear air, purify by sucking the multi-functional filter assembly of grid air, the bottom surface outlet that the air that guiding has purified is discharged to the bottom surface, the side outlet that the air that guiding has purified is discharged to the side.The present invention can improve air cleaning efficient, brings a kind of more comfortable environment to the people.
Description
Technical field
The present invention relates to a kind of air purifier.
Background technology
Air purifier is to remove indoor dust, coal gas, and peculiar smell, smokes etc. are brought a kind of device of comfort air environment to the people.
As shown in Figure 1, air purifier comprises that mainly the place ahead is equipped with suction grid 12, the discharge grid 14 that discharge purifies air, object 16, be installed in the inboard of above-mentioned suction grid 12 and to by sucking the filter 18 that various objects such as the micronic dust that contains in grid 12 air, coal gas filter, can insert the fixed panel 20 of above-mentioned filter 18, the fan 22 that room air is sent to filter 18, be installed in object 16 wind directions inner and that guide fan 22 to send and discharge the formations such as fan guide portion 24 that grid 14 is discharged.
In order to make filter 18 be inserted into fixed panel 20 from the side, upper side and downside at fixed panel 20 are formed with gathering sill 26, one side is formed with button 28, the distal portion of the another side of filter 18 and fixed panel 20 is formed with the user can Fixed-Filter 18 by button 28, removes the propelling fixed structure of Fixed-Filter 18 again by button 28.
Above-mentioned propelling fixed structure is with the side that is installed in fixed panel 20 Lock Part 32 of locking hook 30 lockings is constituted by the outstanding locking hook 30 that is formed on filter 18 opposite sides of face.
Above-mentioned filter installation structure is the Lock Part 32 that the locking hook 30 that is formed on filter 18 opposite sides when filter 18 is inserted into the gathering sill 26 of fixed panel 20 from the side is inserted into fixed panel 20, play locking effect, when user's structure that unlocks during again by a button 28, at this moment locking hook 30 breaks away from the middle of Lock Part 32, can take out filter 18.
But there are a lot of weak points in above-mentioned prior art, and for example 18 of the filters of existing air purifier have single performance, effectively the multiple foreign matter that contains in the filtered air.
Summary of the invention
Single in order to overcome the performance that has the air purifier existence now, effectively the multiple foreign matter that contains in the filtered air the invention provides a kind of improved air purifier, and it can improve air cleaning efficient, brings a kind of more comfortable environment to the people.
The technical solution adopted for the present invention to solve the technical problems is:
A kind of air purifier is characterized in that, comprises the front panel of the writing board shape that the clarifier front forms in appearance; The rear frame that clarifier forms later; Guiding is integrally formed from suction grid and rear frame middle part that rear air sucks; Filter is gone up dismountable installation on the framework in the back; Filter constitutes by the multi-functional filter assembly with for the filter frame that inserts above-mentioned filter assemblies; The bottom surface outlet that the air that guiding has purified is discharged to the bottom surface, the side outlet that the air that guiding has purified is discharged to the side
Aforesaid air purifier, wherein filter assemblies comprises the primary filter of the big dust particle that contains in the filtered air, filters the HEPA of minute dust, removes the taste removal filter of peculiar smell in the air.
Aforesaid air purifier, wherein filter assemblies also comprises with the spherical formation of small nano-sized carbon and the nano carbon microsphere filter of high absorption capacity is arranged.
Aforesaid air purifier, wherein filter assemblies also comprises the extraordinary nano silver filtering device of antibiotic, bactericidal property.
Air purifier of the present invention is to discharge air with the bottom surface from the side after sucking air from the rear, and side blade and bottom surface blade optionally open and close controlling side outlet and bottom surface outlet.Air purifier of the present invention has the air cleaning of raising ability, increases the advantage that air is discharged area.
And the foreign matter and the peculiar smell that effectively contain the filtered air by the filter assemblies that has a plurality of filters and form from air purifier rear side inhaled air.
The present invention improves the purification efficiency of air purifier on the whole.
Description of drawings
Fig. 1 is the schematic diagram of existing air purifier
Fig. 2 is the schematic diagram of closing side discharge blade state of air purifier embodiment of the present invention
Fig. 3 is the schematic diagram of opening side discharge blade state of air purifier embodiment of the present invention
Fig. 4 is the demonstration rear schematic appearance of air purifier embodiment of the present invention
Fig. 5 is the decomposing schematic representation of the show internal structure of air purifier embodiment of the present invention
Fig. 6 is the demonstration filter schematic appearance of air purifier embodiment of the present invention

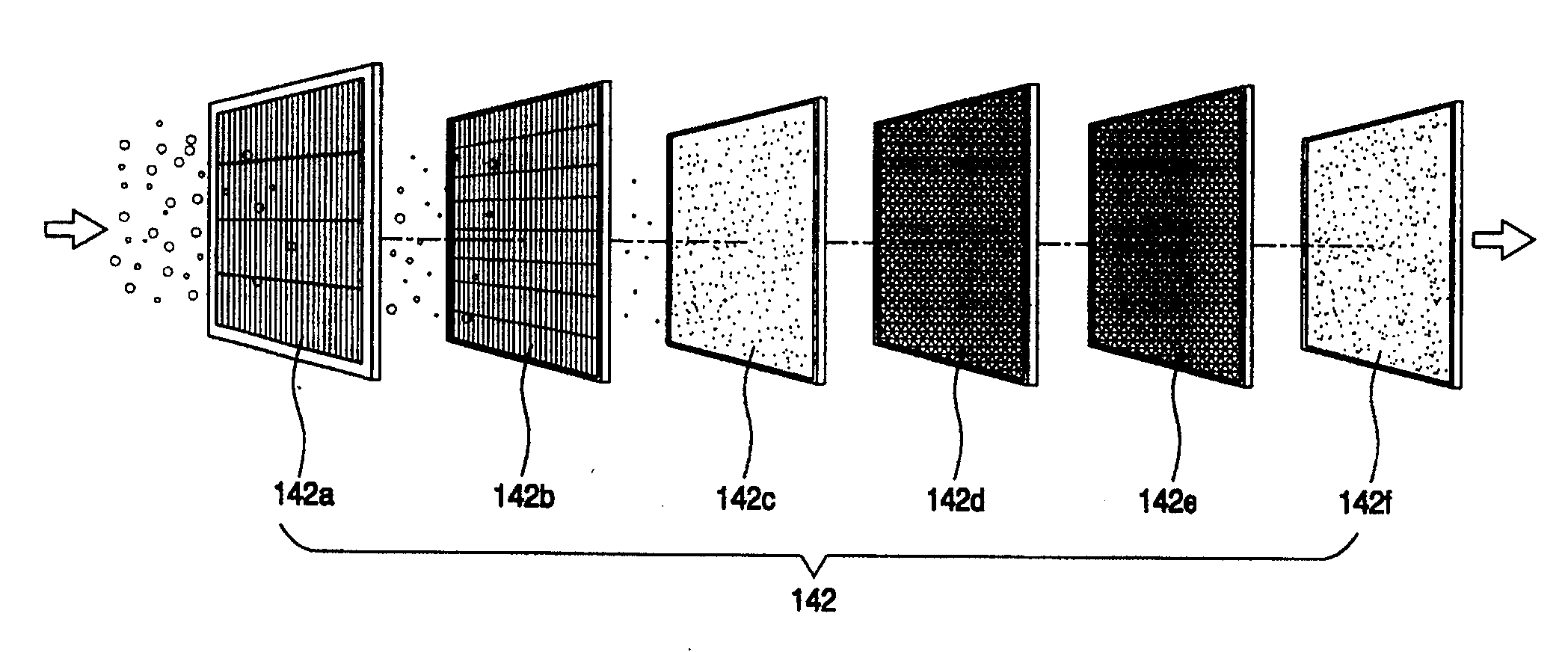

Fig. 7 is the decomposing schematic representation of the display filter assembly of air purifier embodiment of the present invention
The number in the figure explanation:
100 air purifiers, 110 front panels
112 display windows, 114 state windows
120 front frameworks, 122 side outlets
124 side discharge blades, 126 bottom surface outlets
128 bottom surface discharge blades, 130 rear frame
132 suck grid 134 hook projections
134 ' bolt, 136 air via holes
138 filter installation portions, 140 filters
142 filter assemblies, 144 filter frames
144 ' filter insertion section, 150 display parts
152 visual display part 154 control windows
156 front panel pocket for the punch heads, 160 fans
170 dividing plates, 172 dividing plate holes
174 control boxes, 176 oxygen generators
178 shutters, 200 outlet opening and closing devices
The specific embodiment
Shown in Fig. 2,3,4, the front of air purifier 100 of the present invention is formed with the front panel 110 of writing board shape in appearance, the bottom of front panel 110 is formed with the display window 112 that can have an X-rayed display part 150, be formed with above the display window 112 can the fluoroscopy image display part visual display window 114.Display window 112 and visual display window 114 are to be made into transparent material, so be easy to observe internal state.
In addition, in front can additional pictures or photograph on the plate 110 according to user's demand, as famous person's photograph, famous painting etc.But also on the plate 110 digital photo frame or PDP (PDP:PlazamaDisplay Panel) the own photograph of demonstration or family's photograph are set in front.
The rear of above-mentioned front panel 110 is formed with the front framework 120 of supporting front panel 110 and covering front panel 110, and this front panel 110 is to hang on the front framework 120 to be fixed up.The both sides, front of front framework 120 are formed with certain inclined plane 120 ', are formed with on the inclined plane 120 ' to discharge the side outlet 122 that purifies air.
Be formed with working order on the above-mentioned side outlet 122 according to air purifier 100, optionally open and close the side discharge blade 124 of side outlet 122, the inboard of side outlet 122 is formed with following shutter 178, and shutter 178 can be controlled the discharge direction of discharging air.
Above-mentioned front framework 120 rear sides form the rear frame 130 of air purifier 100 back outward appearances.The part of above-mentioned rear frame 130 central authorities is to the formation of rearward projection, and air that guiding enters from the rear and the suction grid that has a plurality of passages 132 ' 132 are integrally formed with rear frame 130 middle parts.Be formed with the filter 140 of filtered air and following various devices on the above-mentioned rear frame 130.Above-mentioned filter 140 is the dismountable installation in below of framework 130 in the back.
Form 4 on the above-mentioned suction grid 132 and link up with projections 134, this hook projection 134 is linked up with projection 134 and bolt 134 ' fixing formation together in the rearwardly projecting formation of left and right sides that sucks grid 132 bottoms.Be installed in indoor the time bolt 134 ' and be inserted into and be contained in wall and be provided with on the hook hole (not shown) of plate, can be installed in air purifier 100 on any one indoor position like this.
The upper end of above-mentioned rear frame 130 is formed with the air via hole 136 before and after connecting, and the major function of air via hole 136 is can make on the following various sensors of the easier contact of room air.
Describe each parts between front framework 120 and front framework 120 and the rear frame 130 in detail with reference to Fig. 5.The bottom of above-mentioned front framework 120 is formed with the bottom surface outlet 126 of guiding downwards that purifies air, and forms the bottom surface discharge blade 128 that opens and closes bottom surface outlet 126 at bottom surface outlet 126.
Be formed with the display part 150 that shows air purifier 100 operating states in the front of above-mentioned front framework 120.Above-mentioned display part 150 is to be constituted and be connected control box 174 by LCD LCD or luminous two pipe LED to control air purifiers 100.
The upside of above-mentioned display part 150 also is formed with visual display part 152, the image that main demonstration has set, and display part 150 also is to be made of LCD or LED.
Image in the image display part 152 can use from network or other device downloads, is presented in the visual display part 152 along with air purifier 100 operating states show various images or expression.
The upper end, front of above-mentioned front framework 120 is formed with control window (154), and control window (154) is each parts that are used to show control box 174.
The front of above-mentioned front framework 120 is formed with the outlet opening and closing device 200 that opens and closes side discharge blade 124, and the marginal portion up and down of front framework 120 is formed with front panel pocket for the punch head 156, and it is fixing that front panel pocket for the punch head 156 can make front panel 110 hang up.
The rear side of above-mentioned front framework 120 is formed with the fan 160 that sucks room air, and fan 160 sucks grid 132 by appeal and sucks room air.
The upper end, front of dividing plate 170 also is formed with the control box 174 of control air purifier 100, is formed with oxygen generator 176 at the upside of control box 174.Oxygen generator 176 plays bactericidal action by the input generation ozone of power supply.
The upper end, front of above-mentioned rear frame 130 is formed with a plurality of sensors.Promptly be installed in the gas sensor S1 of air via hole 136 upsides, humidity sensor S2, dust sensor S3.
Above-mentioned gas sensor S1 detects by above-mentioned air via hole 136 inhaled air dustiness, and detected transfer of data is arrived control box 174, and control box 174 is regulated the running of air purifier 100 according to the air pollution degree.
Above-mentioned gas sensor S1 also installs humidity sensor S2 in the next door, humidity sensor S2 detects by above-mentioned air via hole 136 inhaled air humidity, and detected transfer of data to control box 174, control box 174 is regulated the running of air purifier 100 according to the air pollution degree.
Above-mentioned humidity sensor S2 also installs dust sensor S3 in the next door, dust sensor S3 detects by the pure and fresh degree of above-mentioned air via hole 136 inhaled airs, and detected transfer of data to control box 174, regulate the running of air purifier 100 according to degree with fresh air.
The front of above-mentioned rear frame 130 is formed with the filter installation portion 138 that filter 140 is installed, the thickness of filter installation portion 138 is corresponding with the thickness of filter 140, the leading section left and right sides is formed with the filter guide rail 138 ' that filter 140 is slided and can fix each self-forming at regular intervals, and the bottom of rear frame 130 also forms the filter installing port 138 that filter 140 is come in and gone out upward ".
As shown in Figure 6, filter 140 is installed on the above-mentioned filter installation portion 138.Filter 140 is formed by multi-functional filter assemblies 142 with for the filter frame 144 that inserts above-mentioned filter assemblies 142.
Be formed with the filter insertion section 144 ' that the filter assemblies 142 that will be inserted installs and fixes on the said filter frame 144, the size of this filter insertion section 144 ' is corresponding with the profile of filter assemblies 142.For filter frame 144 is installed on the rear frame 130 easily, on filter frame 144, be formed with handle 144 ".
Above-mentioned filter assemblies 142 is a rectangle, and is located on the filter insertion section 144 ', and filter assemblies 142 is made up of a plurality of filters, plays being drawn into airfiltering effect in the air purifier 100 (as dust, bacterium, antibiotic etc.).
Consult Fig. 7, describe above-mentioned filter assemblies 142 in detail.The primary filter 142a that is formed on filter assemblies 142 previous sections is the bigger dust that contains in the main filtered air, and the wire side of primary filter 142a other filter wire sides that compare are formed with big hole.The miscellaneous part of antibacterial action can also be set at wire side.
The rear side of above-mentioned primary filter 142a is formed with the HEPA 142b by secondary filter air after the primary filter 142a.Above-mentioned HEPA 142b is the tannic acid that plates green tea.It is high that HEPA 142b has an antibacterial effect, can filter 0.3 micron minute dust more than 99.97%.
The rear side of above-mentioned HEPA 142b is formed with the taste removal filter 142C of peculiar smell in the filtered air, and taste removal filter 142C mainly adopts the active carbon filter with strong absorption affinity, can remove the smoke and the food flavor that exist in the air.
The rear side of above-mentioned taste removal filter 142C also is formed with nano carbon microsphere (CNB) the filter 142d that filters the taste removal better effects if than taste removal filter 142C.
Nano carbon microsphere (CNB) is with the spherical formation of 200nm to 500nm, and is formed with a lot of apertures from the teeth outwards, so have bigger adsorption area.So-called adsorption area greatly just means that the ability of adsorbing peculiar smell is very high.
The nano carbon microsphere (CNB) of use in nano carbon microsphere (CNB) filter 142d is to utilize 7 stage synthetic methods of silica to make, and can regulate the size of nano carbon microsphere and the size of nano carbon microsphere surface aperture.
But also can in the middle of the carbon structure of nano carbon microsphere (CNB) filter 142d, add the catalyst that decomposes the peculiar smell object, and increase peculiar smell object decomposition rate, decompose so simultaneously and two kinds of functions of absorption.Nano carbon microsphere (CNB) filter 142d removes the peculiar smell ability than active carbon in the past and improves 8 times to 12 times, and adsorption capacity improves more than 15 times than active carbon in the past.
The rear side of above-mentioned nano carbon microsphere (CNB) filter 142d is formed with the ozone filter 142e that removes ozone.Ozone filter 142e function is to remove airborne ozone, particularly removes the ozone that produces at oxygen generator 176, prevents in the ozone inlet chamber, and provides more comfortable air ambient to people.
The rear side of above-mentioned ozone filter 142e has the nano silver filtering of being formed with device 142f.Nano silver filtering device 142f is plated in antibiotic, the extraordinary argent of bactericidal property on the filter and forms, and can effectively prevent bacterial reproduction like this.
When making nano silver filtering device 142f silver-plated on the resin web or on resin web additional Nano Silver.
The place ahead of above-mentioned filter assemblies 142 is provided with air cleaner 146 in addition.This air cleaner 146 filters the air by filter assemblies 142 in advance in filter assemblies 142 fronts.These air cleaner 146 general primary filters that use.On filter assemblies 142, primary filter 142a can also be installed
Be formed with the outlet opening and closing device 200 of mobile side discharge blade 124, switching side outlet 122 on the above-mentioned front framework 120.
Effect to air purifier of the present invention with said structure is illustrated below.
When air purifier 100 of the present invention moves, above-mentioned side discharge blade 124 and bottom surface discharge blade 128 open side outlets 122 and bottom surface outlet 126, the fan (not shown) of air purifier 100 is drawn into room air in the air purifier 100 by the suction grid 132 that is formed on rear frame 130.
The air that is drawn into air purifier 100 is at first by passing through filter assemblies 142 again behind the air cleaner 146.At this moment filter assemblies 142 is to constitute with a plurality of combination of filters, and has multinomial function, the dust and the peculiar smell that contain in can filtered air.
The bigger dust that the primary filter 142a of filter assemblies 142 contains in the filtered air is for the first time filtered more than 99.97% by the minute dust of primary filter 142a by HEPA 142b.
Air by HEPA 142b is again by the peculiar smell that contains in taste removal filter 142C and nano carbon microsphere (CNB) the filter 142d filtered air.
Above-mentioned ozone filter 142e filters the ozone that produces on the oxygen generator 176, and nano silver filtering device 142f can prevent the breeding of bacterium on the filter.Be distributed to by above-mentioned suction grid 132 at the ozone that produces on the oxygen generator 176 in addition and suck in the middle of the air, such ozone can kill the bacterium that contains in the air and the bacterium on the filter assemblies 142.
By purifying air under the effect of fan by side outlet 122 and bottom surface outlet 126 of above-mentioned filter assemblies 142 to indoor discharge.
Open and close the side discharge blade 124 of above-mentioned side outlet 122 and bottom surface outlet 126 and bottom surface discharge blade 128 and be running separately, so along with user's wish is optionally controlled side discharge blade 124 and bottom surface discharge blade 128.Have air-polluting the time can open side discharge blade 124 and bottom surface discharge blade 128 when indoor, can close bottom surface outlet 126 open side discharge blades 124 at h.d..
Long and need to clean or when changing filter assemblies 142, hold the handle 144 that forms on the filter frame 144 when the time of using air purifier 100 " framework 130 is separately from behind to draw back a filter 140 downwards.Filter assemblies 142 is made up of a plurality of filters in the present invention, so easily a plurality of filters are cleaned or change.The operation that filter assemblies 142 is installed is opposite with the operation that separates filter assemblies 142.
And the after-sale service of air purifier 100 of the present invention also realizes than being easier to.As long as just can see most of parts in the air purifier 100 to front panel 110 dismountings.As control window 154, display part 150, visual display part 152 etc.So as long as, repair air purifier 100 glitch and just be very easy to front panel 110 dismountings.
The switching of above-mentioned side discharge blade 124 is to be controlled by outlet opening and closing device 200.
The above, it only is preferred embodiment of the present invention, be not that the present invention is done any pro forma restriction, every foundation technical spirit of the present invention all still belongs in the scope of technical solution of the present invention any simple modification, equivalent variations and modification that above embodiment did.
Claims (4)
1, a kind of air purifier is characterized in that, comprising:
The front panel of the writing board shape that the clarifier front forms in appearance;
The rear frame that clarifier forms later (130);
The suction grid (132) of the air that guiding enters from the rear is integrally formed with rear frame (130) middle part;
Filter (140) in the back on the framework (130) go up dismountable installation;
Filter (140) constitutes by multi-functional filter assembly (142) with for the filter frame that inserts above-mentioned filter assemblies;
The bottom surface outlet that the air that guiding has purified is discharged to the bottom surface;
The air that purified of guiding is to the side of side discharge and outlet.
2, air purifier according to claim 1 is characterized in that described filter assemblies comprises:
The primary filter of the big dust particle that contains in the filtered air,
Filter the HEPA of minute dust,
Remove the taste removal filter of peculiar smell in the air.
3, air purifier according to claim 1 and 2 is characterized in that:
Described filter assemblies also comprises with the spherical formation of small nano-sized carbon and the nano carbon microsphere filter of high absorption capacity is arranged.
4, air purifier according to claim 1 and 2 is characterized in that:
Described filter assemblies also comprises the extraordinary nano silver filtering device of antibiotic, bactericidal property.
