WO2020040840A2 - Expanding the chemical substrates for genetic code reprogramming - Google Patents

Expanding the chemical substrates for genetic code reprogramming Download PDF

Info

Publication number
WO2020040840A2
WO2020040840A2 PCT/US2019/035215 US2019035215W WO2020040840A2 WO 2020040840 A2 WO2020040840 A2 WO 2020040840A2 US 2019035215 W US2019035215 W US 2019035215W WO 2020040840 A2 WO2020040840 A2 WO 2020040840A2
Authority
WO
WIPO (PCT)
Prior art keywords
trna
mmol
substrates
aryl
amino
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/US2019/035215
Other languages
French (fr)
Other versions
WO2020040840A3 (en
Inventor
Michael Christopher Jewett
Joongoo Lee
Jeffrey S. Moore
Kenneth E. SCHWIETER
Kevin Jerome SCHWARZ
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Northwestern University
Original Assignee
Northwestern University
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Northwestern University filed Critical Northwestern University
Priority to US15/734,182 priority Critical patent/US11814621B2/en
Publication of WO2020040840A2 publication Critical patent/WO2020040840A2/en
Publication of WO2020040840A3 publication Critical patent/WO2020040840A3/en
Anticipated expiration legal-status Critical
Priority to US18/469,530 priority patent/US20240200070A1/en
Ceased legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
    • C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
    • C12N15/00—Mutation or genetic engineering; DNA or RNA concerning genetic engineering, vectors, e.g. plasmids, or their isolation, preparation or purification; Use of hosts therefor
    • C12N15/09—Recombinant DNA-technology
    • C12N15/11—DNA or RNA fragments; Modified forms thereof; Non-coding nucleic acids having a biological activity
    • C12N15/113—Non-coding nucleic acids modulating the expression of genes, e.g. antisense oligonucleotides; Antisense DNA or RNA; Triplex- forming oligonucleotides; Catalytic nucleic acids, e.g. ribozymes; Nucleic acids used in co-suppression or gene silencing
    • C—CHEMISTRY; METALLURGY
    • C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
    • C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
    • C12N15/00—Mutation or genetic engineering; DNA or RNA concerning genetic engineering, vectors, e.g. plasmids, or their isolation, preparation or purification; Use of hosts therefor
    • C12N15/09—Recombinant DNA-technology
    • C12N15/11—DNA or RNA fragments; Modified forms thereof; Non-coding nucleic acids having a biological activity
    • C—CHEMISTRY; METALLURGY
    • C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
    • C12P—FERMENTATION OR ENZYME-USING PROCESSES TO SYNTHESISE A DESIRED CHEMICAL COMPOUND OR COMPOSITION OR TO SEPARATE OPTICAL ISOMERS FROM A RACEMIC MIXTURE
    • C12P19/00—Preparation of compounds containing saccharide radicals
    • C12P19/26—Preparation of nitrogen-containing carbohydrates
    • C12P19/28—N-glycosides
    • C12P19/30—Nucleotides
    • C12P19/34—Polynucleotides, e.g. nucleic acids, oligoribonucleotides
    • C—CHEMISTRY; METALLURGY
    • C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
    • C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
    • C12N2310/00—Structure or type of the nucleic acid
    • C12N2310/30—Chemical structure
    • C12N2310/35—Nature of the modification
    • C12N2310/351—Conjugate

Definitions

  • the field of the invention relates to components and methods for preparing sequence defined polymers.
  • the field of the inventions related to components and methods for use in genetic code reprogramming and flexizyme-catalyzed acylation reactions.
  • the methods, systems, components, and compositions may be utilized for incorporating novel substrates that include non-standard amino acid monomers and non-amino acid monomers into sequence defined polymers.
  • the novel substrates may be utilized for acylation of tRNA via flexizyme catalyzed reactions.
  • the tRNAs thus acylated with the novel substrates may be utilized in synthesis platforms for incorporating the novel substrates into a sequence defined polymer.
  • the components disclosed herein include acylated tRNA molecules and donor molecules for preparing acylated tRNA molecules where the acylated tRNA molecules and the donor molecules comprise a monomer that may be incorporated into a sequence defined polymer.
  • the disclosed acylated tRNA molecules are acylated with a moiety that is present in the donor molecules and may be referred to herein as M R".
  • acylated tRNA molecules may be defined as having a formula: wherein:
  • tRNA is a transfer RNA
  • R is selected from alkyl optionally substituted with amino; heterocycloalkyl;
  • heterocycloalkyl alkyl
  • alkenyl cyanoalkyl
  • aminoalkyl aminoalkenyl
  • alkylcarboxyalkylester haloalkyl
  • nitroalkyl aryl, aryl(alkyl), or (aryl)alkenyl
  • the aryl or the aryl of the aryl(alkyl) or (aryl)alkenyl is optionally substituted with one or more substituents selected from hydroxyl, hydroxylalkyl, amino, aminoalkyl, azido, cyano, acetyl, nitro, nitroalkyl, halo, alkoxy, and alkynyl.
  • the disclosed acylated tRNA molecules may be prepared by reacting a tRNA molecule and a donor molecule in the presence of a flexizyme (Fx).
  • the methods may comprise reacting in a reaction mixture: (i) a flexizyme (Fx): (ii) the tRNA molecule; and (ii) a donor molecule having a formula:
  • R is a moiety as defined above;
  • LG is a leaving group
  • X is O or S.
  • Fx catalyzes an acylation reaction between the tRNA molecule and the donor molecule to prepare the acylated tRNA molecule.
  • the disclosed methods, systems, components, and composition may be utilized for preparing sequence defmied polymers in vitro and/or in vivo.
  • the disclosed methods may be performed to prepare a sequence defined polymer in a cell free synthesis system, where the sequence defined polymer is prepared via translating an mRNA comprising a codon corresponding to an anticodon of the acylated tRNA molecule.
  • the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA.
  • the disclosed methods may be performed in order to prepare polymers selected from, but not limited to, polyolefin polymers, aramid polymers, polyurethane polymers, polyketide polymers, conjugated polymers, D- amino acid polymers, b-amino acid polymers, g-amino acid polymers, and polycarbonate polymers.
  • Figure 1 A) Crystal structure of flexizyme (SEQ ID NO:22). (From Xiao, H.,
  • Figure 2 Preparation of chemical substrates. Boc-protected a-amino acids and Boc-protected b-amino acids were converted to esterified substrates for acylation.
  • Figure 4 Genetic code reprogramming. Subl, Sub2 and Sub3 indicate the codons corresponding to the reprogrammed tRNAs.
  • Figure 5 Schematic of method for incorporating amino acids into a polypeptide.
  • Figure 6 Figure 6. Characterization of the synthetic polypeptides containing the incorporated amino acid.

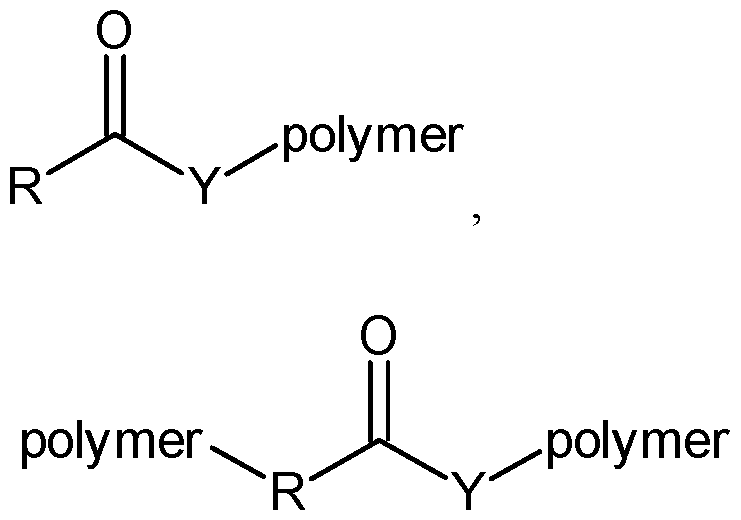

  • Figure 7 Possible polymer backbones that can be formed utilizing tRNAs that are charged with ester monomers, thioester monomers, or ABC monomers.
  • FIG. 8 Expanding the chemical substrate scope of flexizymes for genetic code reprogramming a) Flexizyme (Fx) recognizes the 3’ -CCA sequence of tRNAs59 and catalyzes the acylation of tRNA using acid substrates. Fx has been so far used to incorporate a limited set of mostly common amino and hydroxy acids. In this work, we explore the substrate specificity of Fx for additional noncanonical acid substrates containing an aromatic group either on the side chain or on the leaving group (purple panel) b) An E. coli cell-free protein synthesis system reconstituted from the purified wild type translational machinery (PURExpressTM) was used to produce peptide, 60 containing such noncanonical acid substrates. This approach for incorporating noncanonical monomers at the N-terminus of peptides is well established c) 32 noncanonical acid substrates comprising a wide variety of functional groups were incorporated into the N-terminus of a peptide.
  • PURExpressTM
  • FIG. 9 Optimized reaction conditions facilitate Fx-catalyzed acylation with novel substrates.
  • the acylation reactions were performed using eFx (45 nt) or aFx (47 nt) and monitored over 120 h at two different pHs (7.5 vs. 8.8).
  • FIG. 10 Expanding the Fx substrate scope to analogues with various scaffolds.
  • the range of noncanonical substrates compatible with Fx was further extended on four different monomer structure (Phe analogues, benzoic acid derivatives, heteroaromatic and aliphatic substrates).
  • eFx and aFx charge a substrate by recognizing an aryl group of the substrate.
  • the acylation reactions were performed using the microhelix RNA (22 nt) with the cognate Fx (eFx:45 nt, aFx:47 nt) and monitored over 120 h at two different pHs (7.5 vs. 8.8).
  • FIG. 11 Simulated molecular interactions between selected substrates and the binding pocket of eFx. Tetrahedral intermediate models of the CME esters were optimized and subjected to Monte Carlo energy optimization via Rosetta a) Phe (A), b) hydrocinnamic acid (B), c) cinnamic acid (C), d) benzoic acid (D), e) phenylacetic acid (E); dark yellow. No strong interaction with the guanine residue is observed for f) pyrrole-2- carboxylic acid (25) and g) 2-thiophenecarboxylic acid (26).
  • FIG. 12 Ribosomal synthesis of N-terminal functionalized peptides with noncanonical substrates a) Schematic overview of peptide synthesis and characterization. N- terminal functionalized peptides were prepared in the PEIRExpressTM system by using Fx- charged tRNA iMct , purified via the Strep tag, denatured with SDS, and characterized by MALDI mass spectrometry b) Mass spectrum of the peptide in the presence of all 20 natural amino acids and absence of Fx-charged tRNA. c) Mass spectrum of the peptide in the absence of methionine and Fx-charged tRNA.
  • FIG. 13 Acylation of microhelix with the seed substrates.
  • the Fx-catalyzed acylation reaction using the six representative substrates Phe-CME (A), hcinA-CME (B), cinA-CME (C), benA-CME (D), PhAACME (E), penA-CME (F), penA-ABT (G) were monitored at two different pH (7.5 and 8.8) over 120 h. In general, high pH (pH 8.8) and long incubation time (120 h) gives high reaction yield.
  • a part of Fig. 8a (lane A-C), 8b (lane A-C), and 8d (lane C-G) was used to produce Fig. 9.
  • LG leaving group
  • Fx Flexizyme
  • CME cyanomethylester
  • ABT (2-aminoethyl)amidocarboxybenzyl thioester.
  • FIG. 14 Undesired hydrolysis of acylated microhelix.
  • the microhelix charged by PhPA (B) was acylated at 16 h in a 100 % yield, however, the acylation yield was found to decrease (76 %) at 144 h, presumably because of unwanted hydrolysis by water on the ester linkage.
  • Lane 1 microhelix;
  • lane 2 and 3 crude acylated product observed at 16 h and 144 h, respectively. We limited the reaction time to 120 h based on this observation.
  • Figure 15 Numerical acylation yields of microhelix obtained using the expanded substrates.
  • the acylation reaction yields of microhelix with the 32 non-canonical chemical substrates were determined by quantifying the band intensity on the 20 % polyacrylamide gel (pH 5.2, 50 mM NaOAc, Fig. 16-18).
  • FIG. 16 Analysis of acylation with 1-6.
  • the acylation yields were analyzed by electrophoresis on 20 % polyacrylamide gel containing 50 mM NaOAc (pH 5.2).
  • the crude products containing the chemical substrates (1-6) were loaded on the gel and separated by the electrophoretic mobility at 135 mV in cold room over 2-3 h.
  • the reactions were monitored over 120 h and the yields were quantified using densiometric analysis (software: ImageJ).
  • Figure 17 Analysis of acylation with 7-21.
  • the crude acylation reaction mixtures charged with the substrates (7-21) were analyzed by using the same methods described in Fig. 16.
  • FIG. 18 Analysis of acylation with 22-32.
  • the crude products charged with the chemical substrates (22-32) were analyzed. Gels were visualized by staining with GelRed (Biotium) and exposing on a filter of 630 nm for 20 s on a Gel Doc XR+ (Bio-Rad).
  • the band containing the mihx charged with coumarin (24) in the orange box shows relatively higher intensity than the other nucleic acid bands when the gel is exposed in lower wavelength (560 nm). Note that the yields were obtained from the reaction with the substrate containing an CME and ABT leaving group, respectively (coumarin excitation/emission wavelength: 380 nm/410-470 nm)
  • FIG. 19 Acylation test of pyrrole- ABT and thiophene- ABT. We tested additional substrates for the pyrrole and thiophene substrates (25a and 26a with ABT) in case that eFx did not recognize the small aromatic ring. However, we were not able to find a new band for substrate-charged microhelix in the gel. eFx and aFx was used for lane 1, 3 and 2, 4, respectively. (NMR spectroscopic data was generated but is not presented here).
  • Figure 20 Exemplary compounds comprising linear primary amine moieties.
  • Figure 21 Exemplary compounds comprising cyclic primary amine moieties.
  • Figure 22 Exemplary compound comprising cyclic secondary amine moieties.
  • the terms“include” and“including” have the same meaning as the terms“comprise” and“comprising” in that these latter terms are“open” transitional terms that do not limit claims only to the recited elements succeeding these transitional terms.
  • the term“consisting of,” while encompassed by the term“comprising,” should be interpreted as a “closed” transitional term that limits claims only to the recited elements succeeding this transitional term.
  • the term“consisting essentially of,” while encompassed by the term “comprising,” should be interpreted as a“partially closed” transitional term which permits additional elements succeeding this transitional term, but only if those additional elements do not materially affect the basic and novel characteristics of the claim.
  • Ranges recited herein include the defined boundary numerical values as well as sub-ranges encompassing any non-recited numerical values within the recited range. For example, a range from about 0.01 mM to about 10.0 mM includes both 0.01 mM and 10.0 mM. Non-recited numerical values within this exemplary recited range also contemplated include, for example, 0.05 mM, 0.10 mM, 0.20 mM, 0.51 mM, 1.0 mM, 1.75 mM, 2.5 mM 5.0 mM, 6.0 mM, 7.5 mM, 8.0 mM, 9.0 mM, and 9.9 mM, among others.
  • Exemplary sub- ranges within this exemplary range include from about 0.01 mM to about 5.0 mM; from about 0.1 mM to about 2.5 mM; and from about 2.0 mM to about 6.0 mM, among others.
  • an asterisk "*" or a plus sign "+” may be used to designate the point of attachment for any radical group or substituent group.
  • alkyl as contemplated herein includes a straight-chain or branched alkyl radical in all of its isomeric forms, such as a straight or branched group of 1-12, 1-10, or 1-6 carbon atoms, referred to herein as Cl -Cl 2 alkyl, Cl-ClO-alkyl, and Cl-C6-alkyl, respectively.
  • alkylene refers to a diradical of straight-chain or branched alkyl group (i.e., a diradical of straight-chain or branched C1-C6 alkyl group).
  • alkylene groups include, but are not limited to -CH2-, -CH2CH2-, -CH2CH2CH2-, -CH(CH3)CH2-, - CH 2 CH(CH3)CH 2 -, -CH(CH 2 CH3)CH 2 -, and the like.
  • haloalkyl refers to an alkyl group that is substituted with at least one halogen.
  • halogen for example, -CH2F, -CHF2, -CF3, -CH2CF3, -CF2CF3, and the like.
  • heteroalkyl refers to an "alkyl” group in which at least one carbon atom has been replaced with a heteroatom (e.g., an O, N, or S atom).
  • a heteroatom e.g., an O, N, or S atom.
  • One type of heteroalkyl group is an "alkoxy" group.
  • alkenyl refers to an unsaturated straight or branched hydrocarbon having at least one carbon-carbon double bond, such as a straight or branched group of 2-12, 2-10, or 2-6 carbon atoms, referred to herein as C2-C12-alkenyl, C2-C10- alkenyl, and C2-C6-alkenyl, respectively.
  • alkynyl refers to an unsaturated straight or branched hydrocarbon having at least one carbon-carbon triple bond, such as a straight or branched group of 2-12, 2-10, or 2-6 carbon atoms, referred to herein as C2-Cl2-alkynyl, C2-C10- alkynyl, and C2-C6-alkynyl, respectively.
  • cycloalkyl refers to a monovalent saturated cyclic, bicyclic, or bridged cyclic (e.g., adamantyl) hydrocarbon group of 3-12, 3-8, 4-8, or 4-6 carbons, referred to herein, e.g., as "C4-8-cycloalkyl,” derived from a cycloalkane.
  • cycloalkyl groups are optionally substituted at one or more ring positions with, for example, alkanoyl, alkoxy, alkyl, haloalkyl, alkenyl, alkynyl, amido or carboxyamido, amidino, amino, aryl, arylalkyl, azido, carbamate, carbonate, carboxy, cyano, cycloalkyl, ester, ether, formyl, halo, haloalkyl, heteroaryl, heterocyclyl, hydroxyl, imino, ketone, nitro, phosphate, phosphonato, phosphinato, sulfate, sulfide, sulfonamido, sulfonyl or thiocarbonyl.
  • the cycloalkyl group is not substituted, i.e., it is unsubstituted.
  • cycloheteroalkyl refers to a monovalent saturated cyclic, bicyclic, or bridged cyclic hydrocarbon group of 3-12, 3-8, 4-8, or 4-6 carbons in which at least one carbon of the cycloalkane is replaced with a heteroatom such as, for example, N, O, and/or S.
  • cycloalkylene refers to a cycloalkyl group that is unsaturated at one or more ring bonds.
  • partially unsaturated carbocyclyl refers to a monovalent cyclic hydrocarbon that contains at least one double bond between ring atoms where at least one ring of the carbocyclyl is not aromatic.
  • the partially unsaturated carbocyclyl may be characterized according to the number oring carbon atoms.
  • the partially unsaturated carbocyclyl may contain 5-14, 5-12, 5-8, or 5-6 ring carbon atoms, and accordingly be referred to as a 5-14, 5-12, 5-8, or 5-6 membered partially unsaturated carbocyclyl, respectively.
  • the partially unsaturated carbocyclyl may be in the form of a monocyclic carbocycle, bicyclic carbocycle, tricyclic carbocycle, bridged carbocycle, spirocyclic carbocycle, or other carbocyclic ring system.
  • exemplary partially unsaturated carbocyclyl groups include cycloalkenyl groups and bicyclic carbocyclyl groups that are partially unsaturated.
  • partially unsaturated carbocyclyl groups are optionally substituted at one or more ring positions with, for example, alkanoyl, alkoxy, alkyl, haloalkyl, alkenyl, alkynyl, amido or carboxyamido, amidino, amino, aryl, arylalkyl, azido, carbamate, carbonate, carboxy, cyano, cycloalkyl, ester, ether, formyl, halogen, haloalkyl, heteroaryl, heterocyclyl, hydroxyl, imino, ketone, nitro, phosphate, phosphonato, phosphinato, sulfate, sulfide, sulfonamido, sulfonyl or thiocarbonyl.
  • the partially unsaturated carbocyclyl is not substituted, i.e., it is unsubstituted.
  • aryl is art-recognized and refers to a carbocyclic aromatic group.
  • aryl groups include phenyl, naphthyl, anthracenyl, and the like.
  • the term "aryl” includes polycyclic ring systems having two or more carbocyclic rings in which two or more carbons are common to two adjoining rings (the rings are "fused rings") wherein at least one of the rings is aromatic and, e.g., the other ring(s) may be cycloalkyls, cycloalkenyls, cycloalkynyls, and/or aryls.
  • the aromatic ring may be substituted at one or more ring positions with, for example, halogen, azide, alkyl, aralkyl, alkenyl, alkynyl, cycloalkyl, hydroxyl, alkoxyl, amino, nitro, sulfhydryl, imino, amido or carboxyamido, carboxylic acid, -C(0)alkyl, -CCtealkyl, carbonyl, carboxyl, alkylthio, sulfonyl, sulfonamido, sulfonamide, ketone, aldehyde, ester, heterocyclyl, aryl or heteroaryl moieties, -CF 3 , -CN, or the like.
  • the aromatic ring is substituted at one or more ring positions with halogen, alkyl, hydroxyl, or alkoxyl. In certain other embodiments, the aromatic ring is not substituted, i.e., it is unsubstituted. In certain embodiments, the aryl group is a 6-10 membered ring structure.
  • heterocyclyl and “heterocyclic group” are art-recognized and refer to saturated, partially unsaturated, or aromatic 3- to lO-membered ring structures, alternatively 3-to 7-membered rings, whose ring structures include one to four heteroatoms, such as nitrogen, oxygen, and sulfur.
  • the number of ring atoms in the heterocyclyl group can be specified using 5 Cx-Cx nomenclature where x is an integer specifying the number of ring atoms.
  • a C3-C7 heterocyclyl group refers to a saturated or partially unsaturated 3- to 7-membered ring structure containing one to four heteroatoms, such as nitrogen, oxygen, and sulfur.
  • the designation "C3-C7" indicates that the heterocyclic ring contains a total of from 3 to 7 ring atoms, inclusive of any heteroatoms that occupy a ring atom position.
  • amine and “amino” are art-recognized and refer to both unsubstituted and substituted amines (e.g., mono-substituted amines or di- substituted amines), wherein substituents may include, for example, alkyl, cycloalkyl, heterocyclyl, alkenyl, and aryl.
  • alkoxy or "alkoxyl” are art-recognized and refer to an alkyl group, as defined above, having an oxygen radical attached thereto.
  • Representative alkoxy groups include methoxy, ethoxy, tert-butoxy and the like.
  • an "ether” is two hydrocarbons covalently linked by an oxygen. Accordingly, the substituent of an alkyl that renders that alkyl an ether is or resembles an alkoxyl, such as may be represented by one of -O-alkyl, -O-alkenyl, -O-alkynyl, and the like.
  • carbonyl refers to the radical -C(O)-.
  • oxo refers to a divalent oxygen atom -0-.
  • R and R may be the same or different.
  • R and R may be independently hydrogen, alkyl, aryl, arylalkyl, cycloalkyl, formyl, haloalkyl, heteroaryl, or heterocyclyl.
  • amide or "amido” or “amidyl” as used herein refers to a radical of the form -R'C(0)N(R 2 )-, -R'C(0)N(R 2 )R 3 -, -C(0)NR 2 R 3 , or -C(0)NH 2 , wherein R 1 , R 2 and R 3 , for example, are each independently hydrogen, alkyl, alkoxy, alkenyl, alkynyl, amide, amino, aryl, arylalkyl, carbamate, cycloalkyl, ester, ether, formyl, halogen, haloalkyl, heteroaryl, heterocyclyl, hydrogen, hydroxyl, ketone, or nitro.
  • the compounds of the disclosure may contain one or more chiral centers and/or double bonds and, therefore, exist as stereoisomers, such as geometric isomers, enantiomers or diastereomers.
  • stereoisomers when used herein consist of all geometric isomers, enantiomers or diastereomers. These compounds may be designated by the symbols "R” or “k,” or “+” or depending on the configuration of substituents around the stereogenic carbon atom and or the optical rotation observed.
  • Stereoisomers include enantiomers and diastereomers.
  • compositions comprising, consisting essentially of, or consisting of an enantiopure compound, which composition may comprise, consist essential of, or consist of at least about 50%, 60%, 70%, 80%, 90%, 95%, 96%, 97%, 98%, 99%, or 100% of a single enantiomer of a given compound (e.g., at least about 99% of an R enantiomer of a given compound).
  • nucleic acid and“oligonucleotide,” as used herein, refer to polydeoxyribonucleotides (containing 2-deoxy-D-ribose), polyribonucleotides (containing D- ribose), and to any other type of polynucleotide that is an N glycoside of a purine or pyrimidine base.
  • polynucleotide refers only to the primary structure of the molecule. Thus, these terms include double- and single-stranded DNA, as well as double- and single-stranded RNA.
  • an oligonucleotide also can comprise nucleotide analogs in which the base, sugar, or phosphate backbone is modified as well as non-purine or non-pyrimidine nucleotide analogs.
  • Oligonucleotides can be prepared by any suitable method, including direct chemical synthesis by a method such as the phosphotriester method of Narang et al., 1979, Meth. Enzymol. 68:90-99; the phosphodiester method of Brown et al., 1979, Meth. Enzymol. 68: 109-151; the diethylphosphoramidite method of Beaucage et al., 1981, Tetrahedron Letters 22: 1859-1862; and the solid support method of ET.S. Pat. No. 4,458,066, each incorporated herein by reference.
  • a review of synthesis methods of conjugates of oligonucleotides and modified nucleotides is provided in Goodchild, 1990, Bioconjugate Chemistry 1(3): 165-187, incorporated herein by reference.
  • amplification reaction refers to any chemical reaction, including an enzymatic reaction, which results in increased copies of a template nucleic acid sequence or results in transcription of a template nucleic acid.
  • Amplification reactions include reverse transcription, the polymerase chain reaction (PCR), including Real Time PCR (see ET.S. Pat. Nos. 4,683,195 and 4,683,202; PCR Protocols: A Guide to Methods and Applications (Innis et al., eds, 1990)), and the ligase chain reaction (LCR) (see Barany et al., U.S. Pat. No. 5,494,810).
  • PCR polymerase chain reaction
  • Exemplary“amplification reactions conditions” or“amplification conditions” typically comprise either two or three step cycles.
  • Two-step cycles have a high temperature denaturation step followed by a hybridization/elongation (or ligation) step.
  • Three step cycles comprise a denaturation step followed by a hybridization step followed by a separate elongation step.
  • target,“target sequence”,“target region”, and“target nucleic acid,” as used herein, are synonymous and refer to a region or sequence of a nucleic acid which is to be amplified, sequenced, or detected.
  • hybridization refers to the formation of a duplex structure by two single-stranded nucleic acids due to complementary base pairing. Hybridization can occur between fully complementary nucleic acid strands or between “substantially complementary” nucleic acid strands that contain minor regions of mismatch. Conditions under which hybridization of fully complementary nucleic acid strands is strongly preferred are referred to as “stringent hybridization conditions” or “sequence-specific hybridization conditions”. Stable duplexes of substantially complementary sequences can be achieved under less stringent hybridization conditions; the degree of mismatch tolerated can be controlled by suitable adjustment of the hybridization conditions.
  • nucleic acid technology can determine duplex stability empirically considering a number of variables including, for example, the length and base pair composition of the oligonucleotides, ionic strength, and incidence of mismatched base pairs, following the guidance provided by the art (see, e.g., Sambrook et ah, 1989, Molecular Cloning— A Laboratory Manual, Cold Spring Harbor Laboratory, Cold Spring Harbor, New York; Wetmur, 1991, Critical Review in Biochem. and Mol. Biol. 26(3/4):227-259; and Owczarzy et ah, 2008, Biochemistry, 47: 5336-5353, which are incorporated herein by reference).
  • primer refers to an oligonucleotide capable of acting as a point of initiation of DNA synthesis under suitable conditions. Such conditions include those in which synthesis of a primer extension product complementary to a nucleic acid strand is induced in the presence of four different nucleoside triphosphates and an agent for extension (for example, a DNA polymerase or reverse transcriptase) in an appropriate buffer and at a suitable temperature.
  • a primer is preferably a single-stranded DNA.
  • the appropriate length of a primer depends on the intended use of the primer but typically ranges from about 6 to about 225 nucleotides, including intermediate ranges, such as from 15 to 35 nucleotides, from 18 to 75 nucleotides and from 25 to 150 nucleotides. Short primer molecules generally require cooler temperatures to form sufficiently stable hybrid complexes with the template. A primer need not reflect the exact sequence of the template nucleic acid, but must be sufficiently complementary to hybridize with the template. The design of suitable primers for the amplification of a given target sequence is well known in the art and described in the literature cited herein.
  • Primers can incorporate additional features which allow for the detection or immobilization of the primer but do not alter the basic property of the primer, that of acting as a point of initiation of DNA synthesis.
  • primers may contain an additional nucleic acid sequence at the 5’ end which does not hybridize to the target nucleic acid, but which facilitates cloning or detection of the amplified product, or which enables transcription of RNA (for example, by inclusion of a promoter) or translation of protein (for example, by inclusion of a 5’-UTR, such as an Internal Ribosome Entry Site (IRES) or a 3’-UTR element, such as a poly(A) n sequence, where n is in the range from about 20 to about 200).
  • the region of the primer that is sufficiently complementary to the template to hybridize is referred to herein as the hybridizing region.
  • a primer is“specific,” for a target sequence if, when used in an amplification reaction under sufficiently stringent conditions, the primer hybridizes primarily to the target nucleic acid.
  • a primer is specific for a target sequence if the primer- target duplex stability is greater than the stability of a duplex formed between the primer and any other sequence found in the sample.
  • salt conditions such as salt conditions as well as base composition of the primer and the location of the mismatches, will affect the specificity of the primer, and that routine experimental confirmation of the primer specificity will be needed in many cases.
  • Hybridization conditions can be chosen under which the primer can form stable duplexes only with a target sequence.
  • the use of target-specific primers under suitably stringent amplification conditions enables the selective amplification of those target sequences that contain the target primer binding sites.
  • a “polymerase” refers to an enzyme that catalyzes the polymerization of nucleotides.
  • DNA polymerase catalyzes the polymerization of deoxyribonucleotides.
  • Known DNA polymerases include, for example, Pyrococcus furiosus (Pfu) DNA polymerase, E. coli DNA polymerase I, T7 DNA polymerase and Thermus aquaticus (Taq) DNA polymerase, among others.
  • RNA polymerase catalyzes the polymerization of ribonucleotides.
  • the foregoing examples of DNA polymerases are also known as DNA-dependent DNA polymerases.
  • RNA-dependent DNA polymerases also fall within the scope of DNA polymerases.
  • Reverse transcriptase which includes viral polymerases encoded by retroviruses, is an example of an RNA-dependent DNA polymerase.
  • RNA polymerase include, for example, bacteriophage polymerases such as, but not limited to, T3 RNA polymerase, T7 RNA polymerase, SP6 RNA polymerase and E. coli RNA polymerase, among others.
  • the foregoing examples of RNA polymerases are also known as DNA-dependent RNA polymerase.
  • the polymerase activity of any of the above enzymes can be determined by means well known in the art.
  • promoter refers to a cis-acting DNA sequence that directs RNA polymerase and other trans-acting transcription factors to initiate RNA transcription from the DNA template that includes the cis-acting DNA sequence.
  • sequence defined biopolymer refers to a biopolymer having a specific primary sequence.
  • a sequence defined biopolymer can be equivalent to a genetically-encoded defined biopolymer in cases where a gene encodes the biopolymer having a specific primary sequence.
  • expression template refers to a nucleic acid that serves as substrate for transcribing at least one RNA that can be translated into a sequence defined biopolymer (e.g., a polypeptide or protein). Expression templates include nucleic acids composed of DNA or RNA.
  • Suitable sources of DNA for use a nucleic acid for an expression template include genomic DNA, cDNA and RNA that can be converted into cDNA.
  • Genomic DNA, cDNA and RNA can be from any biological source, such as a tissue sample, a biopsy, a swab, sputum, a blood sample, a fecal sample, a urine sample, a scraping, among others.
  • the genomic DNA, cDNA and RNA can be from host cell or virus origins and from any species, including extant and extinct organisms.
  • expression template and “transcription template” have the same meaning and are used interchangeably.
  • translation template refers to an RNA product of transcription from an expression template that can be used by ribosomes to synthesize polypeptide or protein.
  • coupled transcription/translation refers to the de novo synthesis of both RNA and a sequence defined biopolymer from the same extract.
  • coupled transcription/translation of a given sequence defined biopolymer can arise in an extract containing an expression template and a polymerase capable of generating a translation template from the expression template.
  • Coupled transcription/translation can occur using a cognate expression template and polymerase from the organism used to prepare the extract.
  • Coupled transcription/translation can also occur using exogenously-supplied expression template and polymerase from an orthogonal host organism different from the organism used to prepare the extract.
  • an example of an exogenously-supplied expression template includes a translational open reading frame operably coupled a bacteriophage polymerase-specific promoter and an example of the polymerase from an orthogonal host organism includes the corresponding bacteriophage polymerase.
  • the term“reaction mixture,” as used herein, refers to a solution containing reagents necessary to carry out a given reaction.
  • An“amplification reaction mixture”, which refers to a solution containing reagents necessary to carry out an amplification reaction typically contains oligonucleotide primers and a DNA polymerase in a suitable buffer.
  • a “PCR reaction mixture” typically contains oligonucleotide primers, a DNA polymerase (most typically a thermostable DNA polymerase), dNTPs, and a divalent metal cation in a suitable buffer.
  • the disclosed subject matter relates in part to methods, systems, components, and compositions for cell-free protein synthesis.
  • Cell-free protein synthesis is known and has been described in the art.
  • CFPS Cell-free protein synthesis
  • U.S. Patent No. 6,548,276 U.S. Patent No. 7,186,525; U.S. Patent No. 8,734,856; U.S. Patent No. 7,235,382; U.S. Patent No. 7,273,615; U.S. Patent 7,008,651; U.S. Patent 6,994,986 U.S. Patent 7,312,049; U.S. Patent No. 7,776,535; U.S. Patent No. 7,817,794; U.S. Patent No.
  • A“CFPS reaction mixture” typically contains a crude or partially-purified yeast extract, an RNA translation template, and a suitable reaction buffer for promoting cell-free protein synthesis from the RNA translation template.
  • the CFPS reaction mixture can include exogenous RNA translation template.
  • the CFPS reaction mixture can include a DNA expression template encoding an open reading frame operably linked to a promoter element for a DNA-dependent RNA polymerase.
  • the CFPS reaction mixture can also include a DNA-dependent RNA polymerase to direct transcription of an RNA translation template encoding the open reading frame.
  • additional NTP’s and divalent cation cofactor can be included in the CFPS reaction mixture.
  • a reaction mixture is referred to as complete if it contains all reagents necessary to enable the reaction, and incomplete if it contains only a subset of the necessary reagents. It will be understood by one of ordinary skill in the art that reaction components are routinely stored as separate solutions, each containing a subset of the total components, for reasons of convenience, storage stability, or to allow for application-dependent adjustment of the component concentrations, and that reaction components are combined prior to the reaction to create a complete reaction mixture. Furthermore, it will be understood by one of ordinary skill in the art that reaction components are packaged separately for commercialization and that useful commercial kits may contain any subset of the reaction components of the invention.
  • An aspect of the invention is a platform for preparing a sequence defined biopolymer of protein in vitro.
  • the platform for preparing a sequence defined polymer or protein in vitro comprises a cellular extract from the GRO organism as described above. Because CFPS exploits an ensemble of catalytic proteins prepared from the crude lysate of cells, the cell extract (whose composition is sensitive to growth media, lysis method, and processing conditions) is the most critical component of extract-based CFPS reactions.
  • a variety of methods exist for preparing an extract competent for cell-free protein synthesis including U.S. patent application Ser. No. 14/213,390 to Michael C. Jewett et ak, entitled METHODS FOR CELL-FREE PROTEIN SYNTHESIS, filed Mar.
  • the platform may comprise an expression template, a translation template, or both an expression template and a translation template.
  • the expression template serves as a substrate for transcribing at least one RNA that can be translated into a sequence defined biopolymer (e.g., a polypeptide or protein).
  • the translation template is an RNA product that can be used by ribosomes to synthesize the sequence defined biopolymer.
  • the platform comprises both the expression template and the translation template.
  • the platform may be a coupled transcription/translation (“Tx/Tl”) system where synthesis of translation template and a sequence defined biopolymer from the same cellular extract.
  • the platform may comprise one or more polymerases capable of generating a translation template from an expression template.
  • the polymerase may be supplied exogenously or may be supplied from the organism used to prepare the extract.
  • the polymerase is expressed from a plasmid present in the organism used to prepare the extract and/or an integration site in the genome of the organism used to prepare the extract.
  • the platform may comprise an orthogonal translation system.
  • An orthogonal translation system may comprise one or more orthogonal components that are designed to operate parallel to and/or independent of the organism’s orthogonal translation machinery.
  • the orthogonal translation system and/or orthogonal components are configured to incorporation of unnatural amino acids.
  • An orthogonal component may be an orthogonal protein or an orthogonal RNA.
  • an orthogonal protein may be an orthogonal synthetase.
  • the orthogonal RNA may be an orthogonal tRNA or an orthogonal rRNA.
  • An example of an orthogonal rRNA component has been described in Application No. PCT/US2015/033221 to Michael C.
  • one or more orthogonal components may be prepare in vivo or in vitro by the expression of an oligonucleotide template.
  • the one or more orthogonal components may be expressed from a plasmid present in the genomically recoded organism, expressed from an integration site in the genome of the genetically recoded organism, co- expressed from both a plasmid present in the genomically recoded organism and an integration site in the genome of the genetically recoded organism, express in the in vitro transcription and translation reaction, or added exogenously as a factor (e.g., a orthogonal tRNA or an orthogonal synthetase added to the platform or a reaction mixture).
  • a factor e.g., a orthogonal tRNA or an orthogonal synthetase added to the platform or a reaction mixture.
  • Altering the physicochemical environment of the CFPS reaction to better mimic the cytoplasm can improve protein synthesis activity.
  • the following parameters can be considered alone or in combination with one or more other components to improve robust CFPS reaction platforms based upon crude cellular extracts (for examples, S12, S30 and S60 extracts).
  • the temperature may be any temperature suitable for CFPS. Temperature may be in the general range from about 10° C. to about 40° C., including intermediate specific ranges within this general range, include from about 15° C. to about 35° C., form about 15° C. to about 30° C., form about 15° C. to about 25° C. In certain aspects, the reaction temperature can be about 15° C., about 16° C., about 17° C., about 18° C., about 19° C., about 20° C., about 21° C., about 22° C., about 23° C., about 24° C., about 25° C.
  • the CFPS reaction can include any organic anion suitable for CFPS.
  • the organic anions can be glutamate, acetate, among others.
  • the concentration for the organic anions is independently in the general range from about 0 mM to about 200 mM, including intermediate specific values within this general range, such as about 0 mM, about 10 mM, about 20 mM, about 30 mM, about 40 mM, about 50 mM, about 60 mM, about 70 mM, about 80 mM, about 90 mM, about 100 mM, about 110 mM, about 120 mM, about 130 mM, about 140 mM, about 150 mM, about 160 mM, about 170 mM, about 180 mM, about 190 mM and about 200 mM, among others.
  • the CFPS reaction can also include any halide anion suitable for CFPS.
  • the halide anion can be chloride, bromide, iodide, among others.
  • a preferred halide anion is chloride.
  • concentration of halide anions, if present in the reaction is within the general range from about 0 mM to about 200 mM, including intermediate specific values within this general range, such as those disclosed for organic anions generally herein.
  • the CFPS reaction may also include any organic cation suitable for CFPS.
  • the organic cation can be a polyamine, such as spermidine or putrescine, among others.
  • Preferably polyamines are present in the CFPS reaction.
  • the concentration of organic cations in the reaction can be in the general about 0 mM to about 3 mM, about 0.5 mM to about 2.5 mM, about 1 mM to about 2 mM. In certain aspects, more than one organic cation can be present.
  • the CFPS reaction can include any inorganic cation suitable for CFPS.
  • suitable inorganic cations can include monovalent cations, such as sodium, potassium, lithium, among others; and divalent cations, such as magnesium, calcium, manganese, among others.
  • the inorganic cation is magnesium.
  • the magnesium concentration can be within the general range from about 1 mM to about 50 mM, including intermediate specific values within this general range, such as about 1 mM, about 2 mM, about 3 mM, about 5 mM, about 6 mM, about 7 mM, about 8 mM, about 9 mM, about 10 mM, among others.
  • the concentration of inorganic cations can be within the specific range from about 4 mM to about 9 mM and more preferably, within the range from about 5 mM to about 7 mM.
  • the CFPS reaction includes NTPs.
  • the reaction use ATP,
  • the CFPS reaction can also include any alcohol suitable for CFPS.
  • the alcohol may be a polyol, and more specifically glycerol.
  • the alcohol is between the general range from about 0% (v/v) to about 25% (v/v), including specific intermediate values of about 5% (v/v), about 10% (v/v) and about 15% (v/v), and about 20% (v/v), among others.
  • An aspect of the invention is a method for cell-free protein synthesis of a sequence defined biopolymer or protein in vitro.
  • the method comprises contacting a RNA template encoding a sequence defined biopolymer with a reaction mixture comprising a cellular extract from a GRO as described above.
  • Methods for cell-free protein synthesis of a sequence defined biopolymers have been described [1, 18, 26]
  • a sequence-defined biopolymer or protein comprises a product prepared by the method or the platform that includes an amino acids.
  • the amino acid may be a natural amino acid.
  • a natural amino acid is a proteinogenic amino acid encoded directly by a codon of the universal genetic code.
  • the amino acid may be an unnatural amino acid.
  • an unnatural amino acid is a nonproteinogenic amino acid.
  • An unnatural amino acids may also be referred to as a non-standard amino acid (NSAA) or non-canonical amino acid.
  • NSAA non-standard amino acid
  • a sequence defined biopolymer or protein may comprise a plurality of unnatural amino acids.
  • a sequence defined biopolymer or protein may comprise a plurality of the same unnatural amino acid.
  • the sequence defined biopolymer or protein may comprise at least 5, at least 10, at least 15, at least 20, at least 25, at least 30, at least 35, or at least 40 or the same or different unnatural amino acids.
  • Examples of unnatural, non-canonical, and/or non-standard amino acids include, but are not limited, to a p-acetyl-L-phenylalanine, a p-iodo-L-phenylalanine, an O- methyl-L-tyrosine, a p-propargyloxyphenylalanine, a p-propargyl-phenylalanine, an L-3-(2- naphthyl)alanine, a 3 -methyl-phenylalanine, an O-4-allyl-L-tyrosine, a 4-propyl-L-tyrosine, a tri-O-acetyl-GlcNAcpP-serine, an L-Dopa, a fluorinated phenylalanine, an isopropyl-L- phenylalanine, a p-azido-L-phenylalanine, a p-acyl-L
  • the methods described herein allow for preparation of sequence defined biopolymers or proteins with high fidelity to a RNA template.
  • the methods described herein allow for the correct incorporation of unnatural, non-canonical, and/or non- standard amino acids as encoded by an RNA template.
  • the sequence defined biopolymer encoded by a RNA template comprises at least 5, at least 10, at least 15, at least 20, at least 25, at least 30, at least 35, or at least 40 unnatural, non-canonical, and/or non-standard amino acids and a product prepared from the method includes at least 80%, at least 85%, at least 90%, at least 95%, or 100% of the encoded unnatural, non-canonical, and/or non-standard amino acids.
  • the methods described herein also allow for the preparation of a plurality of products prepared by the method.
  • at least 80%, at least 85%, at least 90%, at least 95%, or at least 98% of a plurality of products prepared by the method are full length.
  • the sequence defined biopolymer encoded by a RNA template comprises at least 5, at least 10, at least 15, at least 20, at least 25, at least 30, at least 35, or at least 40 unnatural, non-canonical, and/or non-standard amino acids and at least 80%, at least 85%, at least 90%, at least 95%, or at least 98% of a plurality of products prepared by the method include 100% of the encoded unnatural, non-canonical, and/or non-standard amino acids.
  • the sequence defined biopolymer or the protein encodes a therapeutic product, a diagnostic product, a biomaterial product, an adhesive product, a biocomposite product, or an agricultural product.
  • the subject matter disclosed herein relates to methods, systems, components, and compositions that may be utilized to synthesize sequence defined polymers.
  • the methods, systems, components, and compositions may be utilized for incorporating novel substrates that include non-standard amino acid monomers and non-amino acid monomers into sequence defined polymers.
  • the novel substrates may be utilized for acylation of tRNA via flexizyme catalyzed reactions.
  • the tRNAs thus acylated with the novel substrates may be utilized in synthesis platforms for incorporating the novel substrates into a sequence defined polymer.
  • the components disclosed herein include acylated tRNA molecules and donor molecules for preparing acylated tRNA molecules.
  • the disclosed acylated tRNA molecules are acylated with a moiety that is present in the donor molecules and may be referred to herein as "R" and which may be incorporated into a polymer ( e.g ., a sequence defined polymer).
  • R a moiety that is present in the donor molecules and may be referred to herein as "R” and which may be incorporated into a polymer (e.g ., a sequence defined polymer).
  • the acylated tRNA molecules have a formula which may be defined as:
  • tRNA is a transfer RNA linked via a 3' terminal ribonucleotide (e.g. via an ester bond formed with the ribose of a 3' terminal adenosine);
  • R may be selected from alkyl (e.g, butyl); cycloalkyl (e.g, cyclobutyl, cyclopentyl, or cyclohexyl) optionally substituted with amino; heterocycloalkyl (e.g, a cyclic secondary amine such as piperidinyl or piperazinyl); (heterocycloalkyl)alkyl (e.g, a cyclic secondary amine such as (piperidinyl)methyl or (piperazinyl)methyl); alkenyl (e.g, l-buten-4-yl); cyanoalkyl (e.g, cyanomethyl or cyanoethyl); aminoalkyl (e.g, aminopropyl, aminobutyl, aminopentyl, 1,1 -dimethyl-3 -amino-propanyl, methylaminopropyl, or aminohexyl); aminoalkenyl (e.g, l-amin
  • R is substituted alkylaryl.
  • R may be selected from (3,4-dihydroxyphenyl)methyl, (pyrrol-2- yl)methyl, and (4-amino-phenyl)methyl.
  • R is substituted phenyl.
  • R may be selected from 4-nitrophenyl, 4-cyanophenyl, 4-azidophenyl, 3- acetylphenyl, 4-nitromethyphenyl, 2-fluorophenyl, 4-methoxyphenyl, 3-hydroxy-4- nitrophenyl, 3-amino-4-nitrophenyl, and 3-nitro-4-aminophenyl.
  • R is heteroaryl or substituted heteroaryl.
  • R may be selected from pyridinyl (e.g., pyridine-4-yl), fluoropyridinyl (e.g., 3-fluoro-pyridin-3-yl), coumarinyl, pyrrolyl (e.g., pyrrol-2-yl), thiophen- 2-yl, and 5-aminomethyl-furan-3-yl.
  • R comprises a primary amine group or a secondary amine group.
  • R may be selected from 3-aminopropyl, 4-aminobutyl, 5-aminobutyl, 1,1 -dimethyl-3 -aminopropanyl, 3-methylamino-propanyl, 6- aminohexyl, 3-amino-l-propenyl, 2-aminocyclobutyl (e.g., 2(R)-aminocyclobutyl or 2(S)- aminocyclobutyl), 2-aminocyclopentyl (e.g, 2(R)-aminocyclopentyl or 2(S)- aminocyclopentyl), 2-aminocyclohexyl (e.g., 2(R)-aminocyclohexyl or 2(S)- aminocyclohexyl).
  • R comprises a cycloalkyl group optionally substituted with amino.
  • R may be selected from cyclobutyl or aminocyclobutyl such as 2-aminocyclobutyl (e.g, 2(R)-aminocyclobutyl or 2(S)-aminocyclobutyl), cyclopentyl or aminocyclopentyl such as 2-aminocyclopentyl (e.g, 2(R)-aminocyclopentyl or 2(S)- aminocyclopentyl), and cyclohexyl or aminocyclohexyl such as 2-aminocyclohexyl (e.g., 2(R)-aminocyclohexyl or 2(S)- aminocyclohexyl).
  • 2-aminocyclobutyl e.g, 2(R)-aminocyclobutyl or 2(S)-aminocyclobutyl
  • R comprises a cyclic secondary amine such as piperidinyl or piperazinyl.
  • R is selected from piperidin- 4-yl, (piperidin-4-yl)methyl, piperazin-4-yl, and (piperazin-4-yl)methyl.
  • R is selected from alkyl (e.g ., butyl), alkenyl (e.g, 3-butenyl), cyanoalkyl (e.g, cyanom ethyl or cyanoethyl), and alkylcarboxylalkyl ester (e.g, methylcarboxylethyl ester).
  • alkyl e.g ., butyl
  • alkenyl e.g, 3-butenyl
  • cyanoalkyl e.g, cyanom ethyl or cyanoethyl
  • alkylcarboxylalkyl ester e.g, methylcarboxylethyl ester
  • Suitable R moieties may include, but are not limited R moieties disclosed in the present application at Figure 15.
  • the R moieties thus disclosed may be incorporated into polymers (e.g, sequence defined polymers as disclosed herein).
  • the disclosed acylated tRNA molecules may comprise any suitable tRNA molecule.
  • Suitable tRNA molecules may include, but are not limited to, tRNA molecules comprising anticodons corresponding to any of the natural amino acids.
  • the disclosed acylated tRNA molecules may be prepared by reacting a tRNA molecule and a donor molecule in the presence of a flexizyme (Fx).
  • Fx flexizyme
  • the preparation methods may comprise reacting in a reaction mixture: (i) a flexizyme (Fx): (ii) the tRNA molecule; and (ii) a donor molecule having a formula:
  • tRNA is a transfer RNA linked via a 3' terminal ribonucleotide (e.g. via an ester bond formed with the ribose of a 3' terminal adenosine);
  • R is selected from alkyl (e.g, butyl); cycloalkyl (e.g, cyclobutyl, cyclopentyl, or cyclohexyl) optionally substituted with amino; heterocycloalkyl (e.g, a cyclic secondary amine such as piperidinyl or piperazinyl); alkylheterocycloalkyl (e.g, a methyl cyclic secondary amine such as piperidinyl or methyl piperazinyl); alkenyl (e.g, l-buten-4- yl); cyanoalkyl ( e.g ., cyanomethyl or cyanoethyl); aminoalkyl (e.g., aminopropyl, aminobutyl, aminopentyl, 1,1 -dimethyl-3 -amino-propanyl, methylaminopropyl, or aminohexyl); aminoalkenyl (e.g, l-amin
  • X is O or S
  • LG is a leaving group.
  • Suitable R moieties for the donor molecules may include, but are not limited to, R moieites disclosed in the present application at Figure 15.
  • Suitable donor molecules may include, but are not limited to, donor molecules disclosed in the present application at Figures 20-22.
  • Fx catalyzes an acylation reaction between the 3' terminal ribonucleotide of the tRNA and the donor molecule to prepare the acylated tRNA molecule (e.g. via an ester bond formed with the ribose of a 3' terminal adenosine of the tRNA molecule and the R moiety).
  • Any suitable Fx may be utilized in the disclosed preparation methods. Suitable
  • Fx's may include, but are not limited to aFx, dFx, and eFx.
  • Suitable tRNA molecules for the preparation methods may include, but are not limited to, tRNA molecules comprising anticodons corresponding to any of the natural amino acids.
  • the tRNA comprises the anticodon CAU (i.e., the anticodon for methionine).
  • the tRNA comprises the anticodon GGU (i.e., an anticodon for threonine), the anticodon GAU (i.e., an anticodon for isoleucine), or the anticodon GGC (i.e., an anticodon for alanine).
  • the donor molecule for the R moiety in the preparation methods typically comprises a leaving group (LG).
  • LG comprises a cyanomethyl moiety and the donor molecule comprises a cyanomethylester (CME).
  • LG comprises a dinitrobenzyl moiety and the donor molecule comprises a dinitrobenzylester (DNB).
  • LG comprises a (2-aminoethyle)amidocarboxybenzyl moiety and the donor molecule comprises a (2-aminoethyl)amidocarboxybenzyl thioester (ABT).
  • the disclosed preparation methods are performed under conditions that maximize the yield of acylated tRNA.
  • the preparation methods are performed under reaction conditions such that at least about 50% of the tRNA in the reaction mixture is acylated after reacting the reaction mixture for 120 hours, and preferably under reaction conditions such that at least about 50% of the tRNA in the reaction mixture is acylated after reacting the reaction mixture for 16 hours.
  • the disclosed methods, systems, components, and composition may be utilized for preparing sequence defmied polymers in vitro and/or in vivo.
  • the disclosed methods may be performed to prepare a sequence defined polymer in a cell free synthesis system, where the sequence defined polymer is prepared via translating an mRNA comprising a codon corresponding to an anticodon of the acylated tRNA molecule.
  • the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA. In some embodiments of the disclosed methods, the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA at the start codon (AUG) of the mRNA. In other embodiments of the disclosed methods, the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA at a codon for threonine (e.g ., ACC), a codon for isoleucine (e.g, AUC), or at a codon for alanine (e.g. GCC).
  • a codon for threonine e.g ., ACC
  • a codon for isoleucine e.g, AUC
  • GCC codon for alanine
  • the disclosed methods may be performed in order to prepare polymers selected from, but not limited to, polyolefin polymers, aramid polymers, polyurethane polymers, polyketide polymers, conjugated polymers, D-amino acid polymers, b-amino acid polymers, g-amino acid polymers, d-amino acid polymers, e-amino acid polymers, z-amino acid polymers, and polycarbonate polymers.
  • polymers selected from, but not limited to, polyolefin polymers, aramid polymers, polyurethane polymers, polyketide polymers, conjugated polymers, D-amino acid polymers, b-amino acid polymers, g-amino acid polymers, d-amino acid polymers, e-amino acid polymers, z-amino acid polymers, and polycarbonate polymers.
  • Novel donor molecules or monomers also are disclosed herein.
  • the novel donor molecules or monomers may be incorporated into polymers as disclosed herein (e.g. sequence defined polymers as disclosed herein).
  • the polymers comprising the incorporated novel donor molecules or monomers may be described as a polymer having a formula selected from:
  • R is selected from alkyl ( e.g ., butyl); cycloalkyl (e.g, cyclobutyl, cyclopentyl, or cyclohexyl) optionally substituted with amino; heterocycloalkyl (e.g, a cyclic secondary amine such as piperidinyl or piperazinyl); alkylheterocycloalkyl (e.g, a methyl cyclic secondary amine such as piperidinyl or methyl piperazinyl); alkenyl (e.g, l-buten-4- yl); cyanoalkyl (e.g, cyanomethyl or cyanoethyl); aminoalkyl (e.g, aminopropyl, aminobutyl, aminopentyl, 1,1 -dimethyl-3 -amino-propanyl, methylaminopropyl, or aminohexyl); aminoalkenyl (e.g, l-amino
  • Y is O, S, or N
  • polymer is a polymer into which the novel donor molecules or monomers have been incorporated, for example, at one or both ends of the polymer and/or internally within the polymer.
  • CME cyanomethylester
  • DNB dinitrobenzylester
  • ABT (2-aminoethyl)amidocarboxybenz
  • a flexizyme (Fx) system e.g, comprising eFx, dFx, or aFx
  • Fx flexizyme
  • [00135] Acylation of microhelix or tRNA with non-canonical amino acid substrates or non-amino acid substrates.
  • Non-canonical substrates as disclosed herein, or variants thereof are disclosed herein, or variants thereof.
  • tRNAs that are acylated with non-canonical substrates, or variants thereof including different types of long-carbon chain and cyclic amino acids, as novel monomers for use in cell-free (in vitro) protein or polymer synthesis.
  • Non-canonical substrates as disclosed herein, or variants thereof are disclosed herein, or variants thereof.
  • tRNAs that are acylated with non-canonical substrates, or variants thereof including different types of long-carbon chain and cyclic amino acids, as monomers for use in vivo polymer synthesis.
  • Non-canonical substrates as disclosed herein, or variants thereof are disclosed herein, or variants thereof.
  • NNAs non-a-amino acid monomers
  • polymers with non-natural amino acid monomers and/or non-amino acid momoners non-a-amino acid monomers such as polyolefin polymers, polyaramid polymers, polyurethane polymers, polyketide polymers, polycarbonate polymers, conjugated polymers, gamma-amino acid polymers, delta-amino acid polymers, epsilon-amino acid polymers, zeta-amino acid polymers, oligosaccharides, oligonucleotides, polyvinyl polymers, and polyfuran polymers.
  • NNAs non-a-amino acid monomers
  • NNAs non-a- amino acid monomers
  • Example 1 Expanding the chemical substrates for genetic code reprogramming
  • Mis-acylated tRNAs can be synthesized using protected pdCpA followed by enzymatic ligation (e.g., T4 RNA ligase) with a truncated tRNA that lacks its 3’-terminal CA nucleotides.
  • the method is synthetically laborious and often gives poor results due to the generation of a cyclic tRNA by product that inhibits ribosomal peptide synthesis.
  • the ester linkage for mis-acylated tRNAs can also be obtained by use of engineered synthetase/orthogonal tRNA pairs.
  • high specificity of the synthetase toward an amino acid substrate only allows charging a narrow range of substrate pool, which often requires extensive work (e.g., directed evolution) for the development of a new synthetase.
  • Fx is an artificial ribozyme with the ability to aminoacylate an arbitrary tRNA.
  • the Fx system has seen widespread success over the last decade in which a wide range (>150) of chemical substrates (a-amino acids, b-amino acids, g-amino acids, D-amino acids, nonstandard amino acids, N-protected (alkylated) amino acids, and hydroxy acids) have been incorporated into ribosomal peptide chain through mis-acylated tRNAs.
  • the translation apparatus is the cell’s factory for protein synthesis.
  • the biological machines that carry out translation produce polymers with a peptide backbone by coupling a-amino acids according to the encoding sequences of an mRNA template.
  • the covalent linkage of polymers synthesized by ribosomes has been confined to polypeptide bonds (amides) or polyester bonds.
  • SDPs organic sequence-defined polymers
  • a flexizyme system is used to reassign individual codons and SDPs bearing a non-peptide backbone are produced under controls of the reprogrammed genetic code using an engineered cell-free translation system.
  • Protein synthesis by ribosomes is achieved via polymerization of amino acids that are covalently linked to transfer RNAs (tRNAs) via aminoacylation ⁇ i.e., "charging”).
  • tRNAs transfer RNAs
  • a ribosome translates codons that are present in an mRNA via matching a corresponding anticodons present on charged tRNAs. The amino acid of a charged tRNA is thus incorporated via the ribosome into a nascent polypeptide corresponding to the translated mRNA.
  • ARSs aminoacyl tRNA synthetases
  • Flexizymes ribozymes that aminoacylate tRNA by using activated amino acids have been discovered in vitro, which have been termed "flexizymes.” Flexizymes and their use for genetic reprogramming are known in the art. ⁇ See, e.g., Ohuchi el al. , "The flexizyme system: a highly flexible tRNA aminoacylation tool for the translation apparatus," Curr Opin Chem Biol. 2007 Ocxt; 11(5):537-42; Xiao el al.
  • Flexizymes can be evolved and selected in vitro to catalyze aminoacylation of tRNA with nonstandard amino acids, and tRNAs thus charged with nonstandard amino acids can be utilized to incorporate nonstandard amino acids in nascent polypeptides. Flexizyme systems thus enable reprogramming of the genetic code by reassigning the codons that are generally assigned to natural amino acids to nonstandard amino acids or other residues, and thus mRNA-directed synthesis of non-natural polypeptides can be achieved.
  • Figure 1 illustrates the flexizyme system.
  • Figure l.A illustrates the crystal structure of a flexizyme.
  • Figure l.B illustrates acylation of tRNA by a flexizyme and the leaving groups commonly used for preparing activated ester substrates, which can be loaded on tRNA or a microhelix via a flexizyme.
  • Chemical substrates for loading on tRNA or a microhelix can be prepared by converting protected a-amino acids or protected b-amino acids to corresponding esters. ( See Figure 2. A. and 2.B., respectively).
  • tRNAs of interest were acylated using L-Ser, D-Ser, b-Gly, and b-Phe under the same conditions used in the microhelix experiment, and the reprogrammed tRNA were subsequently added into a cell-free synthesis platform (PURExpress).
  • tRNAs corresponding to AUC, ACC, and GCC were reassigned with non-natural amino acid substrates using the Fx system. ( See Figure 4).
  • CFPS cell-free protein synthesis
  • Example 3 Expanding the chemical substrates in genetic code reprogramming
  • the translation apparatus is the cell’s factory for protein synthesis, stitching together L-a-amino acid substrates into sequence-defined polymers (proteins) from a defined genetic template.
  • protein elongation rates of up to 20 amino acids per second and remarkable precision (fidelity of -99.99%) ' 3
  • Escherichia coli protein biosynthesis system the ribosome and associated factors necessary for polymerization
  • ribosomal monomers For ribosomal monomers to be selectively incorporated into a growing chain by the ribosome, they must be covalently attached (or charged) to transfer RNAs (tRNAs), making aminoacyl-tRNA substrates.
  • tRNAs transfer RNAs
  • Multiple strategies have been devised to synthesize such noncanonical aminoacyl-tRNAs, or‘mis-acylated’ tRNAs.
  • aaRS aminoacyl-tRNA synthetases
  • eFx acylates tRNA with cyanomethyl ester (CME)-activated acids containing aryl functionality
  • dFx recognizes dinitrobenzyl ester (DNBE)-activated non-aryl acids 57
  • DNBE dinitrobenzyl ester
  • aFx has been developed recognizing a (2-aminoethyl)amidocarboxybenzyl thioester (ABT) 58 leaving group which provides the required aryl group and better aqueous solubility (Fig. 8a, bottom panel).
  • the unique potential of the flexizyme approach is that virtually any amino acid can be charged to any tRNA, as long as the side chain is stable toward the conditions of the acylation reaction (or suitably protected/deprotected in the case of reactive side chains), enabling the reassignment of a specific codon to an amino acid de novo.
  • the development of flexizyme has significantly expanded the known permissible space of monomers used in translation by genetic code reprogramming.
  • the range of monomers incorporated has so far, however, mainly been limited to amino 23 and hydroxy acids 33 . Design rules for flexizyme mediated charging, which may more effectively guide the search for noncanonical monomers, are still being identified.
  • B hydrocinnamic acid
  • C carboxylic acid
  • D and E benzoic and phenylacetic acid, respectively
  • F propanoic acid
  • the novel Fx substrates are charged to tRNAs and incorporated into peptides.
  • Escherichia coli cell-free protein synthesis (CFPS) 34, 64 67 which is capable of high-level incorporation of noncanonical amino acids.
  • CFPS Escherichia coli cell-free protein synthesis
  • we were not able to characterize the reporter peptide presumably because active peptidases in the extract digested the peptide.
  • PURExpressTM system 68 In order to circumvent possible undesired degradation, we turned to the commercially available (Protein synthesis Using Recombinant Elements) PURExpressTM system 68 .
  • the PURExpressTM system contains the minimal set of components required for protein translation, thereby minimizing any undesired peptide degradation, and allows addition of custom sets of amino acids and tRNAs of interest.
  • Peptide synthesis was performed using only the 9 amino acids that decode the initiation codon AUG and the purification tag (data not shown). We excluded the other 11 amino acids to prevent corresponding endogenous tRNAs from being aminoacylated and used in translation, thereby, eliminated competition between endogenous tRNAs and Fx-charged tRNAs during peptide synthesis. For this, PURExpressTM reactions were incubated at 37 °C for 4 h. The synthesized peptides were then purified using Strep-Tactin®-coated magnetic beads (IBA), denatured with SDS, and characterized by MALDI-TOF mass spectroscopy (Fig. 12a).
  • IBA Strep-Tactin®-coated magnetic beads
  • Ribosome-mediated polymerization of alternative A-B polycondensation reactions may offer new classes of sequence-defined polymers.
  • GGU mis-acylated tRNA GluE2
  • Thr ACC codon
  • Elastin-like polypeptides Therapeutic applications for an emerging class of nanomedicines. J Control Release 240, 93-108 (2016).
  • Cvanomethyl benzoate [D) Prepared according to the general procedure using benzoic acid (81 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (87 mg, 82%).
  • Cvanomethyl pentanoate (FI. Prepared according to the general procedure using valeric acid (72 pL, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (65 mg, 70%).

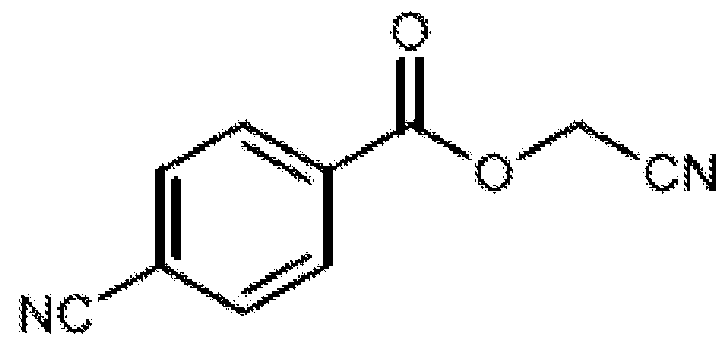

  • Cvanomethyl 4-cvanobenzoate [8). Prepared according to the general procedure using 4-cyanobenzoic acid (97 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (101 mg, 82%).
  • Cvanomethyl 3-formylbenzoate 1101. Prepared according to the general procedure using 3-formylbenzoic acid (99 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (95 mg, 69%).
  • Cvanomethyl 2-fluorobenzoate (121. Prepared according to the general procedure using 2-fluorobenzoic acid (92 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (66 mg, 56%).
  • Cvanomethyl 4-methoxybenzoate (151. Prepared according to the general procedure using 4-methoxybenzoic acid (100 mg, 0.66 mmol), trimethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (102 mg, 81%).
  • Cvanomethyl 3-amino-4-nitrobenzoate [201. Prepared according to the general procedure using 3-amino-4-nitrobenzoic acid (198 mg, 1.09 mmol), triethylamine (232 pL, 1.64 mmol), chloroacetonitrile (88 pL, 1.31 mmol) and dichloromethane (1.2 mL). The product was obtained as a yellow solid (210 mg, 87%).
  • Cvanomethyl isonicotinate [22). Prepared according to the general procedure using isonicotinic acid (81 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (50 mg, 47%).
  • Cvanomethyl l//- Dy rrole-2-carboxylate [251. Prepared according to the general procedure using 1 //-pyrrol e-2-carboxylic acid (37 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) and dichloromethane (0.2 mL). The product was obtained as a white solid (24 mg, 49%).
  • Cyanomethyl thiophene-2-carboxylate [261. Prepared according to the general procedure using thiophene-2-carboxylic acid (84 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a brown oil (72 mg, 79%).
  • Bocdeprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization.
  • Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization.
  • Bocdeprotection with 4M HChdioxane provided the product, which was used without further purification and characterization.
  • Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization.
  • Bocdeprotection with 4M HChdioxane provided the product, which was used without further purification and characterization.
  • Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization.
  • Fx_F:5’-GTAATACGACTCACTATAGGATCGAAAGATTTCCGC-3’ SEQ ID NO: l
  • eFx Rl : 5’ -ACCT AACGCTAATCCCCTTTCGGGGCCGCGGAAATCTTTCGATCC-3’ SEQ ID NO:2
  • dFx Rl : 5’ -ACCT AACGCC ATGTACCCTTTCGGGGATGCGGAAATCTTTCGATCC-3’ SEQ ID NO:3
  • aFx Rl : 5’ -ACCT AACGCC ACTT ACCCCTTTCGGGGGTGCGGAAATCTTTCGATCC-3’ SEQ ID NO:4
  • eFx Rl, dFx Rl, and aFx Rl were used for eFx, dFx, and aFx generation, respectively
  • a master mix containing 9.9 pL of 10X PCR buffer (500 mM KC1, 100 mM Tris-HCL (pH 9.0), and 1 % of Triton X-100), 0.99 pL of 250 mM MgCl2, 4.95 pL of 5 mM dNTPs, 0.66 pL of Taq DNA polymerase (NEB), and 82.5 pL of water in a PCR tube.
  • the thermocycling conditions were: 1 min at 95 °C followed by 5 cycles of 50 °C for 1 min and 72 °C for 1 min. The sizes of products were checked in 3 % (w/v) agarose gel.
  • OneTaq® Standard buffer 20 pL of 10 mM dNTP, 5 pL of 200 pM Fx_T7F primer and 5 pL of 200 pM Fx_R2 (eFx_R2, dFx_R2, and aFx_R2 were used for eFx, dFx, and aFx generation, respectively), 10 pL of OneTaq® polymerase and 755 pL of nuclease-free water was mixed in a 1.5 mL microcentrifuge tube.
  • the mixture was transferred to 10 PCR tubes and the DNA was amplified by the following thermocycling conditions: 1 min at 95 °C followed by 12 cycles of 95 °C for 40 s and 50 °C for 40 s, and 72 °C for 40 s. Products were checked in 3 % (w/v) agarose gel.
  • Fx_T7F 5’-GGCGTAATACGACTCACTATAG-3’ (SEQ ID NO:5) eFx_R2: 5’-ACCTAACGCTAATCCCCT-3’ (SEQ ID NO:6) dFx_R2: 5’-ACCTAACGCCATGTACCCT-3’ (SEQ ID NO:7) aFx_R2: 5’ - ACCTAACGCC ACTTACCCC-3’ (SEQ ID NO:8)
  • tRNA The DNA template for tRNA preparation was directly amplified from the full- length oligo by a pair of the primers corresponding to both 5’- and 3’ -ends of the template (GluE2_fwd: 5’-GTAATACGACTCACTATAGTCC-3’ (SEQ ID NO: 19); GluE2_rev: 5’- TGGCGTCCCCTAGGGGATTCG-3’ (SEQ ID NO:20)).
  • 5 pL of the DNA template (100 mM) for tRNA was mixed with 5 pL of 200 pM GluE2_fwd and Glu_E2_rev, 200 pL of 5X HF buffer, 10 pL of Phusion polymerase (NEB), 20 pL of 10 mM dNTPs, and 755 pL of water.
  • the thermocycling conditions were: 1 min at 95 °C followed by 35 cycles of 95 °C for 5 sec, 60 °C for 10 sec, and 72 °C 10 sec, and final elongation at 72 °C for 1 min.
  • the sizes of products were checked in 3 % (w/v) agarose gel.
  • PCR products were combined, extracted using phenol/chloroform/isoamyl alcohol and precipitated and washed with EtOH. Sample were dried at room temperature for 5 min and resuspended in 100 pL nuclease-free water. DNA concentrations were determined spectrophotometrically (Thermo Scientific NanoDrop 2000C spectrophotometer).
  • DNA template 5 pg was used with 10 pL of each of 10X T7 Reaction Buffer, ATP, CTP, GTP, EGTR, T7 RNA polymerase mix, and nuclease-free water upto 100 pL. The mixture was incubated at 37 °C overnight.
  • RNA products were excised from the gel and added to 2 mL of water.
  • the gels were crushed and then shaken in the cold room for 4 h.
  • the gels were transferred to a centrifugal filter (EMD Millipore) and centrifuged at 4,000 g for 2 min.
  • the flow-through was collected and added to the solution of 120 pL of 5 M NaCl and 5 mL of 100% EtOH and.
  • the solution was placed in -20 °C for 16 h and centrifuged at 15,000 g for 45 min at 4 °C.
  • the supernatant was removed and the pellet was dried for 5 min at room temperature.
  • the dried RNA pellet was dissolved in nuclease-free water and the concentration was determined from the absorbance measured on a Thermo Scientific NanoDrop 2000C spectrophotometer.
  • Acidic PAGE analysis 1 pL of crude reaction mixture was aliquoted at a desired time point and the reaction was quenched by the aliquot with 4 pL of acidic loading buffer (150 mM NaOAc, pH 5.2, 10 mM EDTA, 0.02% BPB, 93 % formamide). The crude mixture was loaded on 20 % polyacrylamide gel containing 50 mM NaOAc (pH 5.2) without further RNA precipitation process. The electrophoresis was carried out in cold room using 50 mM NaOAc (pH 5.2) as a running buffer. The gel was stained with GelRed (Biotium) and visualized on a Bio-Rad Gel Doc XR+. The acylation yield was determined by quantifying the intensity of the microhelix bands using ImageJ (NIH).
  • acylation reaction of tRNA was carried out as follows: 2 pL of 0.5 M HEPES (pH 7.5), 2 pL of 250 pM tRNA, 2 pL of 250 pM of a Fx selected on the microhelix experiment and 6 pL of nucleasefree water were mixed in a PCR tube. The mixture was heated for 2 min at 95 °C and cooled down to room temperature over 5 min. 4 pL of 300 mM MgCl2 was added to the cooled mixture and incubated for 5 min at room temperature.
  • reaction mixture was further incubated for the optimal time determined on the microhelix experiment on ice in cold room.
  • the pellet was resuspended in 50 pL of 70 % (v/v) ethanol resuspended and centrifuged at 21,000 g for 3 min at room temperature. The supernatant was removed and the pellet was dissolved by 1 pL of 1 mM NaOAc (pH 5.2).
  • Peptide purification The peptides produced in the PEIRExpress were produced by using an affinity tag purification technique. 2 pL of MagStrep (type3) XT beads 5 % suspension (iba) was washed twice with 200 and 100 pL of Strep-Tactin XT Wash buffer (IX) in a 1.5 mL microcentrifuge tube. The buffer was discarded by placing the tube on a magnetic rack. 10 pL of PEIRExpress reaction material was mixed with the wet magnetic beads and the tube containing the mixture was placed on ice for 30 min. The mixture was vortexed for 5 sec every 10 min. The tube was placed back on a magnetic rack and the supernatant was removed.
  • MagStrep type3
  • IX Strep-Tactin XT Wash buffer
  • the beads were washed twice with 200 and 100 pL of the wash buffer and the buffer was discarded.
  • the beads were mixed with 10 pL of 0.1 % SDS solution (v/v in water) and transferred to a PCR tube and heated at 95° C for 2 min.
  • the SDS solution was separated from the beads on a 96-well magnetic rack and further analyzed by mass spectrum.
  • the supernatant was added to a Cl 8 spin column (Pierce Cl 8 columns, Thermo Fisher Scientific) to remove residual nucleic acids and buffers.
  • the column was washed twice with 20 % MeCN/water (5 % TFA) solution.
  • the peptide was eluted using 80 % MeCN/water (5 % TFA) solution.
  • ABT Tert- butyl (2-(4-(mercaptomethyl)benzamido)ethyl) carbamate
  • TLC Thin layer chromatography
  • Flash chromatography was performed on a Biotage Isolera One automated purification system. UV light, and/or the use of KMn0 4 were used to visualize products.

Landscapes

  • Life Sciences & Earth Sciences (AREA)
  • Health & Medical Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Genetics & Genomics (AREA)
  • Organic Chemistry (AREA)
  • Chemical & Material Sciences (AREA)
  • Zoology (AREA)
  • Wood Science & Technology (AREA)
  • Molecular Biology (AREA)
  • Biomedical Technology (AREA)
  • General Engineering & Computer Science (AREA)
  • Bioinformatics & Cheminformatics (AREA)
  • Biotechnology (AREA)
  • Microbiology (AREA)
  • Biochemistry (AREA)
  • General Health & Medical Sciences (AREA)
  • Plant Pathology (AREA)
  • Biophysics (AREA)
  • Physics & Mathematics (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • General Chemical & Material Sciences (AREA)
  • Peptides Or Proteins (AREA)
  • Micro-Organisms Or Cultivation Processes Thereof (AREA)
  • Preparation Of Compounds By Using Micro-Organisms (AREA)

Abstract

Disclosed are methods, systems, components, and compositions for synthesis of sequence defined polymers. The methods, systems, components, and compositions may be utilized for incorporating novel substrates that include non-standard amino acid monomers and non-amino acid monomers into sequence defined polymers. As disclosed herein, the novel substrates may be utilized for acylation of tRNA via flexizyme catalyzed reactions. The tRNAs thus acylated with the novel substrates may be utilized in synthesis platforms for incorporating the novel substrates into a sequence defined polymer.

Description

EXPANDING THE CHEMICAL SUBSTRATES FOR GENETIC CODE
REPROGRAMMING
STATEMENT REGARDING FEDERALLY SPONSORED RESEARCH OR
DEVELOPMENT
[0001] This invention was made with government support under W911NF-16-1-0372 awarded by the Army Research Office. The government has certain rights in the invention.
CROSS-REFERENCE TO RELATED PATENT APPLICATIONS
[0002] The present application claims the benefit of priority to U.S. Provisional Patent
Application No. 62/679,350, filed on June 1, 2018, the content of which is incorporated herein by reference in its entirety.
BACKGROUND
[0003] The field of the invention relates to components and methods for preparing sequence defined polymers. In particular, the field of the inventions related to components and methods for use in genetic code reprogramming and flexizyme-catalyzed acylation reactions.
[0004] The site-specific incorporation of non-canonical amino acids into polypeptides through genetic code reprogramming is a powerful approach for making bio-based products that extend beyond natural limits. While a diverse repertoire of chemical substrates can be used in ribosome-mediated polymerization, flexizyme (Fx)-mediated tRNA-charging and incorporation of amino acid analogues with long-carbon chains and cyclic structures into sequence based polymers using a genetic code reprogramming approach have remained inaccessible. [0005] Here, we demonstrate preparation and in vitro site-specific incorporation of novel substrates into sequence based polymers using a wild type and an engineered ribosome. To achieve this goal, we synthesized new substrates based on 2 scaffolds (long carbon chain and cyclic amino acids) and found that most could be acylated onto tRNA under optimized reaction conditions. Of these acylated substrates, all could be incorporated into ribosomal peptides at the N-terminus with the wildtype ribosome using in vitro translation. Notably, some cyclic amino acids could be incorporated at the C-terminus using an engineered ribosome. Our work expands the range of chemical substrates and demonstrates that such substrates can be incorporated into a peptide with an engineered translation apparatus in vitro.
SUMMARY
[0006] Disclosed are methods, systems, components, and compositions for synthesis of sequence defined polymers. The methods, systems, components, and compositions may be utilized for incorporating novel substrates that include non-standard amino acid monomers and non-amino acid monomers into sequence defined polymers. As disclosed herein, the novel substrates may be utilized for acylation of tRNA via flexizyme catalyzed reactions. The tRNAs thus acylated with the novel substrates may be utilized in synthesis platforms for incorporating the novel substrates into a sequence defined polymer.
[0007] The components disclosed herein include acylated tRNA molecules and donor molecules for preparing acylated tRNA molecules where the acylated tRNA molecules and the donor molecules comprise a monomer that may be incorporated into a sequence defined polymer. The disclosed acylated tRNA molecules are acylated with a moiety that is present in the donor molecules and may be referred to herein as MR".
[0008] The disclosed acylated tRNA molecules may be defined as having a formula:
Figure imgf000005_0001
wherein:
tRNA is a transfer RNA; and
R is selected from alkyl optionally substituted with amino; heterocycloalkyl;
(heterocycloalkyl)alkyl; alkenyl; cyanoalkyl; aminoalkyl; aminoalkenyl; alkylcarboxyalkylester; haloalkyl; nitroalkyl; aryl, aryl(alkyl), or (aryl)alkenyl, wherein the aryl or the aryl of the aryl(alkyl) or (aryl)alkenyl is optionally substituted with one or more substituents selected from hydroxyl, hydroxylalkyl, amino, aminoalkyl, azido, cyano, acetyl, nitro, nitroalkyl, halo, alkoxy, and alkynyl.
[0009] The disclosed acylated tRNA molecules may be prepared by reacting a tRNA molecule and a donor molecule in the presence of a flexizyme (Fx). The methods may comprise reacting in a reaction mixture: (i) a flexizyme (Fx): (ii) the tRNA molecule; and (ii) a donor molecule having a formula:
Figure imgf000005_0002
wherein:
R is a moiety as defined above;
LG is a leaving group; and
X is O or S.
In the preparation method, Fx catalyzes an acylation reaction between the tRNA molecule and the donor molecule to prepare the acylated tRNA molecule. [0010] The disclosed methods, systems, components, and composition may be utilized for preparing sequence defmied polymers in vitro and/or in vivo. In some embodiments, the disclosed methods may be performed to prepare a sequence defined polymer in a cell free synthesis system, where the sequence defined polymer is prepared via translating an mRNA comprising a codon corresponding to an anticodon of the acylated tRNA molecule. In the disclosed methods, the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA. The disclosed methods may be performed in order to prepare polymers selected from, but not limited to, polyolefin polymers, aramid polymers, polyurethane polymers, polyketide polymers, conjugated polymers, D- amino acid polymers, b-amino acid polymers, g-amino acid polymers, and polycarbonate polymers.
BRIEF DESCRIPTION OF THE FIGURES
[0011] Figure 1. A) Crystal structure of flexizyme (SEQ ID NO:22). (From Xiao, H.,
Murakami, H., Suga, H. & Ferre-D'Amare, A.R. Structural basis of specific tRNA aminoacylation by a small in vitro selected ribozyme. Nature 454, 358-361 (2008)). B) Acylation of tRNA by flexizyme and the leaving groups commonly used for preparing activated ester substrates.
[0012] Figure 2. Preparation of chemical substrates. Boc-protected a-amino acids and Boc-protected b-amino acids were converted to esterified substrates for acylation.
[0013] Figure 3. Optimization of flexizyme (Fx) - catalyzed aminoacylation.
[0014] Figure 4. Genetic code reprogramming. Subl, Sub2 and Sub3 indicate the codons corresponding to the reprogrammed tRNAs.
[0015] Figure 5. Schematic of method for incorporating amino acids into a polypeptide. [0016] Figure 6. Characterization of the synthetic polypeptides containing the incorporated amino acid.
[0017] Figure 7. Possible polymer backbones that can be formed utilizing tRNAs that are charged with ester monomers, thioester monomers, or ABC monomers.
[0018] Figure 8. Expanding the chemical substrate scope of flexizymes for genetic code reprogramming a) Flexizyme (Fx) recognizes the 3’ -CCA sequence of tRNAs59 and catalyzes the acylation of tRNA using acid substrates. Fx has been so far used to incorporate a limited set of mostly common amino and hydroxy acids. In this work, we explore the substrate specificity of Fx for additional noncanonical acid substrates containing an aromatic group either on the side chain or on the leaving group (purple panel) b) An E. coli cell-free protein synthesis system reconstituted from the purified wild type translational machinery (PURExpress™) was used to produce peptide, 60 containing such noncanonical acid substrates. This approach for incorporating noncanonical monomers at the N-terminus of peptides is well established c) 32 noncanonical acid substrates comprising a wide variety of functional groups were incorporated into the N-terminus of a peptide.
[0019] Figure 9. Optimized reaction conditions facilitate Fx-catalyzed acylation with novel substrates. Acid denaturing PAGE analysis under various conditions for Fx-catalyzed acylations of a microhelix tRNA (22 nt) with Phe (A) and structurally diversified Phe analogues (B-G). The acylation reactions were performed using eFx (45 nt) or aFx (47 nt) and monitored over 120 h at two different pHs (7.5 vs. 8.8).
[0020] Figure 10. Expanding the Fx substrate scope to analogues with various scaffolds. The range of noncanonical substrates compatible with Fx was further extended on four different monomer structure (Phe analogues, benzoic acid derivatives, heteroaromatic and aliphatic substrates). eFx and aFx charge a substrate by recognizing an aryl group of the substrate. The acylation reactions were performed using the microhelix RNA (22 nt) with the cognate Fx (eFx:45 nt, aFx:47 nt) and monitored over 120 h at two different pHs (7.5 vs. 8.8). Reaction condition: 50 mM HEPES (pH 7.5) or bicine (pH 8.8), 60 mM MgCl2, 1 mM microhelix, 5 mM Fx, and 5 mM substrates in 20 % (v/v) DMSO solution. All acylation heat maps are shaded by percent conversion of microhelix. See Figure 15 for the numerical values of acylation.
[0021] Figure 11. Simulated molecular interactions between selected substrates and the binding pocket of eFx. Tetrahedral intermediate models of the CME esters were optimized and subjected to Monte Carlo energy optimization via Rosetta a) Phe (A), b) hydrocinnamic acid (B), c) cinnamic acid (C), d) benzoic acid (D), e) phenylacetic acid (E); dark yellow. No strong interaction with the guanine residue is observed for f) pyrrole-2- carboxylic acid (25) and g) 2-thiophenecarboxylic acid (26).
[0022] Figure 12. Ribosomal synthesis of N-terminal functionalized peptides with noncanonical substrates a) Schematic overview of peptide synthesis and characterization. N- terminal functionalized peptides were prepared in the PEIRExpress™ system by using Fx- charged tRNAiMct, purified via the Strep tag, denatured with SDS, and characterized by MALDI mass spectrometry b) Mass spectrum of the peptide in the presence of all 20 natural amino acids and absence of Fx-charged tRNA. c) Mass spectrum of the peptide in the absence of methionine and Fx-charged tRNA. d-i) Mass spectra of peptides with N-terminally incorporated noncanonical substrates. *: A minor amount of peptide containing phenylalanine at the N-terminus was found to be unformylated. NH2-F WSHPO/J^KST -OH (SEQ ID NO: 14); [M+Na]+=l4l5, A: phenylalanine, B: hydrocinnamic acid, C: cinnamic acid, D: benzoic acid, E: phenylacetic acid, G: propanoic acid.
[0023] Figure 13. Acylation of microhelix with the seed substrates. The Fx-catalyzed acylation reaction using the six representative substrates (Phe-CME (A), hcinA-CME (B), cinA-CME (C), benA-CME (D), PhAACME (E), penA-CME (F), penA-ABT (G) were monitored at two different pH (7.5 and 8.8) over 120 h. In general, high pH (pH 8.8) and long incubation time (120 h) gives high reaction yield. A part of Fig. 8a (lane A-C), 8b (lane A-C), and 8d (lane C-G) was used to produce Fig. 9. LG: leaving group, Fx: Flexizyme, CME: cyanomethylester, ABT : (2-aminoethyl)amidocarboxybenzyl thioester.
[0024] Figure 14. Undesired hydrolysis of acylated microhelix. The microhelix charged by PhPA (B) was acylated at 16 h in a 100 % yield, however, the acylation yield was found to decrease (76 %) at 144 h, presumably because of unwanted hydrolysis by water on the ester linkage. Lane 1 : microhelix; lane 2 and 3: crude acylated product observed at 16 h and 144 h, respectively. We limited the reaction time to 120 h based on this observation.
[0025] Figure 15. Numerical acylation yields of microhelix obtained using the expanded substrates. The acylation reaction yields of microhelix with the 32 non-canonical chemical substrates were determined by quantifying the band intensity on the 20 % polyacrylamide gel (pH 5.2, 50 mM NaOAc, Fig. 16-18).
[0026] Figure 16. Analysis of acylation with 1-6. The acylation yields were analyzed by electrophoresis on 20 % polyacrylamide gel containing 50 mM NaOAc (pH 5.2). The crude products containing the chemical substrates (1-6) were loaded on the gel and separated by the electrophoretic mobility at 135 mV in cold room over 2-3 h. The reactions were monitored over 120 h and the yields were quantified using densiometric analysis (software: ImageJ).
[0027] Figure 17. Analysis of acylation with 7-21. The crude acylation reaction mixtures charged with the substrates (7-21) were analyzed by using the same methods described in Fig. 16.
[0028] Figure 18. Analysis of acylation with 22-32. The crude products charged with the chemical substrates (22-32) were analyzed. Gels were visualized by staining with GelRed (Biotium) and exposing on a filter of 630 nm for 20 s on a Gel Doc XR+ (Bio-Rad). The band containing the mihx charged with coumarin (24) in the orange box shows relatively higher intensity than the other nucleic acid bands when the gel is exposed in lower wavelength (560 nm). Note that the yields were obtained from the reaction with the substrate containing an CME and ABT leaving group, respectively (coumarin excitation/emission wavelength: 380 nm/410-470 nm)
[0029] Figure 19. Acylation test of pyrrole- ABT and thiophene- ABT. We tested additional substrates for the pyrrole and thiophene substrates (25a and 26a with ABT) in case that eFx did not recognize the small aromatic ring. However, we were not able to find a new band for substrate-charged microhelix in the gel. eFx and aFx was used for lane 1, 3 and 2, 4, respectively. (NMR spectroscopic data was generated but is not presented here).
[0030] Figure 20. Exemplary compounds comprising linear primary amine moieties.
[0031] Figure 21. Exemplary compounds comprising cyclic primary amine moieties.
[0032] Figure 22. Exemplary compound comprising cyclic secondary amine moieties.
DETAILED DESCRIPTION
[0033] The presently disclosed subject matter is described herein using several definitions, as set forth below and throughout the application.
[0034] Definitions
[0035] ETnless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of skill in the art to which the invention pertains. Although any methods and materials similar to or equivalent to those described herein can be used in the practice or testing of the present invention, the preferred methods and materials are described herein. [0036] Unless otherwise specified or indicated by context, the terms“a”,“an”, and
“the” mean“one or more.” For example,“a component” should be interpreted to mean“one or more components.”
[0037] As used herein,“about,”“approximately,”“substantially,” and“significantly” will be understood by persons of ordinary skill in the art and will vary to some extent on the context in which they are used. If there are uses of these terms which are not clear to persons of ordinary skill in the art given the context in which they are used, “about” and “approximately” will mean plus or minus <10% of the particular term and“substantially” and “significantly” will mean plus or minus >10% of the particular term.
[0038] As used herein, the terms“include” and“including” have the same meaning as the terms“comprise” and“comprising” in that these latter terms are“open” transitional terms that do not limit claims only to the recited elements succeeding these transitional terms. The term“consisting of,” while encompassed by the term“comprising,” should be interpreted as a “closed” transitional term that limits claims only to the recited elements succeeding this transitional term. The term“consisting essentially of,” while encompassed by the term “comprising,” should be interpreted as a“partially closed” transitional term which permits additional elements succeeding this transitional term, but only if those additional elements do not materially affect the basic and novel characteristics of the claim.
[0039] Ranges recited herein include the defined boundary numerical values as well as sub-ranges encompassing any non-recited numerical values within the recited range. For example, a range from about 0.01 mM to about 10.0 mM includes both 0.01 mM and 10.0 mM. Non-recited numerical values within this exemplary recited range also contemplated include, for example, 0.05 mM, 0.10 mM, 0.20 mM, 0.51 mM, 1.0 mM, 1.75 mM, 2.5 mM 5.0 mM, 6.0 mM, 7.5 mM, 8.0 mM, 9.0 mM, and 9.9 mM, among others. Exemplary sub- ranges within this exemplary range include from about 0.01 mM to about 5.0 mM; from about 0.1 mM to about 2.5 mM; and from about 2.0 mM to about 6.0 mM, among others. [0040] Chemical Entities
[0041] New chemical entities and uses for chemical entities are disclosed herein. The chemical entities may be described using terminology known in the art and further discussed below.
[0042] As used herein, an asterisk "*" or a plus sign "+" may be used to designate the point of attachment for any radical group or substituent group.
[0043] The term "alkyl" as contemplated herein includes a straight-chain or branched alkyl radical in all of its isomeric forms, such as a straight or branched group of 1-12, 1-10, or 1-6 carbon atoms, referred to herein as Cl -Cl 2 alkyl, Cl-ClO-alkyl, and Cl-C6-alkyl, respectively.
[0044] The term "alkylene" refers to a diradical of straight-chain or branched alkyl group (i.e., a diradical of straight-chain or branched C1-C6 alkyl group). Exemplary alkylene groups include, but are not limited to -CH2-, -CH2CH2-, -CH2CH2CH2-, -CH(CH3)CH2-, - CH2CH(CH3)CH2-, -CH(CH2CH3)CH2-, and the like.
[0045] The term "haloalkyl" refers to an alkyl group that is substituted with at least one halogen. For example, -CH2F, -CHF2, -CF3, -CH2CF3, -CF2CF3, and the like.
[0046] The term "heteroalkyl" as used herein refers to an "alkyl" group in which at least one carbon atom has been replaced with a heteroatom (e.g., an O, N, or S atom). One type of heteroalkyl group is an "alkoxy" group.
[0047] The term "alkenyl" as used herein refers to an unsaturated straight or branched hydrocarbon having at least one carbon-carbon double bond, such as a straight or branched group of 2-12, 2-10, or 2-6 carbon atoms, referred to herein as C2-C12-alkenyl, C2-C10- alkenyl, and C2-C6-alkenyl, respectively. [0048] The term "alkynyl" as used herein refers to an unsaturated straight or branched hydrocarbon having at least one carbon-carbon triple bond, such as a straight or branched group of 2-12, 2-10, or 2-6 carbon atoms, referred to herein as C2-Cl2-alkynyl, C2-C10- alkynyl, and C2-C6-alkynyl, respectively.
[0049] The term "cycloalkyl" refers to a monovalent saturated cyclic, bicyclic, or bridged cyclic (e.g., adamantyl) hydrocarbon group of 3-12, 3-8, 4-8, or 4-6 carbons, referred to herein, e.g., as "C4-8-cycloalkyl," derived from a cycloalkane. Unless specified otherwise, cycloalkyl groups are optionally substituted at one or more ring positions with, for example, alkanoyl, alkoxy, alkyl, haloalkyl, alkenyl, alkynyl, amido or carboxyamido, amidino, amino, aryl, arylalkyl, azido, carbamate, carbonate, carboxy, cyano, cycloalkyl, ester, ether, formyl, halo, haloalkyl, heteroaryl, heterocyclyl, hydroxyl, imino, ketone, nitro, phosphate, phosphonato, phosphinato, sulfate, sulfide, sulfonamido, sulfonyl or thiocarbonyl. In certain embodiments, the cycloalkyl group is not substituted, i.e., it is unsubstituted.
[0050] The term "cycloheteroalkyl" refers to a monovalent saturated cyclic, bicyclic, or bridged cyclic hydrocarbon group of 3-12, 3-8, 4-8, or 4-6 carbons in which at least one carbon of the cycloalkane is replaced with a heteroatom such as, for example, N, O, and/or S.
[0051] The term "cycloalkylene" refers to a cycloalkyl group that is unsaturated at one or more ring bonds..
[0052] The term "partially unsaturated carbocyclyl" refers to a monovalent cyclic hydrocarbon that contains at least one double bond between ring atoms where at least one ring of the carbocyclyl is not aromatic. The partially unsaturated carbocyclyl may be characterized according to the number oring carbon atoms. For example, the partially unsaturated carbocyclyl may contain 5-14, 5-12, 5-8, or 5-6 ring carbon atoms, and accordingly be referred to as a 5-14, 5-12, 5-8, or 5-6 membered partially unsaturated carbocyclyl, respectively. The partially unsaturated carbocyclyl may be in the form of a monocyclic carbocycle, bicyclic carbocycle, tricyclic carbocycle, bridged carbocycle, spirocyclic carbocycle, or other carbocyclic ring system. Exemplary partially unsaturated carbocyclyl groups include cycloalkenyl groups and bicyclic carbocyclyl groups that are partially unsaturated. Unless specified otherwise, partially unsaturated carbocyclyl groups are optionally substituted at one or more ring positions with, for example, alkanoyl, alkoxy, alkyl, haloalkyl, alkenyl, alkynyl, amido or carboxyamido, amidino, amino, aryl, arylalkyl, azido, carbamate, carbonate, carboxy, cyano, cycloalkyl, ester, ether, formyl, halogen, haloalkyl, heteroaryl, heterocyclyl, hydroxyl, imino, ketone, nitro, phosphate, phosphonato, phosphinato, sulfate, sulfide, sulfonamido, sulfonyl or thiocarbonyl. In certain embodiments, the partially unsaturated carbocyclyl is not substituted, i.e., it is unsubstituted.
[0053] The term "aryl" is art-recognized and refers to a carbocyclic aromatic group.
Representative aryl groups include phenyl, naphthyl, anthracenyl, and the like. The term "aryl" includes polycyclic ring systems having two or more carbocyclic rings in which two or more carbons are common to two adjoining rings (the rings are "fused rings") wherein at least one of the rings is aromatic and, e.g., the other ring(s) may be cycloalkyls, cycloalkenyls, cycloalkynyls, and/or aryls. Unless specified otherwise, the aromatic ring may be substituted at one or more ring positions with, for example, halogen, azide, alkyl, aralkyl, alkenyl, alkynyl, cycloalkyl, hydroxyl, alkoxyl, amino, nitro, sulfhydryl, imino, amido or carboxyamido, carboxylic acid, -C(0)alkyl, -CCtealkyl, carbonyl, carboxyl, alkylthio, sulfonyl, sulfonamido, sulfonamide, ketone, aldehyde, ester, heterocyclyl, aryl or heteroaryl moieties, -CF3, -CN, or the like. In certain embodiments, the aromatic ring is substituted at one or more ring positions with halogen, alkyl, hydroxyl, or alkoxyl. In certain other embodiments, the aromatic ring is not substituted, i.e., it is unsubstituted. In certain embodiments, the aryl group is a 6-10 membered ring structure.
[0054] The terms "heterocyclyl" and "heterocyclic group" are art-recognized and refer to saturated, partially unsaturated, or aromatic 3- to lO-membered ring structures, alternatively 3-to 7-membered rings, whose ring structures include one to four heteroatoms, such as nitrogen, oxygen, and sulfur. The number of ring atoms in the heterocyclyl group can be specified using 5 Cx-Cx nomenclature where x is an integer specifying the number of ring atoms. For example, a C3-C7 heterocyclyl group refers to a saturated or partially unsaturated 3- to 7-membered ring structure containing one to four heteroatoms, such as nitrogen, oxygen, and sulfur. The designation "C3-C7" indicates that the heterocyclic ring contains a total of from 3 to 7 ring atoms, inclusive of any heteroatoms that occupy a ring atom position.
[0055] The terms "amine" and "amino" are art-recognized and refer to both unsubstituted and substituted amines (e.g., mono-substituted amines or di- substituted amines), wherein substituents may include, for example, alkyl, cycloalkyl, heterocyclyl, alkenyl, and aryl.
[0056] The terms "alkoxy" or "alkoxyl" are art-recognized and refer to an alkyl group, as defined above, having an oxygen radical attached thereto. Representative alkoxy groups include methoxy, ethoxy, tert-butoxy and the like.
[0057] An "ether" is two hydrocarbons covalently linked by an oxygen. Accordingly, the substituent of an alkyl that renders that alkyl an ether is or resembles an alkoxyl, such as may be represented by one of -O-alkyl, -O-alkenyl, -O-alkynyl, and the like.
[0058] The term "carbonyl" as used herein refers to the radical -C(O)-.
[0059] The term "oxo" refers to a divalent oxygen atom -0-.
[0060] The term "carboxamido" as used herein refers to the radical -C(0)NRR', where
R and R may be the same or different. R and R, for example, may be independently hydrogen, alkyl, aryl, arylalkyl, cycloalkyl, formyl, haloalkyl, heteroaryl, or heterocyclyl.
[0061] The term "carboxy" as used herein refers to the radical -COOH or its corresponding salts, e.g. -COONa, etc. [0062] The term "amide" or "amido" or "amidyl" as used herein refers to a radical of the form -R'C(0)N(R2)-, -R'C(0)N(R2)R3-, -C(0)NR2R3, or -C(0)NH2, wherein R1, R2 and R3, for example, are each independently hydrogen, alkyl, alkoxy, alkenyl, alkynyl, amide, amino, aryl, arylalkyl, carbamate, cycloalkyl, ester, ether, formyl, halogen, haloalkyl, heteroaryl, heterocyclyl, hydrogen, hydroxyl, ketone, or nitro.
[0063] The compounds of the disclosure may contain one or more chiral centers and/or double bonds and, therefore, exist as stereoisomers, such as geometric isomers, enantiomers or diastereomers. The term "stereoisomers" when used herein consist of all geometric isomers, enantiomers or diastereomers. These compounds may be designated by the symbols "R" or "k," or "+" or depending on the configuration of substituents around the stereogenic carbon atom and or the optical rotation observed. The present invention encompasses various stereo isomers of these compounds and mixtures thereof. Stereoisomers include enantiomers and diastereomers. Mixtures of enantiomers or diastereomers may be designated (±)" in nomenclature, but the skilled artisan will recognize that a structure may denote a chiral center implicitly. It is understood that graphical depictions of chemical structures, e.g., generic chemical structures, encompass all stereoisomeric forms of the specified compounds, unless indicated otherwise. Also contemplated herein are compositions comprising, consisting essentially of, or consisting of an enantiopure compound, which composition may comprise, consist essential of, or consist of at least about 50%, 60%, 70%, 80%, 90%, 95%, 96%, 97%, 98%, 99%, or 100% of a single enantiomer of a given compound (e.g., at least about 99% of an R enantiomer of a given compound).
[0064] Nucleic Acids and Reactions
[0065] The terms “nucleic acid” and“oligonucleotide,” as used herein, refer to polydeoxyribonucleotides (containing 2-deoxy-D-ribose), polyribonucleotides (containing D- ribose), and to any other type of polynucleotide that is an N glycoside of a purine or pyrimidine base. There is no intended distinction in length between the terms“nucleic acid”, “oligonucleotide” and“polynucleotide”, and these terms will be used interchangeably. These terms refer only to the primary structure of the molecule. Thus, these terms include double- and single-stranded DNA, as well as double- and single-stranded RNA. For use in the present invention, an oligonucleotide also can comprise nucleotide analogs in which the base, sugar, or phosphate backbone is modified as well as non-purine or non-pyrimidine nucleotide analogs.
[0066] Oligonucleotides can be prepared by any suitable method, including direct chemical synthesis by a method such as the phosphotriester method of Narang et al., 1979, Meth. Enzymol. 68:90-99; the phosphodiester method of Brown et al., 1979, Meth. Enzymol. 68: 109-151; the diethylphosphoramidite method of Beaucage et al., 1981, Tetrahedron Letters 22: 1859-1862; and the solid support method of ET.S. Pat. No. 4,458,066, each incorporated herein by reference. A review of synthesis methods of conjugates of oligonucleotides and modified nucleotides is provided in Goodchild, 1990, Bioconjugate Chemistry 1(3): 165-187, incorporated herein by reference.
[0067] The term“amplification reaction” refers to any chemical reaction, including an enzymatic reaction, which results in increased copies of a template nucleic acid sequence or results in transcription of a template nucleic acid. Amplification reactions include reverse transcription, the polymerase chain reaction (PCR), including Real Time PCR (see ET.S. Pat. Nos. 4,683,195 and 4,683,202; PCR Protocols: A Guide to Methods and Applications (Innis et al., eds, 1990)), and the ligase chain reaction (LCR) (see Barany et al., U.S. Pat. No. 5,494,810). Exemplary“amplification reactions conditions” or“amplification conditions” typically comprise either two or three step cycles. Two-step cycles have a high temperature denaturation step followed by a hybridization/elongation (or ligation) step. Three step cycles comprise a denaturation step followed by a hybridization step followed by a separate elongation step. [0068] The terms“target,“target sequence”,“target region”, and“target nucleic acid,” as used herein, are synonymous and refer to a region or sequence of a nucleic acid which is to be amplified, sequenced, or detected.
[0069] The term“hybridization,” as used herein, refers to the formation of a duplex structure by two single-stranded nucleic acids due to complementary base pairing. Hybridization can occur between fully complementary nucleic acid strands or between “substantially complementary” nucleic acid strands that contain minor regions of mismatch. Conditions under which hybridization of fully complementary nucleic acid strands is strongly preferred are referred to as “stringent hybridization conditions” or “sequence-specific hybridization conditions”. Stable duplexes of substantially complementary sequences can be achieved under less stringent hybridization conditions; the degree of mismatch tolerated can be controlled by suitable adjustment of the hybridization conditions. Those skilled in the art of nucleic acid technology can determine duplex stability empirically considering a number of variables including, for example, the length and base pair composition of the oligonucleotides, ionic strength, and incidence of mismatched base pairs, following the guidance provided by the art (see, e.g., Sambrook et ah, 1989, Molecular Cloning— A Laboratory Manual, Cold Spring Harbor Laboratory, Cold Spring Harbor, New York; Wetmur, 1991, Critical Review in Biochem. and Mol. Biol. 26(3/4):227-259; and Owczarzy et ah, 2008, Biochemistry, 47: 5336-5353, which are incorporated herein by reference).
[0070] The term“primer,” as used herein, refers to an oligonucleotide capable of acting as a point of initiation of DNA synthesis under suitable conditions. Such conditions include those in which synthesis of a primer extension product complementary to a nucleic acid strand is induced in the presence of four different nucleoside triphosphates and an agent for extension (for example, a DNA polymerase or reverse transcriptase) in an appropriate buffer and at a suitable temperature. [0071] A primer is preferably a single-stranded DNA. The appropriate length of a primer depends on the intended use of the primer but typically ranges from about 6 to about 225 nucleotides, including intermediate ranges, such as from 15 to 35 nucleotides, from 18 to 75 nucleotides and from 25 to 150 nucleotides. Short primer molecules generally require cooler temperatures to form sufficiently stable hybrid complexes with the template. A primer need not reflect the exact sequence of the template nucleic acid, but must be sufficiently complementary to hybridize with the template. The design of suitable primers for the amplification of a given target sequence is well known in the art and described in the literature cited herein.
[0072] Primers can incorporate additional features which allow for the detection or immobilization of the primer but do not alter the basic property of the primer, that of acting as a point of initiation of DNA synthesis. For example, primers may contain an additional nucleic acid sequence at the 5’ end which does not hybridize to the target nucleic acid, but which facilitates cloning or detection of the amplified product, or which enables transcription of RNA (for example, by inclusion of a promoter) or translation of protein (for example, by inclusion of a 5’-UTR, such as an Internal Ribosome Entry Site (IRES) or a 3’-UTR element, such as a poly(A)n sequence, where n is in the range from about 20 to about 200). The region of the primer that is sufficiently complementary to the template to hybridize is referred to herein as the hybridizing region.
[0073] As used herein, a primer is“specific,” for a target sequence if, when used in an amplification reaction under sufficiently stringent conditions, the primer hybridizes primarily to the target nucleic acid. Typically, a primer is specific for a target sequence if the primer- target duplex stability is greater than the stability of a duplex formed between the primer and any other sequence found in the sample. One of skill in the art will recognize that various factors, such as salt conditions as well as base composition of the primer and the location of the mismatches, will affect the specificity of the primer, and that routine experimental confirmation of the primer specificity will be needed in many cases. Hybridization conditions can be chosen under which the primer can form stable duplexes only with a target sequence. Thus, the use of target-specific primers under suitably stringent amplification conditions enables the selective amplification of those target sequences that contain the target primer binding sites.
[0074] As used herein, a “polymerase” refers to an enzyme that catalyzes the polymerization of nucleotides. “DNA polymerase” catalyzes the polymerization of deoxyribonucleotides. Known DNA polymerases include, for example, Pyrococcus furiosus (Pfu) DNA polymerase, E. coli DNA polymerase I, T7 DNA polymerase and Thermus aquaticus (Taq) DNA polymerase, among others. “RNA polymerase” catalyzes the polymerization of ribonucleotides. The foregoing examples of DNA polymerases are also known as DNA-dependent DNA polymerases. RNA-dependent DNA polymerases also fall within the scope of DNA polymerases. Reverse transcriptase, which includes viral polymerases encoded by retroviruses, is an example of an RNA-dependent DNA polymerase. Known examples of RNA polymerase (“RNAP”) include, for example, bacteriophage polymerases such as, but not limited to, T3 RNA polymerase, T7 RNA polymerase, SP6 RNA polymerase and E. coli RNA polymerase, among others. The foregoing examples of RNA polymerases are also known as DNA-dependent RNA polymerase. The polymerase activity of any of the above enzymes can be determined by means well known in the art.
[0075] The term“promoter” refers to a cis-acting DNA sequence that directs RNA polymerase and other trans-acting transcription factors to initiate RNA transcription from the DNA template that includes the cis-acting DNA sequence.
[0076] As used herein, the term “sequence defined biopolymer” refers to a biopolymer having a specific primary sequence. A sequence defined biopolymer can be equivalent to a genetically-encoded defined biopolymer in cases where a gene encodes the biopolymer having a specific primary sequence. [0077] As used herein,“expression template” refers to a nucleic acid that serves as substrate for transcribing at least one RNA that can be translated into a sequence defined biopolymer (e.g., a polypeptide or protein). Expression templates include nucleic acids composed of DNA or RNA. Suitable sources of DNA for use a nucleic acid for an expression template include genomic DNA, cDNA and RNA that can be converted into cDNA. Genomic DNA, cDNA and RNA can be from any biological source, such as a tissue sample, a biopsy, a swab, sputum, a blood sample, a fecal sample, a urine sample, a scraping, among others. The genomic DNA, cDNA and RNA can be from host cell or virus origins and from any species, including extant and extinct organisms. As used herein, “expression template” and “transcription template” have the same meaning and are used interchangeably.
[0078] As used herein, “translation template” refers to an RNA product of transcription from an expression template that can be used by ribosomes to synthesize polypeptide or protein.
[0079] As used herein, coupled transcription/translation (“Tx/Tl”), refers to the de novo synthesis of both RNA and a sequence defined biopolymer from the same extract. For example, coupled transcription/translation of a given sequence defined biopolymer can arise in an extract containing an expression template and a polymerase capable of generating a translation template from the expression template. Coupled transcription/translation can occur using a cognate expression template and polymerase from the organism used to prepare the extract. Coupled transcription/translation can also occur using exogenously-supplied expression template and polymerase from an orthogonal host organism different from the organism used to prepare the extract. In the case of an extract prepared from a yeast organism, an example of an exogenously-supplied expression template includes a translational open reading frame operably coupled a bacteriophage polymerase-specific promoter and an example of the polymerase from an orthogonal host organism includes the corresponding bacteriophage polymerase. [0080] The term“reaction mixture,” as used herein, refers to a solution containing reagents necessary to carry out a given reaction. An“amplification reaction mixture”, which refers to a solution containing reagents necessary to carry out an amplification reaction, typically contains oligonucleotide primers and a DNA polymerase in a suitable buffer. A “PCR reaction mixture” typically contains oligonucleotide primers, a DNA polymerase (most typically a thermostable DNA polymerase), dNTPs, and a divalent metal cation in a suitable buffer.
[0081] Cell-Free Protein Synthesis (CFPS)
[0082] The disclosed subject matter relates in part to methods, systems, components, and compositions for cell-free protein synthesis. Cell-free protein synthesis (CFPS) is known and has been described in the art. (See, e.g., U.S. Patent No. 6,548,276; U.S. Patent No. 7,186,525; U.S. Patent No. 8,734,856; U.S. Patent No. 7,235,382; U.S. Patent No. 7,273,615; U.S. Patent 7,008,651; U.S. Patent 6,994,986 U.S. Patent 7,312,049; U.S. Patent No. 7,776,535; U.S. Patent No. 7,817,794; U.S. Patent No. 8,298,759; U.S. Patent No. 8,715,958; U.S. Patent No. 9,005,920; U.S. Publication No. 2014/0349353, and U.S. Publication No. 2016/0060301, the contents of which are incorporated herein by reference in their entireties). A“CFPS reaction mixture” typically contains a crude or partially-purified yeast extract, an RNA translation template, and a suitable reaction buffer for promoting cell-free protein synthesis from the RNA translation template. In some aspects, the CFPS reaction mixture can include exogenous RNA translation template. In other aspects, the CFPS reaction mixture can include a DNA expression template encoding an open reading frame operably linked to a promoter element for a DNA-dependent RNA polymerase. In these other aspects, the CFPS reaction mixture can also include a DNA-dependent RNA polymerase to direct transcription of an RNA translation template encoding the open reading frame. In these other aspects, additional NTP’s and divalent cation cofactor can be included in the CFPS reaction mixture. A reaction mixture is referred to as complete if it contains all reagents necessary to enable the reaction, and incomplete if it contains only a subset of the necessary reagents. It will be understood by one of ordinary skill in the art that reaction components are routinely stored as separate solutions, each containing a subset of the total components, for reasons of convenience, storage stability, or to allow for application-dependent adjustment of the component concentrations, and that reaction components are combined prior to the reaction to create a complete reaction mixture. Furthermore, it will be understood by one of ordinary skill in the art that reaction components are packaged separately for commercialization and that useful commercial kits may contain any subset of the reaction components of the invention.
[0083] Platforms for Preparing Sequence Defined Biopolymers
[0084] An aspect of the invention is a platform for preparing a sequence defined biopolymer of protein in vitro. The platform for preparing a sequence defined polymer or protein in vitro comprises a cellular extract from the GRO organism as described above. Because CFPS exploits an ensemble of catalytic proteins prepared from the crude lysate of cells, the cell extract (whose composition is sensitive to growth media, lysis method, and processing conditions) is the most critical component of extract-based CFPS reactions. A variety of methods exist for preparing an extract competent for cell-free protein synthesis, including U.S. patent application Ser. No. 14/213,390 to Michael C. Jewett et ak, entitled METHODS FOR CELL-FREE PROTEIN SYNTHESIS, filed Mar. 14, 2014, and now published as ET.S. Patent Application Publication No. 2014/0295492 on Oct. 2, 2014, and ET.S. patent application Ser. No. 14/840,249 to Michael C. Jewett et ak, entitled METHODS FOR IMPROVED IN VITRO PROTEIN SYNTHESIS WITH PROTEINS CONTAINING NON STANDARD AMINO ACIDS, filed August 31, 2015, and now published as U.S. Patent Application Publication No. 2016/0060301, on March 3, 2016, the contents of which are incorporated by reference.
[0085] The platform may comprise an expression template, a translation template, or both an expression template and a translation template. The expression template serves as a substrate for transcribing at least one RNA that can be translated into a sequence defined biopolymer (e.g., a polypeptide or protein). The translation template is an RNA product that can be used by ribosomes to synthesize the sequence defined biopolymer. In certain embodiments the platform comprises both the expression template and the translation template. In certain specific embodiments, the platform may be a coupled transcription/translation (“Tx/Tl”) system where synthesis of translation template and a sequence defined biopolymer from the same cellular extract.
[0086] The platform may comprise one or more polymerases capable of generating a translation template from an expression template. The polymerase may be supplied exogenously or may be supplied from the organism used to prepare the extract. In certain specific embodiments, the polymerase is expressed from a plasmid present in the organism used to prepare the extract and/or an integration site in the genome of the organism used to prepare the extract.
[0087] The platform may comprise an orthogonal translation system. An orthogonal translation system may comprise one or more orthogonal components that are designed to operate parallel to and/or independent of the organism’s orthogonal translation machinery. In certain embodiments, the orthogonal translation system and/or orthogonal components are configured to incorporation of unnatural amino acids. An orthogonal component may be an orthogonal protein or an orthogonal RNA. In certain embodiments, an orthogonal protein may be an orthogonal synthetase. In certain embodiments, the orthogonal RNA may be an orthogonal tRNA or an orthogonal rRNA. An example of an orthogonal rRNA component has been described in Application No. PCT/US2015/033221 to Michael C. Jewett et al., entitled TETHERED RIBOSOMES AND METHODS OF MAKING AND USING THEREOF, filed 29 May 2015, and now published as WO2015184283, and U.S. patent application Ser. No. 15/363,828, to Michael C. Jewett et al., entitled RIBOSOMES WITH TETHERED SUBUNITS, filed on November 29, 2016, and now published as U.S. Patent Application Publication No. 2017/0073381, on March 16, 2017, the contents of which are incorporated by reference. In certain embodiments, one or more orthogonal components may be prepare in vivo or in vitro by the expression of an oligonucleotide template. The one or more orthogonal components may be expressed from a plasmid present in the genomically recoded organism, expressed from an integration site in the genome of the genetically recoded organism, co- expressed from both a plasmid present in the genomically recoded organism and an integration site in the genome of the genetically recoded organism, express in the in vitro transcription and translation reaction, or added exogenously as a factor (e.g., a orthogonal tRNA or an orthogonal synthetase added to the platform or a reaction mixture).
[0088] Altering the physicochemical environment of the CFPS reaction to better mimic the cytoplasm can improve protein synthesis activity. The following parameters can be considered alone or in combination with one or more other components to improve robust CFPS reaction platforms based upon crude cellular extracts (for examples, S12, S30 and S60 extracts).
[0089] The temperature may be any temperature suitable for CFPS. Temperature may be in the general range from about 10° C. to about 40° C., including intermediate specific ranges within this general range, include from about 15° C. to about 35° C., form about 15° C. to about 30° C., form about 15° C. to about 25° C. In certain aspects, the reaction temperature can be about 15° C., about 16° C., about 17° C., about 18° C., about 19° C., about 20° C., about 21° C., about 22° C., about 23° C., about 24° C., about 25° C.
[0090] The CFPS reaction can include any organic anion suitable for CFPS. In certain aspects, the organic anions can be glutamate, acetate, among others. In certain aspects, the concentration for the organic anions is independently in the general range from about 0 mM to about 200 mM, including intermediate specific values within this general range, such as about 0 mM, about 10 mM, about 20 mM, about 30 mM, about 40 mM, about 50 mM, about 60 mM, about 70 mM, about 80 mM, about 90 mM, about 100 mM, about 110 mM, about 120 mM, about 130 mM, about 140 mM, about 150 mM, about 160 mM, about 170 mM, about 180 mM, about 190 mM and about 200 mM, among others. [0091] The CFPS reaction can also include any halide anion suitable for CFPS. In certain aspects the halide anion can be chloride, bromide, iodide, among others. A preferred halide anion is chloride. Generally, the concentration of halide anions, if present in the reaction, is within the general range from about 0 mM to about 200 mM, including intermediate specific values within this general range, such as those disclosed for organic anions generally herein.
[0092] The CFPS reaction may also include any organic cation suitable for CFPS. In certain aspects, the organic cation can be a polyamine, such as spermidine or putrescine, among others. Preferably polyamines are present in the CFPS reaction. In certain aspects, the concentration of organic cations in the reaction can be in the general about 0 mM to about 3 mM, about 0.5 mM to about 2.5 mM, about 1 mM to about 2 mM. In certain aspects, more than one organic cation can be present.
[0093] The CFPS reaction can include any inorganic cation suitable for CFPS. For example, suitable inorganic cations can include monovalent cations, such as sodium, potassium, lithium, among others; and divalent cations, such as magnesium, calcium, manganese, among others. In certain aspects, the inorganic cation is magnesium. In such aspects, the magnesium concentration can be within the general range from about 1 mM to about 50 mM, including intermediate specific values within this general range, such as about 1 mM, about 2 mM, about 3 mM, about 5 mM, about 6 mM, about 7 mM, about 8 mM, about 9 mM, about 10 mM, among others. In preferred aspects, the concentration of inorganic cations can be within the specific range from about 4 mM to about 9 mM and more preferably, within the range from about 5 mM to about 7 mM.
[0094] The CFPS reaction includes NTPs. In certain aspects, the reaction use ATP,
GTP, CTP, and UTP. In certain aspects, the concentration of individual NTPs is within the range from about 0.1 mM to about 2 mM. [0095] The CFPS reaction can also include any alcohol suitable for CFPS. In certain aspects, the alcohol may be a polyol, and more specifically glycerol. In certain aspects the alcohol is between the general range from about 0% (v/v) to about 25% (v/v), including specific intermediate values of about 5% (v/v), about 10% (v/v) and about 15% (v/v), and about 20% (v/v), among others.
[0096] Methods for Preparing Proteins and Sequence Defined Biopolymers
[0097] An aspect of the invention is a method for cell-free protein synthesis of a sequence defined biopolymer or protein in vitro. The method comprises contacting a RNA template encoding a sequence defined biopolymer with a reaction mixture comprising a cellular extract from a GRO as described above. Methods for cell-free protein synthesis of a sequence defined biopolymers have been described [1, 18, 26]
[0098] In certain embodiments, a sequence-defined biopolymer or protein comprises a product prepared by the method or the platform that includes an amino acids. In certain embodiments the amino acid may be a natural amino acid. As used herein a natural amino acid is a proteinogenic amino acid encoded directly by a codon of the universal genetic code. In certain embodiments the amino acid may be an unnatural amino acid. As used here an unnatural amino acid is a nonproteinogenic amino acid. An unnatural amino acids may also be referred to as a non-standard amino acid (NSAA) or non-canonical amino acid. In certain embodiments, a sequence defined biopolymer or protein may comprise a plurality of unnatural amino acids. In certain specific embodiments, a sequence defined biopolymer or protein may comprise a plurality of the same unnatural amino acid. The sequence defined biopolymer or protein may comprise at least 5, at least 10, at least 15, at least 20, at least 25, at least 30, at least 35, or at least 40 or the same or different unnatural amino acids.
[0099] Examples of unnatural, non-canonical, and/or non-standard amino acids include, but are not limited, to a p-acetyl-L-phenylalanine, a p-iodo-L-phenylalanine, an O- methyl-L-tyrosine, a p-propargyloxyphenylalanine, a p-propargyl-phenylalanine, an L-3-(2- naphthyl)alanine, a 3 -methyl-phenylalanine, an O-4-allyl-L-tyrosine, a 4-propyl-L-tyrosine, a tri-O-acetyl-GlcNAcpP-serine, an L-Dopa, a fluorinated phenylalanine, an isopropyl-L- phenylalanine, a p-azido-L-phenylalanine, a p-acyl-L-phenylalanine, a p-benzoyl-L- phenylalanine, an L-phosphoserine, a phosphonoserine, a phosphonotyrosine, a p- bromophenylalanine, a p-amino-L-phenylalanine, an isopropyl-L-phenylalanine, an unnatural analogue of a tyrosine amino acid; an unnatural analogue of a glutamine amino acid; an unnatural analogue of a phenylalanine amino acid; an unnatural analogue of a serine amino acid; an unnatural analogue of a threonine amino acid; an unnatural analogue of a methionine amino acid; an unnatural analogue of a leucine amino acid; an unnatural analogue of a isoleucine amino acid; an alkyl, aryl, acyl, azido, cyano, halo, hydrazine, hydrazide, hydroxyl, alkenyl, alkynl, ether, thiol, sulfonyl, seleno, ester, thioacid, borate, boronate, 24ufa24hor, phosphono, phosphine, heterocyclic, enone, imine, aldehyde, hydroxylamine, keto, or amino substituted amino acid, or a combination thereof; an amino acid with a photoactivatable cross linker; a spin-labeled amino acid; a fluorescent amino acid; a metal binding amino acid; a metal-containing amino acid; a radioactive amino acid; a photocaged and/or photoisomerizable amino acid; a biotin or biotin-analogue containing amino acid; a keto containing amino acid; an amino acid comprising polyethylene glycol or polyether; a heavy atom substituted amino acid; a chemically cleavable or photocleavable amino acid; an amino acid with an elongated side chain; an amino acid containing a toxic group; a sugar substituted amino acid; a carbon-linked sugar-containing amino acid; a redox-active amino acid; an a- hydroxy containing acid; an amino thio acid; an a, a disubstituted amino acid; a b-amino acid; a g-amino acid, a cyclic amino acid other than proline or histidine, and an aromatic amino acid other than phenylalanine, tyrosine or tryptophan.
[00100] The methods described herein allow for preparation of sequence defined biopolymers or proteins with high fidelity to a RNA template. In other words, the methods described herein allow for the correct incorporation of unnatural, non-canonical, and/or non- standard amino acids as encoded by an RNA template. In certain embodiments, the sequence defined biopolymer encoded by a RNA template comprises at least 5, at least 10, at least 15, at least 20, at least 25, at least 30, at least 35, or at least 40 unnatural, non-canonical, and/or non-standard amino acids and a product prepared from the method includes at least 80%, at least 85%, at least 90%, at least 95%, or 100% of the encoded unnatural, non-canonical, and/or non-standard amino acids.
[00101] The methods described herein also allow for the preparation of a plurality of products prepared by the method. In certain embodiments, at least 80%, at least 85%, at least 90%, at least 95%, or at least 98% of a plurality of products prepared by the method are full length. In certain embodiments, the sequence defined biopolymer encoded by a RNA template comprises at least 5, at least 10, at least 15, at least 20, at least 25, at least 30, at least 35, or at least 40 unnatural, non-canonical, and/or non-standard amino acids and at least 80%, at least 85%, at least 90%, at least 95%, or at least 98% of a plurality of products prepared by the method include 100% of the encoded unnatural, non-canonical, and/or non-standard amino acids.
[00102] In certain embodiments, the sequence defined biopolymer or the protein encodes a therapeutic product, a diagnostic product, a biomaterial product, an adhesive product, a biocomposite product, or an agricultural product.
[00103] Miscellaneous
[00104] All methods described herein can be performed in any suitable order unless otherwise indicated herein or otherwise clearly contradicted by context. The use of any and all examples, or exemplary language (e.g.,“such as”) provided herein, is intended merely to better illuminate the invention and does not pose a limitation on the scope of the invention unless otherwise claimed. No language in the specification should be construed as indicating any non-claimed element as essential to the practice of the invention. [00105] Preferred aspects of this invention are described herein, including the best mode known to the inventors for carrying out the invention. Variations of those preferred aspects may become apparent to those of ordinary skill in the art upon reading the foregoing description. The inventors expect a person having ordinary skill in the art to employ such variations as appropriate, and the inventors intend for the invention to be practiced otherwise than as specifically described herein. Accordingly, this invention includes all modifications and equivalents of the subject matter recited in the claims appended hereto as permitted by applicable law. Moreover, any combination of the above-described elements in all possible variations thereof is encompassed by the invention unless otherwise indicated herein or otherwise clearly contradicted by context.
[00106] Expanding the Chemical Substrates for Genetic Code Reprogramming
[00107] The subject matter disclosed herein relates to methods, systems, components, and compositions that may be utilized to synthesize sequence defined polymers. In particular, the methods, systems, components, and compositions may be utilized for incorporating novel substrates that include non-standard amino acid monomers and non-amino acid monomers into sequence defined polymers. As disclosed herein, the novel substrates may be utilized for acylation of tRNA via flexizyme catalyzed reactions. The tRNAs thus acylated with the novel substrates may be utilized in synthesis platforms for incorporating the novel substrates into a sequence defined polymer.
[00108] The components disclosed herein include acylated tRNA molecules and donor molecules for preparing acylated tRNA molecules. The disclosed acylated tRNA molecules are acylated with a moiety that is present in the donor molecules and may be referred to herein as "R" and which may be incorporated into a polymer ( e.g ., a sequence defined polymer). [00109] In some embodiments, the acylated tRNA molecules have a formula which may be defined as:
Figure imgf000031_0001
wherein:
tRNA is a transfer RNA linked via a 3' terminal ribonucleotide (e.g. via an ester bond formed with the ribose of a 3' terminal adenosine); and
R may be selected from alkyl (e.g, butyl); cycloalkyl (e.g, cyclobutyl, cyclopentyl, or cyclohexyl) optionally substituted with amino; heterocycloalkyl (e.g, a cyclic secondary amine such as piperidinyl or piperazinyl); (heterocycloalkyl)alkyl (e.g, a cyclic secondary amine such as (piperidinyl)methyl or (piperazinyl)methyl); alkenyl (e.g, l-buten-4-yl); cyanoalkyl (e.g, cyanomethyl or cyanoethyl); aminoalkyl (e.g, aminopropyl, aminobutyl, aminopentyl, 1,1 -dimethyl-3 -amino-propanyl, methylaminopropyl, or aminohexyl); aminoalkenyl (e.g, l-amino-2-propenyl); alkylcarboxyalkylester (e.g, methylcarboxy ethyl ester); haloalkyl (e.g, 2-bromo- propan-2-yl); nitroalkyl (e.g, nitromethyl); aryl (e.g, phenyl, pyrrolyl, thiophenyl, furanyl, pyridinyl, coumarinyl), (aryl)alkyl (e.g, benzyl, (phenyl)ethyl, or (pyrrolyl)ethyl), or (aryl)alkenyl (e.g, (phenyl) ethenyl), wherein the aryl or the aryl of the (aryl)alkyl or (aryl)alkenyl is optionally substituted with one or more substituents selected from hydroxyl (e.g, 3,4-dihydroxylphenyl), hydroxylalkyl (e.g, hydroxylmethyl), amino, aminoalkyl (e.g, aminomethyl), azido, cyano, acetyl, nitro, nitroalkyl (e.g, nitromethyl) , halo, alkoxy (e.g, methoxy), and alkynyl.
[00110] In some embodiments of the acylated tRNA molecules, R is substituted alkylaryl. Optionally, R may be selected from (3,4-dihydroxyphenyl)methyl, (pyrrol-2- yl)methyl, and (4-amino-phenyl)methyl. [00111] In some embodiments of the acylated tRNA molecules, R is substituted phenyl. Optionally, R may be selected from 4-nitrophenyl, 4-cyanophenyl, 4-azidophenyl, 3- acetylphenyl, 4-nitromethyphenyl, 2-fluorophenyl, 4-methoxyphenyl, 3-hydroxy-4- nitrophenyl, 3-amino-4-nitrophenyl, and 3-nitro-4-aminophenyl.
[00112] In some embodiments of the acylated tRNA molecules, R is heteroaryl or substituted heteroaryl. Optionally, R may be selected from pyridinyl (e.g., pyridine-4-yl), fluoropyridinyl (e.g., 3-fluoro-pyridin-3-yl), coumarinyl, pyrrolyl (e.g., pyrrol-2-yl), thiophen- 2-yl, and 5-aminomethyl-furan-3-yl.
[00113] In some embodiments of the acylated tRNA molecules, R comprises a primary amine group or a secondary amine group. Optionally, R may be selected from 3-aminopropyl, 4-aminobutyl, 5-aminobutyl, 1,1 -dimethyl-3 -aminopropanyl, 3-methylamino-propanyl, 6- aminohexyl, 3-amino-l-propenyl, 2-aminocyclobutyl (e.g., 2(R)-aminocyclobutyl or 2(S)- aminocyclobutyl), 2-aminocyclopentyl (e.g, 2(R)-aminocyclopentyl or 2(S)- aminocyclopentyl), 2-aminocyclohexyl (e.g., 2(R)-aminocyclohexyl or 2(S)- aminocyclohexyl).
[00114] In some embodiments of the acylated tRNA molecules, R comprises a cycloalkyl group optionally substituted with amino. Optionally, R may be selected from cyclobutyl or aminocyclobutyl such as 2-aminocyclobutyl (e.g, 2(R)-aminocyclobutyl or 2(S)-aminocyclobutyl), cyclopentyl or aminocyclopentyl such as 2-aminocyclopentyl (e.g, 2(R)-aminocyclopentyl or 2(S)- aminocyclopentyl), and cyclohexyl or aminocyclohexyl such as 2-aminocyclohexyl (e.g., 2(R)-aminocyclohexyl or 2(S)- aminocyclohexyl).
[00115] In some embodiments of the acylated tRNA molecules, R comprises a cyclic secondary amine such as piperidinyl or piperazinyl. Optionally, R is selected from piperidin- 4-yl, (piperidin-4-yl)methyl, piperazin-4-yl, and (piperazin-4-yl)methyl. [00116] In some embodiments of the acylated tRNA molecules, R is selected from alkyl ( e.g ., butyl), alkenyl (e.g, 3-butenyl), cyanoalkyl (e.g, cyanom ethyl or cyanoethyl), and alkylcarboxylalkyl ester (e.g, methylcarboxylethyl ester).
[00117] Suitable R moieties may include, but are not limited R moieties disclosed in the present application at Figure 15. The R moieties thus disclosed may be incorporated into polymers (e.g, sequence defined polymers as disclosed herein).
[00118] The disclosed acylated tRNA molecules may comprise any suitable tRNA molecule. Suitable tRNA molecules may include, but are not limited to, tRNA molecules comprising anticodons corresponding to any of the natural amino acids.
[00119] The disclosed acylated tRNA molecules may be prepared by reacting a tRNA molecule and a donor molecule in the presence of a flexizyme (Fx).
[00120] In some embodiments, the preparation methods may comprise reacting in a reaction mixture: (i) a flexizyme (Fx): (ii) the tRNA molecule; and (ii) a donor molecule having a formula:
Figure imgf000033_0001
wherein:
tRNA is a transfer RNA linked via a 3' terminal ribonucleotide (e.g. via an ester bond formed with the ribose of a 3' terminal adenosine); and
R is selected from alkyl (e.g, butyl); cycloalkyl (e.g, cyclobutyl, cyclopentyl, or cyclohexyl) optionally substituted with amino; heterocycloalkyl (e.g, a cyclic secondary amine such as piperidinyl or piperazinyl); alkylheterocycloalkyl (e.g, a methyl cyclic secondary amine such as piperidinyl or methyl piperazinyl); alkenyl (e.g, l-buten-4- yl); cyanoalkyl ( e.g ., cyanomethyl or cyanoethyl); aminoalkyl (e.g., aminopropyl, aminobutyl, aminopentyl, 1,1 -dimethyl-3 -amino-propanyl, methylaminopropyl, or aminohexyl); aminoalkenyl (e.g, l-amino-2-propenyl); alkylcarboxyalkylester (e.g, methylcarboxy ethyl ester); haloalkyl (e.g, 2-bromo-propan-2-yl); nitroalkyl (e.g, nitromethyl); aryl (e.g, phenyl, pyrrolyl, thiophenyl, furanyl, pyridinyl, coumarinyl), alkylaryl (e.g, benzyl, ethylphenyl, or ethylpyrrolyl), or alkenylaryl (e.g, ethenylphenyl), wherein the aryl or alkylaryl or alkenylaryl is optionally substituted with one or more substituents selected from hydroxyl (e.g, 3,4-dihydroxylphenyl), hydroxylalkyl (e.g, hydroxylmethyl), amino, aminoalkyl (e.g, aminom ethyl), azido, cyano, acetyl, nitro, nitroalkyl (e.g, nitromethyl) , halo, alkoxy (e.g, methoxy), and alkynyl;
X is O or S;
and LG is a leaving group.
[00121] Suitable R moieties for the donor molecules may include, but are not limited to, R moieites disclosed in the present application at Figure 15. Suitable donor molecules may include, but are not limited to, donor molecules disclosed in the present application at Figures 20-22.
[00122] In the preparation method, Fx catalyzes an acylation reaction between the 3' terminal ribonucleotide of the tRNA and the donor molecule to prepare the acylated tRNA molecule (e.g. via an ester bond formed with the ribose of a 3' terminal adenosine of the tRNA molecule and the R moiety).
[00123] Any suitable Fx may be utilized in the disclosed preparation methods. Suitable
Fx's may include, but are not limited to aFx, dFx, and eFx.
[00124] Any suitable tRNA may be utilized in the preparation methods. Suitable tRNA molecules for the preparation methods may include, but are not limited to, tRNA molecules comprising anticodons corresponding to any of the natural amino acids. In some embodiments, the tRNA comprises the anticodon CAU (i.e., the anticodon for methionine). In other embodiments, the tRNA comprises the anticodon GGU (i.e., an anticodon for threonine), the anticodon GAU (i.e., an anticodon for isoleucine), or the anticodon GGC (i.e., an anticodon for alanine).
[00125] The donor molecule for the R moiety in the preparation methods typically comprises a leaving group (LG). In some embodiments, LG comprises a cyanomethyl moiety and the donor molecule comprises a cyanomethylester (CME). In other embodiments, LG comprises a dinitrobenzyl moiety and the donor molecule comprises a dinitrobenzylester (DNB). In further embodiments, LG comprises a (2-aminoethyle)amidocarboxybenzyl moiety and the donor molecule comprises a (2-aminoethyl)amidocarboxybenzyl thioester (ABT).
[00126] The disclosed preparation methods are performed under conditions that maximize the yield of acylated tRNA. In some embodiments, the preparation methods are performed under reaction conditions such that at least about 50% of the tRNA in the reaction mixture is acylated after reacting the reaction mixture for 120 hours, and preferably under reaction conditions such that at least about 50% of the tRNA in the reaction mixture is acylated after reacting the reaction mixture for 16 hours.
[00127] The disclosed methods, systems, components, and composition may be utilized for preparing sequence defmied polymers in vitro and/or in vivo. In some embodiments, the disclosed methods may be performed to prepare a sequence defined polymer in a cell free synthesis system, where the sequence defined polymer is prepared via translating an mRNA comprising a codon corresponding to an anticodon of the acylated tRNA molecule.
[00128] In the disclosed methods, the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA. In some embodiments of the disclosed methods, the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA at the start codon (AUG) of the mRNA. In other embodiments of the disclosed methods, the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA at a codon for threonine ( e.g ., ACC), a codon for isoleucine (e.g, AUC), or at a codon for alanine (e.g. GCC).
[00129] The disclosed methods may be performed in order to prepare polymers selected from, but not limited to, polyolefin polymers, aramid polymers, polyurethane polymers, polyketide polymers, conjugated polymers, D-amino acid polymers, b-amino acid polymers, g-amino acid polymers, d-amino acid polymers, e-amino acid polymers, z-amino acid polymers, and polycarbonate polymers.
[00130] Novel donor molecules or monomers also are disclosed herein. The novel donor molecules or monomers may be incorporated into polymers as disclosed herein (e.g. sequence defined polymers as disclosed herein).
[00131] In some embodiments, the polymers comprising the incorporated novel donor molecules or monomers, may be described as a polymer having a formula selected from:
Figure imgf000036_0001
polymer
Figure imgf000037_0001
wherein:
R is selected from alkyl ( e.g ., butyl); cycloalkyl (e.g, cyclobutyl, cyclopentyl, or cyclohexyl) optionally substituted with amino; heterocycloalkyl (e.g, a cyclic secondary amine such as piperidinyl or piperazinyl); alkylheterocycloalkyl (e.g, a methyl cyclic secondary amine such as piperidinyl or methyl piperazinyl); alkenyl (e.g, l-buten-4- yl); cyanoalkyl (e.g, cyanomethyl or cyanoethyl); aminoalkyl (e.g, aminopropyl, aminobutyl, aminopentyl, 1,1 -dimethyl-3 -amino-propanyl, methylaminopropyl, or aminohexyl); aminoalkenyl (e.g, l-amino-2-propenyl); alkylcarboxyalkylester (e.g, methylcarboxy ethyl ester); haloalkyl (e.g, 2-bromo-propan-2-yl); nitroalkyl (e.g, nitromethyl); aryl (e.g, phenyl, pyrrolyl, thiophenyl, furanyl, pyridinyl, coumarinyl), alkylaryl (e.g, benzyl, ethylphenyl, or ethylpyrrolyl), or alkenylaryl (e.g, ethenylphenyl), wherein the aryl or alkylaryl or alkenylaryl is optionally substituted with one or more substituents selected from hydroxyl (e.g, 3,4-dihydroxylphenyl), hydroxylalkyl (e.g, hydroxylmethyl), amino, aminoalkyl (e.g, aminom ethyl), azido, cyano, acetyl, nitro, nitroalkyl (e.g, nitromethyl) , halo, alkoxy (e.g, methoxy), and alkynyl;
Y is O, S, or N; and
"polymer" is a polymer into which the novel donor molecules or monomers have been incorporated, for example, at one or both ends of the polymer and/or internally within the polymer.
ILLUSTRATIVE EMBODIMENTS
[00132] The following Embodiments are illustrative and are not intended to limit the scope of the claimed subject matter. [00133] 1. Ester or thioester substrates and methods of synthesizing ester and thioester substrates as donor molecules for acylation of tRNA or acylation of a synthetic tRNA (e.g, microhelix RNA), wherein the ester substrates are derivatized from 1) linear (long)-carbon chain (g, d, e, and z-) amino acids or 2) cyclic amino acids comprising cyclobutane, cyclopentane, cyclohexne, furan, piperidine, or piperazine moieties, wherein the ester substrates comprise a leaving group which optionally is present in a cyanomethylester (CME), a dinitrobenzylester (DNB), or a (2-aminoethyl)amidocarboxybenzyl thioester (ABT).
[00134] 2 Use of a flexizyme (Fx) system (e.g, comprising eFx, dFx, or aFx) to acylate tRNA and/or microhelix molecules with a donor moiety of a donor molecule, where the donor moiety may be defined as "R" as disclosed herein, and R may be a non-canonical amino acid or a non-amino acid substrate.
[00135] 3. Acylation of microhelix or tRNA with non-canonical amino acid substrates or non-amino acid substrates.
[00136] 4. Incorporation of non-canonical amino acid substrates or non-amino acid substrates into sequence defined polymer by adding pre-charged tRNA into an in-vitro (cell-free) protein synthesis platform.
[00137] 5. Identification of criteria related to the compatibility between donor molecules and flexizymes for achieving acylation of tRNA or microhelix RNA.
[00138] 6. Use of eFx, dFx, and aFx to reassign tRNA(fMet(CAU)) with a non- canonical synthetic substrate.
[00139] 7. Use of eFx, dFx, and aFx to reassign tRNA(ProlE2(GGU)) with a non- canonical synthetic substrate. [00140] 8. Use of reprogrammed tRNAs for incorporation of non-canonical substrates into a initiating codon (ATG) of a mRNA transcribed in a cell-free protein synthesis system.
[00141] 9. Use of reprogrammed tRNAs for incorporation of non-canonical substrates into a Thr codon (ACC) of a mRNA transcribed in a cell-free protein synthesis system.
[00142] 10. Purification and characterization of sequence defined polymers comprising non-canonical substrates as disclosed herein.
[00143] 11. Non-canonical substrates as disclosed herein, or variants thereof
(and/or tRNAs that are acylated with non-canonical substrates, or variants thereof) (including different types of long-carbon chain and cyclic amino acids), as novel monomers for use in cell-free (in vitro) protein or polymer synthesis.
[00144] 12. Non-canonical substrates as disclosed herein, or variants thereof
(and/or tRNAs that are acylated with non-canonical substrates, or variants thereof) (including different types of long-carbon chain and cyclic amino acids), as monomers for use in vivo polymer synthesis.
[00145] 13. Non-canonical substrates as disclosed herein, or variants thereof
(and/or tRNAs that are acylated with non-canonical substrates, or variants thereof) for the synthesis of polymers with non-natural amino acid monomers and/or non-amino acid momoners non-a-amino acid monomers (NNAs) such as polyolefin polymers, polyaramid polymers, polyurethane polymers, polyketide polymers, polycarbonate polymers, conjugated polymers, gamma-amino acid polymers, delta-amino acid polymers, epsilon-amino acid polymers, zeta-amino acid polymers, oligosaccharides, oligonucleotides, polyvinyl polymers, and polyfuran polymers. [00146] 14. Novel monomers as disclosed herein and their variants (and/or tRNAs that are acylated with non-canonical monomers, or variants thereof) for the synthesis of polymers with non-natural amino acid monomers and/or non-amino acid momoners non-a- amino acid monomers (NNAs) such as polyolefin polymers, polyaramid polymers, polyurethane polymers, polyketide polymers, polycarbonate polymers, conjugated polymers, gamma-amino acid polymers, delta-amino acid polymers, epsilon-amino acid polymers, zeta- amino acid polymers, oligosaccharides, oligonucleotides, polyvinyl polymers, and polyfuran polymers.
EXAMPLES
[00147] The following Examples are illustrative and are not intended to limit the scope of the claimed subject matter.
[00148] Example 1 - Expanding the chemical substrates for genetic code reprogramming
[00149] Abstract
[00150] Through the development of flexizymes, ribozymes that promiscuously charge arbitrary amino acid monomers to tRNAs, traditional amino acid-tRNA assignments have been expanded to include nonstandard chemical substrate-tRNA pairs that are subsequently incorporated into ribosomal peptides in a site-directed manner. However, the majority of substrates utilized with flexizymes have so far been confined to amino and hydroxy acids, which fundamentally limits the extent of sequence-defined polymers that can be synthesized using the genetic code reprogramming approach. In the present work, we provide extensive empirical data for a wide variety of non-canonical substrates in flexizyme-catalyzed acylation reactions. Upon our results, we expand the range of such substrates into six different types such as phenylalanine analogues, benzoic acid derivatives containing electron-withdrawing or -donating groups, heteroatom rings, and aliphatic chains. From this data, we hypothesize design rules that may play an essential role in expanding the flexizyme-compatible substrates. Furthermore, using wild-type translational machinery in a cell-free protein synthesis system and the reprogrammed fMet-tRNA, we demonstrate the incorporation of 32 non-canonical substrates into ribosomal peptides. Engineered translational machinery might enable the introduction of additional chemical compounds, thereby significantly extending the scope of functionalized polymers that can be produced by the translation apparatus of the cell.
[00151] Applications
[00152] Applications of the disclosed technology include, but are not limited to: (i)
Building a design rule for Fx-compatible chemical substrates; (ii) Expanding the range of non-canonical chemical substrates allowing to produce novel functional polymer; (iii) Reassigning tRNA with the non-canonical substrates using the genetic code reprogramming approach; (iv) Producing engineered peptide by incorporating new functionality; and (v) ETnderstanding the most critical (and dispensable) molecular interaction within the catalytic site of the Fx throughout the computational modeling.
[00153] Advantages
[00154] Advantages of the disclosed technology include, but are not limited to: (i)
Extended the range of Fx-compatible substrate into non-canonical chemical substrates (i. phenylalanine analogues, ii. heteroaromatic substrates, iii. aliphatic substrates, and iv-v. benzoic acid derivatives with electron-withdrawing and -donating group); (ii) Adapted Fx to charge the substrates in high acylation yield; (iii) Determined a design rule for non-canonical substrate based on the substituent effect (electronic and steric effect); (iv) Demonstrated incorporation of the 32 non-canonical substrates into the N-terminus of a peptide on a cell- free platform; the majority of which have never before been found and studied; (v) Purified the 32 peptides from the cell-free protein synthesis reaction and characterized the peptides by mass spectroscopy; (vi) Demonstrated computational modeling to identify the interaction of substrates in the active site of Fx; (vii) This work opens up the possibility to produce novel functional peptide containing an exotic monomer into a peptide, which could allow producing a sequence-defined polymer bearing a novel covalent linkage (e.g., carbon-carbon or carbon- nitrogen bond) between monomers in the ribosome; and (viii) Additionally, this work can expand the study of engineering ribosome variants and other related translational apparatus that allow synthesizing such novel polymers.
[00155] Description of the Technology
[00156] While current studies have reported more than 150 non-canonical substrates are charged into tRNA and incorporated into a peptide by the Fx approach, and multiple strategies have been devised to synthesize tRNAs charged with non-canonical amino acid, there still exist limitations and gaps in the range of substrates. Mis-acylated tRNAs can be synthesized using protected pdCpA followed by enzymatic ligation (e.g., T4 RNA ligase) with a truncated tRNA that lacks its 3’-terminal CA nucleotides. However, the method is synthetically laborious and often gives poor results due to the generation of a cyclic tRNA by product that inhibits ribosomal peptide synthesis. The ester linkage for mis-acylated tRNAs can also be obtained by use of engineered synthetase/orthogonal tRNA pairs. However, high specificity of the synthetase toward an amino acid substrate only allows charging a narrow range of substrate pool, which often requires extensive work (e.g., directed evolution) for the development of a new synthetase.
[00157] Another means to form a mis-acylated tRNA is through the use of flexizymes
(Fx). Fx is an artificial ribozyme with the ability to aminoacylate an arbitrary tRNA. The Fx system has seen widespread success over the last decade in which a wide range (>150) of chemical substrates (a-amino acids, b-amino acids, g-amino acids, D-amino acids, nonstandard amino acids, N-protected (alkylated) amino acids, and hydroxy acids) have been incorporated into ribosomal peptide chain through mis-acylated tRNAs. [00158] Here, we systematically expand the range of substrates toward a variety of non-canonical substrates (Phe analogues, benzoic acid derivatives, heteroatomic molecules, and aliphatic chain), which are still acceptable by Fx and the WT translation apparatus, and moreover demonstrate that using E. coli translational machinery through a purified reconstituted system (PURExpress) allows producing numerous functionalized peptide. For comparison to our study, previous studies mostly focus on amino acid variants as a Fx- compatible substrate. Second, hydroxy acid variants were only discovered as a possible substitute for a non-amino acid substrate. Third, no rationale has been developed on designing the Fx-compatible chemical substrate, which allows expanding the boundary of the substrate pool significantly. And finally, no computational research identifying the molecular interaction in the Fx binding pocket exists, which permits and facilitates the efficient design of the monomer for novel polymer synthesis.
[00159] Our rationale for designing the substrate for the Fx-catalyzed acylation has the potential to reduce process development and testing timelines for monomer that can provide novel functionality. Further, because we currently lack information on the molecular interaction of substrate to the binding pocket of Fx, our computational modeling result on the intermediate formed during the Fx-catalyzed acylation reaction can be leveraged as a foundational resource for chemists, biochemists, and molecular biologists as well as protein engineers to select a proper non-canonical substrate. Specifically, computational efforts would greatly benefit from our result, as it may aid the efficient mutational study within the Fx's active site.
[00160] Additionally, because the discovery of 32 non-canonical substrates on the five different subsets outlines diversity of substrates and characterizes its impact on peptide synthesis, this finding could be used to prototype other non-canonical chemical substrates. Finally, our substrate variants set could be readily applied to chemical substrate variants for the synthesis of various peptides, including precursors for therapeutic medicines and macrocyclic materials. This novel and comprehensive study have advantages for fundamental and synthetic/engineering biology.
[00161] Related Technology
[00162] Related technology may be described in one or more of the following patent documents and non-patent documents which are incorporated herein by reference in their entireties: U.S. Patent Nos 5,478,730; 5,556,769; 5,665,563; 6,168,931; 6,518,058;
6,783,957; 6,869,774; 6,994,986; 7,118,883; 7,189,528; 7,338,789; 7,387,884; 7,399,610; 9,410,148; 9,528,137; 9,951,392; 9,688,994 and 9,783,800. U.S. Published Patent Application Nos 2009/0281280; 2012/0171720; 2016/0060301; 2016/0083688;
2016/0209421; 2016/0289668; 2017/0073381; 2017/0306320; 2017/0349928; and
2018/0016614. Published International Applications W02008/059823; WO2011/049157; WO2012/026566; WO2012/074129; WO2012/074130; W02013/100132; WO2014/119600; WO2016/199801; EP2141175; JP2013071904; JP2018509172; and JP2017216961. Non patent documents: Passioura and Suga,“Flexizymes, their evolutionary history and diverse utilities,” Top Curr Chem. 2014:344-45.
[00163] Example 2 - Expanding the chemical substrates in genetic code reprogramming
[00164] Reference is made to the presentation entitled “Expanding the chemical substrates in genetic code reprogramming,” Joongoo Lee, Kenneth Schwieter, Do Soon Kim, Jeffrey Moore, and Michael Jewett, to be presented on June 3-4, 2018, at the 2018 Synthetic biology: Engineering, Evolution, & Design (SEED) conference, Scottsdale, Arizona, which content is incorporated herein by reference in its entirety.
[00165] Abstract [00166] The translation apparatus is the cell’s factory for protein synthesis. In the synthesis, the biological machines that carry out translation produce polymers with a peptide backbone by coupling a-amino acids according to the encoding sequences of an mRNA template. Although many pioneering works have expanded the genetic code to more than 150 nonstandard amino acids for protein synthesis, the covalent linkage of polymers synthesized by ribosomes has been confined to polypeptide bonds (amides) or polyester bonds. Herein, we explored new environments and monomer templates that allow production of organic sequence-defined polymers (SDPs) with a wide variety of covalent chemical bonds. A flexizyme system is used to reassign individual codons and SDPs bearing a non-peptide backbone are produced under controls of the reprogrammed genetic code using an engineered cell-free translation system.
[00167] Introduction
[00168] Protein synthesis by ribosomes is achieved via polymerization of amino acids that are covalently linked to transfer RNAs (tRNAs) via aminoacylation {i.e., "charging"). Thus, a tRNA that is aminoacylated with an amino acid is referred to as a "charged tRNA." A ribosome translates codons that are present in an mRNA via matching a corresponding anticodons present on charged tRNAs. The amino acid of a charged tRNA is thus incorporated via the ribosome into a nascent polypeptide corresponding to the translated mRNA.
[00169] In modern organisms, protein-based enzymes called aminoacyl tRNA synthetases (ARSs) catalyze aminoacylation of tRNA. However, ribozymes that aminoacylate tRNA by using activated amino acids have been discovered in vitro, which have been termed "flexizymes." Flexizymes and their use for genetic reprogramming are known in the art. {See, e.g., Ohuchi el al. , "The flexizyme system: a highly flexible tRNA aminoacylation tool for the translation apparatus," Curr Opin Chem Biol. 2007 Ocxt; 11(5):537-42; Xiao el al. , Structural basis of specific tRNA aminoacylation by a small in vitro selected ribozyme," Nature 454, 358-361 (2008); Passioura and Suga, "Flexizyme-Mediated Genetic Reprogramming As a Tool for Noncanonical Peptide Synthesis and Drug Discovery," Angewandte Chemie, Volume 19, Issue 21, pages 6530-6536, May 17, 2013; and Katoh et al ., Advances in in vitro genetic code reprogramming in 2014-2017, Synthetic Biology, Volume 3, Issue 1, May 31, 2018; the contents of which are incorporated herein by reference in their entireties). Flexizymes can be evolved and selected in vitro to catalyze aminoacylation of tRNA with nonstandard amino acids, and tRNAs thus charged with nonstandard amino acids can be utilized to incorporate nonstandard amino acids in nascent polypeptides. Flexizyme systems thus enable reprogramming of the genetic code by reassigning the codons that are generally assigned to natural amino acids to nonstandard amino acids or other residues, and thus mRNA-directed synthesis of non-natural polypeptides can be achieved.
[00170] Figure 1 illustrates the flexizyme system. Figure l.A) illustrates the crystal structure of a flexizyme. Figure l.B) illustrates acylation of tRNA by a flexizyme and the leaving groups commonly used for preparing activated ester substrates, which can be loaded on tRNA or a microhelix via a flexizyme.
[00171] Results
[00172] Chemical substrates for loading on tRNA or a microhelix can be prepared by converting protected a-amino acids or protected b-amino acids to corresponding esters. ( See Figure 2. A. and 2.B., respectively).
[00173] Flexizyme (Fx) catalyzed aminoacylation was optimized using a microhelix
(22nt) as a tRNA mimic. ( See Figure 3). The optimization reactions were performed in a 50 mM HEPES-KOH (PH 7.5) or Bicine (pH 8.8) buffer containing 0.3 M MgCb. 1 mM microhelix, 5 mM Fx, 2.5 mM of amino acid substrates (e.g, esterified amino acid substrates), and 20% DMSO. The reaction mixture was incubated at 0° C and monitored over 72 h. The acylated product yield was determined by quantifying the band intensity using software (ImageJ). Micxrohelix was obtained commercially (Integarated DNA Technologies (IDT)) and used as received. tRNAs of interest were acylated using L-Ser, D-Ser, b-Gly, and b-Phe under the same conditions used in the microhelix experiment, and the reprogrammed tRNA were subsequently added into a cell-free synthesis platform (PURExpress). tRNAs corresponding to AUC, ACC, and GCC were reassigned with non-natural amino acid substrates using the Fx system. ( See Figure 4). Using a cell-free protein synthesis (CFPS) platform (see Figure 5) and the reassigned tRNAs, the non-natural amino acids were incorporated into a polypeptide. ( See Figure 6 a)-f)). We observed that there are optimal codon orders in mRNA for consecutive incorporation of amino acids. ( See Figure 6 e) and f))·
[00174] Conclusions
[00175] We will design monomers that allows the formation of novel covalent chemical bonds by a ribosome within a nascent sequence-defined polymer and synthesis of such sequence-defined polymers in a cell-free synthesis (CFPS) platform. Potential polymer backbones include polyester backbonds, polythioester backbones, or generic "polyABCer" backbones. ( See Figure 7). As a proof of concept, we charged tRNAs with nine amino acids via our Fx system and found that the nine amino acids that were charged on the tRNAs were incorporated into a polypeptide in a CFPS platform.
[00176] Example 3 - Expanding the chemical substrates in genetic code reprogramming
[00177] Abstract [00178] The site-specific incorporation of noncanonical amino acids into polypeptides through genetic code reprogramming is a powerful approach for making bio-based products that extend beyond natural limits. While a diverse repertoire of chemical substrates can be used in ribosome-mediated polymerization, most have been limited to amino- and hydroxy- acids. Here, we set out to identify design rules for flexizyme-mediated charging of noncanonical monomers to tRNAs that would expand substrate scope for ribosome mediated polymerization. To achieve this goal, we synthesized 38 new substrates based on 4 scaffolds (phenylalanine derivatives, benzoic acid derivatives, heteroaromatic monomers, and aliphatic monomers) and found that 32 could be acylated onto tRNA using under optimized reaction conditions. Of these substrates, all could be incorporated into ribosomal peptides at the N- terminus using in vitro translation. Our work provides design rules for flexizyme catalyzed acylation and expands the range of chemical substrates for repurposing the translation apparatus.
[00179] Introduction
[00180] The translation apparatus is the cell’s factory for protein synthesis, stitching together L-a-amino acid substrates into sequence-defined polymers (proteins) from a defined genetic template. With protein elongation rates of up to 20 amino acids per second and remarkable precision (fidelity of -99.99%) ' 3, the Escherichia coli protein biosynthesis system (the ribosome and associated factors necessary for polymerization) possesses an incredible catalytic capability. This has long motivated efforts to understand and harness artificial versions for biotechnology. In nature, however, only limited sets of protein monomers are utilized, thereby resulting in limited sets of biopolymers (i.e., proteins). Expanding nature’s repertoire of ribosomal monomers4 12 could yield new kinds of bio-based products with diverse genetically encoded chemistry. So far, the natural ribosome has been shown capable of selectively incorporating a wide range chemical substrates into an elongating polymer chain, especially in vitro where greater control and freedom of design is possible.13 These include a-14, b-15, g-16, Z)-17 18, N-alkylated19, 20, noncanonical amino acids21, hydroxy acids22,23, peptides24, oligomeric foldamer-peptide hybrids25, and non-amino carboxylic acids26, 27. The impact of incorporating such a broad and diverse set of monomers, especially for the site-specific incorporation of noncanonical amino acids into peptides and proteins, has been the production of novel therapeutics, enzymes, and materials28 34.
[00181] For ribosomal monomers to be selectively incorporated into a growing chain by the ribosome, they must be covalently attached (or charged) to transfer RNAs (tRNAs), making aminoacyl-tRNA substrates. Multiple strategies have been devised to synthesize such noncanonical aminoacyl-tRNAs, or‘mis-acylated’ tRNAs. The classical strategy is chemical aminoacylation, which requires the synthesis of a 5'-phospho-2'- deoxyribocytidylylriboadenosine (pdCpA) dinucleotide, ester coupling with the amino acid substrate, and enzymatic ligation ( e.g T4 RNA ligase) with a truncated tRNA35 39. Unfortunately, chemical aminoacylations are laborious and technically difficult, often giving poor results in translation due to the generation of a cyclic tRNA by-product which inhibits ribosomal peptide synthesis.40 Another strategy is to engineer protein enzymes called aminoacyl-tRNA synthetases (aaRS), which naturally charge canonical amino acids to tRNAs, by directed evolution.41 50 However, aaRSs have limited promiscuity for noncanonical chemical substrates, and are generally confined to a narrow range of amino acid analogues that resemble natural ones.
[00182] More recently, an alternative approach to produce mis-acylated tRNAs that uses an RNA enzyme known as flexizyme (Fx) was developed. This flexible and powerful approach, pioneered by Suga and colleagues, is capable of exclusively aminoacylating the 3’- OH of an arbitrary tRNA51 (Fig. 8a) with activated esters.52 55 Through directed evolution and sequence optimization, three different flexizymes (eFx, dFx, and aFx)5 have been developed to recognize specific combinations of substrate: activating groups. A crystallographic study56 elucidated that an aryl group either on the substrate side chain or leaving group is crucial for substrate interaction with the catalytic binding pocket of Fx. For example, eFx acylates tRNA with cyanomethyl ester (CME)-activated acids containing aryl functionality, while dFx recognizes dinitrobenzyl ester (DNBE)-activated non-aryl acids57. For substrates that lack an aryl group or have poor solubility due to the presence of DNBE, aFx has been developed recognizing a (2-aminoethyl)amidocarboxybenzyl thioester (ABT)58 leaving group which provides the required aryl group and better aqueous solubility (Fig. 8a, bottom panel).
[00183] The unique potential of the flexizyme approach is that virtually any amino acid can be charged to any tRNA, as long as the side chain is stable toward the conditions of the acylation reaction (or suitably protected/deprotected in the case of reactive side chains), enabling the reassignment of a specific codon to an amino acid de novo. As such, the development of flexizyme has significantly expanded the known permissible space of monomers used in translation by genetic code reprogramming. The range of monomers incorporated has so far, however, mainly been limited to amino23 and hydroxy acids33. Design rules for flexizyme mediated charging, which may more effectively guide the search for noncanonical monomers, are still being identified. To expand the available design space for template guided polymerization by the ribosome to polymers beyond polypeptides or polyesters, new efforts to explore constraints that limit the scope of noncanonical monomer diversity permissible to both flexizyme mediated charging and translation by the ribosome are needed.
[00184] Here, we set out to fill this gap in knowledge by systematically expanding the range of chemical substrates for flexizyme-mediated charging followed by translation using natural ribosomes (Fig. 8). Specifically, we synthesized a repertoire of 38 phenylalanine derivatives, benzoic acid derivatives, heteroaromatic monomers, and aliphatic monomers that were designed based on known compatible scaffolds. We deliberately chose potential substrates that feature chemical moieties inaccessible to native ribosomally synthesized peptides or their post-translationally modified derivatives, or that could support novel A-B polycondensation reactions (rather than amide and ester bonds). After chemical synthesis of the activated esters, we assessed the ability of flexizyme charging of these substrates to tRNAs by varying pH and time to create optimized acylation conditions. We found that 32 of the 38 substrates are charged to tRNAs from which trends emerged that will help to more effectively guide the search for novel monomers. To gain insights into the substrate-flexizyme compatibility, we also used computational modeling for studying the molecular interaction of the nucleic acid residues in the binding pocket of flexizyme with the substrates showing high or low acylation yield. Finally, we asked if the novel tRNA-monomers could be used by the wild type ribosome in the commercially available PURExpress™ cell-free translation system. While N-terminal incorporation of novel monomers into peptides from substrate-tRNAiMct complexes was possible for 32 of the substrates, incorporation into the C-terminus of peptides was not possible by wild type ribosomes.
[00185] Results and Discussion
[00186] Expanding the substrate repertoire for flexizyme catalyzed RNA
Figure imgf000051_0001
acylation. To expand the substrate scope for Fx-catalyzed tRNA mis-acylation, we initially determined compatible substrate scaffolds. For this, we benchmarked the molecular structure of CME-activated phenylalanine (Phe-CME, A, Fig. 9a, middle panel) as the optimal substrate for eFx51 56 59 61 and investigated eFx’s substrate flexibility toward a series of five substrates with increasing degree of modification from the parent structure, A (B-F, Fig. 9a, middle panel). These include: B (hydrocinnamic acid): amine excluded from A; C (cinnamic acid): the unsaturated form of B; D and E (benzoic and phenylacetic acid, respectively): two or one carbon excluded from B; and F (propanoic acid): aryl replaced with aliphatic group in B
[00187] First, we determined the acylation efficiency of A to a small tRNA mimic, microhelix tRNA (mihx, 22 nt) by eFx using the previously reported standard acylation conditions (pH 7.5, 0 °C)62(Fig. 9a, top panel). Analysis of the reaction mixture by denaturing acidic polyacrylamide gel electrophoresis (PAGE) indicated that 67% of mihx was acylated with A (Fig. 9b, lane 1). With this benchmark established, we then screened substrate-eFx compatibility of the five substrates. eFx successfully acylated mihx with B in 77% yield, indicating that an amine functional group is not required for aminoacylation (Fig. 9b, lane 2). Moving further from the Phe structure proved difficult, as a,b-unsaturated substrate C was incompatible for mihx acylation via flexizyme under standard reaction conditions (Fig. 9b, lane 3). However, as we increased reaction pH and time (pH 7.5 to pH 8.8 and 16 h to 120 h, see Figs. 13 and 14 for full details), mihx acylation with C improved yielding 44% and 74% after 16 and 120 h, respectively (Fig. 9b, lanes 6, 7). Notably, the newly established pH of 8.8 increased the yields for A and B to 82% and 100%, respectively (Fig. 9b, lanes 4, 5). Although to a minor extent, D and E were also acylated to the mihx in 16% and 40% yield, respectively (Fig. 9b, lane 8, 9). As expected, the aliphatic substrate F was not charged to the mihx by eFx, as the substrate does not contain an aryl group for substrate recognition by eFx (Fig. 9b, lane 10). However, changing the substrate’s leaving group from CME to ABT and employing aFx in place of eFx enabled charging of the same aliphatic substrate G in 55% yield after 120 h (Fig. 9b, lane 11). Hence, using the newly established acylation conditions and utilizing the appropriate leaving group and Fx, all five substrates are successfully charged to the tRNA mimic.
[00188] Next, we sought to further expand the substrate scope by elaborating the scaffolds of B, C, D, and G, to teach us about permissible substrates. Not only substrates that could be used by the Fx system, but also, later, the ribosome (see below). For this, we determined the mihx-acylation efficiency of eFx and aFx with four sets of scaffold analogues: Phe analogues harboring saturated and unsaturated aliphatic scaffolds with an aryl group, benzoic acid derivatives with a variety of functional groups, heteroaromatic scaffolds with different electronic properties, as well as aliphatic scaffolds with various steric hindrances (Fig. 10)
[00189] To investigate saturated and unsaturated aliphatic scaffolds containing an aryl group, we explored Phe analogues derived to bear a variety of functionalities (1-6) from the Fx substrates B and C. [00190] Under optimal conditions, the substrates 1-4 were charged to the mihx by eFx in yields of 50-100% after 16 h and 100% after 120 h (Figs. 15 and 16). Substrate 5 and 6 containing a,b-unsaturated scaffolds showed similar yield to their parent structure C. Both were charged by eFx at lower efficiencies (30% and 22% yield, respectively) than the saturated substrates, likely due to their increased structural rigidity hindering interaction with the Fx binding pocket.
[00191] To further understand the substrate compatibility of eFx toward benzoic acid m we prepared a series of derivatives with altering electronic character (electron-poor: 7- 14, electron-rich: 15-18) as well as substituent position (ortho, meta, para), performed Fx- catalyzed acylation reactions, and determined the acylation efficiency by acid denaturing PAGE and densiometric analysis (Figs. 15, 17, and 18). For //-nitro-substituted substrate (7), determined acylation yield of eFx were 30% yield after l6h and 76% after 120 h, and for unsubstituted substrate (D) 0% at l6h, 16% at l20h.
[00192] Similarly, high yields (28-48% at l6h, 78-100% at l20h) were observed for the electron-poor substrates (8-11) bearing a p- nitrile, //-azide, /«-formyl group, and m- nitromethyl group, respectively. In contrast, the substrate with moderate electron-donating groups such as //-methoxy (15), //-ethynyl (16), and /-hydroxymethyl (17) showed lower reaction rate; no acylation was observed after 16 h and only with moderate yields after 120 h (19-63%). We observed no conversion after 120 h for electron-rich //-amino substrate 18. These results indicate a significant electronic effect; reaction rates generally increased for electron-poor substrates and decreased for electron-rich substrates.
[00193] We tested this hypothesis by installing an electron-withdrawing nitro-group at the meta position of the poor Fx substrate, 18, leading to substrate 21. As predicted, a slight improvement of 10% yield was observed after l20h. Swapping the substituent pattern leading to substrate 20 (p- nitro and ///-amine) further improved the reaction efficiency to 55% yield after 120 h, supporting the reactivity trend based on electronic character. In addition, we observed that ortho- substituent tolerance was governed by steric effects as o-fluoro 12 resulted in 82% yield after 120 h, while substrates with larger ortho substituents (o-iodo 13, o-formyl 14) were not charged to the mihx. The correlation between electronic character and Fx-catalyzed acylation was further confirmed by investigating the electron-poor heteroaromatic substrates pyridine 22, fluoro-pyridine 23, and coumarin 24. All three substrates were charged with high yields (45-100% at l6h and 100% at l20h) following the electronic trend. In contrast, five-membered electron-rich heteroaromatic substrates (pyrrole 25, 25a and thiophene 26, 26a; see Fig. 19 for 25a and 26a) did not show any reactivity in the Fx-catalyzed tRNA acylation reaction.
[00194] Finally, we investigated the substrate compatibility of aFx by exploring its catalytic activity toward aliphatic variants derived from its substrate G. We found that straight chain aliphatic acids are highly favored substrates; alkenyl (27), cyano (28) and ester (29) analogues were charged with 100% yield after 16 h. Nitroalkane (30) was a competent substrate, albeit in diminished yield (25%, l6h and 30%, 120 h). In contrast, sterically hindered cyclohexyl (31) were charged at a slower rate (30% yield, 120 h). Moreover, bromopropane (32) was charged to only 10% after 120 h, indicating that increased steric bulk further decreases Fx-catalyzed acylation.
[00195] In summary, from the 38 tested analogues, 32 hitherto unknown Fx substrates were identified, significantly expanding the scope of the Fx-catalyzed aminoacylation reaction. Based on their molecular characteristics and efficiencies in Fx-catalyzed acylation, general design rules for potential Fx substrates are deduced with greatest success for: i) higher structural similarity to Phe for eFx, ii) electron-decreasing characteristics from the carbonyl region, and iii) less steric hindrance at the acylation site.
[00196] To gain further insights about possible constraints for using flexizyme to charge noncanonical chemical substrates onto tRNAs, we next used computational modeling to better understand our data. A previous crystallographic study56 suggests that when an aromatic amino acid such as Phe is charged by Fx, the phenyl ring of the substrate stacks against the terminal Jla/3 base pair of Fx. Notably, the structure as crystallized (PDB: 3CUL and 3CUN) contains only residual density for a phenylalanyl-ethyl ester ligand, which is suggestive of a possible location for substrate conformation at the active site. To elucidate the molecular interaction of substrates in the binding pocket of Fx, using Rosetta63, we generated models (data not shown) of the tetrahedral intermediates formed with tRNA by five representative substrates (A-E) as well as pyrrole-2-carboxylic acid (25, 25a) and 2- thiophenecarboxylic acid (26, 26a) that gives no acylation yield on Fx-catalysis (Fig. 11). The modeling supports either T-stacked interaction for Phe and hydrocinnamic acid (B) or parallel stacked interactions for cinnamic acid (C), benzoic acid (D), and phenylacetic acid (E). In contrast, pyrrole and thiophene groups are unable to form particularly favorable interactions with the terminal Jla/3 base pair. The absence of these interactions may explain our empirical observation that 25, 25a and 26, 26a containing an electron-rich heteroaromatic group are poor substrates for eFx.
[00197] The novel Fx substrates are charged to tRNAs and incorporated into peptides. Next, we investigated whether the newly found Fx substrates that can be charged onto tRNAs are accepted by the natural protein translation machinery. Based on our optimized conditions, we performed Fx-catalyzed acylation reactions using Fx-optimized tRNAs62 instead of the mihx. Then, we purified the tRNA-monomers and added them to a cell-free protein synthesis reaction, allowed translation to proceed, and determined the incorporation of the new substrates into a small reporter peptide by MALDI-TOF mass spectrometry (Fig. 12 and data not shown).
[00198] Initially, we attempted to use a well-established crude extract-based
Escherichia coli cell-free protein synthesis (CFPS) 34, 64 67, which is capable of high-level incorporation of noncanonical amino acids. However, we were not able to characterize the reporter peptide, presumably because active peptidases in the extract digested the peptide. In order to circumvent possible undesired degradation, we turned to the commercially available (Protein synthesis Using Recombinant Elements) PURExpress™ system68. The PURExpress™ system contains the minimal set of components required for protein translation, thereby minimizing any undesired peptide degradation, and allows addition of custom sets of amino acids and tRNAs of interest.
[00199] Previous works from the Suga lab, among others, have shown this platform to be suitable for assessing peptide synthesis69, especially for N-terminal incorporation of noncanonical monomers25, 60. As a reporter peptide, we designed a T7 promoter-controlled DNA template (pJLl StrepII) encoding the translation initiation codon AUG for N-terminal incorporation of the novel Fx substrates, a Streptavidin (Strep) tag and a Ser and Thr codon ( MWHSPQFEKST (SEQ ID NO: 15) (strep-tag: italicized), and where X indicates the position of the novel Fx substrate, for details, see SI). Peptide synthesis was performed using only the 9 amino acids that decode the initiation codon AUG and the purification tag (data not shown). We excluded the other 11 amino acids to prevent corresponding endogenous tRNAs from being aminoacylated and used in translation, thereby, eliminated competition between endogenous tRNAs and Fx-charged tRNAs during peptide synthesis. For this, PURExpress™ reactions were incubated at 37 °C for 4 h. The synthesized peptides were then purified using Strep-Tactin®-coated magnetic beads (IBA), denatured with SDS, and characterized by MALDI-TOF mass spectroscopy (Fig. 12a).
[00200] As a positive control experiment, we prepared a peptide in the presence of all
20 natural amino acids and absence of any Fx-charged tRNA, so that the reporter mRNA would be translated into MWHSPQFEKST (SEQ ID NO: 16) according to the standard genetic code. Indeed, we detected two major peaks corresponding to the theoretical mass of the peptide ions. The Met residue at the N-terminus was found to be formylated (fM) ( fMWHSPQFEKST , SEQ ID NO: 17) by a formylase present in the PURE system70; [M+H]+ = 1405 (observed, obs), 1405 Da (calculated, cal), [M+Na]+ = 1427 (obs), 1427 Da (cal) (Fig. 12b) [00201] As a negative control experiment, we performed a PURExpress™ reaction in the presence of only 9 amino acids encoding the residues downstream of the initiating codon (W, S, H, P, Q, F, E, K, and T); no Met or mis-acylated tRNAfMet was added to the reaction mixture. The MALDI spectrum shows only a single species for the synthesized peptide giving a mass of 1246 ([M+H]+) and 1268 Da ([M+Na]+) (Fig. 12c). The observed peaks correspond to the theoretical mass of a peptide with seqeunce WHSPQFEKST (SEQ ID NO: 18), indicating that translation initiation can occur on the succeeding mRNA codon if the amino acid for the initiating codon is not present in CFPS system, a phenomenon previously reported71.
[00202] For incorporation of the noncanonical substrates (B-E, and G) at the start codon, we used the tRNAiMct containing the CAET anticodon, corresponding to the AETG codon on the mRNA and charged all five substrates onto the tRNA separately. The same amount of precipitated tRNA containing a mixture of substrate-charged/uncharged tRNA was added to the PEIRExpress™ reaction. Methionine was not added to the reaction so as to avoid the incorporation of Met at the start codon by Met-charged endogenous tRNAiMct produced in the PEIRE system. We discovered that all the peaks found in the MALDI spectra corresponded to a theoretical mass of peptide that contains the substrate on the N-terminus (Fig. 12d-i). It is notable that N-terminal Trp was found to be unformylated (Fig. 12c) in comparison with that the N-terminal Met in Fig. 12b, which was found to be completely formylated. The N-terminus Phe (Fig. 12d) was found to with formylation (fF) and without formylation (F), suggesting that a larger side chain may prohibit the formylase from efficiently formylating the residue.
[00203] We carried out the same acylation reaction onto a tRNAiMct for the other noncanonical substrates (B-G and 1-32, except for the 6 substrates that showed no acylation; F, 13, 14, 18, 25, and 26) and subsequently synthesized 32 different peptides with each substrate on the N-terminus, indicating all the noncanonical substrates were incorporated into a peptide. MALDI spectra were generated for the purified peptide (data not shown). The substrates with higher acylation yields tend to show higher translation efficiency (data not shown), representing the concentration of mis-acylated tRNA is a limiting factor for the translation. To more rigorously characterize the N-terminal peptides, we additionally quantified peptide yields (data not shown). These data support our hypothesis that the system is limited by mis-acylated tRNA.
[00204] Ribosome-mediated polymerization of alternative A-B polycondensation reactions (i.e., non-ester and non-amide bonds) may offer new classes of sequence-defined polymers. Using a mis-acylated tRNAGluE2(GGU) recognizing an ACC codon (Thr) on the mRNA, we tested incorporation of a few substrates at the C-terminus of a peptide, which would require formation of a covalent carbon-carbon bond. Unfortunately, our attempt to produce a biopolymer with such a bond was unsuccessful.
[00205] Conclusion
[00206] In this work, we set out to systematically expand the range of chemical substrates for translation though the identification of design rules for flexizyme-mediated charging of noncanonical monomers to tRNAs. Beyond commonly used amino- and hydroxy- acids, we showed that a diverse repertoire of substrates built from elaborating upon phenylalanine, benzoic acid, heteroaromatic, and aliphatic scaffolds could be acylated to tRNAs. Our rational approach to scaffold design allowed us to better identify design rules for using flexizymes to charge novel monomers onto tRNA. We found, as expected, that substrates that look more like phenylalanine are favorable for Fx catalyzed acylation reactions. We also found new guiding principles, for examples, that electron-poor substrates are favored over electron rich, and certain bulky groups are poorly not well tolerated near the acylation site. Additionally, by investigating the molecular interaction of key substrates in the binding pocket of flexizyme using computational modeling, we found that either T-stacked or parallel-stacked interactions seem to be key features that enable charging by flexizyme. Beyond these design rules, we also showed that tRNA-monomers from our expanded substrates successfully yield a wide variety of N-functionalized peptides in a PURExpress™ system through genetic code reprogramming. This is important because our data joins an emerging number of studies showing that the ribosome is capable of polymerizing a wide array of substrates, especially at the N-terminus. While the production of novel N-terminal peptides themselves was not our focus, they might be used directly by others in the field in multiple ways. For example, the peptides containing 4 and 27 at the N-terminus have the potential to combine the advantages of synthetic polymers and sequence-defined peptides by chemically attaching a molecule with a polymerizable unit, which could lead to novel hybrid materials. Looking forward, we anticipate that our work will enable the design and selection of new classes of noncanonical monomers for use in translation. For example, the monomers we describe also begin the march towards novel classes of sequenced defined polymers that are not polyesters or polyamides, perhaps even those with carbon-carbon bonds. However, since the shape, physiochemical, and dynamic properties of the ribosome and its active site have been evolutionarily optimized to operate with proteins built of ~20 canonical amino acids, such advances will need to be supported by additional efforts in engineering the translation apparatus72,73.
[00207] References
[00208] 1. Edelmann, P. & Gallant, J. Mistranslation in E. coli. Cell 10, 131-137
(1977).
[00209] 2. Precup, J., ETlrich, A.K., Roopnarine, O. & Parker, J. Context specific misreading of phenylalanine codons. Mol Gen Genet 218, 397-401 (1989).
[00210] 3. Rodnina, M.V. & Wintermeyer, W. Fidelity of aminoacyl-tRNA selection on the ribosome: kinetic and structural mechanisms. Annu Rev Biochem 70, 415-435 (2001). [00211] 4. Cropp, T.A., Anderson, J.C. & Chin, J.W. Reprogramming the amino-acid substrate specificity of orthogonal aminoacyl-tRNA synthetases to expand the genetic code of eukaryotic cells. Nature Protocols 2, 2590-2600 (2007).
[00212] 5. Morimoto, J., Hayashi, Y., Iwasaki, K. & Suga, H. Flexizymes: their evolutionary history and the origin of catalytic function. Acc Chem Res 44, 1359-1368 (2011).
[00213] 6. Albayrak, C. & Swartz, J.R. Cell-free co-production of an orthogonal transfer RNA activates efficient site-specific non-natural amino acid incorporation. Nucleic Acids Res 41, 5949-5963 (2013). 7. Chin, J.W. Expanding and reprogramming the genetic code. Nature 550, 53-60 (2017). 8. Mukai, T., Lajoie, M.J., Englert, M. & Soll, D. Rewriting the genetic code. Annu Rev Microbiol 71, 557-577 (2017).
[00214] 9. Voller, J.S. & Budisa, N. Coupling genetic code expansion and metabolic engineering for synthetic cells. Curr Opin Biotech 48, 1-7 (2017).
[00215] 10. Vargas-Rodriguez, O., Sevostyanova, A., Soll, D. & Crnkovic, A.
ETpgrading aminoacyltRNA synthetases for genetic code expansion. Curr Opin Chem Biol 46, 115-122 (2018).
[00216] 11. Arranz-Gibertt, P., Vanderschurent, K. & Isaacs, F.J. Next-generation genetic code expansion. Curr Opin Chem Biol 46, 203-211 (2018).
[00217] 12. Tajima, K., Katoh, T. & Suga, H. Genetic code expansion via integration of redundant amino acid assignment by finely tuning tRNA pools. Curr Opin Chem Biol 46, 212-218 (2018).
[00218] 13. Rogers, J.M. & Suga, H. Discovering functional, non-proteinogenic amino acid containing, peptides using genetic code reprogramming. Org Biomol Chem 13, 9353- 9363 (2015). [00219] 14. Obexer, R., Walport, L.J. & Suga, H. Exploring sequence space: harnessing chemical and biological diversity towards new peptide leads. Curr Opin Chem Biol 38, 52-61 (2017).
[00220] 15. Fujino, T., Goto, Y., Suga, H. & Murakami, H. Ribosomal synthesis of peptides with multiple beta-amino acids. J Am Chem Soc 138, 1962-1969 (2016).
[00221] 16. Ohshiro, Y. et al. Ribosomal synthesis of backbone-macrocyclic peptides containing gamma-amino acids. ChemBioChem 12, 1183-1187 (2011).
[00222] 17. Goto, Y., Murakami, H. & Suga, H. Initiating translation with D-amino acids. RNA 14, 1390-1398 (2008).
[00223] 18. Katoh, T., Tajima, K. & Suga, H. Consecutive elongation of D-amino acids in translation. Cell Chem Biol 24, 46-54 (2017).
[00224] 19. Kawakami, T., Ishizawa, T. & Murakami, H. Extensive reprogramming of the genetic code for genetically encoded synthesis of highly N-alkylated polycyclic peptidomimetics. J Am Chem Soc 135, 12297-12304 (2013).
[00225] 20. Iwane, Y. et al. Expanding the amino acid repertoire of ribosomal polypeptide synthesis via the artificial division of codon boxes. Nat Chem 8, 317-325 (2016).
[00226] 21. Terasaka, N., Iwane, Y., Geiermann, A.S., Goto, Y. & Suga, H. Recent developments of engineered translational machineries for the incorporation of non-canonical amino acids into polypeptides. IntJMol Sci 16, 6513-6531 (2015).
[00227] 22. Ohta, A., Murakami, H., Higashimura, E. & Suga, H. Synthesis of polyester by means of genetic code reprogramming. Chem Biol 14, 1315-1322 (2007).19 [00228] 23. Ohta, A., Murakami, H. & Suga, H. Polymerization of alpha-hydroxy acids by ribosomes. ChemBioChem 9, 2773-2778 (2008).
[00229] 24. Goto, Y. & Suga, H. Translation initiation with initiator tRNA charged with exotic peptides. J Am Chem Soc 131, 5040-5041 (2009).
[00230] 25. Rogers, J.M. et al. Ribosomal synthesis and folding of peptide-helical aromatic foldamer hybrids. Nat Chem 10, 405-412 (2018).
[00231] 26. Torikai, K. & Suga, H. Ribosomal synthesis of an amphotericin-B inspired macrocycle. J Am Chem Soc 136, 17359-17361 (2014).
[00232] 27. Kawakami, T., Ogawa, K., Hatta, T., Goshima, N. & Natsume, T. Directed evolution of a cyclized peptoid-peptide chimera against a cell-free expressed protein and proteomic profiling of the interacting proteins to create a protein-protein interaction inhibitor. ACS Chem Biol 11, 1569-1577 (2016).
[00233] 28. Kanter, G. et al. Cell-free production of scFv fusion proteins: an efficient approach for personalized lymphoma vaccines. Blood 109, 3393-3399 (2007).
[00234] 29. Cho, H. et al. Optimized clinical performance of growth hormone with an expanded genetic code. Proc Natl Acad Sci USA 108, 9060-9065 (2011).
[00235] 30. Axup, J.Y. et al. Synthesis of site-specific antibody-drug conjugates using unnatural amino acids. Proc Natl Acad Sci USA 109, 16101-16106 (2012).
[00236] 31. Zimmerman, E.S. et al. Production of site-specific antibody-drug conjugates using optimized non-natural amino acids in a cell-free expression system. Bioconjug Chem 25, 351-361 (2014). [00237] 32. Raucher, D. & Ryu, J.S. Cell-penetrating peptides: strategies for anticancer treatment. Trends Mol Med 21, 560-570 (2015).
[00238] 33. Despanie, J., Dhandhukia, J.P., Hamm-Alvarez, S.F. & MacKay, J.A.
Elastin-like polypeptides: Therapeutic applications for an emerging class of nanomedicines. J Control Release 240, 93-108 (2016).
[00239] 34. Martin, R.W. et al. Development of a CHO-based cell-free platform for synthesis of active monoclonal antibodies. ACS Synth Biol 6, 1370-1379 (2017).
[00240] 35. Heckler, T.G. et al. T4 RNA ligase mediated preparation of novel
"chemically misacylated" tRNAPheS. Biochemistry 23, 1468-1473 (1984).
[00241] 36. Robertson, S.A., Noren, C.J., Anthony-Cahill, S.J., Griffith, M.C. &
Schultz, P.G. The use of 5'-phospho-2 deoxyribocytidylylriboadenosine as a facile route to chemical aminoacylation of tRNA. Nucleic Acids Res 17, 9649-9660 (1989).
[00242] 37. Robertson, S.A., Ellman, J.A. & Schultz, P.G. A general and efficient route for chemical aminoacylation of transfer RNAs. J Am Chem Soc 113, 2722-2729 (1991).
[00243] 38. Kwiatkowski, M., Wang, J.F. & Forster, A.C. Facile synthesis of N-acyl- aminoacyl-pCpA for preparation of mischarged fully ribo tRNA. Bioconjug Chem 25, 2086- 2091 (2014).
[00244] 39. Wang, J.F., Kwiatkowski, M. & Forster, A.C. Ribosomal peptide syntheses from activated substrates reveal rate limitation by an unexpected step at the peptidyl site. J Am Chem Soc 138, 15587-15595 (2016).
[00245] 40. Yamanaka, K., Nakata, H., Hohsaka, T. & Sisido, M. Efficient synthesis of non-natural mutants in Escherichia coli S30 in vitro protein synthesizing system. J Biosci Bioeng 97, 395-399 (2004). [00246] 41. Liu, D.R. & Schultz, P.G. Progress toward the evolution of an organism with an expanded genetic code. Proc Natl Acad Sci U SA 96, 4780-4785 (1999).
[00247] 42. Wang, L., Brock, A., Herberich, B. & Schultz, P.G. Expanding the genetic code of Escherichia coli. Science 292, 498-500 (2001).
[00248] 43. Nozawa, K. et al. Pyrrolysyl-tRNA synthetase-tRNA(Pyl) structure reveals the molecular basis of orthogonality. Nature 457, 1163-1167 (2009).20
[00249] 44. Hancock, S.M., LTprety, R., Deiters, A. & Chin, J.W. Expanding the genetic code of yeast for incorporation of diverse unnatural amino acids via a pyrrolysyl- tRNA synthetase/tRNA pair. J Am Chem Soc 132, 14819-14824 (2010).
[00250] 45. Neumann, H., Slusarczyk, A.L. & Chin, J.W. De novo generation of mutually orthogonal aminoacyl-tRNA synthetase/tRNA pairs. J Am Chem Soc 132, 2142- 2144 (2010).
[00251] 46. Chin, J.W. Expanding and reprogramming the genetic code of cells and animals. Annu Rev Biochem 83, 379-408 (2014).
[00252] 47. Ellefson, J.W. et al. Directed evolution of genetic parts and circuits by compartmentalized partnered replication. Nat Biotechnol 32, 97-101 (2014).
[00253] 48. Schmied, W.H., Elsasser, S.J., Uttamapinant, C. & Chin, J.W. Efficient multisite unnatural amino acid incorporation in mammalian cells via optimized pyrrolysyl tRNA synthetase/tRNA expression and engineered eRFl. J Am Chem Soc 136, 15577-15583 (2014).
[00254] 49. Amiram, M. et al. Evolution of translation machinery in recoded bacteria enables multi-site incorporation of nonstandard amino acids. Nat Biotechnol 33, 1272-1279 (2015). [00255] 50. Willis, J.C.W. & Chin, J.W. Mutually orthogonal pyrrolysyl-tRNA synthetase/tRNA pairs. Nat Chem 10, 831-837 (2018).
[00256] 51. Saito, H. & Suga, H. A ribozyme exclusively aminoacylates the 3'- hydroxyl group of the tRNA terminal adenosine. J Am Chem Soc 123, 7178-7179 (2001).
[00257] 52. Lee, N., Bessho, Y., Wei, K., Szostak, J.W. & Suga, H. Ribozyme- catalyzed tRNA aminoacylation. Nat Struct Biol 7, 28-33 (2000).
[00258] 53. Murakami, H., Saito, H. & Suga, H. A versatile tRNA aminoacylation catalyst based on RNA. Chem Biol 10, 655-662 (2003).
[00259] 54. Ramaswamy, K., Saito, H., Murakami, H., Shiba, K. & Suga, H. Designer ribozymes: programming the tRNA specificity into flexizyme. J Am Chem Soc 126, 11454- 11455 (2004).
[00260] 55. Murakami, H., Ohta, A., Ashigai, H. & Suga, H. A highly flexible tRNA acylation method for non-natural polypeptide synthesis. Nat Methods 3, 357-359 (2006).
[00261] 56. Xiao, H., Murakami, H., Suga, H. & Ferre-D'Amare, A.R. Structural basis of specific tRNA aminoacylation by a small in vitro selected ribozyme. Nature 454, 358-361 (2008).
[00262] 57. Passioura, T. & Suga, H. Flexizyme-mediated genetic reprogramming as a tool for noncanonical peptide synthesis and drug discovery. Chemistry 19, 6530-6536 (2013).
[00263] 58. Niwa, N., Yamagishi, Y., Murakami, H. & Suga, H. A flexizyme that selectively charges amino acids activated by a water-friendly leaving group. Bioorg Med Chem Lett 19, 3892-3894 (2009). [00264] 59. Saito, H., Watanabe, K. & Suga, H. Concurrent molecular recognition of the amino acid and tRNA by a ribozyme. RNA 7, 1867-1878 (2001).
[00265] 60. Goto, Y. et al. Reprogramming the translation initiation for the synthesis of physiologically stable cyclic peptides. ACS Chem Biol 3, 120-129 (2008).
[00266] 61. Saito, H., Kourouklis, D. & Suga, H. An in vitro evolved precursor tRNA with aminoacylation activity. EMBO J 20, 1797-1806 (2001).
[00267] 62. Goto, Y., Katoh, T. & Suga, H. Flexizymes for genetic code reprogramming. Nat Protoc 6, 779-790 (2011).
[00268] 63. Das, R. & Baker, D. Macromolecular modeling with Rosetta. Annu Rev
Biochem 77, 363-382 (2008).
[00269] 64. Carlson, E.D., Gan, R., Hodgman, C.E. & Jewett, M.C. Cell-free protein synthesis: applications come of age. Biotechnol Adv 30, 1185-1194 (2012).
[00270] 65. Kwon, Y.C. & Jewett, M.C. High-throughput preparation methods of crude extract for robust cell-free protein synthesis. Sci Rep 5, 8663 (2015).21
[00271] 66. Jaroentomeechai, T. et al. Single-pot glycoprotein biosynthesis using a cell-free transcription-translation system enriched with glycosylation machinery. Nat Commun 9 (2018).
[00272] 67. Kightlinger, W. et al. Design of glycosylation sites by rapid synthesis and analysis of glycosyltransferases. Nat Chem Biol 14, 627-635 (2018).
[00273] 68. Shimizu, Y. et al. Cell-free translation reconstituted with purified components. Nat Biotechnol 19, 751-755 (2001). [00274] 69. Iwane, Y., Katoh, T., Goto, Y. & Suga, H. Artificial division of codon boxes for expansion of the amino acid repertoire of ribosomal polypeptide synthesis. Methods Mol Biol 112S, 17-47 (2018).
[00275] 70. Udagawa, T., Shimizu, Y. & Ueda, T. Evidence for the translation initiation of leaderless mRNAs by the intact 70 S ribosome without its dissociation into subunits in eubacteria. J Biol Chem 279, 8539-8546 (2004).
[00276] 71. Oza, J.P. et al. Robust production of recombinant phosphoproteins using cell-free protein synthesis. Nat Commun 6 (2015).
[00277] 72. Liu, Y., Kim, D.S. & Jewett, M.C. Repurposing ribosomes for synthetic biology. Curr Opin Chem Biol 40, 87-94 (2017).
[00278] 73. d'Aquino, A.E., Kim, D.S. & Jewett, M.C. Engineered ribosomes for basic science and synthetic biology. Annu Rev Chem Biomol Eng 9, 311-340 (2018).
[00279] Materials and Methods
[00280] All reagents and solvents were commercial grade and purified prior to use when necessary. Dichloromethane was dried by passage through a column of activated alumina as described by Grubbs.1 Phenylalanine cyanomethyl ester (A) was prepared as recently described.2 Tert-\mty\ (2-(4-(mercaptomethyl)benzamido)ethyl) carbamate (ABT) was prepared according to the standard procedure.3 All organic solutions were dried over MgSCri. Thin layer chromatography (TLC) was performed using glass-backed silica gel (250 pm) plates. Flash chromatography was performed on a Biotage Isolera One automated purification system. ETV light, and/or the use of KMn04 were used to visualize products. Nuclear magnetic resonance spectra (NMR) were acquired on a Bruker Advance III-500 (500 MHz) or Varian ETnity 500 (500 MHz) instrument. Chemical shifts are measured relative to residual solvent peaks as an internal standard set to d 7.26 and d 77.0 (CDC13), and d 2.50 and d 39.5 (DMSO-6/% Mass spectra were recorded on a Bruker AmaZon SL or Waters Q-TOF ETltima (ESI) and Impact-II or Waters 70-VSE (El), spectrometers by use of the ionization method noted.
[00281] General procedure for formation of cyanomethyl ester. To a glass vial with a stir bar was added carboxylic acid (1 equiv.), CH2C12 (1.0 M), trimethylamine (1.5 equiv.), and chloroacetonitrile (1.2 equiv.). After stirring for 16 h at 25 °C the reaction mixture was diluted with EtOAc and washed with water or brine. The organic phase was dried and concentrated to provide the crude product. The product was purified by flash column chromatography if necessary.
Figure imgf000068_0002
[00283] Cvanomethyl 3-phenylpropanoate (B). Prepared according to the general procedure using 3-phenylpropanoic acid (100 mg, 0.66 mmol), trimethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (95 mg, 77%). ¾ NMR (500 MHz, CDC13) d 7.33 (t, J= 7.6 Hz, 2H), 7.28-7.21 (m, 3H), 4.72 (s, 2H), 3.01 (t, j = 7.8 Hz, 2H), 2.76 (t, J = 7.8 Hz, 2H); 13C NMR (125 MHz, CDC13) ppm 171.2, 139.5, 128.6, 128.2, 126.6, 114.3, 48.2, 35.1, 30.5; HRMS (El): Exact mass calcd for C11H11N02 [M]+ 189.07898, found 189.07881.
Figure imgf000068_0001
[00284] [00285] Cvanomethyl tru -cinnamate (Cl. Prepared according to the general procedure using trans- cinnamic acid (98 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (78 mg, 63%). 1H NMR (500 MHz, CDC13) d 7.80 (d, J= 16.0 Hz, 1H), 7.57-7.53 (m, 2H), 7.44-7.40 (m, 3H), 6.46 (d, 7=16.1 Hz, 1H), 4.86 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 165.1, 147.7, 133.6, 131.1, 129.0, 128.4, 115.2, 114.5, 48.4; HRMS (El): Exact mass calcd for Cl 1H9N02 [M]+ 187.0633, found 187.0633.
[00286]
Figure imgf000069_0002
[00287] Cvanomethyl benzoate [D). Prepared according to the general procedure using benzoic acid (81 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (87 mg, 82%). 1H NMR (500 MHz, CDC13) d 8.06 (dd, J = 8.3, 1.4 Hz, 2H), 7.67-7.59 (m, 1H), 7.49 (t, J = 7.8 Hz, 2H), 4.97 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 164.9, 134.1, 130.0, 128.7, 127.8, 114.4, 48.8; HRMS (El): Exact mass calcd for C9H7N02 [M]+ 161.0477, found 161.0475.
Figure imgf000069_0001
[00288]
[00289] Cvanomethyl 2-phenylacetate (E). Prepared according to the general procedure using phenylacetic acid (90 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (79 mg, 68%). 1H NMR (500 MHz, CDC13) d 7.35-7.23 (m, 5H), 4.70 (s, 2H), 3.70 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 169.9, 132.2, 129.2, 128.8, 127.6, 114.2, 48.6, 40.4; HRMS (El): Exact mass calcd for C10H9NO2 [M]+ 175.0633, found 175.0634.
Figure imgf000070_0001
[00290]
[00291] Cvanomethyl pentanoate (FI. Prepared according to the general procedure using valeric acid (72 pL, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (65 mg, 70%). 1H NMR (500 MHz, CDC13) d 4.71 (s, 2H), 2.41 (t, J = 7.5 Hz, 2H), 1.67- 1.60 (m, 2H), 1.41-1.30 (m, 2H), 0.92 (t, J= 7.4 Hz, 3H); 13C NMR (125 MHz, CDC13) ppm 172.1, 114.5, 48.1, 33.1, 26.6, 22.1, 13.6; HRMS (Cl): Exact mass calcd for C7H12N02 [M+H]+ 142.0868, found 142.0867.
[00292]
Figure imgf000070_0002
[00293] Cvanomethyl 3- dihvdroxyphenv0propanoate [11. Prepared according
Figure imgf000070_0003
to the general procedure using 3-(3,4-dihydroxyphenyl)propanoic acid (60 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) and dichloromethane (0.2 mL). The product was obtained as a brown solid (40 mg, 55%). 1H-NMR (500 MHz, DMSO- d) d 8.73 (s, 1H), 8.67 (s, 1H), 6.61 (d, j = 8.1 Hz, 1H), 6.58 (d, j = 1.9 Hz, 1H), 6.46-6.44 (m, 1H), 4.94 (s, 2H), 2.69-2.68 (m, 2H), 2.66-2.64 (m, 2H); 13C NMR (125 MHz, DMSO- d) ppm 171.9, 145.5, 144.0, 131.3, 119.2, 116.4, 116.1, 115.9, 49.3, 35.2, 29.8; HRMS (El): Exact mass calcd for Cl 1H11N04: [M]+ 221.0688, found 221.0690.
[00294]
Figure imgf000071_0001
[00295] Cvanomethyl 3 pyrrol-2-yQpropanoate [2). Prepared according to the
Figure imgf000071_0002
general procedure using 3 -( 1 //-pyrrol -2-y 1 )propanoi c acid (46 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) and dichloromethane (0.2 mL). The product was obtained as a brown solid (45 mg, 77%). 1H-NMR (500 MHz, DMSO-<76) d 10.54 (s, 1H), 6.58 (d, J = 2.0 Hz, 1H), 5.88 (q, j = 2.7, 3.0, 2.6 Hz, 1H), 5.74 (m, 1H), 4.96 (s, 2H), 2.81 (t, J = 8 Hz, 2H), 2.70 (t, J = 7 Hz, 2H); 13C NMR (125 MHz, DMSO- d) ppm 171.9, 130.0, 116.8, 116.5, 107.6, 105.0, 49.4, 33.6, 22.8; HRMS (El): Exact mass calcd for C9H10N2O2: [M]+l78.0742, found 178.0743.
[00296]
Figure imgf000071_0003
[00297] Cyanomethyl 3-(4-aminophenyQpropanoate [3). Prepared according to the general procedure using 3-(4-aminophenyl)propanoic acid (109 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (123 mg, 55%). 1H NMR (500 MHz, CDC13) d 6.98 (d, j = 8.2 Hz, 2H), 6.63 (d, j = 8.2 Hz, 2H), 4.68 (s, 2H), 3.48 (br s, 2H), 2.87 (t, J = 7.7 Hz, 2H), 2.67 (t, J = 7.7 Hz, 2H); 13C NMR (125 MHz, CDC13) ppm 171.4, 144.8, 129.5, 129.0, 115.3, 114.4, 48.1, 35.5, 29.8; HRMS (El): Exact mass calcd for Cl 1H12N202 [M]+ 204.0899, found 204.0897.
Figure imgf000072_0001
[00299] Cvanomethyl 3-(4-azidophenvQpropanoate [4). Prepared according to the general procedure using 3-(4-azidophenyl)propanoic acid (126 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (123 mg, 81%). 1H NMR (500 MHz, CD3CN) d 7.25 (d, J= 8.5 Hz, 2H), 7.00 (d, J= 8.4 Hz, 2H), 4.72 (s, 2H), 2.91 (t, J= 7.6 Hz, 2H), 2.70 (t, J = 7.6 Hz, 2H); 13C NMR (125 MHz, CD3CN) ppm 172.4, 139.0, 138.1, 130.8, 119.9, 116.2, 49.6, 35.4, 30.3; HRMS (El): Exact mass calcd for C11H10N4O2 [M]+ 230.0804, found 230.0794.
Figure imgf000072_0002
[00300]
[00301] Cvanomethyl 3-(3,4-dihvdroxyphenvPacrylate (51. Prepared according
Figure imgf000072_0003
to the general procedure using (£)-3-(3,4-dihydroxyphenyl)acrylic acid (59 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) and dichloromethane (0.2 mL). The product was obtained as a pink solid (41 mg, 57%). 1H-NMR (500 MHz, DMSO- d) d 9.71 (s, 1H), 9.20 (s, 1H), 7.61 (m, 1H), 7.10 (d, J = 1.8 Hz, 1H), 7.07 (dd, J = 8.3, 1.7 Hz, 1H), 6.78 (d, J = 8.4 Hz, 1H), 6.35 (d, J= 16.3 Hz, 1H), 5.06 (s, 2H); 13C NMR (125 MHz, DMSO- d) ppm 165.9, 149.5, 147.9, 146.1, 125.6, 122.5, 116.7, 116.2, 115.6, 112.0, 49.3; HRMS (El): Exact mass calcd for C11H9N04: [M]+ 219.0532, found 219.0531.
[00302]
Figure imgf000073_0001
[00303] Cvanomethyl (ip-3-(lH-pyrrol-2y0acrylate [6). Prepared according to the general procedure using (£)-3-(l/7-pyrrol-2-yl)acrylic acid (45 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) and dichloromethane (0.2 mL). The product was obtained as a brown solid (24 mg, 43%). 1H-NMR (500 MHz, DMSO-<76) d 11.65 (s, 1H), 7.56 (d, J = 15.6 Hz, 1H), 7.11 (m, 1H), 6.67 (m, 1H), 6.24 (d, j = 15.8 Hz, 1H), 6.22-6.20 (m, 1H), 5.02 (s, 2H); 13C NMR (125 MHz, DMSO- d) ppm 166.2, 137.3, 128.4, 125.0, 116.8, 116.7, 110.9, 107.8, 49.2; HRMS (El): Exact mass calcd for C9H8N202: [M]+ 176.0586, found 176.0586.
[00304]
Figure imgf000073_0002
[00305] Cyanomethyl 4-nitrobenzoate [7). Prepared according to the general procedure using 4-nitrobenzoic acid (110 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a beige solid (69 mg, 51%). 1H NMR (500 MHz, CDC13) d 8.34 (d, J = 8.9 Hz, 2H), 8.26 (d, j = 9.0 Hz, 2H), 5.03 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 163.2, 151.2, 133.1, 131.2, 123.9, 113.8, 49.5; HRMS (El): Exact mass calcd for C9H6N204 [M]+ 206.03276, found 206.03188.
Figure imgf000074_0001
[00306]
[00307] Cvanomethyl 4-cvanobenzoate [8). Prepared according to the general procedure using 4-cyanobenzoic acid (97 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (101 mg, 82%). 1H MR (500 MHz, CDC13) d 8.18 (d, J = 8.5 Hz, 2H), 7.80 (d, j = 8.5 Hz, 2H), 5.01 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 163.4, 132.5, 131.6, 130.5, 124.8, 117.6, 113.9, 49.4; HRMS (El): Exact mass calcd for C10H6N2O2 [M]+ 186.0429, found 186.0426.
Figure imgf000074_0002
[00308]
[00309] Cvanomethyl 4-azidobenzoate [9). Prepared according to the general procedure using 4-azidobenzoic acid (108 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (89 mg, 67%). 1H NMR (500 MHz, CD3CN) d 8.02 (d, J = 8.7 Hz, 2H), 7.17 (d, J= 8.7 Hz, 2H), 4.97 (s, 2H); 13C NMR (125 MHz, CD3CN) ppm 165.2, 146.8, 132.4, 125.6, 120.2, 116.2, 50.3; HRMS (El): Exact mass calcd for C9H6N402 [M]+ 202.0491, found 202.0487.
Figure imgf000075_0001
[00310]
[00311] Cvanomethyl 3-formylbenzoate 1101. Prepared according to the general procedure using 3-formylbenzoic acid (99 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a clear oil (95 mg, 69%). 1H NMR (500 MHz, CDC13) d 10.09 (s, 1H), 8.55 (t, J= I .Ί Hz, 1H), 8.32 (d, J = 7.8 Hz, 1H), 8.16 (d, j= 7.7 Hz, 1H), 7.69 (t, j= 7.7 Hz, 1H), 5.02 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 190.9, 163.9, 136.7, 135.4, 134.3, 131.4, 129.7, 129.0, 114.1, 49.2; HRMS (El): Exact mass calcd for C10H6NO3 [M]+ 189.0347, found 189.0344.
Figure imgf000075_0002
[00312]
[00313] Cyanomethyl 3-(nitromethyPbenzoate [111. Prepared according to the general procedure using 3-bromobenzoic acid (500 mg, 2.49 mmol), triethylamine (520 pL, 3.74 mmol), chloroacetonitrile (188 pL, 2.99 mmol) and dichloromethane (2.5 mL). The product was obtained as a white oily solid (579 mg, 97%). 1H NMR (500 MHz, CDC13) d 8.20 (dd, J = 1.8, 1.8 Hz, 1H), 8.00 (ddd, J =7.8, 1.7, 1.1 Hz, 1H), 7.76 (ddd, j = 8.0, 2.0, 1.1 Hz, 1H), 7.38 (dd, J = 7.9, 7.9 Hz, 1H), 4.97 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 163.5, 136.9, 132.7, 130.2, 129.6, 128.4, 122.6, 114.2, 49.0; HRMS (El): Exact mass calcd for C9H6N02Br [M]+ 238.95818, found 238.95761. According to literature procedure, to a flame-dried glass vial under an argon atmosphere was added cyanomethyl 3-bromobenzoate (192 mg, 0.80 mmol), K3P04 (204 mg, 0.96 mmol), XPhos (23.9 mg, 0.05 mmol), Pd2dba3 (18.3 mg, 0.02 mmol), nitromethane (430 pL, 8.0 mmol) and dioxane (3.6 mL). The reaction mixture was stirred at 70 °C for 24 h. After cooling to room temperature, the mixture was diluted with CH2C12 and washed with 1 M HC1. The organic phase was dried (MgS04) and concentrated. Flash column chromatography (Si02, 10-35% ethyl acetate in hexanes) yielded the product as a yellow oil (120 mg, 68%). 1H NMR (500 MHz, CDC13) d 8.16 (s, 1H), 8.15 (d, J= 8.7 Hz, 1H), 7.74 (d, J= 7.8 Hz, 1H), 7.59 (dd, J= 7.7, 7.7 Hz, 1H), 5.51 (s, 2H), 4.99 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 164.0, 135.5, 131.6, 131.5, 130.3, 129.7, 128.9, 114.2, 79.1, 49.1; HRMS (Cl): Exact mass calcd for C10H9N2O4 [M+H]+ 221.0562, found 221.0558.
Figure imgf000076_0001
[00315] Cvanomethyl 2-fluorobenzoate (121. Prepared according to the general procedure using 2-fluorobenzoic acid (92 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (66 mg, 56%). 1H NMR (500 MHz, CDC13) d 7.98 (td, J= 7.5, 1.8 Hz, 1H), 7.61 (tdd, J = 7.0, 5.9, 3.3 Hz, 1H), 7.26 (td, 7 = 7.7, 1.1 Hz, 1H), 7.19 (ddd, J = 10.7, 8.4, 1.1 Hz, 1H), 4.98 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 162.6 (d, 37CF = 3.6 Hz), 162.2 (d, 17CF = 262.4 Hz), 135.9 (d, 37CF = 9.1 Hz), 132.3, 124.2 (d, 37CF = 4.0 Hz), 117.2 (d, 2JCF = 21.9 Hz), 116.3 (d, 2JCF = 9.3 Hz), 114.2, 48.8; HRMS (El): Exact mass calcd for C9H6FN02 [M]+ 179.0383, found 179.0383.
Figure imgf000077_0001
[00316]
[00317] Cvanomethyl 2-iodobenzoate 1131. Prepared according to the general procedure using 2-iodobenzoic acid (164 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (129 mg, 68%). 1H NMR (500 MHz, CDC13) d 8.05 (dd, J = 8.0, 1.2 Hz, 1H), 7.88 (dd, 7 = 7.8, 1.7 Hz, 1H), 7.45 (td, J = 7.6, 1.2 Hz, 1H), 7.23 (td, J = 7.7, 1.7 Hz, 1H), 4.97 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 164.4, 141.9, 133.8, 132.2, 131.6, 128.1, 114.1, 94.7, 49.1; HRMS (El): Exact mass calcd for C9H6IN02 [M]+ 286.9443, found 286.9448.
[00318]
Figure imgf000077_0002
[00319] Cvanomethyl 2-formylbenzoate 1141. Prepared according to the general procedure using 2-formylbenzoic acid (150 mg, 1.00 mmol), trimethylamine (153 pL, 1.10 mmol), chloroacetonitrile (191 pL, 3.00 mmol) and dichloromethane (2.0 mL). The product was obtained as a clear oil (146 mg, 77%). 1H MR (500 MHz, CDC13) d 10.58 (s, 1H), 7.99 (d, J = 7.5 Hz, 2H), 7.73 (m, 2H), 5.01 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 191.2, 164.7, 137.2, 133.5, 133.2, 130.5, 129.4, 124.7, 114.0, 49.3; HRMS (El): Exact mass calcd for C10H6NO3 [M]+ 189.0348, found 189.0363.
Figure imgf000078_0001
[00320]
[00321] Cvanomethyl 4-methoxybenzoate (151. Prepared according to the general procedure using 4-methoxybenzoic acid (100 mg, 0.66 mmol), trimethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (102 mg, 81%). 1H NMR (500 MHz, CDC13) d 8.01 (d, J = 9.0 Hz, 2H), 6.95 (d, j = 8.9 Hz, 2H), 4.93 (s, 2H), 3.88 (s, 3H); 13C NMR (125 MHz, CDC13) ppm 164.6, 164.3, 132.2, 120.1, 114.7, 114.0, 55.5, 48.6; HRMS (El): Exact mass calcd for C10H9NO3 [M]+ 191.0582, found 191.0581.
Figure imgf000078_0002
[00322]
[00323] Cyanomethyl 4-ethynylbenzoate (161. Prepared according to the general procedure using 4-ethynylbenzoic acid (96 mg, 0.66 mmol), trimethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (87 mg, 76%). 1H NMR (500 MHz, CDC13) d 8.02 (d, J = 8.5 Hz, 2H), 7.59 (d, j = 8.4 Hz, 2H), 4.97 (s, 2H), 3.29 (s, 1H); 13C NMR (125 MHz, CDC13) ppm 164.3, 132.4, 129.9, 128.1, 127.7, 114.3, 82.4, 81.0, 49.0; HRMS (El): Exact mass calcd for C11H7N02 [M]+ 185.0477, found 185.0476. [00324]
Figure imgf000079_0001
[00325] Cvanomethyl 4-(hydroxymethyBbenzoate [17). Prepared according to the general procedure using 4-(hydroxymethyl)benzoic acid (500 mg, 3.29 mmol), triethylamine (700 pL, 4.94 mmol), chloroacetonitrile (266 pL, 3.95 mmol) and dichloromethane (1.2 mL). The product was obtained as a white solid (470 mg, 75%). 1H NMR (500 MHz, CDC13) d 8.03 (d, J = 8.0 Hz, 1H), 7.47 (d, J = 7.9 Hz, 1H), 4.96 (s, 2H), 4.79 (s, 2H), 2.10 (br s, 1H); 13C NMR (125 MHz, CDC13) ppm 164.8, 147.4, 130.3, 126.9, 126.6, 114.5, 64.4, 48.8; HRMS (ESI): Exact mass calcd for Cl0H9NNaO3 [M+Na]+ 214.0480, found 214.0486.
[00326]
Figure imgf000079_0002
[00327] Cyanomethyl 4-aminobenzoate . Prepared according to the general
Figure imgf000079_0003
procedure using 4-(Boc-amino)benzoic acid (78 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) in DMF (0.4 mL). The product was obtained as a white solid (39 mg, 68%) 1H-NMR (500 MHz, DMSO- d) d 7.66 (td, J = 8.7 Hz, 2H), 6.59 (td, J = 8.6 Hz, 2H), 6.18 (s, 2H), 5.08 (s, 2H); 13C NMR (125 MHz, DMSO- d) ppm 165.1, 154.9, 132.2, 117.0, 113.9, 113.3, 49.3; Exact mass calcd for C9H8N202 [M]+ 176.0586, found 176.0585.
Figure imgf000080_0001
[00328]
[00329] Cvanomethyl 3-hvdroxy-4-nitrobenzoate (191. Prepared according to the general procedure using 3 -hydroxy -4-nitrobenzoic acid (200 mg, 1.09 mmol), triethylamine (232 pL, 1.64 mmol), chloroacetonitrile (88 pL, 1.31 mmol) and dichloromethane (1.2 mL). The product was obtained as a yellow solid (92 mg, 38%). 1H NMR (500 MHz, CDC13) d 10.51 (s, 1H), 8.23 (d, j = 8.8 Hz, 1H), 7.87 (d, 7 = 1.9 Hz, 1H), 7.65 (dd, 7 = 8.8, 1.8 Hz, 1H), 5.00 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 162.9, 154.7, 136.4, 135.4, 125.7, 122.3, 120.8, 113.7, 49.5; HRMS (El): Exact mass calcd for C9H6N205 [M]+ 222.0276, found 222.0272.
[00330]
Figure imgf000080_0002
[00331] Cvanomethyl 3-amino-4-nitrobenzoate [201. Prepared according to the general procedure using 3-amino-4-nitrobenzoic acid (198 mg, 1.09 mmol), triethylamine (232 pL, 1.64 mmol), chloroacetonitrile (88 pL, 1.31 mmol) and dichloromethane (1.2 mL). The product was obtained as a yellow solid (210 mg, 87%). 1H NMR (500 MHz, 7d-DMSO) d 8.10 (dd, J = 9.0, 1.0 Hz, 1H), 7.74 (d, j = 1.9 Hz, 1H), 7.65 (s, 2H), 7.09 (dd, j = 8.9, 1.9 Hz, 1H), 5.24 (s, 2H); 13C NMR (125 MHz, 76-DMSO) ppm 163.7, 145.7, 133.6, 132.5, 126.5, 121.5, 115.9, 114.5, 50.4; HRMS (ESI): Exact mass calcd for C9H7N3Na04 [M+Na]+ 244.0334, found 244.0335.
Figure imgf000081_0001
[00332]
[00333] Cvanomethyl 4-amino-3-nitrobenzoate [21). Prepared according to the general procedure using 4-amino-3-nitrobenzoic acid (198 mg, 1.09 mmol), triethylamine (232 pL, 1.64 mmol), chloroacetonitrile (88 pL, 1.31 mmol) and dichloromethane (1.2 mL). The product was obtained as a yellow solid (120 mg, 49%). 1H NMR (500 MHz, d6- acetone) d 8.74 (d, J = 1.9 Hz, 1H), 7.96 (dd, J = 8.9, 2.0 Hz, 1H), 7.68 (s, 2H), 7.19 (d, J = 9.0 Hz, 1H), 5.17 (s, 2H); 13C NMR (125 MHz, d6- acetone) ppm 164.3, 150.2, 136.0, 129.9, 120.3, 120.2, 116.3, 116.2, 49.9; HRMS (ESI): Exact mass calcd for C9H7N3Na04 [M+Na]+ 244.0334, found 244.0329.
[00334]
Figure imgf000081_0002
[00335] Cvanomethyl isonicotinate [22). Prepared according to the general procedure using isonicotinic acid (81 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a red oil (50 mg, 47%). 1H NMR (500 MHz, CDC13) d 8.85 (d, J = 3.9 Hz, 2H), 7.87 (d, J = 6.1 Hz, 2H), 5.01 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 163.7, 150.9, 135.0, 122.9, 113.8, 49.4; HRMS (El): Exact mass calcd for C8H6N204 [M]+ 162.0429, found 162.0430. [00336]
Figure imgf000082_0001
[00337] Cvanomethyl 2-fluoroisonicotinate [23). Prepared according to the general procedure using 2-fluoroisonicotinic acid (93 mg, 0.66 mmol), trimethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (102 mg, 86%). 1H NMR (500 MHz, CDC13) d 8.43 (d, J= 5. \ Hz, 1H), 7.77 (m, 1H), 7.52 (dd, J = 2.6, 1.2 Hz, 1H), 5.02 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 164.4 (d, 1 CF = 241.1 Hz), 162.7 (d, 4 CF = 4.5 Hz), 149.4 (d, 3 CF = 14.6 Hz), 140.6 (d, 3 CF = 7.8 Hz), 121.1 (d, 4 CF = 4.9 Hz), 113.8, 110.4 (d, 2 CF = 39.7 Hz), 49.9; HRMS (El): Exact mass calcd for C8H5FN202 [M]+ 180.0335, found 180.0332.
Figure imgf000082_0002
[00338]
[00339] Cvanomethyl 2-oxo- chromene-3-carboxylate [24). Prepared according
Figure imgf000082_0003
to the general procedure using 2-oxo-2i7-chromene-3 -carboxylic acid (125 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a white solid (118 mg, 78%). 1H NMR (500 MHz, CDC13) d 8.67 (s, 1H), 7.72 (dd, J = 8.0, 7.5 Hz, 1H), 7.67 (d, J = 7.2 Hz, 1H), 7.40 (d, J = 8.0 Hz, 1H), 7.39 (dd, J = 8.0, 7.5 Hz, 1H), 4.99 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 161.5, 156.0, 155.5, 150.9, 135.5, 130.0, 125.2, 117.5, 117.0, 115.7, 113.9, 49.3; HRMS (El): Exact mass calcd for C12H7NN04 [M]+ 229.0375, found 229.0382.
[00340]
Figure imgf000083_0001
[00341] Cvanomethyl l//-Dyrrole-2-carboxylate [251. Prepared according to the general procedure using 1 //-pyrrol e-2-carboxylic acid (37 mg, 0.33 mmol), triethylamine (70 pL, 0.5 mmol), chloroacetonitrile (26.5 pL, 0.4 mmol) and dichloromethane (0.2 mL). The product was obtained as a white solid (24 mg, 49%). 1H-NMR (500 MHz, DMSO-76) d 12.15 (s, 1H), 7.13 (m, 1H), 6.91 (m, 1H), 6.23 (m, 1H), 5.12 (s, 2H); 13C NMR (125 MHz, DMSO-76) ppm 159.4, 126.2, 120.3, 117.2, 116.7, 110.6, 49.2; ESI-MS; calculated mass for C7H6N202: [M]+ 150.0429, found 150.0432.
[00342]
Figure imgf000083_0002
[00343] Cyanomethyl thiophene-2-carboxylate [261. Prepared according to the general procedure using thiophene-2-carboxylic acid (84 mg, 0.66 mmol), triethylamine (140 pL, 0.99 mmol), chloroacetonitrile (53 pL, 0.79 mmol) and dichloromethane (0.7 mL). The product was obtained as a brown oil (72 mg, 79%). 1H NMR (500 MHz, CDC13) d 7.89 (dd, J = 3.8, 1.3 Hz, 1H), 7.67 (dd, 7 = 5.0, 1.3 Hz, 1H), 7.15 (dd, J = 4.9, 3.8 Hz, 1H), 4.94 (s, 2H); 13C NMR (125 MHz, CDC13) ppm 160.4, 135.2, 134.3, 130.7, 128.2, 114.2, 48.7; HRMS (El): Exact mass calcd for C7H5N02S [M]+ 167.0041, found 167.0038. [00344] General procedure for formation of ABT ester. According to standard procedure3, to a glass vial equipped with a stir bar was added /cvv-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (ABT) (1 equiv.), carboxylic acid (1.4 equiv.), CH2C12 (0.3 M), DMAP (2.8 equiv.), and EDC»HCl (2.8 equiv.). After stirring for 3 h at 25 °C, the reaction was evaporated under reduced pressure, diluted with EtOAc, and washed with 1M HC1 and saturated NaHC03. The organic phase was dried and concentrated to provide the crude Bocprotected product. The Boc-protected product was purified by flash column chromatography. The purified product was dissolved in 4M HCEdioxane and stirred for 1 h. Concentration under reduced pressure provided the product in sufficient purity.
Figure imgf000084_0001
[00345]
[00346] 2-(4-(Y(lH-pyrrole-2-carbonvDthio)methvDbenzamido)ethan-l-aminium chloride [25a). Prepared according to the general procedure using lH-pyrrole-2-carboxylic acid (50 mg, 0.45 mmol), ABT (100 mg, 0.32 mmol), DMAP (109 mg, 0.9 mmol), EDC»HCl (171 mg, 0.9 mmol) and dichloromethane (2.0 mL). Flash column chromatography (Si02 30%-50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (60 mg, 15%). Bocdeprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-25a: 1H NMR (500 MHz, CDC13) d 9.26 (s, 1H), 7.77 (d, J = 7.9 Hz, 2H), 7.43 (d, J = 8.1 Hz, 2H), 7.14 (s, 1H), 7.03 (d, J = 11.4 Hz, 2H), 6.29 (d, J = 3.0 Hz, 1H), 4.97 (s, 1H), 4.31 (s, 2H), 3.57 (q, J = 5.1 Hz, 2H), 3.45 - 3.38 (m, 2H), 1.44 (s, 9H). 13C NMR (125 MHz, CDC13) ppm 180.48, 167.37, 133.06, 129.71, 129.02, 127.32, 123.84, 115.37, 110.92, 42.09, 40.00, 31.91, 28.34. HRMS (ESI): Exact mass calcd for C20H26N3O4S [M+H]+ 404.1644, found 404.1632.
[00347]
Figure imgf000085_0001
[00348] 2-(4-(((thiophene-2-carbonyl)thio)methyl)benzamido)ethan-l-aminium chloride (26a). Prepared according to the general procedure using thiophene-2-carboxylic acid (57 mg, 0.45 mmol), ABT (100 mg, 0.32 mmol), DMAP (109 mg, 0.9 mmol), EDC»HCl (171 mg, 0.9 mmol) and dichloromethane (2.0 mL). Flash column chromatography (Si02 30%-50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (150 mg, 76%). Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-26a: 1H NMR (500 MHz, CDC13) d 7.84 - 7.75 (m, 3H), 7.65 (dd, J = 4.9, 1.1 Hz, 1H), 7.44 (d, J = 8.1 Hz, 2H), 7.22 ( br, 1H), 7.13 (dd, J = 4.9, 3.9 Hz, 1H), 5.00 (s, 1H), 4.35 (s, 2H), 3.56 (q, J = 5.1 Hz, 2H), 3.45 - 3.37 (m, 2H), 1.44 (s, 9H). 13C NMR (125 MHz, CDC13) ppm 182.92, 167.32, 157.50, 141.52, 141.06, 133.22, 132.98, 131.34, 129.11, 128.38, 128.32, 127.96, 127.39, 126.09, 42.12, 39.99, 32.99, 28.34. HRMS (ESI): Exact mass calcd for C20H25N2O4S2 [M+H]+ 421.1256, found 421.1249.
[00349]
Figure imgf000086_0001
[00350] 2-(4-((Pentanoylthio)methyl)benzamido)ethan-l-aminium chloride (G).
Prepared according to the general procedure using valeric acid (47 pL, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC»HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%-50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (66 mg, 56%). Bocdeprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-G: 1H NMR (500 MHz, CDC13) d 7.73 (d, J= 7.9 Hz, 2H), 7.30 (d, J = 8.0 Hz, 2H), 7.28 (br s, 1H), 5.14 (br s, 1H), 4.11 (s, 2H), 3.52 (q, 5.3 Hz, 2H), 3.37 (m, 2H), 2.56 (t, J = 7.5 Hz, 2H), 1.63 (p, J = 7.5 Hz, 2H), 1.40 (s, 9H), 1.33 (p, J = 7.5 Hz, 2H), 0.89 (t, J = 7.4 Hz, 3H); 13C NMR (125 MHz, CDC13) ppm 198.6, 167.4, 157.5 141.4, 133.0, 128.8, 127.3, 79.9, 43.5, 42.0, 39.9, 32.7, 28.3, 27.6, 22.0, 13.7; HRMS (ESI): Exact mass calcd for C20H31N2O4S [M+H]+ 395.2005, found 395.2009.
Figure imgf000086_0002
[00351]
[00352] 2-(4-((Pent-4-enoylthio)methyl)benzamido)ethan-l-aminium chloride (27).
Prepared according to the general procedure using 4-pentenoic acid (44 pL, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC»HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%- 50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (61 mg, 52%). Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-15: 1H NMR (500 MHz, CDC13) d 7.73 (d, J = 8.0 Hz, 2H), 7.30 (d, J = 8.3 Hz, 2H), 7.29 (br s, 1H), 5.77 (ddt, j= 16.8, 10.2, 6.5 Hz, 1H), 5.16 (br s, 1H), 5.04 (dd, J = 17.1, 1.7 Hz, 1H), 4.99 (dd, J = 10.2, 5.1 Hz, 1H), 4.12 (s, 2H), 3.52 (q, 5.2 Hz, 2H), 3.37 (m, 2H), 2.65 (dd, 7= 8.3, 6.7 Hz, 2H), 2.40 (tdd, J= 8.5, 5.9, 3.5 Hz, 2H), 1.40 (s, 9H); 13C NMR (125 MHz, CDC13) ppm 197.8, 167.4, 157.5, 141.3, 135.9, 133.0, 128.8, 127.3, 115.9, 79.9, 42.8, 42.0, 39.9, 32.7, 29.3, 28.3; HRMS (ESI): Exact mass calcd for C20H29N2O4S [M+H]+ 393.1848, found 393.1850.
Figure imgf000087_0001
[00353]
[00354] 2-(4-(((3-Cyanopropanoyl)thio)methyl)benzamido)ethan-l-aminium chloride (28). Prepared according to the general procedure using 3-cyanopropanoic acid (43 mg, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC'HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%- 50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (42 mg, 36%). Bocdeprotection with 4M HChdioxane provided the product, which was used without further purification and characterization. Boc-16: 1H NMR (500 MHz, CDC13) d 7.75 (d, J = 7.9 Hz, 2H), 7.32 (d, J = 8.2 Hz, 2H), 7.27 (br s, 1H), 5.07 (br s, 1H), 4.18 (s, 2H), 3.53 (q, 5.1 Hz, 2H), 3.38 (q, J= 5.8 Hz, 2H), 2.94 (dd, J= 7.7, 6.7 Hz, 2H), 2.68 (dd, J= 7.7, 6.7 Hz, 2H), 1.42 (s, 9H); 13C NMR (125 MHz, CDC13) ppm 194.5, 167.2, 157.5, 140.3, 133.4, 128.9, 127.4, 118.0, 80.0, 42.1, 39.9, 38.3, 33.0, 28.3, 12.8; HRMS (ESI): Exact mass calcd for C19H26N304S [M+H]+ 392.1644, found 392.1658.
[00355]
Figure imgf000088_0001
[00356] 2-(4-(((4-Methoxy-4-oxobutanoyl)thio)methyl)benzamido)ethan-l- aminium chloride (29). Prepared according to the general procedure using monomethyl succinic acid (57 mg, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC»HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%-50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (57 mg, 45%). Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-17: 1H NMR (500 MHz, CDC13) d 7.73 (d, J= 7.9 Hz, 2H), 7.30 (d, J= 8.0 Hz, 2H), 7.29 (br s, 1H), 5.14 (br s, 1H), 4.13 (s, 2H), 3.67 (s, 3H), 3.51 (q, 5.3 Hz, 2H), 3.37 (m, 2H), 2.89 (t, J = 6.9 Hz, 2H), 2.66 (t, J= 6.9 Hz, 2H), 1.41 (s, 9H); 13C NMR (125 MHz, CDC13) ppm 196.8, 172.3, 167.3, 157.5, 141.0, 133.1, 128.9, 127.3, 79.9, 51.9, 42.0, 39.9, 38.1, 32.8, 28.9, 28.3; HRMS (ESI): Exact mass calcd for C20H29N2O6S [M+H]+ 425.1746, found 425.1759.
[00357]
Figure imgf000088_0002
[00358] 2-(4-(((3-Nitropropanoyl)thio)methyl)benzamido)ethan-l-aminium chloride (30). Prepared according to the general procedure using 3-nitropropionic acid (51 mg, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC'HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%- 50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (57 mg, 46%). Bocdeprotection with 4M HChdioxane provided the product, which was used without further purification and characterization. Boc-13: 1H NMR (500 MHz, CDC13) d 7.76 (d, J = 8.0 Hz, 2H), 7.33 (d, j= 8.2 Hz, 2H), 7.19 (br s, 1H), 4.97 (br s, 1H), 4.70 (t, j= 6.2 Hz, 2H), 4.19 (s, 2H), 3.54 (q, 5.2 Hz, 2H), 3.40 (m, 2H), 3.25 (t, j = 6.2 Hz, 2H), 1.43 (s, 9H); 13C NMR (125 MHz, CDC13) ppm 194.0, 167.2, 157.6, 140.3, 133.4, 129.0, 127.4 80.1, 69.3, 42.2, 39.9, 39.3, 33.0, 28.3; HRMS (ESI): Exact mass calcd for C18H26N306S [M+H]+ 244.0334, found 412.1531.
[00359]
Figure imgf000089_0001
[00360] 2-(4-(((Cyclohexanecarbonyl)thio)methyl)benzamido)ethan-l-aminium chloride (31). Prepared according to the general procedure using cyclohexanecarboxylic acid (53 pL, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC'HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%- 50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (77 mg, 61%). Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-12: 1H NMR (500 MHz, CDC13) d 7.72 (d, J =
8.1 Hz, 2H), 7.30 (d, j = 8.2 Hz, 2H), 7.29 (br s, 1H), 5.15 (br s, 1H), 4.08 (s, 2H), 3.52 (q,
5.2 Hz, 2H), 3.37 (m, 2H), 2.48 (tt, J = 11.5, 3.6 Hz, 1H), 1.90 (dd, J = 12.9, 3.3 Hz, 2H), 1.76 (dt, J = 12.7, 3.4 Hz, 2H), 1.69-1.57 (m, 1H), 1.45 (qd, j = 12.0, 3.1 Hz, 2H), 1.40 (s, 9H), 1.31-1.12 (m, 3H); 13C NMR (125 MHz, CDC13) ppm 202.0, 167.4, 157.4, 141.6, 132.9, 128.8, 127.3, 79.9, 52.7, 41.9, 39.9, 32.3, 29.5, 28.3, 25.5, 25.4; HRMS (ESI): Exact mass calcd for C22H33N204S [M+H]+ 421.2161, found 421.2151.
[00361]
Figure imgf000090_0001
[00362] 2-(4-(((2-Bromo-2-methylpropanoyl)thio)methyl)benzamido)ethan-l- aminium chloride (32). Prepared according to the general procedure using a- bromoisobutyric acid (72 mg, 0.43 mmol), ABT (93 mg, 0.30 mmol), DMAP (105 mg, 0.86 mmol), EDC»HCl (165 mg, 0.86 mmol) and dichloromethane (1.0 mL). Flash column chromatography (Si02 30%-50% ethyl acetate in hexanes) yielded the Boc-protected product as a white solid (93 mg, 68%). Boc-deprotection with 4M HCEdioxane provided the product, which was used without further purification and characterization. Boc-14: 1H NMR (500 MHz, CDC13) d 7.74 (d, J = 8.0 Hz, 2H), 7.33 (d, J= 8.4 Hz, 2H), 7.29 (br s, 1H), 5.16 (br s, 1H), 4.12 (s, 2H), 3.52 (q, 5.3 Hz, 2H), 3.38 (m, 2H), 1.93 (s, 6H), 1.40 (s, 9H); 13C NMR (125 MHz, CDC13) ppm 199.1, 167.4, 157.5, 140.4, 133.2, 128.9, 127.4, 79.9, 63.9, 42.0, 39.9, 34.2, 31.3 28.3; HRMS (ESI): Exact mass calcd for Cl9H28BrN204S [M+H]+ 459.0953, found 459.0964.
[00363] Preparation of DNA templates for RNAs
[00364] The DNA templates were synthesized by using the following primers as previously described4. [00365] 1) Extension (Generation of Fx derivatives by extending different 3’-ends.
[00366] A. Flexizymes
Fx_F:5’-GTAATACGACTCACTATAGGATCGAAAGATTTCCGC-3’ (SEQ ID NO: l) eFx Rl : 5’ -ACCT AACGCTAATCCCCTTTCGGGGCCGCGGAAATCTTTCGATCC-3’ (SEQ ID NO:2) dFx Rl : 5’ -ACCT AACGCC ATGTACCCTTTCGGGGATGCGGAAATCTTTCGATCC-3’ (SEQ ID NO:3) aFx Rl : 5’ -ACCT AACGCC ACTT ACCCCTTTCGGGGGTGCGGAAATCTTTCGATCC-3’ (SEQ ID NO:4)
[00367] 0.5 pL of 200 mM Fx_F primer and 0.5 pL of 200 mM of Fx_Rl primer
(eFx Rl, dFx Rl, and aFx Rl were used for eFx, dFx, and aFx generation, respectively) were added to 99 pL of a master mix containing 9.9 pL of 10X PCR buffer (500 mM KC1, 100 mM Tris-HCL (pH 9.0), and 1 % of Triton X-100), 0.99 pL of 250 mM MgCl2, 4.95 pL of 5 mM dNTPs, 0.66 pL of Taq DNA polymerase (NEB), and 82.5 pL of water in a PCR tube. The thermocycling conditions were: 1 min at 95 °C followed by 5 cycles of 50 °C for 1 min and 72 °C for 1 min. The sizes of products were checked in 3 % (w/v) agarose gel.
[00368] 2) PCR amplification
[00369] A. Flexizyme
[00370] 5 pL of of the extension product was used as a PCR template. 200 pL of 5X
OneTaq® Standard buffer, 20 pL of 10 mM dNTP, 5 pL of 200 pM Fx_T7F primer and 5 pL of 200 pM Fx_R2 (eFx_R2, dFx_R2, and aFx_R2 were used for eFx, dFx, and aFx generation, respectively), 10 pL of OneTaq® polymerase and 755 pL of nuclease-free water was mixed in a 1.5 mL microcentrifuge tube. The mixture was transferred to 10 PCR tubes and the DNA was amplified by the following thermocycling conditions: 1 min at 95 °C followed by 12 cycles of 95 °C for 40 s and 50 °C for 40 s, and 72 °C for 40 s. Products were checked in 3 % (w/v) agarose gel.
Fx_T7F : 5’-GGCGTAATACGACTCACTATAG-3’ (SEQ ID NO:5) eFx_R2: 5’-ACCTAACGCTAATCCCCT-3’ (SEQ ID NO:6) dFx_R2: 5’-ACCTAACGCCATGTACCCT-3’ (SEQ ID NO:7) aFx_R2: 5’ - ACCTAACGCC ACTTACCCC-3’ (SEQ ID NO:8)
[00371] Sequence of the final DNA templates produced by the PCR reactions eFx
5’- GTAATACGACTCACTATAGGATCGAAAGATTTCCGCGGCCCCGAAAGGGGAT
TAGCGTTAGGT-3’ (SEQ ID NO: 9) dFx
5’ -GTAATACGACTCACTATAGGATCGAAAGATTTCCGCATCCCCGAAAGGGTACATGGC
GTTAGGT-3’ (SEQ ID: 10) aFx
5’ -GTAATACGACTCACTATAGGATCGAAAGATTTCCGCACCCCCGAAAGGGGTAAGTG GCGTTAGGT-3’ (SEQ ID NO: 11)
[00372] B. tRNA [00373] The DNA template for tRNA preparation was directly amplified from the full- length oligo by a pair of the primers corresponding to both 5’- and 3’ -ends of the template (GluE2_fwd: 5’-GTAATACGACTCACTATAGTCC-3’ (SEQ ID NO: 19); GluE2_rev: 5’- TGGCGTCCCCTAGGGGATTCG-3’ (SEQ ID NO:20)). 5 pL of the DNA template (100 mM) for tRNA was mixed with 5 pL of 200 pM GluE2_fwd and Glu_E2_rev, 200 pL of 5X HF buffer, 10 pL of Phusion polymerase (NEB), 20 pL of 10 mM dNTPs, and 755 pL of water. The thermocycling conditions were: 1 min at 95 °C followed by 35 cycles of 95 °C for 5 sec, 60 °C for 10 sec, and 72 °C 10 sec, and final elongation at 72 °C for 1 min. The sizes of products were checked in 3 % (w/v) agarose gel.
[00374] Sequence of the final DNA templates produced by the PCR reactions
GluE2_GGU
5'-
GTAATACGACTCACTATAGTCCCCTTCGTCTAGAGGCCCAGGACACCGCCTTGGT AAGGCGGTAACAGGGGTTCGAATCCCCTAGGGGACGCCA (SEQ ID NO: 12) fMet CAU 5'-
GTAATACGACTCACTATAGGCGGGGTGGAGCAGCCTGGTAGCTCGTCGGGCTCA TAACCCGAAGATCGTCGGTTCAAATCCGGCCCCCGCAACCA (SEQ ID NO: 13) [00375] 3) DNA precipitation
[00376] PCR products were combined, extracted using phenol/chloroform/isoamyl alcohol and precipitated and washed with EtOH. Sample were dried at room temperature for 5 min and resuspended in 100 pL nuclease-free water. DNA concentrations were determined spectrophotometrically (Thermo Scientific NanoDrop 2000C spectrophotometer).
[00377] In-vitro _ transcription. The microhelix (5’- rGrGrCrUrCrUrGrUrUrCrGrCrArGrArGrCrCrGrCrCrA-3’ (SEQ ID NO:2l)) was obtained from Integrated DNA Technologies (IDT) and directly used. Flexizymes and tRNAs were prepared using a HiScribe T7 high yield RNA synthesis kit (NEB). For in vitro transcription, 5 pg of DNA template was used with 10 pL of each of 10X T7 Reaction Buffer, ATP, CTP, GTP, EGTR, T7 RNA polymerase mix, and nuclease-free water upto 100 pL. The mixture was incubated at 37 °C overnight.
[00378] Digestion of DNA templates. The DNA templates were removed by adding 5 pL of DNase I (NEB) and 20 pL of DNase I reaction buffer into the 100 pL of transcription reaction products. The reaction mixture was incubated for 1 h at 37 °C.
[00379] Purification of in-vitro transcribed RNA. The digested transcription reactions were mixed with 100 pL 2x RNA loading dye4, and loaded onto a 15 % TBE-Urea gel (Invitrogen). The gel was run in Tris-Borate-EDTA (89 mM Tris, 89 mM boric acid, 2 mM EDTA, and pH 8.3) buffer at 160 V for 2.5 h at room temperature. The gel was placed on a cling film covering a 20 cm x 20 cm TLC silica gel glass plate (EMD Millipore) coated with a fluorescent indicator and the transcribed RNAs were visualized by irradiating with UV lamp (260 nm). A sheet of cling film was covered on the gel and the band with desired size was marked on the film. The RNA products were excised from the gel and added to 2 mL of water. The gels were crushed and then shaken in the cold room for 4 h. The gels were transferred to a centrifugal filter (EMD Millipore) and centrifuged at 4,000 g for 2 min. The flow-through was collected and added to the solution of 120 pL of 5 M NaCl and 5 mL of 100% EtOH and. The solution was placed in -20 °C for 16 h and centrifuged at 15,000 g for 45 min at 4 °C. The supernatant was removed and the pellet was dried for 5 min at room temperature. The dried RNA pellet was dissolved in nuclease-free water and the concentration was determined from the absorbance measured on a Thermo Scientific NanoDrop 2000C spectrophotometer.
[00380] Acylation of microhelix. The experiment using microhelix was performed using two flexizymes (eFx and aFx). The coupling reaction of activated ester with microhelix was carried out as follows: 1 pL of 0.5 M HEPES (pH 7.5) or bicine (pH 8.8), 1 pL of 10 pM microhelix, and 3 pL of nuclease-free water were mixed in a PCR tube with 1 pL of 10 pM eFx, dFx, and aFx, respectively. The mixture was heated for 2 min at 95 °C and cooled down to room temperature over 5 min. 2 pL of 300 mM MgCl2 was added to the cooled mixture and incubated for 5 min at room temperature. Followed by the incubation of the reaction mixture on ice for 2 min, 2 pL of 25 mM activated ester substrate in DMSO was then added to the reaction mixture. The reaction mixture was further incubated for 6-120 h on ice in cold room.
[00381] Acidic PAGE analysis. 1 pL of crude reaction mixture was aliquoted at a desired time point and the reaction was quenched by the aliquot with 4 pL of acidic loading buffer (150 mM NaOAc, pH 5.2, 10 mM EDTA, 0.02% BPB, 93 % formamide). The crude mixture was loaded on 20 % polyacrylamide gel containing 50 mM NaOAc (pH 5.2) without further RNA precipitation process. The electrophoresis was carried out in cold room using 50 mM NaOAc (pH 5.2) as a running buffer. The gel was stained with GelRed (Biotium) and visualized on a Bio-Rad Gel Doc XR+. The acylation yield was determined by quantifying the intensity of the microhelix bands using ImageJ (NIH).
[00382] Acylation of tRNA The acylation reaction of tRNA was carried out as follows: 2 pL of 0.5 M HEPES (pH 7.5), 2 pL of 250 pM tRNA, 2 pL of 250 pM of a Fx selected on the microhelix experiment and 6 pL of nucleasefree water were mixed in a PCR tube. The mixture was heated for 2 min at 95 °C and cooled down to room temperature over 5 min. 4 pL of 300 mM MgCl2 was added to the cooled mixture and incubated for 5 min at room temperature. Followed by the incubation of the reaction mixture on ice for 2 min, 4 pL of 25 mM activated ester substrate in DMSO was then added to the reaction mixture. The reaction mixture was further incubated for the optimal time determined on the microhelix experiment on ice in cold room.
[00383] Precipitation of tRNA Into a 1.5 mL of microcentrifuge tube containing 100 pL of EtOH and 40 pL of 0.3 M NaOAc (pH 5.2), the mixture from coupling reaction was added and mixed to quench the reaction. The mixture was centrifuged at 21,000 g for 15 min at room temperature and the supernatant was removed. The RNA pellet was washed with 50 pL of 70 % (v/v) ethanol containing 0.1 M NaOAc (pH 5.2) was resuspended into the solution by vortexing and subsequently centrifuged at 21,000 g for 5 min at room temperature. The washing step was repeated twice. After the supernatant was discarded, the pellet was resuspended in 50 pL of 70 % (v/v) ethanol resuspended and centrifuged at 21,000 g for 3 min at room temperature. The supernatant was removed and the pellet was dissolved by 1 pL of 1 mM NaOAc (pH 5.2).
[00384] In -vitro translation. The produced using the reprogrammed genetic code approach was produced by the PURExpress (D aa, D tRNA, E6840) system. 6 pg of the mis- acylted tRNA dissolved in 1 pL of 1 mM NaOAc (pH 5.2) was added into a 9 pL solution mixture containing a 2 pL of Solution A, 1 pL of tRNA, 3pL of Solution B, 1 pL of DNA template (130 ng/pL), 1 pL of nuclease-free water, and 1 pL of 5 mM amino acid mixtures in 20 mM Tris buffer (pH 7.5). The reaction mixture was incubated in 37 °C for 4 h.
[00385] Peptide purification. The peptides produced in the PEIRExpress were produced by using an affinity tag purification technique. 2 pL of MagStrep (type3) XT beads 5 % suspension (iba) was washed twice with 200 and 100 pL of Strep-Tactin XT Wash buffer (IX) in a 1.5 mL microcentrifuge tube. The buffer was discarded by placing the tube on a magnetic rack. 10 pL of PEIRExpress reaction material was mixed with the wet magnetic beads and the tube containing the mixture was placed on ice for 30 min. The mixture was vortexed for 5 sec every 10 min. The tube was placed back on a magnetic rack and the supernatant was removed. The beads were washed twice with 200 and 100 pL of the wash buffer and the buffer was discarded. The beads were mixed with 10 pL of 0.1 % SDS solution (v/v in water) and transferred to a PCR tube and heated at 95° C for 2 min. The SDS solution was separated from the beads on a 96-well magnetic rack and further analyzed by mass spectrum.
[00386] For calculation of peptide (NH2-WSHPQFEKST-OH; SEQ ID NO: 14) yield, the his-tagged enzymes resent in the PETRExpress were removed using Ni-NTA-coated magnetic beads (His-Select® Nickel magnetic agarose beads, Sigma). 2 pL of beads suspension (iba) was washed twice with 200 and 100 pL of Strep-Tactin XT Wash buffer (IX) in a 1.5 mL microcentrifuge tube. The reaction mixture was added to the beads and vortexed for 10 min at room temperature. The beads were washed on a magnetic rack and the supernatant was collected. The supernatant was added to a Cl 8 spin column (Pierce Cl 8 columns, Thermo Fisher Scientific) to remove residual nucleic acids and buffers. The column was washed twice with 20 % MeCN/water (5 % TFA) solution. The peptide was eluted using 80 % MeCN/water (5 % TFA) solution.
[00387] Characterization of peptides. 1.5 pL of the peptides purified by the strep affinity tag was mixed on a MALDI plate with 1 pL of saturated a-cyano-4-hydroxycinnamic acid (CHCA) in THF containing 0.1 % TFA. The samples were dried at room temperature for 30 min. MALDI-TOF mass spectra of the peptides were obtained on a Bruker Autoflex III using the positive reflectron mode.
[00388] Example 4 - Further Example if Substrate Synthesis
[00389] Materials and Method [00390] All reagents and solvents were commercial grade and purified prior to use when necessary. Diehl or omethane was dried by passage through a column of activated alumina
[00391] Tert- butyl (2-(4-(mercaptomethyl)benzamido)ethyl) carbamate (ABT) was prepared according to the standard procedure.3 All organic solutions were dried over MgSCri. Thin layer chromatography (TLC) was performed using glass-backed silica gel (250 pm) plates. Flash chromatography was performed on a Biotage Isolera One automated purification system. UV light, and/or the use of KMn04 were used to visualize products.
[00392] Nuclear magnetic resonance spectra (NMR) were acquired on a Bruker
Advance III-500 (500 MHz) or Varian Unity 500 (500 MHz) instrument and processed by MestReNova. Chemical shifts are measured relative to residual solvent peaks as an internal standard set to d 7.26 and d 77.0 (CDCb), and d 2.50 and d 39.5 (DMSO-i/e). Mass spectra were recorded on a Bruker AmaZon SL or Waters Q-TOF Ultima (ESI) and Impact-II or Waters 70-VSE (El), spectrometers by use of the ionization method noted.
[00393] General procedure A for formation of dinitrobenzyl esters & Boc deprotection.
To a glass vial with a stir bar was added carboxylic acid (1 equiv.), CH2CI2 (1.0 M), triethylamine (1.5 equiv.), and 3,5-dinotrobenzyl chloride (1.2 equiv.). After stirring for 16 h at room temperature, the reaction mixture was diluted with EtOAc and washed with HC1 (0.5 M aq.), NaHC03 (4 % (w/v) in water), brine, and dried over MgS04. The organic phase was concentrated to provide the crude product. The product was purified by flash column chromatography. The resulting fraction containing product was collected in a 100 mL flask and the solvent was removed under reduced pressure. 2 mL of HC1 (4N in anhydrous dioxane) was added and let stir for lh in room temperature. The resulting product was transferred to a 20 mL glass vial and dried under high vacuum overnight to give final product. [00394] General procedure B for formation of dinitrobenzyl esters & Boc deprotection.
To a flame-dried vial with septa and stir bar was added carboxylic acid (1.0 equiv.), l-ethyl- 3-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (2.0 equiv.), dimethylamino pyridine (2.0 equiv.), evacuated and flushed with N2(g) three times, then anhydrous CH2CI2 (0.1 M) was added via syringe. The reaction was then let stir for 10 minutes before dinitrobenzyl alcohol (0.1M in anhydrous CH2CI2) was added dropwise via syringe over 60 seconds. The reaction was then stirred at 22 °C for l6h. The reaction was diluted with DCM, added to a separatory funnel, rinsed with HC1 (1.0 M aq.), H2O, NaHCCh (3.0 M aq.), dried with NaSCri, filtered, then silica (S1O2) was added and condensed under reduced pressure. The compound/Silica mixture was then dry loaded and purified by silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 9: 1 - 2:8]
[00395] The resulting oil or solid was placed in a 20 mL scintillation vial with stir bar and 2 mL of HC1 (4N in anhydrous Dioxane) was added and let stir for 4h. The solution condensed under reduced pressure, then 5 mL of diethyl ether was added and the heterogenous mixture was sonicated for 5 minutes. The mixture was filtered, and the filter cake rinsed with diethyl ether. The solid was collected and dried under vacuum to give final product.
[00396] General procedure C for formation of 4-(Y2-aminoethvDcarbamovDbenzyl thioates & Boc deprotection. To a flame-dried vial with septa and stir bar was added carboxylic acid (1.0 equiv.), 1 -ethyl-3 -(3 -dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (2.0 equiv.), dimethylamino pyridine (2.0 equiv.), evacuated and flushed with N2(g) three times, then anhydrous CH2CI2 (0.1 M) was added via syringe. The reaction was then let stir for 10 minutes before 7¾r/-butyl (2-(4-(mercaptomethyl)benzamido)ethyl) carbamate (0.1M in anhydrous CH2CI2) was added dropwise via syringe over 60 seconds. The reaction was then stirred at 22 °C for l6h. The reaction was diluted with DCM, added to a separatory funnel, rinsed with HC1 (1.0 M aq.), H2O, NaElCCh (3.0 M aq.), dried with NaSCri, filtered, then silica (S1O2) was added and condensed under reduced pressure. The compound/Silica mixture was then dry loaded and purified by silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 8:3 - 1 :9]
[00397] The resulting oil or solid was placed in a 20 mL scintillation vial with stir bar and 2 mL of HC1 (4N in anhydrous Dioxane) was added and let stir for 4h. The solution condensed under reduced pressure, then 5 mL of diethyl ether was added and the heterogenous mixture was sonicated for 5 minutes. The mixture was filtered, and the filter cake rinsed with diethyl ether. The solid was collected and dried under vacuum to give final product.
Figure imgf000100_0001
[00398] 3,5-dinitrobenzyl-amino-4-butanoate. Prepared according to general procedure A using N-Boc-4-aminobutanoic acid (61.5 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), 3,5-dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.5 mL). The product was obtained as a white powder (65 mg, 70 %). ¾ NMR (500 MHz, 500 MHz, DMSO-i&) d 8.80 (t, J = 2.3 Hz, 1H), 8.59 (d, J = 2.1 Hz, 2H), 5.37 (s, 2H), 2.86-2.79 (m, 2H), 2.58 (t, j= 7.5 Hz, 2H), 1.85 (q, j= 7.6, 7.7, 2H); 13C NMR (125 MHz, DMSO-^e) ppm 172.4, 148.5 (2C), 141.0, 128.7 (2C), 118.6, 64.2, 38.4, 30.6, 22.7; HRMS (El): Exact mass calcd for CnHisNsOe [M+H]+ 204.24, found 204.12.
Figure imgf000101_0001
[00399] 3,5-dinitrobenzyl 5-aminopentanoate. Prepared according to general procedure A using Boc-5-Ava-OH (72 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), 3,5-dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.5 mL). The product was obtained as a yellow oil (51 mg, 53 %). ¾ NMR (500 MHz, DMSO-i/e) d 8.80 (t, J= 2.\ Hz, 1H), 8.67 (d, j = 2.0 Hz, 2H), 5.36 (s, 2H), 2.82-2.77 (m, 2H), 2.49 (t, J = 7.2 Hz, 2H), 1.66-1.54 (m, 4H); 13C NMR (125 MHz, DMSO-^e) ppm 172.8, 148.5 (2C), 141.0, 128.6 (2C), 118.5, 64.0, 38.8, 33.0, 26.8, 21.7; HRMS (Cl): Exact mass calcd for CiiHieNsOe [M+H]+298.27, found 298.11.
Figure imgf000101_0002
[00400] 3,5-dinitrobenzyl 6-aminohexanoate. Prepared according to general procedure A using Boc-5-Ahx-OH (76 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), 3,5-dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.5 mL). The product was obtained as a white solid (64 mg, 62 %). ¾ NMR (500 MHz, CDCh) d 8.80 (t, J = 2.1 Hz, 1H), 8.66 (d, j = 2.0 Hz, 2H), 5.36 (s, 2H), 2.78-2.72 (m, 2H), 2.45 (t, J = 7.6 Hz, 2H), 1.62-1.53 (m, 4H), 1.38-1.31 (m, 2H); 13C NMR (125 MHz, DMSO-^e) ppm 173.0, 148.5 (2C), 141.9 , 128.5 (2C), 118.5, 63.9, 38.9, 33.5, 27.0, 25.7, 24.2; HRMS (Cl): Exact mass calcd for C13H17N3O6 [M+H]+ 312.29, found 312.13.
Figure imgf000102_0001
[00401] 3,5-dinitrobenzyl 4-(methylamino)butanoate Prepared according to general procedure A using 4-((boc-(methyl)amino)butanoic acid (67 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), 3,5-dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.5 mL). The product was obtained as a yellow powder (70 mg, 72%). ¾ NMR (500 MHz, DMSO-i/e) d 8.72 (s, 1H), 8.59 (s, 2H), 4.76 (s, 2H), 1.82 (q, J= 7.5, 7.5 Hz, 2H),; 13C NMR (125 MHz, DMSO-i&) ppm 173.9, 148.4, 147.9, 128.6, 126.7 (2C), 117.4, 61.5, 47.9, 32.7 30.9, 21.3; HRMS (El): Exact mass calcd for C12H15N3O6 [M+H]+ 298.10, found 298.14.
Figure imgf000103_0001
[00402] 3,5-dinitrobenzyl piperidine-4-carboxylate. Prepared according to general procedure A using N-Boc-piperidine-4-carboxylic acid (76 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), 3,5-dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.5 mL). The product was obtained as a yellow powder (43 mg, 46%). ¾ NMR (500 MHz, 500 MHz, DMSO-t/ί) d 8.77 (s, 1H), 8.59 (s, 2H), 4.76 (s, 2H), 3.20 (d, J = 6.8, 2H), 2.90 (q, J = 11.4, 10.9 Hz, 2H), 2.60-2.54 (m, 1H), 2.14 (s, 1H), 1.97 (d, 7= 14.9, 2H), 1.73 (qd, 7= 11.4, 14.9, 4.0, 2H); 13C NMR (125 MHz, DMSO-^e) ppm 175.2, 148.4, 148.0, 129.7, 126.7 (2C), 117.3, 61.5, 42.7 (2C), 38.1, 24.9 (2C); HRMS (El): Exact mass calcd for CisHisNsOe [M+H]+ 310.10, found 310.02.
Figure imgf000103_0002
[00403] 3,5-dinitrobenzyl 2-(piperidin-4-yl)acetate. Prepared according to general procedure A using N-Boc-4-piperidineacetic acid (80 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.3 mL). The product was obtained as a yellow oil (66 mg, 62%). ¾ NMR (500 MHz, DMSO-i/e) d; 8.72 (t, j= 2.0 Hz, 1H), 8.59 (d, j= 1.7 Hz, 2H), 3.15 (d, j= 12.4 Hz, 2H), 2.79 (td, j= 12.7, 2.8 Hz, 2H), 2.37 (d, 2H), 1.99-1.90 (m, 1H), 1.74 (d, j = 14.0 Hz, 2H), 1.33 (qd, J = 12.8, 4.1 Hz, 2H); 13C NMR (125 MHz, DMSO-^e) ppm 171.7, 148.5 (2C), 141.0, 128.5 (2C), 118.5, 64.0, 43.2 (2C), 30.6, 28.4 (2C); HRMS (El): Exact mass calcd for CnHnNsOe [M+H]+ 324.31, found 324.09.
Figure imgf000104_0001
[00404] 3,5-dinitrobenzyl 2-(piperazin-l-yl)acetate. Prepared according to general procedure A using 2-(4-Boc-l-piperazinyl)acetic acid (80 mg, 0.33 mmol), triethylamine (70 pL, 0.50 mmol), 3,5-dinitrobenzyl chloride (86 mg, 0.40 mmol) and dichloromethane (0.3 mL). The product was obtained as a white powder (87 mg, 82%). ¾ NMR (500 MHz, DMSO-i/e) d; 2.69 (t, J= 4.9 Hz, 4H), 2.98 (t, J= 5.1 Hz, 4H), 3.41 (s, 2H), 5.31 (s, 2H), 8.61 (d, J= 1.1 Hz, 2H), 8.73 (t, j= 2.1, 1H); 13C NMR (125 MHz, DMSO-^e) 170.0, 148.5 (2C), 140.9, 128.8 (2C), 118.8, 64.0, 57.9, 49.1 (2C), 43.3 (2C); HRMS (El): Exact mass calcd for C13H16N4O6 [M+H]+ 325.11, found 325.22.
Figure imgf000105_0001
[00405] S-(4-((2-aminoethyl)carbamoyl)benzyl) 4-aminobutanethioate. Prepared according to general procedure C using 7-((tert-butoxycarbonyl)amino) butanoic acid (50.8 mg, 0.25 mmol), 1 -ethyl-3 -(3 -dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (95.9 mg, 0.50 mmol), dimethylamino pyridine (61.1 mg, 0.50 mmol), terZ-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (84.6 mg, 0.25 mmol). The product was obtained as a white powder (40.7 mg, 55%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 : 1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C14H22N3O2S [M+H]+ 296.1433, found 296.1435.
Figure imgf000106_0001
[00406] S-(4-((2-aminoethyl)carbamoyl)benzyl) 4-amino-2,2- dimethylbutanethioate. Prepared according to general procedure C using 4-((tert- butoxycarbonyl)amino)-2,2-dimethylbutanoic acid (57.8 mg, 0.25 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (95.9 mg, 0.50 mmol), dimethylamino pyridine (61.1 mg, 0.50 mmol), te/7-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (84.6 mg, 0.25 mmol). The product was obtained as a white powder (51.7 mg, 64%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 :1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C16H25N3O2S [M+H]+ 323.1667, found 323.1669.
Figure imgf000107_0001
[00407] S-(4-((2-aminoethyl)carbamoyl)benzyl) 7-aminoheptanethioate. Prepared according to general procedure C using 7-((tert-butoxycarbonyl)amino) heptanoic acid (105.5 mg, 0.43 mmol), 1 -ethyl-3 -(3 -dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (165.1 mg, 0.86 mmol), dimethylamino pyridine (105.2 mg, 0.86 mmol), terZ-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (145 mg, 0.43 mmol). The product was obtained as a white powder (133.7 mg, 92%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 :1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C17H28N3O2S [M+H]+ 338.1902, found 338.1902.
Figure imgf000107_0002
[00408] S-(4-((2-aminoethyl)carbamoyl)benzyl) (ls,3s)-3-aminocyclobutane-l- carbothioate. Prepared according to general procedure C using (ls,3s)-3-((tert- butoxycarbonyl)amino)cyclobutane-l -carboxylic acid (92.5 mg, 0.43 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (165.1 mg, 0.86 mmol), dimethylamino pyridine (105.2 mg, 0.86 mmol), terZ-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (145 mg, 0.43 mmol). The product was obtained as a white powder (103.3 mg, 78%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 : 1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C15H22N3O2S [M+H]+ 308.1433, found 308.1437.
Figure imgf000108_0001
[00409] S-(4-((2-aminoethyl)carbamoyl)benzyl) (lr,3r)-3-aminocyclobutane-l- carbothioate. Prepared according to general procedure C using (lr,3r)-3-((tert- butoxycarbonyl)amino)cyclobutane-l -carboxylic acid (92.9 mg, 0.43 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (165.6 mg, 0.86 mmol), dimethylamino pyridine (105.4 mg, 0.86 mmol), te/7-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (145 mg, 0.43 mmol). The product was obtained as a white powder (100.7 mg, 76%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 :1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C15H22N3O2S [M+H]+ 308.1433, found 308.1436.
Figure imgf000109_0001
[00410] S-(4-((2-aminoethyl)carbamoyl)benzyl) (lS,3R)-3-aminocyclopentane-l- carbothioate. Prepared according to general procedure C using (lS,3R)-3-((tert- butoxycarbonyl)amino)cyclopentane-l -carboxylic (98.6 mg, 0.43 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (165.1 mg, 0.86 mmol), dimethylamino pyridine (105.2 mg, 0.86 mmol), te/7-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (145 mg, 0.43 mmol). The product was obtained as a white powder (91.4 mg, 66%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 :1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C16H24N3O2S [M+H]+
322.1589 found 322.1591.
Figure imgf000110_0001
[00411] S-(4-((2-aminoethyl)carbamoyl)benzyl) (lS,3R)-3-aminocyclohexane-l- carbothioate. Prepared according to general procedure C using (lS,3R)-3-((tert- butoxycarbonyl)amino)cyclohexane-l -carboxylic acid (104.6 mg, 0.43 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (165.1 mg, 0.86 mmol), dimethylamino pyridine (105.2 mg, 0.86 mmol), te/7-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (145 mg, 0.43 mmol). The product was obtained as a white powder (99.7 mg, 69%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 :1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C17H26N3O2S [M+H]+ 336.1746, found 336.1746.
Figure imgf000111_0001
[00412] S-(4-((2-aminoethyl)carbamoyl)benzyl) (lS,3S)-3-aminocyclohexane-l- carbothioate. Prepared according to general procedure C using (lS,3S)-3-((tert- butoxycarbonyl)amino)cyclohexane-l -carboxylic acid 104.1 mg, 0.43 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (165.1 mg, 0.86 mmol), dimethylamino pyridine (105.2 mg, 0.86 mmol), te/7-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (145 mg, 0.43 mmol). The product was obtained as a yellow powder (95.4 mg, 62%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 :1, Rf= 0.1] Ή NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C17H26N3O2S [M+H]+ 336.1746, found 336.1749.
Figure imgf000112_0001
[00413] S-(4-((2-aminoethyl)carbamoyl)benzyl) 5-(aminomethyl)furan-3- carbothioate. Prepared according to general procedure C using 5-(((tert- butoxycarbonyl)amino)methyl)furan-3-carboxylic acid (60.3 mg, 0.25 mmol), l-ethyl-3-(3- dimethylaminopropyl) carbodiimide hydrochloride (EDCI) (95.9 mg, 0.50 mmol), dimethylamino pyridine (61.1 mg, 0.50 mmol), te/7-butyl (2-(4- (mercaptomethyl)benzamido)ethyl) carbamate (84.6 mg, 0.25 mmol). The product was obtained as a yellow powder (68.5 mg, 82%). Silica gel column chromatography [Solvent System: Hexanes-Ethyl Acetate; 1 : 1, Rf= 0.1] ¾ NMR (500 MHz, 500 MHz, DMSO-^e) 13C NMR (125 MHz, DMSO-^) HRMS (El): Exact mass calcd for C16H20N3O3S [M+H]+ 334.1225 found 334.1225.
[00414] In the foregoing description, it will be readily apparent to one skilled in the art that varying substitutions and modifications may be made to the invention disclosed herein without departing from the scope and spirit of the invention. The invention illustratively described herein suitably may be practiced in the absence of any element or elements, limitation or limitations which is not specifically disclosed herein. The terms and expressions which have been employed are used as terms of description and not of limitation, and there is no intention that in the use of such terms and expressions of excluding any equivalents of the features shown and described or portions thereof, but it is recognized that various modifications are possible within the scope of the invention. Thus, it should be understood that although the present invention has been illustrated by specific embodiments and optional features, modification and/or variation of the concepts herein disclosed may be resorted to by those skilled in the art, and that such modifications and variations are considered to be within the scope of this invention.
[00415] Citations to a number of patent and non-patent references are made herein.
The cited references are incorporated by reference herein in their entireties. In the event that there is an inconsistency between a definition of a term in the specification as compared to a definition of the term in a cited reference, the term should be interpreted based on the definition in the specification.

Claims

We claim:
1 An acylated tRNA molecule having a formula defined as:
Figure imgf000114_0001
wherein:
tRNA is a transfer RNA linked via a 3' terminal ribonucleotide; and
R is selected from alkyl; cycloalkyl optionally substituted with amino; heterocycloalkyl; alkylheterocycloalkyl; alkenyl; cyanoalkyl; aminoalkyl; aminoalkenyl; alkylcarboxyalkylester; haloalkyl; nitroalkyl; aryl, (aryl)alkyl, or (aryl)alkenyl, wherein the aryl or the aryl of the (aryl)alkyl or (aryl)alkenyl is optionally substituted with one or more substituents selected from hydroxyl, hydroxylalkyl, amino, aminoalkyl, azido, cyano, acetyl, nitro, nitroalkyl, halo, alkoxy, and alkynyl.
2. The molecule of claim 1, wherein R is substituted alkylaryl optionally selected from 3,4-dihydroxyphenyl-methyl, pyrrol-2-yl-methyl, and 4-amino-phenyl-methyl.
3. The molecule of claim 1, wherein R is substituted phenyl optionally selected from 4-nitrophenyl, 4-cyanophenyl, 4-azidophenyl, 3-acetylphenyl, 4-nitromethyphenyl, 2- fluorophenyl, 4-methoxyphenyl, 3 -hydroxy -4-nitrophenyl, 3-amino-4-nitrophenyl, and 3- nitro-4-aminophenyl .
4. The molecule of claim 1, wherein R is heteroaryl or substituted heteroaryl optionally selected from pyridinyl, fluoropyridinyl, coumarinyl, pyrrolyl, thiophen-2-yl, and 5 -aminomethyl-furan-3 -yl .
5. The molecule of claim 1, wherein R comprises a primary amine group or a secondary amine group optionally wherein R is selected from 3-aminopropyl, 4-aminobutyl, 5-aminobutyl, 1,1 -dimethyl-3 -aminopropanyl, 3-methylamino-propanyl, 6-aminohexyl, 3- amino-l-propenyl, 2-aminocyclobutyl, 2-aminocyclopentyl, and 2-aminocyclohexyl.
6. The molecule of claim 1, wherein R comprises a cycloalkyl group optionally substitute with amino, wherein R optionally is selected from cyclobutyl or aminocyclobutyl such as 2-aminocyclobutyl, cyclopentyl or aminocyclopentyl such as 2-aminocyclopentyl, and cyclohexyl or aminocyclohexyl such as 2-aminocyclohexyl.
7. The molecule of claim 1, wherein R comprises a cyclic secondary amine such as piperidinyl or piperazinyl, and R optionally is selected from piperidin-4-yl, (piperidin-4- yl)methyl, piperazin-4-yl, and (piperazin-4-yl)methyl.
8. The molecule of claim 1, wherein R is selected from alkyl, alkenyl, cyanoalkyl, and alkylcarboxylalkyl ester.
9. A method for preparing a sequence defined polymer, wherein the sequence defined polymer is prepared via translating an mRNA comprising a codon corresponding to an anticodon of the acylated tRNA molecule of any of the foregoing claims and the R group of the acylated tRNA molecule is incorporated in the sequence defined polymer during translation of the mRNA.
10. The method of claim 9, wherein the method is performed in vitro.
11. The method of claim 9, hwerein the method is performed in vivo.
12. The method of claim 9, wherein the codon is the start codon (AUG) of the mRNA.
13. The method of claim 9, wherein the codon is selected from a codon for threonine, a codon for isoleucine, and a codon for alanine.
14. The method of claim 9, wherein the sequence defined polymer is a polymer selected from polyolefin polymers, aramid polymers, polyurethane polymers, polyketide polymers, conjugated polymers, D-amino acid polymers, b-amino acid polymers, g-amino acid polymers, d-amino acid polymers, e-amino acid polymers, z-amino acid polymers, and polycarbonate polymers.
15. A method for preparing an acylated tRNA molecule having a formula defined as:
Figure imgf000116_0001
wherein:
tRNA is a transfer RNA linked via a 3' terminal ribonucleotide; and
R is selected from alkyl; cycloalkyl optionally substituted with amino; heterocycloalkyl; alkylheterocycloalkyl; alkenyl; cyanoalkyl; aminoalkyl; aminoalkenyl; alkylcarboxyalkylester; haloalkyl; nitroalkyl; aryl, (aryl)alkyl, or (aryl)alkenyl, wherein the aryl or the aryl of the (aryl)alkyl or (aryl)alkenyl is optionally substituted with one or more substituents selected from hydroxyl, hydroxylalkyl, amino, aminoalkyl, azido, cyano, acetyl, nitro, nitroalkyl, halo, alkoxy, and alkynyl;
the method comprising reacting in a reaction mixture:
(i) a flexizyme (Fx):
(ii) the tRNA molecule; and
(iii) a donor molecule having a formula:
Figure imgf000117_0001
wherein:
R is as defined above;
LG is a leaving group;
X is O or S; and
the Fx catalyzes an acylation reaction between the 3' terminal ribonucleotide of the tRNA and the donor molecule to prepare the acylated tRNA molecule.
16. The method of claim 15, wherein the Fx is selected from aFx, dFx, and eFx.
17. The method of claim 15, wherein the tRNA comprises an anticodon selected from the anticodon CAU), the anticodon GGU, the anticodon GAU, or the anticodon GGC.
18. The method of claim 15, wherein LG comprises a cyanomethyl moiety and the donor molecule comprises a cyanomethylester (CME).
19. The method of claim 15, wherein LG comprises a dinitrobenzyl moiety and the donor molecule comprises a dinitrobenzylester (DNB).
20. The method of claim 15, wherein LG comprises a (2- aminoethyle)amidocarboxybenzyl moiety and the donor molecule comprises a (2- aminoethyl)amidocarboxybenzyl thioester (ABT).
21. The method of claim 15, wherein the method is performed under reaction conditions such that at least about 50% of the tRNA in the reaction mixture is acylated after reacting the reaction mixture for 120 hours, and preferably at least about 50% of the tRNA in the reaction mixture is acylated after reacting the reaction mixture for 16 hours.
PCT/US2019/035215 2018-06-01 2019-06-03 Expanding the chemical substrates for genetic code reprogramming Ceased WO2020040840A2 (en)

Priority Applications (2)

Application Number Priority Date Filing Date Title
US15/734,182 US11814621B2 (en) 2018-06-01 2019-06-03 Expanding the chemical substrates for genetic code reprogramming
US18/469,530 US20240200070A1 (en) 2018-06-01 2023-09-18 Expanding the chemical substrates for genetic code reprogramming

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
US201862679350P 2018-06-01 2018-06-01
US62/679,350 2018-06-01

Related Child Applications (2)

Application Number Title Priority Date Filing Date
US15/734,182 A-371-Of-International US11814621B2 (en) 2018-06-01 2019-06-03 Expanding the chemical substrates for genetic code reprogramming
US18/469,530 Continuation US20240200070A1 (en) 2018-06-01 2023-09-18 Expanding the chemical substrates for genetic code reprogramming

Publications (2)

Publication Number Publication Date
WO2020040840A2 true WO2020040840A2 (en) 2020-02-27
WO2020040840A3 WO2020040840A3 (en) 2020-04-30

Family

ID=69591432

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/US2019/035215 Ceased WO2020040840A2 (en) 2018-06-01 2019-06-03 Expanding the chemical substrates for genetic code reprogramming

Country Status (2)

Country Link
US (2) US11814621B2 (en)
WO (1) WO2020040840A2 (en)

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2020247605A1 (en) * 2019-06-04 2020-12-10 Yale University Compositions and methods for making hybrid polypeptides
WO2021221760A3 (en) * 2020-02-14 2021-12-23 Northwestern University Long chain carbon and cyclic amino acids substrates for genetic code reprogramming
WO2022173627A3 (en) * 2021-02-02 2022-12-08 Northwestern University Ribosome-mediated polymerization of novel chemistries
WO2023234425A1 (en) 2022-06-03 2023-12-07 ペプチドリーム株式会社 Amino acid active ester and salt thereof

Families Citing this family (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US11814621B2 (en) * 2018-06-01 2023-11-14 Northwestern University Expanding the chemical substrates for genetic code reprogramming

Family Cites Families (74)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US4458066A (en) 1980-02-29 1984-07-03 University Patents, Inc. Process for preparing polynucleotides
US4683195A (en) 1986-01-30 1987-07-28 Cetus Corporation Process for amplifying, detecting, and/or-cloning nucleic acid sequences
US4683202A (en) 1985-03-28 1987-07-28 Cetus Corporation Process for amplifying nucleic acid sequences
US5478730A (en) 1988-12-21 1995-12-26 Institute Of Protein Research Method of preparing polypeptides in cell-free translation system
US5494810A (en) 1990-05-03 1996-02-27 Cornell Research Foundation, Inc. Thermostable ligase-mediated DNA amplifications system for the detection of genetic disease
US5665563A (en) 1991-10-11 1997-09-09 Promega Corporation Coupled transcription and translation in eukaryotic cell-free extract
AU4930993A (en) 1992-09-24 1994-04-12 Public Health Research Institute Of The City Of New York, Inc., The Coupled replication-translation methods and kits for protein synthesis
US5866592A (en) * 1994-12-28 1999-02-02 Nippon Steel Corporation Fibrinogen receptor antagonist and pharmaceutical compositions comprising the same
RU2148649C1 (en) 1998-03-31 2000-05-10 Институт белка РАН Method and apparatus for preparing polypeptides in acellular system (versions)
US6168931B1 (en) 1999-03-17 2001-01-02 The Board Of Trustees Of The Leland Stanford Junior University Enhanced in vitro synthesis of biological macromolecules using a novel ATP regeneration system
US6994986B2 (en) 1999-03-17 2006-02-07 The Board Of Trustees Of The Leland Stanford University In vitro synthesis of polypeptides by optimizing amino acid metabolism
RU2169154C2 (en) 1999-03-25 2001-06-20 Институт белка РАН Method of synthesis of polypeptides in cell-free system
DE69940525D1 (en) 1999-05-11 2009-04-16 Cellfree Sciences Co Ltd PREPARATIONS CONTAINING A ZELEXTRACT FOR THE PRODUCTION OF A CELL-FREE PROTEIN AND DEVICE FOR PRODUCING A CELL-FREE PROTEIN
US7008651B2 (en) 2000-05-03 2006-03-07 Emd Biosciences, Inc. E. coli extract for protein synthesis
CN101092446A (en) 2000-08-29 2007-12-26 株式会社无细胞科学 Methods of synthesizing cell-free protein
US6548276B2 (en) 2000-09-06 2003-04-15 The Board Of Trustees Of The Leland Stanford Junior University Enhanced in vitro synthesis of active proteins containing disulfide bonds
JP4061043B2 (en) 2000-12-28 2008-03-12 株式会社ポストゲノム研究所 Method for producing peptide etc. by in vitro transcription / translation system
EP1279736A1 (en) 2001-07-27 2003-01-29 Université de Nantes Methods of RNA and protein synthesis
US7189528B2 (en) 2001-12-10 2007-03-13 Shimadzu Corporation Extract solution for cell-free protein synthesis, method for cell-free protein synthesis using same and method for preparation of the extract solution
JP3675804B2 (en) 2002-01-31 2005-07-27 株式会社セルフリーサイエンス Cell extract for cell-free protein synthesis and production method thereof
US7409054B2 (en) 2002-02-25 2008-08-05 Genesys Telecommunications Laboratories, Inc System and method for integrated resource scheduling, task allocation and agent work management
CA2477440A1 (en) 2002-02-28 2003-09-04 Yaeta Endo Reaction solution for cell-free protein synthesis, method of preparing the same and protein synthesis method using the same
PT1539948E (en) 2002-08-19 2010-01-20 Univ Leland Stanford Junior Improved methods of in vitro protein synthesis
JP2004208640A (en) 2003-01-07 2004-07-29 Rengo Co Ltd Extracted yeast liquid for cell-free protein synthesis, method for producing the same and method for cell-free protein synthesis using the same
CN101014716B (en) 2003-11-20 2015-06-10 小利兰·斯坦福大学托管委员会 Improved methods for in vitro protein synthesis
WO2005098048A1 (en) 2004-03-25 2005-10-20 The Board Of Trustees Of The Leland Stanford Junior University Protein expression yield enhancement in cell-free protein synthesis systems by addition of antifoam agents
JP4513495B2 (en) 2004-10-15 2010-07-28 株式会社島津製作所 Cell-free protein synthesis method using insect cell-derived extract
US7312049B2 (en) 2005-06-14 2007-12-25 The Board Of Trustees Of The Leland Stanford Junior University Total amino acid stabilization during cell-free protein synthesis
EP1964916B1 (en) 2005-12-06 2012-08-01 The University of Tokyo Multi-purpose acylation catalayst and use thereof
WO2007092475A2 (en) 2006-02-06 2007-08-16 Franklin And Marshall College Site-specific incorporation of fluorinated amino acids into proteins
DK2035554T3 (en) 2006-06-29 2013-06-17 Univ Leland Stanford Junior Cell-free synthesis of proteins containing non-natural amino acids
JP5200241B2 (en) 2006-11-17 2013-06-05 国立大学法人 東京大学 Translational synthesis of polypeptides with non-natural backbone at the N-terminus and their applications
JP2008193911A (en) * 2007-02-08 2008-08-28 Protein Express:Kk Method for specifically modifying n-terminal of protein
US9090668B2 (en) 2007-03-26 2015-07-28 The University Of Tokyo Process for synthesizing cyclic peptide compound
WO2010117525A1 (en) 2009-04-06 2010-10-14 President And Fellows Of Harvard College Method of making ribosomes
WO2010147111A1 (en) 2009-06-15 2010-12-23 トヨタ自動車株式会社 Cell-free protein synthesis solution, cell-free protein synthesis kit, and protein synthesis method
JP5174971B2 (en) 2009-10-22 2013-04-03 ペプチドリーム株式会社 RAPID display method in peptide translation synthesis
JP5725467B2 (en) 2010-08-27 2015-05-27 国立大学法人 東京大学 New artificial translation synthesis system
JP5818237B2 (en) 2010-09-09 2015-11-18 国立大学法人 東京大学 Translational construction and search for active species of special peptide compound library containing N-methylamino acid and other special amino acids
EP2647721B1 (en) 2010-12-03 2019-02-27 The University of Tokyo Peptide with safer secondary structure, peptide library, and production methods for same
JP6206943B2 (en) 2010-12-03 2017-10-04 国立大学法人 東京大学 Method for producing peptide library, peptide library, and screening method
US9943360B2 (en) 2011-01-30 2018-04-17 University Health Network Coil electrode for thermal therapy
JP2013071904A (en) 2011-09-27 2013-04-22 Peptidream Inc Peptide having anti-influenza virus activity
TWI852183B (en) 2011-12-28 2024-08-11 日商中外製藥股份有限公司 Cyclization method of peptide compounds
US10017794B2 (en) 2012-01-09 2018-07-10 The Research Foundation For The State University Of New York Engineered strain of Escherichia coli for production of poly-R-3-hydroxyalkanoate polymers with defined monomer unit composition and methods based thereon
US9688994B2 (en) 2012-07-30 2017-06-27 President And Fellows Of Harvard College Methods of introducing nucleic acids into cellular DNA
EP2952582A4 (en) 2013-01-30 2016-11-16 Peptidream Inc Flexible display method
US9528137B2 (en) 2013-03-15 2016-12-27 Northwestern University Methods for cell-free protein synthesis
US10017728B2 (en) 2013-04-24 2018-07-10 Northwestern University Methods for making ribosomes
EP3031915B1 (en) 2013-08-05 2019-03-06 The University of Tokyo Production method for charged non-protein amino acid-containing peptide
JP6754997B2 (en) 2013-08-26 2020-09-16 国立大学法人 東京大学 A large cyclic peptide, a method for producing the same, and a screening method using a large cyclic peptide library.
US9783800B2 (en) 2014-02-03 2017-10-10 The University Of Tokyo Method for producing peptides having azole-derived skeleton
US9951392B2 (en) 2014-03-14 2018-04-24 Northwestern University Substrate replenishment and byproduct removal improve yeast cell-free protein synthesis
WO2015184283A1 (en) 2014-05-29 2015-12-03 Northwestern University Tethered ribosomes and methods of making and using thereof
US10590456B2 (en) 2014-05-29 2020-03-17 Northwestern University Ribosomes with tethered subunits
US10118950B2 (en) 2014-08-30 2018-11-06 Northwestern University Platforms for cell-free protein synthesis comprising extracts from genomically recoded E. coli strains having genetic knock-out mutations in release factor 1 (RF-1) and endA
WO2016108158A1 (en) 2014-12-31 2016-07-07 Northwestern Univeristy Methods for activating natural energy metabolism for improving yeast cell-free protein synthesis
WO2016108159A1 (en) 2014-12-31 2016-07-07 Northwestern University Methods for in vitro ribosome synthesis and evolution
US20180171321A1 (en) 2015-03-27 2018-06-21 The University Of Queensland Platform for a non-natural amino acid incorporation into proteins
EP3309250A4 (en) 2015-06-09 2019-06-19 National Institute of Advanced Industrial Science and Technology NUCLEIC ACID MODIFIED WITH AMINO ACID AND USE THEREOF
US11913052B2 (en) 2015-06-10 2024-02-27 Northwestern University Cell-free protein synthesis driven metabolic engineering
US10577632B2 (en) 2015-06-10 2020-03-03 Northwestern University Cell-free protein synthesis driven metabolic engineering for the production of 1-butanol
WO2017117539A1 (en) 2015-12-30 2017-07-06 Northwestern University Cell-free glycoprotein synthesis (cfgps) in prokaryotic cell lysates enriched with components for glycosylation
JP6762001B2 (en) 2016-06-09 2020-09-30 国立大学法人埼玉大学 Unnatural amino acid-containing peptide library
US10829795B2 (en) 2016-07-14 2020-11-10 Northwestern University Method for rapid in vitro synthesis of glycoproteins via recombinant production of N-glycosylated proteins in prokaryotic cell lysates
US10465221B2 (en) 2016-07-15 2019-11-05 Northwestern University Genomically recoded organisms lacking release factor 1 (RF1) and engineered to express a heterologous RNA polymerase
US11673921B2 (en) 2017-11-10 2023-06-13 Northwestern University Cell-free protein synthesis platform derived from cellular extracts of Vibrio natriegens
US11530432B2 (en) 2018-03-19 2022-12-20 Northwestern University Compositions and methods for rapid in vitro synthesis of bioconjugate vaccines in vitro via production and N-glycosylation of protein carriers in detoxified prokaryotic cell lysates
WO2019204346A1 (en) 2018-04-16 2019-10-24 Northwestern University METHODS FOR CO-ACTIVATING IN VITRO NON-STANDARD AMINO ACID (nsAA) INCORPORATION AND GLYCOSYLATION IN CRUDE CELLLYSATES
US11814621B2 (en) * 2018-06-01 2023-11-14 Northwestern University Expanding the chemical substrates for genetic code reprogramming
WO2020072127A2 (en) 2018-08-03 2020-04-09 Northwestern University On demand, portable, cell-free molecular sensing platform
US20210163969A1 (en) 2018-08-06 2021-06-03 Northwestern University Combined transcription and translation platform derived from plant plastids and methods for in vitro protein synthesis and prototyping of genetic expression in plants
CN113490748A (en) 2019-02-25 2021-10-08 西北大学 Cell-free protein synthesis platform derived from Clostridium extract
US20210163947A1 (en) 2019-12-03 2021-06-03 Northwestern University Ultrasensitive and multiplexed cell-free biosensors using cascaded amplification and positive feedback

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2020247605A1 (en) * 2019-06-04 2020-12-10 Yale University Compositions and methods for making hybrid polypeptides
WO2021221760A3 (en) * 2020-02-14 2021-12-23 Northwestern University Long chain carbon and cyclic amino acids substrates for genetic code reprogramming
WO2022173627A3 (en) * 2021-02-02 2022-12-08 Northwestern University Ribosome-mediated polymerization of novel chemistries
WO2023234425A1 (en) 2022-06-03 2023-12-07 ペプチドリーム株式会社 Amino acid active ester and salt thereof

Also Published As

Publication number Publication date
WO2020040840A3 (en) 2020-04-30
US11814621B2 (en) 2023-11-14
US20240200070A1 (en) 2024-06-20
US20210230586A1 (en) 2021-07-29

Similar Documents

Publication Publication Date Title
US20240200070A1 (en) Expanding the chemical substrates for genetic code reprogramming
AU2010202702B2 (en) Evolving new molecular function
US20160060301A1 (en) Methods for improved in vitro protein synthesis with proteins containing non standard amino acids
JP2025102850A (en) Reagents and methods for replication, transcription and translation in semisynthetic organisms - Patents.com
JP7045448B2 (en) Transaminase mutants and their use
JP2025165960A (en) Expanding chemical substrates to include long carbon chains and cyclic amino acids for reprogramming the genetic code
WO2016108158A1 (en) Methods for activating natural energy metabolism for improving yeast cell-free protein synthesis
EP3359669B1 (en) Devices and methods for producing proteins
WO2019153183A1 (en) Monooxygenase mutant, preparation method therefor and application thereof
WO2014119600A1 (en) Flexible display method
US20240124910A1 (en) Ribosome-mediated polymerization of novel chemistries
Kwiatkowski et al. Facile synthesis of N-acyl-aminoacyl-pCpA for preparation of mischarged fully ribo tRNA
JP2020533018A (en) Improved In Vitro Transcription / Translation (TXTL) System and Its Use
Chemla et al. Simplified methodology for a modular and genetically expanded protein synthesis in cell-free systems
JP6618534B2 (en) Amino acid modified nucleic acids and their use
WO2023048291A1 (en) tRNA, AMINOACYL-tRNA, POLYPEPTIDE SYNTHESIS REAGENT, UNNATURAL AMINO ACID INCORPORATION METHOD, POLYPEPTIDE PRODUCTION METHOD, NUCLEIC ACID DISPLAY LIBRARY PRODUCTION METHOD, NUCLEIC ACID/POLYPEPTIDE CONJUGATE, AND SCREENING METHOD
Osorio Franco et al. p‐Chloropropynyl Phenylalanine, a Versatile Non‐Canonical Amino Acid for Co‐Translational Peptide Macrocyclization and Side Chain Diversification
HK40087096A (en) Expanding the chemical substrates for genetic code reprogramming to include long chain carbon and cyclic amino acids
Ngo Expanding genetic code through the introduction of non-canonical nucleobase and amino acid with novel functionality
KR20250151188A (en) Method for Producing Genetically Engineered Strains and Cell Lysates for the Efficient Synthesis of Proteins Incorporating Non-canonical Amino Acids
WO2025212981A1 (en) Orthogonal aminoacyl trna synthetase pairs for protein production
JP3555170B2 (en) Method for producing amino acid polycondensate
WO2020033416A1 (en) Combined transcription and translation platform derived from plant chloroplasts
Ahadi Ribosomal Synthesis of N-methylated peptides
JPH07289282A (en) Method for producing amino acid polycondensate

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 19851268

Country of ref document: EP

Kind code of ref document: A2

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 19851268

Country of ref document: EP

Kind code of ref document: A2
