WO2018201839A1 - 物理广播信道的传输方法及装置 - Google Patents

物理广播信道的传输方法及装置 Download PDF

Info

Publication number
WO2018201839A1
WO2018201839A1 PCT/CN2018/081715 CN2018081715W WO2018201839A1 WO 2018201839 A1 WO2018201839 A1 WO 2018201839A1 CN 2018081715 W CN2018081715 W CN 2018081715W WO 2018201839 A1 WO2018201839 A1 WO 2018201839A1
Authority
WO
WIPO (PCT)
Prior art keywords
pbch
segment
information
data
system information
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/CN2018/081715
Other languages
English (en)
French (fr)
Inventor
李铁
郑方政
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
China Academy of Telecommunications Technology CATT
Original Assignee
China Academy of Telecommunications Technology CATT
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by China Academy of Telecommunications Technology CATT filed Critical China Academy of Telecommunications Technology CATT
Publication of WO2018201839A1 publication Critical patent/WO2018201839A1/zh
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Images

Classifications

    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W4/00—Services specially adapted for wireless communication networks; Facilities therefor
    • H04W4/06—Selective distribution of broadcast services, e.g. multimedia broadcast multicast service [MBMS]; Services to user groups; One-way selective calling services
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04L—TRANSMISSION OF DIGITAL INFORMATION, e.g. TELEGRAPHIC COMMUNICATION
    • H04L1/00—Arrangements for detecting or preventing errors in the information received
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W72/00—Local resource management
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W72/00—Local resource management
    • H04W72/04—Wireless resource allocation
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W72/00—Local resource management
    • H04W72/30—Resource management for broadcast services
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W72/00—Local resource management
    • H04W72/50—Allocation or scheduling criteria for wireless resources
    • H04W72/52—Allocation or scheduling criteria for wireless resources based on load
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04W—WIRELESS COMMUNICATION NETWORKS
    • H04W72/00—Local resource management
    • H04W72/50—Allocation or scheduling criteria for wireless resources
    • H04W72/56—Allocation or scheduling criteria for wireless resources based on priority criteria
    • H04W72/563—Allocation or scheduling criteria for wireless resources based on priority criteria of the wireless resources
    • H—ELECTRICITY
    • H04—ELECTRIC COMMUNICATION TECHNIQUE
    • H04L—TRANSMISSION OF DIGITAL INFORMATION, e.g. TELEGRAPHIC COMMUNICATION
    • H04L1/00—Arrangements for detecting or preventing errors in the information received
    • H04L1/0001—Systems modifying transmission characteristics according to link quality, e.g. power backoff
    • H04L1/0023—Systems modifying transmission characteristics according to link quality, e.g. power backoff characterised by the signalling
    • H04L1/0027—Scheduling of signalling, e.g. occurrence thereof

Definitions

  • the present disclosure relates to the field of communications technologies, and in particular, to a method and an apparatus for transmitting a physical broadcast channel.
  • the Physical Broadcast Channel (PBCH) is used to transmit important cell information, including system bandwidth and system frame number.
  • the terminal can learn the basic information of the system through the PBCH, and then prepare for the access network.
  • the Master Information Block (MIB) information in LTE is transmitted through the PBCH.
  • the PBCH is a physical channel of a non-scheduled, fixed period, fixed size, fixed transmission mode.
  • PBCH is still an important subject.
  • the 5G NR system adds high frequency transmission, which causes the NR PBCH to be different from the legacy LTE PBCH.
  • the NR PBCH is also used to transmit important and basic information of the cell. In addition to the system bandwidth and system frame number, it may also include related information such as beam scanning.
  • the NR PBCH will occupy 40 to 100 bits of content and occupy the frequency band 288 subcarriers and two time domain symbols. At the same time, it also agrees that the PBCH will transmit the scheduling information of the remaining minimum system information.
  • the indication information of the paging information is also transmitted in the PBCH as an alternative. Therefore, this results in a significant increase in NR PBCH bearer bits compared to LTE. At the same time, the resources and cycles that different information needs to carry will be very different.
  • the current PBCH is a non-scheduled, fixed-cycle, fixed-size, fixed-transmission mode physical channel
  • the current PBCH cannot satisfy multi-scene compatibility for multi-scenario deployment and 5G NR systems using large-scale multi-antenna technology. , flexible configuration, delay and other requirements.
  • An object of the present disclosure is to provide a method and an apparatus for transmitting a physical broadcast channel, so as to solve the problem that the PBCH in the related art cannot meet the requirements of multi-scene compatibility, flexible configuration, and delay.
  • the present disclosure provides a method for transmitting a physical broadcast channel, including:
  • PBCH Determining a PBCH segment in the PBCH corresponding to the PBCH data, the PBCH including a plurality of PBCH segments having different periods and/or different load sizes;
  • the PBCH data is transmitted by a PBCH segment corresponding to the PBCH data.
  • the PBCH data is minimum system information, where the PBCH segment corresponding to the PBCH data in the PBCH is determined to be:
  • a PBCH segment corresponding to the minimum system information as a PBCH segment having a smallest period and/or a minimum carrying content among the plurality of PBCH segments.
  • the minimum system information includes MIB information.
  • the transmitting method further includes:
  • the PBCH data is the remaining minimum system information and/or the paging information, where the PBCH segment corresponding to the PBCH data in the PBCH is determined to be:
  • Determining, in the PBCH segment corresponding to the remaining minimum system information and/or paging information, among other PBCH segments except the PBCH segment with the smallest period and/or the smallest bearer content among the plurality of PBCH segments At least one PBCH segment.
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the transmitting the PBCH data by using a PBCH segment corresponding to the PBCH data is specifically:
  • the present disclosure also provides a method for transmitting a physical broadcast channel, including:
  • PBCH data corresponding to the PBCH segment is received by a PBCH segment in a PBCH, the PBCH including a plurality of PBCH segments having different periods and/or different load sizes.
  • the PBCH data is minimum system information
  • the PBCH data corresponding to the PBCH segment is received by the PBCH segment in the PBCH, specifically:
  • the minimum system information is received by a PBCH segment with a minimum period and/or a minimum of bearer content among the plurality of PBCH segments.
  • the minimum system information includes MIB information.
  • the transmitting method further includes:
  • the PBCH data is the remaining minimum system information and/or paging information, where the PBCH data corresponding to the PBCH segment is received by the PBCH segment in the PBCH, specifically:
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the receiving, by using the PBCH segment in the PBCH, the PBCH data corresponding to the PBCH segment is specifically:
  • the present disclosure provides a transmission apparatus for a physical broadcast channel, including:
  • a determining module configured to determine a PBCH segment in the PBCH corresponding to the PBCH data, where the PBCH includes multiple PBCH segments having different periods and/or different load sizes;
  • a first transmission module configured to transmit the PBCH data by using a PBCH segment corresponding to the PBCH data.
  • the PBCH data is minimum system information
  • the determining module is specifically configured to:
  • a PBCH segment corresponding to the minimum system information as a PBCH segment having a smallest period and/or a minimum carrying content among the plurality of PBCH segments.
  • the minimum system information includes MIB information.
  • the transmitting device further includes:
  • a second transmission module configured to transmit, by using the PBCH segment with the smallest period and/or the smallest bearer content, the PBCH segments except the PBCH segment with the smallest period and/or the smallest bearer content Configuration information of other PBCH segments.
  • the PBCH data is remaining minimum system information and/or paging information
  • the determining module is specifically configured to:
  • Determining, in the PBCH segment corresponding to the remaining minimum system information and/or paging information, among other PBCH segments except the PBCH segment with the smallest period and/or the smallest bearer content among the plurality of PBCH segments At least one PBCH segment.
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information
  • the paging information includes paging indication information.
  • the first transmission module is specifically configured to:
  • the disclosure further provides a transmission device of a physical broadcast channel, including:
  • the first receiving module is configured to receive PBCH data corresponding to the PBCH segment by using a PBCH segment in the PBCH, where the PBCH includes multiple PBCH segments having different periods and/or different load sizes.
  • the PBCH data is minimum system information
  • the first receiving module is specifically configured to:
  • the minimum system information is received by a PBCH segment with a minimum period and/or a minimum of bearer content among the plurality of PBCH segments.
  • the minimum system information includes MIB information.
  • the transmitting device further includes:
  • a second receiving module configured to receive, by using the PBCH segment with the smallest period and/or the smallest bearer content, the PBCH segments except the minimum period and/or the smallest PBCH segment Configuration information of other PBCH segments.
  • the PBCH data is remaining minimum system information and/or paging information, where the first receiving module is specifically configured to:
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the first receiving module is specifically configured to:
  • the present disclosure also provides a transmission device for a physical broadcast channel, comprising: a memory, a processor, and a computer program stored on the memory and operable on the processor, the processor executing the The computer program implements the steps of the above-described method of transmitting a physical broadcast channel.
  • the present disclosure also provides a computer readable storage medium having stored thereon a computer program that, when executed by a processor, implements the steps of the above-described method of transmitting a physical broadcast channel.
  • the method for transmitting a physical broadcast channel of the present disclosure transmits PBCH data by using PBCH segments corresponding to PBCH data in the PBCH, and the PBCH includes multiple PBCH segments having different periods and/or different load sizes, which can satisfy different information bearers.
  • the PBCH data can be transmitted in a PBCH with a fixed period, a fixed size, or a fixed transmission mode in the related art, and has the advantages of compatible multi-scenario, flexible configuration, high resource utilization, and reduced delay.
  • FIG. 1 is a flowchart of a method for transmitting a physical broadcast channel according to an embodiment of the present disclosure

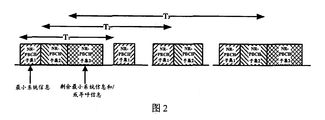

  • FIG. 2 is a schematic structural view of an NR PBCH according to a specific example of the present disclosure
  • FIG. 3 is a schematic structural view of an NR PBCH according to another specific example of the present disclosure.
  • 4(a) and 4(b) are schematic diagrams showing multiplexing of PBCH with PSS and SSS according to another embodiment of the present disclosure
  • FIG. 5 is a flowchart of another method for transmitting a physical broadcast channel according to an embodiment of the present disclosure
  • FIG. 6 is a schematic structural diagram of a transmission apparatus of a physical broadcast channel according to an embodiment of the present disclosure

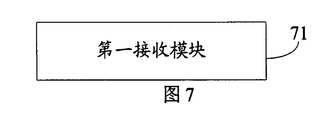

  • FIG. 7 is a second schematic structural diagram of a transmission apparatus of a physical broadcast channel according to an embodiment of the present disclosure.
  • FIG. 8 is a schematic structural diagram of a base station according to an embodiment of the present disclosure.
  • FIG. 9 is a schematic structural diagram of a terminal according to an embodiment of the present disclosure.
  • the method for transmitting a physical broadcast channel can satisfy the bearer requirement of different information by using a non-scheduled PBCH including multiple PBCH segments with different periods and/or different load sizes.
  • the PBCH data transmitted through the PBCH in the fixed period, the fixed size, and the fixed transmission mode in the related art may have the advantages of being compatible with multiple scenarios, flexible configuration, high resource utilization, and reduced delay.
  • an embodiment of the present disclosure provides a method for transmitting a physical broadcast channel, which is applied to a base station, and includes steps 101 to 103, which are described in detail below.
  • Step 101 Acquire PBCH data.
  • the PBCH data may be minimum system information, or may be system information that carries content and period longer than the minimum system information, such as remaining minimum system information and/or paging information, or may be minimum system information.
  • the remaining minimum system information and paging information are not limited by the disclosure. Specifically, the minimum system information is usually the most frequent system information, including, for example, MIB information and the like.
  • the remaining minimum system information includes, but is not limited to, resource indication information of scheduling information of the remaining minimum system information, and the paging information includes but is not limited to paging indication information.
  • Step 102 Determine a PBCH segment corresponding to the PBCH data in the PBCH.
  • the PBCH in the embodiment of the present disclosure is a non-scheduled physical channel including multiple PBCH segments with different periods and/or different load sizes, that is, the PBCH of the embodiment of the present disclosure includes different periods and/or different Multiple PBCH segments of the payload size.
  • the PBCH segment corresponding to the PBCH data may be determined based on a pre-agreed or protocol agreement.
  • the PBCH segmentation can also be referred to as a PBCH subset.
  • an NR PBCH of a specific example of the present disclosure may include three PBCH segments, namely NR-PBCH subset (subset) 1, NR-PBCH subset 2, and NR-PBCH subset 3, where NR- The bearer content of the PBCH subset1 is B1, the period is T1, the bearer content of the NR-PBCH subset2 is B2, the period is T2, the bearer content of the NR-PBCH subset3 is B3, the period is T3, and B1 ⁇ B2 ⁇ B3, T1 ⁇ T2 ⁇ T3.
  • Step 103 Transmit the PBCH data by using a PBCH segment corresponding to the PBCH data.
  • the PBCH data can be transmitted through the PBCH segment corresponding to the PBCH data.
  • the PBCH segment here may be one PBCH segment or multiple PBCH segments depending on the corresponding PBCH data.
  • the method for transmitting a physical broadcast channel transmits PBCH data by using a PBCH segment corresponding to PBCH data in a PBCH, where the PBCH includes multiple PBCH segments having different periods and/or different load sizes, which can satisfy different information.
  • the PBCH data can be compatible with multiple scenarios, flexible configuration, high resource utilization, and reduced delay.
  • determining the PBCH segment corresponding to the PBCH data in the PBCH may be specifically:
  • the PBCH segment corresponding to the minimum system information is determined to be the PBCH segment with the smallest period and/or the smallest bearer content among the plurality of PBCH segments.
  • the PBCH segment corresponding to the minimum system information is NR-PBCH subset1.
  • the base station can transmit the minimum system information through the PBCH segment with the smallest period and/or the smallest bearer content among the multiple PBCH segments, so that the terminal frequently receives the minimum frequently.
  • the system information satisfies the terminal requirements, and compared with the fixed period PBCH in the related art, the period of the PBCH segmentation for transmitting the minimum system information can be set small, thereby achieving the effect of delay reduction.
  • the transmission method of the embodiment of the present disclosure may further include:
  • the configuration information of the other PBCH segments except the PBCH segment with the smallest period and/or the smallest bearer content is transmitted in the plurality of PBCH segments by the PBCH segment with the smallest period and/or the smallest bearer content.
  • the configuration information of other PBCH segments is, for example, the period size of other PBCH segments, the size of the bearer content, and the like. In this way, after the terminal knows the configuration information of other PBCH segments, the terminal can facilitate the terminal to accurately receive the PBCH data.
  • determining the PBCH segment corresponding to the PBCH data in the PBCH may be specifically:
  • the PBCH segment corresponding to the remaining minimum system information and/or paging information is NR-PBCH subset 2 and/or NR-PBCH subset 3.
  • the remaining minimum system information and/or paging information is transmitted through the PBCH segment with a large period and a large carrying content, which can ensure complete transmission of the remaining minimum system information and/or paging information, and avoid frequent transmission and save.
  • the PBCH segment of the embodiment of the present disclosure is within a Synchronization Signal Block (SS Block), compared to the PBCH of the fixed transmission mode in the related art.
  • the primary synchronization signal and/or the secondary synchronization signal may be transmitted by frequency division multiplexing, time division multiplexing, and/or code division multiplexing. That is, in the embodiment of the present disclosure, the PBCH data may be specifically transmitted through the PBCH segment corresponding to the PBCH data:
  • the PBCH data is transmitted by using frequency division multiplexing, time division multiplexing, and/or code division multiplexing in a synchronization signal block and the primary synchronization signal and/or the secondary synchronization signal by a PBCH segment corresponding to the PBCH data.
  • the NR PBCH of this another specific embodiment of the present disclosure includes two PBCH segments, NR-PBCH and NR-SPBCH (NR-Secondary PBCH, NR-PBCH), NR-PBCH and NR-, respectively.
  • the SPBCH is a non-scheduled transport channel
  • the NR-PBCH period is the same as the SS block period
  • the bearer content size is fixed to 80 bits
  • the NR-SPBCH period is three times the SS block period
  • the bearer content size is fixed to 150 bits.
  • the base station may transmit through the NR-PBCH when transmitting the NR MIB information, and may transmit through the NR-SPBCH when transmitting the resource indication information and the paging indication information of the scheduling information of the remaining minimum system information.
  • the terminal when receiving the NR MIB information, the terminal may receive through the NR-PBCH, and when receiving the resource indication information and the paging indication information of the scheduling information of the remaining minimum system information, the terminal may receive by using the NR-SPBCH.
  • the NR-PBCH can be time-division multiplexed with the Primary Synchronization Signal (PSS) and the Secondary Synchronization Signal (SSS) in the SS block1 during transmission.
  • PSS Primary Synchronization Signal
  • SSS Secondary Synchronization Signal
  • the NR-SPBCH can be used in the SS block 1 with the PSS and the SSS in a frequency division multiplexing manner.
  • the NR-SPBCH is divided into two segments, namely NR-SPBCH-1 and NR-SPBCH-2, and NR-SPBCH-1 is frequency-division multiplexed with PSS, and NR-SPBCH-2 is frequency-division multiplexed with SSS.
  • NR-PBCH and NR-SPBCH may be time division multiplexed with PSS and SSS in SS block1 during transmission.
  • the foregoing embodiment describes a method for transmitting a physical broadcast channel on the base station side of the present disclosure.
  • a method for transmitting a physical broadcast channel on the corresponding terminal side of the present disclosure will be described with reference to the embodiments and the accompanying drawings.
  • an embodiment of the present disclosure further provides a method for transmitting a physical broadcast channel, which is applied to a terminal, and includes step 501, which is described in detail below.
  • Step 501 Receive PBCH data corresponding to the PBCH segment by using a PBCH segment in the PBCH.
  • the PBCH includes a plurality of PBCH segments having different periods and/or different load sizes.
  • the PBCH data may be the minimum system information, or may be system information that carries content and periods that are larger than the minimum system information, such as remaining minimum system information and/or paging information, or may be minimum system information, remaining
  • the minimum system information and paging information are not limited by the disclosure.
  • the minimum system information is usually the most frequent system information, including, for example, MIB information and the like.
  • the remaining minimum system information includes, but is not limited to, resource indication information of scheduling information of the remaining minimum system information, and the paging information includes but is not limited to paging indication information.
  • the method for transmitting a physical broadcast channel receives PBCH data corresponding to a PBCH segment by using a PBCH segment in a PBCH, where the PBCH includes multiple PBCH segments having different periods and/or different load sizes, which can satisfy
  • the PBCH data received by the PBCH of the fixed-cycle, fixed-size, and fixed transmission modes in the related art may have the advantages of being compatible with multiple scenarios, flexible configuration, high resource utilization, and reduced delay.
  • the PBCH data corresponding to the PBCH segment may be specifically received by using the PBCH segmentation in the PBCH.
  • the minimum system information is received by a PBCH segment with a minimum period and/or a minimum of bearer content among the plurality of PBCH segments.
  • the transmitting method further includes:
  • the PBCH data corresponding to the PBCH segment may be specifically received by using the PBCH segmentation in the PBCH.
  • the PBCH data corresponding to the PBCH segment may be specifically received by the PBCH segmentation in the PBCH.
  • an embodiment of the present disclosure further provides a transmission device for a physical broadcast channel, which is applied to a base station, and includes:
  • An obtaining module 61 configured to acquire PBCH data
  • a determining module 62 configured to determine a PBCH segment in the PBCH corresponding to the PBCH data, where the PBCH includes multiple PBCH segments having different periods and/or different load sizes;
  • the first transmission module 63 is configured to transmit the PBCH data by using a PBCH segment corresponding to the PBCH data.
  • the transmission device of the physical broadcast channel of the embodiment of the present disclosure transmits PBCH data by using PBCH segments corresponding to PBCH data in the PBCH, and the PBCH includes multiple PBCH segments having different periods and/or different load sizes, which can satisfy different information.
  • the PBCH data can be compatible with multiple scenarios, flexible configuration, high resource utilization, and reduced delay.
  • the PBCH data is minimum system information
  • the determining module 62 is specifically configured to:
  • a PBCH segment corresponding to the minimum system information as a PBCH segment having a smallest period and/or a minimum carrying content among the plurality of PBCH segments.
  • the minimum system information includes MIB information.
  • the transmission device may further include:
  • a second transmission module configured to transmit, by using the PBCH segment with the smallest period and/or the smallest bearer content, the PBCH segments except the PBCH segment with the smallest period and/or the smallest bearer content Configuration information of other PBCH segments.
  • the PBCH data is the remaining minimum system information and/or paging information
  • the determining module 62 is specifically configured to:
  • Determining, in the PBCH segment corresponding to the remaining minimum system information and/or paging information, among other PBCH segments except the PBCH segment with the smallest period and/or the smallest bearer content among the plurality of PBCH segments At least one PBCH segment.
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the first transmission module 63 is specifically configured to:
  • an embodiment of the present disclosure further provides a transmission device of a physical broadcast channel, which is applied to a terminal, and includes:
  • the first receiving module 71 is configured to receive PBCH data corresponding to the PBCH segment by using a PBCH segment in the PBCH, where the PBCH includes multiple PBCH segments having different periods and/or different load sizes.
  • the transmission device of the physical broadcast channel of the embodiment of the present disclosure receives PBCH data corresponding to the PBCH segment by using PBCH segmentation in the PBCH, and the PBCH includes multiple PBCH segments having different periods and/or different load sizes, which can satisfy
  • the PBCH data received by the PBCH of the fixed-cycle, fixed-size, and fixed transmission modes in the related art may have the advantages of being compatible with multiple scenarios, flexible configuration, high resource utilization, and reduced delay.
  • the PBCH data is minimum system information
  • the first receiving module 71 is specifically configured to:
  • the minimum system information is received by a PBCH segment with a minimum period and/or a minimum of bearer content among the plurality of PBCH segments.
  • the minimum system information includes MIB information.
  • the transmission device may further include:
  • a second receiving module configured to receive, by using the PBCH segment with the smallest period and/or the smallest bearer content, the PBCH segments except the minimum period and/or the smallest PBCH segment Configuration information of other PBCH segments.
  • the PBCH data is the remaining minimum system information and/or paging information
  • the first receiving module 71 is specifically configured to:
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the first receiving module 71 is specifically configured to:
  • an embodiment of the present disclosure further provides a base station including a first bus 81, a first transceiver 82, an antenna 83, a first bus interface 84, a first processor 85, and a first memory 86. .
  • the first processor 85 is configured to read the program in the first memory 86 and perform the following process:
  • PBCH segmentation transmitting the PBCH data.
  • the first transceiver 82 is configured to receive and transmit data under the control of the first processor 85.
  • the PBCH data is minimum system information
  • the first processor 85 is further configured to: determine that the PBCH segment corresponding to the minimum system information is a minimum period and/or a bearer in the multiple PBCH segments. The smallest PBCH segmentation.
  • the minimum system information includes MIB information.
  • the first processor 85 is further configured to: control the first transceiver 82 to transmit the multiple PBCH segments by using the PBCH segment with the smallest period and/or the smallest bearer content, except the minimum period of the period / or configuration information of other PBCH segments other than the PBCH segment with the smallest content.
  • the PBCH data is remaining minimum system information and/or paging information
  • the first processor 85 is further configured to: determine a PBCH segment corresponding to the remaining minimum system information and/or paging information, At least one of the plurality of PBCH segments other than the PBCH segment with the smallest period and/or the smallest bearer content is described in the plurality of PBCH segments.
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the first processor 85 is further configured to: control the first transceiver 82 to use frequency division in a synchronization signal block with the primary synchronization signal and/or the secondary synchronization signal by using a PBCH segment corresponding to the PBCH data.
  • the PBCH data is transmitted by time division multiplexing and/or code division multiplexing.
  • a bus architecture (represented by a first bus 81), which may include any number of interconnected buses and bridges, the first bus 81 will include one or more of the first processor 85
  • the processor and various circuits of the memory represented by the first memory 86 are linked together.
  • the first bus 81 can also link various other circuits such as peripherals, voltage regulators, and power management circuits.
  • the first bus interface 84 provides an interface between the first bus 81 and the first transceiver 82.
  • the first transceiver 82 can be an element or a plurality of elements, such as a plurality of receivers and transmitters, providing means for communicating with various other devices on a transmission medium.
  • the data processed by the first processor 85 is transmitted over the wireless medium via the antenna 83. Further, the antenna 83 also receives the data and transmits the data to the first processor 85.
  • the first processor 85 is responsible for managing the first bus 81 and the usual processing, and can also provide various functions including timing, peripheral interfaces, voltage regulation, power management, and other control functions.
  • the first memory 86 can be used to store data used by the first processor 85 when performing operations.
  • the first processor 85 may be a CPU (Central Processing Unit), an ASIC (Application Specific Integrated Circuit), an FPGA (Field-Programmable Gate Array), or a CPLD. (Complex Programmable Logic Device).
  • CPU Central Processing Unit
  • ASIC Application Specific Integrated Circuit
  • FPGA Field-Programmable Gate Array
  • CPLD Complex Programmable Logic Device
  • an embodiment of the present disclosure provides a terminal, where the terminal includes a second bus 91, a second processor 92, a second transceiver 93, a second bus interface 94, a second memory 95, and a user interface 96. .
  • the second processor 92 is configured to read the program in the second memory 95 and perform the following process:
  • the second transceiver 93 is controlled to receive PBCH data corresponding to the PBCH segment by a PBCH segment in the PBCH, the PBCH including a plurality of PBCH segments having different periods and/or different load sizes.
  • the second transceiver 93 is configured to receive and transmit data under the control of the second processor 92.
  • the PBCH data is minimum system information
  • the second processor 92 is further configured to: control the second transceiver 93 to pass the PBCH segment with the smallest period and/or the smallest bearer content in the plurality of PBCH segments, Receiving the minimum system information.
  • the minimum system information includes MIB information.
  • the second processor 92 is further configured to: control the second transceiver 93 to receive the plurality of PBCH segments by using the PBCH segment with the smallest period and/or the smallest bearer content, except the minimum period of the period. / or configuration information of other PBCH segments other than the PBCH segment with the smallest content.
  • the PBCH data is the remaining minimum system information and/or paging information
  • the second processor 92 is further configured to: pass the PBCH sub-division with the smallest period and/or the smallest bearer content in the multiple PBCH segments. At least one of the other PBCH segments outside the segment receives the remaining minimum system information and/or paging information.
  • the remaining minimum system information includes resource indication information of scheduling information of the remaining minimum system information; and the paging information includes paging indication information.
  • the second processor 92 is further configured to: control the second transceiver 93 to use frequency division multiplexing with the primary synchronization signal and/or the secondary synchronization signal in a synchronization signal block by using the PBCH segmentation in the PBCH. Time division multiplexing and/or code division multiplexing, receiving PBCH data corresponding to the PBCH segment.
  • a bus architecture (represented by a second bus 91), which may include any number of interconnected buses and bridges, the second bus 91 will include one or more of the generic second processors 92.
  • the various circuits of the memory represented by the processor and the second memory 95 are linked together.
  • the second bus 91 can also link various other circuits such as peripherals, voltage regulators, and power management circuits.
  • the second bus interface 94 provides an interface between the second bus 91 and the second transceiver 93.
  • the second transceiver 93 can be an element or a plurality of elements, such as a plurality of receivers and transmitters, providing means for communicating with various other devices on a transmission medium.
  • the second transceiver 93 receives external data from other devices.
  • the second transceiver 93 is configured to transmit the data processed by the second processor 92 to other devices.
  • a user interface 96 can also be provided, such as a keypad, display, speaker, microphone, joystick.
  • the second processor 92 is responsible for managing the second bus 91 and the usual processing, running the general purpose operating system as described above.
  • the second memory 95 can be used to store data used by the second processor 92 when performing operations.
  • the second processor 92 can be a CPU, an ASIC, an FPGA, or a CPLD.
  • portions of the technical solution of the present disclosure that contribute substantially or to the prior art may be embodied in the form of a software product stored in a storage medium (such as a read only memory (Read Only Memory). , ROM)/Random Access Memory (RAM), disk, CD-ROM, including a number of instructions to make a terminal device (can be a mobile phone, computer, server, air conditioner, or network device, etc.)
  • a storage medium such as a read only memory (Read Only Memory). , ROM)/Random Access Memory (RAM), disk, CD-ROM, including a number of instructions to make a terminal device (can be a mobile phone, computer, server, air conditioner, or network device, etc.)
  • a terminal device can be a mobile phone, computer, server, air conditioner, or network device, etc.

Landscapes

  • Engineering & Computer Science (AREA)
  • Computer Networks & Wireless Communication (AREA)
  • Signal Processing (AREA)
  • Multimedia (AREA)
  • Mobile Radio Communication Systems (AREA)

Abstract

本公开提供一种物理广播信道的传输方法及装置，其中，所述物理广播信道的传输方法包括：获取PBCH数据，确定PBCH中与所述PBCH数据对应的PBCH分段，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。

Description

物理广播信道的传输方法及装置
相关申请的交叉引用
本申请主张在2017年5月4日在中国提交的中国专利申请No.201710308576.8的优先权，其全部内容通过引用包含于此。
技术领域
本公开涉及通信技术领域，尤其涉及一种物理广播信道的传输方法及装置。
背景技术
在第四代移动通信技术长期演进(4th-Generation Long Term Evolution，4G LTE)系统中，物理广播信道(Physical Broadcast Channel，PBCH)用于传递小区重要信息，包括系统带宽、系统帧号等。终端通过PBCH可了解系统基本信息，继而为接入网络做准备。LTE中的主信息块(Master Information Block，MIB)信息通过PBCH进行传输。同时，PBCH是一种非调度、固定周期、固定大小、固定传输模式的物理信道。
在5G新空口(New Radio，NR)研究中，PBCH仍是重要课题方向。5G NR系统增加了高频传输，这导致NR PBCH与传统LTE PBCH会有不同。NR PBCH同样用来传递小区重要且基本信息，除包括系统带宽、系统帧号外，还可能包括波束扫描等相关信息。截止RAN1#88bis会议结束，已同意NR PBCH将占用40～100比特(bit)内容，且占用频带288子载波，2个时域符号，同时，也同意PBCH将传输剩余最小系统信息的调度信息的相关配置信息，将寻呼信息的指示信息也在PBCH中传输作为备选。因此，这导致NR PBCH承载比特相比于LTE大大增加。同时，不同信息所需要承载的资源及周期也会有很大不同。
但由于当前PBCH是一种非调度、固定周期、固定大小、固定传输模式的物理信道，因此，对于多场景部署及应用大规模多天线技术的5G NR系统来说，当前PBCH无法满足多场景兼容、配置灵活、时延等需求。
发明内容
本公开的目的在于提供一种物理广播信道的传输方法及装置，以解决相关技术中的PBCH无法满足多场景兼容、配置灵活、时延等需求的问题。
一方面，本公开提供一种物理广播信道的传输方法，包括：
获取PBCH数据；
确定PBCH中与所述PBCH数据对应的PBCH分段，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段；
通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
可选地，所述PBCH数据为最小系统信息，所述确定PBCH中与所述PBCH数据对应的PBCH分段具体为：
确定与所述最小系统信息对应的PBCH分段为，所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段。
可选地，所述最小系统信息包括MIB信息。
可选地，所述传输方法还包括：
通过所述周期最小和/或承载内容最小的PBCH分段，传输所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
可选地，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述确定PBCH中与所述PBCH数据对应的PBCH分段具体为：
确定与所述剩余最小系统信息和/或寻呼信息对应的PBCH分段为，所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
可选地，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
可选地，所述通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据具体为：
通过与所述PBCH数据对应的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输所 述PBCH数据。
另一方面，本公开还提供一种物理广播信道的传输方法，包括：
通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。
可选地，所述PBCH数据为最小系统信息，所述通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据具体为：
通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
可选地，所述最小系统信息包括MIB信息。
可选地，所述传输方法还包括：
通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
可选地，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据具体为：
通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
可选地，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
可选地，所述通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据具体为：
通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述PBCH分段对应的PBCH数据。
又一方面，本公开还提供一种物理广播信道的传输装置，包括：
获取模块，用于获取PBCH数据；
确定模块，用于确定PBCH中与所述PBCH数据对应的PBCH分段，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段；
第一传输模块，用于通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
可选地，所述PBCH数据为最小系统信息，所述确定模块具体用于：
确定与所述最小系统信息对应的PBCH分段为，所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段。
可选地，所述最小系统信息包括MIB信息。
可选地，所述传输装置还包括：
第二传输模块，用于通过所述周期最小和/或承载内容最小的PBCH分段，传输所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
可选地，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述确定模块具体用于：
确定与所述剩余最小系统信息和/或寻呼信息对应的PBCH分段为，所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
可选地，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；
所述寻呼信息包括寻呼指示信息。
可选地，所述第一传输模块具体用于：
通过与所述PBCH数据对应的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输所述PBCH数据。
再一方面，本公开还提供一种物理广播信道的传输装置，包括：
第一接收模块，用于通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。
可选地，所述PBCH数据为最小系统信息，所述第一接收模块具体用于：
通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
可选地，所述最小系统信息包括MIB信息。
可选地，所述传输装置还包括：
第二接收模块，用于通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
可选地，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述第一接收模块具体用于：
通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
可选地，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
可选地，所述第一接收模块具体用于：
通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述PBCH分段对应的PBCH数据。
再一方面，本公开还提供一种物理广播信道的传输装置，包括：存储器、处理器及存储在所述存储器上并可在所述处理器上运行的计算机程序，所述处理器执行所述计算机程序时实现上述的物理广播信道的传输方法的步骤。
再一方面，本公开还提供一种计算机可读存储介质，其上存储有计算机程序，所述程序被处理器执行时，实现上述的物理广播信道的传输方法的步骤。
本公开的物理广播信道的传输方法，通过PBCH中与PBCH数据对应的PBCH分段，传输PBCH数据，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，能够满足不同信息的承载需求，相比于通过相关技术中的固定周期、固定大小、固定传输模式的PBCH传输PBCH数据，可具有兼容多场景、配置灵活、资源利用率高、降低时延等优点。
附图说明
为了更清楚地说明本公开实施例的技术方案，下面将对本公开实施例中所需要使用的附图作简单地介绍，显而易见地，下面描述中的附图仅仅是本公开的一些实施例，对于本领域普通技术人员来讲，在不付出创造性劳动性的前提下，还可以根据这些附图获得其他的附图。
图1为本公开实施例的一物理广播信道的传输方法的流程图；
图2为本公开一个具体实例的NR PBCH的结构示意图；
图3为本公开另一个具体实例的NR PBCH的结构示意图；
图4(a)和图4(b)为本公开该另一个具体实例的PBCH与PSS和SSS复用的示意图；
图5为本公开实施例的另一物理广播信道的传输方法的流程图；
图6为本公开实施例的物理广播信道的传输装置的结构示意图之一；
图7为本公开实施例的物理广播信道的传输装置的结构示意图之二；
图8为本公开实施例的基站的结构示意图；
图9为本公开实施例的终端的结构示意图。
具体实施方式
下面将结合本公开实施例中的附图，对本公开实施例中的技术方案进行清楚、完整地描述，显然，所描述的实施例是本公开一部分实施例，而不是全部的实施例。基于本公开中的实施例，本领域普通技术人员在没有作出创造性劳动前提下所获得的所有其他实施例，都属于本公开保护的范围。
首先指出的是，本公开实施例的物理广播信道的传输方法，通过非调度、包括具有不同周期和/或不同负载大小的多个PBCH分段的PBCH，能够满足不同信息的承载需求，相比于通过相关技术中的固定周期、固定大小、固定传输模式的PBCH传输PBCH数据，可具有兼容多场景、配置灵活、资源利用率高、降低时延等优点。
参见图1所示，本公开实施例提供一种物理广播信道的传输方法，应用于基站，包括步骤101至步骤103，详述如下。
步骤101：获取PBCH数据。
其中，PBCH数据可以为最小系统信息，也可以为承载内容和周期都比 最小系统信息的承载内容和周期大的系统信息，例如剩余最小系统信息和/或寻呼信息，也可以为最小系统信息、剩余最小系统信息和寻呼信息，本公开不对其进行限制。具体地，最小系统信息通常为最频繁的系统信息，例如包括MIB信息等。剩余最小系统信息包括但不限于该剩余最小系统信息的调度信息的资源指示信息，寻呼信息包括但不限于寻呼指示信息。
步骤102：确定PBCH中与所述PBCH数据对应的PBCH分段。
其中，本公开实施例中的PBCH为一种非调度、包括具有不同周期和/或不同负载大小的多个PBCH分段的物理信道，即本公开实施例的PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。在确定与PBCH数据对应的PBCH分段时，可基于预先约定或协议约定，确定与PBCH数据对应的PBCH分段。而PBCH分段也可称为PBCH子集。
例如，参见图2所示，本公开一个具体实例的NR PBCH可包括三个PBCH分段，分别为NR-PBCH subset(子集)1、NR-PBCH subset2和NR-PBCH subset3，其中，NR-PBCH subset1的承载内容大小为B1，周期为T1，NR-PBCH subset2的承载内容大小为B2，周期为T2，NR-PBCH subset3的承载内容大小为B3，周期为T3，且B1＜B2＜B3，T1＜T2＜T3。
步骤103：通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
其中，在确定与PBCH数据对应的PBCH分段后，就可通过与PBCH数据对应的PBCH分段，传输PBCH数据。此处的PBCH分段依据对应PBCH数据的不同，可以为一个PBCH分段，也可以为多个PBCH分段。
本公开实施例的物理广播信道的传输方法，通过PBCH中与PBCH数据对应的PBCH分段，传输PBCH数据，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，能够满足不同信息的承载需求，相比于通过相关技术中的固定周期、固定大小、固定传输模式的PBCH传输PBCH数据，可具有兼容多场景、配置灵活、资源利用率高、降低时延等优点。
本公开实施例中，当PBCH数据为最小系统信息时，确定PBCH中与PBCH数据对应的PBCH分段可具体为：
确定与最小系统信息对应的PBCH分段为，多个PBCH分段中的周期最 小和/或承载内容最小的PBCH分段。
例如，在图2所示的NR PBCH的前提下，可确定与最小系统信息对应的PBCH分段为NR-PBCH subset1。
这样，基站在确定与最小系统信息对应的PBCH分段后，就可通过多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，传输最小系统信息，使得终端频繁快速接收最小系统信息，满足终端需求，且相比于相关技术中的固定周期的PBCH，可借助将传输最小系统信息的PBCH分段的周期设置较小，从而达到时延降低的效果。
进一步的，针对仅预先约定或协议约定，多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段的配置信息的情况，为了使终端了解多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息，本公开实施例的传输方法还可包括：
通过周期最小和/或承载内容最小的PBCH分段，传输多个PBCH分段中，除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
其中，其他PBCH分段的配置信息例如为其他PBCH分段的周期大小、承载内容大小等。这样，终端了解其他PBCH分段的配置信息后，可有利于终端准确接收PBCH数据。
本公开实施例中，当PBCH数据为剩余最小系统信息和/或寻呼信息时，确定PBCH中与PBCH数据对应的PBCH分段可具体为：
确定与剩余最小系统信息和/或寻呼信息对应的PBCH分段为，多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
例如，在图2所示的NR PBCH的前提下，可确定与剩余最小系统信息和/或寻呼信息对应的PBCH分段为NR-PBCH subset2和/或NR-PBCH subset3。
这样，通过周期较大且承载内容较大的PBCH分段传输剩余最小系统信息和/或寻呼信息，既可保证完整传输剩余最小系统信息和/或寻呼信息，又可避免频繁传输，节省系统资源，提高资源利用率。
此外，相比于相关技术中的固定传输模式的PBCH，本公开实施例的PBCH分段，即一个PBCH分段或多个PBCH分段，在一个同步信号块(Synchronization Signal Block，SS Block)内，可与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式进行传输。也就是说，本公开实施例中，通过与PBCH数据对应的PBCH分段，传输PBCH数据可具体为：
通过与PBCH数据对应的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输PBCH数据。
下面，结合图3至图4(b)对本公开另一个具体实例的物理广播信道的传输过程进行说明。
参见图3所示，本公开该另一个具体实例的NR PBCH包括两个PBCH分段，分别为NR-PBCH和NR-SPBCH(NR-Secondary PBCH,NR-辅PBCH)，NR-PBCH和NR-SPBCH均为非调度传输信道，并且，NR-PBCH周期与SS block周期相同，承载内容大小固定为80比特，NR-SPBCH周期为SS block周期的三倍，承载内容大小固定为150比特，这样，基站在传输NR MIB信息时，可通过NR-PBCH进行传输，而在传输剩余最小系统信息的调度信息的资源指示信息和寻呼指示信息时，可通过NR-SPBCH进行传输。对应的，终端在接收NR MIB信息时，可通过NR-PBCH进行接收，而在接收剩余最小系统信息的调度信息的资源指示信息和寻呼指示信息时，可通过NR-SPBCH进行接收。
进一步的，参见图4(a)所示，NR-PBCH在传输时，在SS block1内可与主同步信号(Primary Synchronization Signal，PSS)和辅同步信号(Secondary Synchronization Signal，SSS)采用时分复用方式，NR-SPBCH在传输时，在SS block1内可与PSS和SSS采用频分复用方式，具体地，NR-SPBCH分成两段，分别为NR-SPBCH-1和NR-SPBCH-2，且NR-SPBCH-1与PSS频分复用，NR-SPBCH-2与SSS频分复用。
另外，参见图4(b)所示，NR-PBCH和NR-SPBCH在传输时，在SS block1内也可与PSS和SSS采用时分复用方式。
上述实施例对本公开的基站侧的物理广播信道的传输方法进行了说明，下面将结合实施例和附图对本公开的对应终端侧的物理广播信道的传输方法进行说明。
参见图5所示，本公开实施例还提供一种物理广播信道的传输方法，应用于终端，包括步骤501，详述如下。
步骤501：通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据。
其中，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。PBCH数据可以为最小系统信息，也可以为承载内容和周期都比最小系统信息的承载内容和周期大的系统信息，例如剩余最小系统信息和/或寻呼信息，也可以为最小系统信息、剩余最小系统信息和寻呼信息，本公开不对其进行限制。具体地，最小系统信息通常为最频繁的系统信息，例如包括MIB信息等。剩余最小系统信息包括但不限于该剩余最小系统信息的调度信息的资源指示信息，寻呼信息包括但不限于寻呼指示信息。
本公开实施例的物理广播信道的传输方法，通过PBCH中的PBCH分段，接收与PBCH分段对应的PBCH数据，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，能够满足不同信息的承载需求，相比于通过相关技术中的固定周期、固定大小、固定传输模式的PBCH接收PBCH数据，可具有兼容多场景、配置灵活、资源利用率高、降低时延等优点。
本公开实施例中，当所述PBCH数据为最小系统信息时，通过PBCH中的PBCH分段，接收与PBCH分段对应的PBCH数据可具体为：
通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
进一步的，本公开实施例中，所述传输方法还包括：
通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
本公开实施例中，当所述PBCH数据为剩余最小系统信息和/或寻呼信息，通过PBCH中的PBCH分段，接收与PBCH分段对应的PBCH数据可具体为：
通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
本公开实施例中，通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据可具体为：
通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述PBCH分段对应的PBCH数据。
上述实施例对本公开的物理广播信道的传输方法进行了说明，下面将结合实施例和附图对本公开的物理广播信道的传输装置进行说明。
参见图6所示，本公开实施例还提供一种物理广播信道的传输装置，应用于基站，包括：
获取模块61，用于获取PBCH数据；
确定模块62，用于确定PBCH中与所述PBCH数据对应的PBCH分段，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段；
第一传输模块63，用于通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
本公开实施例的物理广播信道的传输装置，通过PBCH中与PBCH数据对应的PBCH分段，传输PBCH数据，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，能够满足不同信息的承载需求，相比于通过相关技术中的固定周期、固定大小、固定传输模式的PBCH传输PBCH数据，可具有兼容多场景、配置灵活、资源利用率高、降低时延等优点。
本公开实施例中，所述PBCH数据为最小系统信息，所述确定模块62具体用于：
确定与所述最小系统信息对应的PBCH分段为，所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段。
其中，所述最小系统信息包括MIB信息。
本公开实施例中，所述传输装置还可包括：
第二传输模块，用于通过所述周期最小和/或承载内容最小的PBCH分段， 传输所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
本公开实施例中，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述确定模块62具体用于：
确定与所述剩余最小系统信息和/或寻呼信息对应的PBCH分段为，所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
其中，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
本公开实施例中，所述第一传输模块63具体用于：
通过与所述PBCH数据对应的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输所述PBCH数据。
参见图7所示，本公开实施例还提供一种物理广播信道的传输装置，应用于终端，包括：
第一接收模块71，用于通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。
本公开实施例的物理广播信道的传输装置，通过PBCH中的PBCH分段，接收与PBCH分段对应的PBCH数据，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，能够满足不同信息的承载需求，相比于通过相关技术中的固定周期、固定大小、固定传输模式的PBCH接收PBCH数据，可具有兼容多场景、配置灵活、资源利用率高、降低时延等优点。
本公开实施例中，所述PBCH数据为最小系统信息，所述第一接收模块71具体用于：
通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
其中，所述最小系统信息包括MIB信息。
本公开实施例中，所述传输装置还可包括：
第二接收模块，用于通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
本公开实施例中，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述第一接收模块71具体用于：
通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
其中，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
本公开实施例中，所述第一接收模块71具体用于：
通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述PBCH分段对应的PBCH数据。
参见图8所示，本公开实施例还提供一种基站，所述基站包括第一总线81、第一收发机82、天线83、第一总线接口84、第一处理器85和第一存储器86。
其中，第一处理器85，用于读取第一存储器86中的程序，执行下列过程：
控制第一收发机82获取PBCH数据，确定PBCH中与所述PBCH数据对应的PBCH分段，PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段，通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
第一收发机82，用于在第一处理器85的控制下接收和发送数据。
具体地，所述PBCH数据为最小系统信息，第一处理器85还用于：确定与所述最小系统信息对应的PBCH分段为，所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段。
具体地，所述最小系统信息包括MIB信息。
具体地，第一处理器85还用于：控制第一收发机82通过所述周期最小和/或承载内容最小的PBCH分段，传输所述多个PBCH分段中，除所述周期 最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
具体地，所述PBCH数据为剩余最小系统信息和/或寻呼信息，第一处理器85还用于：确定与所述剩余最小系统信息和/或寻呼信息对应的PBCH分段为，所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
具体地，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
具体地，第一处理器85还用于：控制第一收发机82通过与所述PBCH数据对应的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输所述PBCH数据。
在图8中，总线架构(用第一总线81来代表)，第一总线81可以包括任意数量的互联的总线和桥，第一总线81将包括由第一处理器85代表的一个或多个处理器和第一存储器86代表的存储器的各种电路链接在一起。第一总线81还可以将诸如外围设备、稳压器和功率管理电路等之类的各种其他电路链接在一起。第一总线接口84在第一总线81和第一收发机82之间提供接口。第一收发机82可以是一个元件，也可以是多个元件，比如多个接收器和发送器，提供用于在传输介质上与各种其他装置通信的单元。经第一处理器85处理的数据通过天线83在无线介质上进行传输，进一步，天线83还接收数据并将数据传送给第一处理器85。
第一处理器85负责管理第一总线81和通常的处理，还可以提供各种功能，包括定时，外围接口，电压调节、电源管理以及其他控制功能。而第一存储器86可以被用于存储第一处理器85在执行操作时所使用的数据。
可选的，第一处理器85可以是CPU(Central Processing Unit，中央处理单元)、ASIC(Application Specific Integrated Circuit，专用集成电路)、FPGA(Field-Programmable Gate Array，现场可编程门阵列)或CPLD(Complex Programmable Logic Device，复杂可编程逻辑器件)。
参见图9所示，本公开实施例提供一种终端，所述终端包括第二总线91、第二处理器92、第二收发机93、第二总线接口94、第二存储器95和用户接口96。
其中，第二处理器92，用于读取第二存储器95中的程序，执行下列过程：
控制第二收发机93通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。
第二收发机93，用于在第二处理器92的控制下接收和发送数据。
具体地，所述PBCH数据为最小系统信息，第二处理器92还用于：控制第二收发机93通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
具体地，所述最小系统信息包括MIB信息。
具体地，第二处理器92还用于：控制第二收发机93通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
具体地，所述PBCH数据为剩余最小系统信息和/或寻呼信息，第二处理器92还用于：通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
具体地，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；所述寻呼信息包括寻呼指示信息。
具体地，第二处理器92还用于：控制第二收发机93通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述PBCH分段对应的PBCH数据。
在图9中，总线架构(用第二总线91来代表)，第二总线91可以包括任意数量的互联的总线和桥，第二总线91将包括由通用第二处理器92代表的一个或多个处理器和第二存储器95代表的存储器的各种电路链接在一起。第二总线91还可以将诸如外围设备、稳压器和功率管理电路等之类的各种其他电路链接在一起。第二总线接口94在第二总线91和第二收发机93之间提供接口。第二收发机93可以是一个元件，也可以是多个元件，比如多个接收器 和发送器，提供用于在传输介质上与各种其他装置通信的单元。例如：第二收发机93从其他设备接收外部数据。第二收发机93用于将第二处理器92处理后的数据发送给其他设备。取决于计算系统的性质，还可以提供用户接口96，例如小键盘、显示器、扬声器、麦克风、操纵杆。
第二处理器92负责管理第二总线91和通常的处理，如前述所述运行通用操作系统。而第二存储器95可以被用于存储第二处理器92在执行操作时所使用的数据。
可选的，第二处理器92可以是CPU、ASIC、FPGA或CPLD。
需要说明的是，在本文中，术语“包括”、“包含”或者其任何其他变体意在涵盖非排他性的包含，从而使得包括一系列要素的过程、方法、物品或者装置不仅包括那些要素，而且还包括没有明确列出的其他要素，或者是还包括为这种过程、方法、物品或者装置所固有的要素。在没有更多限制的情况下，由语句“包括一个……”限定的要素，并不排除在包括该要素的过程、方法、物品或者装置中还存在另外的相同要素。
上述本公开实施例序号仅仅为了描述，不代表实施例的优劣。
通过以上的实施方式的描述，本领域的技术人员可以清楚地了解到上述实施例方法可借助软件加必需的通用硬件平台的方式来实现，当然也可以通过硬件，但很多情况下前者是更佳的实施方式。基于这样的理解，本公开的技术方案本质上或者说对现有技术做出贡献的部分可以以软件产品的形式体现出来，该计算机软件产品存储在一个存储介质(如只读存储器(Read Only Memory，ROM)/随机存取存储器(Random Access Memory，RAM)、磁碟、光盘)中，包括若干指令用以使得一台终端设备(可以是手机，计算机，服务器，空调器，或者网络设备等)执行本公开各个实施例所述的方法。
以上所述仅是本公开的优选实施方式，应当指出，对于本技术领域的普通技术人员来说，在不脱离本公开原理的前提下，还可以做出若干改进和润饰，这些改进和润饰也应视为本公开的保护范围。

Claims (32)

  1. 一种物理广播信道的传输方法，包括：
    获取物理广播信道(Physical Broadcast Channel，PBCH)数据；
    确定PBCH中与所述PBCH数据对应的PBCH分段，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段；
    通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
  2. 根据权利要求1所述的传输方法，其中，所述PBCH数据为最小系统信息，所述确定PBCH中与所述PBCH数据对应的PBCH分段具体为：
    确定与所述最小系统信息对应的PBCH分段为，所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段。
  3. 根据权利要求2所述的传输方法，其中，所述最小系统信息包括主信息块(Master Information Block，MIB)信息。
  4. 根据权利要求2所述的传输方法，其中，所述传输方法还包括：
    通过所述周期最小和/或承载内容最小的PBCH分段，传输所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
  5. 根据权利要求1所述的传输方法，其中，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述确定PBCH中与所述PBCH数据对应的PBCH分段具体为：
    确定与所述剩余最小系统信息和/或寻呼信息对应的PBCH分段为，所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
  6. 根据权利要求5所述的传输方法，其中，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；
    所述寻呼信息包括寻呼指示信息。
  7. 根据权利要求1至6中任一项所述的传输方法，其中，所述通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据具体为：
    通过与所述PBCH数据对应的PBCH分段，在一个同步信号块内与主同 步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输所述PBCH数据。
  8. 一种物理广播信道的传输方法，包括：
    通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。
  9. 根据权利要求8所述的传输方法，其中，所述PBCH数据为最小系统信息，所述通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据具体为：
    通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
  10. 根据权利要求9所述的传输方法，其中，所述最小系统信息包括MIB信息。
  11. 根据权利要求9所述的传输方法，其中，所述传输方法还包括：
    通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
  12. 根据权利要求8所述的传输方法，其中，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据具体为：
    通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
  13. 根据权利要求12所述的传输方法，其中，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；
    所述寻呼信息包括寻呼指示信息。
  14. 根据权利要求8至13中任一项所述的传输方法，其中，所述通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据具体为：
    通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述 PBCH分段对应的PBCH数据。
  15. 一种物理广播信道的传输装置，包括：
    获取模块，用于获取PBCH数据；
    确定模块，用于确定PBCH中与所述PBCH数据对应的PBCH分段，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段；
    第一传输模块，用于通过与所述PBCH数据对应的PBCH分段，传输所述PBCH数据。
  16. 根据权利要求15所述的传输装置，其中，所述PBCH数据为最小系统信息，所述确定模块具体用于：
    确定与所述最小系统信息对应的PBCH分段为，所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段。
  17. 根据权利要求16所述的传输装置，其中，所述最小系统信息包括MIB信息。
  18. 根据权利要求16所述的传输装置，其中，所述传输装置还包括：
    第二传输模块，用于通过所述周期最小和/或承载内容最小的PBCH分段，传输所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
  19. 根据权利要求15所述的传输装置，其中，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述确定模块具体用于：
    确定与所述剩余最小系统信息和/或寻呼信息对应的PBCH分段为，所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段。
  20. 根据权利要求19所述的传输装置，其中，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；
    所述寻呼信息包括寻呼指示信息。
  21. 根据权利要求15至20中任一项所述的传输装置，其中，所述第一传输模块具体用于：
    通过与所述PBCH数据对应的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，传输所 述PBCH数据。
  22. 一种物理广播信道的传输装置，包括：
    第一接收模块，用于通过PBCH中的PBCH分段，接收与所述PBCH分段对应的PBCH数据，所述PBCH包括具有不同周期和/或不同负载大小的多个PBCH分段。
  23. 根据权利要求22所述的传输装置，其中，所述PBCH数据为最小系统信息，所述第一接收模块具体用于：
    通过所述多个PBCH分段中的周期最小和/或承载内容最小的PBCH分段，接收所述最小系统信息。
  24. 根据权利要求23所述的传输装置，其中，所述最小系统信息包括MIB信息。
  25. 根据权利要求23所述的传输装置，其中，所述传输装置还包括：
    第二接收模块，用于通过所述周期最小和/或承载内容最小的PBCH分段，接收所述多个PBCH分段中，除所述周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段的配置信息。
  26. 根据权利要求22所述的传输装置，其中，所述PBCH数据为剩余最小系统信息和/或寻呼信息，所述第一接收模块具体用于：
    通过所述多个PBCH分段中的除周期最小和/或承载内容最小的PBCH分段外的其他PBCH分段中的至少一个PBCH分段，接收所述剩余最小系统信息和/或寻呼信息。
  27. 根据权利要求26所述的传输装置，其中，所述剩余最小系统信息包括所述剩余最小系统信息的调度信息的资源指示信息；
    所述寻呼信息包括寻呼指示信息。
  28. 根据权利要求22至27中任一项所述的传输装置，其中，所述第一接收模块具体用于：
    通过所述PBCH中的PBCH分段，在一个同步信号块内与主同步信号和/或辅同步信号采用频分复用、时分复用和/或码分复用方式，接收与所述PBCH分段对应的PBCH数据。
  29. 一种物理广播信道的传输装置，包括：存储器、处理器及存储在所 述存储器上并可在所述处理器上运行的计算机程序，所述处理器执行所述计算机程序时实现根据权利要求1至7中任一项所述的物理广播信道的传输方法的步骤。
  30. 一种物理广播信道的传输装置，包括：存储器、处理器及存储在所述存储器上并可在所述处理器上运行的计算机程序，所述处理器执行所述计算机程序时实现根据权利要求8至14中任一项所述的物理广播信道的传输方法的步骤。
  31. 一种计算机可读存储介质，其上存储有计算机程序，所述程序被处理器执行时，实现根据权利要求1至7中任一项所述的物理广播信道的传输方法的步骤。
  32. 一种计算机可读存储介质，其上存储有计算机程序，所述程序被处理器执行时，实现根据权利要求8至14中任一项所述的物理广播信道的传输方法的步骤。
PCT/CN2018/081715 2017-05-04 2018-04-03 物理广播信道的传输方法及装置 Ceased WO2018201839A1 (zh)

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
CN201710308576.8 2017-05-04
CN201710308576.8A CN108810826B (zh) 2017-05-04 2017-05-04 一种物理广播信道的传输方法及装置

Publications (1)

Publication Number Publication Date
WO2018201839A1 true WO2018201839A1 (zh) 2018-11-08

Family

ID=64016391

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/CN2018/081715 Ceased WO2018201839A1 (zh) 2017-05-04 2018-04-03 物理广播信道的传输方法及装置

Country Status (2)

Country Link
CN (1) CN108810826B (zh)
WO (1) WO2018201839A1 (zh)

Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20110164707A1 (en) * 2009-07-30 2011-07-07 Qualcomm Incorporated Utilization of a known portion of a payload to decode a payload having a known and an unknown portion
CN103840932A (zh) * 2012-11-27 2014-06-04 华为技术有限公司 一种物理广播信道传输方法、设备和系统

Patent Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20110164707A1 (en) * 2009-07-30 2011-07-07 Qualcomm Incorporated Utilization of a known portion of a payload to decode a payload having a known and an unknown portion
CN103840932A (zh) * 2012-11-27 2014-06-04 华为技术有限公司 一种物理广播信道传输方法、设备和系统

Non-Patent Citations (3)

* Cited by examiner, † Cited by third party
Title
ERICSSON: "Acquisition of Minimum SI", 3GPP TSG-RAN WG2 NR AD HOC TDOC R2-1700477, 19 January 2017 (2017-01-19), XP051211049 *
ERICSSON: "Minimum System Information Delivery", 3GPP TSG-RAN WG1 NR ADHOC RL-1700296, 20 January 2017 (2017-01-20), XP051207834 *
ERICSSON: "NR Delivery of Remaining System Information", 3GPP TSG-RAN WG1 MEETING #88 RL-1702125, 17 February 2017 (2017-02-17), XP051209285 *

Also Published As

Publication number Publication date
CN108810826A (zh) 2018-11-13
CN108810826B (zh) 2020-09-22

Similar Documents

Publication Publication Date Title
US10880919B2 (en) Method and device for configuring and determining semi-persistent scheduling
CN110035493B (zh) 一种信息指示、确定方法、终端及基站
CN107155218B (zh) 一种配置上行半持续调度的方法和设备
CN109152013B (zh) 一种公共下行控制信道信号传输方法和相关设备
US20230054244A1 (en) Network migration method and apparatus, communications device, and communications system
US12219655B2 (en) Transmission method and apparatus of discovery signal and communication system
CN107528678B (zh) 一种系统消息更新的方法和设备
WO2019095783A1 (zh) 一种同步块与寻呼调度信令关联方法、指示方法及装置
CN110535604B (zh) 一种速率匹配方法和装置
CN110430616A (zh) 一种资源确定方法、相关设备及系统
WO2016168967A1 (zh) 一种分量载波组的配置方法及设备
US20210368473A1 (en) Method of sending downlink information, access and mobility management function entity and network function entity
US11005740B2 (en) Data transmission method, device, and network system
CN110474742B (zh) 一种确定rrm测量配置的方法及设备
CN111836389B (zh) 上行资源调度方法、终端及网络侧设备
WO2021023294A1 (zh) 信息传输方法及电子设备
WO2018196449A1 (zh) 一种导频发送、接收方法及装置
WO2020238684A1 (zh) 通信方法、装置、设备及计算机可读存储介质
US12160870B2 (en) Method for determining unavailable resource, terminal device and network device
CN109802797B (zh) 确定信道状态信息参考信号的颗粒度的方法和网络设备
WO2018201839A1 (zh) 物理广播信道的传输方法及装置
US10608872B2 (en) Radio interrupt
WO2018121220A1 (zh) 一种系统信息传输方法、用户终端和传输节点
CN111867113B (zh) 上行资源调度方法、终端及网络侧设备
CN110519028A (zh) 处理方法和设备

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 18794988

Country of ref document: EP

Kind code of ref document: A1

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 18794988

Country of ref document: EP

Kind code of ref document: A1
