WO2018196200A1 - Convenient robot for cleaning restaurant - Google Patents

Abstract

A convenient robot for cleaning a restaurant, comprising a driving mechanism (37), a walking mechanism (38), a wiping device (40), a dust sucking device (39), a first housing (3), tension springs (10), and adjusting mechanisms (49). The robot has a walking function, a dust removal function, a wiping function, and an adjustment function. A plurality of dust sucking holes (2) is formed along the peripheral direction of the lower end of a dust sucking box (5); the dust sucking box (5) sucks dust on the ground by means of a dust sucking pump, a first dust sucking pipe (8), and a second dust sucking pipe (32); the suction force applied to the ground by the dust sucking box (5) can be averaged by means of the plurality of dust sucking holes (2) so as to adjust the negative pressure in the dust sucking box (5) and keep constant pressure in the dust sucking box (5).

Description

A convenient robot based on restaurant cleaning Technical field

The invention belongs to the technical field of restaurant cleaning robots, and particularly relates to a convenient robot based on restaurant cleaning.

Background technique

At present, the cleaning work of the restaurant is often carried out for manpower cleaning, and the robot is rarely used; and the cleaning of the restaurant is inefficient and costly; in the process of human cleaning, the dust at the corners is often ignored, so that the cleaning is not clean enough; There are many tables and chairs in the restaurant. During the cleaning process, the support legs at the lower end of the table and chair will affect the cleaning process. Therefore, it is necessary to design a cleaning robot that can improve the efficiency and clean the dust at the support legs at the lower end of the table and chair. Very necessary.

The present invention designs a portable robot based on restaurant cleaning to solve the above problems.

Summary of the invention

In order to solve the above-mentioned drawbacks in the prior art, the present invention discloses a portable robot based on restaurant cleaning, which is implemented by the following technical solutions.

A convenient robot based on restaurant cleaning, characterized in that it comprises a driving mechanism, a running mechanism, a wiping device, a dust collecting device, a first casing, a tension spring, an adjusting mechanism, wherein the dust collecting device is installed in the first shell The inner side of the body; the wiping device is mounted on the inner side of the dust collecting device; the traveling mechanism is located at the center of the inner side of the wiping device, and the outer circular surface of the traveling mechanism and the four planes inside the wiping device are respectively connected by a tension spring; the driving mechanism is installed at The upper side of the running mechanism; two symmetrical adjustment mechanisms are mounted on both sides of the lower end of the first housing.

The driving mechanism comprises a block, a compression block, a guiding arc plate, a first telescopic rod, a fixed shaft, a sleeve, a scroll spring, a first ring column, a second ring column, a base circular groove, a third limit block, and a Second limiting slot, base, pushing block, connecting block, first limiting block, compression spring, first spring cavity, second spring cavity, second limiting block, top cover, second housing, first The annular column groove and the first limiting groove, wherein the center of the upper end of the base is provided with a circular groove at the center; the four first limiting blocks each have a square notch; the four first limiting blocks are uniformly installed circumferentially On the upper end surface of the base, the outer ends of the four first limiting blocks are located outside the outer circular surface of the base; one end of the fixed shaft is installed at the center of the circular groove of the base; the inner circular surface of the sleeve is installed outside the fixed shaft a circular surface; the inner circular surface of the second annular post is fixedly mounted on the outer circular surface of the lower end of the sleeve; the outer circular surface of the second annular post is provided with a first spring cavity; one end of the first telescopic rod is mounted on Inside the first spring cavity, a compression bomb is mounted between the first telescopic rod and the first spring cavity One end of the compression spring is mounted on an end surface of the first telescopic rod at one end inside the first spring chamber, and the other end is mounted on an end surface of the inner side of the first spring chamber; one end of the guide arc plate is mounted on the first telescopic rod An inner circumference of the first annular column is mounted on an outer circular surface of the upper end of the sleeve; a first annular column groove is formed at an upper end of the first annular column; a scroll spring is located in the first annular column groove; The inner end is mounted on the outer circumference of the sleeve, outside The end is mounted on the inner circular surface of the first annular column groove; the outer surface of the lower end of the first annular column is provided with a second spring cavity; the inner surface of the second spring cavity is symmetrically opened with two second limits a slot; and the two second limiting slots do not pass through the outer circular surface of the first annular post; the lower side of one end of the block has a first limiting slot, and the first limiting slot is formed by a square portion and a slope Partially formed, the intersection of the square shape portion and the inclined portion is a step; two third limit blocks are symmetrically mounted on both sides of the block; one end of the block passes through two third limit blocks and two second limits The matching of the slot is mounted on the inner side of the second spring cavity; a compression spring is mounted between the block and the second spring cavity; one end of the compression spring is mounted at one end of the block, and the other end is mounted inside the second spring cavity The upper end of the compression block is mounted on the lower side of the block, and the compression block is located between the first limiting groove and the outer circular surface of the first annular column; the compression block is matched with the guiding arc plate and the fourth limiting block; The top cover is mounted on the upper end of the fixed shaft; the second limit block has an arc shape at one end, four second The block is circumferentially evenly mounted on the lower end surface of the top cover, and the non-arc-shaped one ends of the four second limiting blocks are located on the outer side of the outer circular surface of the top cover; the inner circumference of the second housing has a An annular groove, the second casing is mounted on the outer circumferential surface of the top cover by the upper end surface of the annular groove and the second limiting block; the second casing is mounted on the outer surface of the annular groove through the lower end surface of the annular groove The outer circumferential surface of the base; one end of the four connecting blocks is circumferentially evenly mounted on the inner circular surface of the annular groove of the second casing, and the other end of the four connecting blocks is mounted with a pushing block; the width of the pushing block is The first limiting slot has the same width, and the upper end surface of the pushing block cooperates with the upper side surface of the first limiting slot; the four first limiting block mounting positions respectively cooperate with the four second limiting block mounting positions.

The walking mechanism comprises a walking structure, a walking wheel, a first dust collecting pipe and an outlet pipe, wherein a functional motor, a PLC chip, a vacuum pump, a water tank and a dust box are installed on the inner side of the walking structure; the upper end surface of the walking structure is installed on the chassis On the lower end surface, three traveling wheels are circumferentially evenly mounted on the lower end of the walking structure; four first suction pipes are circumferentially evenly mounted on the outer circumference of the walking structure; the four outlet pipes are axially evenly mounted on The outer circular surface of the walking structure, and four outlet pipes are respectively adjacent to the four first dust suction pipes.

The dust collecting device comprises a dust box, a dust suction hole and a second dust suction pipe, wherein the lower end of the dust box has a plurality of dust suction holes; the four second dust suction pipes are respectively installed on the upper end faces of the four sides of the dust box. Upper; the dust box is mounted on the inner side of the lower end of the first housing.

The wiping device includes a wiping block and a first water inlet pipe, wherein the wiping block is mounted on the inner side of the dust suction device; and the four first water inlet pipes are respectively mounted on the upper end faces of the four sides of the wiping block.

The adjusting mechanism comprises a wiping cloth, a dust suction block, a first guiding groove, an adjusting groove, a supporting block, a second telescopic rod, a nut, a screw, a driving motor, a second guiding groove, a second guiding rail, a tension spring, and a third suction a dust pipe, a second inlet pipe, a first guide rail, a semicircular groove, an adjustment block, wherein the adjustment groove is opened at a lower end of the first casing; the upper end of the adjustment groove has a first guide groove and a second guide groove, and the first The guide groove and the second guide groove are parallel to each other, and the second guide groove is adjacent to the dust suction device; the front side of the adjustment block has a semicircular groove; the wiping block is mounted at the lower end of the adjustment block and the wiping block is adjacent to the semicircular groove; the lower end of the dust suction block There are many dust suction holes, the dust suction block is installed at the lower end of the adjustment block and the dust suction block is close to the dust suction device; the third dust suction pipe and the second water inlet pipe are installed behind the adjustment block a second inlet pipe adjacent to the third suction pipe; the upper end of the adjustment block is mounted with the first guide rail; the two adjustment blocks are respectively installed in the adjustment groove by the cooperation of the respective first guide rail and the first guide groove; Between the adjusting block and the adjusting groove, the two adjusting blocks are respectively connected by the tension spring; the two driving motors are symmetrically mounted on both sides of the first casing; the supporting block is mounted on the upper side of the adjusting groove; One ends of the two symmetrical screws are respectively mounted on both sides of the adjusting groove and are coupled with the corresponding two driving motor rotating shafts; the other ends of the two symmetrical screws are respectively mounted on both sides of the supporting block; one side of the two nuts It is semi-circular; the lower ends of the two nuts are slotted, and the groove on the nut is arc-shaped at the end near the ground; the second ends of the two nuts are mounted with a second guide rail; the two nuts pass through two second The rail and the second guiding groove are fitted in the adjusting groove, and the two nuts are respectively matched with the two screws; one ends of the two second telescopic rods are respectively mounted on the sides of the two adjusting blocks; the two second telescopic rods are respectively The other end Cooperate with two grooves on the two nuts.

The second dust suction pipe is connected to the first dust suction pipe through a hose; the first dust suction pipe is connected to the dust storage box in the traveling mechanism by the dust suction pump.

The first inlet pipe is connected to the outlet pipe through a hose, and the outlet pipe is connected to the water tank in the traveling mechanism.

As a further improvement of the present technology, the other end of the guiding arc plate is mounted with a fourth limiting block.

As a further improvement of the present technology, the above-described scheme for replacing three traveling wheels is four traveling wheels.

As a further improvement of the present technology, a compression spring is mounted in the second telescopic rod.

As a further improvement of the present technology, the inner side of the second telescopic rod is provided with two guiding blocks and two guiding grooves, and the two guiding blocks and the two guiding grooves are engaged.

Compared with the traditional restaurant cleaning robot technology, the restaurant cleaning robot designed in the present invention is composed of a driving mechanism, a traveling mechanism, a wiping device, an adjusting device, and a dust collecting device, and has a walking function, a dust removing function, a wiping function and an adjusting function.

In the present invention, the traveling mechanism has a walking function; the functional motor installed in the traveling mechanism can provide power to the restaurant cleaning robot; the function of the vacuum pump is to provide a negative pressure to the dust box; and the dust box can absorb the collected dust. The storage tank is convenient for uniform cleaning; the water tank can supply the water source to the wiping device; the PLC chip in the functional mechanism of the invention can control the rotation and rotation of the walking wheel, thereby achieving the purpose of controlling walking and changing direction, so that the cleaning robot can reach the need to clean up The place; the effect of intelligent cleaning robots. In the wiping device of the present invention, the ground can be wiped. During the wiping process, the water in the water storage tank in the walking structure flows into the wiping block through the outlet pipe and the first inlet pipe, so that the wiping block is semi-dry and semi-wet, and is cleaned. After the robot is vacuumed, the ground is wiped and cleaned by the wiping block to make the floor cleaner; the dust collecting device designed in the invention has the function of vacuuming; the lower end of the dust box has a plurality of dust collecting holes in the circumferential direction, and the function is to vacuum the dust. When the dust is absorbed by the dust suction pump, the first dust suction pipe and the second dust suction pipe, the dust suction on the ground can be averaged through the plurality of dust suction holes, and the negative pressure in the dust suction box can be adjusted. Press to keep the pressure inside the vacuum box constant. Cleaned up The dust is sucked into the dust box through the dust suction hole, and the dust in the dust box is moved to the dust box in the walking structure through the first dust suction pipe and the second dust suction pipe; thereby achieving the effect of vacuum cleaning .

The function of the above-mentioned adjusting mechanism is that when the clearing robot touches the table leg during the working process, the driving motor drives the screw to rotate, and both ends of the screw are mounted on the end faces of the supporting block and the adjusting groove; the screw does not rotate at the same time. Moving and screwing between the screw and the nut, the nut moves while the screw rotates. When the nut moves into contact with the second telescopic rod, the nut presses the second telescopic rod so that the second telescopic rod One end moves toward one end of the adjusting block, and when one end of the second telescopic rod moves to match the groove on the nut, one end of the second telescopic rod is caught in the groove on the nut; then the nut moves to bring the adjusting block Moving so that the table legs are just caught in the semicircular groove of one of the two adjustment blocks; at this time, because the semicircular groove of the adjustment block is bound by the legs, the walking structure is driven laterally toward the table legs by the legs; A reaction force is applied to the second housing to cause it to rotate; while the second housing rotates, the first housing is driven around the dining table by four tension springs Rotating; after the second housing is rotated by ninety degrees, the second housing continues to rotate by the force of the scroll spring, and the first housing surrounds the table by four tension springs while the second housing rotates The foot continues to rotate until it is turned to the other side of the table leg, thereby achieving the purpose of cleaning the table legs. After the cleaning is completed, since the clearing robot will continue to move forward, at this time, the semicircular groove on the adjusting block has been rotated to the other side of the leg; then the nut will gradually move to the original position under the action of the driving motor. During the moving process, the nut passes the second telescopic rod, so that the second telescopic rod moves out of the nut along the curved portion of the upper groove of the nut, and after the second telescopic rod is disengaged from the nut, the adjustment block is restored by the tension spring. The force returns to the starting position; the nut also returns to its original position. The second casing designed by the invention is rotated by ninety degrees by the action of the restaurant table leg and the first casing, and then continues to rotate by ninety degrees by the force of the scroll spring; since the scroll spring is only in the second casing When the rotation angle reaches 90 degrees, the second housing continues to rotate in the original direction, and the second housing is rotated by the scroll spring to rotate in the opposite direction; the present invention rotates by designing the second housing. At the next ninety degrees, the second housing can rotate the first housing around the restaurant table legs by the tension spring while rotating twice; thereby cleaning the dust around the table legs.

In the invention, the base plays a supporting role on the fixed shaft; and the first limiting block mounted on the upper side thereof has a fixed function; one end of the clamping block is installed on the inner side of the second spring cavity, and is mounted on the clamping block and The compression spring between the second spring chambers can provide a restoring force to the block when the compression state is in a compressed state; the lower end of the block has a first limit groove, and the push block can pass from the first limit groove from one side of the block Moving to the other side; the lower end of the block is mounted with a compression block; one end of the first telescopic rod is mounted inside the first spring cavity; when the compression spring installed between the first spring cavity and the first telescopic rod is in a compressed state The first telescopic rod can provide a restoring force; the upper end of the first telescopic rod is provided with a guiding arc plate, and when the block moves toward the inner side of the second spring cavity, the compressing block will push the guiding arc plate to move; The plate drives the first telescopic rod to move to the inner side of the first spring chamber; the second limiting block acts as a limit for the card block; the second limiting block acts as a limit for the first telescopic rod The scroll spring mounted between the sleeve and the first annular post can provide a restoring force to the sleeve. The width of the pushing block designed by the invention is the same as the width of the first limiting slot, and the upper end surface of the pushing block is flush with the upper side of the first limiting slot, so that the pushing speed can be smoothly at the first limit. Move in the bit slot.

When the cleaning robot is working, the compression spring installed between the first telescopic rod and the first spring chamber is in a freely telescopic state, and the compression spring installed between the block and the second spring chamber is in a freely telescopic state, and the scroll spring is at a free state; the block is located on the front side of the first telescopic rod in a circumferential clockwise direction; the first telescopic rod is in contact with the first limit block; one of the four push blocks is in contact with the block, and the push block The first limit slot on the block is misaligned with each other; the cleaning robot is controlled by the function motor and the PLC chip in the traveling mechanism to perform mobile cleaning; when the cleaning robot touches the table leg on the ground during the cleaning process, the table leg will Blocking the cleaning robot from advancing, the adjusting mechanism mounted on the lower end of the first housing causes the driving motor control screw to cause the table legs to be caught in the semi-circular groove on the adjusting block; at this time, the table leg is a reaction to the second housing on the cleaning robot The second housing rotates because the four push blocks are mounted inside the second housing, so the second housing rotates while pushing four pushes The block rotates; at this time, one of the four push blocks is in contact with the block, that is, the push block pushes the block to rotate around the fixed axis; and the compressed block mounted on the lower side of the block also rotates. Because one end of the scroll spring is mounted on the sleeve, the other end is mounted on the inner circular surface of the first annular column groove; and the block rotates while driving the first ring column to rotate, the first ring column and the shaft The sleeve is installed by a bearing; the second end of the bearing is fixedly mounted with a second annular column, and the second annular column is mounted with a first telescopic rod, the first telescopic rod is in contact with the first limiting block, and the first limiting block is limited a telescopic rod moves to thereby restrict the movement of the second annular column and the sleeve; when the relative rotation between the sleeve and the first annular column occurs, the scroll spring is subjected to an outward pulling force of the first annular column; After the block rotates at a certain angle, it will contact the second limit block, and the other of the four blocks moves to a position close to the first telescopic rod; since the contact between the second limit block and the block is a circle Arc, so the block and the first While the limit block is in contact, because the second limit block will give it a reaction force, the block will move to the side close to the fixed axis under the reaction force; during the movement, the compression block will push the first installation. The guiding arc plate on the telescopic rod moves toward a side close to the fixed shaft, and the guiding arc plate moves while driving the first telescopic rod; during the movement of the first telescopic rod, the other pushing block gradually approaches the first telescopic rod and The circumferential direction is located in the clockwise direction on the rear side of the first telescopic rod; as the contact area of the first limiting slot port and the push block increases in the movement of the block; the first telescopic rod gradually moves away from the control of the first limit block, And the other pushing block gradually moves from one side of the first limiting block to the other side of the first limiting block through the square notch on the first limiting block; when the pushing block moves to the square in the first limiting slot Partially in full contact; the first telescopic rod has been completely out of control of the first limit block while the other push block has also moved to the front side of the first telescopic rod; at this time due to the installation in the first spring chamber and the second spring chamber compressed spring The first telescopic rod and the block will move away from the fixed axis. At the same time as the movement of the block and the first telescopic rod, the push block gradually moves out of the card from the square shape portion of the first limit groove through the inclined portion. Block, located on the front side of the block; In the force of the scroll spring, the first telescopic rod will push another push block located at the front thereof to move; thereby driving the second outer casing to rotate; sequentially driving, the second outer casing will be in a state of constant rotation; the second outer casing is rotated At the same time, the first outer casing is driven by four tension springs mounted between the second outer casing and the first outer casing, while the first outer casing can be rotated around the dining table leg while moving; through the dust suction device while rotating And wiping the device to clean both sides of the leg; after the cleaning is completed, since the cleaning robot has moved to the other side of the leg, the leg does not affect the movement of the cleaning robot; the cleaning robot can continue to the other ground The dust is cleaned up.

DRAWINGS

Figure 1 is a schematic view of the appearance of an integral part.

Figure 2 is a schematic view of the installation of the drive mechanism.

Figure 3 is a schematic view of the internal structure of the drive mechanism.

4 is a schematic view showing the installation of the first telescopic rod.

Figure 5 is a schematic view of the block installation.

Figure 6 is a schematic view of the structure of the card block.

Figure 7 is a schematic view of the second housing mounting.

Figure 8 is a schematic view showing the installation of the second limit block.

Figure 9 is a schematic view showing the structure of the first limiting groove.

Figure 10 is a schematic view showing the mounting of the wiping block.

Figure 11 is a schematic view showing the structure of the dust box.

Figure 12 is a schematic view showing the distribution of the first telescopic rod and the block.

Figure 13 is a schematic diagram of the working principle of the card block.

Figure 14 is a schematic view showing the working principle of the first telescopic rod.

Figure 15 is a schematic view of the adjustment block installation.

Figure 16 is a schematic view showing the structure of the first guide groove.

Figure 17 is a schematic view showing the structure of the adjustment block.

Figure 18 is a schematic view of the mounting of the nut.

Figure 19 is a schematic view showing the installation of the second telescopic rod.

Figure 20 is a schematic view showing the structure of the second rail.

Figure 21 is a schematic view showing the structure of the first housing.

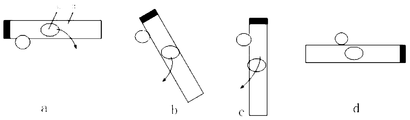

Figure 22 is a schematic diagram of the working principle of the clearing robot.

Figure 23 is a schematic view of the force of the guide arc plate.

In the figure, the label name: 1, the adjustment block; 2, the suction hole; 3, the first housing; 4, the walking structure; 5, the dust box; 6, the walking wheel; 7, the wiping block; 8, the first vacuum Tube; 9, outlet pipe; 10, tension spring; 11, block; 12, second casing; 13, compression block; 14, guide arc plate; 15, first telescopic rod; 16, fixed shaft; Bushing; 18, scroll spring; 19, first ring column; 20, second ring column; 21, base circular groove; 22, base; 23, push block; 24, connecting block; 25, first limit block 26, compression spring; 27, first spring cavity; 28, second spring cavity; 29, second limit block; 30, top cover; 31, first annular column groove; 32, second dust suction pipe 33, first inlet pipe; 36, first limit groove; 37, drive mechanism; 38, running mechanism; 39, dust suction device; 40, wiping device; 41, annular groove; 42, third limit block; 43. The second limit slot; 44, the fourth limit block; 45, the third dust suction pipe; 46, the second water inlet pipe; 47, the first guide rail; 48, the semicircular groove; 49, the adjustment mechanism; Block; 51, second telescopic rod; 52, screw Mother; 53, screw; 54, drive motor; 55, second guide groove; 56, second guide rail; 57, first guide groove; 58, adjustment groove; 59, dust suction block.

detailed description

As shown in FIG. 1 and 2, it comprises a driving mechanism 37, a running mechanism 38, a wiping device 40, a dust suction device 39, a first housing 3, a tension spring 10, and an adjusting mechanism 49, wherein as shown in FIG. The dust device 39 is mounted on the inner side of the first casing 3; the wiping device 40 is mounted on the inner side of the dust suction device 39; the traveling mechanism 38 is located at the center of the inner side of the wiping device 40, and the outer circular surface of the traveling mechanism 38 and the inner side of the wiping device 40 The four planes are respectively connected by a tension spring 10; as shown in Fig. 2, the drive mechanism 37 is mounted on the upper side of the running mechanism 38; as shown in Fig. 1, two symmetrical adjustment mechanisms 49 are mounted on the first housing 3. Both sides of the lower end.

As shown in FIGS. 12 and 3, the drive mechanism 37 includes a block 11, a compression block 13, a guide arc plate 14, a first telescopic rod 15, a fixed shaft 16, a sleeve 17, a scroll spring 18, a first ring 19, and a Two annular column 20, base circular groove 21, third limiting block 42, second limiting groove 43, base 22, pushing block 23, connecting block 24, first limiting block 25, compression spring 26, first spring cavity The body 27, the second spring cavity 28, the second limiting block 29, the top cover 30, the second housing 12, the first annular column groove 31, and the first limiting groove 36, wherein the base 22 is shown in FIG. The center of the upper end is provided with a circular groove 21; one end of each of the four first limiting blocks 25 has a square notch; the four first limiting blocks 25 are circumferentially evenly mounted on the upper end surface of the base 22, and four The outer ends of the first limiting blocks 25 are located outside the outer circular surface of the base 22; as shown in FIG. 3, one end of the fixed shaft 16 is installed at the center of the base circular groove 21; the inner circular surface of the sleeve 17 is fixed at the fixed position. The outer circular surface of the shaft 16; as shown in FIG. 4, the inner circular surface of the second annular cylinder 20 is fixedly mounted on the outer circular surface of the lower end of the sleeve 17; the outer circular surface of the second annular cylinder 20 has the One bomb a cavity 27; one end of the first telescopic rod 15 is mounted inside the first spring cavity 27, and a compression spring 26 is mounted between the first telescopic rod 15 and the first spring cavity 27; one end of the compression spring 26 is mounted on the first a telescopic rod 15 is located on an end surface of one end inside the first spring chamber, and the other end is mounted on an end surface of the inner side of the first spring chamber 27; as shown in FIGS. 3 and 4, one end of the guide arc plate 14 is mounted at the first end. An upper end of the telescopic rod 15; an inner circular surface of the first annular column 19 is mounted on the sleeve 17 The outer circular surface of the end; as shown in Figures 3 and 5, the first annular post 19 has a first annular post slot 31 at its upper end; the wrap spring 18 is located within the first annular post slot 31; the inner end of the wrap spring 18 Mounted on the outer circumferential surface of the sleeve 17, the outer end is mounted on the inner circular surface of the first annular column groove 31; as shown in FIG. 5, the outer surface of the lower end of the first annular column 19 is provided with a second spring cavity The second spring cavity 28 has two second limiting slots 43 symmetrically; and the two second limiting slots 43 do not pass through the outer circular surface of the first annular pillar 19; As shown in FIG. 5, the lower side of one end of the block 11 is provided with a first limiting groove 36, and as shown in FIGS. 6 and 9, the first limiting groove 36 is composed of a square portion and a slanted portion, and the square shape portion and the inclined portion are formed. The intersection of the shaped portions is formed into a step; as shown in FIG. 6, two third limiting blocks 42 are symmetrically mounted on both sides of the block 11; one end of the blocking block 11 passes through two third limiting blocks 42 and two The engagement of the second limiting groove 43 is installed inside the second spring cavity 28; as shown in FIG. 6, a compression spring 26 is mounted between the block 11 and the second spring cavity 28; one end of the compression spring 26 is mounted on One end of the block 11 is mounted on the inner end surface of the second spring cavity 28; as shown in FIG. 6, the upper end of the compression block 13 is mounted on the lower side of the block 11, and the compression block 13 is located in the first limit groove. 36 is interposed between the outer circular surface of the first annular column 19; the compression block 13 is engaged with the guiding arc plate 14 and the fourth limiting block 44; as shown in Fig. 8, the top cover 30 is mounted on the upper end of the fixed shaft 16; One end of the block 29 has an arc shape. As shown in FIG. 8, the four second limiting blocks 29 are circumferentially uniformly mounted on the lower end surface of the top cover 30, and the four second limiting blocks 29 are not arc-shaped. One end is located on the outer side of the outer circular surface of the top cover 30; as shown in FIG. 7, the inner circumference of the second housing 12 has an annular groove 41, and the second housing 12 passes through the upper end surface of the annular groove 41. The second limiting block 29 is fitted on the outer circumferential surface of the top cover 30; the second housing 12 is mounted on the outer circular surface of the base 22 by the cooperation of the lower end surface of the annular groove 41 and the first limiting block 25; One end of the connecting block 24 is circumferentially evenly mounted on the inner circular surface of the annular groove 41 of the second casing 12. As shown in FIG. 3, the other end of the four connecting blocks 24 is mounted with a pushing block 23; 3, the width of the pushing block 23 is the same as the width of the first limiting slot 36, and the upper end surface of the pushing block 23 is matched with the upper side of the first limiting slot 36; as shown in FIG. The mounting position of the block 25 is matched with the mounting positions of the four second limiting blocks 29, respectively.

As shown in FIG. 2, the traveling mechanism 38 includes a walking structure 4, a traveling wheel 6, a first dust suction pipe 8, and an outlet pipe 9, wherein a functional motor, a PLC chip, a suction pump, a water tank, and the inside of the walking structure 4 are installed. a dust box; the upper end surface of the walking structure 4 is mounted on the lower end surface of the chassis, and the three traveling wheels 6 are circumferentially evenly mounted on the lower end of the walking structure 4; the four first dust suction pipes 8 are circumferentially uniformly mounted. The outer circumferential surface of 4; the four outlet pipes 9 are axially evenly mounted on the outer circumferential surface of the walking structure 4, and the four outlet pipes 9 are adjacent to the four first dust suction pipes 8, respectively.

As shown in FIG. 11, the dust collecting device 39 includes a dust box 5, a dust suction hole 2, and a second dust suction pipe 32. The lower end of the dust box 5 is provided with a plurality of dust suction holes 2; The tubes 32 are respectively mounted on the upper end faces of the four sides of the dust box 5; the dust box 5 is mounted on the inner side of the lower end of the first casing 3.

As shown in FIG. 11, the wiping device 40 includes a wiping block 7 and a first water inlet pipe 33, wherein the wiping block 7 is mounted on the suction pipe. The inside of the dust device 39; the four first water inlet pipes 33 are respectively mounted on the upper end faces of the four sides of the wiping block 7.

As shown in FIGS. 15 and 21, the adjusting mechanism 49 includes a wiping cloth, a dust suction block 59, a first guiding groove 57, an adjusting groove 58, a supporting block 50, a second telescopic rod 51, a nut 52, a screw 53, and a driving motor 54. a second guide groove 55, a second guide rail 56, a tension spring 10, a third dust suction pipe 45, a second water inlet pipe 46, a first guide rail 47, a semicircular groove 48, and an adjustment block 1, wherein, as shown in FIG. The adjusting groove 58 is opened at the lower end of the first casing 3; the upper end of the adjusting groove 58 is provided with a first guiding groove 57 and a second guiding groove 55, and the first guiding groove 57 and the second guiding groove 55 are parallel to each other, and second The guide groove 55 is adjacent to the dust suction device 39; as shown in Fig. 17, the front side of the adjustment block 1 is opened with a semicircular groove 48; as shown in Fig. 17, the wiping block 7 is mounted at the lower end of the adjustment block 1 and the wiping block 7 is close to the semicircle a groove 48; a lower end of the dust suction block 59 is provided with a plurality of dust suction holes 2, the dust suction block 59 is installed at the lower end of the adjustment block 1 and the dust suction block 59 is adjacent to the dust suction device 39; the third dust suction pipe 45 and the second water inlet pipe 46 is mounted on the rear side of the adjustment block 1, and the second inlet pipe 46 is adjacent to the third suction pipe 45; as shown in FIG. 17, the upper end of the adjustment block 1 is mounted with a first guide rail 47; The cooperation of the respective first guide rail 47 and the first guide groove 57 is installed in the adjustment groove 58; as shown in FIG. 15, between the adjustment block 1 and the adjustment groove 58, and between the two adjustment blocks 1 respectively through the tension spring 10 are connected together; as shown in Fig. 15, two drive motors 54 are symmetrically mounted on both sides of the first housing 3; the support block 50 is mounted on the upper side of the adjustment slot 58; one end of two symmetrical screws 53 They are respectively mounted on both sides of the adjusting groove 58 and are coupled with the corresponding two driving motors 54; as shown in FIG. 15, the other ends of the two symmetric screws 53 are respectively mounted on both sides of the supporting block 50; As shown, one side of the two nuts 52 is semicircular; as shown in FIG. 19, the lower ends of the two nuts 52 are all grooved, and the groove on the nut 52 is arc-shaped at the end near the ground; The two ends of the two nuts 52 are respectively mounted with a second guide rail 56; the two nuts 52 are respectively mounted in the adjusting groove 58 by the cooperation of the two second guide rails 56 and the second guide groove 55, and the two nuts 52 respectively Cooperating with two screws 53; one ends of the two second telescopic rods 51 are respectively mounted on the sides of the two adjustment blocks 1 ; Two second telescopic other end of the rod 51 are respectively fitted to the two grooves on both the nut 52.

The second dust suction pipe 32 is connected to the first dust suction pipe 8 through a hose; the first dust suction pipe 8 is connected to the dust storage box in the traveling mechanism 38 by a dust suction pump.

The first inlet pipe 33 is connected to the outlet pipe 9 via a hose, and the outlet pipe 9 is connected to the water tank in the traveling mechanism 38.

The other end of the guiding arc plate 14 is mounted with a fourth limiting block 44.

The above-described scheme for replacing the three traveling wheels 6 is four traveling wheels 6.

A compression spring 26 is attached to the second telescopic rod 51.

The inner side of the second telescopic rod 51 is mounted with two guiding blocks and two guiding grooves, and the two guiding blocks and the two guiding grooves are engaged.

In summary:

The restaurant cleaning robot designed in the present invention is driven by the driving mechanism 37, the traveling mechanism 38, the wiping device 40, and the adjusting device. The dust collecting device 39 is configured to have a walking function, a dust removing function, a wiping function, and an adjusting function.

In the present invention, the traveling mechanism 38 has a walking function; the functional motor installed in the traveling mechanism 38 can power the restaurant cleaning robot; the function of the vacuum pump is to provide a negative pressure to the dust box 5; the dust box can absorb the absorption The dust is stored and charged to facilitate uniform cleaning; the water tank can supply the water source to the wiping device 40; the PLC chip in the functional mechanism of the invention can control the rotation and rotation of the traveling wheel 6, thereby achieving the purpose of controlling walking and changing direction, so that cleaning The robot can reach the place where it needs to be cleaned; it achieves the effect of intelligently cleaning the robot. In the present invention, the wiping device 40 can wipe the ground. During the wiping process, the water in the water storage tank of the walking structure 4 flows into the wiping block 7 through the outlet pipe 9 and the first inlet pipe 33, so that the wiping block 7 is semi-dried. In the semi-wet state, after the cleaning of the cleaning robot is completed, the ground is wiped and cleaned by the wiping block 7 to make the floor cleaner; the dust collecting device 39 designed in the present invention has a dust collecting function; the lower end of the dust box 5 has many suctions in the circumferential direction. The dust hole 2 is used for absorbing the dust on the ground by the dust suction pump 5, the first dust suction pipe 8 and the second dust suction pipe 32; The suction force of the dust box 5 on the ground adjusts the negative pressure in the dust box 5 to keep the pressure inside the dust box 5 constant. The cleaned dust is sucked into the dust box 5 through the dust suction hole 2, and the dust in the dust box 5 is moved to the dust box in the walking structure 4 through the first dust suction pipe 8 and the second dust suction pipe 32. ; thus achieving the effect of vacuum cleaning.

The function of the adjusting mechanism 49 is that when the cleaning robot hits the table leg during the working process, the driving screw 54 drives the screw 53 to move, and both ends of the screw 53 are mounted on the end faces of the supporting block 50 and the adjusting groove 58; 53 does not move while rotating and the screw 53 and the nut 52 are threadedly engaged, so the nut 52 moves while the screw 53 rotates, and when the nut 52 moves to contact with the second telescopic rod 51, the nut 52 will squeeze the second telescopic rod 51 so that one end of the second telescopic rod 51 moves toward one end of the adjustment block 1, and when one end of the second telescopic rod 51 moves to match the groove on the nut 52, the second telescopic rod One end of 51 will be caught in the groove on the nut 52; then the movement of the nut 52 will drive the adjustment block 1 to move so that the table leg is just caught in the semicircular groove 48 of the adjustment block 1 of the two adjustment blocks 1; As shown in Fig. 22a, at this time, the walking structure 4 is laterally approached to the table legs; as shown in Fig. 22b, at the same time, the table legs will give a reaction force to the second casing 12 to cause it to rotate; while the second casing 12 is rotating Driven by four tension springs 10 The first housing 3 rotates around the table leg; as shown in FIG. 22c, after the second housing 12 is rotated by ninety degrees, the second housing 12 is driven to continue to rotate by the force of the scroll spring, in the second housing. 12 rotates while the first housing 3 continues to rotate around the table leg by four tension springs, as shown in Fig. 22d, until it is rotated to the other side of the table leg, thereby achieving the purpose of cleaning the table legs. After the cleaning is completed, since the clearing robot will continue to move forward, at this time, the semicircular groove 48 on the adjusting block 1 has been rotated to the other side of the leg; then the nut 52 will gradually move under the action of the driving motor 54. The original position moves; during the moving process, the nut 52 presses the second telescopic rod 51, so that the second telescopic rod 51 moves out of the nut 52 along the curved portion of the groove on the nut 52, and the second telescopic rod 51 is disengaged from the nut. After 52, the adjustment block 1 is restored by the tension spring 10 The force returns to the starting position; the nut 52 also returns to its original position. The second casing 12 designed by the present invention is rotated by ninety degrees by the action of the restaurant table leg and the first casing 10, and then continues to rotate by ninety degrees by the force of the scroll spring 18; since the scroll spring 18 is only When the second housing 12 rotates at an angle of ninety degrees, the second housing 12 continues to rotate in the original direction, whereas the second housing 12 is rotated by the scroll spring 18 in the opposite direction; The second housing 12 is designed to be rotated twice by nine degrees, and the second housing 12 can rotate the first housing 3 around the restaurant table leg by the tension spring 10 while rotating twice; The dust is cleaned up.

In the present invention, the base 22 plays a supporting role for the fixed shaft 16; and plays a fixed role on the first limiting block 25 mounted on the upper side thereof; one end of the locking block 11 is mounted on the inner side of the second spring chamber, and is mounted. When the compression spring 26 between the block 11 and the second spring chamber is in a compressed state, the clamping block 11 can be provided with a restoring force; the lower end of the block 11 has a first limiting slot 36, and the pushing block 23 can pass the first A limiting slot 36 moves from one side of the latching block 11 to the other side; a lower end of the latching block 11 is mounted with a compressing block 13; one end of the first telescopic rod 15 is mounted inside the first spring cavity 27; When the compression spring 26 between the spring chamber and the first telescopic rod 15 is in a compressed state, the first telescopic rod 15 can be provided with a restoring force; the upper end of the first telescopic rod 15 is mounted with the guiding arc plate 14 when the block 11 is oriented When the inner side of the second spring cavity 28 moves, as shown in FIG. 23, the compression block 13 will move the guide arc plate 14; the guide arc plate 14 causes the first telescopic rod 15 to move toward the inner side of the first spring cavity, while moving. The guide arc plate is an arc plate with a gradually increasing arc, which can The force of the compression block is decomposed into the direction of the first telescopic rod to transmit the force of the compression block to the first telescopic rod; the second limit block 29 acts as a limit for the block 11; the second limit block 29 is A telescopic rod 15 acts as a limit; the scroll spring 18 mounted between the sleeve 17 and the first annular post 19 can provide a restoring force to the sleeve 17. The width of the pushing block 23 designed by the present invention is the same as the width of the first limiting slot 36, and the upper end surface of the pushing block 23 is flush with the upper side surface of the first limiting slot 36, so that the pushing speed can be smoothly and smoothly Moving in the first limiting slot 36.

Specific embodiment: when the cleaning robot is working, the compression spring 26 installed between the first telescopic rod 15 and the first spring chamber is in a freely telescopic state, and the compression spring 26 installed between the block 11 and the second spring chamber is at a position In the freely telescopic state, the scroll spring 18 is in a free state; the block 11 is located on the front side of the first telescopic rod 15 in the circumferential clockwise direction; the first telescopic rod 15 is in contact with the first limit block 25; One of the push blocks 23 is in contact with the block 11 , and the push block 23 and the first limit groove 36 on the block 11 are offset from each other; the cleaning robot is controlled by the function motor and the PLC chip in the running mechanism 38 for moving cleaning; When the cleaning robot hits the leg on the ground during the cleaning process, the leg will block the cleaning robot from advancing, and the adjusting mechanism 49 installed at the lower end of the first casing 3 causes the driving motor 54 to control the screw 53 to make the leg card In the semicircular groove 48 on the adjustment block 1; at this time, the table leg gives a reaction force to the first casing 3 on the cleaning robot; so that the first casing 3 moves around the table leg and moves in the first casing 3 Simultaneously Four drive spring 10 stretched over the second housing 3 is mounted between the first housing 12 and second housing 12 is rotated; four pushing block because The second housing 12 is mounted on the inner side of the second housing 12, so that the second housing 12 rotates the four push blocks 23 to rotate; and at this time, one of the four push blocks 23 contacts the slider 11. That is, the pushing block 23 pushes the block 11 to rotate circumferentially about the fixed shaft 16; at the same time, the compressing block 13 mounted on the lower side of the block 11 also rotates; since one end of the scroll spring 18 is mounted on the sleeve 17, The other end is mounted on the inner circular surface of the first annular column groove 31; and the slider 11 rotates the first annular column 19 to rotate, and the first annular column 19 and the sleeve 17 are mounted by bearings; The second end of the second ring 20 is fixedly mounted on the second end of the second ring 20, the first telescopic rod 15 is in contact with the first limiting block 25, and the first limiting block 25 limits the first telescopic The rod 15 moves to thereby restrict the movement of the second ring column 20 and the sleeve 17 in sequence; when the sleeve 17 and the first ring column 19 rotate relative to each other, the scroll spring 18 will be subjected to a direction of the first ring column 19 External tension; as shown in Figure 13a, the block 11 will rotate with a certain angle and the second limit The block 29 is in contact, and at this time, the other of the four blocks 11 is moved to a position close to the first telescopic rod 15; since the contact of the second limiting block 29 with the block 11 is arc-shaped, the card While the block 11 is in contact with the second limiting block 29, because the second limiting block 29 will give it a reaction force, the blocking block 11 will move toward the side close to the fixed shaft 16 under the reaction force; during its movement The compression block 13 moves the guide arc plate 14 mounted on the first telescopic rod 15 toward the side close to the fixed shaft 16, and moves the guide arc plate 14 to move the first telescopic rod 15; as shown in FIG. 14a, During the movement of the first telescopic rod 15, the other push block 23 gradually approaches the first telescopic rod 15 and is located on the rear side of the first telescopic rod 15 in the circumferential clockwise direction; as shown in Fig. 13b, along with the first limit slot The contact area of the port 36 and the push block 23 is continuously increased in the movement of the block 11; as shown in Fig. 14b, the first telescopic rod 15 is gradually separated from the control of the first limit block 25, and the other push block 23 is from the One side of a limiting block 25 is gradually moved to a first limit by a square notch on the first limiting block 25 The other side of the block 25; as shown in Fig. 13c, when the push block 23 is moved into full contact with the square portion of the first limit groove 36; as shown in Figures 14c, 14d, the first telescopic rod 15 has completely separated Control of a limit block 25 while the other push block 23 is also moved to the front side of the first telescopic rod 15; at this time, due to the action of the compression spring 26 mounted in the first spring chamber and the second spring chamber; the first telescopic rod 15 and the block 11 will move away from the fixed shaft 16, and while the block 11 and the first telescopic rod 15 move, as shown in Fig. 13d, the push block 23 gradually taps from the square shape of the first limit groove 36. The block 11 is removed by the inclined portion on the front side of the block 11; due to the force of the scroll spring 18, the first telescopic rod 15 will push the other push block 23 located in front of it to move; thereby driving the second casing Rotating; sequentially driving, the second outer casing will be in a state of constant rotation; while the second outer casing is rotated, the first outer casing is moved by four tension springs 10 mounted between the second outer casing and the first outer casing, while the first outer casing Can move around while moving forward The table legs are rotated; the sides of the legs are cleaned by the dust suction device 39 and the wiping device 40 while rotating; after the cleaning is completed, since the cleaning robot has moved to the other side of the legs, the legs are not It affects the movement of the cleaning robot; the cleaning robot can continue to clean the dust on other ground.

Claims (5)

A convenient robot based on restaurant cleaning, characterized in that it comprises a driving mechanism, a running mechanism, a wiping device, a dust collecting device, a first casing, a tension spring, an adjusting mechanism, wherein the dust collecting device is installed in the first shell The inner side of the body; the wiping device is mounted on the inner side of the dust collecting device; the traveling mechanism is located at the center of the inner side of the wiping device, and the outer circular surface of the traveling mechanism and the four planes inside the wiping device are respectively connected by a tension spring; the driving mechanism is installed at The upper side of the traveling mechanism; two symmetrical adjustment mechanisms are mounted on both sides of the lower end of the first housing; The driving mechanism comprises a block, a compression block, a guiding arc plate, a first telescopic rod, a fixed shaft, a sleeve, a scroll spring, a first ring column, a second ring column, a base circular groove, a third limit block, and a Second limiting slot, base, pushing block, connecting block, first limiting block, compression spring, first spring cavity, second spring cavity, second limiting block, top cover, second housing, first The annular column groove and the first limiting groove, wherein the center of the upper end of the base is provided with a circular groove at the center; the four first limiting blocks each have a square notch; the four first limiting blocks are uniformly installed circumferentially On the upper end surface of the base, the outer ends of the four first limiting blocks are located outside the outer circular surface of the base; one end of the fixed shaft is installed at the center of the circular groove of the base; the inner circular surface of the sleeve is installed outside the fixed shaft a circular surface; the inner circular surface of the second annular post is fixedly mounted on the outer circular surface of the lower end of the sleeve; the outer circular surface of the second annular post is provided with a first spring cavity; one end of the first telescopic rod is mounted on Inside the first spring cavity, a compression bomb is mounted between the first telescopic rod and the first spring cavity One end of the compression spring is mounted on an end surface of the first telescopic rod at one end inside the first spring chamber, and the other end is mounted on an end surface of the inner side of the first spring chamber; one end of the guide arc plate is mounted on the first telescopic rod An inner circumference of the first annular column is mounted on an outer circular surface of the upper end of the sleeve; a first annular column groove is formed at an upper end of the first annular column; a scroll spring is located in the first annular column groove; The inner end is mounted on the outer circular surface of the sleeve, and the outer end is mounted on the inner circular surface of the first annular column groove; the outer surface of the lower end of the first annular column is provided with a second spring cavity; the second spring cavity Two second limiting slots are symmetrically opened on the inner circular surface; and the two second limiting slots do not pass through the outer circular surface of the first annular pillar; the first limiting slot is opened on the lower side of one end of the clamping block And the first limiting slot is composed of a square portion and a slanted portion, and the intersection of the square shape portion and the inclined portion is a step; two third limiting blocks are symmetrically mounted on both sides of the card block; one end of the card block passes The cooperation of the two third limiting blocks and the two second limiting slots is mounted on the second spring The inner side of the body; a compression spring is mounted between the block and the second spring cavity; one end of the compression spring is mounted on one end of the block, and the other end is mounted on the inner end surface of the second spring cavity; the upper end of the compression block is mounted on a lower side of the block, and the compression block is located between the first limit groove and the outer ring surface of the first ring column; the compression block cooperates with the guide arc plate and the fourth limit block; the top cover is mounted on the upper end of the fixed shaft; One end of the second limit block is Arc-shaped, four second limiting blocks are circumferentially evenly mounted on the lower end surface of the top cover, and the non-arc-shaped one ends of the four second limiting blocks are located outside the outer circular surface of the top cover; An annular groove is formed in the inner circle of the casing, and the second casing is mounted on the outer circumferential surface of the top cover through the upper end surface of the annular groove and the second limiting block; the second casing passes through the lower end surface of the annular groove The first limiting block is mounted on the outer circumference of the base; one end of the four connecting blocks is circumferentially evenly mounted on the inner circular surface of the second housing annular groove, and the other ends of the four connecting blocks are mounted a pushing block; the width of the pushing block is the same as the width of the first limiting slot, and the upper end surface of the pushing block is matched with the upper side surface of the first limiting slot; the four first limiting blocks are respectively installed at the position and the fourth second The position of the limit block is matched; The walking mechanism comprises a walking structure, a walking wheel, a first dust collecting pipe and an outlet pipe, wherein a functional motor, a PLC chip, a vacuum pump, a water tank and a dust box are installed on the inner side of the walking structure; the upper end surface of the walking structure is installed on the chassis On the lower end surface, three traveling wheels are circumferentially evenly mounted on the lower end of the walking structure; four first suction pipes are circumferentially evenly mounted on the outer circumference of the walking structure; the four outlet pipes are axially evenly mounted on The outer circular surface of the walking structure, and the four outlet pipes are respectively adjacent to the four first dust suction pipes; The dust collecting device comprises a dust box, a dust suction hole and a second dust suction pipe, wherein the lower end of the dust box has a plurality of dust suction holes; the four second dust suction pipes are respectively installed on the upper end faces of the four sides of the dust box. Upper; the dust box is mounted on the inner side of the lower end of the first housing; The wiping device includes a wiping block and a first inlet pipe, wherein the wiping block is mounted on the inner side of the dust collecting device; the four first inlet pipes are respectively mounted on the upper end faces of the four sides of the wiping block; The adjusting mechanism comprises a wiping cloth, a dust suction block, a first guiding groove, an adjusting groove, a supporting block, a second telescopic rod, a nut, a screw, a driving motor, a second guiding groove, a second guiding rail, a tension spring, and a third suction a dust pipe, a second inlet pipe, a first guide rail, a semicircular groove, an adjustment block, wherein the adjustment groove is opened at a lower end of the first casing; the upper end of the adjustment groove has a first guide groove and a second guide groove, and the first The guide groove and the second guide groove are parallel to each other, and the second guide groove is adjacent to the dust suction device; the front side of the adjustment block has a semicircular groove; the wiping block is mounted at the lower end of the adjustment block and the wiping block is adjacent to the semicircular groove; the lower end of the dust suction block There are many suction holes, the dust suction block is installed at the lower end of the adjustment block and the suction block is close to the dust suction device; the third suction pipe and the second water inlet pipe are installed on the rear side of the adjustment block, and the second inlet pipe and the third inlet pipe The dust suction pipe is adjacent to each other; the upper end of the adjustment block is mounted with the first guide rail; the two adjustment blocks are respectively installed in the adjustment groove by the cooperation of the respective first guide rails and the first guide groove; between the adjustment block and the adjustment groove, two The adjustment blocks are respectively connected by a tension spring; A drive motor mounted symmetrically at both sides of the first housing; a support block mounted on the upper side of the adjustment slot; two symmetrical end of the screw are mounted on tone Both sides of the groove are matched with the corresponding two drive motor shafts; the other ends of the two symmetrical screws are respectively mounted on both sides of the support block; one side of the two nuts is semicircular; the lower ends of the two nuts are The groove is opened, and the groove on the nut is arc-shaped at one end near the ground; the second ends of the two nuts are respectively mounted with a second guide rail; the two nuts are respectively installed by the cooperation of the two second guide rails and the second guide groove Adjusting the groove, and the two nuts are respectively matched with the two screws; one ends of the two second telescopic rods are respectively mounted on the sides of the two adjusting blocks; the other ends of the two second telescopic rods are respectively respectively on the two nuts Slot fit The second dust suction pipe is connected to the first dust suction pipe through a hose; the first dust suction pipe is connected to the dust storage box in the traveling mechanism by the dust suction pump; The first inlet pipe is connected to the outlet pipe through a hose, and the outlet pipe is connected to the water tank in the traveling mechanism. A convenient robot based on restaurant cleaning according to claim 1, wherein the other end of the guiding arc plate is mounted with a fourth limiting block. A convenience robot based on restaurant cleaning according to claim 1, wherein said number of traveling wheels is four as a scheme for replacing three traveling wheels. A convenience robot based on restaurant cleaning according to claim 1, wherein a compression spring is mounted in said second telescopic rod. A convenient robot for cleaning according to a restaurant according to claim 1, wherein the inner side of the second telescopic rod is provided with two guiding blocks and two guiding grooves, and the two guiding blocks and the two guiding grooves are engaged.
