  • the present disclosure relates to an improved process for producing olefins from syngas.
  • Syngas is generally a mixture of hydrogen (H 2 ), carbon monoxide (CO). However, due to process inefficiency, carbon dioxide (C(3 ⁇ 4) is also produced along with syngas. Syngas can be used in a variety of applications such as production of methanol, production of dimethyl ether (DME), production of olefins, production of ammonia, production of urea, heating, generation of steam and generation of power. Syngas can be produced by utilizing methane or natural gas, liquid fuels or solid fuels such as coal, petcoke, biomass, solid wastes, and the like.
  • the ratio of H 2 and CO in syngas varies depending upon the raw materials used and the process or reaction conditions used for producing syngas.
  • FIG. 1 depicts a flow-path, illustrating a conventional process for producing olefins from syngas.
  • Syngas (1) is first converted into methanol (3), and then methanol is converted into olefins.
  • syngas (1) comprising 2: 1 ratio of H 2 and CO is used.
  • Syngas (1) is introduced into a water-gas shift reactor/section (50), wherein the proportion of 3 ⁇ 4 can be increased. Since the amount of CO 2 (2) produced during the production of syngas (1) is significant, in order to meet the requirement of 2: 1 ratio of 3 ⁇ 4 and CO, there is a need to separate CO 2 (2) from the syngas (1). Therefore, the syngas (1) from the water-gas shift reactor/section (50) is introduced into a separator (100). After the separation of CO 2 (2), the syngas (1), which is deficient of CO 2 , is introduced into a reactor (200) for producing methanol (3).
  • the reaction for producing methanol (3) is depicted herein below:
  • Methanol (3) is then introduced into a reactor (300), wherein methanol (3) is dehydrogenated to produce a stream (4) comprising olefins (5), unconverted DME (6) and 3 ⁇ 40 (7) in the reactor (300).
  • the stream (4) is further introduced into a separator (400) for separating unconverted DME (6) and H 2 0 (7) from stream (4) to obtain olefins (5).
  • the separated H 2 0 (7) and the unconverted DME (6) can be further utilized for producing syngas (1) and olefins (5) respectively.
  • syngas with low 3 ⁇ 4 and high CO needs to be converted to syngas comprising 2: 1 ratio of 3 ⁇ 4 and CO. This can be done by water-gas shift, wherein CO is reacted with water to generate H 2 , and CO 2 as a by-product.
  • a separate process equipment is required for separating carbon dioxide from syngas. Also, the amount of energy required to separate carbon dioxide from syngas is more due to the presence of a significant amount CO 2 in syngas. This increases the capital expenditure (CAPEX) and operational expenditure (OPEX) of the conventional process for producing olefins.
  • syngas comprising 2:1 ratio of 3 ⁇ 4 and CO results in the conversion of syngas to methanol at a particular temperature (in the range of 300°C to 400°C) and pressure (in the range of 60 bar to 90 bar) conditions, thereby requiring a reactor for producing methanol.
  • different process equipment like heaters and compressors are required for achieving the specific temperature and pressure conditions in the reactor.
  • An object of the present disclosure is to provide a process with reduced generation of C(3 ⁇ 4.
  • Yet another object of the present disclosure is to provide a process which can inherently consume less energy along with elimination of equipment/process conditions for the intermediate process.
  • Yet another object of the present disclosure is to separate C(3 ⁇ 4 post the DME production to minimize the energy need for separation.
  • Still another object of the present disclosure is to efficiently utilize separated streams like CO2, methane, ethane, and propane to produce syngas.
  • Another object of the present disclosure is to provide a process for producing olefins with reduced CAPEX and OPEX of the process.
  • the present disclosure envisages a process for producing olefins from syngas comprising 3 ⁇ 4, CO and CO2.
  • the ratio of 3 ⁇ 4 and CO of the syngas (first stream) is 1: 1.
  • the syngas is contacted with at least one first catalyst, at a pre-determined temperature and at a predetermined pressure, to produce an intermediate stream comprising dimethyl ether (DME) and unconverted CO2, H 2 and CO.
  • DME dimethyl ether
  • the unconverted 3 ⁇ 4 and CO is recycled to a first catalyst section, and a portion of the separated CO2 is recycled for producing the syngas.
  • the remaining intermediate stream is further contacted with a second catalyst, at a pre-determined temperature and at a pre-determined pressure, to produce a second stream comprising olefins, H2O, methane, ethane, and propane.
  • a second catalyst at a pre-determined temperature and at a pre-determined pressure, to produce a second stream comprising olefins, H2O, methane, ethane, and propane.
  • 3 ⁇ 40, methane, ethane, and propane are separated from the second stream to obtain olefins.
  • the separated C(3 ⁇ 4, H2O, methane, ethane, and propane are further recycled for producing the syngas.
  • the olefins can be at least one of ethylene and propylene.
  • the process of the present disclosure reduces the generation of C(3 ⁇ 4.
  • the process of the present disclosure also reduces the CAPEX and the OPEX of the entire process.
  • Figure 1 depicts a flow-path, illustrating a conventional process for producing olefins
  • Figure 2 depicts a flow-path for producing olefins in accordance with the present disclosure.
  • Table 1 provides a list the elements of the process of the present disclosure and their respective reference letters:
  • Raw material (a) is treated in a gasifier/reformer (R), typically at a temperature in the range of 300°C to 1000°C and at a pressure in the range of 1 kg/cm 2 to 80 kg/cm 2 , to produce a first stream (b), i.e., syngas comprising 3 ⁇ 4, CO and C(3 ⁇ 4 , wherein the ratio of 3 ⁇ 4 and CO in the syngas is 1 :1.
  • R gasifier/reformer
  • the raw material (a) can be at least one of coal, petcoke, biomass, natural gas or liquid fuels.
  • the amount of CO2 produced during the production of syngas is significantly less. Additionally, the one-step dimethyl ether (DME) process of the present disclosure can handle a significant amount of CO2 in the feed, as compared to the conventional methanol process. Therefore, separation of CO2 from syngas (b) in a separate process equipment is obviated at this stage.
  • DME dimethyl ether
  • the first stream i.e., syngas
  • (b) is directly introduced into a DME reactor (D), wherein syngas (b) is contacted with a first catalyst in the DME reactor (D), typically at a temperature in the range of 100°C to 400°C and at a pressure in the range of 1 kg/cm 2 to 60 kg/cm 2 , to produce an intermediate stream (c) comprising dimethyl ether (DME) and unconverted CO2, 3 ⁇ 4 and CO.
  • DME dimethyl ether
  • CO2 and the unconverted 3 ⁇ 4 and CO can be separated from the intermediate stream (c) with less energy requirement as CO2 concentration is relatively higher. Due to the reduced criticality of the process equipment used for separating CO2 , a simpler separation process equipment can be used.
  • the separated portion (g) is introduced into a separator (s) for separating CO2 (h), 3 ⁇ 4 and CO (i).
  • the separated CO2 (h) can be recycled for producing syngas, and the separated 3 ⁇ 4 and CO (i) can be recycled to the DME reactor (D).
  • the first catalyst includes, but is not limited to, copper oxide, chromium oxide, zinc oxide and aluminium oxide.
  • One-step DME process requires 3 ⁇ 4: CO ratio of 1 : 1, which leads to smaller water-gas shift reaction and lower water consumption and CO2 generation. As the portion of CO2 in the syngas is lower, the one-step DME process can handle syngas without removing CO2.
  • the intermediate stream (c) is introduced into a reactor (O) and contacted with a second catalyst in the reactor (O), typically at a temperature in the range of 200°C to 600°C and at a pressure in the range of 0.5 kg/cm 2 to 10 kg/cm 2 , to produce a second stream (d) comprising olefins, 3 ⁇ 40, unreacted DME, methane, ethane, and propane.
  • the second catalyst includes, but is not limited to, molecular sieve catalysts.
  • the second catalyst is at least one selected from the group consisting of salts, aluminophosphate (ALPO) molecular sieves, and silicoaluminophosphate (SAPO) molecular sieves, as well as substituted forms thereof.
  • the second catalyst is ZSM-5.
  • the second stream (d) is introduced into a fractionation column or a divided wall column (Dw) for separating H2O, unreacted DME, methane, ethane, and propane from the second stream (d) to obtain olefins (e) and a separated stream (f).
  • the separated C(3 ⁇ 4, H2O, methane, ethane, and propane can be recycled into the reformer for producing syngas by at least one of dry reforming, bi-reforming, or tri-reforming, wherein syngas with higher 3 ⁇ 4 and CO is produced as compared to gasification.
  • Dry reforming of natural gas is depicted herein below:
  • the amount of raw materials required for producing syngas (b) is reduced, since the separated methane, ethane and propane are utilized for producing syngas, which is significantly rich in 3 ⁇ 4. Also, the separated unreacted DME can be recycled into the DME reactor (D) for producing the intermediate stream (c).
  • a portion of the separated CO2 is recycled into the reformer and a remaining portion of the separated C(3 ⁇ 4 is vented out to the atmosphere.
  • the amount of H2O generated in the reactor (O) can be approximately 50% less as compared to that generated conventionally during the production of olefins from syngas comprising 2: 1 ratio of 3 ⁇ 4 and CO.
  • the second stream (d) can be introduced into a de-methanation column (not shown in Figure 2) for separating methane contained therein.
  • syngas (b) comprising 1: 1 ratio of 3 ⁇ 4 and CO is utilized for producing olefins (e). Due to 1 : 1 ratio of 3 ⁇ 4 and CO: • the amount of raw materials required for producing syngas (b) is reduced, because the separated C(3 ⁇ 4, methane, ethane and propane are utilized for producing syngas which is significantly rich in 3 ⁇ 4;
  • the CAPEX is significantly reduced and the OPEX is reduced upto 30%, as compared to that of the conventional process.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Engineering & Computer Science (AREA)
  • Materials Engineering (AREA)
  • Combustion & Propulsion (AREA)
  • Health & Medical Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Inorganic Chemistry (AREA)
  • Oil, Petroleum & Natural Gas (AREA)
  • Crystallography & Structural Chemistry (AREA)
  • General Chemical & Material Sciences (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
  • Low-Molecular Organic Synthesis Reactions Using Catalysts (AREA)

Abstract

The present disclosure relates to an improved process for producing olefins from syngas. Raw material is treated to produce syngas comprising H2, CO and CO2. The ratio of H2 and CO in the syngas is 1:1. The syngas is contacted with at least one first catalyst to produce an intermediate stream comprising dimethyl ether (DME), and unconverted CO2, H2 and CO. The unconverted H2 and CO is recycled to a first catalyst section and a portion of the separated CO2 is recycled for producing the syngas. The remaining intermediate stream is contacted with at least one second catalyst to produce a second stream comprising olefins, H2O, methane, ethane, and propane. H2O, methane, ethane, and propane are separated to obtain the olefins. The separated methane, ethane, and propane are further recycled for producing the syngas. The CAPEX and OPEX of the improved process are reduced.

Description

AN IMPROVED PROCESS FOR PRODUCING OLEFINS FROM SYNGAS
FIELD
The present disclosure relates to an improved process for producing olefins from syngas. BACKGROUND
Syngas is generally a mixture of hydrogen (H2), carbon monoxide (CO). However, due to process inefficiency, carbon dioxide (C(¾) is also produced along with syngas. Syngas can be used in a variety of applications such as production of methanol, production of dimethyl ether (DME), production of olefins, production of ammonia, production of urea, heating, generation of steam and generation of power. Syngas can be produced by utilizing methane or natural gas, liquid fuels or solid fuels such as coal, petcoke, biomass, solid wastes, and the like.
The following reactions or processes illustrate the production of syngas: i. steam reforming:
CH4 + H20 = CO + 3H2;
ii. partial oxidation:
2CH4 + 02 = 2CO + 4H2;
iii. coal gasification:
3C + 02 + H20 = 3CO + H2;
iv. dry reforming:
CH4 + C02 = 2CO + 2H2; and
v. water-gas shift reaction:
co + H2o^zz!r H2 + C02
The ratio of H2 and CO in syngas varies depending upon the raw materials used and the process or reaction conditions used for producing syngas.
Figure 1 depicts a flow-path, illustrating a conventional process for producing olefins from syngas. Syngas (1) is first converted into methanol (3), and then methanol is converted into olefins. For the production of methanol, syngas (1) comprising 2: 1 ratio of H2 and CO is used. Syngas (1) is introduced into a water-gas shift reactor/section (50), wherein the proportion of ¾ can be increased. Since the amount of CO2 (2) produced during the production of syngas (1) is significant, in order to meet the requirement of 2: 1 ratio of ¾ and CO, there is a need to separate CO2 (2) from the syngas (1). Therefore, the syngas (1) from the water-gas shift reactor/section (50) is introduced into a separator (100). After the separation of CO2 (2), the syngas (1), which is deficient of CO2, is introduced into a reactor (200) for producing methanol (3). The reaction for producing methanol (3) is depicted herein below:
2H2 + CO = CH3OH (methanol)
Methanol (3) is then introduced into a reactor (300), wherein methanol (3) is dehydrogenated to produce a stream (4) comprising olefins (5), unconverted DME (6) and ¾0 (7) in the reactor (300). The stream (4) is further introduced into a separator (400) for separating unconverted DME (6) and H20 (7) from stream (4) to obtain olefins (5). The separated H20 (7) and the unconverted DME (6) can be further utilized for producing syngas (1) and olefins (5) respectively.
Moreover, the amount of CO2 produced during this process is significant because:
• CO2 is present in syngas; and
• syngas with low ¾ and high CO needs to be converted to syngas comprising 2: 1 ratio of ¾ and CO. This can be done by water-gas shift, wherein CO is reacted with water to generate H2, and CO2 as a by-product.
A separate process equipment is required for separating carbon dioxide from syngas. Also, the amount of energy required to separate carbon dioxide from syngas is more due to the presence of a significant amount CO2 in syngas. This increases the capital expenditure (CAPEX) and operational expenditure (OPEX) of the conventional process for producing olefins.
Moreover, syngas comprising 2:1 ratio of ¾ and CO results in the conversion of syngas to methanol at a particular temperature (in the range of 300°C to 400°C) and pressure (in the range of 60 bar to 90 bar) conditions, thereby requiring a reactor for producing methanol. Also, different process equipment like heaters and compressors are required for achieving the specific temperature and pressure conditions in the reactor. This results in further increase in the capital expenditure (CAPEX) and operational expenditure (OPEX) of the conventional process for producing olefins. Therefore, there is a need for a process for producing olefins with reduced generation and possible utilization of C(¾. Further, there is a need for a process for producing olefins with reduced CAPEX and OPEX of the process, which minimizes the multiple reactors operating at different temperature and pressure conditions. OBJECTS
Some of the objects of the present disclosure, which at least one embodiment herein satisfies, are as follows.
An object of the present disclosure is to provide a process with reduced generation of C(¾.
Yet another object of the present disclosure is to provide a process which can inherently consume less energy along with elimination of equipment/process conditions for the intermediate process.
Yet another object of the present disclosure is to separate C(¾ post the DME production to minimize the energy need for separation.
Still another object of the present disclosure is to efficiently utilize separated streams like CO2, methane, ethane, and propane to produce syngas.
Another object of the present disclosure is to provide a process for producing olefins with reduced CAPEX and OPEX of the process.
Other objects and advantages of the present disclosure will be more apparent from the following description, which is not intended to limit the scope of the present disclosure. SUMMARY
The present disclosure envisages a process for producing olefins from syngas comprising ¾, CO and CO2. Typically, the ratio of ¾ and CO of the syngas (first stream), is 1: 1. The syngas is contacted with at least one first catalyst, at a pre-determined temperature and at a predetermined pressure, to produce an intermediate stream comprising dimethyl ether (DME) and unconverted CO2, H2 and CO. The unconverted ¾ and CO is recycled to a first catalyst section, and a portion of the separated CO2 is recycled for producing the syngas. The remaining intermediate stream is further contacted with a second catalyst, at a pre-determined temperature and at a pre-determined pressure, to produce a second stream comprising olefins, H2O, methane, ethane, and propane. ¾0, methane, ethane, and propane are separated from the second stream to obtain olefins. The separated C(¾, H2O, methane, ethane, and propane are further recycled for producing the syngas.
The olefins can be at least one of ethylene and propylene. The process of the present disclosure reduces the generation of C(¾.
The process of the present disclosure also reduces the CAPEX and the OPEX of the entire process.
BRIEF DESCRIPTION OF ACCOMPANYING DRAWING A process for producing olefins from a gaseous mixture will now be described with the help of the accompanying drawing, in which:
Figure 1 depicts a flow-path, illustrating a conventional process for producing olefins; and Figure 2 depicts a flow-path for producing olefins in accordance with the present disclosure.

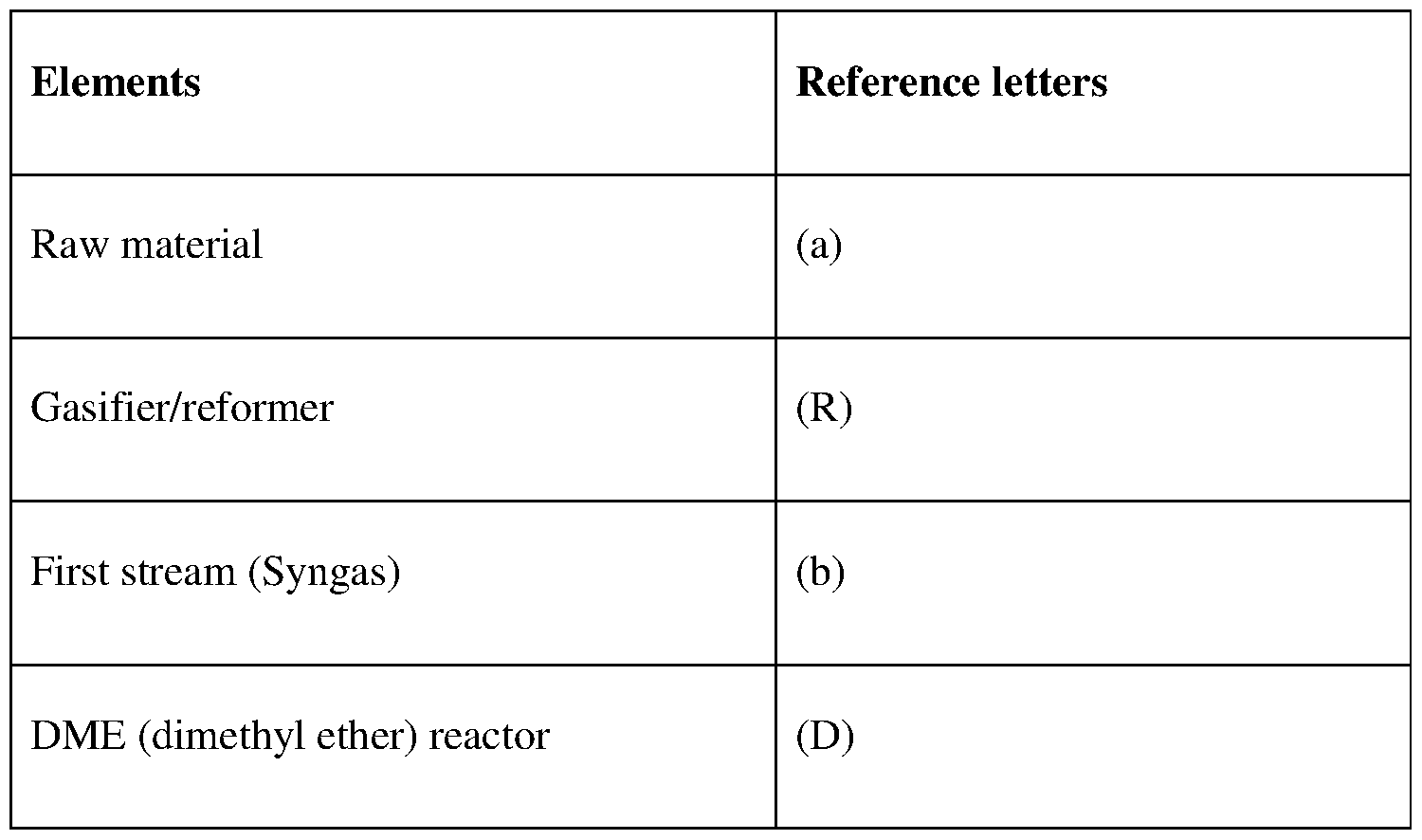

Table 1 provides a list the elements of the process of the present disclosure and their respective reference letters:
Table 1
Figure imgf000006_0001
Intermediate stream (c)
Separator (s)
Separated portion (g)
Separated CO2 (h)
Separated ¾ and CO (i)
Reactor (0)
Second stream (d)
Fractionation column or divided wall
(Dw)
column
Olefins (e)
Separated stream (f)
DETAILED DESCRIPTION
2:1 ratio of ¾ and CO in syngas leads to generation of an excess amount of CO2, and an excess use of ¾0. Moreover, for economic viability of the methanol production process, CO2 should be minimum or nil in the feed. Therefore, it is necessary to completely separate or remove CO2. Separation of CO2 requires bigger separation units, which consume a significant amount of energy, and ¾0 passes through all the equipment due to which the size of the equipment increases, thereby increasing the CAPEX and OPEX of the entire process. The present disclosure, therefore, provides an improved process for producing olefins with reduced generation of C(¾ and with reduced CAPEX and OPEX of the entire process.
The process for producing olefins is illustrated with reference to Figure 2. Raw material (a) is treated in a gasifier/reformer (R), typically at a temperature in the range of 300°C to 1000°C and at a pressure in the range of 1 kg/cm 2 to 80 kg/cm 2 , to produce a first stream (b), i.e., syngas comprising ¾, CO and C(¾, wherein the ratio of ¾ and CO in the syngas is 1 :1.
The raw material (a) can be at least one of coal, petcoke, biomass, natural gas or liquid fuels.
In the process of the present disclosure, the amount of CO2 produced during the production of syngas is significantly less. Additionally, the one-step dimethyl ether (DME) process of the present disclosure can handle a significant amount of CO2 in the feed, as compared to the conventional methanol process. Therefore, separation of CO2 from syngas (b) in a separate process equipment is obviated at this stage.
The first stream, i.e., syngas, (b) is directly introduced into a DME reactor (D), wherein syngas (b) is contacted with a first catalyst in the DME reactor (D), typically at a temperature in the range of 100°C to 400°C and at a pressure in the range of 1 kg/cm 2 to 60 kg/cm 2 , to produce an intermediate stream (c) comprising dimethyl ether (DME) and unconverted CO2, ¾ and CO. CO2, and the unconverted ¾ and CO can be separated from the intermediate stream (c) with less energy requirement as CO2 concentration is relatively higher. Due to the reduced criticality of the process equipment used for separating CO2, a simpler separation process equipment can be used. The separated portion (g) is introduced into a separator (s) for separating CO2 (h), ¾ and CO (i). The separated CO2 (h) can be recycled for producing syngas, and the separated ¾ and CO (i) can be recycled to the DME reactor (D).
The first catalyst includes, but is not limited to, copper oxide, chromium oxide, zinc oxide and aluminium oxide. One-step DME process requires ¾: CO ratio of 1 : 1, which leads to smaller water-gas shift reaction and lower water consumption and CO2 generation. As the portion of CO2 in the syngas is lower, the one-step DME process can handle syngas without removing CO2.
The intermediate stream (c) is introduced into a reactor (O) and contacted with a second catalyst in the reactor (O), typically at a temperature in the range of 200°C to 600°C and at a pressure in the range of 0.5 kg/cm2 to 10 kg/cm2, to produce a second stream (d) comprising olefins, ¾0, unreacted DME, methane, ethane, and propane. The second catalyst includes, but is not limited to, molecular sieve catalysts.
In accordance with one embodiment of the present disclosure, the second catalyst is at least one selected from the group consisting of salts, aluminophosphate (ALPO) molecular sieves, and silicoaluminophosphate (SAPO) molecular sieves, as well as substituted forms thereof. In accordance with another embodiment of the present disclosure, the second catalyst is ZSM-5.
The second stream (d) is introduced into a fractionation column or a divided wall column (Dw) for separating H2O, unreacted DME, methane, ethane, and propane from the second stream (d) to obtain olefins (e) and a separated stream (f). The separated C(¾, H2O, methane, ethane, and propane can be recycled into the reformer for producing syngas by at least one of dry reforming, bi-reforming, or tri-reforming, wherein syngas with higher ¾ and CO is produced as compared to gasification.
Dry reforming of natural gas is depicted herein below:
CH4 + C02 = 2CO + 2H2
Moreover, the amount of raw materials required for producing syngas (b) is reduced, since the separated methane, ethane and propane are utilized for producing syngas, which is significantly rich in ¾. Also, the separated unreacted DME can be recycled into the DME reactor (D) for producing the intermediate stream (c).
In accordance with one embodiment of the present disclosure, a portion of the separated CO2 is recycled into the reformer and a remaining portion of the separated C(¾ is vented out to the atmosphere.
Moreover, the amount of H2O generated in the reactor (O) can be approximately 50% less as compared to that generated conventionally during the production of olefins from syngas comprising 2: 1 ratio of ¾ and CO. In accordance with one embodiment of the present disclosure, the second stream (d) can be introduced into a de-methanation column (not shown in Figure 2) for separating methane contained therein.
As described herein above, syngas (b) comprising 1: 1 ratio of ¾ and CO is utilized for producing olefins (e). Due to 1 : 1 ratio of ¾ and CO: • the amount of raw materials required for producing syngas (b) is reduced, because the separated C(¾, methane, ethane and propane are utilized for producing syngas which is significantly rich in ¾;
• the amount of C(¾ produced during the production of syngas (b) and water-gas shift reaction is significantly less, and one step DME process can accommodate C(¾ in the feed, which leads to smaller and less severe C(¾ separating process equipment post DME;
• the intermediate step of methanol production, of conventional processes, is obviated, thereby eliminating the use of a reactor for producing methanol;
• efficient separation of the streams by the use of a divided wall column leads to an even more reduction in energy need for separation and saving in the CAPEX of the entire process; and
• the amount of water being circulated from gasification to olefins is significantly reduced, which leads to reduced volume of many intermediate sections.
Due to the above mentioned factors, the CAPEX is significantly reduced and the OPEX is reduced upto 30%, as compared to that of the conventional process.
TECHNICAL ADVANCES AND ECONOMICAL SIGNIFICANCE
The present disclosure described herein above has several technical advantages including, but not limited to, the realization of an improved process that:
• reduces generation of C(¾ during the process for producing olefins;
• utilizes C(¾ in olefins production;
• reduces energy needs for separating products;
• reduces energy needs for separating C(¾;
• reduces circulation of H2O in the process with lower water-gas shift reaction; and
• reduces CAPEX and OPEX for producing olefins.
The disclosure has been described with reference to the accompanying embodiments which do not limit the scope and ambit of the disclosure. The description provided is purely by way of example and illustration. The embodiments herein and the various features and advantageous details thereof are explained with reference to the non-limiting embodiments in the following description. Descriptions of well-known components and processing techniques are omitted so as to not unnecessarily obscure the embodiments herein. The foregoing description of the specific embodiments so fully revealed the general nature of the embodiments herein that others can, by applying current knowledge, readily modify and/or adapt for various applications such specific embodiments without departing from the generic concept, and, therefore, such adaptations and modifications should and are intended to be comprehended within the meaning and range of equivalents of the disclosed embodiments. It is to be understood that the phraseology or terminology employed herein is for the purpose of description and not of limitation. Therefore, while the embodiments herein have been described in terms of preferred embodiments, those skilled in the art will recognize that the embodiments herein can be practiced with modification within the spirit and scope of the embodiments as described herein.

Claims

An improved process for producing olefins from syngas, said improved process comprising the following steps:
a) treating raw material, at a temperature in the range of 300°C to 1000°C and at a pressure in the range of 1 kg/cm 2 to 80 kg/cm 2 , to produce a first stream, containing syngas comprising ¾, CO and C(¾, wherein the ratio of ¾ and CO in said syngas is 1 :1, wherein said raw material is at least one selected from the group consisting of coal, petcoke, biomass, natural gas and liquid fuels;
b) contacting said syngas with at least one first catalyst, at a temperature in the range of 100°C to 400°C and at a pressure in the range of 1 kg/cm2 to 60 kg/cm , to produce an intermediate stream comprising dimethyl ether (DME), unconverted CO2, H2, and CO, wherein said at least one first catalyst is selected from the group consisting of chromium oxide, zinc oxide and aluminium oxide;
c) separating a portion of CO2, ¾, and CO from said intermediate stream and recycling the separated portion of CO2 to step (a) for producing said syngas and recycling the separated portion of ¾, and CO to step (b) for producing said DME;
d) contacting said intermediate stream with at least one second catalyst, at a temperature in the range of 200°C to 600°C and at a pressure in the range of
0.5 kg/cm 2 to 10 kg/cm 2 , to produce a second stream comprising olefins, ¾0, methane, ethane, and propane, wherein said at least one second catalyst is ZSM-5;
e) separating ¾0, methane, ethane and propane from said second stream to obtain said olefins; and
f) recycling the separated CO2, methane, ethane and propane to reforming for producing said syngas.
The improved process as claimed in claim 1, wherein said olefins is at least one of ethylene and propylene.
3. The improved process as claimed in claim 1, wherein the separated C(¾ is recycled to the step a), for producing said syngas by reforming at least one of:
• natural gas; and
• one of the separated methane, ethane, and propane, with C(¾.
PCT/IB2017/053865 2016-06-29 2017-06-28 An improved process for producing olefins from syngas Ceased WO2018002838A1 (en)

Priority Applications (6)

Application Number Priority Date Filing Date Title
JP2018566831A JP2019521119A (en) 2016-06-29 2017-06-28 Process to improve olefin production from syngas
DE112017003296.2T DE112017003296T5 (en) 2016-06-29 2017-06-28 Improved process for the production of olefins from synthesis gas
CA3027836A CA3027836A1 (en) 2016-06-29 2017-06-28 An improved process for producing olefins from syngas
CN201780041410.2A CN109563007A (en) 2016-06-29 2017-06-28 A kind of improved process with synthesis gas production alkene
KR1020197000211A KR20190033055A (en) 2016-06-29 2017-06-28 Improved process for producing olefins from syngas
US16/314,177 US10800716B2 (en) 2016-06-29 2017-06-28 Process for producing olefins from syngas

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
IN201621022322 2016-06-29
IN201621022322 2016-06-29

Publications (1)

Publication Number Publication Date
WO2018002838A1 true WO2018002838A1 (en) 2018-01-04

Family

ID=60787005

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/IB2017/053865 Ceased WO2018002838A1 (en) 2016-06-29 2017-06-28 An improved process for producing olefins from syngas

Country Status (7)

Country Link
US (1) US10800716B2 (en)
JP (1) JP2019521119A (en)
KR (1) KR20190033055A (en)
CN (1) CN109563007A (en)
CA (1) CA3027836A1 (en)
DE (1) DE112017003296T5 (en)
WO (1) WO2018002838A1 (en)

Families Citing this family (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2022259020A1 (en) * 2021-06-08 2022-12-15 Stryker European Operations Limited Surgical guiding system for computer-assisted-surgery cas
US11718575B2 (en) 2021-08-12 2023-08-08 Saudi Arabian Oil Company Methanol production via dry reforming and methanol synthesis in a vessel
US11787759B2 (en) 2021-08-12 2023-10-17 Saudi Arabian Oil Company Dimethyl ether production via dry reforming and dimethyl ether synthesis in a vessel
US11578016B1 (en) 2021-08-12 2023-02-14 Saudi Arabian Oil Company Olefin production via dry reforming and olefin synthesis in a vessel
US12258272B2 (en) 2021-08-12 2025-03-25 Saudi Arabian Oil Company Dry reforming of methane using a nickel-based bi-metallic catalyst
US11617981B1 (en) 2022-01-03 2023-04-04 Saudi Arabian Oil Company Method for capturing CO2 with assisted vapor compression

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2008101403A1 (en) * 2007-02-07 2008-08-28 China Petroleum & Chemical Corporation A method for increasing yields of ethylene and propene in mto process
WO2009130292A2 (en) * 2008-04-24 2009-10-29 Shell Internationale Research Maatschappij B.V. Process to prepare an olefin-containing product or a gasoline product
US20130197288A1 (en) * 2012-01-31 2013-08-01 Linde Ag Process for the conversion of synthesis gas to olefins

Family Cites Families (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP3447494B2 (en) * 1996-12-26 2003-09-16 ジェイエフイーホールディングス株式会社 Method for producing dimethyl ether
US7592496B2 (en) * 2005-12-30 2009-09-22 Uop Llc Light olefin production via dimethyl ether
AU2009331847B2 (en) * 2008-12-22 2012-06-07 Air Products And Chemicals, Inc. Process to prepare methanol and/or dimethylether
CN103402632A (en) * 2010-11-02 2013-11-20 沙特基础工业公司 Method for producing light olefins by using ZSM-5-based catalyst
CA2863285A1 (en) * 2012-01-31 2013-08-08 Basf Se Process for the conversion of synthesis gas to olefins
CN106132511A (en) * 2014-02-04 2016-11-16 林德股份公司 Process for the preparation of higher molecular weight compounds from synthesis gas using indirectly heated CO2‑TSA

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2008101403A1 (en) * 2007-02-07 2008-08-28 China Petroleum & Chemical Corporation A method for increasing yields of ethylene and propene in mto process
WO2009130292A2 (en) * 2008-04-24 2009-10-29 Shell Internationale Research Maatschappij B.V. Process to prepare an olefin-containing product or a gasoline product
US20130197288A1 (en) * 2012-01-31 2013-08-01 Linde Ag Process for the conversion of synthesis gas to olefins

Also Published As

Publication number Publication date
US20190284108A1 (en) 2019-09-19
DE112017003296T5 (en) 2019-03-14
JP2019521119A (en) 2019-07-25
US10800716B2 (en) 2020-10-13
CA3027836A1 (en) 2018-01-04
CN109563007A (en) 2019-04-02
KR20190033055A (en) 2019-03-28

Similar Documents

Publication Publication Date Title
US10800716B2 (en) Process for producing olefins from syngas
AU2009326172B2 (en) Integrated gas refinery
DK3205622T3 (en) METHOD OF SYNTHESIS OF METHANOL
US20150259202A1 (en) Process for the Production of Synthesis Gas
CA2068115C (en) Improved gas conversion process
US20140316016A1 (en) Conversion of Carbon Dioxide to Hydrocarbons Via Hydrogenation
US20150299594A1 (en) Process for the preparation of hydrocarbons
US20170166495A1 (en) Process for production of hydrocarbons by ocm
IL271937B2 (en) Method for the preparation of ammonia synthesis gas
US9062257B1 (en) Enhanced GTL process
CA2860874A1 (en) Direct synthesis of dme at equilibrium
EA027871B1 (en) Process for producing ammonia and urea
US5004862A (en) Process for recycling and purifying condensate from a hydrocarbon or alcohol synthesis process
US20080027150A1 (en) Hydrocarbons Synthesis
CA2936279A1 (en) Process and system for production of dimethyl ether from synthesis gas
RU2695197C1 (en) Method of producing stream of hydrocarbon product from stream of gaseous hydrocarbon material and corresponding apparatus
US20240286975A1 (en) Method and system for producing hydrocarbons
US20160304424A1 (en) Process for the production of synthesis gas
US11332417B2 (en) System and method for preparing aromatics by using syngas
US20240359977A1 (en) Process to convert natural gas and carbon dioxide into hydrogen and carbon monoxide
EP3176148B1 (en) Alcohol production device and alcohol production method
GB2700228A (en) Fischer-tropsch process and system
WO2020191478A1 (en) Process for increasing carbon yield in the production of synthetic fuels and chemicals
KR20250161526A (en) System and method for producing synthesis gas
NZ760481B2 (en) Method for the preparation of ammonia synthesis gas

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 17819459

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 3027836

Country of ref document: CA

ENP Entry into the national phase

Ref document number: 2018566831

Country of ref document: JP

Kind code of ref document: A

ENP Entry into the national phase

Ref document number: 20197000211

Country of ref document: KR

Kind code of ref document: A

122 Ep: pct application non-entry in european phase

Ref document number: 17819459

Country of ref document: EP

Kind code of ref document: A1
