  • the invention relates to the technical field of power system relay protection, in particular to a full-phase voltage protection method for single-phase ground fault of a transmission line. Background technique
  • Transmission line distance protection can be divided into line distance protection based on sudden change and line distance protection based on full component according to different electrical quantities.
  • Line distance protection based on sudden change is affected by system operation mode and strong resistance to transition resistance. This type of protection action has high reliability.
  • the line distance protection based on the sudden change For a line fault after two cycles, it cannot provide relay protection, and it cannot be applied to the protection of the entire fault process of the line.
  • the full-component line distance protection can be applied to the protection of the entire fault process of the line, the self-protection algorithm is seriously affected by the transition resistance. In the case of high-resistance ground fault, protection against jeopardy or misoperation is easy, and the protection reliability is not high. .
  • the object of the present invention is to overcome the deficiencies of the prior art and provide a full-component voltage protection method for a single-phase ground fault of a transmission line.
  • a full-phase voltage protection method for single-phase ground fault of transmission line the steps are as follows:
  • ⁇ is the fault phase current; is the fault phase negative sequence current; / ⁇ zero sequence current; ⁇ B, C phase; is the phase angle of the fault phase negative sequence current; They are the positive sequence and zero sequence impedance of the transmission line per unit length.
  • the present invention has the following advantages over the prior art:
  • the voltage drop amplitude along the line from the protection line protection installation to the single-phase ground fault point is smaller than the voltage drop amplitude from the protection installation to the protection setting range;
  • the voltage drop amplitude along the line from the protection line installation to the single-phase ground fault point is greater than the voltage drop amplitude from the protection installation to the protection setting range, to achieve full-phase voltage protection of the single-phase ground fault of the transmission line, and the performance It is not affected by the system operation mode and load current, and eliminates the influence of the transition resistance on the protection action performance. It is suitable for the protection of the entire fault process of the single-phase ground fault of the transmission line.
  • FIG. 1 is a schematic diagram of a line transmission system to which the present invention is applied. detailed description
  • ⁇ - ⁇ is z o ⁇ The real part of z i L f .
  • Distribution characteristics of voltage drop along the transmission line after single-phase ground fault When the fault occurs in the protection zone, the voltage drop amplitude along the line from the protection line installation point to the single-phase ground fault point is less than the voltage drop range from the protection installation to the protection setting range. Value; When the protection outside the protection zone occurs, the voltage drop amplitude along the line from the protection line installation to the single-phase ground fault point is greater than the voltage drop amplitude from the protection installation to the protection setting range. Therefore, the method of the invention is guaranteed If ⁇ ( ⁇ )] 2 + [ ⁇ )] 2 ⁇
  • 0 is the protection setting range; , Z. They are the positive sequence and zero sequence impedance of the transmission line per unit length.
  • the method of the invention utilizes the voltage drop distribution characteristic along the line (ie, the voltage drop amplitude along the line from the transmission line protection installation to the single-phase ground fault point is smaller than the voltage drop amplitude from the protection installation to the protection setting range when the fault occurs in the protection zone; In the case of an out-of-zone fault, the amplitude of the voltage drop along the transmission line protection installation to the single-phase ground fault point is greater than the voltage drop amplitude from the protection installation to the protection setting range.)
  • the full-voltage protection of the single-phase ground fault of the transmission line is realized. The performance is not affected by the system operation mode and load current, and the effect of the transition resistance on the protection action performance is eliminated. It is suitable for the protection of the entire fault process of the single-phase ground fault of the transmission line.

Landscapes

  • Emergency Protection Circuit Devices (AREA)

Abstract

本发明公开了一种输电线路单相接地故障全分量电压保护方法。本发明方法利用沿线电压降落分布特性（即保护区内故障时，输电线路保护安装处到单相接地故障点的沿线电压降落幅值小于保护安装处到保护整定范围处的电压降落幅值；保护区外故障时，输电线路保护安装处到单相接地故障点的沿线电压降落幅值大于保护安装处到保护整定范围处的电压降落幅值）实现了输电线路单相接地故障全分量电压保护，动作性能既不受系统运行方式和负荷电流的影响，又消除了过渡电阻对保护动作性能的影响，适用于输电线路单相接地故障的整个故障过程的保护。

Description

一种输电线路单相接地故障全分量电压保护方法 技术领域
本发明涉及电力系统继电保护技术领域， 特别是一种输电线路单相接地故障全分量电压保护方法。 背景技术
输电线路距离保护根据采用电气量不同可分为基于突变量的线路距离保护和基于全分量的线路距离 保护两类。 基于突变量的线路距离保护受系统运行方式影响小和抗过渡电阻能力强， 此类保护动作性能可 靠性高， 但由于电气突变量只在故障后两周波内存在， 基于突变量的线路距离保护对于两周波后的线路故 障无法起到继电保护作用， 无法适用于线路整个故障过程的保护。 基于全分量的线路距离保护虽可适用于 线路整个故障过程的保护， 但由于自身保护算法受过渡电阻的影响严重， 在高阻接地故障时容易发生保护 拒动或误动， 保护可靠性不高。
发明内容
本发明的目的在于克服已有技术存在的不足， 提供一种输电线路单相接地故障全分量电压保护方法。 一种输电线路单相接地故障全分量电压保护方法， 其步骤如下：
( 1 )测量输电线路保护安装处的故障相电压 ύφ、故障相电流 ϊψ、故障相负序电流 ϊφι和零序电流 i0 其中， 0 =A、 B、 C相。
(2 ) 计算输电线路保护安装处到单相接地故障点的电压降 Δί^的实部 Re(At^)和虚部 Im(At^) ：
Figure imgf000003_0001
其中， 为故障相电压； ^为故障相电流； 为故障相负序电流； /ο为零序电流； φ B、 C 相； 为故障相负序电流 的相位角； 、 ζ。分别为单位长度输电线路正序、 零序阻抗。
(3 ) 比较保护判据 < \xsetzjset\是否成立， 若成立， 则保护动作； 其中，
Figure imgf000003_0002
/ Xiei为保护整定范围
+
综上所述， 本发明相比现有技术具有如下优点：
z
o
本发明方法利用沿线电压降落分布特性即保护区内故障时， 输电线路保护安装处到单相接地故障点的 沿线电压降落幅值小于保护安装处到保护整定范围处的电压降落幅值； 保护区外故障时， 输电线路保护安 装处到单相接地故障点的沿线电压降落幅值大于保护安装处到保护整定范围处的电压降落幅值， 实现输电 线路单相接地故障全分量电压保护， 动作性能既不受系统运行方式和负荷电流的影响， 又消除了过渡电阻 对保护动作性能的影响， 适用于输电线路单相接地故障的整个故障过程的保护。 附图说明
图 1为应用本发明的线路输电系统示意图。 具体实施方式
下面结合说明书附图对本发明的技术方案做进一步详细表述。
保护装置测量输电线路保护安装处的故障相电压 ύφ、 故障相电流 ϊφ、 故障相负序电流 ϊφ1和零序电 流 /θ ; 其中， φ = 、 B、 C相。 计算输电线路保护安装处到单相接地故障点的电压降 At^的实部 Re(At^)
Figure imgf000004_0001
计算输电线路保护安装处到单相接地故障点的电压降 Atif的虚部 Im(At^)
Figure imgf000004_0002
其中， 为故障相负序电流 的相位角； Re 为故障相电压 的实部； Im(f^ )为故障相电压 ί ( 的虚 部 ； Im 为 -Ό 的虚 部 ； Re i + ZQ ~ zi /
ζι -Ό 为
Figure imgf000004_0003
zo― zi L f 的实部。 输电线路发生单相接地故障后沿线电压降落分布特点： 保护区内故障时， 输电线路保护安装处到单相 接地故障点的沿线电压降落幅值小于保护安装处到保护整定范围处的电压降落幅值； 保护区外故障时， 输 电线路保护安装处到单相接地故障点的沿线电压降落幅值大于保护安装处到保护整定范围处的电压降落 幅值。 因此， 得到本发明方法的保
Figure imgf000005_0001

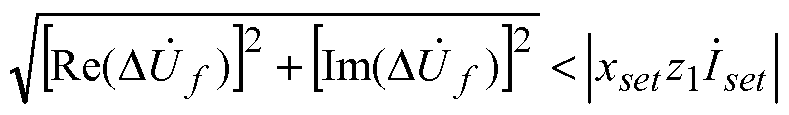

若 ^^(Δ^)]2 + [ Δ^)]2 < |xieiZl/iei |成立， 则保护动作。其中， ϊίβΓϊφ ζ1— z0 j
0 为 保护整定范围； 、 Z。分别为单位长度输电线路正序、 零序阻抗。 本发明方法利用沿线电压降落分布特性（即保护区内故障时， 输电线路保护安装处到单相接地故障点 的沿线电压降落幅值小于保护安装处到保护整定范围处的电压降落幅值； 保护区外故障时， 输电线路保护 安装处到单相接地故障点的沿线电压降落幅值大于保护安装处到保护整定范围处的电压降落幅值）实现了 输电线路单相接地故障全分量电压保护， 动作性能既不受系统运行方式和负荷电流的影响， 又消除了过渡 电阻对保护动作性能的影响， 适用于输电线路单相接地故障的整个故障过程的保护。
以上所述仅为本发明的较佳具体实施例， 但本发明的保护范围并不局限于此， 任何熟悉本技术领域的 技术人员在本发明揭露的技术范围内， 可轻易想到的变化或替换， 都应涵盖在本发明的保护范围之内。

Claims

权 利 要 求 书
1、 一 +种输电线路单相接地故障全分量电压保护方法， 其步骤如下：
Z1
( 1 )测量输电线路保护安装处的故障相电压 ύφ、故障相电流 ϊψ、故障相负序电流 ϊφι和零序电流 i0
Z
o
其中， φ = 、 B、 C相，
(2 ) 计算输电线路保护安装处到单相接地故障点的电压降 Δί^的实部 Re(At^)和虚部 Im(At^) ：
Figure imgf000006_0001
其中， 为故障相电压； ^为故障相电流； 为故障相负序电流； /ο为零序电流； φ二 B、 C 相； 为故障相负序电 的相位角； 、 ζ。分别为单位长度输电线路正序、 零序阻抗，
(3 ) 比较保护判据 < \xsetzjset \是否成立， 若成立， 则保护动作； 其中
Figure imgf000006_0002
10 为保护整定范围
Z
