WO2014031204A2 - Carbohydrate-selective receptors - Google Patents

Carbohydrate-selective receptors Download PDF

Info

Publication number
WO2014031204A2
WO2014031204A2 PCT/US2013/042888 US2013042888W WO2014031204A2 WO 2014031204 A2 WO2014031204 A2 WO 2014031204A2 US 2013042888 W US2013042888 W US 2013042888W WO 2014031204 A2 WO2014031204 A2 WO 2014031204A2
Authority
WO
WIPO (PCT)
Prior art keywords
compound
formula
providing
moiety
man
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/US2013/042888
Other languages
French (fr)
Other versions
WO2014031204A3 (en
Inventor
Adam B. Braunschweig
Stephen RIETH
Matthew MINER
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
New York University NYU
Original Assignee
New York University NYU
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by New York University NYU filed Critical New York University NYU
Priority to US14/403,686 priority Critical patent/US9296688B2/en
Publication of WO2014031204A2 publication Critical patent/WO2014031204A2/en
Publication of WO2014031204A3 publication Critical patent/WO2014031204A3/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D207/00—Heterocyclic compounds containing five-membered rings not condensed with other rings, with one nitrogen atom as the only ring hetero atom
    • C07D207/02—Heterocyclic compounds containing five-membered rings not condensed with other rings, with one nitrogen atom as the only ring hetero atom with only hydrogen or carbon atoms directly attached to the ring nitrogen atom
    • C07D207/30—Heterocyclic compounds containing five-membered rings not condensed with other rings, with one nitrogen atom as the only ring hetero atom with only hydrogen or carbon atoms directly attached to the ring nitrogen atom having two double bonds between ring members or between ring members and non-ring members
    • C07D207/32—Heterocyclic compounds containing five-membered rings not condensed with other rings, with one nitrogen atom as the only ring hetero atom with only hydrogen or carbon atoms directly attached to the ring nitrogen atom having two double bonds between ring members or between ring members and non-ring members with only hydrogen atoms, hydrocarbon or substituted hydrocarbon radicals, directly attached to ring carbon atoms
    • C07D207/33—Heterocyclic compounds containing five-membered rings not condensed with other rings, with one nitrogen atom as the only ring hetero atom with only hydrogen or carbon atoms directly attached to the ring nitrogen atom having two double bonds between ring members or between ring members and non-ring members with only hydrogen atoms, hydrocarbon or substituted hydrocarbon radicals, directly attached to ring carbon atoms with substituted hydrocarbon radicals, directly attached to ring carbon atoms
    • C07D207/335—Radicals substituted by nitrogen atoms not forming part of a nitro radical
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K31/00—Medicinal preparations containing organic active ingredients
    • A61K31/33—Heterocyclic compounds
    • A61K31/395—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins
    • A61K31/40—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins having five-membered rings with one nitrogen as the only ring hetero atom, e.g. sulpiride, succinimide, tolmetin, buflomedil
    • A61K31/4025—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins having five-membered rings with one nitrogen as the only ring hetero atom, e.g. sulpiride, succinimide, tolmetin, buflomedil not condensed and containing further heterocyclic rings, e.g. cromakalim
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P29/00—Non-central analgesic, antipyretic or antiinflammatory agents, e.g. antirheumatic agents; Non-steroidal antiinflammatory drugs [NSAID]
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P35/00—Antineoplastic agents
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D403/00—Heterocyclic compounds containing two or more hetero rings, having nitrogen atoms as the only ring hetero atoms, not provided for by group C07D401/00
    • C07D403/14—Heterocyclic compounds containing two or more hetero rings, having nitrogen atoms as the only ring hetero atoms, not provided for by group C07D401/00 containing three or more hetero rings
    • G—PHYSICS
    • G01—MEASURING; TESTING
    • G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
    • G01N24/00—Investigating or analyzing materials by the use of nuclear magnetic resonance, electron paramagnetic resonance or other spin effects
    • G01N24/12—Investigating or analyzing materials by the use of nuclear magnetic resonance, electron paramagnetic resonance or other spin effects by using double resonance
    • G—PHYSICS
    • G01—MEASURING; TESTING
    • G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
    • G01N33/00—Investigating or analysing materials by specific methods not covered by groups G01N1/00 - G01N31/00
    • G01N33/48—Biological material, e.g. blood, urine; Haemocytometers
    • G01N33/50—Chemical analysis of biological material, e.g. blood, urine; Testing involving biospecific ligand binding methods; Immunological testing
    • G01N33/53—Immunoassay; Biospecific binding assay; Materials therefor
    • G01N33/5308—Immunoassay; Biospecific binding assay; Materials therefor for analytes not provided for elsewhere, e.g. nucleic acids, uric acid, worms, mites
    • G—PHYSICS
    • G01—MEASURING; TESTING
    • G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
    • G01N2400/00—Assays, e.g. immunoassays or enzyme assays, involving carbohydrates

Definitions

  • the present invention is directed to synthetic carbohydrate receptors and methods of making the same.
  • the present invention further relates to methods of diagnosing and treating carbohydrate-mediated disorders.
  • Natural saccharide-binding proteins including lectins and periplasmic substrate-binding proteins, use water desolvation, hydrogen bonding (H-bonding), and C-H " ⁇ interactions to selectively recognize glycans that may differ only by the orientation of a single hydroxyl group to achieve binding affinities, T a s, as high at 10 6 M "1 (ESSENTIALS OF GLYCOBIOLOGY (Ajit Varki et al.
  • the temple receptors position polar amidopyridine groups between apolar aromatic surfaces, and these receptors are highly selective for mono- and disaccharides containing all equatorial hydroxide groups, such as ⁇ -glucose (Glc) (Barwell et al, Angew. Chem. Int. Ed.
  • the tripodal receptors bind strongly to glycosides with an affinity of 10 2 to 105 M- " 1 in chloroform and acetonitrile, and by changing to a chiral diaminopyrrolic motif, high selectivity for octylmannosides in acetonitrile has been observed, ranging from 1 :7 P-GlcNAc:a-Man to 1 :38 a-Gal:P-Man (Nativi et al., Chem. Eur. J. 17:4814-4820 (2011)).
  • Mannose is a particularly interesting monosaccharide target, because it is a biomarker for several cancers (de Leoz et al., Mol. Cell.

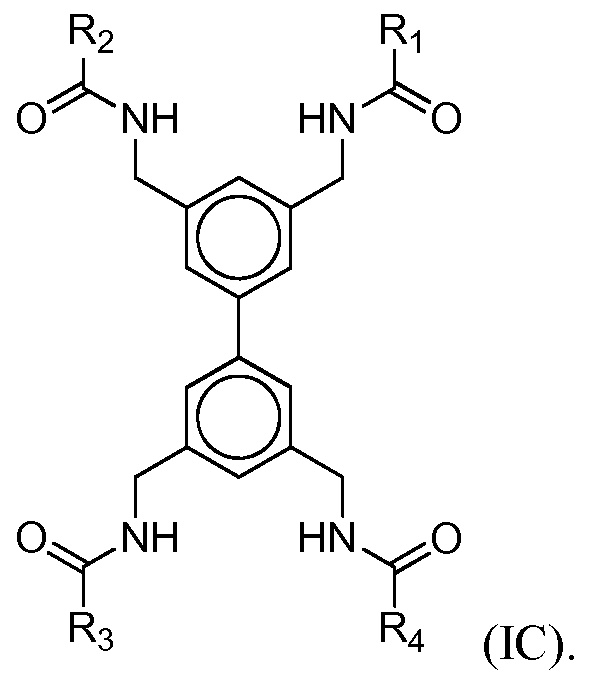

  • a first aspect of the present invention is directed to a compound comprising Formula (I):
  • R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface
  • A is selected from the group consisting of: (1)— CH 2 — ; (2)— C(O)— ; and
  • Ri, R 2 , R 3 , and R 4 is a heterocycle or a heteroaryl containing 1-5
  • R ls R 2, R 3, andR 4 can be the same or different;
  • Ri, R 2 , R 3 , and R 4 can be optionally substituted 1 to 4 times with substituents
  • halogen selected from the group consisting of halogen, Ci_ 6 alkyl, C 2 -6 alkenyl, C 2- 6 alkynyl, C 3 _ 6 cycloalkyl, aryl,— OR 5 ,— CN,— N0 2 ,— NRjRe , — COOR 5 ,— COR 5 ,— CONHRs, and— CN;
  • each of R 5 andR 6 is independently H or Ci_ 6 alkyl. [0007] Other aspects of the present invention relate to pharmaceutical
  • compositions and pharmaceutical delivery vehicles comprising the compound of Formula I.
  • Other aspects of the present invention relate to methods of treatment and diagnosis that involve the administration of a compound of Formula I.
  • R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface immobilization moiety, a moiety of Formula II (II), or a moiety of Formula is a single or a double bond;
  • A is selected from the group consisting of: (1)— CH 2 — ; (2)— C(O)— ; and
  • Ri, R 2, R 3, and R 4 is a heterocycle or a heteroaryl containing 1-5
  • R ls R 2, R 3, andR 4 can be the same or different; Ri, R 2, R 3, and R4 can be optionally substituted 1 to 4 times with substituents selected from the group consisting of halogen, Ci_ 6 alkyl, C 2 _6 alkenyl, C 2- 6 alkynyl, C 3 _ 6 cycloalkyl, aryl,— OR 5 ,— CN,— N0 2 ,— NR5R5,— COORs,— COR 5 ,— CONHRs, and— CN;
  • each of R5 andR 6 is independently H or Ci_ 6 alkyl.

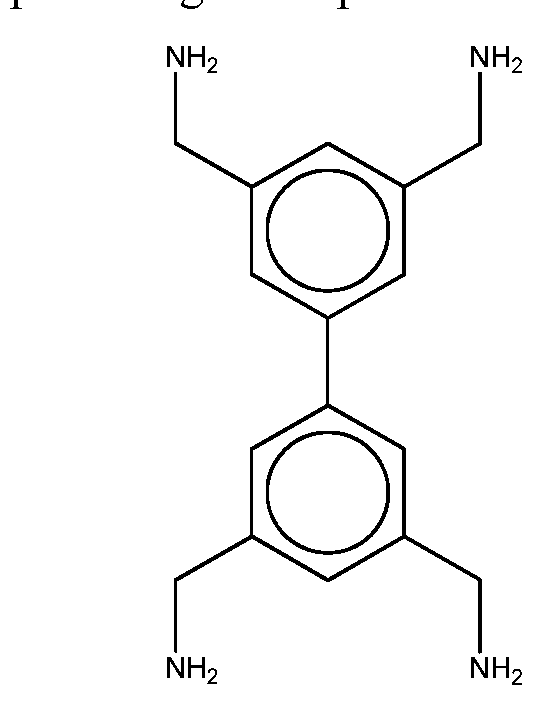

  • the compound of Formula I is made by providing a compound of Formula IX:
  • the compound of Formula I is made by providing a compound of Formula X:
  • Homotropiccooperativity whereby an initial association of a target substrate induces conformational restrictions that enhance further binding of the same substrate, has been employed previously in synthetic receptors to increase binding strength and specificity towards targets such as diacids and syn-diols (Shinkai et al, Acc. Chem. Res. 34:494-503 (2001); Takeuchi et al, Acc. Chem. Res. 34:865-873 (2001); Kovbasyuk & Kramer,
  • this carbohydrate receptor is designed to dynamically explore thermodynamic and conformational space and confirm that increased receptor flexibility can induce specificity for carbohydrate guests through allostery despite a higher entropic penalty experienced in an initial association step.
  • the synthetic carbohydrate receptor described herein achieves excellent selectivity for octylmannosides through two allosteric cooperative pathways with an overall selectivity as high as 18.9: 1 a-Man:a-Gal in chloroform. Moreover, the selectivity is directly dependent on pyranoside concentration, where the receptor binds preferentially to ⁇ -Glc at low concentration ( ⁇ 0.3 mM), then binds a- and ⁇ -Man at higher concentrations. Accordingly, described herein is the first synthetic carbohydrate receptor that (1) relies on cooperativity to increase selectivity and (2) whose selectivity switches with saccharide concentration. BRIEF DESCRIPTION OF THE DRAWINGS
  • Figures 1A-1B show the chemical structure of a synthetic carbohydrate receptor 1 (also referred to herein as a compound of Formula IB) of the present invention.
  • Figure 1A shows the chemical structure of compound 1
  • Figure IB shows the chemical structures of the octyl pyranosides that were evaluated for binding with compound 1. The carbon numbering scheme is also shown in Figure IB.
  • Figure 2 shows the equilibria present in a chloroform mixture of compound 1 and ⁇ -Man at 25°C. Upon increasing the ⁇ -Man!l ratio, K 2 determines the dominate species in solution. If instead, ⁇ -Man!l decreases, K3 controls the equilibrium mixture.
  • Figures 3A-3C demonstrate 1 :2 receptonpyranoside binding.
  • Figure 3 A shows 1H NMR (600 MHz, CDCI 3 , 25°C) spectra obtained after the incremental addition of a 10.4 mM solution of ⁇ -Man to a 58.6 ⁇ solution of Compound 1 (scheme 5), with dashed lines illustrating the induced changes in chemical shifts.
  • Figure 3B the chemical shift dependences of H J of compound 1 (58.6 ⁇ ) are plotted as a function of molar equivalents of each of the eight added pyranosides from the 1H NMR titrations.
  • Figure 3C the fittings of the H J chemical shift changes in response to the addition of ⁇ -Man to a model containing K ⁇ (dashed line) and K ⁇ + K 2 (solid line).
  • Figure 4 is a variable temperature 1H NMR (400 MHz, CDCI 3 ) spectra of compound 1 (1.0 mM) and ⁇ -Man (2.0 mM).
  • FIGS 5A-5C show the energy minimized structure (DFT, B3LYP/6-
  • Figure 6A is a 1H NMR (900 MHz, CDC1 3 , 25°C) spectra obtained upon the titration of a 62.5 mM solution of compound 1 to a 0.98 mM solution of ⁇ -Man with dashed lines illustrating the induced changes in ⁇ .
  • Figure 6B is a graph showing the chemical shifts, ⁇ , of ⁇ -Man as a function of molar equivalents of compound 1 at 5°C. The theoretical global fits with a model incorporating ⁇ dimer, K ⁇ , and K 2 (dashed line) and with -dimer, K ⁇ , K 2 , and K3 (solid line) are shown.
  • Figures 7A-7B show selected portions of a 1 H- 1 H ROESY spectra.
  • FIG. 7 A is the portion of the spectra corresponding to a CDCI 3 solution of ⁇ -Man (1.0 mM) with 0.50 molar equivalents of compound 1 at 600 MHz, 25°C, and with a 600 ms mixing time
  • Figure 7B corresponds to a CDCI 3 solution of ⁇ -Man (6.0 mM) with 2.0 molar equivalents of compound 1 at 400 MHz, -10°C, and with a 500 ms mixing time.
  • Figure 8 depicts the energy minimized structure (AMBER*) for ⁇ -Man obtained by a mixed low-mode/torsional Monte Carlo conformation search.
  • the carbons of compound 1 that bind the a-face are colored green, and the carbons of compound 1 bound to the ⁇ -face are colored red for clarity, nitrogens are blue, oxygens are red, and intermolecular hydrogen bonds are denoted by dashed lines.
  • 3 new H-bonds are observed with the ⁇ -face.
  • Figures 9A-9B show IIBC ⁇ plots describing the pyranoside concentration dependence for the overall binding strength (l/3C 5 o) of receptor compound 1 toward each pyranoside, where higher values are indicative of stronger binding and crossover points, marked within a circle for ⁇ -Glc ⁇ -Man and square for ⁇ -Glc ⁇ -Man, denote changes in binding preference with increasing pyranoside concentration (Figure 9A); and the influence of each positive cooperative binding equilibria (K 2 and K3) on the BC 50 value of receptor 1 for ⁇ -Man ( Figure 9B).
  • Figures 1 OA- IOC show NMR and high-resolution mass spectrometry
  • Figure 11 A is a 1H NMR of compound 4 (400 MHz, 25° C) in CDC13.
  • Figure 1 IB is a 13 C NMR of compound 4 (100 MHz, 25° C) in CDC1 3 and Figure 11C shows the HRMS for compound 4.
  • Figures 12A-12D show NMR and HRMS data for compound 1 (Formula
  • Figure 12A is a 1H NMR of compound 1 (400 MHz, 25° C) in CDCI 3 .
  • Figure 12B is a 13 C NMR of compound 1 (100 MHz, 25° C) in DMSO-D 6 .
  • Figure 12C is a 13 C DEPT-135 NMR of 1 (100 MHz, 25° C) in DMSO-D 6 .
  • Figure 12D shows the HRMS of compound 1.
  • Figure 13 is a variable temperature 1H NMR ( 400MHz, CDC1 3 ) spectra of
  • Figure 14 is a 1H NMR ( 400 MHz, CDCI 3 , -63°C) of compound 1
  • Figures 15 A-l 5K are tables showing 1H NMR (600MHz) chemical shift data for a solution of compound 1 (Scheme 5) in CDCI 3 upon incremental addition of various octyl pyranosides.
  • the table of Figure 15A shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -Glc [G].
  • the table of Figure 15B shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 50 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -Gal [G].
  • the table of Figure 15C shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -GlcNAc [G].
  • the table of Figure 15D shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of a-Glc [G].
  • the table of Figure 15E shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of a-GlcNAc [G].
  • the table of Figure 15F shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of a-Gal [G].
  • the table of Figure 15G shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDC1 3 upon incremental addition of a-Man [G] .
  • the table of Figure 15H shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 ⁇ solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -Man [G].
  • the table of Figure 151 shows 1H NMR (600 MHz, 20° C) chemical shifts (ppm) of a .06 mM solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -Man [G].
  • the table of Figure 15 J shows 1H NMR (600 MHz, 15° C) chemical shifts (ppm) of a .06 mM solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -Man [G].
  • the table of Figure 15K shows 1H NMR (600 MHz, 10° C) chemical shifts (ppm) of a .06 mM solution of 1 [H] in CDCI 3 upon incremental addition of ⁇ -Man [G].
  • Figures 16 is a table showing 1H NMR (900 MHz, 25°C) chemical shift data for a 1.0 mM solution of a-Man in CDCI 3 upon incremental addition of compound 1 (Scheme 5).
  • Figures 17A-17E are tables showing 1H NMR (500 MHz) chemical shift data for solutions of a-Glc in CDCI 3 upon incremental addition of compound 1 at various temperatures.
  • the Table of Figure 17A shows 1H NMR (500 MHz, 25° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI 3 upon the incremental addition of mM 1 [H].
  • the table of Figure 17B shows 1H NMR (500 MHz, 20° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI 3 upon the incremental addition of mM 1 [H].
  • the table of Figure 17C shows 1H NMR (500 MHz, 15° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 17D shows 1H NMR (500 MHz, 10° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 17E shows 1H NMR (500 MHz, 5° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • Figures 18A-18E are graphs fitting the experimental data (circles) with the
  • Figures 19A-19E are tables showing 1H NMR (800 MHz) chemical shift data for solutions of a-GlcNAc in CDCI 3 upon incremental addition of compound 1
  • the table of Figure 19A shows 1H NMR (800 MHz, 25° C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 19B shows 1H NMR (800 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 19C shows 1H NMR (800 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI 3 upon the incremental addition of mM 1 [H].
  • the table of Figure 19D shows 1H NMR (800 MHz, 10°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 19E shows 1H NMR (800 MHz, 5°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • Figures 20A-20E are graphs fitting the experimental data (circles) with the
  • Figures 21A-21E are tables showing 1H NMR (500 MHz) chemical shift data for solutions of a-Gal in CDCI 3 upon incremental addition of compound 1 (Scheme 5) at various temperatures.
  • the table of Figure 21 A shows 1H NMR (500 MHz, 25°C) chemical shifts (ppm) of a 0.684 mM solution of a-Gal [G] in CDCI 3 upon the
  • Figures 22A-22E are graphs fitting the experimental data (circles) with the 1 : 1 model (dashed line) and 2: 1 model (solid line) corresponding to the 1H NMR titration of a-Gal with compound 1 (Scheme 5) at 25°C.
  • Figures 23A-23D are tables showing 1H NMR (900 MHz) chemical shift data for solutions of ⁇ -Man in CDCI 3 upon incremental addition of compound 1 at various temperatures.
  • the table of Figure 23 A shows 1H NMR (900 MHz, 25°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Man [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 23B shows 1H NMR (900 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Man [G] in CDCI 3 upon the incremental addition of 1 [H].
  • FIG. 23C shows 1H NMR (900 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Man [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 23D shows 1H NMR (900 MHz, 10°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Man [G] in CDCI 3 upon the incremental addition of 1 [H].
  • Figures 24A-24E are graphs fitting the experimental data (circles) with the
  • Figures 25A-25E are tables showing 1H NMR (900 MHz) chemical shift data for solutions of ⁇ -Glc in CDCI 3 upon incremental addition of compound 1 (Scheme 5) at various temperatures.
  • the table of Figure 25 A shows 1H NMR (900 MHz, 25°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 25B shows 1H NMR (900 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 25C shows 1H NMR (900 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 25D shows 1H NMR (900 MHz, 10°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 25E shows 1H NMR (900 MHz, 5°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Glc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • Figures 26A-26E are graphs fitting the experimental data (circles) with the
  • Figures 27A-27C are tables showing 1H NMR (900 MHz) chemical shift data for solutions of ⁇ -GlcNAc in CDCI 3 upon incremental addition of compound 1
  • the table of Figure 27A shows 1H NMR (900 MHz, 25° C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -GlcNAc [G] in CDC1 3 upon the incremental addition of 1 [H].
  • the table of Figure 27B shows 1H NMR (900 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -GlcNAc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 27C shows 1H NMR (900 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -GlcNAc [G] in CDCI 3 upon the incremental addition of 1 [H].
  • Figures 28A-28E are graphs fitting the experimental data (circles) with the
  • Figures 29A-29E are tables showing 1H NMR (500 MHz) chemical shift data for solutions of ⁇ -Gal in CDCI 3 upon incremental addition of compound 1 (Scheme 5) at various temperatures.
  • the table of Figure 29A shows 1H NMR (500 MHz, 25°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Gal [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 29B shows 1H NMR (500 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of ⁇ -Gal [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 29C shows 1H NMR (500 MHz, 15°C) chemical shifts (ppm) of a 0.684 mM solution of ⁇ -Gal [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 29D shows 1H NMR (500 MHz, 10°C) chemical shifts (ppm) of a 0.684 mM solution of ⁇ -Gal [G] in CDCI 3 upon the incremental addition of 1 [H].
  • the table of Figure 29E shows 1H NMR (500 MHz, 5°C) chemical shifts (ppm) of a 0.684 mM solution of ⁇ -Gal [G] in CDCI 3 upon the incremental addition of 1 [H].
  • Figures 30A-30E are graphs fitting the experimental data (circles) with the
  • Figure 31 is a complete table of binding constants at all temperatures observed by 1H NMR titrations for each pyranoside in CDCI 3 with compound 1 (Scheme 5).
  • Figures 32A-32D are Van't Hoff Plots showing K x and K 3 of ⁇ -Glc and ⁇ x-
  • Figure 33 shows 1 H- 1 H ROESY spectrum of ⁇ -Man (12.0 mM) with compound 1 (6.0 mM) at -60° C 400 MHz in CDC1 3 .
  • Figure 34 shows 1 H- 1 H ROESY spectrum of ⁇ -ManO .0 mM) with 1
  • Figure 35 is a table showing complex ation induced shifts for each observable pyranoside proton obtained from 1H NMR titrations. The observed intermolecular cross-peaks obtained from a 1 H- 1 H ROESY analysis. The corresponding distance between the protons in the calculated structures is indicated in parenthesis.
  • Figure 36 shows 1 H- 1 H ROESY spectrum of ⁇ -Glc (1.OmM) and 1
  • the present invention is generally directed to a new class of synthetic carbohydrate receptor compounds. Accordingly, a first aspect of the present invention is directed to a compound comprising Formula I:
  • R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface immobilization moiety, a moiety of Formula II ( ⁇ )
  • A is selected from the group consisting of: (1)— CH 2 — ; (2)— C(O)— ; and
  • Ri, R 2 , R 3 , and R 4 is a heterocycle or a heteroaryl containing 1-5
  • R ls R 2, R 3, andR 4 can be the same or different;
  • Ri, R 2 , R 3 , and R 4 can be optionally substituted 1 to 4 times with substituents selected from the group consisting of halogen, Ci_ 6 alkyl, C 2 -6 alkenyl, C 2 -6 alkynyl, C 3 _ 6 cycloalkyl, aryl,— OR 5 ,— CN,— N0 2 ,— NRjRe , — COOR 5 ,— COR 5 ,— CONHRs, and— CN;
  • each of R 5 andR 6 is independently H or Ci_ 6 alkyl.
  • heterocycle refers to a stable 3- to 18-membered ring which consists of carbon atoms and from one to five heteroatoms selected from the group consisting of nitrogen, oxygen, and sulfur.
  • the heterocycle may be a monocyclic, or a polycyclic ring system, which may include fused, bridged, or spiro ring systems; and the nitrogen, carbon, or sulfur atoms in the heterocycle may be optionally oxidized, the nitrogen atom may be optionally quaternized, and the ring may be partially or fully saturated.
  • heterocycle groups include, without limitation, azepinyl, azocanyl, pyranyl, dioxanyl, dithianyl, 1,3-dioxolanyl, tetrahydrofuryl,
  • the heterocycle is attached to its pendant group at any heteroatom or carbon atom that results in a stable structure.
  • heteroaryl means an aromatic monocyclic or multi-cyclic ring system of about 5 to about 14 ring atoms, or about 5 to about 10 ring atoms, in which one or more of the atoms in the ring system is/are element(s) other than carbon, for example, nitrogen, oxygen, or sulfur.
  • element(s) other than carbon for example, nitrogen, oxygen, or sulfur.
  • heteroaryl only one of the rings needs to be aromatic for the ring system to be defined as "heteroaryl”.
  • Preferred heteroaryls contain about 5 to 6 ring atoms.
  • aza, oxa, thia, or thio before heteroaryl means that at least a nitrogen, oxygen, or sulfur atom, respectively, is present as a ring atom.
  • a nitrogen atom of a heteroaryl is optionally oxidized to the
  • heteroaryls include, without limitation, pyridyl, 2-oxo-pyridinyl, pyrimidinyl, pyridazinyl, pyrazinyl, triazinyl, furanyl, pyrrolyl, thiophenyl, pyrazolyl, imidazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, triazolyl, oxadiazolyl, thiadiazolyl, tetrazolyl, indolyl, isoindolyl, benzofuranyl, benzothiophenyl, indolinyl, 2-oxoindolinyl, dihydrobenzofuranyl, dihydrobenzothiophenyl, indazolyl, benzimidazolyl, benzooxazolyl, benzothiazolyl, benzoisoxazolyl, benzoisothione
  • halo or halogen means fluoro, chloro, bromo, or iodo.
  • alkyl means an aliphatic hydrocarbon group which may be straight or branched having about 1 to about 6 carbon atoms in the chain (or the number of carbons designated by "C N _ N ", where n-n is the numerical range of carbon atoms). Branched means that one or more lower alkyl groups such as methyl, ethyl or propyl are attached to a linear alkyl chain. Exemplary alkyl groups include, without limitation, methyl, ethyl, n-propyl, i-propyl, n-butyl, t-butyl, n-pentyl, and 3-pentyl.
  • alkenyl means an aliphatic hydrocarbon group containing a carbon— carbon double bond and which may be straight or branched having about 2 to about 6 carbon atoms in the chain, or 2 to about 4 carbon atoms in the chain. Branched means that one or more lower alkyl groups such as methyl, ethyl, or propyl are attached to a linear alkenyl chain.
  • alkenyl groups include, without limitation, ethenyl, propenyl, n-butenyl, and i-butenyl.
  • alkynyl means an aliphatic hydrocarbon group containing a carbon— carbon triple bond and which may be straight or branched having about 2 to about 6 carbon atoms in the chain, or 2 to about 4 carbon atoms in the chain. Branched means that one or more lower alkyl groups such as methyl, ethyl, or propyl are attached to a linear alkynyl chain.
  • exemplary alkynyl groups include, without limitation, ethynyl, propynyl, n-butynyl, 2-butynyl, 3-methylbutynyl, and n-pentynyl.
  • cycloalkyl refers to a non-aromatic saturated or unsaturated mono- or polycyclic ring system which may contain 3 to 6 carbon atoms, and which may include at least one double bond.
  • exemplary cycloalkyl groups include, without limitation, cyclopropyl, cyclobutyl, cyclopentyl, cyclohexyl, cyclopropenyl, cyclobutenyl, cyclopentenyl, cyclohexenyl, antz ' -bicyclopropane, or syn-bicyclopropane.
  • aryl refers to an aromatic monocyclic or polycyclic ring system containing from 6 to 19 carbon atoms, where the ring system may be optionally substituted.
  • Suitable aryl groups for the substituents of the present invention include, but are not limited to, phenyl, naphthyl, azulenyl, fluorenyl, phenanthrenyl, anthracenyl, pyrenyl, triphenylenyl, chrysenyl, and naphthacenyl.
  • Suitable heteroaryl groups of the present invention include, but are not limited to pyrrolyl, pyrazolyl, imidazolyl, triazolyl, furyl, thiophenyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, oxadiazolyl, thiadiazolyl, pyridyl, pyrazinyl, pyrimidinyl, pyridazinyl, triazinyl, thienopyrrolyl, furopyrrolyl, indolyl, azaindolyl, isoindolyl, indolinyl indolizinyl, indazolyl, benzimidazolyl, imidazopyridinyl, benzotriazolyl, benzoxazolyl, benzoxadiazolyl, benzothiazolyl, pyrazolopyridinyl, triazolopyridinyl, thienopyr
  • Exemplary substituted hetroaryl include without limitation pyridyl, 2- oxo-pyridin-l-yl, pyrimidinyl, pyridazinyl, pyrazinyl, 1,2,4-triazinyl, 1,3, 5 -triazinyl, furanyl, pyrrolyl, thiophenyl, pyrazolyl, imidazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, 1,2,3-triazolyl, 1,2,4-triazolyl, 1,2, 3 -oxadiazolyl, 1,3, 4-oxadiazolyl, 1,2,3- thiadiazolyl, 1,3,4-thiadiazolyl, tetrazolyl, indolyl, isoindolyl, benzofuranyl,
  • Compounds described herein may contain one or more asymmetric centers and may thus give rise to enantiomers, diastereomers, and other stereoisomeric forms.
  • Each chiral center may be defined, in terms of absolute stereochemistry, as (R)- or (S)-.
  • the present invention is meant to include all such possible isomers, as well as mixtures thereof, including racemic and optically pure forms.
  • Optically active (R)- and (S)-, (-)- and (+)-, or (D)- and (L)- isomers may be prepared using chiral synthons or chiral reagents, or resolved using conventional techniques.
  • the compounds described herein contain olefmic double bonds or other centers of geometric asymmetry, and unless specified otherwise, it is intended that the compounds include both E and Z geometric isomers. Likewise, all tautomeric forms are also intended to be included.
  • a compound As would be understood by a person of ordinary skill in the art, the recitation of "a compound” is intended to include salts, solvates, oxides, and inclusion complexes of that compound as well as any stereoisomeric form, or a mixture of any such forms of that compound in any ratio.
  • a compound as described herein, including in the contexts of pharmaceutical compositions, methods of treatment, and compounds per se, is provided as the salt form.
  • carbohydrate is a generic term used interchangeably with sugar, saccharide, or glycan.
  • the term includes monosaccharides, oligosaccharides, and polysaccharides as well as derivatives of these compounds.
  • glycan is a generic term for any sugars or assembly of sugars, in free form or attached to another molecule (e.g., attached to a protein).
  • saccharide or glycan.
  • saccharide or glycan.
  • glycan is a generic term for any sugars or assembly of sugars, in free form or attached to another molecule (e.g., attached to a protein).
  • sugar is a generic term often used to refer to any carbohydrate, but most frequently to low molecular weight carbohydrates.
  • one or more of Ri, R 2 , R 3 , and R4 may comprises a substituted or unsubstituted heteroaromatic ring selected from the group of pyridine, pyrazine, pyrimidine, pyridazine, imidazole, pyrrole, oxazole, isoxazole, triazine, thiazole, isothiazole, indazole, purine, quinoline, isoquinoline, quinoxaline, quinazoline, cinnoline, acridine, benzoxazole, benzisoxazole, benzothiazole, thiophene, furan, benzofuran, benzothiophene, and oxadiazole.
  • One exemplary compound of the present invention is the compound of
  • Another exemplary compound of the present invention is the compound of
  • Another exemplary compound of the present invention is the compound of
  • Another exemplary compound of the present invention is the compound of
  • Another exemplary compound of the present invention is the compound of Formula IE
  • the compound of the present invention comprises a targeting moiety.
  • a "targeting moiety” functions to target a compound of the present invention (i.e., the synthetic carbohydrate receptor of Formula I) to a particular cell or tissue type.
  • the targeting moiety is a signaling peptide sequence, e.g. , a tissue-specific signaling peptide sequence or a cell specific signaling peptide sequence.
  • Suitable signaling peptide sequences can include at least a portion of a ligand binding protein sequence such as high-affinity antibody fragments (e.g., Fab, Fab' and F(ab') 2 ), single-chain Fv antibody fragments), nanobodies or nanobody fragments, fluorobodies, or aptamers.
  • ligand binding proteins include biotin-binding proteins, lipid-binding proteins, periplasmic binding proteins, lectins, serum albumins, enzymes, phosphate and sulfate binding proteins, immunophilins, metallothionein, or various other receptor proteins.
  • Cell specific targeting of the compounds of the present invention can be achieved by targeting cell specific surface markers.
  • the compound of the present invention may be conjugated to an anti-C3B(I) antibody as disclosed by U.S. Patent No. 6,572,856 to Taylor et al, which is hereby incorporated by reference in its entirety.
  • the compound of the present invention may be conjugated to an alphafeto protein receptor, as disclosed by U.S. Patent No. 6,514,685 to Mora which is hereby incorporated by reference in its entirety, or to a monoclonal GAH antibody, as disclosed by U.S. Patent No. 5,837,845 to Hosokawa, which are hereby incorporated by reference in their entirety.
  • the compound of the present invention may be conjugated to an antibody recognizing elastin microfibril interfacer (EMILIN2) (Van Hoof et al., "Identification of Cell Surface for Antibody-Based Selection of Human Embryonic Stem Cell-Derived
  • EMILIN2 antibody recognizing elastin microfibril interfacer
  • the compound of the present invention may include a ligand domain specific to the hepatocyte-specific asialoglycoprotein receptor.
  • the compound of the present invention comprises a tag moiety.
  • a "tag” as used herein includes any labeling moiety that facilitates the detection, quantitation, separation, and/or purification of the compounds of the present invention.
  • Compounds of the present invention comprising a tag are particularly suitable for diagnostic and prognostic applications as described herein. Suitable tags for separation or purification, detection, and quantitation are described in more detail below.
  • Tags suitable for separation and/or purification include, without limitation, a poly-histidine (His 6 ) tag, a glutathione-S-transferase (GST-) tag, or a maltose-binding protein (MBP-) tag. These tags assist in compound purification or separation but can later be removed, i.e., cleaved from the compound following recovery. Protease-specific cleavage sites can be used to facilitate the removal of the purification tag. The desired compound of the present invention can be purified further by removal of the cleaved purification tag.
  • His 6 poly-histidine
  • GST- glutathione-S-transferase
  • MBP- maltose-binding protein
  • Tags suitable for detection and quantitation include radioactive, fluorescent, luminescent, bioluminescent, or enzymatic tags.
  • Suitable radioactive tags or labels include, without limitation, bismuth ( 213 Bi), carbon ( 14 C), chromium ( 51 Cr), gadolinium ( 153 Gd, 159 Gd), gallium ( 68 Ga, 67 Ga), germanium ( 68 Ge), holmium ( 166 Ho), indium ( 115 In, 113 In, 112 In, U1 ln), iodine ( 131 I, 125 I, 123 I, 121 I), lanthanium ( 140 La), lutetium
  • Lu manganese ( Mn), molybdenum ( Mo), palladium ( Pd), phosphorous ( P), praseodymium ( 142 Pr), promethium ( 149 Pm), rhenium ( 186 Re, 188 Re), rhodium ( 105 Rh), ruthemium ( 97 Ru), samarium ( 153 Sm), scandium ( 47 Sc), selenium ( 75 Se), strontium ( 85 Sr), sulfur ( 35 S), technetium ( 99 Tc), thallium ( 201 Ti), tin ( 113 Sn, 117 Sn), tritium ( 3 H), xenon ( 133 Xe), ytterbium ( 169 Yb, 175 Yb), yttrium ( 90 Y), zinc ( 65 Zn).
  • Radioactivity is detected and quantified using a scintillation counter or autoradiography.
  • Suitable fluorescent tags include, without limitation, umbelliferone, fluorescein and derivatives thereof, fluorescein isothiocyanate, rhodamine and derivatives thereof, dichlorotriazinylamine fluorescein, dansyl chloride or phycoerythrin.
  • luminescent material include, but are not limited to, luminol.
  • bio luminescent materials include, but not limited to, luciferase, luciferin, and aequorin.
  • the fluorescent, luminescent, and bioluminescent labels can be conjugated to the compound of the present invention using techniques disclosed in CURRENT PROTOCOLS IN IMMUNOLOGY (Coligen et al. eds., 1991), which is hereby incorporated by reference in its entirety. Fluorescence, luminescence, and bioluminescence can be detected and quantified using a fiuorometer or luminometer.
  • Enzymatic tags generally catalyze a chemical alteration of a chromogenic substrate which can be measured using various techniques.
  • the enzyme tag may catalyze a color change in a substrate, which can be measured
  • the enzyme may alter the fluorescence or chemiluminescence of the substrate.
  • suitable enzymatic tags include, without limitation, luciferases (e.g. , firefly luciferase and bacterial luciferase; see e.g. , U.S. Patent No.
  • luciferin 2,3-dihydrophthalazinediones, malate dehydrogenase, urease, peroxidases (e.g., horseradish peroxidase), alkaline phosphatase, ⁇ -galactosidase, glucoamylase, lysozyme, saccharide oxidases (e.g., glucose oxidase, galactose oxidase, and glucose-6-phosphate dehydrogenase), heterocyclic oxidases (e.g., uricase and xanthine oxidase), lactoperoxidase, microperoxidase, and the like.
  • peroxidases e.g., horseradish peroxidase
  • alkaline phosphatase e.g., ⁇ -galactosidase
  • glucoamylase glucoamylase
  • lysozyme saccharide oxidases (e
  • the compounds of the present invention comprise a surface immobilization moiety.
  • a "surface immobilization moiety” is a moiety useful for attaching or coupling the compounds of the present invention to a solid surface, such as an array surface. Suitable surface
  • immobilization moieties include, but are not limited to, alkenes, alkynes, azides, thiols, and carboxylic acids.
  • the compounds of the present invention comprise a pharmaceutically active moiety.
  • the pharmaceutically active moiety can be any therapeutic agent, such as, for example, a biologic therapeutic (e.g., antibody, protein or peptide therapy, nucleic acid therapy, etc.), chemotherapeutic, radioactive agent, or small molecule.
  • Glycans and glycoproteins are involved in a wide variety of biological and pathological processes, including inflammation, infectious disease, cardiovascular disease, and cancer. Accordingly, the cell surface expression of glycans or glycoproteins during the aforementioned pathological processes are targeting moieties that can be used to target pharmaceutically active moieties or compounds directly to the diseased tissue or cells. For example, many cell surface glycans are considered biomarkers for various cancers. Accordingly, in one embodiment, the compounds of the present invention are suitable for delivering anti-cancer therapeutics to cancer cells expressing these glycans or glycoproteins.
  • the compounds of the present invention are coupled to a pharmaceutically active inhibitor of cancer disease progression, such as a chemotherapeutic, an anti-angiogenic therapeutic, a stromal inhibitor, a bone-marrow derived cell inhibitor, a myeloid derived suppressor cell inhibitor, or an extracellular matrix protein inhibitor.
  • a pharmaceutically active inhibitor of cancer disease progression such as a chemotherapeutic, an anti-angiogenic therapeutic, a stromal inhibitor, a bone-marrow derived cell inhibitor, a myeloid derived suppressor cell inhibitor, or an extracellular matrix protein inhibitor.
  • Formula I of the present invention include, without limitation, alkylating agents (e.g., chlorambucil, cyclophophamide, CCNU, melphalan, procarbazine, thiotepa, BCNU, and busulfan), antimetabolites (e.g., methotraxate, 6-mercaptopurine, and 5-fluorouracil), anthracyclines (e.g. , daunorubicin, doxorubicin, idarubicin, epirubicin, and
  • antitumor antibiotics e.g., bleomycin, monoclonal antibodies (e.g., Alemtuzumab, Bevacizumab, Cetuximab, Gemtuzumab, Ibritumomab, Panitumumab, Rituximab, Tositumomab, and Trastuxmab), platiniums (e.g., cisplatin and oxaliplatin) or plant alkaloids (e.g., topoisomerase inhibitors, vinca alkaloids, taxanes, and
  • Anti-angiogenic or anti-vasculogenic therapeutics suitable for coupling to a compound of Formula I of the present invention include, without limitation a vascular endothelial growth factor (VEGF) inhibitor, basic fibroblast growth factor (bFGF) inhibitor, vascular endothelial growth factor receptor (VEGFR) antagonist, platelet- derived growth factor receptor (PDGFR) antagonist, fibroblast growth factor receptor (FGFR) antagonist, Angiopoietin receptor (Tie-2) antagonist, epidermal growth factor receptor (EGFR, ErbB) antagonist, or any combination thereof.
  • VEGF vascular endothelial growth factor
  • bFGF basic fibroblast growth factor
  • VEGFR vascular endothelial growth factor receptor
  • PDGFR platelet- derived growth factor receptor
  • FGFR fibroblast growth factor receptor
  • Tie-2 Angiopoietin receptor
  • EGFR epidermal growth factor receptor
  • ErbB ErbB
  • angiogenic inhibitors include, without limitation, Endostatin (an endothelial cell proliferation and angiogenesis inhibitors), Gefitinib (an ErbB inhibitor), Lapatinib (a dual ErbBl/ErbB2 inhibitor), Erlotinib (HER1/EGFR inhibitor), Canertinib (a pan-ErbB inhibitor), Vatalanib (VEGF receptor inhibitor), Imatinib (multi-targeted inhibitor of Bcr-Abl, c-kit, and PDGF-R inhibitor), Sunitinib (multi-targeted inhibitor of VEGFR, PDGFR, Kit, Flt3, Tet and CSF1R), Sorafenib (multi-targeted inhibit of VEGFR and PDGFR), Pazopanib (a multi-targeted inhibitor of VEGFR-1, VEGFR-2, VEGFR-3, PDGF-a, PDGFR- ⁇ , and c-kit).
  • Endostatin an endothelial cell proliferation and angiogenesis
  • the anti- vasculogenic therapeutic is a monoclonal antibody.
  • Suitable antibody therapeutics include, without limitation, Bevacizumab (VEGF antibody), IMC- 1 C 11 (VEGFR-2 antibody), mF4-31Cl (VEGFR-3 antibody), and Vitaxin (integrin ⁇ ⁇ ⁇ 3 antibody).
  • MK-2461 a small molecule inhibit of c-MET kinase
  • Anastrazole an aromatase inhibitor
  • AMD070 a CXCR4 inhibitor
  • IPI-926 a hedgehog pathway inhibitor
  • AVE 1642 a humanized monoclonal antibody targeting insulin-like growth factor-1 receptor
  • BGJ398 a small molecule inhibitor of fibroblast growth factor receptors
  • Celecoxib a COX-2 inhibitor
  • MK0822 a cathepsin K inhibitor
  • Bortezomib a 26S proteasome complex inhibitor
  • Zoledronate a small- molecule pyrophosphate analog that inhibits the differentiation of myeloid cells and affects tumor-associated macrophages
  • Denosumab a human monoclonal antibody the binds RANKL
  • Extracellular matrix protein inhibitors suitable for coupling to compounds of Formula I of the present invention include, without limitation, DX2400, an MMP-14 inhibitor, and PEGPH20, a covalently modified form of hyaluronidase which catalyzes the degradation of the extracellular matrix component hyalurona.
  • the compounds of the present invention are used to deliver an anti-inflammatory therapeutic to areas of inflammation.
  • Suitable anti-inflammatory therapeutics that can be coupled to the compounds of Formula I include, without limitation, non-steroidal anti-inflammatory drugs (NSAID), analgesics, glucocorticoids, disease-modifying anti-rheumatic drugs, dihydrofolate reductase inhibitors (e.g., methotrexate), and biologic response modifiers.
  • Suitable NSAIDs include, without limitation, Cox -2 inhibitors (e.g., nimesulide, 4-hydroxynimesulide, flosulide, meloxicam, celecoxib, and Rofecoxib (Vioxx)), diclofenac, diflunisal, etodolac, fenoprofen, flurbiprofen, ibuprofen, indomethacin, ketoprofen, ketorolac, mefenamic acid, meloxicam, nabumetone, naproxen, oxaprozin, piroxicam, salsalate, sulindac and tolmetin.
  • Cox -2 inhibitors e.g., nimesulide, 4-hydroxynimesulide, flosulide, meloxicam, celecoxib, and Rofecoxib (Vioxx)
  • diclofenac diflunisal, etodolac, fen
  • Suitable analgesics for use in the present invention include, without limitation, acetaminophen, oxycodone, tramadol, and propoxyphene hydrochloride.
  • Suitable glucocorticoids for use in the present invention include, without limitation, cortisone, dexamethosone, hydrocortisone, methylpredisolone, prednisolone, and prednisone.
  • Suitable biological response modifiers include B-cell inhibitors, such as
  • Rituximab or a T cell activation inhibitor such as, Leflunomide, Etanercept (Enbrel), or Infliximab (Remicade).
  • Suitable TNFa inhibitors include, without limitation, TNF-a antibodies
  • a matrix metalloproteinase inhibitor e.g., infliximab, etanercept, CytoFAb, AGT-1 , afelimomab, PassTNF, and CDP-870
  • a matrix metalloproteinase inhibitor e.g., infliximab, etanercept, CytoFAb, AGT-1 , afelimomab, PassTNF, and CDP-870
  • a matrix metalloproteinase inhibitor e.g., a corticosteroid (e.g., mometasone, fluticasone, ciclesonide, budesonide, beclomethasone, beconase, flunisolide, deflazacort,
  • compositions that comprises a compound of Formula I and a pharmaceutically acceptable carrier.
  • Acceptable pharmaceutical carriers include solutions, suspensions, emulsions, excipients, powders, or stabilizers.
  • the carrier should be suitable for the desired mode of delivery.
  • the pharmaceutical composition of the present invention may further comprise one or more pharmaceutically acceptable diluents, adjuvants, excipients, or vehicles, such as preserving agents, fillers, disintegrating agents, wetting agents, emulsifying agents, suspending agents, sweetening agents, flavoring agents, perfuming agents, antibacterial agents, antifungal agents, lubricating agents and dispensing agents, depending on the nature of the mode of administration and dosage forms.
  • pharmaceutically acceptable diluents, adjuvants, excipients, or vehicles such as preserving agents, fillers, disintegrating agents, wetting agents, emulsifying agents, suspending agents, sweetening agents, flavoring agents, perfuming agents, antibacterial agents, antifungal agents, lubricating agents and dispensing agents, depending on the nature of the mode of administration and dosage forms.
  • suspending agents examples include ethoxylated isostearyl alcohols, polyoxyethylene sorbitol and sorbitan esters, micro crystalline cellulose, aluminum metahydroxide, bentonite, agar— agar and tragacanth, or mixtures of these substances.
  • Prevention of the action of microorganisms can be ensured by various antibacterial and antifungal agents, for example, parabens, chlorobutanol, phenol, sorbic acid, and the like. It may also be desirable to include isotonic agents, for example sugars, sodium chloride, and the like. Prolonged absorption of the injectable pharmaceutical form can be brought about by the use of agents delaying absorption, for example, aluminum monosterate and gelatin.
  • suitable carriers, diluents, solvents, or vehicles include water, ethanol, polyols, suitable mixtures thereof, vegetable oils (such as olive oil), and injectable organic esters such as ethyl oleate.
  • excipients include lactose, milk sugar, sodium citrate, calcium carbonate, and dicalcium phosphate.
  • disintegrating agents include starch, alginic acids, and certain complex silicates.
  • lubricants include magnesium stearate, sodium lauryl sulphate, talc, as well as high molecular weight polyethylene glycols.
  • Another aspect of the present invention relates to a pharmaceutical delivery vehicle that comprises a compound of Formula I coupled to a pharmaceutically active moiety, and a pharmaceutically acceptable carrier.
  • Another aspect of the present invention is directed to a method of administering a pharmaceutical agent to a subject. This method involves administering to the subject, a delivery vehicle comprising a compound of Formula I coupled to the pharmaceutically active moiety of the pharmaceutical agent.
  • administration of the delivery vehicle comprising a compound of Formula I coupled to a pharmaceutical agent is carried out under conditions effective to deliver the pharmaceutical agent to one or more specific cells, where the one or more specific cells expresses a glycan or glycoprotein to which the compound of Formula I will bind to with high specificity.
  • a pharmaceutical agent i.e., a pharmaceutically active moiety
  • the compound of Formula I which is a carbohydrate/glycan receptor compound, can target delivery of an anti-cancer agent in a cancer cell specific manner.
  • the glycan expressed on the cancer cell surface is a pyranose or pyranoside, e.g., mannose.
  • Specific carbohydrates that can be targeted for anti-cancer therapy delivery through binding of the compound of Formula I of the present invention include, without limitation, galectin-1 and galectin-3 (expressed on colon cancer cells), galectin-9 (expressed on metastatic breast cancer cells), sialyl-lewisX (SLX) (expressed on pancreatic and lung cancer cells), SPan-1, TAG-72, and DU-PAN2 (expressed on pancreatic cancer cells), ST-439 (expressed on various cancer cells), carbohydrate antigen 125 (CA125) (expressed on ovarian cancer cells), CA19-9
  • Another aspect of the present invention is directed to a method of detecting a carbohydrate in a sample.
  • This method involves providing a compound of Formula I, and contacting the sample with the compound of Formula I under conditions effective for binding to occur between the compound and the carbohydrate, if present in the sample.
  • the method further involves detecting any binding between the compound and the carbohydrate, if present in the sample.
  • carbohydrate or glycan being detected is a pyranose or pyranoside, e.g., mannose.
  • the sample can be a serum, blood, plasma, cell, or other biological sample from a subject.
  • Formula I of the present invention includes a tag (e.g., a detectable label as described supra). Accordingly, detecting binding between the compound of the present invention and the carbohydrate present in the test sample is facilitated by detection of the detectable label. Detection of the carbohydrate in the sample based on binding of a tagged synthetic receptor compound of the invention can further be quantified using methods readily known to those of skill in the art. For example, when the tag is a fluorescent tag, a fluorometer can be used to quantitate the intensity of the fluorescent signal which corresponds to the concentration of the carbohydrate in the sample. Likewise, if the tag is a radiolabel, a densitometer can be used to quantitate the amount of label on an autoradio graph which corresponds to the concentration of carbohydrate in the sample.
  • a tag e.g., a detectable label as described supra.
  • Another aspect of the present invention relates to a method of diagnosing, in a subject, a condition characterized by a carbohydrate biomarker.
  • This method involves obtaining a sample from the subject and contacting the sample with a compound of Formula I of the present invention. The method further involves detecting any binding between the compound of the invention and the carbohydrate in the sample, and diagnosing the condition in the subject based on the detection.
  • Conditions that can be diagnosed using this method of the present invention include, without limitation, inflammatory conditions, infectious diseases, cardiovascular disease, and cancer.
  • the condition to be diagnosed is cancer.
  • Cancers that can be diagnosed using this method include, without limitation, colon cancer, pancreatic cancer, lung cancer, breast cancer, gastric cancer, biliary cancer, ovarian cancer, prostate cancer, and metastatic cancer.
  • the carbohydrate detected is a pyranoside, more preferably, the pyranoside is a mannose.
  • carbohydrate biomarkers of cancer that can be detected include, without limitation, galectin-1, galectin- 3, galectin-9, SLX, SPan-1, DU-PAN2, ST-439, CA125, CA15-3, CA19-9, CA27-29, TAG72 and TAG12.
  • the amount of carbohydrate that is present in the sample can be quantified.
  • the relative concentration of carbohydrate that is detected can be used as a diagnostic or prognostic indicator for the cancerous condition.
  • Another aspect of the present invention is directed to a method of treating or preventing in a subject a condition mediated by a carbohydrate. This method involves selecting a subject having a condition mediated by a carbohydrate and administering to the selected subject a compound of Formula I under conditions effective for the compound to bind to the carbohydrate.
  • compounds of the present invention are particularly suitable for modulating these processes by acting as a therapeutic agent to block glycan or glycoprotein mediated cellular interactions and signaling that are involved in the progression of inflammation and disease.
  • many cell surface glycans are involved in mediating metastatic cancer cell spread.
  • the use of the synthetic receptor compound of the present invention to inhibit or prevent glycan mediated cancer cell interactions will inhibit or prevent metastatic cancer progression.
  • the conditions is cancer, e.g., colon cancer, pancreatic cancer, lung cancer, breast cancer, gastric cancer, biliary cancer, ovarian cancer, and metastatic cancer.
  • cancer e.g., colon cancer, pancreatic cancer, lung cancer, breast cancer, gastric cancer, biliary cancer, ovarian cancer, and metastatic cancer.
  • the glycan bound by the compound of Formula I of the present invention is a pyranose or a pyranoside, e.g., mannose.
  • Another aspect of the present invention is directed to methods of making compounds of Formula I.
  • the compounds of the present invention can be synthesized via solution phase synthesis, or alternatively solid phase synthesis using the synthetic processes described below.
  • the compound of Formula I can be prepared by providing a compound of Formula IV:
  • Suitable reducing agents include metal hydrides, in particular, metal borohydrides, such as sodium borohydride.
  • R ls R 2 , R3, and R4 of the compound of Formula IV are all the same.
  • Suitable azide compounds for this reaction can be selected from the group consisting of sodium azide, potassium azide, cesium azide, and trimethylammonium azide.
  • compounds of Formula I can be prepared by providing a compound of Formula IX:
  • Suitable reactive derivatives of carboxylic acid that are suitable for reacting with a compound of Formula IX include, without limitation, activated esters, anhydrides, or acid halides (especially acid chlorides).
  • the reducing agent is triphenylphosphine.
  • suitable reactive derivatives of carboxylic acid include without limitation activated esters, anhydrides, or acid halides (especially acid chlorides).
  • the protecting group is any group that is suitable for the protection of an amine. Such protecting groups function primarily to protect or mask the reactivity of functional groups. Protecting groups that are suitable for the protection of an amine group are well known in the art, including without limitation, carbamates, amides, N-alkyl and N-aryl amines, imine derivatives, enamine derivatives, and N-hetero atom derivatives as described by THEODORA W. GREENE & PETER G.M. WUTS, PROTECTIVE GROUPS IN ORGANIC SYNTHESIS 494-615 (1999), which is hereby incorporated by reference in its entirety. Exemplary protecting groups for use in the synthetic methods of the present invention include, without limitation, fert-butyloxycarbonyl (Boc) and 9- Fluorenylmethyloxycarbonyl (Fmoc)
  • the compound of Formula XI above can be prepared by providing a compound of Formula XII :
  • Suitable reducing agents include metal hydrides, preferably, metal borohydrides.
  • the reducing agent is sodium borohydride.
  • Suitable protecting group-introducing compounds include, without limitation, ⁇ -tert- buthyl dicarbonate for the introduction of BOC or fluorenyloxycarbonyl chloride for introducing Fmoc.
  • a compound of Formula VII with 1 equivalent of a reducing agent under conditions effective to form the compound according to Formula XVII using methods that will be apparent to one of ordinary skill in the art.
  • a suitable reducing agent for carrying out this reaction is triphenylphosphine.
  • the compound of Formula XIII can be prepared by providing a compound of Formula XVIII:
  • Suitable reducing agents include metal hydrides, preferably, metal borohydrides such as sodium borohydride.
  • PG is a protecting group of an amine
  • Suitable reducing agents include metal hydrides, preferably, metal borohydrides such as sodium borohydride
  • the compound of Formula XXII can be prepared by providing a compound of Formula XVI :
  • the compound of Formula I is prepared by providing a compound of Formula XXV
  • the compound of Formula XXV above can be prepared by providing a compound of Formula XXIV
  • PG is a protecting group of an amine
  • XXIII is produced using click chemistry.
  • Click chemistry techniques are well known in the art as described by Kolb et al, Angew. Chem, Int. Ed. 40:2004-2021 (2001); Kolb et al, Drug Discovery Today 8: 1128-1137 (2003); Rostovtsev et al, Angew. Chem, Int. Ed. 41 :2596-2599 (2002); Tomoe et al, J. Organic Chem. 67:3057-3064 (2002); Wang et al, J. Amer. Chem. Soc. 125:3192-3193 (2003); Lee et al, J. Amer. Chem. Soc.
  • 1,3-dipolar cycloaddition forming 1,5-disubstituted 1,2,3-triazoles
  • a 1,5-disubstituted 1,2,3-triazole can be formed using azide and alkynyl reagents (Krasinski et al, Organic Letters 6(8): 1237-1240 (2004), which is hereby incorporated by reference in its entirety).
  • Hetero-Diels-Alder reactions or 1,3-dipolar cycloaddition reactions can also be used (Jorgensen KA, Angew. Chem. Int. Ed. 39:3558-3588 (2000); Tietze et al, Top. Curr. Chem. 189: 1-120 (1997), which are hereby incorporated by reference in their entirety).
  • MD-6 solvent purification system All reagents and starting materials were purchased from commercial sources and used without further purification unless otherwise noted.
  • Aqueous solutions were prepared from nanopure water purified from a Milli-Q plus system (Millipore Co.), with a resistivity over 18 ⁇ cm-1. Chromatography purifications were performed using Sorbent Technologies Silica Gel (60 A, 65 x 250 mesh). Thin-layer chromatography (TLC) was carried out using aluminum sheets precoated with silica gel 60 (EMD 40-60 mm, 230-400 mesh with 254 nm dye). TLC plates were visualized by UV-light and stained using a /?-anisaldehyde or
  • NMR spectra were obtained on either a Bruker AVANCE 400 and 500 MHz spectrometers. All chemical shifts are reported in ⁇ units using the solvent residual signal as an internal standard and the coupling constant values (J) are reported in Hertz (Hz). The following abbreviations are used for signal multiplicities: s, singlet; d, doublet; t, triplet; q, quartet; m, multiplet; and br, broad.
  • Electrospray Ionization Mass Spectroscopy (ESI-MS) spectra were acquired on an Agilent LC/MSD Trap XCT system. High-resolution mass spectral analyses were carried out on an Agilent 6200 LC/MSD TOF System.
  • equilibrium constants can be quantified by first defining a model that includes the correct set of equilibria ⁇ see equations 12 and 13 above), calculating the hypothetical concentrations of equilibrium species and the corresponding chemical shifts, and finally fitting the resulting data to the experimental results (Thordarson, Chem. Soc. Rev. 40: 1305-1323 (2011), which is hereby incorporated by reference in its entirety).
  • Theoretical chemical shifts for 1 (H) and pyranoside (G) were calculated with Eq. 14 and Eq. 15.
  • Receptor 1 was prepared in a five step synthetic sequence from 1,3- bis(bromomethyl)-5-iodobenzene 2 in a 64% overall yield (Scheme 5). After substitution to provide diazide 3, a one-pot Suzuki coupling of two equivalents of 3 yielded tetra- azide 4. An aza-Wittig reaction between 4 and lH-pyrrole-2-carbaldehyde furnished tetra-imine 5, which finally produced receptor 1 upon reductive amination with NaBH 4 .
  • Reagents and conditions a) NaN 3 , DMF, 84%; b) bis(pinacolato)diborane, (dppfjPdC ⁇ , K 2 CO 3 , DMF; c) 3, (dppf)PdCl 2 , Na 2 C0 3 , 95%, two steps; d) lH-pyrrole-2-carbaldehyde, PPh 3 , C 6 H 6 ; e) NaBH 4 , MeOH, 80%, two steps.
  • thermodynamic origin of this positive allosteric cooperativity in the formation of 1 ⁇ -Man 2 was investigated by determining AH° and AS° associated with each binding step.
  • the 1H NMR titrations between 1 and ⁇ -Man were repeated at 20, 15, and 10°C, and K ⁇ and K 2 values for each temperature were obtained and subjected to Van't Hoff analyses (Figure 32D) to provide the thermodynamic parameters associated with each binding event.
  • the AH°s of association for the first and second binding step are identical, -20.5 ⁇ 0.8 and -20.2 ⁇ 1.2 kcal mol "1 respectively, suggesting that both equivalents of ⁇ -Man bind 1 with an identical number of noncovalent interactions and that the mannosides do not interact with each other when bound to 1.
  • a comparison of the corresponding AS° values indicates a decrease in the unfavorable AS° occurs in the second binding step compared to the first, -52 ⁇ 4 and -57 ⁇ 3 e.u. respectively ( Figure 32D).
  • the geometries of ⁇ -Man and 1 ⁇ -Man 2 were determined by ID and 2D
  • Proton H 4 was constrained to be within close proximity of the biphenyl ring system in accordance with the experimentally observed C-H ⁇ interaction, and the octyl chain was positioned near one arm of 1 with a restricted distance of 2 - 4 A between H 9 and Ff as dictated by the observed NOE between these two protons.
  • the conformational searches yielded only one minimum energy structure for l:P-Man, which was further optimized using density functional theory (B3LYP/6-31G+(d)).
  • K ⁇ was determined by subjecting all resolvable resonances from each titration at 25°C to a global nonlinear fitting analysis with a model combining K ⁇ and (13.0 ⁇ 0.5 M "1 ), which was measured independently by 1H NMR dilution experiments (Table 1).
  • Table 1 K ⁇ was determined by subjecting all resolvable resonances from each titration at 25°C to a global nonlinear fitting analysis with a model combining K ⁇ and (13.0 ⁇ 0.5 M "1 ), which was measured independently by 1H NMR dilution experiments.
  • excellent fits for the peak shifts were obtained (Table 1).
  • the cooperativity that facilitates the formation of 1 2 ⁇ -Man can also be understood through the interaction parameter, a, which is the ratio between the values of K 3 in the presence and in the absence of cooperativity, the latter being the reference K a (Connors et al, J. Org. Chem. 53:2023-2026 (1988); Hunter & Anderson, Angew. Chem. Int. Ed. 48:7488-7499 (2009); Ercolani & Schiaffmo, Angew. Chem. Int. Ed. 50:1762- 1768 (2011), which are hereby incorporated by reference in their entirety).
  • K ⁇ is not an appropriate reference K a . Rather, since K3 describes the binding of the ⁇ -face (Rose et al, Proc. Nat'l. Acad. Sci. U.S.A. 77:2439-3441 (1980), which is hereby
  • the two ⁇ -monosaccharides with the highest 1 : 1 binding enthalpies, ⁇ -Man and ⁇ -Glc are the only pyranosides that participate in K ⁇ .
  • ⁇ -Man a significant portion of ⁇ -Man is exposed to solvent because one of the arms of 1 is orientated downwards underneath the n-octyl chain of ⁇ -Man which provides a window for a second equivalent of 1 to bind onto the exposed ⁇ -face of ⁇ -Man.
  • the structure of ⁇ -Man was determined by performing a 1 H- 1 H ROESY experiment with a concentrated 2: 1 receptonpyranoside CDCI 3 mixture (12.0 mM and 6.0 mM respectively) at -10°C where ⁇ -Man would be the major species in solution.
  • the axial C2 hydroxyl group of mannosides is positioned to form two N-H " O bonds and one O- H " N bond with two secondary amines and one pyrrole of 1.
  • Additional non-covalent interactions - such as a C-H " ⁇ interaction with H 4 and the aromatic ring and three N- H '" 0 bonds between receptor 1 and the oxygens at CI and C3 of ⁇ -Man - result in a tightly bound l ⁇ -Man complex, thus explaining why 1 exhibits cooperativity with mannosides and not its epimers such as galactosides or glucosides.
  • the 1 : 1 complex, 1 ⁇ -Man can either bind a second molecule of pyranoside, to form 1 ⁇ -Man 2 (K 2 ), or 1, to form ⁇ -Man 3 ⁇ 4).
  • K 2 1 ⁇ -Man 2
  • K3 1 ⁇ -Man 3 ⁇ 4
  • K dimer , K ⁇ , K 2 and K ⁇ concentration dependence of cooperative binding
  • the BCSQ values of each of the pyranosides - defined as the total concentration of receptor 1 needed to bind 50% of the available pyranosides in solution - were computed over a pyranoside concentration range of 0 to 10.0 mM to probe both the magnitude and concentration dependence of the selectivity of 1 for the eight pyranosides ( Figure 9A). Note that all equilibria present in a receptor/pyranoside mixture contribute toward the calculated BC 50 value, and a higher I/BC 50 value is indicative of a higher overall binding strength.
  • the I/BC 50 plots reveal the effects of positive cooperativity on the binding affinity of 1 toward mannosides. Molecules with K 2 possess parabolic curves in the
  • K 2 enhanced selectivity when [ ⁇ -Man] is greater than 1.0 mM, thus demonstrating the direct contribution of cooperative, complex equilibria on selectivity in saccharide receptors
  • each I/BC 50 plot is a measure of affinity between 1 and pyranosides
  • comparing the plots of two or more pyranosides provides a means of assessing selectivity.
  • concentration of a-Man where the maximum ⁇ I BCSQ value is obtained (0.8 mM) is also where the maximum selectivity occurs for a-Man relative to the other pyranosides.
  • selectivities gradually approach 2: 1 mannoside:pyranoside, which is a consequence of the differences in binding stoichiometry - receptor 1 can
  • BC 5 ° is calculated by the integration of the inverse BC 5 function versus the molar fraction of bound receptor, (Nativi et al, Chem. Eur. J. 17:4814-4820 (2011), which is hereby incorporated by reference in its entirety):
  • the two pyranosides that exhibit positive cooperativity have lower BC 5 ° values of 460 and 730 ⁇ , respectively, than were observed for the other pyranosides, where BC 50 0 values range from 1860 to 7740 ⁇ , except for 700 ⁇ ).
  • the ratio of BC50 0 values has been used to compare the selectivities of carbohydrate receptors for mannosides (Nativi et al., Chem. Eur. J.
  • Mannosides are important targets, because they are both diagnostic and prognostic for several cancers (de Leoz et al, Mol. Cell. Proteomics 10:M110.002717 (2011); Ann et al, Curr. Opin. Chem. Biol. 13:601-607 (2009), which are hereby incorporated by reference in their entirety), and receptors that target mannosides could be used for detection and delivery, so developing synthetic carbohydrate receptors remains a major area of research.
  • An analysis of the binding constants for the first and second association events for l:P-Man 2 (K ⁇ and A3 ⁇ 4 and l 2 :P-Man (K ⁇ and 3 ⁇ 4 indicates that the binding is cooperative - that the first association event facilitates the second.
  • the selectivity of 1 for mannosides arises as a direct result of the preorganization of the 1 : 1 complex.
  • the flexible receptor 1 achieves selectivity between pyranosides that may differ only by the orientation of a single hydroxyl group, despite the entropic penalty that must be paid to organize the complexes.
  • the lack of preorganization in the strong l:P"Glc complex precludes the formation of a stable l 2 :P-Glc structure, so entropy actually determines selectivity.
  • receptor 1 does not achieve the same overall affinity as the best rigidly preorganized mannose-specific receptors, the selectivity is comparable despite the differences in binding mechanisms, thus confirming the hypothesis that increasing the receptor dynamics reveals new binding geometries because of the ability of flexible hosts to dynamically explore conformational space.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Health & Medical Sciences (AREA)
  • Organic Chemistry (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • Immunology (AREA)
  • Engineering & Computer Science (AREA)
  • Molecular Biology (AREA)
  • Pharmacology & Pharmacy (AREA)
  • Animal Behavior & Ethology (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Physics & Mathematics (AREA)
  • Biomedical Technology (AREA)
  • Hematology (AREA)
  • Urology & Nephrology (AREA)
  • Pathology (AREA)
  • General Physics & Mathematics (AREA)
  • Biochemistry (AREA)
  • Analytical Chemistry (AREA)
  • Epidemiology (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • General Chemical & Material Sciences (AREA)
  • Cell Biology (AREA)
  • Food Science & Technology (AREA)
  • Microbiology (AREA)
  • Tropical Medicine & Parasitology (AREA)
  • Biotechnology (AREA)
  • High Energy & Nuclear Physics (AREA)
  • Pain & Pain Management (AREA)
  • Rheumatology (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Medicines Containing Antibodies Or Antigens For Use As Internal Diagnostic Agents (AREA)

Description

CARBOHYDRATE-SELECTIVE RECEPTORS
[0001] This application claims the benefit of U.S. Provisional Patent Application
Serial Nos. 61/652,01 1 , filed May 25, 2012, and 61/708,893, filed October 2, 2012, which are hereby incorporated by reference in their entirety
[0002] This invention was made with government support under Air Force Office of Scientific Research grant number FA9550-1 1-1-0032. The government has certain rights in this invention.
FIELD OF THE INVENTION [0003] The present invention is directed to synthetic carbohydrate receptors and methods of making the same. The present invention further relates to methods of diagnosing and treating carbohydrate-mediated disorders.
BACKGROUND OF THE INVENTION [0004] Natural saccharide-binding proteins, including lectins and periplasmic substrate-binding proteins, use water desolvation, hydrogen bonding (H-bonding), and C-H "π interactions to selectively recognize glycans that may differ only by the orientation of a single hydroxyl group to achieve binding affinities, Tas, as high at 106 M"1 (ESSENTIALS OF GLYCOBIOLOGY (Ajit Varki et al. eds., Cold Spring Harbor Laboratory Press 1999); BEAT ERNST et al, CARBOHYDRATES IN CHEMISTRY AND BIOLOGY PART II: BIOLOGY OF SACCHARIDES (Wiley- VCH 2000); Ambrosi et al, Org. Biomol. Chem.
3 : 1593-1608 (2005); Toone, Curr. Opin. Struct. Biol. 4:719-728 (1994); Lemieux, Acc. Chem. Res. 29:373-380 (1996)). Selective carbohydrate recognition with artificial receptors remains a major area of investigation because of the challenge of differentiating between molecules with subtle structural differences, their ability to reveal fundamental aspects of saccharide binding, and their potential applications in disease detection, therapy, or catalysis (Davis, Org. Biomol. Chem. 7:3629-3638 (2009); Davis & Wareham, Angew. Chem. Int. Ed. 38:2978-2996 (1999); Mazik, RSC Adv. 2:2630-2642 (2012); Mazik, Chem. Soc. Rev. 38:935-956 (2009); Kubik, Angew. Chem. Int. Ed. 48: 1722-1725 (2009); Jin et al, Med. Res. Rev. 30: 171-257 (2010); Walker et al, Cell. Mol. Life Sci. 66:3177-3191 (2009)). These receptors employ both covalent and noncovalent interactions to stabilize complex ation. For example, the reversible reaction of boronic acids to syn-diols has been employed successfully to selectively bind sugars, such as glucose and ribose, and sugar alcohols, like sorbitol and mannitol (Jin et al, Med. Res. Rev. 30:171-257 (2010); TONY D. JAMES et al, BORONIC ACIDS IN SACCHARIDE
RECOGNITION (The Royal Society of Chemistry 2006); James et al, Angew. Chem. Int. Ed. 35:1910-1922 (1996)), but the recognition of monosaccharides possessing axial hydroxyl groups, such as mannose, remains challenging by this approach. Alternatively, by following Cram's principles of electronic complementarity and structural
preorganization (D. J. CRAM & J. M. CRAM, CONTAINER MOLECULES AND THEIR GUESTS (The Royal Society of Chemistry 1997); Artz & Cram, J. Am. Chem. Soc.106:2160-2171 (1984); Cram et al, J. Am. Chem. Soc.103:6228-6232 (1981); D. J. Cram and J. M. Cram, Acc. Chem. Res. 11 :8-14 (1978)), molecules were created that bind through only noncovalent interactions and do not distort significantly upon binding. In these receptors, recognition groups are rigidly positioned in three dimensional space, like natural lectins (Weis & Drickamer, Annu. Rev. Biochem. 65:441-473 (1996)), to overcome entropy- enthalpy compensation - whereby any favorable enthalpic change that arises from the formation of noncovalent bonds is offset by the entropically unfavorable decrease of the internal motions of host and guest upon binding (Liu & Guo, Chem. Rev. 101 :673-695 (2001)).
[0005] Noteworthy examples of preorganized synthetic saccharide receptors that bind through only noncovalent interactions are the "temple" family of hosts developed by Davis and coworkers and the "tripodal" receptors pioneered by the Roelens (Arda et al., Chem. Eur. J. 17:4821-4829 (2011); Cacciarini et al, Org. Biomol. Chem. 9: 1085-1091 (2011); Nativi et al, Chem. Eur. J. 17:4814-4820 (2011); Arda et al, Eur. J. Org. Chem. 2010:64-71 (2010); Arda et al, Chem. Eur. J. 16:414-418 (2010); Nativi et al, J. Am. Chem. Soc. 129:4377-4385 (2007); Nativi et al, Org. Lett. 9:4685-4688 (2007);
Cacciarini et al, J. Org. Chem. 72:3933-3936 (2007); Vacca et al, J. Am. Chem. Soc. 126: 16456-16465 (2004)) and Mazik groups (Mazik & Buthe, Org. Biomol. Chem.
6: 1558-1568 (2008); Mazik & Hartmann, J. Org. Chem. 73:7444-7450 (2008); Mazik et al, Chem. Eur. J. 15:9147-9159 (2009); Mazik & Sonnenberg, J. Org. Chem. 75:6416- 6423 (2010); Mazik & Geffert, Org. Biomol. Chem. ^.T -T lb (2011)). The temple receptors position polar amidopyridine groups between apolar aromatic surfaces, and these receptors are highly selective for mono- and disaccharides containing all equatorial hydroxide groups, such as β-glucose (Glc) (Barwell et al, Angew. Chem. Int. Ed.
48:7673-7676 (2009)), β-N-acetylglucosamine (GlcNAc) (Ferrand et al, Angew. Chem. Int. Ed. 48: 1775-1779 (2009)), and β-D-cellobioside (Sookcharoenpinyo et al, Angew. Chem. Int. Ed. 51 :4586-4590 (2012); Ferrand et al, Science 318:619-622 (2007)) in water. The tripodal receptors rely upon a 1,3,5-triethylbenzene scaffold to rigidly orient three aminopyrrolitic arms that can form hydrogen bonds with saccharide hydroxyl groups. The preorganization induced by the three ethyl arms add an estimated 4.5 kcal mol"1 in additional stabilization upon complexation (Stack et al., J. Am. Chem. Soc.
115:6466-6467 (1993)). The tripodal receptors bind strongly to glycosides with an affinity of 10 2 to 105 M-"1 in chloroform and acetonitrile, and by changing to a chiral diaminopyrrolic motif, high selectivity for octylmannosides in acetonitrile has been observed, ranging from 1 :7 P-GlcNAc:a-Man to 1 :38 a-Gal:P-Man (Nativi et al., Chem. Eur. J. 17:4814-4820 (2011)). Mannose is a particularly interesting monosaccharide target, because it is a biomarker for several cancers (de Leoz et al., Mol. Cell. Proteomics 10:M110.002717 (2011); Ann et al, Curr. Opin. Chem. Biol. 13:601-607 (2009)), and as a consequence developing mannose specific synthetic receptors remains an active area of research (Arda et al, Chem. Eur. J. 17:4821-4829 (2011); Nativi et al, Chem. Eur. J. 17:4814-4820 (2011); Arda et al, Eur. J. Org. Chem. 2010:64-71 (2010); Arda et al, Chem. Eur. J. 16:414-418 (2010); Nativi et al, Org. Lett. 9:4685-4688 (2007); Nakagawa et al, J. Am. Chem. Soc. 133: 17485-17493 (2011)). However, synthetic carbohydrate receptors with increased binding affinity, expanded substrate scope beyond all-equatorial glycosides, and increased selectivity to levels comparable with their biological counterparts are still needed before these receptors become more widely utilized. SUMMARY OF THE INVENTION
[0006] A first aspect of the present invention is directed to a compound comprising Formula (I):
Figure imgf000006_0001
(I), wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface
Bn
/
immobilization moiety, a moiety of Formula II (II), or a
_r N=N
moiety of Formula III (Hi); is a single or a double bond;
A is selected from the group consisting of: (1)— CH2— ; (2)— C(O)— ; and
3) =CH— ;
B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5
heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2, R3, andR4 can be the same or different;
Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents
selected from the group consisting of halogen, Ci_6 alkyl, C2-6 alkenyl, C2- 6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NRjRe,— COOR5,— COR5,— CONHRs, and— CN;
and
each of R5 andR6 is independently H or Ci_6 alkyl. [0007] Other aspects of the present invention relate to pharmaceutical
compositions and pharmaceutical delivery vehicles comprising the compound of Formula I. Other aspects of the present invention relate to methods of treatment and diagnosis that involve the administration of a compound of Formula I.
[0008] Other aspects of the present invention relate to methods of making a compound of Formula (I)
Figure imgf000007_0001
(I), wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface immobilization moiety, a moiety of Formula II
Figure imgf000007_0002
(II), or a moiety of Formula
Figure imgf000007_0003
is a single or a double bond;
A is selected from the group consisting of: (1)— CH2— ; (2)— C(O)— ; and
3) =CH— ;
B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5
heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2, R3, andR4 can be the same or different; Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents selected from the group consisting of halogen, Ci_6 alkyl, C2_6 alkenyl, C2- 6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NR5R5,— COORs,— COR5,— CONHRs, and— CN;
and
each of R5 andR6 is independently H or Ci_6 alkyl.
[0009] In accordance with one aspect of the present invention, the compound of
Formula I above is made b f Formula IV:
Figure imgf000008_0001
(IV); and
reacting the compound of Formula IV with a reducing agent under conditions effective to produce the compound of Formula I.
[0010] In another aspect of the present invention, the compound of Formula I is made by providing a compound of Formula IX:
Figure imgf000008_0002
(IX) ; and
reacting the compound of Formula IX with a carboxylic acid or a reactive derivative thereof under conditions effective to produce the compound of Formula I. [0011] In yet another aspect of the present invention, the compound of Formula I is made by providing a compound of Formula X:
Figure imgf000009_0001
reacting a compound of Formula X with a carboxylic acid or a reactive derivative thereof under conditions effective to produce a compound of Formula I.
[0012] To address the challenges associated with synthetic carbohydrate receptor synthesis, an alternate approach towards synthetic saccharide receptors was pursued that involves preparing a flexible host that does not possess rigid preorganization and, as a result, is capable of binding carbohydrates through pathways that arise from
conformational rearrangements and positive homotropiccooperativity.
Homotropiccooperativity, whereby an initial association of a target substrate induces conformational restrictions that enhance further binding of the same substrate, has been employed previously in synthetic receptors to increase binding strength and specificity towards targets such as diacids and syn-diols (Shinkai et al, Acc. Chem. Res. 34:494-503 (2001); Takeuchi et al, Acc. Chem. Res. 34:865-873 (2001); Kovbasyuk & Kramer,
Chem. Rev. 104:3161-3187 (2004); Tabushi, Pure Appl. Chem. 60:581-586 (1988), which are hereby incorporated by reference in their entirety). However, synthetic receptors that utilize homotropiccooperativity remain rare (Wakabayashi et al., Angew. Chem. Int. Ed. 48:6667-6670 (2009); Ikeda et al, J. Am. Chem. Soc. 128: 16008-16009 (2006); Ayabe et al, Angew. Chem. Int. Ed. 41 :2790-2792 (2002); Sugasaki et al, Angew. Chem. Int. Ed. 39:3839-3842 (2000); Setsune & Watanabe, J. Am. Chem. Soc. 130:2404-2405 (2008); Chang et al, Chem. Commun. 2026-2027 (2003); Goswami et al, New. J. Chem.
35:2811-2819 (2011); Lusterberger et al, Helv. Chem. Acta 81 :2190-2200 (1998); Embeyer & Rebek, Angew. Chem. Int. Ed. 29: 1148-1150 (1990); Rebek et al, J. Am. Chem. Soc. 107:7481-7487 (1985); Schmuck & Geiger, J. Am. Chem. Soc. 127:10486- 10487 (2005); Kawai et al, J. Am. Chem. Soc. 126:5034-5035 (2004); Huang et al, J. Am. Chem. Soc. 125:9272-9273 (2003); Ishi-I et al, J. Am. Chem. Soc. 124: 14631- 14641 (2002); Raker & Glass, J. Org. Chem. 67:6113-6116 (2002); Borovkov et al,
J. Am. Chem. Soc. 124:2993-3006 (2001); Sugasaki et al, J. Am. Chem. Soc. 123: 10239- 10244 (2001); Sugasaki et al, Tetrahedron 56:4717-4723 (2000), which are hereby incorporated by reference in their entirety), and few examples exist of hosts that rely on cooperativity to enhance saccharide binding (Sugasaki et al, Angew. Chem. Int. Ed. 39:3839-3842 (2000); Sugasaki et al, J. Am. Chem. Soc. 123:10239-10244 (2001);
Sugasaki et al, Tetrahedron 56:4717-4723 (2000), which are hereby incorporated by reference in their entirety), despite the fact that cooperativity and multivalency are ubiquitous elements of carbohydrate recognition in biology (ESSENTIALS OF
GLYCOBIOLOGY (Ajit Varki et al. eds., Cold Spring Harbor Laboratory Press 1999), which is hereby incorporated by reference in its entirety). The advantages that arise with carbohydrate receptors that employ positive allosteric cooperativity include (1) shorter synthetic sequences because specificity and affinity are the direct result of allostery, (2) increased solubility associated with receptor flexibility, and (3) employing the same binding mechanisms as natural saccharide receptors could provide fundamental insights into the complex carbohydrate recognition motifs that are prevalent in nature. As described herein, a new synthetic carbohydrate receptor has been designed that contains the aminopyrrolitic groups pioneered by Roelens (Cacciarini et al., Org. Biomol. Chem. 9: 1085-1091 (2011); Nativi et al, J. Am. Chem. Soc. 129:4377-4385 (2007), which are hereby incorporated by reference in their entirety), but they are appended to a flexible scaffold with eight freely rotating methylene groups and a freely rotating biphenyl bond (Figure 1). Thus, this carbohydrate receptor is designed to dynamically explore thermodynamic and conformational space and confirm that increased receptor flexibility can induce specificity for carbohydrate guests through allostery despite a higher entropic penalty experienced in an initial association step. The synthetic carbohydrate receptor described herein achieves excellent selectivity for octylmannosides through two allosteric cooperative pathways with an overall selectivity as high as 18.9: 1 a-Man:a-Gal in chloroform. Moreover, the selectivity is directly dependent on pyranoside concentration, where the receptor binds preferentially to β-Glc at low concentration (<0.3 mM), then binds a- and β-Man at higher concentrations. Accordingly, described herein is the first synthetic carbohydrate receptor that (1) relies on cooperativity to increase selectivity and (2) whose selectivity switches with saccharide concentration. BRIEF DESCRIPTION OF THE DRAWINGS
[0013] Figures 1A-1B show the chemical structure of a synthetic carbohydrate receptor 1 (also referred to herein as a compound of Formula IB) of the present invention. Figure 1A shows the chemical structure of compound 1 and Figure IB shows the chemical structures of the octyl pyranosides that were evaluated for binding with compound 1. The carbon numbering scheme is also shown in Figure IB.
[0014] Figure 2 shows the equilibria present in a chloroform mixture of compound 1 and β-Man at 25°C. Upon increasing the β-Man!l ratio, K2 determines the dominate species in solution. If instead, β-Man!l decreases, K3 controls the equilibrium mixture.
[0015] Figures 3A-3C demonstrate 1 :2 receptonpyranoside binding. Figure 3 A shows 1H NMR (600 MHz, CDCI3, 25°C) spectra obtained after the incremental addition of a 10.4 mM solution of β-Man to a 58.6 μΜ solution of Compound 1 (scheme 5), with dashed lines illustrating the induced changes in chemical shifts. In Figure 3B, the chemical shift dependences of HJ of compound 1 (58.6 μΜ) are plotted as a function of molar equivalents of each of the eight added pyranosides from the 1H NMR titrations. As shown in Figure 3C, the fittings of the HJ chemical shift changes in response to the addition of β-Man to a model containing K\ (dashed line) and K\ + K2 (solid line).
[0016] Figure 4 is a variable temperature 1H NMR (400 MHz, CDCI3) spectra of compound 1 (1.0 mM) and β-Man (2.0 mM).
[0017] Figures 5A-5C show the energy minimized structure (DFT, B3LYP/6-
31+(d)) for Ιιβ-Man from an initial binding geometry obtained by an AMBER* mixed low-mode/torsional Monte Carlo conformation search. In Figure 5A, the intermolecular H-bonds are denoted by black dashed lines and C-H π interactions are denoted by orange dashed lines. Three H-bonds occur between the hydroxyl group of C2 and both amino He and one pyrrole Hk protons of the receptor. Additionally, a C-H π interaction between the phenyl ring and H4 and two more H-bonds between the hydroxyl group of C3 and an amino He and pyrrole Hk proton of the receptor were observed. Side views, parallel (Figure 5B) and perpendicular (Figure 5C) to the biphenyl linkage of the energy minimized structure (DFT, B3LYP/6-31+(d)) for C2 symmetrical 1 ^-Man2. The biphenyl dihedral is denoted by φ.
[0018] Figure 6A is a 1H NMR (900 MHz, CDC13, 25°C) spectra obtained upon the titration of a 62.5 mM solution of compound 1 to a 0.98 mM solution of β-Man with dashed lines illustrating the induced changes in δ. Figure 6B is a graph showing the chemical shifts, δ, of β-Man as a function of molar equivalents of compound 1 at 5°C. The theoretical global fits with a model incorporating ^dimer, K\, and K2 (dashed line) and with -dimer, K\, K2, and K3 (solid line) are shown.
[0019] Figures 7A-7B show selected portions of a 1H-1H ROESY spectra. Figure
7 A is the portion of the spectra corresponding to a CDCI3 solution of β-Man (1.0 mM) with 0.50 molar equivalents of compound 1 at 600 MHz, 25°C, and with a 600 ms mixing time, and Figure 7B corresponds to a CDCI3 solution of β-Man (6.0 mM) with 2.0 molar equivalents of compound 1 at 400 MHz, -10°C, and with a 500 ms mixing time.
[0020] Figure 8 depicts the energy minimized structure (AMBER*) for Ι^β-Man obtained by a mixed low-mode/torsional Monte Carlo conformation search. The carbons of compound 1 that bind the a-face are colored green, and the carbons of compound 1 bound to the β-face are colored red for clarity, nitrogens are blue, oxygens are red, and intermolecular hydrogen bonds are denoted by dashed lines. Upon the association of the second equivalent of compound 1, 3 new H-bonds are observed with the β-face.
[0021] Figures 9A-9B show IIBC^ plots describing the pyranoside concentration dependence for the overall binding strength (l/3C5o) of receptor compound 1 toward each pyranoside, where higher values are indicative of stronger binding and crossover points, marked within a circle for β-Glc→ -Man and square for β-Glc→β-Man, denote changes in binding preference with increasing pyranoside concentration (Figure 9A); and the influence of each positive cooperative binding equilibria (K2 and K3) on the BC50 value of receptor 1 for β-Man (Figure 9B).
[0022] Figures 1 OA- IOC show NMR and high-resolution mass spectrometry
(HRMS) data for intermediate compound 3 (Scheme 5). Figure 10A is a 1HNMR of Compound 3 (500 Mhz, 25°C) in CDC13. Figure 10B is a 13C NMR of Compound 3 (100 MHz, 25° C) in CDCI3. Figure IOC shows the HRMS data for intermediate compound 3. [0023] Figures 1 lA-11C show NMR and HRMS data for intermediate compound
4 (Scheme 5). Figure 11 A is a 1H NMR of compound 4 (400 MHz, 25° C) in CDC13. Figure 1 IB is a 13C NMR of compound 4 (100 MHz, 25° C) in CDC13 and Figure 11C shows the HRMS for compound 4.
[0024] Figures 12A-12D show NMR and HRMS data for compound 1 (Formula
IB) (Scheme 5). Figure 12A is a 1H NMR of compound 1 (400 MHz, 25° C) in CDCI3. Figure 12B is a 13C NMR of compound 1 (100 MHz, 25° C) in DMSO-D6. Figure 12C is a 13C DEPT-135 NMR of 1 (100 MHz, 25° C) in DMSO-D6. Figure 12D shows the HRMS of compound 1.
[0025] Figure 13 is a variable temperature 1H NMR ( 400MHz, CDC13) spectra of
1.0 mM solution of compound 1 (Scheme 5) in CDCI3.
[0026] Figure 14 is a 1H NMR ( 400 MHz, CDCI3, -63°C) of compound 1
(Scheme 5) (6.0 mM for 2: 1 Ιιβ-Man; l .OmM for all other ratios) and β-Man. The blue and purple signals correspond to 1 and 1; P-Man2 respectively.
[0027] Figures 15 A-l 5K are tables showing 1H NMR (600MHz) chemical shift data for a solution of compound 1 (Scheme 5) in CDCI3 upon incremental addition of various octyl pyranosides. The table of Figure 15A shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDCI3 upon incremental addition of β-Glc [G]. The table of Figure 15B shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 50 μΜ solution of 1 [H] in CDCI3 upon incremental addition of β-Gal [G]. The table of Figure 15C shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDCI3 upon incremental addition of β-GlcNAc [G]. The table of Figure 15D shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDCI3 upon incremental addition of a-Glc [G]. The table of Figure 15E shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDCI3 upon incremental addition of a-GlcNAc [G]. The table of Figure 15F shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDCI3 upon incremental addition of a-Gal [G]. The table of Figure 15G shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDC13 upon incremental addition of a-Man [G] . The table of Figure 15H shows 1H NMR (600 MHz, 25° C) chemical shifts (ppm) of a 60 μΜ solution of 1 [H] in CDCI3 upon incremental addition of β-Man [G]. The table of Figure 151 shows 1H NMR (600 MHz, 20° C) chemical shifts (ppm) of a .06 mM solution of 1 [H] in CDCI3 upon incremental addition of β-Man [G]. The table of Figure 15 J shows 1H NMR (600 MHz, 15° C) chemical shifts (ppm) of a .06 mM solution of 1 [H] in CDCI3 upon incremental addition of β-Man [G]. The table of Figure 15K shows 1H NMR (600 MHz, 10° C) chemical shifts (ppm) of a .06 mM solution of 1 [H] in CDCI3 upon incremental addition of β-Man [G].
[0028] Figures 16 is a table showing 1H NMR (900 MHz, 25°C) chemical shift data for a 1.0 mM solution of a-Man in CDCI3 upon incremental addition of compound 1 (Scheme 5).
[0029] Figures 17A-17E are tables showing 1H NMR (500 MHz) chemical shift data for solutions of a-Glc in CDCI3 upon incremental addition of compound 1 at various temperatures. The Table of Figure 17A shows 1H NMR (500 MHz, 25° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI3 upon the incremental addition of mM 1 [H]. The table of Figure 17B shows 1H NMR (500 MHz, 20° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI3 upon the incremental addition of mM 1 [H]. The table of Figure 17C shows 1H NMR (500 MHz, 15° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 17D shows 1H NMR (500 MHz, 10° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 17E shows 1H NMR (500 MHz, 5° C) chemical shifts (ppm) of a 1.0 mM solution of a-Glc [G] in CDCI3 upon the incremental addition of 1 [H].
[0030] Figures 18A-18E are graphs fitting the experimental data (circles) with the
1 : 1 model (dashed line) corresponding to the 1H NMR titration of a-Glc with compound 1 (Scheme 5) at 25°C.
[0031] Figures 19A-19E are tables showing 1H NMR (800 MHz) chemical shift data for solutions of a-GlcNAc in CDCI3 upon incremental addition of compound 1
(Scheme 5) at various temperatures. The table of Figure 19A shows 1H NMR (800 MHz, 25° C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 19B shows 1H NMR (800 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 19C shows 1H NMR (800 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI3 upon the incremental addition of mM 1 [H]. The table of Figure 19D shows 1H NMR (800 MHz, 10°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 19E shows 1H NMR (800 MHz, 5°C) chemical shifts (ppm) of a 1.0 mM solution of a-GlcNAc [G] in CDCI3 upon the incremental addition of 1 [H].
[0032] Figures 20A-20E are graphs fitting the experimental data (circles) with the
1 : 1 model (dashed line) corresponding to the 1H NMR titration of a-GlcNAc with compound 1 (Scheme 5) at 25°C.
[0033] Figures 21A-21E are tables showing 1H NMR (500 MHz) chemical shift data for solutions of a-Gal in CDCI3 upon incremental addition of compound 1 (Scheme 5) at various temperatures. The table of Figure 21 A shows 1H NMR (500 MHz, 25°C) chemical shifts (ppm) of a 0.684 mM solution of a-Gal [G] in CDCI3 upon the
incremental addition of 1 [H]. The table of Figure 21B shows 1H NMR (500 MHz, 20°C) chemical shifts (ppm) of a 0.684 mM solution of a-Gal [G] in CDCI3 upon the
incremental addition of 1 [H]. The table of Figure 21C shows 1H NMR (500 MHz, 15°C) chemical shifts (ppm) of a 0.684 mM solution of a-Gal [G] in CDCI3 upon the
incremental addition of 1 [H]. The table of Figure 21D shows 1H NMR (500 MHz, 10°C) chemical shifts (ppm) of a 0.684 mM solution of a-Gal [G] in CDCI3 upon the
incremental addition of 1 [H]. The table of Figure 21E shows 1H NMR (500 MHz, 5°C) chemical shifts (ppm) of a 0.684 mM solution of a-Gal [G] in CDCI3 upon the
incremental addition of 1 [H].
[0034] Figures 22A-22E are graphs fitting the experimental data (circles) with the 1 : 1 model (dashed line) and 2: 1 model (solid line) corresponding to the 1H NMR titration of a-Gal with compound 1 (Scheme 5) at 25°C.
[0035] Figures 23A-23D are tables showing 1H NMR (900 MHz) chemical shift data for solutions of β-Man in CDCI3 upon incremental addition of compound 1 at various temperatures. The table of Figure 23 A shows 1H NMR (900 MHz, 25°C) chemical shifts (ppm) of a 1.0 mM solution of β-Man [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 23B shows 1H NMR (900 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of β-Man [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 23C shows 1H NMR (900 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of β-Man [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 23D shows 1H NMR (900 MHz, 10°C) chemical shifts (ppm) of a 1.0 mM solution of β-Man [G] in CDCI3 upon the incremental addition of 1 [H]. [0036] Figures 24A-24E are graphs fitting the experimental data (circles) with the
1 : 1 model (dashed line) and 2: 1 model (solid line) corresponding to the 1H NMR titration of β-Man with compound 1 at 25°C.
[0037] Figures 25A-25E are tables showing 1H NMR (900 MHz) chemical shift data for solutions of β-Glc in CDCI3 upon incremental addition of compound 1 (Scheme 5) at various temperatures. The table of Figure 25 A shows 1H NMR (900 MHz, 25°C) chemical shifts (ppm) of a 1.0 mM solution of β-Glc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 25B shows 1H NMR (900 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of β-Glc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 25C shows 1H NMR (900 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of β-Glc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 25D shows 1H NMR (900 MHz, 10°C) chemical shifts (ppm) of a 1.0 mM solution of β-Glc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 25E shows 1H NMR (900 MHz, 5°C) chemical shifts (ppm) of a 1.0 mM solution of β-Glc [G] in CDCI3 upon the incremental addition of 1 [H].
[0038] Figures 26A-26E are graphs fitting the experimental data (circles) with the
1 : 1 model (dashed line) corresponding to the 1H NMR titration of β-Glc with compound 1 at 25°C.
[0039] Figures 27A-27C are tables showing 1H NMR (900 MHz) chemical shift data for solutions of β-GlcNAc in CDCI3 upon incremental addition of compound 1
(Scheme 5) at various temperatures. The table of Figure 27A shows 1H NMR (900 MHz, 25° C) chemical shifts (ppm) of a 1.0 mM solution of β-GlcNAc [G] in CDC13 upon the incremental addition of 1 [H]. The table of Figure 27B shows 1H NMR (900 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of β-GlcNAc [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 27C shows 1H NMR (900 MHz, 15°C) chemical shifts (ppm) of a 1.0 mM solution of β-GlcNAc [G] in CDCI3 upon the incremental addition of 1 [H].
[0040] Figures 28A-28E are graphs fitting the experimental data (circles) with the
1 : 1 model (dashed line) corresponding to the 1H NMR titration of β-GlcNAc with compound 1 at 25°C.
[0041] Figures 29A-29E are tables showing 1H NMR (500 MHz) chemical shift data for solutions of β-Gal in CDCI3 upon incremental addition of compound 1 (Scheme 5) at various temperatures. The table of Figure 29A shows 1H NMR (500 MHz, 25°C) chemical shifts (ppm) of a 1.0 mM solution of β-Gal [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 29B shows 1H NMR (500 MHz, 20°C) chemical shifts (ppm) of a 1.0 mM solution of β-Gal [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 29C shows 1H NMR (500 MHz, 15°C) chemical shifts (ppm) of a 0.684 mM solution of β-Gal [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 29D shows 1H NMR (500 MHz, 10°C) chemical shifts (ppm) of a 0.684 mM solution of β-Gal [G] in CDCI3 upon the incremental addition of 1 [H]. The table of Figure 29E shows 1H NMR (500 MHz, 5°C) chemical shifts (ppm) of a 0.684 mM solution of β-Gal [G] in CDCI3 upon the incremental addition of 1 [H].
[0042] Figures 30A-30E are graphs fitting the experimental data (circles) with the
1 : 1 model (dashed line) and 2: 1 model (solid line) corresponding to the 1H NMR titration of β-Gal with compound 1 (Scheme 5) at 25°C.
[0043] Figure 31 is a complete table of binding constants at all temperatures observed by 1H NMR titrations for each pyranoside in CDCI3 with compound 1 (Scheme 5).
[0044] Figures 32A-32D are Van't Hoff Plots showing Kx and K3 of β-Glc and <x-
Glc binding to compound 1 in CDC13 (Figure 32A), K\ of a-GlcNAc and β-GlcNAc binding to compound 1 in CDCI3 (Figure 32B), Ki of a-Gal and β-Gal binding to compound 1 in CDCI3 (Figure 32C), and Kls K2 and K3 of β-Man binding to compound 1 in CDCI3 (Figure 32D).
[0045] Figure 33 shows 1H-1H ROESY spectrum of β-Man (12.0 mM) with compound 1 (6.0 mM) at -60° C 400 MHz in CDC13.
[0046] Figure 34 shows 1H-1H ROESY spectrum of β-ManO .0 mM) with 1
(0.5 M) at 25°C 600 MHz in CDCI3.
[0047] Figure 35 is a table showing complex ation induced shifts for each observable pyranoside proton obtained from 1H NMR titrations. The observed intermolecular cross-peaks obtained from a 1H-1H ROESY analysis. The corresponding distance between the protons in the calculated structures is indicated in parenthesis.
[0048] Figure 36 shows 1H-1H ROESY spectrum of β-Glc (1.OmM) and 1
(3.0 mM) at 20°C 500 MHz in CDC13. DETAILED DESCRIPTION OF THE INVENTION
[0049] The present invention is generally directed to a new class of synthetic carbohydrate receptor compounds. Accordingly, a first aspect of the present invention is directed to a compound comprising Formula I:
Figure imgf000018_0001
(I), wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface immobilization moiety, a moiety of Formula II
Figure imgf000018_0002
(Π)
_r N=N
moiety of Formula III (Hi); is a single or a double bond;
A is selected from the group consisting of: (1)— CH2— ; (2)— C(O)— ; and
3) =CH— ;
B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5
heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2, R3, andR4 can be the same or different;
Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents selected from the group consisting of halogen, Ci_6 alkyl, C2-6 alkenyl, C2-6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NRjRe, — COOR5,— COR5,— CONHRs, and— CN;
and
each of R5 andR6 is independently H or Ci_6 alkyl.
[0050] As used above, and throughout the description of the present invention, the following terms, unless otherwise indicated, shall be understood to have the following meanings. If not defined otherwise herein, all technical and scientific terms used herein have the same meaning as is commonly understood by one of ordinary skill in the art to which this invention belongs.
[0051] The term "heterocycle" refers to a stable 3- to 18-membered ring which consists of carbon atoms and from one to five heteroatoms selected from the group consisting of nitrogen, oxygen, and sulfur. The heterocycle may be a monocyclic, or a polycyclic ring system, which may include fused, bridged, or spiro ring systems; and the nitrogen, carbon, or sulfur atoms in the heterocycle may be optionally oxidized, the nitrogen atom may be optionally quaternized, and the ring may be partially or fully saturated. Examples of such "heterocycle" groups include, without limitation, azepinyl, azocanyl, pyranyl, dioxanyl, dithianyl, 1,3-dioxolanyl, tetrahydrofuryl,
dihydropyrrolidinyl, decahydroisoquinolyl, imidazolidinyl, isothiazolidinyl,
isoxazolidinyl, morpholinyl, octahydroindolyl, octahydroisoindolyl, 2-oxopiperazinyl, 2-oxopiperidinyl, 2-oxopyrrolidinyl, 2-oxoazepinyl, oxazolidinyl, oxiranyl, piperidinyl, piperazinyl, 4-piperidonyl, pyrrolidinyl, pyrazolidinyl, thiazolidinyl, tetrahydropyranyl, thiomorpholinyl, thiomorpholinyl sulfoxide, and thiomorpholinyl sulfone. Unless otherwise noted, the heterocycle is attached to its pendant group at any heteroatom or carbon atom that results in a stable structure.
[0052] The term "heteroaryl" means an aromatic monocyclic or multi-cyclic ring system of about 5 to about 14 ring atoms, or about 5 to about 10 ring atoms, in which one or more of the atoms in the ring system is/are element(s) other than carbon, for example, nitrogen, oxygen, or sulfur. In the case of multi-cyclic ring system, only one of the rings needs to be aromatic for the ring system to be defined as "heteroaryl". Preferred heteroaryls contain about 5 to 6 ring atoms. The prefix aza, oxa, thia, or thio before heteroaryl means that at least a nitrogen, oxygen, or sulfur atom, respectively, is present as a ring atom. A nitrogen atom of a heteroaryl is optionally oxidized to the
corresponding N-oxide. Representative heteroaryls include, without limitation, pyridyl, 2-oxo-pyridinyl, pyrimidinyl, pyridazinyl, pyrazinyl, triazinyl, furanyl, pyrrolyl, thiophenyl, pyrazolyl, imidazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, triazolyl, oxadiazolyl, thiadiazolyl, tetrazolyl, indolyl, isoindolyl, benzofuranyl, benzothiophenyl, indolinyl, 2-oxoindolinyl, dihydrobenzofuranyl, dihydrobenzothiophenyl, indazolyl, benzimidazolyl, benzooxazolyl, benzothiazolyl, benzoisoxazolyl, benzoisothiazolyl, benzotriazolyl, benzo[l,3]dioxolyl, quinolinyl, isoquinolinyl, quinazolinyl, cinnolinyl, pthalazinyl, quinoxalinyl, 2,3-dihydro-benzo[l,4]dioxinyl, benzo[l,2,3]triazinyl, benzo[l,2,4]triazinyl, 4H-chromenyl, indolizinyl, quinolizinyl, 6aH-thieno[2,3- d]imidazolyl, lH-pyrrolo[2,3-£]pyridinyl, imidazo[l,2-a]pyridinyl, pyrazolo[l,5- a]pyridinyl, [l,2,4]triazolo[4,3-a]pyridinyl, [l,2,4]triazolo[l,5-a]pyridinyl, thieno[2,3- £]furanyl, thieno[2,3-¾]pyridinyl, thieno[3,2-£]pyridinyl, furo[2,3-£]pyridinyl, furo[3,2- £]pyridinyl, thieno[3,2-d]pyrimidinyl, furo[3,2- ]pyrimidinyl, thieno[2,3-£]pyrazinyl, imidazo[ 1 ,2-a]pyrazinyl, 5,6,7,8-tetrahydroimidazo[ 1 ,2-a]pyrazinyl, 6,7-dihydro-4H- pyrazolo[5,l-c][l,4]oxazinyl, 2-oxo-2,3-dihydrobenzo[<i]oxazolyl, 3,3-dimethyl-2- oxoindolinyl, 2-oxo-2,3-dihydro-lH-pyrrolo[2,3-£]pyridinyl, benzo[c][l,2,5]oxadiazolyl, benzo[c][l,2,5]thiadiazolyl, 3,4-dihydro-2H-benzo[£][l,4]oxazinyl, 5,6,7,8-tetrahydro- [l,2,4]triazolo[4,3-a]pyrazinyl, [l,2,4]triazolo[4,3-a]pyrazinyl, 3-oxo-[l,2,4]triazolo[4,3- a]pyridin-2(3H)-yl, and the like. Additional heteroaryls that are also encompassed by the present invention are described in COMPREHENSIVE HETEROCYCLIC CHEMISTRY: THE STRUCTURE, REACTIONS, SYNTHESIS AND USE OF HETEROCYCLIC COMPOUNDS (Katritzky et al. eds., 1984), which is hereby incorporated by reference in its entirety.
[0053] As used herein, the term "halo" or "halogen" means fluoro, chloro, bromo, or iodo.
[0054] The term "alkyl" means an aliphatic hydrocarbon group which may be straight or branched having about 1 to about 6 carbon atoms in the chain (or the number of carbons designated by "CN_N", where n-n is the numerical range of carbon atoms). Branched means that one or more lower alkyl groups such as methyl, ethyl or propyl are attached to a linear alkyl chain. Exemplary alkyl groups include, without limitation, methyl, ethyl, n-propyl, i-propyl, n-butyl, t-butyl, n-pentyl, and 3-pentyl.
[0055] The term "alkenyl" means an aliphatic hydrocarbon group containing a carbon— carbon double bond and which may be straight or branched having about 2 to about 6 carbon atoms in the chain, or 2 to about 4 carbon atoms in the chain. Branched means that one or more lower alkyl groups such as methyl, ethyl, or propyl are attached to a linear alkenyl chain. Exemplary alkenyl groups include, without limitation, ethenyl, propenyl, n-butenyl, and i-butenyl.
[0056] The term "alkynyl" means an aliphatic hydrocarbon group containing a carbon— carbon triple bond and which may be straight or branched having about 2 to about 6 carbon atoms in the chain, or 2 to about 4 carbon atoms in the chain. Branched means that one or more lower alkyl groups such as methyl, ethyl, or propyl are attached to a linear alkynyl chain. Exemplary alkynyl groups include, without limitation, ethynyl, propynyl, n-butynyl, 2-butynyl, 3-methylbutynyl, and n-pentynyl.
[0057] As used herein, "cycloalkyl" refers to a non-aromatic saturated or unsaturated mono- or polycyclic ring system which may contain 3 to 6 carbon atoms, and which may include at least one double bond. Exemplary cycloalkyl groups include, without limitation, cyclopropyl, cyclobutyl, cyclopentyl, cyclohexyl, cyclopropenyl, cyclobutenyl, cyclopentenyl, cyclohexenyl, antz'-bicyclopropane, or syn-bicyclopropane.
[0058] As used herein, the term "aryl" refers to an aromatic monocyclic or polycyclic ring system containing from 6 to 19 carbon atoms, where the ring system may be optionally substituted.
[0059] Suitable aryl groups for the substituents of the present invention, include, but are not limited to, phenyl, naphthyl, azulenyl, fluorenyl, phenanthrenyl, anthracenyl, pyrenyl, triphenylenyl, chrysenyl, and naphthacenyl. Suitable heteroaryl groups of the present invention include, but are not limited to pyrrolyl, pyrazolyl, imidazolyl, triazolyl, furyl, thiophenyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, oxadiazolyl, thiadiazolyl, pyridyl, pyrazinyl, pyrimidinyl, pyridazinyl, triazinyl, thienopyrrolyl, furopyrrolyl, indolyl, azaindolyl, isoindolyl, indolinyl indolizinyl, indazolyl, benzimidazolyl, imidazopyridinyl, benzotriazolyl, benzoxazolyl, benzoxadiazolyl, benzothiazolyl, pyrazolopyridinyl, triazolopyridinyl, thienopyridinyl, benzothiadiazolyl, benzofuyl, benzothiophenyl, quinolinyl, isoquinolinyl, tetrahydroquinolinyl, tetrahydroisoquinolinyl, cinnolinyl, quinazolinyl, quinolizilinyl, phthalazinyl, benzotriazinyl, chromenyl, and naphthyridinyl. Exemplary substituted hetroaryl include without limitation pyridyl, 2- oxo-pyridin-l-yl, pyrimidinyl, pyridazinyl, pyrazinyl, 1,2,4-triazinyl, 1,3, 5 -triazinyl, furanyl, pyrrolyl, thiophenyl, pyrazolyl, imidazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, 1,2,3-triazolyl, 1,2,4-triazolyl, 1,2, 3 -oxadiazolyl, 1,3, 4-oxadiazolyl, 1,2,3- thiadiazolyl, 1,3,4-thiadiazolyl, tetrazolyl, indolyl, isoindolyl, benzofuranyl,
benzothiophenyl, indolinyl, oxoindolinyl, dihydrobenzofuranyl, dihydrobenzothiophenyl, indazolyl, benzimidazolyl, benzooxazolyl, benzothiazolyl, benzoisoxazolyl,
benzoisothiazolyl, benzotriazolyl, benzo[l,3]dioxolyl, quinolinyl, isoquinolinyl, quinazolinyl, cinnolinyl, pthalazinyl, quinoxalinyl, 2,3-dihydro-benzo[l,4]dioxinyl, benzo[l,2,3]triazinyl, benzo[l,2,4]triazinyl, 4H-chromenyl, indolizinyl, quinolizinyl, 6aH-thieno[2,3-d]imidazolyl, lH-pyrrolo[2,3-£]pyridinyl, imidazo[l,2-a]pyridinyl, pyrazolo[l,5-a]pyridinyl, [l,2,4]triazolo[4,3-a]pyridinyl, [l,2,4]triazolo[l,5-a]pyridinyl, thieno[2,3-£]furanyl, thieno[2,3-£]pyridinyl, thieno[3,2-£]pyridinyl, furo[2,3-£]pyridinyl, furo[3,2-£]pyridinyl, thieno[3,2-d]pyrimidinyl, mro[3,2-d]pyrimidinyl, thieno[2,3- £]pyrazinyl, furo[2,3-¾]pyrazinyl , imidazo[l,2-a]pyrazinyl, 5,6,7,8- tetrahydroimidazo[l,2-a]pyrazinyl, 6,7-dihydro-4H-pyrazolo[5,l-c][l,4]oxazinyl, 2-oxo- 2,3-dihydrobenzo[<i]oxazolyl, 2-oxo-2,3-dihydro-lH-benzo[d]imidazole, 3,3-dimethyl-2- oxoindolinyl, 2-oxo-2,3-dihydro-lH-pyrrolo[2,3-£]pyridinyl, benzo[c][l,2,5]oxadiazolyl, benzo[c][l,2,5]thiadiazolyl, 3,4-dihydro-2H-benzo[£][l,4]oxazinyl, 5,6,7,8-tetrahydro- [l,2,4]triazolo[4,3-a]pyrazinyl, [l,2,4]triazolo[4,3-a]pyrazinyl, and 3-oxo- [l,2,4]triazolo[4,3-a]pyridinyl.
[0060] The term "optionally substituted" indicates that a group may have a substituent at each substitutable atom of the group (including more than one substituent on a single atom), and the identity of each substituent is independent of the others.
[0061] The term "substituted" or "substitution" means that one or more hydrogen on a designated atom is replaced with a selection from the indicated group, provided that the designated atom's normal valency is not exceeded. "Unsubstituted" atoms bear all of the hydrogen atoms dictated by their valency. When a substituent is oxo (i.e., =0), then 2 hydrogens on the atom are replaced. Combinations of substituents and/or variables are permissible only if such combinations result in stable compounds. By "stable compound" it is meant a compound that is sufficiently robust to survive isolation to a useful degree of purity from a reaction mixture, and formulation into an efficacious therapeutic agent. Exemplary substituents include, without limitation, oxo, thio (i.e., =S), nitro, cyano, halo, OH, NH2, Ci-C6 alkyl, Ci-C6 alkoxy, C2-C6 alkenyl, C2-C6 alkynyl, C3-C6 cycloalkyl, C4-C7 cycloalkylalkyl, and monocyclic.
[0062] Compounds described herein may contain one or more asymmetric centers and may thus give rise to enantiomers, diastereomers, and other stereoisomeric forms. Each chiral center may be defined, in terms of absolute stereochemistry, as (R)- or (S)-. The present invention is meant to include all such possible isomers, as well as mixtures thereof, including racemic and optically pure forms. Optically active (R)- and (S)-, (-)- and (+)-, or (D)- and (L)- isomers may be prepared using chiral synthons or chiral reagents, or resolved using conventional techniques. When the compounds described herein contain olefmic double bonds or other centers of geometric asymmetry, and unless specified otherwise, it is intended that the compounds include both E and Z geometric isomers. Likewise, all tautomeric forms are also intended to be included.
[0063] As would be understood by a person of ordinary skill in the art, the recitation of "a compound" is intended to include salts, solvates, oxides, and inclusion complexes of that compound as well as any stereoisomeric form, or a mixture of any such forms of that compound in any ratio. Thus, in accordance with some embodiments of the invention, a compound as described herein, including in the contexts of pharmaceutical compositions, methods of treatment, and compounds per se, is provided as the salt form.
[0064] As used herein "carbohydrate" is a generic term used interchangeably with sugar, saccharide, or glycan. The term includes monosaccharides, oligosaccharides, and polysaccharides as well as derivatives of these compounds. As used herein, "glycan" is a generic term for any sugars or assembly of sugars, in free form or attached to another molecule (e.g., attached to a protein). The term "sugar" is a generic term often used to refer to any carbohydrate, but most frequently to low molecular weight carbohydrates.
[0065] In accordance with this aspect of the present invention, one or more of Ri, R2, R3, and R4 may comprises a substituted or unsubstituted heteroaromatic ring selected from the group of pyridine, pyrazine, pyrimidine, pyridazine, imidazole, pyrrole, oxazole, isoxazole, triazine, thiazole, isothiazole, indazole, purine, quinoline, isoquinoline, quinoxaline, quinazoline, cinnoline, acridine, benzoxazole, benzisoxazole, benzothiazole, thiophene, furan, benzofuran, benzothiophene, and oxadiazole.
[0066] One exemplary compound of the present invention is the compound of
Formula IA
Figure imgf000024_0001
[0067] Another exemplary compound of the present invention is the compound of
Formula IB (also referred to herein as Compound 1)
Figure imgf000024_0002
[0068] Another exemplary compound of the present invention is the compound of
Formula IC
Figure imgf000024_0003
[0069] Another exemplary compound of the present invention is the compound of
Formula ID
Figure imgf000025_0001
[0070] Another exemplary compound of the present invention is the compound of Formula IE
Figure imgf000025_0002
[0071] In one embodiment of the present invention, the compound of the present invention comprises a targeting moiety. A "targeting moiety" functions to target a compound of the present invention (i.e., the synthetic carbohydrate receptor of Formula I) to a particular cell or tissue type. In one embodiment of the present invention, the targeting moiety is a signaling peptide sequence, e.g. , a tissue-specific signaling peptide sequence or a cell specific signaling peptide sequence. Suitable signaling peptide sequences can include at least a portion of a ligand binding protein sequence such as high-affinity antibody fragments (e.g., Fab, Fab' and F(ab')2), single-chain Fv antibody fragments), nanobodies or nanobody fragments, fluorobodies, or aptamers. Other ligand binding proteins include biotin-binding proteins, lipid-binding proteins, periplasmic binding proteins, lectins, serum albumins, enzymes, phosphate and sulfate binding proteins, immunophilins, metallothionein, or various other receptor proteins.
[0072] Cell specific targeting of the compounds of the present invention can be achieved by targeting cell specific surface markers. For example, if the target cell is a cancer cell, the compound of the present invention may be conjugated to an anti-C3B(I) antibody as disclosed by U.S. Patent No. 6,572,856 to Taylor et al, which is hereby incorporated by reference in its entirety. Alternatively, the compound of the present invention may be conjugated to an alphafeto protein receptor, as disclosed by U.S. Patent No. 6,514,685 to Mora which is hereby incorporated by reference in its entirety, or to a monoclonal GAH antibody, as disclosed by U.S. Patent No. 5,837,845 to Hosokawa, which are hereby incorporated by reference in their entirety. For targeting to a cardiac cell, the compound of the present invention may be conjugated to an antibody recognizing elastin microfibril interfacer (EMILIN2) (Van Hoof et al., "Identification of Cell Surface for Antibody-Based Selection of Human Embryonic Stem Cell-Derived
Cardiomyocytes," J Proteom Res 9:1610-18 (2010), which is hereby incorporated by reference in its entirety), cardiac troponin I, connexin-43, or any cardiac cell-surface membrane receptor that is known in the art. For targeting to a hepatic cell, the compound of the present invention may include a ligand domain specific to the hepatocyte-specific asialoglycoprotein receptor.
[0073] In another embodiment of the present invention, the compound of the present invention comprises a tag moiety. A "tag" as used herein includes any labeling moiety that facilitates the detection, quantitation, separation, and/or purification of the compounds of the present invention. Compounds of the present invention comprising a tag are particularly suitable for diagnostic and prognostic applications as described herein. Suitable tags for separation or purification, detection, and quantitation are described in more detail below.
[0074] Tags suitable for separation and/or purification include, without limitation, a poly-histidine (His6 ) tag, a glutathione-S-transferase (GST-) tag, or a maltose-binding protein (MBP-) tag. These tags assist in compound purification or separation but can later be removed, i.e., cleaved from the compound following recovery. Protease-specific cleavage sites can be used to facilitate the removal of the purification tag. The desired compound of the present invention can be purified further by removal of the cleaved purification tag.
[0075] Tags suitable for detection and quantitation include radioactive, fluorescent, luminescent, bioluminescent, or enzymatic tags. Suitable radioactive tags or labels include, without limitation, bismuth (213Bi), carbon (14C), chromium (51Cr), gadolinium (153Gd, 159Gd), gallium (68Ga, 67Ga), germanium (68Ge), holmium (166Ho), indium (115In, 113In, 112In, U1ln), iodine (131I, 125I, 123I, 121I), lanthanium (140La), lutetium
177 54 99 103 32
( Lu), manganese ( Mn), molybdenum ( Mo), palladium ( Pd), phosphorous ( P), praseodymium (142Pr), promethium (149Pm), rhenium (186Re, 188Re), rhodium (105Rh), ruthemium ( 97 Ru), samarium ( 153 Sm), scandium ( 47 Sc), selenium ( 75 Se), strontium ( 85 Sr), sulfur (35S), technetium (99Tc), thallium (201Ti), tin (113Sn, 117Sn), tritium (3H), xenon (133Xe), ytterbium (169Yb, 175 Yb), yttrium (90Y), zinc (65Zn). Methods of radiolabeling compounds, are well known in the art, see e.g. , U.S. Patent No. 5,830,431 to Srinivasan et al., which is hereby incorporated by reference in its entirety. Radioactivity is detected and quantified using a scintillation counter or autoradiography. Suitable fluorescent tags include, without limitation, umbelliferone, fluorescein and derivatives thereof, fluorescein isothiocyanate, rhodamine and derivatives thereof, dichlorotriazinylamine fluorescein, dansyl chloride or phycoerythrin. Examples of luminescent material include, but are not limited to, luminol. Examples of bio luminescent materials include, but not limited to, luciferase, luciferin, and aequorin. The fluorescent, luminescent, and bioluminescent labels can be conjugated to the compound of the present invention using techniques disclosed in CURRENT PROTOCOLS IN IMMUNOLOGY (Coligen et al. eds., 1991), which is hereby incorporated by reference in its entirety. Fluorescence, luminescence, and bioluminescence can be detected and quantified using a fiuorometer or luminometer.
[0076] Enzymatic tags generally catalyze a chemical alteration of a chromogenic substrate which can be measured using various techniques. For example, the enzyme tag may catalyze a color change in a substrate, which can be measured
spectrophotometrically. Alternatively, the enzyme may alter the fluorescence or chemiluminescence of the substrate. Examples of suitable enzymatic tags include, without limitation, luciferases (e.g. , firefly luciferase and bacterial luciferase; see e.g. , U.S. Patent No. 4,737,456 to Weng et al, which is hereby incorporated by reference in its entirety), luciferin, 2,3-dihydrophthalazinediones, malate dehydrogenase, urease, peroxidases (e.g., horseradish peroxidase), alkaline phosphatase, β-galactosidase, glucoamylase, lysozyme, saccharide oxidases (e.g., glucose oxidase, galactose oxidase, and glucose-6-phosphate dehydrogenase), heterocyclic oxidases (e.g., uricase and xanthine oxidase), lactoperoxidase, microperoxidase, and the like.
[0077] In another embodiment of the present invention, the compounds of the present invention comprise a surface immobilization moiety. As used herein, a "surface immobilization moiety" is a moiety useful for attaching or coupling the compounds of the present invention to a solid surface, such as an array surface. Suitable surface
immobilization moieties include, but are not limited to, alkenes, alkynes, azides, thiols, and carboxylic acids.
[0078] In another embodiment of the present invention, the compounds of the present invention comprise a pharmaceutically active moiety. The pharmaceutically active moiety can be any therapeutic agent, such as, for example, a biologic therapeutic (e.g., antibody, protein or peptide therapy, nucleic acid therapy, etc.), chemotherapeutic, radioactive agent, or small molecule.
[0079] Glycans and glycoproteins are involved in a wide variety of biological and pathological processes, including inflammation, infectious disease, cardiovascular disease, and cancer. Accordingly, the cell surface expression of glycans or glycoproteins during the aforementioned pathological processes are targeting moieties that can be used to target pharmaceutically active moieties or compounds directly to the diseased tissue or cells. For example, many cell surface glycans are considered biomarkers for various cancers. Accordingly, in one embodiment, the compounds of the present invention are suitable for delivering anti-cancer therapeutics to cancer cells expressing these glycans or glycoproteins. In accordance with this embodiment of the present invention, the compounds of the present invention are coupled to a pharmaceutically active inhibitor of cancer disease progression, such as a chemotherapeutic, an anti-angiogenic therapeutic, a stromal inhibitor, a bone-marrow derived cell inhibitor, a myeloid derived suppressor cell inhibitor, or an extracellular matrix protein inhibitor.
[0080] Suitable chemotherapeutic agents for coupling to the compounds of
Formula I of the present invention include, without limitation, alkylating agents (e.g., chlorambucil, cyclophophamide, CCNU, melphalan, procarbazine, thiotepa, BCNU, and busulfan), antimetabolites (e.g., methotraxate, 6-mercaptopurine, and 5-fluorouracil), anthracyclines (e.g. , daunorubicin, doxorubicin, idarubicin, epirubicin, and
mitoxantrone), antitumor antibiotics (e.g., bleomycin, monoclonal antibodies (e.g., Alemtuzumab, Bevacizumab, Cetuximab, Gemtuzumab, Ibritumomab, Panitumumab, Rituximab, Tositumomab, and Trastuxmab), platiniums (e.g., cisplatin and oxaliplatin) or plant alkaloids (e.g., topoisomerase inhibitors, vinca alkaloids, taxanes, and
epipodophyllotoxins) .
[0081] Anti-angiogenic or anti-vasculogenic therapeutics suitable for coupling to a compound of Formula I of the present invention include, without limitation a vascular endothelial growth factor (VEGF) inhibitor, basic fibroblast growth factor (bFGF) inhibitor, vascular endothelial growth factor receptor (VEGFR) antagonist, platelet- derived growth factor receptor (PDGFR) antagonist, fibroblast growth factor receptor (FGFR) antagonist, Angiopoietin receptor (Tie-2) antagonist, epidermal growth factor receptor (EGFR, ErbB) antagonist, or any combination thereof. A number of suitable small molecule angiogenic inhibitors are known in the art and are under clinical development (see e.g., Wu et al, "Anti- Angiogenic Therapeutic Drugs for the Treatment of Human Cancer," J Cancer Molecules 4(2):37-45 (2008) and Bissell et al, "Why Don't We Get More Cancer? A Proposed Role of the Microenvironment in Restraining Cancer Progression," Nat. Med. 17(3):320-329 (2011), which are hereby incorporated by reference in their entirety). These angiogenic inhibitors include, without limitation, Endostatin (an endothelial cell proliferation and angiogenesis inhibitors), Gefitinib (an ErbB inhibitor), Lapatinib (a dual ErbBl/ErbB2 inhibitor), Erlotinib (HER1/EGFR inhibitor), Canertinib (a pan-ErbB inhibitor), Vatalanib (VEGF receptor inhibitor), Imatinib (multi-targeted inhibitor of Bcr-Abl, c-kit, and PDGF-R inhibitor), Sunitinib (multi-targeted inhibitor of VEGFR, PDGFR, Kit, Flt3, Tet and CSF1R), Sorafenib (multi-targeted inhibit of VEGFR and PDGFR), Pazopanib (a multi-targeted inhibitor of VEGFR-1, VEGFR-2, VEGFR-3, PDGF-a, PDGFR-β, and c-kit). Alternatively, the anti- vasculogenic therapeutic is a monoclonal antibody. Suitable antibody therapeutics include, without limitation, Bevacizumab (VEGF antibody), IMC- 1 C 11 (VEGFR-2 antibody), mF4-31Cl (VEGFR-3 antibody), and Vitaxin (integrin ανβ3 antibody).
[0082] Stromal inhibitors suitable for coupling to the compounds of Formula I of the present invention are known in the art (see Bissell et al., "Why Don't We Get More Cancer? A Proposed Role of the Microenvironment in Restraining Cancer Progression," Nat. Med. 17(3):320-329 (2011), which is hereby incorporated by reference in its entirety) and include, without limitation, MK-2461 (a small molecule inhibit of c-MET kinase), Anastrazole (an aromatase inhibitor), AMD070 (a CXCR4 inhibitor), IPI-926 (a hedgehog pathway inhibitor), AVE 1642 (a humanized monoclonal antibody targeting insulin-like growth factor-1 receptor), BGJ398 (a small molecule inhibitor of fibroblast growth factor receptors), Celecoxib (a COX-2 inhibitor), MK0822 (a cathepsin K inhibitor), Bortezomib (a 26S proteasome complex inhibitor), Zoledronate (a small- molecule pyrophosphate analog that inhibits the differentiation of myeloid cells and affects tumor-associated macrophages), Denosumab (a human monoclonal antibody the binds RANKL), and PG545, a heparan sulfate mimetic that inhibits heparanase activity.
[0083] Extracellular matrix protein inhibitors suitable for coupling to compounds of Formula I of the present invention include, without limitation, DX2400, an MMP-14 inhibitor, and PEGPH20, a covalently modified form of hyaluronidase which catalyzes the degradation of the extracellular matrix component hyalurona.
[0084] In another embodiment of the present invention, the compounds of the present invention are used to deliver an anti-inflammatory therapeutic to areas of inflammation. Suitable anti-inflammatory therapeutics that can be coupled to the compounds of Formula I include, without limitation, non-steroidal anti-inflammatory drugs (NSAID), analgesics, glucocorticoids, disease-modifying anti-rheumatic drugs, dihydrofolate reductase inhibitors (e.g., methotrexate), and biologic response modifiers.
[0085] Suitable NSAIDs include, without limitation, Cox -2 inhibitors (e.g., nimesulide, 4-hydroxynimesulide, flosulide, meloxicam, celecoxib, and Rofecoxib (Vioxx)), diclofenac, diflunisal, etodolac, fenoprofen, flurbiprofen, ibuprofen, indomethacin, ketoprofen, ketorolac, mefenamic acid, meloxicam, nabumetone, naproxen, oxaprozin, piroxicam, salsalate, sulindac and tolmetin.
[0086] Suitable analgesics for use in the present invention include, without limitation, acetaminophen, oxycodone, tramadol, and propoxyphene hydrochloride.
[0087] Suitable glucocorticoids for use in the present invention include, without limitation, cortisone, dexamethosone, hydrocortisone, methylpredisolone, prednisolone, and prednisone.
[0088] Suitable biological response modifiers, include B-cell inhibitors, such as
Rituximab, or a T cell activation inhibitor such as, Leflunomide, Etanercept (Enbrel), or Infliximab (Remicade).
[0089] Suitable TNFa inhibitors include, without limitation, TNF-a antibodies
(e.g., infliximab, etanercept, CytoFAb, AGT-1 , afelimomab, PassTNF, and CDP-870), a matrix metalloproteinase inhibitor, a corticosteroid (e.g., mometasone, fluticasone, ciclesonide, budesonide, beclomethasone, beconase, flunisolide, deflazacort,
betamethasone, methyl-prednisolone, dexamethasone, prednisolone, hydrocortisone, Cortisol, triamcinolone, cortisone, corticosterone, dihydroxycortisone, beclomethasone dipropionate, and prednisone), a tetracycline TNF-a antagonist (e.g., doxycycline, minocycline, oxytetracycline, tetracycline, lymecycline, and 4-hydroxy-4- dimethylaminotetracycline), a fluoroquinolone TNF-a antagonist (e.g., norfloxacin, ofloxacin, ciprofloxacin, lomefloxacin, gatifloxacin, perfloxacin, and temafloxacin), and a quinolone TNF-a antagonist (e.g., vesnarinone and amrinone).
[0090] Another aspect of the present invention relates to a pharmaceutical composition that comprises a compound of Formula I and a pharmaceutically acceptable carrier. Acceptable pharmaceutical carriers include solutions, suspensions, emulsions, excipients, powders, or stabilizers. The carrier should be suitable for the desired mode of delivery.
[0091] In addition, the pharmaceutical composition of the present invention may further comprise one or more pharmaceutically acceptable diluents, adjuvants, excipients, or vehicles, such as preserving agents, fillers, disintegrating agents, wetting agents, emulsifying agents, suspending agents, sweetening agents, flavoring agents, perfuming agents, antibacterial agents, antifungal agents, lubricating agents and dispensing agents, depending on the nature of the mode of administration and dosage forms. Examples of suspending agents include ethoxylated isostearyl alcohols, polyoxyethylene sorbitol and sorbitan esters, micro crystalline cellulose, aluminum metahydroxide, bentonite, agar— agar and tragacanth, or mixtures of these substances. Prevention of the action of microorganisms can be ensured by various antibacterial and antifungal agents, for example, parabens, chlorobutanol, phenol, sorbic acid, and the like. It may also be desirable to include isotonic agents, for example sugars, sodium chloride, and the like. Prolonged absorption of the injectable pharmaceutical form can be brought about by the use of agents delaying absorption, for example, aluminum monosterate and gelatin.
Examples of suitable carriers, diluents, solvents, or vehicles include water, ethanol, polyols, suitable mixtures thereof, vegetable oils (such as olive oil), and injectable organic esters such as ethyl oleate. Examples of excipients include lactose, milk sugar, sodium citrate, calcium carbonate, and dicalcium phosphate. Examples of disintegrating agents include starch, alginic acids, and certain complex silicates. Examples of lubricants include magnesium stearate, sodium lauryl sulphate, talc, as well as high molecular weight polyethylene glycols.
[0092] Another aspect of the present invention relates to a pharmaceutical delivery vehicle that comprises a compound of Formula I coupled to a pharmaceutically active moiety, and a pharmaceutically acceptable carrier. [0093] Another aspect of the present invention is directed to a method of administering a pharmaceutical agent to a subject. This method involves administering to the subject, a delivery vehicle comprising a compound of Formula I coupled to the pharmaceutically active moiety of the pharmaceutical agent.
[0094] In accordance with this aspect of the present invention administration of the delivery vehicle comprising a compound of Formula I coupled to a pharmaceutical agent (i.e., a pharmaceutically active moiety) is carried out under conditions effective to deliver the pharmaceutical agent to one or more specific cells, where the one or more specific cells expresses a glycan or glycoprotein to which the compound of Formula I will bind to with high specificity.
[0095] As described supra, various glycans and glycoproteins serve as cancer biomarkers because of their high level of expression on certain cancer cells. Accordingly, the compound of Formula I, which is a carbohydrate/glycan receptor compound, can target delivery of an anti-cancer agent in a cancer cell specific manner. In one
embodiment of the present invention, the glycan expressed on the cancer cell surface is a pyranose or pyranoside, e.g., mannose. Specific carbohydrates that can be targeted for anti-cancer therapy delivery through binding of the compound of Formula I of the present invention include, without limitation, galectin-1 and galectin-3 (expressed on colon cancer cells), galectin-9 (expressed on metastatic breast cancer cells), sialyl-lewisX (SLX) (expressed on pancreatic and lung cancer cells), SPan-1, TAG-72, and DU-PAN2 (expressed on pancreatic cancer cells), ST-439 (expressed on various cancer cells), carbohydrate antigen 125 (CA125) (expressed on ovarian cancer cells), CA19-9
(expressed on pancreatic, colorectal, gastric, and biliary cancer cells), CA15-3, CA27-29, and TAG 12 (expressed on breast cancer cells), and high mannose glycans (expressed on breast cancer cells). Other carbohydrate biomarkers of cancer that can be targeted for therapeutic delivery in accordance with this aspect of the invention are described in Jin et al., "Carbohydrate Recognition by Boronolectins, Small Molecules, and Lectins," Medicinal Res. Rev. 30(2): 171-257 (2010); Lorna et al., "High Mannose Glycans are Elevated during Breast Cancer Progression," Mol. Cell. Proteomics 10: 1-9 (2011); and Joo An et al, "Glycomics and Disease Markers," Curr. Opin. Chem. Biol. 13(5-6):601- 607 (2009), which are hereby incorporated by reference in their entirety.
[0096] Another aspect of the present invention is directed to a method of detecting a carbohydrate in a sample. This method involves providing a compound of Formula I, and contacting the sample with the compound of Formula I under conditions effective for binding to occur between the compound and the carbohydrate, if present in the sample. The method further involves detecting any binding between the compound and the carbohydrate, if present in the sample.
[0097] In one embodiment of this aspect of the present invention, the
carbohydrate or glycan being detected is a pyranose or pyranoside, e.g., mannose. The sample can be a serum, blood, plasma, cell, or other biological sample from a subject.
[0098] In one embodiment of this aspect of the invention, the compound of
Formula I of the present invention includes a tag (e.g., a detectable label as described supra). Accordingly, detecting binding between the compound of the present invention and the carbohydrate present in the test sample is facilitated by detection of the detectable label. Detection of the carbohydrate in the sample based on binding of a tagged synthetic receptor compound of the invention can further be quantified using methods readily known to those of skill in the art. For example, when the tag is a fluorescent tag, a fluorometer can be used to quantitate the intensity of the fluorescent signal which corresponds to the concentration of the carbohydrate in the sample. Likewise, if the tag is a radiolabel, a densitometer can be used to quantitate the amount of label on an autoradio graph which corresponds to the concentration of carbohydrate in the sample.
[0099] Another aspect of the present invention relates to a method of diagnosing, in a subject, a condition characterized by a carbohydrate biomarker. This method involves obtaining a sample from the subject and contacting the sample with a compound of Formula I of the present invention. The method further involves detecting any binding between the compound of the invention and the carbohydrate in the sample, and diagnosing the condition in the subject based on the detection.
[0100] Conditions that can be diagnosed using this method of the present invention include, without limitation, inflammatory conditions, infectious diseases, cardiovascular disease, and cancer. In one embodiment of this aspect of the present invention, the condition to be diagnosed is cancer. Cancers that can be diagnosed using this method include, without limitation, colon cancer, pancreatic cancer, lung cancer, breast cancer, gastric cancer, biliary cancer, ovarian cancer, prostate cancer, and metastatic cancer. In accordance with this embodiment, the carbohydrate detected is a pyranoside, more preferably, the pyranoside is a mannose. Specific carbohydrate biomarkers of cancer that can be detected include, without limitation, galectin-1, galectin- 3, galectin-9, SLX, SPan-1, DU-PAN2, ST-439, CA125, CA15-3, CA19-9, CA27-29, TAG72 and TAG12.
[0101] As described supra, using a tagged compound of Formula I of the present invention, the amount of carbohydrate that is present in the sample can be quantified. The relative concentration of carbohydrate that is detected can be used as a diagnostic or prognostic indicator for the cancerous condition.
[0102] Another aspect of the present invention is directed to a method of treating or preventing in a subject a condition mediated by a carbohydrate. This method involves selecting a subject having a condition mediated by a carbohydrate and administering to the selected subject a compound of Formula I under conditions effective for the compound to bind to the carbohydrate.
[0103] As discussed infra, cell surface expression of glycans and glycoproteins play a role in mediating inflammation, infectious disease, cardiovascular disease, and cancer. Accordingly, compounds of the present invention are particularly suitable for modulating these processes by acting as a therapeutic agent to block glycan or glycoprotein mediated cellular interactions and signaling that are involved in the progression of inflammation and disease. For example, many cell surface glycans are involved in mediating metastatic cancer cell spread. The use of the synthetic receptor compound of the present invention to inhibit or prevent glycan mediated cancer cell interactions will inhibit or prevent metastatic cancer progression.
[0104] In one embodiment of this aspect of the present invention the conditions is cancer, e.g., colon cancer, pancreatic cancer, lung cancer, breast cancer, gastric cancer, biliary cancer, ovarian cancer, and metastatic cancer. In accordance with this
embodiment, the glycan bound by the compound of Formula I of the present invention is a pyranose or a pyranoside, e.g., mannose.
[0105] Another aspect of the present invention is directed to methods of making compounds of Formula I. The compounds of the present invention can be synthesized via solution phase synthesis, or alternatively solid phase synthesis using the synthetic processes described below.
[0106] In one embodiment of the present invention, compounds of Formula I are prepared in accordance with Scheme 1 as shown below.
Figure imgf000035_0001
[0107] In accordance with this embodiment of the present invention, the compound of Formula I can be prepared by providing a compound of Formula IV:
Figure imgf000035_0002
(IV);
and reacting a compound of Formula IV with a reducing agent under conditions effective to produce a compound of Formula I using methods that will be apparent to one of ordinary skill in the art. Suitable reducing agents include metal hydrides, in particular, metal borohydrides, such as sodium borohydride.
[0108] The compound of Formula IV above can be prepared by providing a compound of Formula VI:
Figure imgf000036_0001
providing an aldehyde of Formula V:
Figure imgf000036_0002
and reacting the compound of Formula V with the compound of Formula VI under conditions effective to produce a compound of Formula IV using methods that will be apparent to one of ordinary skill in the art. In accordance with this synthetic process, Rls R2, R3, and R4 of the compound of Formula IV are all the same.
[0109] The compound of Formula VI above can be prepared by providing a compound of Formula VII:
Figure imgf000036_0003
and reacting a pair of the compound of Formula VII under conditions effective to form the compound according to Formula VI using methods that will be apparent to one of ordinary skill in the art.
[0110] The compound of Formula VII above can be prepared by providing a compound of Formula VIII:
Figure imgf000036_0004
and reacting the compound of Formula VIII with an azide compound under conditions effective to form the compound according to Formula VII using methods that will be apparent to one of ordinary skill in the art. Suitable azide compounds for this reaction can be selected from the group consisting of sodium azide, potassium azide, cesium azide, and trimethylammonium azide.
[0111] In another embodiment of the present invention, a compound of Formula I is prepared in accordance with Scheme 2 as shown below.
Figure imgf000037_0001
Reagents and conditions:
a) bis(pinacolato)diborane, (dppf)PdCI2, K2C03, DMF; b) VII, (dppf)PdCI2, Na2C03; c) PPh3, H20.
Scheme 2
[0112] In accordance with this embodiment of the present invention, compounds of Formula I can be prepared by providing a compound of Formula IX:
Figure imgf000037_0002
;
and reacting a compound of Formula IX with a carboxylic acid, or a reactive derivative thereof, under conditions effective to produce a compound of Formula I using methods that will be apparent to one of ordinary skill in the art. Suitable reactive derivatives of carboxylic acid that are suitable for reacting with a compound of Formula IX include, without limitation, activated esters, anhydrides, or acid halides (especially acid chlorides).
[0113] The compound of Formula IX above can be prepared by providing a compound of Formula VI:
Figure imgf000038_0001
and reacting the compound of Formula VI with a reducing agent under conditions effective to produce a compound of Formula IX using methods that will be apparent to one of ordinary skill in the art. In one embodiment of the present invention, the reducing agent is triphenylphosphine.
[0114] In another embodiment of the present invention, a compound of Formula I is prepared in accordance with Scheme 3 as shown below.
Figure imgf000038_0002
Scheme 3 In accordance with this embodiment of the present invention, compounds I can be prepared by providing a compound of Formula X:
Figure imgf000039_0001
and reacting a compound of Formula X with a carboxylic acid or a reactive derivative thereof under conditions effective to produce a compound of Formula I using methods that will be apparent to one of ordinary skill in the art. As described above, suitable reactive derivatives of carboxylic acid include without limitation activated esters, anhydrides, or acid halides (especially acid chlorides).
[0116] The compound of Formula X above can be prepared by providing a compound of Formula XI :
Figure imgf000039_0002
(xi), where PG is a protecting group of an amine, and converting PG in the compound of Formula XI to hydrogen to produce a compound of Formula X using methods that will be apparent to one of ordinary skill in the art.
[0117] The protecting group is any group that is suitable for the protection of an amine. Such protecting groups function primarily to protect or mask the reactivity of functional groups. Protecting groups that are suitable for the protection of an amine group are well known in the art, including without limitation, carbamates, amides, N-alkyl and N-aryl amines, imine derivatives, enamine derivatives, and N-hetero atom derivatives as described by THEODORA W. GREENE & PETER G.M. WUTS, PROTECTIVE GROUPS IN ORGANIC SYNTHESIS 494-615 (1999), which is hereby incorporated by reference in its entirety. Exemplary protecting groups for use in the synthetic methods of the present invention include, without limitation, fert-butyloxycarbonyl (Boc) and 9- Fluorenylmethyloxycarbonyl (Fmoc)
[0118] The compound of Formula XI above can be prepared by providing a compound of Formula XII :
Figure imgf000040_0001
providing a compound of Formula XIII:
Figure imgf000040_0002
and reacting a compound of Formula XII with compound of Formula XIII under conditions effective to form the compound according to Formula XI using methods that will be apparent to one of ordinary skill in the art.
[0119] The compound of Formula XII above can be prepared by providing a compound of Formula XIV:
Figure imgf000041_0001
and reacting the compound of Formula XIV with the reducing agent under conditions effective to produce a compound of Formula XII using methods that will be apparent to one of ordinary skill in the art. Suitable reducing agents include metal hydrides, preferably, metal borohydrides. In one embodiment of the present invention, the reducing agent is sodium borohydride.
[0120] The compound of Formula XIV above can be prepared by providing a compound of Formula XVI:
Figure imgf000041_0002
providing an aldehyde of Formula XV
Figure imgf000041_0003
and reacting the compound of Formula XVI with the compound of Formula XV under conditions effective to produce a compound of Formula XIV using methods that will be apparent to one of ordinary skill in the art.
[0121] The compound of Formula XVI above can be prepared by providing a compound of Formula XVII:
Figure imgf000041_0004
and reacting a compound of Formula XVII with a protecting group-introducing compound under conditions effective to form the compound according to Formula XVI. Suitable protecting group-introducing compounds include, without limitation, άι-tert- buthyl dicarbonate for the introduction of BOC or fluorenyloxycarbonyl chloride for introducing Fmoc.
[0122] The compound of Formula XVII above can be prepared by providing a compound of Formula VII:
Figure imgf000042_0001
and reacting a compound of Formula VII with 1 equivalent of a reducing agent under conditions effective to form the compound according to Formula XVII using methods that will be apparent to one of ordinary skill in the art. A suitable reducing agent for carrying out this reaction is triphenylphosphine.
[0123] The compound of Formula XIII can be prepared by providing a compound of Formula XVIII:
Figure imgf000042_0002
(XVIII);
and reacting the compound of Formula XVIII with the reducing agent under conditions effective to produce a compound of Formula XIII using methods that will be apparent to one of ordinary skill in the art. Suitable reducing agents include metal hydrides, preferably, metal borohydrides such as sodium borohydride.
[0124] The compound of Formula XVIII above can be prepared by providing a compound of Formula XX:
Figure imgf000042_0003
providing an aldehyde of Formula XIX:
Figure imgf000043_0001
and reacting the compound of Formula XIX with the compound of Formula XX under conditions effective to produce a compound of Formula XVIII using methods that will be apparent to one of ordinary skill in the art.
[0125] The compound of Formula XX above can be prepared by providing a compound of Formula XXI:
Figure imgf000043_0002
where PG is a protecting group of an amine, and converting PG in the compound of Formula XXI to hydrogen to produce a compound of Formula XX using methods that will be apparent to one of ordinary skill in the art. Suitable PGs include those described supra.
[0126] The compound of Formula XXI above can be prepared by providing a compound of Formula XXII:
Figure imgf000043_0003
and reacting the compound of Formula XXII with a reducing agent under conditions effective to produce a compound of Formula XXI using methods that will be apparent to one of ordinary skill in the art. Suitable reducing agents include metal hydrides, preferably, metal borohydrides such as sodium borohydride
[0127] The compound of Formula XXII can be prepared by providing a compound of Formula XVI :
Figure imgf000044_0001
providing an aldehyde of Formula V:
Figure imgf000044_0002
and reacting the compound of Formula XVI with the compound of Formula V under conditions effective to produce a compound of Formula XXII using methods that will be apparent to one of ordinary skill in the art.
[0128] In another embodiment of the present invention, a compound of Formula I is prepared in accordance with Scheme 4 as shown below.
Figure imgf000044_0003
Scheme 4
[0129] In accordance with this embodiment of the present invention, the compound of Formula I is prepared by providing a compound of Formula XXV
Figure imgf000044_0004
providing a compound of Formula XIII
Figure imgf000045_0001
and reacting the compound of Formula XXV with the compound of Formula XIII under conditions effective to produce a compound of Formula I using methods that will be apparent to one of ordinary skill in the art.
[0130] The compound of Formula XXV above can be prepared by providing a compound of Formula XXIV
Figure imgf000045_0002
providing a compound of Formula XV
Figure imgf000045_0003
and reacting the compound of Formula XXIV with the compound of Formula XV under conditions effective to produce a compound of Formula XXV using methods that will be apparent to one of ordinary skill in the art.
[0131] The compound of Formula XXIV above can be prepared by providing a compound of Formula XX
Figure imgf000045_0004
(xxiii)
where PG is a protecting group of an amine, and converting PG in the compound of Formula XXIII to hydrogen to produce a compound of Formula XXIV using methods that will be apparent to one of ordinary skill in the art. Suitable PGs include those described supra.
[0132] The compound of Formula XXIII above can be prepared by providing a compound of Formula XVI
Figure imgf000046_0001
providing a compound of Formula XXVI
Figure imgf000046_0002
and reacting the compound of Formula XVI with the compound of Formula XXVI under conditions effective to produce a compound of Formula XXIII using methods that will be apparent to one of ordinary skill in the art.
[0133] In one embodiment of the present invention, the compound of Formula
XXIII is produced using click chemistry. Click chemistry techniques are well known in the art as described by Kolb et al, Angew. Chem, Int. Ed. 40:2004-2021 (2001); Kolb et al, Drug Discovery Today 8: 1128-1137 (2003); Rostovtsev et al, Angew. Chem, Int. Ed. 41 :2596-2599 (2002); Tomoe et al, J. Organic Chem. 67:3057-3064 (2002); Wang et al, J. Amer. Chem. Soc. 125:3192-3193 (2003); Lee et al, J. Amer. Chem. Soc.
125:9588-9589 (2003); Lewis et al.,. Angew. Chem., Int. Ed. 41 :1053-1057 (2002);
Manetsch et al, J. Amer. Chem. Soc 126:12809-12818 (2004); Mocharla et al, Angew. Chem. Int. Ed. 44:116-120 (2005), which are hereby incorporated by reference in their entirety). Although a number of click chemistry functional groups can be utilized, such as those described in the above references, the use of cycloaddition reactions is preferred, particularly the reaction of azides with alkynyl groups. In the presence of Cu(I) salts, terminal alkynes and azides undergo 1,3-dipolar cycloaddition forming 1,4-disubstituted 1,2,3-triazoles. In the presence of Ru(II) salts, terminal alkynes and azides undergo
1,3-dipolar cycloaddition forming 1,5-disubstituted 1,2,3-triazoles (Fokin et al, Organic Letters 127:15998-15999 (2005), which is hereby incorporated by reference in its entirety). Alternatively, a 1,5-disubstituted 1,2,3-triazole can be formed using azide and alkynyl reagents (Krasinski et al, Organic Letters 6(8): 1237-1240 (2004), which is hereby incorporated by reference in its entirety). Hetero-Diels-Alder reactions or 1,3-dipolar cycloaddition reactions can also be used (Jorgensen KA, Angew. Chem. Int. Ed. 39:3558-3588 (2000); Tietze et al, Top. Curr. Chem. 189: 1-120 (1997), which are hereby incorporated by reference in their entirety).
EXAMPLES
[0134] The following examples are provided to illustrate embodiments of the present invention but they are by no means intended to limit its scope. Material and Methods for Examples 1-5
[0135] General synthetic methods: All solvents were dried using a Pure Solv
MD-6 solvent purification system. All reagents and starting materials were purchased from commercial sources and used without further purification unless otherwise noted. Aqueous solutions were prepared from nanopure water purified from a Milli-Q plus system (Millipore Co.), with a resistivity over 18 ΜΩ cm-1. Chromatography purifications were performed using Sorbent Technologies Silica Gel (60 A, 65 x 250 mesh). Thin-layer chromatography (TLC) was carried out using aluminum sheets precoated with silica gel 60 (EMD 40-60 mm, 230-400 mesh with 254 nm dye). TLC plates were visualized by UV-light and stained using a /?-anisaldehyde or
phosphomolybdic acid solution if required. All reactions were carried out under an inert atmosphere of nitrogen using standard Schlenk techniques unless otherwise noted.
Compound 2 (Rukavishnikov et al, Tet. Lett. 40:6353-56 (1999), which is hereby incorporated by reference in its entirety), octyl a-D-mannopyranoside (Polakova et al., Carb. Res. 345: 1339-1347 (2010), which is hereby incorporated by reference in its entirety), and a-D-N-acetylglucosaminopyranoside (Aguilera et al, J. Med. Chem. 41 : 4599-4606 (1998), which is hereby incorporated by reference in its entirety) were synthesized according to published literature procedures. Deuterated solvents were purchased from Cambridge Isotope Laboratories Inc. and used as received. NMR spectra were obtained on either a Bruker AVANCE 400 and 500 MHz spectrometers. All chemical shifts are reported in δ units using the solvent residual signal as an internal standard and the coupling constant values (J) are reported in Hertz (Hz). The following abbreviations are used for signal multiplicities: s, singlet; d, doublet; t, triplet; q, quartet; m, multiplet; and br, broad. Electrospray Ionization Mass Spectroscopy (ESI-MS) spectra were acquired on an Agilent LC/MSD Trap XCT system. High-resolution mass spectral analyses were carried out on an Agilent 6200 LC/MSD TOF System.
[0136] Synthesis of l,3-Bis(azidomethyl)-5-iodobenzene (Compound 3 of Scheme 5). Compound 2 (1.0 g, 2.6 mmol), DMF (50 mL) and sodium azide (834 mg, 12.8 mmol) were added to a round-bottom flask, and the mixture was heated to 110°C under N2. After 16 h, the solution was cooled to room temperature, diluted with 50 mL of CH2CI2, and stirred for an additional 2 h. The resulting mixture was filtered, and the filtrate was concentrated under reduced pressure. The resulting residue was purified by column chromatography (Si02, Hexanes) to provide 3 (701 mg, 84%) as a viscous orange oil. 1H NMR (400 MHz, CDCI3) δ = 7.65 (s, 2H), 7.24 (s, 1H), 4.33 (s, 4H). 13C NMR (100 MHz, CDCI3) δ = 138.15, 136.56, 126.69, 94.75, 53.55. HRMS (ESI): m/zcalcd for C8H8IN4 [ +H-N2]+ 286.9794, Found: 286.9800. NMR and high-resolution mass spectroscopy (HRMS) data is shown in Figures lOA-lOC.
[0137] Synthesis of 3,3',5,5'-tetrakis(azidomethyl)-l,l'-biphenyl (Compound
4 of Scheme 5). A solution of (dppf)PdCl2 (650 mg, 0.89 mmol), bis-pinacolatoboron (2.50 g, 9.8 mmol), K2C03 (2.40 g, 25.0 mmol), DMF (180 mL), and 3 (2.8 g, 8.9 mmol) were heated to 80°C under N2 and stirred for 5 h. Subsequently, DMF (60 mL), 3 (2.81 g, 8.9 mmol), (dppf)PdCl2 (350 mg, 0.48 mmol), and Na2C03 (26.3 mL, 2.0 M aq.) were added to the solution. The reaction mixture was stirred at 80°C for 16 h, after which the mixture was diluted with water and EtOAc (60 mL 1 : 1), and extracted with EtOAc (3 x 30 mL). The organic fractions were combined, washed with brine (50 mL), dried over anhydrous MgS04, concentrated under reduced pressure, and purified by column chromatography (Si02, 1 :4 EtOAc:hexanes) to yield 4 (3.16 g, 95%) as a pink oil.
1H NMR (400 MHz, CDC13) δ = 7.50 (s, 4H), 7.30 (s, 2H), 4.46 (s, 8H). 13C NMR
(100 MHz, CDC13) δ = 141.46, 136.97, 127.00, 126.77, 54.46. HRMS (ESI): m/zcalcd for CieHisNio [ +H-N2] 347.1481, Found: 347.1476. NMR and high-resolution mass spectroscopy (HRMS) data is shown in Figures 11 A-l 1C.
[0138] Synthesis of /V,/V',/V",/V"'-([l,l'-biphenyl]-3,3',5,5'- tetrayltetrakis(methylene))tetrakis (l-(lH-pyrrol-2-yl)methanamine) (Compound 1 of Scheme 5). Compound 4 (0.500 g, 1.34 mmol), PhMe (30 mL) and PPh3 (1.47 g, 5.6 mmol) were heated to 90°C and stirred for 1 h before the addition of lH-pyrrole-2- carbaldehyde (530 mg, 5.6 mmol). The reaction mixture was stirred for 12 h at 90°C, cooled to room temperature and concentrated under reduced pressure. The resulting residue was dissolved in MeOH (30 mL) and NaBH4 (304 mg, 8.04 mmol) was added to the solution over 20 min at room temperature. After stirring for 1 h, the reaction mixture was poured into water/brine (30 mL 1 : 1) and extracted with CH2CI2 (4 x 70 mL). The organic fractions were combined, dried over anhydrous MgS04, concentrated under reduced pressure and purified by column chromatography (S1O2, 9:1 : 1
CH2Cl2:MeOH:NH3(Conc)) to provide 1 (625 mg, 80%) as a yellow solid. 1H NMR (CDC13, 400 MHz) δ = 8.73 ( s, 4H, br), 7.42 (s, 4H), 7.26 (s, 2H), 6.74 (s, 4H), 6.14 (d, 4H), 6.06 (d, 4H), 3.84 (s, 16H, br), 1.68 ppm (s, 4H, br). 13C NMR (DMSO-D6, 100 MHz) δ = 141.61 (CH), 140.66 (CH), 131.07 (CH), 127.27 (CH), 125.17 (CH), 117.14 (CH), 107.40 (CH), 106.22 (CH), 79.45 (CH2), 52.73 (CH2) ppm. HRMS (ESI): m/zcalcd for C36H43N8 [M+U]+ 587.3532, Found: 587.3638. NMR and high-resolution mass spectroscopy (HRMS) data is shown in Figures 12A-12D.
[0139] 1H NMR titrations. 1H NMR titrations were performed in CDC13 at a field strength of either 500, 800, or 900 MHz at 25, 20, 15, 10, or 5°C. The 1H NMR resonances corresponding to both pyranoside and host were assigned through 1H-1H COSY and NOESY experiments. The experimental temperatures were verified through calibration with a 100% methanol standard (Ammann et al., J. Magn. Reson. 46:319-321 (1982), which is hereby incorporated by reference in its entirety). 1H NMR dilution experiments to determine Knmei at all temperatures were accomplished through the incremental addition of a 62.5 mM solution of 1 to neat CDC13. ^dimer values at 25, 20, 15, 10, and 5°C were determined to be 13.0, 15.3, 16.9, 20.8, and 24.2 ± 0.5 M"1 respectively.
[0140] The equilibria involved in a CDC13 mixture of β-Man and 1 are Knmei, K\, K2, and K3, which are expressed by the following relationships:
Figure imgf000049_0001
[HG2;
(3) [H2G]
[HG][H3 (4)
[0141] Likewise, mass balance equations relating the known total concentrations of 1 ([H]t) and pyranoside ([G]t) with their corresponding equilibrium concentrations can be derived:
[¾4Η1+2[Β^+[ΗΟ]+[Η02]÷2¾01 (5)
[G]; =[GMHG]+2[HG2 ]+[H2G] (6)
[0142] Combining equations (1) through (6) yields the following relationships:
[e]E= I+2 ^iH ÷ JHI[ ]^^ 7)
Figure imgf000050_0001
[0143] Combining equations (7) and (8) yields equation (9), which can be solved for [G] to give equation (10):
Figure imgf000050_0002
[0144] Combining equations (8) and (10) gives polynomial equation (11), which, when subjected to the boundary conditions specified by equations (7) and (8), can be solved iteratively to obtain the equilibrium concentration of free host for any value of
[H] t, [G],, dmier, ^i, ^2, and 3.
( 61^ Α¾Β¾ + KA% [G]s + ¾¾[Hl 5¾¾G¾ -Kf -
2JT,Q.[Hf + (-8 + 4 J¾[G¾ + x; [Blt-Af f G + ΙΚ,Κ,ΙΕΙ ÷2£5¾01
2A'>fiaJEHf•*-{-4&Ci[GUHlt +4A¾[Hf + A'^Gf + A G], +3#HHBL (11)
[0145] By following a similar protocol, models can be derived for other sets of e uilibria, including K\ and K2 (Equation (12)) and dimer, K\, and T3 (Equation (13)).
Figure imgf000050_0003
(12) + irfi[G]r.¾eil) H]-[H| (13)
[0146] The addition of 1 to a CDCI3 pyranoside solution or vice versa resulted in the perturbation of the chemical shifts (δ) corresponding to resonances of both 1 and pyranoside. This is the result of an exchange process involving 1 (H) and pyranoside (G) equilibria products exchanging fast on the NMR timescale, resulting in the averaging of chemical shifts of protons in differing chemical environments. Accordingly, equilibrium constants, ΚΆ, can be quantified by first defining a model that includes the correct set of equilibria {see equations 12 and 13 above), calculating the hypothetical concentrations of equilibrium species and the corresponding chemical shifts, and finally fitting the resulting data to the experimental results (Thordarson, Chem. Soc. Rev. 40: 1305-1323 (2011), which is hereby incorporated by reference in its entirety). Theoretical chemical shifts for 1 (H) and pyranoside (G) were calculated with Eq. 14 and Eq. 15.
[H]gH + 2[H2 ]gH2 + [HG] HG + [HG2 ] HG2 + 2[H2G]gH20
[H]t (14)
_ [G]5G + [HG]£HG + 2[HG 2 ]£HG2 + [H2G]gH20
guest r r^ η
[G]< (15)
[0147] Fittings were conducted in Microsoft Excel 2007 using the Solver feature.
All observable H and G peaks were simultaneously fitted by minimizing the total sum of squared residuals (SSR, Eq. 4), where w\ are the weights assigned to each resonance, using the binding constants ( -dimer, K\, K2, K3) and the individual chemical shifts (5H,
Figure imgf000051_0001
as fitting parameters.
SSR - X calc \ 2
j (16)
i
[0148] The binding constant describing the dimerization process, K&me was determined through 1H NMR dilution experiments and was held constant throughout the fitting process. β-GlcNAc binding constants at 10 and 5° C could not be determined due to significant signal broadening.
[0149] Molecular modeling. Initial structures for receptor 1 with β-Man were determined with distance constraints according to the experimental NMR data using the Maestro software package from Schrodinger, LLC (New York, NY). All minimizations used the AMBER* force field (Case et al, J. Comput. Chem. 26:1668-1697 (2005), which is hereby incorporated by reference in its entirety) with conjugate gradients and a dielectric constant of 4.8 Debyes with extended cutoff to treat remote interactions. A maximum number of 5000 iterations using the PRCG method and a convergence threshold of 0.05 were used. For the conformational searches, a Monte-Carlo mixed torsional/low-mode sampling method (Kolossvary & Guida, J. Comput. Chem. 20:1671- 1684 (1999), which is hereby incorporated by reference in its entirety) was used with a maximum number of 3000 steps, 100 steps per rotatable bond, 50.0 kj mol"1 energy window, and a distance of 3.0 - 6.0 A for low-mode movements. The initial results found through such minimizations were used as input for further conformational searches. The conformational search protocol yielded only one l :P-Man conformer, which was further optimized with density functional theory (B3LYP/6-31G+(d)) using Gaussian 09. Example 1 - Carbohydrate Receptor Synthesis
[0150] Receptor 1 was prepared in a five step synthetic sequence from 1,3- bis(bromomethyl)-5-iodobenzene 2 in a 64% overall yield (Scheme 5). After substitution to provide diazide 3, a one-pot Suzuki coupling of two equivalents of 3 yielded tetra- azide 4. An aza-Wittig reaction between 4 and lH-pyrrole-2-carbaldehyde furnished tetra-imine 5, which finally produced receptor 1 upon reductive amination with NaBH4.
1 13
The reactions were characterized by H NMR, C NMR, and high resolution mass spectrometry, and all spectra were consistent with the proposed structures (see Figures 10-12).
Figure imgf000052_0001
Scheme 5
Reagents and conditions: a) NaN3, DMF, 84%; b) bis(pinacolato)diborane, (dppfjPdC^, K2CO3, DMF; c) 3, (dppf)PdCl2, Na2C03, 95%, two steps; d) lH-pyrrole-2-carbaldehyde, PPh3, C6H6; e) NaBH4, MeOH, 80%, two steps. Example 2 - Pyranoside Binding
[0151] The binding affinity and selectivity of 1 for eight octylpyranosides
(Figure 1), which were chosen as guests, because they are common terminal residues found on cell surface glycol-conjugates and are used as standards for assaying synthetic receptor selectivity (ESSENTIALS OF GLYCOBIOLOGY (Ajit Varki et al. eds., Cold Spring Harbor Laboratory Press 1999); Werz et al, ACS Chem. Biol. 2:685-691 (2007), which are hereby incorporated by reference in their entirety), were investigated by variable temperature 1H NMR titrations in CDCI3. Chloroform facilitates the binding studies of new carbohydrate receptors (Davis & Wareham, Angew. Chem. Int. Ed. 38:2978-2996 (1999); Mazik, RSC Adv. 2:2630-2642 (2012); Mazik, Chem. Soc. Rev. 38:935-956
(2009); Jin et al, Med. Res. Rev. 30: 171-257 (2010), which are hereby incorporated by reference in their entirety) because the solvent does not compete for hydrogen bonding between host and guest, thereby enhancing polar noncovalent bonds. These titrations revealed that the selectivity of 1 for octylmannosides arises through a cooperative, multistep equilibrium (Figure 2). In solution, 1 exists as a dimer, 12, that comes apart to form 1 : 1 complexes with the eight pyranosides with little selectivity. Upon altering the 1 :pyranoside ratio from 1 : 1, two new mannoside-selective binding modes emerge that are both the result of positive cooperativity at 25°C. When the concentration of mannoside is increased, 1 :2 receptor:pyranoside complexes form only with a-Man (l:a-Man2) and β-Man (l:P-Man2). If instead, the concentration of 1 increases with respect to pyranoside, a 2: 1 receptor:monosaccharide complex forms only with β-Man (l2:P-Man). To understand the origin of the preferential binding of mannosides by 1, these binding stoichiometries and the structures of l2:P-Man,l:a-Man2,and l:P-Man2 were established through a variety of ID and 2D NMR methods, and all values of K\, K2, K , AH° and AS° were determined for each of these equilibria (see Figures 15-32).
Example 3 - 1:2 ReceptorrPyranoside Binding
[0152] The quantification of Kdimei, K\, K2, and K3 from a single 1H NMR titration experiment under the fast exchange regime is possible by fitting the chemical shift changes, Αδ, but the large number of fitting parameters often results in multiple points of convergence (Thordarson, Chem. Soc. Rev. 40: 1305-1323 (2011), which is hereby incorporated by reference in its entirety). Thus, the binding of pyranosides was first studied under conditions where receptor 1 was maintained at a low concentration
(<70 μΜ) to minimize the contribution of the ^dimer and ^equilibria (Figure 2). Once the values of K\ and Ki were determined, their values were held invariant in subsequent peak shift fittings, which facilitated the quantification of the other Kas. The incremental addition of a 10-12 mM solution of each of the eight octylpyranoside to a dilute solution of 1 (58.6 μΜ) induced changes in the 1H NMR chemical shifts corresponding to the protons of 1, owing to a fast exchange between bound and unbound substrates on the NMR timescale (Figure 3 A and Figures 15A-15K). Notably, the change of mannoside proton chemical shifts, Αδ, was significantly greater than the other pyranosides, suggesting that the overall binding free energy, AG°, was greater for mannosides than other pyranosides (Figure 3B and Figure 16). When the observed chemical shifts were plotted against the molar equivalents of pyranoside (Figure 3C), the observed
perturbations for the mannoside protons follow a sigmoidal pattern, indicating that multiple equilibria in addition to 1 : 1 complexation are occurring in the titration (Wilcox et al, J. Am. Chem. Soc. 114: 10189-10197 (1992), which is hereby incorporated by reference in its entirety). The titration induced peak shifts occurring upon addition of both anomers of glucose (α/β-Glc), galactose (α/β-Gal), and N-acetylglucosamine (α/β-GlcNAc) produced no such sigmoidal curve and instead follow the hyperbolic shape of a 1 : 1 binding isotherm (Figure 3B; see also Figures 17-30) (KENNETH A. CONNORS, BINDING CONSTANTS : THE MEASUREMENT OF MOLECULAR COMPLEX STABILITY (John Wiley & Sons, Inc. 1987), which is hereby incorporated by reference in its entirety). Since the concentration of pyranosides was intentionally kept low, the saturation region of the binding isotherm was only reached for the mannosides (Figure 3C), thus K\ could not be determined for the other pyranosides from these experiments, although these values were obtained by titrating 1 into solutions of pyranoside as described below.
[0153] The chemical shift changes that occur because of the interaction of 1 with a- and β-Man were subjected to a global nonlinear fitting analysis with a model incorporating ^dimer, K\, and Ki, and satisfactory fits to the ASs were obtained to provide macroscopic ATas indicating the presence of 1 :2 receptor:mannoside complexes l:a-Man2 and 1^-Man2 (Figure 3C and Figures 24A-24E). For an allosteric receptor possessing two equivalent binding sites, the experimentally measured ATas must be corrected for the existence of two identical 1 : 1 intermediates to obtain microscopic association constants that accurately describe the association of each binding site (Connors et al., J. Org. Chem. 53:2023-2026 (1988); Hunter & Anderson, Angew. Chem. Int. Ed. 48:7488-7499 (2009); Ercolani & Schiaffmo, Angew. Chem. Int. Ed. 50: 1762-1768 (2011), which are hereby incorporated by reference in their entirety). Since there are two identical pathways by which α/β-Man can associate with 1 to form a 1 : 1 complex, the macroscopic Ka for the first association process was divided by 2 to obtain microscopic association constant K\. Likewise, as there are two identical pathways for dissociation in l:Man2, the macroscopic Ka for the second association process was multiplied by 2 to obtain microscopic association constant K2 (Table 1). The interaction parameter, a, is the ratio of a microscopic Ka in the cooperativity, or reference Ka, and is a quantitative measure of cooperativity (Connors et al, J. Org. Chem. 53:2023-2026 (1988); Hunter & Anderson, Angew. Chem. Int. Ed. 48:7488-7499 (2009); Ercolani & Schiaffmo, Angew. Chem. Int. Ed. 50:1762-1768 (2011), which are hereby incorporated by reference in their entirety). Since both binding sites are identical, the reference Ka is equivalent to K\ and thus a = K2 I K\. An a value greater than 1 indicates that the first association event enhances the second, i.e. positive cooperativity (Connors et al, J. Org. Chem. 53:2023-2026 (1988); Hunter & Anderson, Angew. Chem. Int. Ed. 48:7488-7499 (2009); Ercolani & Schiaffmo, Angew. Chem. Int. Ed. 50: 1762-1768 (2011), which are hereby incorporated by reference in their entirety). Likewise, the binding is negatively cooperative if a is less than 1, and the binding is non-cooperative if a is equal to 1. From an analysis of the microscopic Kas, a-Man and β-Man were both found to possess a values of 13.7 and 7.6, respectively, with receptor 1, indicating a high degree of positive cooperativity occurs between 1 and both mannosides (Table 1).
Table 1 Binding constants (K^s, 25°C) and thermodynamic parameters (AH°, AS°) associated with the 1 : 1 (upper value), 1 :2 (middle value), and 2: 1 (lower value) l :pyranoside binding determined by NMR titrations and the intrinsic median binding concentration BC5o° calculated from KdimeT, Ki, K2, and K3 for each pyranoside interacting with 1 in CDCI3 at 25°C.
Glycoside Log ^ AH° AS°
(kcal mol"1) (e.u.)
a-Glc 2. ,75 ± 0. ,04 -12.5 ± 0.3 -29 ± 1
a - - 1.86 ± 0.16
a
β-Glc 3. .16 ± 0. ,01 -16.5 ± 0.1 -41 ± 1
a - - 0.70 ± 0.02
0, .39b -6.6 ± 0.4 -21 ± 1
a-Man 2. ,57 ± 0. , 19 c c
3. ,71 ± 0. , 10 c c 0.46 ± 0.05
a
β-Man 2. ,46 ± 0. ,31 -20.5 ± 0.8 -57 ± 3
3. ,34 ± 0. , 1 1 -20.2 ± 1.2 -52 ± 4 0.73 ± 0.10
2. ,45 ± 0. ,09 -1 1.0 ± 0.4 -26 ± 2
a-Gal 2. , 18 ± 0. ,02 -13.1 ± 0.5 -34 ± 2
a - - 7.74 ± 0.31
a
β-Gal 2. ,59 ± 0. ,03 -15.4 ± 0.8 -40 ± 3
a - - 2.74 ± 0.18
a
a-GlcNAc 2. ,53 ± 0. ,02 -1 1.4 ± 0.2 -26 ± 1
a - - 3.18 ± 0.14
a
β-GlcNAc 2. ,65 ± 0. ,05 -1 1.8 ± 0.5 -27 ± 4
a - - 2.37 ± 0.26
a
[0154] The thermodynamic origin of this positive allosteric cooperativity in the formation of 1^-Man2 was investigated by determining AH° and AS° associated with each binding step. The 1H NMR titrations between 1 and β-Man were repeated at 20, 15, and 10°C, and K\ and K2 values for each temperature were obtained and subjected to Van't Hoff analyses (Figure 32D) to provide the thermodynamic parameters associated with each binding event. Notably, the AH°s of association for the first and second binding step are identical, -20.5 ± 0.8 and -20.2 ± 1.2 kcal mol"1 respectively, suggesting that both equivalents of β-Man bind 1 with an identical number of noncovalent interactions and that the mannosides do not interact with each other when bound to 1. A comparison of the corresponding AS° values indicates a decrease in the unfavorable AS° occurs in the second binding step compared to the first, -52 ± 4 and -57 ± 3 e.u. respectively (Figure 32D). [0155] The geometries of Ιιβ-Man and 1^-Man2 were determined by ID and 2D
1H NMR and computational modeling to understand the structural origin of the cooperative binding. The 1H NMR spectrum of a solution of 1 (1 mM) and β-Man (2 mM) in CDCI3 exhibits averaged signals for all protons at 25°C because of a fast exchange of the signals corresponding to 1, β-Man, 1^-Man2,and l^-Man. Upon cooling, the 1H NMR resonances corresponding to 1, except Hb, decoalesce into two sets of peaks at -40°C (Figure 4), indicating a partial desymmetrization occurring with receptor 1. No decoalescence was observed for the resonances corresponding to β-Man signals upon cooling the solution (Figure 4), suggesting that both equivalents of β-Man occupy identical chemical environments in the 1^-Man2 complex. In the absence of β-Man (Figure 13), the signals corresponding to 1 in the 1H NMR spectrum do not decoalesce at low temperature, but rather are β-Man. A comparison of the 1H NMR spectra at -63°C with varying ratios of Ιιβ-Man revealed that the broad signals corresponding to free 1 disappear when more than two molar equivalents of β-Man are present in solution, further confirming the 1 :2 stoichiometry of the complex (Figure 14). The 1H NMR spectrum at -63°C (1.0 mM 1, 2.0 mM β-Man, CDCI3) is useful for determining the structure of 1^-Man2 (Figure 4). Two sets of signals are observed for the receptor and only one for the mannoside, indicating that both pyranosides are bound to two aminopyrrolitic arms of 1 and are symmetrically equivalent, resulting in a complex that exhibits C2 symmetry. A configuration where each mannose binds to two
aminopyrrolitic arms on the same aromatic ring would render both Hb protons of receptor 1 symmetrically equivalent, which is consistent with the lack of decoalescence of the Hb peak in 1^-Man2. The two amine protons, He and He , shift considerably downfield to 9.1 and 7.9 ppm (Figure 4), indicating that both protons are involved in H-bonding (Friebolin, Basic One- and Two-Dimensional NMR Spectroscopy (Wiley- VCH, 4th ed. 2005), which is hereby incorporated by reference in its entirety). Likewise, the large complexation-induced shift (CIS) of H4 from 3.7 to 1.2 ppm is consistent with a C-H "π interaction between H4 and a phenyl ring of 1. Finally, the 1H-1H ROESY spectrum of the mixture revealed a through-space correlation between the octyl chain (presumably H9) and pyrrole proton HJ , (Figures 24, 25, and 35) which confirms that the octyl chain of β-Man is within close proximity to one of the aminopyrrolitic arms of 1.
[0156] With NMR providing a general understanding of how β-Man sits within 1, a molecular mechanics (AMBER*) (Case et al., J. Comput. Chem. 26: 1668-1697 (2005), which is hereby incorporated by reference in its entirety) Monte Carlo conformational search was utilized to model the binding geometry of the l:P-Man complex. The identical values of AH° that were determined for each binding step and the C2 symmetry observed in the 1H NMR spectrum of the l:P-Man2 complex indicate that the mannosides occupy identical binding sites on the receptor. Proton H4 was constrained to be within close proximity of the biphenyl ring system in accordance with the experimentally observed C-H π interaction, and the octyl chain was positioned near one arm of 1 with a restricted distance of 2 - 4 A between H9 and Ff as dictated by the observed NOE between these two protons. The conformational searches yielded only one minimum energy structure for l:P-Man, which was further optimized using density functional theory (B3LYP/6-31G+(d)). The resulting calculated structure (Figure 5 A) is in excellent agreement with the experimental ID 1H NMR data because all polar hydrogens shifted significantly downfield (Hk, Hk , He, He , and OH2) participate in H-bonds, and a C-H π interaction is present between H4 and a phenyl ring of 1. Likewise, the protons of the hydroxyl groups bound to the C3, C4, and C6 of β-Man do not participate in H-bonding in the calculated structure, and the corresponding peaks are observed in the 1H NMR region typical for hydroxyl protons not participating in H-bonding (2.4 - 2.8 ppm).
[0157] Computational methods were employed to understand the source of cooperativity in receptor 1 by examining the dihedral about the biphenyl bond (φ, Figure 5B/C) as this is the only dynamic element of the receptor that is shared by both binding sites. While desolvation contributes significantly to AS°, it is not a source of
cooperativity as both binding sites and mannosides are solvated identically. Previously, both restricted bond rotations (Wakabayashi et al., Angew. Chem. Int. Ed. 48:6667-6670 (2009); Ayabe et al, Angew. Chem. Int. Ed. 41 :2790-2792 (2002); Raker & Glass, J. Org. Chem. 67:6113-6116 (2002), which are hereby incorporated by reference in their entirety) and induced torsional strain (Ercolani, Org. Lett. 7:803-805 (2005), which is hereby incorporated by reference in its entirety) have been cited as a source of positive cooperativity in a system where rotation must be halted to bind two equivalents of a substrate. A comparison of the DFT (B3LYP/6-3 lG+(d)) minimized structures corresponding to 1, l:P-Man, and l:P-Man2 revealed φ values of 40.2°, 38.5°, and 39.1° respectively, indicating that the contribution of torsional strain towards the observed cooperativity is negligible because φ in the bound state is close to the preferred φ of unbound 1. More likely, the presence of a bound β-Man restricts the rotation about φ and incurs an entropic penalty that is only paid in the first association.
Example 4 - 1:1 and 2:1 ReceptonPyranoside Binding
[0158] The K\ and Ks of the binding of 1 to pyranosides (Figure 2) were determined by titrating a solution of 1 (53.0 - 62.5 mM) into a 1.0 mM CDCI3 solution of each octyl glycoside (Figure 1) until a large excess of 1 was reached. Addition of 1 produced considerable changes in the 1H NMR resonances of the receptor and all eight pyranosides (Figure 6A and Figures 15A-15K). For each non-mannoside, K\ was determined by subjecting all resolvable resonances from each titration at 25°C to a global nonlinear fitting analysis with a model combining K\ and (13.0 ± 0.5 M"1), which was measured independently by 1H NMR dilution experiments (Table 1). Likewise, when the observed upfield chemical shift changes associated with a-Man were fit to a model incorporating K&mei and the previously determined values of K\ and K2, excellent fits for the peak shifts were obtained (Table 1). However, the peak shifts for the β-Man titration could only be fit accurately when the formation of a complex consisting of two molecules of 1 and one molecule of β-Man (12^-Man, Figure 2) was considered (Figure 6B). The observed ASs were fit to a model consisting of dimer, K\, K2, and K3, with every binding constant except K3 held invariant, to determine K3 for β-Man. The values of log K\ for binding between 1 and all pyranosides range from 2.5 to 3.3 with the highest values associated with a- and β-Man and β-Glc (Table 1). Importantly, little difference exists between the K\s for the eight pyranosides, indicating that little selectivity occurs in the first binding event. In contrast to the modest selectivity found in K\, 2: 1 binding is only observed for β-Man at 25°C (K3 = 282 M"1), although a value of K3 = 3 M"1 for β-Glc can be extrapolated from a Van't Hoff plot (Figure 32B). Interestingly, a second receptor association does not occur with a-Man suggesting that the octyl chain at the anomeric position, which would be orientated away from the biphenyl base of 1 in 1: -Man (Figure 5A), interferes with the association of a second receptor.
[0159] The cooperativity that facilitates the formation of 12^-Man can also be understood through the interaction parameter, a, which is the ratio between the values of K3 in the presence and in the absence of cooperativity, the latter being the reference Ka (Connors et al, J. Org. Chem. 53:2023-2026 (1988); Hunter & Anderson, Angew. Chem. Int. Ed. 48:7488-7499 (2009); Ercolani & Schiaffmo, Angew. Chem. Int. Ed. 50:1762- 1768 (2011), which are hereby incorporated by reference in their entirety). Since the two faces of β-Man are inequivalent, the two receptors do not bind to identical sites, thus K\ is not an appropriate reference Ka. Rather, since K3 describes the binding of the β-face (Rose et al, Proc. Nat'l. Acad. Sci. U.S.A. 77:2439-3441 (1980), which is hereby
1 3 5 incorporated by reference in its entirety) of β-Man, which contains H , H , and H , in the presence of a receptor bound to the a- face, which contains H4, the reference Ka would describe the receptor binding to the β-face in the absence of a receptor bound to the a- face. From the -63°C 1H-1H ROESY spectrum of 1^-Man2, there are no observable NOEs between the pyranoside protons on the β-face and the biphenyl base of receptor 1 (Figure 33) . Likewise, a ROESY spectrum performed at conditions that would produce significant quantities of the 1 : 1 l^-Man complex (0.5 mM 1, 1.0 mM β-Man, 25°C) revealed only a NOE between H4 of the a-face and Ha (Figure 34). Under these experimental conditions, a 1 : 1 binding event between 1 and the β-face does not occur to any appreciable extent, so an approximate baseline value of Ka < 104 M"1 was obtained. (The detection limit of the NMR instrument used is roughly 10 nmol, which corresponds to a concentration of 0.02 mM. Using the derived equilibrium constants, the concentration of 1 ^-Man was determined to be 0.11 mM under the experimental conditions. Since no NOEs are observed on the β-face of β-Man, the concentration of the receptor bound to this face is at or below the detection limit. Under the experimental conditions, a 1 : 1 complex at 0.02 mM would result from an equilibrium constant of 104 mM"1). Thus, an estimated > 282 M"1 is evidence for positive cooperativity in with β-Man, with a corresponding a of at least 2.7.
[0160] To determine why K3 occurs exclusively with β-Man at room temperature,
AH° and AS° of association for each binding event between 1 and all pyranosides were obtained by repeating the 1H NMR titrations at 20, 15, 10, and 5°C and subjecting the resulting Kas to van't Hoff analyses (Table 1 and Figures 32A-32D). All
monosaccharides fit satisfactorily to a Kdimei + K\ model at all temperatures, except for β-Man at all temperatures and β-Glc, at 15, 10, and 5°C, which required inclusion of the 2: 1 receptor :pyranoside equilibrium ( ¾ to achieve satisfactory fits to the titration data (Figures 32A-32D). When comparing the thermodynamic parameters for the formation of each 1 : 1 complex, a decrease in AH° occurs with a decrease in magnitude of AS°, which can be rationalized within the context of enthalpy-entropy compensation (Liu & Guo, Chem. Rev. 101 :673-695 (2001), which is hereby incorporated by reference in its entirety). Notably, the two β-monosaccharides with the highest 1 : 1 binding enthalpies, β-Man and β-Glc, are the only pyranosides that participate in K^. The large difference in AH° between Ιιβ-Man and l^-Glc, -20.5 and -16.5 kcal mol"1 respectively, suggests that the high selectivity in K3 for β-Man is the result of 1 forming more noncovalent contacts with β-Man than with β-Glc, resulting in a more preorganized 1 : 1 complex. The AH°s for the formation of Ι^β-Glc and Ι^β-Man, -6.6 and -11.0 kcal mol"1 respectively, suggest that significantly more non-covalent contacts are formed in the latter, indicating that the selectivity for β-Man in the second binding event is enthalpically driven.
[0161] The binding geometries of Ιιβ-Man and Ι^β-Man were determined and compared to understand how the preorganization of Ιιβ-Man facilitates the formation of Ι^β-Man. A 1H-1H ROESY experiment that was performed under conditions (1.0 mM β-Man, 0.5 mM 1, CDCI3, 298 K) that would predominantly result in a 1 : 1 complex (1 :β- Man : 1^-Man2 = 2 : 1.5) displayed a NOE between H4 and Ha (Figure 34), which is consistent with the previously determined binding geometry for l^-Man. Notably, in the l^-Man geometry, a significant portion of β-Man is exposed to solvent because one of the arms of 1 is orientated downwards underneath the n-octyl chain of β-Man which provides a window for a second equivalent of 1 to bind onto the exposed β-face of β-Man. The structure of Ι^β-Man was determined by performing a 1H-1H ROESY experiment with a concentrated 2: 1 receptonpyranoside CDCI3 mixture (12.0 mM and 6.0 mM respectively) at -10°C where Ι^β-Man would be the major species in solution. NOEs were observed between protons located on the biphenyl base and pyrroles (Figure 7B), suggesting a geometry where one molecule of β-Man is encaged by two molecules of 1, and the two molecules of 1 are in close contact. By using a similar AMBER*
conformational search that was used to obtain the l^-Man structure, a Ι^β-Man structure was obtained (Figure 8) that is consistent with the thermodynamic data and the ID and
2D 1H NMR spectra. Notably, noncovalent interactions between the second equivalent of 1 and OH4 and OH3 of β-Man are observed in the calculated structure, thereby explaining the high AH° of the second binding event. Also in the calculated Ι^β-Man structure, pyrrole protons of one molecule of 1 are within close proximity (< 4.0 A) to biphenyl protons Ha and Hbof the second molecule of 1, which is consistent with the
experimentally observed NOEs between these atoms. In contrast, the 1H-1H ROESY of β-Glc and 1 under conditions that favor the 1 : 1 complex (20°C, 3.0 mM of 1, 1.0 mM of β-Glc) revealed that the axial protons on both faces of β-Glc have observable NOEs with the biphenyl base of 1 (Figure 36), indicating that more than one binding geometry exists at equilibrium since 1 cannot interact with both faces of β-Glc simultaneously. Because the entropic penalty for the preorganization of l^-Glc has not been paid, it is speculated that the AS° associated with a second molecule of 1 binding to the 1 : 1 complex becomes prohibitively high, preventing the formation of a 2: 1 complex. It should be noted that in the calculated structure of Ι^β-Man only three arms of each equivalent of 1 participate in binding to β-Man, so the fourth arms can be replaced in future receptors to increase function.
[0162] The structures of Ιιβ-Man and Ι^β-Man and the thermodynamic binding parameters explain the high selectivity of towards β-Man. The preference for β-Man over a-Man arises because the n-octyl chain of a-Man is perpendicular to the pyranoside ring, which interferes with a second association of 1. The preference of the second association event occurring for β-Man over other β-pyranosides because the observed AH° for the formation of 1 ιβ-Man is nearly 4 kcal mol"1 greater than the next highest 1 : 1 AH° (β-Glc), highlighting the dominant role of enthalpy in selectivity. Notably, the axial C2 hydroxyl group of mannosides is positioned to form two N-H "O bonds and one O- H "N bond with two secondary amines and one pyrrole of 1. Additional non-covalent interactions - such as a C-H "π interaction with H4 and the aromatic ring and three N- H'"0 bonds between receptor 1 and the oxygens at CI and C3 of β-Man - result in a tightly bound l^-Man complex, thus explaining why 1 exhibits cooperativity with mannosides and not its epimers such as galactosides or glucosides. Additionally, in the l^-Man geometry, a significant portion of the mannoside is exposed to solvent because one of the arms of 1 is orientated downwards underneath the n-octyl chain of β-Man, which provides a window for a second equivalent of 1 to bind. Because 1 is flexible, each equivalent of 1 that is bound to β-Man adopts a different conformation, so a 2: 1 receptonpyranoside complex is unlikely to form from a highly preorganized receptor.
Example 5 - Implications of Competing Equilibria on the Selectivity of 1
[0163] In the presence of β-Man, the 1 : 1 complex, 1 ιβ-Man, can either bind a second molecule of pyranoside, to form 1^-Man2 (K2), or 1, to form Ι^β-Man ¾). The outcome of these two competing processes is dependent on the concentrations of each substrate, with K2 dominating at high concentrations of β-Man relative to 1, whereas K3 is preferred the presence of excess 1. Thus, the numerous equilibria operating simultaneously in a solution of 1 and pyranoside (Kdimer, K\, K2 and K^) and the concentration dependence of cooperative binding complicate the analysis of the overall selectivity of 1 for the eight pyranosides. To simplify the analysis of saccharide receptors that possess multiple binding pathways, the median binding concentration, BC50, has previously been employed to describe binding strength (Nativi et al, J. Am. Chem. Soc. 129:4377-4385 (2007); Vacca et al, J. Am. Chem. Soc. 126: 16456-16465 (2004), which are hereby incorporated by reference in their entirety). The BCSQ values of each of the pyranosides - defined as the total concentration of receptor 1 needed to bind 50% of the available pyranosides in solution - were computed over a pyranoside concentration range of 0 to 10.0 mM to probe both the magnitude and concentration dependence of the selectivity of 1 for the eight pyranosides (Figure 9A). Note that all equilibria present in a receptor/pyranoside mixture contribute toward the calculated BC50 value, and a higher I/BC50 value is indicative of a higher overall binding strength.
[0164] The I/BC50 plots reveal the effects of positive cooperativity on the binding affinity of 1 toward mannosides. Molecules with K2 possess parabolic curves in the
I/BC5Q plot. This is particularly evident in a-Man which possesses the highest affinity for 1 compared to all other pyranosides at a 0.8 mM pyranoside concentration. Interestingly, for β-Man, which exhibits cooperativity in both K2 and K3, a broader parabolic shape is observed, and little concentration dependence on the overall binding strength occurs between 0 and 4.0 mM of β-Man. When the calculated \ I BCSQ plot is compared to a hypothetical plot in which only K\ and K3 are present, it was found that the presence of K3 induces a substantial increase in selectivity at low concentrations (< 1.5 mM) of β-Man (Figure 9B). Alternatively, when a hypothetical plot is generated with only K\ and K2, K2 enhanced selectivity when [β-Man] is greater than 1.0 mM, thus demonstrating the direct contribution of cooperative, complex equilibria on selectivity in saccharide receptors
(Figure 9B). Moreover, these plots confirm that pyranoside concentration controls which equilibrium, i.e. K2 or K3, prevails. At concentrations below 1.0 mM of β-Man, higher stoichiometry binding is achieved through K3, while at greater β-Man concentrations, K2 dominates.
[0165] As each I/BC50 plot is a measure of affinity between 1 and pyranosides, comparing the plots of two or more pyranosides provides a means of assessing selectivity. Thus, the concentration of a-Man where the maximum \ I BCSQ value is obtained (0.8 mM) is also where the maximum selectivity occurs for a-Man relative to the other pyranosides. Beyond this value, the selectivities gradually approach 2: 1 mannoside:pyranoside, which is a consequence of the differences in binding stoichiometry - receptor 1 can
accommodate two molecules of mannosides and only binds 1 : 1 for the other pyranosides. Importantly, crossover points in the BC50 plots are observed between β-Glc and the mannosides (Figure 9A), meaning that the selectivity of 1 changes as a function of pyranoside concentration. At low pyranoside concentrations (< 0.3 mM), receptor 1 binds β-Glc with the highest affinity owing to its high value of K\, which effectively competes with the cooperative binding of 1 toward mannosides. From 0.3 mM to 1.0 mM, the binding order for 1 is a-Man > P-Glc> β-Man. At higher pyranoside
concentrations (> 1.0 mM), the binding order for 1 changes to a-Man > β-Man > β-Glc as a result of the 2: 1 binding stoichiometry that occurs only with mannosides.
Consequently, a new concentration dependence has been discovered that governs the stoichiometry of the resulting complex and the pyranoside preference of the receptor.
[0166] While IIBC^ plots describe the concentration dependent affinity of 1 for different pyranosides, a standardized metric describing the binding ability of receptors exhibiting multiple equilibria, the intrinsic median binding concentration, BCSQ , has been employed by others. BC5 ° is calculated by the integration of the inverse BC 5 function versus the molar fraction of bound receptor, (Nativi et al, Chem. Eur. J. 17:4814-4820 (2011), which is hereby incorporated by reference in its entirety):
Figure imgf000064_0001
[0167] The BCSQ values of the pyranosides for receptor 1 were determined using
Eq. 17. For the mannose-selective synthetic lectins developed by the Roelens group, the reported BC5 0 values range from 13.5 mM to 83 μΜ, with the latter corresponding to an outstanding chiral diaminopyrrolitic receptor for β-Man in acetonitrile (Nativi et al., Chem. Eur. J. 17:4814-4820 (2011), which is hereby incorporated by reference in its entirety). For receptor 1, the two pyranosides that exhibit positive cooperativity, a-Man and β-Man, have lower BC5 ° values of 460 and 730 μΜ, respectively, than were observed for the other pyranosides, where BC50 0 values range from 1860 to 7740 μΜ, except for
Figure imgf000064_0002
700 μΜ). The ratio of BC500 values has been used to compare the selectivities of carbohydrate receptors for mannosides (Nativi et al., Chem. Eur. J.
17:4814-4820 (2011), which is hereby incorporated by reference in its entirety) and range from excellent (16.8: 1 for a-Man:a-Gal) to modest (1.5: 1 for a-Man:P-Glc) for 1.
However, because of the concentration dependent switching of selectivities, i?C5o°does not fully reflect the binding behavior of 1 because they suggest that 1 binds β-Glc preferentially over β-Man rather than reflect the subtleties of concentration dependent selectivity.
Discussion of Examples 1-5
[0168] Flexible supramolecular host 1 was developed to examine how the ability to rearrange and dynamically sample conformational and thermodynamic space could reveal new modes for carbohydrate recognition. The association between 1 and eight octylpyranosides was studied by variable temperature 1H NMR titrations to determine
Kas, and Van't Hoff analyses were performed to derive the thermodynamic parameters for each association event. These studies revealed that 1, which possesses four
aminopyrrolitic arms and aromatic rings forms N-H "0, O-H "N, and C-H "π
interactions with pyranoside guests, resulting in 1 : 1 hos guest complexes with similar affinities for all eight pyranosides. Upon altering the hostguest ratio beyond 1 : 1, new equilibria emerge that lead to the formation of 1 :2 and 2: 1 receptonpyranoside complexes exclusively with mannosides at 25°C. The geometries of these complexes were determined by ID and 2D1H NMR spectroscopy and molecular modeling to reveal a C2- symmetric structure for l:P-Man2and a cage structure for l2:P-Man that were consistent with all data sets. Importantly, the structure of l2:P-Man indicates that only three of the four aminopyrrolitic arms are involved in binding, suggesting that the fourth arm could be replaced to increase the functionality of future receptors and enhance binding in competitive solvents.
[0169] Mannosides are important targets, because they are both diagnostic and prognostic for several cancers (de Leoz et al, Mol. Cell. Proteomics 10:M110.002717 (2011); Ann et al, Curr. Opin. Chem. Biol. 13:601-607 (2009), which are hereby incorporated by reference in their entirety), and receptors that target mannosides could be used for detection and delivery, so developing synthetic carbohydrate receptors remains a major area of research. An analysis of the binding constants for the first and second association events for l:P-Man2 (K\ and A¾ and l2:P-Man (K\ and ¾ indicates that the binding is cooperative - that the first association event facilitates the second. The selectivity of 1 for mannosides arises as a direct result of the preorganization of the 1 : 1 complex. The flexible receptor 1 achieves selectivity between pyranosides that may differ only by the orientation of a single hydroxyl group, despite the entropic penalty that must be paid to organize the complexes. In fact, the lack of preorganization in the strong l:P"Glc complex precludes the formation of a stable l2:P-Glc structure, so entropy actually determines selectivity. Although receptor 1 does not achieve the same overall affinity as the best rigidly preorganized mannose-specific receptors, the selectivity is comparable despite the differences in binding mechanisms, thus confirming the hypothesis that increasing the receptor dynamics reveals new binding geometries because of the ability of flexible hosts to dynamically explore conformational space.
[0170] Finally, it should be noted that synthetic carbohydrate receptors can provide insight into the subtleties of natural lectin-carbohydrate interactions and reveal how carbohydrate recognition conveys complex information in biological networks. Eukaryotic cell surfaces are coated with a carbohydrate layer, the glycocalyx, where the multivalent presentation of carbohydrates on a cell surface enhances binding affinity, a phenomenon termed the cluster glycoside effect (Lundquist & Toone, Chem. Rev.
102:555-578 (2002), which is hereby incorporated by reference in its entirety).
Interestingly, the selectivity of 1 changes with pyranoside concentration, where 1 preferentially binds glycosides at low concentration (<0.3mM) and mannosides at concentrations representative of glycoside clusters. While concentration dependent selectivity may be unprecedented with synthetic carbohydrate receptors, multivalency and cooperativity are ubiquitous in biology, so concentration dependent switching may commonly occur with natural lectins which could have implications for hierarchical organization and information transfer in biological networks.
[0171] Although preferred embodiments have been depicted and described in detail herein, it will be apparent to those skilled in the relevant art that various modifications, additions, substitutions, and the like can be made without departing from the spirit of the invention and these are therefore considered to be within the scope of the invention as defined in the claims which follow.

Claims

WHAT IS CLAIMED IS:
A compound of Formula I:
Figure imgf000067_0001
(I), wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface
Figure imgf000067_0002
immobilization moiety, a moiety of Formula II (Π) moiety of Formula
Figure imgf000067_0003
is a single or a double bond;
A is selected from the group consisting of: (1)— CH2— ; (2)— C(O)— ; and
3) =CH— ;
B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5
heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2j R3i andR4 can be the same or different;
Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents
selected from the group consisting of halogen, Ci_6 alkyl, C2_6 alkenyl, C2- 6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NRjRe,—
COORs,— COR5,— CONHRs, and— CN; and
each of R5 andR6 is independently H or Ci_6 alkyl.
2. A compound according to claim 1, wherein one or more of Ri, R2, R3, and R4 is a substituted or unsubstituted heteroaromatic ring selected from the group of pyridine, pyrazine, pyrimidine, pyridazine, imidazole, pyrrole, oxazole, isoxazole, triazine, thiazole, isothiazole, indazole, purine, quinoline, isoquinoline, quinoxaline, quinazoline, cinnoline, acridine, benzoxazole, benzisoxazole, benzothiazole, thiophene, furan, benzofuran, benzothiophene, and oxadiazole.
3. A compound according to claim 1, wherein R is a surface immobilization moiety.
4. A compound according to claim 3, wherein the surface immobilization moiety is selected from the group consisting of an alkene, alkyne, azide, thiol, and carboxylic acid.
5. The compound according to claim 1, wherein R is a targeting moiety. 6. The compound according to claim 5, wherein the targeting moiety is selected from the group consisting of tissue-specific signaling peptides and cell-specific signaling peptides.
7. The compound according to claim 1, wherein R is a tag.
8. The compound according to claim 7, wherein the tag is selected from the group consisting of purification tags, detection/quantification labels, and enzymatic tags.
9. The compound according to claim 1, wherein R is a pharmaceutically active moiety.
10. The compound according to claim 9, wherein the pharmaceutically active moiety is an anti-cancer therapeutic. a moiety of Formula II
Figure imgf000069_0001
The compound of claim 1 having a structure of Formula IA
Figure imgf000069_0002
13. A pharmaceutical formulation comprising:
a compound according to claim 9 and
a pharmaceutically acceptable carrier.
14. A pharmaceutical delivery vehicle comprising:
a compound according to claim 1 coupled to a pharmaceutically active moiety and a pharmaceutically acceptable carrier.
15. A method of detecting a carbohydrate in a sample, said method comprising:
providing a compound according to claim 1 ;
contacting the sample with the compound under conditions effective for binding to occur between the compound and the carbohydrate; and
detecting any binding between the compound and the carbohydrate, if present, in the sample.
16. The method according to claim 15, wherein the carbohydrate is a pyranoside.
17. The method according to claim 16, wherein the pyranoside is mannose.
18. The method according to claim 15 further comprising:
quantifying the carbohydrate present in the sample based on said detecting.
19. A method of diagnosing, in a subject, a condition characterized by a carbohydrate biomarker, said method comprising:
obtaining a sample from the subject;
providing a compound according to claim 1 ;
contacting the sample with the compound under conditions effective for binding to occur between the compound and the carbohydrate, if present, in the sample;
detecting any binding between the compound and the carbohydrate; and diagnosing the condition in the subject based on said detecting. 20. The method according to claim 19, wherein the condition is selected from the group consisting of cancer, inflammatory disease, cardiovascular disease, and an infectious disease.
21. The method according to claim 19, wherein the carbohydrate is mannose.
22. The method according to claim 19 further comprising:
quantifying the carbohydrate present in the sample based on said detecting, wherein said diagnosing is based on said quantifying.
23. A method of treating or preventing in a subject a condition mediated by a carbohydrate, said method comprising:
selecting a subject having a carbohydrate -mediated condition and
administering to the selected subject a compound of claim 1, under conditions effective for the compound to bind to the carbohydrate.
The method according to claim 23, wherein the carbohydrate is a mannose.
25. The method according to claim 23, wherein the condition is selected from the group consisting of cancer, inflammatory disease, cardiovascular disease, and an infectious disease.
A method of making a compound of Formula (I)
Figure imgf000071_0001
wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface immobilization moiety, a moiety of Formula II
Figure imgf000071_0002
(II), or a
_r N=N
moiety of Formula III (Hi); is a single or a double bond;
A is selected from the group consisting of: (1) (2)— C(O)— ; and
3) =CH— ;
B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5
heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2, R3, andR4 can be the same or different;
Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents
selected from the group consisting of halogen, Ci_6 alkyl, C2-6 alkenyl, C2- 6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NR5R5,— COOR5,— COR5,— CONHRs, and— CN;
and
each of R5 andR6 is independently H or Ci_6 alkyl,
said method comprising:
providing a compound of Formula IV:
Figure imgf000072_0001
(IV); and
reacting the compound of Formula IV with a reducing agent under conditions effective to produce the compound of Formula I.
27. The method according to claim 26, wherein said providing the compound of Formula IV comprises:
providing a compound of Formula VI:
Figure imgf000073_0001
(VI);
providing an aldehyde of Formula V:
Figure imgf000073_0002
reacting the compound of Formula V with the compound of Formula VI under conditions effective to produce the compound of Formula IV, wherein Rls R2, R3, and R4 are the same.
28. The method according to claim 27, wherein said providing the compound of Formula VI comprises:
providing a compound of Formula VII:
Figure imgf000073_0003
(VII); and
reacting a pair of the compound of Formula VII under conditions effective to form the compound according to Formula VI.
29. The method according to claim 28, wherein said providing the compound of Formula VII comprises:
providing a compound of Formula VIII:
Figure imgf000074_0001
reacting the compound of Formula VIII with an azide compound under conditions effective to form the compound according to Formula VII.
30. A method of making a compound of Formula (I)
Figure imgf000074_0002
wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface immobilization moiety, a moiety of Formula II
Figure imgf000074_0003
(II), or a moiety of Formula
Figure imgf000074_0004
(III) is a single or a double bond;
A is selected from the group consisting of: (1) — CH2— ; (2)— C(O)— ; and
3) =CH— ;
B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5 heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2, R3, andR4 can be the same or different;
Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents
selected from the group consisting of halogen, Ci_6 alkyl, C2_6 alkenyl, C2- 6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NR5R5,— COORs,— COR5,— CONHRs, and— CN;
and
each of R5 andR6 is independently H or Ci_6 alkyl,
said method comprising:
providing a compound of Formula IX:
Figure imgf000075_0001
(IX) ; and
reacting the compound of Formula IX with a carboxylic acid or a reactive derivative thereof under conditions effective to produce the compound of Formula I.
31. The method according to claim 30, wherein the compound of Formula IX is reacted with a reactive derivative of a carboxylic acid, said reactive derivative selected from the group consisting of an activated ester, anhydride, and acid halide.
32. The method according to claim 30, wherein said providing the compound of Formula IX comprises:
providing a compound of Formula VI:
Figure imgf000076_0001
reacting the compound of Formula VI with a reducing agent under conditions effective to produce a compound of Formula IX.
A method of making a compound of Formula I
Figure imgf000076_0002
wherein
R is a targeting moiety, a tag, a pharmaceutically active moiety, a surface
Bn
/
\A^K4 immobilization moiety, a moiety of Formula II moiety of Formula
Figure imgf000076_0003
(in) is a single or a double bond;
A is selected from the group consisting of: (1)— CH2— ; (2)— C(O)— ; and
3) =CH— ; B is H, and n is 0 or 1 ; each of Ri, R2, R3, and R4 is a heterocycle or a heteroaryl containing 1-5
heteroatoms selected from the group consisting of nitrogen, sulfur, and oxygen, wherein Rls R2, R3, andR4 can be the same or different;
Ri, R2, R3, and R4 can be optionally substituted 1 to 4 times with substituents
selected from the group consisting of halogen, Ci_6 alkyl, C2-6 alkenyl, C2- 6 alkynyl, C3_6 cycloalkyl, aryl,— OR5,— CN,— N02,— NRsRe,— COOR5,— COR5,— CONHRs, and— CN;
and
each of R5 andR6 is independently H or Ci_6 alkyl,
said method comprising:
providing a compound of Formula X:
Figure imgf000077_0001
and
reacting a compound of Formula X with a carboxylic acid or a reactive derivative thereof under conditions effective to produce a compound of Formula I.
34. The method according to claim 33, wherein the compound of Formula X is reacted with a reactive derivative of a carboxylic acid, said reactive derivative selected from the group consisting of an activated ester, anhydride, and acid halide.
35. The method according to claim 33, wherein said providing the compound of Formula X comprises:
providing a compound of Formula XI:
Figure imgf000078_0001
wherein PG is a protecting group of an amine; and
converting PG in the compound of Formula XI to hydrogen to produce the compound of Formula X.
36. The method according to claim 35, wherein said providing the compound of Formula XI comprises:
providing a compound of Formula XII:
Figure imgf000078_0002
(XII);
providing a compound of Formula XIII:
Figure imgf000079_0001
reacting the compound of Formula XII with the compound of Formula XIII under conditions effective to form the compound according to Formula XI. 37. The method according to claim 36, wherein said providing the compound of Formula XII comprises:
providing a compound of Formula XIV:
Figure imgf000079_0002
(XIV); and
reacting the compound of Formula XIV with a reducing agent under conditions effective to produce the compound of Formula XII.
38. The method according to claim 37, wherein said providing the compound of Formula XIV comprises:
providing a compound of Formula XVI:
Figure imgf000079_0003
providing an aldehyde of Formula XV:
O
R3 H (XV); and
reacting the compound of Formula XVI with the compound of Formula XV under conditions effective to produce the compound of Formula XIV.
39. The method according to claim 38, wherein said providing the compound of Formula XVI comprises:
providing a compound of Formula XVII:
Figure imgf000080_0001
reacting the compound of Formula XVII with a protecting group-introducing compound under conditions effective to form the compound according to Formula XVI.
40. The method according to claim 39, wherein the protecting group- introducing compound is di-tert-buthyl dicarbonate or fluorenyloxycarbonyl chloride.
41. The method according to claim 39, wherein said providing the compound of Formula XVII comprises:
providing a compound of Formula VII:
Figure imgf000080_0002
(VII); an
reacting the compound of Formula VII with 1 equivalent of a reducing under conditions effective to form the compound according to Formula XVII.
42. The method according to claim 36, wherein said providing the compound of Formula XIII comprises:
providing a compound of Formula XVIII:
Figure imgf000081_0001
(XVIII); and
reacting the compound of Formula XVIII with a reducing agent under conditions effective to produce a compound of Formula XIII. 43. The method according to claim 42, wherein said providing the compound of Formula XVIII comprises:
providing a compound of Formula XX:
R
Figure imgf000081_0002
providing an aldehyde of Formula XIX:
O
R2 H (XIX); and
reacting the compound of Formula XIX with the compound of Formula XX under conditions effective to produce the compound of Formula XVIII.
44. The method according to claim 43, wherein said providing the compound of Formula XX comprises:
providing a compound of Formula XXI:
Figure imgf000081_0003
wherein PG is a protecting group of an amine; and converting PG in the compound of Formula XXI to hydrogen to produce the compound of Formula XX.
45. The method according to claim 44, wherein said providing the compound of Formula XXI comprises:
providing a compound of Formula XXII:
Figure imgf000082_0001
(XXII); and
reacting the compound of Formula XXII with a reducing agent under conditions effective to produce the compound of Formula XXI.
46. The method according to claim 45, wherein said providing the compound of Formula XXII comprises:
providing a compound of Formula XVI:
Figure imgf000082_0002
providing an aldehyde of Formula V:
O
R1 H (V); and
reacting the compound of Formula XVI with the compound of Formula V under conditions effective to produce the compound of Formula XXII.
PCT/US2013/042888 2012-05-25 2013-05-28 Carbohydrate-selective receptors Ceased WO2014031204A2 (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
US14/403,686 US9296688B2 (en) 2012-05-25 2013-05-28 Carbohydrate-selective receptors

Applications Claiming Priority (4)

Application Number Priority Date Filing Date Title
US201261652011P 2012-05-25 2012-05-25
US61/652,011 2012-05-25
US201261708893P 2012-10-02 2012-10-02
US61/708,893 2012-10-02

Publications (2)

Publication Number Publication Date
WO2014031204A2 true WO2014031204A2 (en) 2014-02-27
WO2014031204A3 WO2014031204A3 (en) 2014-05-15

Family

ID=50150464

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/US2013/042888 Ceased WO2014031204A2 (en) 2012-05-25 2013-05-28 Carbohydrate-selective receptors

Country Status (2)

Country Link
US (1) US9296688B2 (en)
WO (1) WO2014031204A2 (en)

Families Citing this family (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US11091468B2 (en) 2018-07-23 2021-08-17 Research Foundation Of The City University Of New York Carbohydrate-binding small molecules with antiviral activity
US12023323B2 (en) 2018-07-23 2024-07-02 Research Foundation Of The City University Of New York Carbohydrate-binding small molecules with antiviral activity

Non-Patent Citations (5)

* Cited by examiner, † Cited by third party
Title
DAVIS, ANTHONY P.: 'Synthetic lectins' ORG. BIOMOL. CHEM. vol. 7, pages 3629 - 3638 *
MAZIK, M.: 'Molecular recognition of carbohydrates by acyclic receptors empl oying noncovalent interactions' CHEM. SOC. REV. vol. 38, 2009, pages 935 - 956 *
NATIVI, CRISTINA ET AL.: 'A beta-Mannoside-Selective Pyrrolic Tripodal Receptor' ORGANIC LETTERS vol. 9, no. 23, 2007, pages 4685 - 4688 *
NATIVI, CRISTINA ET AL.: 'Pyrrolic Tripodal Receptors Effectively Recognizin g Monosaccharides. Affinity Assessment through a Generalized Binding Descrip tor' J. AM. CHEM. SOC. vol. 129, 2007, pages 4377 - 4385 *
WALKER. D. BARNEY ET AL.: 'Progress in biomimetic carbohydrate recognition' CELL. MOL. LIFE SCI. vol. 66, 2009, pages 3177 - 3191 *

Also Published As

Publication number Publication date
US9296688B2 (en) 2016-03-29
WO2014031204A3 (en) 2014-05-15
US20150141480A1 (en) 2015-05-21

Similar Documents

Publication Publication Date Title
EP3724190B1 (en) Substituted bicyclic heterocyclic compounds as prmt5 inhibitors
EP3286188B1 (en) Isoxazolyl substituted imidazopyridines
AU2013371541B2 (en) Enhancer of Zeste Homolog 2 inhibitors
KR102411227B1 (en) Co-crystals of (s)-n-methyl-8-(1-((2&#39;-methyl-[4,5&#39;-bipyrimidin]-6-yl)amino)propan-2-yl)quinoline-4-carboxamide and deuterated derivatives thereof as dna-pk inhibitors
EP2995618B1 (en) [1,2,4]triazol [4,3-a]pyridine derivate, preparation method therefor or medical application thereof
TR201807101T4 (en) Imidazo [4,5-c] quinolin-2-one compounds and their use in the treatment of cancer.
Verbanac et al. Synthesis and evaluation of antibacterial and antioxidant activity of novel 2-phenyl-quinoline analogs derivatized at position 4 with aromatically substituted 4 H-1, 2, 4-triazoles
JP2016512816A (en) Compounds useful as inhibitors of ATR kinase
JP2008530011A (en) Raf inhibitor compounds and methods
AU2015369712A1 (en) Mutant IDH1 inhibitors useful for treating cancer
JP2016512239A (en) Compounds useful as inhibitors of ATR kinase
JP6967302B2 (en) Azaaryl derivative, its manufacturing method and pharmaceutical application
CN106749513A (en) Bifunctional molecule and its preparation and application based on the induction BET degradeds of VHL parts
Xu et al. Synthesis and Antibacterial Activity Evaluation of Imidazole Derivatives Containing 6‐Methylpyridine Moiety
CA2747365A1 (en) Derivatives of 6-cycloamino-2,3-di-pyridinyl-imidazo[1,2-b]-pyridazine, preparation and therapeutic application thereof
US9296688B2 (en) Carbohydrate-selective receptors
Driller et al. Synthesis of 6 H-indolo [2, 3-b] quinoxaline-N-glycosides and their cytotoxic activity against human ceratinocytes (HaCaT)
CA2994472A1 (en) Aryl-substituted dihydroquinolinones, their preparation and their use as pharmaceuticals
CN119894886A (en) Piperidine pyrimidine derivative, preparation method thereof and application thereof in medicine
EP2719696A1 (en) Novel kinase inhibitors
JP2023504279A (en) Substituted nucleoside analogues as PRMT5 inhibitors
CA3253074A1 (en) Hydroxyamide derivative and use thereof
Sun et al. Discovery of a novel benzofuran-7-carboxamide-based PARP1/c-Met dual inhibitor for addressing c-Met amplification-mediated PARP1i acquired-resistance
CN121969619A (en) A piperidine-pyrimidine derivative containing a thiazole group, its preparation method and its pharmaceutical applications
CN107428762A (en) Phthalazinone derivatives, preparation method and the usage

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 13830568

Country of ref document: EP

Kind code of ref document: A2

WWE Wipo information: entry into national phase

Ref document number: 14403686

Country of ref document: US

122 Ep: pct application non-entry in european phase

Ref document number: 13830568

Country of ref document: EP

Kind code of ref document: A2
