WO2012126791A1

WO2012126791A1 - 1,4-oxazepines as bace1 and/or bace2 inhibitors

Info

Publication number: WO2012126791A1
Application number: PCT/EP2012/054510
Authority: WO
Inventors: Emanuele Gabellieri; Wolfgang Guba; Hans Hilpert; Harald Mauser; Alexander V. Mayweg; Mark Rogers-Evans; Didier Rombach; Andrew Thomas; Thomas Woltering; Wolfgang Wostl
Original assignee: F. Hoffmann-La Roche Ag; Siena Biotech S.P.A
Priority date: 2011-03-18
Filing date: 2012-03-15
Publication date: 2012-09-27
Also published as: JP2014508182A; BR112013020019A2; RU2013143746A; EP2686307A1; CN103391928B; CN103391928A; US20120238548A1; KR20140019352A; MX2013008535A; US8748418B2; CA2822783A1

Abstract

The present invention relates to 1,4-Oxazepines of formula I having BACE1 and/or BACE2 inhibitory activity, their manufacture, pharmaceutical compositions containing them and their use as therapeutically active substances. The active compounds of the present invention are useful in the therapeutic and/or prophylactic treatment of e.g. Alzheimer's disease and type 2 diabetes.

Description

1,4-OXAZEPINES AS BACE1 AND/OR BACE2 INHIBITORS

Background Art

Alzheimer's disease (AD) is a neurodegenerative disorder of the central nervous system and the leading cause of a progressive dementia in the elderly population. Its clinical symptoms are impairment of memory, cognition, temporal and local orientation, judgment and reasoning but also severe emotional disturbances. There are currently no treatments available which can prevent the disease or its progression or stably reverse its clinical symptoms. AD has become a major health problem in all societies with high life expectancies and also a significant economic burden for their health systems.

AD is characterized by 2 major pathologies in the central nervous system (CNS), the occurrence of amyloid plaques and neurofibrillar tangles (Hardy et al, The amyloid hypothesis of Alzheimer's disease: progress and problems on the road to therapeutics, Science. 2002 Jul 19;297(5580):353-6, Selkoe, Cell biology of the amyloid beta-protein precursor and the mechanism of Alzheimer's disease, Annu Rev Cell Biol. 1994;10:373-403). Both pathologies are also commonly observed in patients with Down's syndrome (trisomy 21), which also develop AD-like symptoms in early life. Neurofibrillar tangles are intracellular aggregates of the microtubule-associated protein tau (MAPT). Amyloid plaques occur in the extracellular space; their principal components are Αβ-peptides. The latter are a group of proteolytic fragments derived from the β-amyloid precursor protein (APP) by a series of proteolytic cleavage steps. Several forms of APP have been identified of which the most abundant are proteins of 695, 751 and 770 amino acids length. They all arise from a single gene through differential splicing. The Αβ-peptides are derived from the same domain of the APP but differ at their N- and C-termini, the main species are of 40 and 42 amino-acid length. There are several lines of evidence which strongly suggest that aggregated Αβ-peptides are the essential molecules in the pathogenesis of AD: 1) amyloid plaques formed of Αβ-peptides are invariably part of the AD pathology; 2) Αβ- peptides are toxic for neurons; 3) in Familial Alzheimer's Disease (FAD) the mutations in the disease genes APP, PSN1, PSN2 lead to increased levels of Αβ-peptides and early brain amyloidosis; 4) transgenic mice which express such FAD genes develop a pathology which bears many resemblances to the human disease. Αβ-peptides are produced from APP through the sequential action of 2 proteolytic enzymes termed β- and γ-secretase. β-Secretase cleaves first in the extracellular domain of APP approximately 28 amino acids outside of the trans-membrane domain (TM) to produce a C-terminal fragment of APP containing the TM- and the cytoplasmatic domain ^ΤΡβ). CTFβ is the substrate for γ-secretase which cleaves at several adjacent positions within the TM to produce the Αβ peptides and the cytoplasmic fragment. The γ-secretase is a complex of at least 4 different proteins, its catalytic subunit is very likely a presenilin protein (PSEN1, PSEN2). The β-secretase (BACE1, Asp2; BACE stands for β-site APP-cleaving enzyme) is an aspartyl protease which is anchored into the membrane by a transmembrane domain (Vassar et al, Beta- seer etase cleavage of Alzheimer's amyloid precursor protein by the transmembrane aspartic protease BACE, Science. 1999 Oct 22; 286(5440) : 735). It is expressed in many tissues of the human organism but its level is especially high in the CNS. Genetic ablation of the BACE1 gene in mice has clearly shown that its activity is essential for the processing of APP which leads to the generation of Αβ-peptides, in the absence of BACE1 no Αβ-peptides are produced (Luo et al, Mice deficient in BACE1, the Alzheimer's beta- secretase, have normal phenotype and abolished beta-amyloid generation, Nat Neurosci. 2001 Mar;4(3):231-2, Roberds et al, BACE knockout mice are healthy despite lacking the primary beta-secretase activity in brain: implications for Alzheimer's disease therapeutics, Hum Mol Genet. 2001 Jun 1; 10(12): 1317-24). Mice which have been genetically engineered to express the human APP gene and which form extensive amyloid plaques and Alzheimer's disease like pathologies during aging fail to do so when β-secretase activity is reduced by genetic ablation of one of the BACE1 alleles (McConlogue et al, Partial reduction of BACE1 has dramatic effects on Alzheimer plaque and synaptic pathology in APP Transgenic Mice. J Biol Chem. 2007 Sep 7;282(36):26326). It is thus presumed that inhibitors of BACE1 activity can be useful agents for therapeutic intervention in Alzheimer's disease (AD). Type 2 diabetes (T2D) is caused by insulin resistance and inadequate insulin secretion from pancreatic β-cells leading to poor blood-glucose control and hyperglycemia (M Prentki & CJ Nolan, "Islet beta-cell failure in type 2 diabetes." J. Clin. Investig. 2006, 116(7), 1802-1812). Patients with T2D have an increased risk of microvascular and macrovascular disease and a range of related complications including diabetic nephropathy, retinopathy and cardiovascular disease. In 2000, an estimated 171 million people had the condition with the expectation that this figure will double by 2030 (S Wild, G Roglic, A Green, R.Sicree & H King, "Global prevalence of diabetes", Diabetes Care 2004, 27(5), 1047-1053), making the disease a major healthcare problem. The rise in prevalence of T2D is associated with an increasingly sedentary lifestyle and high-energy food intake of the world's population (P Zimmet, KGMM Alberti & J Shaw, "Global and societal implications of the diabetes epidemic" Nature 2001, 414, 782-787). β-Cell failure and consequent dramatic decline in insulin secretion and hyperglycemia marks the onset of T2D. Most current treatments do not prevent the loss of β-cell mass characterizing overt T2D. However, recent developments with GLP-1 analogues, gastrin and other agents show that preservation and proliferation of β-cells is possible to achieve, leading to an improved glucose tolerance and slower progression to overt T2D (LL Baggio & DJ Drucker, "Therapeutic approaches to preserve islet mass in type 2 diabetes", Annu. Rev. Med. 2006, 57, 265-281). Tmem27 has been identified as a protein promoting beta-cell proliferation (P Akpinar, S Kuwajima, J Kriitzfeldt, M Stoffel, "Tmem27: A cleaved and shed plasma membrane protein that stimulates pancreatic β cell proliferation", Cell Metab. 2005, 2, 385-397) and insulin secretion (K Fukui, Q Yang, Y Cao, N Takahashi et al, "The HNF-1 target Collectrin controls insulin exocytosis by SNARE complex formation", Cell Metab. 2005, 2, 373-384). Tmem27 is a 42 kDa membrane glycoprotein which is constitutively shed from the surface of β-cells, resulting from a degradation of the full-length cellular Tmem27. Overexpression of Tmem27 in a transgenic mouse increases β-cell mass and improves glucose tolerance in a diet-induced obesity DIO model of diabetes. Furthermore, siRNA knockout of Tmem27 in a rodent β-cell proliferation assay (e.g. using INSle cells) reduces the proliferation rate, indicating a role for Tmem27 in control of β-cell mass.

In the same proliferation assay, BACE2 inhibitors also increase proliferation. However, BACE2 inhibition combined with Tmem27 siRNA knockdown results in low proliferation rates. Therefore, it is concluded that BACE2 is the protease responsible for the degradation of Tmem27. Furthermore, in vitro, BACE2 cleaves a peptide based on the sequence of Tmem27. The closely related protease BACEl does not cleave this peptide and selective inhibition of BACEl alone does not enhance proliferation of β-cells.

The close homolog BACE2 is a membrane-bound aspartyl protease and is co-localized with Tmem27 in human pancreatic β -cells (G Finzi, F Franzi, C Placidi, F Acquati et al, "BACE2 is stored in secretory granules of mouse and rat pancreatic beta cells", Ultrastruct Pathol. 2008, 32(6), 246-251). It is also known to be capable of degrading APP (I Hussain, D Powell, D Howlett, G Chapman et al, "ASP1 (BACE2) cleaves the amyloid precursor protein at the β-secretase site" Mol Cell Neurosci. 2000, 16, 609-619), IL-1R2 (P Kuhn, E Marjaux, A Imhof, B De Strooper et al, "Regulated intramembrane proteolysis of the interleukin-1 receptor II by alpha-, beta-, and gamma-secretase" J. Biol. Chem. 2007, 282(16), 11982-11995) and ACE2. The capability to degrade ACE2 indicates a possible role of BACE2 in the control of hypertension.

Inhibition of BACE2 is therefore proposed as a treatment for T2D with the potential to preserve and restore β-cell mass and stimulate insulin secretion in pre-diabetic and diabetic patients. It is therefore an object of the present invention to provide selective BACE2 inhibitors. Such compounds are useful as therapeutically active substances, particularly in the treatment and/or prevention of diseases which are associated with the inhibition of BACE2.

Furthermore, the formation, or formation and deposition, of β-amyloid peptides in, on or around neurological tissue (e.g., the brain) are inhibited by the present compounds, i.e. inhibition of the Αβ-production from APP or an APP fragment. Inhibitors of BACE1 and/or BACE2 can in addition be used to treat the following diseases: IBM (inclusion body myositis) (Vattemi G. et al, Lancet. 2001 Dec 8;358(9297): 1962-4), Down's Syndrome (Barbiero L. et al, Exp Neurol. 2003 Aug;182(2):335-45), Wilson's Disease (Sugimoto I. et al, J Biol Chem. 2007 Nov 30;282(48):34896-903), Whipple's disease (Desnues B. et al, Clin Vaccine Immunol. 2006 Feb; 13(2): 170-8), Spinocerebellar Ataxia 1 and Spinocerebellar Ataxia 7 (Gatchel J.R. et al, Proc Natl Acad Sci U S A 2008 Jan 29;105(4): 1291-6), Dermatomyositis (Greenberg S.A. et al, Ann Neurol. 2005 May;57(5):664- 78 and Greenberg S.A. et al, Neurol 2005 May;57(5):664-78), Kaposi Sarcoma (Lagos D. et al, Blood, 2007 Feb 15; 109(4): 1550-8), Glioblastoma multiforme (E-MEXP-2576, http://www.ebi. ac.uk/microarray-as/aer/result?queryFor=PhysicalArrayDesign&aAccession=A- MEXP-258), Rheumatoid arthritis (Ungethuem U. et al, GSE2053), Amyotrophic lateral sclerosis (Koistinen H. et al, Muscle Nerve. 2006 Oct;34(4):444-50 and Li Q.X. et al, Aging Cell. 2006 Apr;5(2): 153-65), Huntington's Disease (Kim Y.J. et al, Neurobiol Dis. 2006 May;22(2):346-56. Epub 2006 Jan 19 and Hodges A. et al, Hum Mol Genet. 2006 Mar 15;15(6):965-77. Epub 2006 Feb 8), Multiple Mieloma (Kihara Y. et al, Proc Natl Acad Sci U S A. 2009 Dec 22;106(51):21807-12), Malignant melanoma (Talantov D. et al, Clin Cancer Res. 2005 Oct 15;l l(20):7234-42), Sjogren syndrome (Basset C. et al, Scand J Immunol. 2000 Mar;51(3):307-l l), Lupus erythematosus (Grewal P.K. et al, Mol Cell Biol. 2006, Jul;26(13):4970-81), Macrophagic myofasciitis, juvenile idiopathic arthritis, granulomatous arthritis, Breast cancer (Hedlund M. et al, Cancer Res. 2008 Jan 15;68(2):388-94 and Kondoh K. et al, Breast Cancer Res Treat. 2003 Mar;78(l):37-44), Gastrointestinal diseases (Hoffmeister A. et al, JOP. 2009 Sep 4;10(5):501-6), Autoimmune/inflammatory diseases (Woodard-Grice A.V. et al, J Biol Chem. 2008 Sep 26;283(39):26364-73. Epub 2008 Jul 23), Rheumatoid Arthritis (Toegel S. et al, Osteoarthritis Cartilage. 2010 Feb;18(2):240-8. Epub 2009 Sep 22), Inflammatory reactions (Lichtenthaler S.F. et al, J Biol Chem. 2003 Dec 5;278(49):48713-9. Epub 2003 Sep 24), Arterial Thrombosis (Merten M. et al, Z Kardiol. 2004 Nov;93(l l):855-63), Cardiovascular diseases such as Myocardial infarction and stroke (Maugeri N. et al, Srp Arh Celok Lek. 2010 Jan;138 Suppl 1 :50-2) and Graves disease (Kiljanski J. et al, Thyroid. 2005 Jul;15(7):645-52). The present invention provides novel compounds of formula I, their manufacture, medicaments based on a compound in accordance with the invention and their production as well as the use of compounds of formula I in the control or prevention of illnesses such as Alzheimer's disease and type 2 diabetes. Furthermore the use of compounds of formula I in the treatment of amyotrophic lateral sclerosis (ALS), arterial thrombosis, autoimmune/inflammatory diseases, cancer such as breast cancer, cardiovascular diseases such as myocardial infarction and stroke, dermatomyositis, Down's Syndrome, gastrointestinal diseases, Glioblastoma multiforme, Graves Disease, Huntington's Disease, inclusion body myositis (IBM), inflammatory reactions, Kaposi Sarcoma, Kostmann Disease, lupus erythematosus, macrophagic myofasciitis, juvenile idiopathic arthritis, granulomatous arthritis, malignant melanoma, multiple mieloma, rheumatoid arthritis, Sjogren syndrome, Spinocerebellar Ataxia 1, Spinocerebellar Ataxia 7, Whipple's Disease and Wilson's Disease. The novel compounds of formula I have improved pharmacological properties.

Field of the Invention The present invention relates to 1,4-Oxazepines having BACEl and/or BACE2 inhibitory properties, their manufacture, pharmaceutical compositions containing them and their use as therapeutically active substances.

Summary of the Invention

The present invention relates to 2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamines of formula I,

wherein the substituents and variables are as described below and in the claims, or a pharmaceutically acceptable salt thereof.

The present compounds have Asp2 (β-secretase, BACEl or Memapsin-2) inhibitory activity and may therefore be used in the therapeutic and/or prophylactic treatment of diseases and disorders characterized by elevated β-amyloid levels and/or β-amyloid oligomers and/or β-amyloid plaques and further deposits or Alzheimer's disease. And/or the present compounds have BACE2 inhibitory activity and can therefore be used in the therapeutic and/or prophylactic treatment of diseases and disorders such as type 2 diabetes and other metabolic disorders.

Detailed Description of the Invention The present invention provides a compound of formula I and their pharmaceutically acceptable salts thereof, the preparation of the above mentioned compounds, medicaments containing them and their manufacture as well as the use of the above mentioned compounds in the therapeutic and/or prophylactic treatment of diseases and disorders which are associated with inhibition of BACEl and/or BACE2 activity, such as Alzheimer's disease and type 2 diabetes. Furthermore, the formation, or formation and deposition, of β-amyloid plaques in, on or around neurological tissue (e.g., the brain) are inhibited by the present compounds by inhibiting the Αβ production from APP or an APP fragment. The following definitions of the general terms used in the present description apply irrespectively of whether the terms in question appear alone or in combination with other groups.

Unless otherwise stated, the following terms used in this Application, including the specification and claims, have the definitions given below. It must be noted that, as used in the specification and the appended claims, the singular forms "a", "an," and "the" include plural referents unless the context clearly dictates otherwise.

The term "Ci-6-alkyl", alone or in combination with other groups, stands for a hydrocarbon radical which may be linear or branched, with single or multiple branching, wherein the alkyl group in general comprises 1 to 6 carbon atoms, for example, methyl (Me), ethyl (Et), propyl, isopropyl (i-propyl), n-butyl, i-butyl (isobutyl), 2-butyl (sec-butyl), t-butyl (tert-butyl), isopentyl, 2-ethyl-propyl, 1,2-dimethyl-propyl and the like. Particular "Ci-6-alkyl" are groups with 1 to 4 carbon atoms. Specific are methyl, ethyl and t-butyl. Most specific is methyl.

The term "halogen-Ci-6-alkyl", alone or in combination with other groups, refers to Ci-₆- alkyl as defined herein, which is substituted by one or multiple halogen, in particular 1-5 halogen, more particular 1-3 halogen ("halogen-Ci-3-alkyl"), most particular 1 halogen or 2 halogen. Particular halogen is fluoro. Particular "halogen-Ci-6-alkyl" is fluoro-Ci-6-alkyl. Examples are difluoromethyl, fluoromethyl and the like. Specific is difluoromethyl.

The term "cyano-Ci-6-alkyl", alone or in combination with other groups, refers to Ci-₆- alkyl as defined herein, which is substituted by one or multiple cyano, in particular 1 cyano. Particular "cyano-Ci-6-alkyl" is cyano-methyl.

The term "halogen", alone or in combination with other groups, denotes chloro (CI), iodo (I), fluoro (F) and bromo (Br). Particular "halogen" is CI and F. Specific is F.

The term "cyano", alone or in combination with other groups, denotes the group -CN.

The term "heteroaryl", alone or in combination with other groups, refers to an aromatic carbocyclic group of having a single 4 to 8 membered ring or multiple condensed rings comprising 6 to 14, in particular 6 to 10 ring atoms and containing 1, 2 or 3 heteroatoms individually selected from N, O and S, in particular N and O, in which group at least one heterocyclic ring is aromatic. Examples of "heteroaryl" include benzofuryl, benzoimidazolyl, IH-benzoimidazolyl, benzooxazinyl, benzoxazolyl, benzothiazinyl, benzothiazolyl, benzothienyl, benzotriazolyl, furyl, imidazolyl, indazolyl, IH-indazolyl, indolyl, isoquinolinyl, isothiazolyl, isoxazolyl, oxazolyl, pyrazinyl, pyrazolyl (pyrazyl), lH-pyrazolyl, pyrazolo[l,5-a]pyridinyl, pyridazinyl, pyridinyl, pyrimidinyl, pyrrolyl, quinolinyl, tetrazolyl, thiazolyl, thienyl, triazolyl, 6,7-dihydro-5H-[l]pyrindinyl and the like. Particular "heteroaryl" are 6,7-dihydro-5H- [l]pyrindyl, lH-pyrazyl, 2,3-dihydro-benzofuryl, 2,3-dihydro-furo[3,2-b]pyridinyl, 5,6,7,8- tetrahydro-quinolinyl, 6,7-dihydro-5H-[l]pyrindinyl, pyridinyl. Specific are 6,7-dihydro-5H- [l]pyrindin-7-yl, lH-pyrazol-3-yl, 2,3-dihydro-benzofuran-3-yl, 2,3-dihydro-furo[3,2-b]pyridin- 3-yl, 5,6,7,8-tetrahydro-quinolin-8-yl, 6,7-dihydro-5H-[l]pyrindin-7-yl, pyridin-3-yl.

The term "heteroaryl-CH₂-", alone or in combination with other groups, refers to a "heteroaryl" as described herein attached via a CH₂-group. Particular "heteroaryl-CH₂-" is 1H- pyrazolylmethyl, specific is lH-pyrazol-3-ylmethyl.

The term "Ci-6-alkoxy", alone or in combination with other groups, stands for an -O-Ci-6-alkyl radical which may be linear or branched, with single or multiple branching, wherein the alkyl group in general comprises 1 to 6 carbon atoms, for example, methoxy (OMe, MeO), ethoxy (OEt), propoxy, isopropoxy (i-propoxy), n-butoxy, i-butoxy (iso-butoxy), 2-butoxy (sec-butoxy), t-butoxy (tert-butoxy), isopentyloxy (i-pentyloxy) and the like. Particular "Ci-6-alkoxy" are groups with 1 to 4 carbon atoms. Specific is methoxy.

The term "halogen-Ci-6-alkoxy", alone or in combination with other groups, refers to a "Ci_ 6-alkoxy" as described herein, which is substituted by one or multiple halogen, in particular 1-5 halogen, more particular 1-3 halogen, most particular 1 halogen or 2 halogen. Particular halogen is fluoro. Examples are fluoromethoxy, difluoromethoxy and trifluoromethyoxy.

The term "heterocyclyl", alone or in combination with other groups, denotes a monovalent saturated mono- or bicyclic ring system of 4 to 9 ring atoms, comprising 1, 2, or 3 ring heteroatoms selected from N, O and S, the remaining ring atoms being carbon. Bicyclic means consisting of two cycles having two ring atoms in common, i.e. the bridge separating the two rings is either a single bond or a chain of one or two ring atoms. Examples for monocyclic saturated heterocyclyl are azetidinyl, pyrrolidinyl, tetrahydrofuranyl, (tetrahydro-furyl) tetrahydro-thienyl, pyrazolidinyl, imidazolidinyl, oxazolidinyl, isoxazolidinyl, thiazolidinyl, piperidinyl, tetrahydropyranyl (tetrahydro-pyryl), tetrahydrothiopyranyl, piperazinyl, morpholinyl, thiomorpholinyl, l, l-dioxo-thiomorpholin-4-yl, azepanyl, diazepanyl, homopiperazinyl, or oxazepanyl. Examples for bicyclic saturated heterocyclyl are 8-aza- bicyclo[3.2.1]octyl, quinuclidinyl, 8-oxa-3-aza-bicyclo[3.2.1]octyl, 9-aza-bicyclo[3.3.1]nonyl, 3- oxa-9-aza-bicyclo[3.3.1]nonyl, or 3-thia-9-aza-bicyclo[3.3.1]nonyl. Particular "heterocyclyl" are tetrahydro-furyl and tetrahydro-pyryl, specific are tetrahydro-furan-3-yl, tetrahydro-pyran-3-yl and tetrahydro-pyran-4-yl. The term "aryl", alone or in combination with other groups, refers to an aromatic carbocyclic group comprising 6 to 14, in particular 6 to 10, carbon atoms and having at least one aromatic ring or multiple condensed rings in which at least one ring is aromatic. Examples of "aryl" include benzyl, biphenyl, indanyl, naphthyl, phenyl (Ph) and the like. Particular "aryl" is phenyl. The term "pharmaceutically acceptable salts" refers to salts that are suitable for use in contact with the tissues of humans and animals. Examples of suitable salts with inorganic and organic acids are, but are not limited to acetic acid, citric acid, formic acid, fumaric acid, hydrochloric acid, lactic acid, maleic acid, malic acid, methane-sulfonic acid, nitric acid, phosphoric acid, p-toluenesulphonic acid, succinic acid, sulfuric acid, sulphuric acid, tartaric acid, trifluoroacetic acid and the like. Particular are formic acid, trifluoroacetic acid and hydrochloric acid.

The terms "pharmaceutically acceptable carrier" and "pharmaceutically acceptable auxiliary substance" refer to carriers and auxiliary substances such as diluents or excipients that are compatible with the other ingredients of the formulation.

The term "pharmaceutical composition" encompasses a product comprising specified ingredients in pre-determined amounts or proportions, as well as any product that results, directly or indirectly, from combining specified ingredients in specified amounts. In Particular it encompasses a product comprising one or more active ingredients, and an optional carrier comprising inert ingredients, as well as any product that results, directly or indirectly, from combination, complexation or aggregation of any two or more of the ingredients, or from dissociation of one or more of the ingredients, or from other types of reactions or interactions of one or more of the ingredients.

The term "inhibitor" denotes a compound which competes with, reduces or prevents the binding of a particular ligand to particular receptor or which reduces or prevents the inhibition of the function of a particular protein. The term "half maximal inhibitory concentration" (IC₅₀) denotes the concentration of a particular compound required for obtaining 50% inhibition of a biological process in vitro. IC₅₀ values can be converted logarithmically to pIC₅o values (-log IC₅₀), in which higher values indicate exponentially greater potency. The IC₅₀ value is not an absolute value but depends on experimental conditions e.g. concentrations employed. The IC₅₀ value can be converted to an absolute inhibition constant (Ki) using the Cheng-Prusoff equation (Biochem. Pharmacol. (1973) 22:3099). The term "inhibition constant" (Ki) denotes the absolute binding affinity of a particular inhibitor to a receptor. It is measured using competition binding assays and is equal to the concentration where the particular inhibitor would occupy 50% of the receptors if no competing ligand (e.g. a radioligand) was present. Ki values can be converted logarithmically to pKi values (-log Ki), in which higher values indicate exponentially greater potency.

"Therapeutically effective amount" means an amount of a compound that, when administered to a subject for treating a disease state, is sufficient to effect such treatment for the disease state. The "therapeutically effective amount" will vary depending on the compound, disease state being treated, the severity or the disease treated, the age and relative health of the subject, the route and form of administration, the judgment of the attending medical or veterinary practitioner, and other factors. The term "as defined herein" and "as described herein" when referring to a variable incorporates by reference the broad definition of the variable as well as preferred, more preferred and most preferred definitions, if any.

The terms "treating", "contacting" and "reacting" when referring to a chemical reaction means adding or mixing two or more reagents under appropriate conditions to produce the indicated and/or the desired product. It should be appreciated that the reaction which produces the indicated and/or the desired product may not necessarily result directly from the combination of two reagents which were initially added, i.e., there may be one or more intermediates which are produced in the mixture which ultimately leads to the formation of the indicated and/or the desired product.

The term "protecting group" denotes the group which selectively blocks a reactive site in a multifunctional compound such that a chemical reaction can be carried out selectively at another unprotected reactive site in the meaning conventionally associated with it in synthetic chemistry. Protecting groups can be removed at the appropriate point. Exemplary protecting groups are amino-protecting groups, carboxy-protecting groups or hydroxy-protecting groups. The term "amino-protecting group" denotes groups intended to protect an amino group and includes benzyl, benzyloxycarbonyl (carbobenzyloxy, CBZ), 9-Fluorenylmethyloxycarbonyl (FMOC), p- methoxybenzyloxycarbonyl, p-nitrobenzyloxycarbonyl, tert-butoxycarbonyl (BOC), and trifluoroacetyl. Further examples of these groups are found in T. W. Greene and P. G. M. Wuts, "Protective Groups in Organic Synthesis", 2nd ed., John Wiley & Sons, Inc., New York, NY, 1991, chapter 7; E. Haslam, "Protective Groups in Organic Chemistry", J. G. W. McOmie, Ed., Plenum Press, New York, NY, 1973, Chapter 5, and T.W. Greene, "Protective Groups in Organic Synthesis", John Wiley and Sons, New York, NY, 1981. The term "protected amino group" refers to an amino group substituted by an amino-protecting groups. Particular amino- protecting groups are tert-butoxycarbonyl group, a bis(dimethoxyphenyl)-phenylmethyl and dimethoxytrityl.

The term "leaving group" denotes the group with the meaning conventionally associated with it in synthetic organic chemistry, i.e., an atom or group displaceable under substitution reaction conditions. Examples of leaving groups include halogen, in particular bromo, alkane- or arylenesulfonyloxy, such as methanesulfonyloxy, ethanesulfonyloxy, thiomethyl, benzenesulfonyloxy, tosyloxy, and thienyloxy, dihalophosphinoyloxy, optionally substituted benzyloxy, isopropyloxy, and acyloxy.

The term "aromatic" denotes the conventional idea of aromaticity as defined in the literature, in particular in IUPAC - Compendium of Chemical Terminology, 2nd, A. D. McNaught & A. Wilkinson (Eds). Blackwell Scientific Publications, Oxford (1997). The term "pharmaceutically acceptable excipient" denotes any ingredient having no therapeutic activity and being non-toxic such as disintegrators, binders, fillers, solvents, buffers, tonicity agents, stabilizers, antioxidants, surfactants or lubricants used in formulating pharmaceutical products. Whenever a chiral carbon is present in a chemical structure, it is intended that all stereoisomers associated with that chiral carbon are encompassed by the structure.

The invention also provides pharmaceutical compositions, methods of using, and methods of preparing the aforementioned compounds.

All separate embodiments may be combined.

One embodiment of the i la I,

wherein

R¹ is selected from the group consisting of

i) hydrogen,

ii) halogen, and

iii) Ci-e-alkyl;

R² is selected from the group consisting of

i) hydrogen,

ii) Ci-6-alkyl, and

iii) halogen-Ci-6-alkyl;

R³ is selected from the group consisting of

i) halogen,

ii) hydrogen, and

iii) Ci-e-alkyl;

R⁴ is selected from the group consisting of

i) hydrogen, and

ii) halogen;

R⁵ is selected from the group consisting of

i) hydrogen, and

ii) Ci-e-alkyl; R⁶ is selected from the group consisting of

i) hydrogen, and

ii) Ci-e-alkyl;

R⁷ is selected from the group consisting of

i) halogen, and

ii) Ci-e-alkyl;

n is O or l ;

R⁸ is selected from the group consisting of

i) heteroaryl,

ii) heteroaryl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-6-alkoxy and Ci-6-alkyl;

iii) heteroaryl-CH₂-,

iv) heteroaryl-CH₂-, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy,

Ci-6-alkoxy and Ci-6-alkyl;

v) aryl,

vi) aryl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-6-alkoxy and Ci_-6-alkyl,

vii) heterocyclyl, and

viii) heterocyclyl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-6-alkoxy and Ci-6-alkyl; or pharmaceutically acceptable salts thereof.

One embodiment of the invention is a compound of formula la according to claim 1,

wherein

R¹ is selected from the group consisting

i) hydrogen, i) halogen, and

ii) Ci-e-alkyl;

s selected from the group consisting of

hydrogen,

Ci-6-alkyl, and

) halogen-Ci-6-alkyl;

selected from the group consisting of

halogen,

hydrogen, and

) Ci_-6-alkyl;

selected from the group consisting of

hydrogen, and

halogen;

selected from the group consisting of

hydrogen, and

Ci-e-alkyl;

selected from the group consisting of

hydrogen, and

Ci-e-alkyl;

selected from the group consisting of

halogen, and

Ci-e-alkyl;

0 or 1 ;

selected from the group consisting of

heteroaryl,

heteroaryl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6- alkoxy, Ci-6-alkoxy and Ci-6-alkyl;

iii) heteroaryl-CH₂-,

iv) heteroaryl-CH₂-, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen- Ci-6-alkoxy, Ci-6-alkoxy and Ci-6-alkyl;

v) aryl,

vi) aryl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-₆- alkoxy and Ci-6-alkyl,

vii) heterocyclyl, and

viii) heterocyclyl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6- alkoxy, Ci-6-alkoxy and Ci-6-alkyl; or pharmaceutically acceptable salts thereof.

One embodiment of the invention is a compound of formula I, wherein R¹ halogen.

One embodiment of the invention is a compound of formula wherein R F. One embodiment of the invention is a compound of formula wherein R Ci-6-alkyl. One embodiment of the invention is a compound of formula wherein R Me. One embodiment of the invention is a compound of formula wherein R halogen. One embodiment of the invention is a compound of formula wherein R F. One embodiment of the invention is a compound of formula wherein R halogen. One embodiment of the invention is a compound of formula wherein R F. One embodiment of the invention is a compound of formula wherein R hydrogen. One embodiment of the invention is a compound of formula wherein R s F and R⁴ is F. One embodiment of the invention is a compound of formula wherein R Ci-6-alkyl. One embodiment of the invention is a compound of formula wherein R Me. One embodiment of the invention is a compound of formula wherein R hydrogen. One embodiment of the invention is a compound of formula wherein R Ci-6-alkyl. One embodiment of the invention is a compound of formula wherein R Me. One embodiment of the invention is a compound of formula wherein R hydrogen.

One embodiment of the invention is a compound of formula I, wherein R is hydrogen and R⁶ is hydrogen.

One embodiment of the invention is a compound of formula I, wherein R³ is F, R⁴ is F, R⁵ is hydrogen and R⁶ is hydrogen.

One embodiment of the invention is a compound of formula I, wherein R¹ is F, R² is Me, R³ is F, R⁴ is F, R³ is hydrogen and R^D 6 i ·s hydrogen.

One embodiment of the invention is a compound of formula I, wherein R⁵ is Me and R⁶ is Me. One embodiment of the invention is a compound of formula I, wherein R³ is F, R⁴ is F, R⁵ is Me and R⁶ is Me.

One embodiment of the invention is a compound of formula I, wherein R¹ is F, R² is Me, R³ is F, R⁴ is F, R⁵ is Me and R⁶ is Me.

One embodiment of the invention is a compound of formula I, wherein n is 0.

One embodiment of the invention is a compound of formula I, wherein n is i .

One embodiment of the invention is a compound of formula I, wherein R⁷ is halogen.

One embodiment of the invention is a compound of formula I, wherein R⁷ is F.

One embodiment of the invention is a compound of formula Ix, wherein R^R⁸ is as described herein.

One embodiment of the invention is a compound of formula I, wherein R is selected from the group consisting of i) heteroaryl, substituted by 1-2 substituents individually selected from the group consisting of cyano, halogen, Ci-6-alkoxy and Ci-6-alkyl;

ii) heteroaryl-CH₂-, substituted by 1-2 substituents individually selected from the group consisting of halogen and halogen-Ci-6-alkyl;

iii) aryl, substituted by 1-2 substituents individually selected from the group consisting of cyano, and halogen, and

iv) heterocyclyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 6,7-dihydro-5H- [l]pyrindin-7-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 2,3-dihydro- furo [3 ,2-b]pyridin-3 -yl . One embodiment of the invention is a compound of formula I, wherein R⁸ is 5,6,7,8- tetrahydro-quinolin-8-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 2,3-dihydro- benzofuran-3-yl. One embodiment of the invention is a compound of formula I, wherein R⁸ is lH-pyrazol-3- yi.

One embodiment of the invention is a compound of formula I, wherein R⁸ is pyridin-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl substituted by halogen. One embodiment of the invention is a compound of formula I, wherein R⁸ is 3-chloro-6,7- dihydro-5H-[l]pyrindin-7-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 6-chloro-2,3- dihydro-furo[3,2-b]pyridin-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 6-chloro-2,3- dihydro-benzofuran-3 -yl .

One embodiment of the invention is a compound of formula I, wherein R⁸ is 6-chloro- pyridin-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 5-fluoro- pyridin-3-yl. One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl substituted by cyano.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 3-cyano-6,7- dihydro-5H-[l]pyrindin-7-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 3-cyano-5, 6,7,8- tetrahydro-quinolin-8-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl substituted by Ci-6-alkyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 1 -methyl- 1H- pyrazol-3-yl. One embodiment of the invention is a compound of formula I, wherein R⁸ is 6-methyl- pyridin-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl substituted by Ci-6-alkoxy. One embodiment of the invention is a compound of formula I, wherein R⁸ is 6-methoxy- pyridin-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl substituted by halogen-Ci-6-alkyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 5- trifluoromethyl-pyridin-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl substituted by halogen-Ci-6-alkyoxy.

One embodiment of the invention is a compound of formula I, wherein R⁸ is (R)-6,6- Difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}-5,7,7-trimethyl- 2,5, 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl-CH₂-.

One embodiment of the invention is a compound of formula I, wherein R⁸ is lH-pyrazol-3- ylmethyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl-CH₂- substituted by halogen.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 4-chloro-l- difluoromethyl- 1 H-pyrazol-3 -ylmethyl . One embodiment of the invention is a compound of formula I, wherein R⁸ is heteroaryl-CH₂- substituted by halogen and halogen-Ci-6-alkyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 4-chloro-l- difluoromethyl- 1 H-pyrazol-3 -ylmethyl .

One embodiment of the invention is a compound of formula I, wherein R⁸ is heterocyclyl. One embodiment of the invention is a compound of formula I, wherein R is tetrahydro- furan-3-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is tetrahydro- pyran-3-yl. One embodiment of the invention is a compound of formula I, wherein R⁸ is tetrahydro- pyran-4-yl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is aryl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is phenyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is aryl substituted by cyano.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 4-cyano-phenyl.

One embodiment of the invention is a compound of formula I, wherein R⁸ is aryl substituted by halogen.

One embodiment of the invention is a compound of formula I, wherein R⁸ is 4-fluoro-phenyl. One embodiment of the invention is a compound of formula I, wherein R⁸ is selected from the group consisting of heteroaryl substituted by halogen or Ci-6-alkyl and aryl substituted by halogen.

One embodiment of the invention is a compound of formula I, wherein R⁸ is selected from the group consisting of 3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl, 1 -methyl- lH-pyrazol-3-yl and 4-fluoro-phenyl.

One embodiment of the invention is a compound of formula I, selected from the group consisting of

[3-((5R,6R)-3-Amino-6-fluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

(5R, 6R)-5 - { 5- [(4-Chloro- 1 -difluoromethyl- 1 H-pyrazol-3 -ylmethyl)-amino] -2-fluoro-phenyl } -6- fluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine,

(5R,6R)-6-Fluoro-5-[2-fluoro-5-(tetrahydro-furan-3-ylamino)-phenyl]-5-methyl-2,5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(5R, 6R)-6-Fluoro-5- [2-fluoro-5 -(tetrahydro-pyran-3 -ylamino)-phenyl] -5 -methyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(5R, 6R)-6-Fluoro-5- [2-fluoro-5 -(tetrahydro-pyran-4-ylamino)-phenyl] -5 -methyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine, (R)-5-[5-(6-Chloro-2,3-dihydro-benzofuran-3-ylamino)-2-fluoro-phenyl]-6,6-difluoro-5,7,7- trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine,

(R)-5 - [5-(6-Chloro-pyridin-3 -ylamino)-2-fluoro-phenyl] -6, 6-difluoro-5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(R)-5 - { 5 -[(4-Chloro- 1 -difluoromethyl- 1 H-pyrazol-3 -ylmethyl)-amino] -2-fluoro-phenyl } -6, 6- difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine,

(R)-5 - { 5 -[(4-Chloro- 1 -difluoromethyl- 1 H-pyrazol-3 -ylmethyl)-amino] -2-fluoro-phenyl } - 5 - ethyl-6,6-difluoro-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -( 1 -methyl- 1 H-pyrazol-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl- 2,5, 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(4-fluoro-phenylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(5 -fluoro-pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(5 -trifluoromethyl-pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl- 2,5, 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(6-methoxy-pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(6-methyl-pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine,

(R)-7-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4- fluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile,

(R)-7-[5-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-2,4- difluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile,

(S)-7-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4- fluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile,

[3 -((R)-3 - Amino-6, 6-difluoro-5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro- phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

[3 -((R)-3 - Amino-6, 6-difluoro-5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro- phenyl]-(6-chloro-2,3-dihydro-furo[3,2-b]pyridin-3-yl)-amine,

[3 -((R)-3 - Amino-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro-phenyl] ((S)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

[3 -((R)-3 - Amino-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro-phenyl] ((R)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

4-[3-((R)-3-Amino-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenylamino] -benzonitrile,

8-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro phenylamino]-5,6,7,8-tetrahydro-quinoline-3-carbonitrile, (S)-7-[5-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-2,4- difluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile, and

(R)-6,6-Difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}-5,7,7- trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine, or a pharmaceutical acceptable salt thereof.

(5R, 6R)-6-Fluoro-5- [2-fluoro-5 -(tetrahydro-pyran-4-ylamino)-phenyl] -5 -methyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

(R)-5-[5-(6-Chloro-2,3-dihydro-benzofuran-3-ylamino)-2-fluoro-phenyl]-6,6-difluoro-5,7,7- trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine,

(R)-5 - { 5 -[(4-Chloro- 1 -difluoromethyl- 1 H-pyrazol-3 -ylmethyl)-amino] -2-fluoro-phenyl } -5 - ethyl-6,6-difluoro-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(6-methyl-pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine, (R)-6, 6-Difluoro-5 - [2-fluoro-5 -(pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-3 -ylamine,

[3 -((R)-3 - Amino-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro-phenyl] - ((S)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

[3 -((R)-3 - Amino-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro-phenyl] - ((R)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

8-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenylamino]-5,6,7,8-tetrahydro-quinoline-3-carbonitrile, and

(S)-7-[5-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-2,4- difluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile, or a pharmaceutical acceptable salt thereof.

1. A compound according to any of claims 1-12, selected from the group consisting of [3-((5R,6R)-3-Amino-6-fluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(4-fluoro-phenylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[l,4]oxazepin-3-ylamine, and

[3 -((R)-3 - Amino-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro-phenyl] - ((S)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine.

A certain embodiment of the invention relates to a process for preparing a compound of formula I as defined herein, which process comprises reacting a compound of formula A20 to a compound of formula I

A20 wherein R¹, R², R³, R⁴, R⁵, R⁶, R⁷, R⁸and n are as defined herein.

A certain embodiment of the invention relates to a compound of formula I as described herein, whenever prepared by a process as defined above. A certain embodiment of the invention relates to a compound of formula I as described herein for use as therapeutically active substance.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as inhibitor of BACE1 and/or BACE2 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as inhibitor of BACE1 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as inhibitor of BACE2 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as inhibitor of BACE1 and BACE2 activity. A certain embodiment of the invention relates to a compound of formula I as described herein for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of diseases and disorders characterized by elevated β-amyloid levels and/or β-amyloid oligomers and/or β-amyloid plaques and further deposits or Alzheimer's disease.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of Alzheimer's disease.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of diabetes or type 2 diabetes. A certain embodiment of the invention relates to a compound of formula I as described herein for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of diabetes.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of Alzheimer's disease, diabetes or type 2 diabetes.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of amyotrophic lateral sclerosis (ALS), arterial thrombosis, autoimmune/inflammatory diseases, cancer such as breast cancer, cardiovascular diseases such as myocardial infarction and stroke, dermatomyositis, Down's Syndrome, gastrointestinal diseases, Glioblastoma multiforme, Graves Disease, Huntington's Disease, inclusion body myositis (IBM), inflammatory reactions, Kaposi Sarcoma, Kostmann Disease, lupus erythematosus, macrophagic myofasciitis, juvenile idiopathic arthritis, granulomatous arthritis, malignant melanoma, multiple mieloma, rheumatoid arthritis, Sjogren syndrome, Spinocerebellar Ataxia 1, Spinocerebellar Ataxia 7, Whipple's Disease or Wilson's Disease.

A certain embodiment of the invention relates to a pharmaceutical composition comprising a compound of formula I as described herein and a pharmaceutically acceptable carrier and/or a pharmaceutically acceptable auxiliary substance. A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the use in inhibition of BACEl and/or BACE2 activity.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the use in inhibition of BACEl activity.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the use in inhibition of BACE2 activity.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the use in inhibition of BACEl and BACE2 activity.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the therapeutic and/or prophylactic treatment of diseases and disorders characterized by elevated β-amyloid levels and/or β-amyloid oligomers and/or β-amyloid plaques and further deposits or Alzheimer's disease.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the therapeutic and/or prophylactic treatment of Alzheimer's disease.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the therapeutic and/or prophylactic treatment of diabetes or type 2 diabetes.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the therapeutic and/or prophylactic treatment of diabetes.

A certain embodiment of the invention relates to the use of a compound of formula I as described herein for the manufacture of a medicament for the therapeutic and/or prophylactic treatment of Alzheimer's disease, diabetes or type 2 diabetes. A certain embodiment of the invention relates to a compound of formula I as described herein for the use in inhibition of BACE1 and/or BACE2 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in inhibition of BACE1 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in inhibition of BACE2 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in inhibition of BACE1 and BACE2 activity.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in the therapeutic and/or prophylactic treatment of diseases and disorders characterized by elevated β-amyloid levels and/or β-amyloid oligomers and/or β-amyloid plaques and further deposits or Alzheimer's disease.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in the therapeutic and/or prophylactic treatment of Alzheimer's disease.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in the therapeutic and/or prophylactic treatment of diabetes or type 2 diabetes.

A certain embodiment of the invention relates to a compound of formula I as described herein for the use in the therapeutic and/or prophylactic treatment of diabetes. A certain embodiment of the invention relates to a compound of formula I as described herein for the use in the therapeutic and/or prophylactic treatment of Alzheimer's disease, diabetes or type 2 diabetes.

A certain embodiment of the invention relates to a method for the use in inhibition of BACEl and/or BACE2 activity, particularly for the therapeutic and/or prophylactic treatment of diseases and disorders characterized by elevated β-amyloid levels and/or β-amyloid oligomers and/or β-amyloid plaques and further deposits, Alzheimer's disease, diabetes or type 2 diabetes, which method comprises administering compound of formula I as described herein to a human being or animal. A certain embodiment of the invention relates to a method for the use in inhibition of

BACEl and/or BACE2 activity, particularly for the therapeutic and/or prophylactic treatment of amyotrophic lateral sclerosis (ALS), arterial thrombosis, autoimmune/inflammatory diseases, cancer such as breast cancer, cardiovascular diseases such as myocardial infarction and stroke, dermatomyositis, Down's Syndrome, gastrointestinal diseases, Glioblastoma multiforme, Graves Disease, Huntington's Disease, inclusion body myositis (IBM), inflammatory reactions, Kaposi Sarcoma, Kostmann Disease, lupus erythematosus, macrophagic myofasciitis, juvenile idiopathic arthritis, granulomatous arthritis, malignant melanoma, multiple mieloma, rheumatoid arthritis, Sjogren syndrome, Spinocerebellar Ataxia 1, Spinocerebellar Ataxia 7, Whipple's Disease or Wilson's Disease, which method comprises administering compound of formula I as described herein to a human being or animal.

A certain embodiment of the invention relates to a method for the use in the therapeutic and/or prophylactic treatment of Alzheimer's disease, diabetes or type 2 diabetes, which method comprises administering a compound of formula I as described herein to a human being or animal. Furthermore, the invention includes all optical isomers, i.e. diastereoisomers, diastereomeric mixtures, racemic mixtures, all their corresponding enantiomers and/or tautomers as well as their solvates of the compounds of formula I.

The skilled person in the art will recognize that the compounds of formula I can exist in tautomeric forms, e.g. in the following tautomeric form:

All tautomeric forms are encompassed in the present invention.

The compounds of formula I may contain one or more asymmetric centers and can therefore occur as racemates, racemic mixtures, single enantiomers, diastereomeric mixtures and individual diastereomers. Additional asymmetric centers may be present depending upon the nature of the various substituents on the molecule. Each such asymmetric center will independently produce two optical isomers and it is intended that all of the possible optical isomers and diastereomers in mixtures and as pure or partially purified compounds are included within this invention. The present invention is meant to encompass all such isomeric forms of these compounds. The independent syntheses of these diastereomers or their chromatographic separations may be achieved as known in the art by appropriate modification of the methodology disclosed herein. Their absolute stereochemistry may be determined by the x-ray crystallography of crystalline products or crystalline intermediates which are derivatized, if necessary, with a reagent containing an asymmetric center of known absolute configuration. If desired, racemic mixtures of the compounds may be separated so that the individual enantiomers are isolated. The separation can be carried out by methods well known in the art, such as the coupling of a racemic mixture of compounds to an enantiomerically pure compound to form a diastereomeric mixture, followed by separation of the individual diastereomers by standard methods, such as fractional crystallization or chromatography. Particular example of isomers of a compound of formula I is a compound of formula la, wherein the residues have the meaning as described in any of the embodiments.

Ib Ib-1 Ib-2 In the embodiments, where optically pure enantiomers are provided, optically pure enantiomer means that the compound contains > 90 % of the desired isomer by weight, in particular > 95 % of the desired isomer by weight, or more particular > 99 % of the desired isomer by weight, said weight percent based upon the total weight of the isomer(s) of the compound. Chirally pure or chirally enriched compounds may be prepared by chirally selective synthesis or by separation of enantiomers. The separation of enantiomers may be carried out on the final product or alternatively on a suitable intermediate.

The compounds of formula I may be prepared in accordance with the following schemes. The starting material is commercially available or may be prepared in accordance with known methods. Any previously defined residues and variables will continue to have the previously defined meaning unless otherwise indicated.

The compounds of formula I can be prepared through a number of synthetic routes for example as illustrated in below schemes. The preparation of compounds of formula I of the present invention can be carried out in sequential or convergent synthetic routes. Syntheses of the compounds of the invention are shown in the following schemes. The skills required for carrying out the reaction and purification of the resulting products are known to those skilled in the art. The substituents and indices used in the following description of the processes have the significance given herein before unless indicated to the contrary.

In more detail, the compounds of formula I can be manufactured by the methods given below, by the methods given in the examples or by analogous methods. Appropriate reaction conditions for the individual reaction steps are known to a person skilled in the art. The reaction sequence is not limited to the one displayed in schemes described below, however, depending on the starting materials and their respective reactivity the sequence of reaction steps can be freely altered. Starting materials are either commercially available or can be prepared by methods analogous to the methods given below, by methods described in references cited in the description or in the examples, or by methods known in the art.

In more detail, compounds of formula I according to the present invention can be prepared by the methods and procedures given below. Some typical procedures for the preparation of compounds of formula I are illustrated in Schemes A (R¹²=H, Br or N0₂), A' & A": Sulfinyl imines of general formula A2 can be prepared in analogy to T.P. Tang & J. A. Ellman, J. Org. Chem. 1999, 64, 12, by condensation of an aryl ketone and a sulfinamide, e.g. an alkyl sulfinamide, most particular (R)-(+)-tert-butylsulfinamide in the presence of a Lewis acid such as e.g. a titanium(IV)alkoxide, more particular titanium(IV)ethoxide in a solvent such as an ether, e.g. diethyl ether or more particular THF. The conversion of the sulfinyl imine A2 to the sulfinamide ester A3 proceeds stereo selectively by the chiral directing group as described by Tang & Ellman. The sulfinyl imine A2 can be reacted with a titanium enolate generated from e.g. an alkyl acetate, in particular ethyl acetate, LDA and chlorotriisopropoxytitanium at low temperature, particular at - 78 °C in a solvent such as an ether, e.g. diethyl ether or more particular THF. Alternatively sulfinamide ester A3 can be produced from sulfinyl imine A2 by Reformatsky reaction of a bromoacetic ester derivative and zinc dust, optionally in the presence of copper(I) chloride, in a solvent such as an ether, e.g. diethyl ether or more particular THF, at temperatures from 0 to 70 °C, particular at 23 °C.

Sulfinamide ester A3 can be reduced to the alcohol A4 by the reduction of the ethylester with an alkali hydride, particular lithium borohydride or lithium aluminium hydride in a solvent such as an ether, e.g. diethyl ether or more particular THF.

Alkylation of the alcohol A4 to the nitrile A5 can be accomplished with a suitable mild base particular silver(I) oxide in a solvent such as THF or CH₂CI₂, more particular CH₂CI₂ in the presence of an alkylating catalyst such as tetra butyl ammonium iodide.

Hydrolysis of the chiral directing group in the nitrile A5 to give the amino nitrile A6 can be accomplished with a mineral acid, e.g. sulfuric acid or particular hydrochloric acid in a solvent such as an ether, e.g. diethyl ether or more particular 1,4-dioxane.

Aminooxazepine A7 can be prepared by the reaction of amino nitrile A6 and trimethyl aluminium in a solvent such as a xylene, particular toluene.

The protection of the in amino oxazine A7 to give A8 can be accomplished with a triphenylmethyl protecting group, in particular 4,4'-dimethoxytrityl and a base, e.g an alkyl amine, particular triethyl amine in an inert solvent such as dichloromethane.

The conversion of the bromophenyl compound A8 to the diphenylmethyl imine A9 can be effected with an imine, e.g. benzophenone imine and a base, e.g. a metal alkoxide or more particular sodium t-butoxide and a palladium complex, e.g. 2-di-t-butylphosphino-2',4',6'- triisopropylbiphenyl and tris(dibenzylideneacetone)dipalladium chloroform adduct in a solvent such as a benzene derivative, e.g. toluene.

Global deprotection of the imine A9 to the aniline A10 can be accomplished in a two step procedure involving a strong carbonic acid, e.g. trifluoroacetic acid in a halogenated solvent, e.g. dichloromethane followed by addition of a mineral acid, e.g. hydrochloric acid in a water soluble solvent, e.g. dioxane.

Introduction of the nitro group in A7 (R = H) to give Al 1 was best performed according to the standard procedure involving sulfuric acid and nitric acid at low temperature, particular at 0 °C. Aminooxazepine Al 1 can be prepared by the reaction of amino nitrile A6 (for R =N0₂) and trimethyl aluminium in a solvent such as a xylene, particular toluene.

The reduction of the nitro group in aminooxazepine Al l to the aniline A10 can be accomplished by hydrogenation using a catalyst such as Pd/C in protic solvents, such as alcohols, in particular ethanol or methanol or by metal reduction such as iron or iin, more particular tin chloride in alcohol, more particular aqueous ethanol at elevated temperature, more particular 80 °C.

Target amines la can be prepared via reductive amination of aniline A10 performed with a borohydride as the reducing agent, e.g. sodium borohydride, particular sodium triacetoxyborohydride and a weak acid, e.g. acetic acid in a solvent such as tetrahydrofuran or dichloromethane .

The benzophenone imine in compounds of general formula A9 can be hydrolyzed to the aniline A12 by reacting it with diluted aqueous mineral acid, like e.g. hydrochloric acid, in a water soluble solvent such as tetrahydrofuran or dioxane. The conversion of the aniline A12 to the N-arylated or N-heteroarylated aniline A13 can be effected with an aryl- or heteroaryl bromide, chloride or triflate and a base, e.g. a metal alkoxide or more particular sodium t-butoxide and a palladium complex, e.g. 2-di-t-butylphosphino- 2',4',6'-triisopropylbiphenyl and tris(dibenzylideneacetone)dipalladium chloroform adduct in a solvent such as a benzene derivative, e.g. toluene. Alternatively the N-arylated or N- heteroarylated aniline A13 can be prepared by reacting a bromophenyl compound of general formula A8 with an aryl- or heteroaryl-amine R⁷-NH₂ under the same conditions as used for the conversion of A12 to A13.

Deprotection of the dimethoxytrityl protected amine A13 to the target amine la can be accomplished involving a strong carbonic acid, e.g. trifluoroacetic acid in a halogenated solvent, e.g. dichloromethane.

Sulfinamide ester A3 can be transformed into alcohol A4 by the reaction of the ethylester with an excess of a Grignard or an organolithium reagent, e.g. methyl- or ethylmagnesium halide, methyllithium etc., in a solvent such as an ether, e.g. diethyl ether or more particular THF, at temperatures between -78 and 70 °C, particular at 0 to 23 °C. Hydrolysis of the chiral directing group in the alcohol A4 to give the amino alcohol A14 can be accomplished with a mineral acid, e.g. sulfuric acid or particular hydrochloric acid in a solvent such as an ether, e.g. diethyl ether or THF, more particular 1,4-dioxane, at temperatures from 0 to 23 °C.

Haloacetamide A15, where X is chlorine or bromine, can be prepared by selective acylation of the amino group in amino alcohol A14 with an acid chloride, such as chloro- or bromoacetyl chloride, under biphasic conditions with a suitable mild base, like e.g. saturated aqueous solutions of sodium or potassium hydrogencarbonate, in a solvent such as toluene, ethyl acetate or CH₂CI₂, more particular CH₂CI₂ at temperatures between 0 and 23 °C.

Cyclization of the haloacetamide A15 to the lactam A16 can be accomplished by reacting it with a strong base, such as potassium tert-butoxide or potassium tert-amylate, in a solvent such as tert-butanol or tert-amylalcohol, toluene or THF, particular toluene, at temperatures between 0 and 70 °C, particular at 23 °C.

The conversion of the bromophenyl compounds A8 or A16 to the diphenylmethyl imines A9 or A17 can be effected with an imine, e.g benzophenone imine and a base, e.g a metal alkoxide or more particular sodium t-butoxide and a palladium complex, e.g. 2-di-t-butylphosphino- 2',4',6'-triisopropylbiphenyl and tris(dibenzylideneacetone)dipalladium chloroform adduct in a solvent such as a benzene derivative, e.g. toluene, at temperatures between 80 and 120 °C, particular between 90 and 110 °C.

The lactam A17 or A22 can be converted into the thiolactam A18 or A20 by reaction with 2,4-bis-(4-methoxy-phenyl)-[l,3,2,4]dithiadiphosphetane 2,4-disulfide (Lawesson's reagent) or phosphorous pentasulfide in an ether solvent such as THF, 1,2-dimethoxy ethane or 1,4-dioxane, particular 1,4-dioxane, at temperatures between 23 and 100 °C, particular between 50 and 80 °C.

The arylated benzophenone imine moiety in the thiolactam A18 can be hydrolyzed to the aniline A19 by aqueous mineral acid such as sulfuric or hydrochloric acid, particular hydrochloric acid, in an ether solvent such as THF, 1,2-dimethoxy ethane or 1,4-dioxane, particular 1,4-dioxane, at temperatures between 0 and 23 °C, particular at 23 °C. The formation of the thiolactam A18 and the following hydrolysis can be conveniently performed in one reaction vessel to yield the aniline A19 directly. Scheme A'

la'

Alkylated anilines A20 or A22 can be prepared via reductive amination of anilines A19 or A21 performed with a borohydride as the reducing agent, e.g. sodium borohydride, particular sodium triacetoxyborohydride and a weak acid, e.g. acetic acid in a solvent such as tetrahydrofuran or dichloromethane. Alternatively, anilines A19 or A21 can be reductively aminated with decaborane in a solvent such as methanol to give the alkylated anilines A20 or A22.

The conversion of the aniline A21 to the N-arylated or N-heteroarylated aniline A22 can be effected with an aryl- or heteroaryl bromide, chloride or triflate and a base, e.g. a metal alkoxide or more particular sodium t-butoxide and a palladium complex, e.g. 2-di-t-butylphosphino- 2',4',6'-triisopropylbiphenyl and tris(dibenzylideneacetone)dipalladium chloroform adduct in a solvent such as a benzene derivative, e.g. toluene.

The target amines la' can be prepared from the thiolactams A20 by reaction with an solution of ammonia in a protic solvent such as methanol, ethanol or water, particular methanol, with or without presence of a mild oxidant such as tert-butylhydroperoxide at temperatures between 0 and 60 °C, particular at 23 °C in the presence of an oxidant or at 50 to 60 °C in the absence of an oxidant.

Compounds of general formula A23 can be prepared by selective O-allylation by reacting the alcohol of the general formula A4 with allyl tert-butyl carbonate [CAS no. 70122-89-3] in the presence of catalytic amounts of a palladium(II) salt, like e.g. palladium(II) acetate, and a phosphine ligand, like e.g. triphenylphosphine, or with a palladium(O) catalyst, like e.g. tetrakistriphenylphosphinepalladium(O), in a solvent such as e.g. tetrahydrofuran or dioxane at temperatures between 23 and 100 °C, particular at 50 to 80 °C as described by Haight, A. R.; Stoner, E. J.; Peterson, M. J.; Grover, V. K.; in J. Org. Chem. 2003, 68 (21), 8092 (DOI: 10.1021/jo0301907).

The acids of general formula A24 can be prepared by oxidation of the O-allyl ethers of general formula A23 by reacting it with a periodate salt, such as sodium or potassium periodate, in the presence of a catalytic amount of a ruthenium salt, such as e.g. ruthenium(III) chloride, in a solvent mixture consisting of ethyl acetate or tetrachloromethane, acetonitrile and water at temperatures between 0 and 40 °C, particular 20 to 30 °C. These reaction conditions will cause concomitant oxidation of the fert-butylsulfinic acid amide into the corresponding tert- butylsulfonic acid amide.

The acids of general formula A24 can be converted into the ethyl esters of general formula A25 by treatment with thionyl chloride in ethanol at temperatures between 23 and 80 °C. The amino esters of general formula A26 can be prepared by cleavage of the tert- butylsulfonic acid amide in compounds of general formula A25 by treatment with a strong acid, particular trifluoromethanesulfonic acid, in a chlorinated solvent, such as e.g. dichloromethane, at temperatures between 0 and 30 °C, particular at 23 °C. This method has been described by Sun P., Weinreb S. M., Shang M. in J. Org. Chem. 1997, 62(24), 8604. Cyclization of the amino esters of general formula A26 to the lactams of general formula A16 can be achieved by the reaction with trimethyl aluminium in a solvent such as a xylene, particular toluene, at temperatures between 0 and 100 °C, in particular 23 °C.

Scheme A"

The corresponding pharmaceutically acceptable salts with acids can be obtained by standard methods known to the person skilled in the art, e.g. by dissolving the compound of formula I in a suitable solvent such as e.g. dioxane or tetrahydrofuran and adding an appropriate amount of the corresponding acid. The products can usually be isolated by filtration or by chromatography. The conversion of a compound of formula I into a pharmaceutically acceptable salt with a base can be carried out by treatment of such a compound with such a base. One possible method to form such a salt is e.g. by addition of 1/n equivalents of a basic salt such as e.g. M(OH)_n, wherein M = metal or ammonium cation and n = number of hydroxide anions, to a solution of the compound in a suitable solvent (e.g. ethanol, ethanol-water mixture, tetrahydrofuran-water mixture) and to remove the solvent by evaporation or lyophilisation. Particular salts are hydrochloride, formate and trifluoroacetate.

Insofar as their preparation is not described in the examples, the compounds of formula I as well as all intermediate products can be prepared according to analogous methods or according to the methods set forth herein. Starting materials are commercially available, known in the art or can be prepared by methods known in the art or in analogy thereto. It will be appreciated that the compounds of general formula I in this invention may be derivatised at functional groups to provide derivatives which are capable of conversion back to the parent compound in vivo.

Pharmacological Tests The compounds of formula I and their pharmaceutically acceptable salts possess valuable pharmacological properties. It has been found that the compounds of the present invention are associated with inhibition of BACE1 and/or BACE2 activity. The compounds were investigated in accordance with the test given hereinafter.

Cellular Αβ-lowering assay: Human HEK293 cells which are stably transfected with a vector expressing a cDNA of the human APP wt gene (APP695) were used to assess the potency of the compounds in a cellular assay. The cells were seeded in 96-well microtiter plates in cell culture medium (Iscove, plus 10% (v/v) fetal bovine serum, glutamine, penicillin/streptomycin) to about 80% confluence and the compounds were added at a lOx concentration in 1/10 volume of medium without FCS containing 8% DMSO (final concentration of DMSO was kept at 0.8% v/v). After 18-20 hrs incubation at 37 °C and 5% C0₂ in a humidified incubator the culture supernatant was harvested for the determination of Αβ40 concentrations. 96well ELISA plates (e.g., Nunc MaxiSorb) were coated with monoclonal antibody which specifically recognize the C-terminal end of Αβ40 (Brockhaus et al, NeuroReport 9, 1481-1486; 1998). After blocking of non-specific binding sites with e.g. 1% BSA and washing, the culture supernatants were added in suitable dilutions together with a horseradish peroxidase-coupled Αβ detection antibody (e.g., antibody 4G8, Senetek, Maryland Heights, MO) and incubated for 5 to 7 hrs. Subsequently the wells of the microtiter plate were washed extensively with Tris-buffered saline containing 0.05% Tween 20 and the assay was developed with tetramethylbenzidine/H₂0₂ in citric acid buffer. After stopping the reaction with one volume 1 N H₂SO₄ the reaction was measured in an ELISA reader at 450 nm wavelength. The concentrations of Αβ in the culture supernatants were calculated from a standard curve obtained with known amounts of pure Αβ peptide.

Immunofluorescence resonance energy transfer (FRET) assay for BACE2 inhibition:

BACE2 enzyme ectodomain (derived from plasmid "pET17b-T7-hu proBACE2") was prepared as described in Ostermann et al, "Crystal Structure of Human BACE2 in Complex with a Hydroxyethylamine Transition-state Inhibitor", Journal of Molecular Biology 2006, 355, 249- 261. The pro-enzyme was stored at 4 °C at a concentration of 70 μg/ml.

The FRET assay was performed essentially as described in Griininger-Leitch et al, Journal of Biological Chemistry (2002) 277(7) 4687-93 ("Substrate and inhibitor profile of BACE (beta- secretase) and comparison with other mammalian aspartic proteases"). In summary, a peptide is designed that is cleaved by the protease. The peptide is labelled with dabcyl at the N terminus and Lucifer Yellow at the C-terminus, such that for an intact peptide the Lucifer Yellow fluorescence is quenched by the dabcyl. When the peptide is cut by BACE2, the quenching is removed and a fluorescent signal is generated. The assay was performed as described in Grueninger et al. 2002 at pH 4.5 using a substrate concentration of 5 μΜ. A FRET peptide based on the TMEM27 sequence was devised, dabcyl - QTLEFLKIPS - LucY. BACE2 had a high activity against this sequence, which is unrelated to the known APP-based substrates. Conversely, BACE1 had insignificant activity against this peptide. The assay readout is the initial rate of change of fluorescence intensity giving a relative measure of BACE2 activity. Small values correspond to high inhibition and larger values to low inhibition. To determine IC₅₀ values (i.e. the concentration inhibiting the enzyme activity by 50%) of the compound for BACE2, typically, 12 assays were made with a range of

concentrations chosen empirically to give low, high and intermediate inhibition of the protease. IC₅₀ values were determined using these assay values generated for a range of inhibitor concentrations and the curve fitting software XLfit (IDBS) using the Sigmoidal Dose-Response Model.

The exemplified compounds according to formula I have an inhibitory activity in the above assa (IC₅₀) particular of 5 nM to 50 μΜ, more particular of 5 nM to 1 μΜ.

Table 1 : IC50 values of selected examples

Pharmaceutical Compositions

The compounds of formula I and the pharmaceutically acceptable salts can be used as therapeutically active substances, e.g. in the form of pharmaceutical preparations. The pharmaceutical preparations can be administered orally, e.g. in the form of tablets, coated tablets, dragees, hard and soft gelatin capsules, solutions, emulsions or suspensions. The administration can, however, also be effected rectally, e.g. in the form of suppositories, or parenterally, e.g. in the form of injection solutions.

The compounds of formula I and the pharmaceutically acceptable salts thereof can be processed with pharmaceutically inert, inorganic or organic carriers for the production of pharmaceutical preparations. Lactose, corn starch or derivatives thereof, talc, stearic acids or its salts and the like can be used, for example, as such carriers for tablets, coated tablets, dragees and hard gelatin capsules. Suitable carriers for soft gelatin capsules are, for example, vegetable oils, waxes, fats, semi-solid and liquid polyols and the like. Depending on the nature of the active substance no carriers are however usually required in the case of soft gelatin capsules. Suitable carriers for the production of solutions and syrups are, for example, water, polyols, glycerol, vegetable oil and the like. Suitable carriers for suppositories are, for example, natural or hardened oils, waxes, fats, semi-liquid or liquid polyols and the like.

The pharmaceutical preparations can, moreover, contain pharmaceutically acceptable auxiliary substances such as preservatives, solubilizers, stabilizers, wetting agents, emulsifiers, sweeteners, colorants, flavorants, salts for varying the osmotic pressure, buffers, masking agents or antioxidants. They can also contain still other therapeutically valuable substances.

Medicaments containing a compound of formula I or a pharmaceutically acceptable salt thereof and a therapeutically inert carrier are also provided by the present invention, as is a process for their production, which comprises bringing one or more compounds of formula I and/or pharmaceutically acceptable salts thereof and, if desired, one or more other therapeutically valuable substances into a galenical administration form together with one or more therapeutically inert carriers.

The dosage can vary within wide limits and will, of course, have to be adjusted to the individual requirements in each particular case. In the case of oral administration the dosage for adults can vary from about 0.01 mg to about 1000 mg per day of a compound of general formula I or of the corresponding amount of a pharmaceutically acceptable salt thereof. The daily dosage may be administered as single dose or in divided doses and, in addition, the upper limit can also be exceeded when this is found to be indicated.

The following examples illustrate the present invention without limiting it, but serve merely as representative thereof. The pharmaceutical preparations conveniently contain about 1- 500 mg, particular 1-100 mg, of a compound of formula I. Examples of compositions according to the invention are:

Example A

Tablets of the following composition are manufactured in the usual manner: ingredient mg/tablet

5 25 100 500

Compound of formula I 5 25 100 500

Lactose Anhydrous DTG 125 105 30 150

Sta-Rx 1500 6 6 6 60

Microcrystalline Cellulose 30 30 30 450

Magnesium Stearate 1 1 1 1

Total 167 167 167 831

Table 2: possible tablet composition

Manufacturing Procedure

1. Mix ingredients 1, 2, 3 and 4 and granulate with purified water.

2. Dry the granules at 50°C.

3. Pass the granules through suitable milling equipment.

4. Add ingredient 5 and mix for three minutes; compress on a suitable

Example B-l

Capsules of the following composition are manufactured:

Table 3 : possible capsule ingredient composition Manufacturing Procedure

1. Mix ingredients 1, 2 and 3 in a suitable mixer for 30 minutes.

2. Add ingredients 4 and 5 and mix for 3 minutes.

3. Fill into a suitable capsule.

The compound of formula I, lactose and corn starch are firstly mixed in a mixer and then in a comminuting machine. The mixture is returned to the mixer; the talc is added thereto and mixed thoroughly. The mixture is filled by machine into suitable capsules, e.g. hard gelatin capsules. Example B-2

Soft Gelatin Capsules of the following composition are manufactured:

Table 5: possible soft gelatin capsule composition Manufacturing Procedure

The compound of formula I is dissolved in a warm melting of the other ingredients and the mixture is filled into soft gelatin capsules of appropriate size. The filled soft gelatin capsules are treated according to the usual procedures.

Example C

Suppositories of the following composition are manufactured:

Table 6: possible suppository composition

Manufacturing Procedure The suppository mass is melted in a glass or steel vessel, mixed thoroughly and cooled to 45°C. Thereupon, the finely powdered compound of formula I is added thereto and stirred until it has dispersed completely. The mixture is poured into suppository moulds of suitable size, left to cool; the suppositories are then removed from the moulds and packed individually in wax paper or metal foil.

Example D

Injection solutions of the following composition are manufactured:

Table 7: possible injection solution composition

Manufacturing Procedure

The compound of formula I is dissolved in a mixture of Polyethylene Glycol 400 and water for injection (part). The pH is adjusted to 5.0 by acetic acid. The volume is adjusted to 1.0 ml by addition of the residual amount of water. The solution is filtered, filled into vials using an appropriate overage and sterilized.

Example E Sachets of the following composition are manufactured:

Table 8: possible sachet composition

Manufacturing Procedure The compound of formula I is mixed with lactose, microcrystalline cellulose and sodium carboxymethyl cellulose and granulated with a mixture of polyvinylpyrrolidone in water. The granulate is mixed with magnesium stearate and the flavoring additives and filled into sachets.

Experimental Part The following examples are provided for illustration of the invention. They should not be considered as limiting the scope of the invention, but merely as being representative thereof.

General:

MS: Mass spectra (MS) were measured either with ion spray positive or negative (ISP or ISN) method on a Perkin-Elmer SCIEX API 300 or with electron impact method (EI, 70 eV) on a Finnigan MAT SSQ 7000 spectrometer.

Abbreviations:

DCC = N,N'-diisopropyl-carbodiimide, DCE = 1,2-dichloroethane, DCM = dichloromethane, DIPEA = diisopropylethylamine, DMAc = dimethylacetamide, DMAP = 4- dimethylaminopyridine, DMF = N,N-dimethylformamide, DMSO = dimethyl sulfoxide, EDCI = N-(3-dimethylaminopropyl)-N'-ethyl-carbodiimide hydrochloride, HATU = 1- [bis(dimethylamino)methylene]-lH-l,2,3-triazolo[4,5-^]pyridinium-3-oxide

hexafluorophosphate, HC1 = hydrogen chloride, HPLC = high performance liquid chromatography, LDA = lithium diisopropylamide, MS = mass spectrum, NMR = nuclear magnetic resonance, TEA = triethylamine, TBME = tert-butyl methyl ether, and THF = tetrahydrofuran.

Synthesis of the intermediate l-(2-fluoro-5-nitro-phenyl)-propan-l-one A1A

To a solution of the l-(2-fluoro-phenyl)-propan-l-one (99 mmol) in concentrated sulfuric acid (80 ml) cooled down to -30 °C was added slowly fuming nitric acid (8 ml) over 20 min and the solution was stirred at -30 °C for 15 min. The mixture was slowly poured into a stirred mixture of 200 ml of water and 400 g ice. The aqueous phase was extracted with ethyl acetate, the organic layer was extracted again with water and aqueous NaHC0₃ 1M. The organic layer was dried over Na₂S0₄, evaporated and the residue was purified by chromatography on silica using a mixture of heptane and ethylacetate as eluent to afford the pure nitro intermediate J. MS (ISP): m/z = 198.1 [M+H]+.

Synthesis of the intermediate sulfinyl imines A2 General procedure

To a solution of the (R)-(+)-tert-butylsulfinamide (66 mmol) in THF (350 ml) was added subsequently the ketone Al (72.6 mmol) and titanium(IV)ethoxide (132 mmol) and the solution was stirred at reflux temperature for 5 h. The mixture was cooled to 22 °C, treated with brine (400 ml), the suspension was stirred for 10 min and filtered over dicalite. The layers were separated, the aqueous layer was extracted with ethyl acetate, the combined organic layers were washed with water, dried and concentrated in vacuo. The residue was purified by chromatography on silica using cylohexane/ethyl acetate to give the pure sulfinyl imine A2.

Intermediate A2A

Starting from l-(2-fluorophenyl)-ethanone, the product (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluorophenyl)-(/^-ethylidene] -amide was obtained as pale brown oil. MS (ISP): m/z = 242.3 [M+H]⁺.

Intermediate A2B

Starting from commercially available l-(2-fluoro-5-bromo-phenyl)-ethanone [CAS No. 477-89-3], the product (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-5-bromo-phenyl)-(E)- ethylidene] -amide was obtained as a pale red oil. MS (ISP): m/z = 320.3 [M+H]⁺.

Intermediate A2C

Starting from 2'-fluoro-5'-nitroacetophenone , the product (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-5-nitro-phenyl)-(E)-ethylidene]-amide was obtained as a pale red oil. MS (ISP): m/z = 287.2 [M+H]⁺.

Starting from l-(2-fluoro-5-nitro-phenyl)-propan-l-one, the product (R)-2-methyl-propane- 2-sulfinic acid [l-(2-fluoro-5-nitro-phenyl)-prop-(E)-ylidene]-amide was obtained as pale red oil. MS (ISP): m/z = 301.3 [M+H]⁺.

Intermediate A2E

Starting from commercially available l-(5-bromo-2,4-difluorophenyl)-ethanone [CAS No. 864773-64-8] the product (R)-2-methyl-propane-2-sulfinic acid [l-(5-bromo-2,4-difluoro- phenyl)-eth-(E)-ylidene] -amide was obtained as a pale red oil. MS (ISP): m/z = 338.1 [M+H]⁺ and 340.1 [M+2+H]⁺.

Intermediate A2F

Starting from commercially available 2'-fluoropropiophenone [CAS No. 21120-36-5] the product (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-phenyl)-prop-(E)-ylidene] -amide was obtained as a yellow oil. MS (ISP): m/z = 256.2 [M+H]⁺.

Synthesis of the intermediate sulfinamide esters A3

General procedure (via Reformatsky reaction)

In a dry apparatus a suspension of freshly activated zinc powder (1.63 g, 24.9 mmol) in dry THF (70 ml) was heated under inert atmosphere to reflux. A solution of the sulfinyl imine A2 (24.9 mmol) and the bromo-acetate (24.9 mmol) in dry THF (15 ml) was added dropwise over a period of 15 min and the suspension was heated to reflux for 5 h. The cooled mixture was partitioned between aqueous saturated H₄CI and ethyl acetate, the organic layer was dried and evaporated. The crude material was purified by flash chromatography using heptane/ethyl acetate to give the sulfinamide ester A3.

Intermediates A3 A and A3B

A3 A A3B

Starting from (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluorophenyl)-(E)-ethylidene]- amide and ethyl 2-bromo-2-fluoroacetate, the faster eluting minor isomer (2S,3R)-ethyl 3-((R)- l, l-dimethylethylsulfinamido)-2-fluoro-3-(2-fluorophenyl)butanoate (intermediate A3 A) was obtained as a dark brown oil. MS (ISP): m/z = 348.2 [M+H]⁺.

The second fraction contained the slower eluting major isomer (2R,3R)-ethyl 3-((R)-l, l- dimethylethylsulfinamido)-2-fluoro-3-(2-fluorophenyl)butanoate (intermediate A3B) as a brown oil. MS (ISP): m/z = 348.2 [M+H]⁺.

Intermediate A3C

Starting from (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-5-bromo-phenyl)-(E)- ethylidene] -amide and ethyl 2-bromo-2,2-difluoroacetate, the product (3R)-ethyl 3-((R)-l, l- dimethylethylsulfinamido)-2,2-difluoro-3-(2-fluoro-5-bromo-phenyl)butanoate was obtained as an orange oil. MS (ISP): m/z = 446.1 [M+H]⁺.

Intermediate A3D

Starting from (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-5-nitro-phenyl)-eth-(E)- ylidene]-amide, the product (S)-3-(2-fluoro-5-nitro-phenyl)-(R)-3-(2-methyl-propane-2- sulfinylamino)-butyric acid tert-butyl ester was obtained as an orange oil. MS (ISP): m/z = 403.0 [M+H]⁺.

Intermediate A3E

Starting from (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-5-nitro-phenyl)-prop-(E) ylidene]-amide, the product (S)-3-(2-fluoro-5-nitro-phenyl)-(R)-3-(2-methyl-propane-2 sulfinylamino)-pentanoic acid tert-butyl ester was obtained as an orange oil. MS (ISP): m/z = 417.5 [M+H]⁺.

Intermediate A3F

(S)-3-(5-bromo-2-fluoro-phenyl)-3-((R)-2-methyl-propane-2-sulfinylamino)-butyric acid ethyl ester

A dried four-necked 750 ml round-bottom flask equipped with mechanical stirrer, reflux condenser, internal thermometer and septum was charged with activated zinc powder (30.6 g, 468 mmol) and copper(I) chloride (4.64 g, 47 mmol), the two solids were mixed under a slow stream of nitrogen while the flask was dried with a heat gun. After cooling to 23 °C, dry THF (90 ml) was added to produce a dark slurry, heated to reflux and stirred vigorously for 30 min. The heating bath was removed and a solution of ethyl bromoacetate (12.95 ml, 117 mmol) in dry THF (50 ml) was added at such rate that reflux was reinitiated and a controllable reflux was maintained. Once addition was complete, the mixture was stirred for 30 min at 50 °C. Cooled to 5 °C, a solution of (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-5-bromo-phenyl)-(E)- ethylidene] -amide (intermediate A2B) (15.0 g, 47 mmol) in dry THF (60 ml) was added dropwise and the mixture was stirred at 0 °C for 1 h. The reaction mixture was filtered through dicalite, washed with TBME, the filtrate was washed with 5% citric acid, sat. NaHC03-sol. and brine, dried over Na₂S0₄. Removal of the solvent in vacuum left the crude title compound as an orange oil (20.3 g, 106%), which was used in the next step without further purification. MS (ISP): m/z = 408.0 [(M+H)⁺] and 410.1 [(M+2+H)⁺].

Intermediate A3G

Starting from (R)-2-methyl-propane-2-sulfinic acid [l-(5-bromo-2,4-difluoro-phenyl)-eth- (E)-ylidene] -amide (intermediate A2E) and ethyl 2-bromo-2,2-difluoroacetate, the product (R)- 3-(5-bromo-2,4-difluoro-phenyl)-2,2-difluoro-3-((R)-2-methyl-propane-2-sulfinylamino)-butyric acid ethyl ester was obtained as an orange oil. MS (ISP): m/z = 462.1 [M+Hf and 464.1 [M+2+H]⁺.

Intermediate A3H

Starting from (R)-2-methyl-propane-2-sulfinic acid [l-(2-fluoro-phenyl)-prop-(E)-ylidene]- amide (intermediate A2F) and ethyl 2-bromo-2,2-difluoroacetate, the product (R)-2,2-difluoro-3- (2-fluoro-phenyl)-3-((R)-2-methyl-propane-2-sulfinylamino)-pentanoic acid ethyl ester was obtained as a colorless oil. MS (ISP): m/z = 380.2 [M+H]⁺.

General procedure (via titanium enolate reaction) To a solution of diisopropylamine (21.9 ml) in THF (250 ml) was added at -78 °C n- butyllithium (1.6 M solution in hexane, 97.2 ml) and stirring was continued at -78 °C for 30 min. The solution was treated with methyl acetate (12.4 ml) and after 30 min a solution of chlorotriisopropoxytitanium (43.0 g) in THF (50 ml) was added and stirring was continued at - 78 °C for 30 min. The mixture was treated with a solution of the sulfinyl imine A2 (47.1 mmol) in THF (25 ml) and stirring was continued at -78 °C for 3 h. The mixture was quenched with saturated aqueous H₄CI solution (300 ml) and the mixture was filtered over dicalite. The layers were separated, the aqueous layer was extracted with ethyl acetate, the combined organic layers were washed with water, dried and evaporated. The residue was purified by chromatography on silica using cylohexane/ethyl acetate (1 :2) to give the pure sulfinamide ester A3.

Synthesis of the intermediate sulfinamide alcohols A4 General procedure

A solution of the sulfinamide ester A3 (12.7 mmol) in dry THF (50 ml) was treated at 0 °C with lithium borohydride (25.3 mmol) and stirring was continued at 0 °C for 4 h. The reaction mixture was quenched by addition of acetic acid (2 ml) and water (50 ml), extracted with ethyl acetate and the organic layer was dried and evaporated. The residue was purified by chromatography on silica using a mixture of n-heptane and ethyl acetate to give the pure intermediate sulfinamide alcohol A4.

Intermediate A4A

Starting from (2R,3R)-ethyl 3-((R)-l, l-dimethylethylsulfinamido)-2-fluoro-3-(2- fluorophenyl)butanoate, the product (R)-2-methyl-propane-2-sulfinic acid [(lR,2R)-2-fluoro-l- (2-fluoro-phenyl)-3 -hydroxy- 1-methyl-propyl] -amide was obtained as pale red crystals. MS (ISP): m/z = 306.1 [M+H]⁺.

Intermediate A4B

Starting from (3R)-ethyl 3-((R)-l, l-dimethylethylsulfinamido)-2,2-difluoro-3-(2-fluoro-5- bromo-phenyl)butanoate, the product (S)-N-((R)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4- hydroxybutan-2-yl)-2-methylpropane-2-sulfinamide was obtained as a colorless solid. MS (ISP): m/z = 402.2 [M+H]⁺.

Intermediate A4C

Starting from (S)-3-(2-fluoro-5-nitro-phenyl)-(R)-3-(2-methyl-propane-2-sulfinylamino)- butyric acid tert-butyl ester , the product (R)-2-methyl-propane-2-sulfinic acid [(S)-l-(2-fluoro- 5 -nitro-phenyl)-3 -hydroxy- 1-methyl-propyl] -amide was obtained as an orange oil. MS (ISP): m/z = 333.0 [M+H]⁺.

Intermediate A4D

Starting from (S)-3-(2-fluoro-5-nitro-phenyl)-(R)-3-(2-methyl-propane-2-sulfinylamino)- pentanoic acid tert-butyl ester , the product (R)-2-methyl-propane-2-sulfinic acid [(S)- 1 -ethyl- 1- (2-fluoro-5-nitro-phenyl)-3-hydroxy-propyl]-amide was obtained as an orange oil. MS (ISP): m/z = 347.0 [M+H]⁺.

Intermediate A4E

(R)-2-Methyl-propane-2-sulfinic acid [(S)-l-(5-bromo-2-fluoro-phenyl)-3-hydroxy-l,3- dimethyl-butyl] -amide

To a solution of (S)-3-(5-bromo-2-fluoro-phenyl)-3-((R)-2-methyl-propane-2- sulfinylamino)-butyric acid ethyl ester (intermediate A3F) (10.0 g, 24 mmol) in anhydrous THF (300 ml) at -70 °C was dropwise added a methyl magnesium bromide solution (3.2 M in THF; 61.2 ml, 196 mmol) within 30 min. The yellow solution was stirred for 1 h at -70 °C and then for 16 h at 23 °C. The yellow solution was quenched with 200 ml ice cold sat. H₄CI solution and extracted with ethyl acetate. The organic layer was washed with water and brine, dried over Na₂S04, filtered and evaporated to give the title compound as a yellow oil (10.8 g, 95%; ca. 85% purity), which was used in the next step without further purification. MS (ISP): m/z = 394.1 [(M+H)⁺] and 396.1 [(M+2+H)⁺]. Intermediate A4F

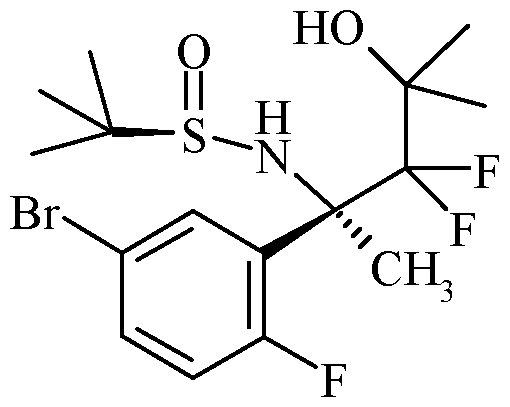

(R)-N-((R)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4-hydroxy-4-methylpent;

methylpropane-2-sulfinamide

To a solution of (R)-ethyl 3-(5-bromo-2-fluorophenyl)-3-((R)-l, l- dimethylethylsulfinamido)-2,2-difluorobutanoate (intermediate A3C) (10.5 g, 23.6 mmol) in anhydrous THF (150 ml) at -78 °C was dropwise added a methylmagnesium bromide solution (3.2 M in 2-methyl-THF; 59.1 ml, 189 mmol), the cooling bath was removed and the mixture was stirred at 23 °C for 18 h. Poured cautiously into sat. H₄CI-S0L, extracted with ethyl acetate, washed organic layer with brine and dried over Na₂S04. Removal of the solvent in vacuum left the (R)-N-((R)-2-(5 -bromo-2-fluorophenyl)-3 , 3 -difluoro-4-hydroxy-4-methylpentan-2-yl)-2- methylpropane-2-sulfinamide (10.565 g, 23.6 mmol, 99.7 % yield) as a yellow gum, which was used in the next step without further purification. MS (ISP): m/z = 430.1 [(M+H)⁺] and 432.1 [(M+2+H)⁺].

Intermediate A4G (R)-N-((R)-2-(5-bromo-2,4-difluorophenyl)-3,3-difluoro-4-hydroxy-4-methylpentan-2-yl)- 2-methylpropane-2-sulfinamide

To a solution of (R)-ethyl 3-(5-bromo-2,4-difluorophenyl)-3-((R)-l, l- dimethylethylsulfinamido)-2,2-difluorobutanoate (intermediate A3G) (23.1 g, 50.0 mmol) in anhydrous THF (700 ml) at -78 °C was dropwise added a methylmagnesium bromide solution (3.2 M in 2-methyl-THF; 125 ml, 400 mmol), the cooling bath was removed and the mixture was stirred at 23 °C for 18 h. Poured cautiously into sat. H₄CI-S0L, extracted with ethyl acetate, washed organic layer with brine and dried over Na₂S0₄. Removal of the solvent in vacuum left the (R)-N-((R)-2-(5-bromo-2,4-difluorophenyl)-3,3-difluoro-4-hydroxy-4-methylpentan-2-yl)-2- methylpropane-2-sulfinamide (21.4 g, 47.7 mmol, 95.5 % yield) as a light yellow solid, which was used in the next step without further purification. MS (ISP): m/z = 448.1 [(M+H)⁺] and 450.1 [(M+2+H)⁺].

Intermediate A4H

Starting from (R)-2,2-difluoro-3-(2-fluoro-phenyl)-3-((R)-2-methyl-propane-2- sulfinylamino)-pentanoic acid ethyl ester (intermediate A3H), the product 2-methyl-propane-2- sulfinic acid [(R)-l-ethyl-2,2-difluoro-l-(2-fluoro-phenyl)-3-hydroxy-propyl]-amide was obtained as a white solid. MS (ISP): m/z = 338.1 [M+H]⁺.

Synthesis of the intermediate sulfinamide nitrite A5 (R¹ = R² =H)

General procedure To a solution of the sulfinamide alcohol A4 (4.1 mmol) in dichloromethane (23 ml) was subsequently added at 22 °C 2-bromoacetonitrile (6.2 mmol), silver(I) oxide (1.9 g) and tetrabutylammonium iodide (0.30 g) and stirring was continued for 2 h. The suspension was filtered, the filtrate was washed with aqueous saturated NaHC0₃ solution, the organic layer was dried and evaporated to give the crude sulfinamide nitrile A5 which was used without further purification. Intermediate A5A

Starting from (R)-2-methyl-propane-2-sulfinic acid [(lR,2R)-2-fluoro-l-(2-fluoro-phenyl)- 3 -hydroxy- 1-methyl-propyl] -amide, the product (R)-N-((2R,3R)-4-(cyanomethoxy)-3-fluoro-2- (2-fluorophenyl)butan-2-yl)-2-methylpropane-2-sulfinamide was obtained as a pale yellow oil. MS (ISP): m/z = 345.2 [M+H]⁺.

Intermediate A5B

Starting from (S)-N-((R)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4-hydroxybutan-2-yl)- 2-methylpropane-2-sulfinamide, the product (S)-N-((R)-2-(5-bromo-2-fluorophenyl)-4- (cyanomethoxy)-3,3-difluorobutan-2-yl)-2-methylpropane-2-sulfinamide was obtained as a colorless oil. MS (ISP): m/z = 441.1 [M+H]⁺.

Intermediate A5C

Starting from (R)-2-methyl-propane-2-sulfinic acid [(S)-l-(2-fluoro-5-nitro-phenyl)-3- hydroxy- 1-methyl-propyl] -amide, the product (R)-2-methyl-propane-2-sulfinic acid [(S)-3- cyanomethoxy-l-(2-fluoro-5-nitro-phenyl)-l-methyl-propyl]-amide was obtained as an orange oil. MS (ISP): m/z = 372.0 [M+H]⁺. Intermediate A5D

Starting from (R)-2-methyl-propane-2-sulfinic acid [(S)-l -ethyl- l-(2-fluoro-5-nitro- phenyl)-3 -hydroxy-propyl] -amide , the product (R)-2-methyl-propane-2-sulfinic acid [(S)-3- cyanomethoxy-1 -ethyl- l-(2-fluoro-5-nitro-phenyl)-propyl]-amide was obtained as an orange oil. MS (ISP): m/z = 386.1 [M+H]⁺.

Intermediate A5E

Starting from 2-methyl-propane-2-sulfinic acid [(R)-l-ethyl-2,2-difluoro-l -^-fluorophenyl)^ -hydroxy-propyl] -amide (intermediate A4H), the product 2-methyl-propane-2-sulfinic acid [(R)-3-cyanomethoxy-l-ethyl-2,2-difluoro-l-(2-fluoro-phenyl)-propyl]-amide was obtained as a light yellow oil. MS (ISP): m/z = 377.3 [M+H]⁺.

Synthesis of the intermediate sulfinamide nitrite A5 (R¹ = R² =Me) To a solution of acetone cyanohydrin (307 mg, 3.6 mmol) in 10 ml DCE was added to a solution of SnCLj 1.0 M in DCM (3.91 ml, 3.9 mmol) at RT, then addition of the alcohol (1 g, 3 mmol). The reaction mixture was stirred at RT for 10 min, then stirred at 60 °C for two days, controled by TLC (EE pure). Reaction mixture cooled down to RT and poured into a mixture of DCM and aq. Na₂CC>3, solution stirred for 20 min. A white precipitate formed and was filtered over Celite®, separation of the two phases in the filtrate, organic phase dried over Na₂S0₄, filtered and evaporated down to dryness. The residue was purified by chromatography on silica with a mixture of heptane and ethyl acetate to give yellow oil. Intermediate A5F

Starting from (R)-2-methyl-propane-2-sulfinic acid [(S)-l-(2-fluoro-5-nitro-phenyl)-3- hydroxy- 1-methyl-propyl] -amide, the product (R)-2-methyl-propane-2-sulfinic acid [(S)-3- (cyano-dimethyl-methoxy)-l-(2-fluoro-5-nitro-phenyl)-l-methyl-propyl]-amide was obtained as an orange oil. MS (ISP): m/z = 400.1 [M+H]⁺.

Synthesis of the intermediate amino nitrite A6

General procedure

A solution of the sulfinamide nitrile A5 (4.25 mmol) in 1,4-dioxane (20 ml) was treated with a solution of HC1 in 1,4-dioxane (4 M, 5.3 ml) and stirring was continued at 22 °C for 1 h. The mixture was diluted with ethyl acetate, washed with saturated aqueous Na₂C0₃ solution, the organic layer was dried and evaporated. The crude material was purified on silica using n- heptane/ethyl acetate to give the pure amino nitrile A6.

Intermediate A6A

Starting from (R)-N-((2R,3R)-4-(cyanomethoxy)-3-fluoro-2-(2-fluorophenyl)butan-2-yl)- 2-methylpropane-2-sulfinamide, the product 2-((2R,3R)-3-amino-2-fluoro-3-(2- fluorophenyl)butoxy)acetonitrile was obtained as a pale yellow oil. MS (ISP): m/z = 241.1 [M+H]⁺. Intermediate A6B

Starting from (S)-N-((R)-2-(5-bromo-2-fluorophenyl)-4-(cyanomethoxy)-3,3- difluorobutan-2-yl)-2-methylpropane-2-sulfinamide, the product (R)-2-(3-amino-3-(5-bromo-2- fluorophenyl)-2,2-difluorobutoxy)acetonitrile was obtained as a colorless oil. MS (ISP): m/z = 337.2 [M+H]⁺. Intermediate A6C

Starting from (R)-2-methyl-propane-2-sulfinic acid [(S)-3-cyanomethoxy-l-(2-fluoro-5 nitro-phenyl)-l-methyl-propyl] -amide, the product [(S)-3-amino-3-(2-fluoro-5-nitro-phenyl) butoxy]-acetonitrile was obtained as an orange oil. MS (ISP): m/z = 268.0 [M+H]⁺.

Intermediate A6D

Starting from (R)-2-methyl-propane-2-sulfinic acid [(S)-3-cyanomethoxy-l-ethyl-l-(2- fluoro-5-nitro-phenyl)-propyl]-amide, the product [(S)-3-amino-3-(2-fluoro-5-nitro-phenyl)- pentyloxy]-acetonitrile was obtained as an orange oil. MS (ISP): m/z = 282.4 [M+H]⁺. Intermediate A6E

Starting from (R)-2-methyl-propane-2-sulfinic acid [(S)-3-(cyano-dimethyl-methoxy)-l-(2- fluoro-5-nitro-phenyl)-l-methyl-propyl]-amide, the product 2-[(S)-3-amino-3-(2-fluoro-5-nitro- phenyl)-butoxy]-2-methyl-propionitrile was obtained as an orange oil. MS (ISP): m/z = 296.3 [M+H]⁺.

Intermediate A6F

Starting from 2-methyl-propane-2-sulfinic acid [(R)-3-cyanomethoxy-l-ethyl-2,2-difluoro- l-(2-fluoro-phenyl)-propyl] -amide (intermediate A5E), the product [(R)-3-amino-2,2-difluoro-3- (2-fluoro-phenyl)-pentyloxy]-acetonitrile was obtained as a colorless oil. MS (ISP): m/z = 273.1 [M+H]⁺.

Synthesis of the intermediate 1,4-oxazepine A7

General procedure

To a solution of the amino nitrile A6 (2.20 mmol) in toluene (38 ml) was added at 22 °C a solution of AlMe₃ in toluene (2 M, 1.2 ml) and the mixture was heated to 80 °C for 1 h. The mixture was cooled to 0 °C, diluted with saturated aqueous Na₂CC"3 and the aqueous layer was extracted with ethyl acetate. The combined organic layers were dried, evaporated and the residue purified by chromatography on H₂-silica using n-heptane/ethyl acetate to give the pure 1,4- oxazepine A7.

Intermediate A7A

Starting from 2-((2R,3R)-3-amino-2-fluoro-3-(2-fluorophenyl)butoxy)acetonitrile, the product (5R,6R)-6-fluoro-5-(2-fluorophenyl)-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine was obtained as a pale yellow solid. MS (ISP): m/z = 241.2 [M+H]⁺.

Intermediate A7B

Starting from (R)-2-(3-amino-3-(5-bromo-2-fluorophenyl)-2,2-difluorobutoxy)acetonitrile, the product (R)-5 -(5 -bromo-2-fluorophenyl)-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- 1,4- oxazepin-3 -amine was obtained as a colorless oil. MS (ISP): m/z = 337.2 [M+Hf and 339.2 [M+2+H]⁺.

Intermediate A7C

Starting from [(R)-3-amino-2,2-difluoro-3-(2-fluoro-phenyl)-pentyloxy]-acetonitrile (intermediate A6F), the product (R)-5-ethyl-6,6-difluoro-5-(2-fluoro-phenyl)-2,5,6,7-tetrahydro- [l,4]oxazepin-3-ylamine was obtained as a dark brown oil. MS (ISP): m/z = 273.1 [M+H]⁺.

Intermediate A7D

a) Starting from (R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl- [l,4]oxazepan-3-one (intermediate A16B) (1 g, 2.73 mmol) the lactam was converted into the thiolactam as described for intermediate A20A. Obtained the (R)-5-(5-bromo-2-fluorophenyl)- 6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (0.92 g, 2.41 mmol, 88.1 % yield) as a light yellow oil. MS (ISN): m/z = 379.9 [M-H]^" and 381.8 [M+2-H]^". b) The (R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3- thione (0.92 g, 2.41 mmol) was converted into the amidine following a procedure as described for example 8. The product (R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl- 2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (0.425 g, 1.16 mmol, 48.4 %) was obtained as a white foam. MS (ISP): m/z = 365.2 [M+H]⁺ and 367.1 [M+2+H]⁺.

Synthesis of the intermediate DMT-l,4-oxazepine A8A

To a solution of (R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro- l,4-oxazepin-3 -amine (9.0 mmol) in dichloromethane (150 ml) was subsequently added at 0 °C Et₃ (18.0 mmol) and 4,4'-dimethoxytriphenylmethyl chloride (9.9 mmol) and stirring was continued at 22 °C for 2 h. The mixture was washed with saturated aqueous H₄CI, the organic layer was dried, evaporated and the residue was purified by chromatography on silica using cyclohexane/ethyl acetate to give pure (R)-N-(bis(4-methoxyphenyl)(phenyl)methyl)-5-(5- bromo-2-fluorophenyl)-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (A8A) as a colorless foam. MS (ISP): m/z = 639.3 [M+H]⁺ and 641.4 [M+2+H]⁺.

Intermediate A8B

Prepared in an analogous manner as described for intermediate A8A from (R)-5-(5-bromo- 2-fluorophenyl)-6, 6-difluoro-5 , 7, 7-trimethyl-2, 5 , 6,7-tetrahydro- 1 ,4-oxazepin-3 -amine

(intermediate A7D) (302.6 mg, 829 μιηοΐ). Obtained the (R)-N-(bis(4- methoxyphenyl)(phenyl)methyl)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-

2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (418 mg, 74%) as a white foam. MS (ISP): m/z = 667.2 [M+H]⁺ and 669.3 [M+2+H]⁺.

Synthesis of the intermediate imine A9A

To a solution of (R)-N-(bis(4-methoxyphenyl)(phenyl)methyl)-5-(5-bromo-2- fluorophenyl)-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- 1 ,4-oxazepin-3 -amine (intermediate A8A) (1.2 mmol) in toluene (15 ml) was added subsequently at 22 °C and under a argon atmosphere benzophenone imine (2.4 mmol), sodium tert-butoxide (3.6 mmol) and 2-di-t- butylphosphino-2',4',6'-triisopropylbiphenyl (0.12 mmol). To the mixture was added tris(dibenzylideneacetone) dipalladium chloroform adduct (0.036 mmol), the tube was sealed and heated to 105 °C for 3 h. The mixture was cooled to 22 °C, partitioned between saturated aqueous NaHC0₃ and ethyl acetate, the organic layer was dried and evaporated to give the crude (R)-N-(bis(4-methoxyphenyl)(phenyl)methyl)-5-(5-(diphenylmethyleneamino)-2-fluorophenyl)- 6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (A9A) as a yellow oil. MS (ISN): m/z = 738.5 [M-H]^".

Synthesis of the intermediate aniline A10A from the imine A9A

To a solution of crude (R)-N-(bis(4-methoxyphenyl)(phenyl)methyl)-5-(5-

(diphenylmethyleneamino)-2-fluorophenyl)-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-l,4- oxazepin-3 -amine (1.2 mmol) in dichloromethane (20 ml) was added at 22 °C trifluoroacetic acid (2.6 ml) and stirring was continued for 1 h. The mixture was diluted with 1,4-dioxane (40 ml) and aqueous hydrochloric acid (1 M, 33 ml) and vigorous stirring of the emulsion at 22 °C was continued for 16 h. The mixture was evaporated and the residue partitioned between saturated aqueous NaCl and ethyl acetate, the aqueous layer was separated, the pH was adjusted to 14 using saturated aqueous Na₂C0₃ solution and extracted with ethyl acetate. The organic layer was dried, evaporated and the residue purified by chromatography on silica-NH₂ using dichloromethane to give (R)-5-(5-amino-2-fluorophenyl)-6,6-difluoro-5-methyl-2,5,6,7- tetrahydro-l,4-oxazepin-3 -amine as a colorless oil. MS (ISP): m/z = 274.3 [M+H]⁺. General procedure for synthesis of nitrobenzenes Al 1 directly from nitrites A6

To a solution of the amino nitrile A6 (2.20 mmol) in toluene (38 ml) was added at 22 °C a solution of AlMe3 in toluene (2 M, 1.2 ml) and the mixture was heated to 80 °C for 1 h. The mixture was cooled to 0 °C, diluted with saturated aqueous Na₂CC"3 and the aqueous layer was extracted with ethyl acetate. The combined organic layers were dried, evaporated and the residue purified by chromatography on H₂-silica using n-heptane/ethyl acetate to give the pure 1,4- oxazepine Al 1.

Intermediate AHA

To a solution of (5R,6R)-6-fluoro-5-(2-fluorophenyl)-5-methyl-2,5,6,7-tetrahydro-l,4- oxazepin-3 -amine (1.2 mmol) in sulfuric acid (5.0 ml) was added at 0 °C red fuming nitric acid (1.9 mmol) over a period of 20 min and stirring was continued for 30 min. The solution was dropped slowly into ice/water (60 ml), the pH was adjusted to 9 by addition of aqueous 4 N NaOH and extracted with ethyl acetate. The organic layer was dried, evaporated and the residue purified by chromatography on silica-NH₂ using n-heptane/ethyl acetate to give (5R,6R)-6- fluoro-5-(2-fluoro-5-nitro-phenyl)-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-ylamine as a pale yellow solid. MS (ISP): m/z = 286.2 [M+H]⁺.

Intermediate Al IB

Starting from [(S)-3-amino-3-(2-fluoro-5-nitro-phenyl)-butoxy]-acetonitrile, the product

(S)-5-(2-fluoro-5-nitro-phenyl)-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-ylamine was obtained as an orange oil. MS (ISP): m/z = 268.3 [M+H]⁺.

Intermediate Al 1C

Starting from [(S)-3-amino-3-(2-fluoro-5-nitro-phenyl)-pentyloxy]-acetonitrile, the product (S)-5-ethyl-5-(2-fluoro-5-nitro-phenyl)-2,5,6,7-tetrahydro-l,4-oxazepin-3-ylamine was obtained as an orange oil. MS (ISP): m/z = 282.3 [M+H]⁺.

Intermediate Al IE

Starting from (R)-5-ethyl-6,6-difluoro-5-(2-fluoro-phenyl)-2,5,6,7-tetrahydro-

[l,4]oxazepin-3-ylamine (intermediate A7C) , the product (R)-5-ethyl-6,6-difluoro-5-(2-fluoro- 5-nitro-phenyl)-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine was obtained as a light yellow oil. MS (ISP): m/z = 318.1 [M+H]⁺.

Synthesis of the intermediate aniline A10B via reduction of the nitrobenzene AHA

A suspension of (5R,6R)-6-fluoro-5-(2-fluoro-5-nitro-phenyl)-5-methyl-2,5,6,7-tetrahydro- l,4-oxazepin-3-ylamine (1.0 mmol) in ethanol (9 ml) and Pd/C (10%, 100 mg) was hydrogenated at 22 °C and atmospheric pressure for 2 h. The suspension was filtered and the residue evaporated to give (5R,6R)-5-(5-amino-2-fluoro-phenyl)-6-fluoro-5-methyl-2,5,6,7- tetrahydro-l,4-oxazepin-3-ylamine as a yellow solid. MS (ISP): m/z = 256.3 [M+H]⁺.

General procedure for syntheses of intermediate anilines A10 via alternative reduction method of intermediate nitrobenzenes Al 1

To a solution of nitrobenzene (140 mg, 0.47 mmol) in 4.0 ml EtOH was added SnCl₂-2H₂0 (321 mg, 1.42 mmol) (precipitate formed instantly which dissolved upon heating). Reaction stirred at 80 °C for 1.5 h and controlled by TLC Si- H₂ (CH₂Cl₂/MeOH/NH₄OH 80: 18:2) which showed complete conversion. Reaction mixture poured into an aqueous solution NaOH IN, addition of ethyl acetate and the mixture was stirred for 10 min. Precipitate was filtered over Celite®, the two phases in the filtrate were separated. The organic phase was dried over Na₂S0₄, filtered and evaporated down to dryness. The residue was purified by chromatography on an amine-modified silica with a mixture of CH₂C1₂ and MeOH to give the pure aniline.

Intermediate AIOC

Starting from (S)-5-(2-fluoro-5-nitro-phenyl)-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3 ylamine , the product (S)-5-(5-amino-2-fluoro-phenyl)-5-methyl-2,5,6,7-tetrahydro-l,4 oxazepin-3-ylamine was obtained as an orange oil. MS (ISP): m/z = 237.9 [M+H]⁺.

Intermediate A10D

Starting from (S)-5-ethyl-5-(2-fluoro-5-nitro-phenyl)-2,5,6,7-tetrahydro-l,4-oxazepin-3- ylamine , the product (S)-5-(5-amino-2-fluoro-phenyl)-5-ethyl-2,5,6,7-tetrahydro-l,4-oxazepin- 3-ylamine was obtained as an orange oil. MS (ISP): m/z = 252.3 [M+H]⁺.

Starting from (R)-5-ethyl-6,6-difluoro-5-(2-fluoro-5-nitro-phenyl)-2,5,6,7-tetrahydro- [l,4]oxazepin-3 -ylamine (intermediate A11E) , the product (R)-5-(5-amino-2-fluoro-phenyl)-5- ethyl-6,6-difluoro-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine was obtained by catalytic hydrogenation as a light yellow solid. MS (ISP): m/z = 288.1 [M+H]⁺.

To a solution of (R)-N-(bis(4-methoxyphenyl)(phenyl)methyl)-5-(5- (diphenylmethyleneamino)-2-fluorophenyl)-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-l,4- oxazepin-3 -amine (intermediate A9A) (3.55 g, 4.8 mmol) in dioxane (100 ml) at 23 °C was added 1 M hydrochloric acid (4.8 ml, 4.8 mmol) and the mixture was stirred at 23 °C for 3 h. The reaction mixture was concentrated in vacuum and the residue was purified by silica gel flash chromatography with n-heptane/ethyl acetate to give the [(R)-5-(5-amino-2-fluoro-phenyl)-6,6- difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-yl]-[bis-(4-methoxy-phenyl)-phenyl- methyl]-amine (1.45 g, 52%) as a white foam. MS (ISP): m/z = 576.5 [M+H]⁺.

Intermediate A13A

To a solution of [(R)-5-(5-amino-2-fluoro-phenyl)-6,6-difluoro-5-methyl-2,5,6,7- tetrahydro-[l,4]oxazepin-3-yl]-[bis-(4-methoxy-phenyl)-phenyl-methyl]-amine (intermediate A12A) (40 mg, 69.5 μπιοΐ) in toluene (0.6 ml) in a sealable tube was added subsequently at 23 °C and under an argon atmosphere 4-bromobenzonitrile (25.3 mg, 139 μπιοΐ), sodium tert- butoxide (13.4 mg, 139 μπιοΐ), 2-di-t-butylphosphino-2',4',6'-triisopropylbiphenyl (2.95 mg, 6.95 μπιοΐ) and tris(dibenzylideneacetone) dipalladium chloroform adduct (2.16 mg, 2.08 μπιοΐ), the tube was sealed and heated to 105 to 110 °C for 17 h. The mixture was cooled to 23 °C, partitioned between saturated aqueous NaHCC and ethyl acetate, the organic layer was dried and evaporated to give the crude product, which was purified by silica gel flash chromatography with n-heptane/ethyl acetate and trituration with diethyl ether/pentane to give the (R)-4-(3-(3- (bis(4-methoxyphenyl)(phenyl)methylamino)-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-l,4- oxazepin-5-yl)-4-fluorophenylamino)benzonitrile (23 mg, 49%) as a light yellow crystalline. MS (ISN): m/z = 675.5 [M-H]^".

Intermediate A13B

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-N- (bis(4-methoxyphenyl)(phenyl)methyl)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7- trimethyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (intermediate A8B) (210 mg, 315 μιηοΐ) and commercially available 1 -methyl- lH-pyrazol-3 -amine [CAS no 1904-31-0] (62.4 mg, 629 μιηοΐ). The (R)-N-(bis(4-methoxyphenyl)(phenyl)methyl)-6,6-difluoro-5-(2-fluoro-5-(l -methyl- 1H- pyrazol-3 -ylamino)phenyl)-5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- 1 ,4-oxazepin-3 -amine ( 174 mg, 80.9%) was obtained as a light yellow foam. MS (ISP): m/z = 684 [M+H]⁺.

Intermediate A14A

(S)-4-Amino-4-(5-bromo-2-fluoro-phenyl)-2-methyl-pentan-2-ol

The compound was prepared in an analogous manner as described for intermediate A6 from (R)-2-methyl-propane-2-sulfinic acid [(S)-l-(5-bromo-2-fluoro-phenyl)-3-hydroxy-l,3- dimethyl-butyl] -amide (intermediate ΑΊΑ) (10.8 g; 27 mmol; 85% purity). After silica gel column chromatography the compound was obtained as a light brown solid (2.22 g, 33%). MS (ISP): m/z = 290.0 [(M+H)⁺] and 292.0 [(M+2+H)⁺].

Intermediate A14B

(R)-3 - Amino-3 -(5 -bromo-2-fluoro-phenyl)-2,2-difluoro-butan- 1 -ol

The compound was prepared in an analogous manner as described for intermediate A6 from (S)-N-((R)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4-hydroxybutan-2-yl)-2- methylpropane-2-sulfinamide (intermediate A4B) (3.706 g, 9.21 mmol) to give the title compound as an orange viscous oil (2.96 g, 90% purity, 97% yield). MS (ISP): m/z = 298.2 [(M+H)⁺] and 300.2 [(M+2+H)⁺].

Intermediate A15A

N- [(S)- 1 -(5-Bromo-2-fluoro-phenyl)-3 -hydroxy- 1 , 3 -dimethyl-butyl] -2-chloro-acetamide

To a vigorously stirred mixture of (S)-4-amino-4-(5-bromo-2-fluoro-phenyl)-2-methyl- pentan-2-ol (intermediate A14A) (2.22 g; 7.7 mmol) in sat. aqueous NaHC0₃-sol. (25 ml) and dichloromethane (DCM) (35 ml) at 0 °C was added chloroacetyl chloride (672 μΐ, 8.5 mmol) and the mixture was stirred at 0 °C for 30 min. Diluted with water, brine and ethyl acetate (EtOAc), separated phases, dried organic layer over sodium sulphate. Removal of the solvent in vacuum left the crude product as a colourless oil (3.11 g, 111%), which was used in the next step without further purification. MS (ISP): m/z = 366.0 [(M+H)⁺], 368.0 [(M+2+H)⁺] and 370.0 [(M+4+H)⁺].

Intermediate A15B 2-Bromo-N- [(R)- 1 -(5 -bromo-2-fluoro-phenyl)-2,2-difluoro-3 -hydroxy- 1 -methyl-propyl] - acetamide

Prepared in an analogous manner as described for intermediate A15A from (R)-3-amino-3- (5-bromo-2-fluoro-phenyl)-2,2-difluoro-butan-l-ol (intermediate A14B) (2.96 g, 9.93 mmol) and bromoacetyl chloride (1.72 g, 914 μΐ, 10.9 mmol). Obtained was the title compound as an off- white solid. MS (ISP): m/z = 418.0 [(M+H)⁺], 420.0 [(M+2+H)⁺] and 422.0 [(M+4+H)⁺].

Intermediate A16A (S)-5-(5-Bromo-2-fluoro-phenyl)-5,7,7-trimethyl-[l,4]oxazepan-3-one

To a solution of N-[(S)-l-(5-bromo-2-fluoro-phenyl)-3-hydroxy-l,3-dimethyl-butyl]-2- chloro-acetamide (intermediate A15A) (3.11 g, 8.5 mmol) in toluene (150 ml) at 23 °C was added dropwise a solution of potassium amylate (1.7 M in toluene; 25.0 ml, 42 mmol) within 10 min (slightly exothermic). The light brown solution was stirred at 23 °C for 2 h. Diluted with water, IN HCl and brine and extracted twice with ethyl acetate. The organic layers were washed with sat. NaHC0₃ solution and brine, dried over Na₂SC"4, filtered and evaporated to give a light brown oil, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the title compound as an off-white solid (1.05 g, 37%). MS (ISP): m/z = 330.0 [(M+H)⁺] and 332.0 [(M+2+H)⁺].

Intermediate A16B

(R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-[l,4]oxazepan-3-one

To a solution of (R)-ethyl 2-(4-amino-4-(5-bromo-2-fluorophenyl)-3,3-difluoro-2- methylpentan-2-yloxy)acetate (intermediate A27A) (6.85 g, 16.6 mmol) in toluene (205 ml) at 23 °C was dropwise added trimethylaluminum (2 M in toluene, 10.8 ml, 21.6 mmol) and the light yellow solution was stirred at 23 °C for 2 h. Poured into sat. NaHC0₃-soL, extracted with ethyl acetate, washed organic layer with brine, dried over Na₂S0₄, filtered off and evaporated totally, dried in high vacuum to give the (R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7- trimethyl-l,4-oxazepan-3-one (5.95 g, 16.2 mmol, 97.8 % yield) as a light yellow solid, which was used without further purification. MS (ISP): m/z = 366.2 [(M+H)⁺] and 368.1 [(M+2+H)⁺].

Intermediate A16C

(R)-5-(5-bromo-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl-[l,4]oxazepan-3-one

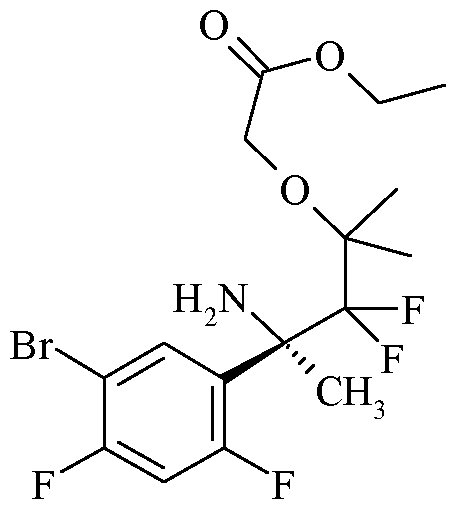

Prepared in an analogous manner as described for intermediate A27A from (R)-ethyl 2-(4- amino-4-(5-bromo-2,4-difluorophenyl)-3,3-difluoro-2-methylpentan-2-yloxy)acetate

(intermediate A27B) (16.1 g; 37.4 mmol). After silica gel column chromatography with heptane and ethyl acetate the (R)-5-(5-bromo-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl- [l,4]oxazepan-3-one (9.0 g, 23.4 mmol, 63% yield) was obtained as an off-white solid. MS (ISP): m/z = 384.2 [(M+H)⁺] and 386.1 [(M+2+H)⁺].

Intermediate A16D

(R)-5-(5-Bromo-2-fluoro-phenyl)-6,6-difluoro-5-methyl-[l,4]oxazepan-3-one

Prepared in an analogous manner as described for intermediate A27A from 2-Bromo-N- [(R)- 1 -(5 -bromo-2-fluoro-phenyl)-2,2-difluoro-3 -hydroxy- 1 -methyl-propyl] -acetamide

(intermediate A15B) (700 mg; 2.82 mmol). After silica gel column chromatography with heptane and ethyl acetate the (R)-5-(5-bromo-2-fluoro-phenyl)-6,6-difluoro-5-methyl- [l,4]oxazepan-3-one (366 mg, 1.83 mmol, 65% yield) was obtained as a white solid. MS (ISP): m/z = 337.0 [(M+H)⁺] and 339.0 [(M+2+H)⁺].

Intermediate A17A

(S)-5-[5-(Benzhydrylidene-amino)-2-fluoro-phenyl]-5,7,7-trimethyl-[l,4]oxazepan-3-one

Under argon in a sealed tube was added to a solution of (S)-5-(5-bromo-2-fluoro-phenyl)-

5,7,7-trimethyl-[l,4]oxazepan-3-one (intermediate A16A) (1.0 g, 3.0 mmol) in toluene (20 ml), sodium tert-butoxide (NaOBu*) (865 mg, 9.0 mmol), 2-di-/er/-butylphosphino-2',4',6'- triisopropylbiphenyl (t-Bu X-phos) (127 mg, 10 mol%) and tris(dibenzylideneacetone)dipalladium chloroform complex (Pd₂(dba)3-CHCl₃)(93 mg, 3 mol%) followed by benzophenone imine (1.07 mL, 6.0 mmol). The tube was sealed under argon and the mixture was stirred at 105 °C for 18 h to 2.5 days. The mixture was cooled to 23 °C, poured into water, extracted with ethyl acetate, and the organic layer was washed with brine and dried over sodium sulphate. Removal of the solvent in vacuum left a brown oil, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the (S)-5-[5-(benzhydrylidene- amino)-2-fluoro-phenyl]-5,7,7-trimethyl-[l,4]oxazepan-3-one (1.15 g, 88%) as light yellow foam. MS (ISP): m/z = 431.3 [(M+H)⁺].

Intermediate A17B

(R)-5-(5-(diphenylmethyleneamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl- [ 1 ,4]oxazepan-3 -one

The compound was prepared in an analogous manner as described for intermediate A17A below from (R)-5 -(5 -bromo-2-fluorophenyl)-6, 6-difluoro-5 , 7, 7-trimethyl- [ 1 ,4] oxazepan-3 -one (intermediate A16B) (1.03 g, 2.81 mmol). The compound was obtained as yellow solid (1.05 g, 2.25 mmol, 80%). MS (ISP): m/z = 467.3 [(M+H)⁺].

Intermediate A17C

(R)-5-(5-(diphenylmethyleneamino)-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl- [ 1 ,4[oxazepan-3 -one

The compound was prepared in an analogous manner as described for intermediate A17A below from (R)-5-(5-bromo-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl-[l,4]oxazepan-3- one (intermediate A16C) (1.5 g, 3.9 mmol). The compound was obtained as a light yellow foam (0.75 g, 1.55 mmol, 40%). MS (ISP): m/z = 485.3 [(M+H)⁺].

Intermediate A17D

(R)-5-[5-(Benzhydrylidene-amino)-2-fluoro-phenyl]-6,6-difluoro-5-methyl-[l,4]oxazepan-

3 -one

The compound was prepared in an analogous manner as described for intermediate A17A below from (R)-5 -(5 -bromo-2-fluoro-phenyl)-6, 6-difluoro-5 -methyl- [ 1 ,4] oxazepan-3 -one (intermediate A16D) (355 mg, 1.05 mmol). The compound was obtained as yellow foam (308 mg, 0.70 mmol, 67%). MS (ISP): m/z = 439.2 [(M+H)⁺].

Intermediate A19A

(S)-5-(5-Amino-2-fluoro-phenyl)-5,7,7-trimethyl-[l,4]oxazepane-3-thione

solution of (S)-5-[5-(benzhydrylidene-amino)-2-fluoro-phenyl]-5,7,7-trimethyl- [l,4]oxazepan-3-one (intermediate A17A) (1.15 g, 2.7 mmol) in dioxane (80 ml) at 23 °C was added 2,4-bis-(4-methoxy-phenyl)-[l,3,2,4]dithiadiphosphetane 2,4-disulfide (Lawesson's reagent) (681 mg, 1.7 mmol) and the mixture was stirred at 80 °C for 2 h to obtain a crude solution of the (S)-5-[5-(benzhydrylidene-amino)-2-fluoro-phenyl]-5,7,7-trimethyl- [l,4]oxazepane-3-thione (intermediate A18A), which was cooled to 23 °C and 1 M HCl (3.4 ml, 3.4 mmol) was added. After 30 min of stirring, the reaction mixture was poured on sat. NaHCCV solution and extracted twice with ethyl acetate. The combined organic layers were washed with brine, dried over sodium sulfate, filtered and evaporated to give a dark green oil, which was purified by silica gel column chromatography with dichloromethane/ethyl acetate to give the (S)- 5-(5-amino-2-fluoro-phenyl)-5,7,7-trimethyl-[l,4]oxazepane-3-thione (575 mg, 76%) as a light brown foam. MS (ISP): m/z = 283.1 [(M+H)⁺].

Intermediate A19B

-amino-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-[l,4]oxazepane-3-thione

The compound was prepared in an analogous manner as described for intermediate A19A from (R)-5 -(5 -(diphenylmethyleneamino)-2-fluorophenyl)-6, 6-difluoro-5 , 7, 7-trimethyl-

[l,4]oxazepan-3-one (intermediate A17B) (3.13 g, 6.71 mmol). The compound was obtained as yellow foam (1.0 g, 3.14 mmol, 47%). MS (ISP): m/z = 319.2 [(M+H)⁺]. Intermediate A19C

(R)-5-(5-Amino-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl-[l,4]oxazepane-3-thione

The compound was prepared in an analogous manner as described for intermediate A19A from (R)-5-(5-(diphenylmethyleneamino)-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl- [l,4[oxazepan-3-one (intermediate A17C) (0.75 g, 1.55 mmol). The compound was obtained as a light yellow foam (0.29 g, 0.86 mmol, 56%). MS (ISP): m/z = 337.2 [(M+H)⁺].

Intermediate A20A

(R)-5-[5-(3-Chloro-6,7-dihydro-5H-[l]pyrindin-7-ylamino)-2-fluoro-phenyl]-6,6-difluoro- 5 -methyl- [ 1 ,4] oxazepane-3 -thione

To a solution of (5R)-5-(5-(3-chloro-6,7-dihydro-5H-cyclopenta[b]pyridin-7-ylamino)-2- fluorophenyl)-6,6-difluoro-5-methyl-l,4-oxazepan-3-one (intermediate A22A) (62 mg, 146 μπιοΐ) in dioxane (2.2 ml) at 23 °C was added 2,4-bis-(4-methoxy-phenyl)- [l,3,2,4]dithiadiphosphetane 2,4-disulfide (Lawesson's reagent) (38.3 mg, 94.6 μιηοΐ) and the mixture was stirred at 80 °C for 3 h. The reaction mixture was poured onto sat. NaHCCVsolution and extracted twice with ethyl acetate. The combined organic layers were washed with brine, dried over sodium sulfate, filtered and evaporated to give a yellow solid, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the (R)-5-[5-(3-chloro- 6, 7-dihydro-5H- [ 1 ]pyrindin-7-ylamino)-2-fluoro-phenyl] -6, 6-difluoro-5 -methyl- [ 1 ,4] oxazepane- 3 -thione (54 mg, 84%) as a white solid. MS (ISP): m/z = 443.0 [(M+H)⁺].

Intermediate A20Aa (R)-5-[5-((R)-3-Chloro-6,7-dihydro-5H-[l]pyrindin-7-ylamino)-2-fluoro-phi difluoro-5-methyl-[l,4]oxazepane-3-thione

Obtained from (R)-5 - [5 -(3 -chloro-6, 7-dihy dro-5H- [ 1 ]pyrindin-7-ylamino)-2-fluoro- phenyl]-6,6-difluoro-5-methyl-[l,4]oxazepane-3-thione (intermediate A20A) (50 mg) by chromatography on a Chiralpak AD column with 40% ethanol in n-heptane being the less polar eluting epimer (A(-)) as a yellow solid (20 mg). MS (ISP): m/z = 443.0 [(M+H)⁺].

Intermediate A20Ab

(R)-5-[5-((S)-3-Chloro-6,7-dihydro-5H-[l]pyrindin-7-ylamino)-2-fluoro-phi

difluoro-5-methyl-[l,4]oxazepane-3-thione

Obtained from (R)-5 - [5 -(3 -chloro-6, 7-dihy dro-5H- [ 1 ]pyrindin-7-ylamino)-2-fluoro- phenyl]-6,6-difluoro-5-methyl-[l,4]oxazepane-3-thione (intermediate A20A) (50 mg) by chromatography on a Chiralpak AD column with 40% ethanol in n-heptane being the more polar eluting epimer (B(-)) as a yellow solid (16 mg). MS (ISP): m/z = 443.0 [(M+H)⁺].

Intermediate A20B

7-(3-((R)-6,6-Difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4-fluorophenylamino)- 6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile

Prepared in an analogous manner as described for intermediate A22A from (R)-5-(5- amino-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A19B) (305 mg, 958 μηιοΐ) and 7-oxo-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile (167 mg, 1.05 mmol) The 7-(3-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4-fluorophenylamino)- 6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile (370 mg, 84%) was obtained as a light yellow foam. MS (ISP): m/z = 426.1 [(M+H)⁺]. The 7-oxo-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile was prepared as follows: a) 6,7-Dihydro-5H-[l]pyrindine-3-carbonitrile

A mixture of 3-chloro-6,7-dihydro-5H-[l]pyridine (7.1 g, 46.2 mmol), sodium carbonate (980 mg, 9.25 mmol), potassium hexacyanoferrate(II) trihydrates (7.81 g, 18.5 mmol), palladium(II) acetate (104 mg, 462 μιηοΐ) and butyldi-l-adamantylphosphine (497 mg, 1.39 mmol) was dissolved in N-methyl-2-pyrrolidinone (46.2 ml), the solution flushed with argon and heated to 160 °C for 16 hr. After cooling to 23 °C, the mixture was poured into water, extracted with dichloromethane, the combined extracts dried over Na₂S0₄ and the solvent evaporated leaving a dark blue liquid. The crude material was purified by silica gel flash chromatography with n-heptane/ethyl acetate to give the 6,7-dihydro-5H-[l]pyrindine-3-carbonitrile as a white solid (4.82 g, 72 %). MS (ISP): m/z = 145.1 [(M+H)⁺]. b) 1 -Oxy-6,7-dihydro-5H-[ 1 ]pyrindine-3 -carbonitrile

To a solution of 6,7-dihydro-5H-[l]pyrindine-3-carbonitrile (6.23 g, 43.2 mmol) in acetic acid (54 ml) at 40 °C was portionwise added sodium perborate tetrahydrate (7.31 g, 47.5 mmol) and the mixture was stirred at 40 °C for 30 h. Added more sodium perborate tetrahydrate (1.05 g, 6.82 mmol) after 24 h. The acetic acid was removed by evaporation, the residue taken up in sat. NaHC0₃-sol., extracted with dichloromethane (3 x 150 mL), the combined organic layer was dried over Na₂S04. Removal of the solvent in vacuum left the l-oxy-6,7-dihydro-5H- [l]pyrindine-3 -carbonitrile (6.5 g, 39.2 mmol, 90.6 %) as a white solid. MS (ISP): m/z = 161.1 [(M+H)⁺]. c) 7-Hydroxy-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

To a solution of l-oxy-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile (1.82 g, 11.4 mmol) in dichloromethane (40 ml) at 0 °C was added dropwise trifluoroacetic anhydride (14.3 g, 9.63 ml, 68.2 mmol) and the mixture was stirred at 0 to 23 °C for 18 h. Poured into icecold 1 N NaOH sol, stirred for 30 min and extracted twice with dichloromethane. The combined organic layer was dried over sodium sulfate, the solvent was removed in vacuum to leave a brown residue, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the 7-hydroxy-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile (1.14 g, 7.12 mmol, 62.6%) as a yellow solid. MS (ISP): m/z = 161.1 [(M+H)⁺]. d) 7-Oxo-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

To a solution of 7-hydroxy-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile (1.05 g, 6.56 mmol) in dichloromethane (50 ml) at 0 °C was added Dess-Martin periodinane (2.92 g, 6.88 mmol) and the mixture was stirred at 23 °C for 2 hours. Poured on 1 M Na₂C0₃-sol. and extracted twice with dichloromethane. The organic layers were washed with diluted NaHS0₃ solution and brine, dried over Na₂S0₄, filtered and evaporated to give a grey solid. The residue was purified by silica gel flash chromatography with n-heptane/ethyl acetate to give the 7-oxo-6,7-dihydro-5H- [l]pyrindine-3-carbonitrile (855 mg, 5.14 mmol, 78.3 %) as a dark green solid. MS (ISP): m/z =

159.1 [(M+H)⁺].

Intermediate A20Ba

(S)-7-[3-((R)-6,6-Difluoro-5,7,7-trimethyl-3-thioxo-[l,4]oxazepan-5-yl)-4-fluoro- phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

Obtained from 7-(3-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4- fluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile (intermediate A20B) (370 mg, 803 μπιοΐ) by chromatography on a Chiralpak AD column with 30% ethanol in n- heptane being the less polar eluting epimer (A(-)) as a light brown foam (158 mg, 343 μιηοΐ, 42.7%). MS (ISP): m/z = 461.3 [(M+H)⁺].

Intermediate A20Bb

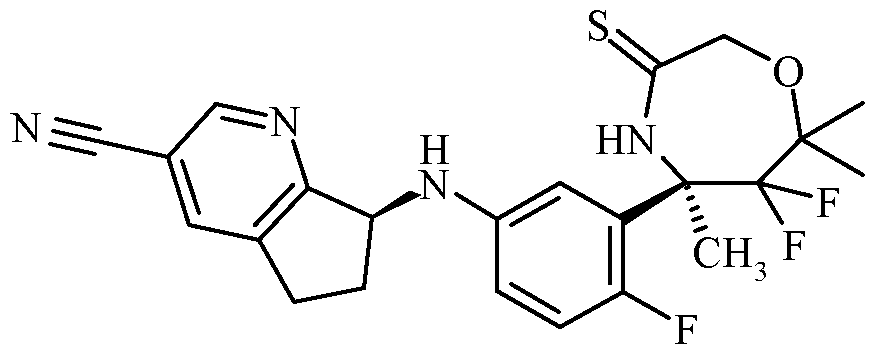

(R)-7-(3-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4- fluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile

Obtained from 7-(3-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4- fluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile (intermediate A20B) (370 mg, 803 μιηοΐ) by chromatography on a Chiralpak AD column with 30% ethanol in n- heptane being the more polar eluting epimer (B(-)) as a light brown foam (145 mg, 315 μιηοΐ, 39.2 %). MS (ISP): m/z = 461.3 [(M+H)⁺].

Intermediate A20C

(R)-5-[5-(3-Chloro-6,7-dihydro-5H-[l]pyrindin-7-ylamino)-2-fluoro-phenyl]-6,6-difluoro- 5 , 7, 7-trimethyl- [ 1 ,4]oxazepane-3 -thione

Prepared in an analogous manner as described for intermediate A22A from (R)-5-(5- amino-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A19B) (72.3 mg, 227 μιηοΐ) and 3-chloro-5,6-dihydro-[l]pyrindin-7-one (34.6 mg, 206 μιηοΐ) The (R)- 5-[5-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-ylamino)-2-fluoro-phenyl]-6,6-difluoro-5,7,7- trimethyl-[l,4]oxazepane-3-thione (82 mg, 84%) was obtained as a white foam. MS (ISP): m/z = 470.2 [(M+H)⁺] and 472.3 [(M+2+H)⁺].

Intermediate A20D

(5R)-5-(5-(6-chloro-2,3-dihydrofuro[3,2-b]pyridin-3-ylamino)-2-fluorophi

difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione

Prepared in an analogous manner as described for intermediate A22A from (R)-5-(5- amino-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A19B) (100 mg, 314 μιηοΐ) and 6-chloro-furo[3,2-b]pyridin-3-one (63.9 mg, 377 μιηοΐ) The (5R)-5-(5- (6-chloro-2, 3 -dihydrofuro [3 ,2-b]pyridin-3 -ylamino)-2-fluorophenyl)-6, 6-difluoro-5 , 7, 7- trimethyl-l,4-oxazepane-3-thione (67 mg, 45.2%) was obtained as a light yellow foam. MS (ISN): m/z = 470.2 [(M-H)^"] and 472.1 [(M+2-H)^"].

The 6-chloro-furo[3,2-b]pyridin-3-one was prepared as follows: a) 5-Chloro-2-iodopyridin-3-ol

To a solution of 5-chloropyridin-3-ol [CAS no 74115-12-1] (15 g, 116 mmol) in sodium carbonate (1 M in water, 232 ml, 232 mmol) at 23 °C was portionwise added iodine (29.4 g, 116 mmol) and the mixture was stirred for 5 h. Poured onto 1 M hydrochloric acid (300 ml), adjusted pH by additional hydrochloric acid to pH 1, the precipitate was filtered off, washed with water, dissolved in ethyl acetate, the organic layer was dried over Na₂S0₄. Removal of the solvent in vacuum left the 5-chloro-2-iodopyridin-3-ol (28.33 g, 111 mmol, 95.8 % yield) as a light brown solid. MS (ISP): m/z = 256.1 [(M+H)⁺] and 258.2[(M+2+H)⁺]. b) Ethyl 2-(5-chloro-2-iodopyridin-3-yloxy)acetate

To a solution of 5-chloro-2-iodopyridin-3-ol (15 g, 58.7 mmol) in N,N-dimethylformamide

(150 ml) at 0 °C was added cesium carbonate (47.8 g, 147 mmol) and ethyl bromoacetate (14.7 g, 9.81 ml, 88.1 mmol) and the mixture was stirred at 23 °C for 18 h. Poured into brine, extracted thrice with ethyl acetate, dried the combined organic layer over sodium sulfate. Removal of the solvent in vacuum left an oil, which was diluted with tert-butyl methyl ether, washed with water and brine and dried over sodium sulfate. Removal of the solvent in vacuum left a light brown oil, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the ethyl 2-(5-chloro-2-iodopyridin-3-yloxy)acetate (17.3 g, 50.7 mmol, 86.3 % yield) as a light brown solid. MS (ISP): m/z = 341.9 [(M+H)⁺] and 343.9 [(M+2+H)⁺]. c) Ethyl 5-chloro-3-(2-ethoxy-2-oxoethoxy)picolinate

Ethyl 2-(5-chloro-2-iodopyridin-3-yloxy)acetate (16.5 g, 48.3 mmol) was carbonylated with 20 bar carbon monoxide in the presence of bis(diphenylphosphino)ferrocene- palladium(II)dichloride dichloromethane adduct (1.66 g, 2.03 mmol) in a mixture of ethanol, ethyl acetate and triethylamine at 70 °C for 20 h. The crude reaction mixture was extracted with ethyl acetate and water, the organic layer was dried over sodium sulfate. Removal of the solvent in vacuum left a dark brown oil, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the ethyl 5-chloro-3-(2-ethoxy-2-oxoethoxy)picolinate (12.5 g, 43.4 mmol, 89.9 % yield) as a light red solid. MS (ISP): m/z = 287.9 [(M+H)⁺] and 290.1 [(M+2+H)⁺]. d) Ethyl 6-chloro-3-hydroxyfuro[3,2-b]pyridine-2-carboxylate

To a solution of ethyl 5-chloro-3-(2-ethoxy-2-oxoethoxy)picolinate (385 mg, 1.34 mmol) in toluene (10 ml) at 23 °C was added sodium ethoxide (200 mg, 2.94 mmol) and the reaction mixture was stirred at reflux overnight. To the yellow suspension was added some ice, ethyl acetate and set to pH=4 with acetic acid. The organic layer was separated and washed with sat NaHCC solution. The aqueous layers were reextracted with ethyl acetate, then dried over Na₂S0₄, filtered and evaporated to give the crude ethyl 6-chloro-3-hydroxyfuro[3,2-b]pyridine- 2-carboxylate (154 mg, 637 μιηοΐ, 47.6 % yield) as a light brown solid. MS (ISN): m/z = 240.1 [(M-H)^"] and 242.3 [(M+2-H)^"]. e) 6-Chloro-furo[3 ,2-b]pyridin-3 -one

A mixture of ethyl 6-chloro-3-hydroxyfuro[3,2-b]pyridine-2-carboxylate (154 mg, 637 μπιοΐ) and 10% hydrochloric acid (4.65 g, 3.87 ml, 127 mmol) was stirred at 110 °C for 3 hours. To the cooled brown solution was added some ice and neutralized with sat NaHC0₃ to pH=8. Then the aqueous layer was extracted thrice with dichloromethane, the combined organic layers were washed with brine, dried over Na₂SC>4, filtered and evaporated to give a brown oil. The residue was purified by silica gel flash chromatography with dichloromethane toster) with CH2C12 to give the 6-chloro-furo[3,2-b]pyridin-3-one (79 mg, 466 μπιοΐ, 73.1 % yield) as a light brown solid. MS (ISP): m/z = 170.0 [(M+H)⁺] and 172.0 [(M+2+H)⁺].

Intermediate A20E

8-(3-((R)-6,6-Difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4-fluorophenylamino)- 5,6,7,8-tetrahydroquinoline-3-carbonitrile

Prepared in an analogous manner as described for intermediate A22A from (R)-5-(5- amino-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A19B) (102 mg, 320 μπιοΐ) and 8-oxo-5,6,7,8-tetrahydroquinoline-3-carbonitrile (66.2 mg, 384 μπιοΐ). The 8-(3-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4-fluorophenylamino)- 5,6,7,8-tetrahydroquinoline-3-carbonitrile (96 mg, 63.1%) was obtained as a white foam. MS (ISN): m/z = 473.1 [(M-H)^"].

The 8-0X0-5, 6,7,8-tetrahydroquinoline-3-carbonitrile was prepared as follows: a) 5,6,7,8-Tetrahydroquinoline-3-carbonitrile

A mixture of commercially available 2-chloro-5,6,7,8-tetrahydroquinoline-3-carbonitrile [CAS no 65242-27-5] (1 g, 5.19 mmol), zinc dust (activated) (602 mg, 9.2 mmol) and sodium acetate trihydrate (694 mg, 479 μΐ, 5.1 mmol) in acetic acid (5.19 g, 4.95 ml, 86.4 mmol) was stirred at 60 °C for 2 hours. Water (2.5 ml) was added and the mixture stirred at 60 °C for another 5 hours. After cooling to 23 °C, the mixture was basified with aqueous 1 M NaOH solution, filtered through Celite®, the filtrate extracted with THF, the organic layers dried over Na₂S0₄ and the solvent evaporated leaving a yellow liquid. The crude material was purified by silica gel flash chromatography with n-heptane/ethyl acetate to give the 5,6,7,8- tetrahydroquinoline-3-carbonitrile as a white solid (433 mg, 53% yield). MS (ISP): m/z = 159.1 [(M+H)⁺]. b) 3-Cyano-5,6,7,8-tetrahydroquinoline 1-oxide

To a solution of 5,6,7,8-tetrahydroquinoline-3-carbonitrile (633 mg, 4.00 mmol) in acetic acid (5 ml) at 40 °C was portionwise added sodium perborate tetrahydrate (677 mg, 4.4 mmol) and the mixture was stirred at 40 °C for 16 hours. The acetic acid was removed by evaporation under reduced pressure, the residue was basified with aqueous saturated NaHC0₃ solution, the mixture extracted thrice with ethyl acetate, the combined extracts were dried over Na₂S0₄ and the solvent removed in vacuum to give the 3-cyano-5,6,7,8-tetrahydroquinoline 1-oxide (645 mg, 3.7 mmol, 92.5 % yield) as a white solid. MS (ISP): m/z = 175.1 [(M+H)⁺]. c) 8-Hydroxy-5,6,7,8-tetrahydroquinoline-3-carbonitrile

To a solution of 3-cyano-5,6,7,8-tetrahydroquinoline 1-oxide (645 mg, 3.7 mmol) was added dropwise under ice cooling trifluoroacetic anhydride (6.22 g, 4.18 ml, 29.6 mmol). The light yellow solution was stirred at 23 °C for 18 h. The mixture was quenched with 1 N NaOH solution and stirred vigorously for 30 min., then extracted twice with dichloromethane, the combined organic layers were dried over Na₂S0₄, filtered and evaporated. The residue was purified by silica gel flash chromatography with n-heptane/ethyl acetate to give the 8-hydroxy- 5,6,7,8-tetrahydroquinoline-3-carbonitrile (562 mg, 3.23 mmol, 87.1 % yield) as a white solid. MS (ISP): m/z = 175.1 [(M+H)⁺]. d) 8-Oxo-5, 6,7,8-tetrahydroquinoline-3-carbonitrile

To a solution of 8-hydroxy-5, 6, 7, 8-tetrahydroquinoline-3-carbonitrile (555 mg, 3.19 mmol) in DMSO (15 ml) at 23 °C was added triethylamine (1.93 g, 2.66 ml, 19.1 mmol) and sulphur trioxide-pyridine complex (1.52 g, 9.56 mmol). The brown solution was stirred at 23 °C for 2 hours. The reaction mixture was poured on water and extracted twice with ethyl acetate. The combined organic layers were washed with brine, dried over Na₂S0₄, filtered and evaporated to give of a light brown solid, which was purified by silica gel flash chromatography with dichloromethane/methanol to give the 8-oxo-5, 6, 7, 8-tetrahydroquinoline-3-carbonitrile (286 mg, 1.66 mmol, 52.1 % yield) as a light yellow solid. MS (ISP): m/z = 173.1 [(M+H) ⁺].

Intermediate A20F

(5R)-5-(5-(6-chloro-2, 3-dihydrobenzofuran-3-ylamino)-2-fluorophenyl)-6,6-difluoro- 5,7,7-trimethyl-l,4-oxazepane-3-thione

Prepared in an analogous manner as described for intermediate A22A from (R)-5-(5- amino-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A19B) (96 mg, 302 μπιοΐ) and commercially available 6-chlorobenzofuran-3(2H)-one [CAS no 3260- 78-4] (61.0 mg, 362 μιηοΐ) The (5R)-5-(5-(6-chloro-2,3-dihydrobenzofuran-3-ylamino)-2- fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (72 mg, 153 μπιοΐ, 50.7 % yield) was obtained as a light yellow foam. MS (ISN): m/z = 469.1 [(M-H)^"] and 471.2 [(M+2- H)-].

Intermediate A20G

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(4-fluorophenylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepane-3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-6,6-difluoro-5-(2-fluoro-5-(4-fluorophenylamino)phenyl)-5,7,7-trimethyl-l,4- oxazepan-3-one (intermediate A22B) (157 mg, 396 μπιοΐ). The compound was obtained as a white solid (162 mg, 99%). MS (ISP): m/z = 413.1 [(M+H)⁺]. Intermediate A20H 7-(5-((R)-6,6-Difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-2,4- difluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile

Prepared in an analogous manner as described for intermediate A22A from (R)-5-(5- amino-2,4-difluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A19C) (140 mg, 416 μιηοΐ) (305 mg, 958 μιηοΐ) and 7-oxo-6,7-dihydro-5H-[l]pyrindine-3- carbonitrile (72.4 mg, 458 μηιοΐ) The 7-(5-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4- oxazepan-5-yl)-2,4-difluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile (162 mg, 81.3%) was obtained as a white foam. MS (ISP): m/z = 479.0 [(M+H)⁺]. Intermediate A20Ha

(R)-7-(5-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-2,4- difluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile

Obtained from 7-(5 -((R)-6, 6-difluoro-5 , 7, 7-trimethyl-3 -thioxo- 1 ,4-oxazepan-5 -yl)-2,4- difluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile (intermediate A20H) (160 mg, 334 μιηοΐ) by chromatography on a Chiralpak AD column with 20% isopropanol in n- heptane being the less polar eluting epimer (A(-)) as a light brown foam (47 mg, 101 μιηοΐ, 30.3 %). MS (ISP): m/z = 479.0 [(M+H)⁺].

Intermediate A20Hb (S)-7-(5-((R)-6,6-difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-2,4- difluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile

Obtained from 7-(5 -((R)-6, 6-difluoro-5 , 7, 7-trimethyl-3 -thioxo- 1 ,4-oxazepan-5 -yl)-2,4- difluorophenylamino)-6,7-dihydro-5H-cyclopenta[b]pyridine-3-carbonitrile (intermediate A20H) (160 mg, 334 μιηοΐ) by chromatography on a Chiralpak AD column with 20% isopropanol in n- heptane being the more polar eluting epimer (B(-)) as an off-white foam (56 mg, 117 μιηοΐ, 36.1%). MS (ISP): m/z = 479.0 [(M+H)⁺].

Intermediate A20I

(R)-5-(5-(6-Chloropyridin-3-ylamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4- oxazepane-3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-5-(5-(6-chloropyridin-3-ylamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4- oxazepan-3-one (intermediate A22C) (63 mg, 152 μιηοΐ). The compound was obtained as a white solid (67 mg, 98%). MS (ISP): m/z = 430.3 [(M+H)⁺] and 432.2 [(M+2+H)⁺].

Intermediate A20J (R)-6, 6-Difluoro-5 -(2-fluoro-5 -(5 -fluoropyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepane-3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-6,6-difluoro-5-(2-fluoro-5-(5-fluoropyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4- oxazepan-3-one (intermediate A22D) (52 mg, 131 μιηοΐ). The compound was obtained as a white solid (34 mg, 63%). MS (ISP): m/z = 414.2 [(M+H)⁺].

Intermediate A20K

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(pyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1 ,4-oxazepane- 3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-6, 6-difluoro-5 -(2-fluoro-5 -(pyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1 ,4-oxazepan-3 - one (intermediate A22E) (54 mg, 142 μιηοΐ). The compound was obtained as a white solid (43 mg, 76%). MS (ISP): m/z = 396.2 [(M+H)⁺].

Intermediate A20L

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(6-methoxypyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepane-3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-6,6-difluoro-5-(2-fluoro-5-(6-methoxypyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4- oxazepan-3-one (intermediate A22F) (32 mg, 78 μιηοΐ). The compound was obtained as a light green foam (28 mg, 84%). MS (ISP): m/z = 426.2 [(M+H)⁺].

Intermediate A20M

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(5 -(trifluoromethyl)pyridin-3 -ylamino)phi

trimethyl- 1 ,4-oxazepane-3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-6, 6-difluoro-5 -(2-fluoro-5-(5 -(trifluoromethyl)pyridin-3 -ylamino)phenyl)-5 , 7, 7- trimethyl- l,4-oxazepan-3 -one (intermediate A22G) (123 mg, 275 μιηοΐ). The compound was obtained as white foam (88 mg, 69%). MS (ISP): m/z = 464.1 [(M+H)⁺].

Intermediate A20N (R)-6, 6-Difluoro-5 -(2-fluoro-5 -(6-methylpyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepane-3 -thione

The compound was prepared in an analogous manner as described for intermediate A20A from (R)-6,6-difluoro-5-(2-fluoro-5-(6-methylpyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4- oxazepan-3-one (intermediate A22H) (14 mg, 36 μιηοΐ). The compound was obtained as an off- white foam (8 mg, 55%). MS (ISP): m/z = 410.2 [(M+H)⁺].

Intermediate A21A

(R)-5-(5-Amino-2-fluorophenyl)-6,6-difluoro-5-methyl-l,4-oxazepan-3-one

To a solution of (R)-5-[5-(benzhydrylidene-amino)-2-fluoro-phenyl]-6,6-difluoro-5- methyl-[l,4]oxazepan-3-one (intermediate A17D) (308 mg, 0.70 mmol) in dioxane (20 ml) at 23 °C was added 1 M HC1 (2.1 ml, 2.1 mmol) was added. After 30 min of stirring, the reaction mixture was poured on sat. NaHCCVsolution and extracted twice with ethyl acetate. The combined organic layers were washed with brine, dried over sodium sulfate, filtered and evaporated to give a dark green oil, which was purified by silica gel column chromatography with n-heptane/ethyl acetate to give the (R)-5-(5-amino-2-fluorophenyl)-6,6-difluoro-5-methyl- l,4-oxazepan-3-one (172 mg, 0.63 mmol, 90%) as a yellow foam. MS (ISP): m/z = 275.2 [(M+H)⁺]. Intermediate A22A

(5R)-5-(5-(3-Chloro-6,7-dihydro-5H-cyclopenta[b]pyridin-7-ylamino)-2-fluorophenyl)- 6,6-difluoro-5-methyl- 1 ,4-oxazepan-3 -one

To a solution of 3-chloro-5,6-dihydro-[l]pyrindin-7-one (28 mg, 167 μηιοΐ) in methanol (6 ml) and dichloromethane (750 μΐ) at 23 ° C was added (R)-5-(5-amino-2-fluorophenyl)-6,6- difluoro-5-methyl-l,4-oxazepan-3-one (intermediate A21A) (49.9 mg, 182 μιηοΐ) followed by decaborane (5.6 mg, 167 μιηοΐ) and the mixture was stirred at 23 °C for 22 hours. After completion, the mixture was poured into aqueous NaHC0₃ solution, extracted with ethyl acetate, the organic layers were dried over Na₂S04 and the solvent evaporated. The crude material was purified by silica gel flash chromatography with n-heptane/ethyl acetate to give the (5R)-5-(5-(3- chloro-6,7-dihydro-5H-cyclopenta[b]pyridin-7-ylamino)-2-fluorophenyl)-6,6-difluoro-5-methyl- l,4-oxazepan-3-one (62 mg, 87%) as an orange solid. MS (ISP): m/z = 426.1 [(M+H)⁺] and 428.1 [(M+2+H)⁺].

The 3-chloro-5,6-dihydro-[l]pyrindin-7-one was prepared as follows: a) 3 -Chloro-6,7-dihydro-5H-[ 1 Jpyridine

A solution of 5-chloro-2-(pent-4-ynyl)pyrimidine (H.C. van der Plas, Tetrahedron 1989, 45, 5151-5162) (4.95 g (27.4 mmol) in nitrobenzene (50 ml) was heated to 210 °C for 1.5 hours under a continuous stream of nitrogen. The reaction was followed by TLC (silica gel, heptane: ethyl acetate = 2: 1; UV detection 254 nm). After completion, the reaction mixture was purified by flash chromatography on silica gel using a gradient of heptane/ethyl acetate = 100:0 to 80:20 as the eluent. The 3-chloro-6,7-dihydro-5H-[l]pyridine was obtained as a light brown solid (3.21 g, 76 %); (calculated) C₈H₈C1N [153.61]; (found) [M+H]⁺ = 154. b) 3-Chloro-6,7-dihydro-5H-[l]piridina 1-oxide

A solution of 3-chloro-6,7-dihydro-5H-[l]pyridine (3.03 g, 19.7 mmol) in acetic acid (19.7 ml) was treated at room temperature with hydrogen peroxide (3.45 ml, 39.5 mmol). The mixture was heated to 70 °C and stirred at this temperature overnight. After completion, the reaction mixture was allowed to cool and was concentrated at reduced pressure. Water was added and the mixture was evaporated again. This procedure was repeated another 2 times. The residue was dissolved in ethyl acetate, washed with a saturated aqueous solution of sodium hydrogen carbonate and brine, then dried over sodium sulfate and evaporated at reduced pressure. The crude 3-chloro-6,7-dihydro-5H-[l]pyridine 1-oxide was obtained as dark green crystals (2.07 g, 62 %). (calculated) C₈H₈C1N0 [169.61]; (found) [M+H]⁺ = 170. c) Acetic acid 3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl ester

A solution of 3-chloro-6,7-dihydro-5H-[l]pyrindine 1-oxide (2.07 g, 12.2 mmol) in acetic acid anhydride (62.2 ml, 659 mmol) was stirred at 110 °C for 20 hours. For the workup, the solvnt was removed at reduced pressure and the residue quenched with saturated aqueous solution of sodium hydrogen carbonate. The aqueous phase was extracted with dichloromethane, the resulting organic layers combined and dried over sodium sulfate. After evaporation of the solvent, the residue was purified by flash chromatography on silica gel using a gradient of heptane/ethyl acetate = 100:0 to 70:30 as the eluent. The acetic acid 3-chloro-6,7-dihydro-5H-

[l]pyrindin-7-yl ester was obtained as a red liquid (1.57 g, 61 %); (calculated) C₁₀H₁₀CINO₂ [211.65]; (found) [M+H]⁺ = 212. d) 3-Chloro-6,7-dihydro-5H-[l]pyrindin-7-ol

A solution of acetic acid 3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl ester (1.57 g, 7.42 mmol) in methanol (35.7 ml) was treated with 1 M sodium hydroxide solution (8.9 ml). The mixture was stirred at room temperature for 1.5 hours. The reaction was followed by TLC (silica gel, heptane: ethyl acetate = 1 : 1; UV detection 254 nm). After completion, the reaction mixture was treated with water and extracted with dichloromethane. The combined organic layers were dried over sodium sulfate, then evaporated leaving a dark red liquid (1.15 g, 91 %) which crystallised on standing. Following MR the product was pure enough for the next step of the synthesis; (calculated) C₈H₈C1N0 [169.61]; (found) [M+H]⁺ = 170. e) 3-Chloro-5,6-dihydro-[l]pyrindin-7-one

A solution of 3-chloro-6,7-dihydro-5H-[l]pyrindin-7-ol (570 mg, 3.36 mmol) in dimethylsulphoxide (17.7 ml) was treated at room temperature with triethylamine (2.81 ml, 20.2 mmol) followed by sulfur trioxide-pyridine complex (1.6 g, 10.1 mmol). The solution was stirred at room temperature for 1 hour. After completion, the reaction mixture was treated with water and extracted with dichloromethane. The combined organic layers were dried over sodium sulfate, then evaporated leaving a dark red liquid. The crude material was purified by flash chromatography on silica gel using a gradient of heptane/ethyl acetate = 70:30 to 30:70 as the eluent. The 3-chloro-5,6-dihydro-[l]pyrindin-7-one was obtained as a pink solid (472 mg, 84 %); (calculated) C₈H₆C1N0 [167.60]; (found) [M+H]⁺ = 168.

Intermediate A22B

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(4-fluorophenylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepan-3-one

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-5-

(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (300 mg, 819 μπιοΐ) and commercially available 4-fluoroaniline [CAS no 371-40-4] 4- fluoroaniline (157 μί, 1.64 mmol). The (R)-6,6-difluoro-5-(2-fluoro-5-(4- fluorophenylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepan-3-one (181 mg, 55.7%) was obtained as a light yellow foam. MS (ISP): m/z = 397.0 [(M+H)⁺].

Intermediate A22C

(R)-5-(5-(6-Chloropyridin-3-ylamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4- oxazepan-3-one

(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (200 mg, 546 μπιοΐ) and commercially available 5-amino-2-chloropyridine [CAS no 5350-93-6] (140 mg, 1.09 mmol). The (R)-5-(5-(6-chloropyridin-3-ylamino)-2-fluorophenyl)-6,6-difluoro- 5,7,7-trimethyl-l,4-oxazepan-3-one (74 mg, 32.7%) was obtained as a light brown foam. MS (ISP): m/z = 414.2 [(M+H)⁺] and 416.2 [(M+2+H)⁺].

Intermediate A22D (R)-6, 6-Difluoro-5 -(2-fluoro-5 -(5 -fluoropyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepan-3-one

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-5- (5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (200 mg, 546 μιηοΐ) and commercially available 3-amino-5-fluoropyridine [CAS no 210169-05- 4] (122 mg, 1.09 mmol). The (R)-6,6-difluoro-5-(2-fluoro-5-(5-fluoropyridin-3- ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepan-3-one (56 mg, 26%) was obtained as an off-white foam. MS (ISP): m/z = 398.2 [(M+H)⁺]. Intermediate A22E

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(pyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1 ,4-oxazepan-

3 -one

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-5- (5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (200 mg, 546 μιηοΐ) and commercially available 3-aminopyridine [CAS no 462-08-8] (103 mg, 1.09 mmol). The (R)-6,6-difluoro-5-(2-fluoro-5-(pyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4- oxazepan-3-one (60 mg, 29%) was obtained as an off-white foam. MS (ISP): m/z = 380.3 [(M+H)⁺]. Intermediate A22F

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(6-methoxypyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepan-3-one

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-5- (5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (200 mg, 546 μιηοΐ) and commercially available 5-amino-2-methoxypyridine [CAS no 6628-77- 9] (136 mg, 1.09 mmol). The (R)-6,6-difluoro-5-(2-fluoro-5-(6-methoxypyridin-3- ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepan-3-one (32 mg, 14%) was obtained as a brown solid. MS (ISP): m/z = 410.2 [(M+H)⁺].

Intermediate A22G

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(5 -(trifluoromethyl)pyridin-3 -ylamino)phi

trimethyl- 1 ,4-oxazepan-3 -one

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-5- (5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (200 mg, 546 μιηοΐ) and commercially available 5-(trifluoromethyl)-3-aminopyridine [CAS no 112110-07-3] (177 mg, 1.09 mmol). The (R)-6,6-difluoro-5-(2-fluoro-5-(5- (trifluoromethyl)pyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepan-3-one (142 mg, 58%) was obtained as an off-white foam. MS (ISP): m/z = 448.1 [(M+H)⁺].

Intermediate A22H

(R)-6, 6-Difluoro-5 -(2-fluoro-5 -(6-methylpyridin-3 -ylamino)phenyl)-5 , 7, 7-trimethyl- 1,4- oxazepan-3-one

Prepared in an analogous manner as described for intermediate A9A or A13A from (R)-5- (5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A16B) (200 mg, 546 μιηοΐ) and commercially available 3-amino-6-methylpyridine [CAS no 3430-14-6] (118 mg, 1.09 mmol). The (R)-6,6-difluoro-5-(2-fluoro-5-(6-methylpyridin-3-ylamino)phenyl)- 5,7,7-trimethyl-l,4-oxazepan-3-one (15 mg, 7.0%) was obtained as a light brown foam. MS (ISP): m/z = 394.1 [(M+H)⁺].

Synthesis of the O-allyl compounds A23 from the alcohols A4 General procedure:

To a solution of the alcohol A4 (29.25 mmol) in dry tetrahydrofuran (290 mL) at 23 °C was added commercially available allyl tert-butyl carbonate (5.56 g, 35.1 mmol), argon was bubbled through the solution and tetrakistriphenylphosphinepalladium(O) (1.02 g, 878 μιηοΐ) was added and the mixture was stirred at 70° C for 8 hours. Cooled to 23 °C, extracted with ethyl acetate and water, dried the organic layer over Na₂S0₄, filtered and evaporated totally. The residue was chromatographed on silica gel with ethyl acetate 0% - 80% in heptane to give the O-allylated compounds A23.

Intermediate A23 A

(R)-N-((R)-4-(allyloxy)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4-methylpent;

methylpropane-2-sulfinamide

The compound was prepared from (R)-N-((R)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4- hydroxy-4-methylpentan-2-yl)-2-methylpropane-2-sulfinamide (intermediate A4F) (12.58 g; 29.25 mmol). The (R)-N-((R)-4-(allyloxy)-2-(5-bromo-2-fluorophenyl)-3,3-difluoro-4- methylpentan-2-yl)-2-methylpropane-2-sulfinamide (9.5 g, 20.2 mmol, 69 % yield) was obtained as a light yellow solid. MS (ISP): m/z = 470.0 [(M+H)⁺] and 472.0 [(M+2+H)⁺].

Intermediate A23B

(R)-N-((R)-4-(allyloxy)-2-(5-bromo-2,4-difluorophenyl)-3,3-difluoro-4-methylpentan-2- yl)-2-methylpropane-2-sulfinamide

The compound was prepared from (R)-N-((R)-2-(5-bromo-2,4-difluorophenyl)-3,3- difluoro-4-hydroxy-4-methylpentan-2-yl)-2-methylpropane-2-sulfinamide (intermediate A4G) (21.4 g; 47.7 mmol). The (R)-N-((R)-4-(allyloxy)-2-(5-bromo-2,4-difluorophenyl)-3,3-difluoro- 4-methylpentan-2-yl)-2-methylpropane-2-sulfinamide (16.15 g, 33.1 mmol, 69 % yield) was obtained as a light brown oil. MS (ISP): m/z = 488.1 [(M+H)⁺] and 490.0 [(M+2+H)⁺].

Synthesis of the acids A24 from the allyl ethers A24

General procedure:

To a solution of the allyl ether A23 (20.2 mmol) in ethyl acetate (95 mL), acetonitrile (95 mL) and water (142 mL) at 23 °C was added sodium periodate (28.1 g, 131 mmol) followed by ruthenium(III) chloride hydrate (91 mg, 0.4 mmol) and the mixture was stirred at 23° C for 3 hours. Diluted with ethyl acetate and extracted with 1 N HCl + diluted NaHS0₃-sol., dried the organic layer over Na₂S0₄, filtered off, evaporated totally and dried in high vacuum to give the crude product (acid A25), which was used without further purification.

Intermediate A24A

(R)-2-(4-(5 -bromo-2-fluorophenyl)-4-( 1 , 1 -dimethylethylsulfonamido)-3 , 3 -difluoro-2- methylpentan-2-yloxy)acetic acid

The compound was prepared from (R)-N-((R)-4-(allyloxy)-2-(5-bromo-2-fluorophenyl)- 3,3-difluoro-4-methylpentan-2-yl)-2-methylpropane-2-sulfinamide (intermediate A23A) (9.5 g; 20.2 mmol). The (R)-2-(4-(5-bromo-2-fluorophenyl)-4-(l, l-dimethylethylsulfonamido)-3,3- difluoro-2-methylpentan-2-yloxy)acetic acid (10.2 g, 20.2 mmol, 100 % yield) was obtained as a light yellow foam. MS (ISN): m/z = 502.0 [(M-H)^"] and 503.9 [(M+2-H)^"].

Intermediate A24B

(R)-2-(4-(5-bromo-2,4-difluorophenyl)-4-(l, l-dimethylethylsulfonamido)-3,3-difluoro-2- methylpentan-2-yloxy)acetic acid

The compound was prepared from (R)-N-((R)-4-(allyloxy)-2-(5-bromo-2,4- difluorophenyl)-3,3-difluoro-4-methylpentan-2-yl)-2-methylpropane-2-sulfinamide (intermediate A23B) (16.14 g; 33 mmol). The (R)-2-(4-(5-bromo-2,4-difluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetic acid (17.3 g, 33.1 mmol, 100 % yield) was obtained as a light grey solid. MS (ISN): m/z = 520.0 [(M-H)^"] and 521.9 [(M+2-H)^"].

Synthesis of the ethyl esters A25 from the acids A24

General procedure:

To a solution of the acid A24 (18.2 mmol) in ethanol (200 mL) at 23 °C was dropwise added thionyl chloride (5.3 mL, 72.8 mmol) and the mixture was stirred at reflux for 18 hours. Cooled to 23 °C, diluted with ethyl acetate and extracted with sat NaHCCVsol. and brine, dried over Na₂S0₄, filtered off and evaporated totally to give the crude ethyl esters A25, which were used without further purification.

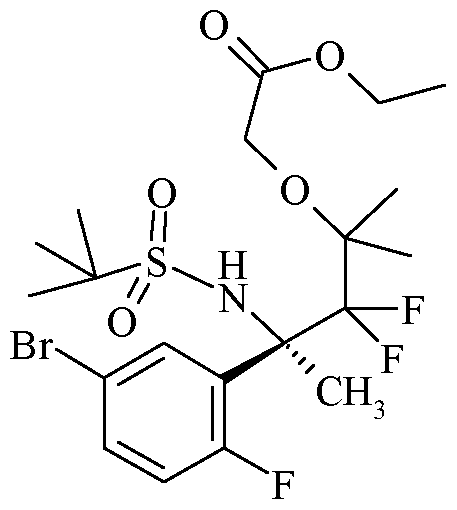

Intermediate A25A

(R)-ethyl 2-(4-(5-bromo-2-fluorophenyl)-4-(l, l-dimethylethylsulfonamido)-3,3-difluoro-2- methylpentan-2-yloxy)acetate

The compound was prepared from (R)-2-(4-(5-bromo-2-fluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetic acid (intermediate A24A) (10.2 g; 18.2 mmol). The (R)-ethyl 2-(4-(5-bromo-2-fluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetate (10 g, 103 % yield) was obtained as a light brown solid. MS (ISN): m/z = 530.2 [(M-Hfl and 532.0 [(M+2-H)^"].

Intermediate A25B

(R)-ethyl 2-(4-(5-bromo-2,4-difluorophenyl)-4-(l,l-dimethylethylsulfonamido)-3,3- difluoro-2-methylpentan-2-yloxy)acetate

The compound was prepared from (R)-2-(4-(5-bromo-2,4-difluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetic acid (intermediate A24B) (17.1 g; 33 mmol). The (R)-ethyl 2-(4-(5-bromo-2,4-difluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetate (20.55 g, 37.3 mmol, 113 % yield) was obtained as a light brown oil. MS (ISP): m/z = 550.2 [(M+H)⁺] and 552.3 [(M+2+H)⁺].

Synthesis of the amino esters A26 from the sulfonamides A25

General procedure: To a solution of the sulfonamide A25 (18.8 mmol) in dichloromethane (190 mL) at 0 °C was dropwise added a 0.25 M solution of trifluoromethanesulfonic acid (225 mL, 56.3 mmol) and the mixture was stirred at 23 °C for 30 min. Poured into sat NaHCCVsol., extracted with dichloromethane, dried the organic layer over Na₂S0₄, filtered off and evaporated totally to give the crude amino esters A26, which were used without further purification or alternatively purified by silica gel column chromatography with heptane and ethyl acetate.

Intermediate A26A

(R)-ethyl 2-(4-amino-4-(5-bromo-2-fluorophenyl)-3,3-difluoro-2-methylpentan-2- yloxy)acetate

The compound was prepared from (R)-ethyl 2-(4-(5-bromo-2-fluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetate (intermediate A25A) (10.2 g; 18.2 mmol). The (R)-ethyl 2-(4-amino-4-(5-bromo-2-fluorophenyl)-3,3-difluoro-2- methylpentan-2-yloxy)acetate (6.85 g, 16.6 mmol, 88.5% yield) was obtained as a light yellow oil. MS (ISP): m/z = 412.1 [(M+H)⁺] and 414.2 [(M+2+H)⁺].

Intermediate A26B

(R)-ethyl 2-(4-amino-4-(5-bromo-2,4-difluorophenyl)-3,3-difluoro-2-methylpentan-2- yloxy)acetate

The compound was prepared from (R)-ethyl 2-(4-(5-bromo-2,4-difluorophenyl)-4-(l, l- dimethylethylsulfonamido)-3,3-difluoro-2-methylpentan-2-yloxy)acetate (intermediate A25B) (20.55 g; 37.3 mmol). The (R)-ethyl 2-(4-amino-4-(5-bromo-2,4-difluorophenyl)-3,3-difluoro-2- methylpentan-2-yloxy)acetate (16.1 g, 37.4 mmol, 100% yield) was obtained as a light yellow oil. MS (ISP): m/z = 430.1 [(M+H)⁺] and 432.2 [(M+2+H)⁺].

Example 1

[3-((5R,6R)-3-Amino-6-fluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine

To a solution of (5R,6R)-5-(5-amino-2-fluoro-phenyl)-6-fluoro-5-methyl-2,5,6,7- tetrahydro-l,4-oxazepin-3-ylamine (intermediate A10B) (20 mg, 78.4 μιηοΐ) in 1,2- dichloroethane (200 μΐ) was added at 23 °C under inert atmosphere 3-chloro-5,6-dihydro- [l]pyrindin-7-one (14.4 mg, 86.2 μιηοΐ) and acetic acid (9.41 mg, 8.97 μΐ, 157 μιηοΐ) and the solution was stirred at 23 °C for 30 min. Then sodium triacetoxyborohydride (24.9 mg, 118 μιηοΐ) was added and the mixture was stirred at 23 °C for 4 h. After addition of 1 M HC1 (1 ml) and stirring for 10 min, the aqueous layer was washed once with dichloromethane, then treated with sat. Na₂C03-sol. to achieve pH 14 and extracted twice with ethyl acetate. The combined organic layers were dried over Na₂S0₄ and evaporated to give a crude product, which was purified by basic preparative HPLC to give (5R,6R)-5-(5-(3-chloro-6,7-dihydro-5H-cyclopenta[b]pyridin-7- ylamino)-2-fluorophenyl)-6-fluoro-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (11 mg, 27.0 μιηοΐ, 34.5 % yield) as a colorless oil. MS (ISP): m/z = 407.3.3 [(M+H)⁺] and 409.3 [(M+2+H)⁺].

Example 2 (5R,6R)-5-{5-[(4-Chloro-l-difluoromethyl-lH-pyrazol-3-ylmethyl)-amino]-2-fluoro- phenyl}-6-fluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

To a solution of (5R,6R)-5-(5-amino-2-fluoro-phenyl)-6-fluoro-5-methyl-2,5,6,7- tetrahydro-l,4-oxazepin-3-ylamine (intermediate A10B) (20.4 mg, 80 μπιοΐ) in methanol (0.3 ml) was added at 23 °C under inert atmosphere 4-chloro-l-difluoromethyl-lH-pyrazole-3- carbaldehyde (15.9 mg, 88 μπιοΐ) and the reaction mixture was stirred at 23 °C for 60 min. Then decaborane (19.5 mg, 160 μπιοΐ) was added in one portion and the mixture was stirred at 45 °C for 15 h. The solution was quenched with 10% Na₂C03-sol., methanol was removed under reduced pressure and then extracted three times with ethyl acetate. The organic layers were dried with Na₂S0₄ and evaporated to give the crude product, which was purified by basic preparative HPLC (column: Gemini 5μ C18 110A° AXIA (50x21.2mm), flow: 40 ml/min; gradient: water (+0.1% TEA) / acetonitrile (90%-10% 1 min plateau; in 4.5 min to 5%-95%); collection: UV- detector 230 nm) and further purified by preparative TLC (Merck Si- H2 HPTLC-plate with dichloromethane/methanol 9: 1) to give the (5R,6R)-5-(5-((4-chloro-l-(difluoromethyl)-lH- pyrazol-3-yl)methylamino)-2-fluorophenyl)-6-fluoro-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin- 3-amine (1.5 mg, 4.5%) as a colorless oil. MS (ISP): m/z = 420.1 [(M+H)⁺] and 422.1 [(M+2+H)⁺].

The 4-chloro-l-difluoromethyl-lH-pyrazole-3 -carbaldehyde was prepared as follows: a) l-Difluoromethyl-lH-pyrazole-3-carboxylic acid methyl ester

F

A solution of l-difluoromethyl-lH-pyrazole-3-carboxylic acid (CAS [925179-02-8]) (500 mg, 3.1 mmole) in methanol (18 ml) was cooled to 0 °C and treated with sulfuric acid (98%, 0.2 ml, 3.1mmol). The mixture was heated to reflux for 2 hours, cooled to 23 °C and concentrated at reduced pressure. The residue was partitioned between AcOEt and water, the organic layer was washed with water until the water phase showed a neutral pH, dried and evaporated to give the title compound (535 mg) as a colorless liquid which was used without further purification. MS: m/z = 177.1 [M+H]⁺. b) 4-Chloro-l-difluoromethyl-lH-pyrazole-3-carboxylic acid methyl ester

F

A mixture of l-difluoromethyl-lH-pyrazole-3-carboxylic acid methyl ester (535 mg, 3 mmole) and N-chloro-succinimide (1.22 g, 9.1 mmole) in DMF (5 ml) was heated at 50 °C overnight. The reaction mixture was cooled, partitioned between AcOEt and water, the organic layer was washed with water, dried, evaporated and the residue was purified by chromatography on silica gel using cyclohexane/ AcOEt (3 : 1) to give the title compound (540 mg) as a white solid. MS: m/z = 209.9 [M]⁺. c) 4-Chloro-l-difluoromethyl-lH-pyrazole-3-carboxylic acid

F

A solution of 4-chloro-l-difluoromethyl-lH-pyrazole-3-carboxylic acid methyl ester (540 mg, 2.6 mmole) in THF (18 ml) was treated at 23 °C with a solution of lithium hydroxide (135 mg, 5.6 mmole) in a l : l-mixture of water and methanol (12 ml). After 1 hour the reaction was complete, and the solvents were evaporated at reduced pressure. The residue was partitioned between 2 M aqueous HCl and AcOEt, the organic layer was dried, evaporated, the residue was triturated with pentane and the solid was dried to give the title compound (477 mg) as a white solid. MS: m/z = 195.0 [M-H]^". d) 4-Chloro-l-difluoromethyl-lH-pyrazole-3-carboxylic acid methoxy-methyl-amide

F

A solution of 4-chloro-l-difluoromethyl-lH-pyrazole-3-carboxylic acid (150 mg, 0.76 mmole) in dichloromethane (5 ml) was subsequently treated at 23 °C with N,0- dimethylhydroxylamine hydrochloride (78 mg, 0.80 mmole), N-methylmorpholine (0.09 ml, 0.8 mmole) and EDCI.HC1 (154 mg, 0.8 mmole) and stirring was continued for 16 h. The mixture was washed with 1 M aqueous HCl and H₂0, the organic layer was dried, evaporated and the residue purified by chromatography on silica gel using cyclohexane/AcOEt (2: 1) to give the title compound (164 mg) as a colorless oil. MS: m/z = 240.1 [M]⁺. e) 4-Chloro- 1 -difluoromethyl- lH-pyrazole-3 -carbaldehyde

F

To a solution of 4-chloro-l -difluoromethyl- lH-pyrazole-3-carboxylic acid methoxy- methyl-amide (164 mg, 0.68 mmole) in THF (5 ml) was added at 0°C a solution of L1AIH₄ (1M in THF, 0.35 ml) and stirring was continued for 30 min. The mixture was quenched at -15 °C with saturated aqueous KHSO₄, extracted with diethyl ether, the organic layer was dried, evaporated and the residue purified by chromatography on silica gel using cyclohexane/AcOEt (4: 1) to give the title compound (71 mg) as a pale yellow oil.

Example 3

(5R,6R)-6-Fluoro-5-[2-fluoro-5-(tetrahydro-furan-3-ylamino)-phenyl]-5-methyl-2,5,6,7- tetrahydro- [1 ,4] oxazepin-3-ylamine

In an analogous manner as described for example 1 the reductive amination of (5R,6R)-5- (5 -amino-2-fluoro-phenyl)-6-fluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- 1 ,4-oxazepin-3 -ylamine

(intermediate A10B) (20 mg, 78.4 μπιοΐ) and dihydrofuran-3(2H)-one (3-oxotetrahydrofuran) (CAS [22929-52-8]) (7.42 mg, 6.67 μΐ, 86.2 μιηοΐ) yielded the title compound (11.4 mg, 44.7%) as a colorless solid. MS (ISP): m/z = 326.3 [M+H]⁺.

Example 4 (5R,6R)-6-Fluoro-5-[2-fluoro-5-(tetrahydro-pyran-3-ylamino)-phenyl]-5-methyl-2,5,6,7- tetrahydro- [1 ,4] oxazepin-3-ylamine

In an analogous manner as described for example 1 the reductive amination of (5R,6R)-5- (5 -amino-2-fluoro-phenyl)-6-fluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- 1 ,4-oxazepin-3 -ylamine (intermediate A10B) (20 mg, 78.4 μιηοΐ) and dihydro-2H-pyran-3(4H)-one (CAS [23462-75-1]) (8.63 mg, 86.2 μηιοΐ) yielded the title compound (13.2 mg, 49.6%) as a colorless solid. MS (ISP): m/z = 340.2 [M+H]⁺.

Example 5

(5R,6R)-6-Fluoro-5-[2-fluoro-5-(tetrahydro-pyran-4-ylamino)-phenyl]-5-methyl-2,5,6,7- tetrahydro- [1 ,4] oxazepin-3-ylamine

(intermediate A10B) (20 mg, 78.4 μιηοΐ) and dihydro-2H-pyran-4(3H)-one (CAS [29943-42-8]) (8.63 mg, 7.96 μΐ, 86.2 μιηοΐ) yielded the title compound (10.2 mg, 38.4%) as a colorless oil. MS (ISP): m/z = 340.2 [M+H]⁺.

Example 6

(R)-5-{5-[(4-Chloro-l-difluoromethyl-lH-pyrazol-3-ylmethyl)-amino]-2-fluoro-phenyl}-6,6- difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

In an analogous manner as described for example 2 the reductive amination of (R)-5-(5- amino-2-fluorophenyl)-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine

(intermediate A10A) (27.3 mg, 100 μιηοΐ) and 4-chloro-l-difluoromethyl-lH-pyrazole-3- carbaldehyde (19.9 mg, 110 μιηοΐ) yielded the title compound (5 mg, 11.4%) as a colorless oil. MS (ISP): m/z = 438.2 [M+H]⁺ and 440.1 [(M+2+H)⁺].

Example 7 (R)-5-{5-[(4-Chloro-l-difluoromethyl-lH-pyrazol-3-ylmethyl)-amino]-2-fluoro-phenyl}-5- ethyl-6,6-difluoro-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

In an analogous manner as described for example 2 the reductive amination of (R)-5-(5- amino-2-fluoro-phenyl)-5-ethyl-6,6-difluoro-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

(intermediate A10F) (28.7 mg, 100 μιηοΐ) and 4-chloro-l-difluoromethyl-lH-pyrazole-3- carbaldehyde (19.9 mg, 110 μιηοΐ) yielded the title compound (10.5 mg, 23.2%) as a colorless oil. MS (ISP): m/z = 452.1 [M+H]⁺ and 454.1 [(M+2+H)⁺].

Example 8

[3-((R)-3-Amino-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenyl]-((S)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine To a solution of (R)-5-[5-((S)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-ylamino)-2-fluoro- phenyl]-6,6-difluoro-5-methyl-[l,4]oxazepane-3-thione (intermediate A20Ab) (16 mg, 36.2 μιηοΐ) in 7 M ammonia in methanol (0.4 mL, 2.8 mmol) at 23 °C was added tert-butyl hydroperoxide (70% in water, 16.3 mg, 17.4 μΐ., 181 μηιοΐ) and the mixture stirred at 23 °C for 22 hours. Poured into aqueous 2 M Na₂CC"3 solution, extracted with ethyl acetate, the organic layer was dried over Na₂S0₄. Removal of the solvent in vacuum left a light brown solid, which was purified by flash chromatography (silica gel (amine)) with n-heptane/ethyl acetate to give the title compound as a yellow solid (7 mg, 45%). MS (ISP): m/z = 425.1 [M+H]⁺.

Example 9

[3-((R)-3-Amino-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenyl]-((R)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine

Prepared in an analogous manner as described for example 8 from (R)-5-[5-((R)-3-chloro- 6, 7-dihydro-5H- [ 1 ]pyrindin-7-ylamino)-2-fluoro-phenyl] -6, 6-difluoro-5 -methyl- [ 1 ,4] oxazepane-

3- thione (intermediate A20Aa) (20 mg, 45.3 μπιοΐ). The title compound was obtained as a yellow solid (15 mg, 78%). MS (ISP): m/z = 425.1 [M+H]⁺.

Example 10

4- [3-((R)-3-Amino-6,6-difluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenylamino]-benzonitrile

To a solution of (R)-4-(3-(3-(bis(4-methoxyphenyl)(phenyl)methylamino)-6,6-difluoro-5- methyl-2,5,6,7-tetrahydro-l,4-oxazepin-5-yl)-4-fluorophenylamino)benzonitrile (intermediate A13A) (21 mg, 31 μπιοΐ) in dichloromethane (1 ml) at 23 °C was added trifluoroacetic acid (370 mg, 250 μΐ, 3.24 mmol) and the mixture was stirred at 23 °C for 1 h. Poured into sat. Na₂CC"3- sol, extracted thrice with ethyl acetate, dried the combined organic layer over Na₂S0₄. Removal of the solvent in vacuum left a crude product, which was purified by preparative HPLC (column: Gemini 5μ CI 8 110 A° AXIA (50 x 21.2 mm); flow: 40 ml/min; gradient: water (+0.1% TEA) / acetonitrile (90%- 10% 1 min plateau; in 3.5 min to 5%-95%); collection: UV-detector 300 nm) to give the title compound (8.9 mg, 76.6%) after trituration with little diethyl ether/pentane as a white solid. MS (ISP): m/z = 375.3 [M+H]⁺.

Example 12

(S)-7-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4- fluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

Prepared in an analogous manner as described for example 8 from (S)-7-[3-((R)-6,6- difluoro-5,7,7-trimethyl-3-thioxo-[l,4]oxazepan-5-yl)-4-fluoro-phenylamino]-6,7-dihydro-5H- [l]pyrindine-3-carbonitrile (intermediate A20Ba) (155 mg, 337 μπιοΐ). The title compound was obtained as a light brown foam (65 mg, 43.5%). MS (ISP): m/z = 444.2 [M+H]⁺.

Example 13 (R)-7-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)- 4-fluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

Prepared in an analogous manner as described for example 8 from (R)-7-[3-((R)-6,6- difluoro-5,7,7-trimethyl-3-thioxo-[l,4]oxazepan-5-yl)-4-fluoro-phenylamino]-6,7-dihydro-5H- [l]pyrindine-3-carbonitrile (intermediate A20Bb) (145 mg, 315 μιηοΐ). The title compound was obtained as a light brown foam (51 mg, 36.5%). MS (ISP): m/z = 444.3 [M+H]⁺.

Example 14

[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4- fluoro-phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine Prepared in an analogous manner as described for example 8 from (R)-5-[5-(3-chloro-6,7- dihydro-5H- [ 1 ]pyrindin-7-ylamino)-2-fluoro-phenyl] -6, 6-difluoro-5 , 7, 7-trimethyl- [l,4]oxazepane-3-thione (intermediate A20C) (82 mg, 174 μιηοΐ). The title compound was obtained as a white foam (40 mg, 51%). MS (ISP): m/z = 453.2 [M+H]⁺ and 455.3 [M+2+H]⁺.

Example 15 [3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4- fluoro-phenyl]-(6-chloro-2,3-dihydro-furo[3,2-b]pyridin-3-yl)-amine

Prepared in an analogous manner as described for example 8 from (5R)-5-(5-(6-chloro-2,3- dihydrofuro[3,2-b]pyridin-3-ylamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4- oxazepane-3-thione (intermediate A20D) (64 mg, 136 μιηοΐ). The title compound was obtained as an off-white foam (23 mg, 37.3%). MS (ISP): m/z = 455.1 [M+H]⁺ and 457.2 [M+2+H]⁺.

Example 16

8-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4- fluoro-phenylamino]-5,6,7,8-tetrahydro-quinoline-3-carbonitrile

Prepared in an analogous manner as described for example 8 from 8-(3-((R)-6,6-difluoro- 5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-4-fluorophenylamino)-5,6,7,8-tetrahydroquinoline- 3-carbonitrile (intermediate A20E) (94 mg, 198 μιηοΐ). The title compound was obtained as a light brown foam (35 mg, 38.6%). MS (ISP): m/z = 458.2 [M+H]⁺.

Example 17

(R)-5-[5-(6-Chloro-2,3-dihydro-benzofuran-3-ylamino)-2-fluoro-phenyl]-6,6-difluoro-5,7,7- trimethyl-2,5,6,7-tetrahydro- [1,4] oxazepin-3-ylamine Prepared in an analogous manner as described for example 8 from (5R)-5-(5-(6-chloro-2,3- dihydrobenzofuran-3-ylamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepane-3- thione (intermediate A20F) (70 mg, 149 μιηοΐ). The title compound was obtained as a light brown foam (29 mg, 38.7%). MS (ISP): m/z = 454.2 [M+H]⁺ and 456.3 [M+2+H]⁺. Example 18

(R)-6,6-Difluoro-5-[2-fluoro-5-(l-methyl-lH-pyrazol-3-ylamino)-phenyl]-5,7,7-trimethyl- 2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

Prepared in an analogous manner as described for example 10 from (R)-N-(bis(4- methoxyphenyl)(phenyl)methyl)-6, 6-difluoro-5 -(2-fluoro-5 -( 1 -methyl- 1 H-pyrazol-3 - ylamino)phenyl)-5,7,7-trimethyl-2,5,6,7-tetrahydro-l,4-oxazepin-3-amine (intermediate A13) (171.5 mg, 251 μιηοΐ). The title compound was obtained as white foam (38 mg, 37.4%). MS (ISP): m/z = 382 [M+H]⁺.

Example 19

(R)-6,6-Difluoro-5-[2-fluoro-5-(4-fluoro-phenylamino)-phenyl]-5,7,7-trimethyl-2,5,6,7- tetrahydro- [1 ,4] oxazepin-3-ylamine

Prepared in an analogous manner as described for example 8 from (R)-6,6-difluoro-5-(2- fluoro-5-(4-fluorophenylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A20G) (100 mg, 242 μιηοΐ). The title compound was obtained as a light yellow gum (36 mg, 37.6%). MS (ISP): m/z = 396.2 [M+H]⁺. Example 20

(S)-7-[5-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)- 2,4-difluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

Prepared in an analogous manner as described for example 8 from (S)-7-(5-((R)-6,6- difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-2,4-difluorophenylamino)-6,7-dihydro-5H- cyclopenta[b]pyridine-3-carbonitrile (intermediate A20Hb) (47 mg, 98.2 μιηοΐ). The title compound was obtained as a light brown foam (12 mg, 26.5%). MS (ISP): m/z = 462.2 [M+H]⁺.

Example 21

(R)-7-[5-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)- 2,4-difluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile

Prepared in an analogous manner as described for example 8 from (R)-7-(5-((R)-6,6- difluoro-5,7,7-trimethyl-3-thioxo-l,4-oxazepan-5-yl)-2,4-difluorophenylamino)-6,7-dihydro-5H- cyclopenta[b]pyridine-3-carbonitrile (intermediate A20Ha) (56 mg, 1 17 μιηοΐ). The title compound was obtained as a light brown foam (18 mg, 33.3%). MS (ISP): m/z = 462.2 [M+H]⁺.

Example 22

(R)-5-[5-(6-Chloro-pyridin-3-ylamino)-2-fluoro-phenyl]-6,6-difluoro-5,7,7-trimethyl- 2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

Prepared in an analogous manner as described for example 8 from (R)-5-(5-(6- chloropyridin-3-ylamino)-2-fluorophenyl)-6,6-difluoro-5,7,7-trimethyl-l,4-oxazepan-3-one (intermediate A20I) (40 mg, 93 μιηοΐ). The title compound was obtained as a colorless gum (5.1 mg, 13.3%). MS (ISP): m/z = 413.3 [M+H]⁺ and 415.2 [M+2+H]⁺. Example 23

(R)-6,6-Difluoro-5-[2-fluoro-5-(5-fluoro-pyridin-3-ylamino)-phenyl]-5,7,7-trimethyl-2,5,6,7- tetrahydro- [1 ,4] oxazepin-3-ylamine

Prepared in an analogous manner as described for example 8 from (R)-6,6-difluoro-5-(2- fluoro-5-(5-fluoropyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepane-3-thione

(intermediate A20J) (28 mg, 68 μιηοΐ). The title compound was obtained as white foam (6.8 mg, 25.3%). MS (ISP): m/z = 397.2 [M+H]⁺.

Example 24

(R)-6,6-Difluoro-5-[2-fluoro-5-(pyridin-3-ylamino)-phenyl]-5,7,7-trimethyl-2,5,6,7- tetrahydro- [1 ,4] oxazepin-3-ylamine Prepared in an analogous manner as described for example 8 from (R)-6,6-difluoro-5-(2- fluoro-5-(pyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A20K) (38 mg, 96 μιηοΐ). The title compound was obtained as white foam (15.6 mg, 42.9%). MS (ISP): m/z = 379.3 [M+H]⁺.

Example 25 (R)-6,6-Difluoro-5-[2-fluoro-5-(6-methoxy-pyridin-3-ylamino)-phenyl]-5,7,7-trimethyl- 2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

Prepared in an analogous manner as described for example 8 from (R)-6,6-difluoro-5-(2- fluoro-5-(6-methoxypyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepane-3-thione

(intermediate A20L) (61 mg, 61 μιηοΐ). The title compound was obtained as off-white foam (14 mg, 56%). MS (ISP): m/z = 409.3 [M+H]⁺.

Example 26 (R)-6,6-Difluoro-5-[2-fluoro-5-(5-trifluoromethyl-pyridin-3-ylamino)-phenyl]-5,7,7- trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine

Prepared in an analogous manner as described for example 8 from (R)-6,6-difluoro-5-(2- fluoro-5-(5-(trifluoromethyl)pyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepane-3-thione (intermediate A20M) (80 mg, 173 μιηοΐ). The title compound was obtained as an off-white solid (21 mg, 27%). MS (ISP): m/z = 448.2 [M+H]⁺.

Example 27

(R)-6,6-Difluoro-5-[2-fluoro-5-(6-methyl-pyridin-3-ylamino)-phenyl]-5,7,7-trimethyl- 2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine Prepared in an analogous manner as described for example 8 from (R)-6,6-difluoro-5-(2- fluoro-5-(6-methylpyridin-3-ylamino)phenyl)-5,7,7-trimethyl-l,4-oxazepane-3-thione

(intermediate A20N) (7.2 mg, 17.6 μιηοΐ). The title compound was obtained as colorless gum (3.1 mg, 44.9%). MS (ISP): m/z = 393.2 [M+H]⁺.

Example 28 (R)-6,6-Difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}-5,7,7- trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine a) (R)-6,6-Difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}- 5,7,7-trimethyl-[l,4]oxazepan-3-one

In an analogous manner as described for the preparation of the intermediates A9A or A13A, the palladium-catalyzed coupling of (R)-5-(5-bromo-2-fluorophenyl)-6,6-difluoro-5,7,7- trimethyl-[l,4]oxazepan-3-one (intermediate A16B) (200 mg, 546 μιηοΐ) with 6-(2,2,2-trifluoro- ethoxy)-pyridin-3-ylamine (CAS 72617-82-4) (210 mg, 1.09 mmol) yielded the title compound (179 mg, 68.6%) as a light brown solid. MS (ISP): m/z = 478.1 [M+H]⁺. b) (R)-6,6-Difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}- 5 , 7, 7-trimethyl- [ 1 ,4]oxazepan-3 -thione

In an analogous manner as described for the preparation of intermediate A20A, the treatment of (R)-6,6-difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]- phenyl}-5,7,7-trimethyl-[l,4]oxazepan-3-one (159 mg, 333 μιηοΐ) with Lawesson's reagent (135 mg, 333 μιηοΐ) yielded the title compound (139 mg, 84.6%) as a white solid. MS (ISP): m/z = 494.1 [M+H]⁺. c) (R)-6,6-Difluoro-5-{2-fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}- 5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-3-ylamine In an analogous manner as described for example 8, the treatment of (R)-6,6-difluoro-5-{2- fluoro-5-[6-(2,2,2-trifluoro-ethoxy)-pyridin-3-ylamino]-phenyl}-5,7,7-trimethyl-[l,4]oxazepan- 3-thione (106 mg, 215 μιηοΐ) with 7 M ammonia in methanol (1.84 ml, 12.9 mmol) and tert- butyl hydroperoxide (70% in water; 178 μΐ., 1.29 mmol) at 23 °C for 16 hours yielded the title compound (69 mg, 67.4%) as a light yellow foam. MS (ISP): m/z = 477.2 [M+H]⁺.

Claims

1. A compound of formula I,

is selected from the group consisting of i) hydrogen,

ii) halogen, and

iii) Ci-e-alkyl;

is selected from the group consisting of i) hydrogen,

ii) Ci-6-alkyl, and

iii) halogen-Ci -6-alkyl;

is selected from the group consisting of i) halogen,

ii) hydrogen, and

iii) Ci-e-alkyl;

is selected from the group consisting of i) hydrogen, and

ii) halogen;

is selected from the group consisting of i) hydrogen, and

ii) Ci-e-alkyl;

is selected from the group consisting of i) hydrogen, and

ii) Ci-6-alkyl;

is selected from the group consisting of i) halogen, and

ii) Ci-e-alkyl;

is 0 or 1;

is selected from the group consisting of i) heteroaryl, ii) heteroaryl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-6-alkoxy and Ci-6-alkyl;

iii) heteroaryl-CH₂-,

iv) heteroaryl-CH₂-, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-6-alkoxy and Ci-6-alkyl;

v) aryl,

vi) aryl, substituted by 1-4 substituents individually selected from the group consisting of cyano, cyano-Ci-6-alkyl, halogen, halogen-Ci-6-alkyl, halogen-Ci-6-alkoxy, Ci-6-alkoxy and Ci-6-alkyl,

vii) heterocyclyl, and

A compound of formula la according to claim 1,

wherein

R¹ is selected from the group consisting of

i) hydrogen,

ii) halogen, and

iii) Ci-e-alkyl;

R² is selected from the group consisting of

i) hydrogen,

ii) Ci-6-alkyl, and

iii) halogen-Ci-6-alkyl;

R³ is selected from the group consisting of

i) halogen,

ii) hydrogen, and iii) Ci-e-alkyl;

is selected from the group consisting of

i) hydrogen, and

ii) halogen;

is selected from the group consisting of

i) hydrogen, and

ii) Ci-e-alkyl;

is selected from the group consisting of

i) hydrogen, and

ii) Ci-e-alkyl;

is selected from the group consisting of

i) halogen, and

ii) Ci-e-alkyl;

is 0 or 1 ;

is selected from the group consisting of

i) heteroaryl,

iii) heteroaryl-CH₂-,

v) aryl,

vii) heterocyclyl, and

A compound according to any of claims 1-2, wherein R¹ is halogen. A compound according to any of claims 1-3, wherein R¹ is F. A compound according to any of claims 1-4, wherein R² is Ci-6-alkyl. A compound according to any of claims 1-5, wherein R² is Me.

7. A compound according to any of claims 1-6, wherein R³ is halogen.

8. A compound according to any of claims 1-7, wherein R³ is F.

9. A compound according to any of claims 1-8, wherein R⁴ is halogen.

10. A compound according to any of claims 1-9, wherein R⁴ is F.

11. A compound according to any of claims 1-8, wherein R⁴ is hydrogen.

12. A compound according to any of claims 1-11, wherein R⁵ is Ci-6-alkyl.

13. A compound according to any of claims 1-12, wherein R⁵ is Me.

14. A compound according to any of claims 1-11, wherein R⁵ is hydrogen.

15. A compound according to any of claims 1-14, wherein R⁶ is Ci-6-alkyl.

16. A compound according to any of claims 1-15, wherein R⁶ is Me.

17. A compound according to any of claims 1-14, wherein R⁶ is hydrogen.

18. A compound according to any of claims 1-17, wherein n is 0.

19. A compound according to any of claims 1-18, wherein R⁸ is selected from the group consisting of i) heteroaryl, substituted by 1-2 substituents individually selected from the group consisting of cyano, halogen, Ci-6-alkoxy and Ci-6-alkyl;

iv) heterocyclyl.

20. A compound according to any of claims 1-19, wherein R⁸ is selected from the group consisting of heteroaryl substituted by halogen or Ci-6-alkyl and aryl substituted by halogen.

21. A compound according to any of claims 1-19, wherein R⁸ is selected from the group consisting of 3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl, 1 -methyl- lH-pyrazol-3-yl and 4- fluoro-phenyl.

22. A compound according to any of claims 1-21, selected from the group consisting of [3-((5R,6R)-3-Amino-6-fluoro-5-methyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine,

[3 -((R)-3 - Amino-6, 6-difluoro-5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro- phenyl]-(3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine, [3 -((R)-3 - Amino-6, 6-difluoro-5 , 7, 7-trimethyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro- phenyl]-(6-chloro-2,3-dihydro-furo[3,2-b]pyridin-3-yl)-amine,

8-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro- phenylamino]-5,6,7,8-tetrahydro-quinoline-3-carbonitrile,

(S)-7-[5-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-2,4- difluoro-phenylamino]-6,7-dihydro-5H-[l]pyrindine-3-carbonitrile, and

23. A compound according to any of claims 1-22, selected from the group consisting of

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(4-fluoro-phenylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine, (R)-6, 6-Difluoro-5 - [2-fluoro-5 -(5 -fluoro-pyridin-3 -ylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine,

8-[3-((R)-3-Amino-6,6-difluoro-5,7,7-trimethyl-2,5,6,7-tetrahydro-[l,4]oxazepin-5-yl)-4-fluoro phenylamino]-5,6,7,8-tetrahydro-quinoline-3-carbonitrile, and

24. A compound according to any of claims 1-23, selected from the group consisting of

(R)-6, 6-Difluoro-5 - [2-fluoro-5 -(4-fluoro-phenylamino)-phenyl] -5 , 7, 7-trimethyl-2, 5,6,7- tetrahydro-[ 1 ,4]oxazepin-3 -ylamine, and [3 -((R)-3 - Amino-6, 6-difluoro-5 -methyl-2, 5 , 6, 7-tetrahydro- [ 1 ,4]oxazepin-5 -yl)-4-fluoro-phenyl] - ((S)-3-chloro-6,7-dihydro-5H-[l]pyrindin-7-yl)-amine. or a pharmaceutical acceptable salt thereof.

25. A process for preparing a compound of formula I as defined in any of claims 1-24, which process comprises reacting a compound of formula A20 to a compound of formula I,

A20 wherein R¹, R², R³, R⁴, R⁵, R⁶, R⁷, R⁸ and n are as defined in any of claims 1-21.

26. A compound of formula I according to any of claims 1-24, whenever prepared by a process as defined in claim 24.

27. A compound of formula I according to any of claims 1-24 for use as therapeutically active substance.

28. A compound of formula I according any of to claims 1-24 for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of diseases and disorders characterized by elevated β-amyloid levels and/or β-amyloid oligomers and/or β-amyloid plaques and further deposits or Alzheimer's disease.

29. A compound of formula I according to any of claims 1-24 for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of diabetes or type 2 diabetes.

30. A compound of formula I according to any of claims 1-24 for the use as therapeutically active substance for the therapeutic and/or prophylactic treatment of amyotrophic lateral sclerosis (ALS), arterial thrombosis, autoimmune/inflammatory diseases, cancer such as breast cancer, cardiovascular diseases such as myocardial infarction and stroke, dermatomyositis, Down's Syndrome, gastrointestinal diseases, Glioblastoma multiforme, Graves Disease, Huntington's Disease, inclusion body myositis (IBM), inflammatory reactions, Kaposi Sarcoma, Kostmann Disease, lupus erythematosus, macrophagic myofasciitis, juvenile idiopathic arthritis, granulomatous arthritis, malignant melanoma, multiple mieloma, rheumatoid arthritis, Sjogren syndrome, Spinocerebellar Ataxia 1, Spinocerebellar Ataxia 7, Whipple's Disease or Wilson's Disease.

31. A pharmaceutical composition comprising a compound of formula I according to any of claims 1-24 and a pharmaceutically acceptable carrier and/or a pharmaceutically acceptable auxiliary substance.

32. A compound of formula I according to any of claims 1-24 for the use in the therapeutic and/or prophylactic treatment of Alzheimer's disease.

33. A compound of formula I according to any of claims 1-24 for the use in the therapeutic and/or prophylactic treatment of diabetes.

34. A method for the use in the therapeutic and/or prophylactic treatment of Alzheimer's disease, diabetes or type 2 diabetes, which method comprises administering a compound of formula I according to any of claims 1-24 to a human being or animal.

35. A method for the use in the therapeutic and/or prophylactic treatment of amyotrophic lateral sclerosis (ALS), arterial thrombosis, autoimmune/inflammatory diseases, cancer such as breast cancer, cardiovascular diseases such as myocardial infarction and stroke, dermatomyositis, Down's Syndrome, gastrointestinal diseases, Glioblastoma multiforme, Graves Disease, Huntington's Disease, inclusion body myositis (IBM), inflammatory reactions, Kaposi Sarcoma, Kostmann Disease, lupus erythematosus, macrophagic myofasciitis, juvenile idiopathic arthritis, granulomatous arthritis, malignant melanoma, multiple mieloma, rheumatoid arthritis, Sjogren syndrome, Spinocerebellar Ataxia 1, Spinocerebellar Ataxia 7, Whipple's Disease or Wilson's Disease, which method comprises administering a compound of formula I according to any of claims 1-24 to a human being or animal.

36. The invention as described hereinabove.

***
