WO2012071012A2 - Bodipy structure fluorescence dye for neural stem cell probe - Google Patents

Bodipy structure fluorescence dye for neural stem cell probe Download PDF

Info

Publication number
WO2012071012A2
WO2012071012A2 PCT/SG2011/000411 SG2011000411W WO2012071012A2 WO 2012071012 A2 WO2012071012 A2 WO 2012071012A2 SG 2011000411 W SG2011000411 W SG 2011000411W WO 2012071012 A2 WO2012071012 A2 WO 2012071012A2
Authority
WO
WIPO (PCT)
Prior art keywords
aryl
alkoxy
cio
alkyl
halo
Prior art date
Application number
PCT/SG2011/000411
Other languages
French (fr)
Other versions
WO2012071012A8 (en
WO2012071012A3 (en
Inventor
Young-Tae Chang
Seong-Wook Yun
Duanting Zhai
Original Assignee
National University Of Singapore
Agency For Science, Technology And Research
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by National University Of Singapore, Agency For Science, Technology And Research filed Critical National University Of Singapore
Priority to EP11843860.5A priority Critical patent/EP2643328B1/en
Priority to CN201180056146.2A priority patent/CN103298820B/en
Priority to US13/988,734 priority patent/US8889883B2/en
Priority to SG2013034723A priority patent/SG190173A1/en
Publication of WO2012071012A2 publication Critical patent/WO2012071012A2/en
Publication of WO2012071012A8 publication Critical patent/WO2012071012A8/en
Publication of WO2012071012A3 publication Critical patent/WO2012071012A3/en

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09B—ORGANIC DYES OR CLOSELY-RELATED COMPOUNDS FOR PRODUCING DYES, e.g. PIGMENTS; MORDANTS; LAKES
    • C09B57/00—Other synthetic dyes of known constitution
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07F—ACYCLIC, CARBOCYCLIC OR HETEROCYCLIC COMPOUNDS CONTAINING ELEMENTS OTHER THAN CARBON, HYDROGEN, HALOGEN, OXYGEN, NITROGEN, SULFUR, SELENIUM OR TELLURIUM
    • C07F5/00—Compounds containing elements of Groups 3 or 13 of the Periodic Table
    • C07F5/02—Boron compounds
    • C07F5/022—Boron compounds without C-boron linkages
    • G—PHYSICS
    • G01—MEASURING; TESTING
    • G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
    • G01N33/00—Investigating or analysing materials by specific methods not covered by groups G01N1/00 - G01N31/00
    • G01N33/48—Biological material, e.g. blood, urine; Haemocytometers
    • G01N33/50—Chemical analysis of biological material, e.g. blood, urine; Testing involving biospecific ligand binding methods; Immunological testing
    • G01N33/58—Chemical analysis of biological material, e.g. blood, urine; Testing involving biospecific ligand binding methods; Immunological testing involving labelled substances
    • G01N33/582—Chemical analysis of biological material, e.g. blood, urine; Testing involving biospecific ligand binding methods; Immunological testing involving labelled substances with fluorescent label

Definitions

  • fluorescent small molecules have been developed as reporters and chemosensors for use in biological analyses, which typically are elaborately designed to selectively detect a target substance or conjugated to biomolecules 1 .
  • These fluorescent molecules employ an increase or decrease in their emission intensity in response to the surrounding medium or through specific molecular recognition events. Due to their simplicity and high sensitivity, fluorescent sensors have been widely utilized as popular tools for chemical, biological and medical applications.
  • the most general strategy for fluorescent sensor design is to combine fluorescence dye molecules with designed receptors for specific analytes, expecting that the recognition event between receptor and analyte will lead to a fluorescence property change of the dye moiety.
  • NSC neural stem cells
  • NSC also has great potential for drug screening and efficacy testing significantly reducing the time and efforts needed in drug discovery.
  • the conventional methods for the isolation and characterization of NSC depend on their behavior in a defined culture medium such as neurosphere formation and immunodetection of marker molecules. These methods, however, are time-dependent and involve the use of antibodies which may render the cells unsuitable for further experimental and therapeutic applications. Therefore, a need exists to develop novel chemical compounds that are useful for detection of neural stem cells.
  • This scaffold is compatible with a range of chemical functional groups, and can be bioconjugated to proteins as well as other molecules
  • macromolecules of interest such as carbohydrates and lipids.
  • CDr3 selectively stains both human and mouse neural stem cells (NSC) by binding to a NSC marker protein fatty acid binding protein 7 (FABP7).
  • NSC NSC marker protein fatty acid binding protein 7
  • FIG.1A shows the selective staining of NS5 by CDr3. Nuclei of all El 4, NS5, D-NS5 and MEF were visualized by Hoechst 33342 (DAPI); but only NS5 was selectively stained by CDr3 (TxRd). Top panel, bright field (BF) images;
  • FIG. IB shows the chemical structure of CDr3.
  • FIG. 1C shows the flow cytometry dot plot images of El 4, NS5, D-NS5 and MEF incubated with CDr3. DMSO was added for unstained control cells. The images of each type of cells were overlaid. Segregated NS5 cells by CDr3 are marked.
  • FIG. ID shows selective staining of NS5 by CDr3.
  • PC mixed primary mouse brain cells
  • DAPI fluorescence
  • the images of living cells are shown in bright field (BF) and fluorescence (DAPI and Texas Red) panels.
  • the primary brain cells with various morphologies were not stained by CDr3, while NS5 treated in parallel was stained.
  • the images of the same cells were acquired after immunocytochemical staining (ICC) with antibodies to neuron-specific class III ⁇ -tubulin (Tujl; TxRd channel) and astrocyte- specific glial fibrillary acidic protein (GFAP; FITC channel). Scale bar, 100 um.
  • ICC immunocytochemical staining
  • FIG. 2A shows the identification of CDr3 binding protein.
  • a protein lysate of CDr3-stained NS5 was separated by 2DE.
  • the major fluorescent spot was marked with a circle (left panel).
  • Many silver-stained protein spots were detected in a duplicate gel (right panel).
  • FIG. 2B shows the MS/MS fragment ion analysis of tryptic peptide
  • MWTLTFGDIVAVR SEQ ID No. : 1 , indicated FABP7 as a binding target of CDr3. Only the main y-series of ion fragmentation was labeled in the spectrum. M* indicates oxidation at methionine residue.
  • FIG. 2C shows the fluorescence signals from EGFP and CDr3 overlap only in the cells expressing either mouse FABP7 or human FABP7 fused to EGFP.
  • the fluorescence images were acquired on a Nikon Ti microscope using DAPI
  • FIG. 3 A shows real-time RT-PCR analysis data of FABP7 expression in HI, ReNcell VM and ReNcell VM-differentiated neurons. Relative expression level of FABP7 to GAPDH is depicted.
  • FIG. 3B shows that the strong signal of FABP7 protein (14 kDa) was detected by Western blotting in ReNcell VM (lane 3) lysate, while it was not detectable in the lysates of HI (lane 1) and ReNcell VM-differentiated neurons (lane 2).
  • ⁇ -Actin (42 kDa) staining demonstrates consistent loading across sample lanes. Fluorescence scan showed CDr3 -labelled FABP7 only in the lysate of ReNcell VM (lane 3) incubated with CDr3.
  • FIG. 3C shows the immunocytochemistry of FABP7 in HI, ReNcell VM and ReNcell VM-differentiated neurons (D-ReNcell VM). Only ReNcell VM was brightly stained by FABP7 antibody. Scale bar, 50 um. Upper panel, nuclei staining with DAPI; lower panel, FABP7 staining with antibody.
  • FIG. 3D shows HI, ReNcell VM and ReNcell VM-differentiated neurons incubated with CDr3. Fluorescence signal was detected only in ReNcell VM. Upper panel, bright field image; lower panel, fluorescence image. Scale bar, 50 ⁇ .
  • FIG. 4 A shows differentiated E14 cell distribution in FACS after staining with CDr3.
  • the CDr3-stained embryoid body cells were separated into CDr3 bnght and CDr3 dim populations.
  • FIG. 4B shows the higher expression of FABP7 in CDr3 bright than in CDr3 dim cells, which was determined by immunocytochemistry followed by flow cytometry.
  • the primary FABP7 antibody was detected by an Alexa Fluor 488-conjugated secondary antibody.
  • FIG. 5 shows the higher expression of FABP7, Hesl, Musashi, Nestin and Pax6 in CDr3 bright cells than in CDri ⁇ cells.
  • the CDr3 bright and CDr3 dim cells were collected separately by FACS for gene expression analysis by real time RT-PCR and neurosphere assay.
  • FIG. 6A shows the flow cytometry dot plot images showing shift of stained E14.5 fetal mouse brain cells to bright fluorescence (+) compared to control group (-) ⁇
  • FIG. 6B shows the numbers (left panel) and the sizes (right panel) of neurospheres for the cells sorted by CDr3, CD133 antibody, SSEA-1 antibody and Aldefluor compared to unsorted cells.
  • FIG. 7 shows the numbers (upper panel) and sizes (lower panel) of neurospheres cultured in the presence of CDr3 and DMSO used as a vehicle.
  • FIG. 8 shows number of NS5 cells (left panel) and percentage of
  • BrdU-positive cells (right panel) cultured in the presence of CDr3 and DMSO used as a vehicle.
  • FIG. 9 shows the spectroscopic information of CDr3. DETAILED DESCRIPTION OF THE INVENTION
  • the invention pertains to a novel chemical structure with fluorescence emission and specificity to neural stem cells.
  • This scaffold is compatible with a range of chemical functional groups, and can be bioconjugated to proteins as well as other macromolecules of interest, such as carbohydrates and lipids.
  • One of the compounds named as compound of designation (CDr3), selectively stains both human and mouse neural stem cells (NSC) by binding to a NSC marker protein fatty acid binding protein 7 (FABP7).
  • CDr3 compound of designation
  • NSC NSC marker protein fatty acid binding protein 7
  • One embodiment of the invention is a compound represented by structural Formula (I) or pharmaceutically acceptable salts thereof:
  • R is (C 6 -C 10 )aryl, (C 5 -C 10 )heteroaryl, (C6-C 10 )aryl(C2-C6)alkenyl or 2-4 member polycyclyl, wherein each 2-4 member polycyclyl optionally and
  • R is optionally substituted with 1-4 substituents independently selected from (Ci-C 6 )alkyl, halo(d-C 6 )alkyl, hydroxy(Co-C6)alkyl, (C 6 -Ci 0 )aryl, halo (C 6 -Cio)aryl, hydroxy(C 6 -Ci 0 )aryl, (C 1 -C 6 )alkoxy, halo(Ci-C 6 )alkoxy,
  • Another embodiment of the invention is a method for detection of a neural stem cell (NSC) comprising: a) staining said neural stem cell with a compound, forming a dye-stained neural stem cell by binding said compound to a marker protein of said neural stem cell, wherein said compound is of structural Formula (I) or pharmaceutically acceptable salts thereof:
  • step b) optionally incubating product of step a) to form a said incubated dye-stained stem (intensity of fluorescence can be increased by incubation for the period of time sufficient for achieving desired intensity, e.g., from about 1 hour to about 24 hours, but less or more time may be acceptable.);
  • said method is applied in neural stem cell biology and regenerative medicine.
  • Alkyl means a saturated aliphatic branched or straight-chain monovalent hydrocarbon radical having the specified number of carbon atoms.
  • (Ci-Ce) alkyl means a radical having from 1- 6 carbon atoms in a linear or branched arrangement.
  • (Ci-Ce)alky includes methyl, ethyl, propyl, butyl, pentyl and hexyl.
  • Alkylene means a saturated aliphatic straight-chain divalent hydrocarbon radical having the specified number of carbon atoms.
  • (Ci-C6)alkylene M means a divalent saturated aliphatic radical having from 1- 6 carbon atoms in a linear arrangement.
  • (Ci-C6)alkylene” includes methylene, ethylene, propylene, butylene, pentylene and hexylene.
  • Heterocycle means a saturated or partially unsaturated (4-7 membered) monocyclic heterocyclic ring containing one nitrogen atom and optionally 1 additional heteroatom independently selected from N, O or S. When one heteroatom is S, it can be optionally mono- or di-oxygenated (i.e., -S(O)- or -S(0) 2 -).
  • monocyclic heterocycle include, but not limited to, azetidine, pyrrolidine, piperidine, piperazine, hexahydropyrimidine, tetrahydrofuran, tetrahydropyran, morpholine, thiomorpholine, thiomorpholine 1,1 -dioxide, tetrahydro-2H-l,
  • Cycloalkyl means saturated aliphatic cyclic hydrocarbon ring.
  • C 3 -C 7 cycloalkyl means (3-7 membered) saturated aliphatic cyclic hydrocarbon ring.
  • C 3 -C 7 cycloalkyl includes, but is not limited to cyclopropyl, cyclobutyl, cyclopentyl, cyclohexyl and cycloheptyl.
  • alkoxy means -O-alkyl
  • hydroxyalkyl means alkyl substituted with hydroxy
  • aralkyl means alkyl substituted with an aryl group
  • alkoxyalkyl mean alkyl substituted with an alkoxy group
  • alkylamine means amine substituted with an alkyl group
  • cycloalkylalkyl means alkyl substituted with cycloalkyl
  • dialkylamine means amine substituted with two alkyl groups
  • alkylcarbonyl means -C(0)-A*, wherein A* is alkyl
  • alkoxycarbonyl means -C(0)-OA*, wherein A* is alkyl
  • alkyl is as defined above and includes methoxy, ethoxy, propoxy, butoxy, pentoxy and hexoxy.
  • Cycloalkoxy means an cycloalkyl-O- group wherein the cycloalkyl is as defined above.
  • Exemplary (C 3 -C 7 )cycloalkyloxy groups include cyclopropoxy, cyclobutoxy, cyclopentoxy, cyclohexoxy and cycloheptoxy.
  • Haloalkyl and halocycloalkyl include mono, poly, and perhaloalkyl groups where each halogen is independently selected from fluorine, chlorine, and bromine.
  • Hetero refers to the replacement of at least one carbon atom member in a ring system with at least one heteroatom selected from N, S, and O.
  • a hetero ring system may have 1 or 2 carbon atom members replaced by a heteroatom.
  • Halogen and "halo” are interchangeably used herein and each refers to fluorine, chlorine, bromine, or iodine.
  • Neitro means -N0 2 .
  • an amino group may be a primary (-NH 2 ), secondary
  • haloalkyl and haloalkoxy mean alkyl or alkoxy, as the case may be, substituted with one or more halogen atoms.
  • halogen means F, CI, Br or I.
  • the halogen in a haloalkyl or haloalkoxy is F.
  • acyl group means -C(0)B*, wherein B* is an optionally substituted alkyl group or aryl group (e.g., optionally substituted phenyl).
  • alkylene group is represented by -[CH 2 ] Z -, wherein z is a positive integer, preferably from one to eight, more preferably from one to four.
  • (C6-C 10)aryl used alone or as part of a larger moiety as in
  • arylalkyl means carbocyclic aromatic rings.
  • the term “carbocyclic aromatic group” may be used interchangeably with the terms “aryl”, “aryl ring” “carbocyclic aromatic ring”, “aryl group” and “carbocyclic aromatic group”.
  • An aryl group typically has 6-14 ring atoms.
  • a "substituted aryl group” is substituted at any one or more substitutable ring atom.
  • C6-14 aryl as used herein means a monocyclic, bicyclic or tricyclic carbocyclic ring system containing from 6 to 14 carbon atoms and includes phenyl, naphthyl, anthracenyl, 1,2-dihydronaphthyl, 1,2,3,4-tetrahydronaphthyl, fluorenyl, indanyl, indenyl and the like.
  • heteroaryl refers to aromatic ring groups having five to fourteen ring atoms selected from carbon and at least one (typically 1 - 4, more typically 1 or 2) heteroatoms (e.g., oxygen, nitrogen or sulfur). They include monocyclic rings and polycyclic rings in which a monocyclic heteroaromatic ring is fused to one or more other carbocyclic aromatic or heteroaromatic rings.
  • 5-14 membered heteroaryl as used herein means a monocyclic, bicyclic or tricyclic ring system containing one or two aromatic rings and from 5 to 14 atoms of which, unless otherwise specified, one, two, three, four or five are heteroatoms independently selected from N, NH, N(C 1-6 alkyl), O and S.
  • 2-4 member polycyclyl is a cyclic compound with 2-4
  • hydrocarbon loop or ring structures e.g., benzene rings
  • the term generally includes all polycyclic aromatic compounds, including the polycyclic aromatic hydrocarbons, the heterocyclic aromatic compounds containing sulfur, nitrogen, oxygen, or another non-carbon atoms, and substituted derivatives of these.
  • alkenyl means a straight or branched hydrocarbon radical having a specified number of carbon atoms and includes at least one double bond.
  • the (C6-Cio)aryl(C 2 -C6)alkenyl group connects to the remainder of the molecule through the (C 2 -C6)alkenyl portion of (C6-Cio)aryl(C 2 -C6)alkenyl.
  • Another embodiment of the present invention is a pharmaceutical composition
  • a pharmaceutical composition comprising one or more pharmaceutically acceptable carrier and/or diluent and a compound disclosed herein or a pharmaceutically acceptable salt thereof.
  • “Pharmaceutically acceptable carrier” and “pharmaceutically acceptable diluent” means non-therapeutic components that are of sufficient purity and quality for use in the formulation of a composition of the invention that, when appropriately administered to an animal or human, typically do not produce an adverse reaction, and that are used as a vehicle for a drug substance (i.e. a compound of the present invention).
  • compositions of the present invention are also included.
  • an acid salt of a compound of the present invention containing an amine or other basic group can be obtained by reacting the compound with a suitable organic or inorganic acid, resulting in pharmaceutically acceptable anionic salt forms.
  • anionic salts include the acetate, benzenesulfonate, benzoate, bicarbonate, bitartrate, bromide, calcium edetate, camsylate, carbonate, chloride, citrate, dihydrochloride, edetate, edisylate, estolate, esylate, fumarate, glyceptate, gluconate, glutamate, glycollylarsanilate, hexylresorcinate,
  • Salts of the compounds of the present invention containing a carboxylic acid or other acidic functional group can be prepared by reacting with a suitable base.
  • a suitable base such as a pharmaceutically acceptable salt may be made with a base which affords a pharmaceutically acceptable cation, which includes alkali metal salts (especially sodium and potassium), alkaline earth metal salts (especially calcium and magnesium), aluminum salts and ammonium salts, as well as salts made from physiologically acceptable organic bases such as trimethylamine, triethylamine, morpholine, pyridine, piperidine, picoline, dicyclohexylamine, N,
  • N'-dibenz lethylenediamine 2-hydroxyethylamine, bis-(2-hydroxyethyl)amine, tri-(2-hydroxyethyl)amine, procaine, dibenzylpiperidine, dehydroabietylamine, ⁇ , ⁇ '-bisdehydroabietylamine, glucamine, N-methylglucamine, coUidine, quinine, quinoline, and basic amino acids such as lysine and arginine.
  • BODIPY 4,4-Difluoro-4-bora-3a,4a-diaza-s-indacene
  • BODIPY scaffold modification for BODIPY scaffold has been well explored. Thus great numbers of BODIPY dyes have been used to label biomolecules. A large numbers of sensors and markers based on BODIPY scaffold have also been developed. But
  • FABP7 Matrix-assisted laser desorption/ionization-time of flight/time of flight mass spectrometry (MALDI-TOF/TOF MS) and MS/MS analysis allowed us to identify the protein spot as FABP7 (FIG. 2B).
  • FABP7 is particularly expressed in the central nervous system and a well- known marker of radial glial cells which play as NSC in the brain 6 .
  • CDr3 we cloned both human and mouse FABP7 genes and fused them to EGFP constructs for expression in HEK293 cells. We incubated the cells with CDr3 and observed the signals of EGFP and CDr3 overlap in the cells that express either human or mouse FABP7 fused to EGFP (FIG. 2C).
  • ReNcell VM were strongly stained by FABP7 antibody while HI and ReNcell VM-derived neurons were not stained (FIG. 3C).
  • CDr3 selectively stained ReNcell VM in living cell cultures (FIG. 3D).
  • FABP7-positive radial glial cells The embryoid bodies generated from El 4 in the absence of leukemia inhibitory factor were treated with retinoic acid for 2 days until dissociation into single cell suspension. The cells were stained with CDr3 and the CDr3bright and CDr3dim cells were collected separately by FACS. Each cell population was stained with FABP7 antibody and analyzed by flow cytometry. The overlay plot showed well-separated 2 clusters demonstrating that the cells isolated by CDr3 from the heterogeneous embryoid body cells were FABP7 expressing cells (FIG. 4).
  • CDr3 dim cells generated only 0.25 ⁇ 0.5 neurospheres per well.
  • FACS FACS for neurosphere assay
  • E14 was maintained on gelatin-coated dishes in high-glucose DMEM supplemented with 10% FBS, 2 mM L-glutamine, 100 U/ml penicillin, 100 g/ml streptomycin, 0.1 mM non-essential amino acids, 0.1% ⁇ -mercaptoethanol and 100 U/ml leukemia inhibitory factor (LIF, Chemicon).
  • LIF leukemia inhibitory factor
  • EBF media 90% of the EBF media was changed on a daily basis for a total of 4 days and then retinoic acid (Sigma) was added to the final concentration of 1 ⁇ .
  • retinoic acid Sigma
  • the embryoid bodies were harvested and dissociated in 0.05% trypsin with 0.2 mM EDTA solution for 3 min at 37°C to obtain a single cell suspension.
  • NS5 was maintained in Euromed-N medium supplemented with 100 ⁇ g/ml Apo-transferin (Sigma), 5.2 ng/ml Sodium Selenite (Sigma), 19.8 ng/ml progesterone (Sigma), 16 ⁇ g/ml Putrescine (Sigma), 25 ⁇ g/ml insulin (Sigma), 50.25 ⁇ g/ml BSA (Gibco), 10 ng/ml bFGF (Gibco), 10 ng/ml EGF (Gibco), 100 U/ml penicillin (Gibco), 100 ⁇ g/ml streptomycin (Gibco) and 2 mM L-glutamine (Gibco).
  • NS5 maintenance medium containing 5% FBS but without FGF and bEGF.
  • MEF was maintained in the same media as used for El 4 but without LIF.
  • HI was maintained in a feeder-free condition on matrigel-coated dishes in
  • MEF-conditioned medium containing Knockout DMEM/ 10% serum replacement (Gibco), 0.1 mM MEM non-essential amino acids (Gibco), 1 mM L-glutamine (Gibco), 0.1 mM ⁇ -mercaptoethanol (Gibco), 8% plasmanate (NUH pharmacy), 12 ng/ml LIF, and 10 ng/ml human recombinant Basic Fibroblast Growth Factor (bFGF; Gibco).
  • ReNcell VM (Millipore #SCC008) was maintained on laminin- coated dishes in ReNcell NSC Maintenance Medium (Millipore #SCM005) containing 20 ng/ml bFGF and 20 ng/m EGF.
  • ReNcell VM were seeded on PLO/Laminin-coated plates and cultured for up to 3 weeks in media comprising a 1:1 mix of N2-DMEM/F12 and B27-Neurobasal media supplemented with O.lmM MEM non-essential amino acids and 1 mM L-glutamine, all obtained from Gibco/Invitrogen.
  • media comprising a 1:1 mix of N2-DMEM/F12 and B27-Neurobasal media supplemented with O.lmM MEM non-essential amino acids and 1 mM L-glutamine, all obtained from Gibco/Invitrogen.
  • mixed primary brain cell culture the brains of neonatal mouse pups were cut into small pieces and digested in 0.25% trypsin with ImM EDTA solution (Invitrogen) for 30 min at 37°C before neutralization with FBS.
  • the tissues were triturated using a 10 ml pipette fitted with 1 ml tip and the suspension was filtered through a strainer with 40 um nylon mesh.
  • the obtained single cells were plated on 35 mm cell culture dishes in OptiMEM- GlutaMAXTM containing 10% FBS.
  • Unattached cells and cell debris were removed the next day by replacing medium. One-half of the medium was replaced twice a week thereafter.
  • DOFL compounds were diluted from 1 mM DMSO stock solutions with the culture medium to make final concentration of 0.5 ⁇ or 1.0 ⁇ .
  • the 4 different types of cells plated side by side on 384- well plates were incubated with the compounds overnight at 37 °C and the nuclei were stained with either Hoechst33342 or DRAQ5 the next day before image acquisition.
  • the fluorescence cell images of 2 regions per well were acquired using ImageXpress MicroTM cellular imaging system (Molecular Device) with 10X objective lens and the intensity was analyzed by MetaXpress® image processing software (Molecular Device).
  • the hit compounds which stained NS5 more brightly than other cells were selected based on the intensity data and manual screening of the raw images.
  • the cells were incubated with 0.5 ⁇ of CDr3 in Opti-MEM GlutaMAXTM for 1 hr and, if necessary, subsequently with 2 ⁇ of Hoechst 33342 for 15 min at 37°C. Then the cells were rinsed in the maintenance medium for 1 hr and the medium was replaced again with fresh one before image acquisition. The staining and destaining times were prolonged when necessary.
  • the bright field and fluorescence images were acquired on ECLIPSE Ti microscope (Nikon Instruments Inc) or AIR confocal microscope (Nikon Instruments Inc) using NIS Elements 3.10 software or on Axio Observer Dl using Axio Vision v 4.8 software (Carl Zeiss Inc).
  • the cells incubated with CDr3 were harvested by trypsin treatment, washed and resuspended in PBS.
  • the fluorescence intensity of the cells was measured on a flow cytometry (BDTM LSR II) or collected using a FACS machine (BD FACS AriaTM).
  • the data were analyzed and processed using Flow Jo 7 software.
  • CDr3-stained NS5 pellet was lysed in a lysis buffer (40mM Trizma, 7M Urea, 2M thiourea and 4% CHAPS) premixed with 10 ⁇ /ml Protease Inhibitor Cocktail (EDTA free, GE healthcare), 50 ⁇ gml DNase I and 50 ⁇ g/ml RNase A (Roche).
  • the proteins of 0.2 mg and 1 mg were separated by 2DE for silver staining and fluorescent imaging, respectively.
  • the fluorescence image of gels was acquired using a Typhoon 9400 scanner (GE healthcares) at excitation/emission wavelengths of 532nm/610nm with PMT at 500v and a duplicate gel was stained using
  • Tryptic peptide of 0.6 ⁇ was spotted onto Prespotted AnchorChip target plate (Bruker Daltonics Inc) according to manufacturer's protocol.
  • the peptide mass fingerprint and selected peptide MS/MS fragment ion analysis were carried out on UltraFlex III TOF-TOF (Bruker Daltonics Inc) with the compass 1.2 software package including FlexControl 3.0 and FlexAnalysis 3.0 with PAC peptide calibration standards.
  • CDr3 1, (20 mg, 0.047 mM) and 3,4-dimethoxybenzaldehyde (16 mg, 0.094 mM) were dissolved in acetonitrile (4 ml), followed by the addition of the mixture of pyrrolidine (23.6 ⁇ , 0.282 mM) and acetic acid (16.1 ⁇ , 0.282 mM). The reaction was heated at 85oC for 15 min and then cooled down to r.t. The resulting crude mixture was concentrated under vacuum and purified by normal- phase column chromatography (eluting system: hexane/ethyl acetate (6:1) to render CDr3 as purple solid (15 mg, 56% yield).
  • E14.5 fetal mouse brains were trypsinized in 0.25% trypsin with ImM
  • EDTA solution (Invitrogen) for 30 mins at 37°C before neutralization with FBS.
  • the tissues were triturated sequentially with a 10ml pipette followed by a 1 ml blue tip and a 0.2 ml yellow tip attached to the 10 ml pipette until the cell suspension flows through smoothly.
  • the tissue suspension was washed 3 times with PBS by repeated resuspension and centrifugation and filtered through a 40 um strainer.
  • the cells were stained using CDr3, CD133 antibody, SSEA-1 antibody or Aldefluor as described below and FACS sorted.
  • the FACS sorted bright and dim cells of 2% at each end and unsorted (randomly harvested) cells were plated in a DMEM/F12 medium containing 10 ng/ml bFGF, 20 ng/ml EGF and B27 without vitamin A (Invitrogen) at a density of 10,000 cells/well in 6- well plate to grow forming spheres.
  • the number and size of neurospheres generated from each group were measured after 6 days culture.
  • Dissociated cells were incubated with 0.5 ⁇ of CDr3 in neurosphere media for 1 hr and then spun down for resuspension in compound free neuropshere media for 30 minutes. The cells were then spun down and resuspended in PBS for FACS. For control group, the cells were incubated with 0.05% DMSO instead of CDr3.
  • Dissociated cells were blocked in 1% BSA for 30 min and then incubated with CD133 antibody (1 :500) for 1 hr.
  • the cells were washed with PBS by centrifugation and resuspension and then incubated with Alexa fluor 488-conjugated anti-rat IgG (1:1 ,000) for 1 hr.
  • the stained cell sample was washed again before resuspension in PBS for FACS. For control group, primary antibody was omitted.
  • Dissociated cells were blocked in 1% BSA for 30 min and then incubated with SSEA-1 antibody (1 :500) for 1 hr.
  • the cells were washed with PBS by centrifugation and resuspension and then incubated with Alexa fluor 633 -conjugated anti-mouse IgM (Invitrogen) for 1 hr.
  • the stained cell sample was washed again before resuspension in PBS for FACS. For control group, primary antibody was omitted.
  • the cells were incubated with activated Aldefluor substrate (5 ⁇ 1/ ⁇ 1) for 30 min at 37°C. The cells were then spun down and resuspended in Aldefluore assay buffer for FACS. For control, diethylaminobenzaldehyde, a specific inhibitor of ALDH was added (5 ⁇ 1/ ⁇ 1) to the cells together with Aldefluore substrate.
  • Neurospheres were generated from the fetal mouse brain cells prepared as described in above (Neural stem cell isolation). After expansion by 2 times of passages, the cells plated in triplicate in 6-well culture plates at a density of 3,000 cells per well and cultured in the presence of 1 ⁇ CDr3 or 0.1% DMSO for 6 days. After 6 days, the numbers and sizes of neurospheres were determined. For serial assay, the neurospheres were further passaged in the medium containing 1 ⁇ CDr3 or 0.1% DMSO. NS5 cell proliferation assay
  • NS5 were seeded into 96-well plates (Greiner) at a density of 1000 cells/well. The next day, DMSO and 1 mM DMSO stock of CDr3 was added into 32 wells for each to be diluted to 0.1% and 1 uM, respectively. At 6 hr and 48 hr time points, lug/ml of Hoechst 33342 was added and incubated for 15 min for image acquisition using an ImageXpress MicroTM and MetaXpress Imaging system
  • Hoeschst33342 and CDr3 signals were detected via DAPI and Texas red filters, respectively, and the images of a total of 4 areas were captured per well. Multi wavelength scoring analysis was then run to quantify the number of cells based on Hoechst 33342-stained nuclei image.
  • the cells were stained using FITC conjugated anti-BrdU antibody (BD PharmingenTM) according to the manufacturer's instruction. Total numbers of Hoechst 33342-stained and BrdU-labeled nuclei were counted by image based analysis using ImageJ-ITCN software.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Health & Medical Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Urology & Nephrology (AREA)
  • Biomedical Technology (AREA)
  • Hematology (AREA)
  • Immunology (AREA)
  • Molecular Biology (AREA)
  • Food Science & Technology (AREA)
  • General Health & Medical Sciences (AREA)
  • Cell Biology (AREA)
  • Medicinal Chemistry (AREA)
  • Physics & Mathematics (AREA)
  • Analytical Chemistry (AREA)
  • Biochemistry (AREA)
  • Microbiology (AREA)
  • General Physics & Mathematics (AREA)
  • Pathology (AREA)
  • Biotechnology (AREA)
  • Investigating Or Analysing Biological Materials (AREA)
  • Investigating, Analyzing Materials By Fluorescence Or Luminescence (AREA)
  • Investigating Or Analysing Materials By The Use Of Chemical Reactions (AREA)

Abstract

The present invention is directed to a fluorescence compound represented by structural Formula (I), with specificity to neural stem cells: I or a pharmaceutically acceptable salt thereof. The variables for structural Formula (I) are defined herein. Also described are methods for detection of neural stem cells, comprising using a compound of structural Formula (I) or pharmaceutically acceptable salts thereof. Compounds of structural Formula (I) can detect and separate neural stem cells without immunostaining, providing a much shorter and more convenient method for detection of neural stem cells.

Description

BODIPY STRUCTURE FLUORESCENCE DYE FOR NEURAL
STEM CELL PROBE
RELATED APPLICATION
This application claims the benefit of U.S. Provisional Application No. 61/416,808, filed on November 24, 2010. The entire teachings of the above application are incorporated herein by reference.
BACKGROUND OF THE INVENTION
Development of fluorescent molecules and their application are
indispensable techniques for the analysis of a variety of biological phenomena. During the past few decades, a number of fluorescent small molecules have been developed as reporters and chemosensors for use in biological analyses, which typically are elaborately designed to selectively detect a target substance or conjugated to biomolecules1. These fluorescent molecules employ an increase or decrease in their emission intensity in response to the surrounding medium or through specific molecular recognition events. Due to their simplicity and high sensitivity, fluorescent sensors have been widely utilized as popular tools for chemical, biological and medical applications. The most general strategy for fluorescent sensor design is to combine fluorescence dye molecules with designed receptors for specific analytes, expecting that the recognition event between receptor and analyte will lead to a fluorescence property change of the dye moiety. Although many fluorescent sensors have been successfully developed through this approach, each individual development requires a major effort in both the design and synthesis of the sensors. Also, the sensor's scope of application is limited to the selected specific analytes that the sensor was rationally designed for, so-called Analyte Directed Sensors. Combinatorial dye library synthesis offers one of the most promising alternatives as Diversity Directed Sensors, once an efficient synthetic route can be developed for a diverse set of dyes. Neural stem cells (NSC) generate the nervous system, promote neuronal plasticity and repair damage throughout life by self-renewing and differentiating into neurons and glia2'3. Beneficial effects of NSC engraftment into the affected brain areas in several brain diseases have been demonstrated by animal experiments4'5. NSC also has great potential for drug screening and efficacy testing significantly reducing the time and efforts needed in drug discovery. The conventional methods for the isolation and characterization of NSC depend on their behavior in a defined culture medium such as neurosphere formation and immunodetection of marker molecules. These methods, however, are time-dependent and involve the use of antibodies which may render the cells unsuitable for further experimental and therapeutic applications. Therefore, a need exists to develop novel chemical compounds that are useful for detection of neural stem cells.
SUMMARY OF THE INVENTION
A novel chemical structure with fluorescence emission and specificity to neural stem cells is described. This scaffold is compatible with a range of chemical functional groups, and can be bioconjugated to proteins as well as other
macromolecules of interest, such as carbohydrates and lipids. One of the
compounds, named as compound of designation (CDr3), selectively stains both human and mouse neural stem cells (NSC) by binding to a NSC marker protein fatty acid binding protein 7 (FABP7).
BRIEF DESCRIPTION OF THE DRAWINGS
The foregoing will be apparent from the following more particular description of example embodiments of the invention, as illustrated in the accompanying drawings in which like reference characters refer to the same parts throughout the different views. The drawings are not necessarily to scale, emphasis instead being placed upon illustrating embodiments of the present invention.
FIG.1A shows the selective staining of NS5 by CDr3. Nuclei of all El 4, NS5, D-NS5 and MEF were visualized by Hoechst 33342 (DAPI); but only NS5 was selectively stained by CDr3 (TxRd). Top panel, bright field (BF) images;
middle and bottom panels, fluorescent images obtained with DAPI and Texas Red filter set. Scale bar, 50 μπι. FIG. IB shows the chemical structure of CDr3.
FIG. 1C shows the flow cytometry dot plot images of El 4, NS5, D-NS5 and MEF incubated with CDr3. DMSO was added for unstained control cells. The images of each type of cells were overlaid. Segregated NS5 cells by CDr3 are marked.
FIG. ID shows selective staining of NS5 by CDr3. Mixed primary mouse brain cells (PC) cultured for 2 weeks in vitro were incubated with CDr3 and Hoechst 33342. The images of living cells are shown in bright field (BF) and fluorescence (DAPI and Texas Red) panels. The primary brain cells with various morphologies were not stained by CDr3, while NS5 treated in parallel was stained. The images of the same cells were acquired after immunocytochemical staining (ICC) with antibodies to neuron-specific class III β-tubulin (Tujl; TxRd channel) and astrocyte- specific glial fibrillary acidic protein (GFAP; FITC channel). Scale bar, 100 um.
FIG. 2A shows the identification of CDr3 binding protein. A protein lysate of CDr3-stained NS5 was separated by 2DE. The major fluorescent spot was marked with a circle (left panel). Many silver-stained protein spots were detected in a duplicate gel (right panel).
FIG. 2B shows the MS/MS fragment ion analysis of tryptic peptide
(MWTLTFGDIVAVR) SEQ ID No. : 1 , indicated FABP7 as a binding target of CDr3. Only the main y-series of ion fragmentation was labeled in the spectrum. M* indicates oxidation at methionine residue.
FIG. 2C shows the fluorescence signals from EGFP and CDr3 overlap only in the cells expressing either mouse FABP7 or human FABP7 fused to EGFP. The fluorescence images were acquired on a Nikon Ti microscope using DAPI
(Hoechst), FITC (EGFP) and Texas Red (Cdr3) filter sets. Scale bar, 50 um.
FIG. 3 A shows real-time RT-PCR analysis data of FABP7 expression in HI, ReNcell VM and ReNcell VM-differentiated neurons. Relative expression level of FABP7 to GAPDH is depicted.
FIG. 3B shows that the strong signal of FABP7 protein (14 kDa) was detected by Western blotting in ReNcell VM (lane 3) lysate, while it was not detectable in the lysates of HI (lane 1) and ReNcell VM-differentiated neurons (lane 2). β-Actin (42 kDa) staining demonstrates consistent loading across sample lanes. Fluorescence scan showed CDr3 -labelled FABP7 only in the lysate of ReNcell VM (lane 3) incubated with CDr3.
FIG. 3C shows the immunocytochemistry of FABP7 in HI, ReNcell VM and ReNcell VM-differentiated neurons (D-ReNcell VM). Only ReNcell VM was brightly stained by FABP7 antibody. Scale bar, 50 um. Upper panel, nuclei staining with DAPI; lower panel, FABP7 staining with antibody.
FIG. 3D shows HI, ReNcell VM and ReNcell VM-differentiated neurons incubated with CDr3. Fluorescence signal was detected only in ReNcell VM. Upper panel, bright field image; lower panel, fluorescence image. Scale bar, 50 μπι.
FIG. 4 A shows differentiated E14 cell distribution in FACS after staining with CDr3. The CDr3-stained embryoid body cells were separated into CDr3bnght and CDr3dim populations.
FIG. 4B shows the higher expression of FABP7 in CDr3bright than in CDr3dim cells, which was determined by immunocytochemistry followed by flow cytometry. The primary FABP7 antibody was detected by an Alexa Fluor 488-conjugated secondary antibody.
FIG. 5 shows the higher expression of FABP7, Hesl, Musashi, Nestin and Pax6 in CDr3bright cells than in CDri^ cells. The CDr3bright and CDr3dim cells were collected separately by FACS for gene expression analysis by real time RT-PCR and neurosphere assay.
FIG. 6A shows the flow cytometry dot plot images showing shift of stained E14.5 fetal mouse brain cells to bright fluorescence (+) compared to control group (-)·
FIG. 6B shows the numbers (left panel) and the sizes (right panel) of neurospheres for the cells sorted by CDr3, CD133 antibody, SSEA-1 antibody and Aldefluor compared to unsorted cells.
FIG. 7 shows the numbers (upper panel) and sizes (lower panel) of neurospheres cultured in the presence of CDr3 and DMSO used as a vehicle.
FIG. 8 shows number of NS5 cells (left panel) and percentage of
BrdU-positive cells (right panel) cultured in the presence of CDr3 and DMSO used as a vehicle.
FIG. 9 shows the spectroscopic information of CDr3. DETAILED DESCRIPTION OF THE INVENTION
The teachings of all patents, published applications and references cited herein are incorporated by reference in their entirety.
The invention pertains to a novel chemical structure with fluorescence emission and specificity to neural stem cells. This scaffold is compatible with a range of chemical functional groups, and can be bioconjugated to proteins as well as other macromolecules of interest, such as carbohydrates and lipids. One of the compounds, named as compound of designation (CDr3), selectively stains both human and mouse neural stem cells (NSC) by binding to a NSC marker protein fatty acid binding protein 7 (FABP7).
One embodiment of the invention is a compound represented by structural Formula (I) or pharmaceutically acceptable salts thereof:
Figure imgf000006_0001
(Formula I), wherein:
R is (C6-C10)aryl, (C5-C10)heteroaryl, (C6-C10)aryl(C2-C6)alkenyl or 2-4 member polycyclyl, wherein each 2-4 member polycyclyl optionally and
independently contains 1-2 ring heteroatoms selected from oxygen, nitrogen and sulfur;
and wherein R is optionally substituted with 1-4 substituents independently selected from (Ci-C6)alkyl, halo(d-C6)alkyl, hydroxy(Co-C6)alkyl, (C6-Ci0)aryl, halo (C6-Cio)aryl, hydroxy(C6-Ci0)aryl, (C1-C6)alkoxy, halo(Ci-C6)alkoxy,
(C3-C8)cycloalkyl, halo(C6-C1o)aryl(C1-C6)alkoxy, halogen, amino,
(Ci-C6)alkoxy(C6-Cio)aryl(Ci-C6)alkoxy, nitro, (3 to 9 membered)heterocyclyl, (Co-C6)alkyl(C6-Cio)aryl(Co-C6)alkoxy, (C5-Ci0)heterocycle, -OCF3, -B(OH)2> cyano(Ci-C6)alkylene amino, (Ci-C6)alkoxyamino, (C6-Cio)aryl(C2-C6)alkenyl, (C2-C6)alkenyl(C1-C6)alkoxy, (C C6)sulfoxy or -N(CH3)(d-C6)OH.
Another embodiment of the invention is a method for detection of a neural stem cell (NSC) comprising: a) staining said neural stem cell with a compound, forming a dye-stained neural stem cell by binding said compound to a marker protein of said neural stem cell, wherein said compound is of structural Formula (I) or pharmaceutically acceptable salts thereof:
b) optionally incubating product of step a) to form a said incubated dye-stained stem (intensity of fluorescence can be increased by incubation for the period of time sufficient for achieving desired intensity, e.g., from about 1 hour to about 24 hours, but less or more time may be acceptable.);
c) analyzing said incubated dye-stained stem cell by a flow cytometry and FACS; and
d) subjecting said dye-stained neural stem cell to two-dimensional SDS-PAGE (2DE) fluorescence scanning to detect fluorescence signal, wherein the presence of a signal is indicative of the presence of said neural stem cell.
In one embodiment of the invention said method is applied in neural stem cell biology and regenerative medicine.
Scheme 1. General synthetic scheme.
Figure imgf000008_0001
(a) pyridine, piperidine, 50 °C, 48 h, then 80 °C, 24h, (b)H2, Pd/C, MeOH, RT, 6 h, (c) K2C03, H20/EtOH, reflux, overnight, (d) 2,2,2-trichloroethanol, pyridine, DCC, EA, RT, overnight, (e) 3,5-dimethyl-lH-pyrrole-2-carbaldehyde, POCI3, DCM, RT, 4 h, (f) DIEA, BF3OEt2, DCM, RT, overnight, (g) R-CHO, pyrrolidine, acetic acid, ACN, 85°C, 15 min.

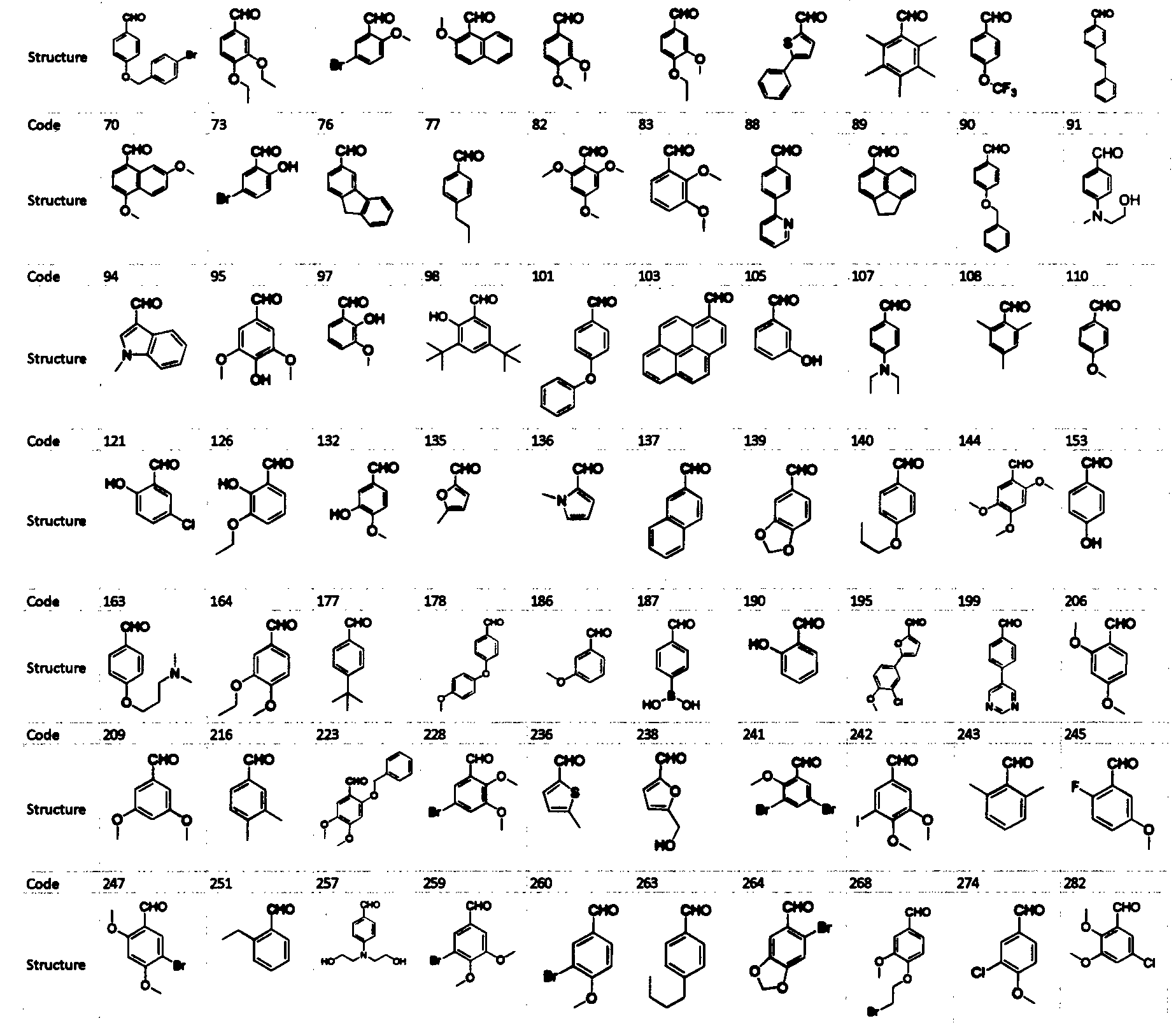

Chart 1. Building block acid chlorides employed in the synthesis (R-CHO in Scheme 1).
Figure imgf000009_0001
Figure imgf000009_0002
Figure imgf000010_0001
DEFINITIONS
"Alkyl" means a saturated aliphatic branched or straight-chain monovalent hydrocarbon radical having the specified number of carbon atoms. Thus, "(Ci-Ce) alkyl" means a radical having from 1- 6 carbon atoms in a linear or branched arrangement. "(Ci-Ce)alky includes methyl, ethyl, propyl, butyl, pentyl and hexyl.
"Alkylene" means a saturated aliphatic straight-chain divalent hydrocarbon radical having the specified number of carbon atoms. Thus, "(Ci-C6)alkyleneM means a divalent saturated aliphatic radical having from 1- 6 carbon atoms in a linear arrangement. "(Ci-C6)alkylene" includes methylene, ethylene, propylene, butylene, pentylene and hexylene.
"Heterocycle" means a saturated or partially unsaturated (4-7 membered) monocyclic heterocyclic ring containing one nitrogen atom and optionally 1 additional heteroatom independently selected from N, O or S. When one heteroatom is S, it can be optionally mono- or di-oxygenated (i.e., -S(O)- or -S(0)2-). Examples of monocyclic heterocycle include, but not limited to, azetidine, pyrrolidine, piperidine, piperazine, hexahydropyrimidine, tetrahydrofuran, tetrahydropyran, morpholine, thiomorpholine, thiomorpholine 1,1 -dioxide, tetrahydro-2H-l,
2-thiazine, tetrahydro-2H-l, 2-thiazine 1,1 -dioxide, isothiazolidine, or isothiazolidine 1,1 -dioxide.
"Cycloalkyl" means saturated aliphatic cyclic hydrocarbon ring. Thus,
"C3-C7 cycloalkyl" means (3-7 membered) saturated aliphatic cyclic hydrocarbon ring. C3-C7 cycloalkyl includes, but is not limited to cyclopropyl, cyclobutyl, cyclopentyl, cyclohexyl and cycloheptyl.
The term "alkoxy" means -O-alkyl; "hydroxyalkyl" means alkyl substituted with hydroxy; "aralkyl" means alkyl substituted with an aryl group; "alkoxyalkyl" mean alkyl substituted with an alkoxy group; "alkylamine" means amine substituted with an alkyl group; "cycloalkylalkyl" means alkyl substituted with cycloalkyl; "dialkylamine" means amine substituted with two alkyl groups; "alkylcarbonyl" means -C(0)-A*, wherein A* is alkyl; "alkoxycarbonyl" means -C(0)-OA*, wherein A* is alkyl; and where alkyl is as defined above and includes methoxy, ethoxy, propoxy, butoxy, pentoxy and hexoxy.
"Cycloalkoxy" means an cycloalkyl-O- group wherein the cycloalkyl is as defined above. Exemplary (C3-C7)cycloalkyloxy groups include cyclopropoxy, cyclobutoxy, cyclopentoxy, cyclohexoxy and cycloheptoxy.
Haloalkyl and halocycloalkyl include mono, poly, and perhaloalkyl groups where each halogen is independently selected from fluorine, chlorine, and bromine.
"Hetero" refers to the replacement of at least one carbon atom member in a ring system with at least one heteroatom selected from N, S, and O. A hetero ring system may have 1 or 2 carbon atom members replaced by a heteroatom.
"Halogen" and "halo" are interchangeably used herein and each refers to fluorine, chlorine, bromine, or iodine.
"Cyano" means -C≡N.
"Nitro" means -N02.
As used herein, an amino group may be a primary (-NH2), secondary
(-NHRX), or tertiary (-NRxRy), wherein Rx and Ry may be any of the optionally substituted alkyls described above. The terms "haloalkyl" and "haloalkoxy" mean alkyl or alkoxy, as the case may be, substituted with one or more halogen atoms. The term "halogen" means F, CI, Br or I. Preferably the halogen in a haloalkyl or haloalkoxy is F.
The term "acyl group" means -C(0)B*, wherein B* is an optionally substituted alkyl group or aryl group (e.g., optionally substituted phenyl).
An "alkylene group" is represented by -[CH2]Z-, wherein z is a positive integer, preferably from one to eight, more preferably from one to four.
An "alkenylene group" is an alkylene in which at least a pair of adjacent methylenes are replaced with -CH=CH-.
The term "(C6-C 10)aryl" used alone or as part of a larger moiety as in
"arylalkyl", "arylalkoxy", or "aryloxyalkyl", means carbocyclic aromatic rings. The term "carbocyclic aromatic group" may be used interchangeably with the terms "aryl", "aryl ring" "carbocyclic aromatic ring", "aryl group" and "carbocyclic aromatic group". An aryl group typically has 6-14 ring atoms. A "substituted aryl group" is substituted at any one or more substitutable ring atom. The term "C6-14 aryl" as used herein means a monocyclic, bicyclic or tricyclic carbocyclic ring system containing from 6 to 14 carbon atoms and includes phenyl, naphthyl, anthracenyl, 1,2-dihydronaphthyl, 1,2,3,4-tetrahydronaphthyl, fluorenyl, indanyl, indenyl and the like.
The term "heteroaryl", "heteroaromatic", "heteroaryl ring", "heteroaryl group" and "heteroaromatic group", used alone or as part of a larger moiety as in "heteroarylalkyl" or "heteroarylalkoxy", refers to aromatic ring groups having five to fourteen ring atoms selected from carbon and at least one (typically 1 - 4, more typically 1 or 2) heteroatoms (e.g., oxygen, nitrogen or sulfur). They include monocyclic rings and polycyclic rings in which a monocyclic heteroaromatic ring is fused to one or more other carbocyclic aromatic or heteroaromatic rings. The term "5-14 membered heteroaryl" as used herein means a monocyclic, bicyclic or tricyclic ring system containing one or two aromatic rings and from 5 to 14 atoms of which, unless otherwise specified, one, two, three, four or five are heteroatoms independently selected from N, NH, N(C1-6alkyl), O and S.
The term "2-4 member polycyclyl is a cyclic compound with 2-4
hydrocarbon loop or ring structures (e.g., benzene rings). The term generally includes all polycyclic aromatic compounds, including the polycyclic aromatic hydrocarbons, the heterocyclic aromatic compounds containing sulfur, nitrogen, oxygen, or another non-carbon atoms, and substituted derivatives of these.
The term "Alkenyl" means a straight or branched hydrocarbon radical having a specified number of carbon atoms and includes at least one double bond. The (C6-Cio)aryl(C2-C6)alkenyl group connects to the remainder of the molecule through the (C2-C6)alkenyl portion of (C6-Cio)aryl(C2-C6)alkenyl.
Another embodiment of the present invention is a pharmaceutical composition comprising one or more pharmaceutically acceptable carrier and/or diluent and a compound disclosed herein or a pharmaceutically acceptable salt thereof.
"Pharmaceutically acceptable carrier" and "pharmaceutically acceptable diluent" means non-therapeutic components that are of sufficient purity and quality for use in the formulation of a composition of the invention that, when appropriately administered to an animal or human, typically do not produce an adverse reaction, and that are used as a vehicle for a drug substance (i.e. a compound of the present invention).
Pharmaceutically acceptable salts of the compounds of the present invention are also included. For example, an acid salt of a compound of the present invention containing an amine or other basic group can be obtained by reacting the compound with a suitable organic or inorganic acid, resulting in pharmaceutically acceptable anionic salt forms. Examples of anionic salts include the acetate, benzenesulfonate, benzoate, bicarbonate, bitartrate, bromide, calcium edetate, camsylate, carbonate, chloride, citrate, dihydrochloride, edetate, edisylate, estolate, esylate, fumarate, glyceptate, gluconate, glutamate, glycollylarsanilate, hexylresorcinate,
hydrobromide, hydrochloride, hydroxynaphthoate, iodide, isethionate, lactate, lactobionate, malate, maleate, mandelate, mesylate, methylsulfate, mucate, napsylate, nitrate, pamoate, pantothenate, phosphate/diphosphate, polygalacturonate, salicylate, stearate, subacetate, succinate, sulfate, tannate, tartrate, teoclate, tosylate, and triethiodide salts.
Salts of the compounds of the present invention containing a carboxylic acid or other acidic functional group can be prepared by reacting with a suitable base. Such a pharmaceutically acceptable salt may be made with a base which affords a pharmaceutically acceptable cation, which includes alkali metal salts (especially sodium and potassium), alkaline earth metal salts (especially calcium and magnesium), aluminum salts and ammonium salts, as well as salts made from physiologically acceptable organic bases such as trimethylamine, triethylamine, morpholine, pyridine, piperidine, picoline, dicyclohexylamine, N,
N'-dibenz lethylenediamine, 2-hydroxyethylamine, bis-(2-hydroxyethyl)amine, tri-(2-hydroxyethyl)amine, procaine, dibenzylpiperidine, dehydroabietylamine, Ν,Ν'-bisdehydroabietylamine, glucamine, N-methylglucamine, coUidine, quinine, quinoline, and basic amino acids such as lysine and arginine.
EXAMPLES
4,4-Difluoro-4-bora-3a,4a-diaza-s-indacene (BODIPY) has superior advantages to be one of the more versatile fluorophores, such as high quantum yield, tunable fluorescence characteristics, high photostability, and narrow emission bandwidth. Since the first discovery of BODIPY dyes in 1968, chemical
modification for BODIPY scaffold has been well explored. Thus great numbers of BODIPY dyes have been used to label biomolecules. A large numbers of sensors and markers based on BODIPY scaffold have also been developed. But
BODIPY-based library synthesis has been rarely reported due to the synthetic challenge.
Here we disclose our invention of a novel diversity oriented fluorescence BODIPY active ester compound library synthesized via solution phase synthetic method and one of the compounds which has been identified as neural stem cell selective imaging probe.
To develop fluorescent imaging probes which selectively detect NSC, we have screened in-house-generated 3,160 Diversity Oriented Fluorescence Library (DOFL) compounds in E14 mouse embryonic stem cell (mESC), E14-derived NS5 NSC, differentiated NS5 into astrocyte (D-NS5) and mouse embryonic fibroblast (MEF). For high throughput screening, the 4 different types of cells were prepared side by side in 384-well plates and incubated with 0.5 or 1.0 μΜ of compounds. After 24 hr incubation, the bright field and fluorescence images of the cells were acquired on an automated imaging microscope system ImageXpress Micro™ and the fluorescence intensity of the stained cells was analyzed using MetaXpress® image processing software. Through the followed secondary and tertiary screenings CDr3 has been identified as the hit molecule that stains NS5 most selectively and brightly (FIG. 1).
The intrinsic fluorescence property of our compounds makes it possible to track the target without any modification from the stained living cells through all processes for identification once it binds strongly to the target molecules. When we subjected CDr3-stained NS5 lysate to two-dimensional sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE (2DE)) for a fluorescence scanning, a major spot of approximately 15 kDa was detected (FIG. 2A).
Matrix-assisted laser desorption/ionization-time of flight/time of flight mass spectrometry (MALDI-TOF/TOF MS) and MS/MS analysis allowed us to identify the protein spot as FABP7 (FIG. 2B). Among the currently known 9 mammalian F ABPs that play pivotal roles in transporting and trafficking of lipids in various tissues, FABP7 is particularly expressed in the central nervous system and a well- known marker of radial glial cells which play as NSC in the brain6. To confirm that FABP7 is the specific binding target of CDr3, we cloned both human and mouse FABP7 genes and fused them to EGFP constructs for expression in HEK293 cells. We incubated the cells with CDr3 and observed the signals of EGFP and CDr3 overlap in the cells that express either human or mouse FABP7 fused to EGFP (FIG. 2C).
With this result, we attempted to test CDr3 on a commercial ReNcell VM human NSC line derived from the ventral mesencephalon region of human foetal brain tissue. We first examined the expression level of FABP7 by real time RT-PCR and found a 540-fold higher level of FABP7 mRNA in ReNcell VM than in HI human ESC. This expression was dramatically down-regulated (20-fold) by differentiation into neurons (FIG. 3 A). Western blot analysis demonstrated a similar observation in protein expression levels with a strong FABP7 band at 14 kDa detected in ReNcell VM lysate while no FABP7 was detected in the lysates of HI and ReNcell VM-derived neurons (FIG. 3B). In accordance with the Western blot data, ReNcell VM were strongly stained by FABP7 antibody while HI and ReNcell VM-derived neurons were not stained (FIG. 3C). We then incubated the 3 types of cells with CDr3 to determine whether living ReNcell VM could be distinguished by the compound among others. As expected from the FABP7 expression analysis data, CDr3 selectively stained ReNcell VM in living cell cultures (FIG. 3D).
Next, we were interested to test whether CDr3 can be used for the isolation of NSC from the heterogeneous populations of cells. According to the protocol described by Bibel et al. , we induced differentiation of El 4 to generate
FABP7-positive radial glial cells. The embryoid bodies generated from El 4 in the absence of leukemia inhibitory factor were treated with retinoic acid for 2 days until dissociation into single cell suspension. The cells were stained with CDr3 and the CDr3bright and CDr3dim cells were collected separately by FACS. Each cell population was stained with FABP7 antibody and analyzed by flow cytometry. The overlay plot showed well-separated 2 clusters demonstrating that the cells isolated by CDr3 from the heterogeneous embryoid body cells were FABP7 expressing cells (FIG. 4). For the NSC isolation from the brain tissue, we incubated the E14.5 fetal mouse brain primary cells with CDr3, and the CDr3bright and CDr3dim cells were collected separately by FACS for gene expression analysis by real time RT-PCR and neurosphere assay. The expression levels of FABP7, Hesl, Musashi, Nestin and Pax6 in CDr3bri8ht cells were more than 3-fold higher than in CDr3dim cells, while the differences of Hes5, Sox2 and Bmil expression levels were less than 2-fold (FIG. 5). In a neurosphere assay the CDr3bnght cells grew to generate 26.8±2.5
neurospheres while CDr3dim cells generated only 0.25±0.5 neurospheres per well. As a separate study, we sorted the fetal mouse brain cells using CD 133 antibody, SSEA-1 antibody, Aldefluor (BODIPY-aminoacetaldehyde) as well as CDr3 by FACS for neurosphere assay (FIG. 6A). We observed a big difference between all marker positive and negative cells in the numbers of generated neurospheres.
Among the markers, largest number of neurospheres was generated in CDr3 positive cells followed by SSEA-1, Aldefluor and CD 133 positive cells (FIG. 6B), while the sizes of neurospheres were all similar (FIG. 6C). This result shows highest correlation between neurosphere forming ability of the NSC and FABP7 level among the tested NSC markers. Finally, we determined whether CDr3 affects NSC proliferation by culturing NS5 and neurosphere in the presence of CDr3. Total numbers of NS5 cells grown for 6 hr and 48 hr and the percentage of BrdU positive cells pulse-labeled in the CDr3 -containing medium were not different from those of cells grown in DMSO only-containing medium which was used as a control (FIG. 7). In accordance with the result of experiment with NS5 cells, the number and size of neurospheres generated in the presence of CDr3 were not different from control (FIG. 8).
Materials and Methods
Cell culture and differentiation
E14 was maintained on gelatin-coated dishes in high-glucose DMEM supplemented with 10% FBS, 2 mM L-glutamine, 100 U/ml penicillin, 100 g/ml streptomycin, 0.1 mM non-essential amino acids, 0.1% β-mercaptoethanol and 100 U/ml leukemia inhibitory factor (LIF, Chemicon). For differentiation, the cells were detached from their culture plates using 0.25% trypsin with ImM EDTA solution (Invitrogen) and sub-cultured in non-adherent bacteria culture dishes in the E 14 media but without LIF. Subsequently, 90% of the EBF media was changed on a daily basis for a total of 4 days and then retinoic acid (Sigma) was added to the final concentration of 1 μΜ. On day 6, the embryoid bodies were harvested and dissociated in 0.05% trypsin with 0.2 mM EDTA solution for 3 min at 37°C to obtain a single cell suspension. NS5 was maintained in Euromed-N medium supplemented with 100 μg/ml Apo-transferin (Sigma), 5.2 ng/ml Sodium Selenite (Sigma), 19.8 ng/ml progesterone (Sigma), 16 μg/ml Putrescine (Sigma), 25 μg/ml insulin (Sigma), 50.25 μg/ml BSA (Gibco), 10 ng/ml bFGF (Gibco), 10 ng/ml EGF (Gibco), 100 U/ml penicillin (Gibco), 100 μg/ml streptomycin (Gibco) and 2 mM L-glutamine (Gibco). For differentiation of NS5 into astrocyte, the medium was changed to NS5 maintenance medium containing 5% FBS but without FGF and bEGF. MEF was maintained in the same media as used for El 4 but without LIF. HI was maintained in a feeder-free condition on matrigel-coated dishes in
MEF-conditioned medium containing Knockout DMEM/ 10% serum replacement (Gibco), 0.1 mM MEM non-essential amino acids (Gibco), 1 mM L-glutamine (Gibco), 0.1 mM β-mercaptoethanol (Gibco), 8% plasmanate (NUH pharmacy), 12 ng/ml LIF, and 10 ng/ml human recombinant Basic Fibroblast Growth Factor (bFGF; Gibco). ReNcell VM (Millipore #SCC008) was maintained on laminin- coated dishes in ReNcell NSC Maintenance Medium (Millipore #SCM005) containing 20 ng/ml bFGF and 20 ng/m EGF. For neural differentiation, ReNcell VM were seeded on PLO/Laminin-coated plates and cultured for up to 3 weeks in media comprising a 1:1 mix of N2-DMEM/F12 and B27-Neurobasal media supplemented with O.lmM MEM non-essential amino acids and 1 mM L-glutamine, all obtained from Gibco/Invitrogen. For mixed primary brain cell culture, the brains of neonatal mouse pups were cut into small pieces and digested in 0.25% trypsin with ImM EDTA solution (Invitrogen) for 30 min at 37°C before neutralization with FBS. After washing with PBS by centrifugation and resuspension, the tissues were triturated using a 10 ml pipette fitted with 1 ml tip and the suspension was filtered through a strainer with 40 um nylon mesh. The obtained single cells were plated on 35 mm cell culture dishes in OptiMEM- GlutaMAXTM containing 10% FBS.
Unattached cells and cell debris were removed the next day by replacing medium. One-half of the medium was replaced twice a week thereafter.
DOFL high throughput screening
DOFL compounds were diluted from 1 mM DMSO stock solutions with the culture medium to make final concentration of 0.5 μΜ or 1.0 μΜ. The 4 different types of cells plated side by side on 384- well plates were incubated with the compounds overnight at 37 °C and the nuclei were stained with either Hoechst33342 or DRAQ5 the next day before image acquisition. The fluorescence cell images of 2 regions per well were acquired using ImageXpress Micro™ cellular imaging system (Molecular Device) with 10X objective lens and the intensity was analyzed by MetaXpress® image processing software (Molecular Device). The hit compounds which stained NS5 more brightly than other cells were selected based on the intensity data and manual screening of the raw images.
Live cell staining
The cells were incubated with 0.5 μΜ of CDr3 in Opti-MEM GlutaMAXTM for 1 hr and, if necessary, subsequently with 2 μΜ of Hoechst 33342 for 15 min at 37°C. Then the cells were rinsed in the maintenance medium for 1 hr and the medium was replaced again with fresh one before image acquisition. The staining and destaining times were prolonged when necessary. The bright field and fluorescence images were acquired on ECLIPSE Ti microscope (Nikon Instruments Inc) or AIR confocal microscope (Nikon Instruments Inc) using NIS Elements 3.10 software or on Axio Observer Dl using Axio Vision v 4.8 software (Carl Zeiss Inc).
Flow cytometry and FACS
The cells incubated with CDr3 were harvested by trypsin treatment, washed and resuspended in PBS. The fluorescence intensity of the cells was measured on a flow cytometry (BDTM LSR II) or collected using a FACS machine (BD FACS AriaTM). The data were analyzed and processed using Flow Jo 7 software.
Two-dimensional gel electrophoresis
CDr3-stained NS5 pellet was lysed in a lysis buffer (40mM Trizma, 7M Urea, 2M thiourea and 4% CHAPS) premixed with 10 μΐ/ml Protease Inhibitor Cocktail (EDTA free, GE healthcare), 50 μgml DNase I and 50 μg/ml RNase A (Roche). The proteins of 0.2 mg and 1 mg were separated by 2DE for silver staining and fluorescent imaging, respectively. The fluorescence image of gels was acquired using a Typhoon 9400 scanner (GE healthcares) at excitation/emission wavelengths of 532nm/610nm with PMT at 500v and a duplicate gel was stained using
PlusOneTM Silver Staining Kit (GE healthcare) according to the manufacturer's protocol. The fluorescently 18abeled protein spots were directly excised from the gel for in-gel trypsin digestion and peptide extraction.
MALDI-TOF/TOF MS and MS/MS analyses
Tryptic peptide of 0.6 μΐ was spotted onto Prespotted AnchorChip target plate (Bruker Daltonics Inc) according to manufacturer's protocol. The peptide mass fingerprint and selected peptide MS/MS fragment ion analysis were carried out on UltraFlex III TOF-TOF (Bruker Daltonics Inc) with the compass 1.2 software package including FlexControl 3.0 and FlexAnalysis 3.0 with PAC peptide calibration standards. The peak lists of MS and MS/MS were submitted to in-house Mascot server (phenyx.bii.a-star.edu.sg/search_form_select.html) through BioTools 3.2 with the database of SwissProt 57.8 (509,019 sequences) allowing peptide mass tolerance of 100 ppm and 0.5 Da with maximum 1 missed cleavage and considering variable modifications of carbamidomethyl at cysteine (C) and oxidation at methionine (M).
Chemical synthesis
All reactions were performed in oven-dried glassware under a positive pressure of nitrogen. Unless otherwise noted, starting materials and solvents were purchased from Aldrich and Acros organics and used without further purification. Analytical TLC was carried out on Merck 60 F254 silica gel plate (0.25 mm layer thickness) and visualization was done with UV light. Column chromatography was performed on Merck 60 silica gel (230-400 mesh). NMR spectra were recorded on a Bruker Avance 300 NMR spectrometer. Chemical shifts are reported as δ in units of parts per million (ppm) and coupling constants are reported as a J value in Hertz (Hz). Mass of all the compounds was determined by LC-MS of Agilent
Technologies with an electrospray ionization source. All fluorescence assays were performed with a Gemini XS fluorescence plate reader.
Synthesis of compound 1 : The intermediate 1 in the Scheme 1 was
o
synthesized as reported previously .
Synthesis of CDr3: 1, (20 mg, 0.047 mM) and 3,4-dimethoxybenzaldehyde (16 mg, 0.094 mM) were dissolved in acetonitrile (4 ml), followed by the addition of the mixture of pyrrolidine (23.6 μΐ, 0.282 mM) and acetic acid (16.1 μΐ, 0.282 mM). The reaction was heated at 85oC for 15 min and then cooled down to r.t. The resulting crude mixture was concentrated under vacuum and purified by normal- phase column chromatography (eluting system: hexane/ethyl acetate (6:1) to render CDr3 as purple solid (15 mg, 56% yield).
Characteristics of CDr3
lHand C NMR spectra on CDr3
1H NMR (300 MHz, CDC13): 2.28 (s, 3H), 2.96 (t, J=7.5 Hz, 2H), 3.40 (t, j=7.5 Hz, 2H), 3.92 (s, 3H), 3.97 (s, 3H), 4.78 (s, 2H), 6.30 (d, J=3.9 Hz, 1H), 6.71 (s, 1H), 6.85 (d, J=3.9 Hz, 1H), 6.86 (d, J=8.1 Hz, 1H), 7.03 (s, 1H), 7.12 (d, J=1.8 Hz, 1H), 7.16 (dd, J=1.8, 8.4 Hz, lH), 7.29 (d, J=16.2 Hz, 1H), 7.48 (d, J=16.2 Hz, 1H). 13C NMR (75.5 MHz, CDC13): 11.3, 23.7, 29.6, 33.0, 55.9, 56.0, 56.1, 74.0, 94.9, 109.6, 110.4, 111.1, 116.2, 116.6, 121.6, 122.1, 122.2, 126.7, 129.2, 133.6, 139.1, 143.0, 149.3, 150.8, 171.0.
ESI-MS m/z(C25H24BC13F2N204) calculated: 571.1 (M+H)+, found: 551.1 (M-F). Fluorescence property measurement
10 μΜ solutions in DMSO was prepared and measured absorption and 2 μΜ solutions in DMSO was prepared and measured absorption emission of library compound. Spectrum of CDr3 is shown in FIG. 9.
Neural stem cell isolation from fetal mouse brain cell suspension
E14.5 fetal mouse brains were trypsinized in 0.25% trypsin with ImM
EDTA solution (Invitrogen) for 30 mins at 37°C before neutralization with FBS. The tissues were triturated sequentially with a 10ml pipette followed by a 1 ml blue tip and a 0.2 ml yellow tip attached to the 10 ml pipette until the cell suspension flows through smoothly. The tissue suspension was washed 3 times with PBS by repeated resuspension and centrifugation and filtered through a 40 um strainer. The cells were stained using CDr3, CD133 antibody, SSEA-1 antibody or Aldefluor as described below and FACS sorted. The FACS sorted bright and dim cells of 2% at each end and unsorted (randomly harvested) cells were plated in a DMEM/F12 medium containing 10 ng/ml bFGF, 20 ng/ml EGF and B27 without vitamin A (Invitrogen) at a density of 10,000 cells/well in 6- well plate to grow forming spheres. The number and size of neurospheres generated from each group were measured after 6 days culture.
CDr3
Dissociated cells were incubated with 0.5 μΜ of CDr3 in neurosphere media for 1 hr and then spun down for resuspension in compound free neuropshere media for 30 minutes. The cells were then spun down and resuspended in PBS for FACS. For control group, the cells were incubated with 0.05% DMSO instead of CDr3. CD133 antibody
Dissociated cells were blocked in 1% BSA for 30 min and then incubated with CD133 antibody (1 :500) for 1 hr. The cells were washed with PBS by centrifugation and resuspension and then incubated with Alexa fluor 488-conjugated anti-rat IgG (1:1 ,000) for 1 hr. The stained cell sample was washed again before resuspension in PBS for FACS. For control group, primary antibody was omitted.
SSEA-1 antibody
Dissociated cells were blocked in 1% BSA for 30 min and then incubated with SSEA-1 antibody (1 :500) for 1 hr. The cells were washed with PBS by centrifugation and resuspension and then incubated with Alexa fluor 633 -conjugated anti-mouse IgM (Invitrogen) for 1 hr. The stained cell sample was washed again before resuspension in PBS for FACS. For control group, primary antibody was omitted.
Aldefluor
The cells were incubated with activated Aldefluor substrate (5μ1/ιη1) for 30 min at 37°C. The cells were then spun down and resuspended in Aldefluore assay buffer for FACS. For control, diethylaminobenzaldehyde, a specific inhibitor of ALDH was added (5μ1/ιη1) to the cells together with Aldefluore substrate.
Serial neurosphere assay
Neurospheres were generated from the fetal mouse brain cells prepared as described in above (Neural stem cell isolation). After expansion by 2 times of passages, the cells plated in triplicate in 6-well culture plates at a density of 3,000 cells per well and cultured in the presence of 1 μΜ CDr3 or 0.1% DMSO for 6 days. After 6 days, the numbers and sizes of neurospheres were determined. For serial assay, the neurospheres were further passaged in the medium containing 1 μΜ CDr3 or 0.1% DMSO. NS5 cell proliferation assay
NS5 were seeded into 96-well plates (Greiner) at a density of 1000 cells/well. The next day, DMSO and 1 mM DMSO stock of CDr3 was added into 32 wells for each to be diluted to 0.1% and 1 uM, respectively. At 6 hr and 48 hr time points, lug/ml of Hoechst 33342 was added and incubated for 15 min for image acquisition using an ImageXpress Micro™ and MetaXpress Imaging system
(Molecular Devices). Hoeschst33342 and CDr3 signals were detected via DAPI and Texas red filters, respectively, and the images of a total of 4 areas were captured per well. Multi wavelength scoring analysis was then run to quantify the number of cells based on Hoechst 33342-stained nuclei image. For the quantification of pulse- labeled cells with BrdU, the cells were stained using FITC conjugated anti-BrdU antibody (BD Pharmingen™) according to the manufacturer's instruction. Total numbers of Hoechst 33342-stained and BrdU-labeled nuclei were counted by image based analysis using ImageJ-ITCN software.
References:
1. (a) Geddes, C. D.; Lakowicz, J. R. Topics in Fluorescence Spectroscopy, Vol. 9; Springer: New York, 2005. (b) Geddes, C. D.; Lakowicz, J. R. Topics in
Fluorescence Spectroscopy, Vol. 10; Springer: New York, 2005. 2. Okano, H. & Sawamoto, K. Neural stem cells: involvement in adult neurogenesis and CNS repair. Philos Trans R Soc Lond B Biol Sci 363, 2111-22 (2008).
3. Falk, S. & Sommer, L. Stage- and area-specific control of stem cells in the developing nervous system. Curr Opin Genet Dev 19, 454-60 (2009).
4. Shimazaki, T. Biology and clinical application of neural stem cells. Horm Res 60 Suppl 3, 1-9 (2003).
5. Daadi, M. M., et al. Adherent self-renewable human embryonic stem cell-derived neural stem cell line: functional engraftment in experimental stroke model. PLoS One 3, el 644 (2008).
6. Malatesta, P., et al. Isolation of radial glial cells by fluorescent-activated cell sorting reveals a neuronal lineage. Development 127, 5253-63 (2000).
7. Bibel, M. et al. Differentiation of mouse embryonic stem cells into a defined neuronal lineage. Nat Neurosci 7, 1003-9 (2004).
8. Malan, S. F. et al. Fluorescent ligands for the histamine H2 receptor: synthesis and preliminary characterization. BioorgMed Chem 12, 6495-503 (2004).
While this invention has been particularly shown and described with references to example embodiments thereof, it will be understood by those skilled the art that various changes in form and details may be made therein without departing from the scope of the invention encompassed by the appended claims.

Claims

CLAIMS What is claimed is:
1. A compound represented by structural Formula (I) or pharmaceutically acceptable salts thereof:
Figure imgf000025_0001
(Formula I), wherein:
R is (C6-Cio)aryl, (Cs-Cjoiheteroaryl, (C6-Cio)aryl(C2-C6)alkenyl or 2-4 member polycyclyl, wherein each 2-4 member polycyclyl optionally and independently contains 1-2 ring heteroatoms selected from oxygen, nitrogen and sulfur;
and wherein R is optionally substituted with 1 -4 substituents independently selected from (d-C6)alkyl, halo(Ci-C6)alkyl, hydroxy(C0-C6)alkyl, (C6-Ci0)aryl, halo(C6-Cio)aryl, hydroxy(C6-Ci0)aryl, (C]-C6)alkoxy, halo(C!-C6)alkoxy, (C3-Cg)cycloalkyl, halo(C6-Cio)aryl(Ci-C6)alkoxy, halogen, amino,
(C1-C6)alkoxy(C6-C1o)aryl(Ci-C6)alkoxy, nitro, (3 to 9 membered)heterocyclyl, (C0-C6)alkyl(C6-Cio)aryl(Co-C6)alkoxy, (C5-Ci0)heterocycle, -OCF3, -B(OH)2, cyanoiQ-CeJalkylene amino, (Ci-C6)alkoxyamino, (Ce-CioiaryltQ-CeJalkenyl, (C2-C6)alkenyl(Ci-C6)alkoxy, (Ci-C6)sulfoxy or -N(CH3)(C1-C6)OH.
2. The compound of Claim 1, wherein:
R is (Cs-C^heteroaryl, optionally substituted with 1-4 substituents independently selected from (Cs-C^heteroaryl, (C6-Cio)aryl, halo(C6-Cio)aryl, (Q-Ceialkoxy, (Ci-C6)alkyl, halo(Ci-C6)alky, hydroxy(Co-C6)alkyl, or (C0-C6)alkoxy(C6-Cio)aryl.
3. The composition of Claim 1 , wherein R is aryl.
4. The compound of Claim 3, wherein R is phenyl.
5. The compound of Claim 4, wherein R is optionally substituted with 1-4 (Ci-C6)alkoxy substituents.
6. The compound of claim 4, wherein the compound is represented by structural Formula (II):
Figure imgf000026_0001
7. A method for detection of a neural stem cell (NSC), comprising:
a) staining said neural stem cell with a compound, forming a dye-stained neural stem cell by binding said compound to a marker protein of said neural stem cell, wherein said compound is of structural Formula (I) or pharmaceutically acceptable salts thereof:
Figure imgf000026_0002
Formula (I), wherein:
R is (C6-Cio)aryl, (C5-Cio)heteroaryl, (C6-Cio)aryl(C2-C6)alkenyl or 2-4 member polycyclyl, wherein each 2-4 member polycyclyl optionally and independently contains 1-2 ring heteroatoms selected from oxygen, nitrogen and sulfur;
and wherein R is optionally substituted with 1-4 substituents independently selected from (Ci-C6)alkyl, halo(Ci-C6)alkyl, hydroxy(Co-C6)alkyl, (C6-Ci0)aryl, halo(C6-Cio)aryl, hydroxyiCe-QoJaryl, (Ci-C6)alkoxy, halo(Ci-C6)alkoxy,
(C3-C8)cycloalkyl, halo(C6-Cio)aryl(Ci-C6)alkoxy, halogen, amino,
(Ci-C6)alkoxy(C6-C1o)aryl(Ci-C6)alkoxy, nitro, (3 to 9 membered)heterocyclyl, (Co-C6)alkyl(C6-C10)aryl(Co-C6)alkoxy, (C5-Ci0)heterocycle, -OCF3, -B(OH)2, cyano(C1-C6)alkylene amino, (Ci-C6)alkoxyamino, (C6-C1o)aryl(C2-C6)alkenyl, (C2-C6)alkenyl(CrC6)alkoxy, (Ci-C6)sulfoxy or -N(CH3)(Ci-C6)OH;
b) incubating product of step a) to form a said incubated dye-stained stem;
c) analyzing said incubated dye-stained stem cell by a flow cytometry and FACS; and
d) subjecting said dye-stained neural stem cell to two-dimensional SDS-PAGE (2DE) fluorescence scanning to detect fluorescence signal, wherein the presence of a signal is indicative of the presence of said neural stem cell.
8. The method of Claim 7, wherein:
R is (C5-Cio)heteroaryl optionally substituted with 1-4 substituents independently selected from (C5-Cio)heteroaryl, (C6-Cio)aryl, halo(C6-Cio)aryl, (d-CeJalkoxy, (CrC6)alkyl, halo(C1-C6)alky, hydroxy(C0-C6)alkyl, or (Co-C6)alkoxy(C6-Cio)aryl.
9. The method of Claim 7, wherein R is aryl.
10. The method of Claim 9, wherein R is phenyl.
11. The method of Claim 10 wherein R is optionally substituted with 1 -4 (Ci-C6)alkoxy substituents.
12. The method of Claim 11 , wherein the compound is represented by structural Formula (II):
Figure imgf000027_0001
13. The method of any one of Claims 7-12, wherein said neural stem cell is a human or a mouse neural stem cell.
14. The method of any one of Claims 7-12, wherein said marker protein is a fatty acid binding protein 7 (FABP7).
PCT/SG2011/000411 2010-11-24 2011-11-22 Bodipy structure fluorescence dye for neural stem cell probe WO2012071012A2 (en)

Priority Applications (4)

Application Number Priority Date Filing Date Title
EP11843860.5A EP2643328B1 (en) 2010-11-24 2011-11-22 Bodipy structure fluorescence dye for neural stem cell probe
CN201180056146.2A CN103298820B (en) 2010-11-24 2011-11-22 Fluorine boron two pyrrole structure fluorescent dye as neural stem cell probe
US13/988,734 US8889883B2 (en) 2010-11-24 2011-11-22 BODIPY structure fluorescence dye for neural stem cell probe
SG2013034723A SG190173A1 (en) 2010-11-24 2011-11-22 Bodipy structure fluorescence dye for neural stem cell probe

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
US41680810P 2010-11-24 2010-11-24
US61/416,808 2010-11-24

Publications (3)

Publication Number Publication Date
WO2012071012A2 true WO2012071012A2 (en) 2012-05-31
WO2012071012A8 WO2012071012A8 (en) 2012-10-26
WO2012071012A3 WO2012071012A3 (en) 2012-12-13

Family

ID=46146344

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/SG2011/000411 WO2012071012A2 (en) 2010-11-24 2011-11-22 Bodipy structure fluorescence dye for neural stem cell probe

Country Status (5)

Country Link
US (1) US8889883B2 (en)
EP (1) EP2643328B1 (en)
CN (1) CN103298820B (en)
SG (1) SG190173A1 (en)
WO (1) WO2012071012A2 (en)

Cited By (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN102735667A (en) * 2012-06-28 2012-10-17 南京大学 Fluorescence sensing film based on boron dipyrromethene-phenyl boronic acid (BODIPY-PBA), preparation method and application thereof
WO2014013205A1 (en) * 2012-07-19 2014-01-23 Centre National De La Recherche Scientifique Boronated thienyldipyrromethene fluorescent compounds and uses thereof
CN103755753A (en) * 2014-01-25 2014-04-30 福州大学 Glycosylated boron dipyrromethene fluorophore derivatives as well as preparation and application thereof
WO2014104975A1 (en) * 2012-12-26 2014-07-03 National University Of Singapore Megastokes amino-triazolyl-bodipy compounds and applications to live neuron staining and human serum albumin fa1 drug site probing
WO2014109713A1 (en) * 2013-01-14 2014-07-17 National Univeristy Of Singapore Fluorescent cell cycle probe having m-phase specificity
WO2016171619A1 (en) * 2015-04-24 2016-10-27 Nanyang Technological University Chemical fluorescent probes for detecting biofilms
WO2017139689A1 (en) * 2016-02-12 2017-08-17 Oregon Health & Science University Derivatives of bodipy
WO2019009810A1 (en) * 2017-07-04 2019-01-10 Agency For Science, Technology And Research Fluorescent compounds specific for pluripotent stem cells and reprogramming-ready cells and methods of using the same

Families Citing this family (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2016073385A1 (en) * 2014-11-03 2016-05-12 Agency For Science, Technology And Research Compounds for the diagnosis or treatment of disorders associated with protein or peptide oligomers
CN110669350B (en) * 2019-11-04 2022-02-08 南京林业大学 Piperidyl BODIPY red-light fluorescent dye and preparation method and application thereof

Family Cites Families (13)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DK1975243T3 (en) 1998-12-07 2010-06-28 Univ Duke BODIPY-aminoacetaldehyde diethyl acetal
US7070944B2 (en) 2001-03-14 2006-07-04 Clf Medical Technology Acceleration Program, Inc. System for screening fatty acid transport inhibitors, methods of use and modulators identified thereby
CN1257408C (en) * 2001-07-02 2006-05-24 北极医疗诊断有限公司 Two-photon absorbing dipyrromethenboron difluoride dyes and their applications
US8574590B2 (en) 2003-07-30 2013-11-05 Integral Molecular, Inc. Lipoparticles comprising proteins, methods of making, and using the same
JP4799557B2 (en) 2004-06-09 2011-10-26 ベクトン・ディキンソン・アンド・カンパニー Multi-sample sensor
US20060040327A1 (en) 2004-08-18 2006-02-23 Terry Amiss Methods of screening proteins
WO2007057746A2 (en) 2005-05-27 2007-05-24 Aurelium Biopharma Inc. Focused microarray and methods of diagnosing chemotherapeutic drug resistance in a cancer cell
US20070111196A1 (en) 2005-08-19 2007-05-17 Javier Alarcon Sterilization of Biosensors
WO2008046072A2 (en) 2006-10-13 2008-04-17 The Board Of Regents Of The University Of Texas System Chemical inducers of neurogenesis
CN101271108A (en) * 2008-01-11 2008-09-24 广州益善生物技术有限公司 Myocardial infarct early diagnosis liquid phase chip and method for producing the same
EP2313494A2 (en) 2008-07-14 2011-04-27 Oklahoma Medical Research Foundation Production of pluripotent cells through inhibition of bright/arid3a function
US20110263016A1 (en) 2008-09-25 2011-10-27 Rancourt Derrick E Expansion of Embryonic Stem Cells
CN101565554B (en) * 2009-05-24 2013-06-05 大连理工大学 Strong-fluorescence boron dipyrromethene dye containing carbazole structure

Non-Patent Citations (1)

* Cited by examiner, † Cited by third party
Title
See references of EP2643328A4 *

Cited By (21)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN102735667A (en) * 2012-06-28 2012-10-17 南京大学 Fluorescence sensing film based on boron dipyrromethene-phenyl boronic acid (BODIPY-PBA), preparation method and application thereof
WO2014013205A1 (en) * 2012-07-19 2014-01-23 Centre National De La Recherche Scientifique Boronated thienyldipyrromethene fluorescent compounds and uses thereof
FR2993565A1 (en) * 2012-07-19 2014-01-24 Centre Nat Rech Scient FLUORESCENT COMPOUNDS OF THE TYPE THIENYLDIPYRROMETHENE BOUNDES AND USES THEREOF.
EP3418283A1 (en) * 2012-07-19 2018-12-26 Centre National De La Recherche Scientifique Boronated thienyldipyrromethene fluorescent compounds and uses thereof
US9513294B2 (en) 2012-12-26 2016-12-06 National University Of Singapore Megastokes amino-triazolyl-BODIPY compounds and applications to live neuron staining and human serum albumin FA1 drug site probing
WO2014104975A1 (en) * 2012-12-26 2014-07-03 National University Of Singapore Megastokes amino-triazolyl-bodipy compounds and applications to live neuron staining and human serum albumin fa1 drug site probing
CN105102464B (en) * 2012-12-26 2017-03-29 新加坡国立大学 Prunus mume (sieb.) sieb.et zucc. coffee Stokes aminotriazole(ATA) base BODIPY compounds and the application for live neuron staining and the detection of human serum albumin's FA1 medicines site
KR20150098639A (en) * 2012-12-26 2015-08-28 내셔널 유니버시티 오브 싱가포르 MegaStokes Amino-Triazolyl-BODIPY compounds and Applications to Live Neuron Staining and Human Serum Albumin FA1 Drug Site Probing
CN105102464A (en) * 2012-12-26 2015-11-25 新加坡国立大学 Megastokes amino-triazolyl-bodipy compounds and applications to live neuron staining and human serum albumin FA1 drug site probing
JP2016511746A (en) * 2012-12-26 2016-04-21 ナショナル ユニバーシティ オブ シンガポール Amino-triazolyl-body pie compound with large Stokes shift and application to live neuronal staining and probing of human serum albumin FA1 drug site
KR101715543B1 (en) 2012-12-26 2017-03-10 내셔널 유니버시티 오브 싱가포르 MegaStokes Amino-Triazolyl-BODIPY compounds and Applications to Live Neuron Staining and Human Serum Albumin FA1 Drug Site Probing
US9423395B2 (en) 2013-01-14 2016-08-23 National University Of Singapore Fluorescent cell cycle probe having M-phase specificity
WO2014109713A1 (en) * 2013-01-14 2014-07-17 National Univeristy Of Singapore Fluorescent cell cycle probe having m-phase specificity
CN103755753B (en) * 2014-01-25 2016-05-04 福州大学 One class glycosylation fluorine boron two azole derivatives and preparation and application
CN103755753A (en) * 2014-01-25 2014-04-30 福州大学 Glycosylated boron dipyrromethene fluorophore derivatives as well as preparation and application thereof
WO2016171619A1 (en) * 2015-04-24 2016-10-27 Nanyang Technological University Chemical fluorescent probes for detecting biofilms
US10416153B2 (en) 2015-04-24 2019-09-17 Nanyang Technological University Chemical fluorescent probes for detecting biofilms
WO2017139689A1 (en) * 2016-02-12 2017-08-17 Oregon Health & Science University Derivatives of bodipy
US9751897B1 (en) 2016-02-12 2017-09-05 Oregon Health & Science University Derivatives of Bodipy
WO2019009810A1 (en) * 2017-07-04 2019-01-10 Agency For Science, Technology And Research Fluorescent compounds specific for pluripotent stem cells and reprogramming-ready cells and methods of using the same
US11634437B2 (en) 2017-07-04 2023-04-25 Agency For Science, Technology And Research Fluorescent compounds specific for pluripotent stem cells and reprogramming-ready cells and methods of using the same

Also Published As

Publication number Publication date
CN103298820A (en) 2013-09-11
EP2643328A2 (en) 2013-10-02
US8889883B2 (en) 2014-11-18
CN103298820B (en) 2016-08-03
EP2643328B1 (en) 2015-07-01
EP2643328A4 (en) 2014-07-23
US20130244251A1 (en) 2013-09-19
WO2012071012A8 (en) 2012-10-26
WO2012071012A3 (en) 2012-12-13
SG190173A1 (en) 2013-07-31

Similar Documents

Publication Publication Date Title
EP2643328B1 (en) Bodipy structure fluorescence dye for neural stem cell probe
AU2021266230B2 (en) Ultra bright dimeric or polymeric dyes with spacing linker groups
US20240210408A1 (en) Use of divalent metals for enhancement of fluorescent signals
US10865310B2 (en) Ultra bright dimeric or polymeric dyes
CN103502218A (en) Compounds and methods for conjugation of biomolecules
EP2794620B1 (en) Bodipy structure fluorescence probes for diverse biological applications
JP6262848B2 (en) How to capture drug targets
US9513294B2 (en) Megastokes amino-triazolyl-BODIPY compounds and applications to live neuron staining and human serum albumin FA1 drug site probing
US10077463B2 (en) Optical selection of cells
US9423395B2 (en) Fluorescent cell cycle probe having M-phase specificity
CA2932844A1 (en) Excimer forming compounds
Fernando et al. Differentiation of cortical brain organoids and optic nerve-like structures from retinal confluent cultures of pluripotent stem cells
US20110092534A1 (en) Ammosamides as Anticancer Agents
TWI820104B (en) Heterocyclic compound
WO2014070108A1 (en) Fluorescent chemical dye for visualization of neural stem cell symmetric and asymmetric division
Peter et al. Limitations of fluorescent timer proteins toward isolation of developmentally and transcriptionally synchronized populations of human pluripotent stem cells and neural progenitors highlight unique expression and fluorescence maturation kinetics by human cells
YONEDA Study on the Mode of Action of Marine Natural Product Aplyronine A by Using Novel Chemical Probes

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 11843860

Country of ref document: EP

Kind code of ref document: A2

WWE Wipo information: entry into national phase

Ref document number: 13988734

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE

WWE Wipo information: entry into national phase

Ref document number: 2011843860

Country of ref document: EP
