WO2011001440A1 - Pharmaceutical compositions of valsartan - Google Patents

Pharmaceutical compositions of valsartan Download PDF

Info

Publication number
WO2011001440A1
WO2011001440A1 PCT/IN2009/000376 IN2009000376W WO2011001440A1 WO 2011001440 A1 WO2011001440 A1 WO 2011001440A1 IN 2009000376 W IN2009000376 W IN 2009000376W WO 2011001440 A1 WO2011001440 A1 WO 2011001440A1
Authority
WO
WIPO (PCT)
Prior art keywords
valsartan
composition
pharmaceutically acceptable
acceptable salt
mannitol
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/IN2009/000376
Other languages
French (fr)
Inventor
Bandi Parthasaradhi Reddy
Male Srinivas Reddy
Pothireddy Venkateswar Reddy
Muppidi Vanaja Kumari
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Hetero Research Foundation
Original Assignee
Hetero Research Foundation
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Hetero Research Foundation filed Critical Hetero Research Foundation
Priority to PCT/IN2009/000376 priority Critical patent/WO2011001440A1/en
Priority to US13/381,963 priority patent/US20120107397A1/en
Publication of WO2011001440A1 publication Critical patent/WO2011001440A1/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K31/00—Medicinal preparations containing organic active ingredients
    • A61K31/33—Heterocyclic compounds
    • A61K31/395—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins
    • A61K31/41—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins having five-membered rings with two or more ring hetero atoms, at least one of which being nitrogen, e.g. tetrazole
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K31/00—Medicinal preparations containing organic active ingredients
    • A61K31/33—Heterocyclic compounds
    • A61K31/395—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins
    • A61K31/435—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins having six-membered rings with one nitrogen as the only ring hetero atom
    • A61K31/44—Non condensed pyridines; Hydrogenated derivatives thereof
    • A61K31/4422—1,4-Dihydropyridines, e.g. nifedipine, nicardipine
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K31/00—Medicinal preparations containing organic active ingredients
    • A61K31/33—Heterocyclic compounds
    • A61K31/395—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins
    • A61K31/54—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins having six-membered rings with at least one nitrogen and one sulfur as the ring hetero atoms, e.g. sulthiame
    • A61K31/549—Heterocyclic compounds having nitrogen as a ring hetero atom, e.g. guanethidine or rifamycins having six-membered rings with at least one nitrogen and one sulfur as the ring hetero atoms, e.g. sulthiame having two or more nitrogen atoms in the same ring, e.g. hydrochlorothiazide
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K45/00—Medicinal preparations containing active ingredients not provided for in groups A61K31/00 - A61K41/00
    • A61K45/06—Mixtures of active ingredients without chemical characterisation, e.g. antiphlogistics and cardiaca
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K9/00—Medicinal preparations characterised by special physical form
    • A61K9/20—Pills, tablets, discs, rods
    • A61K9/2004—Excipients; Inactive ingredients
    • A61K9/2013—Organic compounds, e.g. phospholipids, fats
    • A61K9/2018—Sugars, or sugar alcohols, e.g. lactose, mannitol; Derivatives thereof, e.g. polysorbates
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K9/00—Medicinal preparations characterised by special physical form
    • A61K9/20—Pills, tablets, discs, rods
    • A61K9/2072—Pills, tablets, discs, rods characterised by shape, structure or size; Tablets with holes, special break lines or identification marks; Partially coated tablets; Disintegrating flat shaped forms
    • A61K9/2086—Layered tablets, e.g. bilayer tablets; Tablets of the type inert core-active coat
    • A61K9/209—Layered tablets, e.g. bilayer tablets; Tablets of the type inert core-active coat containing drug in at least two layers or in the core and in at least one outer layer
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P9/00—Drugs for disorders of the cardiovascular system
    • A61P9/12—Antihypertensives

Definitions

  • the present invention relates to the stable pharmaceutical composition
  • valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler and povidone as binder.
  • the present invention also relate to the valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine or both; and optionally one or more additional excipients.
  • Valsartan a compound having the chemical name ⁇ /-(1-oxopentyl)- ⁇ /-[[2'- (1 H-tetrazol-5-yl) [1 , 1 '-biphenyl]-4-yl]methyl]-L-valine.
  • Valsartan was first disclosed in the U.S. Patent No. 5,399,578, which is incorporated by reference. It is an angiotensin Il antagonist, known to be effective in the treatment of congestive heart failure and reducing blood pressure irrespective of age, sex or race and is also well tolerated.
  • Valsartan is commercially available as 40 mg, 80 mg, 160 mg, 320 mg tablets. It is sold under the name Diovan.
  • Valsartan and hydrochlorothiazide is commercially available as 80 mg/12.5 mg, 160 mg/12.5 mg, 160 mg/25 mg, 320 mg/12.5 mg, 320 mg/25 mg combination tablets. It is sold under the name Diovan HCT®.
  • Valsartan and amlodipine is commercially available as 160 mg/5 mg, 160 mg/10 mg, 320 mg/5 mg, 320 mg/10 mg combination tablets. It is sold under the name EXFORGE.
  • Amlodipine, valsartan and hydrochlorothiazide is commercially available as 5/160/12.5 mg, 10/160/12.5 mg, 5/160/25 mg, 10/160/25 mg and 10/320/25 mg combination tablets. It is sold under the name Exforge HCT.
  • U.S. patent Nos. 6,294,197; 6,485,745; 6,858,228 and EP patent No.1 ,410,797 which is incorporated by reference, describes a compressed solid oral dosage from comprising of valsartan and hydrochlorothiazide, where the active constituent is more than 35% by weight based on total weight of the compressed solid oral dosage form, of the active ingredient, obtained by dry granulation.
  • WO Patent Application Publication No. 2005/041941 relates to a pharmaceutical composition containing valsartan, optionally a combination of valsartan with hydrochlorothiazide, obtainable by direct tabletting.
  • WO Patent Application Publication No. 2005/082329 relates to a solid dosage form comprising a core contains valsartan and a coating layer contains hydrochlorothiazide.
  • WO Patent Application Publication No. 96/31234 describes a pharmaceutical combination composition comprising benazepril or benazeprilat and valsartan.
  • EP Patent Application No. 1 ,994,926 describes a pharmaceutical formulation in the form of a tablet consisting of 20% to 34% of valsartan, microcrystalline cellulose and pregelatinized starch in a weight ratio between 1 :1 and 5:1 , colloidal silicon dioxide and magnesium stearate, the tablets prepared by direct compression.
  • WO Patent Application Publication No. 2006/113631 relates to a composition comprising valsartan and a solubility enhancing agent.
  • WO Patent Application Publication No. 2008/076780 relates to a composition comprising a solid dispersion of amorphous valsartan and a solubility-enhancing polymer.
  • EP Patent No. 1 ,682,122 describes a combination of valsartan, amiloride or triameterine and diuretic.
  • EP Patent No. 1 ,507,529 which is incorporated by reference, a combination of valsartan, amlodipide and hydrochlorothiazide.
  • US Patent Application No. 2003/0152620 describes an oral solid pharmaceutical composition comprising pharmacologically effective amounts of valsartan and which is, on average, at least 1.2 times more bioavailabe than a valsartan capsules.
  • WO Patent Application Publication No. 97/49394 discloses compressed solid oral dosage forms, e.g. by compaction, of valsartan, optionally in salt form, optionally combined with hydrochlorothiazide.
  • an object of the present invention is to provide the pharmaceutical composition of valsartan, having good dissolution, good stability and robust pharmaceutical composition, which enable to have a formulation without any difficulty.
  • Another object of the present invention provides a process for preparing of valsartan or pharmaceutically acceptable salt thereof.
  • Another object of the present invention is to provide the pharmaceutical composition of valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine; or both, having good dissolution, good stability and robust pharmaceutical composition, which enable to have a formulation without any difficulty.
  • Another object of the present invention provides a process for preparing of valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine; or both.
  • the pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler and povidone as binder, and optionally one or more additional excipients.
  • the pharmaceutical composition of the present invention has been found to have reliable and robust oral formulation in comparison with literature oral solid dosage forms, for example, the oral dosage from reported in US patent No. 5,399,578.
  • the pharmaceutical composition of the present invention not only display the stable and robust formulation, but also display the improved characteristics associated even with dissolution.
  • the additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
  • the pharmaceutical composition is oral solid dosage forms.
  • the pharmaceutical composition may be for example, in the form of a tablet, a caplet, pellets, a capsule, granules, a pill, powder or a sachet.
  • the pharmaceutical composition is in the form of a tablet and a capsule.
  • the capsule may contain powder, compressed powder or granules.
  • the oral solid pharmaceutical composition is in the form of a tablet.
  • the concentration of valsartan or a pharmaceutically acceptable salt thereof to mannitol in the pharmaceutical composition is about 1 :0.25 to about 1 :5.
  • the concentration of valsartan or a pharmaceutically acceptable salt thereof to mannitol in the pharmaceutical composition is about 1 :0.5 to about 1 :2.5.
  • the concentration of valsartan or a pharmaceutically acceptable salt thereof to povidone in the pharmaceutical composition is about 1 :0.01 to about 1 :0.5.
  • the concentration of valsartan or a pharmaceutically acceptable salt thereof to povidone in the pharmaceutical composition is about 1 :0.02 to about 1 :0.1.
  • the concentration of povidone to mannitol in the pharmaceutical composition is about 1 :30 to about 1 :90.
  • the concentration of povidone to mannitol in the pharmaceutical composition is about 1 :50 to about 1 :75.
  • the pharmaceutical composition of the present invention comprises a filler agent (in addition to mannitol), a binder (in addition to povidone), a disintegrant agent, and a lubricant, wherein said solid pharmaceutical composition comprising valsartan or pharmaceutically acceptable salt thereof concentration below 35% of the total weight of the pharmaceutical composition.
  • More preferably valsartan or pharmaceutically acceptable salt thereof is concentration from about 20 to about 34% of the total weight of the pharmaceutical composition.
  • the pharmaceutically acceptable excipients in accordance with the invention include at least one filler agent (in addition to mannitol), and/or at least one binder (in addition to povidone), and/or at least one disintegrant agent and/or at least one lubricant.
  • the filler includes mannitol, microcrystalline cellulose, calcium carbonate, dibasic calcium phosphate, lactose, magnesium carbonate, magnesium oxide, lactose anhydrous, isomalt, sorbitol or mixtures thereof and more preferably mannitol and/or microcrystalline cellulose.
  • the lubricants includes magnesium stearate, calcium stearate, stearic acid, a salt of stearic acid, talc, sodium stearyl fumarate, glyceryl behenate, magnesium silicate, magnesium trisilicate, macrogol, talc, hydrogenated castor oil or mixtures thereof and more preferably magnesium stearate and/or calcium stearate.
  • the disintegratrants includes croscarmellose sodium, starch, sodium starch glycolate, crospovidone, carboxymethyl cellulose calcium, carboxymethylcellulose sodium, magnesium aluminium silicate or mixtures thereof and more preferably croscarmellose sodium and/or starch.
  • the glidant may be for example colloidal anhydrous silica, talc or mixtures thereof.
  • the binder includes polyvinylpyrrolidone k-30, hydroxypropyl cellulose, hydroxypropyl methyl cellulose, hydroxypropyl cellulose (low- substituted), starch or mixtures thereof and more preferably polyvinylpyrrolidone k-30 and/or hydroxypropyl cellulose.
  • the coating agent includes hydroxypropyl methyl cellulose, polyvinyl alcohols, hydroxypropyl cellulose, macrogols or mixtures thereof and more preferably hydroxypropyl methyl cellulose and/or polyvinyl alcohols.
  • the coloring agent includes titanium dioxide, red iron oxide, yellow iron oxide, black iron oxides and mixture thereof.
  • ingredients such as stabilizers, antioxidants, and antiadherants, conventionally used for pharmaceutical formulations may also be included in the present formulation.
  • the process for preparing the pharmaceutical composition which comprises mixing valsartan or a pharmaceutically acceptable salt thereof, mannitol and povidone, and optionally one or more additional excipients. It has been found that the pharmaceutical process of the present invention are physically stable to pharmaceutical unit operations such as compression, thereby making oral solid dosage of the present invention amenable to pharmaceutical compounding operations, such as for example, tabletting.
  • the additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
  • the oral solid pharmaceutical composition prepared according to the process of the invention may be for example, in the form of a tablet, a caplet, a pellet, a capsule, granules, a pill, powder or a sachet.
  • the oral solid pharmaceutical composition is in the form of a tablet.
  • the tablet compositions are prepared by process of direct compression, wet granulation or slugging or roll compaction, more preferably wet granulation.
  • the tablet may be also optionally coated with a coating agent.
  • the preferred embodiment of the invention is suitable for forming valsartan tablet comprising in parts by weight from about 20% to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 20% to about 80% mannitol and/or lactose, from about 0.25% to about 10% povidone, from about 1% to about 15% starch, from about 0.5% to about 10% croscarmellose sodium or dibasic calcium phosphate or microcrystalline cellulose, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about 4% opadry.
  • additional excipient/s may be used.
  • the additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
  • the pharmaceutical composition of the present invention may be used for the treatment of hypertension.
  • the pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler, povidone as binder in combination with hydrochlorothiazide or amlodipine or both; and optionally one or more additional excipients.
  • the preferred embodiment of the present invention provides stable pharmaceutical formulations of combination products of i) valsartan and hydrochlorothiazide; ii) valsartan and amlodipine; or iii) valsartan, hydrochlorothiazide and amlodipine.
  • the pharmaceutical composition of the present invention not only display the stable and robust formulation, but also display the improved characteristics associated even with dissolution.
  • the additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
  • the pharmaceutical composition is oral solid dosage forms.
  • the pharmaceutical composition may be for example, in the form of a tablet, a caplet, pellets, a capsule, granules, a pill, powder or a sachet.
  • the pharmaceutical composition is in the form of a tablet and a capsule.
  • the capsule may contain powder, compressed powder or granules.
  • the oral solid pharmaceutical composition is in the form of a tablet.
  • the pharmaceutical composition of the present invention comprises a filler agent (in addition to mannitol), a binder (in addition to povidone), a disintegrant agent, and a lubricant, wherein said solid pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof concentration below 35% with mannitol as a filler, povidone as binder in combination with hydrochlorothiazide and/or amlodipine of the total weight of the pharmaceutical composition and optionally one or more additional excipients.
  • Excipient selection depends on various factors, such as, the choice of active ingredient percentage, the objectives of the tablet formulation development and method of- manufacture. The foremost property an excipient must possess is compatibility with active ingredients.
  • the pharmaceutically acceptable excipients in accordance with the invention include at least one filler agent (in addition to mannitol), and/or at least one binder (in addition to povidone), and/or at least one disintegrant agent and/or at least one lubricant.
  • the filler includes mannitol, microcrystalline cellulose, calcium carbonate, dibasic calcium phosphate, lactose, magnesium carbonate, magnesium oxide, lactose anhydrous, isomalt, sorbitol or mixtures thereof and more preferably mannitol and/or microcrystalline cellulose.
  • the lubricants includes magnesium stearate, calcium stearate, stearic acid, a salt of stearic acid, talc, sodium stearyl fumarate, glyceryl behenate, magnesium silicate, magnesium trisilicate, macrogol, talc, hydrogenated castor oil or mixtures thereof and more preferably magnesium stearate and/or calcium stearate.
  • the disintegratrants includes croscarmellose sodium, starch, sodium starch glycolate, crospovidone, carboxymethyl cellulose calcium, carboxymethylcellulose sodium, magnesium aluminium silicate or mixtures thereof and more preferably croscarmellose sodium and/or starch.
  • the glidant may be for example colloidal anhydrous silica, talc or mixtures thereof.
  • the binder includes polyvinylpyrrolidone k-30, hydroxypropyl cellulose, hydroxypropyl methyl cellulose, hydroxypropyl cellulose (low- substituted), starch or mixtures thereof and more preferably polyvinylpyrrolidone k-30 and/or hydroxypropyl cellulose.
  • the coating agent includes hydroxypropyl methyl cellulose, polyvinyl alcohols, hydroxypropyl cellulose, macrogols or mixtures thereof and more preferably hydroxypropyl methyl cellulose and/or polyvinyl alcohols.
  • the coloring agent includes titanium dioxide, red iron oxide, yellow iron oxide, black iron oxides and mixture thereof.
  • ingredients such as stabilizers, antioxidants, and antiadherants, conventionally used for pharmaceutical formulations may also be included in the present formulation.
  • the process for preparing the pharmaceutical composition which comprises mixing valsartan or a pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine or both; mannitol and povidone, and optionally one or more additional excipients.
  • the pharmaceutical process of the present invention are physically stable to pharmaceutical unit operations such as compression, thereby making oral solid dosage of the present invention amenable to pharmaceutical compounding operations, such as for example, tabletting.
  • the additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
  • the oral solid pharmaceutical composition may be for example, in the form of a tablet, a caplet, pellets, a capsule, granules, a pill, powder or a sachet.
  • the oral solid pharmaceutical composition is in the form of a tablet.
  • the tablet composition are prepared by the process of direct compression, wet granulation or slugging or roll compaction, more preferably wet granulation.
  • the tablet may be also optionally coated with a coating agent.
  • the preferred embodiment of the invention is suitable for forming valsartan and hydrochlorothiazide tablet comprising in parts by weight from about 20 % to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 0.2 % to about 10% hydrochlorothiazide, from about 20% to about 80% mannitol, from about 0.25% to about 10% povidone, from about 1% to about 15% starch, from about 0.5% to about 10% croscarmellose sodium, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about
  • additional excipient/s may be used.
  • the additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
  • the preferred embodiment of the invention is suitable for forming valsartan and amlodipine tablet comprising in parts by weight from about 20% to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 0.25% to about 10% amlodipine or a pharmaceutically acceptable salt thereof, from about 20% to about 80% mannitol, from about 0.25% to about 10% povidone, from about 1% to about 15% starch, from about 0.5% to about 10% croscarmellose sodium, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about 4% opadry.
  • additional excipient/s may be used.
  • the additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
  • the preferred embodiment of the invention is suitable for forming valsartan and amlodipine tablet comprising in parts by weight from about 20% to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 0.25% to about 10% amlodipine or a pharmaceutically acceptable salt thereof, from about 1% to about 10% hydrochlorothiazide, from about 20% to about 80% mannitol, from about 0.25% to about 10% povidone, from about 1 % to about 15% starch, from about 1% to about 10% croscarmellose sodium, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about 4% opadry.
  • additional excipient/s may be used.
  • the additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
  • the pharmaceutical composition of the present invention may be used for the treatment of hypertension.
  • This example demonstrates a tablet composition comprising valsartan as an active pharmaceutical ingredient and one or more pharmaceutically acceptable excipients, wherein said valsartan is present in the form of the valsartan with mannitol and povidone, in accordance with an embodiment of the invention.
  • This example further demonstrates a process for preparing a solid pharmaceutical composition in accordance with an embodiment of the invention.

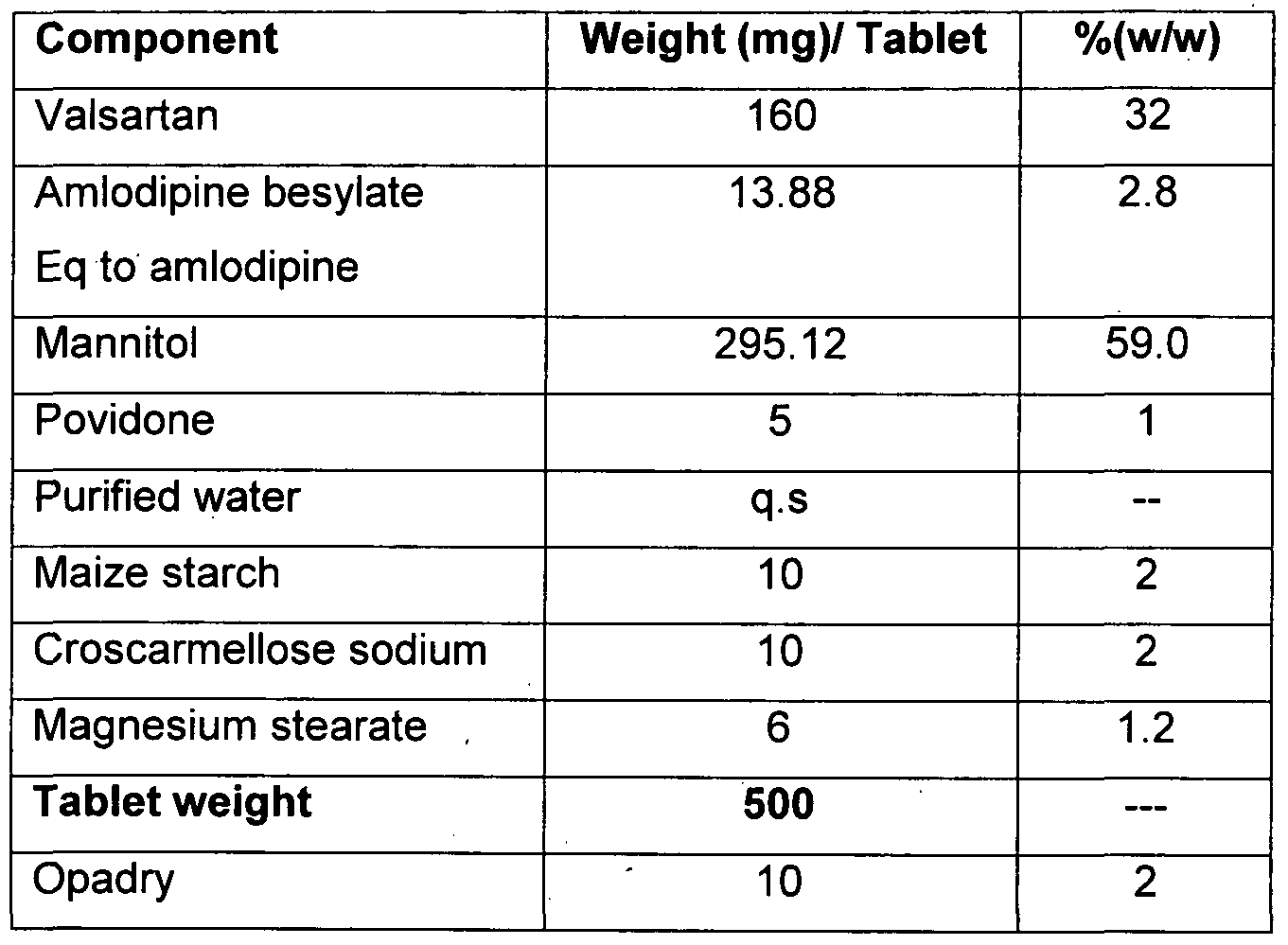

  • the tablets were prepared using the materials listed in table.
  • the tablets were manufactured using the procedure comprising the following steps: valsartan and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
  • Binder solution povidone K-29/32 in purified water
  • the example demonstrates the dissolution properties of the tablet prepared in accordance with the invention.
  • valsartan and commercially available valsartan tablets were tested for in vitro drug release in 1000ml of 0.067 M phosphate buffer, pH 6.8 using a USP-2 apparatus speed operating at 50 rpm.
  • the valsartan tablets 320mg were greater than 85% in 10 minutes.
  • the tablets of example 2 and 3 were manufactured using the procedure comprising the following steps: valsartan and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
  • Binder solution povidone K-29/32 in purified water
  • the tablets were prepared using the materials listed in table.
  • the tablets were prepared using the materials listed in table.
  • the tablets of example 4, 5, 6 and 7 were manufactured using the procedure comprising the following steps: valsartan, hydrochlorothiazide and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
  • Binder solution povidone K-29/32 in purified water
  • the tablets were prepared using the materials listed in table.
  • Example 5 Preparation of valsartan and hydrochlorothiazide tablet: The tablets were prepared using the materials listed in table.
  • the tablets were prepared using the materials listed in table.
  • the tablets of example 8, 9 and 10 were manufactured using the procedure comprising the following steps: valsartan, amlodipine and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
  • Binder solution povidone K-29/32 in purified water
  • the tablets were prepared using the materials listed in table.
  • the tablets were prepared using the materials listed in table.
  • the tablets were prepared using the materials listed in table.
  • the tablets of example 11 , 12, 13 and 14 were manufactured using the procedure comprising the following steps: valsartan, hydrochlorothiazide, amlodipine and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #20.
  • Binder solution povidone K-29/32 in purified water
  • the blending of ingredients including above dried granules, maize starch, croscarmellose sodium and magnesium stearate were weighted, transferred into a blender, and mixed to form a homogeneous power mixture; the resultant mixture was compressed into tablets of appropriate weight and hardness to obtain a valsartan, hydrochlorothiazide and amlodipine tablet; and the tablets was coated with opadry.
  • the tablets were prepared using the materials listed in table.
  • the tablets were prepared using the materials listed in table.
  • Example 14 Preparation of valsartan, hydrochlorothiazide and amlodipine tablet: The tablets were prepared using the materials listed in table.
  • the tablets were prepared using the materials listed in table.

Landscapes

  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Public Health (AREA)
  • General Health & Medical Sciences (AREA)
  • Chemical & Material Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • Pharmacology & Pharmacy (AREA)
  • Veterinary Medicine (AREA)
  • Animal Behavior & Ethology (AREA)
  • Epidemiology (AREA)
  • Engineering & Computer Science (AREA)
  • Bioinformatics & Cheminformatics (AREA)
  • Biophysics (AREA)
  • Molecular Biology (AREA)
  • Cardiology (AREA)
  • Heart & Thoracic Surgery (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • General Chemical & Material Sciences (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • Organic Chemistry (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Medicinal Preparation (AREA)

Abstract

The present invention relates to the stable pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler and povidone as binder. The present invention also relate to the valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine or both; and optionally one or more additional excipients.

Description

PHARMACEUTICAL COMPOSITIONS OF VALSARTAN
FIELD OF THE INVENTION
The present invention relates to the stable pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler and povidone as binder. The present invention also relate to the valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine or both; and optionally one or more additional excipients.
BACKGROUND OF THE INVENTION
Valsartan, a compound having the chemical name Λ/-(1-oxopentyl)-Λ/-[[2'- (1 H-tetrazol-5-yl) [1 , 1 '-biphenyl]-4-yl]methyl]-L-valine.
Valsartan was first disclosed in the U.S. Patent No. 5,399,578, which is incorporated by reference. It is an angiotensin Il antagonist, known to be effective in the treatment of congestive heart failure and reducing blood pressure irrespective of age, sex or race and is also well tolerated.
Valsartan is commercially available as 40 mg, 80 mg, 160 mg, 320 mg tablets. It is sold under the name Diovan.
Valsartan and hydrochlorothiazide is commercially available as 80 mg/12.5 mg, 160 mg/12.5 mg, 160 mg/25 mg, 320 mg/12.5 mg, 320 mg/25 mg combination tablets. It is sold under the name Diovan HCT®.
Valsartan and amlodipine is commercially available as 160 mg/5 mg, 160 mg/10 mg, 320 mg/5 mg, 320 mg/10 mg combination tablets. It is sold under the name EXFORGE.
Amlodipine, valsartan and hydrochlorothiazide is commercially available as 5/160/12.5 mg, 10/160/12.5 mg, 5/160/25 mg, 10/160/25 mg and 10/320/25 mg combination tablets. It is sold under the name Exforge HCT.
U.S. patent Nos. 6,294,197; 6,485,745; 6,858,228 and EP patent No.1 ,410,797, which is incorporated by reference, describes a compressed solid oral dosage from comprising of valsartan and hydrochlorothiazide, where the active constituent is more than 35% by weight based on total weight of the compressed solid oral dosage form, of the active ingredient, obtained by dry granulation. WO Patent Application Publication No. 2005/041941 relates to a pharmaceutical composition containing valsartan, optionally a combination of valsartan with hydrochlorothiazide, obtainable by direct tabletting.
WO Patent Application Publication No. 2005/082329 relates to a solid dosage form comprising a core contains valsartan and a coating layer contains hydrochlorothiazide.
WO Patent Application Publication No. 96/31234 describes a pharmaceutical combination composition comprising benazepril or benazeprilat and valsartan.
US Patent No. 6,395,728, which is incorporated by reference, describes method for the treatment of hypertension, effective amount of valsartan and amlodipine.
EP Patent Application No. 1 ,994,926 describes a pharmaceutical formulation in the form of a tablet consisting of 20% to 34% of valsartan, microcrystalline cellulose and pregelatinized starch in a weight ratio between 1 :1 and 5:1 , colloidal silicon dioxide and magnesium stearate, the tablets prepared by direct compression.
WO Patent Application Publication No. 2006/113631 relates to a composition comprising valsartan and a solubility enhancing agent.
WO Patent Application Publication No. 2008/076780 relates to a composition comprising a solid dispersion of amorphous valsartan and a solubility-enhancing polymer.
EP Patent No. 1 ,682,122 describes a combination of valsartan, amiloride or triameterine and diuretic.
EP Patent No. 1 ,507,529, which is incorporated by reference, a combination of valsartan, amlodipide and hydrochlorothiazide.
US Patent Application No. 2003/0152620 describes an oral solid pharmaceutical composition comprising pharmacologically effective amounts of valsartan and which is, on average, at least 1.2 times more bioavailabe than a valsartan capsules.
WO Patent Application Publication No. 97/49394 discloses compressed solid oral dosage forms, e.g. by compaction, of valsartan, optionally in salt form, optionally combined with hydrochlorothiazide.
All the above mentioned patents are incorporated by references. lnspite of all the above disclosed formulations of valsartan, still there is a need for oral solid pharmaceutical compositions that are having good dissolution, good stability and robust process.
Thus an object of the present invention is to provide the pharmaceutical composition of valsartan, having good dissolution, good stability and robust pharmaceutical composition, which enable to have a formulation without any difficulty.
Another object of the present invention provides a process for preparing of valsartan or pharmaceutically acceptable salt thereof.
Another object of the present invention is to provide the pharmaceutical composition of valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine; or both, having good dissolution, good stability and robust pharmaceutical composition, which enable to have a formulation without any difficulty.
Another object of the present invention provides a process for preparing of valsartan or pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine; or both.
DETAILED DESCRIPTION OF THE INVENTION
According to one aspect of the present invention, there is provided the pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler and povidone as binder, and optionally one or more additional excipients.
The pharmaceutical composition of the present invention has been found to have reliable and robust oral formulation in comparison with literature oral solid dosage forms, for example, the oral dosage from reported in US patent No. 5,399,578.
It has been found that the pharmaceutical composition of the present invention not only display the stable and robust formulation, but also display the improved characteristics associated even with dissolution.
The additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
Preferably, the pharmaceutical composition is oral solid dosage forms. The pharmaceutical composition may be for example, in the form of a tablet, a caplet, pellets, a capsule, granules, a pill, powder or a sachet. Preferably the pharmaceutical composition is in the form of a tablet and a capsule. The capsule may contain powder, compressed powder or granules.
Still more preferably, the oral solid pharmaceutical composition is in the form of a tablet.
In one embodiment of the present invention, the concentration of valsartan or a pharmaceutically acceptable salt thereof to mannitol in the pharmaceutical composition is about 1 :0.25 to about 1 :5.
More preferably of the present invention, the concentration of valsartan or a pharmaceutically acceptable salt thereof to mannitol in the pharmaceutical composition is about 1 :0.5 to about 1 :2.5.
In another embodiment of the present invention, the concentration of valsartan or a pharmaceutically acceptable salt thereof to povidone in the pharmaceutical composition is about 1 :0.01 to about 1 :0.5.
More preferably of the present invention, the concentration of valsartan or a pharmaceutically acceptable salt thereof to povidone in the pharmaceutical composition is about 1 :0.02 to about 1 :0.1.
In another embodiment of the present invention, the concentration of povidone to mannitol in the pharmaceutical composition is about 1 :30 to about 1 :90.
More preferably of the present invention, the concentration of povidone to mannitol in the pharmaceutical composition is about 1 :50 to about 1 :75.
In another embodiment, the pharmaceutical composition of the present invention comprises a filler agent (in addition to mannitol), a binder (in addition to povidone), a disintegrant agent, and a lubricant, wherein said solid pharmaceutical composition comprising valsartan or pharmaceutically acceptable salt thereof concentration below 35% of the total weight of the pharmaceutical composition.
More preferably valsartan or pharmaceutically acceptable salt thereof is concentration from about 20 to about 34% of the total weight of the pharmaceutical composition.
Excipient selection depends on various factors, such as, the choice of active ingredient percentage, the objectives of the tablet formulation development and method of manufacture. The foremost property an excipient must possess is compatibility with active ingredients. Preferably, the pharmaceutically acceptable excipients in accordance with the invention include at least one filler agent (in addition to mannitol), and/or at least one binder (in addition to povidone), and/or at least one disintegrant agent and/or at least one lubricant.
Preferably, the filler includes mannitol, microcrystalline cellulose, calcium carbonate, dibasic calcium phosphate, lactose, magnesium carbonate, magnesium oxide, lactose anhydrous, isomalt, sorbitol or mixtures thereof and more preferably mannitol and/or microcrystalline cellulose.
Preferably, the lubricants includes magnesium stearate, calcium stearate, stearic acid, a salt of stearic acid, talc, sodium stearyl fumarate, glyceryl behenate, magnesium silicate, magnesium trisilicate, macrogol, talc, hydrogenated castor oil or mixtures thereof and more preferably magnesium stearate and/or calcium stearate.
Preferably, the disintegratrants includes croscarmellose sodium, starch, sodium starch glycolate, crospovidone, carboxymethyl cellulose calcium, carboxymethylcellulose sodium, magnesium aluminium silicate or mixtures thereof and more preferably croscarmellose sodium and/or starch.
Preferably, the glidant may be for example colloidal anhydrous silica, talc or mixtures thereof.
Preferably, the binder includes polyvinylpyrrolidone k-30, hydroxypropyl cellulose, hydroxypropyl methyl cellulose, hydroxypropyl cellulose (low- substituted), starch or mixtures thereof and more preferably polyvinylpyrrolidone k-30 and/or hydroxypropyl cellulose.
Preferably, the coating agent includes hydroxypropyl methyl cellulose, polyvinyl alcohols, hydroxypropyl cellulose, macrogols or mixtures thereof and more preferably hydroxypropyl methyl cellulose and/or polyvinyl alcohols.
Preferably, the coloring agent includes titanium dioxide, red iron oxide, yellow iron oxide, black iron oxides and mixture thereof.
Other ingredients such as stabilizers, antioxidants, and antiadherants, conventionally used for pharmaceutical formulations may also be included in the present formulation.
According to another aspect of the present invention, there is provided the process for preparing the pharmaceutical composition, which comprises mixing valsartan or a pharmaceutically acceptable salt thereof, mannitol and povidone, and optionally one or more additional excipients. It has been found that the pharmaceutical process of the present invention are physically stable to pharmaceutical unit operations such as compression, thereby making oral solid dosage of the present invention amenable to pharmaceutical compounding operations, such as for example, tabletting.
The additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
Preferably, the oral solid pharmaceutical composition prepared according to the process of the invention may be for example, in the form of a tablet, a caplet, a pellet, a capsule, granules, a pill, powder or a sachet.
Still more preferably, the oral solid pharmaceutical composition is in the form of a tablet.
Preferably, the tablet compositions are prepared by process of direct compression, wet granulation or slugging or roll compaction, more preferably wet granulation.
The tablet may be also optionally coated with a coating agent.
The preferred embodiment of the invention is suitable for forming valsartan tablet comprising in parts by weight from about 20% to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 20% to about 80% mannitol and/or lactose, from about 0.25% to about 10% povidone, from about 1% to about 15% starch, from about 0.5% to about 10% croscarmellose sodium or dibasic calcium phosphate or microcrystalline cellulose, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about 4% opadry. Optionally additional excipient/s may be used. The additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
The pharmaceutical composition of the present invention may be used for the treatment of hypertension.
According to another aspect of the present invention, there is provided the pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler, povidone as binder in combination with hydrochlorothiazide or amlodipine or both; and optionally one or more additional excipients.
The preferred embodiment of the present invention provides stable pharmaceutical formulations of combination products of i) valsartan and hydrochlorothiazide; ii) valsartan and amlodipine; or iii) valsartan, hydrochlorothiazide and amlodipine.
It has been found that the pharmaceutical composition of the present invention not only display the stable and robust formulation, but also display the improved characteristics associated even with dissolution.
The additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
Preferably, the pharmaceutical composition is oral solid dosage forms.
The pharmaceutical composition may be for example, in the form of a tablet, a caplet, pellets, a capsule, granules, a pill, powder or a sachet.
Preferably the pharmaceutical composition is in the form of a tablet and a capsule. The capsule may contain powder, compressed powder or granules.
Still more preferably, the oral solid pharmaceutical composition is in the form of a tablet.
In another embodiment, the pharmaceutical composition of the present invention comprises a filler agent (in addition to mannitol), a binder (in addition to povidone), a disintegrant agent, and a lubricant, wherein said solid pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof concentration below 35% with mannitol as a filler, povidone as binder in combination with hydrochlorothiazide and/or amlodipine of the total weight of the pharmaceutical composition and optionally one or more additional excipients.
More preferably valsartan or a pharmaceutically acceptable salt thereof concentration from about 20 to about 34% of the total weight of the pharmaceutical composition.
Excipient selection depends on various factors, such as, the choice of active ingredient percentage, the objectives of the tablet formulation development and method of- manufacture. The foremost property an excipient must possess is compatibility with active ingredients.
Preferably, the pharmaceutically acceptable excipients in accordance with the invention include at least one filler agent (in addition to mannitol), and/or at least one binder (in addition to povidone), and/or at least one disintegrant agent and/or at least one lubricant.
Preferably, the filler includes mannitol, microcrystalline cellulose, calcium carbonate, dibasic calcium phosphate, lactose, magnesium carbonate, magnesium oxide, lactose anhydrous, isomalt, sorbitol or mixtures thereof and more preferably mannitol and/or microcrystalline cellulose.
Preferably, the lubricants includes magnesium stearate, calcium stearate, stearic acid, a salt of stearic acid, talc, sodium stearyl fumarate, glyceryl behenate, magnesium silicate, magnesium trisilicate, macrogol, talc, hydrogenated castor oil or mixtures thereof and more preferably magnesium stearate and/or calcium stearate.
Preferably, the disintegratrants includes croscarmellose sodium, starch, sodium starch glycolate, crospovidone, carboxymethyl cellulose calcium, carboxymethylcellulose sodium, magnesium aluminium silicate or mixtures thereof and more preferably croscarmellose sodium and/or starch.
Preferably, the glidant may be for example colloidal anhydrous silica, talc or mixtures thereof.
Preferably, the binder includes polyvinylpyrrolidone k-30, hydroxypropyl cellulose, hydroxypropyl methyl cellulose, hydroxypropyl cellulose (low- substituted), starch or mixtures thereof and more preferably polyvinylpyrrolidone k-30 and/or hydroxypropyl cellulose.
Preferably, the coating agent includes hydroxypropyl methyl cellulose, polyvinyl alcohols, hydroxypropyl cellulose, macrogols or mixtures thereof and more preferably hydroxypropyl methyl cellulose and/or polyvinyl alcohols.
Preferably, the coloring agent includes titanium dioxide, red iron oxide, yellow iron oxide, black iron oxides and mixture thereof.
Other ingredients such as stabilizers, antioxidants, and antiadherants, conventionally used for pharmaceutical formulations may also be included in the present formulation.
According to another aspect of the present invention, there is provided the process for preparing the pharmaceutical composition, which comprises mixing valsartan or a pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine or both; mannitol and povidone, and optionally one or more additional excipients.
It has been found that the pharmaceutical process of the present invention are physically stable to pharmaceutical unit operations such as compression, thereby making oral solid dosage of the present invention amenable to pharmaceutical compounding operations, such as for example, tabletting. The additional excipients may be a filler agent, a disintegrant agent, a binder, a glidant and a lubricant.
Preferably, the oral solid pharmaceutical composition may be for example, in the form of a tablet, a caplet, pellets, a capsule, granules, a pill, powder or a sachet.
Still more preferably, the oral solid pharmaceutical composition is in the form of a tablet.
Preferably, the tablet composition are prepared by the process of direct compression, wet granulation or slugging or roll compaction, more preferably wet granulation.
The tablet may be also optionally coated with a coating agent.
The preferred embodiment of the invention is suitable for forming valsartan and hydrochlorothiazide tablet comprising in parts by weight from about 20 % to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 0.2 % to about 10% hydrochlorothiazide, from about 20% to about 80% mannitol, from about 0.25% to about 10% povidone, from about 1% to about 15% starch, from about 0.5% to about 10% croscarmellose sodium, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about
4% opadry. Optionally additional excipient/s may be used. The additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
The preferred embodiment of the invention is suitable for forming valsartan and amlodipine tablet comprising in parts by weight from about 20% to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 0.25% to about 10% amlodipine or a pharmaceutically acceptable salt thereof, from about 20% to about 80% mannitol, from about 0.25% to about 10% povidone, from about 1% to about 15% starch, from about 0.5% to about 10% croscarmellose sodium, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about 4% opadry. Optionally additional excipient/s may be used. The additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
The preferred embodiment of the invention is suitable for forming valsartan and amlodipine tablet comprising in parts by weight from about 20% to about 35% valsartan or a pharmaceutically acceptable salt thereof, from about 0.25% to about 10% amlodipine or a pharmaceutically acceptable salt thereof, from about 1% to about 10% hydrochlorothiazide, from about 20% to about 80% mannitol, from about 0.25% to about 10% povidone, from about 1 % to about 15% starch, from about 1% to about 10% croscarmellose sodium, from about 0.25% to about 5% magnesium stearate, from about 1.5% to about 4% opadry. Optionally additional excipient/s may be used. The additional excipients include pharmaceutical lubricants, disintegrators, binders, glidents, fillers or mixtures thereof.
The pharmaceutical composition of the present invention may be used for the treatment of hypertension.
EXAMPLES Example 1 Preparation of a valsartan tablet wherein the valsartan is present in the form of valsartan with mannitol and povidone:
This example demonstrates a tablet composition comprising valsartan as an active pharmaceutical ingredient and one or more pharmaceutically acceptable excipients, wherein said valsartan is present in the form of the valsartan with mannitol and povidone, in accordance with an embodiment of the invention. This example further demonstrates a process for preparing a solid pharmaceutical composition in accordance with an embodiment of the invention.
The tablets were prepared using the materials listed in table.
Figure imgf000011_0001
Figure imgf000012_0001
The tablets were manufactured using the procedure comprising the following steps: valsartan and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
The blending of ingredients including above dried granules, maize starch, croscarmellose sodium and magnesium stearate were weighted, transferred into a blender, and mixed to form a homogeneous power mixture; the resultant mixture was compressed into tablets of appropriate weight and hardness to obtain a valsartan tablet; and the tablets was coated with opadry.
The results of dissolution of valsartan tablets 320mg is shown below.
Figure imgf000012_0002
The example demonstrates the dissolution properties of the tablet prepared in accordance with the invention.
The tablets of valsartan and commercially available valsartan tablets (i.e., Diovan) were tested for in vitro drug release in 1000ml of 0.067 M phosphate buffer, pH 6.8 using a USP-2 apparatus speed operating at 50 rpm. The valsartan tablets 320mg were greater than 85% in 10 minutes.
Valsartan tablets stability studies:
Stability studies were carried out at 40°C/75%RH and 600C for two month and found that the tablet composition was stable.
The tablets of example 2 and 3 were manufactured using the procedure comprising the following steps: valsartan and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
The blending of ingredients including above dried granules, maize starch and/or lactose or microcrystalline cellulose or dibasic calcium phosphate, croscarmellose sodium and magnesium stearate were weighted, transferred into a blender, and mixed to form a homogeneous power mixture; the resultant mixture was compressed into tablets of appropriate weight and hardness to obtain a valsartan tablet; and the tablets was coated with opadry. Example 2
Preparation of valsartan tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000013_0001
Example 3
Preparation of valsartan tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000013_0002
Figure imgf000014_0001
The tablets of example 4, 5, 6 and 7 were manufactured using the procedure comprising the following steps: valsartan, hydrochlorothiazide and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
The blending of ingredients including above dried granules, maize starch or microcrystalline cellulose, croscarmellose sodium and magnesium stearate were weighted, transferred into a blender, and mixed to form a homogeneous power mixture; the resultant mixture was compressed into tablets of appropriate weight and hardness to obtain a valsartan and hydrochlorothiazide tablet; and the tablets was coated with opadry. Example 4
Preparation of valsartan and hydrochlorothiazide tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000014_0002
Figure imgf000015_0001
Example 5 Preparation of valsartan and hydrochlorothiazide tablet: The tablets were prepared using the materials listed in table.
Figure imgf000015_0002
Example 6
Preparation of valsartan and hydrochlorothiazide tablet: The tablets were prepared using the materials listed in table.
Figure imgf000015_0003
Figure imgf000016_0001
Example 7 Preparation of valsartan and hydrochlorothiazide tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000016_0002
The tablets of example 8, 9 and 10 were manufactured using the procedure comprising the following steps: valsartan, amlodipine and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #18.
The blending of ingredients including above dried granules, maize starch, croscarmellose sodium and magnesium stearate were weighted, transferred into a blender, and mixed to form a homogeneous power mixture; the resultant mixture was compressed into tablets of appropriate weight and hardness to obtain a valsartan and amlodipine tablet; and the tablets was coated with opadry.
Example 8
Preparation of valsartan and amlodipine tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000017_0001
Example 9
Preparation of valsartan and amlodipine tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000017_0002
Figure imgf000018_0001
Example 10 Preparation of valsartan and amlodipine tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000018_0002
The tablets of example 11 , 12, 13 and 14 were manufactured using the procedure comprising the following steps: valsartan, hydrochlorothiazide, amlodipine and mannitol was done in a rapid mixer granulator and mixed for 5 to 20 minutes. Binder solution (povidone K-29/32 in purified water) is added to contents of rapid mixer granulator and mixed to get dough mass. The dough mass was dried, and dried granules passed through #20.
The blending of ingredients including above dried granules, maize starch, croscarmellose sodium and magnesium stearate were weighted, transferred into a blender, and mixed to form a homogeneous power mixture; the resultant mixture was compressed into tablets of appropriate weight and hardness to obtain a valsartan, hydrochlorothiazide and amlodipine tablet; and the tablets was coated with opadry.
Example 11
Preparation of valsartan, hydrochlorothiazide and amlodipine tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000019_0001
Example 12 Preparation of valsartan, hydrochlorothiazide and amlodipine tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000019_0002
Figure imgf000020_0001
Example 13
Preparation of valsartan, hydrochlorothiazide and amlodipine tablet: The tablets were prepared using the materials listed in table.
Figure imgf000020_0002
Example 14 Preparation of valsartan, hydrochlorothiazide and amlodipine tablet: The tablets were prepared using the materials listed in table.
Figure imgf000021_0001
Example 15 Preparation of valsartan and amlodipine tablet:
The tablets were prepared using the materials listed in table.
Figure imgf000021_0002
Figure imgf000022_0001

Claims

We claim:
I . A pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler and povidone as binder, and optionally one or more additional excipients.
2. A pharmaceutical composition comprising valsartan or a pharmaceutically acceptable salt thereof with mannitol as a filler, povidone as binder in combination with hydrochlorothiazide or amlodipine or both; and optionally one or more additional excipients.
3. The composition as claimed in claim 1 or 2, wherein the pharmaceutical composition in the form of a tablet, a caplet, a pellet, a capsule, a granule, a pill, a powder or a sachet.
4. The composition as claimed in claim 3, wherein the oral solid pharmaceutical composition is a tablet.
5. The composition as claimed in claim 1, wherein the ratio of valsartan or a pharmaceutically acceptable salt thereof to mannitol is about 1 :0.25 to about
1 :5.
6. The composition as claimed in claim 1 , wherein the ratio of valsartan or a pharmaceutically acceptable salt thereof to povidone 1 :0.01 to about 1 :0.5.
7. The composition as claimed in claim 1 , wherein the ratio of povidone to mannitol is about 1 :30 to about 1 :90.
8. The composition as claimed in claim 1 or 2, wherein the valsartan or a pharmaceutically acceptable salt thereof concentration is below 35%, based on total weight of pharmaceutical composition.
9. The composition as claimed in claim 8, wherein the valsartan or a pharmaceutically acceptable salt thereof concentration is about 20 to about
34%, based on total weight of pharmaceutical composition.
10. The composition as claimed in claim 1 or 2, wherein the additional excipient is selected from pharmaceutical filler, disintegrants, binders, lubricants, glidants, coating agents and coloring agents and a mixture thereof.
I I . The composition as claimed in claim 10, wherein the filler is selected from mannitol, microcrystalline cellulose, calcium carbonate, dibasic calcium phosphate, lactose, magnesium carbonate, magnesium oxide, lactose anhydrous, isomalt, sorbitol or mixtures thereof.
12. The composition as claimed in claim 11 , wherein the filler is mannitol and/or microcrystalline cellulose.
13. The composition as claimed in claim 10, wherein the lubricants is selected from magnesium stearate, calcium stearate, stearic acid, a salt of stearic acid, talc, sodium stearyl fumarate, glyceryl behenate, magnesium silicate, magnesium trisilicate, macrogol, talc, hydrogenated castor oil or mixtures thereof.
14. The composition as claimed in claim 13, wherein the lubricant is magnesium stearate and/or calcium stearate.
15. The composition as claimed in claim 10, wherein the disintegrant is selected from croscarmellose sodium, starch, sodium starch glycolate, crospovidone, carboxymethyl cellulose calcium, carboxymethylcellulose sodium, magnesium aluminium silicate or mixtures thereof.
16. The composition as claimed in claim 15, wherein the disintegrant is croscarmellose sodium and/or starch.
17. The composition as claimed in claim 10, wherein the glidant is colloidal anhydrous silica, talc or mixtures thereof.
18. The composition as claimed in claim 10, wherein the binder is selected from polyvinylpyrrolidone k-30, hydroxypropyl cellulose, hydroxypropyl methyl cellulose, hydroxypropyl cellulose (low-substituted), starch or mixtures thereof.
19. The composition as claimed in claim 18, wherein the binder is polyvinylpyrrolidone k-30 and/or hydroxypropyl cellulose.
20. The composition as claimed in claim 10, wherein the coating agent is hydroxypropyl methyl cellulose, polyvinyl alcohols, hydroxypropyl cellulose, macrogols or mixtures thereof.
21. The composition as claimed in claim 20, wherein the coating agent is hydroxypropyl methyl cellulose and/or polyvinyl alcohols.
22. A process for preparation of pharmaceutical composition which comprises mixing valsartan or a pharmaceutically acceptable salt thereof, mannitol and povidone, and optionally one or more additional excipients.
23. A process for preparation of pharmaceutical composition which comprises mixing valsartan or a pharmaceutically acceptable salt thereof in combination with hydrochlorothiazide or amlodipine or both; mannitol and povidone, and optionally one or more additional excipients.
24. The process as claimed in claim 22 or 23, wherein the pharmaceutical composition in the form of a tablet, a caplet, a pellet, a capsule, a granule, a pill, a powder or a sachet.
25. The process as claimed in claim 24, wherein the oral solid pharmaceutical composition is a tablet.
26. The process as claimed in claim 25, wherein the tablets are prepared by direct compression, wet granulation and slugging method or roll compaction.
27. The process as claimed in claim 26, wherein the tablets are prepared by wet granulation.
28. The process as claimed in claim 22, wherein the valsartan or a pharmaceutically acceptable salt thereof is about 20% to about 35%, mannitol and/or lactose is about 20% to about 80%, povidone is about 0.25% to about 10%, starch is about 1% to about 15%, croscarmellose sodium or dibasic calcium phosphate or microcrystalline cellulose is about 0.5% to about 10%, magnesium stearate is about 0.25% to about 5%, opadry is about 1.5% to about 4%.
29. The process as claimed in claim 23, wherein valsartan or a pharmaceutically acceptable salt thereof is about 20% to about 35%, hydrochlorothiazide is about 0.2 % to about 10%, mannitol is about 20% to about 80%, povidone is about 0.25% to about 10%, starch is about 1 % to about 15%, croscarmellose sodium is about 0.5% to about 10%, magnesium stearate is about 0.25% to about 5% and opadry is about 1.5% to about 4%.
30. The process as claimed in claim 23, wherein valsartan or a pharmaceutically acceptable salt thereof is about 20% to about 35%, amiodipine or a pharmaceutically acceptable salt thereof is about 0.25% to about 10%, mannitol is about 20% to about 80%, povidone is about 0.25% to about 10%, starch is about 1% to about 15%, croscarmellose sodium is bout 0.5% to about 10%, magnesium stearate is about 0.25% to about 5%, opadry is about 1.5% to about 4%.
31. The process as claimed in claim 23, wherein valsartan or a pharmaceutically acceptable salt thereof is about 20% to about 35%, amiodipine or a pharmaceutically acceptable salt thereof is from about 0.25% to about 10%, hydrochlorothiazide is about 1% to about 10%, mannitol is about 20% to about 80%, povidone is about 0.25% to about 10%, starch is about 1% to about 15%, croscarmellose sodium is about 1 % to about 10%, magnesium stearate is about 0.25% to about 5%, opadry is about 1.5% to about 4%.
32. The method of use according to claim 1 and 2, wherein the oral pharmaceutical composition is used for treatment of hypertension.
PCT/IN2009/000376 2009-07-03 2009-07-03 Pharmaceutical compositions of valsartan Ceased WO2011001440A1 (en)

Priority Applications (2)

Application Number Priority Date Filing Date Title
PCT/IN2009/000376 WO2011001440A1 (en) 2009-07-03 2009-07-03 Pharmaceutical compositions of valsartan
US13/381,963 US20120107397A1 (en) 2009-07-03 2009-07-03 Pharmaceutical compositions of valsartan

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
PCT/IN2009/000376 WO2011001440A1 (en) 2009-07-03 2009-07-03 Pharmaceutical compositions of valsartan

Publications (1)

Publication Number Publication Date
WO2011001440A1 true WO2011001440A1 (en) 2011-01-06

Family

ID=43410560

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/IN2009/000376 Ceased WO2011001440A1 (en) 2009-07-03 2009-07-03 Pharmaceutical compositions of valsartan

Country Status (2)

Country Link
US (1) US20120107397A1 (en)
WO (1) WO2011001440A1 (en)

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP2494963A1 (en) 2011-03-03 2012-09-05 Sanovel Ilaç Sanayi Ve Ticaret Anonim Sirketi Combinations of valsartan and amlodipine
CN103349656A (en) * 2013-07-23 2013-10-16 天大药业（珠海）有限公司 Valsartan capsule and preparation method thereof
EP2676660A1 (en) 2012-06-22 2013-12-25 Sanovel Ilac Sanayi ve Ticaret A.S. Compositions preventing hypertension comprising soluplus
CN104510738A (en) * 2013-09-27 2015-04-15 天津长寿源健康科技有限公司 Compound composition for treatment of high blood pressure and preparation method thereof

Families Citing this family (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
MX358211B (en) * 2012-07-23 2018-08-10 Landsteiner Scient S A De C V New differential-release pharmaceutical composition containing three active principles.
CN103599084B (en) * 2013-11-22 2018-10-30 威海迪素制药有限公司 A kind of blood pressure lowering composition
CN112999186A (en) * 2021-03-04 2021-06-22 海南锦瑞制药有限公司 Preparation method of valsartan capsule and valsartan capsule
CN113116843A (en) * 2021-05-11 2021-07-16 福建海西新药创制有限公司 Pharmaceutical composition containing valsartan and preparation method thereof

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2007022113A2 (en) * 2005-08-17 2007-02-22 Novartis Ag Solid dosage forms of valsartan and amlodipine and method of making the same
WO2008002905A2 (en) * 2006-06-27 2008-01-03 Novartis Ag Solid dosage forms of valsartan, amlodipine and hydrochlorothiazide and method of making the same
WO2008013416A1 (en) * 2006-07-27 2008-01-31 Amorepacific Corporation Process for preparing powder comprising nanoparticles of sparingly soluble drug
EP2067470A1 (en) * 2007-12-03 2009-06-10 Laboratorios Lesvi, S.L. Pharmaceutical compositions containing valsartan and process for its preparation

Family Cites Families (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EG24716A (en) * 2002-05-17 2010-06-07 Novartis Ag Combination of organic compounds
ES2384637T3 (en) * 2004-10-08 2012-07-10 Novartis Ag Use of renin inhibitors for the prevention or treatment of diastolic dysfunction or diastolic heart failure

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2007022113A2 (en) * 2005-08-17 2007-02-22 Novartis Ag Solid dosage forms of valsartan and amlodipine and method of making the same
WO2008002905A2 (en) * 2006-06-27 2008-01-03 Novartis Ag Solid dosage forms of valsartan, amlodipine and hydrochlorothiazide and method of making the same
WO2008013416A1 (en) * 2006-07-27 2008-01-31 Amorepacific Corporation Process for preparing powder comprising nanoparticles of sparingly soluble drug
EP2067470A1 (en) * 2007-12-03 2009-06-10 Laboratorios Lesvi, S.L. Pharmaceutical compositions containing valsartan and process for its preparation

Cited By (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP2494963A1 (en) 2011-03-03 2012-09-05 Sanovel Ilaç Sanayi Ve Ticaret Anonim Sirketi Combinations of valsartan and amlodipine
EP2494964A1 (en) 2011-03-03 2012-09-05 Sanovel Ilaç Sanayi Ve Ticaret Anonim Sirketi Combinations of valsartan and amlodipine
TR201102067A1 (en) * 2011-03-03 2012-09-21 Sanovel İlaç Sanayi̇ Ve Ti̇caret Anoni̇m Şi̇rketi̇ Valsartan and amlodipine combinations.
EP2676660A1 (en) 2012-06-22 2013-12-25 Sanovel Ilac Sanayi ve Ticaret A.S. Compositions preventing hypertension comprising soluplus
WO2013191668A1 (en) 2012-06-22 2013-12-27 Sanovel Ilac Sanayi Ve Ticaret Anonim Sirketi Compositions preventing hypertension comprising soluplus
CN103349656A (en) * 2013-07-23 2013-10-16 天大药业（珠海）有限公司 Valsartan capsule and preparation method thereof
CN103349656B (en) * 2013-07-23 2015-08-05 天大药业（珠海）有限公司 A kind of valsartan capsule and preparation method thereof
CN104510738A (en) * 2013-09-27 2015-04-15 天津长寿源健康科技有限公司 Compound composition for treatment of high blood pressure and preparation method thereof

Also Published As

Publication number Publication date
US20120107397A1 (en) 2012-05-03

Similar Documents

Publication Publication Date Title
WO2011001440A1 (en) Pharmaceutical compositions of valsartan
US11819577B2 (en) Fixed dose pharmaceutical composition of valsartan and sacubitril
EP2162119A2 (en) Stable pharmaceutical formulation for a dpp-iv inhibitor
KR20070046172A (en) Extended Release Tablet Formulations Containing Pramipexole or a Pharmaceutically Acceptable Salt thereof, Methods for Making the Same, and Uses thereof
CA2801020A1 (en) A stable pharmaceutical formulation comprising telmisartan and hydrochlorothiazide
AU2007297333A1 (en) Solid dosage form of olmesartan medoxomil and amlodipine
CA2644179C (en) Novel pharmaceutical composition comprising a disintegration matrix
JP2009515956A (en) Telmisartan pharmaceutical composition
RS58214B1 (en) A pharmaceutical composition containing candesartan cilexetil and amlodipine
US6333361B1 (en) Pharmaceutical composition containing zafirlukast
EP2299978A1 (en) Single dosage pharmaceutical formulation comprising eprosartan mesylate
WO2011010316A1 (en) Pharmaceutical compositions of irbesartan
EP2067470A1 (en) Pharmaceutical compositions containing valsartan and process for its preparation
PL384680A1 (en) Pharmaceutical composition containing cylexyethyl candesarthan and its production method
JP5241511B2 (en) Pharmaceutical composition with improved dissolution
WO2008110337A2 (en) Pharmaceutical composition of quetiapine fumarate
WO2009113091A2 (en) Pharmaceutical compositions comprising valsartan
CN119074728A (en) Multiple release compositions for the treatment of hypertension
WO2022123592A1 (en) Stable pharmaceutical composition of azilsartan medoxomil or pharmaceutical acceptable salt and processes for preparing thereof
AU2013309686B2 (en) Bilayered composite tablet formulation comprising atorvastatin, irbesartan and magnesium carbonate
WO2013098578A1 (en) Immediate release pharmaceutical composition of valsartan hydrochlorothiazide
WO2013098576A1 (en) Immediate release pharmaceutical composition of valsartan
CA2709624A1 (en) Immediate release dosage form of bosentan and process of manufacturing such
WO2023211412A1 (en) A tablet comprising sacubitril and valsartan processed with dry granulation
WO2013050339A1 (en) Pharmaceutical compositions of antihypertensives

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 09846751

Country of ref document: EP

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: 13381963

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 09846751

Country of ref document: EP

Kind code of ref document: A1
