Abstract

The present invention relates to pharmaceutical compositions containing clopidogrel hydrochloride suitable for oral administration wherein said composition is at least 98% free of carboxylic acid impurity.

Description

PHARMACEUTICAL COMPOSITIONS CONTAINING CLOPIDOGREL
HYDROCHLORIDE
Cross-Reference to Related Application
This application claims priority to Indian Provisional Application 690/MUM/2006, filed on May 4, 2006, and entitled "Stable Compositions of Clopidogrel HCL", the contents of which are incorporated by reference herein.
Field of the Invention
The present invention relates to pharmaceutical compositions containing clopidogrel hydrochloride, and in particular, to a pharmaceutical composition containing clopidogrel hydrochloride suitable for oral administration. The present invention provides a pharmaceutical composition suitable for oral administration comprising clopidogrel hydrochloride and at least one pharmaceutically acceptable excipient wherein said composition is at least 98%free of carboxylic acid impurity.
Background of the Invention
Clopidogrel, chemically known as the dextro-rotatory enantiomer of methyl alpha-5-(4, 5, 6, 7-tetrahydro(3,2-c)thienopyridyl)(2-chlorophenyl)-acetate, is disclosed in U.S. Patent No. 4,847,265 (the '265 patent). According to the '265, clopidogrel is useful as a prophylactic and for the treatment of thromboembolism disorders, such as thrombosis, or myocardial infarction, by acting as a platelet aggregation inhibitor. Its anti-platelet activity makes clopidogrel an effective drug for reducing ischemic strokes, heart attacks and atherosclerosis, a vascular disease causing claudication. Atherosclerosis is characterized by the buildup of plaque on the walls of arteries, leading to thickening of the arterial wall and reduction in the elasticity of the arteries. High cholesterol, high blood pressure, smoking and infection also may cause injury to the inner walls of the arteries, which leads to atherosclerosis. Plaque formation leads to blood clotting which is due to platelet aggregation at the site of the injury. This clotting becomes an obstacle for the flow of the blood to the organs, causing heart attacks. Clopidogrel binds adenosine diphosphate to its receptor and thereby induces platelet reduction, which is desirable in fighting atherosclerosis. Clopidogrel is administered as clopidogrel bisulphate and marketed as tablets, in the United States and elsewhere, under the trade name Plavix™.
European Patent 281459 (the '459 patent) discloses clopidogrel bisulfate prepared to improve stability and solubility of clopidogrel. The '459 patent, however, does not disclose the polymorphism of crystalline forms of clopidogrel bisulfate. Clopidogrel is currently administered as clopidogrel bisulphate.
U.S. Patent No. 6,429,210 (the '210 patent) describes, however, that clopidogrel bisulfate can exist in different polymorphic crystalline forms which differ from each other in terms of stability, physical properties, spectral characteristics and the process by which the different polymorphic crystalline forms are prepared. In addition, a method of preparing the novel polymorph sulfate is disclosed in the '210 patent. According to the '210 patent, the powder of crystalline form II is more compact and much less electrostatic than crystalline form I and may, hence, have better formulation processibility. In particular, clopidogrel bisulfate in its polymorphic crystalline form II is thermodynamically more stable than crystalline form I. As such thermodynamic stability results in a delay of decomposition of medicines over time, Plavix®, which is commercially available clopidogrel bisulfate, contains crystalline form II, according to the '210 patent, as the active ingredient.
Often salts of clopidogrel, other than the bisulphate salt, exhibit difficulties in stabilization as these salts have a tendency to form carboxylic acid impurities when subjected to stress conditions. Furthermore, Applicant has found that clopidogrel tablets suffer from degradation when formulated with excipients such as lactose monohydrate and mannitol. The inventors of the present invention have sought to overcome these above-mentioned problems associated with a clopidogrel tablet composition.
Summary of the Invention
The present invention provides a pharmaceutical composition suitable for oral administration which comprises clopidogrel hydrochloride and at least one pharmaceutically acceptable excipient, wherein said composition is at least 98% free of carboxylic acid impurities. The present invention also provides a pharmaceutical tablet composition suitable for oral administration comprising clopidogrel hydrochloride and at least one pharmaceutically acceptable excipient, wherein said composition is at least 98% free of carboxylic acid impurities.
The present invention further provides methods for manufacturing a pharmaceutical tablet composition containing clopidogrel HCl and a pharmaceutically acceptable excipient, wherein said composition is at least 98% free of carboxylic acid impurities.
The present invention also provides a pharmaceutical tablet composition suitable for oral administration comprising clopidogrel hydrochloride and a pharmaceutically acceptable excipient, wherein said excipient prevents formation of carboxylic acid impurities.
Detailed Description of the Invention
The present invention provides a pharmaceutical composition suitable for oral administration comprising clopidogrel hydrochloride and at least one pharmaceutically acceptable excipient, wherein said composition is at least 98% free of carboxylic acid impurity. In one embodiment of the present invention, the pharmaceutical composition is at least 99% free of carboxylic acid impurity. In another embodiment, the pharmaceutical composition is at least 99.5% free of carboxylic acid impurity.
The present invention also provides a pharmaceutical tablet composition suitable for oral administration comprising clopidogrel hydrochloride and at least one pharmaceutically acceptable excipient, wherein said composition is at least 98% free of carboxylic acid impurity.
The present invention further provides a method for manufacturing a pharmaceutical tablet composition containing clopidogrel HCl and at least one pharmaceutically acceptable excipient, wherein said composition is at least 98% free of carboxylic acid impurity.
The chemical name of Clopidogrel Related Compound A, which is impurity A, is RS[(+)-(S)-(o-chlorophenyl)-6,7-dihydrothieno[3,2-c] pyridine-5(4H)-acetic acid, and is detected by HPLC. The present invention discloses a process for manufacturing a clopidogrel hydrochloride composition comprising clopidogrel hydrochloride and at least one pharmaceutically acceptable excipient. The excipient includes, but is not limited, to a cellulose base, such as, for example, microcrystalline cellulose and hydroxypropyl cellulose.
The excipient may also be a lubricant, such as, for example, hydrogenated vegetable oil.
Clopidogrel hydrochloride can be prepared, for instance, according to European Patent 99802.
According to one embodiment of the present invention, clopidogrel hydrochloride, microcrystalline cellulose and low-substituted hydroxypropyl cellulose are mixed together, lubricated with hydrogenated vegetable oil, compacted, and the compacts milled through an oscillating granulator, leading to the formation of granules. The resultant granules are mixed with extra granular material, lubricated, and compressed into tablets, which are finally film coated.
The following examples further illustrate the present invention and are not intended to limit the scope of the invention.

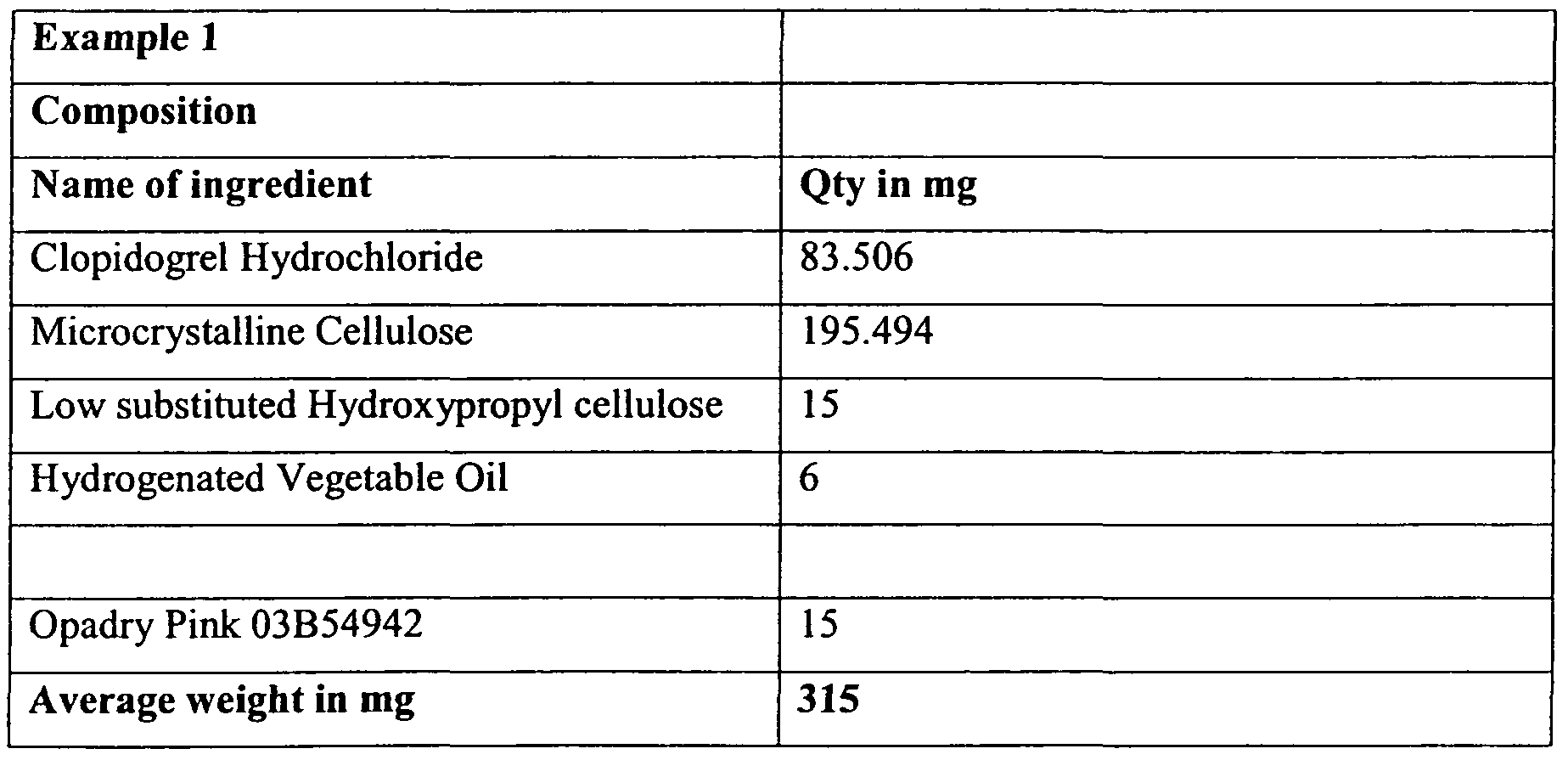

EXAMPLES
Figure imgf000005_0001
Manufacturing Process:
1. Clopidogrel hydrochloride, Avicel PH 112 and L-HPC LH-I l were sifted through 20 meshes and mixed.
2. Hydrogenated vegetable oil was sifted through 40 meshes and the bled was lubricated and then compacted.
3. The compacts were milled, re-lubricated, and then compressed.
4. The core tablets were film-coated.
The above batch is subjected to stress study (results shown below).
Figure imgf000006_0001
Figure imgf000006_0002
Manufacturing Process: 1. Clopidogrel hydrochloride, glycine hydrochloride, Avicel PH 112 and 1-HPC LH-I l were sifted through 20 mesh and mixed.
2. Hydrogenated vegetable oil was sifted through 40 mesh and the bled was lubricated and then compacted.
3. The compacts were milled, re-lubricated, and then compressed.
4. The core tablets were film-coated.
The above batch is subjected to stress study (results shown below).
Figure imgf000007_0001
Figure imgf000007_0002
Manufacturing Process: 1. Clopidogrel hydrochloride, Avicel PH 1 12 and 1-HPC LH-11 were sifted through 20 mesh, and BHA and BHT were sifted through 40 mesh, and mixed.
2. Hydrogenated vegetable oil was sifted through 40 mesh and the bled was lubricated and then compacted.
3. The compacts were milled, re- lubricated, and then compressed.
4. The core tablets were film-coated.
The above batch is subjected to stress study (results shown below).
Figure imgf000008_0001
Figure imgf000008_0002
Manufacturing Process: 1. Clopidogrel hydrochloride, Avicel PH 112 and 1-HPC LH-I l were sifted through 20 mesh, and macrogol was sifted through 40 mesh, and mixed.
2. Hydrogenated vegetable oil was sifted through 40 mesh and the bled was lubricated and then compacted.
3. The compacts were milled, re-lubricated, and then compressed.
4. The core tablets were film-coated.
The above batch is subjected to stress study (results shown below).
Figure imgf000009_0001
When the stress data was evaluated, it was observed that the best composition was Example 1.

Claims

CLAIMS What is claimed is:
1. A pharmaceutical composition suitable for oral administration comprising:
(a) clopidogrel hydrochloride; and
(b) at least one pharmaceutically acceptable excipient, wherein said composition is at least 98 % free of carboxylic acid impurity.
2. The pharmaceutical composition of claim 1 in the form of a tablet, a sachet or a capsule.
3. The pharmaceutical composition of claim 1 wherein said excipient is a cellulose base.
4. The pharmaceutical composition of claim 3 wherein said cellulose base is microcrystalline cellulose, hydroxypropyl cellulose or a mixture thereof.
5. The pharmaceutical composition of claim 1 wherein said excipient is a lubricant.
6. The pharmaceutical composition of claim 5 wherein said lubricant is a hydrogenated vegetable oil.
7. The pharmaceutical composition of claim 1 wherein said excipient prevents formation of said carboxylic acid impurity.
PCT/EP2007/003865 2006-05-04 2007-05-02 Pharmaceutical compositions containing clopidogrel hydrochloride Ceased WO2007128476A1 (en)

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
IN690MU2006 2006-05-04
IN690/MUM/06 2006-05-04

Publications (1)

Publication Number Publication Date
WO2007128476A1 true WO2007128476A1 (en) 2007-11-15

Family

ID=38192000

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/EP2007/003865 Ceased WO2007128476A1 (en) 2006-05-04 2007-05-02 Pharmaceutical compositions containing clopidogrel hydrochloride

Country Status (1)

Country Link
WO (1) WO2007128476A1 (en)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB2475907A (en) * 2009-12-04 2011-06-08 Tcp Innovations Ltd Composition comprising a mixture of clopidogrel and droloxifene

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2005048992A1 (en) * 2003-11-03 2005-06-02 Sandoz Ag Process for preparing clopidogrel compositions
WO2005070464A2 (en) * 2004-01-21 2005-08-04 Biofarma Ilac Sanayi Ve Ticaret A.S. A tablet formulation of clopidogrel bisulphate
WO2005117866A1 (en) * 2004-06-01 2005-12-15 Ivax Pharmaceuticals S.R.O. Amorphous clopidogrel hydrochloride and its antithrombotic use

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2005048992A1 (en) * 2003-11-03 2005-06-02 Sandoz Ag Process for preparing clopidogrel compositions
WO2005070464A2 (en) * 2004-01-21 2005-08-04 Biofarma Ilac Sanayi Ve Ticaret A.S. A tablet formulation of clopidogrel bisulphate
WO2005117866A1 (en) * 2004-06-01 2005-12-15 Ivax Pharmaceuticals S.R.O. Amorphous clopidogrel hydrochloride and its antithrombotic use

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB2475907A (en) * 2009-12-04 2011-06-08 Tcp Innovations Ltd Composition comprising a mixture of clopidogrel and droloxifene

Similar Documents

Publication Publication Date Title
US20140154330A1 (en) Spherical particles of clopidogrel bisulfate, pharmaceutical composition comprising the same, and preparation method thereof
WO2009028900A2 (en) Oral administration drug comprising clopidogrel besylate
SK2842003A3 (en) A solid unit dosage form comprising citalopram, crystals of a pharmaceutical acceptable salt of citalopram and method for the manufacture of said crystals
ES2277960T3 (en) FREE BASE OF AMLODIPINE.
US20100086590A1 (en) Novel stable pharmaceutical compositions of clopidogrel bisulfate and process of preparation thereof
CA2562532C (en) Crystalline clopidogrel naphthalenesulfonate or hydrate thereof, method for preparing same and pharmaceutical composition containing same
KR20040011248A (en) Solid dispersion comprising amlodipine, method thereof and pharmaceutical composition comprising the solid dispersion
WO2007128476A1 (en) Pharmaceutical compositions containing clopidogrel hydrochloride
WO2011080706A1 (en) Enhanced solubility of ziprasidone
US20090042930A1 (en) Pharmaceutical compositions containing clopidogrel bisulfate
EP2095815B1 (en) Pharmaceutical formulations containing clopidogrel
EP1773300B1 (en) Solid pharmaceutical composition comprising mirtazapine
CA2881119A1 (en) Fast release solid oral compositions of entecavir
EP3233082A1 (en) Pharmaceutical composition comprising amorphous lenalidomide
CA3048346A1 (en) A pharmaceutical composition comprising an oxazine derivative and its use in the treatment or prevention of alzheimer's disease
WO2010009745A1 (en) Solid oral dosage form containing anti-platelet agent clopidogrel and method for the preparation thereof
KR100809903B1 (en) Stabilized clopidogrel-containing particles, methods for their preparation, and pharmaceutical compositions comprising the same
EP1970054A2 (en) Clopidogrel tablets
EP1926736A1 (en) Novel resinate complex of s-clopidogrel and production method thereof
KR20080055356A (en) Clopidogrel-containing clathrate composite with excellent storage stability
AU2007227919B2 (en) Pharmaceutical composition containing clopidogrel camphorsulfonate or polymorphic forms thereof
RU2349304C1 (en) Pelletised clopidogrel or its pharmaceutically acceptable salt formulation, method of obtainment and application
JP2020075869A (en) Tablet containing angiotensin ii receptor antagonist and calcium antagonist as active ingredients
WO2011086577A2 (en) Pharmaceutical composition of moxifloxacin and its pharmaceutically acceptable salts
EP1802280A2 (en) Clopidogrel compositions

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 07724791

Country of ref document: EP

Kind code of ref document: A1

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 07724791

Country of ref document: EP

Kind code of ref document: A1
