WO2006115353A1 - A novel hydroxamic acid derivative as peptide deformylase inhibitor and manufacturing method thereof - Google Patents

A novel hydroxamic acid derivative as peptide deformylase inhibitor and manufacturing method thereof Download PDF

Info

Publication number
WO2006115353A1
WO2006115353A1 PCT/KR2006/001500 KR2006001500W WO2006115353A1 WO 2006115353 A1 WO2006115353 A1 WO 2006115353A1 KR 2006001500 W KR2006001500 W KR 2006001500W WO 2006115353 A1 WO2006115353 A1 WO 2006115353A1
Authority
WO
WIPO (PCT)
Prior art keywords
butyl
amino
compound
dimethyl
formula
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/KR2006/001500
Other languages
French (fr)
Other versions
WO2006115353A9 (en
Inventor
Jae-Hoon Kang
Seung-Woo Yu
Hee-Yeol Lee
Kyung-Mi An
Bong-Hwan Cho
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Ildong Pharmaceutical Co Ltd
Original Assignee
Ildong Pharmaceutical Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Ildong Pharmaceutical Co Ltd filed Critical Ildong Pharmaceutical Co Ltd
Priority to JP2008507555A priority Critical patent/JP2008543732A/en
Priority to US11/667,048 priority patent/US20080234333A1/en
Priority to EP06747409A priority patent/EP1915342A1/en
Publication of WO2006115353A1 publication Critical patent/WO2006115353A1/en
Publication of WO2006115353A9 publication Critical patent/WO2006115353A9/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • CCHEMISTRY; METALLURGY
    • C07ORGANIC CHEMISTRY
    • C07DHETEROCYCLIC COMPOUNDS
    • C07D211/00Heterocyclic compounds containing hydrogenated pyridine rings, not condensed with other rings
    • C07D211/04Heterocyclic compounds containing hydrogenated pyridine rings, not condensed with other rings with only hydrogen or carbon atoms directly attached to the ring nitrogen atom
    • C07D211/06Heterocyclic compounds containing hydrogenated pyridine rings, not condensed with other rings with only hydrogen or carbon atoms directly attached to the ring nitrogen atom having no double bonds between ring members or between ring members and non-ring members
    • C07D211/36Heterocyclic compounds containing hydrogenated pyridine rings, not condensed with other rings with only hydrogen or carbon atoms directly attached to the ring nitrogen atom having no double bonds between ring members or between ring members and non-ring members with hetero atoms or with carbon atoms having three bonds to hetero atoms with at the most one bond to halogen, e.g. ester or nitrile radicals, directly attached to ring carbon atoms
    • C07D211/56Nitrogen atoms
    • C07D211/58Nitrogen atoms attached in position 4
    • AHUMAN NECESSITIES
    • A47FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
    • A47LDOMESTIC WASHING OR CLEANING; SUCTION CLEANERS IN GENERAL
    • A47L9/00Details or accessories of suction cleaners, e.g. mechanical means for controlling the suction or for effecting pulsating action; Storing devices specially adapted to suction cleaners or parts thereof; Carrying-vehicles specially adapted for suction cleaners
    • A47L9/02Nozzles
    • A47L9/04Nozzles with driven brushes or agitators
    • A47L9/0461Dust-loosening tools, e.g. agitators, brushes
    • A47L9/0483Reciprocating or oscillating tools, e.g. vibrators, agitators, beaters
    • AHUMAN NECESSITIES
    • A47FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
    • A47LDOMESTIC WASHING OR CLEANING; SUCTION CLEANERS IN GENERAL
    • A47L9/00Details or accessories of suction cleaners, e.g. mechanical means for controlling the suction or for effecting pulsating action; Storing devices specially adapted to suction cleaners or parts thereof; Carrying-vehicles specially adapted for suction cleaners
    • A47L9/02Nozzles
    • A47L9/04Nozzles with driven brushes or agitators
    • A47L9/0461Dust-loosening tools, e.g. agitators, brushes
    • A47L9/0466Rotating tools
    • A47L9/0477Rolls
    • AHUMAN NECESSITIES
    • A61MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61PSPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P31/00Antiinfectives, i.e. antibiotics, antiseptics, chemotherapeutics
    • A61P31/04Antibacterial agents
    • AHUMAN NECESSITIES
    • A61MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61PSPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P43/00Drugs for specific purposes, not provided for in groups A61P1/00-A61P41/00
    • YGENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02PCLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
    • Y02P20/00Technologies relating to chemical industry
    • Y02P20/50Improvements relating to the production of bulk chemicals
    • Y02P20/55Design of synthesis routes, e.g. reducing the use of auxiliary or protecting groups

Definitions

  • the present invention relates to the novel antibacterial compounds having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to pharmaceutically acceptable salts thereof, to processes for their preparation, and to pharmaceutical compositions containing them as an active ingredient.
  • bacterial pathogens may be classified as either Gram-positive or Gram- negative pathogens.
  • Antibiotic compounds with effective activity against both Gram- positive and Gram-negative pathogens are generally regarded as having a broad spectrum of activity.
  • the compounds of the present invention are regarded primarily as effective against Gram-positive pathogens because of their particularly potent activity against such pathogens.
  • PDF Peptide deformylase
  • MAP methionine aminopeptidase
  • the present invention relates to the novel hydroxamic acid derivatives having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to processes for their preparation, to intermediates useful in their preparation, and to pharmaceutical compositions containing them as an active ingredient: [13]
  • R represents hydrogen, C alkyl, C cycloalkyl, halogen or hydroxy group
  • R represents hydrogen, straight or branched C alkyl, straight or branched C
  • R represents hydrogen, methyl, straight or branched C alkyl, straight or branched
  • R represents hydrogen, straight or branched C alkyl, C alkenyl, hydroxy
  • Y represents a group of formula (Ha), or (lib), or (He): [20]
  • n is independently 0 or 1 ;
  • each of R , R , R , R and R is independently hydrogen, straight or branched C alkyl, hydroxy, alkoxy, acyl, acyloxy, halogen (fluoro, chloro, bromo and iodo) cyano, nitro, amono, N,N-dimethylamino, phenyl, morpholinyl, or formyl group.
  • the present invention relates to the novel hydroxamic acid derivatives having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to processes for their preparation, to intermediates useful in their preparation, and to pharmaceutical compositions containing them as an active ingredient:
  • R represents hydrogen, C alkyl, C cycloalkyl, halogen or hydroxy group
  • R represents hydrogen, straight or branched C alkyl, straight or branched C
  • R represents hydrogen, methyl, straight or branched C alkyl, straight or branched
  • R represents hydrogen, straight or branched C alkyl, C alkenyl, hydroxy
  • Y represents a group of formula (Ha), or (lib), or (He):
  • n is independently 0 or 1 ;
  • each of R , R , R , R and R is independently hydrogen, straight or branched C alkyl, hydroxy, alkoxy, acyl, acyloxy, halogen (fluoro, chloro, bromo and iodo) cyano, nitro, amono, N,N-dimethylamino, phenyl, morpholinyl, or formyl group.
  • the compounds of this invention may possess one or more asymmetric centers because of the presence of asymmetric carbon atoms. Therefore, the invention includes all such racemic mixtures, optical isomers and diastereoisomers thereof.
  • a compounds of the invention may be administered in pharmaceutically acceptable salt forms, hydrate forms or solvate forms.
  • Such salts include acid addition salts, formed with hydrochloric acid, hydrobromic acid, sulfuric acid, nitric acid, methanesulfonic acid, p-toluenesulfonic acid, phosphoric acid, acetic acid, pyruvic acid, citric acid, succinic acid, lactic acid, tartaric acid, fumaric acid, maleic acid, stearic acid and salicylic acid. Salts may also be formed with sodium, potassium, magnesium and calcium salts.
  • the present invention provides a process for preparing of formula (I), or pharmaceutically acceptable salt, hydrate or solvate thereof.
  • Reaction of formula (IH) with hydroxylamine or an N- and/or 0-protected hydroxylamine may be carried out according to the standard peptide coupling conditions.
  • the reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, O-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.).
  • a coupling reagent e.g. pentafluorophenol, N, O-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.
  • an appropriate solvent e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.
  • Deprotection of benzyl group may be carried out in the presence of the hy- drogenation catalyst, preferably a palladium catalyst (e.g. palladium on carbon or palladium black).
  • the reaction can be achieved under a hydrogen atmosphere for about
  • reaction of formula (IV) with a compound of formula (Va) (or Vb, or Vc) or salt thereof may be carried out according to the standard peptide coupling conditions.
  • the reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, 0-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.):
  • a coupling reagent e.g. pentafluorophenol, N, 0-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.
  • an appropriate solvent e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.
  • R 1, R 2, R 3, R 4, R 5, R 6, R 7, R 8, R 9 and n are the same as defined above and R
  • hydroxy protecting group 10 is a hydroxy protecting group, such as methyl, ethyl, f-butyl and benzyl group.

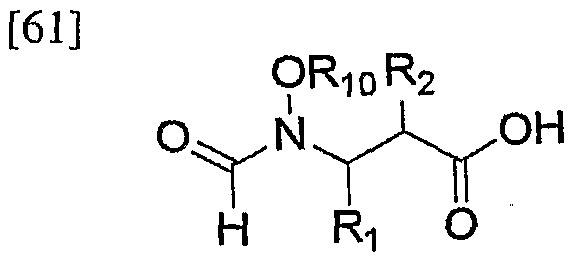

  • Carboxylic acids of formula (TV) may be prepared according to any of a variety of methods described in the literature.
  • compounds of the invention wherein A is -N(CHO)OH group may be prepared by reacting a compound of formula (VI) with a compound of formula (Va) (or Vb, or Vc) or salt thereof.
  • Reaction of formula (VI) with a compound of formula (Va) (or Vb, or Vc) or salt thereof may be carried out according to the standard peptide coupling conditions.
  • the reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, 0-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.).
  • a coupling reagent e.g. pentafluorophenol, N, 0-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.
  • an appropriate solvent e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.
  • Deprotection of benzyl group may be carried out in the presence of the hy- drogenation catalyst, preferably a palladium catalyst (e.g. palladium on carbon or palladium black).
  • the reaction can be achieved under a hydrogen atmosphere for about 2 to about 24 hours.
  • Deprotection of fe?t-butoxycarbonyl group may be carried out in the presence of an appropriate acid, such as hydrochloric acid or trifluoroacetic acid.
  • an appropriate acid such as hydrochloric acid or trifluoroacetic acid.
  • the reaction can be achieved by stirring for about 2 to about 24 hours:
  • Carboxylic acids of formula (VI) may be prepared according to any of a variety of methods described in the literature.
  • the compound of formula (Va) (or Vb, or Vc) or salt thereof may be obtained by reacting a compound of formula (VH) with a compound of (Da) (or Db, or Dc) or salt thereof .
  • the reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, O-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.):
  • a coupling reagent e.g. pentafluorophenol, N, O-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ ⁇ MM, etc.
  • an appropriate solvent e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.
  • R , R , R , R , R , R and n are the same as defined above and R is a
  • a reagent such as triphosgen or l,r-carbonyldiimidazole.
  • reacting the compound of formula (IX) or salt thereof with a compound of formula (X) may be carried out in an organic solvent such as dichloromethane, ace- tonitrile, tetrahydrofuran, dimethyl sulfoxide and toluene in the presence of a base such as N,N-diisopropylethylamine, triethylamine, N-methylmorpholine:
  • organic solvent such as dichloromethane, ace- tonitrile, tetrahydrofuran, dimethyl sulfoxide and toluene
  • a base such as N,N-diisopropylethylamine, triethylamine, N-methylmorpholine:
  • R , R , R , R and R are the same as defined above and R is a amino
  • Step 1 4-Benzylamino-piperidine-l-carboxylic acid tert-butyl ester (I-b) [83] To a solution of ferf-butyl-4-oxo-l-piperidinecarboxylate (25 g, 125.47 mmol) in anhydrous MeOH (600 mL) was added triethylamine (26.23 mL, 188.20 mmol) and benzylamine (20.56 mL, 188.20 mmol). The reaction mixture was heated to 65°C for 5 h before adding sodium cyanoborohydride (15.77 g, 250.94 mmol) portionwise. The mixture was stirred for 48 h and filtered through Celite.
  • Step 2 4-Amino-piperidine-l-carboxylic acid tert-butyl ester (I-c) [87] To a solution of compound I-b (25 g, 86.09 mmol) in ethanol (500 mL) was added
  • Step 3 4-(4-Fluoro-benzoylamino)-piperidine-l-carboxylic acid tert-butyl ester
  • Step 5 ⁇ (S)-l-[4-(4-Fluoro-benzoylamino)-piperidine-l-carbonyl]-2,2-dimethyl-
  • Step 1 4-[3-(4-Fluoro-phenyl)-ureido]-piperidine-l-carboxylic acid tert-butyl ester
  • Step 2 l-(4-Fluoro-phenyl)-3-piperidin-4-yl-urea hydrochloride (II-c) [116] Compound II-b (4 g, 11.85 mmol) was dissolved in ethyl acetate (50 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification (3.1 g, 96%).
  • Step 3 ((S)-l- ⁇ 4-[3-(4-Fluoro-phenyl)-ureido]-piperidine-l-carbonyl ⁇ -2,2-dimethyl
  • Step 4 l-[l-((S)-2-Amino-3,3-dimethyl-buryryl)-piperidin-4-yl]-3-(4-fluoro-
  • Step 1 4-(4-Fluoro-benzenesulfonylamino)-piperidine- 1 -carboxylic acid tert-butyl ester (m-b)
  • Step 3 ⁇ (S)-l-[4-(4-Fluoro-benzenesulfonylamino)-piperidine-l-carbonyl]-2,2-
  • Step 4 N-[ l-((S)-2-Amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-
  • Step 1 (R)-3- ⁇ (S)-l-[4-(4-Fluoro-benzenesulfonylamino)-piperidine-l-carbonyl]-
  • Step 2 (R)-3- ⁇ (S)-l-[4-(4-Fluoro-benzenesulfonylamino)-piperidine-l-carbonyl]-
  • Step 3 (R)-N 4 -Benzyloxy-2-butyl-N 1 - ⁇ (S)-l-[4-(4-fluoro-benzenesulfonylamino)-
  • Step 4 (R)-2-Butyl-N - ⁇ (S)-l-[4-(4-fluoro-benzenesulfonylamino)-piperidine-
  • Step 1 N-(l- ⁇ (S)-2-[(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-
  • Step 2 N-(l- ⁇ (S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)- [187] propionylamino]-3,3-dimethyl-butyryl ⁇ -piperidin-4-yl)-4-fluoro-benzamide (V-c) [188] To a solution of compound V-b (100 mg, 0.160 mmol) in ethanol (5 mL) was added 10% palladium on charcoal (17.2 mg). A balloon of hydrogen was placed over the reaction mixture, and it was stirred for 8 hours. The charcoal was removed by filtration and the filtrate was concentrated to give a crude product. The crude product was purified by column chromatography to give the title compound as a pale yellow solid (55 mg, 64%).
  • the present invention relates to antibacterial composition
  • a therapeutically effective amount of the compound of formula (I) or a pharmaceutically acceptable salt thereof and a pharmaceutically acceptable carrier comprising a therapeutically effective amount of the compound of formula (I) or a pharmaceutically acceptable salt thereof and a pharmaceutically acceptable carrier.
  • the compounds of this invention may be used to treat a subject to treat, prevent, and/or reduce the severity of an infection.
  • the present compounds are useful for the treatment of bacterial infection.
  • compositions of this invention may be administered in standard manner for the disease condition that it is desired to treat, for example by oral, rectal or parenteral administration.
  • the compounds of this invention may be formulated by means known in the art in to the form of, for example, tablets, capsules, aqueous or oily solutions or suspensions, (lipid) emulsions, dispersible powders, suppositories, ointments, creams, aerosols (or sprays), drops and sterile injectable aqueous or oily solutions or suspensions.
  • Tablets and capsules for oral administration may be in unit dose presentation form, and may contain conventional excipients, disintegrants or glydents.
  • they may be syrup, gelatin, sorbitol, lactose, sugar, maize-starch, calcium phosphate, tabletting lubricant, magnesium stearate, polyethylene glycol, potato starch or sodium lauryl sulfate, and, if desired, conventional flavoring or coloring agent.
  • Typical parenteral compositions consist of a solution or suspension of a compound or salt in a sterile aqueous or non-aqueous carrier optionally containing a parenterally acceptably oil, for example polyethylene glycol, polyvinylpyrrolidone, lecithin, arachis oil or sesame oil.
  • a parenterally acceptably oil for example polyethylene glycol, polyvinylpyrrolidone, lecithin, arachis oil or sesame oil.
  • Each dosage unit for oral administration contains preferably from 1 mg to 100 mg/
  • each dosage unit for parenteral administration contains suitably from 0.1 mg to 100 mg/Kg, of a compound of formula (I) or a pharmaceutically acceptable salt thereof calculated as the free acid.
  • the compounds of this invention may be administered alone or in combination with another therapeutic agent.
  • therapeutic agents include, but are not limited to, penicillins, cephalosporins, carbapenems, fluoroquinolones, clarithromycin, vancomycin, rifamycins, monobactams, licosamides, fosfomycin, glycopeptides, tetracyclines, streptogramins, chloramphenicol, oxazolidinone, corticosteroids, NSAID, narcotic or non-narcotic analgesics.
  • Example 1 Tablet formulation [516] The following ingredients are mixed and compressed into tablets using suitable punches.
  • Example 2 Capsule formulation [519] The following ingredients are mixed and filled into hard gelatin capsules of a suitable size.
  • Example 3 Injectable formulation [522] The following ingredients are mixed and filled into ampoules of a suitable size. [523] Table 3
  • MICs Minimum inhibitory concentrations were determined using the mi- crodilution method in 96- well format plates. Each of the compounds of Examples was dissolved in dimethyl sulfoxide to a concentration of 2 mg/mL and stored at 4°C until used. They were diluted in Mueller-Hinton Broth (MHB) and used for MIC determination. The range of concentrations tested was 64-0.00625 ⁇ g/mL final concentration using a two-fold dilution system. Plates were incubated at 37°C and MIC were recorded after 24 hours of incubation for bacteria. MIC was defined as the lowest concentration of compound that does not produce visible growth after incubation.
  • the compounds of this invention e.g. of formula (I) or a pharmaceutically acceptable salt thereof have low toxicity and are antibacterially active against gram- positive organisms, in particular also against those microorganisms which are resistant to various antibiotics. Thus, the compounds of this invention are useful as antibacterial agents for infection with resistant bacteria.

Landscapes

  • Organic Chemistry (AREA)
  • Chemical & Material Sciences (AREA)
  • Health & Medical Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Public Health (AREA)
  • Animal Behavior & Ethology (AREA)
  • Veterinary Medicine (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • General Chemical & Material Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • Pharmacology & Pharmacy (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Mechanical Engineering (AREA)
  • General Health & Medical Sciences (AREA)
  • Communicable Diseases (AREA)
  • Oncology (AREA)
  • Bioinformatics & Cheminformatics (AREA)
  • Hydrogenated Pyridines (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
  • Low-Molecular Organic Synthesis Reactions Using Catalysts (AREA)

Abstract

The present invention relates to the novel antibacterial compounds having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to pharmaceutically acceptable salts thereof, to processes for their preparation, and to pharmaceutical compositions containing them as an active ingredient.

Description

Description
A NOVEL HYDROXAMIC ACID DERIVATIVE AS PEPTIDE DEFORMYLASE INHIBITOR AND MANUFACTURING
METHOD THEREOF
Technical Field
[1] The present invention relates to the novel antibacterial compounds having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to pharmaceutically acceptable salts thereof, to processes for their preparation, and to pharmaceutical compositions containing them as an active ingredient. Background Art
[2] Infectious diseases caused by bacteria, fungi and other parasitic organisms affect hundreds of millions of people worldwide and cause millions of deaths each year. In general, bacterial pathogens may be classified as either Gram-positive or Gram- negative pathogens. Antibiotic compounds with effective activity against both Gram- positive and Gram-negative pathogens are generally regarded as having a broad spectrum of activity. The compounds of the present invention are regarded primarily as effective against Gram-positive pathogens because of their particularly potent activity against such pathogens.
[3] Recently published literature indicate that bacteria are rapidly acquiring resistance to well known antibiotics, including vancomycin and new agent such as linezolid ( Staphylococcus aureus resistant to vancomycin - United States, 2002. MMWR (2002) 51(26): 565-567; Linezolid resistance in a clinical isolate of Staphylococcus aureus. Lancet (2001) 358 (9277): 207-208).
[4] Therefore, there is an urgent need to discover antibiotics with new modes of action.
[5] Peptide deformylase (PDF), an essential enzyme involved in bacterial protein biosynthesis and maturation, is one of the few novel targets that is currently being pursued for antibacterial drug design. PDF is a unique metallopeptidase, which utilizes a ferrous ion (Fe2+) to catalyze the amide bond hydrolysis. In bacteria, protein synthesis starts with an N-formyl methionine (fMet), and as a result, all newly synthesized polypeptides carry a formylatedN-terminus. PDF catalyzes the subsequent removal of the formyl group from the majority of those polypeptides, many of which undergo further N-terminal processing by methionine aminopeptidase (MAP) to produce mature proteins. Since protein synthesis in eukaryotic organisms dose not depend on N-formyl methionine (fMet) for initiation, PDF inhibitors are expected to act as a new class of antimicrobial and antibacterial agents. Numerous PDF inhibitors have been reported in recent years; essentially all of them are metal chelators. On the basis of the chelator structure, they can be classified into three different types: the thiols, the hydroxamic acids, and the N-formyl hydroxylamines. [6] Several PDF inhibitors have been reported in the literature some of which relevant are given here: [7] hydroxamic acid derivatives: WO 99/59568, WO 00/44373, WO 01/44178, WO
01/44179, WO 02/28829 and WO 02/081426 [8] N-formyl hydroxylamines derivatives: WO 01/85160, WO 01/85170, WO
02/070540, WO 02/070541, WO 02/070653, WO 02/070654, WO 02/098901, WO
03/101442, WO 0035440, WO 99/39704, WO 00/35440, WO 00/58294, WO
00/61134, WO 01/10834, WO 01/10835, WO 03/089412 and WO 2004/033441 [9] Although a wide variety of compounds described in prior art have been developed as inhibitors of peptide deformylase, they did not result in a clinically useful compound. [ 10] Though a variety of inhibitors have been prepared, there is a continuing need for potent peptide deformylase inhibitors useful in treating such dieases. [11] The present invention fulfills this need.
Disclosure of Invention
Technical Solution [12] The present invention relates to the novel hydroxamic acid derivatives having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to processes for their preparation, to intermediates useful in their preparation, and to pharmaceutical compositions containing them as an active ingredient: [13]
Figure imgf000003_0001
[14] wherein, A is selected from the group of consisting of -C(=O)ΝHOH or -
N(CHO)OH;
[15] R represents hydrogen, C alkyl, C cycloalkyl, halogen or hydroxy group;
[16] R represents hydrogen, straight or branched C alkyl, straight or branched C
2 1-6 1-6 alkenyl, C cycloalkyl, C heterocycle including nitrogen or oxygen, or benzyl
4-6 4-6 group; [17] R represents hydrogen, methyl, straight or branched C alkyl, straight or branched
3 1-6
C alkenyl, C cycloalkyl, phenyl or benzyl group;
1-6 4-6
[18] R represents hydrogen, straight or branched C alkyl, C alkenyl, hydroxy
4 1-4 1-4 substituted C cycloalkyl group; and
4-6 [19] Y represents a group of formula (Ha), or (lib), or (He): [20]
Figure imgf000004_0001
[21] wherein, n is independently 0 or 1 ; [22] each of R , R , R , R and R is independently hydrogen, straight or branched C alkyl, hydroxy, alkoxy, acyl, acyloxy, halogen (fluoro, chloro, bromo and iodo) cyano, nitro, amono, N,N-dimethylamino, phenyl, morpholinyl, or formyl group. Best Mode for Carrying Out the Invention
[23] The present invention relates to the novel hydroxamic acid derivatives having potent antibacterial activity as inhibitors of peptide deformylase. This invention further relates to processes for their preparation, to intermediates useful in their preparation, and to pharmaceutical compositions containing them as an active ingredient:
[24]
Figure imgf000004_0002
[25] wherein, A is selected from the group of consisting of -C(=O)ΝHOH or - N(CHO)OH;
[26] R represents hydrogen, C alkyl, C cycloalkyl, halogen or hydroxy group;
1 1-3 4-6 [27] R represents hydrogen, straight or branched C alkyl, straight or branched C
2 1-6 1-6 alkenyl, C cycloalkyl, C heterocycle including nitrogen or oxygen, or benzyl
4-6 4-6 group;
[28] R represents hydrogen, methyl, straight or branched C alkyl, straight or branched
1-6 C alkenyl, C cycloalkyl, phenyl or benzyl group;
1-6 4-6 [29] R represents hydrogen, straight or branched C alkyl, C alkenyl, hydroxy
1-4 1-4 substituted C cycloalkyl group; and
4-6
[30] Y represents a group of formula (Ha), or (lib), or (He):
Figure imgf000005_0001
[32] wherein, n is independently 0 or 1 ; [33] each of R , R , R , R and R is independently hydrogen, straight or branched C alkyl, hydroxy, alkoxy, acyl, acyloxy, halogen (fluoro, chloro, bromo and iodo) cyano, nitro, amono, N,N-dimethylamino, phenyl, morpholinyl, or formyl group.
[34] [35] The compounds of this invention may possess one or more asymmetric centers because of the presence of asymmetric carbon atoms. Therefore, the invention includes all such racemic mixtures, optical isomers and diastereoisomers thereof.
[36] [37] A compounds of the invention may be administered in pharmaceutically acceptable salt forms, hydrate forms or solvate forms. Such salts include acid addition salts, formed with hydrochloric acid, hydrobromic acid, sulfuric acid, nitric acid, methanesulfonic acid, p-toluenesulfonic acid, phosphoric acid, acetic acid, pyruvic acid, citric acid, succinic acid, lactic acid, tartaric acid, fumaric acid, maleic acid, stearic acid and salicylic acid. Salts may also be formed with sodium, potassium, magnesium and calcium salts.
[38] [39] The present invention provides a process for preparing of formula (I), or pharmaceutically acceptable salt, hydrate or solvate thereof.
[40] [41] Compounds of the invention wherein A is -C(=O)ΝHOH group may be prepared by reacting a compound of formula (IH) with hydroxylamine or an N- and/or O-protected hydroxylamine, and thereafter removing any N- or O-protecting groups:
[42]
Figure imgf000005_0002
[43] wherein, R , R , R , R and Y are the same as defined above.
1 2 3 4 [44] [45] Reaction of formula (IH) with hydroxylamine or an N- and/or 0-protected hydroxylamine may be carried out according to the standard peptide coupling conditions. [46] The reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, O-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ΝMM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.). [47] Deprotection of benzyl group may be carried out in the presence of the hy- drogenation catalyst, preferably a palladium catalyst (e.g. palladium on carbon or palladium black). The reaction can be achieved under a hydrogen atmosphere for about
2 to about 24 hours. [48] Deprotection of fe?t-butoxycarbonyl group may be carried out in the presence of an appropriate acid, such as hydrochloric acid or trifluoroacetic acid. The reaction can be achieved by stirring for about 2 to about 24 hours. [49] Compounds of formula (IH) may be prepared by reacting a compound of formula
(IV) with a compound of formula (Va) (or Vb, or Vc) or salt thereof. [50] Reaction of formula (IV) with a compound of formula (Va) (or Vb, or Vc) or salt thereof may be carried out according to the standard peptide coupling conditions. [51] The reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, 0-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ΝMM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.):
Figure imgf000007_0001
I Il I
Figure imgf000007_0002
[53] wherein, R 1, R 2, R 3, R 4, R 5, R 6, R 7, R 8, R 9 and n are the same as defined above and R
10 is a hydroxy protecting group, such as methyl, ethyl, f-butyl and benzyl group.
[54] [55] Carboxylic acids of formula (TV) may be prepared according to any of a variety of methods described in the literature.
[56] Also, compounds of the invention wherein A is -N(CHO)OH group may be prepared by reacting a compound of formula (VI) with a compound of formula (Va) (or Vb, or Vc) or salt thereof.
[57] Reaction of formula (VI) with a compound of formula (Va) (or Vb, or Vc) or salt thereof may be carried out according to the standard peptide coupling conditions. [58] The reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, 0-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ΝMM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.). [59] Deprotection of benzyl group may be carried out in the presence of the hy- drogenation catalyst, preferably a palladium catalyst (e.g. palladium on carbon or palladium black). The reaction can be achieved under a hydrogen atmosphere for about 2 to about 24 hours.
[60] Deprotection of fe?t-butoxycarbonyl group may be carried out in the presence of an appropriate acid, such as hydrochloric acid or trifluoroacetic acid. The reaction can be achieved by stirring for about 2 to about 24 hours:
[61]
Figure imgf000008_0001
[62] wherein, R , R and R are the same as defined above.
1 2 10 [63] [64] Carboxylic acids of formula (VI) may be prepared according to any of a variety of methods described in the literature.
[65] The compound of formula (Va) (or Vb, or Vc) or salt thereof may be obtained by reacting a compound of formula (VH) with a compound of (Da) (or Db, or Dc) or salt thereof .
[66] The reaction is typically carried out in the presence of a coupling reagent (e.g. pentafluorophenol, N, O-dimethylhydroxylamine, DMAP/EDCI, EDCI/HOBt/ΝMM, etc.), in an appropriate solvent (e.g. tetrahydrofuran, dichloromethane, N,N- dimethylformamide, etc.):
[67]
Figure imgf000008_0002
Figure imgf000008_0003
(Villa) (VIIIb)
Figure imgf000008_0004
[68] wherein, R , R , R , R , R , R , R and n are the same as defined above and R is a
3 4 5 6 7 8 9 11 amino protecting group, such as terf-butoxycarbonyl, benzyloxycarbonyl or triph- enylmethyl group. [69]
[70] The compound of formula (Da) (or Db, or Dc) or salt thereof may be obtained by reacting a compound of formula (IX) or salt thereof with a compound of formula (X) wherein Z is Cl(C=O) group. And also, reacting the compound of formula (IX) or salt thereof with a compound of formula (X) wherein Z is NH group may be carried out in the presence of a reagent such as triphosgen or l,r-carbonyldiimidazole.
[71] Preferably, reacting the compound of formula (IX) or salt thereof with a compound of formula (X) may be carried out in an organic solvent such as dichloromethane, ace- tonitrile, tetrahydrofuran, dimethyl sulfoxide and toluene in the presence of a base such as N,N-diisopropylethylamine, triethylamine, N-methylmorpholine:
[72]
Figure imgf000009_0001
(IX) (X)
[73] wherein, R , R , R , R , R and R are the same as defined above and R is a amino
4 5 6 7 8 9 12 protecting group, such as tørt-butoxycarbonyl, benzyloxycarbonyl or triphenylmethyl group, and Z is selected from the group of consisting of Cl(C=O), Cl(C=O)CH ,
C1S(=O)2, NH2 or O=C=N. [74] [75] The examples which follow illustrate embodiments of the invention but are not intended to limit the scope in any way. [76]
[77] General procedure I
[78]
[79] Synthesis of N-[l-((S)-2-Amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-
[80] benzamide hydrochloride (Scheme 1)
Figure imgf000010_0001
f-e 1-f
Figure imgf000010_0002
Scheme I
[82] Step 1: 4-Benzylamino-piperidine-l-carboxylic acid tert-butyl ester (I-b) [83] To a solution of ferf-butyl-4-oxo-l-piperidinecarboxylate (25 g, 125.47 mmol) in anhydrous MeOH (600 mL) was added triethylamine (26.23 mL, 188.20 mmol) and benzylamine (20.56 mL, 188.20 mmol). The reaction mixture was heated to 65°C for 5 h before adding sodium cyanoborohydride (15.77 g, 250.94 mmol) portionwise. The mixture was stirred for 48 h and filtered through Celite. The filtrate was evaporated to dryness and ethyl acetate was added. The organic phase was washed with saturated aqueous NaHCO , then H O, dried over MgSO and evaporated to dryness under reduced pressure. The residue was purified by column chromatography to give the title compound as a pale yellow solid (30 g, 82%).
[84] 1H-NMR(CDCl ): δ 7.22-7.35 (m, 5H), 3.95-4.10 (m, 2H), 3.82(s, 2H), 2.75-2.83 (m, 2H), 2.61-2.71 (m, IH), 1.84-1.88 (m, 2H), 1.45 (s, 9H), 1.24-1.39 (m, 2H).
[85] [86] Step 2: 4-Amino-piperidine-l-carboxylic acid tert-butyl ester (I-c) [87] To a solution of compound I-b (25 g, 86.09 mmol) in ethanol (500 mL) was added
10% palladium on charcoal (8.62 g). The mixture was exposed to 7 atm of hydrogen until all of the starting material was consumed. The charcoal was removed by filtration and the filtrate was concentrated to give the title compound as a white crystalline solid (17 g, 98%).
[88] 1H-NMR(CDCl ): δ 3.90-4.10 (m, 2H), 2.66-2.79 (m, 3H), 1.69-1.73 (m, 2H), 1.38
(s, 9H), 1.10-1.21 (m, 2H).
[89]
[90] Step 3: 4-(4-Fluoro-benzoylamino)-piperidine-l-carboxylic acid tert-butyl ester
(I-e).
[91] A solution of compound I-c (5 g, 24.96 mmol) and triethylamine (4.7 mL, 33.70 mmol) in CH Cl (50 mL) was cooled to 00C. A solution of compound I-d (R =R =R =R =H, R =F, n=0, 5.1 g, 32.1 mmol) in CH2Cl2 (30 mL) was slowly added into the above reaction mixture. After stirring for 12 h at room temperature, the mixture was poured into H O and extracted with CH Cl . The organic layer was washed with aqueous saturated NaHCO and brine and dried over MgSO . After removing the
3 4 solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white crystalline solid (7 g, 87%).
[92] 1H-NMR(CDCl3): δ 7.75-7.80(m, 2H), 7.07-7.27 (m, 2H), 4.05-4.19 (m, 3H),
2.85-2.93 (m, 2H), 1.97-2.04 (m, 2H), 1.46 (s, 9H), 1.39-1.44 (m, 2H).
[93]
[94] Step 4: 4-Fluoro-N-piperidin-4-yl-benzamide hydrochloride (I-f)
[95] Compound I-e (5 g, 15.51 mmol) was dissolved in ethyl acetate (30 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification (3.8 g, 95%).
[96] 1H-NMR(D2O): δ 7.57-7.64 (m, 2H), 7.01-7.11 (m, 2H), 3.93-4.03 (m, IH),
3.34-3.41 (m, 2H), 2.92-3.07 (m, 2H), 2.02-2.11 (m, 2H), 1.61-1.75 (m, 2H).
[97]
[98] Step 5: {(S)-l-[4-(4-Fluoro-benzoylamino)-piperidine-l-carbonyl]-2,2-dimethyl-
[99] propyl }-carbamic acid tert-bxxtyl ester (I-h)
[100] To a solution of I-g (R =tert-butyl, 3 g, 12.97 mmol) in CH2Cl2 (60 mL) at 00C was added successively compound I-f (3.7 g, 14.30 mmol), 4-dimethylaminopyridine (DMAP) (3.32 g, 27.17 mmol) and l-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDCI) (2.74 g, 14.30 mmol). The mixture was stirred at room temperature overnight. The mixture was washed with aqueous saturated NaHCO and brine and dried over MgSO 4.. After removing the solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white solid (5 g,
88%). [101] 1H-NMR(CDCl ): δ 7.76-7.82 (m, 2H), 7.07-7.13 (m, 2H), 4.52-4.68 (m, 2H),
4.09-4.25 (m, 2H), 3.15-3.32 (m, IH), 2.72-2.85 (m, IH), 2.02-2.21 (m, 2H), 1.35-1.52
(m, HH), 0.96-0.98 (d, 9H). [102]
[103] Step 6: N-[l-((S)-2-Amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-
[104] benzamide hydrochloride (I-i)
[105] Compound I-h (3 g, 6.936 mmol) was dissolved in ethyl acetate (40 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification
(2.4 g, 93%). [106] 1H-NMR(D2O): δ 7.57-7.62 (m, 2H), 7.02-7.09 (m, 2H), 4.20-4.35 (m, IH),
3.93-4.01 (m, 3H), 3.16-3.30 (m, IH), 2.77-2.95 (m, IH), 1.82-1.95 (m, 2H), 1.35-1.53
(m, 2H), 0.93-0.96 (d, 9H). [ 107] General procedure H
[108] Synthesis of l-[l-((S)-2-Amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-3-(4-fluoro-
[ 109] phenyl)-urea hydrochloride (Scheme II)
[110]
Figure imgf000013_0001
Figure imgf000013_0002
4e
[111] Step 1: 4-[3-(4-Fluoro-phenyl)-ureido]-piperidine-l-carboxylic acid tert-butyl ester
(π-b)
[112] To a solution of compound I-c (5 g, 24.96 mmol) in THF (60 mL) was added compound II-a (R =R =R =R =H, R =F, 4.35 g, 27.43 mmol). The reaction mixture was allowed to stir at room temperature for 1-2 hours. After removing the solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white solid (6 g, 71%).
[113] 1H-NMR(CDCl ): δ 7.75-7.81(m, 2H), 7.08-7.27 (m, 2H), 4.09-4.22 (m, 3H),
2.85-2.95 (m, 2H), 1.98-2.04 (m, 2H), 1.47 (s, 9H), 1.41-1.45 (m, 2H).
[114] [115] Step 2: l-(4-Fluoro-phenyl)-3-piperidin-4-yl-urea hydrochloride (II-c) [116] Compound II-b (4 g, 11.85 mmol) was dissolved in ethyl acetate (50 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification (3.1 g, 96%).
[117] 1H-NMR(D2O): δ 7.59-7.68 (m, 2H), 7.01-7.13 (m, 2H), 3.98-4.10 (m, IH),
3.35-3.44 (m, 2H), 2.94-3.07 (m, 2H), 2.05-2.14 (m, 2H), 1.62-1.75 (m, 2H).
[118]
[119] Step 3: ((S)-l-{4-[3-(4-Fluoro-phenyl)-ureido]-piperidine-l-carbonyl}-2,2-dimethyl
[120] -propyl)-carbamic acid t erf-butyl ester (II-d)
[121] To a solution of I-g (R =tert-bxAy\, 2 g, 8.647 mmol) in CH2Cl2 (40 mL) at 0°C was added successively compound II-c (2.6 g, 9.498 mmol), 4-dimethylaminopyridine (DMAP) (2.2 g, 18.007 mmol) and l-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDCI) (1.8 g, 9.498 mmol). The mixture was stirred at room temperature overnight. The mixture was washed with aqueous saturated NaHCO and brine and dried over MgSO .. After removing the solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white solid (3.5 g, 90%).
[122] 1H-NMR(CDCl3): δ 7.77-7.85 (m, 2H), 7.09-7.13 (m, 2H), 4.55-4.69 (m, 2H),
4.11-4.26 (m, 2H), 3.18-3.32 (m, IH), 2.75-2.86 (m, IH), 2.04-2.22 (m, 2H), 1.35-1.54 (m, HH), 0.96-0.99 (d, 9H).
[123]
[124] Step 4: l-[l-((S)-2-Amino-3,3-dimethyl-buryryl)-piperidin-4-yl]-3-(4-fluoro-
[125] phenyl)-urea hydrochloride (II-e)
[126] Compound II-d (2.5 g, 5.549 mmol) was dissolved in ethyl acetate (35 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification (2.1 g, 98%).
[127] 1H-NMR(D2O): δ 7.58-7.65 (m, 2H), 7.04-7.09 (m, 2H), 4.25-4.38 (m, IH),
3.95-4.01 (m, 3H), 3.18-3.32 (m, IH), 2.79-2.95 (m, IH), 1.83-1.95 (m, 2H), 1.37-1.54 (m, 2H), 0.94-0.96 (d, 9H).
[128]
[ 129] General procedure M
[130]
[131] Synthesis of N-[l-((S)-2-Amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-
[ 132] benzenesulfonamide hydrochloride (Scheme IH)
[133]
Figure imgf000015_0001
[ 134] Step 1 : 4-(4-Fluoro-benzenesulfonylamino)-piperidine- 1 -carboxylic acid tert-butyl ester (m-b)
[135] To a solution of compound I-c (10 g, 49.93 mmol) in acetone/distilled water (4/1,
250 mL) was added compound m-a (R =R =R =R =H, R =F, 9.72 g, 49.93 mmol). A solution of triethylamine (6.96 mL, 49.93 mmol) in distilled water was added and the reaction mixture allowed to stir at room temperature for 5 hours. The solvent was removed in vacuo and the residue dissolved in ethyl acetate. The organic layer was separated and the aqueous phase extracted with ethyl acetate. The combined organic extracts were dried over MgSO 4 , filtered and the solvents removed in vacuo to give a crude product. The crude product was purified by column chromatography to give the title compound as a white solid (16 g, 89%). [136] 1H-NMR(CDCl3): δ 7.75-7.81(m, 2H), 7.08-7.19 (m, 2H), 4.09-4.22 (m, 2H),
3.02-3.21 (m, IH), 2.85-2.95 (m, 2H), 1.98-2.04 (m, 2H), 1.47 (s, 9H), 1.41-1.45 (m, 2H). [137]
[138] Step 2: 4-Fluoro-N-piperidin-4-yl-benzenesulfonamide hydrochloride (IH-c)
[139] Compound πi-b (10 g, 27.899 mmol) was dissolved in ethyl acetate (120 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification (8 g, 97%).
[140] 1H-NMR(D2O): δ 7.61-7.68 (m, 2H), 7.10-7.17 (m, 2H), 3.34-3.44 (m, 2H),
3.01-3.15 (m, IH), 2.93-3.09 (m, 2H), 2.04-2.15 (m, 2H), 1.63-1.75 (m, 2H).
[141]
[142] Step 3: {(S)-l-[4-(4-Fluoro-benzenesulfonylamino)-piperidine-l-carbonyl]-2,2-
[143] dimethyl-propylj-carbamic acid tert-butyl ester (IH-d)
[144] To a solution of I-g (R =tert-butyl, 4.5 g, 19.456 mmol) in CH Cl2 (90 mL) at 00C was added successively compound πi-c (5.86 g, 21.407 mmol), 4-dimethylaminopyridine (DMAP) (4.99 g, 40.845 mmol) and l-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDCI) (4.1 g, 21.407 mmol). The mixture was stirred at room temperature overnight. The mixture was washed with aqueous saturated NaHCO and brine and dried over MgSO .. After removing the solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white solid (8 g, 87%).
[145] 1H-NMR(CDCl3): δ 7.81-7.86 (m, 2H), 7.09-7.14 (m, 2H), 4.56-4.66 (m, 2H),
4.10-4.27 (m, 2H), 3.01-3.12 (m, IH), 2.74-2.88 (m, IH), 2.04-2.19 (m, 2H), 1.36-1.54 (m, HH), 0.95-0.97 (d, 9H).
[146]
[147] Step 4: N-[ l-((S)-2-Amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-
[148] benzenesulfonamide hydrochloride (IH-e)
[149] Compound Hl-d (6 g, 12.723 mmol) was dissolved in ethyl acetate (80 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give amine hydrochloride salt as a white crystalline solid which was used in next step without further purification (5 g, 96%).
[150] 1H-NMR(D2O): δ 7.69-7.73 (m, 2H), 7.02-7.05 (m, 2H), 4.19-4.34 (m, IH),
3.88-4.00 (m, 3H), 3.11-3.31 (m, IH), 2.74-2.92 (m, IH), 1.82-1.91 (m, 2H), 1.34-1.51 (m, 2H), 0.93-0.97 (d, 9H).
[151]
[152] General procedure IV
[153] Synthesis of (R)-2-Butyl-N l -
{ (S)- l-[4-(4-fluoro-benzenesulfonylamino)-piperidine- [154] l-carbonyl]-2,2-dimethyl-propyl}-N -hydroxy-succinamide (Scheme IV) [155]
Figure imgf000017_0001
Scheme I.
[156] Step 1: (R)-3-{(S)-l-[4-(4-Fluoro-benzenesulfonylamino)-piperidine-l-carbonyl]-
[157] 2,2-dimethyl-propylcarbamoyl } -heptanoic acid tert-butyl ester (IV-b)
[158] To a solution of IV-a (R =n-butyl, 0.5 g, 2.171 mmol) in CH Cl (25 mL) at 00C was added successively compound III-e (R =tert-butyl, R =F, R =R =R =R =H, 1.06g, 2.598 mmol), 4-dimethylaminopyridine (DMAP) (0.66 g, 5.402 mmol) and l-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDCI) (0.5 g, 2.605 mmol). The mixture was stirred at room temperature overnight. The mixture was washed with 0.5N-HC1, aqueous saturated NaHCO and brine, and dried over MgSO .
3 4
After removing the solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white solid (I g, 79%). [159] 1H-NMR(CDCl3): δ 7.72-7.79 (m, 2H), 7.07-7.14 (m, 2H), 4.90-4.94 (m, IH),
4.51-4.70 (m, IH), 4.19-4.25 (m, 2H), 3.19-3.31 (m, IH), 2.72-2.81 (m, IH), 2.53-2.63 (m, 2H), 2.30-2.38 (m, IH), 2.09-2.23 (m, 2H), 1.25-1.71 (m, 19H), 0.99-1.00 (d, 9H), 0.83-0.89 (m, 3H).
[160]
[161] Step 2: (R)-3-{(S)-l-[4-(4-Fluoro-benzenesulfonylamino)-piperidine-l-carbonyl]-
[ 162] 2,2-dimethyl-propylcarbamoyl } -heptanoic acid (IV-c)
[163] Compound IV-b (500 mg, 0.856 mmol) was dissolved in ethyl acetate (10 mL) and saturated with gaseous HCl, and the reaction mixture stirred until all of the starting material was consumed. The mixture was concentrated to give free acid as a white crystalline solid which was used in next step without further purification (430 mg, 96%).
[164] 1H-NMR(CDCl ): δ 7.87-7.93 (m, 2H), 7.23-7.30 (m, 2H), 4.76-4.83 (m, IH),
4.27-4.40 (m, IH), 3.91-4.18 (m, 2H), 3.12-3.22 (m, IH), 2.69-2.81 (m, 2H), 2.46-2.49 (m, IH), 2.38-2.43 (m, IH), 2.18-2.25 (m, IH), 1.75-1.81 (m, 2H), 1.12-1.52 (m, 8H), 0.90-0.94 (d, 9H), 0.77-0.81 (m, 3H).
[165]
[166] Step 3: (R)-N4-Benzyloxy-2-butyl-N 1-{(S)-l-[4-(4-fluoro-benzenesulfonylamino)-
[167] piperidine-l-carbonyl]-2,2-dimethyl-propyl}-succinamide (IV-d)
[168] To a solution of IV-c (100 mg, 0.189 mmol) in CH Cl^ (10 mL) at 00C was added successively 0-benzylhydroxylamine hydrochloride (36.3 mg, 0.227 mmol), 4-dimethylaminopyridine (DMAP) (57.9 mg, 0.473 mmol) and l-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDCI) (43.6 mg, 0.227 mmol). The mixture was stirred at room temperature overnight. The mixture was washed with 0.5Ν-HC1, aqueous saturated NaHCO and brine, and dried over MgSO . After removing the solvent in vacuo, the residue was purified by column chromatography to give the title compound as a white solid (100 mg, 84%).
[169] 1H-NMR(CDCl3): δ 7.74-7.78 (m, 2H), 7.26-7.37 (m, 5H), 7.06-7.14 (m, 2H),
4.81-4.89 (m, 3H), 4.51-4.70 (m, IH), 4.20-4.25 (m, 2H), 3.11-3.35 (m, IH), 2.72-2.80 (m, 2H), 1.90-1.31 (m, 4H), 1.25-1.53 (m, 8H), 0.99-1.00 (d, 9H), 0.85-0.89 (m, 3H).
[170]
[171] Step 4: (R)-2-Butyl-N -{(S)-l-[4-(4-fluoro-benzenesulfonylamino)-piperidine-
[172] l-carbonyl]-2,2-dimethyl-propyl}-N -hydroxy-succinamide (IV-e)
[173] To a solution of compound IV-d (50 mg, 0.079 mmol) in ethanol (5 mL) was added
10% palladium on charcoal (8.5 mg). A balloon of hydrogen was placed over the reaction mixture, and it was stirred for 8 hours. The charcoal was removed by filtration and the filtrate was concentrated to give a crude product. The crude product was purified by column chromatography to give the title compound as a pale yellow solid (30 mg, 70%).
[174] 1H-NMR(DMSO^6): δ 7.91 (m, 2H), 7.26 (dt, 2H), 4.78 (t, IH), 4.37 (m, IH), 4.10 (m, 2H), 3.15 (t, IH), 2.74 (m, 2H), 2.02-2.14 (m, 2H), 1.83 (br s, 2H), 1.16-1.38 (m, 8H), 0.77-0.95 (m, 12H).
[175] [176] General procedure V [177] [178] Synthesis of N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)- [179] propionylamino]-3,3-dimethyl-butyryl}-piperidin-4-yl)-4-fluoro-benzamide (Scheme V)
[180]
Figure imgf000019_0001
A ,b
Figure imgf000019_0002
CLl ITlIlT ,
[181] Step 1: N-(l-{(S)-2-[(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-
[182] propionylamino]-3,3-dimethyl-butyryl}-piperidin-4-yl)-4-fluoro-benzamide (V-b)
[ 183] To a solution of V-a (R =cyclopentylmethyl, 638 mg, 2.090 mmol) in CH Cl (25 mL) at 0°C was added successively compound I-i (R =fer*-butyl, R =R =R =R =H, R
3 5 6 8 9 7
=F, n=0, 855 mg, 2.299 mmol), 4-dimethylaminopyridine (DMAP) (562 mg, 4.599 mmol) and l-ethyl-S-β-dimethylaminopropy^carbodiimide hydrochloride (EDCI) (440 mg, 2.299 mmol). The mixture was stirred at room temperature overnight. The mixture was washed with 0.5N-HC1, aqueous saturated NaHCO and brine, and dried over MgSO . After removing the solvent in vacuo, the residue was purified by column
4 chromatography to give the title compound as a white solid (950 mg, 73%).
[184] 1H-NMR(CDCl ): δ 8.11 (s, 0.3H), 7.75-7.79 (m, 2.7H), 7.37 (m, 5H), 7.06-7.13 (m, 2H), 4.78-4.90 (m, IH), 4.49-4.65 (m, IH), 4.00-4.15 (m, 3H), 3.56-3.82 (m, IH), 3.14-3.23 (m, IH), 2.67-2.85 (m, 2H), 1.23-2.18 (m, 13H), 0.92-1.11 (m, HH).
[185] [186] Step 2: N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)- [187] propionylamino]-3,3-dimethyl-butyryl}-piperidin-4-yl)-4-fluoro-benzamide (V-c) [188] To a solution of compound V-b (100 mg, 0.160 mmol) in ethanol (5 mL) was added 10% palladium on charcoal (17.2 mg). A balloon of hydrogen was placed over the reaction mixture, and it was stirred for 8 hours. The charcoal was removed by filtration and the filtrate was concentrated to give a crude product. The crude product was purified by column chromatography to give the title compound as a pale yellow solid (55 mg, 64%).
[189] 1H-NMR(CDCl3): δ 8.33 (s, 0.3H), 7.79-7.82 (m, 2.7H), 7.07-7.12 (m, 2H), 4.82-4.96 (m, IH), 4.61-4.65 (m, IH), 4.00-4.15 (m, 3H), 3.57-3.81 (m, IH), 3.16-3.25 (m, IH), 2.64-2.87 (m, 2H), 1.24-2.18 (m, 13H), 0.97-1.11 (m, HH). Mode for the Invention
[190] Example 1 [191] (R)-N -[(S)-l-(4-Benzoylamino-piperidine-l-carbonyl)-2,2-dimethyl-propyl] - 2-butyl-N -hydroxy-succinamide
[192]
Figure imgf000020_0001
[193] The title compound was prepared from (R)-2-butyl-succinic acid 4-tert-butyl ester rV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =R =H) according to General procedure IV.
[194] 1H-NMR(DMSO^6): δ 7.73-7.83 (m, 2H), 7.43-7.51 (m, 3H), 4.78 (t, IH), 4.37 (t, IH), 4.00-4.15 (m, 2H), 3.15 (t, IH), 2.75 (m, 2H), 1.98-2.20 (m, 2H), 1.82 (br s, 2H), 1.14-1.55 (m, 8H), 0.77-0.95. [195]
[196] Example 2
[197] (R)-N 1-{(S)-l-[4-(4-Bromo-benzoylamino)-piperidine-l-carbonyl] -
2,2-dimethyl-propyl}-2-butyl-N4-hydroxy-succinamide [198]
Figure imgf000021_0001
[199] The title compound was prepared from (R)-2-butyl-succinic acid 4-tert-butyl ester IV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-bromo-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =Br) according to General procedure IV.
[200] 'H-ΝMRφMSO-d ): δ 7.73-7.83 (m, 2H), 7.44-7.50 (m, 2H), 4.78 (t, IH), 4.37 (t, IH), 4.03-4.11 (m, 2H), 3.14 (t, IH), 2.75 (m, 2H), 1.98-2.20 (m, 2H), 1.82 (br s, 2H), 1.16-1.34 (m, 8H), 0.77-0.95 (m, 12H).
[201] [202] Example 3 [203] (R)-2-Butyl-N ' -
{ (S)-2,2-dimethyl- 1 - [4-(4-trifluoromethyl-benzoylamino)-piperidine- 1 -carbonyl] -prop yl}-N -hydroxy-succinamide
[204]
Figure imgf000021_0002
[205] The title compound was prepared from (R)-2-butyl-succinic acid 4-tert-butyl ester IV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-trifluoromethyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure IV.
[206] 7 1H-NMR(DMSO^6): δ 8.03 (d, 2H), 7.82 (d, 2H), 4.78 (t, IH), 4.31-4.42 (m, IH), 4.03-4.11 (m, 2H), 3.13 (t, IH), 2.71-2.74 (m, 2H), 2.14-2.20 (m, IH), 1.97-2.04 (m, IH), 1.85 (br s, 2H), 1.16-1.35 (m, 8H), 0.76-0.95 (m, 12H).
[207] [208] Example 4
[209] (R)-2-Butyl-N !- [(S)-2,2-dimethyl- 1 -(4- phenylacetylamino- piperidine- 1 -carbonyl)-propyl] -N 4-hydroxy-succinamide [210]
Figure imgf000022_0001
[211] The title compound was prepared from (R)-2-butyl-succinic acid 4-tert-butyl ester rV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 2-phenyl-acetamide hydrochloride I-i (R =tert-butyl, n=l, R =R =R =R =R =H)
3 5 6 7 8 9 according to General procedure IV.
[212] 1H-NMR(DMSO^6): δ 7.22-7.27 (m, 5H), 4.76 (m, IH), 4.03 (m, 3H), 3.35 (d, 2H), 3.16 (m, IH), 2.77 (m, 2H), 1.98-2.12 (m, 2H), 1.72 (br s, 2H), 1.16 (m, 8H), 0.76-0.93 (m, 12H).
[213] [214] Example 5 [215] (R)-N -[(S)-l-(4-Benzoylamino-piperidine-l-carbonyl)-2,2-dimethyl-propyl]-N - hydroxy-2-isobutyl-succinamide
[216]
Figure imgf000022_0002
[217] The title compound was prepared from (R)-2-isobutyl-succinic acid 4-tert-butyl ester IV-a (R =wo-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =R =H) according to General procedure IV.
[218] 1H-NMR(DMSO^): δ 7.69-7.80 (m, 2H), 7.34-7.46 (m, 3H), 4.71 (t, IH), 4.23-4.35 (m, IH), 3.91-4.02 (m, 2H), 3.07 (t, IH), 2.58-2.77 (m, 2H), 1.89-2.15 (m, 2H), 1.74 (m, 2H), 1.28-1.48 (m, 4H), 1.00-1.03 (m, IH), 0.70-0.88 (m, 15H).
[219] [220] Example 6 [221] (R)-N -{(S)-l-[4-(4-Bromo-benzoylamino)-piperidine-l-carbonyl] - 2,2-dimethyl-propyl}-N -hydroxy-2-isobutyl-succinamide [222]
Figure imgf000023_0001
[223] The title compound was prepared from (R)-2-isobutyl-succinic acid 4-tert-butyl ester IV-a (R =wo-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] 4-bromo-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =Br) according to General procedure IV.
[224] 1H-NMR(DMSO^6): δ 7.68-7.79 (m, 2H), 7.34-7.46 (m, 2H), 4.71 (t, IH), 4.22-4.35 (m, IH), 3.91-4.02 (m, 2H), 3.07 (m, IH), 2.59-2.77 (m, 2H), 1.89-2.09 (m, 2H), 1.74-1.83 (m, 2H), 1.15-1.65 (m, 4H), 1.00-1.04 (m, IH), 0.70-0.88 (m, 15H).
[225] [226] Example 7 [227] (R)-N - [(S)-2,2-Dimethyl- 1 -(4-phenylacetylamino-piperidine- 1 -carbonyl)-propyl]- N 4-hydroxy-2-isobutyl-succinamide
[228]
Figure imgf000023_0002
[229] The title compound was prepared from (R)-2-isobutyl-succinic acid 4-tert-butyl ester IV-a (R =iso-butyϊ) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 2-phenyl-acetamide hydrochloride I-i (R =tert-butyl, n=l, R =R =R =R =R =H) according to General procedure IV.
[230] 1H-NMR(DMSO^6): δ 7.14-7.20 (m, 5H), 4.67 (t, IH), 3.93-4.18 (m, 2H), 3.67 (br s, IH), 3.28 (d, 2H), 3.04 (m, IH), 2.62-2.74 (m, 2H), 1.91-2.02 (m, 2H), 1.67 (m, 2H), 1.03-1.33 (m, 5H), 0.68-0.86 (m, 15H).
[231] [232] Example 8 [233] (R)-N 1-[(S)-l-(4-Benzoylamino-piperidine-l-carbonyl)-2,2-dimethyl-propyl] - 2-cyclopentylmethyl-N4-hydroxy-succinamide
[234]
Figure imgf000024_0001
[235] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid 4- tert-buty\ ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =R =H) according to General procedure IV.
[236] 1H-NMR(CDCl3): δ 7.78 (d, 2H), 7.41-7.52 (m, 3H), 4.83-4.90 (m, IH), 4.56 (dd, IH), 4.11-4.23 (m, 2H), 3.18-3.30 (m, IH), 2.70-2.89 (m, 2H), 2.31 (d, 2H), 2.05 (m, 2H), 1.39-1.72 (m, HH), 1.00 (m, HH).
[237] [238] Example 9 [239] (R)-N 1-{(S)-l-[4-(4-Bromo-benzoylamino)-piperidine-l-carbonyl] - 2,2-dimethyl-propyl}-2-cyclopentylmethyl-N4-hydroxy-succinamide
[240]
Figure imgf000024_0002
[241] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- tert-butyl ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-bromo-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =Br) according to General
3 5 6 8 9 7 procedure IV.
[242] 1H-NMR(CDCl ): δ 7.78 (d, 2H), 7.40-7.52 (m, 2H), 4.83-4.90 (m, IH), 4.56 (dd, IH), 4.11-4.22 (m, 2H), 3.17-3.30 (m, IH), 2.70-2.83 (m, 2H), 2.31-2.42 (m, 2H), 2.05 (m, 2H), 1.51-1.72 (m, HH), 0.99 (m, HH).
[243] [244] Example 10 [245] (R)-2-Cyclopentylmethyl-N 1 -
[(S)-2,2-dimethyl-l-(4-phenylacetylamino-piperidine-l-carbonyl)-propyl]-N - hydroxy-succinamide
[246]
Figure imgf000025_0001
[247] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- fert-butyl ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-2-phenyl-acetamide hydrochloride I-i (R =tert-butyl, n=l, R =R =R =R =R =H) according to General
3 5 6 7 8 9 procedure IV. [248] 1H-NMR(DMSOd6): δ 7.24-7.27 (m, 5H), 4.79 (t, IH), 4.03-4.30 (m, 2H), 3.73
(m, IH), 3.36 (d, 2H), 3.13-3.17 (m, IH), 2.69-2.80 (m, 2H), 2.02-2.10 (m, 2H),
1.27-1.74 (m, 13H), 0.90-0.94 (m, HH). [249]
[250] Example 11
[251] (R)-N -{(S)-l-[4-(4-Cyano-benzoylamino)-piperidine-l-carbonyl] -
2,2-dimethyl-propyl}-N4-hydroxy-2-isobutyl-succinamide [252]
Figure imgf000025_0002
[253] The title compound was prepared from (R)-2-isobutyl-succinic acid 4-tert-butyl ester IV-a (R =/,ro-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] -
4-cyano-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CΝ) according to General procedure IV. [254] 1H-NMR(DMSCMI ): δ 7.75 (d, 2H), 7.25 (d, 2H), 4.79 (t, IH), 4.25-4.50 (m, IH),
3.90-4.20 (m, 2H), 3.16-3.18 (m, IH), 2.86 (m, 2H), 1.99-2.13 (m, 2H), 1.81 (m, 2H),
1.42 (m, 4H), 1.10 (m, IH), 0.79-0.96 (m, 15H). [255]
[256] Example 12
[257] (R)-N 1 -
{(S)-2,2-Dimethyl-l-[4-(4-trifluoromethyl-benzoylamino)-piperidine-l-carbonyl]-prop yl } -N -hydroxy-2-isobutyl-succinamide [258]
Figure imgf000026_0001
[259] The title compound was prepared from (R)-2-isobutyl-succinic acid Λ-tert-butyl ester IV-a (R =iso-butyY) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-trifluoromethyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure IV.
[260] 1H-NMR(DMSO^6): δ 8.04 (d, 2H), 7.84 (d, 2H), 4.80 (t, IH), 4.25-4.50 (m, IH), 3.90-4.20 (m, 2H), 3.16 (m, IH), 2.72-2.86 (m, 2H), 1.99-2.14 (m, 2H), 1.87 (br s, 2H), 1.40 (m, 4H), 1.10 (m, IH), 0.79-0.96 (m, 15H).
[261] [262] Example 13 [263] (R)-2-Cyclopentylmethyl-N 1 -
{ (S)-2,2-dimethyl- 1 - [4-(4-trifluoromethyl-benzoylamino)-piperidine- 1 -carbonyl] -prop yl}-N -hydroxy-succinamide
[264]
Figure imgf000026_0002
[265] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- tert-butyl ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-trifluoromethyl-benzamide hydrochloride I-i (R =terf-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure IV. [266] 1H-NMR(CDCl ): δ 7.82-7.91 (m, 2H), 7.66 (d, 2H), 4.85-4.94 (m, IH), 4.50-4.67
(m, IH), 4.11-4.23 (m, 2H), 3.16-3.29 (m, IH), 2.64-2.89 (m, 2H), 2.34-2.43 (m, 2H),
2.05 (m, 3H), 1.26-1.67 (m, 10H), 0.97 (m, HH).
[267] [268] Example 14 [269] (R)-N 1-{(S)-l-[4-(4-Cyano-benzoylamino)-piperidine-l-carbonyl] - 2,2-dimethyl-propyl}-2-cyclopentylmethyl-N -hydroxy-succinamide
[270]
Figure imgf000027_0001
[271] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- tert-butyl ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-cyano-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CΝ) according to General procedure IV.
[272] 1H-NMR(CDCl ): δ 7.61-7.70 (m, 2H), 7.20 (d, 2H), 4.82-4.94 (m, IH), 4.57 (dd, IH), 4.11-4.22 (m, 2H), 3.15-3.33 (m, IH), 2.64-2.88 (m, 2H), 2.38 (m, 2H), 1.28-2.18 (m, 13H), 0.97 (m, HH).
[273] [274] Example 15 [275] (R)-2-Cyclopentylmethyl-N 1 -
{(S)-l-[4-(4-fluoro-benzoylamino)-piperidine-l-carbonyl]-2,2-dimethyl-propyl}-N - hydroxy-succinamide
[276]
Figure imgf000027_0002
[277] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- terf-butyl ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-benzamide hydrochloride I-i (R =tørt-butyl, n=0, R =R =R =R =H, R =F) according to General procedure IV.
[278] 1H-NMR(CDCl ): δ 7.78 (m, 2H), 7.04-7.10 (m, 2H), 4.86-4.89 (m, IH), 4.48-4.66 (m, IH), 4.11-4.18 (m, 2H), 3.18-3.23 (m, IH), 2.64-2.92 (m, 2H), 2.05-2.44 (m, 4H), 1.26-1.68 (m, HH), 0.96 (m, 11H).
[279] [280] Example 16 [281] (R)-2-Butyl-N - { (S)- 1 - [4-(4-fluoro-benzoylamino)-piperidine- 1 -carbonyl] - 2,2-dimethyl-propyl}-N4-hydroxy-succinamide [282]
Figure imgf000028_0001
[283] The title compound was prepared from (R)-2-butyl-succinic acid 4-tert-butyl ester rV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-fluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =F)
J V 3 J ' ' 5 6 8 9 7 ' according to General procedure IV.
[284] 1H-NMR(DMSO^6): δ 7.91 (m, 2H), 7.26 (dt, 2H), 4.78 (t, IH), 4.37 (m, IH), 4.10 (m, 2H), 3.15 (t, IH), 2.74 (m, 2H), 2.02-2.14 (m, 2H), 1.83 (br s, 2H), 1.16-1.38 (m, 8H), 0.77-0.95 (m, 12H).
[285] [286] Example 17 [287] (R)-N 1-{(S)-l-[4-(4-Fluoro-benzoylamino)-piperidine-l-carbonyl] - 2,2-dimethyl-propyl}-N4-hydroxy-2-isobutyl-succinamide
[288]
Figure imgf000028_0002
[289] The title compound was prepared from (R)-2-isobutyl-succinic acid 4-fe/t-butyl ester IV-a (R =wo-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-fluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =F) according to General procedure IV.
[290] 1H-NMR(DMSO^6): δ 7.91 (m, 2H), 7.26 (t, 2H), 4.78 (t, IH), 4.37 (m, IH), 4.11 (m, 2H), 3.14 (t, IH), 2.70-2.84 (m, 2H), 1.97-2.13 (m, 2H), 1.83 (br s, 2H), 1.39 (m, 4H), 1.09 (m, IH), 0.77-0.95 (m, 15H).
[291] [292] Example 18 [293] (R)-2-Butyl-N l -
{(S)-2,2-dimethyl-l-[4-(4-methyl-benzoylamino)-piperidine-l-carbonyl]-propyl}-N - hydroxy-succinamide
[294] [295]
Figure imgf000029_0001
[296] The title compound was prepared from (R)-2-butyl-succmic acid 4-tert-butyl ester rV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-methyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CH ) according to General procedure IV.
[297] 1H-NMR(CD3OD): δ 7.72 (t, 2H), 7.25 (d, 2H), 4.89-4.94 (m, IH), 4.54 (dd, IH), 4.08-4.26 (m, 2H), 3.21-3.31 (m, IH), 2.74-2.86 (m, 2H), 2.37 (s, 3H), 2.17-2.41 (m, 2H), 2.01 (t, 2H), 1.21-1.64 (m, 8H), 0.86-1.04 (m, 12H).
[298] [299] Example 19 [300] (R)-2-Butyl-N 4-hydroxy-N l -
{(S)-l-[4-(4-methoxy-benzoylamino)-piperidine-l-carbonyl]-2,2-dimethyl-propyl}-suc cinamide
[301]
Figure imgf000029_0002
[302] The title compound was prepared from (R)-2-butyl-succinic acid 4-fert-butyl ester rV-a (R =n-butyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-methoxy-benzamide hydrochloride I-i (R =terf-butyl, n=0, R =R =R =R =H, R
3 5 6 8 9 7
=OCH ) according to General procedure IV.
[303] 1H-NMR(CD3OD): δ 7.79 (t, 2H), 6.96 (d, 2H), 4.88-4.94 (m, IH), 4.53 (dd, IH), 4.08-4.26 (m, 2H), 3.83 (s, 3H), 3.21-3.31 (m, IH), 2.74-2.86 (m, 2H), 2.19-2.40 (m, 2H), 2.01 (t, 2H), 1.21-1.63 (m, 8H), 0.86-1.04 (m, 12H).
[304] [305] Example 20 [306] (R)-2-Cyclopentylmethyl-N 1 -
{(S)-2,2-dimethyl-l-[4-(4-methyl-benzoylamino)-piperidine-l-carbonyl]-propyl}-N ■ hydroxy-succinamide [307]
Figure imgf000030_0001
[308] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- terf-butyl ester IV-a (R = cyclopentylmethyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-methyl-benzamide hydrochloride I-i (R =tert-bυXy\, n=0, R =R =R =R =H, R =CH ) according to General
3 5 6 8 9 7 3 procedure IV. [309] 'H-ΝMRφMSO-d^: δ 7.74 (t, 2H), 7.23 (d, 2H), 4.80 (t, IH), 4.29-4.42 (m, 2H),
4.00-4.10 (m, 2H), 3.13 (t, IH), 2.68-2.80 (m, 2H), 2.33 (s, 3H), 1.97-2.12 (m, 2H),
1.08-1.81 (m, 13H), 0.93 (d, HH). [310] [311] Example 21
[312] (R)-2-Cyclopentylmethyl-N4-hydroxy-N ' -
{(S)-l-[4-(4-methoxy-benzoylamino)-piperidine-l-carbonyl]-2,2-dimethyl-propyl}-suc cinamide
[313]
Figure imgf000030_0002
[314] The title compound was prepared from (R)-2-cyclopentylmethyl-succinic acid A- terf-butyl ester IV-a (R =cyclopentylmethyl) and N -
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-methoxy-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =OCH ) according to General
3 ^ 5 6 8 9 7 3 a procedure IV.
[315] 'H-ΝMRφMSO-dp: δ 7.81 (dd, 2H), 6.96 (dd, 2H), 4.80 (t, IH), 4.29-4.42 (m, IH), 4.00-4.10 (m, 2H), 3.78 (s, 3H), 3.13 (t, IH), 2.67-2.80 (m, 2H), 1.97-2.12 (m, 2H), 1.13-1.81 (m, 13H), 0.93 (d, HH, J=11.5 Hz).
[316] [317] Example 22 [318] N-[l-((S)-2-{(R)-2-[(Formyl-hydroxy-amino)-methyl] -hex- anoylamino}-3,3-dimethyl-butyryl)-piperidin-4-yl]-benzamide
[319]
Figure imgf000031_0001
[320] The title compound was prepared from (R)-2-[(benzyloxy-formyl-amino)-methyl] - hexanoic acid V-a (R =«-butyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-benzamide hydrochloride I-i (R =terf-butyl, n=0, R =R =R =R =R =H) according to General procedure V.
[321] 1H-NMR(CDCl3): δ 8.35 (s, 0.3H), 7.75-7.82 (m, 2.7H), 7.40-7.52 (m, 3H), 4.84-4.96 (m, IH), 4.59 (dd, IH), 3.96-4.28 (m, 2H), 3.53-3.80 (m, 2H), 3.17-3.26 (m, IH), 2.70-2.87 (m, 2H), 2.05-2.10 (m, 2H), 1.32-1.59 (m, 8H), 0.85-1.00 (m, 12H).
[322] [323] Example 23 [324] 4-Bromo-N-[l-((S)-2-{(R)-2-[(formyl-hydroxy-amino)-methyl]-hexanoylamino}-3, 3-dimethyl-butyryl)-piperidin-4-yl]-benzamide
[325]
Figure imgf000031_0002
[326] The title compound was prepared from (R)-2-[(benzyloxy-formyl-amino)-methyl] - hexanoic acid V-a (R =«-butyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-bromo-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =Br) according to General
3 5 6 8 9 7 procedure V.
[327] 1H-NMR(CDCl3): δ 7.75-7.82 (m, 2H), 7.41-7.51 (m, 2H), 4.89-4.96 (m, IH), 4.62 (dd, IH), 4.21 (m, 2H), 3.46-3.73 (m, IH), 3.11-3.30 (m, 2H), 2.59-2.85 (m, 2H), 2.05-2.11 (m, 2H), 1.29-1.58 (m, 8H), 0.85-1.01 (m, 12H).
[328] [329] Example 24 [330] (R)-2- [(Formyl-hydroxy-amino)-methyl] -hexanoic acid [(S)-2,2-dimethyl-l-(4-phenylacetylamino-piperidine-l-carbonyl)-propyl]-amide
[331]
Figure imgf000032_0001
[332] The title compound was prepared from (R)-2-[(benzyloxy-formyl-amino)-methyl] - hexanoic acid V-a (R =«-butyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-2-phenyl-acetamide hydrochloride I-i (R =tert-butyl, n=l, R =R =R =R =R =H) according to General procedure V.
[333] 1H-NMR(CDCl ): δ 8.25 (s, 0.3H), 7.77 (s, 0.7H), 7.22-7.36 (m, 5H), 4.88 (d, IH), 4.44 (dd, IH), 4.04 (m, 2H), 3.45-3.75 (m, 4H), 3.08-3.17 (m, IH), 2.62-2.80 (m, 2H), 1.93 (m, 2H), 1.25-1.55 (m, 8H), 0.79-0.96 (m, 12H).
[334] [335] Example 25 [336] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl}-piperidin-4-yl)-benzamide
[337]
Figure imgf000032_0002
[338] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =R =H) according to
3 5 6 7 8 9
General procedure V.
[339] 1H-NMR(DMSO^6): δ 8.22 (s, 0.3H), 7.75-7.86 (m, 2.7H), 7.44-7.51 (m, 3H), 4.86 (t, IH), 4.28-4.44 (m, IH), 3.99-4.13 (m, 2H), 3.54-3.67 (m, IH), 3.12-3.43 (m, 2H), 2.67-2.92 (m, 2H), 1.15-2.50 (m, 13H), 0.90-0.94 (m, HH).
[340] [341] Example 26 [342] 4-Bromo-N-(l-{(S)-2-[(R)-2-cyclopentylmethyl-3-(formyl-hydroxy-amino)-propion ylamino]-3,3-dimethyl-butyryl}-piperidin-4-yl)-benzamide [343]
Figure imgf000033_0001
[344] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-bromo-benzamide hydrochloride I-i (R =tert-buty\, n=0, R =R =R =R =H, R =Br)
3 5 6 8 9 7 according to General procedure V.
[345] 1H-NMR(CDCl3): δ 7.77 (d, 2H), 7.40-7.53 (m, 2H), 4.70 (br s, IH), 4.43 (m, IH), 4.08-4.27 (m, 2H), 3.80 (m, IH), 2.74-3.16 (m, 2H), 2.04-2.18 (m, 4H), 1.43-1.75 (m, 1 IH), 0.94-1.07 (m, HH).
[346] [347] Example 27 [348] (R)-2-Cyclopentylmethyl-N-[(S)-2,2-dimethyl-l-(4-phenylacetylamino-piperidine-l -carbonyl)-propyl]-3-(formyl-hydroxy-amino)-propionamide
[349]
Figure imgf000033_0002
[350] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 2-phenyl-acetamide hydrochloride I-i (R =tert-butyl, n=l, R =R =R =R =R =H) according to General procedure V.
[351] 1H-NMR(CDCl3): δ 8.25 (s, 0.4H), 7.77 (s, 0.6H), 7.21-7.37 (m, 5H), 4.78-4.89 (m, IH), 4.30-4.56 (m, IH), 4.02 (m, 2H), 3.71-3.79 (m, IH), 3.50-3.57 (m, 4H), 3.12 (m, IH), 2.60-2.81 (m, 2H), 1.43-1.79 (m, HH), 0.92-1.06 (m, HH).
[352] [353] Example 28 [354] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl}-piperidin-4-yl)-4-trifluoromethyl-benzamide [355]
Figure imgf000034_0001
[356] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-trifluoromethyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure V.
[357] 1H-NMR(CDCl ): δ 8.32 (s, 0.3H), 7.86-7.93 (m, 2H), 7.78 (s, 0.7H), 7.68 (d, 2H), 4.82-4.93 (m, IH), 4.61-4.65 (m, IH), 3.98-4.31 (m, 3H), 3.58-3.73 (m, IH), 3.21-3.25 (m, IH), 2.63-2.90 (m, 2H), 2.04-2.18 (m, 3H), 1.26-1.82 (m, 10H), 0.97-1.11 (m, HH).
[358] [359] Example 29 [360] 4-Cyano-N-( 1 - { (S)-2- [(R)-2-cyclopentylmethyl-3-(formyl-hydroxy-amino)-propion ylamino]-3,3-dimethyl-butyryl}-piperidin-4-yl)-benzamide
[361]
Figure imgf000034_0002
[362] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-cyano-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CΝ)
3 5 6 8 9 7 according to General procedure V.
[363] 1H-NMR(CDCl3): δ 8.35 (s, 0.3H), 7.80 (s, 0.7H), 7.64-7.73 (m, 2H), 7.21-7.27 (m, 2H), 4.83-4.96 (m, IH), 4.61 (dd, IH), 4.16 (m, 3H), 3.54-3.74 (m, IH), 3.21 (m, IH), 2.64-2.87 (m, 2H), 1.26-2.06 (m, 13H), 0.96-1.10 (m, HH).
[364] [365] Example 30 [366] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl]-piperidin-4-yl)-4-fluoro-benzamide
[367]
Figure imgf000035_0001
[368] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-fluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =F) according to General procedure V.
[369] 1H-NMR(CDCl3): δ 8.33 (s, 0.3H), 7.79-7.82 (m, 2.7H), 7.07-7.12 (m, 2H), 4.82-4.96 (m, IH), 4.61-4.65 (m, IH), 4.00-4.15 (m, 3H), 3.57-3.81 (m, IH), 3.16-3.25 (m, IH), 2.64-2.87 (m, 2H), 1.24-2.18 (m, 13H), 0.97-1.11 (m, 11H).
[370] [371] Example 31 [372] N-[l-((S)-2-{(R)-2-[(Formyl-hydroxy-amino)-methyl] - 4-methyl-pentanoylamino}-3,3-dimethyl-butyryl)-piperidin-4-yl]-benzamide
[373]
Figure imgf000035_0002
[374] The title compound was prepared from (R)-2-[(Benzyloxy-formyl-amino)-methyl] -
4-methyl-pentanoic acid V-a (R =ώø-butyl) and N -
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-benzamide hydrochloride I-i (R =terf-butyl, n=0, R =R =R =R =R =H) according to General procedure V.
[375] 1H-NMR(DMSO^6): δ 8.21 (s, 0.3H), 7.81-7.84 (m, 2H), 7.74 (s, 0.7H), 7.41-7.50
(m, 3H), 4.83 (m, IH), 4.34 (dd, IH), 4.11 (m, 2H), 3.54-3.61 (m, IH), 3.11-3.19 (m, 2H), 2.60-3.00 (m, 2H), 1.81-1.86 (m, 2H), 1.24-1.41 (m, 4H), 1.10 (m, IH), 0.82-0.93 (m, 15H).
[376] [377] Example 32 [378] N-[l-((S)-2-{(R)-2-[(Formyl-hydroxy-amino)-methyl] - 4-methyl-pentanoylamino}-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-trifluoromethyl-be nzamide [379]
Figure imgf000036_0001
[380] The title compound was prepared from (R)-2-[(Benzyloxy-formyl-amino)-methyl] -
4-methyl-pentanoic acid V-a (R =ώø-butyl) and N -
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-trifluoromethyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure V. [381] 'H-ΝMRφMSO-d ): δ 8.21 (s, 0.4H), 8.02 (dd, 2H), 7.83 (d, 2H), 7.74 (s, 0.6H),
4.83 (t, IH), 4.35 (dd, IH), 4.12 (m, 2H), 3.54-3.61 (m, IH), 3.12-3.32 (m, 2H),
2.60-3.00 (m, 2H), 1.84-1.98 (m, 2H), 1.00-1.44 (m, 5H), 0.78-0.93 (m, 15H). [382]
[383] Example 33
[384] 4-Cyano-N-[l-((S)-2-{(R)-2-[(formyl-hydroxy-amino)-methyl]-4-methyl-pentanoyl amino } -3 , 3-dimethyl-butyryl)-piperidin-4-yl]-benzamide [385]
Figure imgf000036_0002
[386] The title compound was prepared from (R)-2-[(Benzyloxy-formyl-amino)-methyl] -
4-methyl-pentanoic acid V-a (R =ώo-butyl) and N -
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-cyano-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CΝ) according to General
3 5 6 8 9 7 procedure V.
[387] 1H-NMR(DMSO^6): δ 8.21 (s, 0.2H), 7.74 (s, 0.8H), 7.74-8.00 (m, 5H), 4.82 (t,
IH), 4.35 (dd, IH), 4.11 (m, 2H), 3.53-3.69 (m, IH), 3.16-3.36 (m, 2H), 2.60-3.00 (m, 2H), 1.83-1.93 (m, 2H), 1.06-1.41 (m, 5H), 0.78-0.92 (m, 15H).
[388]
[389] Example 34 [390] 4-Fluoro-N-[l-((S)-2-{(R)-2-[(formyl-hydroxy-amino)-methyl]-hexanoylamino}-3, 3-dimethyl-butyryl)-piperidin-4-yl]-benzamide [391]
Figure imgf000037_0001
[392] The title compound was prepared from (R)-2-[(benzyloxy-formyl-amino)-methyl] - hexanoic acid V-a (R =«-butyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =F) according to General procedure V.
[393] 1H-NMR(DMSO^6): δ 8.21 (s, 0.3H), 7.88-7.93 (m, 2H), 7.75 (s, 0.7H), 7.27 (dt, 2H ), 4.83 (t, IH), 4.38 (m, IH), 4.00-4.13 (m, 2H), 3.49-3.58 (m, IH), 3.11-3.33 (m, 2H), 2.71-3.00 (m, 2H), 1.83 (m, 2H), 1.18 (m, 8H), 0.81-0.93 (m, 12H).
[394] [395] Example 35 [396] 4-Fluoro-N-[l-((S)-2-{(R)-2-[(formyl-hydroxy-amino)-methyl]-4-methyl-pentanoyl amino } -3 , 3-dimethyl-butyryl)-piperidin-4-yl]-benzamide
[397]
Figure imgf000037_0002
[398] The title compound was prepared from (R)-2-[(Benzyloxy-formyl-amino)-methyl] - 4-methyl-pentanoic acid V-a (R =ώo-butyl) and N -
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-fluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =F) according to General
3 5 6 8 9 7 procedure V.
[399] 1H-NMR(DMSO^6): δ 8.21 (s, 0.3H), 7.88-7.92 (m, 2H), 7.74 (s, 0.7H), 7.27 (dt, 2H), 4.82 (t, IH), 4.33 (dd, IH), 4.01-4.12 (m, 2H), 3.54-3.61 (m, IH), 3.15-3.36 (m, 2H), 2.70-3.00 (m, 2H), 1.82-1.94 (m, 2H), 1.41 (m, 4H), 1.08-1.19 (m, IH), 0.81-0.93 (m, 15H).
[400] [401] Example 36
[402] N-[l-((S)-2-{(R)-2-[(Formyl-hydroxy-amino)-methyl] -hex- anoylamino}-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-methyl-benzamide [403]
Figure imgf000038_0001
[404] The title compound was prepared from (R)-2-[(benzyloxy-formyl-amino)-methyl] - hexanoic acid V-a (R =«-butyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-methyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CH ) according to General
3 5 6 8 9 7 3 procedure V.
[405] 'H-ΝMRφMSO-d ): δ 8.21 (s, 0.3H), 7.76 (s, 0.7H), 7.74 (dd, 2H), 7.24 (dd, 2H),
4.83 (t, IH), 4.31-4.42 (m, IH), 3.98-4.15 (m, 2H), 3.49-3.63 (m, IH), 3.10-3.33 (m, 2H), 2.66-2.90 (m, 2H), 2.33 (s, 3H), 1.82-1.85 (m, 2H), 1.14-1.38 (m, 8H), 0.81-0.93 (m, 12H).
[406] [407] Example 37 [408] N-[l-((S)-2-{(R)-2-[(Formyl-hydroxy-amino)-methyl] -hex- anoylamino}-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-methoxy-benzamide
[409]
Figure imgf000038_0002
[410] The title compound was prepared from (R)-2-[(benzyloxy-formyl-amino)-methyl] - hexanoic acid V-a (R =n-butyl) and N-
[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-4-methoxy-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =OCH ) according to General
3 5 6 8 9 7 3 procedure V.
[411] 1H-NMR(DMSCMT): δ 8.21 (s, 0.3H), 7.81 (dd, 2H), 7.75 (s, 0.7H), 6.96 (dd, 2H), 4.83 (t, IH), 4.31-4.42 (m, IH), 3.98-4.11 (m, 2H), 3.49-3.58 (m, IH), 3.33 (s, 3H), 3.10-3.37 (m, 2H), 2.66-2.88 (m, 2H), 1.81-1.85 (m, 2H), 1.14-1.38 (m, 8H), 0.81-0.93 (m, 12H).
[412] [413] Example 38 [414] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl}-piperidin-4-yl)-4-methyl-benzamide
[415]
Figure imgf000039_0001
[416] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-methyl-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =R =H, R =CH ) according to General procedure V.
[417] 1H-NMR(DMSCMI ): δ 8.21 (s, 0.4H), 7.74 (s, 0.6H), 7.71-7.76 (m, 2H), 7.24 (dd, 2H), 4.85 (t, IH), 4.35 (dd, IH), 3.98-4.12 (m, 2H), 3.53-3.66 (m, IH), 3.10-3.43 (m, 2H), 2.65-2.91 (m, 2H), 2.33 (s, 3H), 1.14-1.85 (m, 13H), 0.89-0.92 (m, HH).
[418] [419] Example 39 [420] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl}-piperidin-4-yl)-4-methoxy-benzamide
[421]
Figure imgf000039_0002
[422] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-methoxy-benzamide hydrochloride I-i (R =tert-buty\, n=0, R =R =R =R =H, R =OCH ) according to General procedure V.
[423] 'H-ΝMRφMSO-d ): δ 8.21 (s, 0.4H), 7.74 (s, 0.6H), 7.81 (dd, 2H), 6.96 (dd, 2H),
6 4.85 (t, IH), 4.35 (dd, IH), 3.98-4.12 (m, 2H), 3.79 (s, 3H), 3.57 (m, IH), 3.09-3.33 (m, 2H), 2.65-3.00 (m, 2H), 1.14-1.85 (m, 13H), 0.89-0.93 (m, HH).
[424]
[425] Example 40
[426] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino
]-3-phenyl-propionyl}-piperidin-4-yl)-4-fluoro-benzamide
[427]
Figure imgf000040_0001
[428] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3-phenyl-propionyl)-piperidin-4-yl] - 4-fluoro-benzamide hydrochloride I-i (R =benzyl, n=0, R =R =R =R =H, R =F)
3 5 6 8 9 7 according to General procedure V.
[429] 1H-NMR(CDCl3): δ 8.33 (s, 0.3H), 7.79-7.82 (m, 2.7H), 7.35-6.95 (m, 7H), 4.82-4.96 (m, IH), 4.61-4.65 (m, IH), 4.00-4.15 (m, 3H), 3.57-3.81 (m, IH), 3.16-3.25 (m, IH), 3.11-2.91(m, 2H), 2.64-2.87 (m, 2H), 1.24-2.18 (m, 13H), 0.97-1.11 (m, 2H).
[430] [431] Example 41 [432] 4-Cyano-N-( 1 - { (S)-2- [(R)-2-cyclopentylmethyl-3-(formyl-hydroxy-amino)-propion ylamino]-3-methyl-butyryl}-piperidin-4-yl)-benzamide
[433]
Figure imgf000040_0002
[434] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3-methyl-butyryl)-piperidin-4-yl] - 4-cyano-benzamide hydrochloride I-i (R =i_?σ-propyl, n=0, R =R =R =R =H, R =CΝ)
3 5 6 8 9 7 according to General procedure V.
[435] 1H-NMR(CDCl3): δ 8.35 (s, 0.3H), 7.80 (s, 0.7H), 7.64-7.73 (m, 2H), 7.21-7.27 (m, 2H), 4.83-4.96 (m, IH), 4.61 (dd, IH), 4.16 (m, 3H), 3.54-3.74 (m, IH), 3.21 (m, IH), 2.64-2.87 (m, 2H), 1.26-2.06 (m, 13H), 0.96-1.10 (m, 8H).
[436] [437] Example 42 [438] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ] -2-phenyl-acetyl } -piperidin-4-yl)-4-trifluoromethyl-benzamide
[439]
Figure imgf000041_0001
[440] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-2-phenyl-acetyl)-piperidin-4-yl] - 4-trifluoromethyl-benzamide hydrochloride I-i (R =phenyl, n=0, R =R =R =R =H, R =CF ) according to General procedure V.
[441] 1H-NMR(CDCl3): δ 8.32 (s, 0.3H), 7.86-7.93 (m, 2H), 7.78 (s, 0.7H), 7.68 (d, 2H), 4.82-4.93 (m, IH), 4.61-4.65 (m, IH), 3.98-4.31 (m, 3H), 3.58-3.73 (m, IH), 3.21-3.25 (m, IH), 2.63-2.90 (m, 2H), 2.04-2.18 (m, 3H), 1.26-1.82 (m, 10H), 0.97-1.11 (m, 2H).
[442] [443] Example 43 [444] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl}-piperidin-4-yl)-2,4-difluoro-benzamide
[445]
Figure imgf000041_0002
[446] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 2,4-difluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =R =H, R =R =F)
3 6 8 9 5 7 according to General procedure V.
[447] 1H-NMR(CDCl3): δ 8.33 (s, 0.3H), 7.81-7.92 (m, 1.7H), 6.99-7.12 (m, 2H), 4.82-4.96 (m, IH), 4.61-4.65 (m, IH), 4.00-4.15 (m, 3H), 3.57-3.81 (m, IH), 3.16-3.25 (m, IH), 2.64-2.87 (m, 2H), 1.24-2.18 (m, 13H), 0.97-1.11 (m, HH).
[448]
[449] Example 44
[450] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino
]-3,3-dimethyl-butyryl}-piperidin-4-yl)-2,4,5-trifluoro-benzamide
[451]
Figure imgf000042_0001
[452] The title compound was prepared from
(R)-3-(Benzyloxy-foimyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 2,4,5-trifluoro-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =H, R =R =R =F) according to General procedure V.
[453] 1H-NMR(CDCl3): δ 8.32 (s, 0.3H), 7.85 (s, 0.7H), 7.69-7.80 (m, IH), 6.98-7.12 (m, IH), 4.82-4.96 (m, IH), 4.61-4.65 (m, IH), 4.00-4.15 (m, 3H), 3.57-3.81 (m, IH), 3.16-3.25 (m, IH), 2.64-2.87 (m, 2H), 1.24-2.18 (m, 13H), 0.97-1.11 (m, HH).
[454] [455] Example 45 [456] N-(l-{(S)-2-[(R)-2-Cyclopentylmethyl-3-(formyl-hydroxy-amino)-propionylamino ]-3,3-dimethyl-butyryl}-piperidin-4-yl)-3,4,5-trimethoxy-benzamide
[457]
Figure imgf000042_0002
[458] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 3,4,5-trimethoxy-benzamide hydrochloride I-i (R =tert-butyl, n=0, R =R =H, R =R =R =OCH ) according to General procedure V. [459] 1H-NMR(CDCl3): δ 8.21 (s, 0.4H), 7.74 (s, 0.6H), 7.11-6.96 (dd, 2H), 4.84 (t, IH),
4.35 (dd, IH), 3.99-4.11 (m, 2H), 3.78 (s, 3H), 3.57 (m, IH), 3.08-3.33 (m, 2H), 2.64-3.00 (m, 2H), 1.14-1.85 (m, 13H), 0.89-0.93 (m, HH).
[460]
[461] Example 46
[462] (R)-2-Cyclopentylmethyl-N-((S)- 1 - { 4- [3-(4-fluoro-phenyl)-ureido]-piperidine- 1-car bonyl } -2,2-dimethyl-propyl)-3-(formyl-hydroxy-amino)-propionamide
[463]
Figure imgf000043_0001
[464] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and l-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 3-(4-fluoro-phenyl)-urea hydrochloride II-e (R =tert-butyl, n=0, R =R =R =R =H, R
3 5 6 8 9 7
=F) according to General procedure V. [465] 1H-NMR(CDCl ): δ 8.31 (s, 0.3H), 7.79-7.81 (m, 2.7H), 7.06-7.12 (m, 2H),
4.82-4.94 (m, IH), 4.60-4.65 (m, IH), 4.00-4.14 (m, 3H), 3.56-3.81 (m, IH), 3.15-3.25
(m, IH), 2.64-2.87 (m, 2H), 1.23-2.18 (m, 13H), 0.97-1.10 (m, HH). [466]
[467] Example 47
[468] (R)-2-Cyclopentylmethyl-N- { (S)-2,2-dimethyl- 1 -[4-(3-p-tolyl-ureido)-piperidine- 1 - carbonyl]-propyl}-3-(formyl-hydroxy-arnino)-propionamide [469]
Figure imgf000043_0002
[470] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and l-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl]-3-/J - toyl-urea hydrochloride II-e (R =tert-buty\, n=0, R =R =R =R =H, R =CH ) according
3 5 6 8 9 7 3 to General procedure V.
[471] 11HH--NNMMRR((CCDDCCll33)):: δδ S 8.20 (s, 0.4H), 7.73 (s, 0.6H), 7.70-7.75 (m, 2H), 7.24 (dd, 2H), 4.85 (t, IH), 4.34 (dd, IH), 3.96-4.11 (m, 2H), 3.53-3.66 (m, IH), 3.11-3.43 (m, 2H), 2.66-2.91 (m, 2H), 2.32 (s, 3H), 1.14-1.84 (m, 13H), 0.89-0.91 (m, HH). [472]
[473] Example 48
[474] (R)-2-Cyclopentylmethyl-N-((S)-2,2-dimethyl-l-{4-[3-(4-trifluoromethyl-phenyl)-u reido]-piperidine-l-carbonyl}-propyl)-3-(foπnyl-hydroxy-amino)-propionamide [475]
Figure imgf000044_0001
[476] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and l-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 3-(4-trifluoromethyl-phenyl)-urea hydrochloride II-e (R =tert-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure V.
[477] 1H-NMR(CDCl3): δ 8.30 (s, 0.3H), 7.88-7.93 (m, 2H), 7.76 (s, 0.7H), 7.62 (d, 2H), 4.81-4.93 (m, IH), 4.60-4.64 (m, IH), 3.99-4.31 (m, 3H), 3.56-3.73 (m, IH), 3.20-3.25 (m, IH), 2.62-2.90 (m, 2H), 2.03-2.17 (m, 3H), 1.25-1.82 (m, 10H), 0.95-1.11 (m, HH).
[478] [479] Example 49 [480] (R)-2-Cyclopentylmethyl-N- { (S)- 1 - [4-(2,4-difluoro-benzenesulfonylamino)-piperid ine- 1 -carbonyl]-2,2-dimethyl-propyl } -3-(formyl-hydroxy-amino)-propionamide
[481]
Figure imgf000044_0002
[482] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 2,4-difluoro-benzenesulfonamide hydrochloride IH-e (R =tert-buty\, n=0, R =R =R
3 6 8 9
=H, R =R =F) according to General procedure V.
[483] 1H-NMR(CDCl3): δ 8.31 (s, 0.3H), 7.80-7.94 (m, 1.7H), 6.99-7.10 (m, 2H), 4.83-4.95 (m, IH), 4.60-4.63 (m, IH), 3.99-4.14 (m, 3H), 3.56-3.81 (m, IH), 3.15-3.25 (m, IH), 2.63-2.87 (m, 2H), 1.23-2.18 (m, 13H), 0.96-1.10 (m, HH). [484]
[485] Example 50
[486] (R)-2-Cyclopentylmethyl-N-{(S)-2,2-dimethyl-l-[4-(4-trifluoromethyl-benzenesulf onylamino)-piperidine- 1 -carbonyl] -propyl } -3-(foimyl-hydroxy-amino)-propionamide [487]
Figure imgf000045_0001
[488] The title compound was prepared from
(R)-3-(Benzyloxy-foπnyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-trifluoromethyl-benzenesulfonamide hydrochloride IH-e (R =tert-butyl, n=0, R =R =R =R =H, R =CF ) according to General procedure V.
[489] 1H-NMR(CDCl3): δ 8.34 (s, 0.3H), 7.84-7.91 (m, 2H), 7.77 (s, 0.7H), 7.67 (d, 2H),
4.83-4.93 (m, IH), 4.59-4.65 (m, IH), 3.96-4.31 (m, 3H), 3.57-3.70 (m, IH), 3.20-3.25 (m, IH), 2.61-2.89 (m, 2H), 2.02-2.18 (m, 3H), 1.24-1.82 (m, 10H), 0.99-1.12 (m, HH).
[490]
[491] Example 51
[492] (R)-2-Cyclopentylmethyl-N-{(S)-2,2-dimethyl-l-[4-(toluene-4-sulfonylamino)-pipe ridine- 1 -carbonyl]-propyl } -3-(formyl-hydroxy-amino)-propionamide
[493]
Figure imgf000045_0002
[494] The title compound was prepared from
(R)-3-(Benzyloxy-formyl-amino)-2-cyclopentylmethyl-propionic acid V-a (R =cyclopentylmethyl) and N-[l-((S)-2-amino-3,3-dimethyl-butyryl)-piperidin-4-yl] - 4-methyl-benzenesulfonamide hydrochloride IH-e (R =tert-buty\, n=0, R =R =R =R =H, R =CH ) according to General procedure V.
[495] 1H-NMR(CDCl3): δ 8.19 (s, 0.4H), 7.73 (s, 0.6H), 7.69-7.77 (m, 2H), 7.21 (dd, 2H), 4.81 (t, IH), 4.31 (dd, IH), 3.88-4.10 (m, 2H), 3.52-3.65 (m, IH), 3.11-3.43 (m, 2H), 2.64-2.91 (m, 2H), 2.31 (s, 3H), 1.11-1.83 (m, 13H), 0.88-0.91 (m, HH).
[496]
[497]
[498] The present invention relates to antibacterial composition comprising a therapeutically effective amount of the compound of formula (I) or a pharmaceutically acceptable salt thereof and a pharmaceutically acceptable carrier. The compounds of this invention may be used to treat a subject to treat, prevent, and/or reduce the severity of an infection.
[499]
[500] The present compounds are useful for the treatment of bacterial infection.
Therefore, the pharmaceutical compositions of this invention may be administered in standard manner for the disease condition that it is desired to treat, for example by oral, rectal or parenteral administration. For these purposes the compounds of this invention may be formulated by means known in the art in to the form of, for example, tablets, capsules, aqueous or oily solutions or suspensions, (lipid) emulsions, dispersible powders, suppositories, ointments, creams, aerosols (or sprays), drops and sterile injectable aqueous or oily solutions or suspensions.
[501]
[502] Compounds of formula (I) and their pharmaceutically acceptable salts which are active when given orally can be formulated as syrups, tablets, capsules, creams and lozenges.
[503] Tablets and capsules for oral administration may be in unit dose presentation form, and may contain conventional excipients, disintegrants or glydents. For example, they may be syrup, gelatin, sorbitol, lactose, sugar, maize-starch, calcium phosphate, tabletting lubricant, magnesium stearate, polyethylene glycol, potato starch or sodium lauryl sulfate, and, if desired, conventional flavoring or coloring agent.
[504] Typical parenteral compositions consist of a solution or suspension of a compound or salt in a sterile aqueous or non-aqueous carrier optionally containing a parenterally acceptably oil, for example polyethylene glycol, polyvinylpyrrolidone, lecithin, arachis oil or sesame oil.
[505] Each dosage unit for oral administration contains preferably from 1 mg to 100 mg/
Kg, and each dosage unit for parenteral administration contains suitably from 0.1 mg to 100 mg/Kg, of a compound of formula (I) or a pharmaceutically acceptable salt thereof calculated as the free acid.
[506]
[507] The compounds of this invention, e.g. of formula (I) or a pharmaceutically acceptable salt thereof, may be administered alone or in combination with another therapeutic agent. Examples of such therapeutic agents include, but are not limited to, penicillins, cephalosporins, carbapenems, fluoroquinolones, clarithromycin, vancomycin, rifamycins, monobactams, licosamides, fosfomycin, glycopeptides, tetracyclines, streptogramins, chloramphenicol, oxazolidinone, corticosteroids, NSAID, narcotic or non-narcotic analgesics.
[508] [509] Experimental Example [510] [511] 1. Formulation examples [512] [513] The following are representative pharmaceutical formulations containing a compound of formula (I).
[514] [515] Example 1. Tablet formulation [516] The following ingredients are mixed and compressed into tablets using suitable punches.
[517] Table 1
Figure imgf000047_0001
[518] Example 2. Capsule formulation [519] The following ingredients are mixed and filled into hard gelatin capsules of a suitable size.
[520] Table 2
Figure imgf000047_0002
[521] Example 3. Injectable formulation [522] The following ingredients are mixed and filled into ampoules of a suitable size. [523] Table 3
Figure imgf000048_0001
[524] [525] 2. Test for antibacterial activity [526] Minimum inhibitory concentrations (MICs) were determined using the mi- crodilution method in 96- well format plates. Each of the compounds of Examples was dissolved in dimethyl sulfoxide to a concentration of 2 mg/mL and stored at 4°C until used. They were diluted in Mueller-Hinton Broth (MHB) and used for MIC determination. The range of concentrations tested was 64-0.00625 μg/mL final concentration using a two-fold dilution system. Plates were incubated at 37°C and MIC were recorded after 24 hours of incubation for bacteria. MIC was defined as the lowest concentration of compound that does not produce visible growth after incubation.
[527] Linezolid and vancomycin were used as standard antibiotics, respectively. [528] [529] Results for some of the compounds of the Examples are reported in Table 4. [530] Table 4
Figure imgf000048_0002
Figure imgf000049_0001
[531] [532] 3. Acute toxicity [533] To demonstrate the usefulness of the compounds of this invention as medicaments we have performed acute toxicity study in mice.
[534] The acute toxicity of the compounds of Example 7, 13, 18 and 47 were tested using several groups of ICR mice each of 6 mice. 4,000 mg/kg dose of the medicament was each orally injected into each group of mice, and weight change and death were observed for 14 days after the injection.
[535] [536] The LD values obtained in mice for the compounds of this invention are summarized in Table 5.
[537] Table 5
Figure imgf000049_0002
[538] animal: ICR mice (ά*, 4 weeks) Industrial Applicability [539] The compounds of this invention, e.g. of formula (I) or a pharmaceutically acceptable salt thereof have low toxicity and are antibacterially active against gram- positive organisms, in particular also against those microorganisms which are resistant to various antibiotics. Thus, the compounds of this invention are useful as antibacterial agents for infection with resistant bacteria.

Claims

Claims
[1] A compound of formula (I) or a pharmaceutically acceptable salts thereof:
Figure imgf000050_0001
wherein, A is selected from the group of consisting of -C(=O)NHOH or -
N(CHO)OH;
R represents hydrogen, C alkyl, C cycloalkyl, halogen or hydroxy group;
R represents hydrogen, straight or branched C alkyl, straight or branched C
1-6 1-6 alkenyl, C cycloalkyl, C heterocycle including nitrogen or oxygen, or benzyl
4-6 4-6 group;
R represents hydrogen, methyl, straight or branched C alkyl, straight or
3 1-6 branched C alkenyl, C cycloalkyl, phenyl or benzyl group;
1-6 4-6
R represents hydrogen, straight or branched C alkyl, C alkenyl, hydroxy
1-4 1-4 substituted C cycloalkyl group; and
4-6
Y represents a group of formula (Ha), or (lib), or (Ec):
Figure imgf000050_0002
wherein, n is independently 0 or 1 ; each of R , R , R , R and R is independently hydrogen, straight or branched C
5 6 7 8 9 1-3 alkyl, hydroxy, alkoxy, acyl, acyloxy, halogen (fluoro, chloro, bromo and iodo) cyano, nitro, amono, N,N-dimethylamino, phenyl, morpholinyl, or formyl group.
[2] The compound of formula (I) according to claim 1, wherein A is -C(=0)ΝH0H, R is hydrogen, R is isø-butyl, n-butyl, n-pentyl, benzyl or cyclopentylmethyl, R is tert-butyl, wø-propyl, phenyl or benzyl, R is hydrogen, n is O or 1, and R , R
3 4 5 6
, R , R and R is independently hydrogen, methyl, fluoro, chloro, bromo, triflu-
7 8 9 oromethyl, methoxy, nitro, cyano or amino; or a pharmaceutically acceptable salts thereof.
[3] The compound of formula (I) according to claim 1, wherein A is -N(CHO)OH, R is hydrogen, R is isø-butyl, n-butyl, n-pentyl, benzyl or cyclopentylmethyl, R is tert-butyl, wø-propyl, phenyl or benzyl, R is hydrogen, n is O or 1, and R , R ,
4 5 6
R , R and R is independently hydrogen, methyl, fluoro, chloro, bromo, triflu-
7 8 9 oromethyl, methoxy, nitro, cyano or amino; or a pharmaceutically acceptable salts thereof.
[4] A process for preparing a compound of formula (I) or a pharmaceutically acceptable salt thereof, which comprises reacting a compound of formula (IH) with hydroxylamine or an N- and/or O-protected hydroxylamine, and thereafter removing any N- or 0-protecting groups:
Figure imgf000051_0001
wherein, R , R , R , R and Y are the same as defined in claim 1.
1 2 3 4
[5] The method for preparing a compound of formula (EI) according to claim 4 which process comprises reacting a compound of formula (IV) with a compound of formula (Va) (or Vb, or Vc) or salt thereof:
Figure imgf000051_0002
. U
Figure imgf000051_0003
wherein, R , R , R , R , R , R , R , R , R and n are the same as defined in claim 1
1 2 3 4 5 6 7 8 9 and R is a hydroxy protecting group, such as methyl, ethyl, tert-buty\ and benzyl.
[6] A process for preparing a compound of formula (I) or a pharmaceutically acceptable salt thereof, which comprises reacting a compound of formula (VI) with a compound of formula (Va) (or Vb, or Vc) or salt thereof, and thereafter removing any N- or 0-protecting groups:
Figure imgf000052_0001
Figure imgf000052_0002
wherein, R, R, R, R, R, R, R, R, R and n are the same as defined in claim 1
1 2 3 4 5 6 7 8 9 and R is a hydroxy protecting group, such as tert-butyl and benzyl.
10
[7] An antibacterial composition comprising a therapeutically effective amount of the compound of formula (I) according to claim 1 or a pharmaceutically acceptable salt thereof.
PCT/KR2006/001500 2005-04-25 2006-04-21 A novel hydroxamic acid derivative as peptide deformylase inhibitor and manufacturing method thereof Ceased WO2006115353A1 (en)

Priority Applications (3)

Application Number Priority Date Filing Date Title
JP2008507555A JP2008543732A (en) 2005-04-25 2006-04-21 Novel hydroxamic acid derivatives as peptide deformylase inhibitors and methods for their preparation
US11/667,048 US20080234333A1 (en) 2005-04-25 2006-04-21 Novel Hydroxamic Acid Derivative as Peptide Deformylase Inhibitor and Manufacturing Method Thereof
EP06747409A EP1915342A1 (en) 2005-04-25 2006-04-21 A novel hydroxamic acid derivative as peptide deformylase inhibitor and manufacturing method thereof

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
KR1020050034057A KR100648133B1 (en) 2005-04-25 2005-04-25 Novel Hydroxamic Acid Derivatives as Peptide Deformillase Inhibitors and Methods for Preparing the Same
KR10-2005-0034057 2005-04-25

Publications (2)

Publication Number Publication Date
WO2006115353A1 true WO2006115353A1 (en) 2006-11-02
WO2006115353A9 WO2006115353A9 (en) 2007-03-22

Family

ID=37214954

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/KR2006/001500 Ceased WO2006115353A1 (en) 2005-04-25 2006-04-21 A novel hydroxamic acid derivative as peptide deformylase inhibitor and manufacturing method thereof

Country Status (5)

Country Link
US (1) US20080234333A1 (en)
EP (1) EP1915342A1 (en)
JP (1) JP2008543732A (en)
KR (1) KR100648133B1 (en)
WO (1) WO2006115353A1 (en)

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2008051873A3 (en) * 2006-10-20 2008-06-19 Arete Therapeutics Inc Phenylurea compounds as soluble epoxide hydrolase inhibitors
JP2011516399A (en) * 2007-06-07 2011-05-26 イルドン ファーマシューティカル カンパニー リミテッド Novel peptide deformylase-inhibiting compound and method for producing the same
WO2016003929A1 (en) 2014-07-01 2016-01-07 Rempex Pharmaceuticals, Inc. Boronic acid derivatives and therapeutic uses thereof
WO2018188641A1 (en) 2017-04-14 2018-10-18 江苏恒瑞医药股份有限公司 Pharmaceutical composition containing mor agonist and kor agonist, and uses thereof

Families Citing this family (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR100838937B1 (en) * 2006-12-08 2008-06-16 일동제약주식회사 Novel En-formylhydroxylamine Compounds as Peptide Deformillase Inhibitors and Methods for Producing the Same
WO2013109033A1 (en) 2012-01-18 2013-07-25 (주)엘지화학 Latex composition for dip-forming
KR101447641B1 (en) 2012-08-31 2014-10-13 일동제약주식회사 Novel peptide deformylase inhibitor compounds and a method for producing the same
US11174288B2 (en) 2016-12-06 2021-11-16 Northeastern University Heparin-binding cationic peptide self-assembling peptide amphiphiles useful against drug-resistant bacteria

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO1999039704A1 (en) * 1998-02-07 1999-08-12 British Biotech Pharmaceuticals Limited Antibacterial agents
WO2000044373A1 (en) * 1999-01-29 2000-08-03 British Biotech Pharmaceuticals Limited Antibacterial hydroxamic acid derivatives
WO2000061134A1 (en) * 1999-04-09 2000-10-19 British Biotech Pharmaceuticals Limited Antimicrobial agents
WO2001010834A2 (en) * 1999-08-10 2001-02-15 British Biotech Pharmaceuticals Limited Antibacterial agents

Family Cites Families (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US6225311B1 (en) * 1999-01-27 2001-05-01 American Cyanamid Company Acetylenic α-amino acid-based sulfonamide hydroxamic acid tace inhibitors

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO1999039704A1 (en) * 1998-02-07 1999-08-12 British Biotech Pharmaceuticals Limited Antibacterial agents
WO2000044373A1 (en) * 1999-01-29 2000-08-03 British Biotech Pharmaceuticals Limited Antibacterial hydroxamic acid derivatives
WO2000061134A1 (en) * 1999-04-09 2000-10-19 British Biotech Pharmaceuticals Limited Antimicrobial agents
WO2001010834A2 (en) * 1999-08-10 2001-02-15 British Biotech Pharmaceuticals Limited Antibacterial agents

Cited By (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2008051873A3 (en) * 2006-10-20 2008-06-19 Arete Therapeutics Inc Phenylurea compounds as soluble epoxide hydrolase inhibitors
JP2011516399A (en) * 2007-06-07 2011-05-26 イルドン ファーマシューティカル カンパニー リミテッド Novel peptide deformylase-inhibiting compound and method for producing the same
EP2164829A4 (en) * 2007-06-07 2011-07-27 Ildong Pharmaceutical Co Ltd A new peptide deformylase inhibitor compound and manufacturing process thereof
WO2016003929A1 (en) 2014-07-01 2016-01-07 Rempex Pharmaceuticals, Inc. Boronic acid derivatives and therapeutic uses thereof
WO2018188641A1 (en) 2017-04-14 2018-10-18 江苏恒瑞医药股份有限公司 Pharmaceutical composition containing mor agonist and kor agonist, and uses thereof

Also Published As

Publication number Publication date
KR100648133B1 (en) 2006-11-23
EP1915342A1 (en) 2008-04-30
JP2008543732A (en) 2008-12-04
WO2006115353A9 (en) 2007-03-22
KR20060111744A (en) 2006-10-30
US20080234333A1 (en) 2008-09-25

Similar Documents

Publication Publication Date Title
US7786122B2 (en) α-(N-sulfonamido)acetamide derivatives as β-amyloid inhibitors
US6638931B1 (en) Aminoguanidines and alkoxyguanidines as protease inhibitors
US7166590B2 (en) Amino acid derivatives
SK145894A3 (en) Vinegar acid derivatives, method of their production, pharmaceutical agents on their base and their using
EP0783490A1 (en) 1-acyl-4-aliphatylaminopiperidine compounds
AU696380B2 (en) Selective thrombin inhibitors
CZ34693A3 (en) Sulfonamidocarboxamides,process of their preparation and pharmaceutical preparation based thereon
JPH06502866A (en) Retroviral protease inhibitors
JP2009167215A (en) New diarylalkene derivative and new diarylalkane derivative
RU2359959C2 (en) New aryl amidine derivative, its salt and antifungal preparation containing such compositions
WO2006115353A1 (en) A novel hydroxamic acid derivative as peptide deformylase inhibitor and manufacturing method thereof
JP5430559B2 (en) Novel peptide deformylase-inhibiting compound and method for producing the same
EP0934292B1 (en) Metalloproteinase inhibitors
AU776171B2 (en) Alpha-amino-beta-sulfonyl hydroxamic acid compounds
IE62022B1 (en) Cyclic azaaliphatic compounds, processes for their preparation and pharmaceutical compositions containing them
JP2003522723A (en) Metalloproteinase inhibitor
MXPA06014632A (en) Novel arylamidine derivative, salt thereof, and antifungal containing these
SK14893A3 (en) Process for preparing sulfoamidocarboxamides and their pharmaceutical compositions
HK1067963B (en) Alpha-(n-sulphonamido)acetamide derivatives as beta-amyloid inhibitors

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application
ENP Entry into the national phase

Ref document number: 2008507555

Country of ref document: JP

Kind code of ref document: A

NENP Non-entry into the national phase

Ref country code: DE

WWE Wipo information: entry into national phase

Ref document number: 11667048

Country of ref document: US

WWE Wipo information: entry into national phase

Ref document number: 2006747409

Country of ref document: EP

NENP Non-entry into the national phase

Ref country code: RU
