Process for the preparation of a 2-pyridylethylcarboxamide derivative Download PDF

Info

Publication number
WO2006067103A2
WO2006067103A2 PCT/EP2005/056895 EP2005056895W WO2006067103A2 WO 2006067103 A2 WO2006067103 A2 WO 2006067103A2 EP 2005056895 W EP2005056895 W EP 2005056895W WO 2006067103 A2 WO2006067103 A2 WO 2006067103A2
Authority
WO
WIPO (PCT)
Prior art keywords
group
halogen atoms
alkyl
derivative
process according
Prior art date
Application number
PCT/EP2005/056895
Other languages
French (fr)
Other versions
WO2006067103A3 (en
Inventor
Frédéric LHERMITTE
Pierre-Yves Coqueron
Philippe Desbordes
Thomas Himmler
Original Assignee
Bayer Cropscience Sa
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority to MX2007007105A priority Critical patent/MX2007007105A/en
Priority to CN2005800435765A priority patent/CN101080391B/en
Priority to DK05823830.4T priority patent/DK1831169T3/en
Priority to BRPI0516905A priority patent/BRPI0516905B1/en
Application filed by Bayer Cropscience Sa filed Critical Bayer Cropscience Sa
Priority to EP05823830A priority patent/EP1831169B1/en
Priority to AT05823830T priority patent/ATE553083T1/en
Priority to ES05823830T priority patent/ES2383903T3/en
Priority to US11/793,561 priority patent/US7790901B2/en
Priority to JP2007547473A priority patent/JP4869251B2/en
Priority to KR1020077016637A priority patent/KR101312816B1/en
Publication of WO2006067103A2 publication Critical patent/WO2006067103A2/en
Publication of WO2006067103A3 publication Critical patent/WO2006067103A3/en
Priority to IL183662A priority patent/IL183662A/en
Priority to US12/847,152 priority patent/US8865908B2/en
Priority to IL217962A priority patent/IL217962A/en

Links

Classifications

    • CCHEMISTRY; METALLURGY
    • C07ORGANIC CHEMISTRY
    • C07DHETEROCYCLIC COMPOUNDS
    • C07D213/00Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members
    • C07D213/02Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members having three double bonds between ring members or between ring members and non-ring members
    • C07D213/04Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members having three double bonds between ring members or between ring members and non-ring members having no bond between the ring nitrogen atom and a non-ring member or having only hydrogen or carbon atoms directly attached to the ring nitrogen atom
    • C07D213/24Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members having three double bonds between ring members or between ring members and non-ring members having no bond between the ring nitrogen atom and a non-ring member or having only hydrogen or carbon atoms directly attached to the ring nitrogen atom with substituted hydrocarbon radicals attached to ring carbon atoms
    • C07D213/54Radicals substituted by carbon atoms having three bonds to hetero atoms with at the most one bond to halogen, e.g. ester or nitrile radicals
    • C07D213/56Amides
    • CCHEMISTRY; METALLURGY
    • C07ORGANIC CHEMISTRY
    • C07CACYCLIC OR CARBOCYCLIC COMPOUNDS
    • C07C233/00Carboxylic acid amides
    • C07C233/64Carboxylic acid amides having carbon atoms of carboxamide groups bound to carbon atoms of six-membered aromatic rings
    • C07C233/67Carboxylic acid amides having carbon atoms of carboxamide groups bound to carbon atoms of six-membered aromatic rings having the nitrogen atom of at least one of the carboxamide groups bound to a carbon atom of a hydrocarbon radical substituted by singly-bound oxygen atoms
    • C07C233/68Carboxylic acid amides having carbon atoms of carboxamide groups bound to carbon atoms of six-membered aromatic rings having the nitrogen atom of at least one of the carboxamide groups bound to a carbon atom of a hydrocarbon radical substituted by singly-bound oxygen atoms with the substituted hydrocarbon radical bound to the nitrogen atom of the carboxamide group by an acyclic carbon atom
    • C07C233/69Carboxylic acid amides having carbon atoms of carboxamide groups bound to carbon atoms of six-membered aromatic rings having the nitrogen atom of at least one of the carboxamide groups bound to a carbon atom of a hydrocarbon radical substituted by singly-bound oxygen atoms with the substituted hydrocarbon radical bound to the nitrogen atom of the carboxamide group by an acyclic carbon atom of an acyclic saturated carbon skeleton
    • CCHEMISTRY; METALLURGY
    • C07ORGANIC CHEMISTRY
    • C07DHETEROCYCLIC COMPOUNDS
    • C07D213/00Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members
    • C07D213/02Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members having three double bonds between ring members or between ring members and non-ring members
    • C07D213/04Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members having three double bonds between ring members or between ring members and non-ring members having no bond between the ring nitrogen atom and a non-ring member or having only hydrogen or carbon atoms directly attached to the ring nitrogen atom
    • C07D213/60Heterocyclic compounds containing six-membered rings, not condensed with other rings, with one nitrogen atom as the only ring hetero atom and three or more double bonds between ring members or between ring members and non-ring members having three double bonds between ring members or between ring members and non-ring members having no bond between the ring nitrogen atom and a non-ring member or having only hydrogen or carbon atoms directly attached to the ring nitrogen atom with hetero atoms or with carbon atoms having three bonds to hetero atoms with at the most one bond to halogen, e.g. ester or nitrile radicals, directly attached to ring carbon atoms
    • C07D213/61Halogen atoms or nitro radicals

Definitions

  • the present invention relates to a novel process for the preparation of N- [2- (2-pyridinyl)ethyl]carboxamide derivative which is useful as pesticide compound, starting with a halogenobenzoyl derivative to produce a N- acetoxymethylcarboxamide derivative and then coupling it with a 2-pyridyl acetate derivative.
  • Patent application WO 2004/016088 discloses the preparation of N-[2-(2- pyridinyl)ethyl]benzamide derivatives starting from 2-halogenopyridine derivatives to produce 2-ethylaminopyridine derivatives and then coupling these 2- ethylaminopyridine derivatives with a halogenobenzoyl derivative.
  • the present invention relates to a process for the preparation of a N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) or a salt thereof
  • - p is an integer equal to 1, 2, 3 or 4;
  • - X is the same or different and is a hydrogen atom, a halogen atom, a nitro group, a cyano group, a hydroxy group, an amino group, a sulfanyl group, a pentafluoro- ⁇ 6 -sulfanyl group, a formyl group, a formyloxy group, a formylamino group, a carboxy group, a carbamoyl group, a N-hydroxycarbamoyl group, a carbamate group, a group, a Ci-Cs-alkyl, a C 1 -C 8 - halogenoalkyl having 1 to 5 halogen atoms, a C 2 -C 8 -alkenyl, a C 2 -C 8 -alkynyl, a Ci-Cs-alkylamino, a (Ii-C 1 -C 8 -alkylamino, a Ci-Cs-alkoxy
  • R 1 is a hydrogen atom, a Ci-Cs-alkyl, a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms or a Ci-Cs-alkoxycarbonyl;
  • R 2 is a hydrogen atom or a cyclopropyl group
  • - A represents a phenyl group or a 5-, 6- or 7-membered non-fused heterocycle with one, two or three heteroatoms which may be the same or different, the heterocycle being linked by a carbon atom; each of this group being optionally substituted by one or more substituents chosen independently of each other as being a halogen atom, a nitro group, a cyano group, a hydroxy group, an amino group, a sulfanyl group, a pentafluoro- ⁇ 6 -sulfanyl group, a formyl group, a formyloxy group, a formylamino group, a carboxy group, a Ci-Cs-alkyl, a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms, a C 2 -C 8 -alkenyl, a C 2 -C 8 -alkynyl, a Ci-C 8 -alkylamino, a
  • - A and R 2 are as defined above; and - Hal represents a halogen atom; comprising the reaction of a halogenobenzoyl derivative with aqueous R 2 NH 2 , in a
  • R 1 , R 2 and A are as defined above; comprising the reaction of a carboxamide derivative obtained in step one with an aldehyde group in an aldehyde group / carboxamide derivative molar ratio of from 1 to 10, in a polar solvent, at a temperature of from 20°C to reflux, to provide a N- hydroxymethylcarboxamide derivative;
  • - Ac represents an acetyl group; comprising the reaction of a N-hydroxymethylcarboxamide derivative obtained in step two with acetic anhydride (Ac 2 O) or acetyl chloride (AcCl) in a Ac 2 O or AcCl / N-hydroxymethylcarboxamide derivative molar ratio of from 1 to 10, in an organic solvent, in the presence of a mineral or organic base, to provide a N- acetoxymethylcarboxamide derivative ; (D)- a fourth step according to reaction scheme 4 :
  • R 3 represents a hydrogen atom or CO 2 AIk
  • - AIk represents a Q-Cs-alkyl group; comprising the reaction of a N-acetoxymethylcarboxamide derivative obtained in step three with a 2-pyridyl acetate derivative in a N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio of from 1 to 5, in an organic solvent, in the presence of a base; to provide a 2-pyridylethylcarboxamide derivative;
  • halogen atom may be a bromine atom, a chlorine atom, a iodine atom or a fluorine atom.
  • halogen atom means chlorine atom
  • an alkyl group, an alkenyl group, and an alkynyl group as well as moieties containing these terms, can be linear or branched;
  • a compound used in "catalytic quantity" means that a compound is used in an amount of 0,01 to 0,2 molar equivalent, preferably from 0,01 to 0,1 molar equivalent of the respective reagent or intermediate compound.
  • the 2-pyridyl moiety may be substituted in any position by (X) p , in which X and p are as defined above.
  • the present invention relates to the preparation of N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) in which the different characteristics may be chosen alone or in combination as being :
  • p is 1, 2 or 3.
  • p is 2.
  • X is chosen, independently of the others, as being a halogen atom, a Ci-Cs-alkyl or a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms. More preferably, X is chosen, independently of the others, as being chlorine or CF 3 ; - as regards the positions in which the 2-pyridyl moiety is substituted by X, the 2- pyridyl moiety is substituted by X in 3- and/or in 5-position. Preferably, the 2- pryridyl moiety is substituted by X in 3- and 5-position.
  • the "ethylamide" part of the compound of formula (I) is substituted by R 1 and R 2 , R 1 and R 2 being as defined above.
  • the present invention relates to the preparation of N-[2-(2-pyridinyl)ethyl]benzamide derivative of general formula (I) in which the different characteristics may be chosen alone or in combination as being : - as regards R 1 , R 1 is a hydrogen atom, a methyl group, CF 3 , CHF 2 , CClF 2 or CCl 3 . More preferably, R 1 is a hydrogen atom;
  • R 2 is a hydrogen atom.
  • A may represent a five membered ring non-iused heterocycle.
  • Specific examples of compounds prepared according to the process of the present invention where A is a five membered heterocycle include compound of general formula (I) wherein : * A represents a heterocycle of the general formula (A-I)
  • R 3 and R 4 may be the same or different and may be a hydrogen atom, a halogen atom, an amino group, a nitro group, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms; and
  • R 5 may be a halogen atom, a nitro group, a Ci-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A-2)
  • - R 6 may be a hydrogen atom, a halogen atom , a Ci-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms;
  • R 7 and R 8 may be the same or different and may be a hydrogen atom, a halogen atom, an amino group, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A-3)
  • - R 9 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms; and - R 10 may be a hydrogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having
  • A represents a heterocycle of the general formula (A-4)
  • (A-4) in which : - R , 11 and ⁇ T R, 12 may be the same or different and may be a hydrogen atom, a halogen atom, a Ci-C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkylthio, a C 1 -C 4 -alkylsulphonyl, a phenyl optionally substituted by a halogen atom or a Ci-C 4 -alkyl or a pyridyl otpionally substituted by a halogen atom or a C 1 - C 4 -alkyl; and - R 13 may be a halogen atom, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms or a C
  • A represents a heterocycle of the general formula (A-5)
  • R 14 and R 15 may be the same or different and may be a hydrogen atom, a halogen atom, a Ci-C 4 -alkyl, a Ci-C 4 -alkyloxy or a C 1 -C 4 -halogenoalkyl having 1 to
  • R 16 may be a hydrogen atom, a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A-6)
  • R 17 may be a hydrogen atom, a halogen atom, a cyano group, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms;
  • R 18 and R 20 may be the same or different and may be a hydrogen atom, a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms; and
  • R 19 may be a hydrogen atom, a cyano group, a Ci-C 4 -alkyl, a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy-C 1 -C 4 -alkyl, a hydroxy- C 1 -C 4 -alkyl, a C 1 -C 4 -alkylsulphonyl, a di(C 1 -C 4 -alkyl)aminosulphonyl, a C 1 -C 6 - alkylcarbonyl, a phenylsulphonyl optionally substituted by a halogen atom or a C 1 - C 4 -alkyl, or a benzoyl optionally substituted by a halogen atom or a C 1 -C 4 -alkyl.
  • A represents a heterocycle of the general formula (A-7)
  • - R ,21 may be a hydrogen atom, a cyano group, a Ci-C 4 -alkyl, a Ci-C 4 - halogenoalkyl having 1 to 5 halogen atoms, a Ci-C 4 -alkoxy-Ci-C 4 -alkyl, a hydroxy- Ci-C 4 -alkyl, a C 1 -C 4 -alkylsulphonyl, a (Ii(C 1 -C 4 -alkyl)aminosulphonyl, a C 1 -C 6 - alkylcarbonyl, a phenylsulphonyl optionally substituted by a halogen atom or a C 1 - C 4 -alkyl, or a benzoyl optionally substituted by a halogen atom or a Ci-C 4 -alkyl; and - R 22 , R 23 and R 24 may be the same or different and may be a
  • A represents a heterocycle of the general formula (A- 8)
  • - R 25 may be a hydrogen atom or a Ci-C 4 -alkyl; and - R 26 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having
  • A represents a heterocycle of the general formula (A-9)
  • - R 27 may be a hydrogen atom or a Ci-C 4 -alkyl
  • - R 28 may be a halogen atom, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms or a phenyl optionally substituted by a halogen atom or a C 1 -C 4 - alkyl.
  • A represents a heterocycle of the general formula (A- 10)
  • R 29 may be a hydrogen atom, a naiogen atom, an amino group, a cyano group, a C 1 -C 4 -alkylamino, a di-(C 1 -C 4 -alkyl)amino, a C 1 -C 4 -alkyl, a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms or a phenyl optionally substituted by a halogen atom or a Ci-C 4 -alkyl; and
  • R 30 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A-11)
  • - R 31 may be a hydrogen atom, a halogen atom, an amino group, a cyano group, a C 1 -C 4 -alkylamino, a di-(C 1 -C 4 -alkyl)amino, a Ci-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms; and -R 32 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A- 12)
  • R 33 may be a halogen atom, a cyano group, a nitro group, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 3 -C 6 -cycloalkyl, a C 1 -C 4 - alkoxy, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms, a C 1 -C 4 -alkylthio, a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms, an aminocarbonyl group or an aminocarbonyl-Ci -C 4 -alkyl;
  • R 34 may be a hydrogen atom, a halogen atom, a cyano group, a nitro group, a C 1 -C 4 -alkyl, a Ci-C 4 -alkoxy or a Ci-C 4 -alkylthio;
  • R 35 may be a hydrogen atom, a phenyl, a C 1 -C 4 -alkyl, a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms, a hydroxy-C 1 -C 4 -alkyl, a C 2 -C 6 -alkenyl, a C 3 -C 6 -cycloalkyl, a C 1 -C 4 -alky ItMo-C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkylthio-C 1 -C 4 - alkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy-C 1 -C 4 -alkyl or a C 1 -C 4 - halogenoalkoxy-C 1 -C 4 -alkyl having 1 to 5 halogen atoms.

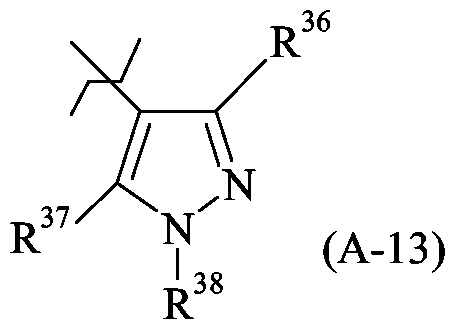

  • * A represents a heterocycle of the general
  • R 36 may be a hydrogen atom, a halogen atom, a cyano group, a nitro group, a Ci-C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 3 -C 6 - cycloalkyl, a C 1 -C 4 -alkoxy, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms, a C 1 -C 4 -alkylthio, a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms, an aminocarbonyl or an aminocarbonyl-C 1 -C 4 -alkyl;
  • R 37 may be a hydrogen atom, a halogen atom, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -alkoxy, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms or a C 1 -C 4 - alkylthio; and
  • R 38 may be a hydrogen atom, a Ci-C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a hydroxy-C 1 -C 4 -alkyl, a C 2 -C 6 -alkenyl, a C 3 -C 6 -Cy cloalkyl, a C 1 -C 4 -alkylthio-C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkylthio-C 1 -C 4 -alkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy-C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkoxy-C 1 -C 4 -alkyl having 1 to 5 halogen atoms or a phenyl optionally substituted by a halogen atom,
  • A represents a heterocycle of the general formula (A- 14)
  • : -R 39 may be a hydrogen atom, a halogen atom, a cyano group, a nitro group, a
  • C 1 -C 4 -alkyl a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 3 -C 6 -cycloalkyl, a Ci-C 4 -alkoxy, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms, a C 1 -C 4 - alkylthio, a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms, an aminocarbonyl, or an aminocarbonyl-C 1 -C 4 -alkyl; - R 40 may be a hydrogen atom, a halogen atom, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -alkoxy, a Ci-C 4 -alkylthio or a C 1 -C 4 -halogenoalky having 1 to 5 halogen
  • R 41 may be a hydrogen atom, a phenyl, a benzyl, a Ci-C 4 -alkyl, a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms, a hydroxy-C 1 -C 4 -alkyl, a C 2 -C 6 -alkenyl, a C 3 -C 6 -cycloalkyl, a C 1 -C 4 -alky ItMo-C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkylthio-C 1 -C 4 - alkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy-C 1 -C 4 -alkyl, a C 1 -C 4 - halogenoalkoxy-C 1 -C 4 -alkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A- 15)
  • R 42 may be a hydrogen atom, a halogen atom, a C-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms;
  • R 43 may be a halogen atom, a C-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A- 16)
  • R 44 and R 45 may be the same or different and may be a hydrogen atom, a halogen atom, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a phenyl optionally substituted by a halogen atom or a C 1 -C 4 -alkyl, or a heterocyclyl optionally substituted by a halogen atom or a C 1 -C 4 -alkyl.
  • A represents a heterocycle of the general formula (A- 17)
  • R 46 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, and
  • R 47 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A- 18)
  • R 48 may oe a ⁇ ai ⁇ gen ai ⁇ i ⁇ , a C 1 -C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A- 19)
  • R 49 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms;
  • R 50 may be a hydrogen atom, a Ci-C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, or a phenyl optionally substituted by a halogen atom or a C 1 -C 4 - alkyl.
  • A represents a heterocycle of the general formula (A-20)
  • R 51 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms.
  • A may also represent a six membered ring non- fused heterocycle.
  • Specific examples of compounds prepared according to the process of the present invention where A is a six membered heterocycle include : * A represents a heterocycle of the general formula (A-21)
  • - R >52 may be a halogen atom, a hydroxy group, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy, a C 1 -C 4 - alkylthio, a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms or a C 1 -C 4 - halogenoalkoxy having 1 to 5 halogen atoms;
  • R 53 , R 54 and R 55 which may be the same or different, may be a hydrogen atom, a halogen atom, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy, a C 1 -C 4 -alkylthio, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms, a C 1 -C 4 -alkylsulphinyl or a C 1 -C 4 -alkylsulphonyl.
  • A represents a heterocycle of the general formula (A-22)
  • - R >56 may be a hydrogen atom, a halogen atom, a hydroxy group, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 - alkoxy, a Ci-Cs-alkylthio, a C2-C 5 -alkenylthio a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms, a phenyloxy optionally substituted by a halogen atom or a Ci-C 4 -alkyl, or a phenylthio optionally substituted by a halogen atom or a Ci-C 4 -alkyl;
  • R 57 , R 58 and R 59 which may the same or different, may be a hydrogen atom, a halogen atom, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy, a C 1 -C 4 -alkylthio, a C 1 -C 4 -halogenoalkoxy having 1 to 5 halogen atoms, a C 1 -C 4 -alkylsulphinyl, a C 1 -C 4 -alkylsulphonyl or a N- morpholine optionally substituted by a halogen atom or a Ci-C 4 -alkyl, or a thienyl optionally substituted by a halogen atom or a C 1 -C 4 -alkyl.
  • A represents a heterocycle of the general formula (A-23)
  • R 60 , R 61 , R 62 and R 63 which may be the same or different, may be a hydrogen atom, a halogen atom, a hydroxy group, a cyano group, a C 1 -C 4 - alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy, a C 1 -C 4 - alkylthio, a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms, a C 1 -C 4 - halogenoalkoxy having 1 to 5 halogen atoms, a C 1 -C 4 -alkylsulphinyl or a C 1 -C 4 - alkylsulphonyl.
  • A represents a heterocycle of the general formula (A-24)
  • - R 64 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms;
  • - R 65 may be a hydrogen atom, a Ci-C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a Ci-Ce-alkoxycarbonyl, a benzyl optionally substituted by 1 to 3 halogen atoms, a benzyloxycarbonyl optionally substituted by 1 to 3 halogen atoms or a heterocyclyl.
  • A represents a heterocycle of the general formula (A-25)
  • - R 66 may be a halogen atom, a hydroxy group, a cyano group, a C 1 -C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms, a C 1 -C 4 -alkoxy, a C 1 -C 4 - alkylthio, a C 1 -C 4 -halogenoalkylthio having 1 to 5 halogen atoms or a C 1 -C 4 - halogenoalkoxy having 1 to 5 halogen atoms;
  • R 67 may be a hydrogen atom, a Ci-C 4 -alkyl, a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms or a benzyl.
  • A represents a heterocycle of the general formula (A-26)
  • - X 1 may be a sulphur atom, -SO-, -SO 2 - or -CH 2 -;
  • - R 68 may be a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms;
  • R 69 and R 70 may be the same or different and may be a hydrogen atom or a C 1 -C 4 -alkyl.
  • A represents a heterocycle of the general formula (A-27)
  • R 71 may be a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms;
  • A represents a heterocycle of the general formula (A-28)
  • (A"28) - R 72 may be a Ci-C 4 -alkyl or a C 1 -C 4 -halogenoalkyl having 1 to 5 halogen atoms.
  • A represents a heterocycle of the general formula (A-29)
  • R 73 may be a halogen atom, a Ci-C 4 -alkyl or a C 1 -C 4 - halogenoalkyl having 1 to 5 halogen atoms.
  • A may also represent an optionally substituted phenyl group.
  • the present invention relates to the preparation of N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) in which A is a phenyl group and in which the different characteristics may be chosen alone or in combination as being : - A is substituted by 1 or 2 substituents. More preferably, A is substituted by 1 substituent.
  • each substituent is chosen, independently of the others, as being a hydrogen atom, a halogen atom, a Ci-C 8 -alkyl or a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms. More preferably each substituent is chosen, independently of the others, as being chlorine or CF 3 ;
  • the process of the present invention is particularly suitable for the preparation of : - N- ⁇ 2-[3-chloro-5-(trifluoromethyl)-2-pyridinyl]ethyl ⁇ -2-trifluoromethylbenzamide;
  • the first step (step A) of the process according to the present invention comprises the reaction of a halogenobenzoyl derivative with aqueous R 2 NH 2 , in a
  • Step A does not necessarily require the use of a solvent.
  • step A is conducted in the presence of a solvent.
  • the solvent is chosen as being a mixture of water and of an organic solvent.
  • Suitable organic solvent includes tetrahydroiuran (THF) or toluene.
  • Step A does not necessarily require specific temperature conditions.
  • step A is conducted at a temperature of from 0°C to reflux. More preferably, step A is conducted at a temperature of from 20°C to reflux. Even more preferably step A is conducted at a temperature of from 60°C to reflux.
  • step B comprises the reaction of a carboxamide derivative obtained in step A with an aldehyde group in an aldehyde group / carboxamide derivative molar ratio of from 1 to 10, in a polar solvent, at a temperature of from 20°C to reflux, to provide a N- hydroxymethylcarboxamide derivative.
  • step B may be conducted in the following conditions, chosen alone or in combination :
  • the acyl group / carboxamide derivative molar ratio is of from 1 to 5;
  • the polar solvent is chosen as being water or an alcohol;
  • Step B is not necessarily conducted in the presence of a base.
  • step B is conducted in the presence of a mineral base in catalytic quantity.
  • the mineral base is chosen as being K 2 CO 3 , Na 2 CO 3 or KOH.
  • step C comprises the reaction of a N-hydoxymethylcarboxamide derivative obtained in step B with Ac 2 O or AcCl in a Ac 2 O or AcCl / N-hydoxymethylcarboxamide derivative molar ratio of from 1 to 10, in an organic solvent, in the presence of a mineral or organic base, to provide a N-acetoxymethylcarboxamide derivative.
  • step C may be conducted in the following conditions, chosen alone or in combination :
  • the reaction is conducted with Ac 2 O;
  • the mineral base is chosen as being Na 2 CO 3 , Li 2 CO 3 , K 2 CO 3 , LiOAc, NaOAc or KOAc. More preferably, the mineral base is chosen as being Na 2 CO 3 or NaOAc;
  • the organic base is chosen as being NEt 3 or N,N-dimethylaminopyridine, diazabicyclooctane (DABCO). More preferably, the organic base is chosen as being N,N-dimethylaminopyridine, diazabicyclooctane (DABCO); - Ac 2 O or AcCl is introduced in stoechiometric quantity; - the base is introduced in stoechiometric quantity or in catalytic quantity. More preferably, the base is introduced in catalytic quantity.
  • Step C does not necessarily require specific temperature condition.
  • step C is conducted at a temperature of from 0°C to 50°C, more preferably at a temperature of from 5°C to 35°C, even more preferably at room temperature.
  • step D comprises the reaction of a N-acetoxymethylcarboxamide derivative obtained in step C with a 2-pyridyl acetate derivative in a N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio of from 1 to 5, in an organic solvent, in the presence of a base, to provide a 2-pyridylethylcarboxamide derivative.
  • step D may be conducted in the following conditions, chosen alone or in combination : - the N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio is of 1;
  • the base is chosen as being a alkaline earth metal base, a alkali metal hydride base, a hydroxide base, an amide base, an alcoholate base, an acetate base, a carbonate base, a hydrogen carbonate base or a tertiary amine base.
  • the base is chosen as being hydrogen carbonate base which includes sodium hydride, sodium amide, lithium diisoproylamide, sodium methanolate, sodium ethanolate, potassium tert-butanolate, sodium acetate, potassium acetate, calcium acetate, sodium hydroxide, potassium hydroxide, sodium carbonate, potassium carbonate, potassium bicarbonate, sodium bicarbonate, ammonium carbonate, trimethylamine, triethylamine, tributyl-amine, N,N-dimethyl-aniline, N,N-di-methyl-benzylamine pyridine, N-methylpiperidine, N-methyl-morpholine, N,N-dimethylaminopyridine, diazabicyclooctane (DABCO), diazabicyclononene (DBN) or diazabicycloundecene (DBU).
  • the base is chosen as being sodium hydride, sodium hydroxide, sodium acetate, potassium carbonate, potassium hydrox
  • the organic solvent is chosen as being an aliphatic solvent, an alicyclic solvent, an aromatic hydrocarbon solvent, a halogenated hydrocarbon solvent, an ether solvent, an amide solvent or an urea solvent. More preferably, the organic solvent is chosen as being petroleum ether, hexane, heptane, cyclo-hexane, methyl-cyclohexane, benzene, toluene, xylene, decalin, chloro-benzene, dichloro-benzene, trifluoromethyl benzene, dichloromethane, chloroform, carbon tetra-chloride, di-chloroethane, tri- chloro-ethane, diethyl ether, diisopropyl ether, methyl tert-butyl -ether, methyl tert- amyl-ether, dioxane, tetrahydrofuran, 1,2-di-methoxyethane, 1,2-d
  • Step D does not necessarily require specific temperature condition.
  • step D is conducted at a temperature of from 0°C to 80°C, more preferably at a temperature of from 5°C to 50°C.
  • the fifh step (step E) of the process according to the present invention comprises the decarboxylation of the 2-pyridylethylcarboxamide derivative obtained in step D into a compound of general formula (I) as defined above.
  • a decarboxylation reaction may be performed by known methods.
  • Such a decarboxylation reaction may for example be conducted according to the Krapcho reaction described in A.P. Synthesis, 1982, 805, 893, herein incorporated by reference.
  • the compound of general formula (I) according to the present invention can be prepared according to the above described process. It will nevertheless be understood that, on the basis of his general knowledge and of available publications, the skilled worker will be able to adapt this method according to the specifics of each of the compounds, which it is desired to synthesise.
  • - X, R , R , R , p and A are as defined above; and - AIk represents a Q-Cs-alkyl group.
  • Step 1 Preparation of a 2-trifluoromethylbenzamide
  • 2-trifluoromethylbenzoic acid chloride (5.6g, 26.9 mmol) and tetrahydroiuran (20 ml).
  • An aqueous solution of ammonia 20% (20 ml, 107.6 mmol) was added at 20°C during 15 min.
  • the reaction mixture was agitated for two hours.
  • the aqueous phase was then extracted 4 times with dichloromethane (4 X 50 ml), the organic phases were combined, dried over MgSO 4 and concentrated to the dryness under vacuum.
  • Step 3 Preparation of a N-acetoxymethyl 2-trifluoromethylbenzamide
  • N-hydroxymethyl 2- trifluoromethylbenzamide 3g, 13.7 mmol
  • CH 2 Cl 2 (20 ml) and NEt 3 1.93ml, 13.7 mmol
  • the solution was cold to 5°C and the Ac 2 O (1.93ml, 13.7 mmol) was slowly added.
  • the reaction mixture was agitated for two hours at 5°C and Ih at 20°C.
  • Example 11 A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and NaOAc (1.641 g, 20 mmol). The Ac 2 O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH 2 Cl 2 , and the organic phase washed with water. The organic phase was dried over MgSO 4 and the filtrate concentrated under vacuum.
  • Step 4 Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (diethyl ester) 2- trifluoromethylbenzamide
  • Example 2 A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with 2,3-dichloro 5-trifluoromethyl pyridine (5.4 g, 25 mmol), DMAC (20 ml) and NaOH (2.4 g, 40 mmol). Diethyl malonate (4.8 g, 30 mmol) was slowly added at 20°C. The temperature was raised to 70°C and the reaction mixture was agitated for 3 hours at 70°C. Then the reaction mixture was cooled to room temperature and mixed with 200 ml of water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum.
  • Boiling point 87-90°C / 0.06-0.07 mbar.
  • Step 4 Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (dimethyl ester)
  • reaction mixture was agitated for 1 hour at 90°C.
  • the reaction mixture was cooled to room temperature and mixed with 250 ml of water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum. 39.2 g of an orange oil were obtained.
  • Boiling point 91-94°C / 0.18 mbar Melting point: 49.5-50.5°C (cyclohexane).
  • Step 5 Preparation of a N- ⁇ 2-r3-chloro-5-(trifluoromethyl)-2-pyridinyllethyl ⁇ -2- trifluoromethylbenzamide

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Pyridine Compounds (AREA)
  • Plural Heterocyclic Compounds (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
  • Agricultural Chemicals And Associated Chemicals (AREA)
  • Low-Molecular Organic Synthesis Reactions Using Catalysts (AREA)

Abstract

Process for the preparation of a N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) or a salt thereof 5 Intermediate of general formula (II) Intermediate of general formula (III).

Description

Process for the preparation of a 2-pyridylethylcarboxamide derivative
The present invention relates to a novel process for the preparation of N- [2- (2-pyridinyl)ethyl]carboxamide derivative which is useful as pesticide compound, starting with a halogenobenzoyl derivative to produce a N- acetoxymethylcarboxamide derivative and then coupling it with a 2-pyridyl acetate derivative.
Patent application WO 2004/016088 discloses the preparation of N-[2-(2- pyridinyl)ethyl]benzamide derivatives starting from 2-halogenopyridine derivatives to produce 2-ethylaminopyridine derivatives and then coupling these 2- ethylaminopyridine derivatives with a halogenobenzoyl derivative.
The process disclosed in this patent application presents the drawback in that one of the step of this process consists in the reduction of a 2-methylcyanopyridine derivative to produce a 2-ehtylaminopyridine derivative. Such a step is difficult and its yield is not acceptable at an industrial scale.
We have now found an alternative method to prepare N-[2-(2- pyridinyl)ethyl]carboxamide derivative which overcomes these problems and which is applicable to industrial scale operation.
Accordingly, the present invention relates to a process for the preparation of a N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) or a salt thereof
Figure imgf000002_0001
(I) in which :
- p is an integer equal to 1, 2, 3 or 4;
- X is the same or different and is a hydrogen atom, a halogen atom, a nitro group, a cyano group, a hydroxy group, an amino group, a sulfanyl group, a pentafluoro-λ6-sulfanyl group, a formyl group, a formyloxy group, a formylamino group, a carboxy group, a carbamoyl group, a N-hydroxycarbamoyl group, a carbamate group, a
Figure imgf000002_0002
group, a Ci-Cs-alkyl, a C1-C8- halogenoalkyl having 1 to 5 halogen atoms, a C2-C8-alkenyl, a C2-C8-alkynyl, a Ci-Cs-alkylamino, a (Ii-C1 -C8-alkylamino, a Ci-Cs-alkoxy, a Ci-Cs-halogenoalkoxy having 1 to 5 halogen atoms, a Ci-Cs-alkylsulfanyl, a Ci-Cs-halogenoalkylsulfanyl having 1 to 5 halogen atoms, a C2-C8-alkenyloxy, a C2-C8-halogenoalkenyloxy having 1 to 5 halogen atoms, a C3-C8-alkynyloxy, a C3-C8-halogenoalkynyloxy having 1 to 5 halogen atoms, a C3-C8-cycloalkyl, a C3-C8-halogenocycloalkyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonyl, a Ci-Cs-halogenoalkylcarbonyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbamoyl, a (Ii-C1 -C8-alkylcarbamoyl, a (N-C1- C8-alkyl)oxycarbamoyl, a Ci-Cs-alkoxycarbamoyl, a (N-Ci -C8-alkyl)-Ci -C8- alkoxycarbamoyl, a Ci-Cs-alkoxycarbonyl, a Ci-Cs-halogenoalkoxycarbonyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonyloxy, a Ci-Cs-halogenoalkylcarbonyloxy having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonylamino, a C1-C8- halogenoalkylcarbonylamino having 1 to 5 halogen atoms, a C1-C8- alkylaminocarbonyloxy, a (Ii-C1 -C8-alkylaminocarbonyloxy, a C1-C8- alkyloxycarbonyloxy, a Ci-Cs-alkylsulphenyl, a Ci-Cs-halogenoalkylsulphenyl having 1 to 5 halogen atoms, a Ci-Cs-alkylsulphinyl, a Ci-Cs-halogenoalkylsulphinyl having 1 to 5 halogen atoms, a Ci-Cs-alkylsulphonyl, a Ci-C8-halogenoalkyl- sulphonyl having 1 to 5 halogen atoms, a (C1-C6-alkoxyimino)-C1-C6-alkyl, a (C1- C6-alkenyloxyimino)-C1-C6-alkyl, a (C1-C6-alkynyloxyimino)-C1-C6-alkyl, a (benzyloxyimino)-C1-C6-alkyl, a benzyloxy, a benzylsulfanyl, a benzylamino, a phenoxy, a phenylsulfanyl or a phenylamino;
- R1 is a hydrogen atom, a Ci-Cs-alkyl, a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms or a Ci-Cs-alkoxycarbonyl;
- R2 is a hydrogen atom or a cyclopropyl group; and
- A represents a phenyl group or a 5-, 6- or 7-membered non-fused heterocycle with one, two or three heteroatoms which may be the same or different, the heterocycle being linked by a carbon atom; each of this group being optionally substituted by one or more substituents chosen independently of each other as being a halogen atom, a nitro group, a cyano group, a hydroxy group, an amino group, a sulfanyl group, a pentafluoro-λ6-sulfanyl group, a formyl group, a formyloxy group, a formylamino group, a carboxy group, a Ci-Cs-alkyl, a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms, a C2-C8-alkenyl, a C2-C8-alkynyl, a Ci-C8-alkylamino, a di- Ci-Cs-alkylamino, a Ci-Cs-alkoxy, a Ci-Cs-halogenoalkoxy having 1 to 5 halogen atoms, a Ci-C8-alkoxy-C2-C8-alkenyl, a Ci-Cs-alkylsulfanyl, a Ci-C8- halogenoalkylsulfanyl having 1 to 5 halogen atoms, a Ci-Cs-alkoxycarbonyl, a Ci- Cs-halogenoalkoxycarbonyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonyloxy, a Ci-Cs-halogenoalkylcarbonyloxy having 1 to 5 halogen atoms, a Ci-C8- alkylsulphenyl, a Ci-Cs-halogenoalkylsulphenyl having 1 to 5 halogen atoms, a C1- C8-alkylsulphinyl, a Ci-Cs-halogenoalkylsulphinyl having 1 to 5 halogen atoms, a Ci-Cs-alkylsulphonyl, a Ci-Cs-halogenoalkylsulphonyl having 1 to 5 halogen atoms or a Ci-Cs-alkylsulfonamide; as to the N-oxides of the 2-pyridine thereof; said process comprising : (A)- a first step according to reaction scheme 1 :
Scheme 1
Figure imgf000004_0001
in which : - A and R2 are as defined above; and - Hal represents a halogen atom; comprising the reaction of a halogenobenzoyl derivative with aqueous R2NH2, in a
R2NH2 aq. / halogenobenzoyl derivative molar ratio of from 1 to 10, to provide a carboxamide derivative;
(B)- a second step according to reaction scheme 2 : Scheme 2
Figure imgf000004_0002
in which R1, R2 and A are as defined above; comprising the reaction of a carboxamide derivative obtained in step one with an aldehyde group in an aldehyde group / carboxamide derivative molar ratio of from 1 to 10, in a polar solvent, at a temperature of from 20°C to reflux, to provide a N- hydroxymethylcarboxamide derivative;
(C)- a third step according to reaction scheme 3 :
Scheme 3
Figure imgf000004_0003
in which : - R1, R2 and A are as defined above; and
- Ac represents an acetyl group; comprising the reaction of a N-hydroxymethylcarboxamide derivative obtained in step two with acetic anhydride (Ac2O) or acetyl chloride (AcCl) in a Ac2O or AcCl / N-hydroxymethylcarboxamide derivative molar ratio of from 1 to 10, in an organic solvent, in the presence of a mineral or organic base, to provide a N- acetoxymethylcarboxamide derivative ; (D)- a fourth step according to reaction scheme 4 :
Scheme 4
Figure imgf000005_0001
in which : - X, R1, R2, p and A are as defined above;
- Ac represents an acetyl group;
- R3 represents a hydrogen atom or CO2AIk; and
- AIk represents a Q-Cs-alkyl group; comprising the reaction of a N-acetoxymethylcarboxamide derivative obtained in step three with a 2-pyridyl acetate derivative in a N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio of from 1 to 5, in an organic solvent, in the presence of a base; to provide a 2-pyridylethylcarboxamide derivative;
(E)- a fifth step comprising the decarboxylation of the 2-pyridylethylcarboxamide derivative obtained in step four into a compound of general formula (I).
For the purposes of the present invention :
- a halogen atom may be a bromine atom, a chlorine atom, a iodine atom or a fluorine atom. Preferably, halogen atom means chlorine atom; -carboxy means -C(=O)OH ;
- carbonyl means -C(=O)- ;
- carbamoyl means -C(=O)NH2 ;
- N-hydroxycarbamoyl means -C(=O)NHOH ;
- an alkyl group, an alkenyl group, and an alkynyl group as well as moieties containing these terms, can be linear or branched; and
- a compound used in "catalytic quantity" means that a compound is used in an amount of 0,01 to 0,2 molar equivalent, preferably from 0,01 to 0,1 molar equivalent of the respective reagent or intermediate compound.
During the preparation of compound of general formula (I) according to the present invention, there is no need to reduce a 2-methylcyanopyridine derivative into a 2-ethylaminopyridine derivative, which increases the yield of product obtained by the process according to the present invention. Such a process can thus be used at an industrial scale.
According to the present invention, the 2-pyridyl moiety may be substituted in any position by (X)p, in which X and p are as defined above. Preferably, the present invention relates to the preparation of N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) in which the different characteristics may be chosen alone or in combination as being :
- as regards p, p is 1, 2 or 3. Preferably, p is 2.
- as regards X, X is chosen, independently of the others, as being a halogen atom, a Ci-Cs-alkyl or a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms. More preferably, X is chosen, independently of the others, as being chlorine or CF3; - as regards the positions in which the 2-pyridyl moiety is substituted by X, the 2- pyridyl moiety is substituted by X in 3- and/or in 5-position. Preferably, the 2- pryridyl moiety is substituted by X in 3- and 5-position.
According to the present invention, the "ethylamide" part of the compound of formula (I) is substituted by R1 and R2, R1 and R2 being as defined above. Preferably, the present invention relates to the preparation of N-[2-(2-pyridinyl)ethyl]benzamide derivative of general formula (I) in which the different characteristics may be chosen alone or in combination as being : - as regards R1, R1 is a hydrogen atom, a methyl group, CF3, CHF2, CClF2 or CCl3. More preferably, R1 is a hydrogen atom;
- as regards R2, R2 is a hydrogen atom.
According to the present invention, A may represent a five membered ring non-iused heterocycle. Specific examples of compounds prepared according to the process of the present invention where A is a five membered heterocycle include compound of general formula (I) wherein : * A represents a heterocycle of the general formula (A-I)
Figure imgf000007_0001
in which :
- R3 and R4 may be the same or different and may be a hydrogen atom, a halogen atom, an amino group, a nitro group, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms; and
- R5 may be a halogen atom, a nitro group, a Ci-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-2)
Figure imgf000007_0002
in which : - R6 may be a hydrogen atom, a halogen atom , a Ci-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms; and
- R7 and R8 may be the same or different and may be a hydrogen atom, a halogen atom, an amino group, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-3)
Figure imgf000008_0001
(A-3) in which :
- R9 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms; and - R10 may be a hydrogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having
1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-4)
Figure imgf000008_0002
(A-4) in which : - R , 11 and Λ T R, 12 may be the same or different and may be a hydrogen atom, a halogen atom, a Ci-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkylthio, a C1-C4-alkylsulphonyl, a phenyl optionally substituted by a halogen atom or a Ci-C4-alkyl or a pyridyl otpionally substituted by a halogen atom or a C1- C4-alkyl; and - R13 may be a halogen atom, a cyano group, a C1-C4-alkyl, a C1-C4- halogenoalkyl having 1 to 5 halogen atoms or a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-5)
Figure imgf000008_0003
(A-5) in which :
- R14 and R15 may be the same or different and may be a hydrogen atom, a halogen atom, a Ci-C4-alkyl, a Ci-C4-alkyloxy or a C1-C4-halogenoalkyl having 1 to
5 halogen atoms; and
- R16 may be a hydrogen atom, a halogen atom, a Ci-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-6)
Figure imgf000009_0001
in which :
- R17 may be a hydrogen atom, a halogen atom, a cyano group, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms;
- R18 and R20 may be the same or different and may be a hydrogen atom, a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms; and
- R19 may be a hydrogen atom, a cyano group, a Ci-C4-alkyl, a C1-C4- halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy-C1-C4-alkyl, a hydroxy- C1-C4-alkyl, a C1-C4-alkylsulphonyl, a di(C1-C4-alkyl)aminosulphonyl, a C1-C6- alkylcarbonyl, a phenylsulphonyl optionally substituted by a halogen atom or a C1- C4-alkyl, or a benzoyl optionally substituted by a halogen atom or a C1-C4-alkyl.
* A represents a heterocycle of the general formula (A-7)
Figure imgf000009_0002
in which : - R ,21 may be a hydrogen atom, a cyano group, a Ci-C4-alkyl, a Ci-C4- halogenoalkyl having 1 to 5 halogen atoms, a Ci-C4-alkoxy-Ci-C4-alkyl, a hydroxy- Ci-C4-alkyl, a C1-C4-alkylsulphonyl, a (Ii(C1 -C4-alkyl)aminosulphonyl, a C1-C6- alkylcarbonyl, a phenylsulphonyl optionally substituted by a halogen atom or a C1- C4-alkyl, or a benzoyl optionally substituted by a halogen atom or a Ci-C4-alkyl; and - R22, R23 and R24 may be the same or different and may be a hydrogen atom, a halogen atom, a cyano group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms or a C1-C4-alkylcarbonyl.
* A represents a heterocycle of the general formula (A- 8)
Figure imgf000010_0001
(A-8) in which :
- R25 may be a hydrogen atom or a Ci-C4-alkyl; and - R26 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having
1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-9)
Figure imgf000010_0002
(A-9) in which :
- R27 may be a hydrogen atom or a Ci-C4-alkyl; and - R28 may be a halogen atom, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms or a phenyl optionally substituted by a halogen atom or a C1-C4- alkyl.
* A represents a heterocycle of the general formula (A- 10)
Figure imgf000010_0003
- R29 may be a hydrogen atom, a naiogen atom, an amino group, a cyano group, a C1-C4-alkylamino, a di-(C1-C4-alkyl)amino, a C1-C4-alkyl, a C1-C4- halogenoalkyl having 1 to 5 halogen atoms or a phenyl optionally substituted by a halogen atom or a Ci-C4-alkyl; and
- R30 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A-11)
Figure imgf000011_0001
(A-Il) in which :
- R31 may be a hydrogen atom, a halogen atom, an amino group, a cyano group, a C1-C4-alkylamino, a di-(C1-C4-alkyl)amino, a Ci-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms; and -R32 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A- 12)
Figure imgf000011_0002
in which :
- R33 may be a halogen atom, a cyano group, a nitro group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C3-C6-cycloalkyl, a C1-C4- alkoxy, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms, a C1-C4-alkylthio, a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms, an aminocarbonyl group or an aminocarbonyl-Ci -C4-alkyl;
- R34 may be a hydrogen atom, a halogen atom, a cyano group, a nitro group, a C1-C4-alkyl, a Ci-C4-alkoxy or a Ci-C4-alkylthio; and
- R35 may be a hydrogen atom, a phenyl, a C1-C4-alkyl, a C1-C4- halogenoalkyl having 1 to 5 halogen atoms, a hydroxy-C1-C4-alkyl, a C2-C6-alkenyl, a C3-C6-cycloalkyl, a C1 -C4-alky ItMo-C1 -C4-alkyl, a C1-C4-halogenoalkylthio-C1-C4- alkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy-C1-C4-alkyl or a C1-C4- halogenoalkoxy-C1-C4-alkyl having 1 to 5 halogen atoms. * A represents a heterocycle of the general formula (A- 13)
Figure imgf000012_0001
in which :
- R36 may be a hydrogen atom, a halogen atom, a cyano group, a nitro group, a Ci-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C3-C6- cycloalkyl, a C1-C4-alkoxy, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms, a C1-C4-alkylthio, a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms, an aminocarbonyl or an aminocarbonyl-C1-C4-alkyl;
- R37 may be a hydrogen atom, a halogen atom, a cyano group, a C1-C4-alkyl, a C1-C4-alkoxy, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms or a C1-C4- alkylthio; and
- R38 may be a hydrogen atom, a Ci-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a hydroxy-C1-C4-alkyl, a C2-C6-alkenyl, a C3 -C6-Cy cloalkyl, a C1-C4-alkylthio-C1-C4-alkyl, a C1-C4-halogenoalkylthio-C1-C4-alkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy-C1-C4-alkyl, a C1-C4-halogenoalkoxy-C1-C4-alkyl having 1 to 5 halogen atoms or a phenyl optionally substituted by a halogen atom, a C1-C4-alkyl, a C1-C4-alkoxyalkyl or a nitro group.
* A represents a heterocycle of the general formula (A- 14)
Figure imgf000012_0002
in which : -R39 may be a hydrogen atom, a halogen atom, a cyano group, a nitro group, a
C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C3-C6-cycloalkyl, a Ci-C4-alkoxy, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms, a C1-C4- alkylthio, a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms, an aminocarbonyl, or an aminocarbonyl-C1-C4-alkyl; - R40 may be a hydrogen atom, a halogen atom, a cyano group, a C1-C4-alkyl, a C1-C4-alkoxy, a Ci-C4-alkylthio or a C1-C4-halogenoalky having 1 to 5 halogen atoms;
- R41 may be a hydrogen atom, a phenyl, a benzyl, a Ci-C4-alkyl, a C1-C4- halogenoalkyl having 1 to 5 halogen atoms, a hydroxy-C1-C4-alkyl, a C2-C6-alkenyl, a C3-C6-cycloalkyl, a C1 -C4-alky ItMo-C1 -C4-alkyl, a C1-C4-halogenoalkylthio-C1-C4- alkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy-C1-C4-alkyl, a C1-C4- halogenoalkoxy-C1-C4-alkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A- 15)
Figure imgf000013_0001
in which :
- R42 may be a hydrogen atom, a halogen atom, a C-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms; and
- R43 may be a halogen atom, a C-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A- 16)
Figure imgf000013_0002
in which R44 and R45 may be the same or different and may be a hydrogen atom, a halogen atom, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a phenyl optionally substituted by a halogen atom or a C1-C4-alkyl, or a heterocyclyl optionally substituted by a halogen atom or a C1-C4-alkyl.
* A represents a heterocycle of the general formula (A- 17)
Figure imgf000013_0003
(A-17) in which
- R46 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, and
- R47 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A- 18)
Figure imgf000014_0001
in which R48 may oe a πaiυgen aiυiπ, a C1-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms.
* A represents a heterocycle of the general formula (A- 19)
Figure imgf000014_0002
in which :
- R49 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms; and
- R50 may be a hydrogen atom, a Ci-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, or a phenyl optionally substituted by a halogen atom or a C1-C4- alkyl.
* A represents a heterocycle of the general formula (A-20)
Figure imgf000014_0003
in which R51 may be a halogen atom, a Ci-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms. According to the present invention, A may also represent a six membered ring non- fused heterocycle. Specific examples of compounds prepared according to the process of the present invention where A is a six membered heterocycle include : * A represents a heterocycle of the general formula (A-21)
Figure imgf000015_0001
(A-21) in which :
- R >52 may be a halogen atom, a hydroxy group, a cyano group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy, a C1-C4- alkylthio, a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms or a C1-C4- halogenoalkoxy having 1 to 5 halogen atoms;
- R53, R54 and R55, which may be the same or different, may be a hydrogen atom, a halogen atom, a cyano group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy, a C1-C4-alkylthio, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms, a C1-C4-alkylsulphinyl or a C1-C4-alkylsulphonyl.
* A represents a heterocycle of the general formula (A-22)
Figure imgf000015_0002
(A-22) in which :
- R >56 may be a hydrogen atom, a halogen atom, a hydroxy group, a cyano group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4- alkoxy, a Ci-Cs-alkylthio, a C2-C5-alkenylthio a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms, a phenyloxy optionally substituted by a halogen atom or a Ci-C4-alkyl, or a phenylthio optionally substituted by a halogen atom or a Ci-C4-alkyl;
- R57, R58 and R59, which may the same or different, may be a hydrogen atom, a halogen atom, a cyano group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy, a C1-C4-alkylthio, a C1-C4-halogenoalkoxy having 1 to 5 halogen atoms, a C1-C4-alkylsulphinyl, a C1-C4-alkylsulphonyl or a N- morpholine optionally substituted by a halogen atom or a Ci-C4-alkyl, or a thienyl optionally substituted by a halogen atom or a C1-C4-alkyl.
* A represents a heterocycle of the general formula (A-23)
Figure imgf000016_0001
(A-23) in which R60, R61, R62 and R63, which may be the same or different, may be a hydrogen atom, a halogen atom, a hydroxy group, a cyano group, a C1-C4- alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy, a C1-C4- alkylthio, a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms, a C1-C4- halogenoalkoxy having 1 to 5 halogen atoms, a C1-C4-alkylsulphinyl or a C1-C4- alkylsulphonyl.
* A represents a heterocycle of the general formula (A-24)
Figure imgf000016_0002
(A-24) in which :
- R64 may be a halogen atom, a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms; - R65 may be a hydrogen atom, a Ci-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a Ci-Ce-alkoxycarbonyl, a benzyl optionally substituted by 1 to 3 halogen atoms, a benzyloxycarbonyl optionally substituted by 1 to 3 halogen atoms or a heterocyclyl.
* A represents a heterocycle of the general formula (A-25)
Figure imgf000016_0003
in which : - R66 may be a halogen atom, a hydroxy group, a cyano group, a C1-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms, a C1-C4-alkoxy, a C1-C4- alkylthio, a C1-C4-halogenoalkylthio having 1 to 5 halogen atoms or a C1-C4- halogenoalkoxy having 1 to 5 halogen atoms;
- R67 may be a hydrogen atom, a Ci-C4-alkyl, a C1-C4-halogenoalkyl having 1 to 5 halogen atoms or a benzyl.
* A represents a heterocycle of the general formula (A-26)
Figure imgf000017_0001
in which :
- X1 may be a sulphur atom, -SO-, -SO2- or -CH2-; - R68 may be a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms; and
- R69 and R70 may be the same or different and may be a hydrogen atom or a C1-C4-alkyl.
* A represents a heterocycle of the general formula (A-27)
Figure imgf000017_0002
in which :
- R71 may be a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms;
* A represents a heterocycle of the general formula (A-28)
Figure imgf000017_0003
in which : (A"28) - R72 may be a Ci-C4-alkyl or a C1-C4-halogenoalkyl having 1 to 5 halogen atoms. * A represents a heterocycle of the general formula (A-29)
Figure imgf000018_0001
(A-29) in which R73 may be a halogen atom, a Ci-C4-alkyl or a C1-C4- halogenoalkyl having 1 to 5 halogen atoms.
According to the present invention, A may also represent an optionally substituted phenyl group. Preferably, the present invention relates to the preparation of N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) in which A is a phenyl group and in which the different characteristics may be chosen alone or in combination as being : - A is substituted by 1 or 2 substituents. More preferably, A is substituted by 1 substituent.
- each substituent is chosen, independently of the others, as being a hydrogen atom, a halogen atom, a Ci-C8-alkyl or a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms. More preferably each substituent is chosen, independently of the others, as being chlorine or CF3;
- the phenyl moiety is substituted in ortho position.
The process of the present invention is particularly suitable for the preparation of : - N- {2-[3-chloro-5-(trifluoromethyl)-2-pyridinyl]ethyl} -2-trifluoromethylbenzamide;
- N- {2-[3-chloro-5-(trifluoromethyl)-2-pyridinyl]ethyl} -2-iodobenzamide; or
- N- {2-[3,5-dichloro-2-pyridinyl]ethyl} -2-trifluoromethylbenzamide.
The first step (step A) of the process according to the present invention comprises the reaction of a halogenobenzoyl derivative with aqueous R2NH2, in a
R2NH2 aq. / halogenobenzoyl derivative molar ratio of from 1 to 10, to provide a carboxamide derivative. Preferably, the R2NH2 aq. / halogenobenzoyl derivative molar ratio of from 1 to 5.
Step A does not necessarily require the use of a solvent. Preferably, step A is conducted in the presence of a solvent. More preferably, the solvent is chosen as being a mixture of water and of an organic solvent. Suitable organic solvent includes tetrahydroiuran (THF) or toluene.
Step A does not necessarily require specific temperature conditions. Preferably, step A is conducted at a temperature of from 0°C to reflux. More preferably, step A is conducted at a temperature of from 20°C to reflux. Even more preferably step A is conducted at a temperature of from 60°C to reflux.
The second step (step B) of the process according to the present invention comprises the reaction of a carboxamide derivative obtained in step A with an aldehyde group in an aldehyde group / carboxamide derivative molar ratio of from 1 to 10, in a polar solvent, at a temperature of from 20°C to reflux, to provide a N- hydroxymethylcarboxamide derivative. Preferably, step B may be conducted in the following conditions, chosen alone or in combination :
- the acyl group / carboxamide derivative molar ratio is of from 1 to 5; - the polar solvent is chosen as being water or an alcohol;
- the reaction is conducted at reflux.
Step B is not necessarily conducted in the presence of a base. Preferably, step B is conducted in the presence of a mineral base in catalytic quantity. More preferably, the mineral base is chosen as being K2CO3, Na2CO3 or KOH.
The third step (step C) of the process according to the present invention comprises the reaction of a N-hydoxymethylcarboxamide derivative obtained in step B with Ac2O or AcCl in a Ac2O or AcCl / N-hydoxymethylcarboxamide derivative molar ratio of from 1 to 10, in an organic solvent, in the presence of a mineral or organic base, to provide a N-acetoxymethylcarboxamide derivative. Preferably, step C may be conducted in the following conditions, chosen alone or in combination :
- the Ac2O or AcCl / N-hydoxymethylcarboxamide derivative molar ratio of from 1 to 5, more preferably of 1 ;
- the reaction is conducted with Ac2O; - the mineral base is chosen as being Na2CO3, Li2CO3, K2CO3, LiOAc, NaOAc or KOAc. More preferably, the mineral base is chosen as being Na2CO3 or NaOAc;
- the organic base is chosen as being NEt3 or N,N-dimethylaminopyridine, diazabicyclooctane (DABCO). More preferably, the organic base is chosen as being N,N-dimethylaminopyridine, diazabicyclooctane (DABCO); - Ac2O or AcCl is introduced in stoechiometric quantity; - the base is introduced in stoechiometric quantity or in catalytic quantity. More preferably, the base is introduced in catalytic quantity.
Step C does not necessarily require specific temperature condition. Preferably, step C is conducted at a temperature of from 0°C to 50°C, more preferably at a temperature of from 5°C to 35°C, even more preferably at room temperature.
The fourth step (step D) of the process according to the present invention comprises the reaction of a N-acetoxymethylcarboxamide derivative obtained in step C with a 2-pyridyl acetate derivative in a N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio of from 1 to 5, in an organic solvent, in the presence of a base, to provide a 2-pyridylethylcarboxamide derivative. Preferably, step D may be conducted in the following conditions, chosen alone or in combination : - the N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio is of 1;
- the base is chosen as being a alkaline earth metal base, a alkali metal hydride base, a hydroxide base, an amide base, an alcoholate base, an acetate base, a carbonate base, a hydrogen carbonate base or a tertiary amine base. More preferably, the base is chosen as being hydrogen carbonate base which includes sodium hydride, sodium amide, lithium diisoproylamide, sodium methanolate, sodium ethanolate, potassium tert-butanolate, sodium acetate, potassium acetate, calcium acetate, sodium hydroxide, potassium hydroxide, sodium carbonate, potassium carbonate, potassium bicarbonate, sodium bicarbonate, ammonium carbonate, trimethylamine, triethylamine, tributyl-amine, N,N-dimethyl-aniline, N,N-di-methyl-benzylamine pyridine, N-methylpiperidine, N-methyl-morpholine, N,N-dimethylaminopyridine, diazabicyclooctane (DABCO), diazabicyclononene (DBN) or diazabicycloundecene (DBU). Even more preferably, the base is chosen as being sodium hydride, sodium hydroxide, sodium acetate, potassium carbonate, potassium hydroxide, triethylamine or potassium tert-butanolate;
- the organic solvent is chosen as being an aliphatic solvent, an alicyclic solvent, an aromatic hydrocarbon solvent, a halogenated hydrocarbon solvent, an ether solvent, an amide solvent or an urea solvent. More preferably, the organic solvent is chosen as being petroleum ether, hexane, heptane, cyclo-hexane, methyl-cyclohexane, benzene, toluene, xylene, decalin, chloro-benzene, dichloro-benzene, trifluoromethyl benzene, dichloromethane, chloroform, carbon tetra-chloride, di-chloroethane, tri- chloro-ethane, diethyl ether, diisopropyl ether, methyl tert-butyl -ether, methyl tert- amyl-ether, dioxane, tetrahydrofuran, 1,2-di-methoxyethane, 1,2-di-ethoxy-ethane, anisole, N,N-dime-thyl-formamide, N,N-dimethyl-acetamide, N-methyl-formanilide, N-methyl-pyrrolidone, hexamethyl-phosphoric-triamide or l,3-dimethyl-2-2- imidazolinone or N,N-dimethyl acetamide (DMAC). Even more preferably, the organic solvent is chosen as being tetrahydrofuran (THF) or N,N-dimethyl acetamide (DMAC).
Step D does not necessarily require specific temperature condition. Preferably, step D is conducted at a temperature of from 0°C to 80°C, more preferably at a temperature of from 5°C to 50°C.
The fifh step (step E) of the process according to the present invention comprises the decarboxylation of the 2-pyridylethylcarboxamide derivative obtained in step D into a compound of general formula (I) as defined above. Such a decarboxylation reaction may be performed by known methods. Such a decarboxylation reaction may for example be conducted according to the Krapcho reaction described in A.P. Synthesis, 1982, 805, 893, herein incorporated by reference.
The compound of general formula (I) according to the present invention can be prepared according to the above described process. It will nevertheless be understood that, on the basis of his general knowledge and of available publications, the skilled worker will be able to adapt this method according to the specifics of each of the compounds, which it is desired to synthesise.
Certain of the intermediates used for the preparation of compound of general formula (I) are novel. Therefore, the present invention also relates to novel intermediate compounds useful for the preparation of compound of general formula (I). Thus, according to the present invention, there is provided a compound of general formula (II)
Figure imgf000021_0001
in which : - R1, R2 and A are as defined above; and
- Ac represents an acetyl group.
According to the present invention, there is also provided a compound of general formula (III)
Figure imgf000022_0001
in which
- X, R , R , R , p and A are as defined above; and - AIk represents a Q-Cs-alkyl group.
The present invention will now be illustrated with reference to the following examples.
Preparation of N-(243-chloro-5-(rtfluoromethv0-2-pyridinyllethvU-2- trifluoromcthylbcnzamidc
Step 1 : Preparation of a 2-trifluoromethylbenzamide A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with 2-trifluoromethylbenzoic acid chloride (5.6g, 26.9 mmol) and tetrahydroiuran (20 ml). An aqueous solution of ammonia 20% (20 ml, 107.6 mmol) was added at 20°C during 15 min. The reaction mixture was agitated for two hours. The aqueous phase was then extracted 4 times with dichloromethane (4 X 50 ml), the organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum.
4.43 g of a white solid were obtained (isolated yield = 87%). NMR 1H (CDCl3, 300 MHz) : 5.6-6.2 Qx, 2H, NH2); 7.5-7.8 (m, 4H, Haro)
Step 2 : Preparation of a N-hydroxymethyl 2-trifluoromethylbenzamide
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and a reflux condenser was charged with 2-trifluoromethylbenzamide (5.59g, 29.6 mmol), water (35 ml), K2CO3 (0.118g, 0.855 mmol) and formaldehyde (3.82g, 127.3 mmol). The reaction mixture was heated at 100°C for 15 hours. The aqueous phase was extracted 4 times with AcOEt (4 X 200 ml) at room temperature, the organic phases were mixed, dried over MgSO4 and concentrated to the dryness under vacuum.
5.8 g of a white solid were obtained (isolated yield = 90%).
NMR 1H (CDCl3, 300 MHz) : 3.7 (t, IH); 4.9 (t, 2H, CH2); 6.8 (s, IH); 7.5-7.7 (m, 4H, Haro).
Mass spectrum : [M+l] = 220.
Step 3 : Preparation of a N-acetoxymethyl 2-trifluoromethylbenzamide Example 1 A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (3g, 13.7 mmol), CH2Cl2 (20 ml) and NEt3 (1.93ml, 13.7 mmol). The solution was cold to 5°C and the Ac2O (1.93ml, 13.7 mmol) was slowly added. The reaction mixture was agitated for two hours at 5°C and Ih at 20°C. The reaction mixture was washed with water, dried over MgSO4 and concentrated to the dryness under vacuum. 3.5 g of a white solid were obtained (isolated yield = 80%).
NMR 1H (CDCl3, 300 MHz) : 2.1 (s, 3H, CH3); 5.4 (d, 2H, CH2); 7.0 (s, IH); 7.5-7.7 (m, 4H, Haro).
Example 2
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), MeCN (30 ml) and K2CO3 (5.53 g, 40mmol). The solution was cold to 5°C and the Ac2O (2.35 g, 23 mmol) was slowly added. The reaction mixture was agitated for 6 hours at 5°C. The reaction mixture was filtrated, the residue washed with a small amount of MeCN, and the filtrate concentrated to dryness under vacuum.
5 g of a white solid were obtained. Purity (HPLC): 89.9%, giving an isolated yield of 86%. Mass spectrum: [M+l] = 262, base peak = 202 [M+l - AcOH].
Example 3
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), MeCN (30 ml), K2CO3 (2.76 g, 20 mmol), and NEt3 (0.2 g, 2 mmol). The solution was coold to 5°C and the Ac2O (2.35 g, 23 mmol) was slowly added. The reaction mixture was agitated for 2 hours at 5°C and 3 hours at room temperature. The reaction mixture was filtrated, the residue washed with a small amount of MeCN, and the filtrate concentrated to dryness under vacuum.
5.38 g of a white solid were obtained. 0.32 g had to be substracted due to 2 mmol ofNEt3xAcOH, giving 5.06 g. Purity (HPLC): 93.3%, giving an isolated yield of 90%.
Example 4
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), MeCN (30 ml), K2CO3 (2.76 g, 20 mmol), and DABCO (l,4-diazabicyclo[2.2.2]octane) (0.224 g, 2 mmol). The solution was coold to 5°C and the Ac2O (2.35 g, 23 mmol) was slowly added. The reaction mixture was agitated for 2 hours at 5°C and 3 hours at room temperature. The reaction mixture was filtrated, the residue washed with a small amount of MeCN, and the filtrate concentrated to dryness under vacuum.
5.57 g of a white solid were obtained. 0.46 g had to be substracted due to 2 mmol of DABCOx2AcOH, giving 5.11 g. Purity (HPLC): 92.8%, giving an isolated yield of 91 %.
Example 5
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and Na2CO3 (2.12 g, 20 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum, and the filtrate concentrated under vacuum. 5.8 g of a colourless oil were obtained. Purity (HPLC): 53.75% (34.6% of DMAC), giving an isolated yield of 60%.
Example 6
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and Li2CO3 (1.478 g, 20 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum, and the filtrate concentrated under vacuum. 6.2 g of a colourless oil were obtained.
Purity (HPLC): 56% (18.9% of DMAC), giving an isolated yield of 66.5%.
Example 7
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and Na2CO3 (1.06 g, 10 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then thereaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum, and the filtrate concentrated under vacuum.
5.45 g of a colourless oil were obtained. Purity (HPLC): 85.45% (10.7% of DMAC) giving an isolated yield of 89%.
Example 8
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and Na2CO3 (0.53 g, 5 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum, and the filtrate concentrated under vacuum. 6.2 g of a colourless oil were obtained.
Purity (HPLC): 81.5% (15% of DMAC), giving an isolated yield of 97%.
Example 9
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and Na2CO3 (0.265 g, 2.5 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum, and the filtrate concentrated under vacuum.
6.6 g of a colourless oil were obtained. Purity (HPLC): 63% (30.8% of DMAC), giving an isolated yield of 80%. Example 10
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and K2CO3 (0.691 g, 5 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum, and the filtrate concentrated under vacuum.
6.55 g of a colourless oil were obtained. Purity (HPLC): 63% (30.6% of DMAC), giving an isolated yield of 79%.
Example 11 A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and NaOAc (1.641 g, 20 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2Cl2 , and the organic phase washed with water. The organic phase was dried over MgSO4 and the filtrate concentrated under vacuum.
6 g of a colourless oil were obtained. Purity (HPLC): 84.9% (8% of DMAC), giving an isolated yield of 97.5%.
Example 12
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with N-hydroxymethyl 2- trifluoromethylbenzamide (4.38 g, 20 mmol), DMAC (30 ml) and NaOAc (0.41 g, 5 mmol). The Ac2O (2.35 g, 23 mmol) was slowly added at room temperature. The reaction mixture was agitated for 4 hours at room temperature. Then the reaction mixture was filtrated and the residue washed with a small amount of DMAC. To the filtrate was added water. This mixture was extracted with CH2Cl2 , and the organic phase washed with water. The organic phase was dried over MgSO4 and the filtrate concentrated under vacuum. 6.1 g of a colourless oil were obtained.
Purity (HPLC): 85.3% (6.7% of DMAC), giving an isolated yield of 99.6%. The purified product shows a melting point of 58-59°C.
Step 4 : Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (diethyl ester) 2- trifluoromethylbenzamide
Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl malonic acid ethyl ester Example 1 A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with 2, 3-dichloro 5-trifluoromethyl pyridyl (2.67g, 12.4 mmol), NMP (20 ml) and NaOH (1.19g, 31 mmol). Diethyl malonate (2.39g, 14.8 mmol) was slowly added at 20°C. The reaction mixture was agitated for 20 hours. The reaction mixture was diluted with CH2CI2 and washed with water. The organic phase was dried over MgSO4 and concentrated to the dryness under vacuum.
3.57 g of a white solid were obtained (isolated yield = 85%). Mass spectrum : [M+l] = 339.
Example 2 A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with 2,3-dichloro 5-trifluoromethyl pyridine (5.4 g, 25 mmol), DMAC (20 ml) and NaOH (2.4 g, 40 mmol). Diethyl malonate (4.8 g, 30 mmol) was slowly added at 20°C. The temperature was raised to 70°C and the reaction mixture was agitated for 3 hours at 70°C. Then the reaction mixture was cooled to room temperature and mixed with 200 ml of water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum.
9.66 g of an orange oil were obtained. Purity (GC): 78.7% (16.3% DMAC), giving an isolated yield of about 89%. Mass spectrum: [M+l] = 340 (35Cl)
Boiling point = 87-90°C / 0.06-0.07 mbar.
Melting point: 45.5-47°C (cyclohexane).
NMR 1H (CDCl3, 400 MHz) : 1.30 (t, 6H, 2CH3); 4.31 (m, 4H, 2CH2); 5.25 (s, IH,
CH); 7.96 (d, IH, Haro); 8.76 (d, IH, Haro). Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (diethyl ester) 2- trifluoromethylbenzamide
Example 1
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition funnel was charged with NaH (60% oil, 0.06g, 1.47 mmol) and THF (10ml). A solution of 3-chloro 5-trifluoromethyl 2-pyridyl malonic acid ethyl ester (0.321g, 1.23 mmol) and N acetoxymethyl 2-trifluoromethylbenzamide (0.418g, 1.23 mmol) in THF was added slowly, at 20°C. The reaction mixture was agitated for 1 hours. Water was slowly added and the aqeous phase was extracted with CH2C12. The organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum.
0.78 g of a white solid was obtained (isolated yield = 88%).
NMR 1H (CDCl3, 300 MHz) : 1.3 (t, 6H, 2CH3); 4.3 (m, 4H, 2CH2); 4.6 (d, 2H, CH2); 6.9 (t, IH, CH); 7.4-7.6 (m, 4H, Haro); 8.0 (s, IH, Haro); 8.6 (s, IH, Haro). Mass spectrum : [M+l] = 541.
Example 2
A round bottom flask equipped with a magnetic bar and a thermometer was charged with NaOH (0.24 g, 6 mmol), DMAC (10ml), 3-chloro 5-trifluoromethyl 2- pyridyl malonic acid ethyl ester (1.67 g, 5 mmol) and N-acetoxymethyl 2- trifluoromethylbenzamide (1.31 g, 5 mmol). The reaction mixture was heated to 90°C and agitated for 3 hours at this temperature. Then the mixture was cooled to room temperature. Water was slowly added and the aqeous phase was extracted with CH2C12. The organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum.
2.74 g were obtained.
Purity (HPLC): 94.3%, giving an isolated yield of 95.5%. Melting point: 76-80°C.
Example 3
A round bottom flask equipped with a magnetic bar and a thermometer was charged with NaOH (0.04 g, 1 mmol), DMAC (10ml), 3-chloro 5-trifluoromethyl 2- pyridyl malonic acid ethyl ester (1.67 g, 5 mmol) and N-acetoxymethyl 2- trifluoromethylbenzamide (1.31 g, 5 mmol). The reaction mixture was heated to 70°C and agitated for 5 hours at this temperature. Then the mixture was cooled to room temperature. Water was slowly added and the aqeous phase was extracted with CH2C12. The organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum. 2.88 g were obtained.
Purity (HPLC): 82.2%, giving an isolated yield of 87.5%.
Example 4
A round bottom flask equipped with a magnetic bar and a thermometer was charged with NaOAc (0.41 g, 5 mmol), DMAC (10ml), 3-chloro 5-trifluoromethyl 2- pyridyl malonic acid ethyl ester (1.67 g, 5 mmol) and N-acetoxymethyl 2- trifluoromethylbenzamide (1.31 g, 5 mmol). The reaction mixture was heated to
70°C and agitated for 5 hours at this temperature. Then the mixture was cooled to room temperature. Water was slowly added and the aqeous phase was extracted with
CH2C12. The organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum. 2.76 g were obtained.
Purity (HPLC): 86.9%, giving an isolated yield of 88.7%.
Step 4 : Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (dimethyl ester)
2-trifluoromethylbenzamide
Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl malonic acid methyl ester
A two-necked round bottom flask equipped with a magnetic bar, a thermometer and an addition iunnel was charged with DMAC (200 ml) and NaOH
(12 g, 300 mmol). Then dimethyl malonate (20.4 g, 150 mmol) was added at a temperature of 65-70°C. After that 2,3-dichloro 5-trifluoromethyl pyridine (27 g, 125 mmol) was added slowly at the same temperature. The temperature was raised to
90°C, and the reaction mixture was agitated for 1 hour at 90°C. The reaction mixture was cooled to room temperature and mixed with 250 ml of water. This mixture was extracted with CH2C12 and the organic phase washed with water. The organic phase was dried over MgSO4 and concentrated under vacuum. 39.2 g of an orange oil were obtained.
Purity (GC): 88.65% (5.8% DMAC), giving an isolated yield of about 89%.
Mass spectrum (GCVMS): 311 (M+, 35Cl); 276 (M-Cl, base peak).
NMR 1H (CDCl3, 400 MHz) : 3.83 (s, 6H, 2CH3); 5.30 (s, IH, CH); 7.97 (IH, Haro); 8.76 (d, IH, Haro).
Boiling point: 91-94°C / 0.18 mbar Melting point: 49.5-50.5°C (cyclohexane).
Preparation of a 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (dimethyl ester) 2- trifluoromethylbenzamide A round bottom flask equipped with a magnetic bar and a thermometer was charged with NaOH (0.24 g, 6 mmol), DMAC (10ml), 3-chloro 5-trifluoromethyl 2- pyridyl malonic acid methyl ester (1.56 g, 5 mmol) and N-acetoxymethyl 2- trifluoromethylbenzamide (1.31 g, 5 mmol). The reaction mixture was heated to
90°C and agitated for 2 hours at this temperature. Then the mixture was cooled to room temperature. Water was slowly added and the aqeous phase was extracted with
CH2C12.The organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum. 2.5 g were obtained.
Purity (HPLC): 84.1%, giving an isolated yield of 82%. Mass spectrum: [M+l ] = 513 (35Cl).
Mass spectrum (GC/MS) = 512 (M+, 35Cl), 173 (base peak).
Step 5 : Preparation of a N-{2-r3-chloro-5-(trifluoromethyl)-2-pyridinyllethyl}-2- trifluoromethylbenzamide A two-necked round bottom flask equipped with a magnetic bar, a thermometer and a reflux condenser was charged with 3-chloro 5-trifluoromethyl 2-pyridyl ethyl (diethylester) 2-trifluoromethylbenzamide (0.61Og, 1.13 mmol), KCl (0.028g, 0.37mmol), HCl aq. 32% (0.17ml, 1.5 mmol) and NMP (15 ml). The reaction mixture was heated at 180°C 24 hours. At 20°C, water was added and the aqueous phase was extracted three times with CH2CI2. The organic phases were combined, dried over MgSO4 and concentrated to the dryness under vacuum. 0.5 g of a yellow solid was obtained (isolated yield = 66%). Mass spectrum : [M+l] = 396.

Claims

1. Process for the for the preparation of a Accordingly, the present invention relates to a process for the preparation of a N-[2-(2-pyridinyl)ethyl]carboxamide derivative of general formula (I) or a salt thereof
Figure imgf000032_0001
(I) in which : - p is an integer equal to 1, 2, 3 or 4; - X is the same or different and is a hydrogen atom, a halogen atom, a nitro group, a cyano group, a hydroxy group, an amino group, a sulfanyl group, a pentafluoro-λ6-sulfanyl group, a formyl group, a formyloxy group, a formylamino group, a carboxy group, a carbamoyl group, a N-hydroxycarbamoyl group, a carbamate group, a
Figure imgf000032_0002
group, a Ci-Cs-alkyl, a C1-C8- halogenoalkyl having 1 to 5 halogen atoms, a C2-C8-alkenyl, a C2-C8-alkynyl, a Ci-Cs-alkylamino, a di-Ci-Cs-alkylamino, a Ci-Cs-alkoxy, a Ci-Cs-halogenoalkoxy having 1 to 5 halogen atoms, a Ci-Cs-alkylsulfanyl, a Ci-Cs-halogenoalkylsulfanyl having 1 to 5 halogen atoms, a C2-C8-alkenyloxy, a C2-C8-halogenoalkenyloxy having 1 to 5 halogen atoms, a C3-C8-alkynyloxy, a C3-C8-halogenoalkynyloxy having 1 to 5 halogen atoms, a C3-C8-cycloalkyl, a C3-C8-halogenocycloalkyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonyl, a Ci-Cs-halogenoalkylcarbonyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbamoyl, a di-Ci-Cs-alkylcarbamoyl, a (N-C1- C8-alkyl)oxycarbamoyl, a Ci-Cs-alkoxycarbamoyl, a (N-C1 -C8-alkyl)-Ci -C8- alkoxycarbamoyl, a Ci-Cs-alkoxycarbonyl, a Ci-Cs-halogenoalkoxycarbonyl having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonyloxy, a Ci-Cs-halogenoalkylcarbonyloxy having 1 to 5 halogen atoms, a Ci-Cs-alkylcarbonylamino, a C1-C8- halogenoalkylcarbonylamino having 1 to 5 halogen atoms, a C1-C8- alkylaminocarbonyloxy, a di-Ci-Cs-alkylaminocarbonyloxy, a C1-C8- alkyloxycarbonyloxy, a Ci-Cs-alkylsulphenyl, a Ci-Cs-halogenoalkylsulphenyl having 1 to 5 halogen atoms, a Ci-Cs-alkylsulphinyl, a Ci-Cs-halogenoalkylsulphinyl having 1 to 5 halogen atoms, a Ci-Cs-alkylsulphonyl, a Ci-Cs-halogenoalkyl- sulphonyl having 1 to 5 halogen atoms, a (C1-C6-alkoxyimino)-C1-C6-alkyl, a (C1- C6-alkenyloxyimino)-C1-C6-alkyl, a (C1-C6-alkynyloxyimino)-C1-C6-alkyl, a (benzyloxyimino)-C1-C6-alkyl, a benzyloxy, a benzylsulfanyl, a benzylamino, a phenoxy, a phenylsulfanyl or a phenylamino;
- R1 is a hydrogen atom, a Ci-C8-alkyl, a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms or a Ci-Cs-alkoxycarbonyl; - R2 is a hydrogen atom or a cyclopropyl group; and
- A represents a phenyl group or a 5-, 6- or 7-membered non-fused heterocycle with one, two or three heteroatoms which may be the same or different, the heterocycle being linked by a carbon atom; each of this group being optionally substituted by one or more substituents chosen independently of each other as being a halogen atom, a nitro group, a cyano group, a hydroxy group, an amino group, a sulfanyl group, a pentafluoro-λ6-sulfanyl group, a formyl group, a formyloxy group, a formylamino group, a carboxy group, a Ci-Cs-alkyl, a Ci-Cs-halogenoalkyl having 1 to 5 halogen atoms, a C2-C8-alkenyl, a C2-C8-alkynyl, a Ci-Cs-alkylamino, a di- Ci-Cs-alkylamino, a Ci-Cs-alkoxy, a Ci-Cs-halogenoalkoxy having 1 to 5 halogen atoms, a Ci-Cs-alkoxy-C^Cs-alkenyl, a Ci-Cs-alkylsulfanyl, a C1-C8- halogenoalkylsulfanyl having 1 to 5 halogen atoms, a Ci-Cs-alkoxycarbonyl, a Ci- Cs-halogenoalkoxycarbonyl having 1 to 5 halogen atoms, a Ci-C8-alkylcarbonyloxy, a Ci-C8-halogenoalkylcarbonyloxy having 1 to 5 halogen atoms, a Ci-C8- alkylsulphenyl, a Ci-C8-halogenoalkylsulphenyl having 1 to 5 halogen atoms, a Ci- C8-alkylsulphinyl, a Ci-C8-halogenoalkylsulphinyl having 1 to 5 halogen atoms, a Ci-C8-alkylsulphonyl, a Ci-C8-halogenoalkylsulphonyl having 1 to 5 halogen atoms or a Ci-C8-alkylsulfonamide; as to the N-oxides of the 2-pyridine thereof; said process comprising : (A)- a first step according to reaction scheme 1 :
Scheme 1
Figure imgf000033_0001
in which : - A and R2 are as defined above; and
- Hal represents a halogen atom; comprising the reaction of a halogenobenzoyl derivative with aqueous R2NH2, in a R2NH2 aq. / halogenobenzoyl derivative molar ratio of from 1 to 10, to provide a carboxamide derivative; (B)- a second step according to reaction scheme 2 : Scheme 2
Figure imgf000034_0001
in which R1, R2 and A are as defined above; comprising the reaction of a carboxamide derivative obtained in step one with an aldehyde group in an aldehyde group / carboxamide derivative molar ratio of from 1 to 10, in a polar solvent, at a temperature of from 20°C to reflux, to provide a N- hydroxymethylcarboxamide derivative; (C)- a third step according to reaction scheme 3 :
Scheme 3
A
Figure imgf000034_0002
in which : - R1, R2 and A are as defined above; and
- Ac represents an acetyl group; comprising the reaction of a N-hydroxymethylcarboxamide derivative obtained in step two with acetic anhydride (Ac2O) or acetyl chloride (AcCl) in a Ac2O or AcCl / N-hydroxymethylcarboxamide derivative molar ratio of from 1 to 10, in an organic solvent, in the presence of a mineral or organic base, to provide a N- acetoxymethylcarboxamide derivative; (D)- a fourth step according to reaction scheme 4 : Scheme 4
Figure imgf000035_0001
in which : - X, R1, R2, p and A are as defined above;
- Ac represents an acetyl group;
- R3 represents a hydrogen atom or CO2AIk; and
- AIk represents a Q-Cs-alkyl group; comprising the reaction of a N-acetoxymethylcarboxamide derivative obtained in step three with a 2-pyridyl acetate derivative in a N-acetoxymethylcarboxamide derivative / 2-pyridyl acetate derivative molar ratio of from 1 to 5, in an organic solvent, in the presence of a base; to provide a 2-pyridylethylcarboxamide derivative;
(E)- a fifth step comprising the decarboxylation of the 2-pyridylethylcarboxamide derivative obtained in step four into a compound of general formula (I).
2. A process according to claim 1, characterised in that p is 2.
3. A process according to claim 1 or 2, characterised in that X is chosen, independently of the others, as being chlorine or CF3.
4. A process according to any of the claim 1 to 3, characterised in that the 2- pyridyl moiety is substituted by X in 3- and/or in 5-position.
5. A process according to any of the claim 1 to 4, characterised in that R1 is a hydrogen atom, a methyl group, CF3, CHF2, CClF2 or CCl3.
6. A process according to any of the claim 1 to 5, characterised in that R2 is a hydrogen atom.
7. A process according to any of the claims 1 to 6, characterised in that A is a phenyl group.
8. A process according to claim 7, characterised in that A is substituted by one or two substituents.
9. A process according to claim 7 or 8, characterised in that each substituent of A is chosen, independently of each other, as being chlorine or CF3.
10. A process according to any of the claims 7 to 9, characterised in that the A is substituted in ortho position.
11. A process according to claim 1, characterised in that the compound of formula (I) is :
- N- {2-[3-chloro-5-(trifluoromethyl)-2-pyridinyl]ethyl} -2-trifluoromethylbenzamide; - N-{2-[3-chloro-5-(trifluoromethyl)-2-pyridinyl]ethyl}-2-iodobenzamide; or
- N- {2-[3,5-dichloro-2-pyridinyl]ethyl} -2-trifluoromethylbenzamide .
12. A process according to any of the claims 1 to 11, characterised in that step A is conducted in the presence of a mixture of water and of an organic solvent.
13. A process according to any of the claims 1 to 12, characterised in that step A is conducted at a temperature of from 0°C to reflux.
14. A process according to any of the claims 1 to 13, characterised in that step B is conducted in the presence of a mineral base in catalytic quantity.
15. A process according to any of the claims 1 to 14, characterised in that step C is conducted at a temperature of from 0°C to 50°C.
16. A process according to any of the claims 1 to 15, characterised in that, in step C, the base is introduced in catalytic quantity.
17. A process according to any of the claims 1 to 16, characterised in that step D is conducted at a temperature of from 0°C to 80°C.
18. A compound of general formula (II)
Figure imgf000037_0001
in which :
- R1, R22 aanndd AA aarre< as defined in any of the claims 1, 5, 6 and 7 to 10; and - Ac is as defined in claim 1.
19. A compound of general formula (III)
Figure imgf000037_0002
in which
X, R .11, R τ»z2, p and A are as defined in any of the claims 1, 2, 3, 5, 6 and 7 to 10; R3 is as defined in claim 1 ; and AIk represents a Ci-C8-alkyl group.
PCT/EP2005/056895 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative WO2006067103A2 (en)

Priority Applications (13)

Application Number Priority Date Filing Date Title
AT05823830T ATE553083T1 (en) 2004-12-21 2005-12-19 METHOD FOR PRODUCING A 2-PYRIDYLETHYLCARBOXYLIC AMIDE DERIVATIVE
DK05823830.4T DK1831169T3 (en) 2004-12-21 2005-12-19 Process for preparing a 2-pyridylethyl carboxamide derivative
BRPI0516905A BRPI0516905B1 (en) 2004-12-21 2005-12-19 process for the preparation of an n- [2- (2-pyridinyl) ethyl] carboxamide derivative and compounds
US11/793,561 US7790901B2 (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative
EP05823830A EP1831169B1 (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative
CN2005800435765A CN101080391B (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative
ES05823830T ES2383903T3 (en) 2004-12-21 2005-12-19 Procedure for the preparation of a 2-pyridylethylcarboxamide derivative
MX2007007105A MX2007007105A (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative.
JP2007547473A JP4869251B2 (en) 2004-12-21 2005-12-19 Method for preparing 2-pyridylethylcarboxamide derivatives
KR1020077016637A KR101312816B1 (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative
IL183662A IL183662A (en) 2004-12-21 2007-06-04 Process for the preparation of a 2-pyridylethylcarboxamide derivative
US12/847,152 US8865908B2 (en) 2004-12-21 2010-07-30 Process for the preparation of a 2-pyridylethylcarboxamide derivative
IL217962A IL217962A (en) 2004-12-21 2012-02-06 Intermediate useful in the preparation of n-[2-( 2-pyridinyl)ethyl]carboxamide derivatives

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
EP04356203.2 2004-12-21
EP04356203 2004-12-21

Related Child Applications (2)

Application Number Title Priority Date Filing Date
US11/793,561 A-371-Of-International US7790901B2 (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative
US12/847,152 Division US8865908B2 (en) 2004-12-21 2010-07-30 Process for the preparation of a 2-pyridylethylcarboxamide derivative

Publications (2)

Publication Number Publication Date
WO2006067103A2 true WO2006067103A2 (en) 2006-06-29
WO2006067103A3 WO2006067103A3 (en) 2006-11-16

Family

ID=34931762

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/EP2005/056895 WO2006067103A2 (en) 2004-12-21 2005-12-19 Process for the preparation of a 2-pyridylethylcarboxamide derivative

Country Status (13)

Country Link
US (2) US7790901B2 (en)
EP (1) EP1831169B1 (en)
JP (2) JP4869251B2 (en)
KR (1) KR101312816B1 (en)
CN (1) CN101080391B (en)
AT (1) ATE553083T1 (en)
BR (1) BRPI0516905B1 (en)
DK (1) DK1831169T3 (en)
ES (1) ES2383903T3 (en)
IL (2) IL183662A (en)
MX (1) MX2007007105A (en)
TW (2) TWI370121B (en)
WO (1) WO2006067103A2 (en)

Cited By (13)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP2589292A1 (en) 2011-11-02 2013-05-08 Bayer CropScience AG Compounds with nematicidal activity
EP2589294A1 (en) 2011-11-02 2013-05-08 Bayer CropScience AG Compounds with nematicidal activity
WO2013064460A1 (en) 2011-11-02 2013-05-10 Bayer Intellectual Property Gmbh Compounds with nematicidal activity
WO2013064461A2 (en) 2011-11-02 2013-05-10 Bayer Intellectual Property Gmbh Compounds with nematicidal activity
EP2606728A1 (en) 2011-12-21 2013-06-26 Bayer CropScience AG Compounds with nematicidal activity
EP2606727A1 (en) 2011-12-21 2013-06-26 Bayer CropScience AG Compounds with nematicidal activity
WO2014010737A1 (en) 2012-07-12 2014-01-16 日産化学工業株式会社 Oxime-substituted amide compound and pest control agent
US9776967B2 (en) 2013-10-14 2017-10-03 Bayer Animal Health Gmbh Carboxamide derivatives as pesticidal compounds
WO2018114484A1 (en) 2016-12-21 2018-06-28 Bayer Cropscience Aktiengesellschaft Process for the preparation of a 2-pyridylethylcarboxamide derivative
EP3154933B1 (en) * 2014-06-16 2019-03-27 Srf Limited Process for the preparation of 2-(trihalomethyl) benzamide
CN110437138A (en) * 2019-08-12 2019-11-12 大连九信精细化工有限公司 A kind of improvement synthesis technology of fluopyram
WO2020020897A1 (en) * 2018-07-26 2020-01-30 Bayer Aktiengesellschaft Crystalline form of fluopyram
CN112979539A (en) * 2021-05-17 2021-06-18 湖南速博生物技术有限公司 Synthesis method of fluopyram intermediate

Families Citing this family (10)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN103535354A (en) * 2012-07-13 2014-01-29 陕西美邦农药有限公司 Efficient bactericidal composition
CN103535362A (en) * 2012-07-13 2014-01-29 陕西美邦农药有限公司 Efficient bactericidal composition
CN103535353A (en) * 2012-07-13 2014-01-29 陕西美邦农药有限公司 Efficient bactericidal composition
CN103535355A (en) * 2012-07-13 2014-01-29 陕西美邦农药有限公司 Efficient bactericidal composition
KR101719565B1 (en) * 2014-10-02 2017-03-24 한국화학연구원 Chlorotrifluoromethylation method of alkene compounds using photoredox catalysis and CF3SO2Cl
CN108752268A (en) * 2018-08-28 2018-11-06 陕西恒润化学工业有限公司 A kind of 2-(3- chloro-5-trifluoromethylpyridines)Dimethyl malenate and its synthetic method
CN108822024B (en) * 2018-08-28 2021-03-09 陕西恒润化学工业有限公司 Fluopyram and synthetic method thereof
CN113429338B (en) * 2021-05-20 2023-05-02 陕西泰合利华工业有限公司 Method for synthesizing fluopyram
CN113620867B (en) * 2021-09-03 2023-06-16 内蒙古蓝科生物科技有限公司 Synthesis method of fluopyram
CN114195667A (en) * 2021-11-30 2022-03-18 江西永通科技股份有限公司 Synthesis method of o-trifluoromethyl benzamide

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE1034644B (en) * 1956-09-26 1958-07-24 Bayer Ag Process for the preparation of acylaminomethyl compounds
EP0061836A2 (en) * 1981-03-19 1982-10-06 Imperial Chemical Industries Plc Amide derivatives, processes for preparing them, their use as fungicides and pesticidal compositions containing them
WO2001011965A1 (en) * 1999-08-18 2001-02-22 Aventis Cropscience Gmbh Fungicides
WO2004016088A2 (en) * 2002-08-12 2004-02-26 Bayer Cropscience S.A. Novel 2-pyridylethylbenzamide derivative

Family Cites Families (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPS5363337A (en) * 1976-11-12 1978-06-06 Nippon Kayaku Co Ltd Benzamide derivs, process for their preparation and herbicides contg.the same as active constituents
DE4138026A1 (en) * 1991-11-19 1993-06-03 Bayer Ag SUBSTITUTED PYRIDINE-4-CARBONIC ACID AMIDES
JP2001213869A (en) * 2000-01-28 2001-08-07 Nippon Bayer Agrochem Co Ltd Isothiazole carboxylic acid derivative and pathogenesis controlling agent
US20030232836A1 (en) 2002-05-23 2003-12-18 Stewart Andrew O. Acetamides and benzamides that are useful in treating sexual dysfunction
US20040029887A1 (en) 2002-05-23 2004-02-12 Bhatia Pramila A. Acetamides and benzamides that are useful in treating sexual dysfunction
WO2003099266A2 (en) 2002-05-23 2003-12-04 Abbott Laboratories Acetamides and benzamides that are useful in treating sexual dysfunction
US20060009461A1 (en) 2002-05-23 2006-01-12 Bhatia Pramila A Acetamides and benzamides that are useful in treating sexual dysfunction
EP1500651A1 (en) * 2003-07-25 2005-01-26 Bayer CropScience S.A. N-[2-(2-Pyridinyl)ethyl]benzamide compounds and their use as fungicides
TWI368482B (en) * 2003-12-19 2012-07-21 Bayer Sas New 2-pyridinylethylbenzamide derivatives
EP1548007A1 (en) * 2003-12-19 2005-06-29 Bayer CropScience S.A. 2-Pyridinylethylcarboxamide derivatives and their use as fungicides
EP1574511A1 (en) * 2004-03-03 2005-09-14 Bayer CropScience S.A. 2-Pyridinylethylcarboxamide derivatives and their use as fungicides

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE1034644B (en) * 1956-09-26 1958-07-24 Bayer Ag Process for the preparation of acylaminomethyl compounds
EP0061836A2 (en) * 1981-03-19 1982-10-06 Imperial Chemical Industries Plc Amide derivatives, processes for preparing them, their use as fungicides and pesticidal compositions containing them
WO2001011965A1 (en) * 1999-08-18 2001-02-22 Aventis Cropscience Gmbh Fungicides
WO2004016088A2 (en) * 2002-08-12 2004-02-26 Bayer Cropscience S.A. Novel 2-pyridylethylbenzamide derivative

Non-Patent Citations (2)

* Cited by examiner, † Cited by third party
Title
HASHIMOTO M ET AL: "A FACILE SYNTHESIS OF SUBSTITUTED METHYLAMIDES FROM ACETOXYMETHYLAMIDES" CHEMISTRY EXPRESS, OSAKA, JP, vol. 7, no. 1, 1992, pages 65-68, XP001203953 ISSN: 0911-9566 *
See also references of EP1831169A2 *

Cited By (18)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP2589292A1 (en) 2011-11-02 2013-05-08 Bayer CropScience AG Compounds with nematicidal activity
EP2589294A1 (en) 2011-11-02 2013-05-08 Bayer CropScience AG Compounds with nematicidal activity
WO2013064460A1 (en) 2011-11-02 2013-05-10 Bayer Intellectual Property Gmbh Compounds with nematicidal activity
WO2013064461A2 (en) 2011-11-02 2013-05-10 Bayer Intellectual Property Gmbh Compounds with nematicidal activity
US9301526B2 (en) 2011-11-02 2016-04-05 Bayer Intellectual Property Gmbh Compounds with nematicidal activity
EP2606728A1 (en) 2011-12-21 2013-06-26 Bayer CropScience AG Compounds with nematicidal activity
EP2606727A1 (en) 2011-12-21 2013-06-26 Bayer CropScience AG Compounds with nematicidal activity
WO2014010737A1 (en) 2012-07-12 2014-01-16 日産化学工業株式会社 Oxime-substituted amide compound and pest control agent
US9776967B2 (en) 2013-10-14 2017-10-03 Bayer Animal Health Gmbh Carboxamide derivatives as pesticidal compounds
EP3154933B1 (en) * 2014-06-16 2019-03-27 Srf Limited Process for the preparation of 2-(trihalomethyl) benzamide
WO2018114484A1 (en) 2016-12-21 2018-06-28 Bayer Cropscience Aktiengesellschaft Process for the preparation of a 2-pyridylethylcarboxamide derivative
KR20190095422A (en) * 2016-12-21 2019-08-14 바이엘 크롭사이언스 악티엔게젤샤프트 Method for preparing 2-pyridylethylcarboxamide derivative
US10807955B2 (en) 2016-12-21 2020-10-20 Bayer Cropscience Aktiengesellschaft Process for the preparation of a 2-pyridylethylcarboxamide derivative
WO2020020897A1 (en) * 2018-07-26 2020-01-30 Bayer Aktiengesellschaft Crystalline form of fluopyram
CN110437138A (en) * 2019-08-12 2019-11-12 大连九信精细化工有限公司 A kind of improvement synthesis technology of fluopyram
CN110437138B (en) * 2019-08-12 2021-03-02 大连九信精细化工有限公司 Improved synthesis process of fluopyram
CN112979539A (en) * 2021-05-17 2021-06-18 湖南速博生物技术有限公司 Synthesis method of fluopyram intermediate
CN112979539B (en) * 2021-05-17 2021-07-20 湖南速博生物技术有限公司 Synthesis method of fluopyram intermediate

Also Published As

Publication number Publication date
US8865908B2 (en) 2014-10-21
IL217962A0 (en) 2012-03-29
DK1831169T3 (en) 2012-07-09
US7790901B2 (en) 2010-09-07
BRPI0516905B1 (en) 2016-09-20
IL183662A0 (en) 2007-09-20
BRPI0516905A (en) 2008-09-23
JP2011236216A (en) 2011-11-24
TWI379826B (en) 2012-12-21
IL183662A (en) 2012-06-28
US20080086008A1 (en) 2008-04-10
EP1831169B1 (en) 2012-04-11
TW200637822A (en) 2006-11-01
IL217962A (en) 2015-02-26
TWI370121B (en) 2012-08-11
JP2008524307A (en) 2008-07-10
ES2383903T3 (en) 2012-06-27
JP4869251B2 (en) 2012-02-08
KR20070087668A (en) 2007-08-28
CN101080391B (en) 2010-09-22
ATE553083T1 (en) 2012-04-15
JP5559745B2 (en) 2014-07-23
EP1831169A2 (en) 2007-09-12
US20100292485A1 (en) 2010-11-18
TW201215594A (en) 2012-04-16
WO2006067103A3 (en) 2006-11-16
MX2007007105A (en) 2007-08-08
KR101312816B1 (en) 2013-09-27
CN101080391A (en) 2007-11-28

Similar Documents

Publication Publication Date Title
EP1831169B1 (en) Process for the preparation of a 2-pyridylethylcarboxamide derivative
EP1833793B1 (en) Process for the preparation of a 2-ethylaminopyridine derivative
JP4080743B2 (en) Preparation of herbicide derivatives
WO2018114484A1 (en) Process for the preparation of a 2-pyridylethylcarboxamide derivative
JP2005537219A (en) Alkenone production
JP2719600B2 (en) Cyanodienes, halopyridines, intermediates and methods for producing them
JP2771994B2 (en) Method for producing propenoic acid derivative
CZ257593A3 (en) Derivatives of phenylacetic acid esters and process for preparing thereof
CN1934076B (en) Method for producing semicarbazones
EP1202949B1 (en) Process for the preparation of acylated 1,3-dicarbonyl compounds
JPH0262854A (en) Production of substituted phenoxyethylamines
JP2001081071A (en) Production of phenoxyamines
JPH0136818B2 (en)
JP3387723B2 (en) Method for producing 2-nitroiminohexahydro-1,3,5-triazines
JP6998957B2 (en) 3-Substitution 2-Method for Producing Vinyl Phenyl Sulfonates
JP2003238500A (en) Method for producing fluorine-containing tertiary amine compound and fluorine-containing quaternary ammonium salt
JPH0687787A (en) Aromatic ester derivative, its intermediate and their production
JP2002047257A (en) Method for manufacturing n,n-disubstituted-4- aminocrotonic acid ester
JPH0148257B2 (en)
JP2000273062A (en) Production of hydroquinone
JPH09157237A (en) N-lower alkyl-2-amino-3,3-dimethoxy-propanamide and its production
JPS6318937B2 (en)

Legal Events

Date Code Title Description
AK Designated states

Kind code of ref document: A2

Designated state(s): AE AG AL AM AT AU AZ BA BB BG BR BW BY BZ CA CH CN CO CR CU CZ DE DK DM DZ EC EE EG ES FI GB GD GE GH GM HR HU ID IL IN IS JP KE KG KM KN KP KR KZ LC LK LR LS LT LU LV LY MA MD MG MK MN MW MX MZ NA NG NI NO NZ OM PG PH PL PT RO RU SC SD SE SG SK SL SM SY TJ TM TN TR TT TZ UA UG US UZ VC VN YU ZA ZM ZW

AL Designated countries for regional patents

Kind code of ref document: A2

Designated state(s): GM KE LS MW MZ NA SD SL SZ TZ UG ZM ZW AM AZ BY KG KZ MD RU TJ TM AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IS IT LT LU LV MC NL PL PT RO SE SI SK TR BF BJ CF CG CI CM GA GN GQ GW ML MR NE SN TD TG

WWE Wipo information: entry into national phase

Ref document number: 3483/DELNP/2007

Country of ref document: IN

WWE Wipo information: entry into national phase

Ref document number: 183662

Country of ref document: IL

WWE Wipo information: entry into national phase

Ref document number: 2005823830

Country of ref document: EP

WWE Wipo information: entry into national phase

Ref document number: MX/a/2007/007105

Country of ref document: MX

WWE Wipo information: entry into national phase

Ref document number: 200580043576.5

Country of ref document: CN

WWE Wipo information: entry into national phase

Ref document number: 11793561

Country of ref document: US

WWE Wipo information: entry into national phase

Ref document number: 2007547473

Country of ref document: JP

NENP Non-entry into the national phase

Ref country code: DE

121 Ep: the epo has been informed by wipo that ep was designated in this application
WWE Wipo information: entry into national phase

Ref document number: 1020077016637

Country of ref document: KR

WWP Wipo information: published in national office

Ref document number: 2005823830

Country of ref document: EP

WWP Wipo information: published in national office

Ref document number: 183662

Country of ref document: IL

WWP Wipo information: published in national office

Ref document number: 11793561

Country of ref document: US

ENP Entry into the national phase

Ref document number: PI0516905

Country of ref document: BR

WWE Wipo information: entry into national phase

Ref document number: 217962

Country of ref document: IL
