Abstract

Substituted pyrazoles, methods of manufacturing them, compositions containing them, and methods of using them to treat, for example, autoimmune diseases mediated by cathepsin S.

Description

This application is a continuation of U.S. patent application Ser. No. 11/517,518, filed Sep. 7, 2006, now U.S. Pat. No. 7,429,591, issued Sep. 30, 2008, which in turn is a continuation of U.S. patent application Ser. No. 09/928,122, filed Aug. 10, 2001, now U.S. Pat. No. 7,309,703, issued Dec. 18, 2007, all of which are incorporated herein by reference in their entirety, and application Ser. No. 09/928,122 in turn claims the benefit under 35 U.S.C. §119(e) of U.S. Provisional Application Ser. No. 60/225,138, filed on Aug. 14, 2000.

FIELD OF THE INVENTION

This invention relates to a series of substituted pyrazoles, pharmaceutical compositions containing these compounds, and intermediates used in their manufacture, and methods of using them.

BACKGROUND OF THE INVENTION

Cathepsin S (EC 3.4.22.27) is a cysteine protease of the papain family found primarily in lysosomes (Bromme, D.; McGrath, M. E. High Level Expression and Crystallization of Recombinant Human Cathepsin S. Protein Science 1996, 5, 789-791).

The role of cathepsin S in the immune response is anticipated by its tissue distribution: cathepsin S is found primarily in lymphatic tissues, lymph nodes, the spleen, B lymphocytes, and macrophages (Kirschke, H. Chapter 211. Cathepsin S. In Handbook of Proteolytic Enzymes. Barrett, A. J.; Rawlings, N. D.; Woessner, J. F., Eds. San Diego: Academic Press, 1998. pp. 621-624.). Cathepsin S inhibitors have been shown in animal models to modulate antigen presentation and are effective in an animal model of asthma (Riese, R. J.; Mitchell, R. N.; Villadangos, J. A.; Shi, G.-P.; Palmer, J. T.; Karp, E. R.; De Sanctis, G. T.; Ploegh, H. L.; Chapman, H. A. Cathepsin S Activity Regulates Antigen Presentation and Immunity. J. Clin. Invest. 1998, 101, 2351-2363 and Shi, G.-P.; Villadangos, J. A.; Dranoff, G.; Small, C.; Gu, L.; Haley, K. J.; Riese, R.; Ploegh, H. L.; Chapman, H. A. Cathepsin S Required for Normal MHC Class II Peptide Loading and Germinal Center Development. Immunity 1999, 10, 197-206.).

Mice in which the gene encoding cathepsin S has been knocked out are less susceptible to collagen-induced arthritis and their immune systems have an impaired ability to respond to antigens (Nakagawa, T. Y.; Brissette, W. H.; Lira, P. D.; Griffiths, R. J.; Petrushova, N.; Stock, J.; McNeish, J. D.; Eastman, S. E.; Howard, E. D.; Clarke, S. R. M.; Rosloniec, E. F.; Elliott, E. A.; Rudensky, A. Y. Impaired Invariant Chain Degradation and Antigen Presentation and Diminished Collagen-Induced Arthritis in Cathepsin S Null Mice. Immunity 1999, 10, 207-217).

These data demonstrate that compounds that inhibit the proteolytic activity of human cathepsin S should find utility in the treatment of chronic autoimmune diseases including, but not limited to, lupus, rheumatoid arthritis, and asthma; and have potential utility in modulating the immune response to tissue transplantation.

There are a number of cathepsin S inhibitors reported in the literature. The most important patents are listed below.

Certain dipeptidyl nitriles are claimed by Novartis as cathepsin S inhibitors in: Altmann, et. al. WO-99/24460.

Dipeptidyl vinyl sulfones are claimed by Arris (now Axys) as cysteine protease (including cathepsin S) inhibitors in: Palmer, et. al. U.S. Pat. No. 5,976,858.

Certain peptidyl sulfonamides are claimed by Arris/Axys as cysteine protease (including cathepsin S) inhibitors in: Palmer, et. al. U.S. Pat. No. 5,776,718 (assigned to Arris, now Axys) & Klaus, et. al. U.S. Pat. No. 6,030,946 (assigned to Axys).

Compounds somewhat similar to those of the present invention are described in the following references.

Winters, et. al. (Winters, G.; Sala, A.; Barone, D.; Baldoli, E. J. Med. Chem. 1985, 28, 934-940; Singh, P.; Sharma, R. C. Quant Struct.—Act Relat. 1990, 9, 29-32; Winters, G.; Sala, A.; Barone, D. in U.S. Pat. No. 4,500,525 (1985)) have described bicyclic pyrazoles of the type shown below. R never contains a heterocyclic ring and no protease inhibitor activity is ascribed to these molecules; they are described as α1-adrenergic receptor modulators.

Figure US07772236-20100810-C00001

Shutske, et. al. claim the bicylic pyrazoles below. The pyridine ring is aromatic in their system (Shutske, G. M.; Kapples, K. J.; Tomer, J. D. U.S. Pat. No. 5,264,576 (1993)). Although reference is made to R being a linker to a heterocycle, the claims specify only R=hydrogen. The compounds are referred to as serotonin reuptake inhibitors.

Figure US07772236-20100810-C00002

The compound 2-[4-[4-(3-methyl-5-phenyl-1H-pyrazol-1-yl)butyl]-1-piperazinyl]-pyrimidine is known from EP-382637, which describes pyrimidines having anxiolytic properties. This compound and analogs are further described in EP-502786 as cardiovascular and central nervous system agents. Pharmaceutical formulations with such compounds are disclosed in EP-655248 for use in the treatment of gastric secreation and as anti-ulcer agents. WO-9721439 describes medicaments with such compounds for treating obsessive-compulsive disorders, sleep apnea, sexual dysfunctions, emesis and motion sickness.

The compounds 5-methyl-3-phenyl-1-[4-(4-phenyl-1-piperazinyl)butyl]-1H-indazole and 5-bromo-3-(2-chlorophenyl)-1-[4-(4-phenyl-1-piperazinyl)butyl]-1H-indazole, in particular the hydrochloride salts thereof, are known from WO-9853940 and CA 122:314528, where these and similar compounds are described as kinase inhibitors in the former reference and possessing affinity for benzodiazepine receptors in the latter reference.

SUMMARY OF THE INVENTION

The present invention concerns compounds which can be represented by formula (I):

Figure US07772236-20100810-C00003

wherein:

  • R1 is hydrogen, azido, halogen, C1-5 alkoxy, hydroxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R7R8N, C2-8 acyl, R9OC═O, R10R11NC═O, or R10R11NSO2; or R1 is taken together with W as described below;
  • R2 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, C1-5 haloalkyl, cyano, or R48R49N;
    • alternatively, R1 and R2 can be taken together to form an optionally substituted 5- to 7-membered carbocyclic or heterocyclic ring, which ring may be unsaturated or aromatic;
  • each of R3 and R4 is independently hydrogen or C1-5 alkyl;
  • each of R5 and R6 is independently hydrogen, C1-5 alkyl, C2-5 alkenyl, C1-5 alkoxy, C1-5 alkylthio, halogen, or a 4-7 membered carbocyclyl or heterocyclyl;
  • alternatively, R5 and R6 can be taken together to form an optionally substituted 5- to 7-membered carbocyclic or heterocyclic ring, which ring may be unsaturated or aromatic, and may be optionally substituted with between one and three substituents independently selected from halo, cyano, amino, nitro, R40, R40O—, R40S—, R40(C1-5 alkylene)-, R40O(C═O)—, R40(C═O)—, R40(C═S)—, R40(C═O)O—, R40O(C═O)(C═O)—, R40SO2, NHR62(C═NH)—, NHR62SO2—, and NHR62(C═O)—;
  • R40 is H, C1-5 alkyl, C2-5 alkenyl, phenyl, benzyl, phenethyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, amino, or mono- or di(C1-5 alkyl)amino, or R58OR59—, wherein R58 is H, C1-5 alkyl, C2-5 alkenyl, phenyl, benzyl, phenethyl, C1-5 heterocyclyl, or (C1-5 heterocyclyl)C1-6 alkylene and R59 is C1-5 alkylene, phenylene, or divalent C1-5 heterocyclyl; and
  • R62 can be H in addition to the values for R40;
  • R7 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R27OC═O, R28R29NC═O, R27SO, R27SO2, or R28R29NSO2;
  • R8 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R7 and R8 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • R9 is C1-5 alkyl, phenyl, naphthyl, or C1-5 heterocyclyl;
  • R21 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R30OC═O, R31R32NC═O, R30SO, R30SO2, or R31R32NSO2;
  • R22 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R21 and R22 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • each of R23, R26, R27, R30, R33, R44, R45, and R50 is C1-5 alkyl, phenyl, naphthyl, or C1-5 heterocyclyl;
  • R24 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R33OC═O, R34R35NC═O, R33SO, R33SO2, or R34R35NSO2;
  • R25 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R24 and R25 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • each of R10 and R11 is independently hydrogen, C1-5 alkyl, C2-5 alkenyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R10 and R11 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • each of R28, R29, R31, R32, R34, R35, R46, R47, R51 and R52 is independently hydrogen, C1-5 alkyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R28 and R29, R31 and R32, R34 and R35, R46 and R47, or R51 and R52, independently, can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • n is 1 or 2;
  • G represents C3-6 alkenediyl or C3-6 alkanediyl, optionally substituted with hydroxy, halogen, C1-5 alkyl, C1-5 alkoxy, oxo, hydroximino, CO2R60, R60R61NCO2, (L)-C1-4 alkylene-, (L)-C1-5 alkoxy, N3, or [(L)-C1-5 alkylene]amino;
  • each of R60 and R61 is independently hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, benzyl, phenethyl, or C1-5 heterocyclyl; alternatively, R60 and R61 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • L is amino, mono- or di-C1-5 alkylamino, pyrrolidinyl, morpholinyl, piperidinyl, homopiperidinyl, or piperazinyl, where available ring nitrogens may be optionally substituted with C1-5 alkyl, benzyl, C2-5 acyl, C1-5 alkylsulfonyl, or C1-5 alkyloxycarbonyl;
  • X is nitrogen or R12C;
  • Y is nitrogen or R13C;
  • Z is nitrogen or R14C;
  • R12 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R21R22N, C2-8 acyl, C1-5 haloalkyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, R23OC═O, R23O(C═O)NH—, R23SO, R22NHCO—, R22NH(C═O)NH—, R23(C1-4 alkylene)NHCO—, R23SO2, or R23SO2NH—;
  • R13 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R42R43N, C2-8 acyl, C1-5 haloalkyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, R44OC═O, R44O(C═O)NH—, R44SO, R43NHCO—, R43NH(C═O)NH—, R44(C1-4 alkylene)NHCO—, R44SO2, or R44SO2NH—;
  • R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R24R25N, C2-8 acyl, C1-5 haloalkyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, R26OC═O, R26O(C═O)NH—, R26SO, R25NHCO—R25NH(C═O)NH—, R26(C1-4 alkylene)NHCO—, R26SO2, or R26SO2NH—;
    • alternatively, R12 and R13 or R12 and R2 or R13 and R14 can be taken together to form an optionally substituted 5- to 6-membered carbocyclic or heterocyclic ring, which ring may be unsaturated or aromatic;
  • Ar represents a monocyclic or bicyclic aryl or heteroaryl ring, optionally substituted with between 1 and 3 substituents selected from halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, azido, nitro, R15R16N, R17SO2, R17S, R17SO, R17OC═O, R15R16NC═O, C1-5 haloalkyl, C1-5 haloalkoxy, C1-5 haloalkylthio, and C1-5 alkylthio;
  • R15 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, benzyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R53OC═O, R54R55NC═O, R53S, R53SO, R53S2, or R54R55NSO2;
  • R16 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, benzyl, or C1-5 heterocyclyl;
    • alternatively, R15 and R16 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • each of R17 and R53 is C1-5 alkyl, phenyl, or C1-5 heterocyclyl;
  • each of R54 and R55 is independently hydrogen, C1-5 alkyl, C2-5 alkenyl, phenyl, benzyl, or C1-5 heterocyclyl;
    • alternatively, R54 and R55 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • W represents SO2, C═O, CHR20, or a covalent bond; or W and R1, taken together with the 6-membered ring to which they are both attached, form one of the following two formulae:

Figure US07772236-20100810-C00004

    • wherein Xa is O, S, or N; and Xb is O, S or SO2;
  • R20 is hydrogen, C1-5 alkyl, phenyl, benzyl, naphthyl, or C1-5 heterocyclyl;
  • R42 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R45OC═O, R46R47NC═O, R45SO, R45SO2, or R46R47NSO2;
  • R43 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R42 and R43 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
  • R44 is C1-5 alkyl, C2-5 alkenyl, phenyl, naphthyl, or C1-5 heterocyclyl;
  • R48 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-55 heterocyclyl, C2-8 acyl, aroyl, R50OC═O, R51R52NC═O, R50SO, R50SO2, or R51R51NSO2;
  • R49 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
    • alternatively, R48 and R49 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic; and
  • wherein each of the above hydrocarbyl or heterocarbyl groups, unless otherwise indicated, and in addition to any specified substituents, is optionally and independently substituted with between 1 and 3 substituents selected from methyl, halomethyl, hydroxymethyl, halo, hydroxy, amino, nitro, cyano, C1-5 alkyl, C1-5 alkoxy, —COOH, C2-6 acyl, [di(C1-4 alkyl)amino]C2-5 alkylene, [di(C1-4 alkyl)amino]C2-5 alkyl-NH—CO—, and C1-5 haloalkoxy;
    or a pharmaceutically acceptable salt, ester, or amide thereof, including a stereoisomeric form thereof.

The disclosed compounds are high-affinity inhibitors of the proteolytic activity of human cathepsin S. For use in medicine, the preparation of pharmaceutically acceptable salts of compounds of formula (I) may be desirable.

Certain compounds of the present invention may have one stereogenic atom and may exist as two enantiomers. Certain compounds of the present invention may have two or more stereogenic atoms and may further exist as diastereomers. It is to be understood by those skilled in the art that all such stereoisomers and mixtures thereof in any proportion are encompassed within the scope of the present invention.

Another aspect of the invention provides pharmaceutical compositions comprising a compound of formula (I) and a pharmaceutically acceptable carrier. A further embodiment of the invention is a process for making a pharmaceutical composition comprising mixing a disclosed compound as described above, with a suitable pharmaceutically acceptable carrier.

The invention also contemplates pharmaceutical compositions comprising more than one compound of formula (I) and compositions comprising a compound of formula (I) and another pharmaceutically active agent.

The invention features a method of treating disorders or conditions mediated by the cathepsin S enzyme, in a subject in need thereof, comprising administering to the subject a therapeutically effective amount of any of the compounds or pharmaceutical compositions described above. If more than one active agent is administered, the therapeutically effective amount may be a jointly effective amount. The compounds described herein inhibit the protease activity of human cathepsin S, an enzyme involved in the immune response. In preferred embodiments, cathepsin S inhibition is selective. As such, the disclosed compounds and compositions are useful in the prevention, inhibition, or treatment of autoimmune diseases such as lupus, rheumatoid arthritis, and asthma, and for the prevention, inhibition, or treatment of tissue transplant rejection.

Additional features and advantages of the invention will become apparent from the detailed description below, including examples, and the appended claims.

DETAILED DESCRIPTION OF THE INVENTION

The invention features pyrazole compounds of formula (I), methods of making them, compositions containing them, and methods of using them to treat diseases and conditions, including those mediated by Cathepsin S.

A. TERMS

The following terms are defined below and by their usage throughout this disclosure.

“Alkyl” includes optionally substituted straight chain and branched hydrocarbons with at least one hydrogen removed to form a radical group. Alkyl groups include methyl, ethyl, propyl, isopropyl, butyl, isobutyl, t-butyl, 1-methylpropyl, pentyl, isopentyl, sec-pentyl, hexyl, heptyl, octyl, and so on. Alkyl includes cycloalkyl, such as cyclopropyl, cyclobutyl, cyclopentyl, and cyclohexyl.

“Alkenyl” includes optionally substituted straight chain and branched hydrocarbon radicals as above with at least one carbon-carbon double bond (sp2). Alkenyls include ethenyl (or vinyl), prop-1-enyl, prop-2-enyl (or allyl), isopropenyl (or 1-methylvinyl), but-1-enyl, but-2-enyl, butadienyls, pentenyls, hexa-2,4-dienyl, and so on. Hydrocarbon radicals having a mixture of double bonds and triple bonds, such as 2-penten-4-ynyl, are grouped as alkynyls herein. Alkenyl includes cycloalkenyl. Cis and trans or (E) and (Z) forms are included within the invention.

“Alkynyl” includes optionally substituted straight chain and branched hydrocarbon radicals as above with at least one carbon-carbon triple bond (sp). Alkynyls include ethynyl, propynyls, butynyls, and pentynyls. Hydrocarbon radicals having a mixture of double bonds and triple bonds, such as 2-penten-4-ynyl, are grouped as alkynyls herein. Alkynyl does not include cycloalkynyl.

“Alkoxy” includes an optionally substituted straight chain or branched alkyl group with a terminal oxygen linking the alkyl group to the rest of the molecule. Alkoxy includes methoxy, ethoxy, propoxy, isopropoxy, butoxy, t-butoxy, pentoxy and so on. “Aminoalkyl”, “thioalkyl”, and “sulfonylalkyl” are analogous to alkoxy, replacing the terminal oxygen atom of alkoxy with, respectively, NH (or NR), S, and SO2. Heteroalkyl includes alkoxy, aminoalkyl, thioalkyl, and so on.

“Aryl” includes phenyl, naphthyl, biphenylyl, tetrahydronaphthyl, and so on, any of which may be optionally substituted. Aryl also includes arylalkyl groups such as benzyl, phenethyl, and phenylpropyl. Aryl includes a ring system containing an optionally substituted 6-membered carbocyclic aromatic ring, said system may be bicyclic, bridge, and/or fused. The system may include rings that are aromatic, or partially or completely saturated. Examples of ring systems include indenyl, pentalenyl, 1-4-dihydronaphthyl, indanyl, benzimidazolyl, benzothiophenyl, indolyl, benzofuranyl, isoquinolinyl, and so on.

“Heterocyclyl” includes optionally substituted aromatic and nonaromatic rings having carbon atoms and at least one heteroatom (O, S, N) or heteroatom moiety (SO2, CO, CONH, COO) in the ring. Unless otherwise indicated, a heterocyclic radical may have a valence connecting it to the rest of the molecule through a carbon atom, such as 3-furyl or 2-imidazolyl, or through a heteroatom, such as N-piperidyl or 1-pyrazolyl. Preferably a monocyclic heterocyclyl has between 4 and 7 ring atoms, or between 5 and 6 ring atoms; there may be between 1 and 5 heteroatoms or heteroatom moieties in the ring, and preferably between 1 and 3. A heterocyclyl may be saturated, unsaturated, aromatic (e.g., heteroaryl), nonaromatic, or fused.

Heterocyclyl also includes fused, e.g., bicyclic, rings, such as those optionally condensed with an optionally substituted carbocyclic or heterocyclic five- or six-membered aromatic ring. For example, “heteroaryl” includes an optionally substituted six-membered heteroaromatic ring containing 1, 2 or 3 nitrogen atoms condensed with an optionally substituted five- or six-membered carbocyclic or heterocyclic aromatic ring. Said heterocyclic five- or six-membered aromatic ring condensed with the said five- or six-membered aromatic ring may contain 1, 2 or 3 nitrogen atoms where it is a six-membered ring, or 1, 2 or 3 heteroatoms selected from oxygen, nitrogen and sulfur where it is a five-membered ring.

Examples of heterocyclyls include thiazoylyl, furyl, pyranyl, isobenzofuranyl, pyrrolyl, imidazolyl, pyrazolyl, isothiazolyl, isoxazolyl, pyridyl, pyrazinyl, pyrimidinyl, pyridazinyl, indolizinyl, isoindolyl, indolyl, indazolyl, purinyl, quinolyl, furazanyl, pyrrolidinyl, pyrrolinyl, imdazolidinyl, imidazolinyl, pyrazolidinyl, pyrazolinyl, piperidyl, piperazinyl, indolinyl, and morpholinyl. For example, preferred heterocyclyls or heterocyclic radicals include morpholinyl, piperazinyl, pyrrolidinyl, pyridyl, cyclohexylimino, cycloheptylimino, and more preferably, piperidyl.

Examples illustrating heteroaryl are thienyl, furanyl, pyrrolyl, imidazolyl, oxazolyl, thiazolyl, benzothienyl, benzofuranyl, benzimidazolyl, benzoxazolyl, benzothiazolyl.

“Acyl” refers to a carbonyl moiety attached to either a hydrogen atom (i.e., a formyl group) or to an optionally substituted alkyl or alkenyl chain, or heterocyclyl.

“Halo” or “halogen” includes fluoro, chloro, bromo, and iodo, and preferably chloro or bromo as a substituent.

“Alkanediyl” or “alkylene” represents straight or branched chain optionally substituted bivalent alkane radicals such as, for example, methylene, ethylene, propylene, butylene, pentylene or hexylene.

“Alkenediyl” represents, analogous to the above, straight or branched chain optionally substituted bivalent alkene radicals such as, for example, propenylene, butenylene, pentenylene or hexenylene. In such radicals, the carbon atom linking a nitrogen preferably should not be unsaturated.

“Aroyl” refers to a carbonyl moiety attached to an optionally substituted aryl or heteroaryl group, wherein aryl and heteroaryl have the definitions provided above. In particular, benzoyl is phenylcarbonyl.

As defined herein, two radicals, together with the atom(s) to which they are attached may form an optionally substituted 4- to 7-, 5- to 7-, or a 5- to 6-membered ring carbocyclic or heterocyclic ring, which ring may be saturated, unsaturated or aromatic. Said rings may be as defined above in the Summary of the Invention section. Particular examples of such rings are as follows in the next section.

“Pharmaceutically acceptable salts, esters, and amides” include carboxylate salts (e.g., C1-8 alkyl, cycloalkyl, aryl, heteroaryl, or non-aromatic heterocyclic) amino acid addition salts, esters, and amides which are within a reasonable benefit/risk ratio, pharmacologically effective and suitable for contact with the tissues of patients without undue toxicity, irritation, or allergic response. Representative salts include hydrobromide, hydrochloride, sulfate, bisulfate, nitrate, acetate, oxalate, valerate, oleate, palmitate, stearate, laurate, borate, benzoate, lactate, phosphate, tosylate, citrate, maleate, fumarate, succinate, tartrate, naphthylate, mesylate, glucoheptonate, lactiobionate, and laurylsulfonate. These may include alkali metal and alkali earth cations such as sodium, potassium, calcium, and magnesium, as well as non-toxic ammonium, quaternary ammonium, and amine cations such as tetramethyl ammonium, methylamine, trimethylamine, and ethylamine. See example, S. M. Berge, et al., “Pharmaceutical Salts,” J. Pharm. Sci., 1977, 66:1-19 which is incorporated herein by reference. Representative pharmaceutically acceptable amides of the invention include those derived from ammonia, primary C1-6 alkyl amines and secondary di (C1-6 alkyl) amines. Secondary amines include 5- or 6-membered heterocyclic or heteroaromatic ring moieties containing at least one nitrogen atom and optionally between 1 and 2 additional heteroatoms. Preferred amides are derived from ammonia, C1-3 alkyl primary amines, and di (C1-2 alkyl)amines. Representative pharmaceutically acceptable esters of the invention include C1-7 alkyl, C5-7 cycloalkyl, phenyl, and phenyl(C1-6)alkyl esters. Preferred esters include methyl esters.

“Patient” or “subject” includes mammals such as humans and animals (dogs, cats, horses, rats, rabbits, mice, non-human primates) in need of observation, experiment, treatment or prevention in connection with the relevant disease or condition. Preferably, the patient or subject is a human.

“Composition” includes a product comprising the specified ingredients in the specified amounts as well as any product which results directly or indirectly from combinations of the specified ingredients in the specified amounts.

“Therapeutically effective amount” or “effective amount” means that amount of active compound or pharmaceutical agent that elicits the biological or medicinal response in a tissue system, animal or human that is being sought by a researcher, veterinarian, medical doctor or other clinician, which includes alleviation of the symptoms of the disease or disorder being treated.

Concerning the various radicals in this disclosure and in the claims, three general remarks are made. The first remark concerns valency. As with all hydrocarbon radicals, whether saturated, unsaturated or aromatic, and whether or not cyclic, straight chain, or branched, and also similarly with all heterocyclic radicals, each radical includes substituted radicals of that type and monovalent, bivalent, and multivalent radicals as indicated by the context of the claims. The context will indicate that the substituent is an alkylene or hydrocarbon radical with at least two hydrogen atoms removed (bivalent) or more hydrogen atoms removed (multivalent). An example of a bivalent radical linking two parts of the molecule is G in formula (I) which links two rings.

Second, radicals or structure fragments as defined herein are understood to include substituted radicals or structure fragments. Hydrocarbyls include monovalent radicals containing carbon and hydrogen such as alkyl, alkenyl, alkynyl, cycloalkyl, and cycloalkenyl (whether aromatic or unsaturated), as well as corresponding divalent radicals such as alkylene, alkenylene, phenylene, and so on. Heterocarbyls include monovalent and divalent radicals containing carbon, hydrogen, and at least one heteroatom. Examples of monovalent heterocarbyls include acyl, acyloxy, alkoxyacyl, heterocyclyl, heteroaryl, aroyl, benzoyl, dialkylamino, hydroxyalkyl, and so on. Using “alkyl” as an example, “alkyl” should be understood to include substituted alkyl having one or more substitutions, such as between 1 and 5, 1 and 3, or 2 and 4 substituents. The substituents may be the same (dihydroxy, dimethyl), similar (chlorofluoro), or different (chlorobenzyl- or aminomethyl-substituted). Examples of substituted alkyl include haloalkyl (such as fluoromethyl, chloromethyl, difluoromethyl, perchloromethyl, 2-bromoethyl, perfluoromethyl, and 3-iodocyclopentyl), hydroxyalkyl (such as hydroxymethyl, hydroxyethyl, 2-hydroxypropyl, aminoalkyl (such as aminomethyl, 2-aminoethyl, 3-aminopropyl, and 2-aminopropyl), nitroalkyl, alkylalkyl, and so on. A di(C1-6 alkyl)amino group includes independently selected alkyl groups, to form, for example, methylpropylamino and isopropylmethylamino, in addition dialkylamino groups having two of the same alkyl group such as dimethyl amino or diethylamino.

Third, only stable compounds are intended. For example, where there is an NR′R″ group, and R can be an alkenyl group, the double bond is at least one carbon removed from the nitrogen to avoid enamine formation. Similarly, where a dashed line is an optional sp2 bond, if it is absent, the appropriate hydrogen atom(s) is(are) included.

Preferred substitutions for Ar include methyl, methoxy, fluoromethyl, difluoromethyl, perfluoromethyl (trifluoromethyl), 1-fluoroethyl, 2-fluoroethyl, ethoxy, fluoro, chloro, and bromo, and particularly methyl, bromo, chloro, perfluoromethyl, perfluoromethoxy, methoxy, and fluoro. Preferred substitution patterns for Ar or Ar1 are 4-substituted or 3,4-disubstituted phenyl.

Compounds of the invention are further described in the next section.

B. COMPOUNDS

The invention features compounds of formula (I) as described in the Summary section.

Preferred compounds include those wherein:

    • (a) R1 is hydrogen, halogen, C1-5 alkoxy, hydroxy, C1-5 alkyl, cyano, nitro, R7R8N, C2-8 acyl, or R10R11NSO2;
    • (b) R1 is halogen, cyano, nitro, R7R8N, or R10R11NSO2;
    • (c) R2 is hydrogen;
    • (d) each of R3 and R4 is independently hydrogen or C1-3 alkyl;
    • (e) one of R3 and R4 is hydrogen;
    • (f) each of R3 and R4 is hydrogen;
    • (g) one of R5 and R6 is hydrogen and the other is a 5-7 membered carbocyclyl or heterocyclyl, optionally substituted;
    • (h) R5 and R6 taken together form a six-membered heterocyclyl;
    • (i) R5 and R6 taken together form pyridinyl, pyrimidinyl, or piperazinyl, optionally N-substituted with R40O(C═O)(C═O)—, R40SO2, R40NHCO2, R40(C═O)—, or R40N(C═O)—;
    • (j) each of R7, R8, R21, R22, R24, and R25 is independently hydrogen or C1-5 alkyl; or, independently, each of R7 and R8, R21 and R22, and R24 and R25 can be taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring may be saturated, unsaturated or aromatic;
    • (k) at least one of R7 and R8, R21 and R22, and R24 and R25, taken together, is morpholinyl, piperidinyl, or pyrrolidinyl;
    • (l) R9, R23, R26, and R27 are each independently C1-5 alkyl;
    • (m) G is C3-4 alkanediyl, optionally substituted with hydroxy, (L)-C1-5 alkyloxy-, or [(L)-C1-5 alkylene]amino-;
    • (n) G is C3 alkanediyl, optionally substituted with hydroxy, (L)-C1-5 alkyloxy-, or [(L)-C1-5 alkylene]amino-;
    • (o) X is nitrogen;
    • (p) Y is CR13;
    • (q) Z is CR14;
    • (r) X is CH;
    • (s) R12 is hydrogen, R23O(C═O)NH—, R22NH(C═O)NH—, R23SO2NH, R23SO, or R23SO2, and R13 is hydrogen, R44O(C═O)NH—, R43NH(C═O)NH—, R44SO2NH, R44SO, or R44SO2.
    • (t) R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, cyano, nitro, R26O(C═O)NH—, R25NH(C═O)NH—, R26SO2NH, or R24R25N.
    • (u) R14 is halogen, R26O(C═O)NH—, R25NH(C═O)NH—, R26SO2NH, or R24R25N; Ar represents a monocyclic ring, optionally substituted with between 1 and 2 substituents selected independently from halogen, C1-5 alkyl, cyano, nitro, R15R16N, CF3, and OCF3;
    • (v) Ar is a six membered ring substituted with between 1 and 2 substituents selected from halo, CF3, and OCF3, said substitutent or substitutents being at the 4-position or at the 3- and 4-positions, respectively;
    • (w) W is SO2, C═O, or CHR20;
    • (x) W is a covalent bond;
    • (y) W and R1 taken together are formula (I)(a);
    • (z) W and R1 taken together are formula (I)(b);
    • (aa) one of R3 and R4 is hydrogen; Ar represents a monocyclic ring, optionally substituted with between 1 and 2 substituents selected from halogen, C1-5 alkyl, cyano, nitro, R15R16N, CF3, and OCF3; R12 is hydrogen, R23SO, or R23SO2; R13 is hydrogen, R44SO, or R44SO2; R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, cyano, nitro, or R24R25N; and G is C3-4 alkanediyl, optionally substituted with hydroxy, C1-3 alkyl, (L)-C1-5 alkyloxy, or [(L)-C1-5 alkylene]amino-;
    • (bb) each of R3 and R4 is hydrogen; Ar represents a six membered ring, optionally substituted with between 1 and 2 substituents selected from halogen, C1-5 alkyl, cyano, nitro, R15R16N, CF3, and OCF3; R12 is hydrogen, R23SO, or R23SO2; R13 is hydrogen, R44SO, or R44SO2; R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, cyano, nitro, or R24R25N; and G is C3 alkanediyl, optionally substituted with hydroxy, (L)-C1-5 alkyloxy-, or (L)-C1-5 alkylamino;
    • (cc) Ar is phenyl; and
    • (dd) combinations of the above.

Specific preferred compounds include the examples herein, such as: 1-[4-(2-Amino-6-chloro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol; 1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea; 1-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea; 3-Amino-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester; 3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenylamine; 1-[2-(4-{3-[3-(4-Bromo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-chloro-phenyl]-3-methyl-urea; 1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide; [3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-carbamic acid methyl ester; 1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide; 2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester; 1-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol; 2-(4-{2-Hydroxy-3-[3-(4-iodo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile; 3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide; 2-(4-[(3-[5-Acetyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1′-yl]-2-hydroxy-propyl]-piperazin-1-yl)-benzonitrile; 2-(4-{3-[3-(4-Chloro-3-methyl-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile; 1-(3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2,4-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone; 1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine; 2-(4-{3-[5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile; N-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide; 3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide; and 3-(4-Chloro-3-methyl-phenyl)-1′-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.

Furthermore, preferred compounds include those wherein Ar is selected from 4-trifluoromethylphenyl, 4-bromophenyl, 4-chlorophenyl, 4-chloro-3-methylphenyl and 3,4-dichlorophenyl.

More preferred compounds include the compounds in Examples 19, 27, and 33.

Related Compounds

The invention provides the disclosed compounds and closely related, pharmaceutically acceptable forms of the disclosed compounds, such as salts, esters, amides, acids, hydrates or solvated forms thereof; masked or protected forms; and racemic mixtures, or enantiomerically or optically pure forms. Related compounds also include compounds of the invention that have been modified to be detectable, e.g., isotopically labelled with 18F for use as a probe in positron emission tomography (PET) or single-photon emission computed tomography (SPECT).

The invention also includes disclosed compounds having one or more functional groups (e.g., hydroxyl, amino, or carboxyl) masked by a protecting group. See, e.g., Greene and Wuts, Protective Groups in Organic Synthesis, 3rd ed., (1999) John Wiley & Sons, NY. Some of these masked or protected compounds are pharmaceutically acceptable; others will be useful as intermediates. Synthetic intermediates and processes disclosed herein, and minor modifications thereof, are also within the scope of the invention.

Hydroxyl Protecting Groups

Protection for the hydroxyl group includes methyl ethers, substituted methyl ethers, substituted ethyl ethers, substitute benzyl ethers, and silyl ethers.

Substituted Methyl Ethers

Examples of substituted methyl ethers include methyoxymethyl, methylthiomethyl, t-butylthiomethyl, (phenyldimethylsilyl)methoxymethyl, benzyloxymethyl, p-methoxybenzyloxymethyl, (4-methoxyphenoxy)methyl, guaiacolmethyl, t-butoxymethyl, 4-pentenyloxymethyl, siloxymethyl, 2-methoxyethoxymethyl, 2,2,2-trichloroethoxymethyl, bis(2-chloroethoxy)methyl, 2-(trimethylsilyl)ethoxymethyl, tetrahydropyranyl, 3-bromotetrahydropyranyl, tetrahydrothiopyranyl, 1-methoxycyclohexyl, 4-methoxytetrahydropyranyl, 4-methoxytetrahydrothiopyranyl, 4-methoxytetrahydrothiopyranyl S,S-dioxido, 1-[(2-chloro-4-methyl)phenyl]-4-methoxypiperidin-4-yl, 1,4-dioxan-2-yl, tetrahydrofuranyl, tetrahydrothiofuranyl and 2,3,3a,4,5,6,7,7a-octahydro-7,8,8-trimethyl-4,7-methanobenzofuran-2-yl.

Substituted Ethyl Ethers

Examples of substituted ethyl ethers include 1-ethoxyethyl, 1-(2-chloroethoxy)ethyl, 1-methyl-1-methoxyethyl, 1-methyl-1-benzyloxyethyl, 1-methyl-1-benzyloxy-2-fluoroethyl, 2,2,2-trichloroethyl, 2-trimethylsilylethyl, 2-(phenylselenyl)ethyl, t-butyl, allyl, p-chlorophenyl, p-methoxyphenyl, 2,4-dinitrophenyl, and benzyl.

Substituted Benzyl Ethers

Examples of substituted benzyl ethers include p-methoxybenzyl, 3,4-dimethoxybenzyl, o-nitrobenzyl, p-nitrobenzyl, p-halobenzyl, 2,6-dichlorobenzyl, p-cyanobenzyl, p-phenylbenzyl, 2- and 4-picolyl, 3-methyl-2-picolyl N-oxido, diphenylmethyl, p,p′-dinitrobenzhydryl, 5-dibenzosuberyl, triphenylmethyl, α-naphthyldiphenylmethyl, p-methoxyphenyldiphenylmethyl, di(p-methoxyphenyl)phenylmethyl, tri(p-methoxyphenyl)methyl, 4-(4′-bromophenacyloxy)phenyldiphenylmethyl, 4,4′,4″-tris(4,5-dichlorophthalimidophenyl)methyl, 4,4′,4″-tris(levulinoyloxyphenyl)methyl, 4,4′,4″-tris(benzoyloxyphenyl)methyl, 3-(Imidazol-1-ylmethyl)bis(4′,4″-dimethoxyphenyl)methyl, 1,1-bis(4-methoxyphenyl)-1′-pyrenylmethyl, 9-anthryl, 9-(9-phenyl)xanthenyl, 9-(9-phenyl-10-oxo)anthryl, 1,3-benzodithiolan-2-yl, and benzisothiazolyl S,S-dioxido.

Silyl Ethers

Examples of silyl ethers include trimethylsilyl, triethylsilyl, triisopropylsilyl, dimethylisopropylsilyl, diethylisopropylsilyl, dimethylthexylsilyl, t-butyldimethylsilyl, t-butyldiphenylsilyl, tribenzylsilyl, tri-p-xylylsilyl, triphenylsilyl, diphenylmethylsilyl, and t-butylmethoxyphenylsilyl.

Esters

In addition to ethers, a hydroxyl group may be protected as an ester. Examples of esters include formate, benzoylformate, acetate, chloroacetate, dichloroacetate, trichloroacetate, trifluoroacetate, methoxyacetate, triphenylmethoxyacetate, phenoxyacetate, p-chlorophenoxyacetate, p-P-phenylacetate, 3-phenylpropionate, 4-oxopentanoate(levulinate), 4,4-(ethylenedithio)pentanoate, pivaloate, adamantoate, crotonate, 4-methoxycrotonate, benzoate, p-phenylbenzoate, 2,4,6-trimethylbenzoate(mesitoate)

Carbonates

Examples of carbonate protecting groups include methyl, 9-fluorenylmethyl, ethyl, 2,2,2-trichloroethyl, 2-(trimethylsilyl)ethyl, 2-(phenylsulfonyl)ethyl, 2-(triphenylphosphonio)ethyl, isobutyl, vinyl, allyl, p-nitrophenyl, benzyl, p-methoxybenzyl, 3,4-dimethoxybenzyl, o-nitrobenzyl, p-nitrobenzyl, S-benzyl thiocarbonate, 4-ethoxy-1-naphthyl, and methyl dithiocarbonate.

Assisted Cleavage

Examples of assisted cleavage include 2-iodobenzoate, 4-azidobutyrate, 4-nitro-4-methylpentanoate, o-(dibromomethyl)benzoate, 2-formylbenzenesulfonate, 2-(methylthiomethoxy)ethyl carbonate, 4-(methylthiomethoxy)butyrate, and 2-(methylthiomethoxymethyl)benzoate.

Miscellaneous Esters

Examples of miscellaneous esters include 2,6-dichloro-4-methylphenoxyacetate, 2,6-dichloro-4-(1,1,3,3-tetramethylbutyl)phenoxyacetate, 2,4-bis(1,1-dimethylpropyl)phenoxyacetate, chlorodiphenylacetate, isobutyrate, monosuccinoate, (E)-2-methyl-2-butenoate(tigloate), o-(methoxycarbonyl)benzoate, p-P-benzoate, α-naphthoate, nitrate, alkyl N,N,N′,N′-tetramethylphosphorodiamidate, N-phenylcarbamate, borate, dimethylphosphinothioyl, and 2,4-dinitrophenylsulfenate.

Sulfonates

Examples of sulfonates include sulfate, methanesulfonate(mesylate), benzylsulfonate, and tosylate.

Amino Protecting Groups

Protection for the amino group includes carbamates, amides, and special —NH protective groups.

Examples of carbamates include methyl and ethyl carbamates, substituted ethyl carbamates, assisted cleavage carbamates, photolytic cleavage carbamates, urea-type derivatives, and miscellaneous carbamates.

Carbamates

Examples of methyl and ethyl carbamates include methyl and ethyl, 9-fluorenylmethyl, 9-(2-sulfo)fluorenylmethyl, 9-(2,7-dibromo)fluorenylmethyl, 2,7-di-t-butyl-[9-(10,10-dioxo-10,10,10,10-tetrahydrothioxanthyl)]methyl, and 4-methoxyphenacyl.

Substituted Ethyl

Examples of substituted ethyl carbamates include 2,2,2-trichloroethyl, 2-trimethylsilylethyl, 2-phenylethyl, 1-(1-adamantyl)-1-methylethyl, 1,1-dimethyl-2-haloethyl, 1,1-dimethyl-2,2-dibromoethyl, 1,1-dimethyl-2,2,2-trichloroethyl, 1-methyl-1-(4-biphenylyl)ethyl, 1-(3,5-di-t-butylphenyl)-1-methylethyl, 2-(21- and 4′-pyridyl)ethyl, 2-(N,N-dicyclohexylcarboxamido)ethyl, t-butyl, 1-adamantyl, vinyl, allyl, 1-isopropylallyl, cinnamyl, 4-nitrocinnamyl, 8-quinolyl, N-hydroxypiperidinyl, alkyldithio, benzyl, p-methoxybenzyl, p-nitrobenzyl, p-bromobenzyl, p-chlorobenzyl, 2,4-dichlorobenzyl, 4-methylsulfinylbenzyl, 9-anthrylmethyl and diphenylmethyl.

Assisted Cleavage

Examples of assisted cleavage include 2-methylthioethyl, 2-methylsulfonylethyl, 2-(p-toluenesulfonyl)ethyl, [2-(1,3-dithianyl)]methyl, 4-methylthiophenyl, 2,4-dimethylthiophenyl, 2-phosphonioethyl, 2-triphenylphosphonioisopropyl, 1,1-dimethyl-2-cyanoethyl, m-chloro-p-acyloxybenzyl, p-(dihydroxyboryl)benzyl, 5-benzisoxazolylmethyl, and 2-(trifluoromethyl)-6-chromonylmethyl.

Photolytic Cleavage

Examples of photolytic cleavage include m-nitrophenyl, 3,5-dimethoxybenzyl, o-nitrobenzyl, 3,4-dimethoxy-6-nitrobenzyl, and phenyl(o-nitrophenyl)methyl.

Urea-Type Derivatives

Examples of urea-type derivatives include phenothiazinyl-(10)-carbonyl derivative, N′-p-toluenesulfonylaminocarbonyl, and N′-phenylaminothiocarbonyl.

Miscellaneous Carbamates

Examples of miscellaneous carbamates include t-amyl, S-benzyl thiocarbamate, p-cyanobenzyl, cyclobutyl, cyclohexyl, cyclopentyl, cyclopropylmethyl, p-decyloxybenzyl, diisopropylmethyl, 2,2-dimethoxycarbonylvinyl, o-(N,N-dimethylcarboxamido)benzyl, 1,1-dimethyl-3-(N,N-dimethylcarboxamido)propyl, 1,1-dimethylpropynyl, di(2-pyridyl)methyl, 2-furanylmethyl, 2-iodoethyl, isobornyl, isobutyl, isonicotinyl, p-(p′-methoxyphenylazo)benzyl, 1-methylcyclobutyl, 1-methylcyclohexyl, 1-methyl-1-cyclopropylmethyl, 1-methyl-1-(3,5-dimethoxyphenyl)ethyl, 1-methyl-1-(p-phenylazophenyl)ethyl, 1-methyl-1-phenylethyl, 1-methyl-1-(4-pyridyl)ethyl, phenyl, p-(phenylazo)benzyl, 2,4,6-tri-t-butylphenyl, 4-(trimethylammonium)benzyl, and 2,4,6-trimethylbenzyl.

Examples of amides include:

Amides

N-formyl, N-acetyl, N-chloroacetyl, N-trichloroacetyl, N-trifluoroacetyl, N-phenylacetyl, N-3-phenylpropionyl, N-picolinoyl, N-3-pyridylcarboxamide, N-benzoylphenylalanyl derivative, N-benzoyl, N-p-phenylbenzoyl.

Assisted Cleavage

N-o-nitrophenylacetyl, N-o-nitrophenoxyacetyl, N-acetoacetyl, (N′-dithiobenzyloxycarbonylamino)acetyl, N-3-(p-hydroxyphenyl)propionyl, N-3-(o-nitrophenyl)propionyl, N-2-methyl-2-(o-nitrophenoxy)propionyl, N-2-methyl-2-(o-phenylazophenoxy)propionyl, N-4-chlorobutyryl, N-3-methyl-3-nitrobutyryl, N-o-nitrocinnamoyl, N-acetylmethionine derivative, N-o-nitrobenzoyl, N-o-(benzoyloxymethyl)benzoyl, and 4,5-diphenyl-3-oxazolin-2-one.

Cyclic Imide Derivatives

N-phthalimide, N-dithiasuccinoyl, N-2,3-diphenylmaleoyl, N-2,5-dimethylpyrrolyl, N-1,1,4,4-tetramethyldisilylazacyclopentane adduct, 5-substituted 1,3-dimethyl-1,3,5-triazacyclohexan-2-one, 5-substituted 1,3-dibenzyl-1,3,5-triazacyclohexan-2-one, and 1-substituted 3,5-dinitro-4-pyridonyl.

Special—NH Protective Groups

Examples of special NH protective groups include

N-Alkyl and N-Aryl Amines

N-methyl, N-allyl, N-[2-(trimethylsilyl)ethoxy]methyl, N-3-acetoxypropyl, N-(1-isopropyl-4-nitro-2-oxo-3-pyrrolin-3-yl), quaternary ammonium salts, N-benzyl, N-di(4-methoxyphenyl)methyl, N-5-dibenzosuberyl, N-triphenylmethyl, N-(4-methoxyphenyl)diphenylmethyl, N-9-phenylfluorenyl, N-2,7-dichloro-9-fluorenylmethylene, N-ferrocenylmethyl, and N-2-picolylamine N′-oxide.

Imine Derivatives

N-1,1-dimethylthiomethylene, N-benzylidene, N-p-methoxybenzylidene, N-diphenylmethylene, N-[(2-pyridyl)mesityl]methylene, and N—(N′,N′-dimethylaminomethylene).

Protection for the Carbonyl Group

Acyclic Acetals and Ketals

Examples of acyclic acetals and ketals include dimethyl, bis(2,2,2-trichloroethyl), dibenzyl, bis(2-nitrobenzyl) and diacetyl.

Cyclic Acetals and Ketals

Examples of cyclic acetals and ketals include 1,3-dioxanes, 5-methylene-1,3-dioxane, 5,5-dibromo-1,3-dioxane, 5-(2-pyridyl)-1,3-dioxane, 1,3-dioxolanes, 4-bromomethyl-1,3-dioxolane, 4-(3-butenyl)-1,3-dioxolane, 4-phenyl-1,3-dioxolane, 4-(2-nitrophenyl)-1,3-dioxolane, 4,5-dimethoxymethyl-1,3-dioxolane, O,O′-phenylenedioxy and 1,5-dihydro-3H-2,4-benzodioxepin.

Acyclic Dithio Acetals and Ketals

Examples of acyclic dithio acetals and ketals include S,S′-dimethyl, S,S′-diethyl, S,S′-dipropyl, S,S′-dibutyl, S,S′-dipentyl, S,S′-diphenyl, S,S′-dibenzyl and S,S′-diacetyl.

Cyclic Dithio Acetals and Ketals

Examples of cyclic dithio acetals and ketals include 1,3-dithiane, 1,3-dithiolane and 1,5-dihydro-3H-2,4-benzodithiepin.

Acyclic Monothio Acetals and Ketals

Examples of acyclic monothio acetals and ketals include O-trimethylsilyl-S-alkyl, O-methyl-5-alkyl or —S-phenyl and O-methyl-S-2-(methylthio)ethyl.

Cyclic Monothio Acetals and Ketals

Examples of cyclic monothio acetals and ketals include 1,3-oxathiolanes.

Miscellaneous Derivatives

O-Substituted Cyanohydrins

Examples of O-substituted cyanohydrins include O-acetyl, O-trimethylsilyl, O-1-ethoxyethyl and O-tetrahydropyranyl.

Substituted Hydrazones

Examples of substituted hydrazones include N,N-dimethyl and 2,4-dinitrophenyl.

Oxime Derivatives

Examples of oxime derivatives include O-methyl, O-benzyl and O-phenylthiomethyl.

Imines

Substituted Methylene Derivatives, Cyclic Derivatives

Examples of substituted methylene and cyclic derivatives include oxazolidines, 1-methyl-2-(1′-hydroxyalkyl)imidazoles, N,N′-dimethylimidazolidines, 2,3-dihydro-1,3-benzothiazoles, diethylamine adducts, and methylaluminum bis(2,6-di-t-butyl-4-methylphenoxide)(MAD) complex.

Protection for the Carboxyl Group

Esters

Substituted Methyl Esters

Examples of substituted methyl esters include 9-fluorenylmethyl, methoxymethyl, methylthiomethyl, tetrahydropyranyl, tetrahydrofuranyl, methoxyethoxymethyl, 2-(trimethylsilyl)ethoxymethyl, benzyloxymethyl, phenacyl, p-bromophenacyl, α-methylphenacyl, p-methoxyphenacyl, carboxamidomethyl, and N-phthalimidomethyl.

2-Substituted Ethyl Esters

Examples of 2-substituted ethyl esters include 2,2,2-trichloroethyl, 2-haloethyl, ω-chloroalkyl, 2-(trimethylsilyl)ethyl, 2-methylthioethyl, 1,3-dithianyl-2-methyl, 2-(p-nitrophenylsulfenyl)ethyl, 2-(p-toluenesulfonyl)ethyl, 2-(2′-pyridyl)ethyl, 2-(diphenylphosphino)ethyl, 1-methyl-1-phenylethyl, t-butyl, cyclopentyl, cyclohexyl, allyl, 3-buten-1-yl, 4-(trimethylsilyl)-2-buten-1-yl, cinnamyl, α-methylcinnamyl, phenyl, p-(methylmercapto)phenyl and benzyl.

Substituted Benzyl Esters

Examples of substituted benzyl esters include triphenylmethyl, diphenylmethyl, bis(o-nitrophenyl)methyl, 9-anthrylmethyl, 2-(9,10-dioxo)anthrylmethyl, 5-dibenzosuberyl, 1-pyrenylmethyl, 2-(trifluoromethyl)-6-chromylmethyl, 2,4,6-trimethylbenzyl, p-bromobenzyl, o-nitrobenzyl, p-nitrobenzyl, p-methoxybenzyl, 2,6-dimethoxybenzyl, 4-(methylsulfinyl)benzyl, 4-sulfobenzyl, piperonyl, 4-picolyl and p-P-benzyl.

Silyl Esters

Examples of silyl esters include trimethylsilyl, triethylsilyl, t-butyldimethylsilyl, i-propyldimethylsilyl, phenyldimethylsilyl and di-t-butylmethylsilyl.

Activated Esters

Examples of activated esters include thiols.

Miscellaneous Derivatives

Examples of miscellaneous derivatives include oxazoles, 2-alkyl-1,3-oxazolines, 4-alkyl-5-oxo-1,3-oxazolidines, 5-alkyl-4-oxo-1,3-dioxolanes, ortho esters, phenyl group and pentaminocobalt(III) complex.

Stannyl Esters

Examples of stannyl esters include triethylstannyl and tri-n-butylstannyl.

Amides and Hydrazides

Amides

Examples of amides include N,N-dimethyl, pyrrolidinyl, piperidinyl, 5,6-dihydrophenanthridinyl, o-nitroanilides, N-7-nitroindolyl, N-8-Nitro-1,2,3,4-tetrahydroquinolyl, and p-P-benzenesulfonamides.

Hydrazides

Examples of hydrazides include N-phenyl and N,N′-diisopropyl hydrazides.

C. SYNTHESIS

The compounds of the present invention may be prepared by conventional synthetic organic chemistry and by matrix or combinatorial methods according to Schemes 1 to 11 below, and representative detailed Examples 1 to 24. Those of ordinary skill in the art will be able to modify and adapt the guidance provided herein to make the disclosed compounds.

Figure US07772236-20100810-C00005

Figure US07772236-20100810-C00006

Figure US07772236-20100810-C00007

Figure US07772236-20100810-C00008

Figure US07772236-20100810-C00009

Figure US07772236-20100810-C00010

Figure US07772236-20100810-C00011

Figure US07772236-20100810-C00012

Figure US07772236-20100810-C00013

Figure US07772236-20100810-C00014

Figure US07772236-20100810-C00015

D. FORMULATION AND ADMINISTRATION

The present compounds inhibit the proteolytic activity of human cathepsin S and therefore are useful as a medicine especially in methods for treating patients suffering from disorders or conditions which are modulated or regulated, by the inhibition of cathepsin S activity.

The invention features a method for treating a subject with a condition mediated by cathepsin S, said method comprising administering to the subject a therapeutically effective amount of a pharmaceutical composition comprising a compound of the invention. The invention also provides a method for inhibiting cathepsin S activity in a subject, wherein the method comprises administering to the subject a therapeutically effective amount of a pharmaceutical composition comprising a compound of the invention. A third method is a method for treating an autoimmune disease, or inhibiting the progression of an autoimmune disease, in a subject, said method comprising administering to the subject a therapeutically effective amount of a pharmaceutical composition comprising a disclosed compound. The autoimmune disease can be, for example, lupus, rheumatoid arthritis, or preferably, asthma. The invention also provides a method for treating or inhibiting the progression of tissue transplant rejection in a subject, the method comprising administering to the subject a therapeutically effective amount of a pharmaceutical composition comprising a compound of the invention. The administration step can occur before, during, and/or after a tissue transplant procedure.

In view of their inhibitory effect on the proteolytic activity of human cathepsin S the compounds of the present invention may be formulated into various pharmaceutical forms for administration purposes. To prepare these pharmaceutical compositions, an effective amount of a particular compound, in base or acid addition salt form, as the active ingredient is intimately mixed with a pharmaceutically acceptable carrier.

A carrier may take a wide variety of forms depending on the form of preparation desired for administration. These pharmaceutical compositions are desirably in unitary dosage form suitable, preferably, for oral administration or parenteral injection. For example, in preparing the compositions in oral dosage form, any of the usual pharmaceutical media may be employed. These include water, glycols, oils, alcohols and the like in the case of oral liquid preparations such as suspensions, syrups, elixirs and solutions; or solid carriers such as starches, sugars, kaolin, lubricants, binders, disintegrating agents and the like in the case of powders, pills, capsules and tablets. In view of their ease in administration, tablets and capsules represent the most advantageous oral dosage unit form, in which case solid pharmaceutical carriers are generally employed. For parenteral compositions, the carrier will usually comprise sterile water, at least in large part, though other ingredients, for example, to aid solubility, may be included. Injectable solutions, for example, may be prepared in which the carrier comprises saline solution, glucose solution or a mixture of saline and glucose solution. Injectable suspensions may also be prepared in which case appropriate liquid carriers, suspending agents and the like may be employed. In the compositions suitable for percutaneous administration, the carrier optionally comprises a penetration enhancing agent and/or a suitable wetting agent, optionally combined with suitable additives of any nature in minor proportions, which additives do not cause a significant deleterious effect to the skin. Such additives may facilitate the administration to the skin and/or may be helpful for preparing the desired compositions. These compositions may be administered in various ways, e.g., as a transdermal patch, as a spot-on, as an ointment. Acid addition salts of the compounds of formula (I), due to their increased water solubility over the corresponding base form, are more suitable in the preparation of aqueous compositions.

It is especially advantageous to formulate the aforementioned pharmaceutical compositions in dosage unit form for ease of administration and uniformity of dosage. Dosage unit form as used in the specification herein refers to physically discrete units suitable as unitary dosages, each unit containing a predetermined quantity of active ingredient calculated to produce the desired therapeutic effect in association with the required pharmaceutical carrier. Examples of such dosage unit forms are tablets (including scored or coated tablets), capsules, pills, powder packets, wafers, injectable solutions or suspensions, teaspoonfuls, tablespoonfuls and the like, and segregated multiples thereof.

Pharmaceutically acceptable acid addition salts include the therapeutically active non-toxic acid addition salt forms which the disclosed compounds are able to form. The latter can conveniently be obtained by treating the base form with an appropriate acid. Appropriate acids comprise, for example, inorganic acids such as hydrohalic acids, e.g. hydrochloric or hydrobromic acid; sulfuric; nitric; phosphoric and the like acids; or organic acids such as, for example, acetic, propanoic, hydroxyacetic, lactic, pyruvic, oxalic, malonic, succinic, maleic, fumaric, malic, tartaric, citric, methanesulfonic, ethanesulfonic, benzenesulfonic, p-toluenesulfonic, cyclamic, salicylic, p-aminosalicylic, palmoic and the like acids. The term addition salt also comprises the solvates which the disclosed compounds, as well as the salts thereof, are able to form. Such solvates are for example hydrates, alcoholates and the like. Conversely the salt form can be converted by treatment with alkali into the free base form.

Stereoisomeric form defines all the possible isomeric forms which the compounds of formula (I) may possess. Unless otherwise mentioned or indicated, the chemical designation of compounds denotes the mixture of all possible stereochemically isomeric forms, said mixtures containing all diastereomers and enantiomers of the basic molecular structure. More in particular, stereogenic centers may have the (R)- or (S)-configuration; substituents on bivalent cyclic saturated radicals may have either the cis- or trans-configuration. The invention encompasses stereochemically isomeric forms including diastereoisomers, as well as mixtures thereof in any proportion of the disclosed compounds. The disclosed compounds may also exist in their tautomeric forms. Such forms although not explicitly indicated in the above and following formulae are intended to be included within the scope of the present invention.

Those of skill in the treatment of disorders or conditions mediated by the cathepsin S enzyme could easily determine the effective daily amount from the test results presented hereinafter and other information. In general it is contemplated that a therapeutically effective dose would be from 0.001 mg/kg to 5 mg/kg body weight, more preferably from 0.01 mg/kg to 0.5 mg/kg body weight. It may be appropriate to administer the therapeutically effective dose as two, three, four or more sub-doses at appropriate intervals throughout the day. Said sub-doses may be formulated as unit dosage forms, for example, containing 0.05 mg to 250 mg, and in particular 0.5 to 50 mg of active ingredient per unit dosage form. Examples include 2 mg, 4 mg, 7 mg, 10 mg, 15 mg, 25 mg, and 35 mg dosage forms. Compounds of the invention may also be prepared in time-release or subcutaneous or transdermal patch formulations. Disclosed compound may also be formulated as a spray or other topical or inhalable formulations.

The exact dosage and frequency of administration depends on the particular compound of formula (I) used, the particular condition being treated, the severity of the condition being treated, the age, weight and general physical condition of the particular patient as well as other medication the patient may be taking, as is well known to those skilled in the art. Furthermore, it is evident that said effective daily amount may be lowered or increased depending on the response of the treated patient and/or depending on the evaluation of the physician prescribing the compounds of the instant invention. The effective daily amount ranges mentioned herein are therefore only guidelines.

The next section includes detailed information relating to the preparation, characterization, and use of the disclosed compounds.

E. EXAMPLES Example 1

Figure US07772236-20100810-C00016

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-fluoro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone.
A. 1-[3-(4-Chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

To a stirred solution of 50 g (0.35 mol) of N-acetyl-4-piperidone and 31 g (0.35 mol) of morpholine in benzene (350 mL) was added a catalytic amount (˜0.25 g) of p-toluenesulfonic acid. The mixture was heated to reflux for 10 h with a Dean-Stark trap. The solvent was removed under reduced pressure to give a brown oil. The crude product was diluted with CH2Cl2 (175 mL) and 50.0 mL (0.35 mol) of Et3N was added. The mixture was cooled to 0° C. and a solution of 45.0 mL (0.35 mol) of 4-chlorobenzoyl chloride in CH2Cl2 (50 mL) was added slowly by dropping funnel over 1 h. The mixture was allowed to warm to room temperature and stirred overnight. The reaction was then diluted with 1 N HCl (150 mL) and stirred vigorously for 3 h. The aqueous layer was extracted with CH2Cl2 (3×250 mL) and the combined extracts were dried over Na2SO4 and the solvent was removed under reduced pressure. The crude oil was diluted with EtOH (350 mL) and cooled to 0° C. To this stirred solution was slowly added 33.0 mL (1.06 mol) of hydrazine and the mixture was allowed to warm to room temperature and stir overnight during which time a white precipitate formed. The volume of the reaction was reduced to ˜150 mL and EtOAc (750, mL) was added to the mixture. The suspension was stirred vigorously for 2 h and was filtered then washed with EtOAc (2×200 mL) and dried under vacuum to afford 41.4 g (42% over 3 steps) of a pale yellow solid. TLC (silica, 5% MeOH/CH2Cl2): Rf=0.3. MS (electrospray), m/z calculated for C14H14ClN3O [M+H]+ 276.08, observed 276.0. 1H NMR (400 MHz, CDCl3, a mixture of amide rotamers): 7.65 (d, J=8.4 Hz, 2H), 7.64 (d, J=9.3 Hz, 2H), 7.58 (d, J=10.5 Hz, 2H), 7.55 (d, J=8.5 Hz, 2H), 4.94 (s, 2H), 4.78 (s, 2H), 4.08 (t, J=5.9 Hz, 2H), 3.90 (t, J=5.8 Hz, 2H), 3.02 (t, J=5.8 Hz, 2H), 2.96 (t, J=5.9 Hz, 2H), 2.36 (s, 3H), 2.31 (s, 3H).

B. 1-[3-(4-Chloro-phenyl)-1-(3-chloro-propyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

Cs2CO3 (2.66 g, 8.2 mmol) was added to a solution of 1-[3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (1.0 g, 5.4 mmol) in DMF (10 mL) and stirred for 15 min. 1-Bromo-3-chloropropane (1.28 g, 8.2 mmol) was added and stirred under N2 at room temperature for 36 h. Water (50 mL) was added to the reaction and stirred for 5 min. The product precipitated out. The aqueous portion was decanted and water was added to the residue and decanted again. The semisolid was taken up in CH2Cl2 and passed through a short plug of SiO2 (5% MeOH/EtOAc) to obtain 1.06 g (83%) of a pale yellow semisolid. MS (electrospray): exact mass calculated for C17H19Cl2N3O, 351.09; m/z found, 352.0 [M+H]+. 1H NMR (500 MHz, CDCl3, a mixture of 1:1 rotamers): 7.60 (d, J=8.3 Hz, 1H), 7.53 (d, J=8.3 Hz, 1H), 7.40 (d, J=8.3 Hz, 1H), 7.36 (d, J=8.3 Hz, 1H), 4.77 (s, 1H), 4.61 (s, 1H), 4.20 (t, J=6.2 Hz, 2H), 3.94 (t, J=5.8 Hz, 1H), 3.76 (t, J=5.8 Hz, 1H), 3.52 (q, J=6.1 Hz, 2H), 2.84 (t, J=5.5 Hz, 1H), 2.77 (t, J=5.6 Hz, 1H), 2.37 (sextet, J=6.1 Hz, 2H), 2.21 (s, 1.5H), 2.16 (s, 1.5H).

C. 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-fluoro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone

1-[3-(4-Chloro-phenyl)-1-(3-chloro-propyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (0.053 g, 0.15 mmol) was dissolved in CH3CN (0.5 mL) and a solution of 1-(2-fluorophenyl)piperazine (0.053 g, 0.30 mmol) in CH3CN (0.5 mL) was added, followed by K2CO3 (0.031 g, 0.22 mmol) and Bu4NI (0.018 g, 0.05 mmol). The mixture was stirred at room temperature for 7 d. Preparative TLC (silica, 5% MeOH/EtOAc) afforded 30 mg (41%) of the title compound. MS (electrospray): exact mass calculated for C27H31ClFN5O, 495.22; m/z found, 496.3 [M+H]+. 1H NMR (500 MHz, CDCl3, a mixture of 1:1 rotamers): 7.60 (d, J=8.3 Hz, 1H), 7.54 (d, J=8.3 Hz, 1H), 7.39 (d, J=8.3 Hz, 1H), 7.35 (d, J=8.3 Hz, 1H), 7.06-6.90 (m, 4H), 4.77 (s, 1H), 4.60 (s, 1H), 4.10 (t, J=6.8 Hz, 2H), 3.92 (t, J=5.7 Hz, 1H), 3.74 (t, J=5.7 Hz, 1H), 3.08 (br s, 4H), 2.83 (t, J=5.6 Hz, 1H), 2.77 (t, J=5.7 Hz, 1H), 2.58 (br s, 4H), 2.41-2.38 (m, 2H), 2.19 (s, 1.5H), 2.13 (s, 1.5H), 2.10-2.07 (m, 2H).

Example 2

Figure US07772236-20100810-C00017

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone.
A. 1-[3-(4-Chloro-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

To a stirred solution of 1.00 g (3.63 mmol) of 1-[3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone and 2.85 mL (36.3 mmol) of epichlorohydrin was added 1.30 g (3.99 mmol) of solid Cs2CO3. The reaction was stirred for 48 h and the solvent was removed under reduced pressure. The residue was then diluted with H2O (50 mL) and EtOAc (50 mL). The layers were separated, and the organic layer was washed with H2O (25 mL) and brine (25 mL), dried over Na2SO4 and the solvent was removed under reduced pressure. Purification by flash chromatography (silica, 0-15% acetone/CH2Cl2) afforded 0.72 g (60%) of a white solid. TLC (silica, 5% MeOH/CH2Cl2): Rf=0.5. MS (electrospray): m/z calculated for C17H18ClN3O2 [M+H]+ , 332.11, observed 332.0. 1H NMR (400 MHz, CDCl3, a mixture of amide rotamers): 7.60 (d, J=8.6 Hz, 2H), 7.54 (d, J=8.4 Hz, 2H), 7.40 (d, J=8.6 Hz, 2H), 7.36 (d, J=8.4 Hz, 2H), 4.80 and 4.73 (A and B of AB quartet, Jab=15.8 Hz, 2H), 4.60 (s, 2H), 4.47 (dd, J=15.3, 2.5 Hz, 1H), 4.42 (dd, J=15.0, 2.7 Hz, 1H), 4.11 (dd, J=5.3, 2.5 Hz, 1H), 4.08 (dd, J=5.1, 3.3 Hz, 1H), 3.99-3.85 (m, 2H), 3.73 (dt, J=5.9, 1.8 Hz, 2H), 3.37 (m, 2H), 2.87-2.80 (m, 3H), 2.80-2.69 (m, 3H), 2.53 (dd, J=4.7, 2.5 Hz, 1H), 2.48 (dd, J=4.6, 2.6, 1H), 2.19 (s, 3H), 2.15 (s, 3H).

B. 1-[(3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 1-[3-(4-chloro-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (0.8 g, 2.42 mmol) in CH2Cl2 (12 mL) was treated with ytterbium(III) triflate (0.15 g, 0.24 mmol) and 1-(O-tolyl)-piperazine (0.51 g, 2.90 mmol) at 25° C. The reaction mixture was stirred for 24 h and diluted with EtOAc (100 mL) and H2O (50 mL). The organic layer was separated, washed with H2O (2×50 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 5% MeOH/CH2Cl2) afforded 1.08 g (88%) of the target compound, a white powder. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.38. MS (electrospray): m/z 508.3 ([M+H]+, C28H34ClN5O2 requires 507.2). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.60 and 7.37 (AB pattern, Jab=8.8 Hz, 2H), 7.54 and 7.40 (AB pattern, Jab=8.8 Hz, 2H), 7.18-7.14 (m, 2H), 7.00-6.97 (m, 2H), 4.85 and 4.73 (AB pattern, Jab=15.5 Hz, 1H), 4.62 (s, 1H), 4.20-4.11 (m, 2H), 4.06-4.01 (m, 1H), 3.88-3.70 (m, 2H), 2.97-2.87 (m, 6H), 2.85-2.75 (m, 2H), 2.65-2.55 (m, 2H), 2.51-2.48 (m, 2H), 2.29 (s, 3H), 2.21 (s, 1.5H), 2.17 (s, 1.5H).

Example 3

Figure US07772236-20100810-C00018

  • 1-{3-(4-Chloro-phenyl)-1-[2-methoxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone.

A stirred solution of 1-{3-(4-chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone (25 mg, 0.05 mmol) in THF (0.2 mL) was treated with NaH (1.42 mg, 0.06 mmol) at 25° C. After 20 min, methyl iodide (3.7 μL, 0.06 mmol) was added and the reaction mixture was stirred for an additional 2 h. Preparative TLC (silica, 5% MeOH/CH2Cl2) afforded 14.6 mg (56%) of a colorless film. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.38. MS (electrospray): m/z 522.2 ([M+H]+, C29H36ClN5O2 requires 521.3). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.62 and 7.37 (AB pattern, Jab=8.8 Hz, 2H), 7.55 and 7.40 (AB pattern, Jab=8.8 Hz, 2H), 7.18-7:14 (m, 2H), 7.02-6.95 (m, 2H), 4.82 and 4.75 (AB pattern, Jab=15.5 Hz, 1H), 4.62 (s, 1H), 4.30-4.25 (m, 1H), 4.09-3.73 (m, 4H), 3.29 (s, 1.5H), 3.27 (s, 1.5H), 2.93-2.55 (m, 12H), 2.30 (s, 3H), 2.21 (s, 1.5H), 2.16 (s, 1.5H).

Example 4

Figure US07772236-20100810-C00019

  • 1-[1-{2-Hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone.
A. 1-[3-(4-Iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A flask equipped with a Dean-Stark trap was charged with N-acetyl-4-piperidone (27.29 g, 137 mmol), piperidine (16.5 mL, 129 mmol), p-toluene-sulfonic acid (0.5 g) and benzene (150 mL). The mixture was heated to 125° C. After 8 h the mixture was allowed to cool, and concentrated in vacuo to give the corresponding enamine (35 g). A solution of p-iodobenzoyl chloride (9.28 g, 34.8 mmol) in CH2Cl2 (40 mL) was added dropwise to a 0° C. solution of the enamine (11.0 g, ca. 41 mmol) in CH2Cl2 (80 mL) over 2 h. The mixture was then allowed to warm to room temperature and stirred for an additional 17 h. The solution was treated with 1 N HCl (200 mL) and stirred vigorously for 5 h. The layers were separated and the aqueous layer was extracted with CH2Cl2 (3×150 mL). The combined extracts were dried over Na2SO4 and concentrated. The residue was dissolved in EtOH (200 mL) and treated with NH2NH2 (16.0 mL, 51 mmol). The mixture was stirred for 17 h and H2O (300 mL) was added. The precipitate formed was collected by filtration and air dried to give 8.82 g (59%) of 1-[3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone which was suitable for use without further purification. TLC (silica, 5% MeOH/CH2Cl2): Rf=0.3. MS (electrospray): m/z calculated for C14H15IN3O [M+H]+ 368.03. found 368.0. 1H NMR (CD3OD/CDCl3, 500 MHz, a mixture of amide rotamers): 7.72 (d, J=8.2 Hz, 2H), 7.69 (d, J=8.3 Hz, 2H), 7.24 (d, J=8.2 Hz, 2H), 7.20 (d, J=8.3 Hz, 2H), 4.69 (s, 2H), 4.56 (s, 2H), 3.83 (t, J=6.0 Hz, 2H), 3.69 (t, J=5.8 Hz, 2H), 2.79, (t, J=5.7 Hz, 2H), 2.72, (t, J=5.8 Hz, 2H), 2.13 (s, 3H), 2.08 (s, 3H).

B. 1-[3-(4-Iodo-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

Cs2CO3 (1.30 g, 4.01 mmol) was added to a solution of 1-[3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (1.34 g, 3.65 mmol) and epichlorohydrin (2.85 mL, 36.4 mmol) in DMF (10.0 mL). The mixture was stirred for 17 h then partitioned between EtOAc (400 mL) and saturated NaHCO3 (150 mL). The NaHCO3 layer was extracted with EtOAc (2×150 mL). The combined extracts were washed with H2O (2×150 mL), brine (150 mL), dried over Na2SO4 and concentrated. The residue was purified by column chromatography (silica, 10-25% acetone/CH2Cl2) to give 890 mg (58%) of the title compound. HPLC, tR=5.53 min. (Reverse phase conditions: HP 1100 LCMS, Phenomenex luna 2.1×150 mm column, 60% MeOH/H2O (0.5% AcOH) to 90% MeOH/H2O (0.5% AcOH), held at initial conditions for 2 min then ramped to final conditions over 5 min.) MS (electrospray), m/z calculated for C17H18IN3O2Na [M+Na]+ 445.04. found 445.95. 1H NMR (CDCl3, 500 MHz, a mixture of amide rotamers): 7.76 (d, J=8.3 Hz, 2H), 7.75 (d, J=8.3 Hz, 2H), 7.42 (d, J=8.2 Hz, 2H), 7.35 (d, J=8.2 Hz, 2H), 4.80 and 4.73 (A and B of AB quartet, Jab=15.6 Hz, 2H), 4.60 (s, 2H), 4.84 (dd, J=15.1, 2.1 Hz, 1H), 4.42 (dd, J=15.0, 2.1 Hz, 1H), 4.11 (t, J=5.0, Hz, 1H), 4.08 (t, J=5.0 Hz, 1H), 3.98-3.87 (m, 2H), 3.74 (m, 2H), 3.34 (m, 2H), 2.87-2.72 (m, 6H), 2.52 (dd, J=4.6, 2.6 Hz, 1H), 2.48 (dd, J=4.5, 2.6, 1H), 2.20 (s, 3H), 2.14 (s, 3H).

C. 1-[1-{2-Hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

1-[3-(4-Iodo-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (62 mg, 0.15 mmol) and 4-(2-hydroxyphenyl)-piperazine (34 mg, 0.19 mmol) were combined in CH2Cl2 (0.5 mL) and the solution treated with Yb(OTf)3.H2O (44 mg, 0.071 mmol). The mixture was shaken for 72 h then diluted with CH2Cl2 (1 mL). Purification by preparative TLC (silica, 10% MeOH/CH2Cl2) gave 45 mg (51%) of an off-white powder. TLC (silica, 8% MeOH/CH2Cl2): Rf=0.2. MS (electrospray): m/z calculated for C27H33IN5O3 [M+H]+ 602.15. found 602.2. 1H NMR (CDCl3, 500 MHz, a mixture of amide rotamers): 7.76 (d, J=8.6 Hz, 1H), 7.72 (d, J=8.6 Hz, 1H), 7.42 (d, J=8.5 Hz, 1H), 7.34 (d, J=8.5 Hz, 1H), 7.14 (m, 1H), 7.80 (t, J=7.7 Hz, 1H), 6.94 (d, J=8.1 Hz, 1H), 6.86 (t, J=7.7 Hz, 1H), 4.83 and 4.72 (A and B of AB quartet, Jab=15.6 Hz, 1H), 4.61 (s, 1H), 4.22-4.15 (m, 2H), 4.02 (m, 2H), 3.88 (m, 1H), 3.76 (m, 3H), 3.00-2.49 (m, 11H), 2.20 (s, 1.5H), 2.15 (s, 1.5H).

Example 5

Figure US07772236-20100810-C00020

  • 1-[1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone.
A. 1-[3-(4-Trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of N-acetyl-4-piperidone (2.82 g, 20 mmol), morpholine (1.93 mL, 22 mmol) and p-toluenesulfonic acid (5 mg) in benzene (8.5 mL) was refluxed for 8 h in a Dean-Stark apparatus. The solvent was removed and the residue dissolved in CH2Cl2 (20 mL). Triethylamine (3.1 mL) was added and p-trifluoromethylbenzoyl chloride (3.27 mL, 22 mmol) in CH2Cl2 (4 mL) was added dropwise into the solution at 0° C. The reaction mixture was stirred at 25° C. for 24 h and diluted with aqueous HCl (5%, 25 mL). After stirring for another 30 min, the organic layer was separated, washed with H2O (20 mL), dried (Na2SO4), and concentrated. The residue was dissolved in EtOH (95%, 18 mL) and treated at 0° C. with hydrazine (2.9 mL, 60 mmol). The mixture was stirred at 25° C. for 3 h and H2O (4 mL) was added. Most of the volatiles were removed and the residue extracted with CH2Cl2 (50 mL). The organic layer was separated, washed with H2O (20 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 5% MeOH/CH2Cl2) provided 5.1 g (83%) of a white powder. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.30. MS (electrospray): m/z 332.0 ([M+Na]+, C15H14F3N3O requires 309.1). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.73-7.67 (m, 4H), 4.85 (s, 1.2H), 4.68 (s, 0.8H), 3.96 (t, J=4.5 Hz, 0.8H), 3.78 (t, J=4.5 Hz, 1.2H), 2.89 (t, J=4.5 Hz, 1.2H), 2.83 (t, J=4.5 Hz, 0.8H), 2.23 (s, 1.8H), 2.18 (s, 1.2H).

B. 1-[1-Oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 1-[3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (2.4 g, 7.77 mmol) in DMF (15 mL) was treated with cesium carbonate (5.05 g, 15.5 mmol) and epichlorohydrin (6.1 mL, 77.7 mmol) at 25° C. and stirred for 24 h before it was diluted with EtOAc (100 mL) and H2O (50 mL). The organic layer was separated, washed with H2O (2×50 mL), brine (50 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 10% acetone/CH2Cl2) provided 2.30 g (81%) of a white powder. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.35. MS (electrospray): m/z 388.0 ([M+Na]+, C18H18F3N3O2 requires 365.1). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.77 and 7.63 (AB pattern, Jab=8.2 Hz, 2H), 7.71 and 7.67 (AB pattern, Jab=8.4 Hz, 2H), 4.82 and 4.76 (AB pattern, Jab=15.5 Hz, 1.2H), 4.58 (s, 0.8H), 4.45-4.35 (m, 1H), 4.08-4.02 (m, 1H), 3.92-3.80 (m, 1H), 3.70-3.63 (m, 1H), 3.30 (m, 1H), 2.80-2.67 (m, 3H), 2.48-2.42 (m, 1H), 2.13 (s, 1.3H), 2.08 (s, 1.7H).

C. 1-[1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 1-[1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (1.16 g, 3.20 mmol) in CH2Cl2 (15 mL) was treated with ytterbium(III) triflate (0.40 g, 0.64 mmol) and 1-(O-tolyl)-piperazine (0.84 g, 4.77 mmol) at 25° C. and stirred for 48 h before it was diluted with CH2Cl2 (100 mL) and H2O (50 mL). The organic layer was separated, washed with H2O (2×50 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 5% MeOH/CH2Cl2) afforded 1.54 g (89%) of a white powder. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.35. MS (electrospray): m/z 542.3 ([M+H]+, C29H34F3N5O2 requires 541.3). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.82 and 7.65 (AB pattern, Jab=8.2 Hz, 2H), 7.72 and 7.68 (AB pattern, Jab=8.4 Hz, 2H), 7.18-6.97 (m, 4H), 4.88 and 4.76 (AB pattern, Jab=16 Hz, 0.9H), 4.65 (s, 1.1H), 4.23-4.12 (m, 2H), 4.08-4.00 (m, 2H), 3.88-3.70 (m, 2H), 3.02-2.85 (m, 6H), 2.85-2.75 (m, 2H), 2.65-2.55 (m, 2H), 2.53-2.45 (m, 2H), 2.29 (s, 3H), 2.21 (s, 1.8H), 2.17 (s, 1.2H).

Example 6

Figure US07772236-20100810-C00021

  • 2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile.

A solution of 1-[1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (0.84 g, 2.30 mmol) in CH2Cl2 (10 mL) was treated with ytterbium(III) triflate (0.29 g, 0.46 mmol) and 1-(2-cyanophenyl)-piperazine (0.75 g, 3.5 mmol) at 25° C. and stirred for 48 h before it was diluted with CH2Cl2 (100 mL) and H2O (50 mL). The organic layer was separated, washed with H2O (2×50 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 5% MeOH/CH2Cl2) afforded 1.15 g (90%) of light yellow crystals. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.30. MS (electrospray): m/z 553.3 ([M+H]+, C29H31F3N6O2 requires 552.3). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.82 and 7.68 (AB pattern, Jab=8.2 Hz, 2H), 7.76 and 7.72 (AB pattern, Jab=8.4 Hz, 2H), 7.60-7.48 (m, 2H), 7.05-7.00 (m, 2H), 4.90 and 4.78 (AB pattern, Jab=16 Hz, 1H), 4.69 (s, 1H), 4.30-3.71 (m, 6H), 3.25 (m, 4H), 3.02-2.75 (m, 4H), 2.70-2.65 (m, 2H), 2.60-2.53 (m, 2H), 2.23 (s, 1.5H), 2.18 (s, 1.5H).

Example 7

Figure US07772236-20100810-C00022

  • 1-[3-(3,4-Dichloro-phenyl)-pyrazol-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol.
A. 3-(3,4-Dichloro-phenyl)-1-oxiranylmethyl-1H-pyrazole

A stirred solution of 3-(3,4-dichlorophenyl)pyrazole (300 mg, 1.4 mmol) in DMF (5 mL) was treated with cesium carbonate (550 mg, 1.69 mmol) and epichlorohydrin (1.1 mL, 14.0 mmol) at room temperature for 18 h. The crude reaction mixture was then partitioned between EtOAc (50 mL) and water (35 mL). The aqueous phase was further extracted (2×50 mL) and the combined organic layers were washed with brine, dried (Na2SO4), filtered and concentrated under reduced pressure to yield crude product. Purification by column chromatography (silica, 25% EtOAc/hexanes) afforded 308 mg (82%) of the title compound. 1NMR (400 MHz, CDCl3): 7.83 (d, J=2 Hz, 1H), 7.54 (dd, J=2, 8 Hz, 1H), 7.44 (d, J=2 Hz, 1H), 7.38 (d, J=8 Hz, 1H), 6.48 (d, J=2 Hz, 1H), 4.45 (dd, J=3, 9.7 Hz, 1H), 4.12 (dd, J=6, 15 Hz, 1H), 3.31 (m, 1H), 2.81 (dd, J=4.0, 4.6 Hz, 1H), 2.47 (dd, J=2.6, 4.7 Hz, 1H).

B. 1-[3-(3,4-Dichloro-phenyl)-pyrazol-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol

A solution of 3-(3,4-dichloro-phenyl)-1-oxiranylmethyl-1H-pyrazole (30 mg, 0.11 mmol) and 1-(2-methylphenyl)-piperazine (22 mg, 0.12 mmol) in EtOH (1 mL) was heated to 80° C. overnight. Removal of solvent and purification by column chromatography (silica, 0-5% acetone/CH2Cl2) afforded 35 mg (70%) of the title compound. 1H NMR (400 MHz, CDCl3): 7.89 (d, J=2 Hz, 1H), 7.61 (dd, J=2, 8.7 Hz, 1H), 7.57 (d, J=2 Hz, 1H), 7.45 (d, J=8.4 Hz, 1H), 7.16 (m, 2H), 6.99 (m, 2H), 6.54 (d, J=2.3 Hz, 1H), 4.31 (m, 1H), 4.18 (m, 2H), 2.93 (m, 4H), 2.60 (m, 2H), 2.47 (m, 3H), 2.88 (s, 3H).

Example 8

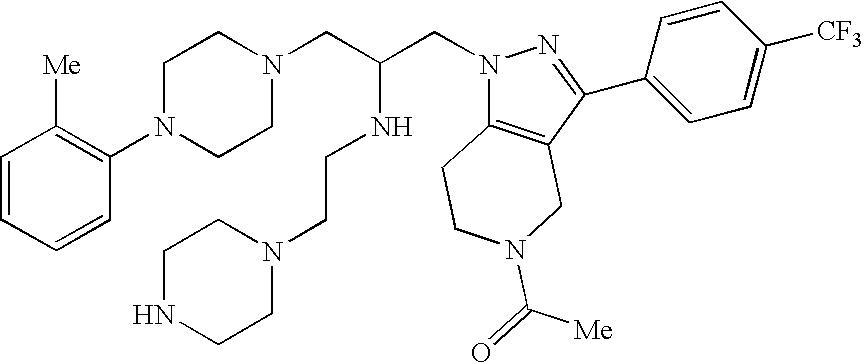

Figure US07772236-20100810-C00023

  • 1-[1-[2-(2-piperazin-1-yl-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone.
A. 1-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-one

A solution of DMSO (3.55 mL, 50 mmol) in CH2Cl2 (7 mL) was treated with oxalyl chloride (2.90 mL, 33 mmol) at −78° C. and stirred for 30 min. A solution of 1-[1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (1.8 g, 3.3 mmol) in CH2Cl2 (7 mL) was then slowly added and the reaction mixture was stirred for an additional 30 min before it was quenched with addition of triethylamine (18.4 mL, 132 mmol). The reaction mixture was slowly warmed to 25° C. and diluted with EtOAc (50 mL) and sat. NaHCO3 (30 mL). The organic layer was separated, washed with H2O (2×50 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 2-5% MeOH/CH2Cl2) afforded 1.50 g (83%) of a light yellow powder. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.35. MS (electrospray): m/z 540.3 ([M+H]+, C29H32F3N5O2 requires 539.3). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.78 and 7.62 (AB pattern, Jab=8.2 Hz, 2H), 7.70 and 7.64 (AB pattern, Jab=8.4 Hz, 2H), 7.18-6.95 (m, 4H), 5.10 (s, 1H), 5.07 (s, 1H), 4.84 (s, 1H), 4.68 (s, 1H), 3.96 (t, J=4.4 Hz, 1H), 3.78 (t, J=4.4 Hz, 1H), 3.47 (3.47 (s, 4H), 3.34 (s, 2H), 2.74-2.65 (m, 6H), 2.29 (s, 3H), 2.20 (s, 1.5H), 2.17 (s, 1.5H).

B. 1-[1-[2-(2-piperazin-1-yl-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 1-[5-acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-one (54 mg, 0.1 mmol) in 1,2-dichloroethane (0.5 mL) was treated with 1-(2-aminoethyl)piperazine (26 μL, 0.2 mmol) and glacial acetic acid (34 μL, 0.6 mmol) at 25° C. and stirred for 30 min. Sodium triacetoxyborohydride (63.6 mg, 0.3 mmol) was added and the reaction mixture was stirred for an additional 4 h before it was quenched with CH2Cl2 (5 mL) and sat. NaHCO3 (5 mL). The organic layer was separated, washed with H2O (2×5 mL), dried over Na2SO4, and concentrated. Preparative TLC (silica, 10% MeOH/CH2Cl2) afforded 22 mg (35%) of a light yellow film. TLC (10% MeOH/CH2Cl2): Rf=0.2. MS (electrospray): m/z 653.3 ([M+H]+, C35H47F3N8O requires 652.4). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.78-7.60 (m, 4H), 7.18-6.82 (m, 4H), 4.88-4.30 (m, 2H), 4.23-3.90 (m, 2H), 3.85-3.70 (m, 2H), 3.22-2.85 (m, 10H), 2.85-2.30 (m, 15H), 2.30 (s, 3H), 2.21 (s, 1.5H), 2.17 (s, 1.5H).

Example 9

Figure US07772236-20100810-C00024

  • 1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester.
A. 3-(4-Iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

p-Toluenesulfonic acid (0.055 g. 0.29 mmol) and morpholine (4.76 mL, 54 mmol) were added to a solution of tert-butyl 4-oxo-1-piperidinecarboxylate (10.3 g. 52 mmol) in benzene (22 mL). The reaction mixture was heated in a flask equipped with a condenser and a Dean-Stark trap at reflux for 20 h. The reaction mixture was cooled and concentrated in vacuo to give the enamine which was used without further purification. The enamine was dissolved in CH2Cl2 (60 mL) and cooled to 0° C. Triethylamine (8.67 mL, 62 mmol) was added, followed by dropwise addition of 4-iodobenzoyl chloride (13.8 g, 52 mmol) dissolved in CH2Cl2 (10 mL). The reaction mixture was allowed to warm to room temperature and stirred for 72 h. The reaction mixture was poured over water (200 mL) and the CH2Cl2 layer was separated, dried (Na2SO4), and concentrated. The resulting oil was taken up in EtOH (200 mL) and treated with hydrazine (4.88 mL, 155 mmol) at 0° C. The reaction mixture was allowed to warm to room temperature and stirred for 17 h. The mixture was concentrated and the resulting material was triturated with EtOAc to afford 9.52 g (43%) of a white solid. TLC (silica, 10% acetone/CH2Cl2): Rf=0.18. MS (electrospray): m/z 426.0 (426.1 calculated for C17H20IN3O2, [M+H]+). 1H NMR (400 MHz, CDCl3): 7.74 (br s, 2H), 7.31 (br d, J=8.0 Hz, 2H), 4.63 (br s, 2H), 3.73 (br s, 2H), 2.77 (br s, 2H), 1.49 (s, 9H).

B. 3-(4-Iodo-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

Cesium carbonate (1.84 g, 5.65 mmol) was added to a solution of epichlorohydrin (3.68 mL, 47.05 mmol) and 3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (2.0 g, 4.71 mmol) in DMF (10 mL). The reaction mixture was allowed to stir for 24 h, then partitioned between aqueous NaHCO3 and EtOAc. The aqueous layer was extracted with EtOAc and the combined organic layers were washed with water and brine, dried (Na2SO4), and concentrated. Purification by column chromatography (silica, 0-10% acetone/CH2Cl2) afforded 2.26 g (69%) of a white foam. TLC (silica, 10% acetone/CH2Cl2): Rf=0.44. MS (electrospray): m/z 482.0 (482.1 calculated for C20H24IN3O3, [M+H]+). 1H NMR (400 MHz, CDCl3): 7.60 (br s, 2H), 7.28 (br d, J=8.2 Hz, 2H), 4.48 (br s, 2H), 4.32 (br d, J=14.8 Hz, 1H), 3.99 (dd, J=15.0, 5.4 Hz, 1H), 3.61 (br s, 1H), 3.26-3.20 (m, 1H), 2.72 (t, J=4.4 Hz, 1H), 2.65-2.58 (m, 2H), 2.40 (br s, 1H), 1.36 (s, 9H).

C. 1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

Ytterbium (III) trifluoromethanesulfonate hydrate (0.193 g, 0.311 mmol) and 1-(2-cyanophenyl)-piperazine (0.292 g, 1.56 mmol) were dissolved in CH2Cl2 (2 mL) and added to a solution of 3-(4-iodo-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester in CH2Cl2 (5 mL). The reaction mixture was allowed to stir for 48 h at 25° C. Purification by flash chromatography (silica, 0-15% acetone/CH2Cl2) afforded 392 mg (56%) of a white foam. TLC (silica, 10% acetone/CH2Cl2): Rf=0.41. MS (electrospray): m/z 669.2 (669.2 calculated for C31H37IN6O3, [M+H]+). 1H NMR (400 MHz, CDCl3): 7.73 (br s, 2H), 7.58-7.56 (m, 1H), 7.52-7.48 (m, 1H), 7.39 (br d, J=7.1 Hz, 2H), 7.04-7.00 (m, 2H), 4.60 (br s, 2H), 4.06-4.04 (m, 2H), 4.06-4.04 (m, 1H), 3.76-3.70 (m, 2H), 3.26 (br s, 4H), 2.84-2.38 (m, 7H), 1.56-1.53 (m, 2H), 1.48 (s, 9H).

Example 10

Figure US07772236-20100810-C00025

  • 1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
A. 2-(4-{2-Hydroxy-3-[3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile

Trifluoroacetic acid (3 mL) was added to a solution of 1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (0.402 g, 0.601 mmol) in CH2Cl2 (3 mL) and the reaction mixture was stirred for 2 h. The mixture was concentrated, then diluted with EtOAc. The organic layer was washed with aqueous NaHCO3 and brine, dried (Na2SO4), and concentrated to afford the amine (0.342 g, 100%) as a yellowish foam. TLC (silica, 10% acetone/CH2Cl2): Rf=0.14. MS (electrospray): m/z 569.2 (569.1, calculated for C26H29IN6O, [M+H]+). 1H NMR (400 MHz, CDCl3:CD3OD (6:1)): 7.73 (d, J=8.6 Hz, 2H), 7.56 (dd, J=7.6, 1.8 Hz, 1H), 7.52 (t, J=8.0 Hz, 1H), 7.25 (d, J=8.6 Hz, 2H), 7.09 (t, J=7.6 Hz, 1H), 7.02 (dd, J=8.4 Hz, 1H), 4.43-4.36 (m, 1H), 4.31 (s, 2H), 4.21 (dd, J=14.1, 4.5 Hz, 1H), 4.11 (dd, J=14.5, 6.3 Hz, 1H), 3.54-3.49 (m, 2H), 3.40-3.24 (m, 8H), 3.18-3.06 (m, 3H), 3.03-2.95 (m, 3H).

B. 1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide

Diisopropylethylamine (0.531 mL, 3.05 mmol), DMAP (5 mg), and trimethylsilyl isocyanate (0.413 mL, 3.05 mmol) were added to a solution of 2-(4-{2-hydroxy-3-[3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile in pyridine (3 mL) and CH2Cl2 (6 mL). The reaction mixture was stirred for 20 h, then partitioned between aqueous NaHCO3 and CH2Cl2. The CH2Cl2 layer was washed with brine, dried (Na2SO4), and concentrated. The resulting product was dissolved in CH2Cl2 (5 mL) and treated with 21 wt % sodium ethoxide in EtOH (0.5 mL) for 3 h. The reaction mixture was washed with brine, dried (Na2SO4), and concentrated. Purification by column chromatography (silica, 0-10% MeOH/CH2Cl2) afforded 290 mg (78%) of the title compound. HPLC (reverse phase conditions), tR=4.21 min. MS (electrospray): m/z 612.2 (612.5, calculated for C27H30IN7O2, M++H). 1H NMR (400 MHz, CDCl3): 7.73 (d, J=8.6 Hz, 2H), 7.57 (dd, J=7.6, 1.6 Hz, 1H), 7.50 (t, J=7.8 Hz, 1H), 7.36 (d, J=8.6 Hz, 2H), 7.05 (t, J=7.6 Hz, 1H), 7.00 (d, J=8.4 Hz, 1H), 4.64 (br s, 2H), 4.57 (br s, 2H), 4.30 (br s, 1H), 4.20 (dd, J=14.1, 3.3 Hz, 1H), 4.06 (dd, J=14.1, 6.3 Hz, 1H), 3.82-3.65 (m, 2H), 3.29-3.20 (m, 4H), 3.04-2.80 (m, 6H), 2.68 (br s, 2H).

Example 11

Figure US07772236-20100810-C00026

  • Carbamic acid 1-[5-carbamoyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-[4-(2-cyano-phenyl)-piperazin-1-yl]-ethyl ester.

The title compound (13 mg, 3%) was obtained along with 1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid as described in example 10. MS (electrospray): m/z 655.2 (655.2, calculated for C28H31IN8O3, [M+H]+). HPLC (reverse phase conditions): tR=6.29 min. 1H NMR (400 MHz, CDCl3): 7.69 (d, J=8.1 Hz, 2H), 7.50 (d, J=7.52, 1H), 7.43 (t, J=8.1 Hz, 1H), 7.31 (d, J=8.1 Hz, 2H), 6.96 (t, J=9.0 Hz, 2H), 4.64 (br s, 2H), 4.08 (d, J=16.8 Hz, 2H), 3.96 (dd, J=14.0, 6.6 Hz, 1H), 3.80-3.69 (m, 2H), 3.10-2.80 (m, 4H), 2.66 (br s, 2H), 2.50 (br s, 2H).

Example 12

Figure US07772236-20100810-C00027

  • 1-{3-(3-Amino-4-chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone.
A. 1-[3-(4-Chloro-3-nitro-Phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A flask equipped with a Dean-Stark trap was charged with N-acetyl-4-piperidone (27.29 g, 137 mmol), piperidine (16.5 mL, 129 mmol), p-toluene-sulfonic acid (0.5 g) and benzene (150 mL). The mixture was heated to 125° C. After 8 h the mixture was allowed to cool, and concentrated in vacuo to give the corresponding enamine (35 g). A solution of the enamine (3.87 g, 20.0 mmol) in dichloromethane (24 mL) was treated with triethylamine (3.07 mL, 22.0 mmol) and 4-chloro-3-nitrobenzoyl chloride (4.84 g, 22.0 mmol). The reaction mixture was stirred at 0° C. for 1 h and then at room temperature for 16 h. Hydrazine (1.88 mL, 60 mmol) was added to the reaction mixture. This solution was stirred at room temperature for an additional 16 h. The solvents were removed under reduced pressure. Ethyl acetate (100 mL) was added to the residue to form a suspension. This suspension was filtered and dried to afford 6.4 g (100%) of a yellow solid. MS (electrospray): m/z 321.0 (321.0, calculated for C14H13ClN4O3, [M+H]+). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 8.10-8.00 (m, 3H), 4.90 (s, 0.8H), 4.85 (s, 1.2H), 3.96 (m, 2H), 2.95 (m, 2H), 2.20 (s, 3H).

B. 1-[3-(4-Chloro-3-nitro-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 1-[3-(4-chloro-3-nitro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (6.4 g, 20.0 mmol) in DMF (60 mL) was treated with cesium carbonate (13.0 g, 40 mmol) and epichlorohydrin (15.6 mL, 200.0 mmol) at room temperature. The reaction mixture was stirred at room temperature for an additional 24 h before it was diluted with ethyl acetate (350 mL) and water (50 mL). The organic layer was separated, washed with water (2×50 mL), brine (50 mL), dried over sodium sulfate, and concentrated under reduced pressure. The residue was purified by column chromatography (silica, 10% acetone/CH2Cl2) to provide 7.5 g (83%) of a light yellow powder. MS (electrospray): m/z 377.0 (377.0, calculated for C17H17ClN4O4, [M+H]+). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 8.15-8.05 (m, 1H), 7.75-7.65 (m, 1H), 7.55-7.45 (m, 1H), 4.80-4.65 (m, 1.2H), 4.60 (s, 0.8H), 4.45-4.35 (m, 1H), 4.08-4.02 (m, 1H), 3.92-3.80 (m, 1H), 3.70-3.63 (m, 1H), 3.30-3.20 (m, 1H), 2.90-2.67 (m, 3H), 2.55-2.48 (m, 1H), 2.15 (s, 1.7H), 2.10 (s, 1.3H).

C. 1-[(3-(4-Chloro-3-nitro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 1-[3-(4-chloro-3-nitro-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (0.754 g, 2.0 mmol) in dichloromethane (10 mL) was treated with ytterbium(III) triflate (0.25 g, 0.40 mmol) and 1-(2-methylphenyl)-piperazine (0.705 g, 4.0 mmol) at room temperature. The reaction mixture was stirred at room temperature for 16 h and diluted with dichloromethane (100 mL) and water (50 mL). The organic layer was separated, washed with water (2×50 mL), dried over sodium sulfate and concentrated under reduced pressure. The residue was purified by column chromatography (silica, 5% MeOH/CH2Cl2) to afford 0.98 g (90%) of the desired product as a light yellow solid. MS (electrospray): m/z 553.2 (553.2, calculated for C28H33ClN6O4, [M+H]+). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 8.25-8.15 (m, 1H), 7.75-7.70 (m, 1H), 7.63-7.55 (m, 1H) 7.20-7.10 (m, 2H), 7.05-6.95 (m, 2H), 4.90-4.70 (m, 1H), 4.65 (s, 1H), 4.30-4.15 (m, 2H), 4.10-3.70 (m, 4H), 3.00-2.40 (m, 12H), 2.20 (s, 3H), 2.15 (s, 1.5H), 2.10 (s, 1.5H).

D. 1-{3-(3-amino-4-chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone

To a solution of sodium hydrosulfite (1.28 g, 7.3 mmol) in 30 mL water was added 1-{3-(4-chloro-3-nitro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone (810 mg, 1.5 mmol) in 15 mL THF. The reaction mixture was stirred at room temperature for 5 min. The color of the solution changed from light yellow to colorless. Hydrochloride solution (1 N, 10 mL) was added to the reaction mixture. This solution was stirred at room temperature for 30 min, and treated with saturated sodium bicarbonate until the pH of the solution between 7 to 8. The product was extracted with dichloromethane (3×80 mL). The organic phases were combined, dried over sodium sulfate, and concentrated under reduced pressure to a residue. This residue was purified by column chromatography (silica, 5-20% MeOH/CH2Cl2) to afford 644 mg (84.1%) of the title compound. MS (electrospray): m/z 523.3 (523.3, calculated for C28H35ClN6O2, [M+H]+). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.30-6.70 (m, 7H), 4.80-4.60 (m, 1H), 4.55 (s, 1H), 4.20-4.05 (m, 4H), 3.95-3.90 (m, 2H), 3.80-3.60 (m, 2H), 2.90-2.30 (m, 9H), 2.20 (s, 3H), 2.15 (s, 1.5H), 2.10 (s, 1.5H).

Example 13

Figure US07772236-20100810-C00028

  • (R)-1-(3-(4-Bromo-phenyl)-1-{3-[4-(5-chloro-2-methyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone.
A. (2S)-1-tert-Butyldimethylsilylglycidol

tert-Butylchlorodimethylsilane (9.41 g, 62.4 mmol) followed by Et3N (13.5 mL, 96.8 mmol) was added to a 0° C. solution of R-(+)-glycidol (3.88 g, 52.4 mmol) in CH2Cl2 (100 mL). The solution was allowed to warm to 23° C. with stirring over 17 h. The resulting pink solution was diluted with Et2O (250 mL) and stirred an additional 30 min. The solution was partitioned between Et2O (800 mL) and sat. aqueous NaHCO3 (200 mL). The Et2O layer was washed with sat. aqueous NaHCO3 (250 mL), H2O (3×200 mL), brine (100 mL), dried over Na2SO4 and concentrated. Purification of the residue by column chromatography (silica, 5-10% Et2O/hexanes) provided 8.21 g (84%) of the title compound. TLC (silica, 10% Et2O/hexanes): Rf=0.5. 1H NMR (CDCl3, 400 MHz): 3.85 (dd, J=11.9, 3.2 Hz, 1H), 3.66 (dd, J=11.9, 4.8 Hz, 1H), 3.09 (m, 1H), 2.77 (dd, J=5.0, 4.2 Hz, 1H), 2.64 (dd, J=5.2, 2.7 Hz, 1H), 0.90 (s, 9H), 0.08 (s, 3H), 0.07 (s, 3H).

B. 1-[3-(4-Bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]ethanone

A flask equipped with a Dean-Stark trap was charged with N-acetyl-4-piperidone (100.1 g, 709 mmol), piperidine (68 mL, 779 mmol), pTsOH (3.7 g) and benzene (500 mL). The mixture was heated to 125° C. After 17 h the mixture was allowed to cool and divided into two portions. A solution of p-bromobenzoyl chloride (70.0 g, 319 mmol) in CH2Cl2 (400 mL) was added dropwise to a 0° C. solution of the enamine (ca. 355 mmol) in CH2Cl2 (320 mL) over 15 h. The mixture was then allowed to warm to 23° C. and stirred for an additional 5 h. The solution was treated with 1 N HCl (500 mL) and stirred vigorously for 1.5 h. The layers were separated and the aqueous layer was extracted with CH2Cl2 (2×300 mL). The combined extracts were washed with sat. aqueous NaHCO3 (300 mL), H2O (300 mL), brine (300 mL), dried over Na2SO4 and concentrated. The residue was dissolved in MeOH (300 mL) and treated with NH2NH2 (50.0 mL, 1.59 mol). The mixture was stirred for 17 h before the precipitate formed was collected by filtration and air dried to give 52 g (50%) of the title compound which was suitable for use without further purification. TLC (silica, 5% MeOH/CH2Cl2): Rf=0.3. MS (electrospray): m/z calculated for C14H15 79BrN3O [M+H]+, 320.04. found 320. 1H NMR (CD3OD/CDCl3, 400 MHz, a mixture of amide rotamers): 7.53 and 7.35 (A and B of M′BB′, J=8.5 Hz, 2H), 7.51 and 7.39 (A and B of AA′BB′, J=8.6 Hz, 2H), 4.72 (s, 2H), 4.58 (s, 2H), 3.85 (t, J=5.9 Hz, 2H), 3.71 (t, J=5.8 Hz, 2H), 2.81, (t, J=5.8 Hz, 2H), 2.74, (t, J=5.8 Hz, 2H), 2.16 (s, 3H), 2.11 (s, 3H).

C. (S)-1-[3-(4-Bromo-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of KHMDS in toluene (0.5 M, 3.7 mL, 1.85 mmol) was added to a 0° C. solution of 1-[3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (492 mg, 1.54 mmol) in DMF (4.0 mL). The mixture was stirred for 1 h before (2S)-1-tert-butyldimethylsilylglycidol (870 mg, 4.62 mmol) was added neat via syringe. The mixture was stirred an additional 48 h and partitioned between EtOAc (300 mL) and sat. aqueous NaHCO3 (100 mL). The aqueous layer was extracted with EtOAc (2×100 mL). The combined extracts were washed with H2O (2×100 mL), brine (100 mL), dried over Na2SO4 and concentrated. The residue was dissolved in MeOH (50 mL) and treated with CSA (97 mg). The mixture was stirred for 17 h and concentrated to dryness. The residue was suspended in MeC(OMe)3 (50 mL) and stirred for an additional 17 h. The mixture was diluted with EtOAc (400 mL) and washed with saturated aqueous NaHCO3 (50 mL), H2O (2×50 mL), brine (50 mL), dried over Na2SO4 and concentrated. The crude orthoester was dissolved in CH2Cl2 (5 mL), cooled to 0° C., and treated with AcBr (0.18 mL, 2.4 mmol). The mixture was allowed to warm with stirring over 4 h before being worked up as described above. The crude acetyl-bromide obtained was dissolved in MeOH (50 mL), treated with K2CO3 (207 mg, 1.50 mmol) and stirred for 4 h. The reaction mixture was diluted with EtOAc (400 mL) and washed with saturated aqueous NH4Cl (100 mL). The EtOAc layer was washed with H2O (2×100 mL), brine (100 mL), dried over Na2SO4 and concentrated. The crude product was purified by column chromatography (silica, 10-40% acetone/CH2Cl2) to afford 158 mg (27%) of the title compound. Chiral HPLC (Daicel OD, 0.5% Et2NH/MeOH) analysis indicated >95% optical purity. HPLC (reverse phase conditions): tR=4.90 min. MS (electrospray): m/z calculated for C17H19 79BrN3O2 [M++H], 376.07. found 376.0. 1H NMR (CDCl3, 400 MHz, a mixture of amide rotamers): 7.47 (d with fine splittings (partially obscured), J=8.5, Hz, 2H), 7.44 (m, 4H), 7.38 (d with fine splittings, J=8.5, Hz, 2H), 4.71 and 4.64 (A and B of AB quartet, Jab=15.7 Hz, 2H), 4.51 (s, 2H), 4.39 (dd, J=15.1, 2.5 Hz, 1H), 4.34 (dd, J=15.0, 2.9 Hz, 1H), 4.02 (dd, J=5.2, 3.9 Hz, 1H), 3.98 (dd, J=5.3, 3.7 Hz, 1H), 3.83 (m, 2H), 3.64 (m, 2H), 3.25 (br m, 2H), 2.80-2.60 (m, 6H), 2.46 (dd, J=4.6, 2.6 Hz, 1H), 2.38 (dd, J=4.6, 2.6 Hz, 1H), 2.10 (s, 3H), 2.06 (s, 3H).

D. (R)-1-(3-(4-Bromo-phenyl)-1-{3-[4-(5-chloro-2-methyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone

(S)-1-[3-(4-Bromo-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone (37 mg, 0.98 mmol) and 4-(2-methyl-5-chlorophenyl)piperazine (36 mg, 0.17 mmol) were combined in EtOH (0.4 mL) and heated to 70° C. After 18 h the mixture was allowed to cool, diluted with CH2Cl2 and purified by preparative TLC (silica, 8% MeOH/CH2Cl2) to give 35 mg (61%) the title compound. HPLC (reverse phase conditions): tR=4.41 min. MS (electrospray): m/z calculated for C28H34 35Cl79BrN5O2 [M++H], 586.16, found 586.2. 1H NMR (CDCl3, 400 MHz, a mixture of amide rotamers): 7.56 (d (partially obscured), J=8.5, Hz, 2H), 7.53 (s, 4H), 7.48 (d, J=8.5 Hz, 2H), 7.08 (br d, J=8.5 Hz, 1H), 6.95 (m, 2H), 4.85 and 4.73 (A and B of AB quartet, Jab=15.6 Hz, 1H), 4.62 (s, 1H), 4.20 (m, 2H), 4.04 (m, 2H), 3.90-3.71 (m, 2H), 2.92-2.53 (m, 11H), 2.21 (s, 1.5H), 2.16 (s, 1.5H).

Example 14

Figure US07772236-20100810-C00029

  • 2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-fluoro-propyl}-piperazin-1-yl)-benzonitrile.

A solution of 2-(4-{3-[5-acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile (150 mg, 0.27 mmol) in CH2Cl2 (1 mL) was treated with DAST (Et2NSF3, 7 μL, 0.60 mmol) at −78° C. The reaction mixture was slowly warmed to 25° C. for 1 h and then to 60° C. for an additional 2 h. Preparative TLC (silica, 5% MeOH/CH2Cl2) provided 75 mg (50%) of the title compound as a light yellow powder. TLC (5% MeOH/CH2Cl2): Rf=0.28. MS (electrospray): m/z 555.2 ([M+H]+, C29H30F4N6O requires 554.2). 1H NMR (CDCl3, 400 MHz, a mixture of two rotamers): 7.71 and 7.59 (AB pattern, Jab=8.2 Hz, 2H), 7.66 and 7.62 (AB pattern, Jab=8.4 Hz, 2H), 7.50-7.38 (m, 2H), 6.96-6.92 (m, 2H), 5.01 (dp, J=49.0, 3.0 Hz, 1H), 4.77 and 4.73 (AB pattern, Jab=15.7 Hz, 1.1H), 4.59 (s, 0.9H), 4.41-4.18 (m, 2H), 3.95-3.80 (m, 1H), 3.69 (dd, J=5.5, 5.5 Hz, 1H), 3.18 (m, 4H), 2.83-2.65 (m, 8H), 2.14 (s, 1.6H), 2.10 (s, 1.4H).

Example 15

Figure US07772236-20100810-C00030

  • (3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-oxo-acetic acid methyl ester.
A. 4-Chloro-3-methyl-benzoyl chloride

To a suspension of 52.55 g (0.31 mol) of 4-chloro-3-methyl-benzoic acid in CH2Cl2 (1.2 L) with DMF (1 mL) at 0° C. under N2 with an outlet sparging through 2.5 N sodium hydroxide was added 29.56 mL (0.339 mol) of oxalyl chloride. The mixture was allowed to warm to room temperature over a 3 h period. The reaction mixture was concentrated and taken forward crude.

B. 3-(4-Chloro-3-methyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

To a stirred solution of 55.8 g (0.28 mol) of 4-oxo-piperidine-1-carboxylic acid tert-butyl ester and 25.7 g (0.29 mol) of morpholine in benzene (125 mL) was added a catalytic amount (˜0.25 g) of p-toluenesulfonic acid. The mixture was heated to reflux for 10 h under a Dean-Stark trap. The solvent was removed under reduced pressure to give a brown oil. The crude product was diluted with CH2Cl2 (400 mL), and 46.83 mL (0.34 mol) of Et3N was added. The mixture was cooled to 0° C., and a solution of 4-chloro-3-methyl-benzoyl chloride (0.35 mol) in CH2Cl2 (200 mL) was added slowly by dropping funnel over 2 h. The reaction mixture was poured over water (400 mL) and the CH2Cl2 layer was separated, dried (Na2SO4), and concentrated. The resulting oil was taken up in EtOH (400 mL) and treated with 35 mL of hydrazine at 0° C. The reaction mixture was allowed to warm to room temperature and stirred for 17 h, during which time a white precipitate formed. The volume of the reaction mixture was reduced to ˜150 mL, and Et2O (750 mL) was added. The suspension was stirred vigorously for 2 h and was filtered then washed with Et2O (2×200 mL) and dried under vacuum to afford 50.74 g (52% over 3 steps) of 3-(4-chloro-3-methyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester as a pale orange solid. MS (electrospray): exact mass calculated for C18H22ClN3O2, 347.1; m/z found, 348.1 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.26-7.43 (m, 4H), 4.65 (br s, 2H), 3.73 (br s, 2H), 2.77 (br s, 2H), 2.34 (s, 3H), 1.49 (s, 9H).

C. 3-(4-Chloro-3-methyl-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

To a solution of 3-(4-chloro-3-methyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (18.26 g, 53 mmol) and epichlorohydrin (41.12 mL, 526 mmol) in DMF (100 mL) was added cesium carbonate (20.56 g, 63 mmol). The reaction mixture was allowed to stir for 72 h, diluted with EtOAc (200 mL) and washed with saturated NaHCO3 and brine. The organic layer was dried over Na2SO4, concentrated and purified by column chromatography (silica, 20% acetone/CH2Cl2) to afford 3-(4-chloro-3-methyl-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (12.0 g, 57%). TLC (silica, 20% acetone/CH2Cl2): Rf=0.68. MS (electrospray) m/z 491.2 (491.2, calculated for C27H31ClN6O, [M+H]+). 1H NMR (400 MHz, CDCl3) 7.55 (s, 1H), 7.36 (m, 2H), 4.61 (m, 2H), 4.38-4.47 (m, 1H), 4.11 (dd, J=14.3, 5.7 Hz, 1H), 3.67-3.79 (m, 2H), 3.34 (m, 1H), 2.83 (t, J=4.5 Hz, 1H), 2.75 (m, 2H), 2.51 (m, 1H), 2.41 (s, 3H), 1.48 (s, 9H).

D. 3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

3-(4-Chloro-3-methyl-phenyl)-1-oxiranylmethyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (5.33 g, 13.2 mmol) and 1-(2-cyanophenyl)-piperazine (2.97 g, 15.86 mmol) were partially dissolved in EtOH (50 mL) and triethylamine (2 mL). The reaction mixture was heated to 80° C. for 18 h. The mixture was concentrated and purified by column chromatography (silica, 20% acetone/CH2Cl2) to give 3-(4-chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (6.51 g, 83%) as a yellow solid. TLC (silica, 20% acetone/CH2Cl2): Rf=0.35. MS (electrospray): m/z 591.3 (591.3, calculated for C32H39ClN6O3, [M+H]+).

  • E. 2-(4-{3-[3-(4-Chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile.

3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (1.26 g, 2.13 mmol) was dissolved in trifluoroacetic acid (3 mL) and CH2Cl2 (3 mL) and allowed to stir for 2 h. The reaction mixture was concentrated, taken up in EtOAc (50 mL) and washed with aqueous NaHCO3 (2×25 mL). The EtOAc layer was dried over Na2SO4 and concentrated to give 2-(4-{3-[3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile (1.05 g, 99%) as a yellow foam. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.27. MS (electrospray): m/z 491.2 (491.2, calculated for C27H31ClN6O, [M+H]+). 1H NMR (400 MHz, CDCl3): 9.8 (br s, 1H), 7.55 (d, J=7.6 Hz, 1H), 7.50 (t, J=8.2 Hz, 1H), 7.38 (s, 1H), 7.31 (d, J=8.2 Hz, 1H), 7.20 (d, J=8.2 Hz, 1H), 7.11 (t, J=8.2 Hz, 1H), 6.98 (d, J=8.2 Hz, 1H), 4.56 (br s, 1H), 4.12-4.32 (m, 4H), 2.98-3.51 (m, 13H), 2.35 (s, 3H).

F. (3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-oxo-acetic acid methyl ester

2-(4-{3-[3-(4-Chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile (58 mg, 0.118 mmol) was dissolved in CH2Cl2 (0.59 mL) and treated with methyl chlorooxoacetate (16 mg, 0.129 mmol). The reaction mixture was allowed to stir for 18 h at room temperature. Column chromatography (silica, 2-10% MeOH/CH2Cl2) gave (3-(4-chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-oxo-acetic acid methyl ester (54 mg, 79%) as a white solid. MS (electrospray): m/z 577.3 (577.2, calculated for C30H33ClN6O4, [M+H]+). 1H NMR (400 MHz, CDCl3): 7.32-7.62 (m, 5H), 7.14 (t, J=7.6 Hz, 1H), 7.05 (d, J=8.2 Hz, 1H), 4.59-4.80 (m, 3H), 4.12-4.28 (m, 2H), 3.92 (s, 3H), 3.78-3.86 (m, 2H), 3.44-3.60 (m, 5H), 3.15-3.40 (m, 4H), 2.83-3.05 (m, 2H), 2.41 (s, 3H).

Example 16

Figure US07772236-20100810-C00031

  • 5-Methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine.
A. 1-Methanesulfonyl-piperidin-4-one

Potassium carbonate (324 g, 2340 mmol) was added to a solution of 4-piperidone monohydrate hydrochloride (90 g, 586 mmol) in chloroform (300 mL) and water (300 mL). The slurry was cooled to 0° C. and treated with methylsulfonyl chloride (136 mL, 1760 mmol) by dropwise addition over a 1 h period (gas evolution was observed). The reaction mixture was allowed to shake for 72 h and was partitioned between CH2Cl2 (500 mL) and saturated aqueous NaHCO3 (500 mL). The aqueous layer was extracted with CH2Cl2 (3×200 mL). The organic layer was washed with 1% KHSO4 (250 mL), dried (Na2SO4), and concentrated to afford 90.5 g (87%) of a white solid. MS (electrospray): exact mass calculated for C6H11NO3S, 177.1; m/z found, 178.1 [M+H]+. HPLC (reverse phase conditions): tR=2.19 min. 1H NMR (400 MHz, CDCl3): 3.60 (t, J=6.5 Hz, 4H), 2.89 (s, 3H), 2.59 (t, J=6.3 Hz, 4H).

B. 5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine

p-Toluenesulfonic acid (1.34 g. 7.0 mmol) and morpholine (25.83 mL, 296 mmol) were added to a solution of 1-methanesulfonyl-piperidin-4-one (50.0 g. 282 mmol) in benzene (282 mL). The reaction mixture was heated in a flask equipped with a condenser and a Dean-Stark trap at reflux for 15 h. The reaction mixture was cooled and concentrated in vacuo to give the enamine which was used without further purification. The enamine was dissolved in CH2Cl2 (200 mL) and cooled to 0° C. To this was added triethylamine (47.2 mL, 339 mmol) followed by dropwise addition of 4-trifluoromethylbenzoyl chloride (42.3 mL, 285 mmol) dissolved in CH2Cl2 (82 mL). The reaction mixture was allowed to warm to room temperature and stirred for 20 h. The reaction mixture was washed with 1 N aqueous HCl (250 mL) and the CH2Cl2 layer was separated, dried (Na2SO4), and concentrated. The resulting oil was taken up in EtOH (300 mL) and treated with hydrazine (44.3 mL, 1.41 mol) at 0° C. The reaction mixture was allowed to warm to room temperature and stirred for 24 h. The mixture was concentrated and the resulting solid was filtered with EtOH wash and dried in vacuo to afford 70 g (72%) of 5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine as a white solid. MS (electrospray): exact mass calculated for C14H14F3N3O2S, 345.0; m/z found, 346.0 [M+H]+. HPLC (reverse phase conditions): tR=6.33 min. 1H NMR (400 MHz, CDCl3): 7.72 (s, 4H), 4.58 (s, 2H), 3.69 (t, J=5.7 Hz, 2H), 2.99 (t, J=5.7 Hz, 2H), 2.92 (s, 3H).

C. 3-[5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-Propan-1-ol

Cs2CO3 (33.74 g, 103.5 mmol) was added to a solution of 5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine (29.8 g, 86.3 mmol) in anhydrous DMF (70 mL) and stirred for 25 min. 3-Bromo-1-propanol (8.6 mL, 13.2 g, 94.9 mmol) was added and stirred under N2 at room temperature for 18 h. Water (500 mL) was added to the reaction and stirred for 5 min. The precipitated material was filtered out and washed with water (4×100 mL) and dried in a Freeze Drying System. The crude material (31.0 g) was taken up in anhydrous DMF (65 mL) and Cs2CO3 (33.74 g, 103.5 mmol) was added, and stirred for 10 min. 3-Bromo-1-propanol (8.6 mL, 13.2 g, 94.9 mmol) and MeOH (6.0 mL, 4.75 g, 148 mmol) were added and stirring continued under N2 at room temperature for 15 h. Water (500 mL) was added to the reaction and stirred for 10 min. The precipitated material was filtered and washed with water (3×100 mL). The filter cake was dissolved in CH2Cl2 (200 mL) and washed with brine (50 mL), dried (Na2SO4), and concentrated. The solid was triturated with Et2O (200 mL), filtered, washed with Et2O, and dried to furnish 16.0 g of the desired compound. The mother liquor was chromatographed (silica, 0-10% acetone/EtOAc) to obtain an additional 3.0 g of the title compound. The combined yield was 54.6%. MS (electrospray): calculated for C17H20F3N3O3S, 403.12; m/z found, 404.0 [M+H]+ , 426.0 [M+Na]+. 1H NMR (400 MHz, CDCl3): 7.71 (d, J=8.2 Hz, 2H), 7.66 (d, J=8.5 Hz, 2H), 4.55 (s, 2H), 4.23 (t, J=6.5 Hz, 2H), 3.70-3.63 (m, 4H), 2.90 (s, 3H), 2.90 (t, J=5.1 Hz, 2H), 2.62 (t, J=5.9 Hz, 1H), 2.06 (q, J=6.1 Hz, 2H).

D. 3-[5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propionaldehyde

Dess-Martin periodinane (3.45 g, 8.2 mmol) was added to a solution of 3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-1-ol (3.0 g, 7.4 mmol) in CH2Cl2 (20 mL) at 0° C. under N2. After 15 min, the reaction was allowed to warm to room temperature and stirred for another 1.5 h. The reaction was diluted with Et2O (60 mL) and 20% aq. NaHCO3 (35 mL) was added slowly. Then Na2S2O3 was added and stirred at room temperature for 30 min. The layers were separated and the aqueous portion was extracted with Et2O (2×30 mL). The combined organic extracts were washed with brine, dried (Na2SO4) and concentrated. MPLC (1-10% MeOH/CH2Cl2) afforded 2.53 g of the desired aldehyde in 85% yield. MS (electrospray): calculated for C17H18F3N3O3S, 401.11; m/z found, 402.1 [M+H], 434.1 [M+MeOH+H]. 1H NMR (400 MHz, CDCl3): 9.82 (s, 1H), 7.63 (d, J=8.4 Hz, 2H), 7.58 (d, J=8.4 Hz, 2H), 4.68 (s, 2H), 4.25 (t, J=6.1 Hz, 2H), 3.63 (t, J=5.8 Hz, 4H), 3.14 (t, J=6.1 Hz, 2H), 2.92 (t, J=5.8 Hz, 2H), 2.81 (s, 3H).

E. 5-Methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine

To a stirred solution of 3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propionaldehyde (0.060 g, 0.15 mmol) and 1-(2-nitro-phenyl)-piperazine (0.032 g, 0.157 mmol) in CH2Cl2 (0.5 mL), glacial AcOH (8.5 μL, 0.15 mmol) was added and stirred for 15 min at room temperature. NaBH(OAc)3 (0.041 g, 0.19 mmol) was added and stirred under nitrogen overnight. Saturated NaHCO3 (0.5 mL) was then added and stirred for 15 min. The layers separated and the aqueous layer was extracted with CH2Cl2 (0.5 mL). MPLC purification (silica, 2-15% MeOH/CH2Cl2) afforded the desired product as a white solid (0.063 g, 71%). TLC (silica, 12% MeOH/CH2Cl2): Rf=0.67. MS (electrospray): exact mass calculated for C27H31F3N6O4S, 592.21; m/z found, 593.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.80 (dd, J=1.6, 8.2 Hz, 1H), 7.77 (d, J=8.3 Hz, 2H), 7.70 (d, J=8.3 Hz, 2H), 7.52 (ddd, J=1.6, 7.3, 8.3 Hz, 1H), 7.19 (dd, J=1.2, 8.3 Hz, 1H), 7.09 (m, 1H), 4.59 (s, 2H), 4.17 (t, J=6.9 Hz, 2H), 3.71 (t, J=5.8 Hz, 2H), 3.13 (br t, J=4.8 Hz, 4H), 2.96 (t, J=5.6 Hz, 2H), 2.95 (s, 3H), 2.66 (br t, J=4.4 Hz, 4H), 2.51 (t, J=7.0 Hz, 2H), 2.17 (q, J=6.9 Hz, 2H).

Example 17

Figure US07772236-20100810-C00032

  • 1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea.
A. 4-(2-chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

To a stirred solution of 1,2-dichloro-3-nitrobenzene (0.96 g, 5.0 mmol) and piperazine-1-carboxylic acid tert-butyl ester (0.93 g, 5.0 mmol) in acetonitrile (5 mL) was added of K2CO3 (1.38 g, 10 mmol). The mixture was heated at reflux for 48 h. The solvent was removed under reduced pressure. The crude material was partitioned between EtOAc (100 mL) and H2O (20 mL). The organic layer was washed with H2O (2×20 mL), dried over Na2SO4 and concentrated. Column chromatography (silica, 10-20% EtOAc/hexanes) provided 4-(2-chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester (1.2 g, 70%). TLC (silica, 20% EtOAc/hexanes): Rf=0.45. MS (electrospray): exact mass calculated for C15H20ClN3O4, 341.1; m/z found, 364.1 [M+Na]+. 1H NMR (400 MHz, CDCl3) 7.56 (dd, J=8.2, 1.4 Hz, 1H), 7.50 (dd, J=8.2, 1.4 Hz, 1H), 7.13 (t, J=8.2 Hz, 1H), 3.38-3.56 (m, 4H), 3.06 (m, 4H), 1.48 (s, 9H).

B. 1-(2-chloro-6-nitro-phenyl)-piperazine

4-(2-Chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester (1.87 g, 5.47 mmol) was dissolved in trifluoroacetic acid (5.0 mL) and CH2Cl2 (5.0 mL) and allowed to stir for 2 h. The reaction mixture was concentrated, diluted with EtOAc, and washed with saturated aq. NaHCO3. The organic layer was dried over Na2SO4, concentrated and purified by column chromatography (silica, 100% CH2Cl2) to afford 1-(2-chloro-6-nitro-phenyl)-piperazine (1.26 g, 95%). MS (electrospray): exact mass calculated for C10H12ClN3O2, 241.1; m/z found, 242.1 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.54 (dd, J=8.2, 1.6 Hz, 1H), 7.49 (dd, J=8.2, 1.6 Hz, 1H), 7.10 (t, J=8.2 Hz, 1H), 3.08 (br s, 4H), 2.99 (br s, 4H), 2.07-2.12 (m, 1H).

C. 1-{3-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine

To a stirred solution of 3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propionaldehyde (0.5 g, 1.25 mmol) and 1-(2-chloro-6-nitrophenyl)-piperazine (0.301 g, 1.25 mmol) in CH2Cl2 (6 mL) was added sodium sulfate (0.354 g, 2.50 mmol) and sodium triacetoxyborohydride (0.396 g, 1.87 mmol). The mixture was allowed to stir at room temperature overnight. The mixture was diluted with CH2Cl2 and washed with water. The CH2Cl2 layer was dried over Na2SO4, and the solvent was removed under reduced pressure. The residue was purified by column chromatography (silica, 10% acetone/CH2Cl2) to afford of 1-{3-[4-(2-chloro-6-nitro-phenyl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine (0.380 g, 49%). MS (electrospray): exact mass calculated for C27H30ClF3N6O4S, 626.2; m/z found, 627.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.73 (d, J=8.2 Hz, 2H), 7.66 (d, J=8.2 Hz, 2H), 7.54 (dd, J=8.2, 1.2 Hz, 1H), 7.49 (dd, J=8.2, 1.2 Hz, 1H), 7.10 (t, J=8.2 Hz, 1H), 4.58 (s, 2H), 4.13 (t, J=6.5 Hz, 2H), 3.71 (t, J=5.9 Hz, 2H), 3.01-3.11 (m, 4H), 2.95 (t, J=5.9 Hz, 2H), 2.92 (s, 3H), 2.42-2.53 (m, 4H), 2.40 (t, J=6.5 Hz, 2H), 2.12 (q, J=6.5 Hz, 2H).

D. 3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenylamine

To a stirred solution of 1-{3-[4-(2-chloro-6-nitro-phenyl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine (0.153 g, 0.244 mmol) in EtOH (2.44 mL) was added zinc dust (0.80 mg, 1.22 mmol) and slow addition of acetic acid (0.70 mL). After 15 min the yellow solution became colorless and the access zinc dust was filtered through a plug of celite. The filtrate was concentrated and the residue was purified by column chromatography (silica, 0-10% MeOH/CH2Cl2) to afford 3-chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenylamine (0.146 g, 100%). MS (electrospray): exact mass calculated for C27H32ClF3N6O2S, 596.2; m/z found, 597.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.73 (d, J=8.2 Hz, 2H), 7.66 (d, J=8.2 Hz, 2H), 6.88 (t, J=8.2 Hz, 1H), 6.63 (t, J=7.6 Hz, 2H), 4.55 (s, 2H), 4.36 (s, 2H), 4.15 (t, J=6.5 Hz, 2H), 3.60-3.70 (m, 4H), 2.97 (t, J=5.3 Hz, 2H), 2.90 (s, 3H), 2.83 (d, J=10.8 Hz, 2H), 2.74 (d, J=11.5 Hz, 2H), 2.37 (t, J=6.6 Hz, 2H), 2.11-2.20 (m, 4H).

E. 1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea

To a stirred solution of 3-chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenylamine (0.062 g, 0.104 mmol) in CH2Cl2 (0.52 mL) was added trimethylsilyl isocyanate (0.017 mL, 0.125 mmol). The reaction mixture was allowed to stir for 48 h at room temperature. The reaction had not gone to completion, so an additional 0.017 mL (0.125 mmol) of trimethylsilyl isocyanate was added and the reaction was heated to 45° C. for 10 h. Column chromatography (silica, 3-10% MeOH/CH2Cl2) afforded 1-[3-chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea (0.015 g, 22%). MS (electrospray): exact mass calculated for C28H33ClF3N7O3S, 639.2; m/z found, 640.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 8.26 (br s, 1H), 8.05 (d, J=8.2 Hz, 1H), 7.73 (d, J=8.2 Hz, 2H), 7.66 (d, J=8.2 Hz, 2H), 7.09 (t, J=8.2 Hz, 1H), 6.92 (d, J=8.2 Hz, 1H), 4.65 (s, 2H), 4.55 (s, 2H), 4.15 (t, J=6.7 Hz, 2H), 3.65-3.73 (m, 4H), 2.96 (t, J=5.6 Hz, 2H), 2.87-2.92 (m, 2H), 2.91 (s, 3H), 2.70 (d, J=11.4 Hz, 2H), 2.40 (t, J=6.7 Hz, 2H), 2.09-2.22 (m, 4H).

Example 18

Figure US07772236-20100810-C00033

  • 1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-sulfonic acid amide.
A. 3-(4-Trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

To a stirred solution of 500 g (2.51 mol) of 1-tert-butoxycarbonyl-4-piperidone and 87.1 g (2.76 mol) of morpholine in benzene (1.25 L) was added a catalytic amount (˜0.25 g) of p-TsOH. The mixture was heated to reflux for 36 h with a Dean-Stark trap. One half of the solvent was removed under reduced pressure and the resulting solution was cooled and filtered. The filtrate was then concentrated to yield 630 g (94%) of an orange red oil. The eneamine was divided and 320 g (1.19 mol) was diluted with CH2Cl2 (1.0 L) and 165.0 mL (1.19 mol) of Et3N was added. The mixture was cooled to 0° C. and a solution of 225 g (1.08 mol) of 4-trifluoromethylbenzoyl chloride in CH2Cl2 (0.5 L) was added slowly by dropping funnel over 1 h. The mixture was allowed to warm to rt and stir overnight. The reaction was then diluted with 1 N HCl (450 mL) and stirred vigorously for 3 h. The aqueous layer was extracted with CH2Cl2 (3×500 mL) and the combined extracts were dried over Na2SO4 and the solvent was removed under reduced pressure. The crude oil was diluted with EtOH (1 L) and cooled to 0° C. To this stirred solution was slowly added 115 g (3.57 mol) of hydrazine and the mixture was allowed to warm to rt and stir overnight during which time a white precipitate formed. The volume of the reaction was reduced to ˜500 mL and cooled. The precipitate was collected to afford 285 g (72% from eneamine) of a white solid. 1H NMR (400 MHz, CDCl3): 7.63-7.55 (m, 4H), 4.58 (br s, 2H), 3.69-3.62 (br m, 2H), 2.74-2.68 (br m, 2H), 1.47 (s, 9H).

B. 1-(2-Methoxycarbonyl-ethyl)-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-Pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

3-(4-Trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (1.85 g, 5.04 mmol) and methyl acrylate (0.50 mL, 5.6 mmol) were combined in toluene (30 mL) and heated to 75° C. The resulting mixture was treated with t-BuONa (100 mg), and heating continued for 48 h. The mixture was allowed to cool and partitioned between EtOAc (300 mL) and NaHCO3 (75 mL). The aqueous layer was extracted with EtOAc (3×75 mL). The combined extracts were dried over Na2SO4 and concentrated. Column chromatography (silica, 30-60% EtOAc/hexanes) afforded 343 mg (15%) of the title compound. TLC (silica, 50% EtOAc/hexanes): Rf=0.4. MS (electrospray): m/z calculated for C22H27F3N3O4 [M++H] 454.20. found 454.1. 1H NMR (CDCl3, 400 MHz): 7.75 (br d, J=8.1 Hz, 2H), 7.64 (br s, 2H), 4.63 (br s, 2H), 4.30 (t, J=6.6 Hz, 2H), 3.75 (br s, 2H), 3.68 (s, 3H), 2.98 (t, J=6.6 Hz, 2H), 2.79 (br t, J=5.6 Hz, 2H), 1.48 (s, 9H).

C. 1-(3-Hydroxy-propyl)-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

A solution of LiBH4 (26 mg, 1.2 mmol) in THF (0.5 mL) was added to a 0° C. solution of 1-(2-methoxycarbonyl-ethyl)-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (317 mg, 0.70 mmol) in THF (4.0 mL). The mixture was stirred for 5 min then additional LiBH4 (15 mg) was added and stirring continued for 17 h. The mixture was partitioned between EtOAc (80 mL) and saturated aqueous NaHCO3 (20 mL). The aqueous layer was extracted with EtOAc (2×20 mL). The combined extracts were dried over Na2SO4 and concentrated. Column chromatography (silica, 0-8% MeOH/CH2Cl2) afforded 268 mg (95%) of the title compound. HPLC (reverse phase conditions), tR=6.82 min. MS (electrospray): m/z calculated for C21H26F3N3O3 [M++Na] 448.18. found 448.10. 1H NMR (CDCl3, 400 MHz): 7.73 (br d, J=8.2 Hz, 2H), 7.65 (br s, 2H), 4.64 (br s, 2H), 4.21 (t, J=6.4 Hz, 2H), 3.76 (br s, 2H), 3.66 (t, J=5.7 Hz, 2H), 2.73 (br t, J=5.4 Hz, 2H), 2.04 (q, J=6.1, 2H), 1.48 (s, 9H).

D. 1-(3-Oxo-propyl)-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-Pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

Dess-Martin periodinane (1.43 g, 3.36 mmol) was added portion wise to a stirred solution of 1-(3-hydroxy-propyl)-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydropyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (1.30 g, 3.05 mmol) in CH2Cl2 (15 mL) at 0° C. under N2. Then the reaction was stirred at 0° C. for 15 min and allowed to warm to room temperature. After stirring at room temperature for 1.5 h the reaction was diluted with Et2O (50 mL) and saturated NaHCO3 (15 mL) was added slowly (caution! gas evolution). Then Na2S2O3.5H2O (5.31 g, 21.4 mmol) was added and stirred for 30 min. The layers were separated and the aqueous layer was extracted with Et2O (2×30 mL). The combined extracts were washed with brine, dried (Na2SO4) and concentrated. MPLC (1-10% MeOH/CH2Cl2) afforded the aldehyde in 79% yield (1.02 g). TLC (silica, 10% MeOH/CH2Cl2): Rf=0.67. MS (electrospray) calculated for C21H24F3N3O3, 424.2 ([M+H]+), m/z found, 424.2. 1H NMR (400 MHz, CDCl3): 9.82 (s, 1H), 7.65 (br d, J=8.0 Hz, 2H), 7.54 (br s, 2H), 4.53 (s, 2H), 4.21 (t, J=6.2 Hz, 2H), 3.68 (br s, 2H), 3.04 (t, J=6.2 Hz, 2H), 2.70 (t, J=5.6 Hz, 2H), 1.39 (s, 9H).

E. 4-(2-Chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

To a stirred solution of 0.96 g (5.0 mmol) of 1,2-dichloro-3-nitrobenzene and 0.93 g (5.0 mmol, 1 eq) of 1-tert-butyloxycarbonylpiperazine in acetonitrile (5 mL) was added 1.38 g (10 mmol, 2 eq) of K2CO3. The mixture was heated to reflux for 48 h. The solvent was removed under reduced pressure. The crude product was partitioned between EtOAc (100 mL) and 20 mL of H2O. The organic layer was washed with H2O (2×20 mL), dried over Na2SO4 and concentrated. Column chromatography (silica, 10-20% EtOAc/hexanes) provided 1.2 g (70%) of 4-(2-chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester. TLC (silica, 20% EtOAc/hexanes): Rf=0.45. 1H NMR (400 MHz, CDCl3): 7.56 (dd, J=8.2, 1.4 Hz, 1H), 7.50 (dd, J=8.2, 1.4 Hz, 1H), 7.13 (t, J=8.2 Hz, 1H), 3.56-3.38 (m, 4H), 3.10-3.00 (m, 4H), 1.48 (s, 9H).

F. 1-{3-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

4-(2-Chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester (940 mg, 2.75 mmol) in 10 mL of CH2Cl2 was treated with 5 mL of trifluoroacetic acid and stirred at 25° C. for 1 h. The volatiles were then removed. The residue was taken up in CH2Cl2 (60 mL) and KOH (4 N, 20 mL). The organic layer was separated, dried over Na2SO4, and concentrated. The yellow oil was dissolved in CH2Cl2 and added into the 996 mg (2.35 mmol) of 1-(3-oxo-propyl)-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester. The yellow solution was treated with glacial acetic acid (0.8 mL, 6 eq) and stirred at 25° C. for 1 h. NaBH(OAc)3 (1.5 g, 7.05 mmol) was added and stirred under nitrogen for 2 h. Then saturated NaHCO3 (20 mL) was added and stirred for 30 min, and the layers were separated. The organic extract was washed with brine, dried over Na2SO4, and concentrated under reduced pressure. Column chromatography (silica, 2-5% MeOH/CH2Cl2) afforded 1-{3-[4-(2-chloro-6-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester as a white solid (1.40 g, 92%). TLC (silica, 5% MeOH/CH2Cl2): Rf=0.3. MS (electrospray): exact mass calculated for C31H36ClF3N6O4, 648.24; m/z found 649.3 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.69 (d, J=8.2 Hz, 1H), 7.60-7.50 (m, 1H), 7.45-7.37 (m, 4H), 7.02 (t, J=8.2 Hz, 1H), 4.58 (br s, 2H), 4.04 (t, J=6.7 Hz, 2H), 3.73-3.65 (m, 2H), 3.05-2.95 (m, 4H), 2.71 (t, J=5.6 Hz, 2H), 2.50-2.35 (m, 4H), 2.30 (t, J=6.8 Hz, 2H), 2.05-1.95 (m, 2H), 1.41 (s, 9H).

G. 1-{3-[4-(2-Amino-6-chloro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

A solution of 360 mg (0.56 mmol) of 1-{3-[4-(2-chloro-6-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester in 4 mL of MeOH was treated with 182 mg (5 eq) of zinc dust and glacial acetic acid (1.57 mL, 50 eq) at 25° C. The reaction mixture was stirred at 25° C. for 1 h. The reaction mixture was then filtered through a pad of celite and concentrated to obtain a thick oil. The residue was taken up in CH2Cl2 (50 mL) and sat. NaHCO3 (20 mL). The organic layer was separated, washed with H2O (2×10 mL), dried over Na2SO4, and concentrated to afford 1-{3-[4-(2-amino-6-chloro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.3. MS (electrospray): exact mass calculated for C31H38ClF3N6O2, 618.27; m/z found, 619.3 [M+H]+.

H. 1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester

A solution of 1-{3-[4-(2-amino-6-chloro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester (257 mg, 0.42 mmol) in 4 mL of CH2Cl2 was treated with 32 □L (0.42 mmol, 1.0 eq) of methanesulfonyl chloride and 116 □L (0.83 mmol, 2 eq) of triethylamine and the reaction mixture stirred at 25° C. for 1 h. EtOAc (40 mL) and sat. NaHCO3 (20 mL) were added. The organic layer was separated and washed with H2O (20 mL), brine (20 mL), dried over Na2SO4, and concentrated to afford the crude 1-{3-[4-(2-chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester. TLC (silica, 10% MeOH/CH2Cl2): Rf=0.3. MS (electrospray): exact mass calculated for C32H40ClF3N6O4S, 696.25; m/z found, 697.2 [M+H]+.

I. 1-{3-[4-(2-Chloro-6-methanesulfonylamino-Phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-tert-butoxycarbonyl-sulfonic acid amide

A solution of 97 mg (0.14 mmol) of 1-{3-[4-(2-chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester in 3 mL of CH2Cl2 was treated with 1.5 mL of trifluoroacetic acid. The reaction mixture was stirred at 25° C. for 1 h before all volatiles were removed. To this crude material in 0.5 mL of CH2Cl2 was added dropwise a premixed solution of chlorosulfonyl isocyanate (18 μL, 0.209 mmol) and 2-methyl-2-propanol (20 μL, 0.209 mmol) in CH2Cl2 (0.150 mL). The reaction mixture was allowed to stir at 25° C. overnight. Preparative TLC (silica, 2-10% MeOH/CH2Cl2) provided the title compound (84 mg, 78%). TLC (silica, 10% MeOH/CH2Cl2): Rf=0.3. MS (electrospray): exact mass calculated for C32H41ClF3N7O6S2, 775.22; m/z found, 776.2 [M+H]+.

J. 1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-sulfonic acid amide

1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-tert-butoxycarbonyl-sulfonic acid amide (84 mg, 0.11 mmol) was dissolved in trifluoroacetic acid (0.75 mL) and CH2Cl2 (0.75 mL). The reaction mixture was allowed to stir at 25° C. for 2 h. Removal of volatiles under a stream of nitrogen provided 1-{3-[4-(2-chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-sulfonic acid amide in quantitative yield as a trifluoroacetic acid salt. MS (electrospray): exact mass calculated for C27H33ClF3N7O4S2, 675.17; m/z found, 676.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.73 and 7.63 (AB pattern, J=8.2 Hz, 4H), 7.37 (d, J=7.8 Hz, 1H), 7.13 (t, J=7.8 Hz, 1H), 7.04 (d, J=7.8 Hz, 1H), 4.32 (s, 2H), 4.20 (t, J=6.3 Hz, 2H), 3.87-3.80 (m, 2H), 3.80-3.75 (m, 4H), 3.70-3.25 (m, 7H), 3.00-2.75 (m, 4H), 2.25-2.15 (m, 2H).

Example 19

Figure US07772236-20100810-C00034

  • N-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide.
A. 5-Methanesulfonyl-1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine

5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine (10.0 g, 29.0 mmol) and epichlorohydrin (24 mL, 307 mmol) were set stirring in DMF (150 mL) containing Cs2CO3 (10.4 g, 31.9 mmol). After stirring at room temperature for 4 days the mixture was evaporated, brought up in EtOAc and washed with water. The organics were dried (MgSO4) and evaporated to give a light yellow solid. Column chromatography (silica, 5% acetone/CH2Cl2) gave 4.1 g (35%) of a white solid. TLC (silica, 5% acetone/CH2Cl2): Rf=0.28. MS (electrospray): exact mass calculated for C17H18F3N3O3S, 401.10; m/z found, 402.1 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.84 (d, J=8.3 Hz, 2H), 7.79 (d, J=8.3 Hz, 2H), 4.70-4.62 (m, 3H), 4.25 (d, J=5.4 Hz, 1H), 3.90-3.70 (m, 2H), 3.47 (m, 1H), 3.10-2.9 (m, 6H), 2.65-2.60 (m, 1H).

B. 4-(2-Chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

To a stirred solution of 0.96 g (5.0 mmol) of 1,2-dichloro-3-nitrobenzene and 0.93 g (5.0 mmol, 1 eq) of 1-tert-butyloxycarbonylpiperazine in acetonitrile (5 mL) was added 1.38 g (10 mmol, 2 eq) of K2CO3. The mixture was heated to reflux for 48 h. The solvent was removed under reduced pressure. The crude product was partitioned between EtOAc (100 mL) and 20 mL of H2O. The organic layer was washed with H2O (2×20 mL), dried over Na2SO4 and concentrated. Column chromatography (silica, 10-20% EtOAc/hexanes) provided 1.2 g (70%) of 4-(2-chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester. TLC (silica, 20% EtOAc/hexanes): Rf=0.45. 1H NMR (400 MHz, CDCl3): 7.56 (dd, J=8.2, 1.4 Hz, 1H), 7.50 (dd, J=8.2, 1.4 Hz, 1H), 7.13 (t, J=8.2 Hz, 1H), 3.56-3.38 (m, 4H), 3.10-3.00 (m, 4H), 1.48 (s, 9H).

C. 4-(2-Amino-6-chloro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

A solution of 342 mg (1 mmol) of 4-(2-chloro-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester in 5.0 mL of MeOH was treated with 630 mg (10 mmol, 10 eq) of ammonium formate and a catalytic amount of 10% Pd—C (34 mg). The reaction mixture was stirred at 65° C. for 30 min. The reaction mixture was then filtered through a pad of celite and concentrated to obtain a yellow solid. TLC (silica, 5% acetone/CH2Cl2): Rf=0.40. MS (electrospray): exact mass calculated for C15H22ClN3O2, 311.14; m/z found, 312.1 [M+H]+.

D. 4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

4-(2-Amino-6-chloro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester (163 mg, 0.53 mmol) in CH2Cl2 was treated with 62 □L (0.80 mmol, 1.5 eq) of methanesulfonyl chloride and 148 □L (1.06 mmol, 2 eq) of triethylamine and the reaction mixture stirred at 25° C. for 1 h. EtOAc (40 mL) and sat. NaHCO3 (20 mL) were added. The organic layer was separated and washed with H2O (20 mL), brine (20 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 0-5% acetone/CH2Cl2) provided 145 mg (70%) of 4-(2-chloro-6-methanesulfonylamino-phenyl)-piperazine-1-carboxylic acid tert-butyl ester. TLC (silica, 5% acetone/CH2Cl2): Rf=0.35. MS (electrospray): exact mass calculated for C16H24ClN3O4S, 389.12; m/z found, 388.1 (negative). 1H NMR (400 MHz, CDCl3): 7.41 (dd, J=8.2, 1.6 Hz, 1H), 7.11 (t, J=8.2 Hz, 1H), 6.99 (dd, J=8.2, 1.6 Hz, 1H), 4.25-3.91 (m, 2H), 3.66-3.52 (m, 2H), 3.01 (s, 3H), 3.01-2.84 (m, 2H), 2.70-2.56 (m, 2H), 2.55-2.43 (m, 2H), 1.44 (s, 9H).

E. N-[3-Chloro-2-(4-[2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl]-piperazin-1-yl)-phenyl]-methanesulfonamide

4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazine-1-carboxylic acid tert-butyl ester (145 mg, 0.37 mmol) was dissolved in 3 mL of CH2Cl2 and treated with 1.5 mL of trifluoroacetic acid. The reaction mixture was stirred at 25° C. for 1 h before all volatiles were removed. The solid was treated with CH2Cl2 (20 mL) and aqueous KOH (4 N, 10 mL). The organic layer was separated, dried over Na2SO4, and concentrated. The crude oil (90 mg) was dissolved in absolute EtOH (1.0 mL) and treated with 96 mg (0.24 mmol) of 5-methanesulfonyl-1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine. The reaction mixture was refluxed at 85° C. for 3 h and then the solvent was removed. Column chromatography (silica, 0-5% MeOH/CH2Cl2) provided 138 mg (20% over 4 steps) of N-[3-chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide. TLC (silica, 5% MeOH/CH2Cl2): Rf=0.45. MS (electrospray): exact mass calculated for C28H34ClF3N6O5S2, 690.17; m/z found, 691.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 8.28 (s, 1H), 7.65 and 7.59 (AB pattern, J=8.4 Hz, 4H), 7.36 (d, J=8.1 Hz, 1H), 7.07 (t, J=8.2 Hz, 1H), 6.95 (d, J=8.2 Hz, 1H), 4.54-4.44 (m, 2H), 4.21-3.94 (m, 3H), 3.77-3.52 (m, 4H), 3.41 (m, 2H), 2.96 (s, 3H), 2.81 (s, 3H), 3.05-2.73 (m, 4H), 2.66-2.20 (m, 4H).

Example 20

Figure US07772236-20100810-C00035

  • 1-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol.
A. 4-(2,6-Dinitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

To a stirred solution of 1.01 g (5.0 mmol) of 1-chloro-2,6-dinitrobenzene and 0.93 g (5.0 mmol) of 1-tert-butyloxycarbonylpiperazine in acetonitrile (5 mL) was added 1.38 g (10 mmol) of K2CO3. The mixture was heated to reflux for 48 h. The solvent was removed under reduced pressure. The crude product was partitioned between EtOAc (100 mL) and 20 mL of H2O. The organic layer was washed with H2O (2×20 mL), dried over Na2SO4 and concentrated. Column chromatography (silica, 10-20% EtOAc/hexanes) provided 1.31 g (85%) of 4-(2,6-dinitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester TLC (silica, 20% EtOAc/hexanes): Rf=0.35. 1H NMR (400 MHz, CDCl3): 7.75 (d, J=8.2 Hz, 2H), 7.25 (t, J=8.2 Hz, 1H), 3.30 (m, 4H), 2.95 (m, 2H), 1.44 (s, 9H).

B. 1-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol

4-(2,6-Dinitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester (220 mg, 0.63 mmol) was dissolved in 5.0 mL of CH2Cl2 and treated with 3.0 mL of trifluoroacetic acid. The reaction mixture was stirred at 25° C. for 1 h before all volatiles were removed. The solid was treated with CH2Cl2 (20 mL) and aqueous KOH (4 N, 10 mL). The organic layer was separated, dried over Na2SO4, and concentrated. The crude oil (67 mg) was dissolved in absolute EtOH (1.2 mL) and treated with 141 mg (0.35 mmol, 1.3 eq) of 5-methanesulfonyl-1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine. The reaction mixture was refluxed at 85° C. for 3 h and then the solvent was removed. Column chromatography purification (silica, 10-20% acetone/CH2Cl2) provided 150 mg (85%) of 1-[4-(2,6-dinitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol. TLC (silica, 10% acetone/CH2Cl2): Rf=0.3. MS (electrospray): exact mass calculated for C27H30F3N7O7S, 653.19; m/z found, 654.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.71 (d, J=8.2 Hz, 2H), 7.64 and 7.58 (AB pattern, J=8.4 Hz, 4H), 7.20 (t, J=8.2 Hz, 1H), 4.54 (s, 2H), 4.29-4.12 (m, 2H), 3.66 (t, J=5.3 Hz, 2H), 3.70-2.95 (m, 9H), 2.91 (s, 3H), 2.67-2.32 (m, 4H).

Example 21

Figure US07772236-20100810-C00036

  • 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-methanesulfonylamino-benzoic acid methyl ester.
A. 4-(2-Methoxycarbonyl-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester

To a stirred solution of 736 mg (2.83 mmol) of ethyl 2-bromo-3-nitrobenzoate and 579 mg (3.1 mmol, 1.1 eq) of 1-tert-butyloxycarbonylpiperazine in n-butanol (6 mL) was added 330 mg (3.1 mmol, 1.1 eq) of Na2CO3. The mixture was heated to reflux for 4 h. The solvent was removed under reduced pressure. The crude product was partitioned between EtOAc (100 mL) and 20 mL of H2O. The organic layer was washed with H2O (2×20 mL), dried over Na2SO4 and concentrated. Column chromatography (silica, 10-20% EtOAc/hexanes) provided 744 mg (72%) of 4-(2-methoxycarbonyl-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester. TLC (silica, 20% EtOAc/hexanes): Rf=0.5. 1H NMR (400 MHz, CDCl3): 7.67 (dd, J=8.2, 1.4 Hz, 1H), 7.62 (dd, J=8.2, 1.4 Hz, 1H), 7.16 (t, J=8.2 Hz, 1H), 3.86 (s, 3H), 3.44-3.36 (m, 4H), 3.03-2.95 (m, 4H), 1.48 (s, 9H).

B. 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-methanesulfonylamino-benzoic acid methyl ester

A solution of 1.0 g (2.73 mmol) of 4-(2-methoxycarbonyl-6-nitro-phenyl)-piperazine-1-carboxylic acid tert-butyl ester in 18 mL of MeOH was treated with 893 mg (13.7 mmol, 5 eq) of zinc dust and glacial acetic acid (8 mL). The reaction mixture was stirred at 25° C. for 1 h. The reaction mixture was then filtered through a pad of celite and concentrated to obtain a thick oil. The residue was taken up in EtOAc (200 mL) and sat. NaHCO3 (100 mL). The organic layer was separated, washed with H2O (2×50 mL), dried over Na2SO4, and concentrated. Column chromatography (silica, 10-30% EtOAc/hexanes) provided the desired amine (844 mg, 92%). The amine (42 mg, 0.13 mmol) in CH2Cl2 (0.5 mL) was treated with 9.7 μL (0.13 mmol, 1.0 eq) of methanesulfonyl chloride and 34.9 μL (0.25 mmol, 2 eq) of triethylamine and the reaction mixture stirred at 25° C. for 1 h. EtOAc (20 mL) and sat. NaHCO3 (10 mL) were added. The organic layer was separated and washed with H2O (10 mL), brine (20 mL), dried over Na2SO4, and concentrated. The crude oil was dissolved in 2 mL of CH2Cl2 and treated with 0.5 mL of trifluoroacetic acid. The reaction mixture was stirred at 25° C. for 1 h before all volatiles were removed. The crude oil was dissolved in absolute EtOH (1.0 mL) and treated with 40 mg (0.1 mmol) of 5-methanesulfonyl-1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine and 200 μL of triethylamine. The reaction mixture was refluxed at 85° C. for 4 h and then the solvent was removed. Preparative TLC (silica, 7% MeOH/CH2Cl2) provided 35 mg (49% over 3 steps) of the title compound. TLC (silica, 5% MeOH/CH2Cl2): Rf=0.30. MS (electrospray): exact mass calculated for C30H37F3N6O7S2, 714.21; m/z found, 715.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 8.11 (s, 1H), 7.74-7.59 (m, 5H), 7.30 (d, J=8.1 Hz, 1H), 7.21 (t, J=8.2 Hz, 1H), 4.62-4.49 (m, 2H), 4.25-3.99 (m, 3H), 3.90 (s, 3H), 3.80-3.57 (m, 3H), 3.53-3.27 (m, 2H), 3.14-2.78 (m, 4H), 3.05 (s, 3H), 2.86 (s, 3H), 2.76-2.65 (m, 2H), 2.61-2.20 (m, 4H).

Example 22

Figure US07772236-20100810-C00037

  • 1-{3-[4-(1,1-Dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine.
A. 3-piperazin-1-yl-benzo[d]isothiazole 1,1-dioxide

POCl3 (10.2 mL, 109.2 mmol) was added to saccharin (5.0 g, 27.3 mmol) and heated at 120° C. for 20 h. The excess reagent was removed in a rotary evaporator and water (50 mL) was added to the residue to form a precipitate. The solid was filtered, washed with water (2×20 mL), and dried. A portion of the above crude material (2.0 g, 9.95 mmol) and piperazine (4.28 g, 49.75 mmol) was taken in dioxane (10 mL), and heated at 100° C. for 24 h. The reaction was allowed to cool to room temperature and poured into ice water (50 g), and neutralized by addition of 10% aqueous NaOH. The mixture was extracted with CH2Cl2 (3×25 mL) and the combined organic extracts were washed with brine, dried (Na2SO4) and concentrated. MPLC (silica, 5-20% MeOH/CH2Cl2) afforded the piperazinyl derivative (0.07 g, 4.2%). MS (electrospray): exact mass calculated for C11H13N3O2S, 251.07; m/z found, 252.1 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.72 (dd, J=0.8, 7.4 Hz, 1H), 7.64 (d, J=7.8 Hz, 1H), 7.49 (dt, J=0.8, 7.4 Hz, 1H), 7.43 (dt, J=1.2, 7.8 Hz, 1H), 3.80 (s, 4H), 2.85 (br t, J=5.0 Hz, 4H), 2.07 (br s, 1H). 13C NMR (100 MHz, CDCl3): 160.8, 145.3, 133.3, 133.0, 128.5, 125.9, 123.2, 49.8, 46.3.

B. 1-{3-[4-(1,1-Dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine

To a stirred solution of 3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propionaldehyde (0.040 g, 0.13 mmol) and 3-piperazin-1-yl-benzo[d]isothiazole 1,1-dioxide (0.050 g, 0.21 mmol) in CH2Cl2 (0.5 mL), glacial AcOH (12 μL, 0.21 mmol) was added and stirred for 15 min at room temperature. NaBH(OAc)3 (0.058 g, 0.27 mmol) was added and stirred under nitrogen overnight. Saturated NaHCO3 (0.5 mL) was then added and stirred for 15 min. The layers separated and the aqueous layer was extracted with CH2Cl2 (0.5 mL). MPLC (silica, 2-15% MeOH/CH2Cl2) afforded the desired product as a white solid (0.048 g, 76%). TLC (silica, 12% MeOH/CH2Cl2): Rf=0.50. MS (electrospray): exact mass calculated for C28H31F3N6O4S2, 636.18; m/z found, 637.2 [M+H]+. 1H NMR (400 MHz, CDCl3): 7.94 (dd, J=0.8, 7.6 Hz, 1H), 7.86 (d, J=7.8 Hz, 1H), 7.75 (d, J=8.3 Hz, 2H), 7.73-7.63 (m, 2H), 7.68 (d, J=8.3 Hz, 2H), 4.57 (s, 2H), 4.17 (t, J=6.9 Hz, 2H), 4.04 (br s, 4H), 3.69 (t, J=5.7 Hz, 2H), 2.94 (s, 3H), 2.92 (t, J=6.2 Hz, 2H), 2.62 (t, J=5.0 Hz, 4H), 2.44 (t, J=6.6 Hz, 2H), 2.13 (q, J=6.6 Hz, 2H).

Example 23

Figure US07772236-20100810-C00038

  • 1-[1-{3-[4-(6-Chloro-benzothiazol-2-yl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
A. 6-Chloro-2-piperazin-1-yl-benzothiazole

To a stirred solution of 1.07 g (5.24 mmol) of 2,6-dichlorobenzothiazole in dry DMF (25 mL) was added 2.4 g of potassium carbonate (15.7 mmol) and 0.5 g of piperazine (5.8 mmol). The mixture was stirred at room temperature for 4 h. When the reaction was complete it was partitioned between EtOAc (150 mL) and water (50 mL) and separated. The aqueous layer was extracted with EtOAC (2×100 mL). The combined organic layers were then washed with water (2×25 mL), brine, dried over Na2SO4, and the solvent was removed under reduced pressure to give 1.33 g (100%) of desired product as a white solid. MS (electrospray): exact mass calculated for C11H12ClN3S, 253.04; m/z found, 254.0 [M+H]+.

B. 1-[1-{3-[4-(6-Chloro-benzothiazol-2-yl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

To a stirred solution of 144 mg (0.39 mmol) of 1-[1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone in 4 mL of EtOH was added 100 mg (0.39 mmol) 6-chloro-2-piperazin-1-yl-benzothiazole. The solution was heated to 60° C. overnight. The solvent was then removed by rotary evaporation and the crude product was purified by column chromatography (silica, 0-10% MeOH/EtOAc) to afford 220 mg (90%) of a white solid. MS (electrospray): exact mass calculated for C29H30ClF3N6O2S: 618.18; m/z found, 619.2 [M+H]+. HPLC (reverse phase conditions 40-90%): tR=8.27 min. 1H NMR (CDCl3, 400 MHz, a mixture of amide rotamers): 7.70 (d, J=8.34 Hz, 1H), 7.62 (m, 2H), 7.57 (d, J=8.59 Hz, 1H), 7.48 (d, J=2.53 Hz, 1H), 7.36 (d, J=8.59 Hz, 1H), 7.16 (dd, J=8.59, 2.53 Hz, 1H), 4.80 and 4.68 (A and B of AB quartet, J=15.92 Hz, 1H), 4.58 (s, 1H), 4.18-4.08 (m, 2H), 4.01-3.89 (m, 2H), 3.85-3.60 (m, 2H), 3.59-3.47 (m, 4H), 2.94-2.75 (m, 2H), 2.72-2.62 (m, 2H), 2.55-2.47 (m, 2H), 2.46-2.39 (m, 2H), 2.13 (s, 1.5H), 2.08 (s, 1.5H).

Example 24

Figure US07772236-20100810-C00039

  • 1-[1-[3-(4-Benzo[d]isoxazol-3-yl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone.
A. 4-Benzo[d]isoxazol-3-yl-piperazine-1-carboxylic acid tert-butyl ester

To a stirred solution of 100 mg (0.65 mmol) of 3-chloro-1,2-benzisoxazole in pyridine (1 mL) was added 145 mg of piperazine-1-carboxylic acid tert-butyl ester (0.78 mmol) and 0.18 mL of DBU (0.78 mmol). The mixture was stirred at 100° C. overnight and then partitioned between EtOAC (50 mL) and water (20 mL) and separated. The aqueous layer was extracted with EtOAC (2×30 mL). The combined organic layers were then washed with water (25 mL), brine, dried over Na2SO4, and the solvent was removed under reduced pressure to give crude product. Purification by column chromatography (silica, 60-100% CH2Cl2/hexanes) gave 82 mg (42%) of the desired product as a light yellow solid. MS (electrospray): exact mass calculated for C16H21N3O3, 303.16; m/z found, 326.1 [M+Na]+. 1H NMR (CDCl3, 400 MHz): 7.68 (dt, J=8.02, 0.98 Hz, 1H), 7.52-7.44 (m, 2H), 7.24 (ddd, J=8.42, 6.46, 1.57 Hz, 1H), 3.66-3.61 (m, 4H), 3.56-3.49 (m, 4H), 1.49 (s, 9H).

B. 1-[1-[3-(4-Benzo[d]isoxazol-3-yl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

A solution of 82 mg (0.27 mmol) of 4-benzo[d]isoxazol-3-yl-piperazine-1-carboxylic acid tert-butyl ester in 2 mL of CH2Cl2 was treated with trifluoroacetic acid (0.5 mL) at room temperature overnight. The solvent was then removed and the crude product dissolved in EtOH and stirred over 100 mg of sodium bicarbonate for 1 h, the solid was then filtered off and the filtrate concentrated. The crude piperazine was then dissolved in 4 mL EtOH and treated with 100 mg (0.27 mmol) of 1-[1-oxiranylmethyl-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone. The solution was heated to 60° C. overnight. The solvent was then removed by rotary evaporation and the crude product was purified by column chromatography (silica, 0-10% MeOH/EtOAc) to afford 105 mg (68%) of a white solid. MS (electrospray), exact mass calculated for C29H31F3N6O3, 568.24; m/z found, 569.2 [M+H]+. 1H NMR (CDCl3, 400 MHz, a mixture of amide rotamers): 7.77 (d, J=8.41 Hz, 1H), 7.69 (m, 2H), 7.67-7.62 (m, 2H), 7.50-7.44 (m, 1H), 7.45-7.42 (m, 1H), 7.23-7.18 (m, 1H), 4.93 (br m, 1H), 4.87 and 4.75 (A and B of AB quartet, J=15.65 Hz, 1H), 4.65 (br s, 1H), 4.27-4.15 (m, 2.3H), 4.09-3.95 (m, 1.7H), 3.91-3.82 (m, 0.7H), 3.81-3.66 (m, 1.3H), 3.62-3.49 (m, 4H), 3.01-2.85 (m, 1.5H), 2.85-2.74 (m, 2.5H), 2.71-2.60 (m, 2H), 2.58-2.45 (m, 2H), 2.20 (s, 1.5H), 2.15 (s, 1.5H).

Example 25

Figure US07772236-20100810-C00040

  • 1-[4-(2-Amino-6-chloro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol.
Example 26

Figure US07772236-20100810-C00041

  • 1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea.
Example 27

Figure US07772236-20100810-C00042

  • 1-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea.
Example 28

Figure US07772236-20100810-C00043

  • 3-Amino-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester.
Example 29

Figure US07772236-20100810-C00044

  • 3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenylamine.
Example 30

Figure US07772236-20100810-C00045

  • 1-[2-(4-{3-[3-(4-Bromo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-chloro-phenyl]-3-methyl-urea.
Example 31

Figure US07772236-20100810-C00046

  • 1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
Example 32

Figure US07772236-20100810-C00047

  • [3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-carbamic acid methyl ester.
Example 33

Figure US07772236-20100810-C00048

  • 1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
Example 34

Figure US07772236-20100810-C00049

  • 2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester.
Example 35

Figure US07772236-20100810-C00050

  • 1-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol.
Example 36

Figure US07772236-20100810-C00051

  • 2-(4-{2-Hydroxy-3-[3-(4-iodo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile.
Example 37

Figure US07772236-20100810-C00052

  • 3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
Example 38

Figure US07772236-20100810-C00053

  • 2-(4-{3-[5-Acetyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile.
Example 39

Figure US07772236-20100810-C00054

  • 2-(4-{3-[3-(4-Chloro-3-methyl-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile.
Example 40

Figure US07772236-20100810-C00055

  • 1-(3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2,4-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone.
Example 41

Figure US07772236-20100810-C00056

  • 1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine.
Example 42

Figure US07772236-20100810-C00057

  • 2-(4-{3-[5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile.
Example 43

Figure US07772236-20100810-C00058

  • N-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide.
Example 44

Figure US07772236-20100810-C00059

  • 3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
Example 45

Figure US07772236-20100810-C00060

  • 3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
Example 46 Cathepsin S Inhibition Assay

Recombinant human cathepsin S (CatS) was expressed in the baculovirus system and purified in one step with a thiopropyl-sepharose column. 10-L yielded ˜700 mg of CatS and N-terminal sequencing confirmed identity. The assay is run in 100 mM sodium acetate pH 5.0 containing 1 mM DTT and 100 mM NaCl. The substrate for the assay is

    • (Aedens)EKARVLAEM(Dabcyl)K-amide

The Km for the substrate is around 5 μM but the presence of substrate inhibition makes kinetic analysis difficult. With 20 μM substrate the assay rate is linear over the range of 1-8 ng CatS in 100 μl reaction. Using 2 ng/well of CatS, the production of product is linear and yields ˜7-fold signal after 20 min with only 20% loss of substrate. Primary assays are run by quenching the reaction after 20 min with 0.1% SDS and then measuring the fluorescence. For other assays, measurements are taken every min for 20 min. The rate is calculated from the slope of the increase and the percent inhibition is calculated from this (See Tables 1, 2 and 3 below).

TABLE 1
EXAMPLE IC50 (μM)
1 0.89
2 1.22
3 0.84
4 0.51
5 0.36
6 0.30
7 6.60
8 0.89
9 1.14
10 0.05
11 0.03
12 0.98
13 0.77
14 0.25
15 0.12
16 0.06
17 0.08
18 0.14
19 0.06
20 0.17
21 0.07
22 2.15
23 1.10
24 0.47

TABLE 2
EXAMPLE IC50 (μM)
25 0.04
26 0.04
27 0.04
28 0.07
29 0.07
30 0.08
31 0.10
32 0.10
33 0.10
34 0.11
35 0.12
36 0.12
37 0.12
38 0.12
39 0.13
40 0.13
41 0.13
42 0.13
43 0.13
44 0.13
45 0.13

Example 101

  • 1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-methoxy-phenyl)-piperazin-1-yl]-butyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 102

  • 1-[1-(3-{4-[Bis-(4-fluoro-phenyl)-methyl]-piperazin-1-yl}-2-hydroxy-propyl)-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 103

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 104

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-chloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 105

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(3-chloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 106

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(4-chloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 107

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-fluoro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 108

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(4-fluoro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 109

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(3-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 110

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(4-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 111

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-phenyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 112

  • 1-[1-[3-(4-Benzhydryl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 113

  • 1-[3-(4-Chloro-phenyl)-1-(3-{4-[(4-chloro-phenyl)-phenyl-methyl]-piperazin-1-yl}-2-hydroxy-propyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 114

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(9H-fluoren-9-yl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-etha none
Example 115

  • 1-[1-[3-(4-Benzyl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 116

  • 3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propan-1-one
Example 117

  • 1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 118

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-trifluoromethyl-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 119

  • 1-(3-(4-Fluoro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 120

  • 4-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-[4-(2-methoxy-phenyl)-piperazin-1-yl]-butan-1-one
Example 121

  • 1-(1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-p-tolyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 122

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(3,4-dichloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 123

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-pyridin-2-yl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 124

  • 1-(3-Biphenyl-4-yl-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 125

  • 1-(1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-phenyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 126

  • 1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-methoxy-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 127

  • 1-[1-[2-Hydroxy-3-(4-pyridin-4-yl-piperazin-1-yl)-propyl]-3-(4-methoxy-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 129

  • 1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-one
Example 130

  • 3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester
Example 131

  • 1-(1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-naphthalen-2-yl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 132

  • 1-(3-(4-tert-Butyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 133

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-butan-1-one
Example 134

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-2,2-dimethyl-propan-1-one
Example 136

  • (3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-(4-methoxy-phenyl)-methanone
Example 137

  • 3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide
Example 138

  • 1-[3-(4-Chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propan-2-ol
Example 139

  • 1-(3-(3,4-Dichloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 140

  • 1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 141

  • 1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-nitro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 142

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,4-difluoro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 143

  • 2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 144

  • 4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-3,4,5,6-tetrahydro-2H-[1,2′]bipyrazinyl-3′-carbonitrile
Example 145

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,3-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 146

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,4-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 147

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,5-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 148

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(3-methyl-4-p-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 149

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(3-methyl-4-m-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 150

  • 1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(4-trifluoromethyl-pyridin-2-yl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 151

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(3-chloro-5-trifluoromethyl-pyridin-2-yl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 152

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(3,5-dichloro-pyridin-4-yl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 153

  • 1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-methoxy-phenyl)-piperazin-1-yl]-but-2-enyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 154

  • 4-(5-Acetyl-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-benzonitrile
Example 155

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(2, 3,5,6-tetrahydro-[1,2′]bipyrazinyl-4-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 156

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-pyrimidin-2-yl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 157

  • 1-(3-(2,4-Bis-trifluoromethyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 158

  • 1-(3-(2,4-Dichloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 159

  • 2-(4-{3-[3-(4-Chloro-phenyl)-5,6-dihydro-4H-cyclopentapyrazol-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 160

  • 2-(4-{3-[3-(4-Chloro-phenyl)-5,6-dihydro-4H-cyclopentapyrazol-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenol
Example 161

  • 1-(3-(4-Bromo-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 162

  • 1-{3-(4-Chloro-phenyl)-1-[2-(2-methyl-allyloxy)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 163

  • 1-[1-[2-Benzyloxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 164

  • Acetic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester
Example 165

  • Morpholine-4-carboxylic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester
Example 166

  • Benzoic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester
Example 167

  • Benzoyl-carbamic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester
Example 168

  • 1-[3-(4-Chloro-phenyl)-pyrazol-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 169

  • 1-(3-(3-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 170

  • 2-(4-{3-[5-Acetyl-3-(3-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 171

  • tert-Butyl-carbamic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester
Example 172

  • Carbonic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester methyl ester
Example 173

  • 1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-but-2-enyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 174

  • 2-(4-{4-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-but-2-enyl}-piperazin-1-yl)-benzonitrile
Example 175

  • 1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-methoxy-phenyl)-piperazin-1-yl]-but-2-enyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 176

  • 1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 177

  • 1-(3-(4-Chloro-phenyl)-1-{5-[4-(2-methoxy-phenyl)-piperazin-1-yl]-pentyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 178

  • 1-(3-(4-Chloro-phenyl)-1-{6-[4-(2-methoxy-phenyl)-piperazin-1-yl]-hexyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 179

  • 2-[1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethoxy]-acetamide
Example 180

  • [1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethoxy]-acetic acid
Example 181

  • [1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethoxy]-acetonitrile
Example 182

  • 1-[1-{3-[4-(2-Bromo-benzenesulfonyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 183

  • 3-(5-(4-Chloro-phenyl)-2-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-2H-pyrazol-3-yl)-propionic acid methyl ester
Example 184

  • 2-(4-{3-[3-(4-Chloro-phenyl)-4,5,6,7-tetrahydro-indazol-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 185

  • 2-(4-{3-[3-(4-Chloro-phenyl)-4,5,6,7-tetrahydro-indazol-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenol
Example 186

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid dimethylamide
Example 187

  • 1-[1-[2-Azido-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 188

  • 1-[1-[2-Amino-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 189

  • 1-{3-(4-Chloro-phenyl)-1-[2-methylamino-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 190

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide
Example 191

  • 3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-indazol-5-one ethylene ketal
Example 192

  • 1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester
Example 193

  • 1-(3-(4-Chloro-3-methyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 194

  • 2-(4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 195

  • 1-[1-{3-[4-(2-Chloro-benzenesulfonyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 196

  • 1-(3-(4-Chloro-2-fluoro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 197

  • 2-(4-{3-[5-Acetyl-3-(4-chloro-2-fluoro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 198

  • 1-[3-(4-Chloro-phenyl)-5-methyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 199

  • 1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-2-phenyl-ethanone
Example 200

  • 1-[3-(4-Chloro-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 201

  • 1-[1-{3-[4-(2-Amino-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 202

  • N-[2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide
Example 203

  • N-[2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenyl]-acetamide
Example 204

  • 1-[2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenyl]-3-isopropyl-urea
Example 205

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methylamide
Example 206

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid hydrazide
Example 207

  • 2-(4-{3-[5-Acetyl-3-(4-phenoxy-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 208

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid phenethyl-amide
Example 209

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid (4-methoxy-phenyl)-amide
Example 210

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carbothioic acid methylamide
Example 211

  • 2-(4-{3-[5-Acetyl-3-(4-chloro-3-nitro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 212

  • 1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid ethylamide
Example 213

  • N-(5-{5-Acetyl-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl}-2-chloro-phenyl)-methanesulfonamide
Example 214

  • 1-{3-(4-Chloro-phenyl)-1-[2-[(1-ethyl-pyrrolidin-2-ylmethyl)-amino]-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 215

  • 2-(4-{3-[5-Acetyl-3-(4-trifluoromethylsulfanyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 216

  • 2-(4-{3-[5-Acetyl-3-(3-amino-4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 217

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid isopropylamide
Example 218

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid phenylamide
Example 219

  • 1-[3-(4-Chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 220

  • 1-[3-(4-Iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 221

  • 2-(4-{3-[5-Acetyl-3-(4-methanesulfonyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 222

  • 1-[1-{2-Hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-methanesulfonyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 223

  • 1-[3-(4-Iodo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 224

  • 1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide
Example 225

  • 1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methyl ester
Example 226

  • 1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methylamide
Example 227

  • N-[5-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-2-chloro-phenyl]-methanesulfonamide
Example 228

  • 1-(5-{5-Acetyl-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl}-2-chloro-phenyl)-3-ethyl-urea
Example 229

  • 1-[5-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-2-chloro-phenyl]-3-ethyl-urea
Example 230

  • N-(5-{5-Acetyl-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl}-2-chloro-phenyl)-acetamide
Example 231

  • Acetic acid 2-[5-acetyl-3-(3-amino-4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-[4-(2-cyano-phenyl)-piperazin-1-ylmethyl]-ethyl ester
Example 232

  • N-[5-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-2-chloro-phenyl]-acetamide
Example 233

  • N-[2-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-(4-o-tolyl-piperazin-1-ylmethyl)-ethyl]-methanesulfonamide
Example 234

  • 1-{3-(4-Chloro-phenyl)-1-[2-(2-pyridin-2-yl-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 235

  • 1-{3-(4-Chloro-phenyl)-1-[2-(2-dimethylamino-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone
Example 236

  • Carbonic acid 2-[5-acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-(4-o-tolyl-piperazin-1-ylmethyl)-ethyl ester methyl ester
Example 237

  • Carbamic acid 2-[5-acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-(4-o-tolyl-piperazin-1-ylmethyl)-ethyl ester
Example 238

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-indazol-5-one
Example 239

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-indazol-5-ol
Example 240

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-indazol-5-one oxime
Example 241

  • 1-[5-Ethanesulfonyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 242

  • 1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methyl ester
Example 243

  • 1-[5-(4-Chloro-benzenesulfonyl)-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 244

  • 1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methylamide
Example 245

  • 1-[3-(4-Iodo-phenyl)-5-(propane-2-sulfonyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol
Example 246

  • 1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carbonitrile
Example 247

  • 4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazine-1-carboxylic acid o-tolylamide
Example 248

  • 4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazine-1-carboxylic acid (2-methoxy-phenyl)-amide
Example 249

  • 2-(4-{3-[5-Acetyl-3-(3-chloro-4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 250

  • 2-(4-{3-[5-Acetyl-3-(3-fluoro-4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 251

  • 2-(4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-ylmethyl)-benzonitrile
Example 252

  • 1-(3-(4-Chloro-3-methyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-benzyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 253

  • 2-(4-{3-[5-Acetyl-3-(4-bromo-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 254

  • 3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxamidine
Example 255

  • 2-(4-{3-[5-Acetyl-3-(3,4-dichloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 256

  • 2-(4-{3-[5-Acetyl-3-(3,4-difluoro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 257

  • 2-(4-{3-[5-Acetyl-3-(3,5-dichloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 258

  • 2-{4-[3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-(2-morpholin-4-yl-ethoxy)-propyl]-piperazin-1-yl}-benzonitrile
Example 259

  • 2-(4-{2-Hydroxy-3-[3-(4-iodo-phenyl)-5-trifluoromethanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile
Example 260

  • 2-(4-{3-[5-Acetyl-3-(3-chloro-4-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 261

  • N-[4-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-phenyl]-acetamide
Example 262

  • 2-(4-{3-[5-Acetyl-3-(4-bromo-3-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 263

  • 1-(3-(3-Chloro-4-methyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 264

  • 1-[1-{3-[4-(2-Azido-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 265

  • 2-(4-{3-[5-Acetyl-3-(3-azido-4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile
Example 266

  • 5-Methanesulfonyl-1-[3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 267

  • 5-Methanesulfonyl-1-{3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 268

  • 1-[1-{2-Hydroxy-3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-nitro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 269

  • 3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester
Example 270

  • 3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 271

  • 1-(3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 272

  • 3-(4-Bromo-phenyl)-5-methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 273

  • 3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester
Example 274

  • 3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-sulfonic acid amide
Example 275

  • 1-(3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone
Example 276

  • 3-(3,4-Dichloro-phenyl)-5-methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 277

  • 3-(4-Bromo-phenyl)-1-{3-[4-(1,1-dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 278

1-[1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone

Example 279

  • 1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 280

  • 1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester
Example 281

  • 1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 282

  • 1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea
Example 283

  • [3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-urea
Example 284

  • [3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-carbamic acid methyl ester
Example 285

  • 1-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea
Example 286

  • N-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide
Example 287

  • 1-[4-(2,6-Dimethyl-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol
Example 288

  • 1-[1-{3-[4-(2,6-Dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 289

  • 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-isophthalonitrile
Example 290

  • 2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-isophthalonitrile
Example 291

  • 1-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol
Example 292

  • 1-[4-(2-Amino-6-chloro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol
Example 293

  • 3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester
Example 294

  • 3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-N-methyl-benzamide
Example 295

  • [3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-morpholin-4-yl-methanone
Example 296

  • 1-[4-(2-Chloro-6-morpholin-4-ylmethyl-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol
Example 297

  • 3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-N-pyridin-4-ylmethyl-benzamide
Example 299

  • 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester
Example 300

  • 2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester
Example 301

  • 3-Acetylamino-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester
Example 302

  • 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-methanesulfonylamino-benzoic acid methyl ester
Example 303

  • 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-nitro-benzamide
Example 304

  • 2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-(3-methyl-ureido)-benzoic acid methyl ester
Example 305

  • 1-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol
Example 306

  • 1-[1-{3-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 307

  • 1-[1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 308

  • 1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 309

  • 1-[1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethylsulfanyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 310

  • 1-[1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 311

  • 2-(4-{3-[5-Acetyl-3-(4-bromo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-azido-propyl}-piperazin-1-yl)-benzonitrile
Example 312

  • 1-[1-{2-Hydroxy-3-[4-(6-nitro-benzothiazol-2-yl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 313

  • 1-[1-{2-Hydroxy-3-[4-(6-methoxy-benzothiazol-2-yl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone
Example 314

  • 1-{3-[4-(1,1-Dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine
Example 315

  • 1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide

TABLE 3
EXAMPLE IC50 (μM)
103 2.1
109 1.2
114 1.1
120 12
121 4.3
123 1.9
126 7.4
131 2.2
135 1.4
137 0.98
139 0.71
140 0.53
141 1.4
143 0.35
148 0.63
149 0.86
150 1.8
156 2.9
159 6.2
164 1.9
167 4.9
170 4.5
174 1.4
176 1.6
181 1.7
185 8.4
190 0.26
192 0.79
193 0.33
195 3.3
196 1.9
199 1.6
205 0.95
208 1.5
211 0.16
214 1.9
216 1.3
219 10
221 0.82
223 0.23
224 0.14
228 2.7
230 0.81
237 1.5
238 3.6
245 0.44
247 4.9
249 0.47
251 4.6
255 0.40
258 0.39
260 0.24
262 0.29
266 0.19
267 0.22
270 1.8
272 0.15
277 2.8
278 0.19
281 2.5
283 0.08
285 0.04
287 0.20
289 0.15
293 0.14
296 0.48
302 0.07
306 0.34
310 0.40
311 2.1
312 0.77

F. OTHER EMBODIMENTS

The features and advantages of the invention are apparent to one of ordinary skill in the art. Based on this disclosure, including the summary, detailed description, background, examples, and claims, one of ordinary skill in the art will be able to make modifications and adaptations to various conditions and usages. These other embodiments are also within the scope of the invention.

Claims (63)

1. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound of formula (I) below:
Figure US07772236-20100810-C00061
wherein:
R1 is hydrogen, azido, halogen, C1-5 alkoxy, hydroxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R7R8N, C2-8 acyl, R9OC═O, R10R11NC═O, R10R11NSO2; or R1 is taken together with W as described below;
R2 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, C1-5 haloalkyl, cyano, or R48R49N;
each of R3 and R4 is independently hydrogen or C1-5 alkyl;
R5 and R6 are taken together to form pyridinyl or a 5-membered carbocyclic ring or 7-membered carbocyclic ring, which ring is unsaturated or aromatic, and each of said pyridinyl, 5-membered ring and 7-membered ring is optionally substituted with between one and three substituents independently selected from halo, cyano, amino, nitro, R40, R40O—, R40S—, R40O(C1-5 alkylene)-, R40O(C═O)—, R40(C═O)—, R40(C═S)—, R40(C═O)O—, R40O(C═O)(C═O)—, R40SO2, NHR62(C═NH)—, NHR62SO2—, and NHR62(C═O)—;
R40 is H, C1-5 alkyl, C2-5 alkenyl, phenyl, benzyl, phenethyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, amino, or mono- or di(C1-5 alkyl)amino, or R58OR59—, wherein R58 is H, C1-5 alkyl, C2-5 alkenyl, phenyl, benzyl, phenethyl, C1-5 heterocyclyl, or (C1-5 heterocyclyl)C1-6 alkylene and R59 is C1-5 alkylene, phenylene, or divalent C1-5 heterocyclyl; and
R62 can be H in addition to the values for R40;
R7 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R27OC═O, R28R29NC═O, R27SO, R27SO2, or R28R29NSO2;
R8 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
alternatively, R7 and R8 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
R9 is C1-5 alkyl, phenyl, naphthyl, or C1-5 heterocyclyl;
R21 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R30OC═O, R31R32NC═O, R30SO, R30SO2, or R31R32NSO2;
R22 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
alternatively, R21 and R22 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
each of R23, R26, R27, R30, R33, R44, R45, and R50 is C1-5alkyl, phenyl, naphthyl, or C1-5 heterocyclyl;
R24 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R33OC═O, R34R35NC═O, R33SO, R33SO2, or R34R35NSO2;
R25 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
alternatively, R24 and R25 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
each of R10 and R11 is independently hydrogen, C1-5 alkyl, C2-5 alkenyl, phenyl, or C1-5 heterocyclyl;
alternatively, R10 and R11 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
each of R28, R29, R31, R32, R34, R35, R46, R47, R51 and R52 is independently hydrogen, C1-5 alkyl, phenyl, or C1-5 heterocyclyl;
alternatively, R28 and R29, R31 and R32, R34 and R35, R46 and R47, or R51 and R52, independently, are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
n is 1;
G represents C3-6 alkenediyl or C3-6 alkanediyl, optionally substituted with hydroxy, halogen, C1-5 alkyl, C1-5 alkoxy, oxo, hydroximino, CO2R60, R60R61NCO2, (L)-C1-4 alkylene-, (L)-C1-5 alkoxy, N3, or [(L)-C1-5 alkylene]amino;
each of R60 and R61 is independently hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, benzyl, phenethyl, or C1-5 heterocyclyl; alternatively, R60 and R61 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
L is amino, mono- or di-C1-5 alkylamino, pyrrolidinyl, morpholinyl, piperidinyl, homopiperidinyl, or piperazinyl, where available ring nitrogens are optionally substituted with C1-5 alkyl, benzyl, C2-5 acyl, C1-5 alkylsulfonyl, or C1-5 alkyloxycarbonyl;
X is nitrogen or R12C;
Y is nitrogen or R13C;
Z is nitrogen or R14C;
with the following provisos:
1) when Z and Y are each N, then X is N, and
2) when X is R12C and Y is R13C, then Z is R14C;
R12 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R21R22N, C2-8 acyl, C1-5 haloalkyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, R23OC═O, R23O(C═O)NH—, R23SO, R22NHCO—, R22NH(C═O)NH—, R23(C1-4 alkylene)NHCO—, R23SO2, or R23SO2NH—;
R13 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R42R43N, C2-8 acyl, C1-5 haloalkyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, R44OC═O, R44O(C═O)NH—, R44SO, R43NHCO—, R43NH(C═O)NH—, R44(C1-4 alkylene)NHCO—, R44SO2, or R44SO2NH—;
R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, nitro, R24R25N, C2-8 acyl, C1-5 haloalkyl, C1-5 heterocyclyl, (C1-5 heterocyclyl)C1-5 alkylene, R26OC═O, R26O(C═O)NH—, R26SO, R25NHCO—, R25NH(C═O)NH—, R26(C1-4 alkylene)NHCO—, R26SO2, or R26SO2NH—;
Ar represents a monocyclic or bicyclic aryl or heteroaryl ring, optionally substituted with between 1 and 3 substituents selected from halogen, C1-5alkoxy, C1-5 alkyl, C2-5 alkenyl, cyano, azido, nitro, R15R16N, R17S, R17SO, R17OC═O, R15R16NC═O, C1-5 haloalkyl, C1-5 haloalkoxy, C1-5 haloalkylthio, and C1-5alkylthio;
R15 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, benzyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R53OC═O, R54R55NC═O, R53S, R53SO, R53SO2, or R54R55NSO2;
R16 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, benzyl, or C1-5 heterocyclyl;
alternatively, R15 and R16 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
each of R17 and R53 is C1-5 alkyl, phenyl, or C1-5 heterocyclyl;
each of R54 and R55 is independently hydrogen, C1-5 alkyl, C2-5 alkenyl, phenyl, benzyl, or C1-5 heterocyclyl;
alternatively, R54 and R55 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
W represents SO2, C═O, CHR20, or a covalent bond; or W and R1, taken together with the 6-membered ring to which they are both attached, form one of the following two formulae:
Figure US07772236-20100810-C00062
wherein Xa is O, S, or N; and Xb is O, S or SO2;
R20 is hydrogen, C1-5 alkyl, phenyl, benzyl, naphthyl, or C1-5 heterocyclyl;
R42 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R45OC═O, R46R47NC═O, R45SO, R45SO2, or R46R47NSO2;
R43 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
alternatively, R42 and R43 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic;
R44 is C1-5 alkyl, C2-5 alkenyl, phenyl, naphthyl, or C1-5 heterocyclyl;
R48 is hydrogen, C1-5 alkyl, C3-5 alkenyl, phenyl, naphthyl, C1-5 heterocyclyl, C2-8 acyl, aroyl, R50OC═O, R51R52NC═O, R50SO, R50SO2, or R51R52NSO2;
R49 is hydrogen, C1-5 alkyl, O3-5 alkenyl, phenyl, or C1-5 heterocyclyl;
alternatively, R48 and R49 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic; and
wherein each of the above hydrocarbyl or heterocarbyl groups, unless otherwise indicated, and in addition to any specified substituents, is optionally and independently substituted with between 1 and 3 substituents selected from methyl, halomethyl, hydroxymethyl, halo, hydroxy, amino, nitro, cyano, C1-5 alkyl, Cis alkoxy, —COOH, C2-6 acyl, [di(C1-4 alkyl)amino]C2-5 alkylene, [di(C1-4 alkyl)amino]C2-5 alkyl-NH—CO—, and C1-5 haloalkoxy;
or a pharmaceutically acceptable salt, ester, or amide thereof.
2. A method according to claim 1, wherein R1 is hydrogen, halogen, C1-5 alkoxy, hydroxy, C1-5 alkyl, cyano, nitro, R7R8N, C2-8 acyl, or R10R11NSO2.
3. A method according to claim 2, wherein R1 is halogen, cyano, nitro, R7R8N, or R10R11NSO2.
4. A method according to claim 1, wherein R2 is hydrogen.
5. A method according to claim 1, wherein each of R3 and R4 is independently hydrogen or C1-3 alkyl.
6. A method according to claim 5, wherein one of R3 and R4 is hydrogen.
7. A method according to claim 6, wherein each of R3 and R4 is hydrogen.
8. A method according to claim 1, wherein R3 is hydrogen and R4 is C1-3 alkyl.
9. A method according to claim 1, wherein R5 and R6 taken together form pyridinyl.
10. A method according to claim 9, wherein R5 and R6 taken together form pyridinyl, optionally N-substituted with R40O(C═O)(C═O)—, R40SO2, R40NHCO2, R40(C═O)—, or R40N(C═O)—.
11. A method according to claim 1, wherein each of R7, R8, R21, R22, R24, and R25 is independently hydrogen or C1-5 alkyl; or, independently, each of R7 and R8, R21 and R22, and R24 and R25 are taken together to form an optionally substituted 4- to 7-membered heterocyclic ring, which ring is saturated, unsaturated or aromatic.
12. A method according to claim 11, wherein at least one of R7 and R8, R21 and R22, and R24 and R25, taken together, is morpholinyl, piperidinyl, or pyrrolidinyl.
13. A method according to claim 1, wherein R9, R23, R26, and R27 are each independently C1-5 alkyl.
14. A method according to claim 1, wherein G is C3-4 alkanediyl, optionally substituted with hydroxy, (L)-C1-5 alkyloxy-, or [(L)-C1-5 alkylene]amino-.
15. A method according to claim 14, wherein G is C3 alkanediyl, optionally substituted with hydroxy, (L)-C1-5 alkyloxy-, or [(L)-C1-5 alkylene]amino-.
16. A method according to claim 1, wherein X is nitrogen.
17. A method according to claim 1, wherein Y is CR13.
18. A method according to claim 1, wherein Z is CR14.
19. A method according to claim 18, wherein X is CH.
20. A method according to claim 1, wherein R12 is hydrogen, R23O(C═O)NH—, R22NH(C═O)NH—, R23SO2NH, R23SO, or R23SO2, and R13 is hydrogen, R44O(C═O)NH—, R43NH(C═O)NH—, R44SO2NH, R44SO, or R44SO2.
21. A method according to claim 1, wherein R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, cyano, nitro, R26O(C═O)NH—, R25NH(C═O)NH—, R26SO2NH, or R24R25N.
22. A method according to claim 21, wherein R14 is halogen, R26O(C═O)NH—, R25NH(C═O)NH—, R26SO2NH, or R24R25N.
23. A method according to claim 1, wherein Ar represents a monocyclic ring, optionally substituted with between 1 and 2 substituents selected independently from halogen, C1-5 alkyl, cyano, nitro, R15R16N, CF3, and OCF3.
24. A method according to claim 23, wherein Ar is a six membered ring substituted with between 1 and 2 substituents selected from halo, CF3, and OCF3, said substitutent or substitutents being at the 4-position or at the 3- and 4-positions, respectively.
25. A method according to claim 1, wherein W is SO2, C═O, or CHR20.
26. A method according to claim 1, wherein W is a covalent bond.
27. A method according to claim 1, wherein W and R1 taken together are formula (I)(a).
28. A method according to claim 1, wherein W and R1 taken together are formula (I)(b).
29. A method according to claim 1, wherein one of R3 and R4 is hydrogen; Ar represents a monocyclic ring, optionally substituted with between 1 and 2 substituents selected from halogen, C1-5 alkyl, cyano, nitro, R15R16N, CF3, and OCF3; R12 is hydrogen, R23SO, or R23SO2; R13 is hydrogen, R44SO, or R44SO2; R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, cyano, nitro, or R24R25N; and G is C3-4 alkanediyl, optionally substituted with hydroxy, C1-3 alkyl, (L)-C1-5 alkyloxy, or [(L)-C1-5alkylene]amino-.
30. A method according to claim 1, wherein each of R3 and R4 is hydrogen; Ar represents a six membered ring, optionally substituted with between 1 and 2 substituents selected from halogen, C1-5 alkyl, cyano, nitro, R15R16N, CF3, and OCF3; R12 is hydrogen, R23SO, or R23SO2; R13 is hydrogen, R44SO2; R14 is hydrogen, halogen, C1-5 alkoxy, C1-5 alkyl, cyano, nitro, or R24R25N; and G is C3 alkanediyl, optionally substituted with hydroxy, (L)-C1-5 alkyloxy-, or (L)-C1-5 alkylamino.
31. A method according to claim 30 wherein Ar is phenyl.
32. A method according to claim 31, wherein W and R1 taken together are formula (I)(b).
33. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
1-[4-(2-Amino-6-chloro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea;
1-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea;
3-Amino-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester;
3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenylamine;
1-[2-(4-{3-[3-(4-Bromo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-chloro-phenyl]-3-methyl-urea; and
1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
34. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-carbamic acid methyl ester;
1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester;
1-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
2-(4-{2-Hydroxy-3-[3-(4-iodo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile;
3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
2-(4-{3-[5-Acetyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[3-(4-Chloro-3-methyl-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-(3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2,4-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
2-(4-{3-[5-Methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile;
N-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide;
3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
and 3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
35. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-fluoro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-methoxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-[1-{2-Hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-[1-[2-(2-piperazin-1-yl-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester;
1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
Carbamic acid 1-[5-carbamoyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-[4-(2-cyano-phenyl)-piperazin-1-yl]-ethyl ester;
1-{3-(3-Amino-4-chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
(R)-1-(3-(4-Bromo-phenyl)-1-{3-[4-(5-chloro-2-methyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-fluoro-propyl}-piperazin-1-yl)-benzonitrile;
(3-(4-Chloro-3-methyl-phenyl)-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-oxo-acetic acid methyl ester;
5-Methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea;
1-{3-[4-(2-Chloro-6-methanesulfonylamino-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-sulfonic acid amide;
N-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide;
1-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-methanesulfonylamino-benzoic acid methyl ester;
1-{3-[4-(1,1-Dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[1-{3-[4-(6-Chloro-benzothiazol-2-yl)-piperazin-1-yl]-2-hydroxy-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone; and
1-[1-[3-(4-Benzo[d]isoxazol-3-yl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone.
36. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
N-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide;
1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide; and
1-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea.
37. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-methoxy-phenyl)-piperazin-1-yl]-butyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-[1-(3-{4-[Bis-(4-fluoro-phenyl)-methyl]-piperazin-1-yl}-2-hydroxy-propyl)-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-chloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(3-chloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(4-chloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-fluoro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(4-fluoro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(3-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(4-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-phenyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-[1-[3-(4-Benzhydryl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[3-(4-Chloro-phenyl)-1-(3-{4-[(4-chloro-phenyl)-phenyl-methyl]-piperazin-1-yl}-2-hydroxy-propyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(9H-fluoren-9-yl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-[1-[3-(4-Benzyl-piperazin-1-yl)-2-hydroxy-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propan-1-one;
1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-trifluoromethyl-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Fluoro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
4-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-[4-(2-methoxy-phenyl)-piperazin-1-yl]-butan-1-one;
1-(1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-p-tolyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(3,4-dichloro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-Biphenyl-4-yl-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-phenyl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-methoxy-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-[2-Hydroxy-3-(4-pyridin-4-yl-piperazin-1-yl)-propyl]-3-(4-methoxy-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-one;
3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester;
1-(1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-naphthalen-2-yl-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-tert-Butyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-butan-1-one;
1-(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-2,2-dimethyl-propan-1-one;
(3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-(4-methoxy-phenyl)-methanone;
3-(4-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
1-[3-(4-Chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propan-2-ol;
1-(3-(3,4-Dichloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-{2-Hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-nitro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,4-difluoro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone; and
2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile.
38. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,3-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,4-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2,5-dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(3-methyl-4-p-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(3-methyl-4-m-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(3,5-dichloro-pyridin-4-yl)-piperazin-1-yl]-2-hydroxy-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-methoxy-phenyl)-piperazin-1-yl]-but-2-enyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
4-(5-Acetyl-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-benzonitrile;
1-(3-(2,4-Bis-trifluoromethyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(2,4-Dichloro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{3-[3-(4-Chloro-phenyl)-5,6-dihydro-4H-cyclopentapyrazol-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[3-(4-Chloro-phenyl)-5,6-dihydro-4H-cyclopentapyrazol-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenol;
1-(3-(4-Bromo-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-(2-methyl-allyloxy)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-[1-[2-Benzyloxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
Acetic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester;
Morpholine-4-carboxylic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester;
Benzoic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester;
Benzoyl-carbamic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester;
1-(3-(3-Chloro-phenyl)-1-{2-hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{3-[5-Acetyl-3-(3-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
tert-Butyl-carbamic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester;
Carbonic acid 1-[5-acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethyl ester methyl ester;
1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-but-2-enyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{4-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-but-2-enyl}-piperazin-1-yl)-benzonitrile;
1-(3-(4-Chloro-phenyl)-1-{4-[4-(2-methoxy-phenyl)-piperazin-1-yl]-but-2-enyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{5-[4-(2-methoxy-phenyl)-piperazin-1-yl]-pentyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-(3-(4-Chloro-phenyl)-1-{6-[4-(2-methoxy-phenyl)-piperazin-1-yl]-hexyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-[1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethoxy]-acetamide;
[1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethoxy]-acetic acid;
[1-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-ylmethyl]-2-(4-o-tolyl-piperazin-1-yl)-ethoxy]-acetonitrile;
1-[1-{3-[4-(2-Bromo-benzenesulfonyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone; and
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid dimethylamide.
39. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
1-[1-[2-Azido-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-[2-Amino-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-methylamino-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester;
1-(3-(4-Chloro-3-methyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-[1-{3-[4-(2-Chloro-benzenesulfonyl)-piperazin-1-yl]-2-hydroxy-propyl]-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-(3-(4-Chloro-2-fluoro-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{3-[5-Acetyl-3-(4-chloro-2-fluoro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-[3-(4-Chloro-phenyl)-5-methyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-{3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-2-phenyl-ethanone;
1-[3-(4-Chloro-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-[1-{3-[4-(2-Amino-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-chloro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
N-[2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide;
N-[2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenyl]-acetamide;
1-[2-(4-{3-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-phenyl]-3-isopropyl-urea;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methylamide;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid hydrazide;
2-(4-{3-[5-Acetyl-3-(4-phenoxy-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid phenethyl-amide;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid (4-methoxy-phenyl)-amide;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carbothioic acid methylamide;
2-(4-{3-[5-Acetyl-3-(4-chloro-3-nitro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid ethylamide;
N-(5-{5-Acetyl-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl}-2-chloro-phenyl)-methanesulfonamide;
1-{3-(4-Chloro-phenyl)-1-[2-[(1-ethyl-pyrrolidin-2-ylmethyl)-amino]-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
2-(4-{3-[5-Acetyl-3-(4-trifluoromethylsulfanyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[5-Acetyl-3-(3-amino-4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid isopropylamide;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid phenylamide;
1-[3-(4-Chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-[3-(4-Iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
2-(4-{3-[5-Acetyl-3-(4-methanesulfonyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-[1-{2-Hydroxy-3-[4-(2-hydroxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-methanesulfonyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[3-(4-Iodo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide;
1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methyl ester;
1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methylamide;
N-[5-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-2-chloro-phenyl]-methanesulfonamide;
1-(5-{5-Acetyl-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl}-2-chloro-phenyl)-3-ethyl-urea; and
1-[5-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-2-chloro-phenyl]-3-ethyl-urea.
40. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
N-(5-{5-Acetyl-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl}-2-chloro-phenyl)-acetamide;
Acetic acid 2-[5-acetyl-3-(3-amino-4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-[4-(2-cyano-phenyl)-piperazin-1-ylmethyl]-ethyl ester;
N-[5-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-2-chloro-phenyl]-acetamide;
N-[2-[5-Acetyl-3-(4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-(4-o-tolyl-piperazin-1-ylmethyl)-ethyl]-methanesulfonamide;
1-{3-(4-Chloro-phenyl)-1-[2-(2-pyridin-2-yl-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
1-{3-(4-Chloro-phenyl)-1-[2-(2-dimethylamino-ethylamino)-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl}-ethanone;
Carbonic acid 2-[5-acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-(4-o-tolyl-piperazin-1-ylmethyl)-ethyl ester methyl ester;
Carbamic acid 2-[5-acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-1-(4-o-tolyl-piperazin-1-ylmethyl)-ethyl ester;
1-[5-Ethanesulfonyl-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-[2-Hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methyl ester;
1-[5-(4-Chloro-benzenesulfonyl)-3-(4-iodo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid methylamide;
1-[3-(4-Iodo-phenyl)-5-(propane-2-sulfonyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-3-(4-o-tolyl-piperazin-1-yl)-propan-2-ol;
1-{3-[4-(2-Cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-iodo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carbonitrile;
4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazine-1-carboxylic acid o-tolylamide;
4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazine-1-carboxylic acid (2-methoxy-phenyl)-amide;
2-(4-{3-[5-Acetyl-3-(3-chloro-4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[5-Acetyl-3-(3-fluoro-4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[5-Acetyl-3-(4-chloro-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-ylmethyl)-benzonitrile;
1-(3-(4-Chloro-3-methyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-benzyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
2-(4-{3-[5-Acetyl-3-(4-bromo-3-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
3-(4-Chloro-phenyl)-1-[2-hydroxy-3-(4-o-tolyl-piperazin-1-yl)-propyl]-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxamidine;
2-(4-{3-[5-Acetyl-3-(3,4-dichloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[5-Acetyl-3-(3,4-difluoro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[5-Acetyl-3-(3,5-dichloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
2-{4-[3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-(2-morpholin-4-yl-ethoxy)-propyl]-piperazin-1-yl}-benzonitrile;
2-(4-{2-Hydroxy-3-[3-(4-iodo-phenyl)-5-trifluoromethanesulfonyl-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzonitrile;
2-(4-{3-[5-Acetyl-3-(3-chloro-4-methyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
N-[4-(5-Acetyl-1-{3-[4-(2-cyano-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridin-3-yl)-phenyl]-acetamide;
2-(4-{3-[5-Acetyl-3-(4-bromo-3-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
1-(3-(3-Chloro-4-methyl-phenyl)-1-{2-hydroxy-3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
1-[1-{3-[4-(2-Azido-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
2-(4-{3-[5-Acetyl-3-(3-azido-4-chloro-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-benzonitrile;
5-Methanesulfonyl-1-[3-(4-o-tolyl-piperazin-1-yl)-propyl]-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
5-Methanesulfonyl-1-{3-[4-(2-methoxy-phenyl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[1-{2-Hydroxy-3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-3-(4-nitro-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester;
3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-(3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone; and
3-(4-Bromo-phenyl)-5-methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine.
41. A method for inhibiting the proteolytic activity of human cathepsin S comprising contacting human cathepsin S with a compound selected from:
3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester;
3-(4-Bromo-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-sulfonic acid amide;
1-(3-(3,4-Dichloro-phenyl)-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl)-ethanone;
3-(3,4-Dichloro-phenyl)-5-methanesulfonyl-1-{3-[4-(2-nitro-phenyl)-piperazin-1-yl]-propyl}-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
3-(4-Bromo-phenyl)-1-{3-[4-(1,1-dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-5-methanesulfonyl-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid tert-butyl ester;
1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-3-methyl-urea;
[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-urea;
[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-carbamic acid methyl ester;
1-[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl]-piperazin-1-yl)-phenyl}-3-methyl-urea;
N-[3-Chloro-2-(4-{3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-methanesulfonamide;
1-[4-(2,6-Dimethyl-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
1-[1-{3-[4-(2,6-Dimethyl-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-isophthalonitrile;
2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-isophthalonitrile;
1-[4-(2-Chloro-6-nitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
1-[4-(2-Amino-6-chloro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester;
3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-N-methyl-benzamide;
[3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-phenyl]-morpholin-4-yl-methanone;
1-[4-(2-Chloro-6-morpholin-4-ylmethyl-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
3-Chloro-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-N-pyridin-4-ylmethyl-benzamide;
2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester;
2-(4-{3-[5-Acetyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-hydroxy-propyl}-piperazin-1-yl)-3-nitro-benzoic acid methyl ester;
3-Acetylamino-2-(4-{2-hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-benzoic acid methyl ester;
2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-methanesulfonylamino-benzoic acid methyl ester;
2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-nitro-benzamide;
2-(4-{2-Hydroxy-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propyl}-piperazin-1-yl)-3-(3-methyl-ureido)-benzoic acid methyl ester;
1-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-3-[5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-propan-2-ol;
1-[1-{3-[4-(2,6-Dinitro-phenyl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine;
1-[1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-2-hydroxy-propyl}-3-(4-trifluoromethylsulfanyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-{3-[4-(3,5-Dichloro-pyridin-4-yl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
2-(4-{3-[5-Acetyl-3-(4-bromo-phenyl)-4,5,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-1-yl]-2-azido-propyl}-piperazin-1-yl)-benzonitrile;
1-[1-{2-Hydroxy-3-[4-(6-nitro-benzothiazol-2-yl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-[1-{2-Hydroxy-3-[4-(6-methoxy-benzothiazol-2-yl)-piperazin-1-yl]-propyl}-3-(4-trifluoromethyl-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridin-5-yl]-ethanone;
1-{3-[4-(1,1-Dioxo-1H-1λ6-benzo[d]isothiazol-3-yl)-piperazin-1-yl]-propyl}-5-methanesulfonyl-3-(4-trifluoromethyl-phenyl)-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine; and
1-[3-(4-Benzo[d]isothiazol-3-yl-piperazin-1-yl)-propyl]-3-(4-bromo-phenyl)-1,4,6,7-tetrahydro-pyrazolo[4,3-c]pyridine-5-carboxylic acid amide.
42. A method according to claim 1, wherein the human cathepsin S is in a human subject.
43. A method according to claim 42, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
44. A method according to claim 33, wherein the human cathepsin S is in a human subject.
45. A method according to claim 44, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
46. A method according to claim 34, wherein the human cathepsin S is in a human subject.
47. A method according to claim 46, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
48. A method according to claim 35, wherein the human cathepsin S is in a human subject.
49. A method according to claim 48, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
50. A method according to claim 36, wherein the human cathepsin S is in a human subject.
51. A method according to claim 50, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
52. A method according to claim 37, wherein the human cathepsin S is in a human subject.
53. A method according to claim 52, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
54. A method according to claim 38, wherein the human cathepsin S is in a human subject.
55. A method according to claim 54, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
56. A method according to claim 39, wherein the human cathepsin S is in a human subject.
57. A method according to claim 56, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
58. A method according to claim 39, wherein the human cathepsin S is in a human subject.
59. A method according to claim 58, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
60. A method according to claim 40, wherein the human cathepsin S is in a human subject.
61. A method according to claim 60, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
62. A method according to claim 41, wherein the human cathepsin S is in a human subject.
63. A method according to claim 62, wherein the human subject is suffering from an autoimmune disease selected from lupus, rheumatoid arthritis, and asthma.
US12220539 2000-08-14 2008-07-24 Substituted pyrazoles Active US7772236B2 (en)

Priority Applications (4)

Application Number Priority Date Filing Date Title
US22513800 true 2000-08-14 2000-08-14
US09928122 US7309703B2 (en) 2000-08-14 2001-08-10 Substituted pyrazoles
US11517518 US7429591B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US12220539 US7772236B2 (en) 2000-08-14 2008-07-24 Substituted pyrazoles

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
US12220539 US7772236B2 (en) 2000-08-14 2008-07-24 Substituted pyrazoles

Related Parent Applications (1)

Application Number Title Priority Date Filing Date
US11517518 Continuation US7429591B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles

Publications (2)

Publication Number Publication Date
US20080293732A1 true US20080293732A1 (en) 2008-11-27
US7772236B2 true US7772236B2 (en) 2010-08-10

Family

ID=26919335

Family Applications (9)

Application Number Title Priority Date Filing Date
US09928122 Active 2022-03-30 US7309703B2 (en) 2000-08-14 2001-08-10 Substituted pyrazoles
US11517062 Active US7589202B2 (en) 2000-08-14 2001-08-10 Substituted pyrazoles
US11517212 Active US7393850B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517171 Active US7388011B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517518 Active US7429591B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517040 Active US7452890B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517145 Active US7417046B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US12220539 Active US7772236B2 (en) 2000-08-14 2008-07-24 Substituted pyrazoles
US12220516 Abandoned US20080300255A1 (en) 2000-08-14 2008-07-24 Substituted pyrazoles

Family Applications Before (7)

Application Number Title Priority Date Filing Date
US09928122 Active 2022-03-30 US7309703B2 (en) 2000-08-14 2001-08-10 Substituted pyrazoles
US11517062 Active US7589202B2 (en) 2000-08-14 2001-08-10 Substituted pyrazoles
US11517212 Active US7393850B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517171 Active US7388011B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517518 Active US7429591B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517040 Active US7452890B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles
US11517145 Active US7417046B2 (en) 2000-08-14 2006-09-07 Substituted pyrazoles

Family Applications After (1)

Application Number Title Priority Date Filing Date
US12220516 Abandoned US20080300255A1 (en) 2000-08-14 2008-07-24 Substituted pyrazoles

Country Status (9)

Country Link
US (9) US7309703B2 (en)
EP (1) EP1309591B1 (en)
JP (1) JP5140225B2 (en)
CN (1) CN1329392C (en)
CA (1) CA2419540A1 (en)
DE (2) DE60126286D1 (en)
DK (1) DK1309591T3 (en)
ES (1) ES2281434T3 (en)
WO (1) WO2002014314A3 (en)

Families Citing this family (51)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US6566372B1 (en) * 1999-08-27 2003-05-20 Ligand Pharmaceuticals Incorporated Bicyclic androgen and progesterone receptor modulator compounds and methods
US7332494B2 (en) * 2000-08-14 2008-02-19 Janssen Pharmaceutica, N.V. Method for treating allergies using substituted pyrazoles
WO2002014314A3 (en) * 2000-08-14 2002-06-06 Ortho Mcneil Pharm Inc Substituted pyrazoles
US20070105841A1 (en) * 2000-08-14 2007-05-10 Breitenbucher J G Method for treating allergies using substituted pyrazoles
WO2002051983A3 (en) * 2000-12-22 2003-11-06 David Aldous Novel compounds and compositions as cathepsin inhibitors
US20040147503A1 (en) * 2002-06-04 2004-07-29 Sheila Zipfeil Novel compounds and compositions as cathepsin inhibitors
US20030073672A1 (en) * 2001-09-05 2003-04-17 Breitenbucher J. Guy Method for treating allergies using substituted pyrazoles
CN100542534C (en) * 2003-12-09 2009-09-23 凯莫森特里克斯股份有限公司 Substituted piperazines
US20050256130A1 (en) * 2002-06-12 2005-11-17 Chemocentryx, Inc. Substituted piperazines
US7842693B2 (en) * 2002-06-12 2010-11-30 Chemocentryx, Inc. Substituted piperazines
ES2329356T3 (en) * 2002-06-12 2009-11-25 Chemocentryx, Inc. Piperazine derivatives 1-aryl-4-substituted used as CCR1 antagonists for treating inflammatory and immune diseases.
US7589199B2 (en) 2002-06-12 2009-09-15 Chemocentryx, Inc. Substituted piperazines
GB0220214D0 (en) * 2002-08-30 2002-10-09 Novo Pharmaceuticals De Ltd Compounds and their use
EP2255798B1 (en) 2002-09-24 2014-12-24 Novartis AG FTY720 for use in the treatment of optic neuritis
US7109243B2 (en) 2003-03-24 2006-09-19 Irm Llc Inhibitors of cathepsin S
US7384970B2 (en) 2003-03-24 2008-06-10 Irm Llc Inhibitors of cathepsin S
US7173051B2 (en) 2003-06-13 2007-02-06 Irm, Llc Inhibitors of cathepsin S
US7256207B2 (en) 2003-08-20 2007-08-14 Irm Llc Inhibitors of cathepsin S
WO2005040169A3 (en) 2003-09-17 2006-03-30 Nicholas I Carruthers Fused heterocyclic compounds as serotonin receptor modulators
WO2005030148A3 (en) * 2003-09-25 2005-06-30 Cenomed Inc Tetrahydroindolone derivatives for treatment of neurological conditions
CA2558211C (en) 2004-03-03 2013-09-03 Chemocentryx, Inc. Bicyclic and bridged nitrogen heterocycles
US7435831B2 (en) 2004-03-03 2008-10-14 Chemocentryx, Inc. Bicyclic and bridged nitrogen heterocycles
EP1789396A1 (en) * 2004-08-12 2007-05-30 Prosidion Limited Substituted phenylacetamides and their use as glucokinase activators
US7777035B2 (en) * 2005-06-22 2010-08-17 Chemocentryx, Inc. Azaindazole compounds and methods of use
US7598255B2 (en) 2005-08-04 2009-10-06 Janssen Pharmaceutica Nv Pyrimidine compounds as serotonin receptor modulators
US20080269241A1 (en) * 2007-02-15 2008-10-30 Darin Allen Bicyclic aminopropyl tetrahydro-pyrazolo-pyridine modulators of cathepsin s
US20080207683A1 (en) * 2007-02-15 2008-08-28 Darin Allen Biaryl-substituted tetrahydro-pyrazolo-pyridine modulators of cathepsin s
US20090099157A1 (en) * 2007-02-15 2009-04-16 Ameriks Michael K Tetrahydro-pyrazolo-pyridine thioether modulators of cathepsin s
US20080200454A1 (en) * 2007-02-15 2008-08-21 Ameriks Michael K Carbon-linked tetrahydro-pyrazolo-pyridine modulators of cathepsin s
US20090118274A1 (en) * 2007-02-15 2009-05-07 Darin Allen Monocyclic aminopropyl tetrahydro-pyrazolo-pyridine modulators of cathepsin s
US20100046516A1 (en) * 2007-06-26 2010-02-25 Media Patents, S.L. Methods and Devices for Managing Multicast Traffic
DE602007011653D1 (en) * 2007-06-26 2011-02-10 Media Patents Sl Router for managing multicast groups
EP2219648A4 (en) * 2007-11-09 2010-11-03 Cenomed Biosciences Llc Treatment of post-traumatic stress disorder with tetrahydroindolone arylpiperazine compounds
WO2009102937A1 (en) * 2008-02-14 2009-08-20 Sunesis Pharmaceuticals, Inc. Processes for the preparation of carbon-linked tetrahydro-pyrazolo-pyridine modulators of cathepsin s
US20090264443A1 (en) * 2008-04-18 2009-10-22 David Helton Treatment of organophosphate exposure with tetrahydroindolone arylpiperazine compounds
EP3011958A1 (en) 2008-06-20 2016-04-27 Novartis AG Paediatric compositions for treating multiple sclerosis
US8829011B2 (en) 2008-10-29 2014-09-09 Janssen Pharmaceutica Nv 2-aminopyrimidine compounds as serotonin receptor modulators
WO2010075376A3 (en) 2008-12-23 2010-09-30 Abbott Laboratories Anti-viral compounds
RU2505539C2 (en) 2008-12-23 2014-01-27 Эбботт Лэборетриз Antiviral compounds
US9278922B2 (en) 2009-04-15 2016-03-08 Abbvie Inc. Anti-viral compounds
US8673920B2 (en) 2009-05-06 2014-03-18 Merck Sharp & Dohme Corp. Inhibitors of the renal outer medullary potassium channel
US8937150B2 (en) 2009-06-11 2015-01-20 Abbvie Inc. Anti-viral compounds
KR101677481B1 (en) 2009-06-11 2016-11-18 애브비 바하마스 리미티드 Anti-viral compounds to treat HCV infection
ES2546767T3 (en) 2010-06-10 2015-09-28 Abbvie Bahamas Ltd. solid compositions
GB0913345D0 (en) 2009-07-31 2009-09-16 Astrazeneca Ab New combination 802
WO2011061527A1 (en) 2009-11-17 2011-05-26 Astrazeneca Ab Combinations comprising a glucocorticoid receptor modulator for the treatment of respiratory diseases
GB201021979D0 (en) 2010-12-23 2011-02-02 Astrazeneca Ab New compound
GB201021992D0 (en) 2010-12-23 2011-02-02 Astrazeneca Ab Compound
US9034832B2 (en) 2011-12-29 2015-05-19 Abbvie Inc. Solid compositions
WO2015103490A1 (en) 2014-01-03 2015-07-09 Abbvie, Inc. Solid antiviral dosage forms
EP3240787A2 (en) * 2014-12-30 2017-11-08 Novira Therapeutics Inc. Derivatives and methods of treating hepatitis b infections

Citations (32)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPS50116470A (en) 1974-03-04 1975-09-11
US3994890A (en) 1974-01-31 1976-11-30 Chugai Seiyaku Kabushiki Kaisha 1-Aminoalkyl, 3-phenyl indazoles
JPS5214765A (en) 1975-07-25 1977-02-03 Chugai Pharmaceut Co Ltd Preparation of indazole derivatives
US4500525A (en) 1982-02-17 1985-02-19 Gruppo Lepetit S.P.A. Pharmacologically active pyrazolo/4,3-c/pyridines
EP0254241A1 (en) 1986-07-22 1988-01-27 Yoshitomi Pharmaceutical Industries, Ltd. Pyrazolopyridine compounds, their preparation and use
EP0382637B1 (en) 1989-02-09 1993-07-28 Laboratorios Del Dr. Esteve, S.A. Pyrimidinyl piperazinyl alkyl azolyl derivatives having an anxiolytic and/or tranquillizing activity
US5264576A (en) 1992-10-22 1993-11-23 Hoechst-Roussel Pharmaceuticals Incorporated Pyrazolo[4,3-c]pyridines which are intermediates
WO1994018197A1 (en) 1993-02-04 1994-08-18 Meiji Seika Kabushiki Kaisha Compound with antipsychotic effect
WO1995023222A1 (en) 1994-02-25 1995-08-31 Khepri Pharmaceuticals, Inc. Irreversible cysteine protease inhibitors containing vinyl groups conjugated to electron withdrawing groups
EP0502786B1 (en) 1991-03-07 1996-04-24 Laboratorios Del Dr. Esteve, S.A. Process for the preparation of aryl(or heteroaryl)-piperazin-1-butyl-azole derivatives
WO1996030353A1 (en) 1995-03-24 1996-10-03 Arris Pharmaceutical Corporation Reversible protease inhibitors
EP0747049A1 (en) 1995-06-08 1996-12-11 Eli Lilly And Company Use of tachykinin antagonists in combination with serotonin agonists or serotonin reuptake inhibitors for the manufacture of a medicament for the treatment of allergic rhinitis
WO1997021439A1 (en) 1995-12-12 1997-06-19 Laboratorios Del Dr. Esteve, S.A. Medicament intended to the treatment of obsessive compulsive troubles, sleep apnoea, sexual dysfunctions, emesa and transport sickness
WO1997040066A1 (en) 1996-04-22 1997-10-30 Massachusetts Institute Of Technology Suppression of immune response via inhibition of cathepsin s
US5776718A (en) 1995-03-24 1998-07-07 Arris Pharmaceutical Corporation Reversible protease inhibitors
US5830850A (en) 1996-08-28 1998-11-03 Mount Sinai School Of Medicine Of The City Of New York Methods for the treatment of bone resorption disorders, including osteoporosis
WO1998056785A1 (en) 1997-06-12 1998-12-17 Sumitomo Pharmaceuticals Co., Ltd. Pyrazole derivatives
EP0902027A1 (en) 1997-09-03 1999-03-17 Adir Et Compagnie Indole and indazole derivatives, process for their preparation and the pharmaceutical compositions containing them
WO1999024460A2 (en) 1997-11-05 1999-05-20 Novartis Ag Dipeptide nitriles
EP0655248B1 (en) 1993-11-25 1999-09-15 Laboratorios Del Dr. Esteve, S.A. Use of 1-4-4-aryl(or heteroaryl)-1-piperazinylbutyl-1H-azole derivatives for the preparation of medicaments for the treatment of disorders of gastric secretion
WO1999048911A1 (en) 1998-03-24 1999-09-30 Naeja Pharmaceutical Inc. Monobactam enzyme inhibitors
WO1999058153A1 (en) 1998-05-08 1999-11-18 Brigham & Women's Hospital Methods of diagnosing and modulating autoimmunity
US6030946A (en) 1995-06-07 2000-02-29 Axys Pharmaceuticals, Inc. Reversible cysteine protease inhibitors
WO2000049008A1 (en) 1999-02-20 2000-08-24 Astrazeneca Ab Di- and tripeptide nitrile derivatives as inhibitors of cathepsin l and cathepsin s
WO2000051998A1 (en) 1999-03-02 2000-09-08 Boehringer Ingelheim Pharmaceuticals, Inc. Compounds useful as reversible inhibitors of cathepsin s
WO2000055144A1 (en) 1999-03-15 2000-09-21 Axys Pharmaceuticals, Inc. Amine derivatives as protease inhibitors
WO2001009110A1 (en) 1999-07-30 2001-02-08 Boehringer Ingelheim Pharmaceuticals, Inc. Novel succinate derivative compounds useful as cysteine protease inhibitors
WO2001019796A1 (en) 1999-09-16 2001-03-22 Axys Pharmaceuticals, Inc. Compounds and pharmaceutical compositions as cathepsin s inhibitors
US6214813B1 (en) 2000-04-07 2001-04-10 Kinetek Pharmaceuticals, Inc. Pyrazole compounds
WO2001040204A1 (en) 1999-12-03 2001-06-07 Ono Pharmaceutical Co., Ltd. 1,3,4-oxadiazoline derivatives and drugs containing these derivatives as the active ingredient
US20020040020A1 (en) 2000-08-14 2002-04-04 Breitenbucher J. Guy Substituted pyrazoles
US7332494B2 (en) * 2000-08-14 2008-02-19 Janssen Pharmaceutica, N.V. Method for treating allergies using substituted pyrazoles

Family Cites Families (17)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3914340A (en) * 1970-06-02 1975-10-21 Gen Tire & Rubber Co Block copolymerization with azoamidino compounds as initiator
JPS5944312B2 (en) * 1974-11-22 1984-10-29 Chugai Pharmaceutical Co Ltd
US4523928A (en) * 1980-04-28 1985-06-18 Battelle Development Corporation Gasohol production from thermochemical conversion of biomass to ethanol
US4401823A (en) * 1981-05-18 1983-08-30 Uop Inc. Hydrogenolysis of polyhydroxylated compounds
US4364745A (en) * 1981-06-26 1982-12-21 Standard Oil Company (Indiana) Plant hydrocarbon recovery process
DE3132915A1 (en) * 1981-08-20 1983-03-03 Kali Chemie Pharma Gmbh 1,5-diphenylpyrazoline-3-one compounds as well as processes and intermediates for their preparation and pharmaceutical compositions containing these compounds
US4925540A (en) * 1988-10-04 1990-05-15 Delphi Research Inc. Method for treating organic waste material and an oxidation catalyst/cocatalyst composition useful therefor
US5177169A (en) * 1989-04-03 1993-01-05 Colorado State University Research Foundation Method for recovering and using lignin in adhesive resins
US5186722A (en) * 1991-06-25 1993-02-16 Cantrell Research, Incorporated Hydrocarbon-based fuels from biomass
JP2818061B2 (en) * 1991-12-10 1998-10-30 三菱電機株式会社 Electric discharge machining apparatus
US5516960A (en) * 1994-08-02 1996-05-14 Board Of Regents, The University Of Texas System Process for producing hydrocarbon fuels
RU2199548C2 (en) 1996-04-24 2003-02-27 Акцо Нобель Н.В. Novel peptides that can be used in antigen-specific immunosuppressive therapy
GB9626643D0 (en) * 1996-12-21 1997-02-12 Astra Pharma Prod Compounds
US20070105841A1 (en) * 2000-08-14 2007-05-10 Breitenbucher J G Method for treating allergies using substituted pyrazoles
US6953793B2 (en) * 2000-08-14 2005-10-11 Ortho-Mcneil Pharmaceutical, Inc. Substituted pyrazoles
CN100384420C (en) * 2000-09-06 2008-04-30 奥索-麦克尼尔药品公司 Use of substituted pyrazoles in preparing medicine compositions for treating allergies
EP1184443A1 (en) * 2000-09-04 2002-03-06 Biofuel B.V. Process for the production of liquid fuels from biomass

Patent Citations (40)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3994890A (en) 1974-01-31 1976-11-30 Chugai Seiyaku Kabushiki Kaisha 1-Aminoalkyl, 3-phenyl indazoles
GB1489280A (en) 1974-01-31 1977-10-19 Chugai Pharmaceutical Co Ltd Indazole derivatives
JPS50116470A (en) 1974-03-04 1975-09-11
JPS5214765A (en) 1975-07-25 1977-02-03 Chugai Pharmaceut Co Ltd Preparation of indazole derivatives
US4500525A (en) 1982-02-17 1985-02-19 Gruppo Lepetit S.P.A. Pharmacologically active pyrazolo/4,3-c/pyridines
EP0254241A1 (en) 1986-07-22 1988-01-27 Yoshitomi Pharmaceutical Industries, Ltd. Pyrazolopyridine compounds, their preparation and use
EP0382637B1 (en) 1989-02-09 1993-07-28 Laboratorios Del Dr. Esteve, S.A. Pyrimidinyl piperazinyl alkyl azolyl derivatives having an anxiolytic and/or tranquillizing activity
EP0502786B1 (en) 1991-03-07 1996-04-24 Laboratorios Del Dr. Esteve, S.A. Process for the preparation of aryl(or heteroaryl)-piperazin-1-butyl-azole derivatives
US5264576A (en) 1992-10-22 1993-11-23 Hoechst-Roussel Pharmaceuticals Incorporated Pyrazolo[4,3-c]pyridines which are intermediates
US5599815A (en) 1993-02-04 1997-02-04 Meiji Seika Kabushiki Kaisha Antipsychotic benzoisothiazolyl piperazine derivatives
WO1994018197A1 (en) 1993-02-04 1994-08-18 Meiji Seika Kabushiki Kaisha Compound with antipsychotic effect
EP0655248B1 (en) 1993-11-25 1999-09-15 Laboratorios Del Dr. Esteve, S.A. Use of 1-4-4-aryl(or heteroaryl)-1-piperazinylbutyl-1H-azole derivatives for the preparation of medicaments for the treatment of disorders of gastric secretion
US5976858A (en) 1994-02-25 1999-11-02 Arris Pharmaceuticals Irreversible cysteine protease inhibitors containing vinyl groups conjugated to electron withdrawing groups
WO1995023222A1 (en) 1994-02-25 1995-08-31 Khepri Pharmaceuticals, Inc. Irreversible cysteine protease inhibitors containing vinyl groups conjugated to electron withdrawing groups
US6287840B1 (en) 1994-02-25 2001-09-11 Axys Pharmaceuticals, Inc. Irreversible cysteine protease inhibitors containing vinyl groups conjugated to electron withdrawing groups
WO1996030353A1 (en) 1995-03-24 1996-10-03 Arris Pharmaceutical Corporation Reversible protease inhibitors
US5776718A (en) 1995-03-24 1998-07-07 Arris Pharmaceutical Corporation Reversible protease inhibitors
US6030946A (en) 1995-06-07 2000-02-29 Axys Pharmaceuticals, Inc. Reversible cysteine protease inhibitors
EP0747049A1 (en) 1995-06-08 1996-12-11 Eli Lilly And Company Use of tachykinin antagonists in combination with serotonin agonists or serotonin reuptake inhibitors for the manufacture of a medicament for the treatment of allergic rhinitis
WO1997021439A1 (en) 1995-12-12 1997-06-19 Laboratorios Del Dr. Esteve, S.A. Medicament intended to the treatment of obsessive compulsive troubles, sleep apnoea, sexual dysfunctions, emesa and transport sickness
WO1997040066A1 (en) 1996-04-22 1997-10-30 Massachusetts Institute Of Technology Suppression of immune response via inhibition of cathepsin s
US5830850A (en) 1996-08-28 1998-11-03 Mount Sinai School Of Medicine Of The City Of New York Methods for the treatment of bone resorption disorders, including osteoporosis
WO1998056785A1 (en) 1997-06-12 1998-12-17 Sumitomo Pharmaceuticals Co., Ltd. Pyrazole derivatives
EP0902027A1 (en) 1997-09-03 1999-03-17 Adir Et Compagnie Indole and indazole derivatives, process for their preparation and the pharmaceutical compositions containing them
US6046205A (en) 1997-09-03 2000-04-04 Adir Et Compagnie Indole and indazole compounds
US6020336A (en) 1997-09-03 2000-02-01 Adir Indole and indazole compounds
WO1999024460A2 (en) 1997-11-05 1999-05-20 Novartis Ag Dipeptide nitriles
WO1999048911A1 (en) 1998-03-24 1999-09-30 Naeja Pharmaceutical Inc. Monobactam enzyme inhibitors
WO1999058153A1 (en) 1998-05-08 1999-11-18 Brigham & Women's Hospital Methods of diagnosing and modulating autoimmunity
WO2000049008A1 (en) 1999-02-20 2000-08-24 Astrazeneca Ab Di- and tripeptide nitrile derivatives as inhibitors of cathepsin l and cathepsin s
WO2000051998A1 (en) 1999-03-02 2000-09-08 Boehringer Ingelheim Pharmaceuticals, Inc. Compounds useful as reversible inhibitors of cathepsin s
WO2000055144A1 (en) 1999-03-15 2000-09-21 Axys Pharmaceuticals, Inc. Amine derivatives as protease inhibitors
WO2001009110A1 (en) 1999-07-30 2001-02-08 Boehringer Ingelheim Pharmaceuticals, Inc. Novel succinate derivative compounds useful as cysteine protease inhibitors
WO2001019796A1 (en) 1999-09-16 2001-03-22 Axys Pharmaceuticals, Inc. Compounds and pharmaceutical compositions as cathepsin s inhibitors
WO2001040204A1 (en) 1999-12-03 2001-06-07 Ono Pharmaceutical Co., Ltd. 1,3,4-oxadiazoline derivatives and drugs containing these derivatives as the active ingredient
US6214813B1 (en) 2000-04-07 2001-04-10 Kinetek Pharmaceuticals, Inc. Pyrazole compounds
US20020040020A1 (en) 2000-08-14 2002-04-04 Breitenbucher J. Guy Substituted pyrazoles
US7332494B2 (en) * 2000-08-14 2008-02-19 Janssen Pharmaceutica, N.V. Method for treating allergies using substituted pyrazoles
US7393850B2 (en) * 2000-08-14 2008-07-01 Ortho Mcneil Pharmaceutical, Inc. Substituted pyrazoles
US20080300255A1 (en) * 2000-08-14 2008-12-04 Mary Pat Beavers Substituted pyrazoles

Non-Patent Citations (41)

* Cited by examiner, † Cited by third party
Title
Allen, E.M. et al, "Reversible Cathepsin S (CATS) Inhibitors Block Invariant Chain Degradation Both In Vitro and In Vivo," Inflammation Research 2001, Supp. 3, 50, S159, abstr. Oct. 2004.
Andronati, "Synthesis of 3-aryl-1-[4-phenyl-1-piperazinyl)butyl]iondazole derivatives and their affinity to 5-HT1A serotonin and dopamine D1 receptors," Pharmazie 1999, 54(2), 99-101.
Andronati, S.A. et al., "Synthesis of 1-{4-(4-phenyl-1-piperazinyl)butyl]1,2-dihydro-3H-1,4-benzodiazepin-2-ones and 1H-indazoles and their affinity for benzodiazepine receptors," Chemical Abstracts No. (CAN) 122:314528 (1994) 8:126-131.
Bromme, D. et al., "High level expression and crystallization of recombinant human cathepsin S," Protein Sci. 1996, 5, 789-791.
Bromme, D. et al., "Peptidyl vinyl sulphones: a new class of potent and selective cysteine protease inhibitors," Biochem. J. 1996, 315, 85-89.
Chapman, H.A. Endosomal Proteolysis and MHC Class II Function. Curr. Opin. Immunol. 1998, 10, 93-102.
Chapman, H.A. et al. Emerging Roles for Cysteine Proteases in Human Biology. Ann. Rev. Physiol. 1997, 59, 63-88.
Eberlein-Konig, et al. Immunohistochemical investigation of the cellular infiltrates at the sites of allergoid-induced late-phase cutaneous reactions associated with polle allergen-specific immunotherapy. Clin. Exp. Allergy 1999, 29(12), 1641-1647.
Fujimura, Y. et al. "Indazole derivatives", Database CA Online, Chemical Abstracts Service, STN database accession No. 87:53281, XP002193796 abstract (Feb. 3, 1977) relating to JP 52014765 (Chugai Pharmaceutical Co., Ltd.).
Fujimura, Y. et al. "Indazole derivatives." Database CA Online, Chemical Abstracts Service, STN database accession No. 84:59450, XP002193797 abstract (Sep. 11, 1975) relating to JP 50116470 (Chugai Pharmaceutical Co., Ltd.).
Gaga, et al. Eosinophil activation and T lymphocyte infiltration in allergin-induced late phase skin reactions and classical delayed-type hypersensitivity. J. Immunol. 1991, 147, 816-822.
Honey, K. et al., "Role of Lysosomal Cysteine Proteinases in Antigen Presentation on CD4 T Cells," Inflammation Research 2001, Supp. 3, 50, S159, abstr. Oct. 2001.
Kirschke, H. et al., "Cathepsin S," Handbook of Proteolytic Enzymes; Barrett, A.J.; Rawlings, N.D.; Woessner, J.F., Editors, Academic Press (1998) 621-624.
Leroy et al. Cathepsin S Inhibitors. Exp. Opin. Ther. Patents 2004, 14(3), 301-311.
Li, W. et al., "Tissue Specific Expression of Cathepsins and Antigen Presentation," Inflammation Research 2001, Supp. 3, 50, S159, abstr. Oct. 2002.
Link Jo et al., Advances in Cathepsin S Inhibitior Design, Current Opinion Drug Discovery Development, vol. 9(4), pp. 471-481, 2006.
Magill, C. et al., "Cysteine Proteases in Antigen Presenation and Models of Inflammation," Inflammation Research 2001, Supp. 3, 50, S159, abstr. Oct. 2003.
Maurer, D. et al. Fce Receptor I on Dendritic Cells Delivers IgE-Bound Multivalent Antigens into a Cathepsin S-Dependent Pathway of MHC Class II Presentation. J. Immunol. 1998, 161, 2731-2739.
McGrath, M.E. et al., "Crystal structure of human cathepsin S," Protein Sci. 1998, 7(6), 1294-1302.
Nakagawa, T.Y. et al. The role of lysosomal proteinases in MHC class II-mediated antigen processing and presentation. Immunol. Rev. 1999, 172, 121-129.
Nakagawa, T.Y. et al., "Impaired Invariant Chain Degradation and Antigen Presentation and Diminished Collagaen-Induced Arthritis in Cathepsin S Null Mice," Immunity 1999, 10, 207-217.
Nakatsuka, M. et al. "Preparation of pyrazole derivatives as immunosuppressants." Database CA Online, Chemical Abstracts Service, STN database accession No. 130:52417, XP002193692 abstract (Dec. 17, 1998) relating to WO9856785 (Sumitomo Pharmaceuticals Co., Ltd.).
Nerenberg, J.B. et al., "Design and Synthesis of N-Alkylated Saccharins as Selective alpha-1A Adrenergic Receptor Antagonists," Boorg. Med. Chem. Lett. 1998, 8, 2467-2472.
Nerenberg, J.B. et al., "Design and Synthesis of N-Alkylated Saccharins as Selective α-1A Adrenergic Receptor Antagonists," Boorg. Med. Chem. Lett. 1998, 8, 2467-2472.
Novak et al., Dendritic Cells in Allergy, Allergy, vol. 54, pp. 792-801, 1999.
Palmer, J.T. et al. Vinyl Sulfones as Mechanism-Based Cysteine Protease Inhibitors. J. Med. Chem. 1995, 38(17), 3193-3196.
Paluchowska et al. Influence of the aliphatic spacer length on the 5-HT1A receptor activity of new arylpiperazines with an indazole system. Pol. J. Pharmacol. 2000, 52(3), 209-216.
Paluchowska et al. Structure-activity relationship studies of CNS agents. 40. Effect of the amide fragment on 5-HT1A receptor activity of some analogs of MP 3022. Pol. J. Pharmacol. 1999, 51(5), 415-421.
Podolin, P.L. et al., "Inhibition of Cathepsin S Blocks Invariant Chain Processing and Antigen-Induced Proliferation in Vitro, and Reduces the Severity of Collagen-Induced Arthritis In Vivo," Inflammation Research 2001, Supp. 3, 50, S159, abstr. Oct. 2005.
Reise, R.J. et al. Essential Role for cathepsin S in MHC Class II-Associated Invariant Chain Processing and Peptide Loading. Immunity 1996, 4, 357-366.
Riese, R.J. et al. Cathepsins and Compartmentalization in Antigen Presentation. Curr. Opin. Immunol. 2000, 12, 107-113.
Riese, R.J. et al., "Cathepsin S Activity Regulates Antigen Presentation and Immunity," J. Clin. Invest. 1998, 101(11), 2351-2363.
Semper et al., Dendritic Cells in Allergy, Dendritic Cells: Biology and Clinical App., Ch.24, pp. 435-456, 1999.
Shi, G.P. et al., "Cathepsin S Required for Normal MHC Class II Peptide Loading and Germinal Center Development," Immunity 1999, 10, 197-206.
Singh, P. et al., "Quantitative Structure-Activity Relationship Studies on a New Class of Antihypertensive Agents: Derivatives of 3-Aryl-4,5,6,7-tetrahydro-1H-pyrazolo[4,3-c]pyridine," Quant. Struct.-Act. Relat. 1990, 9, 29-32.
Spero, D. et al., "Design and Synthesis of Novel Cathepsin S Inhibitors," Inflammation Research 2001, Supp. 3, 50, S206, abstr. 079.
Villadangos, J.A. et al. Degradation of Mouse Invariant Chain: Roles of Cathepsins S and D and the Influence of Major Histocompatability Complex Polymorphism. J. Ex. Med. 1997, 186(4), 549-560.
Villadangos, J.A. et al. Proteases Involved in MHC Class II Antigen Presentation. Immunol. Rev. 1999, 172, 109-120.
Villadangos, J.A. et al. Proteolysis in MHC Class II Antige Presentation: Who's in Charge? Immunity 2000, 12, 233-239.
Von Bubnoff et al., Antigen-presenting cells in allergy, J. Allergy Clin Immunol, pp. 329-338, 2001.
Winters, G. et al., "Synthesis, in Vitro [3H]Prazosin Displacement, and in Vivo Activity of 3-Aryl-4,5,6,7-tetrahydropyrazolo[4,3-c]pyridines, a New Class of Antihypertensive Agents," J. Med. Chem. 1985, 28(7), 934-940.

Also Published As

Publication number Publication date Type
US20070004747A1 (en) 2007-01-04 application
US7309703B2 (en) 2007-12-18 grant
US20080300255A1 (en) 2008-12-04 application
US7589202B2 (en) 2009-09-15 grant
US20080293732A1 (en) 2008-11-27 application
US7429591B2 (en) 2008-09-30 grant
DE60126286D1 (en) 2007-03-15 grant
DK1309591T3 (en) 2007-03-26 grant
US20070004754A1 (en) 2007-01-04 application
US7452890B2 (en) 2008-11-18 grant
CN1329392C (en) 2007-08-01 grant
EP1309591B1 (en) 2007-01-24 grant
JP5140225B2 (en) 2013-02-06 grant
CA2419540A1 (en) 2002-02-21 application
US20070004738A1 (en) 2007-01-04 application
WO2002014314A2 (en) 2002-02-21 application
WO2002014314A3 (en) 2002-06-06 application
US20070021437A1 (en) 2007-01-25 application
EP1309591A2 (en) 2003-05-14 application
US7388011B2 (en) 2008-06-17 grant
US7417046B2 (en) 2008-08-26 grant
US20070010530A1 (en) 2007-01-11 application
CN1468239A (en) 2004-01-14 application
DE60126286T2 (en) 2007-11-15 grant
JP2004512272A (en) 2004-04-22 application
US20070004755A1 (en) 2007-01-04 application
ES2281434T3 (en) 2007-10-01 grant
US20020040020A1 (en) 2002-04-04 application
US7393850B2 (en) 2008-07-01 grant

Similar Documents

Publication Publication Date Title
US6916927B2 (en) Pyrazolopyrimidinones which inhibit type 5 cyclic guanosine 3′,5′-monophosphate phosphodiesterase (cGMP-PDE5) for the treatment of sexual dysfunction
US5296490A (en) Pharmaceutically useful pyrazolopyridines
US5134142A (en) Pyrazole derivatives, and pharmaceutical composition comprising the same
US7329670B1 (en) Inhibition of RAF kinase using aryl and heteroaryl substituted heterocyclic ureas
US6159990A (en) Oxazolidinones as α1A receptor antagonists
US7217722B2 (en) Nitrogen-containing compounds having kinase inhibitory activity and drugs containing the same
US6291476B1 (en) Pyrazole carboxamides useful for the treatment of obesity and other disorders
US5684032A (en) Compounds
US5128359A (en) Benzimidazole and azabenzimidazole derivatives which are thromboxane receptor antagonists, their methods of preparation
US20030045521A1 (en) Sulfohydroxamic acids and sulfohydroxamates and their use as MEK inhibitors
US5550147A (en) Pyrazole derivatives, processes for preparation thereof and pharmaceutical composition comprising the same
US20030092748A1 (en) Benzenesulfonamide derivatives and their use as MEK inhibitors
US5124336A (en) Azabenzimidazole derivatives which are thromboxane receptor antagonists
US5463062A (en) Substituted cyclohexane derivatives, processes for their preparation and the use of the compounds for treating diseases
EP1634873A1 (en) Sigma receptor inhibitors
US6469004B1 (en) Benzoheterocycles and their uses as MEK inhibitors
WO1999032455A1 (en) Inhibition of raf kinase using aryl and heteroaryl substituted heterocyclic ureas
US7776897B2 (en) Triazole derivative or salt thereof
WO2000042029A1 (en) 1-heterocycle substituted diarylamines
WO1999061440A1 (en) Novel substituted imidazole compounds
US20050171179A1 (en) 1,3,5-trisubstituted 4,5-dihydro-1H-pyrazole derivatives having CB1-antagonistic activity
US6506798B1 (en) 4-Arylamino, 4-aryloxy, and 4-arylthio diarylamines and derivatives thereof as selective MEK inhibitors
EP0511865A1 (en) Phenyl pyrazolidinones as bronchodilators and anti-inflammatory agents
US5401765A (en) 1,4,5-triphenyl pyrazolyl compounds for the treatment of inflammation and inflammation-related disorders
WO2001013917A1 (en) Npy antagonists: spiroisoquinolinone derivatives

Legal Events

Date Code Title Description
FPAY Fee payment

Year of fee payment: 4

MAFP

Free format text: PAYMENT OF MAINTENANCE FEE, 8TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1552)

Year of fee payment: 8
