Abstract

The present invention provides compositions that feature improved preferential adhesion and release characteristics with respect to a substrate and a mold having imprinting material disposed therebetween. To that end, the compositions facilitate bifurcation of the imprinting into a surfactant-component-rich sub-portion and a surfactant-component-depleted sub-portion located between said surfactant-component-rich sub-portion and said substrate. This surfactant-component-rich sub-portion attenuates the adhesion forces between the mold and the imprinting material, once solidified.

Description

    CROSS-REFERENCE TO RELATED APPLICATIONS
  • The present application is a Continuation of U.S. patent application Ser. No. 11/068,171 filed on Feb. 28, 2005, entitled “Composition to Reduce Adhesion between a Conformable Region and a Mold,” listing Frank Y. Xu and Michael N. Miller as inventors. U.S. patent application Ser. No. 11/068,171 is a Continuation-in-Part of U.S. patent application Ser. No. 11/012,374 filed Dec. 15, 2004, entitled “Composition to Reduce Adhesion Between a Conformable Region and a Mold,” listing Frank Y. Xu and Michael N. Miller as inventors, and is also a Divisional of U.S. patent application Ser. No. 11/068,397 filed on Feb. 28, 2005, entitled “Method of Providing Desirable Wetting and Release Characteristics Between a Mold and a Polymerizable Composition,” listing Frank Y. Xu, Edward B. Fletcher and Van N. Truskett as inventors. U.S. patent application Ser. No. 11/068,397 is a Continuation-in-Part of U.S. patent application Ser. No. 11/012,374, a Continuation-in-Part of U.S. patent application Ser. No. 11/012,375 filed Dec. 15, 2004, entitled “Method to Reduce Adhesion Between a Conformable Region and a Mold,” listing Frank Y. Xu and Michael N. Miller as inventors, and claims priority to U.S. Provisional Application No. 60/631,029 filed on Nov. 24, 2004, entitled “Imprinting Materials with Enhanced Filling Characteristics,” listing Frank Y. Xu, Edward B. Fletcher and Van N. Truskett as inventors. All of these applications are incorporated herein by reference.
  • The present application is also a Continuation of U.S. patent application Ser. No. 11/068,174 filed on Feb. 28, 2005, entitled “Method to Reduce Adhesion Between a Conformable Region and a Mold,” listing Frank Y. Xu and Michael N. Miller as inventors. U.S. patent application Ser. No. 11/068,174 is a Continuation-in-Part of U.S. patent application Ser. Nos. 11/012,374 and 11/012,375 and a Divisional of U.S. patent application Ser. No. 11/068,397. U.S. patent application Ser. No. 11/068,397 is a Continuation-in-Part of U.S. patent application Ser. No. 11/012,374, a Continuation-in-Part of U.S. patent application Ser. No. 11/012,375, and claims priority to U.S. Provisional Application No. 60/631,029. All of these applications are incorporated herein by reference.
  • Finally, the present application is a Continuation of U.S. patent application Ser. No. 11/244,428 filed on Oct. 5, 2005 entitled “Method of Providing Desirable Wetting and Release Characteristics Between a Mold and a Polymerizable Composition,” listing Frank Y. Xu, Pankaj B. Lad, Ian M. McMackin, Edward B. Fletcher and Van N. Truskett as inventors. U.S. patent application Ser. No. 11/244,428 is a Continuation of U.S. application Ser. No. 11/068,397 and a Continuation of U.S. application Ser. No. 10/763,885 filed on Jan. 23, 2004, entitled “Materials and Methods for Imprint Lithography,” listing Frank Y. Xu, Pankaj B. Lad and Ian M. McMackin as inventors. U.S. patent application Ser. No. 11/068,397 is a Continuation-in-Part of U.S. patent application Ser. No. 11/012,374, a Continuation-in-Part of U.S. patent application Ser. No. 11/012,375, and claims priority to U.S. Provisional Application No. 60/631,029. All of these applications are incorporated herein by reference.
  • STATEMENT REGARDING FEDERALLY SPONSORED RESEARCH OR DEVELOPMENT
  • The United States government has a paid-up license in this invention and the right in limited circumstance to require the patent owner to license others on reasonable terms as provided by the terms of 70NANB4H3012 awarded by National Institute of Standards (NIST) ATP Award.
  • BACKGROUND OF THE INVENTION
  • The field of invention relates generally to nano-fabrication of structures. More particularly, the present invention is directed to compositions suited for patterning substrates in furtherance of the formation of structures employing imprint lithographic processes.
  • Nano-scale fabrication involves the fabrication of very small structures, e.g., having features on the order of one nano-meter or more. A promising process for use in nano-scale fabrication is known as imprint lithography. Exemplary imprint lithography processes are described in detail in numerous publications, such as United States published patent application 2004-0065976 filed as U.S. patent application Ser. No. 10/264,960, entitled “Method and a Mold to Arrange Features on a Substrate to Replicate Features having Minimal Dimensional Variability”; United States published patent application 2004-0065252 filed as U.S. patent application Ser. No. 10/264,926, entitled “Method of Forming a Layer on a Substrate to Facilitate Fabrication of Metrology Standards”; and United States published patent application 2004-0046271 filed as U.S. patent application Ser. No. 10/235,314, entitled “Method and a Mold to Arrange Features on a Substrate to Replicate Features having Minimal Dimensions Variability”; all of which are assigned to the assignee of the present invention.
  • Referring to FIG. 1, the basic concept behind imprint lithography is forming a relief pattern on a substrate that may function as, inter alia, an etching mask so that a pattern may be formed into the substrate that corresponds to the relief pattern. System 10 employed to form the relief pattern includes stage 11 upon which substrate 12 is supported. Template 14 has a mold 16 with a patterning surface 18 thereon. Patterning surface 18 may be substantially smooth and/or planar, or may be patterned so that one or more recesses are formed therein. Template 14 is coupled to imprint head 20 to facilitate movement of template 14. Fluid dispense system 22 is coupled to be selectively placed in fluid communication with substrate 12 so as to deposit polymerizable material 24 thereon. Source 26 of energy 28 is coupled to direct energy 28 along a path 30. Imprint head 20 and stage 11 are configured to arrange mold 16 and substrate 12, respectively, to be in superimposition, and disposed in path 30. Either imprint head 20, stage 11, or both vary a distance between mold 16 and substrate 12 to define a desired volume therebetween that is filled by polymerizable material 24.
  • Typically, polymerizable material 24 is disposed upon substrate 12 before the desired volume is defined between mold 16 and substrate 12. However, polymerizable material 24 may fill the volume after the desired volume has been obtained. After the desired volume is filled with polymerizable material 24, source 26 produces energy 28, which causes polymerizable material 24 to solidify and/or cross-link, forming polymeric material conforming to the shape of the substrate surface 24 and mold surface 18. Control of this process is regulated by processor 32 that is in data communication with stage 11, imprint head 20, fluid dispense system 22, and source 26, operating on a computer readable program stored in memory 34.
  • An important characteristic with accurately forming the pattern in the polymerizable material is to reduce, if not prevent, adhesion to the mold of the polymeric material, while ensuring suitable adhesion to the substrate. This is referred to as preferential release and adhesion properties. In this manner, the pattern recorded in the polymeric material is not distorted during separation of the mold therefrom. Prior art attempts to improve the release characteristics employ a release layer on the surface of the mold. The release layer is typically hydrophobic and/or has low surface energy. The release layer adheres to the mold. Providing the release layer improves release characteristics by minimizing distortions in the pattern recorded into the polymeric material that are attributable to mold separation. This type of release layer is referred to, for purposes of the present discussion, as an a priori release layer, i.e., a release layer that is solidified to the mold.
  • Another prior art attempt to improve release properties is described by Bender et al. in Multiple Imprinting in UV-based Nanoimprint Lithography: Related Material Issues, Microeletronic Engineering 61-62 (2002), pp. 407-413. Specifically, Bender et al. employ a mold having an a priori release layer in conjunction with a fluorine-treated UV curable material. To that end, a UV curable layer is applied to a substrate by spin-coating a 200 cPs UV curable fluid to form a UV curable layer. The UV curable layer is enriched with fluorine groups to improve the release properties.
  • A priori release layers, however, typically have a limited operational life. As a result, a single mold may be coated multiple times with an a priori release layer. This can result in several hours of down-time for a given mold, reducing throughput. Additionally, the molecular structure of the a priori release layer may limit the minimization of the minimum feature dimension that is printed.
  • There is a need, therefore, to improve the preferential release and adhesion properties of a mold employed in imprint lithography processes.
  • SUMMARY OF THE INVENTION
  • The present invention provides compositions that feature improved preferential adhesion and release characteristics with respect to a substrate and a mold having imprinting material disposed therebetween. The compositions facilitate bifurcation of the imprinting material into a surfactant-component-rich sub-portion and a surfactant-component-depleted sub-portion located between said surfactant-component-rich sub-portion and said substrate. This surfactant-component-rich sub-portion attenuates the adhesion forces between the mold and the imprinting material, once solidified. Specifically, the surfactant component has opposed ends. In the liquid phase, one of the opposed ends has an affinity for the bulk material. The remaining end has a fluorine component. As a result of the affinity for the bulk material, the surfactant component is orientated so that the fluorine component extends from an air-liquid interface defined by the imprinting material and the surrounding ambient. Upon solidification of the imprinting material, a lamella remains, positioned between the solidified imprinting material and the mold. The lamella results from the presence and location of the fluorine components in the surfactant-component-rich sub-portion. As a result, it has been determined that several materials could be employed in imprint lithography processes. Specifically, the bulk materials and surfactant component combinations employed in a composition of imprinting material are selected to provide the desired preferential adhesion and release properties. Exemplary compositions include an initiator component and compounds selected from a set of compounds consisting essentially of vinyl ethers, methacrylates, acrylates, thiol-enes, epoxies, as well as a surfactant component, having opposed ends, one of which has an affinity for said bulk material and the remaining end having a fluorine component. These and other embodiments are described herein.
  • BRIEF DESCRIPTION OF THE DRAWINGS
  • FIG. 1 is a perspective view of a lithographic system in accordance with the prior art;
  • FIG. 2 is a simplified elevation view of a template and imprint material disposed on a substrate in accordance with the present invention;
  • FIG. 3 is a simplified elevation view of the template and substrate shown in FIG. 2, with the imprinting material being shown as patterned and solidified;
  • FIG. 4 is a detailed view of the droplets of imprint material, shown in FIG. 2, showing the bifurcation of the droplets into surfactant-rich regions and surfactant-depleted regions;
  • FIG. 5 is a detailed view of a layer of imprinting material, deposited employing spin-on techniques, showing the bifurcation of the layer into surfactant-rich regions and surfactant-depleted regions;
  • FIG. 6 is a cross-sectional view of the template contacting imprinting material, deposited as shown in either FIG. 4 or 5, demonstrating the formation of the weak boundary lamella between solidified imprinting material and a template; and
  • FIG. 7 is a cross-sectional view of the template shown in FIG. 6 having a layer of surfactant containing solution disposed thereon, in accordance with the present invention.
  • DETAILED DESCRIPTION OF THE INVENTION
  • Referring to FIGS. 1 and 2, a mold 36, in accordance with the present invention, may be employed in system 10, and may define a surface having a substantially smooth or planar profile (not shown). Alternatively, mold 36 may include features defined by a plurality of spaced-apart recessions 38 and protrusions 40. The plurality of features defines an original pattern that is to be transferred into substrate 42. Substrate 42 may comprise a bare wafer or a wafer with one or more layers disposed thereon. To that end, reduced is a distance “d” between mold 36 and substrate 42. In this manner, the features on mold 36 may be imprinted into a conformable region of substrate 42, such as an imprinting material disposed on a portion of surface 44 that presents a substantially planar profile. It should be understood that the imprinting material may be deposited using any known technique, e.g., spin-coating, dip coating and the like. In the present example, however, the imprinting material is deposited as a plurality of spaced-apart discrete droplets 46 on substrate 42. Imprinting layer 34 is formed from a composition that may be selectively polymerized and cross-linked to record the original pattern therein, defining a recorded pattern.
  • Specifically, the pattern recorded in the imprinting material is produced, in part, by interaction with mold 36, e.g., electrical interaction, magnetic interaction, thermal interaction, mechanical interaction and the like. In the present example, mold 36 comes into mechanical contact with the imprinting material, spreading droplets 36, so as to generate a contiguous formation 50 of the imprinting material over surface 44. In one embodiment, distance “d” is reduced to allow sub-portions 52 of imprinting layer 34 to ingress into and fill recessions 38.
  • To facilitate filling of recessions 38, the imprinting material is provided with the requisite properties to completely fill recessions 38 while covering surface 44 with a contiguous formation of the imprinting material. In the present embodiment, sub-portions 54 of imprinting layer 34 in superimposition with protrusions 40 remain after the desired, usually minimum distance “d” has been reached. This action provides formation 50 with sub-portions 52 having a thickness t1, and sub-portions 54, having a thickness t2. Thicknesses “t1” and “t2” may be any thickness desired, dependent upon the application. Thereafter, formation 50 is solidified by exposing the same to the appropriate curing agent, e.g., actinic radiation. This causes the imprinting material to polymerize and cross-link. The entire process may occur at ambient temperatures and pressures, or in an environmentally controlled chamber with desired temperatures and pressures. In this manner, formation 50 is solidified to provide side 56 thereof with a shape conforming to a shape of a surface 58 of mold 36.
  • Referring to FIGS. 1, 2 and 3, the characteristics of the imprinting material are important to efficiently pattern substrate 42 in light of the unique patterning process employed. For example, it is desired that the imprinting material have certain characteristics to facilitate rapid and even filling of the features of mold 36 so that all thicknesses t1 are substantially uniform and all thicknesses t2 are substantially uniform. To that end, it is desirable that the viscosity of the imprinting material be established, based upon the deposition process employed, to achieve the aforementioned characteristics. As mentioned above, the imprinting material may be deposited on substrate 42 employing various techniques. Were the imprinting material deposited as a plurality of discrete and spaced-apart droplets 46, it would be desirable that the composition from which the imprinting material is formed have relatively low viscosity, e.g., in a range of 0.5 to 20 centipoises (cPs). Considering that the imprinting material is spread and patterned concurrently, with the pattern being subsequently solidified into formation 50 by exposure to radiation, it would be desired to have the composition wet surface of substrate 42 and/or mold 36 and to avoid subsequent pit or hole formation after polymerization. Were the imprinting material deposited employing spin coating techniques, it would be desired to use higher viscosity materials, e.g. having a viscosity greater than 10 cPs and typically, several hundred to several thousand cPs.
  • In addition to the aforementioned characteristics, referred to as liquid phase characteristics, it is desirable for the composition to provide the imprinting material with certain solidified phase characteristics. For example, after solidification of formation 50, it is desirable that preferential adhesion and release characteristics be demonstrated by the imprinting material. Specifically, it is beneficial for the composition from which the imprinting material is fabricated to provide formation 50 with preferential adhesion to substrate 42 and preferential release of mold 36. In this fashion, reduced is the probability of distortion in the recorded pattern resulting from the separation of mold 36 therefrom due to, inter alia, tearing, stretching or other structural degradation of formation 50.
  • The constituent components that form the imprinting material to provide the aforementioned characteristics may differ. This results from substrate 42 being formed from a number of different materials. As a result, the chemical composition of surface 44 varies dependent upon the material from which substrate 42 is formed. For example, substrate 42 may be formed from silicon, plastics, gallium arsenide, mercury telluride, and composites thereof. Additionally, substrate 42 may include one or more layers, e.g., dielectric layer, metal layer, semiconductor layer, planarization layer and the like, upon which formation 50 is generated. Additionally, mold 36 may be formed from several materials, e.g., fused-silica, quartz, indium tin oxide diamond-like carbon, MoSi, sol-gels and the like.
  • It has been found that the imprinting material from which formation 50 is generated may be fabricated from several different families of bulk materials. For example, the imprinting material may be fabricated from vinyl ethers, methacrylates, epoxies, thiol-enes and acrylates, just to name a few.
  • Exemplary bulk materials for the imprinting material are as follows:
  • Vinyl Ether/Bulk Material-A1 triethyleneglycol divinyl ether tris(4-vinyloxybutyl)trimellitate photoinitiator
  • A first vinyl ether component, triethyleneglycol divinyl ether, has the following structure:
    Figure US20070272825A1-20071129-C00001

    and comprises approximately 67.9% of the bulk material by weight. As a result, the mechanical properties of formation 50 are primarily attributable to triethyleneglycol divinyl ether. An exemplary source for triethyleneglycol divinyl ether is the BASF Corporation of Mount Olive, N.J. available under the product name DVE-3.
  • A second vinyl ether component tris(4-vinyloxybutyl)trimellitate has the following structure:
    Figure US20070272825A1-20071129-C00002

    and comprises approximately 29.1% of the bulk material. The component tris(4-vinyloxybutyl)trimellitate is available from Morflex Inc. of Greensboro, N.C. under the tradename Vectomer 5015.
  • The photoinitiator component is a cationic photoinitiator that is a mixture of triarylsulfonium hexafluoroantimonate salts in propylene carbonate having the following structure:
    Figure US20070272825A1-20071129-C00003

    The photoinitiator component comprises approximately 3% of the bulk material and is available from the Dow Chemical Company of Midland, Mich. under the product name UVI 6976.
  • Vinyl Ether 2/Bulk Material-A2 bis(4-vinyloxybutyl)adipate vinyl ether terminated polyester polymer photoinitiator
  • A first vinyl ether component, bis(4-vinyloxybutyl)adipate, has the following structure:
    Figure US20070272825A1-20071129-C00004

    and comprises approximately 19.4% of the bulk material by weight. An exemplary source for bis(4-vinyloxybutyl)adipate is Morflex, Inc. of Greensboro, N.C. under the product name Vectomer 4060.
  • The second vinyl ether component is a vinyl ether terminated polyester polymer that comprises approximately 77.6% of the bulk material by weight. As a result, the mechanical properties of formation 50 are primarily attributable to the vinyl ether terminated polyester polymer. An exemplary source for the vinyl ether polyester polymer is Morflex, Inc. of Greensboro, N.C. under the product name Vectomer 1312. The photoinitiator comprises approximately 3% of the bulk material, by weight, and is that same as described above with respect to VINYL ETHER BULK MATERIAL 1: UVI 6976.
  • Methacrylate/Bulk Material-A3 organic modified silicate
  • An exemplary organic modified silicate ORMOSIL that may comprise 100% of the bulk material is Ormomer® b66 available from Micro Resist Technology GmbH, Berlin, Germany. The material is fabricated through a sol-gel process. Methacryl and epoxy functionality is attached to the material, with a photoinitiator component being incorporated for UV curing through the methacryl functionality.
  • Epoxy/Bulk Material-A4 diglycidyl ether of bisphenol A cationic photoinitiator
  • The diglycidyl ether of bisphenol A component has the following structure:
    Figure US20070272825A1-20071129-C00005

    and comprises approximately 97% of the bulk material by weight. As a result, the mechanical properties of formation 50 are primarily attributable to the diglycidyl ether of bisphenol A component. An exemplary source of diglycidyl ether of bisphenol A is Dow Chemical Company of Midland, Mich. under the product name DER 332. The cationic photoinitiator component of the bulk material includes a mixture of triarylsulfonium hexafluorophosphate salts in propylene carbonate, providing the following structure:
    Figure US20070272825A1-20071129-C00006

    and comprises approximately 3% of the bulk material, by weight. An exemplary source of the cationic photoinitiator is Dow Chemical Company of Midland, Mich. under the product name UVI 6992.
  • Thiol-Ene/Bulk Material-A5 triethyleneglycol divinyl ether 1,2-Bis(2-mercaptoethoxy)ethane triallyl isocyanurate ethyl 2,4,6-trimethylbenzoylphenylphosphinate
  • The vinyl ether component comprises approximately 36.7% of the bulk material by weight and has the structure discussed above with respect to the product sold under the product name DVE-3. The 1,2-Bis(2-mercaptoethoxy)ethane component has the following structure:
    Figure US20070272825A1-20071129-C00007

    and comprises approximately 47.3% of the bulk material by weight. An exemplary source of the 1,2-Bis(2-mercaptoethoxy)ethane component is the Aldrich Chemical Company of Milwaukee, Wis. under the product name DMDO. As a result, the mechanical properties of formation 50 are primarily attributable to the triethyleneglycol divinyl ether and 1,2-Bis(2-mercaptoethoxy)ethane components.
  • The triallyl isocyanurate component has the following structure:
    Figure US20070272825A1-20071129-C00008

    and comprises approximately 13% of the bulk material by weight. An exemplary source of the triallyl isocyanurate component is the Aldrich Chemical Company of Milwaukee, Wis. under the product name TAIC.
  • The ethyl 2,4,6-trimethylbenzoylphenyl-phosphinate component comprises approximate 3% of the bulk material by weight and has the following structure:
    Figure US20070272825A1-20071129-C00009

    An exemplary source of the ethyl 2,4,6-trimethylbenzoylphenylphosphinate component is the BASF Corporation of Mount Olive, N.J. under the product name TPO-L.
  • Acrylate/Bulk Material-A6 isobornyl acrylate n-hexyl acrylate ethylene glycol diacrylate 2-hydroxy-2-methyl-1-phenyl-propan-1-one
  • The acrylate component, isobornyl acrylate (IBOA), has the following structure:
    Figure US20070272825A1-20071129-C00010

    and comprises approximately 55% of bulk material by weight, but may be present in a range of 20% to 80%, inclusive. As a result, the mechanical properties of formation 50 are primarily attributable to IBOA. An exemplary source for IBOA is Sartomer Company, Inc. of Exton, Pa. available under the product name SR 506.
  • The component n-hexyl acrylate (n-HA) has the following structure:
    Figure US20070272825A1-20071129-C00011

    and comprises approximately 27% of bulk material by weight, but may be present in a range of 0% to 50%, inclusive. Also providing flexibility to formation 50, n-HA is employed to reduce the viscosity of the prior art bulk material so that bulk material, in the liquid phase, has a viscosity in a range 2-9 Centipoises, inclusive. An exemplary source for the n-HA component is the Aldrich Chemical Company of Milwaukee, Wis.
  • A cross-linking component, ethylene glycol diacrylate, has the following structure:
    Figure US20070272825A1-20071129-C00012

    and comprises approximately 15% of bulk material by weight, and may be present in a range of 10% to 50%, inclusive. EGDA also contributes to the modulus and stiffness buildup, as well as facilitates cross-linking of n-HA and IBOA during polymerization of the bulk material.
  • An initiator component, 2-hydroxy-2-methyl-1-phenyl-propan-1-one is available from Ciba Specialty Chemicals of Tarrytown, N.Y. under the trade name DAROCUR® 1173, and has the following structure:
    Figure US20070272825A1-20071129-C00013

    and comprises approximately 3% of the bulk material by weight, and may be present in a range of 1% to 5%, inclusive. The initiator is responsive to a broad band of ultra-violet radiation generated by a medium-pressure mercury lamp. In this manner, the initiator facilitates cross-linking and polymerization of the components of the bulk material.
  • Acrylate/Bulk Material-A7 isobornyl acrylate n-hexyl acrylate ethylene glycol diacrylate 2-hydroxy-2-methyl-1-phenyl-propan-1-one
  • As can be seen, BULK MATERIAL-A7 is identical to BULK MATERIAL-A6 in terms of the identity of the constituent components. The two materials differ in terms of the percentage of each of the constituent components present. In BULK MATERIAL-A7, IBOA comprises approximate 47% of the material by weight and n-HA and EGDA each comprises 25% of the bulk material by weight. DAROCUR® 1173, 2-hydroxy-2-methyl-1-phenyl-propan-1-one component comprises approximately 3% of the material by weight.
  • Acrylate/Bulk Material-A8 genomer 1122 isobornyl acrylate 1,6-Hexanediol Diacrylate 2-hydroxy-2-methyl-1-phenyl-propan-1-one
  • The first acrylate component, genomer 1122 is an aliphatic urethane acrylate available from Rahn USA Corporation of Aurora, Ill. and has the following structure:
    Figure US20070272825A1-20071129-C00014

    and comprises approximately 21% of the bulk material by weight, but may be present in a range of 0 to 50%. The acrylate component isobornyl acrylate (IBOA) is as described above and comprises approximately 56% by weight of the composition, but may be present in a range of 20 to 80%. The acrylate component 1,6-hexanediol diacrylate is available from UCB Chemicals, Smyna, Ga. and has the following structure:
    Figure US20070272825A1-20071129-C00015

    and comprises approximately 20% of bulk material by weight, but may be present in a range of 10% to 50%, inclusive. The initiator component, 2-hydroxy-2-methyl-1-phenyl-propan-1-one is as described above and comprises approximately 3% of the composition by weight. To provide improved wetting characteristics of BULK MATERIAL A8, additional fluorinated acrylates, such as 1H,1H-perfluoro-n-decyl acrylate may be included to lower the contact angle of the same. This fluorinated acrylate is available from Exfluor Research Corporation, Round Rock, Tex. under the tradename CLOACRY. One advantage with bulk material A-8 is that it has a viscosity of approximately 11 cPs which makes the same suitable for both drop-dispense and spin-coating techniques.
  • It was discovered, however, that desirable preferential adhesion and release properties, as discussed above, may be achieved by producing a weak boundary layer, lamella 60, between mold 36, surface 58 and formation 50. Lamella 60 remains after solidification of the imprinting material. As a result, the adhesion forced between mold 36 and formation 50 is minimal. To that end, found beneficial was employing a composition for the imprinting material that includes one of the bulk materials discussed above along with a component that contains low surface energy groups, referred to herein as a surfactant component. After deposition of the imprinting material, the surfactant component rises, after a period of time, to the air liquid interface, providing droplets 146 of imprinting material with a bifurcated concentration of materials.
  • In a first portion, droplets 146 include a higher concentration of the surfactant component, referred to as a surfactant-component-rich (SCR) sub-portion 136, than the second portion, referred to as a surfactant-component-depleted (SCD) sub-portion 137. SCD sub-portion 137 is positioned between surface 44 and SCR sub-portion 136. SCR sub-portion 136 attenuates the adhesion forces between mold 36 and the imprinting material, once solidified. Specifically, the surfactant component has opposed ends. When the imprinting material is in the liquid phase, i.e., polymerizable, one of the opposed ends has an affinity for the bulk material included in the imprinting material. The remaining end has a fluorine component. As a result of the affinity for the bulk material, the surfactant component is orientated so that the fluorine component extends from an air-liquid interface defined by the imprinting material and the surrounding ambient. Upon solidification of the imprinting material, a first portion of the imprinting material generates a lamella 60 and a second portion of the imprinting material is solidified, i.e., polymeric material shown as formation 50. Lamella 60 is positioned between formation 50 and mold 36. Lamella 60 results from the presence and location of the fluorine components in the SCR sub-portion 136. Lamella 60 prevents strong adhesion forces from being developed between mold 36 and formation 50. Specifically, formation 50 has first and second opposed sides 62 and 64. Side 62 adheres to substrate 42 with a first adhesion force. Side 64 adheres to mold 36 with a second adhesion force. Lamella 60 results in the second adhesion force being less than the first adhesion force. As a result, mold 36 may be easily removed from formation 50 while minimizing distortions and/or the force required to separate mold 36 therefrom. Although formation 50 is shown with side 62 being patterned, it should be understood that side 62 may be smooth, if not planar. Furthermore, if desired, it is possible to generate lamella 60 so as to be disposed between formation 50 and substrate 42. This may be achieved, for example, by applying imprinting material to mold 36 and subsequently contacting substrate with the imprinting material. In this manner, it can be said that formation 50, i.e., polymeric material, will be disposed between lamella 60 and the body, mold 36 or substrate 42, upon which the polymerizable material is deposited.
  • It should be understood that were the imprinting material deposited employing spin-coating techniques, similar bifurcated concentration of materials occurs, as shown in FIG. 5 with respect to SCR sub-portion 236 and second and SCD sub-portion 237. The time required for the bifurcation is dependent upon several factors, including the size of molecules in the imprinting material and the viscosity of the imprinting material. Only a few seconds is needed to achieve the aforementioned bifurcation of imprinting material with viscosity below twenty cPs. Imprinting material with viscosity in the hundreds of cPs, however, may require a few seconds to several minutes.
  • Various surfactant components, or combinations of surfactant components, can be included in the bulk materials to form lamella 60. These include nonionic fluorinated surfactant components having the following general formula:
    F(CF2CF2)XCH2CH2O(RO)YR′
    where (RO)Y is a poly(oxyalkylene) group, that includes groups having two to four carbon atoms such as —CH2CH2—, —CH2CH2CH2—, —CH(CH3)CH2—, or —CH(CH3)CH(CH3)—, and R′ is a terminal group of H or C1 to C4 alkyl, preferably H or methyl and X and Y are integers.
  • Another example of nonionic fluorinated surfactant components has the following general formula:
    Figure US20070272825A1-20071129-C00016

    where R and R′ can be either H or methyl; R and R′ can be identical or differ. R″ is a linking group that may be omitted or a sulfonyl group such as —SO2N(R′″″)—, with R′″″ being C1 to C6 alkyl and typically C1 to C4 alkyl. The component (OR′″)z is a poly(oxyalkylene) group, typically including groups having 2 to 4 carbon atoms such as —CH2CH2—, —CH2CH2CH2—, —CH(CH3)CH2—, or —CH(CH3)CH(CH3)—. R″″ is a terminal group of methyl, H or C1 to C4 alkyl and typically H or methyl. The ratio of x to y is in a range of 1:2 to 3:1 and more preferably in a range of 1:1 to 2:1.
  • It should be understood that the oxyalkylene groups in the poly(oxyalkylene) group may be the same, as in poly(oxyethylene), or two or more of differing oxyalkylene units may be irregularly distributed in the poly(oxyalkylene) group. More specifically, the poly(oxyalkylene) group may be made up of straight or branched chain oxypropylene units alone or oxyethylene units alone, or straight or branched oxypropylene units and oxyethylene units may be present in alternate blocks. In the case of alternate blocks of oxyethylene and oxypropylene, the ratio the oxyethylene to oxypropylene is in a range of 2.0-0.5 to 1. Also, unattached blocks of poly(oxyalkylene) may be present in the polymer matrix. Chain transfer agents such as octyl mercaptan may be also present.
  • Exemplary nonionic fluorinated surfactant components that may be employed are fluoro-aliphatic polymeric esters, fluorosurfactants of the polyoxyethylene or polyalkyl ether type, or fluoroalkyl polyethers as set forth in U.S. Pat. Nos. 3,403,122, 3,787,351, 4,803,145, 4,835,084, 4,845,008, 5,380,644, 5,747,234, and 6,664,354 which are incorporated herein by reference. Suitable commercially available examples of the surfactant components included are sold by Dupont under product names ZONYL® FSO, ZONYL® FSO-100, ZONYL® FSN-100, ZONYL® FS-300; sold by 3M Company under the product names FC-4432, FC-4430, FC430; sold by Mason Chemical Company of Arlington Heights, Ill. under the product names MASURF® FS425, MASURF® FS1700, MASURF® FS-2000, MASURF® FS-1230; sold by Ciba-Geigy Corp under the product names Lodyne S-107B, Lodyne S-220N, Lodyne S-222N; sold by Daikin of Japan under the product names Unidyne NS1602, Unidyne NS1603, Unidyne NS1606; and sold by Dainippon Ink & Chemical under the product name MegaFace R-08. In addition to, or in lieu of the nonionic fluorinated surfactant components, ionic fluorinated surfactant components may be employed in the composition from which the imprinting material is formed, along with the bulk materials discussed above.
  • In lieu of, or in addition to, the non-ionic fluorinated surfactant components, the ionic type of fluorinated surfactant components can work as well. An exemplary ionic surfactant is an anionic phosphate fluorosurfactant sold by DuPont of Wilmington, Del. under the tradename ZONYL® UR, which has the following formula:
    Figure US20070272825A1-20071129-C00017

    wherein, x=1 or 2, y=2 or 1, x+y=3, z=0 to about 6. In addition to ZONYL® UR, other anionic surfactant components based upon fluorinated phosphoric, polyphosphoric acid ester, sulfonic acid ester, alkyl surface and carboxylic acid ester types may be employed.
  • In lieu of, or in addition to, the non-ionic and anionic surfactant components, a zwitterionic surfactant may be employed with the bulk materials discussed above for the composition from which the imprinting material is fabricated. An exemplary zwitterionic surfactant has the following general formula:
    Figure US20070272825A1-20071129-C00018
  • A commercially available zwitterionic surfactant is a fluoroaliphatic amine oxide available from the Mason Chemical Company under the tradename MASURF® FS230. Cationic surfactant components may be employed, as well, such as fluorinated surfactant components like quaternary ammonium salts available from DuPont under the trade name ZONYL® FSD which has the following formula:
    F(CF2CF2)X-alkyl-N+R3Cl
    where x is an integer in a range of 1 to 7, inclusive. Additionally a surfactant containing both fluorine and silicon atoms can work, as well. An exemplary surfactant containing silicon is MEGAFACE® R-08 mentioned above.
  • Although the foregoing has been discussed with respect to having fluorine-containing surfactant components, it is possible to employ non-fluorine-containing surfactant components. This is particularly useful when a mixture of surfactant components is employed, wherein one of the surfactant components is fluorine-containing with the remaining surfactant components of the mixture of surfactant components being a non-fluorine-containing surfactant and/or a fluorine-containing surfactant. An exemplary mixture of surfactant components may include one or more of the fluorine-containing surfactant components described above. The remaining surfactant components may be one or more of a siloxane-based-surfactant and/or a hydrocarbon-based-surfactant. Examples of siloxane-based surfactant components are available from Dow Corning of Midland, Mich. under the trade names Q2-5211 and SYLGARD® 309, both of which are trisiloxane-type surfactant components. Siloxane polyether types may be employed, as well.
  • Hydrocarbon surfactant components suitable for use in the present invention include any that facilitate providing a composition with low “dynamic” surface tension and/or increasing the solubility of the fluorinated surfactant into the bulk materials. Exemplary hydrocarbon surfactant components are available from BASF of Ontario, Canada under the tradename TETRONIC®, e.g., TETRONIC® 701, which are believed to be tetrafunctional block copolymers of propylene oxide, ethylene oxide, and ethylene diamine. Other hydrocarbon surfactant components are available from Dow Chemical Company of Midland, Mich. under the trade names TERGITOL® and TRITON®, e.g., TERGITOL® NP-10, TRITON® X-100 and TRITON® X-45. The TERGITOL® surfactant components are alkyl polyethylene oxides, and the TRITON® surfactant components are alkyl phenyl polyethylene oxides. Uniqema Americas of New Castle, Del. also provides suitable hydrocarbon surfactant components containing polyethoxylated alcohols and esters under the tradename BRIJ®, e.g., BRIJ® 30. Acetylenic polyethlene oxide-containing hydrocarbon surfactant components are available from Air Products and Chemicals, Inc. of Allentown, Pa. under the trade names SULFYNOL® and DYNOL®, e.g., SULFYNOL® 104, SULFYNOL® 440, SULFYNOL® 2502, and DYNOL® 604.
  • Typically, the composition formed employing the bulk materials mentioned above includes a quantity of surfactant components, or mixture of surfactant components, that is in a range of 0.05% to 5% of the composition by weight, and more particularly 0.25% to 2% by weight. The remaining portion of the composition comprises one or more of the bulk materials, described above. Typically the composition from which the imprinting material is fabricated is applied employing drop-dispense techniques at room temperatures and in the presence of a helium-purged environment, e.g., a helium-saturated atmosphere. The drop-dispense technique is employed for compositions having viscosities in a range of 1-20 cPs at room temperature. For higher viscosity compositions, e.g., in a range of 10-500,000 cPs, but more particularly, compositions from 10-20,000 cPs, at room temperature, spin-coating techniques may be employed.
  • To demonstrate the improved preferential adhesion and preferential release provided by the presence of the surfactant components described above in imprinting material, several compositions including the bulk materials and surfactant components described above were tested. Specifically, the following surfactant components were employed:
    Figure US20070272825A1-20071129-C00019
  • As mentioned above, the surfactant FC-4430 is available from the 3M Company of St. Paul, Minn. as the NOVEC® Fluorosurfactant FC-4430. The NOVEC® FC-4430 fluorosurfactant is a non-ionic acrylic copolymer based fluorochemical surfactant containing perfluorobutane sulfonate (PFBS) segments.
    Figure US20070272825A1-20071129-C00020
  • The surfactant FS-1230 is believed to originate from Asahi Glass, in Japan and distributed in the United States of America by Mason Chemical of Arlington Heights, Ill. under the product name MASURF® FS-1230 and has the following general formula:
    F3CF2C—(CF2CF2)xCH2CH2—O(CH2CH2O)yH
    where X and Y are integers. MASURF® FS-1230 is a 30% active fluoroaliphatic polyoxyethylene fluorosurfactant in a water/isopropanol solution. In the experiments that resulted in the data recited below, the water and isopropanol were removed before the surfactant was incorporated into the composition for the imprinting material.
    Figure US20070272825A1-20071129-C00021
  • The surfactant FSO-100 is an ethoxylated nonionic fluorosurfactant that has the following structure:
    Figure US20070272825A1-20071129-C00022

    where x is an integer in a range of 0 to 6, inclusive; and y is an integer in a range of 0 to 15, inclusive.
    Figure US20070272825A1-20071129-C00023
  • As mentioned above, the surfactant FC-4432 is available from the 3M Company of St. Paul, Minn. as the NOVEC® Fluorosurfactant FC-4432. It is a non-ionic polymeric fluorochemical surfactant. The NOVEC® FC-4432 fluorosurfactant is based on perfluorobutane sulfonate (PFBS) chemistry.
    Figure US20070272825A1-20071129-C00024
  • The component F021004 is a surfactant-like component that is available from Fluorous Technologies, Inc. of Pittsburgh, Pa. The chemical name is Diisopropyl(1H, 1H, 2H, 2H-perfluorododecyl)silane. The surfactant-like component F021004 has the following structure:
    Figure US20070272825A1-20071129-C00025
  • The surfactant ZONYL® UR is an anionic phosphate fluorosurfactant available from Dupont of Wilmington, Del. that has the following structure:
    Figure US20070272825A1-20071129-C00026

    where x is an integer having a value of 1 or 2; y is an integer having a value of 2 or 1; Z is an integer having a value in a range of 0 to 6, inclusive, where x+y=3. COMBINATION OF
    Figure US20070272825A1-20071129-C00027
  • The surfactant R-08 is a nonionic fluorinated acrylic copolymer based surfactant. As mentioned above, the surfactant R-08 is available from Dainippon Ink & Chemical of Japan under the product name is MEGAFACE® R-08. The combination surfactant S7 is 50% FSO-100 and 50% R-08.
  • Combination of
    Figure US20070272825A1-20071129-C00028
  • The surfactant SURF YNOL® 104 is an acetylenic hydrocarbon-based surfactant having the chemical name 2,4,7,9-tetramethyl-5-decyne-4,7-diol. The surfactant SURF YNOL® is available from Air Products and Chemicals, Inc. of Allentown, Pa. and has the following structure:
    Figure US20070272825A1-20071129-C00029

    The combination surfactant S8 is 50% FSO-100 and 50% SURF YNOL® 104.
  • The surfactant components and bulk materials described above were employed to formulate additional compositions to generate comparative data of the preferential adhesion and preferential release properties with respect to the twelve compositions and the eight bulk materials, discussed above. The compositions and/or bulk materials were deposited and then solidified between two glass slides. Each glass slide was approximately 1 mm thick, 75×25 mm in the lateral dimension. Droplets of fluidic imprinting material were disposed on a glass slide; the second slide was laid in a cross direction pattern. The imprinting material was subsequently cured. A four-point bending compression force was applied to separate the slides. To that end, a four-point bending fixture (not shown) was adopted for the adhesion test and technique, similar to that described in “Measurement of Adhesive Force Between Mold and Photocurable Resin in Imprint Technology” Japanese Journal of Applied Physics, Vol. 41 (2002) pp. 4194-4197. The maximum force/load was taken as the adhesion value. The beam distance of the top and bottom two points is 60 mm. The load was applied at the speed of 0.5 mm per minute. The compositions and test results are as follows:
    Figure US20070272825A1-20071129-P00001

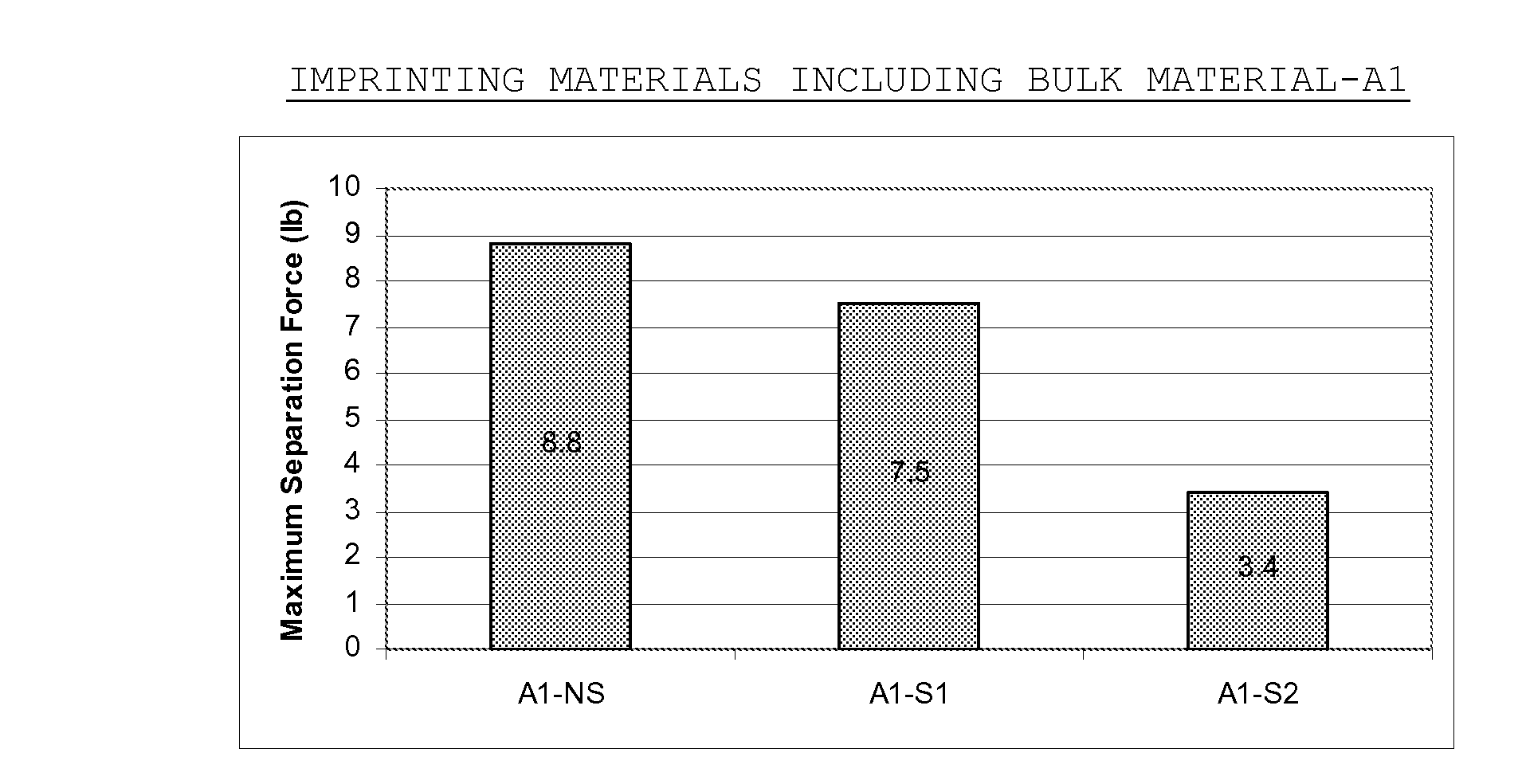

  • As seen in A1, only 3.4 pounds of separation force is required to separate superimposed glass-slides (not shown) having a cured imprinting material disposed therebetween formed from a composition bulk material A1 and surfactant S2, shown as A1-S2. This is much less than the 7.5 pounds of separation force required to separate cured imprinting material formed from a composition of about 99.5% bulk material A1 and about 0.5% surfactant S1, shown as A1-S1. More telling is the 61% reduction in the separation force realized when compared to the separation force required to separate superimposed glass slides (not shown) having a cured bulk material A1, disposed therebetween, not having a surfactant included therein, shown as A1-NS. The A1-NS, A1-S1 and A1-S2 compositions each have a room temperature viscosity of approximately 8 cPs and deposited at room temperature employing drop-dispense techniques. The A1-S2 composition consisted of approximately 99.5% of bulk material A1 and 0.5% of surfactant S2. The A1-S1 composition consisted of approximately 99.5% of bulk material A1 and 0.5% of surfactant S1.
    Figure US20070272825A1-20071129-P00002
  • As seen from the separation data concerning bulk material A2, 1.7 pounds of separation force was required to separate superimposed glass-slides (not shown) having cured imprinting material. A composition containing bulk material A2 and surfactant S3, shown as A2-S3 was employed to form the cured imprinting material. This separation force required is much less than the 2.6 pounds of separation force required in the presence of cured imprinting material formed from a composition of bulk material A2 and surfactant S4, shown as A2-S4. More telling is the 50% reduction in the separation force realized when compared to the separation force required to separate superimposed glass slides (not shown) having a cured bulk material A2, disposed therebetween, in the absence of a surfactant, shown as A2-NS. The A2-NS, A2-S3 and A2-S4 compositions each has a room temperature viscosity of approximately 300cPs and deposited at room temperature employing spin-on techniques. The A2-S3 composition consisted of approximately 99.5% of bulk material A2 and 0.5% of surfactant S3. The A2-S4 composition consisted of approximately 99.5% of bulk material A2 and 0.5% of surfactant S4.
    Figure US20070272825A1-20071129-P00003
  • As seen from the separation data concerning bulk material A3, only 2.0 pounds of separation force was required to separate superimposed glass-slides (not shown) having a cured imprinting material was formed from a composition containing bulk material A3 and surfactant S4, shown as A3-S4. This is much less than the 3.0 pounds of separation force required in the presence of cured imprinting material formed from composition of bulk material A3 and surfactant S1, shown as A3-S1. The separation force associated with A3-S4 is also less than the separation force required in the presence of cured imprinting material formed from a composition of bulk material A3 and surfactant S3, shown as A3-S3. More telling is the 72% reduction in the separation force realized when compared to the separation force required to separate superimposed glass slides (not shown) having a cured bulk material A3, disposed therebetween, in the absence of a surfactant, shown as A3-NS. The A3-NS, A3-S1, A3-S3 and A3-S4 compositions each has a room temperature viscosity in a range of approximately 10,000 to 12,000 cPs, inclusive, and deposited at room temperature employing spin-on techniques. The A3-S1 composition consisted of approximately 99.5% of bulk material A3 and 0.5% of surfactant S1. The A3-S3 composition consisted of approximately 99.5% of bulk material A3 and 0.5% of surfactant S3. The A3-S4 composition consisted of approximately 99.5% of bulk material A3 and 0.5% of surfactant S4.
    Figure US20070272825A1-20071129-P00004

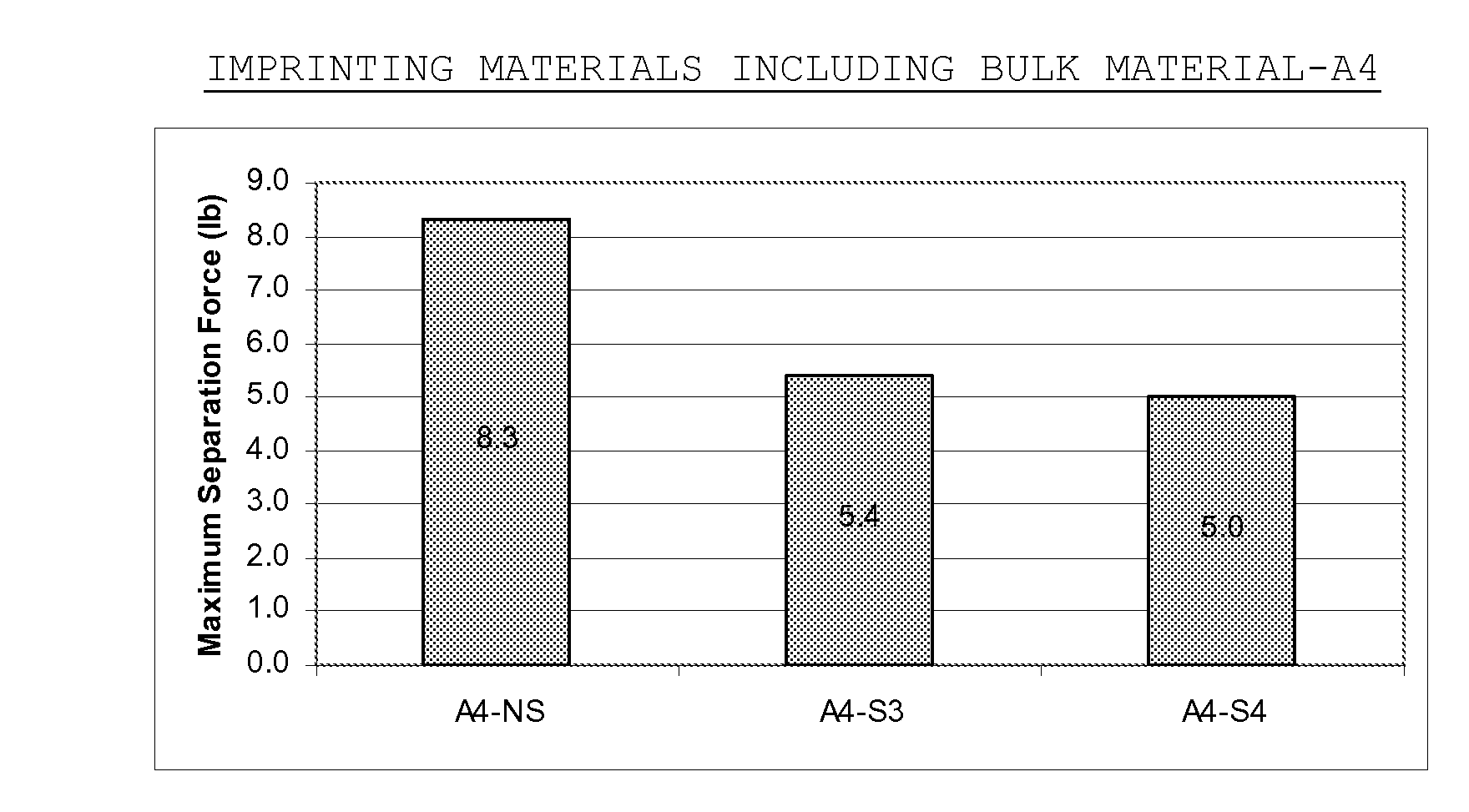

  • As seen from the separation data concerning bulk material A4, the reduction of forces required for separating the superimposed glass-slides (not shown) having a cured composition disposed therebetween containing bulk material A4 and surfactant S4, shown as A4-S4, required only 5.0 pounds. This is less than the 5.4 pounds of separation force required for a composition of bulk material A4 and surfactant S3, shown as A4-S3. More telling is the 40% reduction in the separation force realized when compared to the separation force required to separate superimposed glass slides (not shown) having a cured bulk material A4, disposed therebetween, in the absence of a surfactant, shown as A4-NS. The A4-NS, A4-S3 and A4-S4 compositions each has a room temperature viscosity approximately 5,000cPs and deposited at room temperature employing spin-on techniques. The A4-S1 composition consisted of approximately 99.5% of bulk material A4 and 0.5% of surfactant S1. The A4-S3 composition consisted of approximately 99.5% of bulk material A4 and 0.5% of surfactant S3. The A4-S4 composition consisted of approximately 99.5% of bulk material A4 and 0.5% of surfactant S4.
    Figure US20070272825A1-20071129-P00005
  • As seen from the separation data concerning bulk material A5, only 0.62 pounds of separation force is required for separating the superimposed glass-slides (not shown) having a cured imprinting material disposed therebetween. The cured imprinting material was formed from a composition of bulk material A5 and surfactant S3, shown as A5-S3. This is less than the separation force required for cured imprinting material formed from a composition of either bulk material A5 and surfactant S1, shown as A5-S1 or bulk material A5 and surfactant S4, shown as A5-S4. More telling is the 72% reduction in the separation force realized when compared to the separation force required to separate superimposed glass slides (not shown) having a cured bulk material A5, disposed therebetween, in the absence of a surfactant, shown as A5-NS. The A5-NS, A5-S1, A5-S3 and A5-S4 compositions each has a room temperature viscosity in a range of approximately 20 to 30 cPs, inclusive, and deposited at room temperature employing spin-on techniques. The A5-S1 composition consisted of approximately 99.5% of bulk material A5 and 0.5% of surfactant S1. The A5-S3 composition consisted of approximately 99.5% of bulk material A5 and 0.5% of surfactant S3. The A5-S4 composition consisted of approximately 99.5% of bulk material A5 and 0.5% of surfactant S4.
    Figure US20070272825A1-20071129-P00006
  • The separation force data concerning bulk material A6 in the absence of a surfactant being cured between two superimposed transfer layers is shown as A6-NS B/B. Specifically, each of two superimposed glass slides (not shown) has a layer of DUV30J formed thereon. DUV30J is available from Brewer Science, Inc. of Rolla, Mo. It is desired that the cured bulk material A6 adheres well to the transfer layer (not shown) and easily releases from the surface of an imprint template (not shown). Also shown is the separation force data concerning bulk material A6 in the absence of a surfactant with respect to being cured between two superimposed glass slides (not shown) having no previous layer thereon, shown as A6-NS.
  • As seen for the separation data concerning bulk material A6, the separation force required for separating the superimposed glass-slides (not shown), without the aforementioned transfer layer being present and having a cured composition disposed therebetween containing bulk material A6 and surfactant S3, shown as A6-S3, required only 0.95 pounds. This is less than the pounds of separation force required for a composition of bulk material A6 and surfactant S5, shown as A6-S5 or the separation forces required for A6-NS B/B. More telling is the 84% reduction in the separation force realized when compared to the separation force required to separate superimposed glass slides (not shown) having a cured bulk material A6-NS.
  • The data suggests that selective adhesion has been achieved. Although S3 and S5 have perfluoro-hydrophobic groups, S3 appears to be much more efficient in reducing the adhesion than S5. It is believed, therefore, that structure variations of the fluorinated additives will have significant impacts on the release performance. For example, S3 has a surfactant molecule that contains both a hydrophobic tail and a hydrophilic head, which as shown provides desirable release characteristics. The A6-NS, A6-S3 and A6-S5 compositions have a room temperature viscosity of approximately 4cPs and deposited at room temperature employing drop-dispense techniques. The A6-S3 composition consisted of approximately 99.5% of bulk material A6 and 0.5% of surfactant S3. The A6-S5 composition consisted of approximately 99.5% of bulk material A6 and 0.5% of surfactant S5.
    Figure US20070272825A1-20071129-P00007
  • The separation force data concerning bulk material A7 in the absence of a surfactant being cured between two superimposed transfer layers is shown as A7-NS B/B. Specifically, each of two superimposed glass slides (not shown) has a layer of DUV30J formed thereon, as discussed above. Also shown is the separation force data concerning bulk material A7 in the absence of a surfactant with respect to being cured between two superimposed glass slides (not shown) having no previous layer thereon, shown as A7-NS. As is expected from a review of the previous data, the presence of surfactant components provides greatly improved release properties for compositions imprinting material including bulk material A7. Also demonstrated is the success of combination surfactant components, such as S7 and S8, in reducing the separation force required. The A7-NS, A7-S1, A7-S3, A7-S4, A7-S5, A7-S6, A7-S7 and A7-S8 compositions each has a room temperature viscosity of approximately 4 cPs and deposited at room temperature employing drop-dispense techniques. The A7-S1 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S1. The A7-S3 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S3. The A7-S4 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S4. The A7-S5 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S5. The A7-S6 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S6. The A7-S7 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S7. The A7-S8 composition consisted of approximately 99.5% of bulk material A7 and 0.5% of surfactant S8.
  • Referring to FIG. 2, one consideration with providing surfactants is that introduction of the same into imprinting material may increase the time required to fill the features of mold 36. As mentioned above, layer 70 is formed on surface 58 that results from contact with the imprinting material. The release properties provided by the surfactants result from the hydrophobicity of the same, which conflict with the wetting characteristics that are desired to rapidly cover the features of mold 36. Specifically, it is believed that, in the case of surfactants that include fluorine-atoms within a molecule, too great a quantity of the fluorine atoms within a molecule and coupling with too great a quantity of the fluorine-containing molecules results in the generation of clusters of fluorine-containing molecules. These clusters, especially with CF3 end groups extending from the air-liquid interface, is believed to provide layer 70 with an undesirable hydrophobicity profile that may substantially affect the wetting characteristics of the imprinting material with respect to surface 58.
  • It is believed that by appropriately distributing the fluorine atoms within a surfactant molecule, as well as the distribution of the fluorine-containing molecules throughout the volume of layer 70, and therefore, referred to collectively as the distribution of the fluorine atoms throughout the volume, an acceptable hydrophobicity profile may be achieved. Upon achieving the desired distribution of fluorine atoms within a surfactant molecule and fluorine-containing molecules in layer 70, lamella layer 60 is provided with an optimum fluorine density to provide the desired preferential release and adhesion, without unduly limiting the wettability of surface 58 by the imprinting material. As a result satisfactory fill and release properties are provided to the imprint process. This typically occurs upon lamella layer 60 having a thickness of approximately 1 nm.
  • One manner, in which to determine that the desired distribution of fluorine atoms within a surfactant molecule and fluorine-containing molecules are present involves measuring the contact angle of the imprinting material in contact with surface 58. To that end, a goniometer is used for contact angle measurement. Molds 56 formed from fused silica were cleaned in a piranha solution and stored in a nitrogen purged environment. The piranha solution consisted of a mixture of 2 parts concentrated H2SO4 and 1 part H2O2 mixed at room temperature. Mold 36 is then rinsed with a surfactant component Isopropyl Alcohol (IPA) mixture, e.g., the IPA mixture contained 0.01% of the surfactant component with the remainder consisting essential of IPA. After the rinse, mold 36 was subjected to a stream of nitrogen fluid, e.g., nitrogen gas, to blow-dry the same. Once again, mold 36 was exposed to the same IPA mixture and then dried by exposure to the nitrogen fluid stream. Droplets of imprinting material were then deposited upon mold 36 in volumes of in a range of 2 μl to 5 μl, approximately. Measured is the contact angle of several different droplets located at various locations over surface 58. In the present example contact angle measurements are made corresponding to 7 different locations on mold 36, using the goniometer. An average value of the seven contact angle measurements are made to obtain the final contact angle values. Considering that layer 70 is replenished each time the same contacts imprinting material on substrate, the foregoing experiment is believed to be an accurate determination of the relative wetting properties of differing imprinting material compositions.
  • The contact angle, surfactant treatment solution, and filling performance are shown below
    Wettability Characteristics for Bulk Material A7-1
    Surfactant
    FC-4430 & FC-4430& R-08 &
    FSO-100 FC-4432 R-08 R-08 FS-1230
    Contact 43.2° 20.2° 13.8° 17.3° 22.7°
    Angle
  • Bulk material A7-1 is identical to BULK MATERIAL-A7 in terms of the identity of the constituent components, excepting the addition of a surfactant component. The two materials differ in terms of the percentage of each of the constituent components present. In Bulk Material A7-1, approximately 46.875% of the composition by weight is IBOA, 24.875% of the composition by weight is nHA, 24.875% of the composition by weight is EGDA, 2.875% of the composition by weight is Darocur 1173; and approximately 0.5% of the composition being a surfactant component. Specifically, with 0.5% of the Bulk Material A7-1 consisting of the surfactant FSO-100, the least desirable wettability characteristics are provided. The contact angle is the greatest at 43.2°. Compare the contact angle of 13.8° provided upon Bulk Material A7-1 consisting of 0.5% of the combination surfactant R-08 and FC-4430, wherein R-08 and FC-4430 each comprises 0.25% of Bulk Material A7-1. As a result, the time required to fill the features of mold 36 is less for layer 70 including combination surfactant R-08 and FC-4430 than for layer 70 including FSO-100. For the remaining measurements, a contact angle of approximately 20.2° when the combination surfactant FC-4430 and FC-4432 included in the Bulk Material A7-1 wherein FC-4430 comprises approximately 0.333% of the composition by weight and FC-4432 comprises approximately 0.167% of the composition by weight. Another surfactant combination consisting of R-08 and FS-1230 presented a contact angle of approximately 22.7°, in which R-08 comprised of approximately 0.4% by weight of Bulk Material A7-1, by weight, and FS-1230 comprised of approximately 0.1% of Bulk Material A7-1, by weight.
    Wettability Characteristics for Bulk Material A8-1
    Surfactant
    FSO- FC- FC- FS-
    100 4432 4430 2000 R-08 S-222N
    Contact 49.7° 26.5° 17.2° 21.4° 18.2° 19.2°
    Angle

    Bulk material A8-1 is identical to BULK MATERIAL-A8 in terms of the identity of the constituent components, excepting the addition of a surfactant component. The two materials differ in terms of the percentage of each of the constituent components present. In Bulk Material A8-1, approximately 20.875% of the composition by weight is the acrylate component Genomer 1122 and 55.875% of the composition by weight is IBOA. The acrylate component HDODA is approximately 19.875% by weight, and Darocur 1173 is approximately 2.875% of the composition by weight. The remaining 0.5% of the composition is a surfactant component. Specifically, with 0.5% of the Bulk Material A8-1 consisting of FSO-100, the least desirable wettability characteristics are provided. The contact angle is the greatest at 49.7°. Compare the contact angle of 17.2% provided upon Bulk Material A8-1 consisting of 0.5% of the surfactant FC-4430. As a result, the time required to fill the features of mold 36 is less for layer 70 including surfactant FC-4430 than for layer 70 including FSO-100. For the remaining measurements, a contact angle of approximately 18.2° was presented when the R-08 surfactant is included in Bulk Material A8-1. With surfactant S-222N included in Bulk Material A8-1 a contact angle of 19.2° is presented, and a contact angle of 21.4° is presented when the surfactant FS-2000 is included in Bulk Material A8-1. A contact angle of 26.5° is presented when surfactant FC-4432 is included in Bulk Material A8-1.
  • It should be understood that similar benefits of preferential adhesion and release with desirable wettability characteristics may be achieved by varying the surfactant composition on mold 36 or in the bulk material or both. For example, increasing the surfactant concentration in bulk material A8-1 to 0.7% of the composition by weight with 0.2% comprising Tergitol NP-10 and 0.5% being FS-2000 presented the second best wetting characteristics evidenced by a contact angle of approximately 17.4%. It should be noted that for this measurement, about 0.012% of the IPA mixture, mentioned above, consisted of the surfactant mixture FS-2000 and Tergitol NP-10, instead of 0.01% of the solution. In this example, a surfactant mixture is employed in which fluorine-containing and non-fluorine-containing surfactants are employed. Tergitol NP-10 is a hydrocarbon surfactant that has a faster dynamic speed than fluorinated surfactants, such as FS-2000.
  • Additionally, the surfactant composition may be modified by employing a differing surfactant in layer 70 than is included in the imprinting material that is contacted by the mold. For example,
    Bulk Material A7-2
    Surfactant
    FC- FC- FC-4430 & R-08 &
    4430 FC-4432 4430 R-08 FC-4432 FC-4430
    Contact 43.2° 26° 18.1° 20.0° 22° 14.7°
    Angle
  • Bulk material A7-2 includes all of the constituent components of material A7-1 and includes a surfactant FSO-100. In Bulk Material A7-2, approximately 46.875% of the composition by weight is IBOA, 24.875% of the composition by weight is nHA, 24.875% of the composition by weight is EGDA, 2.875% of the composition by weight is Darocur 1173; and approximately 0.5% of which is FSO-100. Specifically, surface 58 coated with the IPA mixture including FSO-100, the least desirable wettability characteristics are provided, with the contact angle being the greatest at 43.2°. With surface 58 coated with the combination surfactant R-08 and FC-4430, each of which comprises 0.5% of the IPA mixture, that contact angle presented is 14.7%. For the remaining measurements, a contact angle of approximately 18.1° is presented when surface 58 is coated with the FC-4430 surfactant, and a contact angle of approximately 20° is present when surface 58 is coated with the R-08 surfactant. When surface 58 is coated with a combination surfactant including FC-4430 and FC-4432 and is deposited in layer 70, a contact angle of approximately 22° is presented. FC-4430 comprises 0.333% of the IPA mixture and FC-4432 comprises 0.167% of the IPA mixture, by weight. When surface 58 is coated with FC-4432, absent any other surfactant, a contact angle of approximately 26.0° is presented. As can be seen, therefore, by properly selecting the surfactant component in each of the bulk materials, the desired wetting characteristics may be obtained, along with the desired preferential adhesion and release characteristics.
  • The embodiments of the present invention described above are exemplary. Many changes and modifications may be made to the disclosure recited above, while remaining within the scope of the invention. The scope of the invention should, therefore, be determined not with reference to the above description, but instead should be determined with reference to the appended claims along with their full scope of equivalents.

Claims (20)

  1. 1. An imprint lithography mold assembly, comprising:
    (a) a mold having a surface;
    (b) a substrate having a surface; and
    (c) a polymerizable composition disposed between the surface of the mold and the surface of the substrate, wherein the polymerizable composition comprises:
    (i) a bulk material; and
    (ii) a non-ionic surfactant having a first end and a second end, wherein the first end of the non-ionic surfactant has an affinity for the bulk material, and the second end of the non-ionic surfactant is fluorinated.
  2. 2. The imprint lithography mold assembly of claim 1, wherein the second end of the non-ionic surfactant in the polymerizable composition is oriented toward the surface of the mold.
  3. 3. The imprint lithography mold assembly of claim 1, wherein the non-ionic surfactant has the following formula:

    F(CF2CF2)xCH2CH2O(RO)yR′
    wherein (RO)y is a poly(oxyalkylene) group that includes groups having two to four carbon atoms, R′ is a terminal group of H or C1 to C4 alkyl, and x and y are integers.
  4. 4. The imprint lithography mold assembly of claim 3, wherein R is selected from the group consisting of —CH2CH2—, —CH2CH2CH2—, —CH(CH3)CH2—, and —CH(CH3)CH(CH3)—.
  5. 5. The imprint lithography mold assembly of claim 3, wherein R′ is selected from the group consisting of H and methyl.
  6. 6. The imprint lithography mold assembly of claim 1, wherein the non-ionic surfactant has the following formula:
    Figure US20070272825A1-20071129-C00030
    wherein R and R′ are identical or different and selected from the group consisting of H and methyl; wherein R″ is an optional sulfonyl linking group —SO2N(R′″″), with R′″″ selected from the group consisting of C1 to C6 alkyl; wherein (OR′″)z is a poly(oxyalkylene) group comprising at least one type of oxyalkylene unit; wherein R″″ is a terminal group selected from the group consisting of H, methyl, and C1 to C4 alkyl; and wherein the ratio of x to y is in a range of 1:1 to 3:1.
  7. 7. The imprint lithography mold assembly of claim 6, wherein the ratio of x to y is in a range of 1:1 to 2:1.
  8. 8. The imprint lithography mold assembly of claim 1, wherein the non-ionic surfactant has the following formula:
    Figure US20070272825A1-20071129-C00031
    where x is an integer in a range of 0 to 6, inclusive; and y is an integer in a range of 0 to 15, inclusive.
  9. 9. The imprint lithography mold assembly of claim 1, wherein the non-ionic surfactant has the following formula:
    Figure US20070272825A1-20071129-C00032
    where x is an integer having a value of 1 to 2; y is an integer having a value of 2 to 1; and z is an integer having a value in a range of 0 to 6, inclusive.
  10. 10. The imprint lithography mold assembly of claim 1, wherein the non-ionic surfactant includes a silicon atom.
  11. 11. The imprint lithography mold assembly of claim 1, further comprising a lamella between the surface of the mold and the bulk material, wherein the lamella comprises the second end of the non-ionic surfactant.
  12. 12. The imprint lithography mold assembly of claim 11, wherein the second end of the non-ionic surfactant is in contact with the surface of the mold.
  13. 13. The imprint lithography mold assembly of claim 1, further comprising one or more additional surfactants.
  14. 14. The imprint lithography mold assembly of claim 13, wherein the one or more additional surfactants are selected from the group consisting of ionic, non-ionic, cationic, and zwitterionic surfactants.
  15. 15. The imprint lithography mold assembly of claim 13, wherein one of the additional surfactants is selected from a group consisting of a silicon-containing surfactant, a hydrocarbon-based surfactant, and a fluorinated surfactant.
  16. 16. The imprint lithography mold assembly of claim 13, wherein the polymerizable composition further comprises an initiator.
  17. 17. The imprint lithography mold assembly of claim 13, wherein the bulk material comprises one or more compounds selected from the group consisting of vinyl ethers, methacrylates, acrylates, thiolenes, and epoxies.
  18. 18. The imprint lithography mold assembly of claim 1, wherein a viscosity of the polymerizable material is in a range of about 0.5 cps to about 20 cps.
  19. 19. The imprint lithography mold assembly of claim 1, wherein a viscosity of the polymerizable material is in a range of about 10 cps to about 500,000 cps.
  20. 20. The imprint lithography mold assembly of claim 1, wherein a viscosity of the polymerizable material is in a range of about 10 cps to about 20,000 cps.
US11837757 2004-01-23 2007-08-13 Composition to Reduce Adhesion Between a Conformable Region and a Mold Abandoned US20070272825A1 (en)

Priority Applications (9)

Application Number Priority Date Filing Date Title
US10763885 US20050160934A1 (en) 2004-01-23 2004-01-23 Materials and methods for imprint lithography
US63102904 true 2004-11-24 2004-11-24
US1237504 true 2004-12-15 2004-12-15
US1237404 true 2004-12-15 2004-12-15
US6839705 true 2005-02-28 2005-02-28
US11068174 US20060108710A1 (en) 2004-11-24 2005-02-28 Method to reduce adhesion between a conformable region and a mold
US11068171 US7307118B2 (en) 2004-11-24 2005-02-28 Composition to reduce adhesion between a conformable region and a mold
US11244428 US7837921B2 (en) 2004-01-23 2005-10-05 Method of providing desirable wetting and release characteristics between a mold and a polymerizable composition
US11837757 US20070272825A1 (en) 2004-01-23 2007-08-13 Composition to Reduce Adhesion Between a Conformable Region and a Mold

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
US11837757 US20070272825A1 (en) 2004-01-23 2007-08-13 Composition to Reduce Adhesion Between a Conformable Region and a Mold
US12404024 US8152511B2 (en) 2003-06-17 2009-03-13 Composition to reduce adhesion between a conformable region and a mold

Related Parent Applications (6)

Application Number Title Priority Date Filing Date
US10763885 Continuation US20050160934A1 (en) 2004-01-23 2004-01-23 Materials and methods for imprint lithography
US1237504 Continuation-In-Part 2004-12-15 2004-12-15
US11068171 Continuation US7307118B2 (en) 2004-11-24 2005-02-28 Composition to reduce adhesion between a conformable region and a mold
US11068174 Continuation US20060108710A1 (en) 2004-11-24 2005-02-28 Method to reduce adhesion between a conformable region and a mold
US11244428 Continuation US7837921B2 (en) 2004-01-23 2005-10-05 Method of providing desirable wetting and release characteristics between a mold and a polymerizable composition
US11459797 Continuation-In-Part US20060279024A1 (en) 2003-06-17 2006-07-25 Method for providing desirable wetting and release characteristics between a mold and a polymerizable composition

Related Child Applications (2)

Application Number Title Priority Date Filing Date
US1237504 Division 2004-12-15 2004-12-15
US12404024 Continuation US8152511B2 (en) 2003-06-17 2009-03-13 Composition to reduce adhesion between a conformable region and a mold

Publications (1)

Publication Number Publication Date
US20070272825A1 true true US20070272825A1 (en) 2007-11-29

Family

ID=36461760

Family Applications (3)

Application Number Title Priority Date Filing Date
US11068171 Active 2025-05-08 US7307118B2 (en) 2004-11-24 2005-02-28 Composition to reduce adhesion between a conformable region and a mold
US11837757 Abandoned US20070272825A1 (en) 2004-01-23 2007-08-13 Composition to Reduce Adhesion Between a Conformable Region and a Mold
US12404024 Active 2024-05-30 US8152511B2 (en) 2003-06-17 2009-03-13 Composition to reduce adhesion between a conformable region and a mold

Family Applications Before (1)

Application Number Title Priority Date Filing Date
US11068171 Active 2025-05-08 US7307118B2 (en) 2004-11-24 2005-02-28 Composition to reduce adhesion between a conformable region and a mold

Family Applications After (1)

Application Number Title Priority Date Filing Date
US12404024 Active 2024-05-30 US8152511B2 (en) 2003-06-17 2009-03-13 Composition to reduce adhesion between a conformable region and a mold

Country Status (1)

Country Link
US (3) US7307118B2 (en)

Cited By (16)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20070212494A1 (en) * 2005-07-22 2007-09-13 Molecular Imprints, Inc. Method for Imprint Lithography Utilizing an Adhesion Primer Layer
US20080230959A1 (en) * 2002-12-12 2008-09-25 Board Of Regents, University Of Texas System Compositions for Dark-Field Polymerization and Method of Using the Same for Imprint Lithography Processes
US20090136654A1 (en) * 2005-10-05 2009-05-28 Molecular Imprints, Inc. Contact Angle Attenuations on Multiple Surfaces
US20090155583A1 (en) * 2005-07-22 2009-06-18 Molecular Imprints, Inc. Ultra-thin Polymeric Adhesion Layer
US20090272875A1 (en) * 2003-06-17 2009-11-05 Molecular Imprints, Inc. Composition to Reduce Adhesion Between a Conformable Region and a Mold
US20100112236A1 (en) * 2008-10-30 2010-05-06 Molecular Imprints, Inc. Facilitating Adhesion Between Substrate and Patterned Layer
US20100109195A1 (en) * 2008-11-05 2010-05-06 Molecular Imprints, Inc. Release agent partition control in imprint lithography
EP2199855A1 (en) * 2008-12-19 2010-06-23 Obducat Methods and processes for modifying polymer material surface interactions
EP2199854A1 (en) * 2008-12-19 2010-06-23 Obducat AB Process and method for modifying polymer film surface interaction
US7837921B2 (en) 2004-01-23 2010-11-23 Molecular Imprints, Inc. Method of providing desirable wetting and release characteristics between a mold and a polymerizable composition
US20110165412A1 (en) * 2009-11-24 2011-07-07 Molecular Imprints, Inc. Adhesion layers in nanoimprint lithograhy
US20110215503A1 (en) * 2004-11-24 2011-09-08 Molecular Imprints, Inc. Reducing Adhesion between a Conformable Region and a Mold
WO2013118791A1 (en) 2012-02-09 2013-08-15 Canon Kabushiki Kaisha Photocured product and method for producing the same
US8557351B2 (en) 2005-07-22 2013-10-15 Molecular Imprints, Inc. Method for adhering materials together
US20140349086A1 (en) * 2011-11-10 2014-11-27 Canon Kabushiki Kaisha Photo-curable composition and patterning method using the same
US9323143B2 (en) 2008-02-05 2016-04-26 Canon Nanotechnologies, Inc. Controlling template surface composition in nano-imprint lithography

Families Citing this family (25)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20050084804A1 (en) * 2003-10-16 2005-04-21 Molecular Imprints, Inc. Low surface energy templates
US8076386B2 (en) 2004-02-23 2011-12-13 Molecular Imprints, Inc. Materials for imprint lithography
US7906180B2 (en) * 2004-02-27 2011-03-15 Molecular Imprints, Inc. Composition for an etching mask comprising a silicon-containing material
US20060081557A1 (en) 2004-10-18 2006-04-20 Molecular Imprints, Inc. Low-k dielectric functional imprinting materials
US7759407B2 (en) 2005-07-22 2010-07-20 Molecular Imprints, Inc. Composition for adhering materials together
US7419611B2 (en) * 2005-09-02 2008-09-02 International Business Machines Corporation Processes and materials for step and flash imprint lithography
US7259102B2 (en) * 2005-09-30 2007-08-21 Molecular Imprints, Inc. Etching technique to planarize a multi-layer structure
US20070298176A1 (en) * 2006-06-26 2007-12-27 Dipietro Richard Anthony Aromatic vinyl ether based reverse-tone step and flash imprint lithography
US20080110557A1 (en) * 2006-11-15 2008-05-15 Molecular Imprints, Inc. Methods and Compositions for Providing Preferential Adhesion and Release of Adjacent Surfaces
US8142702B2 (en) * 2007-06-18 2012-03-27 Molecular Imprints, Inc. Solvent-assisted layer formation for imprint lithography
CN101868760B (en) * 2007-11-21 2013-01-16 分子制模股份有限公司 Porous template, method and imprinting stack for nano-imprint lithography
WO2009137285A1 (en) * 2008-05-05 2009-11-12 3M Innovative Properties Company Methods for treating hydrocarbon-bearing formations having brine
US20100072671A1 (en) * 2008-09-25 2010-03-25 Molecular Imprints, Inc. Nano-imprint lithography template fabrication and treatment
US8470188B2 (en) * 2008-10-02 2013-06-25 Molecular Imprints, Inc. Nano-imprint lithography templates
US8415010B2 (en) * 2008-10-20 2013-04-09 Molecular Imprints, Inc. Nano-imprint lithography stack with enhanced adhesion between silicon-containing and non-silicon containing layers
US20100104852A1 (en) * 2008-10-23 2010-04-29 Molecular Imprints, Inc. Fabrication of High-Throughput Nano-Imprint Lithography Templates
US8084185B2 (en) * 2009-01-08 2011-12-27 International Business Machines Corporation Substrate planarization with imprint materials and processes
JP2012522327A (en) 2009-03-23 2012-09-20 インテバック・インコーポレイテッドIntevac Incorporated Methods for optimization of the ratio of the groove and the island of the patterned medium
JP5583374B2 (en) * 2009-09-07 2014-09-03 株式会社島津製作所 Property testing apparatus of the photocurable resin, the retainer for use in the test device, characteristic test method
US8616873B2 (en) * 2010-01-26 2013-12-31 Molecular Imprints, Inc. Micro-conformal templates for nanoimprint lithography
WO2011094696A3 (en) * 2010-01-29 2011-10-13 Molecular Imprints, Inc. Ultra-compliant nanoimprint lithography template
JP5306404B2 (en) * 2011-03-25 2013-10-02 株式会社東芝 The pattern forming method
JP6176937B2 (en) * 2012-09-19 2017-08-09 キヤノン株式会社 Imprint photocurable composition and film production method of
KR20140140685A (en) 2013-05-29 2014-12-10 삼성전자주식회사 Wire grid polarizer and liquid crystal display panel and liquid crystal display device having the same
KR20150024985A (en) 2013-08-27 2015-03-10 삼성전자주식회사 Wire grid polarizer and liquid crystal display panel and liquid crystal display device having the same

Citations (62)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US586146A (en) * 1897-07-13 Adolph steinfeldt
US3810874A (en) * 1969-03-10 1974-05-14 Minnesota Mining & Mfg Polymers prepared from poly(perfluoro-alkylene oxide) compounds
US4251277A (en) * 1978-04-24 1981-02-17 Sws Silicones Corporation Compositions containing thiofunctional polysiloxanes
US4614667A (en) * 1984-05-21 1986-09-30 Minnesota Mining And Manufacturing Company Composite low surface energy liner of perfluoropolyether
US4617238A (en) * 1982-04-01 1986-10-14 General Electric Company Vinyloxy-functional organopolysiloxane compositions
US4687707A (en) * 1984-06-26 1987-08-18 Asahi Glass Company Ltd. Low reflectance transparent material having antisoiling properties
US4826943A (en) * 1986-07-25 1989-05-02 Oki Electric Industry Co., Ltd. Negative resist material
US4931351A (en) * 1987-01-12 1990-06-05 Eastman Kodak Company Bilayer lithographic process
US5028366A (en) * 1988-01-12 1991-07-02 Air Products And Chemicals, Inc. Water based mold release compositions for making molded polyurethane foam
US5149592A (en) * 1990-05-09 1992-09-22 Avery Dennison Corporation Ultraviolet radiation curable clearcoat
US5169494A (en) * 1989-03-27 1992-12-08 Matsushita Electric Industrial Co., Ltd. Fine pattern forming method
US5298556A (en) * 1992-07-21 1994-03-29 Tse Industries, Inc. Mold release composition and method coating a mold core
US5314731A (en) * 1991-05-17 1994-05-24 Asahi Glass Company Ltd. Surface-treated substrate
US5331020A (en) * 1991-11-14 1994-07-19 Dow Corning Limited Organosilicon compounds and compositions containing them
US5374454A (en) * 1990-09-18 1994-12-20 International Business Machines Incorporated Method for conditioning halogenated polymeric materials and structures fabricated therewith
US5380474A (en) * 1993-05-20 1995-01-10 Sandia Corporation Methods for patterned deposition on a substrate
US5389696A (en) * 1993-09-17 1995-02-14 Miles Inc. Process for the production of molded products using internal mold release agents
US5462700A (en) * 1993-11-08 1995-10-31 Alliedsignal Inc. Process for making an array of tapered photopolymerized waveguides
US5482768A (en) * 1993-05-14 1996-01-09 Asahi Glass Company Ltd. Surface-treated substrate and process for its production
US5542978A (en) * 1994-06-10 1996-08-06 Johnson & Johnson Vision Products, Inc. Apparatus for applying a surfactant to mold surfaces
US5594042A (en) * 1993-05-18 1997-01-14 Dow Corning Corporation Radiation curable compositions containing vinyl ether functional polyorganosiloxanes
US5601641A (en) * 1992-07-21 1997-02-11 Tse Industries, Inc. Mold release composition with polybutadiene and method of coating a mold core
US5629095A (en) * 1993-05-18 1997-05-13 Dow Corning Corporation Radiation curable compositions containing vinyl ether functional polysiloxanes and methods for the preparation
US5837314A (en) * 1994-06-10 1998-11-17 Johnson & Johnson Vision Products, Inc. Method and apparatus for applying a surfactant to mold surfaces
US5888650A (en) * 1996-06-03 1999-03-30 Minnesota Mining And Manufacturing Company Temperature-responsive adhesive article
US6015609A (en) * 1996-04-04 2000-01-18 Navartis Ag Process for manufacture of a porous polymer from a mixture
US6060530A (en) * 1996-04-04 2000-05-09 Novartis Ag Process for manufacture of a porous polymer by use of a porogen
US6146811A (en) * 1998-08-01 2000-11-14 Korea Advanced Institute Of Science And Technology Photoresist using dioxaspiro ring-substituted acryl derivatives
US6160030A (en) * 1996-04-04 2000-12-12 Novartis Ag High water content porous polymer
US6169139B1 (en) * 1998-04-27 2001-01-02 Dupont Dow Elastomers Llc Fluoroelastomer latex
US6174932B1 (en) * 1998-05-20 2001-01-16 Denovus Llc Curable sealant composition
US6204343B1 (en) * 1996-12-11 2001-03-20 3M Innovative Properties Company Room temperature curable resin
US6225367B1 (en) * 1998-09-15 2001-05-01 Novartis Ag Polymers
US6309580B1 (en) * 1995-11-15 2001-10-30 Regents Of The University Of Minnesota Release surfaces, particularly for use in nanoimprint lithography
US20020072009A1 (en) * 2000-12-13 2002-06-13 Kim Hyun-Woo Photosensitive polymer containing Si, Ge or Sn and resist composition comprising the same
US6447919B1 (en) * 1997-02-03 2002-09-10 Cytonix Corporation Hydrophobic coating compositions, articles coated with said compositions, and processes for manufacturing same
US20020135099A1 (en) * 2001-01-19 2002-09-26 Robinson Timothy R. Mold with metal oxide surface compatible with ionic release agents
US20020146642A1 (en) * 2001-04-04 2002-10-10 Kim Hyun-Woo Photosensitive polymers and resist compositions comprising the photosensitive polymers
US6468642B1 (en) * 1995-10-03 2002-10-22 N.V. Bekaert S.A. Fluorine-doped diamond-like coatings
US6495624B1 (en) * 1997-02-03 2002-12-17 Cytonix Corporation Hydrophobic coating compositions, articles coated with said compositions, and processes for manufacturing same
US6503914B1 (en) * 2000-10-23 2003-01-07 Board Of Regents, The University Of Texas System Thienopyrimidine-based inhibitors of the Src family
US6544594B2 (en) * 1999-09-10 2003-04-08 Nano-Tex, Llc Water-repellent and soil-resistant finish for textiles
US6565776B1 (en) * 1999-06-11 2003-05-20 Bausch & Lomb Incorporated Lens molds with protective coatings for production of contact lenses and other ophthalmic products
US20030166814A1 (en) * 2002-02-28 2003-09-04 David Sparrowe Prepolymer material, polymer material, imprinting process and their use
US6649272B2 (en) * 2001-11-08 2003-11-18 3M Innovative Properties Company Coating composition comprising fluorochemical polyether silane polycondensate and use thereof
US6664306B2 (en) * 2000-09-08 2003-12-16 3M Innovative Properties Company Crosslinkable polymeric compositions and use thereof
US6721529B2 (en) * 2001-09-21 2004-04-13 Nexpress Solutions Llc Release agent donor member having fluorocarbon thermoplastic random copolymer overcoat
US6737489B2 (en) * 2001-05-21 2004-05-18 3M Innovative Properties Company Polymers containing perfluorovinyl ethers and applications for such polymers
US20040137734A1 (en) * 1995-11-15 2004-07-15 Princeton University Compositions and processes for nanoimprinting
US6774183B1 (en) * 2000-04-27 2004-08-10 Bostik, Inc. Copolyesters having improved retained adhesion
US20040168613A1 (en) * 2003-02-27 2004-09-02 Molecular Imprints, Inc. Composition and method to form a release layer
US6790905B2 (en) * 2001-10-09 2004-09-14 E. I. Du Pont De Nemours And Company Highly repellent carpet protectants
US6802870B2 (en) * 2001-05-25 2004-10-12 3M Innovative Properties Company Method for imparting soil and stain resistance to carpet
US20040202865A1 (en) * 2003-04-08 2004-10-14 Andrew Homola Release coating for stamper
US20040241338A1 (en) * 2001-11-07 2004-12-02 Foster Kenneth L. Planarized microelectronic substrates
US6830819B2 (en) * 2003-03-18 2004-12-14 Xerox Corporation Fluorosilicone release agent for fluoroelastomer fuser members
US20050160934A1 (en) * 2004-01-23 2005-07-28 Molecular Imprints, Inc. Materials and methods for imprint lithography
US20050187339A1 (en) * 2004-02-23 2005-08-25 Molecular Imprints, Inc. Materials for imprint lithography
US20060108710A1 (en) * 2004-11-24 2006-05-25 Molecular Imprints, Inc. Method to reduce adhesion between a conformable region and a mold
US20060111454A1 (en) * 2004-11-24 2006-05-25 Molecular Imprints, Inc. Composition to reduce adhesion between a conformable region and a mold
US20060279024A1 (en) * 2003-06-17 2006-12-14 Molecular Imprints, Inc. Method for providing desirable wetting and release characteristics between a mold and a polymerizable composition
US20070021520A1 (en) * 2005-07-22 2007-01-25 Molecular Imprints, Inc. Composition for adhering materials together

Family Cites Families (141)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3403122A (en) 1967-12-22 1968-09-24 Minnesota Mining & Mfg Emulsion polymerization of water insoluble omega-(n-perfluoroalkanesulfonyl) aminoalkyl acrylates or methacrylates
US3787351A (en) 1972-02-28 1974-01-22 Minnesota Mining & Mfg Use of soluble fluoroaliphatic oligomers in resin composite articles
US3919351A (en) 1973-08-29 1975-11-11 Ppg Industries Inc Composition useful in making extensible films
US4303761A (en) * 1979-05-29 1981-12-01 E. I. Du Pont De Nemours And Company Fluoroelastomer gelling agents and products made therefrom
JPS6142954B2 (en) * 1980-06-11 1986-09-25 Tamura Kaken Co Ltd
US4544572B1 (en) 1982-09-07 1994-01-04 Signet Armorlite, Inc.
US4514439A (en) * 1983-09-16 1985-04-30 Rohm And Haas Company Dust cover
US4585829A (en) 1983-09-30 1986-04-29 Union Carbide Corporation Internal mold release for reaction injection molded polyurethanes
US4512848A (en) * 1984-02-06 1985-04-23 Exxon Research And Engineering Co. Procedure for fabrication of microstructures over large areas using physical replication
US4517337A (en) * 1984-02-24 1985-05-14 General Electric Company Room temperature vulcanizable organopolysiloxane compositions and method for making
US4552833A (en) 1984-05-14 1985-11-12 International Business Machines Corporation Radiation sensitive and oxygen plasma developable resist
JPS6345092B2 (en) * 1984-11-09 1988-09-08 Mitsubishi Electric Corp
US4845008A (en) 1986-02-20 1989-07-04 Fuji Photo Film Co., Ltd. Light-sensitive positive working, o-guinone diazide presensitized plate with mixed solvent
JPH0762761B2 (en) 1986-03-28 1995-07-05 富士写真フイルム株式会社 Image-forming material
FR2604553A1 (en) 1986-09-29 1988-04-01 Rhone Poulenc Chimie Rigid polymer substrate for optical disks and optical discs obtained from said substrate
US4731155A (en) * 1987-04-15 1988-03-15 General Electric Company Process for forming a lithographic mask
US4808511A (en) * 1987-05-19 1989-02-28 International Business Machines Corporation Vapor phase photoresist silylation process
JPH0541411B2 (en) * 1987-12-21 1993-06-23 Matsushita Electric Ind Co Ltd
US4835084A (en) 1988-03-21 1989-05-30 Eastman Kodak Company Electrostatographic toner and method of producing the same
US5108875A (en) * 1988-07-29 1992-04-28 Shipley Company Inc. Photoresist pattern fabrication employing chemically amplified metalized material
US5439766A (en) 1988-12-30 1995-08-08 International Business Machines Corporation Composition for photo imaging
JP3001607B2 (en) 1989-04-24 2000-01-24 シーメンス、アクチエンゲゼルシヤフト Dimensionally stable structure formation method in the two-layer method
US5139925A (en) * 1989-10-18 1992-08-18 Massachusetts Institute Of Technology Surface barrier silylation of novolak film without photoactive additive patterned with 193 nm excimer laser
US5204381A (en) * 1990-02-13 1993-04-20 The United States Of America As Represented By The United States Department Of Energy Hybrid sol-gel optical materials
US6054034A (en) 1990-02-28 2000-04-25 Aclara Biosciences, Inc. Acrylic microchannels and their use in electrophoretic applications
JP2586692B2 (en) * 1990-05-24 1997-03-05 松下電器産業株式会社 Pattern formation material and a pattern formation method
US6174931B1 (en) * 1991-02-28 2001-01-16 3M Innovative Properties Company Multi-stage irradiation process for production of acrylic based compositions and compositions made thereby
US5206983A (en) * 1991-06-24 1993-05-04 Wisconsin Alumni Research Foundation Method of manufacturing micromechanical devices
US5242711A (en) 1991-08-16 1993-09-07 Rockwell International Corp. Nucleation control of diamond films by microlithographic patterning
DE4228853C2 (en) 1991-09-18 1993-10-21 Schott Glaswerke An optical waveguide with a planar or slightly curved substrate and method for its production and use of such
JPH0580530A (en) 1991-09-24 1993-04-02 Hitachi Ltd Production of thin film pattern
US5545367A (en) 1992-04-15 1996-08-13 Soane Technologies, Inc. Rapid prototype three dimensional stereolithography
US5283148A (en) * 1992-09-18 1994-02-01 Minnesota Mining And Manufacturing Company Liquid toners for use with perfluorinated solvents
DE4306997A1 (en) * 1993-03-05 1994-09-08 Thera Ges Fuer Patente Hydrophilic polyether
DE69405451T2 (en) * 1993-03-16 1998-03-12 Koninkl Philips Electronics Nv Method and apparatus for forming a patterned relief image of cross-linked photoresist on a flat substrate surface
US5380644A (en) 1993-08-10 1995-01-10 Minnesota Mining And Manufacturing Company Additive for the reduction of mottle in photothermographic and thermographic elements
US5776748A (en) * 1993-10-04 1998-07-07 President And Fellows Of Harvard College Method of formation of microstamped patterns on plates for adhesion of cells and other biological materials, devices and uses therefor
US5512131A (en) * 1993-10-04 1996-04-30 President And Fellows Of Harvard College Formation of microstamped patterns on surfaces and derivative articles
US5417802A (en) * 1994-03-18 1995-05-23 At&T Corp. Integrated circuit manufacturing
US5631314A (en) 1994-04-27 1997-05-20 Tokyo Ohka Kogyo Co., Ltd. Liquid coating composition for use in forming photoresist coating films and photoresist material using said composition
US5523878A (en) * 1994-06-30 1996-06-04 Texas Instruments Incorporated Self-assembled monolayer coating for micro-mechanical devices
JP3278306B2 (en) 1994-10-31 2002-04-30 富士写真フイルム株式会社 Positive photoresist composition
US5868966A (en) * 1995-03-30 1999-02-09 Drexel University Electroactive inorganic organic hybrid materials
US5849209A (en) 1995-03-31 1998-12-15 Johnson & Johnson Vision Products, Inc. Mold material made with additives
US5820769A (en) 1995-05-24 1998-10-13 Regents Of The University Of Minnesota Method for making magnetic storage having discrete elements with quantized magnetic moments
US6518168B1 (en) * 1995-08-18 2003-02-11 President And Fellows Of Harvard College Self-assembled monolayer directed patterning of surfaces
US5849222A (en) 1995-09-29 1998-12-15 Johnson & Johnson Vision Products, Inc. Method for reducing lens hole defects in production of contact lens blanks
US5747234A (en) 1995-11-13 1998-05-05 Eastman Kodak Company Photographic element
US6518189B1 (en) * 1995-11-15 2003-02-11 Regents Of The University Of Minnesota Method and apparatus for high density nanostructures
US5772905A (en) * 1995-11-15 1998-06-30 Regents Of The University Of Minnesota Nanoimprint lithography
US5684066A (en) * 1995-12-04 1997-11-04 H.B. Fuller Licensing & Financing, Inc. Protective coatings having enhanced properties
US5725788A (en) * 1996-03-04 1998-03-10 Motorola Apparatus and method for patterning a surface
US5669303A (en) 1996-03-04 1997-09-23 Motorola Apparatus and method for stamping a surface
US6355198B1 (en) * 1996-03-15 2002-03-12 President And Fellows Of Harvard College Method of forming articles including waveguides via capillary micromolding and microtransfer molding
US5792821A (en) * 1997-01-06 1998-08-11 American Dental Association Health Foundation Polymerizable cyclodextrin derivatives
US6335149B1 (en) * 1997-04-08 2002-01-01 Corning Incorporated High performance acrylate materials for optical interconnects
US5948470A (en) 1997-04-28 1999-09-07 Harrison; Christopher Method of nanoscale patterning and products made thereby
US6093455A (en) * 1997-05-23 2000-07-25 Deco Patents, Inc. Method and compositions for decorating glass
US5969063A (en) * 1997-07-11 1999-10-19 Rohm And Haas Company Preparation of fluorinated polymers
US6132632A (en) 1997-09-11 2000-10-17 International Business Machines Corporation Method and apparatus for achieving etch rate uniformity in a reactive ion etcher
US6475704B1 (en) 1997-09-12 2002-11-05 Canon Kabushiki Kaisha Method for forming fine structure
US6117708A (en) 1998-02-05 2000-09-12 Micron Technology, Inc. Use of residual organic compounds to facilitate gate break on a carrier substrate for a semiconductor device
US6114404A (en) 1998-03-23 2000-09-05 Corning Incorporated Radiation curable ink compositions and flat panel color filters made using same
JP3780700B2 (en) 1998-05-26 2006-05-31 セイコーエプソン株式会社 Pattern forming method, a pattern forming apparatus, the pattern forming plate, a method of manufacturing pattern-forming plate, a method of manufacturing a color filter, a manufacturing method of preparation and the liquid crystal panel of the conductive film
DE19828969A1 (en) 1998-06-29 1999-12-30 Siemens Ag Manufacturing integrated semiconductor components
US7211214B2 (en) * 2000-07-18 2007-05-01 Princeton University Laser assisted direct imprint lithography
US20050037143A1 (en) * 2000-07-18 2005-02-17 Chou Stephen Y. Imprint lithography with improved monitoring and control and apparatus therefor
US20040036201A1 (en) * 2000-07-18 2004-02-26 Princeton University Methods and apparatus of field-induced pressure imprint lithography
US20030080472A1 (en) * 2001-10-29 2003-05-01 Chou Stephen Y. Lithographic method with bonded release layer for molding small patterns
US6713238B1 (en) * 1998-10-09 2004-03-30 Stephen Y. Chou Microscale patterning and articles formed thereby
US6218316B1 (en) * 1998-10-22 2001-04-17 Micron Technology, Inc. Planarization of non-planar surfaces in device fabrication
EP1003078A3 (en) 1998-11-17 2001-11-07 Corning Incorporated Replicating a nanoscale pattern
US6245421B1 (en) 1999-02-04 2001-06-12 Kodak Polychrome Graphics Llc Printable media for lithographic printing having a porous, hydrophilic layer and a method for the production thereof
US6334960B1 (en) * 1999-03-11 2002-01-01 Board Of Regents, The University Of Texas System Step and flash imprint lithography
US6142811A (en) 1999-04-09 2000-11-07 Hon Hai Precision Ind. Co., Ltd. Electrical connector
US6342097B1 (en) * 1999-04-23 2002-01-29 Sdc Coatings, Inc. Composition for providing an abrasion resistant coating on a substrate with a matched refractive index and controlled tintability
US6276273B1 (en) * 1999-06-11 2001-08-21 Kodak Polychrome Graphics Llc Surfactant-pretreated printing plate substrate, lithographic printing plate and method for production thereof
US6344105B1 (en) * 1999-06-30 2002-02-05 Lam Research Corporation Techniques for improving etch rate uniformity
US6190929B1 (en) * 1999-07-23 2001-02-20 Micron Technology, Inc. Methods of forming semiconductor devices and methods of forming field emission displays
US6723396B1 (en) 1999-08-17 2004-04-20 Western Washington University Liquid crystal imprinting
US6517995B1 (en) * 1999-09-14 2003-02-11 Massachusetts Institute Of Technology Fabrication of finely featured devices by liquid embossing
DE19948222C2 (en) 1999-10-07 2002-11-07 Xcellsis Gmbh Plate heat exchanger
DE60042561D1 (en) 1999-10-27 2009-08-27 3M Innovative Properties Co Fluorochemical surfactants sulfonamides
US6873087B1 (en) 1999-10-29 2005-03-29 Board Of Regents, The University Of Texas System High precision orientation alignment and gap control stages for imprint lithography processes
DE60019974D1 (en) * 1999-12-23 2005-06-09 Univ Massachusetts Boston Process for production of submicron patterns on film
US6696157B1 (en) 2000-03-05 2004-02-24 3M Innovative Properties Company Diamond-like glass thin films
JP3802732B2 (en) 2000-05-12 2006-07-26 信越化学工業株式会社 Resist materials and pattern forming method
US6372838B1 (en) * 2000-06-28 2002-04-16 3M Innovative Properties Company Fine latex and seed method of making
US6482742B1 (en) 2000-07-18 2002-11-19 Stephen Y. Chou Fluid pressure imprint lithography
US6531407B1 (en) * 2000-08-31 2003-03-11 Micron Technology, Inc. Method, structure and process flow to reduce line-line capacitance with low-K material
US20020126189A1 (en) * 2000-09-21 2002-09-12 Gloster Daniel F. Systems and methods for lithography
JP2004523906A (en) * 2000-10-12 2004-08-05 ボード・オブ・リージエンツ,ザ・ユニバーシテイ・オブ・テキサス・システム Template for RT and the low-pressure micro-and nano-imprint lithography
DE10062203A1 (en) 2000-12-13 2002-06-20 Creavis Tech & Innovation Gmbh Metallic embossing tool or embossing roller, used for embossing hydrophobic polymers to provide a surface structure to the polymer, is rendered hydrophobic before the first embossing step
WO2002069040A1 (en) 2001-02-27 2002-09-06 Shipley Company, Llc Novel polymers, processes for polymer synthesis and photoresist compositions
US6387787B1 (en) * 2001-03-02 2002-05-14 Motorola, Inc. Lithographic template and method of formation and use
US6541356B2 (en) * 2001-05-21 2003-04-01 International Business Machines Corporation Ultimate SIMOX
US7037574B2 (en) 2001-05-23 2006-05-02 Veeco Instruments, Inc. Atomic layer deposition for fabricating thin films
WO2003035932A1 (en) * 2001-09-25 2003-05-01 Minuta Technology Co., Ltd. Method for forming a micro-pattern on a substrate by using capillary force
US6716767B2 (en) * 2001-10-31 2004-04-06 Brewer Science, Inc. Contact planarization materials that generate no volatile byproducts or residue during curing
EP1484645A4 (en) * 2002-02-19 2008-12-17 Nissan Chemical Ind Ltd Composition for forming anti-reflection coating
US7455955B2 (en) 2002-02-27 2008-11-25 Brewer Science Inc. Planarization method for multi-layer lithography processing
EP1342736B1 (en) 2002-02-28 2013-05-08 Merck Patent GmbH Prepolymer material, polymer material, imprinting process and their Use
US6693157B2 (en) * 2002-04-08 2004-02-17 Equistar Chemicals, Lp Olefin polymerization catalysts containing triquinane ligands
US6849558B2 (en) * 2002-05-22 2005-02-01 The Board Of Trustees Of The Leland Stanford Junior University Replication and transfer of microstructures and nanostructures
US20030235787A1 (en) 2002-06-24 2003-12-25 Watts Michael P.C. Low viscosity high resolution patterning material
US7179079B2 (en) * 2002-07-08 2007-02-20 Molecular Imprints, Inc. Conforming template for patterning liquids disposed on substrates
US6900881B2 (en) * 2002-07-11 2005-05-31 Molecular Imprints, Inc. Step and repeat imprint lithography systems
US6908861B2 (en) * 2002-07-11 2005-06-21 Molecular Imprints, Inc. Method for imprint lithography using an electric field
US6932934B2 (en) * 2002-07-11 2005-08-23 Molecular Imprints, Inc. Formation of discontinuous films during an imprint lithography process
US7077992B2 (en) * 2002-07-11 2006-07-18 Molecular Imprints, Inc. Step and repeat imprint lithography processes
US7027156B2 (en) * 2002-08-01 2006-04-11 Molecular Imprints, Inc. Scatterometry alignment for imprint lithography
US7070405B2 (en) * 2002-08-01 2006-07-04 Molecular Imprints, Inc. Alignment systems for imprint lithography
US6957608B1 (en) 2002-08-02 2005-10-25 Kovio, Inc. Contact print methods
US6936194B2 (en) 2002-09-05 2005-08-30 Molecular Imprints, Inc. Functional patterning material for imprint lithography processes
US8349241B2 (en) 2002-10-04 2013-01-08 Molecular Imprints, Inc. Method to arrange features on a substrate to replicate features having minimal dimensional variability
US20040065252A1 (en) * 2002-10-04 2004-04-08 Sreenivasan Sidlgata V. Method of forming a layer on a substrate to facilitate fabrication of metrology standards
US7750059B2 (en) * 2002-12-04 2010-07-06 Hewlett-Packard Development Company, L.P. Polymer solution for nanoimprint lithography to reduce imprint temperature and pressure
US20040112862A1 (en) * 2002-12-12 2004-06-17 Molecular Imprints, Inc. Planarization composition and method of patterning a substrate using the same
US7365103B2 (en) 2002-12-12 2008-04-29 Board Of Regents, The University Of Texas System Compositions for dark-field polymerization and method of using the same for imprint lithography processes
US7361718B2 (en) 2002-12-26 2008-04-22 Nissan Chemical Industries, Ltd. Alkali-soluble gap fill material forming composition for lithography
US7179396B2 (en) 2003-03-25 2007-02-20 Molecular Imprints, Inc. Positive tone bi-layer imprint lithography method
US7396475B2 (en) 2003-04-25 2008-07-08 Molecular Imprints, Inc. Method of forming stepped structures employing imprint lithography
JP2005014348A (en) 2003-06-25 2005-01-20 Fuji Photo Film Co Ltd Original plate for planographic printing plate, and planographic printing method
US20050084804A1 (en) * 2003-10-16 2005-04-21 Molecular Imprints, Inc. Low surface energy templates
US7122482B2 (en) * 2003-10-27 2006-10-17 Molecular Imprints, Inc. Methods for fabricating patterned features utilizing imprint lithography
US20050098534A1 (en) 2003-11-12 2005-05-12 Molecular Imprints, Inc. Formation of conductive templates employing indium tin oxide
US8142703B2 (en) 2005-10-05 2012-03-27 Molecular Imprints, Inc. Imprint lithography method
US7122079B2 (en) * 2004-02-27 2006-10-17 Molecular Imprints, Inc. Composition for an etching mask comprising a silicon-containing material
US7229732B2 (en) 2004-08-04 2007-06-12 Xerox Corporation Imaging members with crosslinked polycarbonate in charge transport layer
JP4130668B2 (en) 2004-08-05 2008-08-06 富士通株式会社 Processing method of the substrate
US7309225B2 (en) 2004-08-13 2007-12-18 Molecular Imprints, Inc. Moat system for an imprint lithography template
US7282550B2 (en) * 2004-08-16 2007-10-16 Molecular Imprints, Inc. Composition to provide a layer with uniform etch characteristics
US7939131B2 (en) * 2004-08-16 2011-05-10 Molecular Imprints, Inc. Method to provide a layer with uniform etch characteristics
US20060062922A1 (en) 2004-09-23 2006-03-23 Molecular Imprints, Inc. Polymerization technique to attenuate oxygen inhibition of solidification of liquids and composition therefor
US20060081557A1 (en) * 2004-10-18 2006-04-20 Molecular Imprints, Inc. Low-k dielectric functional imprinting materials
US20060145398A1 (en) * 2004-12-30 2006-07-06 Board Of Regents, The University Of Texas System Release layer comprising diamond-like carbon (DLC) or doped DLC with tunable composition for imprint lithography templates and contact masks
US8846195B2 (en) 2005-07-22 2014-09-30 Canon Nanotechnologies, Inc. Ultra-thin polymeric adhesion layer
US8808808B2 (en) 2005-07-22 2014-08-19 Molecular Imprints, Inc. Method for imprint lithography utilizing an adhesion primer layer
US8557351B2 (en) * 2005-07-22 2013-10-15 Molecular Imprints, Inc. Method for adhering materials together
US20080000373A1 (en) 2006-06-30 2008-01-03 Maria Petrucci-Samija Printing form precursor and process for preparing a stamp from the precursor
US20080110557A1 (en) 2006-11-15 2008-05-15 Molecular Imprints, Inc. Methods and Compositions for Providing Preferential Adhesion and Release of Adjacent Surfaces

Patent Citations (64)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US586146A (en) * 1897-07-13 Adolph steinfeldt
US3810874A (en) * 1969-03-10 1974-05-14 Minnesota Mining & Mfg Polymers prepared from poly(perfluoro-alkylene oxide) compounds
US4251277A (en) * 1978-04-24 1981-02-17 Sws Silicones Corporation Compositions containing thiofunctional polysiloxanes
US4617238A (en) * 1982-04-01 1986-10-14 General Electric Company Vinyloxy-functional organopolysiloxane compositions
US4614667A (en) * 1984-05-21 1986-09-30 Minnesota Mining And Manufacturing Company Composite low surface energy liner of perfluoropolyether
US4687707A (en) * 1984-06-26 1987-08-18 Asahi Glass Company Ltd. Low reflectance transparent material having antisoiling properties
US4826943A (en) * 1986-07-25 1989-05-02 Oki Electric Industry Co., Ltd. Negative resist material
US4931351A (en) * 1987-01-12 1990-06-05 Eastman Kodak Company Bilayer lithographic process
US5028366A (en) * 1988-01-12 1991-07-02 Air Products And Chemicals, Inc. Water based mold release compositions for making molded polyurethane foam
US5169494A (en) * 1989-03-27 1992-12-08 Matsushita Electric Industrial Co., Ltd. Fine pattern forming method
US5149592A (en) * 1990-05-09 1992-09-22 Avery Dennison Corporation Ultraviolet radiation curable clearcoat
US5374454A (en) * 1990-09-18 1994-12-20 International Business Machines Incorporated Method for conditioning halogenated polymeric materials and structures fabricated therewith
US5314731A (en) * 1991-05-17 1994-05-24 Asahi Glass Company Ltd. Surface-treated substrate
US5331020A (en) * 1991-11-14 1994-07-19 Dow Corning Limited Organosilicon compounds and compositions containing them
US5298556A (en) * 1992-07-21 1994-03-29 Tse Industries, Inc. Mold release composition and method coating a mold core
US5601641A (en) * 1992-07-21 1997-02-11 Tse Industries, Inc. Mold release composition with polybutadiene and method of coating a mold core
US5482768A (en) * 1993-05-14 1996-01-09 Asahi Glass Company Ltd. Surface-treated substrate and process for its production
US5629095A (en) * 1993-05-18 1997-05-13 Dow Corning Corporation Radiation curable compositions containing vinyl ether functional polysiloxanes and methods for the preparation
US5594042A (en) * 1993-05-18 1997-01-14 Dow Corning Corporation Radiation curable compositions containing vinyl ether functional polyorganosiloxanes
US5380474A (en) * 1993-05-20 1995-01-10 Sandia Corporation Methods for patterned deposition on a substrate
US5389696A (en) * 1993-09-17 1995-02-14 Miles Inc. Process for the production of molded products using internal mold release agents
US5462700A (en) * 1993-11-08 1995-10-31 Alliedsignal Inc. Process for making an array of tapered photopolymerized waveguides
US5542978A (en) * 1994-06-10 1996-08-06 Johnson & Johnson Vision Products, Inc. Apparatus for applying a surfactant to mold surfaces
US5837314A (en) * 1994-06-10 1998-11-17 Johnson & Johnson Vision Products, Inc. Method and apparatus for applying a surfactant to mold surfaces
US6468642B1 (en) * 1995-10-03 2002-10-22 N.V. Bekaert S.A. Fluorine-doped diamond-like coatings
US6309580B1 (en) * 1995-11-15 2001-10-30 Regents Of The University Of Minnesota Release surfaces, particularly for use in nanoimprint lithography
US20040137734A1 (en) * 1995-11-15 2004-07-15 Princeton University Compositions and processes for nanoimprinting
US6015609A (en) * 1996-04-04 2000-01-18 Navartis Ag Process for manufacture of a porous polymer from a mixture
US6060530A (en) * 1996-04-04 2000-05-09 Novartis Ag Process for manufacture of a porous polymer by use of a porogen
US6160030A (en) * 1996-04-04 2000-12-12 Novartis Ag High water content porous polymer
US5888650A (en) * 1996-06-03 1999-03-30 Minnesota Mining And Manufacturing Company Temperature-responsive adhesive article
US6204343B1 (en) * 1996-12-11 2001-03-20 3M Innovative Properties Company Room temperature curable resin
US6447919B1 (en) * 1997-02-03 2002-09-10 Cytonix Corporation Hydrophobic coating compositions, articles coated with said compositions, and processes for manufacturing same
US6495624B1 (en) * 1997-02-03 2002-12-17 Cytonix Corporation Hydrophobic coating compositions, articles coated with said compositions, and processes for manufacturing same
US6169139B1 (en) * 1998-04-27 2001-01-02 Dupont Dow Elastomers Llc Fluoroelastomer latex
US6174932B1 (en) * 1998-05-20 2001-01-16 Denovus Llc Curable sealant composition
US6146811A (en) * 1998-08-01 2000-11-14 Korea Advanced Institute Of Science And Technology Photoresist using dioxaspiro ring-substituted acryl derivatives
US6225367B1 (en) * 1998-09-15 2001-05-01 Novartis Ag Polymers
US6565776B1 (en) * 1999-06-11 2003-05-20 Bausch & Lomb Incorporated Lens molds with protective coatings for production of contact lenses and other ophthalmic products
US6544594B2 (en) * 1999-09-10 2003-04-08 Nano-Tex, Llc Water-repellent and soil-resistant finish for textiles
US6774183B1 (en) * 2000-04-27 2004-08-10 Bostik, Inc. Copolyesters having improved retained adhesion
US6664306B2 (en) * 2000-09-08 2003-12-16 3M Innovative Properties Company Crosslinkable polymeric compositions and use thereof
US6503914B1 (en) * 2000-10-23 2003-01-07 Board Of Regents, The University Of Texas System Thienopyrimidine-based inhibitors of the Src family
US20020072009A1 (en) * 2000-12-13 2002-06-13 Kim Hyun-Woo Photosensitive polymer containing Si, Ge or Sn and resist composition comprising the same
US20020135099A1 (en) * 2001-01-19 2002-09-26 Robinson Timothy R. Mold with metal oxide surface compatible with ionic release agents
US20020146642A1 (en) * 2001-04-04 2002-10-10 Kim Hyun-Woo Photosensitive polymers and resist compositions comprising the photosensitive polymers
US6737489B2 (en) * 2001-05-21 2004-05-18 3M Innovative Properties Company Polymers containing perfluorovinyl ethers and applications for such polymers
US6802870B2 (en) * 2001-05-25 2004-10-12 3M Innovative Properties Company Method for imparting soil and stain resistance to carpet
US6721529B2 (en) * 2001-09-21 2004-04-13 Nexpress Solutions Llc Release agent donor member having fluorocarbon thermoplastic random copolymer overcoat
US6790905B2 (en) * 2001-10-09 2004-09-14 E. I. Du Pont De Nemours And Company Highly repellent carpet protectants
US20040241338A1 (en) * 2001-11-07 2004-12-02 Foster Kenneth L. Planarized microelectronic substrates
US6649272B2 (en) * 2001-11-08 2003-11-18 3M Innovative Properties Company Coating composition comprising fluorochemical polyether silane polycondensate and use thereof
US20030166814A1 (en) * 2002-02-28 2003-09-04 David Sparrowe Prepolymer material, polymer material, imprinting process and their use
US20040168613A1 (en) * 2003-02-27 2004-09-02 Molecular Imprints, Inc. Composition and method to form a release layer
US6830819B2 (en) * 2003-03-18 2004-12-14 Xerox Corporation Fluorosilicone release agent for fluoroelastomer fuser members
US20040202865A1 (en) * 2003-04-08 2004-10-14 Andrew Homola Release coating for stamper
US7157036B2 (en) * 2003-06-17 2007-01-02 Molecular Imprints, Inc Method to reduce adhesion between a conformable region and a pattern of a mold
US20060279024A1 (en) * 2003-06-17 2006-12-14 Molecular Imprints, Inc. Method for providing desirable wetting and release characteristics between a mold and a polymerizable composition
US20060175736A1 (en) * 2004-01-23 2006-08-10 Molecular Imprints, Inc. Method of providing desirable wetting and release characterstics between a mold and a polymerizable composition
US20050160934A1 (en) * 2004-01-23 2005-07-28 Molecular Imprints, Inc. Materials and methods for imprint lithography
US20050187339A1 (en) * 2004-02-23 2005-08-25 Molecular Imprints, Inc. Materials for imprint lithography
US20060108710A1 (en) * 2004-11-24 2006-05-25 Molecular Imprints, Inc. Method to reduce adhesion between a conformable region and a mold
US20060111454A1 (en) * 2004-11-24 2006-05-25 Molecular Imprints, Inc. Composition to reduce adhesion between a conformable region and a mold
US20070021520A1 (en) * 2005-07-22 2007-01-25 Molecular Imprints, Inc. Composition for adhering materials together

Cited By (35)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20080230959A1 (en) * 2002-12-12 2008-09-25 Board Of Regents, University Of Texas System Compositions for Dark-Field Polymerization and Method of Using the Same for Imprint Lithography Processes
US7906060B2 (en) 2002-12-12 2011-03-15 Board Of Regents, The University Of Texas System Compositions for dark-field polymerization and method of using the same for imprint lithography processes
US8152511B2 (en) 2003-06-17 2012-04-10 Molecular Imprints, Inc. Composition to reduce adhesion between a conformable region and a mold
US20090272875A1 (en) * 2003-06-17 2009-11-05 Molecular Imprints, Inc. Composition to Reduce Adhesion Between a Conformable Region and a Mold
US7837921B2 (en) 2004-01-23 2010-11-23 Molecular Imprints, Inc. Method of providing desirable wetting and release characteristics between a mold and a polymerizable composition
US20110031651A1 (en) * 2004-01-23 2011-02-10 Molecular Imprints, Inc. Desirable wetting and release between an imprint lithography mold and a polymerizable composition
US8268220B2 (en) 2004-01-23 2012-09-18 Molecular Imprints, Inc. Imprint lithography method
US20110215503A1 (en) * 2004-11-24 2011-09-08 Molecular Imprints, Inc. Reducing Adhesion between a Conformable Region and a Mold
US8557351B2 (en) 2005-07-22 2013-10-15 Molecular Imprints, Inc. Method for adhering materials together
US8846195B2 (en) 2005-07-22 2014-09-30 Canon Nanotechnologies, Inc. Ultra-thin polymeric adhesion layer
US20090155583A1 (en) * 2005-07-22 2009-06-18 Molecular Imprints, Inc. Ultra-thin Polymeric Adhesion Layer
US8808808B2 (en) 2005-07-22 2014-08-19 Molecular Imprints, Inc. Method for imprint lithography utilizing an adhesion primer layer
US20070212494A1 (en) * 2005-07-22 2007-09-13 Molecular Imprints, Inc. Method for Imprint Lithography Utilizing an Adhesion Primer Layer
US20090136654A1 (en) * 2005-10-05 2009-05-28 Molecular Imprints, Inc. Contact Angle Attenuations on Multiple Surfaces
US8142703B2 (en) 2005-10-05 2012-03-27 Molecular Imprints, Inc. Imprint lithography method
US9323143B2 (en) 2008-02-05 2016-04-26 Canon Nanotechnologies, Inc. Controlling template surface composition in nano-imprint lithography
US20100112236A1 (en) * 2008-10-30 2010-05-06 Molecular Imprints, Inc. Facilitating Adhesion Between Substrate and Patterned Layer
US8361546B2 (en) 2008-10-30 2013-01-29 Molecular Imprints, Inc. Facilitating adhesion between substrate and patterned layer
WO2010053558A3 (en) * 2008-11-05 2010-11-04 Molecular Imprints, Inc. Release agent partition control in imprint lithography
JP2015092583A (en) * 2008-11-05 2015-05-14 モレキュラー・インプリンツ・インコーポレーテッド Release agent partition control in imprint lithography
JP2012507883A (en) * 2008-11-05 2012-03-29 モレキュラー・インプリンツ・インコーポレーテッド Releasing agent separation control in imprint lithography
US20100109195A1 (en) * 2008-11-05 2010-05-06 Molecular Imprints, Inc. Release agent partition control in imprint lithography
WO2010053558A2 (en) * 2008-11-05 2010-05-14 Molecular Imprints, Inc. Release agent partition control in imprint lithography
US8637587B2 (en) 2008-11-05 2014-01-28 Molecular Imprints, Inc. Release agent partition control in imprint lithography
KR101732526B1 (en) * 2008-11-05 2017-05-04 캐논 나노테크놀로지즈 인코퍼레이티드 Release agent partition control in imprint lithography
EP2199855A1 (en) * 2008-12-19 2010-06-23 Obducat Methods and processes for modifying polymer material surface interactions
EP2199854A1 (en) * 2008-12-19 2010-06-23 Obducat AB Process and method for modifying polymer film surface interaction
US20100160478A1 (en) * 2008-12-19 2010-06-24 Obducat Ab Methods and processes for modifying polymer material surface interactions
US20100155988A1 (en) * 2008-12-19 2010-06-24 Obducat Ab Process and method for modifying polymer film surface interaction
US9063408B2 (en) 2008-12-19 2015-06-23 Obducat Ab Methods and processes for modifying polymer material surface interactions
US8426025B2 (en) 2008-12-19 2013-04-23 Obducat Ab Process and method for modifying polymer film surface interaction
US20110165412A1 (en) * 2009-11-24 2011-07-07 Molecular Imprints, Inc. Adhesion layers in nanoimprint lithograhy
US20140349086A1 (en) * 2011-11-10 2014-11-27 Canon Kabushiki Kaisha Photo-curable composition and patterning method using the same
WO2013118791A1 (en) 2012-02-09 2013-08-15 Canon Kabushiki Kaisha Photocured product and method for producing the same
US9704710B2 (en) 2012-02-09 2017-07-11 Canon Kabushiki Kaisha Photocured product and method for producing the same

Also Published As

Publication number Publication date Type
US7307118B2 (en) 2007-12-11 grant
US8152511B2 (en) 2012-04-10 grant
US20090272875A1 (en) 2009-11-05 application
US20060111454A1 (en) 2006-05-25 application

Similar Documents

Publication Publication Date Title
Costner et al. Nanoimprint lithography materials development for semiconductor device fabrication
US7090716B2 (en) Single phase fluid imprint lithography method
US20040065252A1 (en) Method of forming a layer on a substrate to facilitate fabrication of metrology standards
US20070228589A1 (en) Method for expelling gas positioned between a substrate and a mold
US7179079B2 (en) Conforming template for patterning liquids disposed on substrates
US20050061773A1 (en) Capillary imprinting technique
US20070170617A1 (en) Patterning Substrates Employing Multiple Chucks
US20040170770A1 (en) Method to reduce adhesion between a polymerizable layer and a substrate employing a fluorine-containing layer
US20080141862A1 (en) Single Phase Fluid Imprint Lithography Method
US7244386B2 (en) Method of compensating for a volumetric shrinkage of a material disposed upon a substrate to form a substantially planar structure therefrom
US7691313B2 (en) Method for expelling gas positioned between a substrate and a mold
US7281919B2 (en) System for controlling a volume of material on a mold
JP2008202022A (en) Curable composition for optical nano imprint lithography, and pattern forming method using the same
US20100109203A1 (en) Flexible nanoimprint mold, method for fabricating the same, and mold usage on planar and curved substrate
WO2011059104A1 (en) Curable composition for imprints, patterning method and pattern
US20070160937A1 (en) Photocurable resin composition and a method for forming a pattern
US20090011367A1 (en) Interface binder, resist composition containing the same, laminate for forming magnetic recording medium having layer containing the same, manufacturing method of magnetic recording medium using the same, and magnetic recording medium produced by the manufacturing method
US20090212012A1 (en) Critical dimension control during template formation
US20080000373A1 (en) Printing form precursor and process for preparing a stamp from the precursor
US20090283937A1 (en) Curable composition for nanoimprint, and patterning method
US20080083484A1 (en) Method to form a pattern of functional material on a substrate
US20080167396A1 (en) Fine Resinous Structure, Fabrication Thereof, and Polymerizable Resin-Precursor Composition
JP2008084984A (en) Photocuring composition for optical nano imprint lithography and pattern forming method employing it
US20070212494A1 (en) Method for Imprint Lithography Utilizing an Adhesion Primer Layer
JP2010262980A (en) Curable composition for nanoimprint lithography, and nanoimprint method
