Abstract
1. Корпус плуга, содержащий лемех, крыло отвала и средства для их крепления к стойке, отличающийся тем, что он включает дополнительные режущие элементы, первый из которых выполнен в виде плоской пластины с лезвийной частью, расположенной в плоскости реза под углом 75-110° к лезвийной части лемеха, второй режущий элемент выполнен в виде дугообразной пластины, содержащей сходящиеся под острым углом рабочие лезвийные части на широкой и узкой сторонах, которые размещены впереди корпуса плуга так, что лезвийная часть узкой стороны дугообразной пластины находится в плоскости лезвийных частей лемеха и первого дополнительного режущего элемента, а нерабочие стороны дугообразной пластины примыкают к передней части крыла отвала, причем лемех, крыло отвала, первый и второй режущие элементы закреплены на стойке с помощью, по крайней мере, одного узла крепления, состоящего из стальных пластин, снабженных отверстиями в зоне посадочных площадок для болтового соединения указанных частей корпуса плуга. ! 2. Корпус плуга по п.1, отличающийся тем, что лемех, первый и второй режущие элементы имеют дополнительную лезвийную часть с возможностью перестановки при износе основной, узел крепления выполнен сварным или разъемным, а крыло отвала выполнено с дополнительным изгибом в верхней части для оборота пласта.1. The plow body containing a ploughshare, blade wing and means for attaching them to the stand, characterized in that it includes additional cutting elements, the first of which is made in the form of a flat plate with a blade part located in the cutting plane at an angle of 75-110 ° to the blade part of the ploughshare, the second cutting element is made in the form of an arched plate containing sharp blade working parts converging at an acute angle on the wide and narrow sides, which are placed in front of the plow body so that the blade part of the narrow side of the arched pl the blade is located in the plane of the blade parts of the ploughshare and the first additional cutting element, and the non-working sides of the arcuate plate are adjacent to the front of the blade wing, and the ploughshare, wing of the blade, the first and second cutting elements are fixed to the rack using at least one attachment unit, consisting of steel plates equipped with holes in the area of the landing pads for bolting the indicated parts of the plow body. ! 2. The plow body according to claim 1, characterized in that the ploughshare, the first and second cutting elements have an additional blade part with the possibility of rearrangement when the main one is worn, the attachment unit is made welded or detachable, and the blade wing is made with an additional bend in the upper part for turnover layer.
Description
Полезная модель относится к сельскохозяйственной технике, более конкретно, к конструкции корпуса плуга и может найти применение при создании многокорпусных машинных плугов различного назначения для основной отвальной и безотвальной обработки почвы.The utility model relates to agricultural machinery, and more specifically, to the construction of the plow body and can find application in the creation of multi-body machine plows for various purposes for the main dump and subsurface tillage.
Известен корпус плуга, содержащий стойку, укороченный отвал с лемехом и размещенный за отвалом ротор с вертикальной осью вращения, снабженный в нижней части режущими элементами, а в верхней - средствами для его привода (см. Плуги лемешно-роторные серии ПЛР. Разработчики ФГОУ ВПО «Челябинский ГАУ», ЗАО ИПП «ТехАртКом»// Инновационные проекты - агропромышленному комплексу: Каталог - М.: ФГНУ «Росинформагротех», 2007, с.25).The plow body is known, comprising a stand, a shortened blade with a plow blade and a rotor with a vertical axis of rotation located behind the blade, equipped with cutting elements in the lower part and means for its drive in the upper part (see Plow plow-rotor plows of the PLR series. Developers of the Federal State Educational Institution of Higher Professional Education “ Chelyabinsk State Agrarian University, ZAO IPP TekhArtKom // Innovative projects for the agro-industrial complex: Catalog - M .: Federal State Institution Rosinformagroteh, 2007, p.25).
Плуги лемешно-роторные ПЛР - 2, ПЛР - 3, ПЛР - 4 предназначены для обработки почвы влажностью до 24% и твердостью до 2,5 МПа под овощные и технические культуры. Использование плугов с комбинированным рабочим органом такого типа позволяет подготовить почву под посев и посадку за один проход и сократить затраты на выполнение дополнительных обработок. К недостаткам известного устройства следует отнести сложность конструкции комбинированного рабочего органа и сравнительно низкую надежность его роторной части.Rotary plow plows PLR - 2, PLR - 3, PLR - 4 are designed for tillage with moisture up to 24% and hardness up to 2.5 MPa for vegetable and industrial crops. The use of plows with a combined working body of this type allows you to prepare the soil for sowing and planting in one pass and reduce the cost of additional treatments. The disadvantages of the known device include the complexity of the design of the combined working body and the relatively low reliability of its rotor part.
Наиболее близким техническим решением к предложенному является корпус плуга, содержащий лемех, крыло отвала, дополнительные режущие элементы и средства для их крепления к стойке, (см. Комбинированный почвообрабатывающий рабочий орган. Разработчик ФГОУ ВПО «Ульяновская ГСХА» // Инновационные проекты - агропромышленному комплексу: Каталог - М.: ФГНУ «Росинформагротех», 2007, с.34 - прототип).The closest technical solution to the proposed one is a plow body containing a ploughshare, blade wing, additional cutting elements and means for attaching them to the rack, (see Combined tillage working body. Developer Federal State Educational Establishment of Higher Professional Education Ulyanovsk State Agricultural Academy // Innovative projects for the agro-industrial complex: Catalog - M.: Federal State Institution "Rosinformagroteh", 2007, p. 34 - prototype).
Известный комбинированный почвообрабатывающий рабочий орган предназначен для послойной обработки почвы, обеспечивающий обработку пахотных горизонтов при минимальных энергетических затратах. Особенностью известного устройства является наличие в верхней части плужного корпуса, по крайней мере, одного лемеха с отвалом, а в его нижней части, по крайней мере, одного вертикального режущего элемента с горизонтальной направляющей пластиной.The well-known combined tillage working body is designed for layer-by-layer tillage, which provides the processing of arable horizons with minimal energy costs. A feature of the known device is the presence in the upper part of the plow body, at least one share with a blade, and in its lower part, at least one vertical cutting element with a horizontal guide plate.
Такая конструкция почвообрабатывающего орудия позволяет осуществлять обработку верхнего пахотного горизонта лемешно-отвальным рабочим органом и разуплотнение подпахотного горизонта - вертикальным плоскорезом.This design of the tillage implement allows the processing of the upper arable horizon with a plow-blade working body and the decompression of the subsoil horizon with a vertical plane cutter.
Недостатками известного устройства являются частичное оборачивание пахотного слоя, сравнительно малая глубина комбинированной обработки почвы (до 20 см) и низкая производительность почвообрабатывающего орудия на грунтах с высоким удельным сопротивлением, что связано с указанными особенностями конструкции основного и дополнительного рабочих органов.The disadvantages of the known device are the partial wrapping of the arable layer, the relatively shallow depth of the combined tillage (up to 20 cm) and the low productivity of the tillage implement on soils with high resistivity, which is associated with the indicated design features of the main and additional working bodies.
Решаемой задачей полезной модели является создание современного надежного, многофункционального и эффективного почвообрабатывающего орудия для отвальной обработки основных типов почв под сельскохозяйственные культуры на глубину до 30 см при твердости почвенного слоя до 4 МПа. Дополнительными к указанной являются задача повышения ресурса корпуса плуга и возможность агрегатирования плугов в многокорпусном исполнении с тракторами 2, 3, 4 классов.The task of the utility model to be solved is the creation of a modern reliable, multi-functional and effective tillage tool for dumping the main types of soil for agricultural crops to a depth of 30 cm with a soil hardness of up to 4 MPa. Complementary to this is the task of increasing the resource of the plow body and the possibility of aggregating plows in multi-body design with tractors of 2, 3, 4 classes.
Указанная задача решается тем, что в корпусе плуга, содержащем лемех, крыло отвала и средства для их крепления к стойке, согласно полезной модели, он включает дополнительные режущие элементы, первый из которых выполнен в виде плоской пластины с лезвийной частью, расположенной в плоскости реза под углом 75-110° к лезвийной части лемеха, второй режущий элемент выполнен в виде дугообразной пластины, содержащей сходящиеся под острым углом рабочие лезвийные части на широкой и узкой сторонах, которые размещены впереди корпуса плуга так, что лезвийная часть узкой стороны дугообразной пластины находится в плоскости лезвийных частей лемеха и первого дополнительного режущего элемента, а нерабочие стороны дугообразной пластины примыкают к передней части крыла отвала, причем лемех, крыло отвала, первый и второй режущие элементы закреплены на стойке с помощью, по крайней мере, одного узла крепления, состоящего из стальных пластин, снабженных отверстиями в зоне посадочных площадок для болтового соединения указанных частей корпуса плуга.This problem is solved in that in the plow body containing a ploughshare, the blade wing and means for attaching them to the stand, according to a utility model, it includes additional cutting elements, the first of which is made in the form of a flat plate with a blade part located in the cutting plane under angle of 75-110 ° to the blade part of the ploughshare, the second cutting element is made in the form of an arched plate containing working blade parts converging at an acute angle on the wide and narrow sides, which are placed in front of the plow body so that the blades the narrowest part of the arcuate plate is in the plane of the blade parts of the ploughshare and the first additional cutting element, and the non-working sides of the arcuate plate are adjacent to the front of the blade wing, and the ploughshare, blade wing, the first and second cutting elements are mounted on the rack with at least , one mount, consisting of steel plates equipped with holes in the area of the landing sites for bolting the indicated parts of the plow body.
Кроме того, лемех, первый и второй режущие элементы могут иметь дополнительную лезвийную часть с возможностью перестановки при износе основной, узел крепления может быть выполнен сварным или разъемным, а крыло отвала может быть выполнено с дополнительным изгибом в верхней части для оборота пласта.In addition, the ploughshare, the first and second cutting elements can have an additional blade part with the possibility of rearrangement when the main one is worn out, the attachment unit can be made welded or detachable, and the blade wing can be made with an additional bend in the upper part for the formation to rotate.
Такое выполнение корпуса плуга позволяет повысить эффективность обработки основных типов почв под сельскохозяйственные культуры на глубину до 30 см при удельном сопротивлении почвы до 0,1 МПа, твердости почвенного слоя до 4 МПа и влажности до 30%. Повышение эффективности предложенного корпуса плуга достигается, в том числе, за счет того, что отрезание пласта почвы обеспечивается двумя горизонтальными и одним вертикальным режущими элементами (ножами), установленными по схеме, обеспечивающей взаимное уравновешивание воздействующих на них усилий. При этом основной горизонтальный режущий элемент - лемех и второй вертикальный дополнительный режущий элемент в виде дугообразной пластины в комплекте с крылом отвала образуют рабочую поверхность, посредством которой обеспечивается перемещение и оборот пласта.This embodiment of the plow body allows you to increase the efficiency of processing the main types of soils for crops to a depth of 30 cm with a specific soil resistance of up to 0.1 MPa, soil hardness of up to 4 MPa and humidity up to 30%. Increasing the efficiency of the proposed plow body is achieved, inter alia, due to the fact that the cutting of the soil layer is provided by two horizontal and one vertical cutting elements (knives) installed according to the scheme, providing mutual balancing of the forces acting on them. In this case, the main horizontal cutting element - the ploughshare and the second vertical additional cutting element in the form of an arched plate complete with the blade wing form a working surface, through which the formation is moved and rotated.
Первый дополнительный режущий элемент в виде плоской пластины, расположенной слева от лемеха в горизонте реза пласта под углом в плане 75-110° к лезвийной части лемеха, обеспечивает дополнительное подрезание пласта по ходу следующего корпуса плуга и эффективное крошение почвы, предупреждая разуплотнение плужной подошвы и подпахотного горизонта. При этом в предложенном корпусе плуга отсутствует полевая доска, а ее функции выполняет первый дополнительный режущий элемент (левый горизонтальный нож), обеспечивая компенсацию момента от сил, действующих на лемех и крыло отвала.The first additional cutting element in the form of a flat plate located to the left of the share in the horizon of the cut of the formation at an angle of 75-110 ° to the blade part of the share provides additional cutting of the formation along the next plow body and effective crumbling of the soil, preventing decomposition of the plow sole and subsoil the horizon. Moreover, in the proposed plow body there is no field board, and its functions are performed by the first additional cutting element (left horizontal knife), providing torque compensation from the forces acting on the share and the blade wing.
При испытании различных модификаций корпусов плуга с различными углами между лезвийными частями лемеха и первого дополнительного режущего элемента было показано, что выполнение указанного угла в плоскости реза менее 75° не обеспечивает компенсацию момента от сил, действующих на лемех и крыло отвала при оптимальном рабочем положении лемеха. Превышение указанного угла более 110°, в свою очередь, вызывает значительное увеличение тягового усилия и снижение эффективности пахоты для большинства типов почв.When testing various modifications of the plow body with different angles between the blade parts of the share and the first additional cutting element, it was shown that the specified angle in the cutting plane of less than 75 ° does not provide torque compensation from the forces acting on the share and the blade wing with the optimal working position of the share. Exceeding the indicated angle of more than 110 °, in turn, causes a significant increase in traction and a decrease in the efficiency of plowing for most soil types.
Выполнение узла крепления в виде сварной или разъемной пространственной конструкции из стальных пластин, снабженных отверстиями в зоне посадочных площадок обеспечивает быструю сборку, демонтаж или замену изношенных частей корпуса плуга при эксплуатации за счет болтового соединения его режущих элементов. В конструкции предложенного устройства предусмотрено использование для лемеха, первого и второго режущих элементов дополнительной лезвийной части при износе основной, а дополнительный изгиб крыла отвала в верхней части дополнительно повышает характеристики плуга при обработке, в том числе, влажных почв.The implementation of the mount in the form of a welded or detachable spatial structure of steel plates equipped with holes in the area of the landing areas provides quick assembly, dismantling or replacement of worn parts of the plow body during operation due to the bolt joint of its cutting elements. The design of the proposed device provides for the use of an additional blade part for ploughshare, the first and second cutting elements when the main one is worn, and an additional bend of the blade wing in the upper part further increases the characteristics of the plow during processing, including wet soils.
Плуги с корпусами данной конструкции могут применяться на полях практически всех типов почв с ровным и волнистым рельефом, имеющих уклон до 8 градусов для основной отвальной обработки почвы (подрезания, рыхления и оборачивания) под известные сельскохозяйственные культуры. Предложенные корпуса устанавливают на рамы плугов данной серии в различной комплектации, при этом плуги могут агрегатироваться с тракторами класса 2, 3, 4.Plows with hulls of this design can be used on fields of almost all types of soils with smooth and wavy terrain, with a slope of up to 8 degrees for the main dump tillage (cutting, loosening and wrapping) for known crops. The proposed bodies are mounted on the frames of the plows of this series in various configurations, while the plows can be aggregated with tractors of class 2, 3, 4.

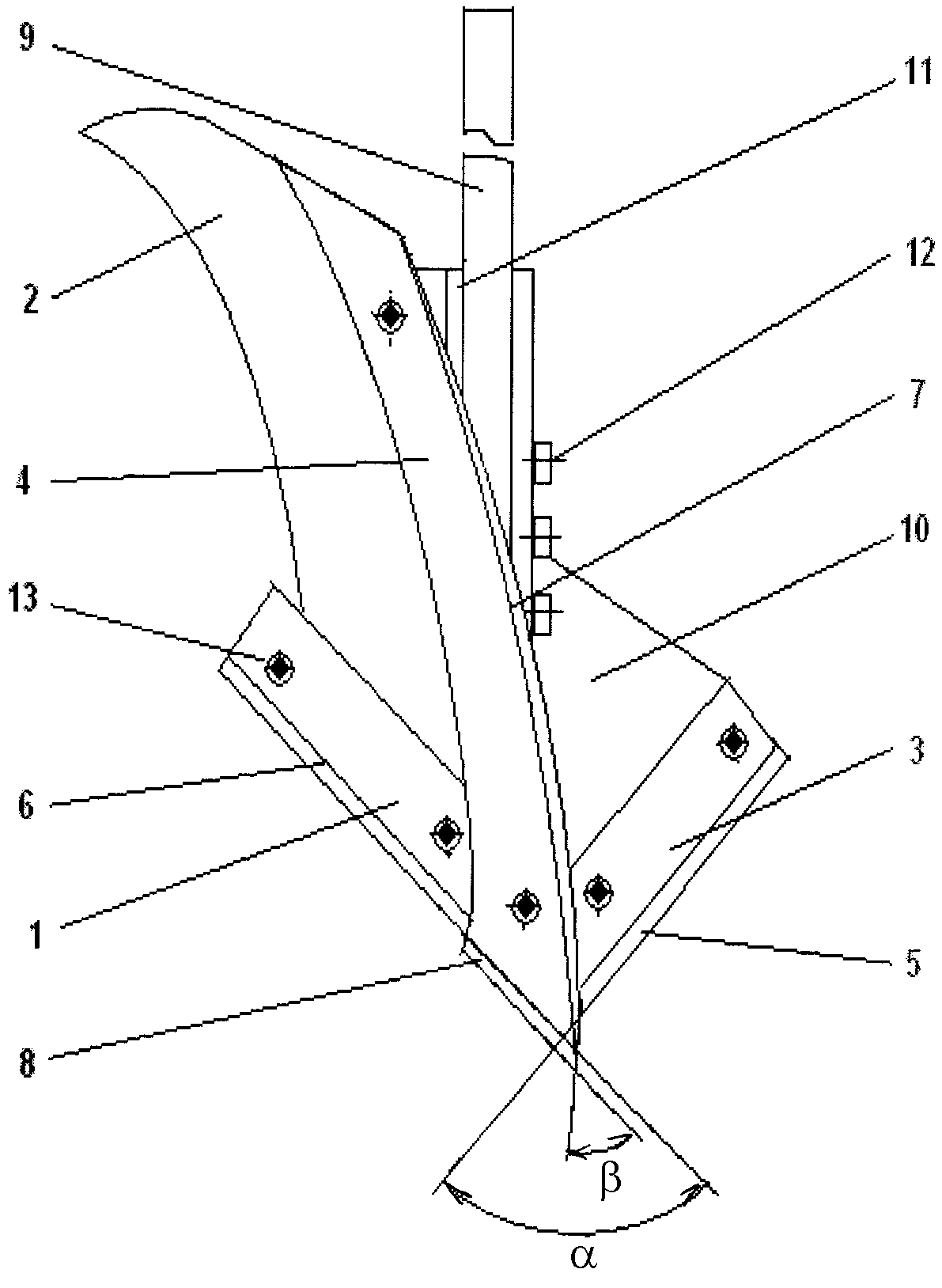

На фиг.1 изображен общий вид предложенного корпуса плуга.Figure 1 shows a General view of the proposed plow body.
Корпус плуга содержит лемех 1, крыло отвала 2 и дополнительные режущие элементы 3, 4. Первый дополнительный режущий элемент 3 выполнен в виде плоской пластины с лезвийной частью 5, расположенной в плоскости реза под углом 90° к лезвийной части 6 лемеха. Второй режущий элемент 4 выполнен в виде дугообразной пластины, содержащей сходящиеся под острым углом рабочие лезвийные части 7, 8 на широкой и узкой сторонах. Они. размещены впереди корпуса плуга так, что лезвийная часть 8 узкой стороны дугообразной пластины находится в плоскости лезвийных частей 6, 5 лемеха и первого дополнительного режущего элемента 3.The plow body contains a ploughshare 1, blade wing 2 and additional cutting elements 3, 4. The first additional cutting element 3 is made in the form of a flat plate with a blade part 5 located in the cutting plane at an angle of 90 ° to the blade part 6 of the share. The second cutting element 4 is made in the form of an arcuate plate containing the working blade parts 7, 8 converging at an acute angle on the wide and narrow sides. They. placed in front of the plow body so that the blade portion 8 of the narrow side of the arcuate plate is in the plane of the blade parts 6, 5 share and the first additional cutting element 3.
Нерабочие стороны дугообразной пластины 4 примыкают к передней части крыла отвала 2. При этом лемех 1, крыло отвала 2, первый и второй режущие элементы 3, 4 закреплены на стойке 9 с помощью узла крепления 10, состоящего из стальных пластин 11, снабженных отверстиями в зоне посадочных площадок для болтового соединения указанных частей корпуса плуга. Болты для соединения узла крепления 10 и стойки 9 обозначены поз.12, а места крепления режущих элементов - поз.13. Оптимальное значение угла α между лезвийной частью 5 плоской пластины 3 и лезвийной частью 6 лемеха 1 составляет 90°, а угол β между лезвийными частями 7, 8 второго режущего элемента составляет 80°.The non-working sides of the arcuate plate 4 are adjacent to the front of the wing of the blade 2. In this case, the ploughshare 1, wing of the blade 2, the first and second cutting elements 3, 4 are mounted on the stand 9 using the mount 10, consisting of steel plates 11 provided with holes in the zone landing sites for bolting the indicated parts of the plow body. Bolts for connecting the mount 10 and the rack 9 are indicated by pos. 12, and the mounting points of the cutting elements - pos.13. The optimum value of the angle α between the blade part 5 of the flat plate 3 and the blade part 6 of the share 1 is 90 °, and the angle β between the blade parts 7, 8 of the second cutting element is 80 °.
В конкретном примере выполнения предложенного корпуса плуга лемех 1 имеет размеры 410×90×10 мм, первый горизонтальный режущий элемент 3 имеет размеры 320×90×10 мм, второй вертикальный режущий элемент 4 имеет размеры в развертке 546×150×10 мм. Лемех 1, первый и второй режущие элементы 3, 4 могут иметь дополнительные лезвийные части (не показаны) с возможностью перестановки при износе основной лезвийной части 5, 6, 7. На фиг.1 показан узел крепления 10, выполненный из сваренных стальных пластин в виде «башмакам, при этом часть узла крепления может быть дополнена съемным кронштейном или дополнительной опорой (не показаны) для обеспечения жесткости крыла отвала 2 и второго дополнительного режущего элемента 4.In a specific example of the implementation of the proposed plow body, the ploughshare 1 has dimensions 410 × 90 × 10 mm, the first horizontal cutting element 3 has dimensions 320 × 90 × 10 mm, the second vertical cutting element 4 has dimensions in a scan of 546 × 150 × 10 mm. The ploughshare 1, the first and second cutting elements 3, 4 can have additional blade parts (not shown) with the possibility of shifting when the main blade part 5, 6, 7 is worn out. Figure 1 shows the fastener 10 made of welded steel plates in the form "Shoes, while part of the mount may be supplemented with a removable bracket or an additional support (not shown) to ensure the rigidity of the wing blade 2 and the second additional cutting element 4.
Детали корпуса плуга, подверженные интенсивному износу (режущие элементы 1, 3, 4) изготовлены из стали 65Г и термически обработаны, благодаря этому наработка на предложенный корпус плуга достигает 50 га.Details of the plow body that are subject to intense wear (cutting elements 1, 3, 4) are made of 65G steel and are thermally processed, due to this, the operating time for the proposed plow body reaches 50 ha.
Предложенный корпус плуга функционирует следующим образом.The proposed plow body operates as follows.
Плуги с предложенными корпусами завод изготовитель поставляет на сельскохозяйственные предприятия в необходимой комплектации с учетом заданных условий эксплуатации. Технологический процесс обработки почвы предложенным корпусом в основном аналогичен процессу обработки серийным корпусом общего назначения. Однако особенности конструкции принципиально нового корпуса плуга без полевой доски вносят важные отличия, способствующие повышению качества рабочего процесса отвальной обработки почвы.The manufacturer supplies the plows with the proposed hulls to the agricultural enterprises in the necessary configuration, taking into account the specified operating conditions. The technological process of soil cultivation by the proposed building is basically similar to the process of processing a serial general-purpose building. However, the design features of a fundamentally new plow body without a field board introduce important differences that contribute to improving the quality of the working process of dump tillage.
При поступательном движении плуга его рабочие органы заглубляются в почву на установленную опорными колесами глубину. Отрезание пласта в предложенном корпусе плуга обеспечивается тремя ржущими элементами (ножами) - вертикальным 4 и двумя горизонтальными 1, 3, установленными по схеме, обеспечивающей взаимное уравновешивание воздействующих на них усилий. Лезвийные части 6, 7 ножей лемеха 1 (горизонтальный правый) и вертикального второго дополнительного режущего элемента 4 в комплекте с крылом отвала 2 образуют рабочую поверхность, посредством которой обеспечивается перемещение (оборот) пласта.With the translational movement of the plow, its working bodies are buried in the soil to a depth set by the support wheels. Cutting the formation in the proposed plow body is provided by three neighing elements (knives) - vertical 4 and two horizontal 1, 3, installed according to the scheme, providing mutual balancing of the forces acting on them. The blade parts 6, 7 of the shares of the ploughshare 1 (horizontal right) and the vertical second additional cutting element 4 complete with the blade blade 2 form a working surface by which the formation is moved (turned).
При этом вертикальные ножи 4 и лемеха 1 многокорпусного плуга правостороннего действия отрезают основную часть пласта (большая часть рабочей ширины захвата каждого корпуса), крошат его, оборачивают и перемещают в борозду вместе с взрыхленной частью от прохода первого дополнительного режущего элемента 3 левостороннего действия от предыдущего корпуса. Остальная меньшая часть пласта подрезается и рыхлится указанным режущим элементом 3, которому одновременно отводится роль стабилизатора прямолинейного движения.In this case, vertical knives 4 and ploughshare 1 of a multi-hull right-handed plow cut off the main part of the formation (most of the working width of each body), crumble it, wrap it and move it into the furrow along with the loosened part from the passage of the first additional left-side cutting element 3 from the previous body . The remaining smaller part of the formation is cut and loosened by the indicated cutting element 3, which simultaneously plays the role of a stabilizer of rectilinear movement.
Если у серийного плуга полевая доска выполняет пассивную роль, создавая дополнительное сопротивление за счет трения, то левый горизонтальный нож (дополнительный режущий элемент 3) выполняет две функции - функцию полевой доски, уравновешивая вращающий момент лемешно-отвальной части и функцию дополнительного подрезания пласта аналогично работе лемеха 1. Форма крыла отвала 2 в верхней части в виде спиралевидного изгиба обеспечивает дополнительный оборот пласта с полной заделкой стерни.If the field plow has a passive role in the serial plow, creating additional resistance due to friction, then the left horizontal knife (additional cutting element 3) performs two functions - the function of the field plank, balancing the torque of the plow-blade part and the function of additional plow cutting similar to the ploughshare 1. The shape of the wing of the blade 2 in the upper part in the form of a spiral bend provides an additional revolution of the reservoir with a complete termination of the stubble.
Выполнение комбинированного почвообрабатывающего орудия в соответствии с полезной моделью позволяет в значительной степени повысить его основные характеристики. Характер износа дополнительных режущих элементов 3, 4 и крыла отвала 2 хорошо изучен и соответствует степени износа лемешно-отвальной части известных плугов, при этом в предложенном корпусе плуга отсутствуют проблемы, связанные с интенсивным износом полевой доски. При прочих равных условиях обрабатываемый грунт действует на указанные элементы предложенного почвообрабатывающего орудия с меньшим суммарным касательным и нормальным усилием, что снижает необходимое тяговое усилие и повышает надежность корпуса плуга. По сравнению с другими серийными плугами общего назначения плуги данной серии с принципиально новыми корпусами повышают производительность на 40-50%, при этом экономия дизельного топлива составляет 7-9 кг на каждом гектаре обрабатываемой пашни.The implementation of the combined tillage implement in accordance with the utility model can significantly increase its basic characteristics. The nature of the wear of the additional cutting elements 3, 4 and the blade wing 2 is well studied and corresponds to the degree of wear of the plow-blade part of the known plows, while in the proposed plow body there are no problems associated with intensive wear of the field board. All other things being equal, the treated soil acts on these elements of the proposed tillage implement with a lower total tangential and normal force, which reduces the necessary traction and improves the reliability of the plow body. Compared with other serial general-purpose plows, plows of this series with fundamentally new bodies increase productivity by 40-50%, while diesel fuel savings of 7-9 kg per hectare of cultivated arable land.
Предложенная конструкция корпуса плуга обеспечивает высокую эффективность обработки почвы, в том числе, степень крошения и оборота пласта, что предупреждает переуплотнение подпахотного горизонта и водную эрозию при обработке склонных полей. Рыхление пласта почвы выполняется, как указывалось, в диапазоне от 10 до 30 см на почвах с твердостью до 4 МПа, при этом обработка почвы равноценна двум проходам тяжелыми дисковыми боронами типа БДТ.The proposed design of the plow body provides high efficiency of soil cultivation, including the degree of crumbling and formation rotation, which prevents overconsolidation of the subsurface horizon and water erosion when processing inclined fields. Loosening of the soil layer is carried out, as indicated, in the range from 10 to 30 cm on soils with a hardness of up to 4 MPa, while the tillage is equivalent to two passes with heavy disc harrows of the BDT type.
Предложенные модификации корпуса плуга были изготовлены для плугов серии ПСК (ПСК-4; ПСК-5; ПСК-4-5-6; ПСК-8, ПСК-7-8-9), агрегатированных с тракторами класса 2, 3, 4. Базовая модификация предложенного устройства с габаритами 650×750×770 мм имеет обозначение ПСК-8.05.00.00. Испытания плугов серии ПСК 4-5-6 (6ти корпусной) и ПСК-8 (8ми корпусной) с корпусами нового типа проводились на полях Кубанской МНС (машиноиспытательная станция) в период с 2006 по 2008 год, где зарекомендовали себя как надежные, высокотехнологические почвообрабатывающие машины. Производительность ПСК-4, ПСК-5, ПСК-6 до 3 га в час, ПСК-8 до 5 га в час. Наработка на быстро изнашиваемые детали не менее 60 гаThe proposed modifications to the plow body were made for plows of the PSK series (PSK-4; PSK-5; PSK-4-5-6; PSK-8, PSK-7-8-9), aggregated with class 2, 3, 4 tractors. The basic modification of the proposed device with dimensions of 650 × 750 × 770 mm is designated PSK-8.05.00.00. Tests plows Series UCS 4-5-6 (6 minute cabinet) and CPM-8 (8 mi Block) from the body of a new type were carried out in the fields of the Kuban MHC (machine-station) in the period from 2006 to 2008, which proved to be reliable, high-tech tillage machines. Productivity PSK-4, PSK-5, PSK-6 up to 3 hectares per hour, PSK-8 up to 5 hectares per hour. Operating time for wearing parts of at least 60 ha
В результате внедрения предложенного устройства снижается стоимость обработки сельскохозяйственных площадей и повышается производительность труда при меньших эксплуатационных затратах. Выпуск подобных почвообрабатывающих орудий может быть налажен в условиях обычных предприятий по производству сельскохозяйственной техники, позволяя в совокупности решить важные задачи по совершенствованию техники обработки сельскохозяйственных культур.As a result of the implementation of the proposed device, the cost of processing agricultural land is reduced and labor productivity is increased at lower operating costs. The production of such tillage implements can be adjusted under the conditions of ordinary enterprises for the production of agricultural machinery, making it possible to collectively solve the important tasks of improving the technology for processing agricultural crops.
