RU67981U1 - HOUSEHOLD WATER CLEANER FOR DRINKING WATER - Google Patents

HOUSEHOLD WATER CLEANER FOR DRINKING WATER Download PDF

Info

Publication number
RU67981U1
RU67981U1 RU2007125675/22U RU2007125675U RU67981U1 RU 67981 U1 RU67981 U1 RU 67981U1 RU 2007125675/22 U RU2007125675/22 U RU 2007125675/22U RU 2007125675 U RU2007125675 U RU 2007125675U RU 67981 U1 RU67981 U1 RU 67981U1
Authority
RU
Russia
Prior art keywords
water
filter
filter module
water purifier
output
Prior art date
Application number
RU2007125675/22U
Other languages
Russian (ru)
Inventor
Валентин Валентинович Засименко
Марина Владиславовна Захарчук
Борис Валентинович Засименко
Original Assignee
Валентин Валентинович Засименко
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Валентин Валентинович Засименко filed Critical Валентин Валентинович Засименко
Priority to RU2007125675/22U priority Critical patent/RU67981U1/en
Application granted granted Critical
Publication of RU67981U1 publication Critical patent/RU67981U1/en

Links

Landscapes

  • Water Treatment By Sorption (AREA)

Abstract

Задачей настоящего технического решения является создание компактного и эффективного бытового водоочистителя, фильтровальная загрузка которого обеспечивает на выходе получение чистой питьевой воды близкой по своим параметрам к живой воде. Эта цель достигается подбором фильтровальных модулей и соответствующим размещением их по воде относительно друг друга, а также обеспечение финишной очистки с помощью трековых мембран в мембранах из ткани на основе полипропилена. Водоочиститель снабжен двухвходовым краном для получения чистой питьевой воды различного качества: питьевой воды для кипячения и особо чистой воды для питья. 8 з.п. 2 фиг.The objective of this technical solution is to create a compact and efficient domestic water purifier, the filter charge of which ensures the output of clean drinking water that is close in its parameters to living water. This goal is achieved by the selection of filter modules and their appropriate placement in water relative to each other, as well as providing final cleaning using track membranes in polypropylene-based fabric membranes. The water purifier is equipped with a two-way faucet for obtaining clean drinking water of various quality: drinking water for boiling and especially pure water for drinking. 8 s.p. 2 of FIG.

Description

Полезная модель относится к водоочистителям бытовым для получения питьевой воды высокого качества. Преимущественная область использования - очистка и доочистка холодной водопроводной воды, эффективное средство комфортного получения питьевой воды высшего качества в городской квартире.The utility model relates to household water purifiers for producing high-quality drinking water. The main area of use is the purification and purification of cold tap water, an effective means of comfortably obtaining the highest quality drinking water in a city apartment.

Известен водоочиститель для очистки водопроводной воды, выполненный в виде мембранного пакета из пленочного материала (1), он прост в использовании и изготовлении, но не обеспечивает надежной и качественной очистки воды.Known water purifier for treating tap water, made in the form of a membrane package of film material (1), it is easy to use and manufacture, but does not provide reliable and high-quality water treatment.

Известен более надежный водоочиститель, в котором применяется многостадийная обработка воды, а фильтровальная загрузка установлена по ходу технологического процесса (2). Однако он требует высокотехнологичного оборудования для части своих элементов.A more reliable water purifier is known, in which multi-stage water treatment is used, and the filter load is installed in the course of the technological process (2). However, it requires high-tech equipment for part of its elements.

Известен водоочиститель, использующий два фильтрующих модуля для грубой и тонкой очистки (3), где в качестве фильтрующего модуля тонкой очистки используют нетканый материал на основе полипропилена. Известный фильтр не позволяет A water purifier is known that uses two filter modules for coarse and fine cleaning (3), where a non-woven material based on polypropylene is used as a fine filter module. The known filter does not allow

получить питьевую воду высшего качества, так как полипропилен не является достаточно эффективным для этих целей материалом.to obtain drinking water of the highest quality, since polypropylene is not sufficiently effective material for these purposes.

Известны водоочистители, в которых используются фильтровальные модули (4) предварительной очистки в виде батареи, состоящей из отдельных блоков, такой же сорбционный узел и источник ультрафиолетового излучения. Вышеуказанный фильтр не позволяет получить особо чистую питьевую воду, так как не содержит средств для тонкой очистки.Water purifiers are known in which filter modules (4) of preliminary treatment are used in the form of a battery consisting of separate blocks, the same sorption unit and a source of ultraviolet radiation. The above filter does not allow to obtain particularly pure drinking water, as it does not contain means for fine cleaning.

Известны блочные водоочистители, использующие фильтры для тонкой очистки с использованием нанофильтрующей загрузки (5), однако для достижения эффекта они требуют дополнительной фильтрации с помощью осмотических фильтров и ультрафиолетового облучения, что существенно удорожает установку.Block water purifiers are known that use filters for fine cleaning using a nanofiltration charge (5), however, to achieve the effect, they require additional filtration using osmotic filters and ultraviolet radiation, which significantly increases the cost of the installation.

Все известные фильтры обладают существенными недостатками, которые сводятся к тому, что с их помощью в условиях городской, например, квартирыAll known filters have significant drawbacks, which boil down to the fact that with their help in urban conditions, for example, apartments

не удается получить сверхчистую воду близкую по своим параметрам к природно чистой воде так, чтобы отфильтрованная вода приобретала физико-химические свойства близкие по параметрам к живым средам живого организма. Именно это является технической задачей настоящей полезной модели. Кроме того бытовой водоочиститель должен быть компактным, легко монтироваться и быть надежным в эксплуатации.it is not possible to obtain ultrapure water close in its parameters to naturally pure water so that the filtered water acquires physicochemical properties close in parameters to living environments of a living organism. This is precisely the technical task of this utility model. In addition, a household water purifier must be compact, easy to install and be reliable in operation.

Эти цели достигаются за счет такого чередования фильтрующих загрузок, функции которых в наибольшей степени приближены к природному механизму очистки жидких сред с использованием на конечном этапе специальных композиционных мембран академика Флерова (трековых мембран), а размещение трековых мембран в These goals are achieved through such an alternation of filter media, the functions of which are closest to the natural mechanism of cleaning liquid media using, at the final stage, special composite membranes by academician Flerov (track membranes), and the placement of track membranes in

мембранах из нетканого полипропилена существенно повышает надежность работы трековых мембран и обеспечивает возможность простой и надежной регенерации. Модульное исполнение фильтрующей загрузки позволяет удобно располагать элементы водоочистителя, делая его более компактным.nonwoven polypropylene membranes significantly increases the reliability of track membranes and provides the possibility of simple and reliable regeneration. The modular design of the filter load allows you to conveniently position the elements of the water purifier, making it more compact.

Существо заявленного технического решения заключается в том, что в бытовом водоочистителе для получения питьевой воды, состоящем из нескольких блоков, обеспечивающих многоступенчатую очистку воды и предназначенном для установки у точки потребления, содержащем последовательно по ходу технологического процесса подключенные один к другому цилиндрические фильтровальные модули, первый их которых, предназначенный для предварительной очистки, на входе содержит средства для подключения к магистрали, притом что к его выходу подключен вход второго фильтровального модуля, а к выходу второго подключен вход фильтровального модуля тонкой очистки, выполненный с использованием блока трековых мембран, каждый фильтровальный модуль состоит из нескольких фильтров, предназначенных для удаления конкретных примесей, фильтровальный модуль для тонкой очистки с использованием блока трековых мембран выполняют с предфильтрами из ткани на основе полипропилена, так, что каждая трековая мембрана размещена в мембране из ткани на основе полипропилена, к выходу фильтровального модуля тонкой очистки подключен гидроаккумулятор с мембранным клапаном и картридж на основе кокосового активированного угля образующий четвертый фильтровальный модуль, выход которого предназначен для подключения к крану с чистой водой, при этом фильтровальный модуль для тонкой очистки снабжен аэратором. В качестве крана The essence of the claimed technical solution lies in the fact that in a domestic water purifier for producing drinking water, which consists of several units that provide multi-stage water purification and is intended for installation at a consumption point, which contains cylindrical filter modules connected to each other in series during the technological process, the first of them which, intended for preliminary cleaning, at the input contains means for connecting to the highway, while an input is connected to its output one filter module, and the output of the second one is connected to the input of a fine filter module made using a block of track membranes, each filter module consists of several filters designed to remove specific impurities, the filter module for fine cleaning using a block of track membranes is performed with prefilters from polypropylene-based fabric, so that each track membrane is placed in a polypropylene-based fabric membrane to the exit of the thin filter module a hydroaccumulator with a membrane valve and a cartridge based on coconut activated carbon forming a fourth filter module, the output of which is designed to be connected to a tap with clean water, the filter module for fine cleaning is equipped with an aerator. As a tap

для чистой воды использован двухвходовый кран для вывода чистой воды различного качества. Первый фильтровальный модуль водоочистителя может быть выполнен многоступенчатым: первую ступень выполняют в виде цилиндрического мембранного механического предфильтра, который обеспечивает удаление механических частиц свыше 5 мм, и комбинированного полимерного картриджа на основе полимерно глобулярных структур на который одета цилиндрическая мембрана механического предфильтра, полимерный картридж, обеспечивающий четыре последующие ступени очистки за счет последовательно по воде размещенной фильтровальной загрузкой, предназначенной для удаления конкретных примесей, фильтровальная загрузка второй ступени обеспечивает обезжелезивание, третья сорбцию органических и неорганических примесей хлора и хлоросодержащих соединений и тяжелых металлов, что приводит к улучшению вкуса воды, четвертая обеспечивает умягчение за счет снижения чрезмерно содержания солей жесткости, Фильтровальная загрузка пятой ступени фильтрования содержит активное серебро в связанной металлической форме. Второй фильтровальный модуль может быть выполнен либо в виде сорбционного картриджа на основе активированного угля либо в виде на основе ионообменных смол. Первый фильтровальный модуль может быть выполнен также как и предыдущий, но в качестве многоступенчатого картриджа может быть выбран картридж на основе волокнистых ионообменных материалов. Выбор и установка того или иного многоступенчатого картриджа зависит от свойств примесей в каждом конкретном случае. Фильтры на основе трековых мембран могут быть выбраны в количестве двух штук. На выходе фильтровального блока для тонкой очистки может быть установлен пятый фильтровальный блок For clean water, a two-way tap is used to output clean water of various quality. The first filter module of the water purifier can be multistage: the first stage is a cylindrical membrane mechanical prefilter that removes mechanical particles greater than 5 mm, and a combined polymer cartridge based on polymer-globular structures on which a cylindrical membrane of the mechanical prefilter is worn, a polymer cartridge that provides four subsequent cleaning steps due to sequentially water placed filter load, designed To remove specific impurities, the second stage filter load provides deferrization, the third sorption of organic and inorganic impurities of chlorine and chlorine compounds and heavy metals, which improves the taste of water, the fourth provides softening by reducing the excessive content of hardness salts, the filter load of the fifth filter stage contains active silver in a bonded metal form. The second filter module can be made either in the form of a sorption cartridge based on activated carbon or in the form of ion-exchange resins. The first filter module may be the same as the previous one, but a cartridge based on fibrous ion-exchange materials can be selected as a multi-stage cartridge. The choice and installation of a particular multi-stage cartridge depends on the properties of impurities in each case. Filters based on track membranes can be selected in the amount of two pieces. At the output of the filter unit for fine cleaning, a fifth filter unit can be installed

на основе кокосового активированного угля, при этом его выход соединен с одним их входов двухвходового крана, второй вход которого соединен с выходом четвертого фильтровального модуля. Выход четвертого фильтровального модуля может быть подключен к одному из входов двухвходового крана, другой вход которого соединен с выходом второго фильтровального модуля. Цилиндрические фильтровальные модули могут быть установлены в ряд параллельно друг другу и вертикально, а четвертый и пятый фильтровальные модули, установленный по воде последовательно с фильтровальным модулем для тонкой очистки размещены над торцами цилиндрических модулей горизонтально.based on coconut activated carbon, while its output is connected to one of the inputs of a two-input tap, the second input of which is connected to the output of the fourth filter module. The output of the fourth filter module can be connected to one of the inputs of the two-input valve, the other input of which is connected to the output of the second filter module. Cylindrical filter modules can be installed in a row parallel to each other and vertically, and the fourth and fifth filter modules mounted in water in series with the filter module for fine cleaning are placed horizontally above the ends of the cylindrical modules.

Далее представлена схемы водоочистителя согласно настоящей полезной модели.The following is a water purifier circuit according to the present utility model.

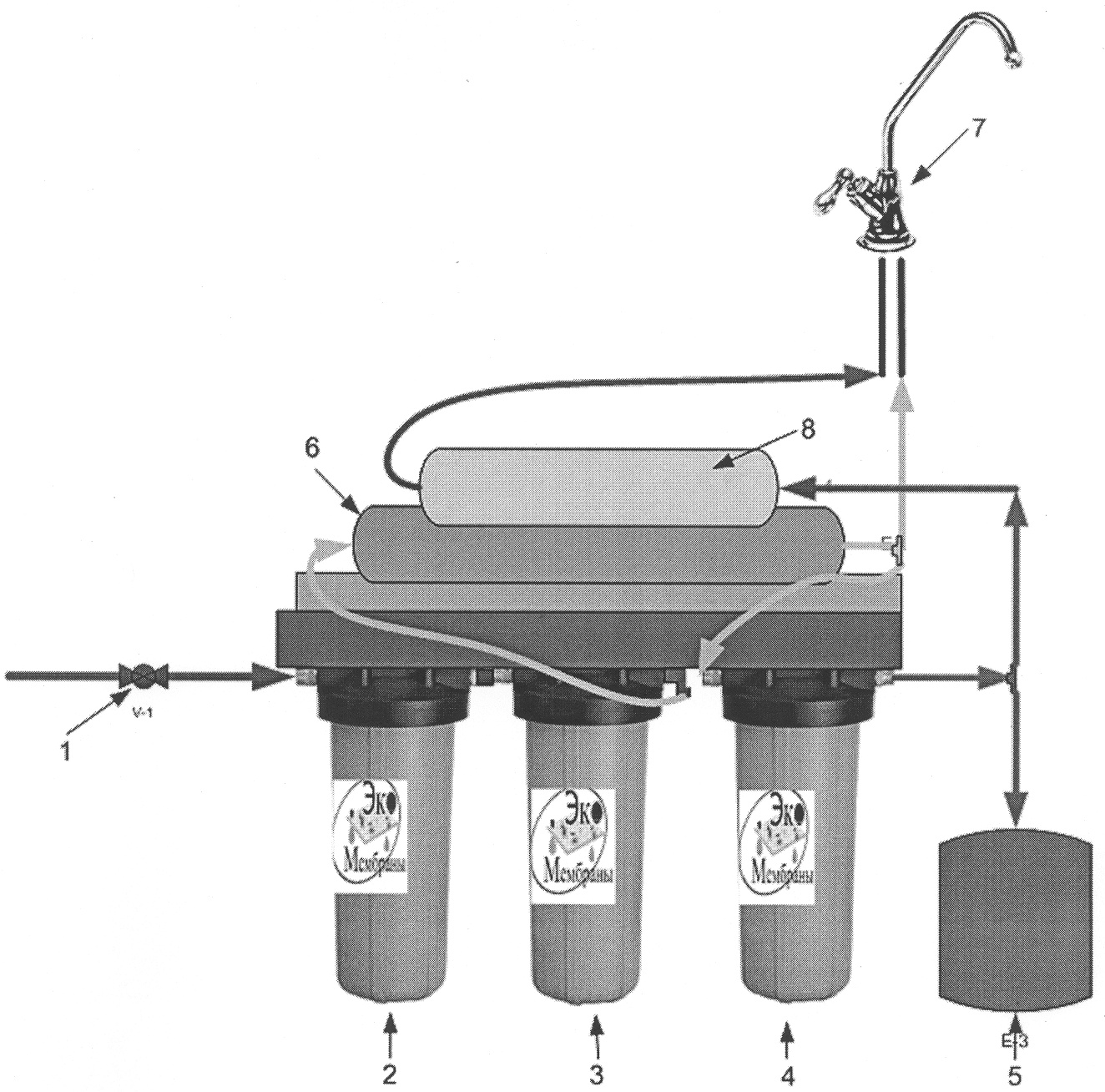

На фиг.1 представлен вариант водоочистителя с четвертым фильтровальным модулем, установленным горизонтально;Figure 1 shows a variant of a water purifier with a fourth filter module mounted horizontally;

На фиг.2 - вариант с четвертым и пятым фильтровальными модулями. С помощью тройника и шарового крана 1, входящих в комплект водоочистителя водоочиститель подключают стационарно в водопровод у точки потребления (мойки) с выводом наверх отдельно для очищенной воды. Фильтровальные модули 2, 3, 4 обеспечивает многоступенчатую очистку и кондиционирование питьевой воды. Фильтровальный модуль 2 с загрузкой на основе полимерно глобулярных структур и обеспечивает 5 ступеней очистки. На первой ступени установлен цилиндрический механический предфильтр »ПВД-1М» для удаления крупных механических частиц свыше 5 мм (окалина, ржавчина, песок, ил, глина и другие примеси). Далее по воде установлен универсальный картриж »ВДК-ИО2», который обеспечивает со второй по пятую Figure 2 - option with the fourth and fifth filter modules. Using a tee and a ball valve 1 included in the water purifier kit, the water purifier is permanently connected to the water supply at the point of consumption (washing) with a separate outlet for purified water. Filter modules 2, 3, 4 provide multi-stage purification and conditioning of drinking water. Filter module 2 with loading on the basis of polymer globular structures and provides 5 stages of cleaning. At the first stage, a cylindrical mechanical prefilter “PVD-1M” is installed to remove large mechanical particles over 5 mm (scale, rust, sand, silt, clay and other impurities). Further on the water, a universal cartridge "VDK-IO2" is installed, which provides from the second to the fifth

ступени очистки. Механический предфильтр одет на универсальный картридж «БДК-ИО2» и образует первый фильтровальный модуль предварительной очистки 2. На второй ступени происходит обезжелезивание (удаление растворенного железа Fе2+ нерастворенного железа Fe3+) улучшение вкуса воды. На третьей ступени фильтровальная загрузка картриджа позволяет осуществить универсальную сорбцию органических и неорганических примесей хлора, хлорорганических соединений, пестицидов, бензола, нефтепродуктов, тяжелых металлов и т.д.. Улучшается вкус, устраняется запах воды. На четвертой стадии происходит частичное умягчение за счет снижения частичного содержания солей жесткости, улучшается вкус. На пятой ступени введенное в материал картриджа серебро нейтрализует жизнедеятельность и развитие отфильтрованных бактерий. Вместе с тем серебро не выделяется в воду, так как серебро в картридже находится в связанной металлической (несмываемой) форме и поэтому абсолютно безопасно для здоровья. В отдельных случаях взамен универсального картриджа «ВДК-ИО2» может быть установлен «ВДК-F2» на основе волокнистых ионообменных материалов, выполняющий функцию обезжелезивания. В этом случае механический предфильтр «ПВД-1М» также как и в предыдущем случае одет на картридж на основе волокнистых ионообменных материалов, образуя с ним единый модуль. Второй фильтровальный модуль выполнен в виде картриджа 3 «ВДК-У3» на основе активированного угля. На нем производится шестая ступень очистки в виде дополнительной сорбции органических и неорганических примесей и улучшение органолептических свойств воды. Взамен этого картриджа может быть установлен картридж на основе ионообменных смол. cleaning steps. The mechanical prefilter is dressed on a BDK-IO2 universal cartridge and forms the first filter pre-filter 2. At the second stage, iron removal (removal of dissolved iron Fe2 + undissolved iron Fe3 +) improves the taste of water. At the third stage, the filter loading of the cartridge allows universal sorption of organic and inorganic impurities of chlorine, organochlorine compounds, pesticides, benzene, petroleum products, heavy metals, etc. The taste improves, the smell of water is eliminated. At the fourth stage, partial softening occurs due to a decrease in the partial content of hardness salts, and the taste improves. At the fifth stage, silver introduced into the cartridge material neutralizes the vital activity and development of filtered bacteria. However, silver is not released into the water, since the silver in the cartridge is in a bound metal (indelible) form and is therefore absolutely safe for health. In some cases, instead of the universal cartridge “VDK-IO2”, “VDK-F2” based on fibrous ion-exchange materials can be installed that performs the deferrization function. In this case, the PVD-1M mechanical pre-filter, like in the previous case, is dressed on a cartridge based on fibrous ion-exchange materials, forming a single module with it. The second filter module is made in the form of a cartridge 3 "VDK-U3" based on activated carbon. It produces the sixth stage of purification in the form of additional sorption of organic and inorganic impurities and the improvement of the organoleptic properties of water. Instead of this cartridge, an ion exchange resin cartridge can be installed.

Седьмая ступень очистки обеспечивается в третьем фильтровальном модуле 4. В нем производится финишная тонкая доочистка воды трековыми мембранами мембранного блока «ВД-ТМ3». На этой ступени эффективно и полностью исключаются даже микроколичества вредных примесей в том числе: хлоросодержащих соединений, тяжелых металлов и органических веществ. Эффективно на 100% фильтруется вся микробиология (штамм чумы, холерный вибрион, сальмонелла, кишечная палочка и их фрагменты. К выходу фильтровального блока 4 подключен гидроаккумулятор 5 с мембранным клапаном. На восьмой ступени воду пропускают через картридж «ВДК-У4)» на основе кокосового активированного угля 6 для улучшения органолептических свойств воды. Готовый продукт - кондиционированная питьевая вода высшего качества поступает через гибкую подводку (не показано) в двухвходовый кран 7 для питьевой воды. На второй вход двухвходового крана 7 с помощью например гибкой подводки (не показано) с выхода модуля 2 поступает кондиционированная питьевая вода, предназначенная для кипячения и приготовления пищи. Последовательно по воде к выходу модуля 6 может быть подключен модуль 8 пост - фильтр «ВДК-У4» на основе кокосового активированного угля для улучшения органе лептических свойств воды. В этом случае выход последнего фильтровального модуля 8 подключен к одному из входов двухвходового крана 7, при этом другой вход двухвходового крана подключен к выходу четвертого фильтровального модуля 6. Водоочиститель работает в напорном режиме при рабочем давлении от 2 до 7 атм, производительность 20 л/час. Величина пор трековой мембраны выбрана 0,38 мкм. Для установки водоочистителя The seventh stage of cleaning is provided in the third filter module 4. It finishes the final fine purification of water with the track membranes of the VD-TM3 membrane unit. At this stage, even trace amounts of harmful impurities are effectively and completely eliminated, including chlorine-containing compounds, heavy metals and organic substances. All microbiology (strain of plague, cholera vibrio, salmonella, Escherichia coli and their fragments is effectively 100% filtered. A hydraulic accumulator 5 with a membrane valve is connected to the output of the filter unit 4. At the eighth stage, water is passed through a VDK-U4 cartridge based on coconut activated carbon 6 to improve the organoleptic properties of water. The finished product - top-quality conditioned drinking water enters through a flexible connection (not shown) to the two-input valve 7 for drinking water. At the second entrance of the two-input tap 7, for example, using flexible lead (not shown) from the output of module 2, conditioned drinking water is supplied for boiling and cooking. In series with water, module 8 post-filter “VDK-U4” based on coconut activated carbon can be connected to the output of module 6 to improve the organoleptic properties of water. In this case, the output of the last filter module 8 is connected to one of the inputs of the two-input valve 7, while the other input of the two-input valve is connected to the output of the fourth filter module 6. The water purifier operates in pressure mode at a working pressure of 2 to 7 atm, productivity 20 l / h . The pore size of the track membrane is selected 0.38 μm. To install a water purifier

используются стандартные детали тройники, вентили, фумленты, герметик, прокладки и др. Фильтровальные модульные блоки устанавливают на кронштейнах (не показано).standard parts are used tees, valves, fumlents, sealant, gaskets, etc. Filtering modular units are mounted on brackets (not shown).

Фильтровальный модуль тонкой очистки «БДК-ТМ3» состоит из предфильтра-аэратора ПФА№2ТН и фильтров на трековых мембранах в мембранах из нетканого полипропилена ВД в количестве двух штук. Все картриджи кроме угольных регенерируемые, угольные картриджи можно заменять. Выполнение трековых мембран в сочетании мембранами их ткани на основе полипропилена обеспечивают его надежную регенерацию фильтра, предохраняя трековые мембраны при промывании.The fine filtering module “BDK-TM3” consists of a PFA # 2TN prefilter aerator and filters on track membranes in VD non-woven polypropylene membranes in the amount of two pieces. All cartridges except regenerative coal, coal cartridges can be replaced. The implementation of track membranes in combination with membranes of their fabric based on polypropylene ensure its reliable regeneration of the filter, protecting track membranes during washing.

Отфильтрованная вода приобретает физико-химические свойства близкие по параметрам к живым средам живого организма.Filtered water acquires physicochemical properties close in parameters to living environments of a living organism.

Источники информации:Information sources:

1. RU 8696 C02F 1/18 19981. RU 8696 C02F 1/18 1998

2. RU 0002579 C02F 1/18 19942. RU 0002579 C02F 1/18 1994

3. RU 8697 C02F 1/18 19983. RU 8697 C02F 1/18 1998

4. RU 0005990 C02F 1/28 19964. RU 0005990 C02F 1/28 1996

5. RU 62923 C02F 9/00 20065. RU 62923 C02F 9/00 2006

Claims (9)

1. Водоочиститель бытовой для получения питьевой воды высокого качества, состоящий из нескольких блоков обеспечивающих многоступенчатую очистку воды и предназначенный для установки в точке потребления, содержащий последовательно по ходу технологического процесса цилиндрические фильтровальные модули, первый из которых, предназначенный для предварительной очистки, на входе содержит средства для подключения к магистрали, к выходу первого фильтровального модуля подключен вход второго, загрузку которого выбирают в зависимости от состава примесей, последовательно по воде с ним установлен фильтровальный модуль тонкой очистки, каждый фильтровальный модуль состоит из нескольких фильтров, каждый из которых предназначен для удаления конкретной примеси, а на выходе водоочистителя установлен кран для чистой воды, отличающийся тем, что фильтровальный модуль для тонкой очистки выполнен с использованием трековых мембран с предфильтрами на основе ткани из полипропилена, где каждая трековая мембрана размещена в мембране из ткани на основе полипропилена, к выходу фильтровального блока трековых мембран подключен гидроаккумулятор с мембранным клапаном и картридж на основе активированного угля, образующий четвертый фильтровальный блок, в качестве крана для чистой воды использован двухвходовый кран для вывода чистой воды различного качества.1. Household water purifier for producing high-quality drinking water, consisting of several units providing multi-stage water purification and intended for installation at the point of consumption, containing in series along the process the cylindrical filter modules, the first of which is intended for pre-treatment, at the entrance contains means to connect to the highway, the input of the second is connected to the output of the first filter module, the loading of which is selected depending on the state and impurities, a fine filter module is installed in series with it in water, each filter module consists of several filters, each of which is designed to remove a specific impurity, and a tap for clean water is installed at the outlet of the water purifier, characterized in that the filter module is for fine cleaning made using track membranes with prefilters based on polypropylene fabric, where each track membrane is placed in a membrane made of polypropylene fabric, to the output is filter of unit track membrane pressure accumulator is connected to the membrane valve and the ink cartridge based on activated charcoal, forming a fourth filter block, as a crane for pure water is used to output two-input tap of pure water of varying quality. 2. Водоочиститель по п.1, отличающийся тем, первый фильтровальный модуль водоочистителя выполнен многоступенчатым: первая ступень фильтровального модуля для механической очистки выполнена в виде цилиндрического мембранного механического предфильтра, который обеспечивает удаление крупных механических частиц свыше 5 мм-, и комбинированного полимерного катриджа, обеспечивающего четыре последующие ступени очистки, на который одет цилиндрическая мембрана механического предфильтра, фильтровальная загрузка полимерного картриджа предназначена для удаления конкретных примесей и выполнена на основе полимерно глобулярных структур установлена последовательно по воде с цилиндрическим мембранным механическим предфильтром и обеспечивает обезжелезивание, сорбцию органических и неорганических примесей хлора и тяжелых металлов, что приводит к улучшению вкуса воды, фильтровальная нагрузка следующей ступени обеспечивает умягчение за счет снижения чрезмерного содержания солей жесткости, последняя загрузка соответствующая пятой ступени фильтрования содержит активное серебро в связанной металлической форме для обеспечения бактерицидного эффекта.2. The water purifier according to claim 1, characterized in that the first filter module of the water purifier is multistage: the first stage of the filter module for mechanical cleaning is made in the form of a cylindrical membrane mechanical prefilter that removes large mechanical particles over 5 mm, and a combined polymer cartridge providing four subsequent cleaning steps, on which the cylindrical membrane of the mechanical prefilter is dressed, the filter load of the polymer cartridge is intended It was designed to remove specific impurities and made on the basis of polymer-globular structures, it is installed sequentially through water with a cylindrical membrane mechanical prefilter and provides iron removal, sorption of organic and inorganic impurities of chlorine and heavy metals, which improves the taste of water, the filter load of the next stage provides softening due to to reduce the excessive content of hardness salts, the last charge corresponding to the fifth stage of filtration contains active silver on the in bound form a metal to provide a bactericidal effect. 3. Водоочиститель по п.1, отличающийся тем, что первый фильтровальный модуль выполнен многоступенчатым и состоит из механического предфильтра, который обеспечивает удаление крупных механических частиц свыше 5 мм - первую ступень очистки и универсального картриджа на основе волокнистых ионообменных материалов, установленных последовательно по воде с механическим предфильтром, при этом механический предфильтр выполнен в виде цилиндрической мембраны и одет на универсальный картридж, образуя при этом первый фильтровальный модуль предварительной очистки, который предназначен для обезжелезивания воды.3. The water purifier according to claim 1, characterized in that the first filter module is multi-stage and consists of a mechanical prefilter that removes large mechanical particles over 5 mm - the first stage of cleaning and a universal cartridge based on fibrous ion-exchange materials installed in series with water mechanical prefilter, while the mechanical prefilter is made in the form of a cylindrical membrane and is dressed on a universal cartridge, thus forming the first filter module tion purification, which is designed for iron removal. 4. Водоочиститель по п.2 или 3, отличающийся тем, что второй фильтровальный модуль выполнен в виде картриджа на основе активированного угля.4. The water purifier according to claim 2 or 3, characterized in that the second filter module is made in the form of a cartridge based on activated carbon. 5. Водоочиститель по п.2 или 3, отличающийся тем, что второй фильтровальный модуль выполнен в виде картриджа на основе ионообменных смол.5. The water purifier according to claim 2 or 3, characterized in that the second filter module is made in the form of a cartridge based on ion exchange resins. 6. Водоочиститель по п.1, отличающийся тем, что фильтровальный модуль тонкой очистки состоит из предфильтра-аэратора и фильтров на трековых мембранах в мембранах из ткани на основе полипропилена в количестве двух штук.6. The water purifier according to claim 1, characterized in that the fine filter module consists of a pre-filter aerator and filters on track membranes in polypropylene-based fabric membranes in an amount of two pieces. 7. Водоочиститель по п.1, отличающийся тем, что на выходе фильтровального модуля тонкой очистки установлен пятый фильтровальный модуль на основе кокосового активированного угля, выход которого соединен с одним из входов двухвходового крана, при этом второй вход двухвходового крана соединен с выходом четвертого фильтровального модуля.7. The water purifier according to claim 1, characterized in that a fifth filter module based on coconut activated carbon is installed at the output of the fine filter module, the output of which is connected to one of the inputs of the two-input tap, while the second input of the two-input tap is connected to the output of the fourth filter module . 8. Водоочиститель по п.1, отличающийся тем, что выход четвертого фильтровального модуля подключен к одному из входов двухвходового крана, другой вход которого соединен с выходом второго фильтровального модуля.8. The water purifier according to claim 1, characterized in that the output of the fourth filter module is connected to one of the inputs of the two-input tap, the other input of which is connected to the output of the second filter module. 9. Водоочиститель по п.1, отличающийся тем, что первые три фильтровальных модуля установлены в ряд параллельно друг другу вертикально, а фильтровальные картриджи, образующие четвертый или четвертый и пятый модули размещены над торцами трех цилиндрических фильтровальных модулей горизонтально.
Figure 00000001
9. The water purifier according to claim 1, characterized in that the first three filter modules are arranged in a row parallel to each other vertically, and the filter cartridges forming the fourth or fourth and fifth modules are placed horizontally above the ends of the three cylindrical filter modules.
Figure 00000001
