KR20230000123A - Wood Pots for Road Landscaping - Google Patents

Abstract

The present invention relates to a wooden flower pot for road landscaping. In particular, it is about a new concept technology which improves durability by realizing the high strength of wooden flower pots while manufacturing wooden flower pots with an attractive appearance at a low cost by finishing the exterior of the PE flower pot with exterior wood. Conventionally disclosed wooden flower pots are made entirely of wood, so they are not only expensive, but also prone to damage, contain more soil than necessary, and cannot be grown hydroponically. In addition, since the water required for the growth of flowers must be frequently given, it is not only inconvenient but also requires a lot of maintenance costs. As a way to eliminate these problems, the present invention devises a technique of attaching horizontal exterior wood to the outer surface of a PE flower pot, installing vertical exterior wood on the square corners, and eliminating the inconvenience of frequently watering plants by installing a water tank plate inside the PE flower pot to separate the soil space and water space.

Description

Wood Pots for Road Landscaping}

The present invention relates to a new concept of technology for improving durability by realizing high strength of a wooden flower pot while producing a beautiful external wooden flower pot at low cost by finishing the outer surface of the PE flower pot with exterior wood.

In general, in order to improve the road environment, pots containing street trees or various flowers are placed at regular intervals on the sidewalk adjacent to the roadway.

Pots for road use include pots made of various materials such as stone and synthetic resins. Among them, flower pots made of stone are inconvenient to move due to heavy loads, and in particular, there is a problem such as causing a secondary accident when a car collides with a flower pot due to a traffic accident.

Also, PVC material. Flower pots manufactured using recycled materials melted from waste vinyl or waste plastic are inexpensive and can be mass-produced, but cannot highlight natural beauty and require a lot of maintenance costs due to discoloration and damage during long-term use.

As a way to solve this problem, the body of the pot is made of wood, an eco-friendly material, to give it a natural beauty.

As a prior art related to such landscaping pots, "Utility Model Registration No. 0439703, name/wooden pots for beautifying the road environment" has been disclosed.

The prior art constructs a tubular body of a pot using eco-friendly wood, and a control bar is built inside the tubular body to adjust the amount of soil input according to the flower or tree to be bonsaid, and it is easy to move and arrange according to the road environment. It has a characteristic.

However, in the prior art, the entire pot is made of wood, and the price is expensive, and there is a risk of damage, and more soil than necessary is entered, and in some cases, hydroponics that grow plants in a culture medium made of water and water-soluble nutrients without using soil. Cultivation is not possible, and water necessary for the growth of flowers must be given frequently, which is cumbersome and requires a lot of management costs.

As a means for solving the above problems, the present invention seeks a technique of integrally attaching a horizontal exterior wood to the outer surface of a PE pot and attaching a vertical exterior wood to a square corner.

In addition, a water tank plate is installed inside the PE pot to separate the soil space and the water space to eliminate the hassle of frequently watering the plants.

According to the present invention, the outer surface of the PE flower pot having high strength and low cost is wrapped with exterior wood to create a beautiful appearance as well as a nature-friendly road environment, there is no risk of damage, and hydroponic cultivation without soil is possible. provides possible effects.

In addition, by installing a water tank plate that separates the water space and the soil space in the middle of the PE pot, the water space is filled with water to satisfy the optimal growth conditions of the flower even in a drought with a small number of waterings, thereby reducing the hassle of the manager. It not only solves the problem and significantly reduces management costs, but also provides the effect of reducing the amount of soil used by filling soil only in the upper soil space.

1 is a front view of a used state of a wooden flower pot to which the present invention is applied
Figure 2 is a side view of the use state of the present invention wooden flowerpot
Figure 3 is a planar cross-sectional view of the wood flower pot of the present invention

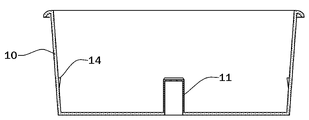

Figure 4 is a front cross-sectional view of the PE pot of the present invention
5 is a front cross-sectional view of the wooden flower pot of the present invention
Figure 6 is a front cross-sectional view of a wooden flower pot in which the water tank plate of the present invention is installed
Figure 7 is a cross-sectional plan view of the assembled state of the PE flowerpot, horizontal exterior wood, vertical exterior wood of the present invention
8 is a separate state diagram of the fastening means and the waterproof pad of the present invention
9 is a front cross-sectional view of the water bath plate of the present invention

It will be described with respect to a preferred embodiment for more specifically implementing the solution to the problem to be solved by the present invention.

Looking schematically at the overall configuration according to a preferred embodiment of the present invention based on the accompanying drawings, the PE flower pot 10, a plurality of horizontal exterior trees 20, a plurality of vertical exterior trees 30, and fastening means 40 It can be seen that it is divided into components.

Hereinafter, the present invention consisting of the above schematic configuration will be described in more detail to facilitate implementation.

The PE flowerpot 10 of the present invention is made of a rectangular shape with a smaller cross-sectional area toward the bottom, made of PVC. By manufacturing using recycled materials melted from waste vinyl or waste plastic, it is possible to maintain high strength while being inexpensive.

A plurality of horizontal exterior woods 20 are integrally attached to the four outer surfaces of the PE flower pot 10 horizontally up and down, thereby imparting natural beauty and providing an effect of enhancing the appearance.

Here, the horizontal exterior wood 20 penetrates through the Taka pin 22 as shown in FIG. 3 through the air taka work and is fixed to the outer surface of the PE pot 10, thereby making it very easy to manufacture and maintaining mutually solid integrity. It is possible to prevent separation from the PE pot (10).

The outer surface of the PE flower pot 10 surrounded by the horizontal exterior wood 20 is installed by attaching a plurality of vertical exterior trees 30 vertically to the outer surface of the horizontal exterior wood 20 located on all four corners, respectively Damage to the corner portion It is possible to greatly improve the natural beauty and appearance by giving a three-dimensional effect as a whole as well as preventing double.

The fastening means 40, which is one component of the present invention, is composed of a fastening bolt 41 and a nut 42, and the vertical exterior wood 30, the horizontal exterior wood 20, and the PE flower pot 10 are integrated with each other. It corresponds to the technology for firmly fastening with

That is, as shown in FIG. 7, the vertical exterior wood 30, the horizontal exterior wood 20, and the PE flower pot 10 are coupled by passing through the fastening bolts 41, and the nuts 42 on the inside of these fastening bolts 41 is screwed together to maintain a more robust integrity, and in particular, the vertical exterior neck 30, which is located at the corner and has a risk of breakage, is easily separated when damaged, providing a special effect of partially replacing only partially damaged parts. do.

In addition, the present invention is further grafted with a technology for preventing water in the PE pot 10 from leaking to the outside through a hole through which the fastening bolt 41 passes.

As a technical configuration for this purpose, a soft waterproof pad 43 is inserted and installed on the outside of the fastening bolt 41 located between the PE flower pot 10 and the nut 42.

Here, the waterproof pad 43 holds the fastening bolt 41 while holding the fastening bolt 41 while being pressed as shown in FIG. 7 by the tightening force when the nut 42 is tightened while maintaining the same shape as the washer as shown in FIG. ) prevents the water filled in the PE pot 10 from leaking to the outside by blocking the through hole, thereby eliminating the hassle of frequently replenishing water.

On the other hand, in the PE pot 10, a drain pipe 11 protrudes upward as shown in FIG. 4 at the center of the inner bottom, and a drainage guide 12 open to the left and right is recessed at the top of the drain pipe 11, , Drainage holes 13 are formed in the center of the drain guideway 12 to penetrate vertically.

Therefore, a culture medium made of water and water-soluble nutrients is filled into the PE pot 10 without using soil, and a special effect of hydroponic cultivation of flowers is provided.

In addition, the present invention is a technique to further reduce the amount of soil used by filling only a certain portion of the PE flowerpot 10 with soil without filling the entire inside of the PE pot 10, and to grow flowers without the hassle of frequently replenishing water. this is grafted

As a technical configuration for this, a water tank plate support 14 is protruded from the inner corner of the PE pot 10, and the water tank plate 50 is seated on the top of the water tank plate support 14, and the water tank plate 50 By separating the inner space of the PE pot 10 into a water space 15 and a soil space 16, water is stored in the lower water space 15, and soil is filled only in the upper soil space 16.

In addition, the water tank plate 50 has a pair of support water pipes 51 protruding downward on both sides of the bottom surface, and the support water pipes 51 are placed on the inner bottom surface of the PE flower pot 10 to form a soil space ( In addition to supporting the load of the bed soil filled in 16), water passage holes 53 are vertically formed in the water passage 52 recessed at the lower end of the support water passage pipe 51.

Therefore, when the plants are saturated with water while the plants are planted, the water flowing down through the soil space 16 is filled in the water space 15 through the pair of support water pipes 51, and the water space When (15) is filled with water, it is confirmed that the water is drained to the outside through the drain pipe (11), and further water supply is stopped.

As such, the water filled in the water space 15 is sucked up into the soil space 16 through the support water pipe 51 due to the transpiration of the plant and the osmotic pressure of the roots, thereby smoothly supplying water to provide optimal growth conditions for plants and increases the water replenishment cycle, thereby eliminating the manager's hassle and providing the effect of significantly reducing management costs.

Here, a plurality of water passage holes 53a are additionally formed in the water tank plate 50 in all directions, as shown in FIG. 9, so that the water space 15 is filled with water smoothly, as well as the soil space 16 in the growth process of flowers. ) makes it possible to supply water more smoothly.

In addition, a bellows through hole 55 is formed in the water tank plate 50, and a watering bellows 60 is inserted through the bellows through hole 55, and the watering bellows 60 for watering is filled with water in the water space 15 By directly watering the root of the flower located in the soil space 16, it is possible to more smoothly create a plant growth environment.

10: PE flower pot 11: drainage pipe
12: drainage guideway 13: drainage hole
14: water plate support 15: water space
16: soil space 20: horizontal exterior wood
22: Takapin 30: Vertical exterior wood
40: fastening means 41: fastening bolt
42: nut 43: waterproof pad
50: water plate 51: support water pipe
52: water passage 53, 53a: water passage hole
55: Bellows through hole 60: Bellows for irrigation

Claims (7)

A rectangular PE pot (10);
A plurality of horizontal exterior timbers 20 integrally attached to the four outer surfaces of the PE flower pot 10 horizontally and continuously up and down;
A plurality of vertical exterior woods 30 installed by vertically attaching to the horizontal exterior woods 20 located at four corners of the PE flower pot 10;
Fastening means 40 including a fastening bolt 41 penetrating the vertical exterior wood 30, the horizontal exterior wood 20 and the PE pot 10, and a nut 42 screwed with the fastening bolt 41 Wood pots for road landscaping, characterized in that consisting of.
According to claim 1,
The horizontal exterior wood 20 is a hardwood flowerpot for road landscaping, characterized in that fixed with a taka pin 22 through an air taka operation.
According to claim 1,
A soft waterproof pad 43 is inserted and installed on the outside of the fastening bolt 41 located between the PE flower pot 10 and the nut 42, and the waterproof pad 43 is tightened by the tightening force of the nut 42. Road landscaping wooden flowerpot characterized in that while being pressed, the water in the PE flower pot 10 prevents leakage to the outside through the through hole of the fastening bolt 41.
According to claim 1,
In the PE flower pot 10, a drain pipe 11 protrudes upward at the center of the inner bottom, and a drain guide path 12 open to the left and right is recessed at the top of the drain pipe 11, and the drain guide path 12 ) In the center of the drainage hole 13 is formed through the top and bottom to fill the inside of the PE pot 10 with a culture medium made of water and water-soluble nutrients without using soil, characterized in that the plants can be hydroponically grown Tree pots for road landscaping.
According to claim 1,
The water tank plate support 14 protrudes from the inner corner of the PE pot 10, and the water tank plate 50 is seated on the top of the water tank plate support 14, and the water tank plate 50 is a PE pot ( Road landscaping wooden flowerpot characterized in that the inner space of 10) is separated into a water space (15) and a soil space (16).
According to claim 5,
The water tank plate 50 has a pair of support water pipes 51 protruding downward on both sides of the bottom surface, and the support water pipes 51 are placed on the inner bottom surface of the PE flowerpot 10 to form a soil space 16 It performs the function of supporting the load of the bed soil filled in, and the water passage 52 formed recessed at the lower end of the support water passage 51 has water passage holes 53 vertically penetrated. A wooden pot for road landscaping.
According to claim 1,
A bellows hole 55 is formed in the water tank plate 50, and the watering bellows 60 inserted through the bellows hole 55 transfers water filled in the water space 15 to the plants located in the soil space 16. Wood pots for road landscaping, characterized in that the root portion is watered directly.
