KR20220086422A - Health Functional beverage and manufacturing method of the same - Google Patents

Health Functional beverage and manufacturing method of the same Download PDF

Info

Publication number
KR20220086422A
KR20220086422A KR1020200176860A KR20200176860A KR20220086422A KR 20220086422 A KR20220086422 A KR 20220086422A KR 1020200176860 A KR1020200176860 A KR 1020200176860A KR 20200176860 A KR20200176860 A KR 20200176860A KR 20220086422 A KR20220086422 A KR 20220086422A
Authority
KR
South Korea
Prior art keywords
preparing
heating
parts
weight
raw material
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
KR1020200176860A
Other languages
Korean (ko)
Other versions
KR102588562B1 (en
Inventor
서광복
Original Assignee
주식회사 비비에프
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by 주식회사 비비에프 filed Critical 주식회사 비비에프
Priority to KR1020200176860A priority Critical patent/KR102588562B1/en
Publication of KR20220086422A publication Critical patent/KR20220086422A/en
Application granted granted Critical
Publication of KR102588562B1 publication Critical patent/KR102588562B1/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Classifications

    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L2/00Non-alcoholic beverages; Dry compositions or concentrates therefor; Preparation or treatment thereof
    • A23L2/02Non-alcoholic beverages; Dry compositions or concentrates therefor; Preparation or treatment thereof containing fruit or vegetable juices
    • A23L2/04Extraction of juices
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L17/00Food-from-the-sea products; Fish products; Fish meal; Fish-egg substitutes; Preparation or treatment thereof
    • A23L17/60Edible seaweed
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L19/00Products from fruits or vegetables; Preparation or treatment thereof
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L2/00Non-alcoholic beverages; Dry compositions or concentrates therefor; Preparation or treatment thereof
    • A23L2/02Non-alcoholic beverages; Dry compositions or concentrates therefor; Preparation or treatment thereof containing fruit or vegetable juices
    • A23L2/08Concentrating or drying of juices
    • A23L2/082Concentrating or drying of juices by membrane processes
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L2/00Non-alcoholic beverages; Dry compositions or concentrates therefor; Preparation or treatment thereof
    • A23L2/52Adding ingredients
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L27/00Spices; Flavouring agents or condiments; Artificial sweetening agents; Table salts; Dietetic salt substitutes; Preparation or treatment thereof
    • A23L27/40Table salts; Dietetic salt substitutes
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23LFOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES, NOT OTHERWISE PROVIDED FOR; PREPARATION OR TREATMENT THEREOF
    • A23L7/00Cereal-derived products; Malt products; Preparation or treatment thereof
    • A23L7/10Cereal-derived products
    • A23L7/198Dry unshaped finely divided cereal products, not provided for in groups A23L7/117 - A23L7/196 and A23L29/00, e.g. meal, flour, powder, dried cereal creams or extracts
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23VINDEXING SCHEME RELATING TO FOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES AND LACTIC OR PROPIONIC ACID BACTERIA USED IN FOODSTUFFS OR FOOD PREPARATION
    • A23V2002/00Food compositions, function of food ingredients or processes for food or foodstuffs
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23VINDEXING SCHEME RELATING TO FOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES AND LACTIC OR PROPIONIC ACID BACTERIA USED IN FOODSTUFFS OR FOOD PREPARATION
    • A23V2200/00Function of food ingredients
    • A23V2200/30Foods, ingredients or supplements having a functional effect on health
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23VINDEXING SCHEME RELATING TO FOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES AND LACTIC OR PROPIONIC ACID BACTERIA USED IN FOODSTUFFS OR FOOD PREPARATION
    • A23V2300/00Processes
    • A23V2300/14Extraction
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23VINDEXING SCHEME RELATING TO FOODS, FOODSTUFFS OR NON-ALCOHOLIC BEVERAGES AND LACTIC OR PROPIONIC ACID BACTERIA USED IN FOODSTUFFS OR FOOD PREPARATION
    • A23V2300/00Processes
    • A23V2300/24Heat, thermal treatment

Landscapes

  • Life Sciences & Earth Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Health & Medical Sciences (AREA)
  • Nutrition Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Food Science & Technology (AREA)
  • Polymers & Plastics (AREA)
  • Marine Sciences & Fisheries (AREA)
  • Zoology (AREA)
  • Water Supply & Treatment (AREA)
  • Non-Alcoholic Beverages (AREA)

Abstract

본 발명은 제1원재료를 준비하는 단계; 상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계; 상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계; 상기 제1가열물을, 제1일정시간 동안 방치하는 단계; 상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계; 상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계; 상기 방치된 제2가열물로부터 추출수를 여과하는 단계; 제2원재료를 준비하는 단계; 상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계; 및 상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계를 포함하며, 상기 제1원재료를 준비하는 단계는, 건조된 으름잎과 건조된 으름껍질을 준비하는 단계; 및 한약재를 준비하는 단계를 포함하고, 상기 제2원재료를 준비하는 단계는, 으름액을 제조하는 단계; 노니 숙성액을 제조하는 단계; 갈조류 분말을 제조하는 단계; 슘 소금을 준비하는 단계; 및 약식곡물 분말을 준비하는 단계를 포함하는 것을 특징으로 하는 건강 기능성 음료의 제조방법에 관한 것으로, 으름 및 노니를 이용하여, 출산후 산후조리 여성의 보양, 성인병 예방 및 다이어트를 위한 체중조절 등의 다양한 기능을 제공할 수 있는 건강 기능성 음료를 제공할 수 있다.The present invention comprises the steps of preparing a first raw material; preparing a first mixture by adding the first raw material to purified water; preparing a first heating product by first heating the first mixture; leaving the first heating object to stand for a first predetermined time; manufacturing a second heating product by second secondary heating of the first heating product, which has been left standing; sealing the second heating object and leaving it to stand for a second predetermined time; filtering the extracted water from the left second heated water; preparing a second raw material; preparing a second mixture by adding the second raw material to the extraction water; and preparing a third heating product by thirdly heating the second mixture, wherein the preparing of the first raw material includes: preparing dried eucalyptus leaves and dried saplings; and preparing an herbal medicine, wherein the preparing of the second raw material includes: preparing an extract; preparing a noni aged liquid; preparing brown algae powder; preparing a calcium salt; And it relates to a method for producing a functional health drink, characterized in that it comprises the step of preparing a powder of medicinal grains, by using eureum and noni, postpartum care for women after childbirth, prevention of adult diseases, weight control for diet, etc. It is possible to provide a health functional beverage capable of providing various functions.

Description

건강 기능성 음료 및 이의 제조방법{Health Functional beverage and manufacturing method of the same}Health Functional beverage and manufacturing method of the same

본 발명은 건강 기능성 음료 및 이의 제조방법에 관한 것으로서, 더욱 상세하게는, 으름 원액과 노니 숙성액을 포함하여 제조된 건강 기능성 음료 및 이의 제조방법에 관한 것이다.The present invention relates to a functional health drink and a method for producing the same, and more particularly, to a health functional drink prepared including an oyster extract and a noni aged liquid, and a method for preparing the same.

현대인들은 오염된 대기질 및 서구화된 식생활, 음주, 스트레스, 불규칙적인 식사 등의 원인으로 인하여 암, 면역력약화, 성인병, 위장질환, 고혈압, 당뇨, 심혈관 질환, 피로누적 등 다양한 질병에 시달리고 있다. Modern people suffer from various diseases such as cancer, weakened immunity, adult diseases, gastrointestinal diseases, high blood pressure, diabetes, cardiovascular disease, and accumulated fatigue due to causes such as polluted air quality, westernized diet, drinking, stress, and irregular eating.

이에 따라 위 질병의 예방, 치료에 대한 관심이 높아지면서 이를 위한 건강 기능 식품의 수요가 증가하고 있다. 특히, 최근에는 비타민, 미네랄 제제 뿐 아니라, 장기간 복용하여도 부작용이 없는 천연물질을 가공한 식품이나, 천연물질 추출물을 이용한 건강 기능 식품에 대한 관심이 더욱 증가하고 있다.Accordingly, as interest in the prevention and treatment of gastric diseases increases, the demand for health functional foods for this purpose is increasing. In particular, in recent years, interest in not only vitamin and mineral preparations, but also foods processed with natural substances that do not have side effects even when taken for a long period of time or health functional foods using natural substance extracts are increasing.

한편, 종래에 있어서, 건강 기능성 음료는 시중에 많이 판매되고 있으나, 으름 및 노니를 이용하여 건강 기능성 음료를 제조한 사례는 발견되지 않고 있으며, 이러한 으름 및 노니를 이용한, 출산후 산후조리 여성의 보양, 성인병 예방 및 다이어트를 위한 체중조절 등의 다양한 기능을 제공하는 건강 기능성 음료는 전무한 상태이다.On the other hand, in the prior art, health functional beverages are widely sold in the market, but there has been no case of manufacturing a health functional beverage using eureum and noni. There is no health functional beverage that provides various functions such as weight control for diet and prevention of adult diseases.

한국공개특허 10-2020-0039940Korean Patent Publication No. 10-2020-0039940

본 발명이 해결하고자 하는 과제는, 으름을 이용하여, 출산후 산후조리 여성의 보양, 성인병 예방 및 다이어트를 위한 체중조절 등의 다양한 기능을 제공할 수 있는 건강 기능성 음료 및 이의 제조방법을 제공하는데 그 목적이 있다.The problem to be solved by the present invention is to provide a health functional beverage capable of providing various functions, such as weight control for prevention of adult diseases and diet, and a method for manufacturing the same, by using eureum, postpartum care for women after childbirth, and the like. There is a purpose.

본 발명의 목적들은 이상에서 언급한 목적으로 제한되지 않으며, 언급되지 않은 또 다른 목적들은 아래의 기재로부터 당업자에게 명확하게 이해될 수 있을 것이다.Objects of the present invention are not limited to the objects mentioned above, and other objects not mentioned will be clearly understood by those skilled in the art from the following description.

상기 지적된 문제점을 해결하기 위해서 본 발명은 제1원재료를 준비하는 단계; 상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계; 상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계; 상기 제1가열물을, 제1일정시간 동안 방치하는 단계; 상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계; 상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계; 상기 방치된 제2가열물로부터 추출수를 여과하는 단계; 제2원재료를 준비하는 단계; 상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계; 및 상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계를 포함하며, 상기 제1원재료를 준비하는 단계는, 건조된 으름잎과 건조된 으름껍질을 준비하는 단계; 및 한약재를 준비하는 단계를 포함하고, 상기 제2원재료를 준비하는 단계는, 으름액을 제조하는 단계; 노니 숙성액을 제조하는 단계; 갈조류 분말을 제조하는 단계; 슘 소금을 준비하는 단계; 및 약식곡물 분말을 준비하는 단계를 포함하는 것을 특징으로 하는 건강 기능성 음료의 제조방법을 제공한다.In order to solve the above-mentioned problems, the present invention comprises the steps of preparing a first raw material; preparing a first mixture by adding the first raw material to purified water; preparing a first heating product by first heating the first mixture; leaving the first heating object to stand for a first predetermined time; manufacturing a second heating product by second secondary heating of the first heating product, which has been left standing; sealing the second heating object and leaving it to stand for a second predetermined time; filtering the extracted water from the left second heated water; preparing a second raw material; preparing a second mixture by adding the second raw material to the extraction water; and preparing a third heating product by thirdly heating the second mixture, wherein the preparing of the first raw material includes: preparing dried eucalyptus leaves and dried saplings; and preparing an herbal medicine, wherein the preparing of the second raw material includes: preparing an extract; preparing a noni aged liquid; preparing brown algae powder; preparing a calcium salt; and preparing a medicinal grain powder.

또한, 본 발명은 상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계에서, 상기 건조된 으름잎과 상기 건조된 으름껍질은, 상기 정제수 100 중량부 대비 4.2 내지 7.1 중량부로 포함되며, 또한, 상기 한약재는, 상기 정제수 100 중량부 대비 2.8 내지 4.2 중량부로 포함되는 것을 특징으로 하는 건강 기능성 음료의 제조방법을 제공한다.In addition, in the present invention, in the step of preparing the first mixture by adding the first raw material to purified water, the dried eucalyptus leaves and the dried ragout husk are included in an amount of 4.2 to 7.1 parts by weight compared to 100 parts by weight of the purified water, In addition, the herbal medicine provides a method for producing a health functional beverage, characterized in that it is included in an amount of 2.8 to 4.2 parts by weight based on 100 parts by weight of the purified water.

또한, 본 발명은 상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계에서, 상기 으름액은, 상기 추출수 100 중량부 대비 1.4 중량부 내지 4.2 중량부로 포함되고, 또한, 상기 노니 숙성액은, 상기 추출수 100 중량부 대비 7.1 중량부 내지 11.4 중량부로 포함되며, 또한, 상기 갈조류 분말은, 상기 추출수 100 중량부 대비 7.1 중량부 내지 14.2 중량부로 포함되고, 또한, 상기 슘 소금은, 상기 추출수 100 중량부 대비 2.8 중량부 내지 4.2 중량부로 포함되고, 또한, 상기 약식곡물 분말은, 상기 추출수 100 중량부 대비 12.8 중량부 내지 15.7 중량부로 포함하는 것을 특징으로 하는 건강 기능성 음료의 제조방법을 제공한다.In addition, in the present invention, in the step of preparing the second mixture by adding the second raw material to the extraction water, the extract is included in an amount of 1.4 parts by weight to 4.2 parts by weight relative to 100 parts by weight of the extraction water, and, The aged noni liquid is included in an amount of 7.1 parts by weight to 11.4 parts by weight based on 100 parts by weight of the extracted water, and the brown algae powder is included in an amount of 7.1 parts by weight to 14.2 parts by weight based on 100 parts by weight of the extracted water, and the calcium Salt is included in an amount of 2.8 parts by weight to 4.2 parts by weight based on 100 parts by weight of the extracted water, and the abbreviated grain powder is included in an amount of 12.8 parts by weight to 15.7 parts by weight based on 100 parts by weight of the extract water Health functionalities, characterized in that it is included A method for preparing a beverage is provided.

또한, 본 발명은 상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계는, 상기 제1혼합물을, 제1온도를 유지하며 제1시간동안 제1차가열하는 것이며, 상기 제1온도는 45 내지 55℃의 온도이고, 상기 제1시간은 50분 내지 70분이며, 상기 제1가열물을, 제1일정시간 동안 방치하는 단계는, 상기 제1가열물을 상온(22 내지 26℃)에서 방치하는 것으로, 상기 제1일정시간은 50분 내지 70분이며, 상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계는, 상기 제1가열물을, 제2온도를 유지하며 제2시간동안 제2차가열하는 것이며, 상기 제2온도는 100 내지 105℃의 온도이고, 상기 제2시간은 1시간 내지 2시간이며, 상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계는, 상기 제2가열물을 밀봉하여 상온(22 내지 26℃)에서 방치하는 것으로, 상기 제2일정시간은 23시간 내지 25시간인 것을 특징으로 하는 건강 기능성 음료의 제조방법을 제공한다.In addition, in the present invention, the step of producing a first heating product by first heating the first mixture is to heat the first mixture for a first time while maintaining a first temperature, The first temperature is a temperature of 45 to 55° C., the first time is 50 minutes to 70 minutes, and the step of leaving the first heated material for a first predetermined time is to put the first heated material at room temperature (22 to 26° C.), the first predetermined time is 50 to 70 minutes, and the second secondary heating of the first heated material for which the standing is completed, to prepare a second heated material, includes: The first heating object is secondarily heated for a second time while maintaining the second temperature, the second temperature is a temperature of 100 to 105° C., the second time is 1 hour to 2 hours, and the second The step of sealing the heating object and leaving it for a second predetermined time includes sealing the second heating object and leaving it at room temperature (22 to 26° C.), wherein the second predetermined time is 23 to 25 hours. It provides a method for producing a health functional beverage.

또한, 본 발명은 상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계는, 상기 제2혼합물을, 제3온도를 유지하며 제3시간동안 제3차가열하는 것으로, 상기 제3온도는 100 내지 105℃의 온도이고, 상기 제2시간은 15분 내지 30분인 것을 특징으로 하는 건강 기능성 음료의 제조방법을 제공한다.In addition, in the present invention, the third heating of the second mixture to prepare a third heating product is to heat the second mixture for a third time while maintaining the third temperature, The third temperature is a temperature of 100 to 105 ℃, the second time provides a method for producing a health functional beverage, characterized in that 15 to 30 minutes.

또한, 본 발명은 상기 갈조류 분말은, 건조된 미역 및 건조된 다시마를 1:0.5 내지 1.5의 비율로 혼합한 것이고, 상기 약식 곡물은, 찹쌀, 찰현미, 현미, 찰흑미, 메흑미, 할맥, 압맥, 쌀보기쌀, 찰보리쌀, 늘보리쌀, 귀리쌀, 밀쌀, 기장쌀, 수수쌀, 완두콩, 렌틸콩, 동부콩, 백태, 적두, 차좁쌀, 강낭콩 및 울타리콩인 것을 특징으로 하는 건강 기능성 음료의 제조방법을 제공한다.In addition, in the present invention, the brown algae powder is a mixture of dried seaweed and dried kelp in a ratio of 1:0.5 to 1.5, and the abbreviated grains are glutinous rice, brown rice, brown rice, brown rice, brown rice, halmaek, and pressed rice. , rice bodily rice, glutinous barley rice, always barley rice, oat rice, wheat rice, millet rice, millet rice, peas, lentils, eastern beans, white beans, red beans, tea millet rice, kidney beans and pickled beans, characterized in that the manufacturing method of a health functional beverage to provide.

또한, 본 발명은 건강 기능성 음료의 제조방법에 의해 제조된 건강 기능성 음료를 제공한다.In addition, the present invention provides a health functional beverage manufactured by a method for producing a health functional beverage.

상기한 바와 같은 본 발명에 따르면, 으름 및 노니를 이용하여, 출산후 산후조리 여성의 보양, 성인병 예방 및 다이어트를 위한 체중조절 등의 다양한 기능을 제공할 수 있는 건강 기능성 음료를 제공할 수 있다.According to the present invention as described above, it is possible to provide a health functional beverage capable of providing various functions, such as weight control for weight control, prevention of adult diseases, and postpartum care for women after childbirth by using sulphur and noni.

또한, 본 발명에서는, 제1원재료인 으름껍질 및 으름잎으로부터 유효성분을 추출하고, 이후, 제2원재료인 으름액과 노니액을 혼합함으로써, 으름과 노니로부터 획득할 수 있는 유효성분을 용이하게 추출할 수 있다.,In addition, in the present invention, by extracting the active ingredient from the first raw material, sorghum husk and eucalyptus leaf, and thereafter, mixing the second raw material, eureum liquid and noni liquid, the active ingredient that can be obtained from eureum and noni is easily obtained can be extracted,

특히, 본 발명에서는, 제1원재료인 으름껍질 및 으름잎으로부터 유효성분을 추출함에 있어서, 제1차가열, 제1차가열물 방치, 제2차가열 및 제2차가열물 방치의 4단계를 거쳐 건강 기능성 음료를 제조함으로써, 상기 제1원재료의 성분이 더욱 진하게 우러나옴과 동시에, 상기 제1원재료의 성분이 파괴되는 것을 방지할 수 있다.In particular, in the present invention, in extracting the active ingredient from the first raw material, saplings, and leaves, the four steps of the first secondary heating, leaving the first heating material, leaving the second secondary heating and the second heating material, are performed. By producing a health functional beverage through the process, it is possible to prevent the components of the first raw material from being destroyed at the same time as the components of the first raw material come out more intensely.

도 1은 본 발명에 따른 건강 기능성 음료의 제조방법을 설명하기 위한 흐름도이다.1 is a flowchart for explaining a method of manufacturing a health functional beverage according to the present invention.

본 발명의 이점 및 특징, 그리고 그것들을 달성하는 방법은 첨부되는 도면과 함께 상세하게 후술되어 있는 실시예들을 참조하면 명확해질 것이다. 그러나 본 발명은 이하에서 개시되는 실시예들에 한정되는 것이 아니라 서로 다른 다양한 형태로 구현될 것이며, 단지 본 실시예들은 본 발명의 개시가 완전하도록 하며, 본 발명이 속하는 기술분야에서 통상의 지식을 가진 자에게 발명의 범주를 완전하게 알려주기 위해 제공되는 것이며, 본 발명은 청구항의 범주에 의해 정의될 뿐이다.Advantages and features of the present invention and methods of achieving them will become apparent with reference to the embodiments described below in detail in conjunction with the accompanying drawings. However, the present invention is not limited to the embodiments disclosed below, but will be implemented in a variety of different forms, and only these embodiments allow the disclosure of the present invention to be complete, and common knowledge in the technical field to which the present invention belongs It is provided to fully inform the possessor of the scope of the invention, and the present invention is only defined by the scope of the claims.

아래 첨부된 도면을 참조하여 본 발명의 실시를 위한 구체적인 내용을 상세히 설명한다. 도면에 관계없이 동일한 부재번호는 동일한 구성요소를 지칭하며, "및/또는"은 언급된 아이템들의 각각 및 하나 이상의 모든 조합을 포함한다.With reference to the accompanying drawings will be described in detail for the implementation of the present invention. Irrespective of the drawings, like reference numbers refer to like elements, and "and/or" includes each and every combination of one or more of the recited items.

비록 제1, 제2 등이 다양한 구성요소들을 서술하기 위해서 사용되나, 이들 구성요소들은 이들 용어에 의해 제한되지 않음은 물론이다. 이들 용어들은 단지 하나의 구성요소를 다른 구성요소와 구별하기 위하여 사용하는 것이다. 따라서, 이하에서 언급되는 제1 구성요소는 본 발명의 기술적 사상 내에서 제2 구성요소일 수도 있음은 물론이다.Although the first, second, etc. are used to describe various elements, these elements are not limited by these terms, of course. These terms are only used to distinguish one component from another. Accordingly, it goes without saying that the first component mentioned below may be the second component within the spirit of the present invention.

본 명세서에서 사용된 용어는 실시예들을 설명하기 위한 것이며 본 발명을 제한하고자 하는 것은 아니다. 본 명세서에서, 단수형은 문구에서 특별히 언급하지 않는 한 복수형도 포함한다. 명세서에서 사용되는 "포함한다(comprises)" 및/또는 "포함하는(comprising)"은 언급된 구성요소 외에 하나 이상의 다른 구성요소의 존재 또는 추가를 배제하지 않는다.The terminology used herein is for the purpose of describing the embodiments and is not intended to limit the present invention. In this specification, the singular also includes the plural unless specifically stated otherwise in the phrase. As used herein, “comprises” and/or “comprising” does not exclude the presence or addition of one or more other components in addition to the stated components.

다른 정의가 없다면, 본 명세서에서 사용되는 모든 용어(기술 및 과학적 용어를 포함)는 본 발명이 속하는 기술분야에서 통상의 지식을 가진 자에게 공통적으로 이해될 수 있는 의미로 사용될 수 있을 것이다. 또 일반적으로 사용되는 사전에 정의되어 있는 용어들은 명백하게 특별히 정의되어 있지 않는 한 이상적으로 또는 과도하게 해석되지 않는다.Unless otherwise defined, all terms (including technical and scientific terms) used herein may be used with the meaning commonly understood by those of ordinary skill in the art to which the present invention belongs. In addition, terms defined in a commonly used dictionary are not to be interpreted ideally or excessively unless clearly defined in particular.

공간적으로 상대적인 용어인 "아래(below)", "아래(beneath)", "하부(lower)", "위(above)", "상부(upper)" 등은 도면에 도시되어 있는 바와 같이 하나의 구성 요소와 다른 구성 요소들과의 상관관계를 용이하게 기술하기 위해 사용될 수 있다. 공간적으로 상대적인 용어는 도면에 도시되어 있는 방향에 더하여 사용시 또는 동작시 구성요소들의 서로 다른 방향을 포함하는 용어로 이해되어야 한다. 예를 들면, 도면에 도시되어 있는 구성요소를 뒤집을 경우, 다른 구성요소의 "아래(below)" 또는 "아래(beneath)"로 기술된 구성요소는 다른 구성요소의 "위(above)"에 놓여질 수 있다. 따라서, 예시적인 용어인 "아래"는 아래와 위의 방향을 모두 포함할 수 있다. 구성요소는 다른 방향으로도 배향될 수 있고, 이에 따라 공간적으로 상대적인 용어들은 배향에 따라 해석될 수 있다. Spatially relative terms "below", "beneath", "lower", "above", "upper", etc. It can be used to easily describe the correlation between a component and other components. Spatially relative terms should be understood as terms including different directions of components during use or operation in addition to the directions shown in the drawings. For example, when a component shown in the drawing is turned over, a component described as “beneath” or “beneath” of another component may be placed “above” of the other component. can Accordingly, the exemplary term “below” may include both directions below and above. Components may also be oriented in other orientations, and thus spatially relative terms may be interpreted according to orientation.

이하, 첨부된 도면을 참조하여 본 발명의 바람직한 실시예를 상세히 설명하기로 한다.Hereinafter, preferred embodiments of the present invention will be described in detail with reference to the accompanying drawings.

도 1은 본 발명에 따른 건강 기능성 음료의 제조방법을 설명하기 위한 흐름도이다.1 is a flowchart for explaining a method of manufacturing a health functional beverage according to the present invention.

도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법은, 제1원재료를 준비하는 단계(S100); 상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계(S110); 상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계(S120); 상기 제1가열물을, 제1일정시간 동안 방치하는 단계(S130); 상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계(S140); 상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계(S150); 및 상기 방치된 제2가열물로부터 추출수를 여과하는 단계(S160)를 포함한다.Referring to Figure 1, the method of manufacturing a health functional beverage according to the present invention, the step of preparing a first raw material (S100); preparing a first mixture by adding the first raw material to purified water (S110); The first secondary heating of the first mixture to prepare a first heating product (S120); leaving the first heating object to stand for a first predetermined time (S130); manufacturing a second heating object by second heating the first heating object, which has been left standing, for a second time (S140); sealing the second heating material and leaving it to stand for a second predetermined time (S150); and filtering the extracted water from the left second heated water (S160).

보다 구체적으로, 상기 제1원재료를 준비하는 단계(S100)는, 건조된 으름잎과 건조된 으름껍질을 준비하는 단계; 및 한약재를 준비하는 단계를 포함한다.More specifically, the step of preparing the first raw material (S100) includes the steps of: preparing dried sagebrush leaves and dried saplings; And it includes the step of preparing the herbal medicine.

이를 보다 상세히 설명하면 다음과 같다.This will be described in more detail as follows.

먼저, 건조된 으름잎과 건조된 으름껍질을 준비하는 단계와 관련하여, 으름은 쌍떡잎식물강 미나리아재목 으름덩굴과 으름속에 속하는 만목으로 우리나라 전역, 일본, 중국 등에 분포한다. First, with respect to the step of preparing the dried sagebrush leaves and dried saplings, eureum is a dicotyledonous plant belonging to the buttercup genus Eurum and is distributed throughout Korea, Japan, and China.

학명은 akebia quinata이고 임하부인(林下婦人), 목통(木通), 통초(通草)라고도 하며, 으름열매는 연복자 (燕覆子)라고 부르기도 하며, 골짜기나 계곡에 주로 서식하며 이웃나무에 감아 올라가거나 바위에 기대어 자란다. The scientific name is akebia quinata, and it is also called Limhabuin, Moktong, and Tongcho. It grows up by winding it up or leaning on a rock.

잎과 열매의 모양이 특이해 조경용으로도 이용되며 뿌리와 줄기, 열매 모두 식용 가능하다. 열매는 9 월이나 10 월에 열리며 과육은 굽어진 타원형이고 길이는 6 내지 10 ㎝ 정도로 매우 두꺼운 껍질을 가지고 있다.Due to the unusual shape of the leaves and fruits, it is also used for landscaping, and the roots, stems, and fruits are all edible. The fruit is opened in September or October, and the flesh is curved oval and has a very thick skin with a length of 6 to 10 cm.

완전히 익은 경우 열매 껍질이 갈라져 하얗고 무른 속과 검은 씨앗들이 나오는 특징이 있다. 줄기와 뿌리는 가을에 채취하여 그늘에 말린 후 차를 끓여서 마시기도 하며, 열매는 가을에 성숙한 것을 채취하여 생으로 쓰거나 그늘에 말려서 차를 끓여 마시기도 했다. 또한, 어린잎은 데쳐서 나물로 먹고, 익은 열매는 과실로 먹기도 하였다.When fully ripe, the skin of the fruit splits to reveal a white, soft inside and black seeds. Stems and roots were collected in the fall, dried in the shade, and then brewed to drink tea. Fruits matured in autumn were collected and used raw, or dried in the shade and brewed for tea. In addition, young leaves were boiled and eaten as vegetables, and ripe fruits were eaten as fruits.

한편, 으름 줄기와 뿌리는 한의학에서 약재로 쓰이기도 했으며 이뇨작용, 항균작용, 항염작용이 있다고 알려져 있다.On the other hand, the stems and roots of Eulaceae are also used as medicinal in oriental medicine and are known to have diuretic, antibacterial, and anti-inflammatory properties.

으름 열매에는 사포닌, 올레아놀릭산(oleanolic acid)과 같은 유효성분이 함유되어 있다.Eureum fruit contains active ingredients such as saponin and oleanolic acid.

이때, 본 발명에서는, 상기 건조된 으름잎과 상기 건조된 으름껍질을 준비하는 단계에서는, 으름잎과 으름껍질을 함수율이 5 내지 30%가 되도록 그늘에서 건조하여 준비할 수 있다.At this time, in the present invention, in the step of preparing the dried eucalyptus leaves and the dried eucalyptus husks, the eucalyptus leaves and the eucalyptus husks may be prepared by drying in the shade so that the moisture content is 5 to 30%.

다음으로, 한약재를 준비하는 단계와 관련하여, 본 발명에 따른 한약재는 익모초와 감초를 포함한다.Next, with respect to the step of preparing the herbal medicine, the herbal medicine according to the present invention includes motherwort and licorice.

이때, 상기 익모초(Leonurus japonicus Houttuyn)는 익모초의 지상부를 사용할 수 있으며, 바람직하게는 익모초의 꽃이 피기 전 채취한 지상부를 사용하며, 이 때 줄기 및 잎을 함께 사용할 수 있다.In this case, as the motherwort (Leonurus japonicus Houttuyn), the above-ground part of the motherwort may be used, preferably, the above-ground part collected before the flower of the motherwort is used, and in this case, the stem and the leaf may be used together.

또한, 상기 감초는 감초(Glycyrrhiza uralensis Fischer)의 뿌리 및 뿌리줄기로서 주피를 제거한 후 사용할 수 있다.In addition, the licorice can be used after removing the epidermis as the root and rhizome of licorice (Glycyrrhiza uralensis Fischer).

즉, 본 발명에서는, 상기 한약재를 준비하는 단계에서, 상기 한약재는 상기 익모초와 상기 감초를 함수율이 5 내지 30%가 되도록 그늘에서 건조하여 준비할 수 있다. That is, in the present invention, in the step of preparing the herbal medicine, the herbal medicine may be prepared by drying the motherwort and the licorice so that the moisture content is 5 to 30% in the shade.

이상과 같은 내용 및 방법을 통해, 본 발명에 따른 제1원재료를 준비할 수 있다.Through the above content and method, it is possible to prepare the first raw material according to the present invention.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계(S110)는, 상기 제1원재료 및 상기 정제수를 일정 비율로 혼합하여, 상기 제1혼합물을 준비하며, 상기 제1원재료와 상기 정제수의 비율은 다음과 같다.Subsequently, referring to Figure 1, in the method for producing a health functional beverage according to the present invention, the step of preparing a first mixture by adding the first raw material to purified water (S110), the first raw material and the purified water By mixing in a certain ratio, the first mixture is prepared, and the ratio of the first raw material to the purified water is as follows.

즉, 상기 제1원재료는, 건조된 으름잎과 건조된 으름껍질; 및 한약재를 포함하며, 상기 건조된 으름잎과 건조된 으름껍질은, 상기 정제수 100 중량부 대비 4.2 내지 7.1 중량부로 포함되며, 또한, 상기 한약재는, 상기 정제수 100 중량부 대비 2.8 내지 4.2 중량부로 포함된다. 이때, 상기 중량부는 중량(Kg)을 기준으로 한다.That is, the first raw material may include: dried wrinkle leaves and dried shiitake husks; and herbal medicines, wherein the dried eucalyptus leaves and dried hulls are included in an amount of 4.2 to 7.1 parts by weight based on 100 parts by weight of the purified water, and the herbal medicine is included in an amount of 2.8 to 4.2 parts by weight compared to 100 parts by weight of the purified water. do. In this case, the weight part is based on the weight (Kg).

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계(S120)는, 상기 제1혼합물을, 제1온도를 유지하며 제1시간동안 제1차가열하는 것으로 정의될 수 있다.Continuing, referring to Figure 1, in the method for producing a health functional beverage according to the present invention, the first secondary heating of the first mixture to produce a first heating product (S120), the first mixture , it may be defined as maintaining the first temperature and performing the first heat for the first time.

이때, 상기 제1온도는 45 내지 55℃의 온도에 해당하며, 상기 제1시간은 50분 내지 70분에 해당한다.In this case, the first temperature corresponds to a temperature of 45 to 55° C., and the first time corresponds to 50 to 70 minutes.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 제1가열물을, 제1일정시간 동안 방치하는 단계(S130)는, 상기 제1가열물을 상온(22 내지 26℃)에서 방치하는 것으로, 상기 제1일정시간은 50분 내지 70분에 해당한다.Continuingly, referring to Figure 1, in the method for producing a health functional beverage according to the present invention, the step of leaving the first heated water for a first predetermined period of time (S130), the first heated water at room temperature (22) to 26 ℃), the first predetermined time corresponds to 50 minutes to 70 minutes.

즉, 상기 제1가열물을 상온에서 제1일정시간동안 방치함으로써, 상기 제1원재료의 성분이 상기 정제수에 우러나올 수 있으며, 상기 제1가열물을 방치하는 과정에서, 상기 제1가열물의 온도는 점차적으로 낮아지게 된다.That is, by leaving the first heating material at room temperature for a first predetermined period of time, the components of the first raw material can come out in the purified water, and in the process of leaving the first heating material unattended, the temperature of the first heating material is gradually lowered.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계(S140)는, 상기 제1가열물을, 제2온도를 유지하며 제2시간동안 제2차가열하는 것으로 정의될 수 있다.Continuing, referring to Figure 1, in the method for producing a health functional beverage according to the present invention, the step (S140) of producing a second heating product by second secondary heating of the first heated material that has been left alone, It may be defined as a second secondary heating of the first heating material for a second time while maintaining a second temperature.

이때, 상기 제2온도는 100 내지 105℃의 온도에 해당하며, 상기 제2시간은 1시간 내지 2시간에 해당한다.In this case, the second temperature corresponds to a temperature of 100 to 105° C., and the second time corresponds to 1 to 2 hours.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계(S150)는, 상기 제2가열물을 밀봉하여 상온(22 내지 26℃)에서 방치하는 것으로, 상기 제2일정시간은 23시간 내지 25시간에 해당한다.Continuingly, referring to FIG. 1 , in the method for manufacturing a health functional beverage according to the present invention, the step (S150) of sealing the second heating material and leaving it for a second predetermined time is, sealing the second heating material. to be left at room temperature (22 to 26° C.), and the second predetermined time corresponds to 23 to 25 hours.

즉, 상기 제2가열물을 상온에서 제2일정시간동안 방치함으로써, 상기 제1원재료의 성분이 상기 정제수에 우러나올 수 있으며, 상기 제2가열물을 방치하는 과정에서, 상기 제2가열물의 온도는 점차적으로 낮아지게 된다.That is, by leaving the second heating material at room temperature for a second predetermined time, the components of the first raw material can come out in the purified water, and in the process of leaving the second heating material unattended, the temperature of the second heating material is gradually lowered.

이때, 상기 제2가열물은 밀봉되어 있어, 밀봉하지 않고 상온에 방치하는 경우보다 제2가열물의 온도가 낮아지는 속도가 늦으며, 따라서, 상기 원재료의 성분이 상기 정제수에 더욱 진하게 우러나올 수 있다.At this time, since the second heating material is sealed, the rate at which the temperature of the second heating material decreases is slower than when the second heating material is left at room temperature without sealing. .

즉, 본 발명에서는, 상기 제1혼합물을 제1차가열하고, 상기 제1차가열된 제1가열물을 방치한 후, 상기 방치된 제1차가열물을 제2차가열하고, 이후, 상기 제2차가열물을 방치하는 공정을 통해, 본 발명에 따른 건강 기능성 음료를 제조하게 된다.That is, in the present invention, the first mixture is first heated, the first heated object is left to stand, and the left first heated object is secondarily heated, and then, Through the process of leaving the second heating water to stand, the health functional beverage according to the present invention is manufactured.

본 발명에서 이와 같은 제1차가열, 제1차가열물 방치, 제2차가열 및 제2차가열물 방치의 4단계를 거쳐 건강 기능성 음료를 제조하는 것은, 상기 제1원재료의 성분이 더욱 진하게 우러나옴과 동시에, 상기 제1원재료의 성분이 파괴되는 것을 방지하기 위함이다.In the present invention, manufacturing a health functional beverage through the four steps of first heating, leaving the first heating, leaving the second heating, and leaving the second heating, the ingredients of the first raw material are more intense. At the same time, it is to prevent the component of the first raw material from being destroyed.

보다 구체적으로, 상기 제1차가열의 경우, 상기 제2차가열과 비교하여 다소 낮은 온도에서 가열을 하게 되는데, 이를 통해, 상기 제1원재료에 예비적인 가열이 가해지고, 이러한 예비적인 가열은 상기 원재료가 다소 낮은 온도에서 정제수를 함수함으로써, 이후의 제2차가열시, 상기 제1원재료의 성분이 더욱 진하게 우러나올 수 있다.More specifically, in the case of the first primary heating, heating is performed at a slightly lower temperature than that of the second secondary heating. Through this, preliminary heating is applied to the first raw material, and this preliminary heating is By adding purified water at a rather low temperature, the components of the first raw material may come out more intensely during the subsequent secondary heating.

또한, 상기 제1차가열물을 방치하는 과정에서, 상기 제1원재료는 더욱더 많은 정제수를 함수하게 되며, 이를 통해, 이후의 제2차가열시, 상기 제1원재료의 성분이 더욱 진하게 우러나올 수 있다.In addition, in the process of leaving the first heating material to stand, the first raw material contains more and more purified water. .

이때, 상기 제1차가열의 단계와 상기 제1차가열물의 단계는, 상술한 바와 같이, 다소 낮은 온도에서 단계가 진행되므로, 상기 제1원재료의 성분이 파괴되는 정도가 낮은 상태에서, 상기 제1원재료의 성분이 우러나올 수 있다.At this time, since the step of the first primary heating and the stage of the first heating material are performed at a rather low temperature as described above, in a state where the degree of destruction of the components of the first raw material is low, the first Ingredients of raw materials may come out.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 방치된 제2가열물로부터 추출수를 여과하는 단계(S160)는, 상기 방치된 제2가열물로부터 잔유 부산물을 제거하고, 거름망 등의 여과기를 통해 액상의 추출수를 여과하는 것으로, 이는 공지된 여과기를 이용하여 상기 추출수를 추출할 수 있다.Continuingly, referring to FIG. 1 , in the method for producing a health functional beverage according to the present invention, the step of filtering the extracted water from the left second heated water (S160) is a residual oil by-product from the left second heated water. is removed, and the liquid extracted water is filtered through a filter such as a sieve, which can be used to extract the extracted water using a known filter.

즉, 본 S160 단계를 통해, 상기 제1원재료인, 건조된 으름잎과 건조된 으름껍질 및 한약재 등과 먼지 등의 부산물이 제거될 수 있다. That is, through this step S160, the first raw material, such as dried eucalyptus leaves, dried eucalyptus husks, herbal medicines, and by-products such as dust can be removed.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법은, 제2원재료를 준비하는 단계(S170); 상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계(S180); 및 상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계(S190)를 포함한다.Continuing, referring to Figure 1, the manufacturing method of the health functional beverage according to the present invention, the step of preparing a second raw material (S170); preparing a second mixture by adding the second raw material to the extraction water (S180); and the third heating of the second mixture to prepare a third heating product (S190).

보다 구체적으로, 상기 제2원재료를 준비하는 단계(S170)는, 으름액을 제조하는 단계; 노니 숙성액을 제조하는 단계; 갈조류 분말을 제조하는 단계; 슘 소금을 준비하는 단계; 및 약식곡물 분말을 준비하는 단계를 포함한다.More specifically, the step of preparing the second raw material (S170) comprises the steps of preparing an extract; preparing a noni aged liquid; preparing brown algae powder; preparing a calcium salt; and preparing an abbreviated grain powder.

먼저, 상기 으름액을 제조하는 단계에서, 상기 으름액은 상술한 바와 같은 으름 과육을 압축하여 제조할 수 있으며, 상기 으름 과육을 압축하는 것은 공지된 압축기를 통해 으름액을 제조할 수 있고, 다만, 본 발명에서 상기 으름 과육을 압축하는 방법을 제한하는 것은 아니다.First, in the step of preparing the euphoria liquid, the euphoreum liquid may be prepared by compressing the euphoria pulp as described above, and compressing the euphoria pulp may be a well-known compressor to prepare the eureum liquid, but However, the present invention does not limit the method of compressing the oyster flesh.

다음으로, 노니 숙성액을 제조하는 단계와 관련하여, 노니(Morinda citrifolia)는 꼭두서니과의 다년생 상록관목 식물로서 동의보감에 해파극, 파극천이라는 생약명으로 수재되어 있다.Next, with respect to the step of preparing the noni ripening liquid, Noni (Morinda citrifolia) is a perennial evergreen shrub of the Apiaceae family, and is listed as a herbal medicine named Haepageuk and Pageukcheon in Donguibogam.

노니는 식물성 화학 물질을 비롯하여 영양성분을 포함한 약 200여 종 이상의 다양한 성분들을 풍부하게 함유하고 있으며, 루틴(rutin), 우르솔산(ursolic acid), 프로제로닌(proxeronine), 담나칸탈(damnacanthal) 및 안트라퀴논(anthraquinone) 등의 성분을 포함하는데, 이러한 성분들은 항균, 항바이러스, 항고혈압, 항염증 등의 생리활성과 관련되어 있다. 특히 노니 열매는 소염진통, 혈당억제, 변비해소, 지혈, 염증해소 등의 효능에 탁월한 것으로 알려져 있다.Noni contains phytochemicals and more than 200 various ingredients, including nutrients, abundantly, and contains rutin, ursolic acid, proxeronine, damnacanthal and anthraquinone ( anthraquinone), and these components are related to physiological activities such as antibacterial, antiviral, antihypertensive, and anti-inflammatory. In particular, noni fruit is known for its anti-inflammatory and analgesic properties, blood sugar control, constipation relief, hemostasis, and inflammation relief.

이때, 본 발명에서는, 상기 노니 숙성액을 제조하는 단계에서, 상기 노니 숙성액은, 노니를 발효후 숙성하여 숙성액을 제조할 수 있으며, 이러한 노니의 발효 및 숙성 방법은, 예를 들면, 한국공개특허 10-2020-0039940을 참조할 수 있고, 다만, 본 발명에서 상기 노니 숙성액의 발효 및 숙성방법을 제한하는 것은 아니다.At this time, in the present invention, in the step of preparing the aged noni liquid, the aged noni liquid may be fermented and then aged to prepare the aged liquid, and the fermentation and aging method of noni is, for example, in Korea Reference may be made to Korean Patent Publication No. 10-2020-0039940, however, the present invention is not intended to limit the fermentation and aging method of the aged noni liquid.

다음으로, 갈조류 분말을 제조하는 단계와 관련하여, 상기 갈조류 분말은, 건조된 미역 및 건조된 다시마를 1:0.5 내지 1.5의 비율로 혼합한 후, 이를 분쇄하여 분말화함으로써, 상기 갈조류 분말을 제조할 수 있다.Next, with respect to the step of preparing the brown algae powder, the brown algae powder is prepared by mixing dried seaweed and dried kelp in a ratio of 1:0.5 to 1.5, and then pulverizing it to make the powder. can do.

다음으로, 슘 소금을 준비하는 단계와 관련하여, 상기 슘 소금은 도자기 소금으로 명칭될 수 있으며, 일반적으로, 전통 고령토 장작가마에서 1300℃로 구워낸 도자기에, 국내산 천일염을 담아 800℃의 고온에서 가열함으로써 제조된 것으로, 이는 유해성분이 제거된 미네랄 알카리성 소금으로 잘 알려져 있다.Next, in relation to the step of preparing the sium salt, the sium salt may be called porcelain salt, and in general, it is heated at a high temperature of 800 ℃ by putting domestic sea salt in porcelain baked at 1300 ℃ in a traditional kaolin firewood kiln. This is a well-known mineral alkaline salt from which harmful components have been removed.

본 발명에서는 상기 슘 소금의 경우, 시중에서 유통되는 슘 소금을 사용할 수 있다.In the present invention, in the case of the calcium salt, commercially available calcium salt may be used.

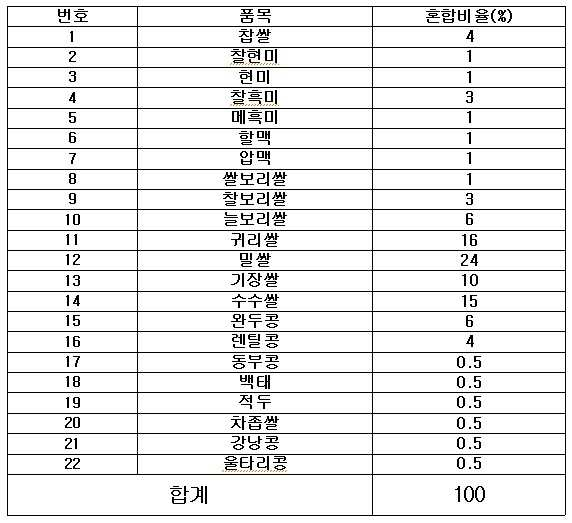

다음으로, 약식곡물 분말을 준비하는 단계와 관련하여, 본 발명에 따른 약식곡물은 22종을 포함한다.Next, with respect to the step of preparing the medicinal grain powder, the medicinal grain according to the present invention includes 22 kinds.

보다 구체적으로, 상기 약식 곡물은, 찹쌀, 찰현미, 현미, 찰흑미, 메흑미, 할맥, 압맥, 쌀보기쌀, 찰보리쌀, 늘보리쌀, 귀리쌀, 밀쌀, 기장쌀, 수수쌀, 완두콩, 렌틸콩, 동부콩, 백태, 적두, 차좁쌀, 강낭콩, 울타리콩을 포함하며, 상기 약식곡물을 하기 표 1에 따른 비율로 혼합한 후, 이를 분쇄하여 분말화함으로써 준비할 수 있다.More specifically, the abbreviated grains are glutinous rice, brown rice, brown rice, black rice, buckwheat rice, halmaek, compressed rice, rice grain rice, sticky barley rice, always barley rice, oat rice, wheat rice, millet rice, millet rice, peas, lentils, dongbu It includes soybeans, white peas, red beans, tea millet, kidney beans, and pickles beans, and can be prepared by mixing the abbreviated grains in a ratio according to Table 1 below, and then pulverizing them to pulverize them.

Figure pat00001
Figure pat00001

이상과 같은 내용 및 방법을 통해, 본 발명에 따른 제2원재료를 준비할 수 있다.Through the above content and method, it is possible to prepare the second raw material according to the present invention.

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계(S180)는, 상기 제2원재료 및 상기 추출수를 일정 비율로 혼합하여, 상기 제2혼합물을 준비하며, 상기 제2원재료와 상기 추출수의 비율은 다음과 같다.Subsequently, referring to FIG. 1 , in the method for producing a health functional beverage according to the present invention, the step (S180) of preparing a second mixture by adding the second raw material to the extraction water includes the second raw material and the The extracted water is mixed in a certain ratio to prepare the second mixture, and the ratio of the second raw material to the extracted water is as follows.

즉, 상기 제2원재료는, 으름액; 노니 숙성액; 갈조류 분말; 슘 소금; 및 약식곡물 분말을 포함한다.That is, the second raw material is, Eureum solution; Noni ripening liquid; brown algae powder; calcium salt; and abbreviated grain powders.

이때, 상기 으름액은, 상기 추출수 100 중량부 대비 1.4 중량부 내지 4.2 중량부로 포함되고, 또한, 상기 노니 숙성액은, 상기 추출수 100 중량부 대비 7.1 중량부 내지 11.4 중량부로 포함되며, 또한, 상기 갈조류 분말은, 상기 추출수 100 중량부 대비 7.1 중량부 내지 14.2 중량부로 포함되고, 또한, 상기 슘 소금은, 상기 추출수 100 중량부 대비 2.8 중량부 내지 4.2 중량부로 포함되고, 또한, 상기 약식곡물 분말은, 상기 추출수 100 중량부 대비 12.8 중량부 내지 15.7 중량부로 포함된다. 이때, 상기 중량부는 중량(Kg)을 기준으로 한다.At this time, the extract is included in an amount of 1.4 parts by weight to 4.2 parts by weight relative to 100 parts by weight of the extract water, and the aged noni liquid is included in an amount of 7.1 parts by weight to 11.4 parts by weight relative to 100 parts by weight of the extract water, and , The brown algae powder is included in an amount of 7.1 parts by weight to 14.2 parts by weight relative to 100 parts by weight of the extracted water, and the calcium salt is included in an amount of 2.8 parts by weight to 4.2 parts by weight compared to 100 parts by weight of the extracted water, and, The abbreviated grain powder is included in an amount of 12.8 parts by weight to 15.7 parts by weight based on 100 parts by weight of the extract water. In this case, the weight part is based on the weight (Kg).

계속해서, 도 1을 참조하면, 본 발명에 따른 건강 기능성 음료의 제조방법에서, 상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계(S190)는, 상기 제2혼합물을, 제3온도를 유지하며 제3시간동안 제3차가열하는 것으로 정의될 수 있다.Continuing, referring to Figure 1, in the method for producing a health functional beverage according to the present invention, the step (S190) of preparing a third heating product by heating the second mixture by a third, the second mixture , while maintaining the third temperature, it can be defined as the third heating for the third time.

이때, 상기 제3온도는 100 내지 105℃의 온도에 해당하며, 상기 제2시간은 15분 내지 30분에 해당한다.In this case, the third temperature corresponds to a temperature of 100 to 105° C., and the second time corresponds to 15 to 30 minutes.

본 발명에서는, 상술한 제3차가열을 통해, 제3가열물을 제조할 수 있으며, 상기 제3가열물은 본 발명에 따른 건강 기능성 음료로 활용할 수 있다.In the present invention, through the third secondary heating described above, a third heating product can be manufactured, and the third heating product can be utilized as a health functional beverage according to the present invention.

한편, 상기 제3가열물은 상기 제3차가열의 과정에서, 상기 추출수에 함유된 물이 증발하면서, 일정 점도를 포함할 수 있으며, 다만, 이러한 일정 점도를 포함하는 상기 제3가열물은, 본 발명에 따른 음료의 범주에 포함되는 것으로 정의할 수 있다. On the other hand, the third heating material may include a certain viscosity while the water contained in the extraction water evaporates in the process of the third secondary heating, provided that the third heating material including this constant viscosity, It can be defined as being included in the category of beverages according to the present invention.

한편, 상기 제3가열물을 추가적으로 가열하는 경우, 상기 제3가열물은 죽과 같은 상태로 변형될 수 있으며, 더 나아가, 상기 제3가열물을 계속적으로 가열하여 상기 추출수에 함유된 물이 모두 증발하는 경우, 상기 제3가열물은 고형화될 수 있다.On the other hand, when the third heated material is additionally heated, the third heated material may be transformed into a porridge-like state, and further, the water contained in the extract water is continuously heated by continuously heating the third heated material. When all of them evaporate, the third heating material may be solidified.

이때, 본 발명에서는, 상기 고형화된 제3가열물을 분쇄하여 분말화 한 후, 상기 분말화된 제3가열물을 다시 물에 혼합하여 음료화할 수 있으며, 따라서, 본 발명에서 건강 기능성 음료의 범주는, 상기 분말화된 제3가열물을 다시 물에 혼합하여 음료화한 경우를 포함하는 것으로 정의할 수 있다.At this time, in the present invention, after pulverizing and pulverizing the solidified third heated material, the powdered third heated material may be mixed with water again to make a beverage, and thus, in the present invention, the category of health functional beverage may be defined as including a case in which the powdered third heated product is mixed with water again to make a drink.

즉, 본 발명에서는, 상기 S190 단계를 거친 제3가열물을 건강 기능성 음료로 활용할 수 있을 뿐만 아니라, 상기 S190 단계를 거친 제3가열물을 추가적으로 가열하여 고형화한 후, 상기 고형화된 제3가열물을 분말화하여 활용할 수 있고, 이때, 상기 분말화된 제3가열물을 물에 혼합하여 음료화함으로써, 본 발명에 따른 건강 기능성 음료를 제조할 수 있다.That is, in the present invention, the third heated material that has undergone the step S190 can be used as a health functional beverage, and the third heated material that has undergone the step S190 is additionally heated and solidified, and then the solidified third heated product can be used by powdering, and at this time, by mixing the powdered third heated water with water to make a beverage, a health functional beverage according to the present invention can be prepared.

상술한 바와 같이, 종래에 있어서, 건강 기능성 음료는 시중에 많이 판매되고 있으나, 으름 및 노니를 이용하여 건강 기능성 음료를 제조한 사례는 발견되지 않고 있다.As described above, in the prior art, although a lot of health functional beverages are sold in the market, there has been no case in which health functional beverages are manufactured using eureum and noni.

하지만, 본 발명에서는, 으름 및 노니를 이용하여, 출산후 산후조리 여성의 보양, 성인병 예방 및 다이어트를 위한 체중조절 등의 다양한 기능을 제공할 수 있는 건강 기능성 음료를 제공할 수 있다.However, in the present invention, it is possible to provide a health functional beverage that can provide various functions, such as weight control for weight control and prevention of adult diseases, for postpartum care after childbirth and for women's care after childbirth by using Eureum and Noni.

또한, 본 발명에서는, 제1원재료인 으름껍질 및 으름잎으로부터 유효성분을 추출하고, 이후, 제2원재료인 으름액과 노니액을 혼합함으로써, 으름과 노니로부터 획득할 수 있는 유효성분을 용이하게 추출할 수 있다.,In addition, in the present invention, by extracting the active ingredient from the first raw material, sorghum husk and eucalyptus leaf, and thereafter, mixing the second raw material, eureum liquid and noni liquid, the active ingredient that can be obtained from eureum and noni is easily obtained can be extracted,

특히, 본 발명에서는, 제1원재료인 으름껍질 및 으름잎으로부터 유효성분을 추출함에 있어서, 제1차가열, 제1차가열물 방치, 제2차가열 및 제2차가열물 방치의 4단계를 거쳐 건강 기능성 음료를 제조함으로써, 상기 제1원재료의 성분이 더욱 진하게 우러나옴과 동시에, 상기 제1원재료의 성분이 파괴되는 것을 방지할 수 있다.In particular, in the present invention, in extracting the active ingredient from the first raw material, saplings, and leaves, the four steps of the first secondary heating, leaving the first heating material, leaving the second secondary heating and the second heating material, are performed. By producing a health functional beverage through the process, it is possible to prevent the components of the first raw material from being destroyed at the same time as the components of the first raw material come out more intensely.

이상과 첨부된 도면을 참조하여 본 발명의 실시예를 설명하였지만, 본 발명이 속하는 기술분야에서 통상의 지식을 가진 자는 본 발명이 그 기술적 사상이나 필수적인 특징을 변경하지 않고서 다른 구체적인 형태로 실시될 수 있다는 것을 이해할 수 있을 것이다. 그러므로 이상에서 기술한 실시예들은 모든 면에서 예시적인 것이며 한정적이 아닌 것으로 이해해야만 한다.Although embodiments of the present invention have been described with reference to the above and the accompanying drawings, those of ordinary skill in the art to which the present invention pertains can practice the present invention in other specific forms without changing its technical spirit or essential features. You will understand that there is Therefore, it should be understood that the embodiments described above are illustrative in all respects and not restrictive.

Claims (7)

제1원재료를 준비하는 단계;
상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계;
상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계;
상기 제1가열물을, 제1일정시간 동안 방치하는 단계;
상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계;
상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계;
상기 방치된 제2가열물로부터 추출수를 여과하는 단계;
제2원재료를 준비하는 단계;
상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계; 및
상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계를 포함하며,
상기 제1원재료를 준비하는 단계는, 건조된 으름잎과 건조된 으름껍질을 준비하는 단계; 및 한약재를 준비하는 단계를 포함하고,
상기 제2원재료를 준비하는 단계는, 으름액을 제조하는 단계; 노니 숙성액을 제조하는 단계; 갈조류 분말을 제조하는 단계; 슘 소금을 준비하는 단계; 및 약식곡물 분말을 준비하는 단계를 포함하는 것을 특징으로 하는 건강 기능성 음료의 제조방법.
preparing a first raw material;
preparing a first mixture by adding the first raw material to purified water;
preparing a first heating product by first heating the first mixture;
leaving the first heating object to stand for a first predetermined time;
manufacturing a second heating product by second secondary heating the first heating product, which has been left standing;
sealing the second heating object and leaving it to stand for a second predetermined time;
filtering the extracted water from the left second heated water;
preparing a second raw material;
preparing a second mixture by adding the second raw material to the extraction water; and
Comprising the third heating of the second mixture to prepare a third heating material,
The step of preparing the first raw material may include: preparing dried sagebrush leaves and dried shiitake husks; And comprising the step of preparing the herbal medicine,
Preparing the second raw material may include: preparing an extract; preparing a noni aged liquid; preparing brown algae powder; preparing calcium salt; and preparing a medicinal grain powder.
제 1 항에 있어서,
상기 제1원재료를 정제수에 투입하여 제1혼합물을 준비하는 단계에서,
상기 건조된 으름잎과 상기 건조된 으름껍질은, 상기 정제수 100 중량부 대비 4.2 내지 7.1 중량부로 포함되며, 또한, 상기 한약재는, 상기 정제수 100 중량부 대비 2.8 내지 4.2 중량부로 포함되는 것을 특징으로 하는 건강 기능성 음료의 제조방법.
The method of claim 1,
In the step of preparing the first mixture by adding the first raw material to purified water,
The dried eucalyptus leaves and the dried raspberry husk are included in an amount of 4.2 to 7.1 parts by weight based on 100 parts by weight of the purified water, and the oriental medicine is included in an amount of 2.8 to 4.2 parts by weight based on 100 parts by weight of the purified water. A method of manufacturing a health functional beverage.
제 2 항에 있어서,
상기 제2원재료를 상기 추출수에 투입하여 제2혼합물을 준비하는 단계에서,
상기 으름액은, 상기 추출수 100 중량부 대비 1.4 중량부 내지 4.2 중량부로 포함되고, 또한, 상기 노니 숙성액은, 상기 추출수 100 중량부 대비 7.1 중량부 내지 11.4 중량부로 포함되며, 또한, 상기 갈조류 분말은, 상기 추출수 100 중량부 대비 7.1 중량부 내지 14.2 중량부로 포함되고, 또한, 상기 슘 소금은, 상기 추출수 100 중량부 대비 2.8 중량부 내지 4.2 중량부로 포함되고, 또한, 상기 약식곡물 분말은, 상기 추출수 100 중량부 대비 12.8 중량부 내지 15.7 중량부로 포함하는 것을 특징으로 하는 건강 기능성 음료의 제조방법.
3. The method of claim 2,
In the step of preparing a second mixture by adding the second raw material to the extraction water,
The extract is included in an amount of 1.4 parts by weight to 4.2 parts by weight relative to 100 parts by weight of the extract water, and the noni aged liquid is included in an amount of 7.1 parts by weight to 11.4 parts by weight relative to 100 parts by weight of the extract water, and, The brown algae powder is included in an amount of 7.1 parts by weight to 14.2 parts by weight relative to 100 parts by weight of the extract water, and the calcium salt is included in an amount of 2.8 parts by weight to 4.2 parts by weight relative to 100 parts by weight of the extract water, and the abbreviated grain Powder, a method of producing a health functional beverage, characterized in that it comprises 12.8 parts by weight to 15.7 parts by weight relative to 100 parts by weight of the extract.
제 1 항에 있어서,
상기 제1혼합물을 제1차가열하여, 제1가열물을 제조하는 단계는, 상기 제1혼합물을, 제1온도를 유지하며 제1시간동안 제1차가열하는 것이며, 상기 제1온도는 45 내지 55℃의 온도이고, 상기 제1시간은 50분 내지 70분이며,
상기 제1가열물을, 제1일정시간 동안 방치하는 단계는, 상기 제1가열물을 상온(22 내지 26℃)에서 방치하는 것으로, 상기 제1일정시간은 50분 내지 70분이며,
상기 방치가 완료된 상기 제1가열물을 제2차가열하여, 제2가열물을 제조하는 단계는, 상기 제1가열물을, 제2온도를 유지하며 제2시간동안 제2차가열하는 것이며, 상기 제2온도는 100 내지 105℃의 온도이고, 상기 제2시간은 1시간 내지 2시간이며,
상기 제2가열물을 밀봉하여, 제2일정시간 동안 방치하는 단계는, 상기 제2가열물을 밀봉하여 상온(22 내지 26℃)에서 방치하는 것으로, 상기 제2일정시간은 23시간 내지 25시간인 것을 특징으로 하는 건강 기능성 음료의 제조방법.
The method of claim 1,
The step of producing a first heating material by first heating the first mixture is to heat the first mixture for a first time while maintaining the first temperature, and the first temperature is 45 to 55 ℃ temperature, the first time is 50 minutes to 70 minutes,
The step of leaving the first heated material for a first predetermined time is to leave the first heated material at room temperature (22 to 26° C.), and the first predetermined time is 50 to 70 minutes,
The step of producing a second heating product by second secondary heating of the first heating material, which has been left standing, is to heat the first heating material a second time for a second time while maintaining a second temperature, The second temperature is a temperature of 100 to 105 ℃, the second time is 1 hour to 2 hours,
The step of sealing the second heating material and leaving it to stand for a second predetermined time includes sealing the second heating material and leaving it at room temperature (22 to 26° C.), and the second predetermined time is 23 to 25 hours. A method for producing a health functional beverage, characterized in that
제 4 항에 있어서,
상기 제2혼합물을 제3차가열하여, 제3가열물을 제조하는 단계는, 상기 제2혼합물을, 제3온도를 유지하며 제3시간동안 제3차가열하는 것으로, 상기 제3온도는 100 내지 105℃의 온도이고, 상기 제2시간은 15분 내지 30분인 것을 특징으로 하는 건강 기능성 음료의 제조방법.
5. The method of claim 4,
The third heating of the second mixture to produce a third heating product includes heating the second mixture for a third time while maintaining a third temperature, wherein the third temperature is 100 to 105°C, and the second time is 15 minutes to 30 minutes.
제 1 항에 있어서,
상기 갈조류 분말은, 건조된 미역 및 건조된 다시마를 1:0.5 내지 1.5의 비율로 혼합한 것이고,
상기 약식 곡물은, 찹쌀, 찰현미, 현미, 찰흑미, 메흑미, 할맥, 압맥, 쌀보기쌀, 찰보리쌀, 늘보리쌀, 귀리쌀, 밀쌀, 기장쌀, 수수쌀, 완두콩, 렌틸콩, 동부콩, 백태, 적두, 차좁쌀, 강낭콩 및 울타리콩인 것을 특징으로 하는 건강 기능성 음료의 제조방법.
The method of claim 1,
The brown algae powder is a mixture of dried seaweed and dried kelp in a ratio of 1:0.5 to 1.5,
The abbreviated grains are glutinous rice, brown rice, brown rice, sticky black rice, buckwheat rice, halmaek, pressed rice, rice grain rice, sticky barley rice, always barley rice, oat rice, wheat rice, millet rice, millet rice, peas, lentils, dongbu beans, white rice, A method for producing a functional health drink, characterized in that it is red bean, tea millet, kidney bean and pickled bean.
제 1 항 내지 제 6 항 중 어느 한항의 건강 기능성 음료의 제조방법에 의해 제조된 건강 기능성 음료.[Claim 7] A health functional beverage manufactured by the method of any one of claims 1 to 6.
KR1020200176860A 2020-12-16 2020-12-16 Health Functional beverage and manufacturing method of the same Active KR102588562B1 (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
KR1020200176860A KR102588562B1 (en) 2020-12-16 2020-12-16 Health Functional beverage and manufacturing method of the same

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
KR1020200176860A KR102588562B1 (en) 2020-12-16 2020-12-16 Health Functional beverage and manufacturing method of the same

Publications (2)

Publication Number Publication Date
KR20220086422A true KR20220086422A (en) 2022-06-23
KR102588562B1 KR102588562B1 (en) 2023-10-12

Family

ID=82221800

Family Applications (1)

Application Number Title Priority Date Filing Date
KR1020200176860A Active KR102588562B1 (en) 2020-12-16 2020-12-16 Health Functional beverage and manufacturing method of the same

Country Status (1)

Country Link
KR (1) KR102588562B1 (en)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR20250021816A (en) * 2023-08-07 2025-02-14 비알 컨설팅 인코포레이티드 Manufacturing method for dendropanax morbifera extract drink and the drink thereof

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR20000037144A (en) * 2000-04-08 2000-07-05 김도현 A concoction of mixed cereals & an oriental medicines
KR20050049617A (en) * 2003-11-22 2005-05-27 황재복 Noni juice and noni extract using for noni juice and the health aid foods using the same and its manufacturing method
KR20120130477A (en) * 2011-05-23 2012-12-03 한국인스팜(주) Composition comprising an extract of Akebiae Caulis for preventing and treating obesity
KR20200039940A (en) 2018-10-08 2020-04-17 박은영 Standardized Method for Preparing Noni Juice Comprising Fermenting and Aging step, and Noni Juice Prepared Therefrom

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR20000037144A (en) * 2000-04-08 2000-07-05 김도현 A concoction of mixed cereals & an oriental medicines
KR20050049617A (en) * 2003-11-22 2005-05-27 황재복 Noni juice and noni extract using for noni juice and the health aid foods using the same and its manufacturing method
KR20120130477A (en) * 2011-05-23 2012-12-03 한국인스팜(주) Composition comprising an extract of Akebiae Caulis for preventing and treating obesity
KR20200039940A (en) 2018-10-08 2020-04-17 박은영 Standardized Method for Preparing Noni Juice Comprising Fermenting and Aging step, and Noni Juice Prepared Therefrom

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR20250021816A (en) * 2023-08-07 2025-02-14 비알 컨설팅 인코포레이티드 Manufacturing method for dendropanax morbifera extract drink and the drink thereof

Also Published As

Publication number Publication date
KR102588562B1 (en) 2023-10-12

Similar Documents

Publication Publication Date Title
KR101719241B1 (en) Beverage for a a balsam pear extract and the producing method thereof
CN111802615A (en) Healthy spicy hotpot condiment and preparation method thereof
KR101877229B1 (en) Rice Cake Containing Asparagus and Shiso Leaf and Manufacturing Method thereof
KR102169006B1 (en) Manufacturing method of Overcooked Rice using Atractylodis Rhizoma Alba, Poria cocos Wolf, Astragali Radix, Malt and Massa Medicata Fermentata
KR102262551B1 (en) Manufacturing Method of Soup using Chicken Breast and Soup Composition using Chicken Breast
KR102340831B1 (en) Method for manufacturing of kudzu vine mixed concentrate containing yam
KR102493688B1 (en) Manufacturing Method of Strip using Chicken Breast and Strip Composition using Chicken Breast
KR20220086422A (en) Health Functional beverage and manufacturing method of the same
KR101802789B1 (en) Cudrania tricuspidata pill using product of different parts of Cudrania tricuspidata and production method thereof
KR20160139194A (en) Manufacturing method for functional natural gochujang
KR102163202B1 (en) A method of producing a pill for relieve hangovers and the pill for relieve hangovers using the same as
KR20190003876A (en) The method for manufacturing of health drink
KR102560149B1 (en) Manufacturing method of functional composition using lactic acid bacteria fermentation of rice bran
KR101788801B1 (en) MANUFACTURING METHOD FOR PEPPER POWDERS USING Rubus coreanus Miquel AND PEPPER POWDERS USING Rubus coreanus Miquel MANUFACTURED BY THE SAME
KR101796674B1 (en) Manufacture method of fermentation food using pleuropterus multiflorus turcz and fermented food using pleuropterus multiflorus turcz thereof
KR101145106B1 (en) The method for manufacturing of health drink
JP2003289834A (en) Tea of morinda citritolia leaf and tea liquid extracted therefrom
KR102422395B1 (en) Manufacturing Method of Steamed Bread using Brown Rice
KR102267942B1 (en) Antibacterial sauce and method of manufacturing the same
KR101311902B1 (en) Manufacturing method of pumpkin and sweet potato soybean paste
KR100783325B1 (en) Manufacturing method of rice cake containing functional natural pigment
KR101872937B1 (en) Manufacturing method of Vitamin Composition
KR102340850B1 (en) Method for manufacturing of kudzu vine mixed concentrate containing pomegranate
KR20220066771A (en) Method for producing powder containing sweet persimmon and method for producing powdered food using the same
KR101720927B1 (en) A process for the preparation of functional beverage comprising balloon flower root and bamboo extracts and the functional beverages prepared therefrom

Legal Events

Date Code Title Description
PA0109 Patent application

St.27 status event code: A-0-1-A10-A12-nap-PA0109

PA0201 Request for examination

St.27 status event code: A-1-2-D10-D11-exm-PA0201

PG1501 Laying open of application

St.27 status event code: A-1-1-Q10-Q12-nap-PG1501

E902 Notification of reason for refusal
PE0902 Notice of grounds for rejection

St.27 status event code: A-1-2-D10-D21-exm-PE0902

R18-X000 Changes to party contact information recorded

St.27 status event code: A-3-3-R10-R18-oth-X000

E601 Decision to refuse application
PE0601 Decision on rejection of patent

St.27 status event code: N-2-6-B10-B15-exm-PE0601

AMND Amendment
E13-X000 Pre-grant limitation requested

St.27 status event code: A-2-3-E10-E13-lim-X000

P11-X000 Amendment of application requested

St.27 status event code: A-2-2-P10-P11-nap-X000

P13-X000 Application amended

St.27 status event code: A-2-2-P10-P13-nap-X000

PX0901 Re-examination

St.27 status event code: A-2-3-E10-E12-rex-PX0901

PX0701 Decision of registration after re-examination

St.27 status event code: A-3-4-F10-F13-rex-PX0701

X701 Decision to grant (after re-examination)
PR0701 Registration of establishment

St.27 status event code: A-2-4-F10-F11-exm-PR0701

PR1002 Payment of registration fee

St.27 status event code: A-2-2-U10-U11-oth-PR1002

Fee payment year number: 1

PG1601 Publication of registration

St.27 status event code: A-4-4-Q10-Q13-nap-PG1601
