Abstract

The present invention relates to a functional patch for use by attaching to the sole of the foot for keratin prevention, anti-slip, sports tape, recovery from fatigue, blood circulation, and improvement of calf muscle mass, and a method for manufacturing the same.
The functional patch for attachment to the sole according to the present invention is composed of a loop-type nano-iron fiber having a concave-convex shape, a span fabric heat-sealed to the nylon fiber, an adhesive drug impregnated in the span fabric, and a release film attached to the span fabric, , The manufacturing method includes the steps of manufacturing a fabric in which a fine loop is formed on the nylon fiber by stretching the spandex fabric and then laminating the nylon fiber and then shrinking it by heat treatment; Pre-fixing the fabric by passing the fabric through a heating chamber for shape stability of the fabric in which the loop is formed in the above; Dyeing the fabric obtained above; adjusting the width and weight of the deformed fabric among the dyed fabrics and passing it through a heating chamber to heat-setting again; and impregnating the adhesive drug into the spandex fabric layer of the fabric.
The functional patch for attachment to the sole according to the present invention promotes calf muscle aggression, recovery from fatigue of the foot, improvement of blood circulation, etc. The function of the tape can be exhibited.

Description

Functional patch for attaching the sole and its manufacturing method {Patch For Attaching To The Sole And Method For Preparing The Same}

The present invention relates to a functional patch for use by attaching to the sole of the foot for keratin prevention, anti-slip, sports tape, fatigue recovery, blood circulation, improvement of calf muscle mass, and the like, and a manufacturing method thereof.

A patch is to apply an adhesive material containing a drug necessary for relieving pain in muscles, etc. to a fabric, and use the principle of osmotic pressure to penetrate a specific drug into the skin of the human body.

Conventional patches are generally used by attaching them to the shoulder, waist, arm, calf, and the like in order to relieve muscle pain. However, no patch has been released yet that is attached to the sole of the foot to relieve pain as well as recover from fatigue, improve blood circulation and calf muscle stiffness.

However, when the patch is attached to the sole of the foot, there is a problem in that the patch is easily dried or separated and falls off due to the contraction and expansion of the sole.

Therefore, it contains certain ingredients for calf muscle aggression, recovery from foot fatigue, and improvement of blood circulation, especially for people who use their feet a lot, such as sports people, but it can be firmly attached to the soles of the feet for a long period of time during the contraction and expansion of the soles, preventing dead skin cells, There is a need for a functional patch for attaching the sole that can incidentally exhibit the functions of anti-migm and sports tape.

In addition, the present inventors have found that, in particular, by containing earyangseok powder, tourmaline, and biotite components that emit far-infrared rays and negative ions as active ingredients in the patch, there is an excellent effect on calf muscle cramps, fatigue recovery of feet, improvement of blood circulation, and the like.

Conventionally, Guiyangseok is used in household goods such as functional bedding, functional clothing, building paints, cosmetics, toothpaste (Registration Patent No. 10-1583758), and electric rice cooker (Utility Model Registration No. 20-0369712) or all parts of industry. have. However, these prior art are related to toothpaste, an electric rice cooker, and a coating structure for preventing food from sticking to a heating device, and are not related to the patch for alleviating pain of the present invention.

It is an object of the present invention to include guiyangseok powder, tourmaline powder and biotite powder as active ingredients for calf muscle cramps, foot fatigue recovery, blood circulation improvement, etc. It is to provide a functional patch for attaching to the sole that can prevent dead skin cells, prevent slipping and exhibit the functions of sports tape, and a method for manufacturing the same.

As a result of research on the above problem, the present inventors have found that the above problem can be solved by including a specific component and composition as an active ingredient, and providing a patch having a specific structure, and have completed the present invention.

The subject according to the present invention is a nylon fiber having a loop-type uneven shape, a span fabric heat-sealed to the nylon fiber, an adhesive drug impregnated in the span fabric, and a release film attached to the span fabric. It is solved by providing a functional patch for attachment to the sole of the foot.

A preferred embodiment of the present invention provides a functional patch for attaching the soles of which the spandex is impregnated with an adhesive drug consisting of earyangseok powder, tourmaline powder, biotite, adhesive, viscosity modifier, antioxidant, emulsifier, and hydrogel.

Another preferred embodiment of the present invention is 10 to 15% by weight of earyangseok powder, 15 to 20% by weight of tourmaline powder, 13 to 15% by weight of biotite powder, 40 to 50% by weight of adhesive, 2 to 3% by weight of viscosity modifier, antioxidant It provides a functional patch for attachment to the soles of the feet, comprising 1 to 2% by weight of an emulsifier, 4 to 8% by weight of an emulsifier, and 5 to 10% by weight of a hydrogel.

The present invention also comprises the steps of: after stretching the spandex fabric, laminating nylon fibers, heat-treating them at 70-90° C. for 25-30 minutes, and then shrinking the fabric to form fine loop-type irregularities on the nylon fibers; Pre-fixing the fabric by passing the fabric through a heating chamber at a speed of 25 to 35 m/min at 170 to 180° C. for shape stability of the fabric having the loop-like irregularities formed in the above; Dyeing the fabric obtained above again at 90-100° C. for 70-80 minutes; adjusting the width and weight of the deformed fabric among the dyed fabrics and passing it through a heating chamber at a speed of 60 m/part at 170 to 180° C. and heat setting again; And it provides a method for manufacturing a functional patch for attachment to the sole comprising the step of impregnating the above-described adhesive drug in the spandex fabric layer of the fabric.

The functional patch for attachment to the sole according to the present invention promotes calf muscle cramps, recovery from fatigue of the foot, improvement of blood circulation, etc. The function of the tape can be exhibited.

1 is a photograph in which the functional patch for attaching the sole according to the present invention is applied to the sole.

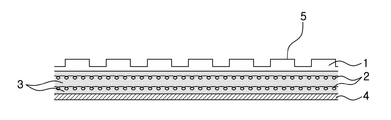

2 is a schematic cross-sectional view of a functional patch for attachment to the sole according to the present invention.

Hereinafter, preferred embodiments according to the present invention will be described in detail. However, the following examples are provided so that those of ordinary skill in the art can fully understand the present invention, and can be modified in various other forms, and the scope of the present invention is limited to the examples described below it is not going to be

The present invention, as shown in Figures 1 and 2, a nylon fiber (1) having a loop-type uneven (5) shape, the spanned fabric (2) heat-sealed to the nylon fiber (1), the spanned fabric ( It provides a functional patch for attachment to the sole comprising the adhesive drug (3) impregnated in 2), and the release film (4) attached to the spandex (2).

Since the material of the nylon fiber 1 used in the present invention is a known material generally used in patch technology, a detailed description thereof will be omitted.

One of the features of the present invention is that loop-type irregularities (5) are formed on the nylon fiber (1) so that it can be firmly attached for a long period without falling even with the movement of contraction and expansion of the sole, and the loop-type irregularities (5) are spanned fabric After stretching (2), the nylon fibers (1) are laminated and then heat-treated at 70-90° C. for 25-30 minutes and then reduced. As described above, the honeycomb-shaped loop shape is formed on the outer layer, so that it can fully perform the functions of anti-migm and sports tape.

Another feature of the present invention is that the adhesive drug (3) is impregnated in the spandex (2) with an adhesive drug containing as an active ingredient, earyangseok, tourmaline, and biotite powder, which are known to emit a large amount of far-infrared rays and anions.

Since the spandex fabric 2 containing the adhesive drug is directly attached to the sole of the foot, there is an advantage in that it does not easily deviate from the extreme foot movement.

In addition, it is known that earyangseok, tourmaline and biotite powder contained as active ingredients in the adhesive drug layer of the present invention emit large amounts of anions and infrared rays that have a useful action on the human body.

Guiyangseok used in the present invention exists in mines formed by high-temperature hydrothermal action like the crustal movement 65 million years ago, and the main component is silica alumina ferrite (K ₂ ONa ₂ O). Guiyangseok is a special mineral that condenses the energy of the natural world into one point. It is the only natural stone of the feldspar series produced in Gunma Prefecture, Japan. In addition, Guiyangseok has an emissivity (about 96%) of far-infrared rays beneficial to the human body. That is, it was reported that about 96% of anions were generated at a maximum of 24,000/cc. Ordinary ceramics emit more than 90% of far-infrared rays at a high temperature of 40°C, but Guiyang-seok has a characteristic of emitting 96% of far-infrared rays at room temperature, that is, 25°C.

Likewise, biotite, also called germanium, is known to promote metabolism by emitting negative ions and far-infrared rays.

In addition, tourmaline is known to have the effect of making the body healthy and relieving fatigue by acting on cells by generating negative ions and generating far-infrared rays as the only ore with electricity.

As is well known, it is known that an increase in anions in the blood leads to an active metabolism, and is very helpful in relieving muscle pain, neuralgia, migraine and stress.

Likewise, when far-infrared rays increase in blood, they penetrate deeply into objects because of their long wavelengths and easily vibrate molecules of substances to generate heat on their own, which is known to be very effective for metabolism.

It is preferable that the powder of earyangseok, tourmaline and biotite used in the present invention is about 0.5 to 1 μm.

Adhesive drug (3) used in the present invention is 10 to 15% by weight of guiyangseok powder, 15 to 20% by weight of tourmaline powder, 13 to 15% by weight of biotite powder, 40 to 50% by weight of adhesive, 2 to 3% by weight of viscosity modifier Most preferably, it consists of 1 to 2% by weight of antioxidant, 4 to 8% by weight of emulsifier, and 5 to 10% by weight of hydrogel.

The pressure-sensitive adhesive, viscosity modifier, antioxidant, and hydrogel used in the present invention are known as long as there is no harm to the human body, and are not particularly limited.

In the present invention, after stretching the spandex fabric (2), after laminating the nylon fibers (1), heat treatment at 70 to 90 ° C. for 25 to 30 minutes, and then shrinking the nylon fibers (1) fine loop-shaped irregularities (5) manufacturing a fabric forming a; Step of pre-fixing the fabric by passing the fabric through a heating chamber at a speed of 25-35 m/min at 170-180° C. for shape stability of the fabric having the loop-shaped unevenness 5 in the above; Dyeing the fabric obtained above again at 90-100° C. for 70-80 minutes; adjusting the width and weight of the deformed fabric among the dyed fabrics and passing it through a heating chamber at a speed of 60 m/min at 170 to 180° C. and heat setting again; And it provides a method of manufacturing a functional patch for attachment to the sole comprising the step of impregnating the adhesive drug (3) described above in the span fabric layer of the fabric.

In manufacturing the functional patch for attachment to the sole of the present invention, the preferred temperature and time for heat treatment after stretching the spandex fabric (2) and then laminating the nylon fiber (1) are 70 to 90° C. and 25 to 30 minutes, respectively.

In addition, the preferred temperature and time in the dyeing step is 70 to 80 minutes at 90 to 100 ℃, respectively.

In addition, the preferred temperature and time in the second heat setting step are 170 to 180 ° C and 60 m/min, respectively, but when it is less than 170 ° C, the restoring force and the restoring force of the spanned fabric are lowered and the shape stability is insufficient, and exceeding 180 ° C. If the spanned fabric is damaged, there is a problem in that elasticity is lowered.

Hereinafter, a method of manufacturing a functional patch for attaching a thin floor according to the present invention will be described in detail through Examples, but these Examples do not limit the present invention.

Example

After stretching a spandex fabric of a certain size using a needle knitting machine, nylon fibers were laminated thereon, and then heat treated at 80° C. for 30 minutes and cooled to room temperature to shrink to form fine loop-shaped irregularities.

The fabric obtained above was passed through a heating chamber at 180° C. at a speed of 30 m/min, fixed first, and dyed at 100° C. for 80 minutes, and then the width and weight of the partially deformed fabric were adjusted and 30 m/min. Secondary heat setting was carried out by passing it through a heating chamber at 180 °C at a speed of

12 weight g of earyang stone powder having a powder size of 1 μm, 18 g of tourmaline powder, 13 g of biotite powder, 45 g of acrylic resin as an adhesive, 2 g of a 1:1 mixture of polyvinyl alcohol and butylene glycol as a viscosity modifier, ascorbic acid as an antioxidant 1 g, 4 g of glycerin fatty acid ester as an emulsifier, and 5 g of hydrogel were applied to the spandex of the fabric.

Finally, the release film (5) was applied on the coating solution to prepare a functional patch for attaching the soles of the present invention.

As mentioned above, although preferred embodiments of the present invention have been described in detail, the present invention is not limited to the above embodiments, and various modifications can be made by those skilled in the art within the scope of the technical spirit of the present invention. This is possible.

1: nylon fiber
2: spandex
3: Adhesive drugs
4: release film
5: Loop type irregularities

Claims (4)

Nylon fiber (1) having a loop-like unevenness (5) shape, a span fabric (2) heat-sealed to the nylon fiber (1), an adhesive drug (3) impregnated in the span fabric (2), and the span fabric (2) A functional patch for attachment to the sole comprising a release film (4) attached to it.
The functional patch for attaching to the sole of claim 1, wherein the spandex is impregnated with an adhesive drug consisting of earyangseok powder, tourmaline powder, biotite powder, adhesive, viscosity modifier, antioxidant, emulsifier, and hydrogel.
The method according to claim 2, wherein the adhesive drug is 10 to 15% by weight of Guiyangseok powder, 15 to 20% by weight of tourmaline powder, 13 to 15% by weight of biotite powder, 40 to 50% by weight of adhesive, 2 to 3% by weight of viscosity modifier, Antioxidant 1-2 wt%, emulsifier 4-8 wt%, and hydrogel 5-10 wt% functional patch for attachment to the sole, characterized in that consisting of.
A method of manufacturing a functional patch for attachment to the sole comprising the steps of:
After stretching the spandex fabric (2), the nylon fibers (1) are laminated, and then heat-treated at 70-90°C for 25-30 minutes, and then reduced to form fine loop-shaped irregularities (5) on the nylon fibers (1). manufacturing a fabric;
Step of pre-fixing the fabric by passing the fabric through a heating chamber at a speed of 25-35 m/min at 170-180° C. for shape stability of the fabric in which the loop-shaped unevenness 5 is formed;
Dyeing the fabric obtained above again at 90-100° C. for 70-80 minutes;
adjusting the width and weight of the deformed fabric among the dyed fabrics and passing it through a heating chamber at a speed of 60 m/min at 170 to 180° C. to heat-setting again; and
Impregnating the adhesive drug (3) according to claim 3 in the span fabric (2) layer of the fabric.
