본 발명은 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지 포장박스에 관한 것으로, 보다 상세하게는 단열성이 우수한 실리카 에어로겔 분말을 사용하여 접착제에 실리카 에어로겔 분말의 단열성을 부여함으로써 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지 포장박스에 관한 것이다. The present invention relates to a heat-insulating and fire-resistant corrugated cardboard packaging box consisting of a layer of silica airgel powder, and more particularly, to insulate the nano-porous silica airgel powder by giving the heat insulating property of the silica airgel powder to the adhesive using the silica airgel powder having excellent heat insulating properties. It relates to a heat insulating and fire-resistant cardboard packaging box made of a layer of silica airgel powder that can maintain the maximum properties and increase the fire resistance function due to the non-combustibility of silica.
골판지는 원하는 특성에 따라 여러 가지 형태의 단면으로 제작되지만, 통상적으로는 육각셀 또는 물결 형상의 골 형태(이하 '허니콤 코어'라 통칭한다)로 제작된다. 이러한 허니콤 코어는 부피에 대한 중량은 감소되나 강성은 증가되는 고강도 경량화를 위한 장비 및 장치에 많이 사용된다. Corrugated cardboard is produced in various cross-sections depending on the desired characteristics, but is usually made in the form of hexagonal cells or wavy bones (hereinafter referred to as "honeycomb core"). Such honeycomb cores are widely used in equipment and apparatus for high strength and light weight, in which weight to volume is reduced but rigidity is increased.
육각셀 형상의 허니콤 코어의 제조 고정을 살펴보면 육각셀 형상의 허니콤 코어는 두께에 해당되는 라이너지를 절단하고, 라이너지의 면에 접착제를 소정의 간격으로 도포한 후, 접착면을 서로 어긋나게 복수매 접합하고 적층하여 허니콤 코어를 제조하며, 허니콤 코어를 좌우로 길게 인장 전개하고, 인장 전개된 상하면에 판지를 접착하여 제작된다. When manufacturing and fixing a honeycomb core having a hexagonal cell shape, the honeycomb core having a hexagonal cell shape cuts a liner paper corresponding to a thickness, applies an adhesive to the face of the liner paper at predetermined intervals, and then shifts the adhesive surface from each other. The honeycomb core is manufactured by joining and laminating, and the honeycomb core is stretched to the left and right, and the cardboard is attached to the stretched upper and lower surfaces.
일반적으로 사무용 가구등과 같은 가구, 칸막이 판낼, 도어 또는 방화문 등 각종 판넬 내부는 물론 중포장물용 판지의 강도와 합판, 판지의 휨 및 내충격흡수성, 완충성 등을 고려하여 허니컴코아를 사용하고 있음은 주지된 사실이다. In general, honeycomb cores are used in consideration of the strength of plywood, cardboard, bending and impact absorption, cushioning properties, as well as the interior of various panels such as office furniture, partition panels, doors or fire doors. It is a well known fact.
허니컴코아를 구성함에 있어 종래에는 단순히 합지된 규격판지를 띠상으로 절단하여 그리드를 형성하고 이를 상하에 중첩시켜 일정간격으로 지그재그 상태로 서로 위치가 엇갈리게 접착하여 6각형태의 전개구조를 갖게 형성하고 있다. In the construction of honeycomb core, conventionally, laminated sheets of standard cardboard are cut into strips to form a grid, and the grids are overlapped on top and bottom to bond each other in a zigzag state at regular intervals to form a hexagonal development structure. .
일반 판지로 되는 허니켐코아에 있어서는 각 교호로 적층되는 상,하 그리드가 얇게 합지된 단층구조의 판지로 구성되어 있으므로서 허니컴 자체의 강도가 저하되고 또한 인장작업이나 보관시 단층구조의 합지가 외부충격에 의하여 상하 에지부위가 쉽게 찌그러지는 등의 현상에 따른 변형이나 찢어지는 현상이 나다나고, 이로 인하여 허니컴코아의 6각 구조(허니컴 구조)의 형태가 불완전하게 나타나 허니컴코아의 강도 저하는 물론 불량사례가 쉽게 발생하는 문제점을 나타내고 있어 작업자의 수잡업에 의한 허니컴 코아 성형작업이 매우 까다롭고 복잡하여 많은 노고가 수반되고 있을 뿐만 아니라 자체 강도가 취약하여 중포장용으로사용하기에는 기능이나 형상상 그다지 바람직하지 못한결함을 나타내고 있다. In honey-chem core made of ordinary cardboard, the upper and lower grids stacked alternately are composed of single-layered cardboard with thin lamination, so that the strength of honeycomb itself is lowered and the lamination of single-layer structure is external during tensile work or storage. Deformation or tearing occurs due to the crushing of the upper and lower edge parts easily due to impact, and as a result, the hexagonal structure (honeycomb structure) of the honeycomb core is incomplete, resulting in a decrease in the strength of the honeycomb core, and a defect thereof. It is very difficult and complicated to make honeycomb core molding work by worker's handwork, and it is accompanied by a lot of labor, and its strength is weak, so it is not desirable in function or shape. It indicates a fault.
허니컴 코아의 그리드를 골판지로 형성한 것도 있으나 단순히 허니컴 코아의 그리드를 골판지로 형성하고 있으므로서 자체적으로 강도와 완충성은 어느정도 보완하고 있다고는 하나 단순히 상하로 골판지 그리드를 중첩시켜 접착하는 구조로 형성하고 있어 골판지 그리드는 그 구성이 3중의 구조와 이에 따라 상당한 두께를 갖는 형태로 되어 있어 인장에 많은 인력과 노고가 요구되어 작업성이 떨어지고, 또한 인장작업시 두껍고 강한 골판지를 6각으로 전개하는 과정에서 과다한 인장력이 요구되고 이에 따라 골판지 그리드 자체의 골부분과 골의 양끝부위에 접착되어 있는 합지의 취약한 접착부위가 쉽게 떨어지거나 찢어지는 폐단이 있어 불량 발생율이 매우 높고 생산 가공이 저조하여 이로 인하여 골판지 허니컴코아의 생산비를 상승시켜 주는 비경제적인 요인을 나타내고 있다. The honeycomb core grid is made of corrugated cardboard, but the honeycomb core grid is made of corrugated cardboard, but its strength and cushioning are somewhat compensated, but it is simply formed by superimposing the cardboard grid on top and bottom. The corrugated grid has a triple structure and therefore has a considerable thickness, which requires a lot of labor and labor for tensioning, which leads to poor workability. Tension force is required, and there is a closed end where the weak adhesive part of the paper glued to the bone part of the cardboard grid itself and the both ends of the bone is easily dropped or torn, resulting in a high rate of defects and a low production process. To increase production costs It shows economic factors.
본 발명에 의한 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제조하는 방법에는 일반적으로 알려져 있는 임의의 실리카 에어로겔 분말이 사용될 수 있다. 이러한 에어로겔 분말은 일반적으로 졸-겔화 공정으로 제조된다. 졸-겔화공정은 당업자에게는 널리 공지된 졸-겔기술[RKColloid Chemistry of Silica and Silicates 1954, chapter 6; CJ Brinker, GW Scherer, Sol-Gel Science, 1990, Chaps 2 and 3 참고]을 기초로 하여 행해질 수 있다. 즉, 에어로겔 분말 전구체의 졸-겔화 공정으로 습윤 겔을 제조하고 습윤 겔을 건조하므로써 에어로겔 분말이 얻어진다. 습윤겔은 구체적으로는 졸-겔화 공정 도중의 에어로겔 분말 전구체와 물의 반응에 의한 가수분해, 축합반응 및 숙성과정을 거처 얻어진다. 예를 들어, 알코올 용매 중에서 에어로겔 분말 전구체와 물에 촉매를 첨가함으로써 가수분해가 진행되며, 가수분해물의 축합반응이 진행되어 "졸" 상태의 화합물이 형성된다. 이때, 축합반응은 염기 또는 산 촉매 존재하에 행할 수 있으나, 메탈알콕사이드를 사용하는 경우 염기 촉매를 사용하는 것이 좀더 바람직하다. 졸 상태의 용액이 겔화된 후 충분한 시간동안 숙성시켜 습윤 겔로 제조된다.Any method known generally for silica airgel powder may be used in the method for producing a heat-insulating and fire-resistant corrugated cardboard comprising a layer of silica airgel powder according to the present invention. Such airgel powders are generally prepared in a sol-gelation process. Sol-gelation processes are well known in the art for sol-gel techniques [RKColloid Chemistry of Silica and Silicates 1954, chapter 6; CJ Brinker, GW Scherer, Sol-Gel Science, 1990, Chaps 2 and 3]. That is, the airgel powder is obtained by preparing the wet gel by the sol-gelation process of the airgel powder precursor and drying the wet gel. Specifically, the wet gel is obtained by undergoing hydrolysis, condensation reaction and aging by the reaction of the aerogel powder precursor and water during the sol-gelation process. For example, hydrolysis proceeds by adding a catalyst to the aerogel powder precursor and water in an alcohol solvent, and the condensation reaction of the hydrolyzate proceeds to form a “sol” compound. In this case, the condensation reaction may be carried out in the presence of a base or an acid catalyst, but when using a metal alkoxide, it is more preferable to use a base catalyst. The solution in sol state is gelled and matured for a sufficient time to produce a wet gel.
본 발명에 따라 제공되는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지 제조방법은 단열접착제를 제조하거나 기능성 광물물질을 첨가하는 종래기술에 비하여 단열 성능 효과가 획기적으로 우수하다. 특히 실리카 에어로겔 분말의 단열 특성을 최대한 증가시키면서 불연성 실리카의 화학적 특성으로 인하여 내화성을 증가시킬수 있다. 본 발명에 따른 실리카 에어로겔 분말 단열 골판지는 실리카 에어로겔 분말의 함량을 조절함으로써 다양한 접착성, 도포성 등이 제공된다.Insulating and refractory corrugated cardboard manufacturing method of the silica airgel powder layer provided according to the present invention is significantly superior in thermal insulation performance effect compared to the prior art to prepare a thermal insulation adhesive or to add a functional mineral. In particular, while increasing the heat insulating properties of the silica airgel powder as much as possible due to the chemical properties of the non-combustible silica can increase the fire resistance. The silica airgel powder insulating corrugated cardboard according to the present invention is provided with various adhesive properties, coating properties and the like by adjusting the content of the silica airgel powder.
본 발명은 단열성이 우수한 실리카 에어로겔 분말을 사용하여 접착제에 실리카 에어로겔 분말의 단열성을 부여함으로써 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공하는데 그 목적이 있다. According to the present invention, the silica airgel powder having excellent thermal insulation property can be used to provide the thermal insulation property of the silica airgel powder to the adhesive to maintain the thermal insulation properties of the nanoporous silica airgel powder and to increase the fire resistance function due to the incombustibility of the silica. It is an object to provide a heat insulating and fire-resistant cardboard consisting of an airgel powder layer.
본 발명은 양쪽 표면지층 사이에 골심지층으로 이루어진 골판지 포장박스에 있어서 골심지층이 허니콤 코어층으로 이루어져 있으며, 허니컴코어의 6각 허니컴 구조 내부에 단열재 실리카 에어로겔층이 도포된 것을 특징으로 하는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지 포장박스에 관한 것이다.The present invention is a corrugated cardboard packaging box consisting of a corrugated core layer between both surface ground layers, the core core layer is made of a honeycomb core layer, the silica airgel is characterized in that the heat insulating silica airgel layer is applied inside the hexagonal honeycomb structure of the honeycomb core. It relates to a heat-insulating and fire-resistant cardboard packaging box consisting of a powder layer.
본 발명에서는 단열성이 우수한 실리카 에어로겔 분말을 첨가하여 간단하게 단열성 및 내화성이 향상된 접착제풀을 구성할 수 있으며 단열 특성을 극대화시키는 실리카 에어로겔을 함유한 단열성 및 내화성 골판지를 제조하고자 한다. In the present invention, by adding a silica airgel powder having excellent thermal insulation, it is possible to simply configure an adhesive paste having improved thermal insulation and fire resistance, and to manufacture thermal insulation and fire resistant corrugated cardboard containing silica airgel maximizing thermal insulation characteristics.
도 1은 본 발명의 골판지 포장박스를 나타낸 분해사시도.
도 2는 본 발명의 골판지 포장박스를 나타낸 분해사시도.
도 3은 본 발명의 골판지 포장박스를 나타낸 분해사시도.

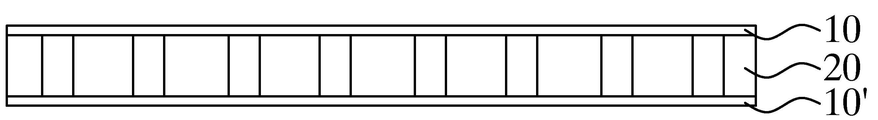

도 4는 본 발명의 골판지 포장박스를 나타낸 분해단면도.

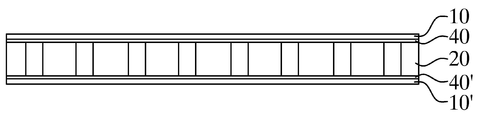

도 5는 본 발명의 골판지 포장박스를 나타낸 분해단면도.

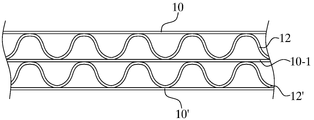

도 6은 본 발명의 골판지 포장박스를 나타낸 분해단면도.
도 7은 본 발명의 골판지 포장박스를 나타낸 분해단면도.1 is an exploded perspective view showing a cardboard packaging box of the present invention.
Figure 2 is an exploded perspective view showing a cardboard packaging box of the present invention.
Figure 3 is an exploded perspective view showing a cardboard packaging box of the present invention.
Figure 4 is an exploded cross-sectional view showing a cardboard packaging box of the present invention.
Figure 5 is an exploded cross-sectional view showing a cardboard packaging box of the present invention.
Figure 6 is an exploded cross-sectional view showing a cardboard packaging box of the present invention.
Figure 7 is an exploded cross-sectional view showing a cardboard packaging box of the present invention.
이하, 첨부한 도면을 참조하면서 본 발명에 따른 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지 제조 방법을 보다 상세히 기술하기로 한다. 본 발명을 설명함에 있어서 관련된 공지기술 또는 구성에 대한 구체적인 설명이 본 발명의 요지를 불필요하게 흐릴 수 있다고 판단되는 경우에는 그 상세한 설명은 생략될 것이다. 그리고, 후술되는 용어들은 본 발명에서의 기능을 고려하여 정의된 용어들로서 이는 클라이언트나 운용자, 사용자의 의도 또는 관례 등에 따라 달라질 수 있다. 그러므로 정의는 본 명세서 전반에 걸친 내용을 토대로 내려져야 할 것이다. Hereinafter, with reference to the accompanying drawings will be described in more detail the heat insulating and fire-resistant corrugated cardboard manufacturing method consisting of a silica airgel powder layer according to the present invention. In the following description of the present invention, when it is determined that detailed descriptions of related well-known technologies or configurations may unnecessarily obscure the subject matter of the present invention, the detailed description will be omitted. In addition, terms to be described below are terms defined in consideration of functions in the present invention, which may vary according to a client's or operator's intention or custom. Therefore, the definition should be made based on the contents throughout the specification.
본 발명은 양쪽 표면지층 사이에 골심지층으로 이루어진 골판지 포장박스에 있어서 골심지층이 허니콤 코어층으로 이루어져 있으며, 허니컴코어의 6각 허니컴 구조 내부에 단열재 실리카 에어로겔층이 도포된 것을 특징으로 하는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지 포장박스에 관한 것이다. The present invention is a corrugated cardboard packaging box consisting of a corrugated core layer between both surface ground layers, the core core layer is made of a honeycomb core layer, the silica airgel is characterized in that the heat insulating silica airgel layer is applied inside the hexagonal honeycomb structure of the honeycomb core. It relates to a heat-insulating and fire-resistant cardboard packaging box consisting of a powder layer.
본 발명에 있어서 단열재 실리카 에어로겔층은 접착제에 단열재 실리카 에어로겔 분말을 혼합하여 사용된 것을 특징으로 한다. In the present invention, the heat insulating material silica airgel layer is used by mixing the heat insulating material silica airgel powder with an adhesive.
본 발명에 있어서 접착제는 아크릴접착제 또는 전분질 접착제인 것을 특징으로 한다. In the present invention, the adhesive is an acrylic adhesive or a starch adhesive.
본 발명에 있어서 단열재 실리카 에어로겔층은 접착제 베이스에 실리카 에어로겔 분말을 접착제 100 중량부 당 20 내지 90 중량부 혼합하여 사용된 것을 특징으로 한다. In the present invention, the heat insulating material silica airgel layer is characterized by being used by mixing 20 to 90 parts by weight of silica airgel powder per 100 parts by weight of the adhesive base.
본 발명에 있어서 단열재 실리카 에어로겔층은 단열특성을 발현하는 실리카 에어로겔을 실리카 에어로겔이 함침될 유기용매에 대한 중량비로 10 내지 90 중량비 되게 비극성 유기용매에 함침시킨 단열재 실리카 에어로겔층으로 이루어진 것을 특징으로 한다.
In the present invention, the heat insulating material silica airgel layer is characterized in that the heat insulating material silica airgel impregnated in the non-polar organic solvent impregnated silica airgel with a weight ratio to the organic solvent to be impregnated
본 발명에 있어서 실리카 에어로겔을 함침하는 비극성 유기용매는 n-헥산, 사이크로헥산, DMF를 비롯하여 -OH기를 갖지 않는 비극성 유기용매를 사용하는 것을 특징으로 한다. In the present invention, the nonpolar organic solvent impregnated with the silica airgel is characterized by using a nonpolar organic solvent having no -OH group, including n-hexane, cyclohexane, DMF.
본 발명에 있어서 단열재 실리카 에어로겔층은 유기용매가 함침된 실리카에어로겔을 용융된 고분자수지와 혼합하여 실리카 에어로겔이 혼합된 고분자수지로부터 나노섬유를 제조하여 나노미터 수준의 기공을 갖도록 적층하고 상기 실리카 에어로겔이 상기 나노미터 수준의 기공 내에 함유되어 그 기공과 분리되지 않도록 나노섬유와 함께 적층되어 나노섬유 방사포 시트 또는 매트를 제조하여 제조된 단열재 실리카에어로겔 시트인 것을 특징으로 한다. In the present invention, the insulating silica airgel layer is prepared by mixing a silica aerogel impregnated with an organic solvent with a molten polymer resin to prepare nanofibers from a polymer resin mixed with a silica aerogel to have nanometer-level pores, and the silica airgel is laminated. It is contained in the nanometer-level pores are laminated with nanofibers so as not to be separated from the pores, characterized in that the insulating material silica aerogel sheet manufactured by manufacturing a nanofiber spinneret sheet or mat.
도 1 내지 도 3과 같이 본 발명은 양쪽 표면지층 사이에 골심지층으로 이루어진 골판지 포장박스에 있어서 골심지층이 허니콤 코어층으로 이루어져 있으며, 허니컴코어의 6각 허니컴 구조 내부에 단열재 실리카 에어로겔층이 도포되어 있어 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공할 수 있다. In the present invention as shown in Figures 1 to 3, the corrugated core layer of the corrugated cardboard box consisting of a corrugated core layer between both surface layer is composed of a honeycomb core layer, the heat insulating silica airgel layer is applied to the inside of the hexagonal honeycomb structure of the honeycomb core. It is possible to maintain the thermal insulation properties of the nano-porous silica airgel powder to the maximum and to provide a heat insulating and fire-resistant corrugated cardboard consisting of a layer of silica airgel powder that can increase the fire resistance function due to the incombustibility of the silica.
도 1 내지 도 3과 같이 본 발명에 있어서 단열재 실리카 에어로겔층은 접착제에 단열재 실리카 에어로겔 분말을 혼합하여 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공할 수 있다. In the present invention, as shown in Figures 1 to 3, the insulating silica airgel layer may maintain the thermal insulation properties of the nanoporous silica airgel powder by mixing the insulating silica airgel powder with the adhesive and increase the fire resistance function due to the incombustibility of the silica. It is possible to provide a heat insulating and fire-resistant cardboard consisting of a layer of silica airgel powder.
도 1 내지 도 3과 같이 본 발명에 있어서 접착제는 아크릴접착제 또는 전분질 접착제인 것을 사용하여 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공할 수 있다. In the present invention as shown in Figures 1 to 3, the adhesive can maintain the thermal insulation properties of the nano-porous silica airgel powder using an acrylic adhesive or a starch adhesive, and can increase the fire resistance function due to the incombustibility of the silica. It is possible to provide a heat-insulating and fire-resistant cardboard consisting of an airgel powder layer.
도 1 내지 도 3과 같이 본 발명에 있어서 단열재 실리카 에어로겔층은 접착제 베이스에 실리카 에어로겔 분말을 접착제 100 중량부 당 20 내지 90 중량부 혼합하여 사용된 것을 사용하여 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공할 수 있다.
In the present invention as shown in Figures 1 to 3, the heat insulating material silica airgel layer is used to mix the silica airgel powder in the
도 1 내지 도 3과 같이 본 발명에 있어서 단열재 실리카 에어로겔층은 단열특성을 발현하는 실리카 에어로겔을 실리카 에어로겔이 함침될 유기용매에 대한 중량비로 10 내지 90 중량비 되게 비극성 유기용매에 함침시킨 단열재 실리카 에어로겔층으로 이루어진 것을 사용하여 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공할 수 있다. In the present invention as shown in Figure 1 to 3, the heat insulating material silica airgel layer is a heat insulating material silica airgel impregnated with a non-polar organic solvent impregnated silica airgel expressing heat insulating properties in a 10 to 90 weight ratio by weight of the organic solvent to be impregnated with silica airgel. It can be used to maintain the thermal insulation properties of the nano-porous silica airgel powder and to provide a heat-resistant and fire-resistant cardboard consisting of a layer of silica airgel powder that can increase the fire resistance function due to the incombustibility of the silica.
도 1 내지 도 3과 같이 본 발명에 있어서 실리카 에어로겔을 함침하는 비극성 유기용매는 n-헥산, 사이크로헥산, DMF를 비롯하여 -OH기를 갖지 않는 비극성 유기용매를 사용하는 것이 바람직하다. 1 to 3, in the present invention, the nonpolar organic solvent impregnated with silica airgel is preferably a nonpolar organic solvent having no -OH group, including n-hexane, cyclohexane, and DMF.
도 1 내지 도 3과 같이 본 발명에 있어서 단열재 실리카 에어로겔층은 유기용매가 함침된 실리카에어로겔을 용융된 고분자수지와 혼합하여 실리카 에어로겔이 혼합된 고분자수지로부터 나노섬유를 제조하여 나노미터 수준의 기공을 갖도록 적층하고 상기 실리카 에어로겔이 상기 나노미터 수준의 기공 내에 함유되어 그 기공과 분리되지 않도록 나노섬유와 함께 적층되어 나노섬유 방사포 시트 또는 매트를 제조하여 제조된 단열재 실리카에어로겔 시트인 것을 사용하여 나노 다공성인 실리카 에어로겔 분말의 단열 특성을 최대한 유지할 수 있으며 실리카의 불연성으로 인하여 내화성의 기능을 증가시킬 수 있는 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 골판지를 제공할 수 있다. In the present invention, as shown in Figures 1 to 3, the heat insulating material silica airgel layer is mixed with a silica aerogel impregnated with an organic solvent with a molten polymer resin to prepare nanofibers from a polymer resin mixed with silica airgel to form pores at the nanometer level. The nano-porous material is laminated using a silica aerogel sheet manufactured by manufacturing a nanofiber spinneret sheet or mat by laminating with nanofibers so that the silica airgel is contained in the nanometer-level pores and is not separated from the pores. The thermal insulation properties of the silica airgel powder can be maintained to the maximum, and due to the non-combustibility of the silica can provide a thermal insulation and fire-resistant cardboard consisting of a layer of silica airgel powder that can increase the fire resistance function.
도 1 내지 도 3과 같이 본 발명은 실리카 에어로겔 분말층으로 이루어진 단열성 및 내화성 실리카 에어로겔 분말층으로 이루어진 골판지에 관한 것이다. 1 to 3, the present invention relates to a corrugated cardboard made of a heat insulating and fire resistant silica airgel powder layer made of a silica airgel powder layer.
도 1 내지 도 3과 같이 본 발명에서 전분질 접착제풀 베이스에 실리카 에어로겔 분말(밀도 005~03g/ml, 열전도율 5~30mW/mK)을 혼합 경우 실리카 에어로겔 분말의 입도가 20㎛ 내지 50㎛이면 바람직하며, 만약 입도가 20㎛보다 작으면 너무 가벼워 접착풀 베이스 내에 골고루 분산이 어려우며, 실리카 에어로겔 분말의 입도가 50㎛를 초과하는 경우는 입도가 너무 커서 접착시에 접착층의 두께가 울퉁불퉁해져서 매끄러운 접착을 할 수 없게 된다. When the silica airgel powder (density 005 ~ 03g / ml, thermal conductivity 5 ~ 30mW / mK) is mixed in the starch adhesive paste base in the present invention as shown in Figures 1 to 3, the particle size of the silica airgel powder is preferably 20㎛ to 50㎛ If the particle size is less than 20㎛, it is too light to disperse evenly in the glue pool base, and if the particle size of silica airgel powder exceeds 50㎛, the particle size is too large and the thickness of the adhesive layer is uneven at the time of adhesion, so that smooth adhesion is possible. It becomes impossible.
도 1 내지 도 3과 같이 본 발명에서 첨가하는 실리카 에어로겔 분말의 양은 접착제 100 중량부 당 20 내지 90 중량부가 바람직하며, 만일 20 중량부 보다 첨가량이 적을 경우는 단열성능이 제대로 나오지 않으며 실리카 에어로겔 분말의 첨가량이 90 중량부를 넘게 되는 경우는 접착제의 접착력이 너무 작아져서 시공이 불가능해질 수 있다. 1 to 3, the amount of the silica airgel powder added in the present invention is preferably 20 to 90 parts by weight per 100 parts by weight of the adhesive. If the amount is less than 20 parts by weight, the thermal insulation performance does not come out properly and the silica airgel powder of When the added amount exceeds 90 parts by weight, the adhesive force of the adhesive may be too small to be impossible to install.
또한 본 발명에서 전분질 접착은 전분과 물을 혼합하여 제조되는 수용성 풀이므로 소수성 실리카 에어로겔 분말을 단순히 혼합할 경우에는 실리카 에어로겔 분말이 섞이지 않고 수용액 상부에 떠 있거나 섞이더라도 고르게 분산되질 못하는 단점이 있다. In addition, the starch adhesive in the present invention is a water-soluble paste prepared by mixing starch and water, so when the hydrophobic silica airgel powder is simply mixed, the silica airgel powder is not mixed, and even if floating or mixed on the top of the aqueous solution, there is a disadvantage in that it is not evenly dispersed.
따라서 본 발명에서 소수성 실리카 에어로겔 분말을 에탈올과 혼합하여 슬러리 상태로 만든 후에 접착제에 혼합하면 효과적으로 분산시킬 수 있다. 본 발명에 의해 구성된 실리카 에어로겔 분말을 함유한 접착제에 시공방법에 맞춰 물을 적당히 첨가하여 간편하게 사용할 수 있다. 실리카 에어로겔 분말의 단열특성을 그대로 유지하기 위해서는 표면이 소수성으로 개질된 실리카 에어로겔 분말을 사용해야 접착제 혼합시 실리카 에어로겔 분말 내부에 수분이 침투하지 못하여 나노 다공성이 그대로 유지할 수 있다. Therefore, in the present invention, the hydrophobic silica airgel powder is mixed with ethanol to make a slurry, and then mixed with an adhesive to be effectively dispersed. According to the construction method, water can be conveniently added to the adhesive containing the silica airgel powder constituted by the present invention. In order to maintain the adiabatic properties of the silica airgel powder, it is necessary to use the silica airgel powder whose surface is hydrophobically modified so that the nanoporosity can be maintained as moisture does not penetrate inside the silica airgel powder when the adhesive is mixed.
본 발명에 따라 제공되는 실리카 에어로겔을 함유한 접착제는 단열접착제를 제조하거나 기능성 광물물질을 첨가하는 종래기술에 비하여 간단한 공정으로 구성할 수 있으며 실리카 에어로겔 분말의 단열 특성을 그대로 유지함으로써 접착제의 단열 특성을 극대화시킴은 물론 내화성을 개선시킬 수 있다. The adhesive containing silica airgel provided according to the present invention can be configured in a simpler process compared to the prior art of preparing a heat insulating adhesive or adding a functional mineral, and maintaining the heat insulating properties of the silica airgel powder as it is. Maximization as well as fire resistance can be improved.
실시예 1Example 1
소수성 실리카 에어로겔 분말 120g에 에탈올 100ml를 혼합하여 교반하여 슬러리를 만든다. 전분질 분말 200g에 물 350g을 혼합한 후에 100℃로 40분간 가열하면서 겔 상태로 만들고 슬러리 상태의 실리카 에어로겔 분말을 첨가하여 20분간 교반한다. 교반물을 식힌 후에 점도 조절제로서 물 100g을 더 넣고 고르게 분산될 때까지 20분간 교반하였다. 혼합된 교반물의 열전도율 측정을 위해 시판(30㎝× 30㎝× 1㎝)에 일정량의 교반물을 도포하여 접착한 후 건조하여 열전도율(hotplate)을 측정하였다. 이때 열전도율은 0049kcal/mh이며, 실리카 에어로겔 접착층 두께는 052mm였다.A slurry is prepared by mixing 100 ml of ethanol with 120 g of hydrophobic silica airgel powder. After mixing 350 g of water with 200 g of starch powder, the mixture is heated to 100 ° C. for 40 minutes to make a gel state, and stirred for 20 minutes by adding silica airgel powder in a slurry state. After the stirring was cooled, 100 g of water was added as a viscosity regulator and stirred for 20 minutes until it was evenly dispersed. In order to measure the thermal conductivity of the mixed agitated mixture, a predetermined amount of agitated substance was applied to a commercially available product (30 cm × 30 cm × 1 cm), adhered, and dried to measure a thermal conductivity (hotplate). In this case, the thermal conductivity was 0049 kcal / mh, and the silica airgel adhesive layer had a thickness of 052 mm.
본 발명은 단열특성을 발현하는 실리카 에어로겔을 실리카 에어로겔이 함침될 유기용매에 대한 중량비로 20 내지 90 중량비 되게 비극성 유기용매에 함침시킨 단열재 실리카 에어로겔층으로 이루어진 것이다.The present invention is composed of a heat insulating material silica airgel layer impregnated with a non-polar organic solvent silica silica gel expressing a heat insulating property in a 20 to 90 weight ratio by weight relative to the organic solvent to be impregnated with the silica air gel.
본 발명에서 실리카 에어로겔을 함침하는 비극성 유기용매는 n-헥산, 사이크로헥산, DMF를 비롯하여 -OH기를 갖지 않는 비극성유기용매를 사용하는 것이 바람직하다.In the present invention, the nonpolar organic solvent impregnated with the silica airgel is preferably a nonpolar organic solvent having no -OH group, including n-hexane, cyclohexane, and DMF.
본 발명에서 유기용매가 함침된 실리카에어로겔을 용융된 고분자수지와 혼합하여 실리카 에어로겔이 혼합된 고분자수지로부터 나노섬유를 제조하여 나노미터 수준의 기공을 갖도록 적층하고 상기 실리카 에어로겔이 상기 나노미터 수준의 기공 내에 함유되어 그 기공과 분리되지 않도록 나노섬유와 함께 적층되어 나노섬유 방사포 시트 또는 매트를 제조하여 제조된 실리카에어로겔 시트를 사용하는 것이 바람직하다.In the present invention, the silica aerogel impregnated with an organic solvent is mixed with the molten polymer resin to prepare nanofibers from the polymer resin mixed with silica aerogel to have a nanometer pore, and the silica airgel is the nanometer pore It is preferable to use a silica aerogel sheet prepared by laminating together with the nanofibers so as not to be separated from the pores and manufacturing the nanofiber spinnerette sheet or mat.
< 실시예 2> <Example 2>
실리카 에어로겔 20g에 DMF 10ml을 함침시킨다. 그리고 실란 1ml을 가해서 실리카 에어로겔의 표면개질을 한다. 또한 PAN 34g을 DMF 15ml에 완전히 녹인 다음 이 PAN용액에 상기의 표면개질되고 DMF가 함침된 실리카에어로겔을 넣고 잘 교반하여 전기방사용 원료 혼합물을 준비한다. 전기방사 시스템의 토출부에 장입하기 전 원료혼합물의 점도는 토출부를 빠져나와 흘러내리지 않고 액적을 만들 수 있을 정도로 유지한다. 전압을 30,000V의 조건으로 유지하며 나노방사를 진행하고 방사되어 나오는 나노섬유를 적층시킨다. 적층포의 두께는 사용 용도에 따라 임의로 조정가능하다. 적층포의 두께가 02~05mm 되면 나노방사된 적층포를 취하여 160℃ 정도에서 건조시킴으로서 실리카 에어로겔이 적층포 내부로부터 이탈되지 않는 PAN수지로 형성된 실리카 에어로겔 단열시트를 얻는다. 20 g of silica airgel is impregnated with 10 ml of DMF. Then, 1 ml of silane is added to modify the surface of the silica airgel. In addition, 34 g of PAN was completely dissolved in 15 ml of DMF, and the surface modified and silica air gel impregnated with DMF was added to the PAN solution, and stirred well to prepare an electrospinning raw material mixture. The viscosity of the raw material mixture before charging to the discharge section of the electrospinning system is maintained so that droplets can be made without exiting the discharge section. While maintaining the voltage at 30,000V, the nanospinning proceeds and the nanofibers are spun off. The thickness of the laminated fabric can be arbitrarily adjusted according to the use purpose. When the thickness of the laminated fabric is 02 ~ 05mm, the nano-spun laminated fabric is taken and dried at about 160 ° C. to obtain a silica airgel insulating sheet formed of PAN resin in which the silica airgel does not escape from the interior of the laminated fabric.
10, 10', 10-1: 표면지층 12, 12': 골심지층
20: 허니콤 코어층 30, 40, 40': 단열재 실리카 에어로겔층 10, 10 ', 10-1:
20:
Claims (7)
The method of claim 1, wherein the insulating silica airgel layer is prepared by mixing a silica aerogel impregnated with an organic solvent with a molten polymer resin to prepare nanofibers from a polymer resin mixed with silica aerogel to have a nanometer pore and laminated Silica airgel is made of a layer of silica airgel powder, characterized in that the silica aerogel sheet is manufactured by manufacturing a nanofiber spinneret sheet or mat laminated with nanofibers contained in the nanometer-level pores so as not to be separated from the pores Insulated and fireproof cardboard packaging box.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| KR1020180061298A KR20190135825A (en) | 2018-05-29 | 2018-05-29 | box |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| KR1020180061298A KR20190135825A (en) | 2018-05-29 | 2018-05-29 | box |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| KR20190135825A true KR20190135825A (en) | 2019-12-09 |
Family
ID=68837568
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| KR1020180061298A Abandoned KR20190135825A (en) | 2018-05-29 | 2018-05-29 | box |
Country Status (1)
| Country | Link |
|---|---|
| KR (1) | KR20190135825A (en) |
Cited By (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR102251359B1 (en) * | 2020-06-30 | 2021-05-14 | 주식회사 지오위드 | Semi-nonflammable corrugated cardboard board attached semi-nonflammable kenaf fiber plate and its manufacturing method |
| KR102251361B1 (en) * | 2020-06-30 | 2021-05-14 | 주식회사 지오위드 | Semi-nonfla㎜able kenaf board and its manufacturing method |
| CN114506128A (en) * | 2022-01-22 | 2022-05-17 | 巩义市泛锐熠辉复合材料有限公司 | A kind of lightweight thermal insulation material and preparation method thereof |
| CN117184658A (en) * | 2023-09-15 | 2023-12-08 | 启东欧联环保科技有限公司 | A green and environmentally friendly corrugated box |
-
2018
- 2018-05-29 KR KR1020180061298A patent/KR20190135825A/en not_active Abandoned
Cited By (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR102251359B1 (en) * | 2020-06-30 | 2021-05-14 | 주식회사 지오위드 | Semi-nonflammable corrugated cardboard board attached semi-nonflammable kenaf fiber plate and its manufacturing method |
| KR102251361B1 (en) * | 2020-06-30 | 2021-05-14 | 주식회사 지오위드 | Semi-nonfla㎜able kenaf board and its manufacturing method |
| CN114506128A (en) * | 2022-01-22 | 2022-05-17 | 巩义市泛锐熠辉复合材料有限公司 | A kind of lightweight thermal insulation material and preparation method thereof |
| CN114506128B (en) * | 2022-01-22 | 2023-12-01 | 巩义市泛锐熠辉复合材料有限公司 | Light heat insulation material and preparation method thereof |
| CN117184658A (en) * | 2023-09-15 | 2023-12-08 | 启东欧联环保科技有限公司 | A green and environmentally friendly corrugated box |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| KR101708003B1 (en) | Aerogel-based material that is super-insulating at atmospheric pressure | |
| KR20190135825A (en) | box | |
| US10626306B2 (en) | High-performance thermal insulation products | |
| ES2712902T3 (en) | Sheets and drywall suitable for wet or damp areas | |
| US11767671B2 (en) | Insulating composite materials comprising an inorganic aerogel and a melamine foam | |
| EP2576929B1 (en) | Insulation and method of manufacture | |
| FI72288C (en) | Refractory foam laminate. | |
| RU2263644C2 (en) | Gypsum compositions and methods for their preparing | |
| RU2161143C2 (en) | Composite material comprising aerogel, method of preparation thereof and also use thereof | |
| FI69828C (en) | STYV ORGANIC SKUMPRODUKT FOER ANVAENDNING SOM ISOLERINGSMATERIAL OCH ELDSKYDDANDE MATERIAL FOERFARANDE FOER DESS FRAMSTAELLNING OCH I FOERFARANDET ANVAENDBAR AEMNE | |
| AU2016343257B2 (en) | Insulation material arrangement and method for forming an insulation material | |
| US20100140840A1 (en) | Aerogel Containing Blanket | |
| KR102611294B1 (en) | acoustic ceiling tiles | |
| CN101535579A (en) | Acoustical gypsum board for ceiling panel | |
| DE102009046810A1 (en) | Polymer-modified thermal insulation body useful as heat insulation materials, obtained by compacting a mixture of finely powdered metal oxide, opacifier, fiber material and polymerisate of ethylenically unsaturated monomers | |
| CN103347962A (en) | Coating and its manufacturing process | |
| CN105358753B (en) | Wet-laid underlayment for acoustic ceiling tiles | |
| EP0541888B1 (en) | Noncombustible sheet, noncombustible laminated sheet, noncombustible honey-comb structural material, noncombustible board, noncombustible molded product, and manufacturing method thereof | |
| CN107602055A (en) | A kind of preparation method of high breaking strength type fireproof heated board | |
| KR102134072B1 (en) | airogel adhensive coating component | |
| JPS6319622B2 (en) | ||
| KR102666096B1 (en) | Continous manufacturing process for silica-aerogel adiabatic sheet having a continuous patterned insulation coating layer | |
| RU2504529C1 (en) | Method of producing heat insulating fireproof material | |
| CN116161911A (en) | A kind of sound insulation foam wall board and preparation method thereof | |
| JPH0333838B2 (en) |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| A201 | Request for examination | ||
| PA0109 | Patent application |
Patent event code: PA01091R01D Comment text: Patent Application Patent event date: 20180529 |
|
| PA0201 | Request for examination | ||
| E902 | Notification of reason for refusal | ||
| PE0902 | Notice of grounds for rejection |
Comment text: Notification of reason for refusal Patent event date: 20190509 Patent event code: PE09021S01D |
|
| E902 | Notification of reason for refusal | ||
| PE0902 | Notice of grounds for rejection |
Comment text: Notification of reason for refusal Patent event date: 20190814 Patent event code: PE09021S01D |
|
| PG1501 | Laying open of application | ||
| E701 | Decision to grant or registration of patent right | ||
| PE0701 | Decision of registration |
Patent event code: PE07011S01D Comment text: Decision to Grant Registration Patent event date: 20200108 |
|
| PC1904 | Unpaid initial registration fee |
