KR20130021158A - Toothbrush cap with an ultraviolet sterilization - Google Patents

Toothbrush cap with an ultraviolet sterilization Download PDF

Info

Publication number
KR20130021158A
KR20130021158A KR1020110083518A KR20110083518A KR20130021158A KR 20130021158 A KR20130021158 A KR 20130021158A KR 1020110083518 A KR1020110083518 A KR 1020110083518A KR 20110083518 A KR20110083518 A KR 20110083518A KR 20130021158 A KR20130021158 A KR 20130021158A
Authority
KR
South Korea
Prior art keywords
toothbrush
lid
toothbrush lid
cover
switch
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
KR1020110083518A
Other languages
Korean (ko)
Inventor
이동원
Original Assignee
이동원
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by 이동원 filed Critical 이동원
Priority to KR1020110083518A priority Critical patent/KR20130021158A/en
Publication of KR20130021158A publication Critical patent/KR20130021158A/en
Withdrawn legal-status Critical Current

Links

Images

Classifications

    • A—HUMAN NECESSITIES
    • A46—BRUSHWARE
    • A46B—BRUSHES
    • A46B15/00—Other brushes; Brushes with additional arrangements
    • A46B15/0002—Arrangements for enhancing monitoring or controlling the brushing process
    • A46B15/0016—Arrangements for enhancing monitoring or controlling the brushing process with enhancing means
    • A46B15/0022—Arrangements for enhancing monitoring or controlling the brushing process with enhancing means with an electrical means
    • A—HUMAN NECESSITIES
    • A46—BRUSHWARE
    • A46B—BRUSHES
    • A46B17/00—Accessories for brushes
    • A46B17/04—Protective covers for the bristles
    • A—HUMAN NECESSITIES
    • A46—BRUSHWARE
    • A46B—BRUSHES
    • A46B17/00—Accessories for brushes
    • A46B17/06—Devices for cleaning brushes after use
    • A46B17/065—Sterilising brushes; products integral with the brush for sterilising, e.g. tablets, rinse, disinfectant
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61L—METHODS OR APPARATUS FOR STERILISING MATERIALS OR OBJECTS IN GENERAL; DISINFECTION, STERILISATION OR DEODORISATION OF AIR; CHEMICAL ASPECTS OF BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES; MATERIALS FOR BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES
    • A61L2/00—Disinfection or sterilisation of materials or objects, in general; Accessories therefor
    • A61L2/26—Accessories
    • A—HUMAN NECESSITIES
    • A46—BRUSHWARE
    • A46B—BRUSHES
    • A46B2200/00—Brushes characterized by their functions, uses or applications
    • A46B2200/10—For human or animal care
    • A46B2200/1066—Toothbrush for cleaning the teeth or dentures

Landscapes

  • Health & Medical Sciences (AREA)
  • Epidemiology (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Animal Behavior & Ethology (AREA)
  • General Health & Medical Sciences (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Apparatus For Disinfection Or Sterilisation (AREA)

Abstract

본 발명은 칫솔의 칫솔모를 간단히 자동으로 살균하기 위한 자외선 살균 칫솔 뚜껑에 관한 것으로서, 칫솔 뚜껑의 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201)에는 유리창에 붙일 수 있는 고무발(202)이 구성되며, 칫솔 뚜껑 본체(201)의 일측에 구성된 덮개 개폐축(203)에 칫솔 뚜껑 덮개(210)가 일축으로 연결되어 있어서, 칫솔 뚜껑 본체(201)를 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면 스위치(214)가 작동되게 구성되어 있어서, 칫솔 뚜껑 덮개(210)에 구성된 배터리(212)의 전원이 콘트롤러(213)를 통해 칫솔 뚜껑 덮개(210)에 구성된 자외선 램프(215)를 일정 시간 점등하여 칫솔의 칫솔모(102)를 간단히 자동으로 살균하게 하여 칫솔 사용자가 별도로 고가의 자외선 살균기를 구매하여 설치하고 칫솔을 자외선 살균기에 넣어 칫솔모를 자외선 살균하는 번거로움이 없이 칫솔 걸이 형태의 자외선 살균 칫솔 뚜껑(200)에 칫솔을 넣으면 간단히 저렴하면서도 자동적으로 칫솔모(102)를 자외선 살균 처리하여 깨끗하고 위생적인 칫솔을 사용할 수 있는 자외선 살균 칫솔 뚜껑을 제공하려는 것이다.The present invention relates to an ultraviolet sterilizing toothbrush lid for automatically and automatically sterilizing the bristles of a toothbrush, wherein the cover 210 of the toothbrush lid includes a battery 212, a controller 213, a switch 214, and an ultraviolet lamp 215. To configure, the toothbrush lid body 201 is a rubber foot 202 which can be attached to the glass window is configured, the toothbrush lid cover 210 is uniaxially connected to the cover opening and closing shaft 203 configured on one side of the toothbrush lid body 201 The toothbrush lid cover 210 is configured to open and close based on the toothbrush lid body 201. When the toothbrush lid cover 210 is covered by the toothbrush lid body 201, the switch 214 is configured to operate. The power of the battery 212 configured in the toothbrush lid cover 210 lights up the ultraviolet lamp 215 configured in the toothbrush lid cover 210 for a predetermined time through the controller 213 to automatically and automatically brush the bristles 102 of the toothbrush. Toothbrush use Buy and install an expensive UV sterilizer separately and put the toothbrush into the UV sterilizer without the hassle of ultraviolet sterilization of the brush head, put the toothbrush in the toothbrush hanger type UV sterilization toothbrush lid 200, simply and cheaply and automatically brush head (102) UV sterilization is to provide a UV sterilized toothbrush lid that can be used to clean and sanitary toothbrush.

Description

자외선 살균 칫솔 뚜껑{TOOTHBRUSH CAP WITH AN ULTRAVIOLET STERILIZATION}UV Sterilization Toothbrush Lid {TOOTHBRUSH CAP WITH AN ULTRAVIOLET STERILIZATION}

본 발명은 칫솔의 칫솔모를 간단히 살균하기 위한 자외선 살균 칫솔 뚜껑에 관한 것으로서, 칫솔 뚜껑 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201)에는 유리창이나 타일 위에 붙일 수 있는 고무발(202)이 구성되며, 칫솔 뚜껑 본체(201)의 일측에 칫솔 뚜껑 덮개(210)가 덮개 개폐축(203)에 연결되어 있어서, 칫솔 뚜껑 본체(201)를 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면 스위치(214)가 작동 되게 구성되어 있어서, 칫솔 뚜껑 덮개(210)에 구성된 배터리(212)의 전원이 콘트롤러(213)를 통해 칫솔 뚜껑 덮개(210)에 구성된 자외선 램프(215)를 일정 시간 점등하여 칫솔의 칫솔모(102)를 간단히 살균하게 구성된 자외선 살균 칫솔 뚜껑에 관한 것이다. The present invention relates to a UV sterilizing toothbrush lid for easily sterilizing the bristles of the toothbrush, comprising a battery 212, a controller 213, a switch 214 and an ultraviolet lamp 215 in the toothbrush lid cover 210, Toothbrush lid body 201 is composed of a rubber foot 202 that can be attached to the glass window or tile, toothbrush lid cover 210 is connected to the cover opening and closing shaft 203 on one side of the toothbrush lid body 201, the toothbrush Toothbrush lid cover 210 is configured to open and close based on the lid body 201, the toothbrush lid cover 210 is configured to operate the switch 214 when the toothbrush lid body 201 is covered, the toothbrush lid cover An ultraviolet sterilizing toothbrush configured to easily sterilize the bristles 102 of the toothbrush by turning on the ultraviolet lamp 215 configured in the toothbrush lid cover 210 for a predetermined time through the controller 213. About lid to be.

기 발명된 발명 특허 제 10-0737691 호 살균기능이 구비된 칫솔은 도 5에서 보는 바와 같이 칫솔모(19)가 식모되는 투명 재질의 헤드부(11)와, 사용자가 파지하는 손잡이부(12)가 형성되고, 스위치부(14)의 입력동작에 따라 전원부로부터 인가되는 전원에 의해 자외선램프가 발광되면서 살균기능이 수행되는 칫솔에 있어서, 상기 자외선램프에 일단이 근접 위치되고 타단이 헤드부에 위치되어 칫솔모(19)측으로 자외선램프로부터 발광되는 자외선을 전달, 조사시키는 다수의 광섬유(17)로 구성하여 치솔 내부를 통해 자외선이 칫솔헤드(11)에서 칫솔모(19)를 자외선 살균하게 하며,As shown in FIG. 5, the toothbrush equipped with a sterilizing function includes a head portion 11 of a transparent material into which bristles 19 are implanted, and a handle portion 12 held by a user. In the toothbrush which is formed, and the sterilization function is performed while the ultraviolet light is emitted by the power applied from the power supply according to the input operation of the switch unit 14, one end is located close to the ultraviolet lamp and the other end is located in the head portion It consists of a plurality of optical fibers 17 for transmitting and irradiating the ultraviolet light emitted from the ultraviolet lamp to the bristle (19) side to let the ultraviolet rays sterilize the bristle (19) in the toothbrush head 11 through the inside of the toothbrush,

기 발명된 발명특허 제 10-0611934 호 U형 냉음극형 자외선램프를 내장한 휴대용 칫솔살균장치는 도 6에서 보는 바와 같이 U형 냉음극형 자외선램프를 이용하여 보다 강력한 살균효과를 얻을 수 있는 U형 냉음극형 자외선램프를 내장한 휴대용 칫솔살균장치에 관한 것이다. 본 발명에 따른 케이스(100)에 칫솔(56)을 수납하기 위해 형성된 칫솔수용부(55)와, 전자기파를 방출하여 살균을 행하는 살균램프(50)와, 상기 살균램프를 구동하기 위한 전자회로가 실장된 PCB가 상기 케이스의 내부에 구비된 휴대용 칫솔살균장치에 있어서, 살균력을 배가 할 수 있도록 U형으로 형성된 살균램프와, 상기 살균램프의 일단과 타단에 구비된 양극/음극 단자가 연결되는 PCB를 포함하여 구성하여 일반 칫솔을 수납하여 칫솔모를 자외선 살균할 수 있게 하는데,The portable toothbrush sterilization device incorporating the U-type cold-cathode ultraviolet lamp according to the present invention has a U-type cold-cathode ultraviolet lamp, which can be used to obtain a stronger sterilization effect. The present invention relates to a portable toothbrush sterilizer incorporating a cold cathode type ultraviolet lamp. Toothbrush accommodating portion 55 formed to accommodate the toothbrush 56 in the case 100 according to the present invention, a sterilization lamp 50 for disinfecting by emitting electromagnetic waves, and an electronic circuit for driving the sterilization lamp In the portable toothbrush sterilizer equipped with a mounted PCB inside the case, a sterilization lamp formed in the U-shaped so as to double the sterilization power, and a PCB is connected to the anode and cathode terminals provided at one end and the other end of the sterilization lamp It is configured to include a general toothbrush to hold the bristles to ultraviolet sterilization,

기 발명된 발명 특허 제 10-0737691 호 살균기능이 구비된 칫솔은 칫솔 본체에 자외선 살균 램프를 구성하여 자외선 램프의 자외선을 다수의 광섬유(17)를 통해서 칫솔모(19)가 식모되는 투명 재질의 헤드부(11)에 조사하여 칫솔 헤드 내부에서 분산된 자외선으로 칫솔을 살균하게 되어 있어서 칫솔모(19)의 효과적인 살균작용이 어려운 문제점을 내포하고 있으며,Toothbrush equipped with a sterilization function is a head of a transparent material in which the toothbrush 19 is planted through the plurality of optical fibers 17 by forming an ultraviolet sterilization lamp on the toothbrush body. Irradiated to the part 11 to sterilize the toothbrush with ultraviolet rays dispersed inside the toothbrush head, so that the effective sterilization of the bristles 19 is difficult,

기 발명된 발명특허 제 10-0611934 호 U형 냉음극형 자외선램프를 내장한 휴대용 칫솔살균장치는 칫솔 자체로 칫솔모를 자외선 살균할 수 있게 구성되지 않고, 별도로 일반 칫솔(56)을 수납할 수 있는 자외선 살균 장치(100)에 U형 냉음극형 자외선램프(50)를 구성하여 일반 칫솔(56)만을 자외선 살균할 수 있게 구성한 것으로서 칫솔 전체가 들어가는 수납 공간이 필요하고 유리창이나 타일 위에 부착을 할 수 없는 구조로 되어있어서 가정에서 사용하기가 어려운 문제점을 내포하고 있는 것이다.Portable toothbrush sterilization device with a U-type cold-cathode ultraviolet lamp built-in is not configured to ultraviolet sterilize the bristles by the toothbrush itself, it is possible to store a general toothbrush 56 separately U-type cold cathode UV lamp 50 is configured to UV sterilization device 100 so that only general toothbrush 56 can be UV sterilized. A storage space for the entire toothbrush is required and can be attached onto a glass window or tile. It is a structure that does not have a problem that is difficult to use at home.

본 발명이 해결하고자 하는 과제는 칫솔의 칫솔모 살균을 위해 칫솔을 별도의 칫솔 자외선 살균 장치에 넣고 칫솔의 칫솔모를 자외선 살균하는 번거로움이 없이 칫솔을 칫솔 뚜껑에 보관하는 칫솔 뚜껑(200) 자체에 자외선 살균 램프(215)와 배터리(212)와 콘트롤러(213)와 스위치(214)를 내장하여 칫솔을 칫솔 뚜껑 덮개(210)를 열고 칫솔을 넣은 후 칫솔 뚜껑 덮개(210)를 덮으면, 칫솔 뚜껑 덮개(210) 내부에 구성된 자외선 램프(215)의 살균 작용으로 칫솔모(102)를 간단히 자외선 살균할 수 있는 자외선 살균 칫솔 뚜껑을 제공하고자 하는 것이다.The problem to be solved by the present invention is to put the toothbrush in a separate toothbrush UV sterilization device for the brush head sterilization of the toothbrush without ultraviolet light sterilization of the toothbrush bristles without the hassle of storing the toothbrush in the toothbrush lid 200 itself UV Toothbrush lid cover (210), the battery 212, the controller 213 and the switch 214 built in the toothbrush to open the toothbrush lid cover 210, insert the toothbrush and cover the toothbrush lid cover 210, toothbrush lid cover ( It is to provide an ultraviolet sterilization toothbrush lid that can simply ultraviolet sterilize the bristles 102 by the sterilization action of the ultraviolet lamp 215 configured inside.

본 발명은 상기 문제점을 감안해서 이루어진 것으로 칫솔모가 구성된 칫솔 헤드를 칫솔 뚜껑(200)에 넣고 보관함에 있어서, 칫솔 뚜껑 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201)에는 유리창에 붙일 수 있는 고무발(202)이 구성되며, 칫솔 뚜껑 본체(201)의 일측에 구성된 덮개 개폐축(203)에 칫솔 뚜껑 덮개(210)가 일축으로 연결되어 있어서, 칫솔 뚜껑 본체(201)를 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면 스위치(214)가 작동되게 구성되어 있어서, 칫솔 뚜껑 덮개(210)에 구성된 배터리(212)의 전원이 콘트롤러(213)를 통해 칫솔 뚜껑 덮개(210)에 구성된 자외선 램프(215)를 일정 시간 점등하여 칫솔의 칫솔모(102)를 간단히 살균하게 된다. The present invention has been made in view of the above-mentioned problems, and in storing the toothbrush head configured with the bristles in the toothbrush lid 200, the battery 212, the controller 213, the switch 214 and the ultraviolet light in the toothbrush lid cover 210. To configure the lamp 215, the toothbrush lid body 201 is provided with a rubber foot 202 that can be attached to the glass window, toothbrush lid cover 210 on the cover opening and closing shaft 203 formed on one side of the toothbrush lid body 201 ) Is connected uniaxially, the toothbrush lid cover 210 is configured to open and close based on the toothbrush lid body 201, when the toothbrush lid cover 210 is covered with the toothbrush lid body 201, the switch 214 is It is configured to operate, the power of the battery 212 configured in the toothbrush lid cover 210 lights the ultraviolet lamp 215 configured in the toothbrush lid cover 210 through the controller 213 for a predetermined time, so that the bristles 102 of the toothbrush 102. ) Is simply sterilized.

이처럼 칫솔 뚜껑 덮개(210) 내부에 자외선 램프(215)를 마련하고 칫솔 뚜껑 덮개(210)의 배터리(212) 전원을 이용하여 칫솔을 칫솔 뚜껑(200)에 넣고 칫솔 뚜껑 덮개(210)를 덮으면, 자동적으로 칫솔모(102)를 자외선 살균하게 함으로서 보다 손쉽게 칫솔의 칫솔모(102)를 자외선 살균할 수 있게 구성된 자외선 살균 칫솔 뚜껑을 제공하려는 것이다.When the UV lamp 215 is provided inside the toothbrush lid cover 210 and the toothbrush is inserted into the toothbrush lid 200 using the battery 212 power of the toothbrush lid cover 210, the toothbrush lid cover 210 is covered. It is intended to provide a UV sterilized toothbrush lid configured to UV sterilize bristle 102 of a toothbrush more easily by automatically UV sterilizing bristles 102.

본 발명은 칫솔의 칫솔모를 간단히 자외선 살균하고자 하는 것으로서, 칫솔을 사용한 후에 별도의 칫솔 자외선 살균장치를 사용치 않고, 자외선 살균 기능이 내장된 자외선 살균 칫솔 뚜껑(200)을 구성하여, 칫솔을 칫솔 뚜껑에 넣고 칫솔 뚜껑 덮개(210)를 덮어 주는 것으로 간단히 자동으로 칫솔모를 자외선 살균하여 치솔모(102)의 세균 번식을 방지하여 좀더 깨끗한 칫솔로 양치질하여 건강한 치아를 유지하는 매우 도움을 줄 수 있는 매우 유용한 발명이다. The present invention is to simply ultraviolet sterilize the bristles of the toothbrush, after using the toothbrush without using a separate toothbrush UV sterilizer, UV sterilization function built-in UV sterilization toothbrush lid 200, the toothbrush lid toothbrush lid It can be very useful to keep healthy teeth by brushing the toothbrush lid cover 210 and automatically disinfecting the brush head automatically to prevent germ growth of the brush head 102 and brushing it with a cleaner toothbrush. Invention.

도 1은 본 발명의 실시 예의 구성도.
도 2, 도 3, 도 4는 본 발명의 다른 실시 예의 구성도.
도 4 ,도 5는 종래의 실시 상태의 구성도.1 is a block diagram of an embodiment of the present invention.
2, 3, and 4 is a block diagram of another embodiment of the present invention.
4 and 5 are configuration diagrams of a conventional embodiment.

도 1은 본 발명의 실시 예의 구성도를 도시한 것이고, 도 2, 도 3, 도 4는 본 발명의 다른 실시 예의 구성도를 도시한 것이다. 1 is a block diagram of an embodiment of the present invention, Figure 2, Figure 3, and Figure 4 shows a block diagram of another embodiment of the present invention.

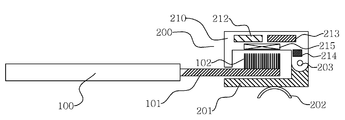

도 1에서 보는 바와 같이 본 발명의 자외선 살균 칫솔 뚜껑은 칫솔 뚜껑 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201)에는 유리창에 붙일 수 있는 고무발(202)이 구성되며, 칫솔 뚜껑 본체(201)의 일측에 칫솔 뚜껑 덮개(210)가 덮개 개폐축(203)으로 연결이 되어 있어서, 칫솔 뚜껑 본체(201)의 덮개 개폐축(203)을 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면 스위치(214)가 작동 되게 구성되어 있어서, 칫솔 뚜껑 덮개(210)에 구성된 배터리(212)의 전원이 콘트롤러(213)를 통해 칫솔 뚜껑 덮개(210)에 구성된 자외선 램프(215)를 일정 시간 점등하여 칫솔의 칫솔모(102)를 간단히 살균하게 구성하는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면, 칫솔 뚜껑 덮개(210)에 내장된 스위치(214)가 동작하고 콘트롤러(213)에서 이것을 감지하여 칫솔 뚜껑 덮개(210) 내부에 구성된 배터리(212)의 전원을 자외선 램프(215)에 공급하여 자외선 램프(215)를 점등하고, 일정한 시간이 지나면 전원을 차단하여 자외선 램프(215)를 소등하게 한다. 즉 일정 시간만 자외선 램프(215)를 점등하여 칫솔모(102)를 살균 작용하게 함으로서 배터리(212) 소모를 줄이고자 하는 것이고,As shown in FIG. 1, the ultraviolet sterilizing toothbrush lid of the present invention comprises a battery 212, a controller 213, a switch 214, and an ultraviolet lamp 215 in the toothbrush lid cover 210, and the toothbrush lid body 201. The rubber foot 202 which can be attached to the glass window is configured, and the toothbrush lid cover 210 is connected to the cover opening / closing shaft 203 on one side of the toothbrush lid body 201, so that the toothbrush lid body 201 Toothbrush lid cover 210 is opened and closed based on the cover opening and closing shaft 203, the switch 214 is configured to operate when the toothbrush lid cover 210 is covered with the toothbrush lid body 201, the toothbrush lid The power of the battery 212 configured in the cover 210 is configured to lightly sterilize the bristles 102 of the toothbrush by lighting the ultraviolet lamp 215 configured in the toothbrush lid cover 210 through the controller 213 for a predetermined time. Toothbrush lid cover 210 covers toothbrush lid body 201 When the switch 214 embedded in the toothbrush lid cover 210 operates, the controller 213 senses this and supplies power of the battery 212 configured inside the toothbrush lid cover 210 to the ultraviolet lamp 215. The ultraviolet lamp 215 is turned on, and after a certain time, the power is cut off to turn off the ultraviolet lamp 215. That is, by only turning on the ultraviolet lamp 215 for a certain time to sterilize the bristles 102 to reduce the consumption of the battery 212,

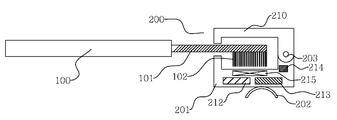

또한 도 2에서 보는 바와 같이 본 발명의 자외선 살균 칫솔 뚜껑은 칫솔 뚜껑 본체(201)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201) 하부에 유리창에 붙일 수 있는 고무발(202)이 구성되고, 칫솔 뚜껑 본체(201)의 일측에 칫솔 뚜껑 덮개(210)가 덮개 개폐축(203)으로 연결되어 있어서, 칫솔 뚜껑 본체(201)의 덮개 개폐축(203)을 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면, 칫솔 뚜껑 본체(201)에 내장된 스위치(214)가 동작하고 콘트롤러(213)에서 이것을 감지하여 칫솔 뚜껑 본체(201) 내부에 구성된 배터리(212)의 전원을 자외선 램프(215)에 공급하여 자외선 램프(215)를 점등하고, 일정한 시간이 지나면 전원을 차단하여 자외선 램프(215)를 소등하게 구성할 수도 있으며, Also, as shown in FIG. 2, the UV sterilizing toothbrush lid of the present invention comprises a battery 212, a controller 213, a switch 214, and an ultraviolet lamp 215 in the toothbrush lid body 201, and the toothbrush lid body ( 201) a rubber foot 202 which can be attached to the glass window is formed on the lower part, and the toothbrush lid cover 210 is connected to the cover opening / closing shaft 203 on one side of the toothbrush lid body 201, so that the toothbrush lid body 201 is provided. Toothbrush lid cover 210 is configured to open and close based on the cover opening and closing shaft 203 of the toothbrush lid cover 210 is covered in the toothbrush lid body 201, the switch embedded in the toothbrush lid body 201 ( 214 is operated and the controller 213 detects this and supplies the power of the battery 212 configured inside the toothbrush lid body 201 to the ultraviolet lamp 215 to turn on the ultraviolet lamp 215, and after a certain time Shut off the power and turn off the UV lamp 215 And also,

또한 도 3에서 보는 바와 같이 본 발명의 자외선 살균 칫솔 뚜껑은 칫솔 뚜껑 측면에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201) 하부에 유리창에 붙일 수 있는 고무발(202)을 구성하고, 칫솔 뚜껑 본체(201)의 일측에 칫솔 뚜껑 덮개(210)가 덮개 개폐축(203)으로 연결되어 있어서, 칫솔 뚜껑 본체(201)의 덮개 개폐축(203)을 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되는데, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면, 칫솔 뚜껑 측면에 내장된 스위치(214)가 동작하고 콘트롤러(213)에서 이것을 감지하여 칫솔 뚜껑 측면에 구성된 배터리(212)의 전원을 자외선 램프(215)에 공급하여 자외선 램프(215)를 점등하고, 일정한 시간이 지나면 전원을 차단하여 자외선 램프(215)를 소등하게 구성할 수도 있으며, In addition, as shown in FIG. 3, the UV sterilizing toothbrush lid of the present invention comprises a battery 212, a controller 213, a switch 214, and an ultraviolet lamp 215 on the side of the toothbrush lid, and the lower part of the toothbrush lid body 201. To form a rubber foot 202 which can be attached to the glass window, the toothbrush lid cover 210 is connected to the cover opening and closing shaft 203 on one side of the toothbrush lid body 201, the cover opening and closing of the toothbrush lid body 201 Toothbrush lid cover 210 is configured to open and close about axis 203. When toothbrush lid cover 210 is covered by toothbrush lid body 201, switch 214 embedded in the toothbrush lid side is operated and the controller The sensor 213 senses this and supplies the power of the battery 212 configured on the side of the toothbrush lid to the ultraviolet lamp 215 to turn on the ultraviolet lamp 215, and after a certain time, shuts off the power to shut off the ultraviolet lamp 215. You can also turn it off,

또한 도 4에서 보는 바와 같이 본 발명의 자외선 살균 칫솔 뚜껑은 칫솔 뚜껑 덮개가 좌우로 열리고 닫히게 구성되며, 칫솔 뚜껑 측면 덮개(211)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201) 하부에 유리창에 붙일 수 있는 고무발(202)을 구성하고, 칫솔 뚜껑 본체(201) 양측에 칫솔 뚜껑 측면 덮개(211)가 연결되어 있어서, 칫솔 뚜껑 본체(201)를 기준으로 칫솔 뚜껑 측면 덮개(211)가 좌우로 열리고 닫히게 구성되는데, 칫솔 뚜껑 좌우 측면 덮개(211)가 가운데로 덮이면, 칫솔 뚜껑 측면 덮개(211)에 내장된 스위치(214)가 동작하고 콘트롤러(213))에서 이것을 감지하여 칫솔 뚜껑 측면 덮개(211) 내부에 구성된 배터리(212)의 전원을 자외선 램프(215)에 공급하여 자외선 램프(215)를 점등하고, 일정한 시간이 지나면 전원을 차단하여 자외선 램프(215)를 소등하게 구성할 수도 있다. In addition, the UV sterilizing toothbrush lid of the present invention, as shown in Figure 4 is configured to open and close the toothbrush lid cover from side to side, the battery 212 and the controller 213 and the switch 214 and ultraviolet to the toothbrush lid side cover 211 To configure the lamp 215, a rubber foot 202 that can be attached to the glass window in the lower part of the toothbrush lid body 201, toothbrush lid side cover 211 is connected to both sides of the toothbrush lid body 201, toothbrush Toothbrush lid side cover 211 is configured to open and close from side to side based on the lid body 201, if the toothbrush lid left and right side cover 211 is covered in the center, the switch 214 embedded in the toothbrush lid side cover 211 ) Is activated and the controller 213 senses this and supplies the power of the battery 212 configured inside the toothbrush lid side cover 211 to the ultraviolet lamp 215 to light the ultraviolet lamp 215, Power off Stage may be configured to be turned off by the UV lamp 215.

이와 같이 본 발명은 칫솔을 칫솔 걸이로 사용할 수 있는 칫솔 뚜껑(200)에 간단히 넣고 칫솔 뚜껑 덮개(210)를 칫솔 본체(201)에 덮으므로서 간단하고 편리하게 칫솔모(102)를 자외선 살균할 수 있는 자외선 살균 칫솔 뚜껑을 제공하고자 하는 것이다.As such, the present invention can simply and conveniently ultraviolet sterilize the bristles 102 by simply putting the toothbrush into the toothbrush lid 200 which can be used as a toothbrush hanger and covering the toothbrush lid cover 210 with the toothbrush body 201. To provide a UV sterilized toothbrush lid.

100 : 칫솔 본체
101 : 칫솔 헤드
102 : 칫솔모
200 : 칫솔 뚜껑
201 : 칫솔 뚜껑 본체
202 : 고무발
203 : 덮개 개폐 축
210 : 칫솔 뚜껑 덮개
211 : 칫솔 뚜껑 측면 덮개
212 : 배터리
213 : 콘트롤러
214 : 스위치
215 : 자외선 램프 100: toothbrush body
101: Toothbrush Head
102: brush head
200: Toothbrush Lid
201: toothbrush lid body
202: rubber feet
203: opening and closing shaft
210: toothbrush lid cover
211: toothbrush lid side cover
212: battery
213: controller
214: switch
215: UV Lamp

Claims (7)

칫솔 뚜껑 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201)에는 유리창에 붙일 수 있는 고무발(202)을 구성하고, 칫솔 뚜껑 본체(201)의 일측에 구성된 덮개 개폐축(203)에 칫솔 뚜껑 덮개(210)가 일축으로 연결되고, 칫솔 뚜껑 본체(201)를 기준으로 칫솔 뚜껑 덮개(210)가 열리고 닫히게 구성되며, 칫솔 뚜껑 덮개(210)가 칫솔 뚜껑 본체(201)에 덮이면 스위치(214)가 작동 되게 구성되고, 칫솔 뚜껑 덮개(210)에 구성된 배터리(212)의 전원이 콘트롤러(213)를 통해 칫솔 뚜껑 덮개(210)에 구성된 자외선 램프(215)를 일정 시간 점등하여 칫솔의 칫솔모(102)를 간단히 살균하게 구성된 자외선 살균 칫솔 뚜껑. Toothbrush lid cover 210 constitutes a battery 212, a controller 213, a switch 214 and an ultraviolet lamp 215, and the toothbrush lid body 201 constitutes a rubber foot 202 that can be attached to a glass window. Toothbrush lid cover 210 is connected uniaxially to the cover opening and closing shaft 203 configured on one side of the toothbrush lid body 201, the toothbrush lid cover 210 is configured to open and close based on the toothbrush lid body 201, When the toothbrush lid cover 210 is covered with the toothbrush lid body 201, the switch 214 is configured to operate, and the power of the battery 212 configured in the toothbrush lid cover 210 is supplied through the controller 213. UV sterilizing toothbrush lid configured to easily sterilize the bristles 102 of the toothbrush by lighting the ultraviolet lamp 215 configured in the cover 210 for a predetermined time. 제 1 항에 있어서 칫솔 뚜껑 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성치 않고, 칫솔 뚜껑 본체(201)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201) 하부에 유리창에 붙일 수 있는 고무발(202)을 구성한 자외선 살균 칫솔 뚜껑. The battery 212 and the controller in the toothbrush lid body 201 without the battery 212, the controller 213, the switch 214, and the ultraviolet lamp 215 are not configured in the toothbrush lid cover 210. Ultraviolet sterilizing toothbrush lid which comprises 213, the switch 214, and the ultraviolet lamp 215, and comprised the rubber foot 202 which can be attached to a glass window in the lower part of the toothbrush lid main body 201. 제 1 항에 있어서 칫솔 뚜껑 덮개(210)에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성치 않고, 칫솔 뚜껑의 측면에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201) 하부에 유리창에 붙일 수 있는 고무발(202)을 구성한 자외선 살균 칫솔 뚜껑. The battery 212 and the controller 213 on the side of the toothbrush lid are not configured in the toothbrush lid cover 210, without the battery 212, the controller 213, the switch 214, and the ultraviolet lamp 215. UV sterilizing toothbrush lid comprising a switch 214, an ultraviolet lamp 215, and a rubber foot 202 that can be attached to a glass window under the toothbrush lid body 201. 제 1 항에 있어서 칫솔 뚜껑의 덮개(211)가 좌우로 열리고 닫히게 구성되며, 칫솔 뚜껑의 측면에 배터리(212)와 콘트롤러(213)와 스위치(214)와 자외선 램프(215)를 구성하고, 칫솔 뚜껑 본체(201) 하부에 유리창에 붙일 수 있는 고무발(202)이 구성되게 구성된 자외선 살균 칫솔 뚜껑. The lid 211 of the toothbrush lid is configured to open and close from side to side, and constitutes a battery 212, a controller 213, a switch 214, an ultraviolet lamp 215 on the side of the toothbrush lid, and a toothbrush. Ultraviolet sterilized toothbrush lid configured to be configured with a rubber foot 202 that can be attached to a glass window under the lid body 201. 제 1 항에 있어서 자외선 램프(215) 대신 자외선 LED로 구성된 자외선 살균 칫솔 뚜껑.The ultraviolet sterilizing toothbrush lid of claim 1 consisting of ultraviolet LEDs instead of ultraviolet lamps (215). 제 1 항에 있어서 고무발(202)를 구성치 않고, 휴대용으로 구성된 자외선 살균 칫솔 뚜껑.The ultraviolet sterilizing toothbrush lid of claim 1, wherein the lid is configured to be portable without constituting the rubber foot 202. 제 1 항에 있어서 칫솔 뚜껑 덮개(210)를 덮을시 자동으로 스위치(214)가 작동치 않고, 칫솔 뚜껑(200) 외부에 스위치(214)를 구성하여 별도로 자유롭게 스위치(214)를 누를 시 자외선 램프(215)가 일정시간 작동하게 구성된 자외선 살균 칫솔 뚜껑.According to claim 1, the switch 214 does not operate automatically when covering the toothbrush lid cover 210, by configuring the switch 214 on the outside of the toothbrush lid 200, the UV lamp when pressing the switch 214 freely separately UV sterilized toothbrush lid configured for 215 to operate for a period of time.
