Abstract
본 발명은 마그네슘보드를 이용하여 원목 단판을 부착하여, 목재의 수축변형과 내수성판넬, 난연판넬 기능을 하는 마그네슘 목재 단판 루버에 관한 것이다.
본 발명에 따른 마그네슘 목재단판 루버는, 마그네슘 보드(2); 상기 마그네슘 보드(2)의 상부면에 부착된 나무 재질의 단판(1); 및 상기 마그네슘 보드(2)의 하부면에 부착된 열반사용 반사지로 된 단열부(3)를 포함하고, 상기 마그네슘 보드(2)와 상기 단판(1)이 일체로 형성된 일단부는 연결돌기(5)를 형성하고, 상기 마그네슘 보드(2)와 상기 단판(1)이 일체로 형성된 타단부는 상기 연결돌기(5)를 수용하는 연결구(4)를 형성한다.The present invention relates to a magnesium wood veneer louver to attach a wooden veneer using a magnesium board, the function of shrinkage deformation of the wood, water resistant panels, flame retardant panels.
Magnesium wood veneer louver according to the invention, the magnesium board (2); A wooden end plate (1) attached to an upper surface of the magnesium board (2); And a heat insulating part 3 made of a heat reflecting reflective paper attached to a lower surface of the magnesium board 2, wherein one end of the magnesium board 2 and the end plate 1 are integrally formed with a connecting protrusion 5. The other end formed integrally with the magnesium board 2 and the end plate 1 forms a connector 4 for receiving the connection protrusion 5.
Description
본 발명은 건축용 자재인 목재단판 마감판넬에 관한 것으로, 더욱 상세하게는 물과 불 그리고 신축에 잘 견디는 마그네슘 판넬을 이용하여, 습기에 강하고 수축변형에 잘 견디며 단열기능을 가지고 목재의 미려한 기능을 가지는 건축용 마그네슘 목재단판 루버에 관한 것이다.The present invention relates to a wood veneer finish panel, which is a building material, and more specifically, using a magnesium panel that resists water, fire, and stretch, and is resistant to moisture, resists shrinkage deformation, and has a beautiful function of wood with insulation. Magnesium wood veneer louvers for construction.
종래의 목재 루버(Ruber)는 목재로만 만들어지고 단판 좌우가 요철(凹凸)로 만들어져 제작 이용되고 있으나, 습기에 의해 수축이 심해 불어나 튀어 오르거나 수축되어 헐거워 빠지거나 불에 약하고, 배면에 곰팡이등 건강에 해로운 문제점이 있었다.Conventional wood louvers are made of wood only, and the veneers are made of irregularities on the left and right sides, but they are severely contracted by moisture and blown out, springy or shrunk and loosen, weak to fire, and mold on the back. There was an unhealthy issue.
본 발명은 건축용 목재 루버 마감 재료로서, 마그네슘보드를 이용하여 목재 단판을 부착, 신축에 잘 견디고 물에 강하며 불에 잘 견디면서 배면에 열 반사지를 부착, 내부의 열을 보호하며 목재의 미려한 마감 루버(RuBer)를 제공하는데 그 목적이 있다.The present invention is a wood louver finishing material for building, using a magnesium board to attach a wooden veneer, stretch well, resist water and fire well while attaching a heat reflector on the back, protect the heat inside and beautiful finish of wood Its purpose is to provide a RuBer.
본 발명은 시공 시, 수축변형이 없고 물에 강하며 열 반사가 되는 마그네슘 목재단판 루버에 관한 것으로, 마그네슘 보드를 사이에 두고 표면에는 목재단판을 붙여 목재의 미려함이 좋게 하고, 배면에는 열 반사기능이 있는 열반사지를 부착 단열기능이 부가되고, 중앙의 마그네슘보드는 수축 변형과 내수성 내화의 기능을 보강하는 것을 특징으로 한다.The present invention relates to a magnesium wood veneer louver that is strong in water and heat reflective without shrinkage deformation during construction, and the wood veneer is attached to the surface with a magnesium board interposed therebetween to enhance the beauty of the wood, and the heat reflection function on the back side. Thermal insulation is attached to the heat insulating paper is added, the central magnesium board is characterized by reinforcing the function of shrinkage deformation and water resistance fire resistance.
본 발명에 따른 마그네슘 목재단판 루버는, 마그네슘 보드(2); 상기 마그네슘 보드(2)의 상부면에 부착된 나무 재질의 단판(1); 및 상기 마그네슘 보드(2)의 하부면에 부착된 열반사용 반사지로 된 단열부(3)를 포함한다.Magnesium wood veneer louver according to the invention, the magnesium board (2); A wooden end plate (1) attached to an upper surface of the magnesium board (2); And a
또한, 상기 마그네슘 보드(2)와 상기 단판(1)이 일체로 형성된 일단부는 연결돌기(5)를 형성하고, 상기 마그네슘 보드(2)와 상기 단판(1)이 일체로 형성된 타단부는 상기 연결돌기(5)를 수용하는 연결구(4)를 형성하는 것을 특징으로 한다.In addition, one end formed integrally with the
또한, 상기 연결구(4)를 형성하는 상기 단판(1)의 길이(a)는 상기 연결구(4)를 형성하는 상기 마그네슘 보드(2)의 길이(b)보다 긴 것을 특징으로 한다.In addition, the length (a) of the end plate (1) forming the
또한, 상기 연결돌기(5)를 형성하는 상기 단판(1)의 길이(c)는 상기 연결돌기(5)를 형성하는 상기 마그네슘 보드(2)의 길이(d)보다 긴 것을 특징으로 한다.In addition, the length c of the
본 발명에 따르면, 목재의 단점이 보충할 수 있도록 목재 단판에 무기질 재료인 마그네슘보드를 부착하여 수축 변형이 없고 물에 강하며 불에 타지 않으며 열반사되어 단열이 극대화된다.According to the present invention, by attaching the magnesium board, which is an inorganic material, to the wooden end plate so that the disadvantages of wood can be compensated, there is no shrinkage deformation, it is resistant to water, does not burn, and heat reflection is maximized.
도 1은 본 발명의 일실시예에 따른 마그네슘 목재단판 루버의 결합 전 측단면도, 및
도 2는 본 발명의 일실시예에 따른 마그네슘 목재단판 루버의 결합 후 측단면도이다.1 is a side cross-sectional view before coupling of the magnesium wood veneer louver according to an embodiment of the present invention, and
Figure 2 is a side cross-sectional view after coupling of the magnesium wood veneer louver according to an embodiment of the present invention.
이하, 본 발명의 바람직한 실시예(들)에 대하여 첨부도면을 참조하여 상세히 설명한다. 우선 각 도면의 구성요소들에 참조부호를 부가함에 있어서, 동일한 구성요소들에 한해서는 비록 다른 도면상에 표시되더라도 가능한 한 동일한 부호로 표기되었음에 유의하여야 한다. 또한, 하기의 설명에서는 많은 특정사항들이 도시되어 있는데, 이는 본 발명의 보다 전반적인 이해를 돕기 위해서 제공된 것일 뿐 이러한 특정 사항들 없이도 본 발명이 실시될 수 있음은 이 기술분야에서 통상의 지식을 가진 자에게는 자명하다 할 것이다. 그리고 본 발명을 설명함에 있어서, 관련된 공지 기능 혹은 구성에 대한 구체적인 설명이 본 발명의 요지를 불필요하게 흐릴 수 있다고 판단되는 경우, 그 상세한 설명을 생략한다.
Hereinafter, exemplary embodiment (s) of the present invention will be described in detail with reference to the accompanying drawings. First, in adding reference numerals to the elements of each drawing, it should be noted that the same elements are denoted by the same reference numerals as much as possible even if they are displayed on different drawings. In addition, many specific details are shown in the following description, which is provided to help a more general understanding of the present invention, and the present invention may be practiced without these specific details. Will be self-evident. In describing the present invention, when it is determined that a detailed description of a related known function or configuration may unnecessarily obscure the subject matter of the present invention, the detailed description thereof will be omitted.

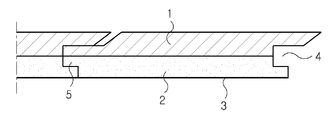

도 1은 본 발명의 일실시예에 따른 마그네슘 목재단판 루버의 결합 전 측단면도이고, 도 2는 본 발명의 일실시예에 따른 마그네슘 목재단판 루버의 결합 후 측단면도이다. 1 is a side cross-sectional view before coupling of a magnesium wood veneer louver according to an embodiment of the present invention, Figure 2 is a side cross-sectional view after the coupling of magnesium wood veneer louver according to an embodiment of the present invention.
중앙부에 배치되는 마그네슘 보드(2) 재질의 특성상 목재에 비해 신축이 1/1000 에 불과하여 무수축 특성을 가지고, 물 등 수분에 강해 변형이 되지 않으며, 마그네슘 보드(2)의 상부면에는 불에 강한 특성을 가진 목재의 단판(1)을 부착하고, 마그네슘 보드(2)의 하부면에는, 외부로부터의 열을 차단하고 내부의 열을 보호하는 열반사지(3)를 부착하며, 루버의 좌우측에는 연결구(4)와 연결돌기(5)가 있어 평면을 유지한다. Due to the nature of the magnesium board (2) placed in the center portion, the expansion and contraction is only 1/1000 compared to wood, has a non-shrinkable property, is resistant to moisture, such as water, and does not deform, the fire on the upper surface of the magnesium board (2) A
특히, 마그네슘 보드(2)와 단판(1)이 일체로 된 일단부는 연결돌기(5)를 형성하고, 마그네슘 보드(2)와 단판(1)이 일체로 된 타단부는 연결구(4)를 형성한다. 이때, 연결구(4)를 형성하는 단판(1)의 길이(a)는 연결구(4)를 형성하는 마그네슘 보드(2)의 길이(b)보다 길게 형성함으로써 연결돌기(5)를 수용한 상태에서 수직방향으로 힘을 받는 경우에 파손 가능성을 줄일 수 있다. In particular, one end of the
또한, 연결구(4)를 형성하는 단판(1)의 길이(a)가 연결구(4)를 형성하는 마그네슘 보드(2)의 길이(b)보다 길기 때문에 연결돌기(5)를 형성하는 단판(1)의 길이(c)도 연결돌기(5)를 형성하는 마그네슘 보드(2)의 길이(d)보다 길게 형성된다. Further, since the length a of the
한편, 본 발명의 다른 실시예에 따르면, 마그네슘 이외에도 비철금속 또는 비철금속합금이 사용될 수 있다.
Meanwhile, according to another embodiment of the present invention, in addition to magnesium, nonferrous metals or nonferrous metal alloys may be used.
이와 같이, 본 발명의 상세한 설명에서는 구체적인 실시예(들)에 관해 설명하였으나, 본 발명의 범주에서 벗어나지 않는 한도 내에서 여러 가지 변형이 가능함은 물론이다. 그러므로 본 발명의 범위는 설명된 실시예(들)에 국한되어 정해져서는 안 되며, 후술하는 특허청구범위 뿐만 아니라 이 특허청구범위와 균등한 것들에 의해 정해져야 한다.As described above, although the specific embodiment (s) have been described in the detailed description of the present invention, various modifications are possible without departing from the scope of the present invention. Therefore, the scope of the present invention should not be limited to the described embodiment (s), but should be defined by the claims below and equivalents thereof.
1: 단판 2: 마그네슘 보드
3: 단열부 4: 연결구
5: 연결돌기1: veneer 2: magnesium board
3: insulation 4: connector
5: connecting projection
Claims (4)
마그네슘 보드(2);
상기 마그네슘 보드(2)의 상부면에 부착된 나무 재질의 단판(1); 및
상기 마그네슘 보드(2)의 하부면에 부착된 열반사용 반사지로 된 단열부(3)를 포함하는 마그네슘 목재단판 루버.Magnesium wood veneer,
Magnesium board 2;
A wooden end plate (1) attached to an upper surface of the magnesium board (2); And
Magnesium wood veneer louver comprising a heat insulating portion (3) made of heat reflecting reflective paper attached to the lower surface of the magnesium board (2).
상기 마그네슘 보드(2)와 상기 단판(1)이 일체로 형성된 일단부는 연결돌기(5)를 형성하고,
상기 마그네슘 보드(2)와 상기 단판(1)이 일체로 형성된 타단부는 상기 연결돌기(5)를 수용하는 연결구(4)를 형성하는 것
을 특징으로 하는 마그네슘 목재단판 루버.The method of claim 1,
One end of the magnesium board 2 and the end plate 1 are integrally formed to form a connection protrusion 5,
The other end formed integrally with the magnesium board 2 and the end plate 1 to form a connector (4) for receiving the connecting projection (5)
Magnesium wood veneer louver, characterized in that.
상기 연결구(4)를 형성하는 상기 단판(1)의 길이(a)는 상기 연결구(4)를 형성하는 상기 마그네슘 보드(2)의 길이(b)보다 긴 것을 특징으로 하는 마그네슘 목재단판 루버.The method of claim 2,
Magnesium wood veneer louver, characterized in that the length (a) of the end plate (1) forming the connector (4) is longer than the length (b) of the magnesium board (2) forming the connector (4).
상기 연결돌기(5)를 형성하는 상기 단판(1)의 길이(c)는 상기 연결돌기(5)를 형성하는 상기 마그네슘 보드(2)의 길이(d)보다 긴 것을 특징으로 하는 마그네슘 목재단판 루버.The method of claim 3,
Magnesium wood veneer louver, characterized in that the length (c) of the end plate (1) forming the connecting projection (5) is longer than the length (d) of the magnesium board (2) forming the connecting projection (5). .
