KR20120080155A - Photovoltaic and wind power combined electric generator - Google Patents

Photovoltaic and wind power combined electric generator Download PDF

Info

Publication number
KR20120080155A
KR20120080155A KR1020120060668A KR20120060668A KR20120080155A KR 20120080155 A KR20120080155 A KR 20120080155A KR 1020120060668 A KR1020120060668 A KR 1020120060668A KR 20120060668 A KR20120060668 A KR 20120060668A KR 20120080155 A KR20120080155 A KR 20120080155A
Authority
KR
South Korea
Prior art keywords
wind power
control system
generator
power generation
wind
Prior art date
Application number
KR1020120060668A
Other languages
Korean (ko)
Inventor
김영찬
Original Assignee
김영찬
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by 김영찬 filed Critical 김영찬
Priority to KR1020120060668A priority Critical patent/KR20120080155A/en
Publication of KR20120080155A publication Critical patent/KR20120080155A/en

Links

Images

Classifications

    • HELECTRICITY
    • H02GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
    • H02SGENERATION OF ELECTRIC POWER BY CONVERSION OF INFRA-RED RADIATION, VISIBLE LIGHT OR ULTRAVIOLET LIGHT, e.g. USING PHOTOVOLTAIC [PV] MODULES
    • H02S10/00PV power plants; Combinations of PV energy systems with other systems for the generation of electric power
    • H02S10/10PV power plants; Combinations of PV energy systems with other systems for the generation of electric power including a supplementary source of electric power, e.g. hybrid diesel-PV energy systems
    • H02S10/12Hybrid wind-PV energy systems
    • HELECTRICITY
    • H02GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
    • H02SGENERATION OF ELECTRIC POWER BY CONVERSION OF INFRA-RED RADIATION, VISIBLE LIGHT OR ULTRAVIOLET LIGHT, e.g. USING PHOTOVOLTAIC [PV] MODULES
    • H02S40/00Components or accessories in combination with PV modules, not provided for in groups H02S10/00 - H02S30/00
    • H02S40/30Electrical components
    • H02S40/38Energy storage means, e.g. batteries, structurally associated with PV modules
    • YGENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02EREDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
    • Y02E10/00Energy generation through renewable energy sources
    • Y02E10/50Photovoltaic [PV] energy
    • YGENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02EREDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
    • Y02E70/00Other energy conversion or management systems reducing GHG emissions
    • Y02E70/30Systems combining energy storage with energy generation of non-fossil origin

Abstract

PURPOSE: A power generator integrated with solar power generation and wind power generation is provided to constantly generate power by accumulating power while converting surplus electricity into a direct current. CONSTITUTION: A power generator integrated with solar power generation and wind power generation comprises a solar cell panel(20), a wind power generator(30), a control system(40), a battery(50), and connection lines(25). The solar cell panel is installed in an upper part of a three-stage frame(10). The wind power generator is installed in a middle part of the frame. The wind power generator is formed by connecting a vertical shaft-type wind turbine(31) and a power generator(32). The control system is installed in a lower part of the frame. The control system controls the electricity generated from the wind power generator and the sola cell panel. The battery is charged or discharged with the surplus electricity. The connection lines connect the solar cell panel, the wind power generator, the control system, and the battery.

Description

태양광발전과 풍력발전이 결합된 발전기{PHOTOVOLTAIC AND WIND POWER COMBINED ELECTRIC GENERATOR}Generator that combines photovoltaic and wind power generation {PHOTOVOLTAIC AND WIND POWER COMBINED ELECTRIC GENERATOR}

본 발명은 태양광과 풍력을 함께 이용할 수 있는 발전기에 관한 것으로 더욱 상세하게는 태양광발전을 위한 태양전지패널과 풍력발전기가 3단으로 구성된 하나의 프레임에 함께 설치되고 운영되어 설치 및 운영비용을 줄이고 발전량을 최대화할 수 있는 발전기에 관한 것이다.The present invention relates to a generator that can use both solar and wind power, and more particularly, the solar panel and the wind power generator for photovoltaic power generation are installed and operated together in one frame composed of three stages. It is about a generator that can reduce and maximize power generation.

태양광발전은 태양전지를 부착한 패널을 이용하여 태양광에너지를 전류로 변환하여 전기를 생산하는 발전시스템이다. 이 발전의 특징은 반영구적이고 태양전지를 사용해서 유지와 보수가 간편하며, 무공해의 태양에너지원을 사용한다는 것이다. 그러나 태양광발전은 태양광을 에너지원으로 이용하는 관계로 일몰 후는 물론 구름이 낀 흐린 날씨나 비가 오는 경우에 발전이 계속되지 못하는 단점이 있다.Photovoltaic power generation is a power generation system that produces electricity by converting photovoltaic energy into electric current using panels attached with solar cells. The characteristics of this development are that it is semi-permanent, easy to maintain and repair using solar cells, and uses a pollution-free solar energy source. However, photovoltaic power generation has a disadvantage in that power generation does not continue after sunset as well as in cloudy weather or rain due to the use of sunlight as an energy source.

풍력발전기는 바람을 에너지원으로 하여 전기를 생산하는 기기이다. 바람의 힘에 의하여 회전하는 풍력터빈의 회전력으로 발전기를 돌려서 전기를 생산하므로 이 역시 무공해에너지에 해당하고 수력, 화력 및 원자력 발전과 비교하여 구조가 간단하고 유지와 보수가 용이하다는 장점이 있으나 자연환경에서 발생하는 바람을 에너지원으로 이용하는 관계로 발전이 불규칙하여 안정적이고 지속적인 전원으로 활용하기에 상당한 문제점이 있다.A wind turbine is a device that produces electricity by using wind as an energy source. Electricity is generated by turning a generator by the rotational force of a wind turbine that is rotated by the force of wind. This is also a pollution-free energy and has the advantages of simple structure and easy maintenance and repair as compared to hydro, thermal and nuclear power. Due to the use of wind generated as a source of energy in the power generation is irregular, there is a significant problem to use as a stable and sustainable power source.

본 발명은 전술한 문제점들을 해결하기 위한 것으로, 본 발명의 일 실시 예는, 3단으로 구성된 하나의 프레임에 태양광발전을 위한 태양전지 패널과 풍력발전기를 함께 설치하고 두 가지 발전기에서 생산된 전기를 하나의 컨트롤 시스템으로 제어하고 관리하여 발전효율과 발전할 수 있는 시간을 최대화하는 것을 그 과제로 한다. The present invention is to solve the above problems, an embodiment of the present invention, the solar panel and the wind power generator for photovoltaic power generation in one frame consisting of three stages together and the electricity produced by the two generators Its task is to maximize power generation efficiency and development time by controlling and managing a single control system.

본 발명의 바람직한 일 실시 예에 의하면, 3단으로 구성된 하나의 프레임의 상단부분에 태양광발전을 위한 태양전지패널을 설치하고, 상기 프레임의 중간부분에 풍력발전을 위한 수직축 방식의 풍력터빈과 이에 연결된 발전기를 설치하고, 상기 프레임의 하단부분에는 두 가지 발전기에서 생산된 전기를 제어하고 관리하는 콘트롤시스템과 생산된 잉여전기를 축전하고 필요 시 방전할 수 있는 배터리를 설치하며, 이 모든 것을 상호 연결하는 연결선들로 이루어지는 것을 특징으로 하는 태양전지패널과 풍력발전기가 결합된 발전기가 제공된다. According to a preferred embodiment of the present invention, a solar panel for photovoltaic power generation is installed on an upper portion of one frame composed of three stages, and a vertical axis wind turbine for wind power generation in the middle of the frame and Install a connected generator, and at the bottom of the frame, a control system for controlling and managing the electricity produced by the two generators, and a battery for accumulating and discharging the surplus electricity produced, and interconnecting all of them. Provided is a generator coupled to a solar panel and a wind turbine, characterized in that consisting of connecting lines.

전술한 바와 같은 본 발명의 바람직한 일 실시 예에 의하면 첫째, 태양광발전을 위한 태양전지 패널을 설치하기 위하여 반드시 필요한 면적에, 그에 준한 내접원의 크기를 가지는 풍력터빈과, 이에 연결된 발전기로 구성된 풍력발전기를 함께 설치할 수 있어서 단위면적당 발전량이 그만큼 증가한다.According to a preferred embodiment of the present invention as described above, first, a wind turbine comprising a wind turbine having an inscribed circle size and a generator connected thereto in an area necessary for installing a solar panel for photovoltaic power generation; Can be installed together to increase the amount of power generated per unit area.

둘째, 태양광발전의 경우 야간이나 흐린 날의 경우 발전이 사실상 불가능한데 이때 풍력발전이 계속될 수 있으며, 반대로 바람이 전혀 불지 않아서 풍력발전이 불가능한 경우의 맑은 날씨에서는 태양광발전이 가능하므로 두 가지 발전기가 상당부분 발전의 연속성을 상호 보완해 줄 수 있다.Secondly, in the case of solar power generation, it is virtually impossible to generate electricity at night or on a cloudy day. At this time, wind power generation can continue. Generators can complement each other's continuity of power generation.

세째, 컨트롤시스템에 연결된 배터리는 두 가지 발전기에서 생산되는 잉여전기를 직류로 변환하여 축전할 수 있으며, 두 가지 발전기가 동시에 발전이 중지되는 경우에 배터리에 축전된 전기를 인버터를 거쳐서 교류전기로 출력하면 지속적인 발전상태가 유지되게 된다. Third, the battery connected to the control system can convert the surplus electricity produced by the two generators into direct current and accumulate it. When the two generators are stopped at the same time, the electricity stored in the battery is output to the alternating current through the inverter. If you do, the state of continuous development will be maintained.

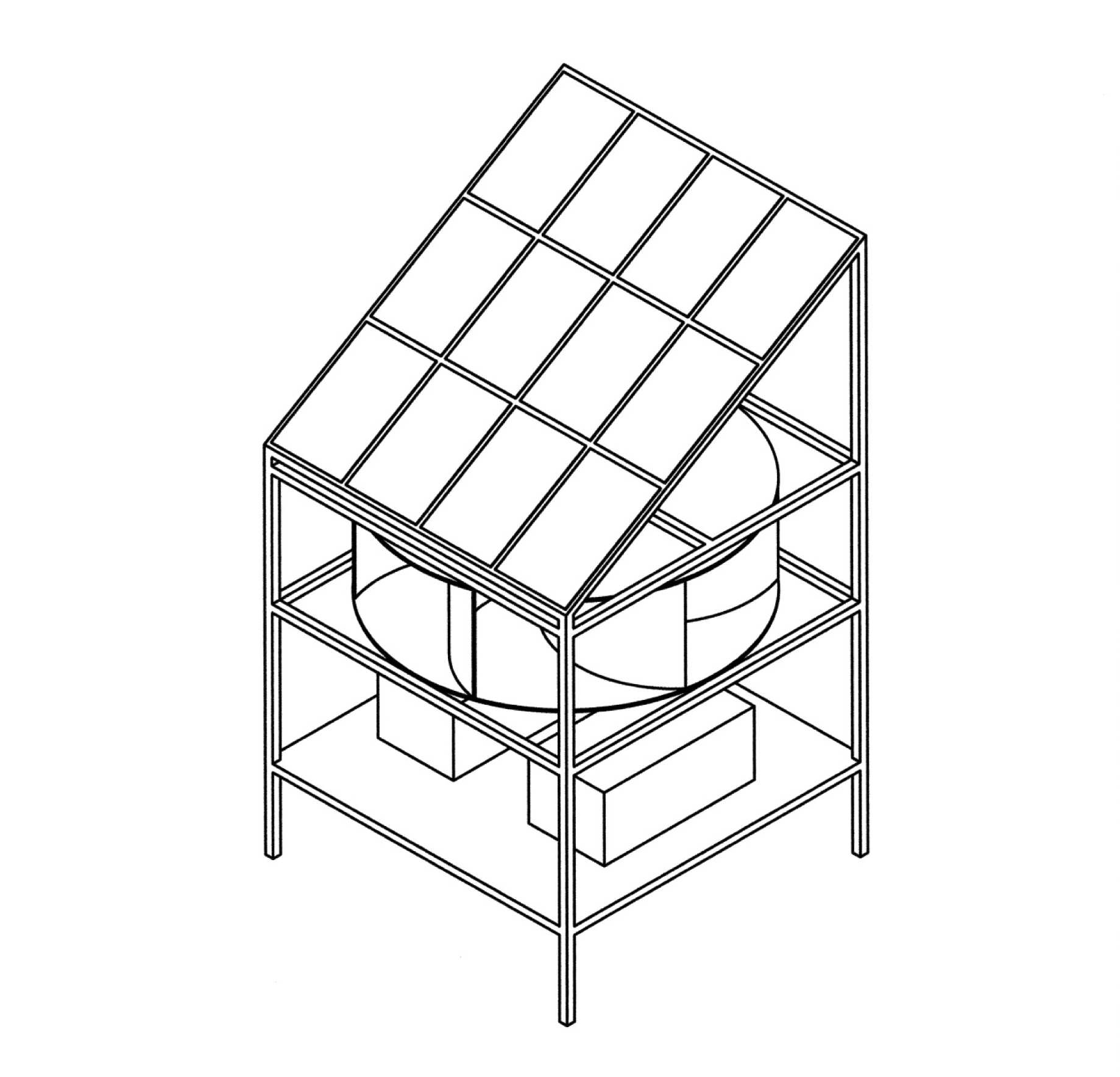

도 1은 본 발명의 일 실시 예에 의한 사시도
도 2는 도 1의 정면도
도 3은 도 2의 A-A 단면도
도 4는 본 발명의 일 실시 예에 의한 다른 방향의 사시도로서 도 1을 반시계 방향으로 약 55도 회전한 모습
1 is a perspective view according to an embodiment of the present invention
FIG. 2 is a front view of FIG. 1
3 is a cross-sectional view taken along AA of FIG.
FIG. 4 is a perspective view of another direction according to an embodiment of the present invention, in which FIG. 1 is rotated about 55 degrees in a counterclockwise direction.

이하, 본 발명에 따른 태양광발전과 풍력발전이 결합된 발전기의 바람직한 일 실시 예를 첨부된 도면과 함께 설명하기로 한다. 이 과정에서 도면에 도시된 선들이나 구성요소 등은 설명의 명료성이나 편의상 과장되게 도시되거나 또는 생략될 수 있다. 예를 들면, 풍력터빈의 양쪽 단말 부분에 원활한 회전을 위한 베어링이 설치되어야 하는 것, 그리고 풍력터빈과 발전기는 적정한 회전수를 얻기 위하여 가속기어를 경유하여 연결되어야 한다는 것 등은 공지의 기술사항이고 특허청구의 대상이 아니므로 도면에 도시하는 것을 생략하였고, 또한 컨트롤시스템에 내장되어야 하는 제반 전자부품 및 전자회로 등도 공지의 기술사항이며 특허청구의 대상이 아닌 관계로 세부사항의 도시를 생략하고 단순히 컨트롤시스템으로 표기하였다.Hereinafter, a preferred embodiment of a generator combined with photovoltaic power generation and wind power generation according to the present invention will be described with reference to the accompanying drawings. In this process, the lines or components shown in the drawings may be exaggerated or omitted for clarity or convenience of description. For example, it is well known that bearings for smooth rotation must be installed at both ends of a wind turbine, and that a wind turbine and a generator must be connected via an accelerator gear to obtain an appropriate rotational speed. Since it is not a subject of a claim, the drawings are omitted. Also, all electronic components and electronic circuits, etc., which are to be embedded in a control system are well-known technical matters. It is indicated as a control system.

본 발명에 의한 바람직한 일 실시 예에 의한 태양광발전과 풍력발전이 결합된 발전기는, 3단으로 구성된 하나의 프레임(10)의 상단부분에 태양광발전을 위한 태양전지패널(20)을 해당지역의 위도에 최적화된 기울기로 정남향 방향으로 설치하고, 상기 프레임(10)의 중간부분에는 프레임의 내접원에 해당하는 크기의 수직축 방식의 풍력터빈(31)을 설치하며, 풍력터빈(31)의 일축 단말부에 발전기(32)를 연결한다. 도면에는 도시하지 않았으나 풍력터빈(31)의 일축 단말부와 발전기(32) 사이에는 필요한 경우 적절한 회전수를 얻기 위한 가속기어를 설치할 수 있다.In the generator combined with photovoltaic power generation and wind power generation according to an exemplary embodiment of the present invention, a solar cell panel 20 for photovoltaic power generation is provided at an upper portion of one frame 10 having three stages. It is installed in the south-south direction with an inclination optimized for latitude of the, and in the middle portion of the frame 10 is installed a vertical axis type wind turbine 31 of the size corresponding to the inscribed circle of the frame, the one-axis terminal of the wind turbine 31 Connect the generator 32 to the part. Although not shown in the figure, an accelerator gear may be installed between the uniaxial terminal portion of the wind turbine 31 and the generator 32 to obtain an appropriate rotational speed if necessary.

태양전지패널(20)에서 발전된 전기는 연결선(25)을 통하여 상기 프레임(10)의 하단부분에 있는 컨트롤시스템(40)에 연결된다. 태양전지패널에서 발전된 전기는 직류이므로 이를 컨트롤시스템(40)에 내장되어 있는 정전압장치(Voltage Regulator)를 경유하여 배터리(50)에 축전되거나 또는 인버터를 경유하여 교류전기로 변환되어 외부로 출력(55)된다.The electricity generated in the solar panel 20 is connected to the control system 40 in the lower portion of the frame 10 through the connecting line 25. Since the electricity generated in the solar panel is a direct current, it is stored in the battery 50 via a voltage regulator built in the control system 40 or converted into alternating current through an inverter and output to the outside (55). )do.

풍력터빈(31)에 연결된 발전기(32)에서 발전된 전기는 연결선(35)을 통하여 컨트롤시스템(40)에 연결된다. 풍력터빈(31)에 연결된 발전기(32)가 직류발전기인 경우에는 컨트롤시스템(40)에 내장된 정전압장치(Voltage Regurator)를 경유하여 배터리에 충전되거나 또는 인버터를 경유하여 교류발전기로 변환되어 외부로 출력(55)된다. 풍력터빈(31)에 연결된 발전기(32)가 교류발전기인 경우에는 컨트롤시스템(40)에 내장된 정류기(Rectifier)를 경유하여 직류로 변환된 후에 전술한 과정으로 배터리(50)에 연결되거나 인버터를 경유하여 외부로 출력(55)된다. 위와 같이 발전된 전기를 제어하고 관리하는 기능은 컨트롤시스템(40)에 내장된 PLC(Programable Logic Controller)에 의하여 이루어지는데 이는 공지의 기술이고 청구사항이 아니므로 세부 회로도와 컨트롤시스템(40) 내부의 전자부품의 도시는 생략하였다.Electricity generated from the generator 32 connected to the wind turbine 31 is connected to the control system 40 through the connecting line 35. When the generator 32 connected to the wind turbine 31 is a DC generator, it is charged to a battery via a voltage regulator (Voltage Regurator) built in the control system 40 or is converted into an alternator through an inverter to the outside. Output 55. When the generator 32 connected to the wind turbine 31 is an alternator, it is converted into direct current via a rectifier built in the control system 40 and then connected to the battery 50 or the inverter by the above-described process. It is output 55 to the outside via. The function of controlling and managing the electricity generated as described above is performed by a programmable logic controller (PLC) embedded in the control system 40. This is a known technology and is not a claim, so the detailed circuit diagram and the electronics inside the control system 40 are described. Illustration of the parts is omitted.

컨트롤시스템(40)과 배터리(50)는 연결선(45)을 통하여 직류로 변환된 잉여전기가 배터리(50)에 축전되거나, 또는 배터리(50)로부터 방전되어 인버터를 거쳐 교류전기로 변환되어 외부로 출력(55)되는데 이를 PLC가 포함된 컨트롤시스템(40)이 제어하고 관리한다.In the control system 40 and the battery 50, surplus electricity converted into direct current through the connecting line 45 is stored in the battery 50 or discharged from the battery 50 and converted into alternating current through an inverter to the outside. The output 55 is controlled and managed by the control system 40 including the PLC.

10: 프레임
20: 태양전지패널
25: 연결선(태양광발전 출력선)
30: 풍력발전기(풍력터빈과 발전기가 결합된 것)
31: 풍력터빈
32: 발전기
35: 연결선(풍력발전기 출력선)
40: 컨트롤시스템
45: 연결선(축전 및 방전용)
50: 배터리
55: 외부 출력(발전된 전기의 외부 출력)
10: frame
20: solar panel
25: connection line (photovoltaic output line)
30: Wind power generators (wind turbines and generators combined)
31: wind turbine
32: generator
35: connecting line (wind generator output line)
40: control system
45: connecting line (for storage and discharge)
50: battery
55: external output (external output of generated electricity)

Claims (1)

3단으로 구성된 프레임의 상단부분에, 태양광발전을 위하여 설치된 태양전지패널;
상기 프레임의 중간부분에, 풍력발전을 위하여 설치된 수직축 방식의 풍력터빈과, 이에 연결된 발전기가 결합된 풍력발전기;
상기 프레임의 하부에 설치된, 태양전지패널과 풍력발전기에서 생산된 전기를 제어하고 관리하는 컨트롤시스템과, 생산된 잉여전기를 축전하고 필요 시 방전할 수 있는 배터리;
태양전지패널, 풍력발전기, 컨트롤시스템, 배터리 등을 상호 연결하는 연결선들로 이루어지는 것을 특징으로 하는 태양광발전과 풍력발전이 결합된 발전기.
A solar panel installed at the upper portion of the frame consisting of three stages for photovoltaic power generation;
In the middle of the frame, a wind turbine of the vertical axis type wind turbine installed for wind power generation, and a generator connected thereto;
A control system installed at a lower portion of the frame to control and manage electricity produced by the solar panel and the wind power generator, and a battery capable of storing and discharging the surplus electricity produced;
Generator combined with solar power and wind power, characterized in that consisting of connecting lines interconnecting the solar panel, wind power generator, control system, battery, and the like.
