Description

[0001]
BACKGROUND OF THE INVENTION
The present invention relates to a newspaper sales fixture used in convenience stores, station stores, and the like.
[0002]
[Prior art]
Newspaper sales fixtures are arranged for sales of daily newspapers, weekly newspapers, etc. at convenience stores, station stores, etc., but currently used newspaper sales fixtures have racks that place newspapers on a support base placed on the floor. It is of a fixed format.
There is no problem because the daily paper racks are used every day, but the weekly newspapers such as the Horse Racing Newspaper, the Fishing Newspaper, and the Go Newspaper have limited publication dates, so the shelf is not available on days that are not issued, The situation is not favorable for the use of the store.
In addition, there is a problem that leaving a vacant rack as it is when viewed from the store clerk's side is an obstacle in handing goods and delivering cash for sales work.
[0003]
[Problems to be solved by the invention]
Accordingly, an object of the present invention is to eliminate the above-mentioned problems of the conventional technique. In the newspaper sales fixture, by making unnecessary racks removable, it is possible to facilitate the salesperson's work, The first issue is to make space use more efficient.
Furthermore, a second object of the present invention is to secure the storage space of the second rack at a position that does not get in the way and effectively use the sales space when not used with the second rack.
[0004]
[Means for Solving the Problems]
In order to solve the above problems, newsagents furniture according to claim 1 is fitted with a first rack and a second rack to the support, a newsstand fixtures to place a newspaper in each rack, the first The rack and the second rack are formed from a plurality of racks arranged stepwise, the first rack is detachable from the front surface of the support base, and the second rack has its front lower end at the upper rear surface of the support base. The first rack and the second rack are attached to the support base in a stepped manner that is continuous upward from the front side to the back side . Further, in the newspaper sales fixture according to claim 2, the support base is formed in an L shape from left and right columns arranged at intervals and both legs extending from the lower end of each column to the front side, A housing portion for the second rack is formed between the front surface of the first leg, the upper surfaces of both legs, and the lower surface of the first rack . The newspaper sales appliance according to claim 3 has an opening surrounded by an upper frame and a lower frame constructed between the left and right columns and the two columns on the back surface of the support base. The width and height are formed wider than the width and height of the second rack.
[0005]
BEST MODE FOR CARRYING OUT THE INVENTION
Embodiments of the present invention will be described with reference to the accompanying drawings.
The newspaper vending appliance according to the embodiment of the invention is roughly composed of a support base 10, a first rack 20, and a second rack 30.
As shown in FIGS. 2, 3, and 5, the support base 10 includes left and right legs 11, 11 and columns 12, 12 and is formed in an L shape in side view. The legs 11 and 11 are arranged horizontally, and moving casters 14 and 14 are provided under the caster receivers 13 and 13 below. Columns 12 and 12 are vertically erected on one side of each leg 11 and 11, and an upper frame 15 and a lower frame 16 are installed between the columns 12 and 12. 12 is integrally formed by the upper frame 15 and the lower frame 16.
[0006]
Leg caps 17, 17 are provided on the other end side of the legs 11, 11 to close the ends of the legs 11, 11. Each column 12 is formed in a rectangular shape in horizontal cross section, and a plurality of rectangular locking slits 18 are formed at equal intervals on the extended side surface of the leg 11 among the four side surfaces. It is. A column cap 19 is fitted to the upper end of each column 12.
Usually, the legs 11 and the pillars 12 of the support base 10 are made of an aluminum alloy as a whole and the cap is made of ABS resin or the like, but other materials may be used.
[0007]
The first rack 20 is mainly used for arranging daily newspapers. As shown in FIG. 4, the first rack 20 is formed in the shape of a rectangular parallelepiped using a metal round bar painted or resin-coated as a whole. In the embodiment, it is made of a cage net body having a rectangular shape that is long in the lateral direction, and is formed as four-stage racks 21 to 24, each of which is divided into three parts. Each of the four-stage racks 21 to 24 includes a horizontal round bar 25, a vertical round bar 26, a support round bar 27, and a section round bar 28, and is formed integrally in a step shape.
[0008]
Further, attachment frame bodies 29, 29 are attached to both sides of the lower part of the lowermost rack 21 and the lower part of the uppermost fourth rack 24, respectively. The attachment frames 29 and 29 are attached along the upper surface of the legs 11 of the support base 10 and the side surfaces of the pillars 12, and are therefore formed in an L shape substantially the same as their shape.
Then, on the vertical frame 29b side of the attachment frame bodies 29, 29, locking pieces 29c, 29c that engage with the upper frame 15 and the lower frame 16 are attached. Therefore, with the horizontal frame 29a placed on the leg 11, the first rack 20 is integrally mounted on the support base 10 by locking the locking pieces 29c and 29c to the upper frame 15 and the lower frame 16. Can be made. Many types of folded daily papers are placed on the racks 21 to 24 of each stage of the first rack 20 so as to overlap each other. Each horizontal frame 29a is provided with cushion materials 29 and 29 to stabilize the support of the first rack 20.
[0009]
A second rack 30 is attached to the upper part of the support base 10 as necessary. The second rack 30 basically has the same configuration as the first rack 20. However, since the number of pages is smaller than that of ordinary daily paper, and the paper surface is also small, the overall size is small.
However, it is the same as the first rack 20 in that it is formed of four stepped racks 31 to 34 and each rack is formed by a horizontal round bar 35, a vertical round bar 36, and a support round bar 37. . However, no sectioned round bar is provided.
Similarly to the first rack 20, the second rack 30 is provided with locking pieces 38 and 39 for attachment to the support base 10. That is, as shown in FIG. 3, a first locking piece 38 is attached to the lower surface of the first-stage rack 31, and a second locking piece 39 is attached to the lower surface of the fourth-stage rack 34, respectively.
[0010]
Both the locking pieces 38 and 39 are formed of an inverted L-shaped angle material having a protruding portion below. As shown in FIGS. 3 and 4, the first locking piece 38 is engaged with the upper frame 14 when mounted on the upper portion of the support 10. In this state, weekly paper or the like can be placed.
When the second rack 30 is not required, the second rack 30 is removed from the upper frame 15 as shown in FIG. 2 and moved as shown by the arrow, and the second locking piece 39 is moved as shown in FIG. By being locked to the lower frame 16, it is housed in the support base 10. When the second rack 30 stored in the support base 10 is taken out, an operation reverse to the above procedure may be performed.
[0011]
According to the newspaper sales fixture of the above embodiment, the first rack 20 for daily paper and the second rack 30 for weekly paper such as horse racing newspaper can be attached to and detached from the support base 10 with respect to the support base. Thus, unnecessary racks can be removed, a narrow store space can be easily used, and a store clerk can easily deliver goods.
Since the support 10 is provided with a storage portion when the second rack is not used, there is no inconvenience that the removed second rack becomes an obstacle. Since the second rack is not provided with a partition, an appropriate number of copies can be arranged even if the types of weekly magazines are slightly increased or decreased.
In addition, since the support table 10 is provided with casters, the entire newspaper sales fixture can be moved from a small store, and the work of stacking newspapers in a rack in multiple layers can be performed in a wide space, thereby improving the work efficiency. Can do.
In addition, this invention is not limited to the said Example. For example, the support stand may be a rising wall of a store or a support suspended from a ceiling.
[0012]
The number of rack stages can be selected as appropriate, and the shape of the racks at each stage is not limited to a rectangular parallelepiped, and may be, for example, a horizontal elliptical shape. Further, the rack may be formed of a synthetic resin rod, a metal net or the like without depending on the metal round bar.
Further, in the above embodiment, the second rack is removed when not needed and stored below the first rack, but without being removed, it is pivotally attached to the support base 10 in the vicinity of the lower end of the second rack, You may make it accommodate in the downward direction of a 1st rack only by rotating.
In addition, although the drawing code | symbol was attached | subjected to the claim, this invention is not limited to this.
[0013]
【The invention's effect】
The present invention has the following effects by the above configuration. 1. According to the first aspect of the present invention, since unnecessary racks can be removed, the space in the store can be used effectively, the store clerk can easily work, and there is no empty rack, which is preferable in terms of product layout. 2. According to the second aspect of the present invention, there is no inconvenience that the second rack removed by providing the storage portion for the second rack interferes with the operation of the store clerk. 3. According to the third aspect of the invention, since the second rack can be put into the storage portion from the opening on the back surface of the support base, when the second rack is unnecessary, the storage portion remains attached to the support base. Can be cleaned up.
[Brief description of the drawings]
FIG. 1 is a schematic perspective view of an embodiment of the present invention.
FIG. 2 is a partial perspective view of the entire embodiment. FIG. 3 is a side view of the embodiment.
FIG. 4 is a front view of the embodiment.
FIG. 5 is a side view of the support base of the embodiment.
FIG. 6 is a front view of the support base of the embodiment.

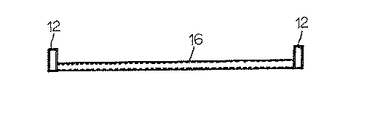

7 is a cross-sectional view taken along line 6A-A in FIG.
FIG. 8 is a side view of the first rack of the embodiment.
FIG. 9 is a side view of the second rack of the embodiment.
[Explanation of symbols]
10. Support base 11 Leg 12 Pillar 13 Caster receiver 14 Caster 15 Upper frame 16 Lower frame 17 Leg cap 18 Locking slit 19 Pillar cap 20・ First rack (daily paper rack)
21 .. First stage rack 22 .. Second stage rack 23 .. Third stage rack 24 .. Fourth stage rack 25 ..Horizontal round bar 26 ..Vertical round bar 27 ..Support round bar 28..Dividing round bar 29..Mounting frame 29a..Horizontal frame 29b..Vertical frame 29c..Locking piece 29d..Cushion material 30..Second rack (weekly paper rack)
31 .. First stage rack 32 .. Second stage rack 33 .. Third stage rack 34 .. Fourth stage rack 35 ..Horizontal round bar 36 ..Vertical round bar 37 ..Support round bar 38 .. First locking piece 39 .. Second locking piece

Claims (3)

A newspaper sales fixture in which the first rack 20 and the second rack 30 are mounted on the support base 10, and newspapers are arranged in the racks 20 and 30, respectively.
The first rack 20 and the second rack 30 are formed from a plurality of racks arranged in a step shape,
The first rack 20 is detachably attached to the front surface of the support base 10, and the second rack 20 has a front lower end 38 detachably attached to the upper back face 15 of the support base 10,
The first rack 20 and the second rack 30 are attached to the support base 10 in a stepped manner that is continuous upward from the front side to the back side . The support base 10 is formed in an L-shape from the left and right columns 12, 12 arranged at intervals and both legs 11, 11 extending from the lower ends of the columns 12, 12 to the front side. The newspaper sales appliance according to claim 1, wherein a storage portion (10a) of the second rack (30a) is formed between the front surface of 12, the upper surfaces of both legs (11, 11) and the lower surface of the first rack (20 ). The back surface of the support base 10 has an opening 40 surrounded by the left and right columns 12, 12 and the upper frame 15 and the lower frame 16 laid between the both columns 12, 12. The newspaper sales appliance according to claim 2, wherein the width and height of the second rack 30 are wider than the width and height of the second rack 30.
