JP2009121039A - Internal wall structure of building and its construction method - Google Patents

Abstract

<P>PROBLEM TO BE SOLVED: To provide an internal wall structure of a building, which can be demolished and reconstructed, and to provide a construction method for the internal wall structure. <P>SOLUTION: This internal wall structure of the building comprises a steel lathing framework body 1, a plurality of lower fixing fittings 2, an internal wall upside supporting material 3, an upper fixing fitting 4, and a face material 5 which is stuck on the lathing framework body 1. The lathing framework body 1 comprises a downside lateral frame material 6, an upside lateral frame material 7, and a vertical frame material 8 which is erected between the downside and upside lateral frame materials 6 and 7. The lower fixing fittings 2 make the downside lateral frame material 6 of the lathing framework body 1 fixed onto the floor 9 of the building. The internal wall upside supporting material 3 is elongated along a section above the lathing framework body 1, and installed in a building frame. The upper fixing fitting 4 is attached to the internal wall upside supporting material 3 so as to fix the upside of the lathing framework body 1. <P>COPYRIGHT: (C)2009,JPO&INPIT

Description

  The present invention relates to an internal wall structure provided in a building so that it can be dismantled and reconstructed, and a construction method for the internal wall structure.

A common construction method for the internal walls of a building is a method in which a steel base material (light iron base material) is assembled vertically and horizontally, and then a face material such as gypsum board is screwed to this foundation assembly. The inner wall can be built at the lowest cost. In this case, the inner wall is finished by applying a finishing material such as wallpaper, cloth, or decorative plate on the face material.
JP 2001-182200 A JP2002-106093

  However, in the case of the internal wall constructed by the above-described construction method, it is difficult to disassemble the component so that the component can be reused even if it is intended to be reused as the internal wall. That is, for example, it is possible to remove screws from the gypsum board used as a face material, disassemble the base assembly, and reuse the steel base material (light iron base material), but this is very laborious. End up. Therefore, even if reuse as a part of the material constituting the wall surface can be assumed, it is not realistic to reuse all members as internal walls.

  In addition, as wall structures that are assumed to be dismantled and reused, those that use partition walls attached later such as partitions are known, but they are very expensive products as wall panels, and transportation costs when transporting them as members Therefore, it is difficult to replace the wall structure from the viewpoint of cost.

  An object of the present invention is to provide an internal wall structure of a building that can be easily disassembled and reconstructed, and a construction method thereof.

The internal wall structure of the building of the present invention is a steel wall base frame assembly including a lower side frame member, an upper side frame member, and a vertical frame member formed between the lower side frame member and the upper side frame member. And a plurality of lower fixing hardware for fixing the lower side frame member of the wall base frame assembly on the floor of the building, and an inner wall upper side support member that extends along the upper side of the wall base frame assembly and is installed in the building frame And an upper fixed hardware that is attached to the inner wall upper side support member through a predetermined gap and fixes the upper side of the wall base frame assembly, and a face material stretched on the wall base frame assembly. For each frame material, for example, light iron, that is, a light steel frame material is used.
According to this configuration, at the time of the first construction, individual frame members and the like can be assembled on the site in order to construct the inner wall. In the constructed state, the wall panel is composed of the wall base frame assembly and the face material. Composed. At the time of dismantling after construction, remove the bottom side of the wall base frame assembly from the bottom fixed bracket, remove the top fixed bracket from the inner wall upper support, and then remove the top side of the wall base frame assembly from the top fixed bracket. A wall panel made of body and face material can be taken out. For this reason, an internal wall structure can be decomposed | disassembled easily. In addition, the removed wall panel can be stored and transported in that state, and can be installed on the chassis in the state of the wall panel when reconstructing. At the time of reconstruction, each frame member is assembled on site one by one. Is no longer necessary. Therefore, disassembly and reconstruction can be performed easily. At the time of disassembly, the face material may be removed from the wall base frame assembly instead of the wall panel state, removed in the wall base frame assembly state, and used for reconstruction in the wall base frame assembly state. Even in this case, it is not necessary to assemble each frame material one by one at the time of reconstruction, and disassembly and reconstruction can be easily performed.

In the present invention, the lower fixed hardware is formed in an upward groove shape into which the lower frame member is fitted, and the lower fixed metal constitutes a bottom piece and one standing piece of the upward fixed groove shape. Over the lower fixed metal body having an L-shaped cross section, a flat plate-shaped disassembling piece as the other standing piece, and a pin coupling tube provided on the tip of the bottom piece of the lower fixed metal body and the disassembling piece It is good also as what consists of a coupling pin inserted and couple | bonding a lower fixed metal main body and a disassembly piece.
In this configuration, the lower pin of the wall base frame assembly is removed from the lower fixed hardware by removing the connecting pin that connects the lower fixed hardware main body and the disassembling piece from the pin connecting cylinder and removing the disassembling piece from the lower fixed hardware main body. Can be easily removed.

In the present invention, a plurality of the wall base frame assemblies are provided side by side on the same plane, and any one of the plurality of wall base frame assemblies is formed narrower than the adjacent wall base frame assembly and the adjacent wall base The face material disposed away from the frame assembly and stretched on the narrow wall base frame assembly may extend to the front surface of the adjacent wall base frame assembly.
In the case of this configuration, the distance between the wall base frame assembly having a narrow width and the adjacent wall base frame assembly can be finely adjusted during construction or reconstruction. Therefore, the internal wall can be constructed by absorbing dimensional errors between the columns of the building frame and between the walls.

  In this invention, the face material may be affixed to the wall base frame assembly with a surface fastener. When the surface fastener is used, the face material can be easily attached and detached, and disassembly and reuse can be performed more easily.

The construction method of the internal wall structure of the building according to the present invention includes a process of mounting a plurality of lower fixed hardware in an aligned state along the internal wall construction planned location on the floor of the building, and an internal wall construction planned location on the ceiling in the building The inner wall upper side support member extending along the inner wall is installed in the building frame, and the lower side frame material of the inner wall is attached to the plurality of lower fixed hardware, and the upper side side located above the lower side frame material The frame material and the vertical frame material extending between the lower side frame material and the upper side frame material are assembled together to assemble a wall base frame assembly including the lower side frame material, the upper side horizontal frame material, and the vertical frame material. Fixing the upper side of the assembled wall base frame assembly to the inner wall upper side support member with an upper fixing hardware attached via a predetermined gap below the inner wall upper side support member; and Including a process of applying a face material to a wall base frame That. For each frame material, for example, a light iron frame material or the like is used.
According to this construction method, at the time of the first construction, individual frame materials can be assembled in order on the site to construct the inner wall, and in the constructed state, the wall panel is composed of the wall base frame assembly and the face material. Is configured. At the time of dismantling after construction, remove the bottom side of the wall base frame assembly from the bottom fixed bracket, remove the top fixed bracket from the inner wall upper support, and then remove the top side of the wall base frame assembly from the top fixed bracket. A wall panel made of body and face material can be taken out. For this reason, an internal wall structure can be decomposed | disassembled easily. In addition, the removed wall panel can be stored and transported in that state, and can be installed on the chassis in the state of the wall panel when reconstructing. At the time of reconstruction, each frame member is assembled on site one by one. Is no longer necessary. Therefore, disassembly and reconstruction can be performed easily. At the time of disassembly, the face material may be removed from the wall base frame assembly instead of the wall panel state, removed in the wall base frame assembly state, and used for reconstruction in the wall base frame assembly state. Even in this case, it is not necessary to assemble each frame material one by one at the time of reconstruction, and disassembly and reconstruction can be easily performed. In this way, an internal wall structure that can be disassembled and reused can be easily constructed.

In the present invention, a plurality of the wall base frame assemblies are provided side by side on the same plane, and any one of the plurality of wall base frame assemblies is formed to be narrower than the adjacent wall base frame assembly and the adjacent wall base frame assembly. The face material placed away from the body and stretched on the narrow wall base frame assembly may extend to the front surface of the adjacent wall base frame assembly.
When configured in this way, the separation distance between the wall base frame assembly having a narrow width and the adjacent wall base frame assembly can be finely adjusted during construction or reconstruction. Therefore, it is possible to build the internal wall by absorbing the dimensional error between the columns of the building frame and between the walls.

  In the present invention, the face material may be attached to the wall base frame assembly with a surface fastener. When the face fastener is used, it becomes easy to attach the face material to the wall base frame assembly and to remove the face material from the wall base frame assembly at the time of dismantling.

The internal wall structure of the building of the present invention is a steel wall base frame assembly including a lower side frame member, an upper side frame member, and a vertical frame member formed between the lower side frame member and the upper side frame member. And a plurality of lower fixing hardware for fixing the lower side frame member of the wall base frame assembly on the floor of the building, and an inner wall upper side support member that extends along the upper side of the wall base frame assembly and is installed in the building frame And an upper fixed hardware that is attached to the inner wall upper side support member through a predetermined gap and fixes the upper side of the wall base frame assembly, and a face material stretched on the wall base frame assembly. It will be easy to dismantle and reconstruct the internal walls of the building.
The construction method of the internal wall structure of the building according to the present invention includes a process of mounting a plurality of lower fixed hardware in an aligned state along the internal wall construction planned location on the floor of the building, and an internal wall construction planned location on the ceiling in the building The inner wall upper side support member extending along the inner wall is installed in the building frame, and the lower side frame material of the inner wall is attached to the plurality of lower fixed hardware, and the upper side side located above the lower side frame material A frame material, and a vertical frame material extending between the lower side horizontal frame material and the upper side horizontal frame material are assembled together to form a steel wall base frame assembly including the lower side horizontal frame material, the upper side horizontal frame material, and the vertical frame material. A process of assembling, and a process of fixing the upper side of the assembled wall base frame assembly to the inner wall upper side support member by an upper fixing hardware attached via a predetermined gap below the inner wall upper side support member; Including a process of applying a face material to the wall foundation frame assembly; And therefore, it is possible to build an internal wall of a building demolition can easily.

  A first embodiment of the present invention will be described with reference to FIGS. FIG. 1 shows a perspective view of the internal wall structure of the building of this embodiment. This internal wall structure is configured by combining a steel wall base frame assembly 1, a plurality of lower fixed hardware 2, an inner wall upper side support material 3, an upper fixed hardware 4, and a face material 5. A plurality of wall base frame assemblies 1 are provided side by side on the same plane.

The wall base frame assembly 1 includes a lower side frame member 6, an upper side frame member 7, and a plurality of vertical frame members 8 assembled between the lower side frame member 6 and the upper side frame 7. A wall panel 10 is configured by stretching the face material 5 on both surfaces of the wall base frame assembly 1. A gap Y serving as a joint is provided between the face members 5 and 5 in the adjacent wall panels 10.
As the above-mentioned frame members 6 to 8 for the wall base frame assembly 1, for example, those made of light iron (that is, a light steel frame which is a steel frame made of a pressed product of a steel plate) are used. Among these, the lower side frame member 6 and the upper side frame member 7 are, for example, groove-shaped. The vertical frame member 8 has a groove shape, a lip groove shape, or a square pipe shape. Both ends of the vertical frame member 8 are fitted into the groove-shaped lower side frame member 6 and the upper side frame member 7, and the fitting portion is tapped with a drill on the lower side frame member 6 and the upper side frame member 7. They are joined by a fixing tool (not shown) such as a screw. The face material 5 is made of gypsum board or the like, and is joined to each frame material 6 to 8 of the wall base frame assembly 1 by a fixing tool (not shown) such as a tapping screw with a drill, for example.

As shown in FIGS. 5, 6, and 7, the lower fixed hardware 2 is an enlarged view of D, E, and F in FIG. 1. It is a hardware fixed on the slab 9. As shown in FIG. 8, the lower fixed hardware 2 is formed in an upward groove shape into which the lower side frame member 6 is fitted, and is fixed on the floor slab 9 with a fixing tool such as a tapping screw with a drill (not shown). As shown in FIG. 8 (A), the lower fixed hardware 2 has a bottom fixed metal body 21 having an L-shaped cross section that constitutes an upward groove-shaped bottom piece 21a and one upright piece 21b, and a flat plate shape serving as the other upright piece. And a connecting pin 23 for connecting the lower fixed hardware main body 21 and the disassembling piece 22 to each other. The lower fixed hardware main body 21 and the disassembling piece 22 are each formed by pressing a steel plate. Pin coupling cylinder portions 24 and 25 are integrally provided on the tip of the bottom piece 21a of the lower fixed metal body 21 and the disassembly piece 22, respectively. By inserting the coupling pin 23 over both of these pin coupling cylinders 24, 25, the lower fixed hardware body 21 and the disassembly piece 22 are coupled as shown in FIG. 8B.
The bottom piece 21a of the lower fixed hardware main body 21 is provided with uneven portions 21aa and 21ab so that the heads of the screws for fixing the lower fixed hardware 2 on the floor slab 9 do not interfere with the lower side frame member 6. . By fitting the lower side of the wall base frame assembly 1 to the lower fixed hardware 2 and fixing the lower side of the wall base frame assembly 1 to the lower fixed hardware 2 with screws 13, the lower side frame member 6 of the wall base frame assembly 1 is secured. Is fixed on the floor slab 9 via the lower fixed hardware 2.

  The inner wall upper side support member 3 is made of, for example, grooved steel such as light iron, extends horizontally along the upper side of the wall base frame assembly 1, and is installed in a building frame. Specifically, the inner wall upper side support member 3 is a ceiling that extends horizontally in a direction orthogonal to the inner wall upper side support member 3 as shown in FIG. The suspension member 26 is fixed with bolts 27. As shown in FIG. 9, the ceiling suspension member 26 is supported by a ceiling slab 30 that is a building frame via a hanger 28 and a suspension bolt 29. The ceiling suspension member 26 is made of channel steel such as light iron.

  The upper fixed hardware 4 is a hardware that is attached to the inner wall upper side support member 3 via a predetermined gap and fixes the upper side of the wall base frame assembly 1 and is downwardly fitted to the upper side of the wall base frame assembly 1. It is a groove shape. The predetermined gap is, for example, a gap that is equal to or greater than the depth of the inside of the groove-shaped lower fixed hardware 2. The upper fixed hardware 4 is attached to the inner wall upper side support member 3 with bolts 11 as shown in FIGS. 2 and 3 in which the A part and the B part in FIG. 1 are enlarged. The upper side of the wall base frame assembly 1 is fitted to the upper base metal frame 1 and the upper side of the wall base frame frame 1 is fixed to the upper base metal fixture 4 with screws 12. The inner wall upper side support member 3 is fixed via 4.

A construction method of the internal wall structure of the building having this configuration will be described below with reference to FIG.
First, as shown in FIG. 10 (A), ink is drawn out at a place where an internal wall is to be constructed on the floor slab 9 of the building, and a plurality of lower fixed hardware 2 is arranged on the floor slab 9 in an aligned state along the black position. Stop. Thereafter, the inner wall upper side support member 3 is arranged on the ceiling portion in the building so as to extend along the planned location of the inner wall, and the inner wall upper side support member 3 is installed in the building frame. In this example, the inner wall upper side support member 3 is installed on the building frame in the ceiling suspension member 26 extending in the horizontal direction perpendicular to the inner wall upper side support member 3 as shown in FIG. This is done by fixing the support 3 with bolts 27. The ceiling suspension member 26 is supported by the ceiling slab 30 via the hanger 28 (FIG. 9) and the suspension bolt 29.

  Next, as shown in FIG. 10B, the lower side frame member 6 that is a constituent member of the wall base frame assembly 1 is attached to the plurality of lower fixed hardware 2. The upper side frame member 7 positioned above the lower side frame member 6 and the vertical frame member 8 extending between the lower side frame member 6 and the upper side frame member 7 are assembled with each other by a conventional construction method. The wall base frame assembly 1 including these lower side horizontal frame member 6, upper side horizontal frame member 7, and vertical frame member 8 is assembled by assembling by fitting and joining with a tapping screw with a drill.

In this way, as shown in FIG. 10C, the upper side of the assembled wall base frame assembly 1 is fixed to the inner wall upper side support member 3 by the upper fixing hardware 4. Specifically, first, the upper fixed hardware 4 is fixed to the inner wall upper side support member 3 with a bolt 11 through a predetermined gap as shown in FIGS. 2 to 4, and then the upper side of the wall base frame assembly 1 is fixed. Fix to the upper fixed hardware 4 with screws 12.
After that, as shown in FIG. 10D, the wall panel 10 is completed by stretching the face material 5 on both surfaces of the wall base frame assembly 1 by a conventional method (for example, screwing). The lower part of the wall surface panel 10 is housed in a baseboard so that the lower fixed hardware 2 and the lower side frame material 6 are hidden. When a decorative board or the like is pasted on the face material 5 as a finishing process, it is desirable to use a hook-and-loop fastener so that disassembly and reuse described later can be easily performed.

FIG. 11 shows a disassembly procedure of the internal wall structure of the building constructed as shown in FIG.
In this dismantling work, first, the finished decorative board, wallpaper, cloth, etc., which are pasted on the face material 5 of the wall panel 10 are removed. After that, the bolt 11 which attached the upper fixing metal 4 to the inner wall upper side support member 3 is loosened to allow the upper fixing metal 4 to escape upward through the predetermined gap, and the wall panel 10 is lifted. Then, the lower end of the wall panel 10 is pulled out from the lower fixed hardware 2 upward. When the wall panel 10 is heavy, as shown in FIG. 11 (A), the screw 13 (FIGS. 5 to 7) is removed from the lower fixed hardware 2 and FIG. As in (A2) and (A3), the connecting pin 23 for connecting the lower fixed hardware body 21 and the disassembly piece 22 is removed, and the disassembly piece 22 is removed from the lower fixed hardware body 21.
Next, as shown in FIG. 11B, the screws 12 (FIGS. 2 to 4) are removed from the upper fixed hardware 4 to fix the upper fixed hardware 4 to the inner wall upper side support material 3 (FIGS. 2 to 2). 4) is loosened, and the upper fixed hardware 4 is removed from the inner wall upper side support 3.
Next, as shown in FIG. 11C, the wall surface panel 10 released from the restraint by the lower fixed hardware 2 and the upper fixed hardware 4 is pulled out to the front. Thereby, the internal wall structure can be easily disassembled. Then, it accumulates and carries out in the unit of the wall surface panel 10. FIG. If construction is performed in the reverse order of the dismantling described above, the same internal wall structure as in FIG. 1 can be reconstructed. The dismantled wall panel 10 is brought back to the factory, diagnosed and repaired, and then transported to the reconstructed construction site. Also in this case, as the lower fixed hardware 2, the lower fixed hardware main body 21 and the disassembling piece 22 are assembled with the connecting pin 23 as shown in FIG. To do.

FIG. 12 shows another embodiment of the present invention. In the internal wall structure of this embodiment, as shown in the front view of FIG. 12C, any one of the plurality of wall foundation frame assemblies 1 arranged side by side on the same plane is more than the adjacent wall foundation frame assembly 1. Is also formed narrowly and is arranged away from the adjacent wall base frame assembly 1. Here, the wall panel 10 is formed by stretching the face material 5 on one side of the wall base frame assembly 1. However, as shown in the plan view and the front view in FIGS. The face material 5 stretched on the wall base frame assembly 1 is extended to the front surface of the adjacent wall base frame assembly 1.
Moreover, in this embodiment, the face material 5 is used as the decorative board by directly attaching the plate material having a relatively strong strength such as an aluminum panel as the decorative board for the wall finish to the wall base frame assembly 1 as the face material 5. I also use it. That is, the wall base frame assembly 1 is regarded as a wall panel, and a face material 5 serving as a decorative plate is directly stretched on one side thereof. In this case, the face material 5 also serving as a decorative plate is attached to the surface of the vertical frame material 8 of the wall base frame assembly 1 via the surface fasteners 14 and 15 so that the disassembly and reuse can be performed. A configuration in which the lower side of the wall base frame assembly 1 is fixed on the floor slab 9 via the lower fixed hardware 2, and a configuration in which the upper side of the wall base frame assembly 1 is fixed to the inner wall upper side support member 3 through the upper fixed hardware 4. Is the same as in the embodiment of FIG.
In the case of this embodiment, the dismantling is not the state of the wall surface panel 10, but the face material 5 is removed from the wall base frame assembly 1, and the wall base frame assembly 1 is detached alone, and the wall from which the face material 5 has been removed is removed. In the state of the base frame assembly 1, it is used to reconstruct the inner wall.

  As shown in FIG. 13, two types of surface fasteners 14 and 15 are used in combination, and one surface fastener 14 has a large number of engaging bodies 14b implanted on one surface of a base material 14a. The back surface of 14a is attached to the surface of the vertical frame member 8 of the wall base frame assembly 1, for example. The other surface fastener 15 is obtained by implanting a large number of engaged bodies 15b that can be engaged with the engaging bodies 14b on one surface of the base material 15a, and the back surface of the base material 15a is the back surface of the face material 5. It is affixed at a position opposite to the affixing position of the surface fastener 14 on the surface of the vertical frame member 8. By pressing the face material 5 against the surface of the wall base frame assembly 1, the engaging bodies 14 b of the double-sided fasteners 14 and 15 and the engaged body 15 b are engaged with each other, and the face material 5 is placed on the surface of the wall base frame assembly 1. It is pasted. When the surface fasteners 14 and 15 are used in this manner, the face material 5 can be easily attached to the wall base frame assembly 1 and can be easily detached from the wall base frame assembly 1 at the time of disassembly.

According to this internal wall structure, at the time of construction or reconstruction, the separation distance X between the wall base frame assembly 1 formed narrow and the adjacent wall base frame assembly 1 can be finely adjusted, so that columns, walls, etc. can be installed. The error can be absorbed. Moreover, since the board | plate material used as a finishing decorative board lightweight like an aluminum panel is used as the face material 5, the workability improvement of disassembly and reconstruction is attained.
In the case of this embodiment, since the wall surface panel 10 composed of the wall base frame assembly 1 and the face material 5 is light, the lower fixed hardware 2 is used as a mechanism for pulling the wall panel 10 forward as shown in FIG. The structure which can be disassembled can be omitted, and the components can be simplified.

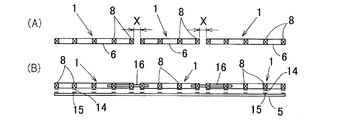

  14 and 15 show still another embodiment of the present invention. In this embodiment, in the internal wall structure of the embodiment of FIG. 12, the wall base frame assembly 1 and the adjacent wall base frame assembly 1 formed narrow as shown in FIG. As shown in FIG. 6, the two wall base frame assemblies 1 and 1 are connected by an anti-sway member 16 made of, for example, a grooved steel so that the distance between them can be adjusted. Specifically, as shown in FIG. 15 (A), through-holes 17 penetrating in the horizontal direction along the surfaces of the wall base frame assemblies 1 are provided in the vertical frame members 8 of the adjacent wall base frame assemblies 1 and 1. As shown in FIG. 15B, the steadying member 16 is inserted into the insertion holes 17 across the adjacent wall base frame assemblies 1 and 1.

  As described above, when the adjacent wall base frame assemblies 1 and 1 are connected by the steadying member 16, the separation distance X between the adjacent wall base frame assemblies 1 and 1 can be adjusted, and the two wall base frame assemblies 1 can be adjusted. The accuracy can be ensured so that the surfaces of the two are aligned on the same plane.

It is a perspective view which shows the internal wall structure of the building which concerns on one Embodiment of this invention. It is an enlarged view of the A section in FIG. It is an enlarged view of the B section in FIG. It is an enlarged view of the C section in FIG. It is an enlarged view of the D section in FIG. It is an enlarged view of the E section in FIG. It is an enlarged view of the F section in FIG. (A) is an exploded perspective view of a lower fixed hardware, and (B) is a perspective view showing the combination state. It is a side view of an internal wall structure. It is explanatory drawing which shows the construction procedure of the same inner wall part structure. It is explanatory drawing which shows the disassembly procedure of the same internal wall structure. (A) is a horizontal sectional view of an internal wall structure of a building according to another embodiment of the present invention, (B) is the same front view, and (C) is a front view showing a state before the face material is attached to the same internal wall structure. It is. It is a decomposition | disassembly top view of the junction part by the surface fastener in the same internal wall structure. (A) is a horizontal sectional view showing a wall base frame assembly arrangement state of an internal wall structure of a building according to still another embodiment of the present invention, and (B) is a horizontal view showing a state of the internal wall structure before attaching a face material. It is sectional drawing. (A) is a side view of the vertical frame member in the internal wall structure, and (B) is a perspective view showing a wall base frame assembly arrangement state in the internal wall structure.

Explanation of symbols

DESCRIPTION OF SYMBOLS 1 ... Wall base frame assembly 2 ... Lower fixed metal fitting 3 ... Inner wall upper side support material 4 ... Upper fixed metal fitting 5 ... Face material 6 ... Lower side horizontal frame material 7 ... Upper side horizontal frame material 8 ... Vertical frame material 9 ... Floor slab 14, DESCRIPTION OF SYMBOLS 15 ... Surface fastener 21 ... Lower fixed-metal body 21a ... Bottom piece 21b ... Standing piece 22 ... Disassembly piece 23 ... Connection pin 24, 25 ... Pin connection cylinder part

Claims (7)

  A steel wall base frame assembly including a lower side frame member, an upper side frame member, and a vertical frame member formed between the lower side frame member and the upper side frame member, and a lower side of the wall base frame assembly. A plurality of lower fixed hardware for fixing the frame material on the floor of the building, an inner wall upper side support member that extends along the upper side of the wall base frame assembly, and is installed in the building frame, and a predetermined value for the inner wall upper side support member An internal wall structure of a building, including an upper fixed hardware that is attached via a gap and fixes an upper side of the wall base frame assembly, and a face material stretched on the wall base frame assembly.   2. The lower fixed hardware according to claim 1, wherein the lower fixed metal is formed in an upward groove shape into which the lower side frame member is fitted, and the lower fixed metal constitutes a bottom piece and one standing piece of the upward fixed groove shape. The lower fixed hardware body having an L-shaped cross section, the flat disassembling piece as the other standing piece, the tip of the bottom piece of the lower fixed hardware main body, and the pin coupling cylinder provided on the disassembling piece The internal wall structure of the building, which is composed of a connecting pin that is inserted into the lower fixed hardware body and the disassembly piece.   In Claim 1 or Claim 2, a plurality of the wall foundation frame assemblies are provided side by side on the same plane, and any one of the plurality of wall foundation frame assemblies is formed narrower than the adjacent wall foundation frame assembly. And the internal wall structure of the building where the face material which is arranged away from the adjacent wall base frame assembly and is stretched on the narrowly formed wall base frame assembly extends to the front surface of the adjacent wall base frame assembly.   The internal wall structure of the building according to any one of claims 1 to 3, wherein the face material is attached to the wall base frame assembly with a surface fastener.   On the floor of the building, a process of attaching a plurality of lower fixed hardware in an array state along the planned location of the internal wall, and a support for the upper side of the internal wall extending along the planned location of the internal wall on the ceiling of the building The upper side frame material located above the lower side horizontal frame material, and the lower side horizontal frame material and the upper side horizontal frame. A process of assembling the vertical frame members across the materials and assembling a steel wall base frame assembly including these lower side horizontal frame members, upper side horizontal frame members, and vertical frame members, and the assembled wall base frame assembly A process of fixing the upper side to the inner wall upper side support member with an upper fixing metal attached to the lower side of the inner wall upper side support member through a predetermined gap, and a process of applying a face material to the wall base frame assembly Construction method of the internal wall structure of the building including.   6. The wall base frame assembly according to claim 5, wherein a plurality of the wall base frame assemblies are arranged side by side on the same plane, and any one of the plurality of wall base frame assemblies is formed to be narrower than the adjacent wall base frame assembly and the adjacent wall base A method for constructing an internal wall structure of a building that is arranged away from a frame assembly and in which a face material stretched to the narrowly formed wall base frame assembly extends to the front surface of an adjacent wall base frame assembly.   7. The construction method for an internal wall structure of a building according to claim 5, wherein the face material is attached to the wall base frame assembly with a hook-and-loop fastener.
