EP4455182A1 - Polyesters and a process for preparing these polyesters - Google Patents

Polyesters and a process for preparing these polyesters Download PDF

Info

Publication number
EP4455182A1
EP4455182A1 EP23169389.6A EP23169389A EP4455182A1 EP 4455182 A1 EP4455182 A1 EP 4455182A1 EP 23169389 A EP23169389 A EP 23169389A EP 4455182 A1 EP4455182 A1 EP 4455182A1
Authority
EP
European Patent Office
Prior art keywords
acid
hydroxymethylbicyclo
hept
propan
polymer
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP23169389.6A
Other languages
German (de)
French (fr)
Inventor
Peter ALTENBUCHNER
Brigita BRATIC
Berhard RIEGER
Thomas Heuser
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Technische Universitaet Muenchen
Evonik Operations GmbH
Original Assignee
Technische Universitaet Muenchen
Evonik Operations GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Technische Universitaet Muenchen, Evonik Operations GmbH filed Critical Technische Universitaet Muenchen
Priority to EP23169389.6A priority Critical patent/EP4455182A1/en
Priority to JP2025559628A priority patent/JP2026513356A/en
Priority to EP24717716.5A priority patent/EP4702076A1/en
Priority to CN202480027973.6A priority patent/CN121039198A/en
Priority to PCT/EP2024/060114 priority patent/WO2024223345A1/en
Publication of EP4455182A1 publication Critical patent/EP4455182A1/en
Withdrawn legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08G—MACROMOLECULAR COMPOUNDS OBTAINED OTHERWISE THAN BY REACTIONS ONLY INVOLVING UNSATURATED CARBON-TO-CARBON BONDS
    • C08G63/00—Macromolecular compounds obtained by reactions forming a carboxylic ester link in the main chain of the macromolecule
    • C08G63/02—Polyesters derived from hydroxycarboxylic acids or from polycarboxylic acids and polyhydroxy compounds
    • C08G63/12—Polyesters derived from hydroxycarboxylic acids or from polycarboxylic acids and polyhydroxy compounds derived from polycarboxylic acids and polyhydroxy compounds
    • C08G63/16—Dicarboxylic acids and dihydroxy compounds
    • C08G63/18—Dicarboxylic acids and dihydroxy compounds the acids or hydroxy compounds containing carbocyclic rings
    • C08G63/199—Acids or hydroxy compounds containing cycloaliphatic rings
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08G—MACROMOLECULAR COMPOUNDS OBTAINED OTHERWISE THAN BY REACTIONS ONLY INVOLVING UNSATURATED CARBON-TO-CARBON BONDS
    • C08G63/00—Macromolecular compounds obtained by reactions forming a carboxylic ester link in the main chain of the macromolecule
    • C08G63/02—Polyesters derived from hydroxycarboxylic acids or from polycarboxylic acids and polyhydroxy compounds
    • C08G63/12—Polyesters derived from hydroxycarboxylic acids or from polycarboxylic acids and polyhydroxy compounds derived from polycarboxylic acids and polyhydroxy compounds
    • C08G63/16—Dicarboxylic acids and dihydroxy compounds
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08G—MACROMOLECULAR COMPOUNDS OBTAINED OTHERWISE THAN BY REACTIONS ONLY INVOLVING UNSATURATED CARBON-TO-CARBON BONDS
    • C08G63/00—Macromolecular compounds obtained by reactions forming a carboxylic ester link in the main chain of the macromolecule
    • C08G63/02—Polyesters derived from hydroxycarboxylic acids or from polycarboxylic acids and polyhydroxy compounds
    • C08G63/12—Polyesters derived from hydroxycarboxylic acids or from polycarboxylic acids and polyhydroxy compounds derived from polycarboxylic acids and polyhydroxy compounds
    • C08G63/16—Dicarboxylic acids and dihydroxy compounds
    • C08G63/18—Dicarboxylic acids and dihydroxy compounds the acids or hydroxy compounds containing carbocyclic rings
    • C08G63/181—Acids containing aromatic rings
    • C08G63/183—Terephthalic acids
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09D—COATING COMPOSITIONS, e.g. PAINTS, VARNISHES OR LACQUERS; FILLING PASTES; CHEMICAL PAINT OR INK REMOVERS; INKS; CORRECTING FLUIDS; WOODSTAINS; PASTES OR SOLIDS FOR COLOURING OR PRINTING; USE OF MATERIALS THEREFOR
    • C09D167/00—Coating compositions based on polyesters obtained by reactions forming a carboxylic ester link in the main chain; Coating compositions based on derivatives of such polymers
    • C09D167/02—Polyesters derived from dicarboxylic acids and dihydroxy compounds
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09J—ADHESIVES; NON-MECHANICAL ASPECTS OF ADHESIVE PROCESSES IN GENERAL; ADHESIVE PROCESSES NOT PROVIDED FOR ELSEWHERE; USE OF MATERIALS AS ADHESIVES
    • C09J167/00—Adhesives based on polyesters obtained by reactions forming a carboxylic ester link in the main chain; Adhesives based on derivatives of such polymers
    • C09J167/02—Polyesters derived from dicarboxylic acids and dihydroxy compounds

Definitions

  • the present invention relates to a polymer comprising units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and from an alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups is a bi-cyclo-aliphatic diol of formula (IX)
  • Polyesters or polymers based on dicidol (tricyclodecanedimethanol), formula (IV) as monomer are long known in the art ( ACS Sustainable Chem. Eng. 2020, 8, 15199-15208 and J Polym Res (2016) 23: 42, DOI 10.1007/s10965-016-0933-5 ; EP 0934988 A2 , EP 1398337 A2 , and EP 2853551 A1 ).
  • Such polyesters can for example be used as or for the production of tube or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • the problem to be solved by the present invention was to provide alternative polyesters useful for preparing or as lacquers, coatings or adhesives, preferably tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • the present invention further relates to a process for preparing a polymer by reacting at least one carboxylic acid comprising at least two carboxylic groups or its anhydride or ester and at least one alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups used is a bi-cyclo-aliphatic diol of formula (IX).
  • the present invention further provides (a method to use) the use of the polymers according to the invention or obtained by a process according to the invention as or for the production of tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • the polymers according to the invention can show a large variety of glass transition temperatures that are similar to those of polyesters based on dicidol as monomer without the need to use dicidol.
  • the polymers according to the invention have the advantage that a larger pool of industrial feedstock can be used for producing polymers useful for preparing or as tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • the polymers according to the invention or its starting materials the diols can be obtained using less harsh conditions in the production process than the conditions described in the prior art.
  • the alcohol comprising at least two OH-groups is a bicyclo-aliphatic diol of formula (I).
  • At least 50 mol-% of the units in the polymer are based on a bi-cyclo-aliphatic diol of formula (IX).
  • the units derived from an alcohol comprising at least two OH-groups are derived from a mixture comprising 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, and (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol.
  • the units derived from a carboxylic acid comprising at least two carboxylic groups are preferably derived from phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, succinic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or an anhydride or ester thereof, more preferably from phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,
  • the polymer according to the invention preferably comprises at least 50 mol-%, more preferably of from 60 to 100 mol-%, and most preferably of from 70 to 95 mol-% of units in the polymer derived from carboxylic acids comprising at least two carboxylic groups that are based on phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, glutaric acid, adipic acid, or sebacic acid, or a mixture thereof, most preferably based on terephthalic acid.
  • carboxylic acids comprising at least two carboxylic groups that are based on phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclo
  • the polymer according to the invention can preferably consist only of units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and units derived from a bi-cyclo-aliphatic diol.
  • the polymer according to the invention can also comprise units that are based on one or more hydroxy groups comprising organic acids, preferably hydroxy stearic acid or glycolic acid, as monomers.
  • the polymer according to the invention comprises up to 50 mol-%, more preferably of from 0 to 40 mol-%, and most preferably of from 10 to 30 mol-% of units that are based on one or more hydroxy groups comprising organic acids, preferably hydroxy stearic acid or glycolic acid as monomer.
  • the units that are based on one or more hydroxy groups comprising organic acids might be distributed in the polymer randomly or as one or more oligomeric blocks.
  • composition of the polymer can be determined by hydrolysis of the polymer and following GC-analytic.
  • the polymer according to the invention further comprises units that are based on dihydroxy- or polyhydroxy-compounds, different from bi-cyclo-aliphatic diols, preferably ethylene glycol, propylene glycol, butylene glycol, 1,5-pentanediol, 1,6-hexanediol, 1,9-nonanediol, diethylene-glycol, polyethylene-glycol, polytetrahydrofuran, neopentylglycol, 2-butyl-2-ethyl-1,3-propandiole, hydroxypivalylhydroxypivalat, 1,2-propanediol, 2-ethylhexane1,3-diol, trimethylhexanediol, 2,2,4 trimethyl-1,3-pentanediol, 1,4-cyclohexanedimethanol, glycerol, pentaerythritol, trimethylo
  • the polymer according to the invention comprises units that are based on one or more hydroxy groups comprising organic acids, preferably hydroxy stearic acid or glycolic acid, as monomers and units that are based on dihydroxy-compounds, different from bi-cyclo-aliphatic diols, preferably on ethylene glycol or propylene glycol as monomer.
  • the polymer according to the invention preferably has a number averaged molecular weight Mn, determined by the method given in the example section below, of from 8 to 25 kg/mol.
  • the polymer according to the invention preferably has a weight averaged molecular weight Mw, determined by the method given in the example section below, of from 10 to 75 kg/mol.
  • the polymer according to the invention preferably has a glass transition temperature Tg, determined by the method given in the example section below, of from 40 to 110 °C.
  • the polymer according to the invention preferably has a decomposition temperature determined by the method given in the example section below above 350 °C, preferably above 375 °C and below 400 °C, and most preferably above 377 °C and below 390 °C.
  • the polymer according to the invention has a number averaged molecular weight Mn of from 8 to 25 kg/mol, a weight averaged molecular weight Mw of from 10 to 75 kg/mol, a decomposition temperature above 377 °C and below 390 °C, and a glass transition temperature Tg of from 40 to 110 °C, each parameter determined by the methods given in the example section below.
  • the polymer according to the invention might be prepared by any known method of polymerization/(trans-)esterification of carbon acids comprising at least two carboxylic groups or its anhydrides or esters, with compounds comprising at least two hydroxy groups.
  • the polymer according to the invention is prepared by the process according to the invention as described below.
  • the alcohol comprising at least two OH-groups used is a bi-cyclo-aliphatic diol of formula (I).
  • a polymer according to the invention is prepared.
  • bicyclo-aliphatic diol preferably 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula (IXa)), 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula (IXb)), 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol (Formula (IXc)), 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula (IXd)), (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol (Formula (IXe)), or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol (Formula (!Xf)), or a mixture of two or more of these compounds, more preferably a mixture
  • phthalic acid isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or an anhydride or ester thereof, more preferably phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid,
  • hydroxy groups comprising organic acids and the dihydroxy- or polyhydroxy-compounds, different from bi-cyclo-aliphatic diols, mentioned above can be used in the process according to the invention.
  • the process for preparing the polymer is preferably performed at a temperature of above 100 °C, preferably of from 120 °C to 250 °C while removing water (esterification reaction) and/or alcohol (trans-esterification reaction) from the reaction mixture.
  • water esterification reaction
  • alcohol trans-esterification reaction
  • the reaction is performed until no further water or alcohol is formed.
  • the reaction is preferably performed in a time of from 1 to 36 hours, preferably 6 to 30 hours.
  • a catalyst comprising Ti is added to the reaction mixture, most preferably Ti(O n Bu) 4 . Is added to the reaction mixture as catalyst.
  • the amount of catalyst added is preferably 0.01 to 10 mol-%, more preferably 0.5 to 5 mol-% and most preferably 1 mol-% based on the amount of carboxylic acid used in the reaction mixture.
  • the process according to the invention for preparing a polymer can be conducted in the presence or absence of oxygen.
  • the process is started in normal atmosphere and at the end the process is conducted under reduced pressure.
  • the remaining water or alcohol of reaction are preferably eliminated by distillation, using reduced pressure, through an enlargement in the surface area, or by the passing of an inert gas stream through the reaction mixture.
  • a preferred inert gas is nitrogen.
  • the hydroformylation step can be performed in the presence of any suitable catalyst, e.g. cobalt (carbonyl) catalyst or rhodium catalyst or the like.
  • the hydroformylation step preferably being performed in the presence of a catalyst comprising Rhodium and a phosphor comprising ligand.
  • the catalyst is obtained from bis(1,5-cyclooctadiene)rhodium(I) tetrafluoroborate salt ([Rh(COD) 2 ]BF 4 ) and triethylphosphane (TEP) or tris(2,4-di-tert-butylphenyl)-phosphite the latter being commercially available under the tradename Alkanox ® 240 phosphite from Addivant Corporation.
  • Further possible ligands are for example OXOPHOS ® , especially OXOPHOS ® 17, available form Evonik Operations GmbH, or ( S ax S , S )-bobphos, available for example from Smolecule LLC.
  • the hydroformylation step is preferably performed at a temperature of from 50 to 200 °C, preferably 60 to 125 °C and at a syngas (molar ratio CO/H 2 preferably from 2/1 to 1/1) pressure of from 2 to 12 MPa, preferably 4 to 7 MPa and most preferably 4.5 to 5.5 MPa.
  • the hydroformylation step is preferably performed at a temperature of from 75 to 125 °C and at a syngas (molar ratio CO/H 2 preferably 1/1) pressure of 4 to 7 MPa, more preferably 4.5 to 5.5 MPa.
  • the hydroformylation step is preferably performed at a temperature of from 120 to 160 °C and at a syngas (molar ratio CO/H 2 preferably from 3/2) pressure of from 8 to 12 MPa, preferably 10 MPa.
  • the hydroformylation step is preferably performed at a temperature of from 50 to 70 °C and at a syngas (molar ratio CO/H 2 preferably 1/1) pressure of from 2 to 10 MPa, preferably 4 to 7 MPa and most preferably 4.5 to 5.5 MPa.
  • dialdehydes isomers of formula (Xa), (Xb), and (Xc) can be obtained after the hydroformylation step(s):
  • the reduction step is preferably performed in the presence of NaBH 4 or using H 2 and RANEY ® -Ni in toluene/HzO.
  • reaction temperature as well as syngas pressure are preferably in the same preferred ranges as given for the hydroformylation step above.
  • the polymers of the present invention or the polymers obtained by a process according to the invention can for example be used as, or for the production of lacquers, coatings or adhesives, preferably tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • Average molar mass (Mw and Mn) and polydispersity (Mw/Mn) of polymers were determined using gel-permeation chromatography. All samples were in a concentration range of from 2 mg/mL to 4 mg/mL. Relative measurements in chloroform as eluent and poly(styrene) as standard were performed on a PL-GPC 50 Plus from Polymer Laboratories using PLgel 5 ⁇ m MIXED-C (2 ⁇ 7.5 ⁇ 300 mm).
  • the up-scaling hydroformylation and hydrogenation reactions were performed in a 2 L floor stand reactor of series 4530 from Parr Instrument Company equipped with a 4848 Reactor Controller and a non-stirred 2 L pressure vessel of series 4600 from Parr Instrument Company.
  • Toluene, Dichloromethane (DCM) and THF respectively were dried over a solvent purification system (SPS) MB SPS 800 from MBraun and stored over 4 ⁇ molecular sieves in 500 mL Schlenk flasks whereas the toluene was stored over 4 ⁇ molecular sieves in a 500 mL Schott Duran bottle in the glovebox.
  • SPS solvent purification system
  • EtOH was deoxygenated by flowing argon through the solvent and stored under 3 ⁇ molecular sieves in a 500 mL Schlenk flask.
  • ENB and VNB were stored under 4 ⁇ molecular sieves in a 500 mL vessel
  • Example 1a Preparation of dialdehydes according to scheme 1a as 1 st step
  • Example 1b Hydrogenation with RANEY ® -Ni in toluene/H 2 O
  • Example 2a Preparation of dialdehyds according to scheme 1a as 1 st step
  • Example 2b Hydrogenation with RANEY ® -Ni in toluene/H 2 O
  • the diol was prepared according to the following scheme 3
  • the step was preformed using a round-bottomed flask. 4.34 g (28.9 mmol, 1.00 eq.) of the product (Vlllb) obtained in example 3b was dissolved in MeOH (142 mL) and the reaction mixture was cooled to a temperature of 0 °C. 1.09 g (28.9 mmol, 1.00 eq.) of NaBH 4 was added in portions to the solution and the reaction mixture was stirred for 2 h. The resulted mixture was reduced to halve of its volume and the solution was acidified with hydrochloric acid (37 wt%, 1.00 M) until a pH value of 6-7 was reached.
  • example 3c was added to the suspension.
  • the resulted dark red reaction mixture was cooled to room temperature and the solvent was removed via distillation in vacuo.
  • the two different isomers were identified in the NMR spectra.
  • the yellowish reaction mixture was cooled to room temperature and the solvent was removed via distillation at room temperature in vacuo.
  • the crude product was purified by silica gel column chromatography (EtzO) and after removal of the solvent 5.82 g (38.2 mmol, 92%) of the intermediate of formula (VII) was yielded as a colorless liquid, comprising the ( E )-isomer (formula (VIIa) as major part and the ( Z )-isomer (formula Vllb) as minor part.
  • the diol was prepared according to the following scheme 5
  • the yellowish reaction mixture was cooled to room temperature and dissolved in MeOH (164 mL, 0.20 M) and 3.72 g (98.4 mmol, 3.00 eq.) of NaBH 4 was added in portions at a temperature of 0 °C.
  • the reaction mixture was stirred for 16 h at ambient temperature.
  • the resulted mixtures was reduced to half of its volume in vacuo and an aqueous HCl solution (37 wt%, 100 mL) was added.
  • the organic phase was extracted with DCM (3 ⁇ 150 mL) and dried over Na 2 SO 4 , filtered and the solvent was removed in vacuo.
  • the diol was prepared according to the following scheme 6
  • Example 7 hydroformylation using ( S ax S , S )-bobphos
  • the polycondensation reaction was performed in a three-necked flask, equipped with a magnetic coupling bmd 075 (Büchi AG) and a stainless steel propeller stirrer at normal pressure in normal atmosphere.
  • a magnetic coupling bmd 075 Büchi AG
  • a stainless steel propeller stirrer for each polymerization 1.00 mol% of Ti(OnBu) 4 catalyst, 1.00 equivalent of dimethyl terephthalate (DMT) and 2.00 equivalents of the corresponding diols obtained in examples 1, 3, and 4 were added into the three necked flask and the temperature was adjusted to 160 °C. As soon as the methanol has started to split off the temperature was increased to 210 °C gradually. If necessary, the temperature will be increased further until the pre-condensation reaction is fully completed (until no further MeOH is formed).
  • DMT dimethyl terephthalate
  • Table 3 Evaluation of the diols obtained in examples 1, 2, 3, 5, and 6 for the polyester synthesis (M n : number average molecular weight; M w : weight average molecular weight; ⁇ M : polydispersity index; T g : glass transition temperature; T dec : decomposition temperature).
  • polyesters made of diols of examples 1 and 2 showed the highest polydispersity values.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Organic Chemistry (AREA)
  • Health & Medical Sciences (AREA)
  • Polymers & Plastics (AREA)
  • Medicinal Chemistry (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Wood Science & Technology (AREA)
  • Materials Engineering (AREA)
  • Engineering & Computer Science (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
  • Polyesters Or Polycarbonates (AREA)
  • Low-Molecular Organic Synthesis Reactions Using Catalysts (AREA)

Abstract

The present invention relates to a polymer comprising units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and from an alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups is a bi-cyclo-aliphatic diol of formula (IX)
Figure imga0001
 with R1 = ethyl, -CHz-CHz-CHzOH, or -CH(-CH3)-CH2OH, and R2 = H or -CHzOH, with the proviso that R2 is not H when R1 = ethyl,
to a process for preparing a polymer by reacting at least one carboxylic acid comprising at least two carboxylic groups or its anhydride or ester and at least one alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups used is a bi-cyclo-aliphatic diol of formula (IX), and to the use of a polymer according to the invention or obtained by a process according to the invention as or for the production of lacquers, coatings or adhesives, preferably tube or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.

Description

  • The present invention relates to a polymer comprising units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and from an alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups is a bi-cyclo-aliphatic diol of formula (IX)
    Figure imgb0001
    • with R1 = ethyl, -CH2-CH2-CH2OH, or -CH(-CH3)-CH2OH, and R2 = H or -CH2OH, with the proviso that R2 is not H when R1 = ethyl,
    • to a process for preparing a polymer by reacting at least one carboxylic acid comprising at least two carboxylic groups or its anhydride or ester and at least one alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups used is a bi-cyclo-aliphatic diol of formula (IX), and to the use of a polymer according to the invention or obtained by a process according to the invention as or for the production of lacquers, coatings or adhesives, preferably tube or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
    STATE OF THE ART
  • Mijolovic et al. describe in WO 2011/023540 A2 ( US 2012/0157548 A1 ), the formation of a mixture of compounds of formula (I)
    Figure imgb0002
     starting from the (E)-/(Z)-isomers of formula (II)
    Figure imgb0003
  • The synthesis includes a two-step process, in which the compound of formula (II) is transformed via rhodium catalyzed hydroformylation under harsh reaction conditions (T = 140 °C and CO/H2 = 2 to 60 MPa, 1/1) into the corresponding aldehydes of formula (III)
    Figure imgb0004
  • The regio-isomer mixture of aldehydes is separated by distillation and subsequent reduction with RANEY®-Ni at a reaction temperature of 170 °C and Hz pressure of 28 MPa results in a mixture of bicyclic diol compounds of formula (I). It is also mentioned that 5-vinyl-2-norbonene (VNB), formula (VI), might be used as starting material.
  • Polyesters or polymers based on dicidol (tricyclodecanedimethanol), formula (IV)
    Figure imgb0005
     as monomer are long known in the art (ACS Sustainable Chem. Eng. 2020, 8, 15199-15208 and J Polym Res (2016) 23: 42, DOI 10.1007/s10965-016-0933-5; EP 0934988 A2 , EP 1398337 A2 , and EP 2853551 A1 ). Such polyesters can for example be used as or for the production of tube or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • The problem to be solved by the present invention, was to provide alternative polyesters useful for preparing or as lacquers, coatings or adhesives, preferably tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
    • DISCLOSURE OF THE INVENTION
  • Surprisingly it has been found that, this problem is solved by the polymers according to the invention as claimed in the claims.
  • The present invention therefore relates to a polymer comprising units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and from an alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups is a bi-cyclo-aliphatic diol of formula (IX)
    Figure imgb0006
     with R1 = ethyl, -CH2-CH2-CH2OH, or -CH(-CH3)-CH2OH, and R2 = H or -CH2OH, with the proviso that R2 is not H when R1 = ethyl.
  • The present invention further relates to a process for preparing a polymer by reacting at least one carboxylic acid comprising at least two carboxylic groups or its anhydride or ester and at least one alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups used is a bi-cyclo-aliphatic diol of formula (IX).
  • The present invention further provides (a method to use) the use of the polymers according to the invention or obtained by a process according to the invention as or for the production of tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • The polymers according to the invention can show a large variety of glass transition temperatures that are similar to those of polyesters based on dicidol as monomer without the need to use dicidol. The polymers according to the invention have the advantage that a larger pool of industrial feedstock can be used for producing polymers useful for preparing or as tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • The polymers according to the invention or its starting materials the diols can be obtained using less harsh conditions in the production process than the conditions described in the prior art.
  • The polymers, processes, and uses according to the invention are described by way of example hereinafter, without any intention that the invention be restricted to these illustrative embodiments. If ranges, general formulae or classes of compounds are specified below, these are intended to encompass not only the corresponding ranges or groups of compounds which are explicitly mentioned but also all subranges and subgroups of compounds which can be obtained by leaving out individual values (ranges) or compounds. Where documents are cited in the context of the present description, their content shall fully form part of the disclosure content of the present invention, particularly in respect of the matters referred to. Percentages specified hereinbelow are by weight unless otherwise stated. Where average values are reported hereinafter, these are the numerical average, unless stated otherwise. Where properties of a material are referred to hereinafter, for example viscosities or the like, these are the properties of the material at 25°C, unless stated otherwise. Where chemical (empirical) formulae are used in the present invention, the specified indices may be not only absolute numbers but also average values.
  • The present invention relates to a polymer comprising units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and units derived from an alcohol comprising at least two OH-groups, wherein the alcohol comprising at least two OH-groups is a bicyclo-aliphatic diol of formula (IX)
    Figure imgb0007
     with R1 = ethyl, -CH2-CH2-CH2OH, or -CH(-CH3)-CH2OH, and R2 = H or -CH2OH, with the proviso that R2 is not H when R1 = ethyl. Preferably the alcohol comprising at least two OH-groups is a bicyclo-aliphatic diol of formula (I).
  • Preferably at least 50 mol-% of the units in the polymer, more preferably of from 60 to 100 mol-% of the units in the polymer, and most preferably of from 70 to 95 mol-% of the units in the polymer derived from an alcohol comprising at least two OH-groups are based on a bi-cyclo-aliphatic diol of formula (IX).
    • The bi-cyclo-aliphatic diol is preferably 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (formula (IXa)),
      Figure imgb0008
    • 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (formula (IXb)),
      Figure imgb0009
    • 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (formula (IXc)),
      Figure imgb0010
    • 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (formula (IXd)),
      Figure imgb0011
    • (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol (formula (lXe))
      Figure imgb0012
    • (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol (formula (!Xf))
      Figure imgb0013
    • or a mixture of two or more of these compounds, more preferably the bi-cyclo-aliphatic diol is a mixture of 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol. The bi-cyclo-aliphatic diols or mixtures thereof can be obtained as described in WO 2011/023540 A2 .
  • Most preferably the units derived from an alcohol comprising at least two OH-groups are derived from a mixture comprising 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, and (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol.
  • The units derived from a carboxylic acid comprising at least two carboxylic groups are preferably derived from phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, succinic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or an anhydride or ester thereof, more preferably from phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, glutaric acid, adipic acid, or sebacic acid, and most preferably from terephthalic acid.
  • The polymer according to the invention preferably comprises at least 50 mol-%, more preferably of from 60 to 100 mol-%, and most preferably of from 70 to 95 mol-% of units in the polymer derived from carboxylic acids comprising at least two carboxylic groups that are based on phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, glutaric acid, adipic acid, or sebacic acid, or a mixture thereof, most preferably based on terephthalic acid.
  • The polymer according to the invention can preferably consist only of units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and units derived from a bi-cyclo-aliphatic diol.
  • However, the polymer according to the invention can also comprise units that are based on one or more hydroxy groups comprising organic acids, preferably hydroxy stearic acid or glycolic acid, as monomers. Preferably the polymer according to the invention comprises up to 50 mol-%, more preferably of from 0 to 40 mol-%, and most preferably of from 10 to 30 mol-% of units that are based on one or more hydroxy groups comprising organic acids, preferably hydroxy stearic acid or glycolic acid as monomer.
  • The units that are based on one or more hydroxy groups comprising organic acids might be distributed in the polymer randomly or as one or more oligomeric blocks.
  • The composition of the polymer can be determined by hydrolysis of the polymer and following GC-analytic.
  • It might be advantageous if the polymer according to the invention further comprises units that are based on dihydroxy- or polyhydroxy-compounds, different from bi-cyclo-aliphatic diols, preferably ethylene glycol, propylene glycol, butylene glycol, 1,5-pentanediol, 1,6-hexanediol, 1,9-nonanediol, diethylene-glycol, polyethylene-glycol, polytetrahydrofuran, neopentylglycol, 2-butyl-2-ethyl-1,3-propandiole, hydroxypivalylhydroxypivalat, 1,2-propanediol, 2-ethylhexane1,3-diol, trimethylhexanediol, 2,2,4 trimethyl-1,3-pentanediol, 1,4-cyclohexanedimethanol, glycerol, pentaerythritol, trimethylolpropane, di(trimethylolpropane), dimethylolpropionic acid, trimethylolpropane monoallyl ether, dicidol (tricyclodecanedimethanol), or 2,2,4,4-tetramethylcyclobutane-1,3-diol, or mixtures thereof, as monomer, more preferably on ethylene glycol or propylene glycol as monomer.
  • More preferably the polymer according to the invention comprises units that are based on one or more hydroxy groups comprising organic acids, preferably hydroxy stearic acid or glycolic acid, as monomers and units that are based on dihydroxy-compounds, different from bi-cyclo-aliphatic diols, preferably on ethylene glycol or propylene glycol as monomer.
  • The polymer according to the invention preferably has a number averaged molecular weight Mn, determined by the method given in the example section below, of from 8 to 25 kg/mol.
  • The polymer according to the invention preferably has a weight averaged molecular weight Mw, determined by the method given in the example section below, of from 10 to 75 kg/mol.
  • The polymer according to the invention preferably has a glass transition temperature Tg, determined by the method given in the example section below, of from 40 to 110 °C.
  • The polymer according to the invention preferably has a decomposition temperature determined by the method given in the example section below above 350 °C, preferably above 375 °C and below 400 °C, and most preferably above 377 °C and below 390 °C.
  • More preferably the polymer according to the invention has a number averaged molecular weight Mn of from 8 to 25 kg/mol, a weight averaged molecular weight Mw of from 10 to 75 kg/mol, a decomposition temperature above 377 °C and below 390 °C, and a glass transition temperature Tg of from 40 to 110 °C, each parameter determined by the methods given in the example section below.
  • The polymer according to the invention might be prepared by any known method of polymerization/(trans-)esterification of carbon acids comprising at least two carboxylic groups or its anhydrides or esters, with compounds comprising at least two hydroxy groups. Preferably the polymer according to the invention is prepared by the process according to the invention as described below.
  • In the process according to the invention for preparing a polymer by reacting at least one carboxylic acid comprising at least two carboxylic groups or its anhydride or ester and at least one alcohol comprising at least two OH-groups, the alcohol comprising at least two OH-groups used is a bi-cyclo-aliphatic diol of formula (I). With the process according to the invention preferably a polymer according to the invention is prepared.
  • As bicyclo-aliphatic diol preferably 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula (IXa)), 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula (IXb)), 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol (Formula (IXc)), 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula (IXd)), (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol (Formula (IXe)), or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol (Formula (!Xf)), or a mixture of two or more of these compounds, more preferably a mixture comprising 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, and (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol is used.
  • Preferably phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or an anhydride or ester thereof, more preferably phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, glutaric acid, adipic acid, or sebacic acid, or its anhydride or ester, and most preferably dimethyl terephthalate, is used as carboxylic acid comprising at least two carboxylic groups or its anhydride or ester.
  • It might be advantageous to start the reaction using a molar ratio of carboxylic acid comprising at least two carboxylic groups or its anhydride or ester to bi-cyclo-aliphatic diol of from 1 : 1 to 1 : 4, preferably of from 1 : 1.5 to 1 to 2.5, and most preferably 1 : 2.
  • As additional monomers the hydroxy groups comprising organic acids and the dihydroxy- or polyhydroxy-compounds, different from bi-cyclo-aliphatic diols, mentioned above can be used in the process according to the invention.
  • The process for preparing the polymer is preferably performed at a temperature of above 100 °C, preferably of from 120 °C to 250 °C while removing water (esterification reaction) and/or alcohol (trans-esterification reaction) from the reaction mixture. Depending on the composition of the polymer to be prepared further monomers as mentioned above might be added to the reaction mixture. Preferably the reaction is performed until no further water or alcohol is formed. The reaction is preferably performed in a time of from 1 to 36 hours, preferably 6 to 30 hours.
  • It might be advantageous to add a catalyst to the reaction mixture. Preferably a catalyst comprising Ti is added to the reaction mixture, most preferably Ti(OnBu)4. Is added to the reaction mixture as catalyst. The amount of catalyst added is preferably 0.01 to 10 mol-%, more preferably 0.5 to 5 mol-% and most preferably 1 mol-% based on the amount of carboxylic acid used in the reaction mixture.
  • The process according to the invention for preparing a polymer can be conducted in the presence or absence of oxygen. Preferably the process is started in normal atmosphere and at the end the process is conducted under reduced pressure.
  • It may be advantageous if a majority of the amount of water or alcohol released is initially distilled off at standard pressure. In the further course, the remaining water or alcohol of reaction are preferably eliminated by distillation, using reduced pressure, through an enlargement in the surface area, or by the passing of an inert gas stream through the reaction mixture. A preferred inert gas is nitrogen.
  • It may be advantageous to add further additives and processing auxiliaries, such as antioxidants or color stabilizers, to the reaction (esterification) mixture.
  • In the process according to the invention preferably 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula la), 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula lb), 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol (Formula Ic), or3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol (Formula Id), (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol (Formula (IXe)), or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol (Formula (lXf)) or a mixture of two or more of these compounds is used, obtained by a method comprising a step of hydroformylation and a step of reduction, using a compound according to formula (V)
    Figure imgb0014
     with R = vinyl, ethylidene, or acetyl, more preferably with R = vinyl or ethylidene, and most preferably with R = ethylidene , as starting material, whereby the hydroformylation step and the reduction step might be performed in one step. The hydroformylation step can be performed in the presence of any suitable catalyst, e.g. cobalt (carbonyl) catalyst or rhodium catalyst or the like. The hydroformylation step preferably being performed in the presence of a catalyst comprising Rhodium and a phosphor comprising ligand. Preferably the catalyst is obtained from bis(1,5-cyclooctadiene)rhodium(I) tetrafluoroborate salt ([Rh(COD)2]BF4) and triethylphosphane (TEP) or tris(2,4-di-tert-butylphenyl)-phosphite the latter being commercially available under the tradename Alkanox® 240 phosphite from Addivant Corporation. Further possible ligands are for example OXOPHOS®, especially OXOPHOS® 17, available form Evonik Operations GmbH, or (S ax S,S)-bobphos, available for example from Smolecule LLC.
    Figure imgb0015
    Figure imgb0016
    Figure imgb0017
  • The hydroformylation step is preferably performed at a temperature of from 50 to 200 °C, preferably 60 to 125 °C and at a syngas (molar ratio CO/H2 preferably from 2/1 to 1/1) pressure of from 2 to 12 MPa, preferably 4 to 7 MPa and most preferably 4.5 to 5.5 MPa.
  • When using an ALKANOX® based catalyst the hydroformylation step is preferably performed at a temperature of from 75 to 125 °C and at a syngas (molar ratio CO/H2 preferably 1/1) pressure of 4 to 7 MPa, more preferably 4.5 to 5.5 MPa.
  • When using an OXOPHOS® based catalyst the hydroformylation step is preferably performed at a temperature of from 120 to 160 °C and at a syngas (molar ratio CO/H2 preferably from 3/2) pressure of from 8 to 12 MPa, preferably 10 MPa.
  • When using a (S ax S,S)-bobphos based catalyst the hydroformylation step is preferably performed at a temperature of from 50 to 70 °C and at a syngas (molar ratio CO/H2 preferably 1/1) pressure of from 2 to 10 MPa, preferably 4 to 7 MPa and most preferably 4.5 to 5.5 MPa.
  • As intermediate products the following dialdehydes isomers of formula (Xa), (Xb), and (Xc) can be obtained after the hydroformylation step(s):
    Figure imgb0018
    Figure imgb0019
    Figure imgb0020
  • The reduction step is preferably performed in the presence of NaBH4 or using H2 and RANEY®-Ni in toluene/HzO.
  • However, if starting from a compound of formula (V) where R = vinyl (formula (VI))
    Figure imgb0021
     the reaction can be performed as reductive hydroformylation without the need of an extra reduction step. Reaction temperature as well as syngas pressure are preferably in the same preferred ranges as given for the hydroformylation step above.

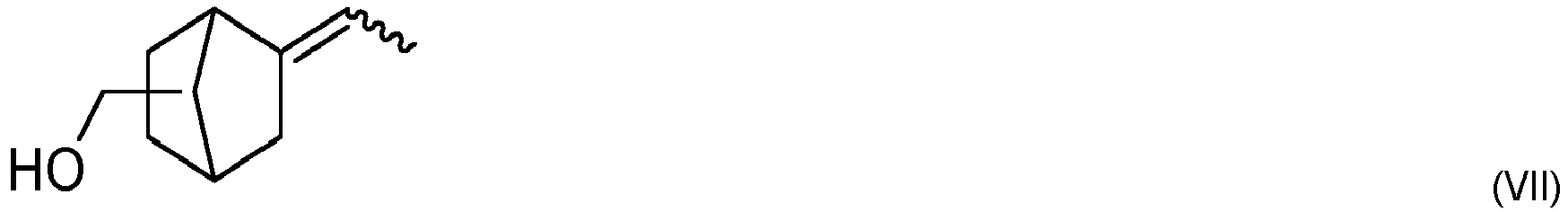

  • If starting from a compound of formula (II) the intermediate of formula (VII)
    Figure imgb0022
     is obtained after the first reductive hydroformylation step.
  • The polymers of the present invention or the polymers obtained by a process according to the invention can for example be used as, or for the production of lacquers, coatings or adhesives, preferably tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
  • The present invention will be further illustrated by the following nonlimiting examples which indicate further features, embodiments, aspects, and advantages of the present invention.
    • Examples: 1. Test methods: a) Nuclear Magnetic Resonance Spectroscopy (NMR spectroscopy)
  • The 1H and 13C nuclear magnetic resonance spectra were measured on Bruker AV400 at ambient temperature (298 K). Chemical shifts are given in parts per million (ppm) and were referenced using the residual proton signal of chloroform-d3 [δ (1H) = 7.26 ppm, (13C) = 77.2 ppm]. All coupling constants (J) are reported in Hertz (Hz). As abbreviation for the signal multiplicity the following abbreviations are used: s - singlet, d - duplet, dd - duplet of duplets, q - quartet, t = triplet, sept - septet, m - multiplet.
    • b) Gas Chromatography-Mass Spectrometry (GC-MS)
  • Gas chromatography mass spectrometry analytical measurements were performed with PhMe, THF, DCM, and EtOAc solutions on an Agilent GC 7890B using a HP-5MS UI column (0.25 mm, 0.25 µm) and a single quadrupole mass detector MS 5977A. All samples were in concentration of 0.5 mg/mL. The practical temperature range is 45 °C to 325 °C.
    • c) Gel permeation Chromatography (GPC)
  • Average molar mass (Mw and Mn) and polydispersity (Mw/Mn) of polymers were determined using gel-permeation chromatography. All samples were in a concentration range of from 2 mg/mL to 4 mg/mL. Relative measurements in chloroform as eluent and poly(styrene) as standard were performed on a PL-GPC 50 Plus from Polymer Laboratories using PLgel 5 µm MIXED-C (2 × 7.5 × 300 mm).
    • d) Thermogravimetric Analysis (TGA)
  • Forthermogravimetric analysis a TGA Q5000 from TA Instruments was used. The samples of 1 mg to 2 mg were heated with a heating rate of 10 K/min under argon. Analysis of the mass loss in dependency of the time was performed using TA universal software. The onset-point describes the initial temperature of the decomposition of the material.
    • e) Differential Scanning Calorimetry (DSC)
  • For differential scanning calorimetry a DSC Q2000 from TA Instruments was used. The samples of 5 mg to 10 mg were filled into an aluminum pan (Tzero) and are heated from -100 to 200 °C at a rate of 10 K/min. The reported values were determined with a TA Universal Analysis from the third heating cycle. Decomposition temperature and glass transition temperature were determined using this method.
    • 2. Raw Materials used
  • All hydroformylation reactions were performed in a 100 mL steel autoclave equipped with glass inlay, magnetic stirring and oil bath heating under exclusion of water and oxygen and an atmosphere of a mixture of carbon monoxide 4.7 (≥ 99.999 %, Westfalen AG) and hydrogen 5.0 (≥ 99.999 %, Westfalen AG). Unless otherwise stated, all other experiments were carried out under an atmosphere of argon 4.6 (≥ 99.999 %, Westfalen AG) using standard Schlenk techniques. The glass ware used was heat dried under fine vacuum prior to use. The up-scaling hydroformylation and hydrogenation reactions were performed in a 2 L floor stand reactor of series 4530 from Parr Instrument Company equipped with a 4848 Reactor Controller and a non-stirred 2 L pressure vessel of series 4600 from Parr Instrument Company. Toluene, Dichloromethane (DCM) and THF respectively were dried over a solvent purification system (SPS) MB SPS 800 from MBraun and stored over 4 Å molecular sieves in 500 mL Schlenk flasks whereas the toluene was stored over 4 Å molecular sieves in a 500 mL Schott Duran bottle in the glovebox. EtOH was deoxygenated by flowing argon through the solvent and stored under 3 Å molecular sieves in a 500 mL Schlenk flask. ENB and VNB were stored under 4 Å molecular sieves in a 500 mL vessel
  • Schlenk flask. All commercially available chemicals were purchased from abcr GmbH, Acros Organics, Tokyo Chemical Industry Co., Ltd. (5-Acetyl-2-norbornene), and Sigma Aldrich Chemie GmbH (ENB and VNB) respectively and used without further purification.
    • Example 1: Preparation of a mixture of diols of formula (V) starting from ENB formula (II) Example 1a: Preparation of dialdehydes according to scheme 1a as 1st step
  • Figure imgb0023
  • 10.14 mg (24.96 µmol, 0.10 mol%) of [Rh(COD)2]BF4 and 50.06 mg (77.37 µmol, 0.31 mol%) of Alkanox® (XI) were dissolved in 25 mL toluene (1.00 M) in a snap-cap vial in an autoclave. To the solution 3.00 g (24.96 mmol, 1.00 eq.) of (II) were added. The autoclave was pressurized with 5 MPa of syngas (CO/H2 = 1:1) and the reaction mixture was stirred for 4 h at a reaction temperature of 100 °C. The resulted pale yellow solution was cooled down to room temperature and was either used directly for hydrogenation or the solvent was removed by condensation whereas the product was purified by distillation (b.p.: 65-76 °C, reduced pressure: 5 to 6 Pa) to yield 3.42 g (18.47 mmol, 76%) of (X) as a mixture of (Xa) to (Xc) as a colorless liquid.
  • 1H NMR (500 MHz, CDCl3, 298 K): δ (ppm) = 9.78-9.74 (m, 0.24 H, CHO), 9.67-9.53 (m, 1.76 H, CHO), 2.67-2.49 (m, 1.00 H), 2.49-2.38 (m, 1.00 H), 2.38-1.15 (m, 11 H), 1.14-0.99 (m, 3 H), 0.98-0.88 (m, 0.40 H), 0.88-0.63 (m, 0.4 H).
  • In view of the big overlap of the aliphatic proton signals in the 1H-NMR spectrum, only the resonances of the signals of the aldehyde protons can be assigned.
  • 13C NMR (400 MHz, CDCl3 , 298 K): δ (ppm) = 204.93 (CHO), 204.87 (CHO), 204.72 (CHO), 204.69 (CHO), 204.56 (CHO), 204.54 (CHO), 204.46 (CHO), 203.73 (CHO), 203.21 (CHO), 203.11 (CHO), 203.04 (CHO), 202.99 (CHO), 202.92 (CHO), 202.90 (CHO), 202.87 (CHO), 202.64 (CHO), 202.59 (CHO), 202.57 (CHO), 202.48 (CHO), 202.46 (CHO), 202.25 (CHO), 202.19 (CHO), 201.97 (CHO), 201.78 (CHO), 61.42 (CH), 61.09 (CH), 55.18 (CH), 55.13 (CH), 55.09 (CH), 54.82 (CH), 54.75 (CH), 53.93 (CH), 53.90 (CH), 53.80 (CH), 53.70 (CH), 51.60 (CH), 51.32 (CH), 51.15 (CH), 49.87 (CH), 49.74 (CH), 48.92 (CH), 48.87 (CH), 48.11 (CH), 47.76 (CH), 47.75 (CH), 47.66 (CH), 43.13 (CH2), 43.10 (CH), 43.08 (CH2), 43.04 (CH), 42.90 (CH), 42.84 (CH), 42.62 (CH), 42.50 (CH), 42.36 (CH2), 41.93 (CH), 41.82 (CH), 41.67 (CH), 41.61 (CH), 41.53 (CH), 41.22 (CH), 41.07 (CH), 40.79 (CH), 40.77 (CH), 40.50 (CH), 40.39 (CH), 40.21 (CH), 39.79 (CH), 39.63 (CH), 39.53 (CH), 39.49 (CH), 39.47 (CH), 39.28 (CH), 39.11 (CH), 38.74 (CH), 38.65 (CH), 38.59 (CH), 38.56 (CH), 38.48 (CH), 38.41 (CH), 38.24 (CH), 38.22 (CH), 38.19 (CH), 38.01 (CH), 37.79 (CH2), 37.70 (CH2), 37.60 (CH2), 37.54 (CH2), 37.49 (CH2), 37.48 (CH2), 36.95 (CH2), 36.88 (CH2), 36.85 (CH), 36.76 (CH), 36.65 (CH), 36.55 (CH2), 36.38 (CH2), 36.36 (CH), 36.33 (CH2), 36.28 (CH2), 36.20 (CH), 36.09 (CH), 36.05 (CH2), 35.44 (CH2), 35.27 (CH2), 35.14 (CH2), 35.10 (CH2), 35.03 (CH2), 34.94 (CH2), 33.80 (CH2), 33.73 (CH2), 33.70 (CH2), 33.64 (CH2), 33.28 (CH2), 33.25 (CH2), 30.84 (CH2), 30.82 (CH2), 30.76 (CH2), 30.66 (CH2), 30.60 (CH2), 30.47 (CH2), 29.85 (CH2), 29.54 (CH2), 29.47 (CH2), 29.18 (CH2), 28.55 (CH2), 28.32 (CH2), 25.09 (CH2), 24.90 (CH2), 24.87 (CH2), 24.78 (CH2), 23.65 (CH2), 23.25 (CH2), 22.98 (CH2), 22.91 (CH2), 13.59 (CH3), 13.24 (CH3), 13.14 (CH3), 13.08 (CH3), 12.95 (CH3), 12.89 (CH3), 11.73 (CH3), 11.72 (CH3).
  • GC-MS: m/z = 180, 150, 136, 107, 91, 79, 55.
    • Example 1b: Hydrogenation with RANEY®-Ni in toluene/H2O
  • Figure imgb0024
  • Various amounts of the hydroformylation reaction product of (II) and various amounts of RANEY ®-Ni and water were added to the reaction mixture (table 1) obtained in example 1a. The autoclave was subsequently flushed with 5 MPa of Hz three times and finally repressurized with 50 MPa of Hz at room temperature. The reaction mixture was stirred for various amounts of time at different reaction temperatures (table 1). After letting the autoclave cool down to room temperature the resulting reaction mixture was redissolved in EtOAc and filtered to remove the nickel. The solvents were removed by condensation and the product was purified by distillation (b.p: 105-120 °C, reduced pressure: 5 Pa) to yield 3.09 g (16.74 mmol, 67%) of (IX) as a mixture of diols of formulae (IXa) to (IXf) as a colorless viscous liquid. Table 1: Varied reaction parameters for the hydrogenation of the reaction mixture obtained in example 1a with RANEY®-Ni as catalyst in toluene/H2O.
    # w%(Ni w%(H2O (II) T [°C] Δp [MPa] time [h] yield full
    1 2 10 24.96 r.t. 0.5 o.n. n.d. No
    2 2 10 24.96 40 0.6 o.n. 45 Yes
    3 2 10 24.96 60 0.75 o.n. n.d. No
    4 2 10 24.96 80 9 o.n. 66 Yes
    5 2 10 24.96 100 10 o.n. 66 Yes
    6 2 10 24.96 120 9 14 n.d. No
    7 2 10 24.96 140 10 4.5 67 Yes
    8 4 10 416.0 140 35 o.n. 77 Yes
    9 4 20 24.96 140 20 9 47 yes
    w%(H2O) and w%(Ni) are referred to the reaction feed which has been applied in the first hydroformylation step
    o.n. = over night ( ≥ 20 h)
    r.t. = room temperature
    (II) gives the amount of (II) used in in the corresponding examples 1a.
    Δ p gives the pressure decrease during the reaction.
    full: yes = conversion complete, no = conversion incomplete
  • The diols obtained in # 2, 4, 5 and 7 were collected and used together in example 8.
    • Example 1c: Reduction with NaBH4 in MeOH:
  • Figure imgb0025
  • After the hydroformylation reaction of (II) 125 mL MeOH (0.20 M) were added to the reaction mixture obtained in example 1a which was cooled down subsequently to a temperature of 0 °C. 2.83 g (74.9 mmol, 3.00 eq.) of NaBH4 were added in portions and the resulted mixture was stirred at room temperature for 3 h. Afterwards, the reaction mixture was reduced to halve of its volume and the solution was acidified with hydrochloric acid (37 wt%, 1.00 M) until a pH value of 6 to 7 was reached. The organic phase was extracted with DCM (3 × 100 mL), dried over Na2SO4, filtered and the remained solvent was removed under reduced pressure. The product was purified by silica gel chromatography with n-pentane and EtOAc, using 10-50% EtOAc as gradient to yield 3.49 g (19.40mmol, 73%) of (IX) as a mixture of diols of formulae (IXa) to (IXf) as a colorless viscous liquid.
  • 1H NMR (500 MHz, CDCl3, 298 K): δ (ppm) = 3.70-3.54 (m, 1.43 H, CH 2OH), 3.46-3.26 (m, 2.57 H, CH 2OH), 2.23-2.06 (m, 1.80 H), 2.04-1.87 (m, 0.47 H), 1.86-1.70 (m, 0.61 H), 1.70-0.83 (m, 11 H), 0.83-0.54 (m, 0.53 H).
  • In view of the big overlap of the aliphatic proton signals in the 1H-NMR spectrum, only the resonances of the signals of the CH2 groups next to the hydroxy groups can be assigned.
  • 13C NMR (400 MHz, CDCl3 , 298 K): δ (ppm) = 68.12 (CH2OH), 67.95 (CH2OH), 67.92 (CH2OH), 67.39 (CH2OH), 67.20 (CH2OH), 67.01 (CH2OH), 66.96 (CH2OH), 66.96 (CH2OH), 66.93 (CH2OH), 66.92 (CH2OH), 66.90 (CH2OH), 66.71 (CH2OH), 66.62 (CH2OH), 66.47 (CH2OH), 66.44 (CH2OH), 66.40 (CH2OH), 66.31 (CH2OH), 63.30 (CH2OH), 63.25 (CH2OH), 63.23 (CH2OH), 63.19 (CH2OH), 52.88 (CH), 52.04 (CH), 46.16 (CH), 46.04 (CH), 45.68 (CH), 45.64 (CH), 45.59 (CH), 45.57 (CH), 45.36 (CH), 45.33 (CH), 45.24 (CH), 45.23 (CH), 44.63 (CH), 44.54 (CH), 44.34 (CH), 44.13 (CH), 43.05 (CH), 43.02 (CH), 43.00 (CH), 42.52 (CH), 42.24 (CH), 41.70 (CH), 41.55 (CH), 41.12 (CH), 41.05 (CH), 40.89 (CH), 40.82 (CH), 40.75 (CH), 40.66 (CH), 40.45 (CH), 40.25 (CH), 40.18 (CH), 40.14 (CH), 40.11 (CH), 39.67 (CH), 39.28 (CH), 39.12 (CH), 39.00 (CH), 38.95 (CH), 38.69 (CH), 38.66 (CH), 38.57 (CH), 38.54 (CH), 38.47 (CH), 38.46 (CH), 38.40 (CH), 38.31 (CH2), 38.03 (CH), 37.62 (CH), 37.53 (CH2), 37.48 (CH2), 37.10 (CH), 37.06 (CH), 36.99 (CH), 36.96 (CH), 36.91 (CH2), 36.89 (CH2), 36.65 (CH), 36.62 (CH2), 36.60 (CH), 36.54 (CH), 36.48 (CH2), 36.39 (CH), 36.37 (CH2), 36.34 (CH), 36.31 (CH), 36.23 (CH2), 36.16 (CH2), 36.04 (CH2), 35.61 (CH2), 35.41 (CH2), 34.88 (CH2), 34.87 (CH2), 34.85 (CH2), 34.74 (CH2), 34.42 (CH2), 34.38 (CH2), 33.96 (CH2), 33.81 (CH2), 33.25 (CH2), 33.16 (CH2), 33.04 (CH2), 32.91 (CH2), 32.89 (CH2), 32.67 (CH2), 32.59 (CH2), 32.50 (CH2), 32.31 (CH2), 32.28 (CH2), 32.07 (CH2), 31.91 (CH2), 31.28 (CH2), 31.19 (CH2), 28.90 (CH2), 28.25 (CH2), 27.42 (CH2), 27.15 (CH2), 27.11 (CH2), 26.68 (CH2), 24.87 (CH2), 24.17 (CH2), 16.79 (CH3), 16.53 (CH3), 16.40 (CH3), 16.29 (CH3), 16.24 (CH3), 16.18 (CH3), 14.98 (CH3), 14.68 (CH3), 13.25 (CH3), 13.23 (CH3).
  • GC-MS: m/z = 184, 166, 135, 107, 95, 79, 67, 55.
    • Example 2: Preparation of a mixture of diols of formulae (IXc) and (IXd) starting from VNB formula (VI) Example 2a: Preparation of dialdehyds according to scheme 1a as 1st step
  • Figure imgb0026
  • 10.14 mg (24.96 pmol, 0.10 mol%) of [Rh(COD)2]BF4 and 21.60 mg (27.46 pmol, 0.11 mol%) of Oxophos® (XII) were dissolved in 25 mL toluene (1.00 M) in a snap-cap vial in an autoclave. To the solution 3.00 g (24.96 mmol, 1.00 eq.) of VNB (formula (VI)) was added. The reaction mixture was heated up to 80 °C, subsequently pressurized with 5 MPa of syngas (CO/H2 = 3:2), heated further to 140 °C and stirred for 4 h at a reaction temperature of 140 °C. The resulted pale yellow solution was cooled down to room temperature and was either used directly for hydrogenation or the solvent was removed by condensation whereas the product was purified by distillation (b.p.: 74-76 °C, reduced pressure: 3.5 Pa) to yield 1.25 g (3.45 mmol,14 %) of a dialdehyde of formula (Xc) as a colorless liquid.
  • 1H NMR (500 MHz, CDCl3, 298 K): δ (ppm) = 9.76-9.71 (m, 1 H, CHO), 9.62-9.57 (m, 1 H, CHO), 2.58-2.51 (m, 0.50 H), 2.49 (d, 3 J = 4.8 Hz, 0.50 H), 2.31-2.18 (m, 2 H), 2.05 (d, 3 J = 4.2 Hz, 0.15 H), 1.95-1.83 (m, 1.50 H), 1.82-1.70 (m, 1.50 H), 1.69-1.54 (m, 2.50 H), 1.54-1.39 (m, 1 H), 1.32-1.13 (m, 2.50 H), 1.13-1.07 (m, 0.30 H), 1.07-0.98 (m, 0.60 H), 0.72 (ddd, 3 J = 4.8 Hz, 0.40 H), 0.65 (ddd, 3 J = 5.1 Hz 0.30 H).
  • In view of the big overlap of the aliphatic proton signals in the 1H-NMR spectrum, only the resonances of the signals of the aldehyde protons can be assigned.
  • 13C NMR (400 MHz, CDCl3, 298 K): δ (ppm) = 203.70 (CHO), 203.18 (CHO), 202.96 (CHO), 202.89 (CHO), 202.57 (CHO), 202.47 (CHO), 202.44 (CHO), 202.23 (CHO), 55.06 (CH), 54.79 (CH), 53.86 (CH), 47.63 (CH), 43.10 (CH2), 43.04 (CH2), 42.46 (CH), 42.32 (CH2), 41.63 (CH), 41.58 (CH), 41.50 (CH), 40.76 (CH), 39.46 (CH), 39.43 (CH), 39.08 (CH), 38.70 (CH), 38.37 (CH), 37.67 (CH2), 37.56 (CH2), 37.50 (CH2), 37.45 (CH2), 36.82 (CH), 36.52 (CH2), 36.33 (CH), 36.30 (CH2), 33.24 (CH2), 33.22 (CH2), 30.62 (CH2), 30.56 (CH2), 29.44 (CH2), 28.52 (CH2), 28.29 (CH2), 24.87 (CH2), 24.74 (CH2), 22.88 (CH2).
  • GC-MS: m/z = 180, 150, 136, 107, 91, 79, 55.
    • Example 2b: Hydrogenation with RANEY®-Ni in toluene/H2O
  • Figure imgb0027
  • After the hydroformylation reaction of (VI) various amounts of 2 wt% RANEY®-Ni and 10 wt% water (based on the total mass of the reaction mixture) were added to the reaction mixture obtained in example 2a. The autoclave was subsequently flushed with 5 MPa of Hz three times and finally repressurized with 5 MPa of Hz at room temperature. The reaction mixture was stirred for 3 hours at a temperature of 80 °C. After letting the autoclave cool down to room temperature a pressure of 4.7 MPa was observed. The resulting product in the reaction mixture was redissolved in EtOAc and filtered to remove the nickel. The solvents were removed by condensation and the product was purified through distillation under reduced pressure (b.p: 130 °C, partial pressure: 8 Pa) to yield 0.99 g (5.49 mmol, 22%) of (IX) as a mixture mainly consisting of (IXc) and (IXd) as a colorless viscous liquid.
    • Example 2c: Reduction with NaBH4 in MeOH:
  • Figure imgb0028
  • After the hydroformylation reaction of (VI) 125 mL MeOH (0.20 M) were added to the reaction mixture obtained in example 2a which was cooled down subsequently to a temperature of 0°C. 2.83 g (74.9 mmol, 3.00 eq.) of NaBH4 were added in portions and the resulted mixture was stirred at room temperature for 3 h. Afterwards, the reaction mixture was reduced to halve of its volume and the solution was acidified with hydrochloric acid (37 wt%, 1.00 M) until a pH value of 6 to 7 was reached. The organic phase was extracted with DCM (3 × 100 mL), dried over Na2SO4, filtered and the remained solvent was removed under reduced pressure. The product was purified by silica gel chromatography with n-pentane and EtOAc, using 10-50% EtOAc as gradient to yield 2.02 g (10.98 mmol, 44%) of (IX) as a mixture of (IXc) and (IXd) as a colorless viscous liquid.
  • 1H NMR (500 MHz, CDCl3 , 298 K): δ (ppm) = 3.61 (q, 3 J = 6.5 Hz, 2 H, CHzOH), 3.38-3.30 (m, 2 H), 2.19-2.07 (m, 2 H), 1.95-1.92 (m, 0.75 H), 1.85-1.75 (m, 2 H), 1.67 (ddd, 3 J = 8.5 Hz, 0.50 H), 1.57-1.49 (m, 4 H), 1.24-1.17 (m, 1.40 H), 1.16-1.10 (m, 1 H), 1.07-1.01 (m, 0.50 H), 1.01-0.95 (m, 0.50 H), 0.89-0.80 (m, 1 H), 0.65-0.61 (m, 0.30 H), 0.59-0.55 (m, 0.20 H).
  • In view of the big overlap of the aliphatic proton signals in the 1H-NMR spectrum, only the resonances of the signals of the CH2 groups next to the hydroxy groups can be assigned.
  • 13C NMR (400 MHz, CDCl3 , 298 K): δ (ppm) = 66.92 (CHzOH), 66.88 (CHzOH), 66.79 (CHzOH), 66.61 (CHzOH), 63.20 (CHzOH), 63.15 (CHzOH), 63.13 (CHzOH), 63.08 (CHzOH), 45.60 (CH), 45.29 (CH), 44.30 (CH), 42.99 (CH), 41.68 (CH), 41.47 (CH), 41.10 (CH), 40.25 (CH), 40.24 (CH), 40.07 (CH), 39.65 (CH), 38.98 (CH), 38.51 (CH), 38.29 (CH2), 37.52 (CH2), 37.46 (CH2), 36.92 (CH), 36.88 (CH2), 36.83 (CH2), 36.62 (CH2), 36.55 (CH), 36.37 (CH), 34.71 (CH2), 34.41 (CH2), 33.24 (CH2), 32.87 (CH2), 32.66 (CH2), 32.28 (CH2), 32.24 (CH2), 32.05 (CH2), 31.88 (CH2), 31.25 (CH2), 31.17 (CH2), 28.89 (CH2), 28.25 (CH2), 27.09 (CH2).
  • GC-MS: m/z = 184, 166, 135, 107, 95, 79, 67, 55.
    • Example 3: Preparation of a mixture of diols of formulae (IXa) and (IXb)
  • The diol was prepared according to the following scheme 3
    Figure imgb0029
    • Example 3a: 1st step according to Scheme 3a
  • Figure imgb0030
  • The reaction was performed using Schlenk technique (Schlenk flask). To a suspension of 16.4 g (47.7 mmol, 1.30 eq.) phosphonium salt [Ph3PCH2OCH3]Cl (Methoxymethylidene(triphenyl)-λ5-phosphane, from Sigma Aldrich, CAS: 4009-98-7) in dried THF (239 mL) 6.18 mg (55.1 mmol, 1.50 eq.) of potassium tert-butanolate (KOtBu) was added in portions at a temperature of 0°C. The deep red reaction mixture was stirred at 0 °C for 45 min and subsequently, 5.00 g (37.3 mmol, 1.00 eq.) of (Va) in THF (187 mL) was added dropwise via a cannula. The reaction mixture was stirred for 2 h at ambient temperature. To the orange suspension distilled water (300 mL) was added and the organic phase was extracted with n-pentane (3 × 150 mL). The collected organic phase was washed with water and NH4Cl, dried over Na2SO4, filtered and the solvent was removed in vacuo. Finally, the crude product was purified with silica gel column chromatography (n-pentane/Et2O = 50/1) to yield 6.01 g (36.6 mmol, 98%) of (VIIIa) as a colorless liquid.
  • 1H NMR (400 MHz, CDCl3): δ (ppm) = 6.22-5.83 (m, 2 H), 5.83-5.60 (m, 1 H), 3.57-3.50 (m, 3 H), 2.88-2.62 (m, 2 H), 1.88 (dd, 3J = 8.5, 4.9 Hz, 1 H), 1.64-1.52 (m, 3 H), 1.45-1.22 (m, 4 H).
  • 13C NMR (400 MHz, CDCl3):
  • VIIIa) (major): δ (ppm) = 141.54, 137.49, 136.80, 117.67 59.41, 46.10, 45.58, 42.57, 42.22, 30.74, 13.49.
  • Due to the higher number of isomer compounds resulted from the olefination of (Va) only the major product is presented.
  • GC-MS: m/z = 164, 131, 115, 98, 91, 83, 55.
    • Example 3b: 2nd step according to scheme 3b
  • Figure imgb0031
  • 6.01 g (36.6 mmol, 1.00 eq.) of the product (Villa) obtained in example 3a was dissolved in toluene (73 mL) and water (6.60 mL, 10.0 eq.) was added. The solution was cooled to a temperature of 0 °C and 1.40 g (7.32 mmol, 0.20 eq.) of p-toluene sulfonic acid monohydride (p-TsOH × H2O) was added in portions. The reaction mixture was refluxed for 1 h and after cooling down to ambient temperature saturated NaHCOs solution was added. The organic phase was extracted with EtzO (3 × 150 mL), dried over Na2SO4, filtered and the solvent was removed in vacuo. Finally, the product was purified by silica gel chromatography (n-pentane/Et2O = 10/1) to yield 4.34 g (28.9 mmol, 79 %) of the product of formula (VIIIb) as a colorless liquid. Three different isomers were identified in the NMR spectra.
    • 1H NMR (400 MHz, CDCl3):
    • VIIIb-1 (major): δ (ppm) = 9.56 (d, 3 J = 3.1 Hz, 1 H, CHO), 6.14-5.89 (m, 2 H), 2.75-2.56 (m, 2 H). 2.15 (dddp, 3 J = 13.9, 10.6, 6.8, 3.6 Hz, 1 H), 1.37-1.20 (m, 5 H), 1.14 (d, 3 J = 6.8 Hz, 3 H, CH 3).
    • VIIIb-2 (major): δ (ppm) = 9.59 (d, 3J = 3.6 Hz, 1 H, CHO), 6.14-5.89 (m, 2 H), 2.86-2.80 (m, 2 H), 2.15 (dddp, 3J = 13.9, 10.6, 6.8, 3.6 Hz, 1 H), 1.37-1.20 (m, 5 H), 1.08 (d, 3J = 6.9 Hz, 3 H, CH 3).
    • VIIIb-3 (minor): δ (ppm) = 9.63 (d, 3 J = 3.1 Hz, 0.10 H, CHO), 1.00 (d, 3 J = 6.8, 0.35 H, CH 3). 13C NMR (400 MHz, CDCl3):
    • VIIIb-1 (major): δ (ppm) = 204.91 (CHO), 52.01, 45.32, 43.56, 42.31, 40.11, 31.38, 13.04 (CH3).
    • VIIIb-2 (major): δ (ppm) = 205.23 (CHO), 51.66, 45.51, 44.75, 41.92, 40.32, 30.41, 13.47 (CH3).
    • VIIIb-3 (minor): δ (ppm) = 205.30 (CHO), 50.86, 49.66, 44.50, 42.48, 41.92, 41.15, 30.41, 25.89, 13.33 (CH3).
  • GC-MS: m/z = 150, 132, 117, 106, 94, 79, 66, 55.
    • Example 3c: 3rd step according to scheme 3c
  • Figure imgb0032
  • The step was preformed using a round-bottomed flask. 4.34 g (28.9 mmol, 1.00 eq.) of the product (Vlllb) obtained in example 3b was dissolved in MeOH (142 mL) and the reaction mixture was cooled to a temperature of 0 °C. 1.09 g (28.9 mmol, 1.00 eq.) of NaBH4 was added in portions to the solution and the reaction mixture was stirred for 2 h. The resulted mixture was reduced to halve of its volume and the solution was acidified with hydrochloric acid (37 wt%, 1.00 M) until a pH value of 6-7 was reached. The organic phase was extracted with DCM (3 × 100 mL), dried over Na2SO4, filtered and the remained solvent was removed under reduced pressure. The product was purified by silica gel chromatography (n-pentane/Et2O = 8/2) to yield 4.09 g (26.9 mmol, 93%) of product of formula (Vlllc) as a colorless liquid.
  • 1H NMR (400 MHz, CDCl3): δ (ppm) = 6.05 (ddd, 3 J = 5.7, 2.9 Hz, 2 H, CHO), 3.75 (ddd, 3 J = 25.1, 10.5, 3.7 Hz, 1 H), 3.50 (dd, 3 J = 10.6, 6.8 Hz, 0.5 H), 3.37 (dd, 3 J = 10.5, 7.3 Hz, 0.5 H), 2.84-2.73 (m, 2 H), 1.44 (dtq, 3 J = 13.7, 6.9, 3.3 Hz, 1 H), 1.33-1.24 (m, 5 H), 1.06 (d, 3 J = 6.5 Hz, 1.5 H, CH 3), 0.99 (d, 3 J = 6.7 Hz, 1.5 H, CH 3).
  • 13C NMR (400 MHz, CDCl3):
    • VIIIc-1: δ (ppm) = 136.59, 67.88, 45.29, 43.75, 42.13, 41.88, 41.27, 31.90.
    • VIIIc-2: δ (ppm) = 137.1 (d), 67.51, 45.65, 43.83, 42.21, 41.82, 40.76, 31.65.
  • The 13C NMR reveal three isomer compounds and the two major isomers of VIIIc are presented so far.
  • GC-MS: m/z = 152, 134, 119, 105, 91, 77, 66, 55.
    • Example 3d: 4th step according to scheme 3d
  • Figure imgb0033
  • This step was performed in a manual autoclave using Schlenk technique. 109 mg (269 µmol, 1.00 mol%.) of [Rh(COD)2]BF4 and 794 mg (1.34 mmol, 5.00 mol%) of PEts (20 wt% in EtOH) were dissolved in EtOH (16 mL), and 4.09 g (26.9 mmol, 1.00 eq.) of the product (VIIIc) obtained in
  • example 3c was added to the suspension. The reaction mixture was pressurized with 5 MPa of syngas (CO/H2 = 1/1) and stirred for 16 h at a reaction temperature of 60 °C. The resulted dark red reaction mixture was cooled to room temperature and the solvent was removed via distillation in vacuo. The crude product was purified by silica gel column chromatography (n-pentane/Et2O = 1/1) and after removal of the solvent 3.82 g (20.7 mmol, 77%) of (Vllld), a mixture of (IXa) and (IXb) was yielded as a colorless viscous liquid. The two different isomers were identified in the NMR spectra.
    • 1H NMR (400 MHz, CDCl3):
    • VIIId-1: δ (ppm) = 3.73-3.58 (m, 1 H, CH2O), 3.45-3.29 (m, 3 H, CH 2O), 2.24-2.09 (m, 2 H), 1.67-1.57 (m, 1 H), 1.45-1.15 (m, 7 H), 1.04-0.96 (m, 3 H, CH 3), 0.88 (d, 3 J = 6.7 Hz, 0.66 H).
    • VIIId-2: δ (ppm) = 3.75-3.60 (m, 1 H, CH2O), 3.54-3.33 (m, 3 H, CH2O), 2.26-2.15 (m, 2 H), 1.70-1.49 (m, 2 H), 1.44-1.29 (m, 3.5 H), 1.29-1.14 (m, 2.8 H), 1.02-0.94 (m, 1 H), 0.92 (d, 3 J = 6.5 Hz, 0.88 H, CH 3), 0.89 (d, 3J = 6.5 Hz, 1.4 H, CH 3).
  • GC-MS: m/z = 184, 166, 153, 135, 125, 107, 95, 79, 67, 55.
    • Example 4: Preparation of the intermediate of formula (VII)
  • The intermediate was prepared according to the following scheme 4
    Figure imgb0034
  • 16.9 mg (41.6 µmol, 0.10 mol%) of [Rh(COD)2]BF4 (bis(1,5-cyclooctadiene) rhodium (I) tetrafluoroborate, CAS: 35138-22-8, from Tokyo Chemical Industry Co., Ltd.) and 123 mg (208 µmol, 0.50 mol%) of TEP (20 wt% in EtOH) were dissolved in EtOH (24 mL), and 5.00 g (41.6 mmol, 1.00 eq.) of 5-ethylidene-2-norbonene (ENB) was added to the suspension. The reaction mixture was pressurized with 5 MPa of syngas (CO/H2 = 1/1) and stirred for 17 h at 100 °C. The yellowish reaction mixture was cooled to room temperature and the solvent was removed via distillation at room temperature in vacuo. The crude product was purified by silica gel column chromatography (EtzO) and after removal of the solvent 5.82 g (38.2 mmol, 92%) of the intermediate of formula (VII) was yielded as a colorless liquid, comprising the (E)-isomer (formula (VIIa) as major part and the (Z)-isomer (formula Vllb) as minor part.
    Figure imgb0035
    Figure imgb0036
    • 1H NMR (400 MHz, CDCl3):
    • (VIIa) major: δ (ppm) = 5.27 (dqd, 3 J = 6.5 Hz, 0.76 H, H-8), 3.38 (dd, 3 J = 6.9, 2 H, H-10), 1.50 (d, 3 J = 6.8 Hz, 3 H, H-9)
    • (VIIb) minor: δ (ppm) = 5.05 (dq, 3 J = 7.0 Hz, 0.24 H, H-8`), 3.38 (dd, 3 J = 6.9 Hz, 2 H, H-10`), 1.62 (tt, 3 J = 7.1 Hz, 0.64 H, H-9`)
  • 2.92 (d, 3 J = 3.8 Hz, 0.20 H), 2.59 (t, 3 J = 7.7 Hz, 0.75 H), 2.40-2.29 (m, 0.87 H), 2.28-2.19 (m, 0.16 H), 2.12 (tq, 3 J = 21.2, 16.2, 5.0, 2.6 Hz), 1.88-1.66 (m, 2.17 H), 1.62 (tt, 3 J = 7.1, 2.0 Hz, 0.64 H), 1.48-1.38 (m, 1 H), 1.38-1.29(m, 1 H), 1.24 (t, 3 J = 8.2 Hz, 1 H), 1.09 (ddt, 3 J = 12.5, 8.0, 4.1 Hz, 1 H).
    • 13C NMR (400 MHz, CDCl3):
    • (VIIa) major: δ (ppm) = 145.89 (C-5), 145.88 (C-5), 111.88 (C-8), 111.44 (C-8), 66.93 (C-10), 66.51 (C-10), 14.01 (C-9), 13.95 (C-9), 47.00 (CH), 45.12 (CH), 45.03 (CH), 44.41 (CH), 38.40 (CH), 36.41 (CH), 36.17 (CH2), 35.89 (CH2), 35.84 (CH2), 35.13 (CH2), 34.15 (CH2), 33.14 (CH2).
    • (VIIb) minor: δ (ppm) = 145.03 (C-5'), 144.97 (C-5'), 112.67 (C-8'), 112.02 (C-8'), 66.95 (C-10'), 66.47 (C-10'), 14.58 (C-9'), 14.56 (C-9'), 44.44 (CH), 44.18 (CH), 41.47 (CH), 39.67 (CH), 38.99 (CH2), 38.32, 38.23 (CH2), 36.33, 36.00 (CH2), 35.52 (CH2), 33.28 (CH2), 32.90 (CH2).
  • Due to the large overlap of the aliphatic signals, only the resonances of the characteristic methyl-, methylidene and ethylidene group could be assigned. In addition, no clear differentiation in regio-isomers or diastereomers could be provided.
  • GC-MS: m/z = 152, 134, 121, 108, 93, 79, 67.
    • Example 5: Preparation of a diol of formula (I)
  • The diol was prepared according to the following scheme 5
    Figure imgb0037
  • 13.3 mg (32.8 µmol, 0.10 mol%) of [Rh(COD)2]BF4 and 106 mg (164 µmol, 0.50 mol%) of Alkanox® were dissolved in toluene (66 mL, 0.50 M) and 5.00 g (32.8 mmol, 1.00 eq.) of the intermediate obtained in example 4 was added to the suspension. The reaction mixture was pressurized with 5 MPa of syngas (CO/H2 = 1/1) and stirred for 18 h at 100 °C. The yellowish reaction mixture was cooled to room temperature and dissolved in MeOH (164 mL, 0.20 M) and 3.72 g (98.4 mmol, 3.00 eq.) of NaBH4 was added in portions at a temperature of 0 °C. The reaction mixture was stirred for 16 h at ambient temperature. The resulted mixtures was reduced to half of its volume in vacuo and an aqueous HCl solution (37 wt%, 100 mL) was added. The organic phase was extracted with DCM (3 × 150 mL) and dried over Na2SO4, filtered and the solvent was removed in vacuo. The crude product was purified by silica gel chromatography (DCM/Et2O = 3/1 and EtOAc) and after removal of the solvent 3.42 g (18.6 mmol, 56 %) of a mixture of compounds of formula (I) was yielded as a colorless viscous liquid.
    (I) 1H NMR (400 MHz, CD2Cl2): δ (ppm) = 3.68-3.53 (m, 1.20 H, CH 2OH), 3.44-3.21 (m, 2.80 H, CH 2OH).
    (I) 13C NMR (400 MHz, CD2Cl2): δ (ppm) = 67.73 (CH2OH), 66.71 (CH2OH), 66.53 (CH2OH), 66.50 (CH2OH), 66.47(CH2OH), 66.14 (CH2OH), 62.98 (CH2OH), 62.97 (CH2OH).
    Due to the large overlap of the aliphatic signals, only the resonances of the characteristic aldehyde and methylidene group could be assigned.
    (Aldehyde intermediate) GC-MS: m/z = 182, 164, 123, 107, 93, 79, 67, 55.
    (I) GC-MS: m/z = 184, 166, 153, 135, 125, 107, 93, 79, 67, 55.
    • Example 6: Preparation of a diol of formula (I)
  • The diol was prepared according to the following scheme 6
    Figure imgb0038
  • 84.5 mg (208 µmol, 1.00 mol%) of [Rh(COD)2]BF4 and 614 mg (1.04 mmol, 5.00 mol%) of TEP (20 wt% in EtOH) were dissolved in EtOH (12 mL) and 2.50 g (20.8 mmol, 1.00 eq.) of 5-vinyl-2-norbonene (VNB) was added to the suspension. The reaction mixture was pressurized with 5 MPa of syngas (CO/H2 = 1/1) and stirred for 18 h at 100 °C. The yellowish reaction mixture was cooled to room temperature and the solvent was removed via distillation at room temperature in vacuo. The crude product was purified by silica gel chromatography (DCM/Et2O = 3/1 and EtOAc) and after removal of the solvent 3.63 g (19.7 mmol, 95%) off a mixture of compounds of formula (I) was yielded as a colorless viscous liquid.
  • 1H NMR (400 MHz, CDCl3): δ (ppm) = 3.70-3.55 (m, 1.70 H, CH 2OH), 3.44-3.26 (m, 2.30 H, CH 2OH).
  • 13C NMR (400 MHz, CDCl3): δ (ppm) = 68.16 (CH2OH), 67.96 (CH2OH), 67.94 (CH2OH), 67.21 (CH2OH), 67.02 (CH2OH), 66.98 (CH2OH), 66.94 (CH2OH), 66.74 (CH2OH), 63.32 (CH2OH), 63.27 (CH2OH), 63.26 (CH2OH), 63.21 (CH2OH).
  • Due to the large overlap of the aliphatic signals, only the resonances of the characteristic methylidene group could be assigned.
  • GC-MS: m/z = 184, 166, 153, 135, 125, 107, 93, 79, 67, 55.
    • Example 7: hydroformylation using (S ax S,S)-bobphos
  • Figure imgb0039
  • [Rh(COD)2]BF4, (S ax S,S)-bobphos (formula (XIII)) and ENB (II) were dissolved in 25 mL toluene (1.00 M) in a snap-cap vial in an autoclave (table 2). The autoclave was pressurized with 5 MPa of syngas (CO/H2 = 1/1), subsequently heated to 60°C and stirred for 16 h. Afterwards the reaction mixture was cooled down to room temperature and the solvent was removed by condensation. The product was purified by distillation (b.p.: 65-70 °C, reduced pressure: 2.5 Pa) to yield 0.68 g (4.52 mmol, 18%) of (X) as a mixture of (Xa), (Xb), and (Xc) as a colorless liquid. The synthesis was performed with varied parameters given in table 2. Table 2: Overview of the used quantities for the iso-selective hydroformylation of (II) with [Rh(COD)2]BF4 and S ax S,S-bobphos (XIII).
    (II) [Rh(COD)2]BF4 (S ax S,S)-bobphos (XIII) H2 usage
    # m [g] n [mmol] m [mg] n [µmol] mol% m [mg] n [µmol] mol% Δp [Pa]
    1 3.00 24.96 10.14 24.96 0.10 20.37 31.20 0.13 1.75
    2 3.00 24.96 10.14 24.96 0.10 32.59 40.92 0.20 2.0
    3 1.50 12.48 20.28 49.92 0.10 40.73 62.40 0.40 1.0
    4 1.50 12.48 20.28 49.92 0.10 65.17 99.84 0.80 1.0
  • 1H NMR (500 MHz, CDC13, 298 K): δ (ppm) = 9.64-9.52 (m, 2 H, CHO), 2.63-2.51 (m, 1 H), 2.40 (bs, 0.25 H), 2.37-2.17 (m, 2 H), 2.17-2.14 (m, 0.30 H), 2.13-2.02 (m, 0.70 H), 2.00-1.73 (m, 2 H), 1.73-1.60 (m, 1 H), 1.59-1.46 (m, 1 H), 1.40-1.33 (m, 0.50 H), 1.33-1.14 (m, 3 H), 1.13-1.05 (m, 2 H), 1.03-0.98 (m, 1 H), 0.95-0.85 (m, 0.35 H), 0.85-0.78 (m, 0.15 H).
  • 13C NMR (400 MHz, CDC13, 298 K): δ (ppm) = 204.87 (CHO), 204.81 (CHO), 204.67 (CHO), 204.63 (CHO), 204.51 (CHO), 204.48 (CHO), 204.40 (CHO), 203.05 (CHO), 202.98 (CHO), 202.92 (CHO), 202.86 (CHO), 202.84 (CHO), 202.81 (CHO), 202.58 (CHO), 202.52 (CHO), 202.51 (CHO), 202.42 (CHO), 202.14 (CHO), 201.91 (CHO), 201.73 (CHO), 66.81 (CH), 66.66 (CH), 61.37 (CH), 61.05 (CH), 55.14 (CH), 55.09 (CH), 54.77 (CH), 54.71 (CH), 53.88 (CH), 53.75 (CH), 53.66 (CH), 51.75 (CH), 51.55 (CH), 51.28 (CH), 51.10 (CH), 49.82 (CH), 49.69 (CH), 48.87 (CH), 48.82 (CH), 48.06 (CH), 47.70 (CH), 45.06 (CH), 44.95 (CH), 44.33 (CH), 44.03 (CH), 43.06 (CH), 43.05 (CH), 43.00 (CH), 42.86 (CH), 42.80 (CH), 42.57 (CH), 42.45 (CH), 41.89 (CH), 41.78 (CH), 41.18 (CH), 41.03 (CH), 40.75 (CH), 40.73 (CH), 40.46 (CH), 40.35 (CH), 40.17 (CH), 39.75 (CH), 39.59 (CH), 39.49 (CH), 38.61 (CH), 38.55 (CH), 38.52 (CH), 38.20 (CH), 38.15 (CH), 37.97 (CH), 37.75 (CH2), 37.44 (CH2), 36.91 (CH2), 36.84 (CH2), 36.72 (CH), 36.61 (CH), 36.34 (CH2), 36.24 (CH2), 36.16 (CH), 36.09 (CH2), 36.05 (CH), 36.01 (CH2), 35.22 (CH2), 35.10 (CH2), 35.06 (CH2), 34.98 (CH2), 34.90 (CH2), 33.76 (CH2), 33.69 (CH2), 33.65 (CH2), 33.59 (CH2), 30.79 (CH2), 30.71 (CH2), 30.43 (CH2), 29.49(CH2), 29.14 (CH2), 25.04 (CH2), 23.61 (CH2), 23.20 (CH2), 22.94 (CH2), 13.94 (CH3), 13.88 (CH3), 13.55 (CH3), 13.19 (CH3), 13.10 (CH3), 13.04 (CH3), 12.91 (CH3), 12.86 (CH3), 11.69 (CH3), 11.68 (CH3).
  • GC-MS: m/z = 180, 150, 136, 107, 91, 79, 55.
    • Example 8: Preparation of polymer
  • The polycondensation reaction was performed in a three-necked flask, equipped with a magnetic coupling bmd 075 (Büchi AG) and a stainless steel propeller stirrer at normal pressure in normal atmosphere. For each polymerization 1.00 mol% of Ti(OnBu)4 catalyst, 1.00 equivalent of dimethyl terephthalate (DMT) and 2.00 equivalents of the corresponding diols obtained in examples 1, 3, and 4 were added into the three necked flask and the temperature was adjusted to 160 °C. As soon as the methanol has started to split off the temperature was increased to 210 °C gradually. If necessary, the temperature will be increased further until the pre-condensation reaction is fully completed (until no further MeOH is formed). Finally, the reaction mixture was stirred overnight under reduced pressure until the remaining diols were collected, dissolved in DCM or THF, and precipitated in cold MeOH. It was observed that not only a colorless solid was obtained but also a fibrous residue. This fibrous residue was dissolved in THF and again precipitated in cold MeOH. If necessary, this step was repeated. In table 3 below the product obtained after the first precipitation is marked -1, the product obtained after the second precipitation is marked -2, and so on. Table 3: Evaluation of the diols obtained in examples 1, 2, 3, 5, and 6 for the polyester synthesis (Mn: number average molecular weight; Mw: weight average molecular weight; ÐM : polydispersity index; Tg: glass transition temperature; Tdec: decomposition temperature).
    Diol Mn [kg/mol] MW [kg/mol] ÐM Tg [°C] Tdec [°C]
    Example 1c-1 19 70 3.7 97 381
    Example 1c-2 17 82 4.7 96 369
    Example 1c-3 19 61 3.2 99 365
    Example 1b 23 57 2.5 90 381
    Example 2 14 59 4.2 75 380
    Example 3-1 9 13 1.5 96 387
    Example 3-2 11 24 2.1 98 382
    Example 3-3 15 31 2.1 100 384
    Example 3-4 24 63 2.7 103 379
    Example 5-1 11 25 2.2 84 386
    Example 5-2 11 25 2.2 87 386
    Example 6-1 14 39 2.8 77 385
    Example 6-2 10 26 2.6 69 384
    Example 6-3 21 38 1.8 46 386
    PDT* - - 118 413
    PTA-TCDM** 10.3 - 1.9 115 -
    * Poly(tricyclodecanedimethylene-terephthalate), data from J Polym Res (2016) 23: 42 , table 1
    ** Poly(tricyclodecanedimethylene-terephthalate), data from ACS Sustainable Chem. Eng. 2020, 8, 15199-15208 , table 1
  • Evaluation of the cycloaliphatic diol compounds obtained in examples 1, 2, 3, 5, and 6 as monomers for the polyester synthesis reveals promising results for the application as building blocks in polyesters providing amorphous properties and high glass transition temperatures. All synthesized polyesters were dissolved in THF and precipitated in cold MeOH. They are collected in several fractions (marked with "-X", with X = 1 to 2, to 1 to 4 in table 3) and analyzed by gel-permeation chromatography (GPC), thermogravimetric analysis (TGA), and differential scanning calorimetry (DSC) analysis (table 3).
  • The polyesters made of diols of examples 1 and 2 showed the highest polydispersity values. In comparison with the known polyesters based on Dicidol (tricyclodecandimethanol) as diol monomer (table 3), the polyesters made of diols of example 5 (Tg = 84 °C, table 3, example 5-1) and example 6 (Tg = 69 °C, table 3, example 6-2) showed lowest achievable glass transition temperatures compared to PDT and PTA-TCDM (Tg = 118 °C and 115 °C respectively, table 3). Additional evaluation of the diol of example 3 as monomer in polyester synthesis results in the highest achievable glass transition temperature (Tg = 103, table 3, example 3-4) compared to PDT (Tg = 118 °C, table 3). The number average molecular weight as well as the polydispersity index of the polymers according to the invention are in a similar range as the values for the known polyester PTA-TCDM.

Claims (15)

  1. Polymer comprising units derived from a carboxylic acid comprising at least two carboxylic groups or its anhydride and units from an alcohol comprising at least two OH-groups, characterized in that the alcohol comprising at least two OH-groups is a bi-cyclo-aliphatic diol of formula (IX)
    Figure imgb0040
     with R1 = ethyl, -CH2-CH2-CH2OH, or -CH(-CH3)-CH2OH, and R2 = H or -CH2OH, with the proviso that R2 is not H when R1 = ethyl.
  2. Polymer according to claim 1, characterized in that at least 50 mol-% of the units, more preferably of from 60 to 100 mol-%, and most preferably of from 70 to 95 mol-% of units in the polymer derived from an alcohol comprising at least two OH-groups are based on a bicyclo-aliphatic diol of formula (IX).
  3. Polymer according to claim 1 or 2, characterized in that the bicyclo-aliphatic diol is 2-(5-Hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-Hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-Hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-Hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol, or a mixture thereof, preferably a mixture of 2-(5-Hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-Hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-Hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-Hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, and (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol.
  4. Polymer according to any of claims 1 to 3, characterized in that the polymer has a number averaged molecular weight Mn, determined by the method given in the description, of from 8 to 25 kg/mol.
  5. Polymer according to any of claims 1 to 4, characterized in that the polymer has a weight averaged molecular weight Mw, determined by the method given in the description, of from 10 to 75 kg/mol.
  6. Polymer according any of claims 1 to 5, characterized in that the polymer has a glass transition temperature Tg, determined by the method given in the description, of from 40 to 110 °C.
  7. Polymer according any of claims 1 to 6, characterized in that the units derived from a carboxylic acid comprising at least two carboxylic groups are derived from phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or an anhydride or ester, more preferably from phthalic acid, isophthalic acid, terephthalic acid, maleic acid, adipic acid, or sebacic acid, and most preferably from terephthalic acid.
  8. Polymer according to claim 7, characterized in that at least 50 mol-%, more preferably of from 60 to 100 mol-%, and most preferably of from 70 to 95 mol-% of units in the polymer that are derived from carboxylic acid comprising at least two carboxylic groups are based on phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or a mixture thereof.
  9. Process for preparing a polymer by reacting at least one carboxylic acid comprising at least two carboxylic groups or its anhydride or ester and at least one alcohol comprising at least two OH-groups, characterized in that the alcohol comprising at least two OH-groups used is a bicyclo-aliphatic diol of formula (IX)
    Figure imgb0041
     with R1 = ethyl, -CHz-CHz-CHzOH, or -CH(-CH3)-CH2OH, and R2 = H or -CHzOH, with the proviso that R2 is not H when R1 = ethyl.
  10. Process according to claim 9, characterized in that a polymer according to any of claims 1 to 8 is prepared.
  11. Process according to claim 9 or 10, characterized in that as bicyclo-aliphatic diol is used 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol, or a mixture of two or more of these compounds, preferably a mixture of 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, and (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol.
  12. Process according to any of claims 9 to 11, characterized in that phthalic acid, isophthalic acid, terephthalic acid, 1,2-cyclohexan dicarboxylic acid, 1,3-cyclohexan dicarboxylic acid, 1,4-cyclohexan dicarboxylic acid, maleic acid, malonic acid, succinic acid, 1,2,4-benzenetricarboxylic acid, glutaric acid, adipic acid, 2,2,4-trimethyl-adipic acid, azelaic acid, undecanedioic acid, octadecanedioic acid, dimer fatty acids, itaconic acid, fumaric acid, naphthalene-2,6-dicarboxylic acid, or sebacic acid or its anhydride or ester, more preferably phthalic acid, isophthalic acid, terephthalic acid, maleic acid, adipic acid, or sebacic acid or its anhydride or ester, and most preferably dimethyl terephthalate, is used as carboxylic acid comprising at least two carboxylic groups or its anhydride or ester.
  13. Process according to any of claims 9 to 12, characterized in that 2-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 2-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, 3-(5-hydroxymethylbicyclo[2.2.1]hept-2-yl)-propan-1-ol, 3-(6-hydroxymethylbicyclo[2.2.1]hept-2-yl)propan-1-ol, (3-ethylbicyclo[2.2.1]heptane-2,5-diyl)dimethanol, or (3-ethylbicyclo[2.2.1]heptane-2,6-diyl)dimethanol or a mixture of two or more of these compounds is used, obtained by a method comprising a step of hydroformylation and a step of reduction, using a compound according to formula (II)
    Figure imgb0042
     with R = vinyl, ethylidene, or acetyl, more preferably with R = vinyl or ethylidene, and most preferably with R = vinyl, as starting material.
  14. Process according to claim 13, characterized in that the hydroformylation step is performed in the presence of a catalyst comprising Rhodium and a phosphor comprising ligand.
  15. Use of a polymer according to any of claims 1 to 8 or obtained by a process according to any of claims 9 to 14 as or for the production of lacquers, coatings or adhesives, preferably tube, coil, or can coatings, metal decorating enamels, heat sealing lacquers, hot laminating adhesives, or primers.
EP23169389.6A 2023-04-24 2023-04-24 Polyesters and a process for preparing these polyesters Withdrawn EP4455182A1 (en)

Priority Applications (5)

Application Number Priority Date Filing Date Title
EP23169389.6A EP4455182A1 (en) 2023-04-24 2023-04-24 Polyesters and a process for preparing these polyesters
JP2025559628A JP2026513356A (en) 2023-04-24 2024-04-15 Polyester and methods for preparing these polyesters
EP24717716.5A EP4702076A1 (en) 2023-04-24 2024-04-15 Polyesters and a process for preparing these polyesters
CN202480027973.6A CN121039198A (en) 2023-04-24 2024-04-15 Polyesters and methods for preparing these polyesters
PCT/EP2024/060114 WO2024223345A1 (en) 2023-04-24 2024-04-15 Polyesters and a process for preparing these polyesters

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
EP23169389.6A EP4455182A1 (en) 2023-04-24 2023-04-24 Polyesters and a process for preparing these polyesters

Publications (1)

Publication Number Publication Date
EP4455182A1 true EP4455182A1 (en) 2024-10-30

Family

ID=86282565

Family Applications (2)

Application Number Title Priority Date Filing Date
EP23169389.6A Withdrawn EP4455182A1 (en) 2023-04-24 2023-04-24 Polyesters and a process for preparing these polyesters
EP24717716.5A Pending EP4702076A1 (en) 2023-04-24 2024-04-15 Polyesters and a process for preparing these polyesters

Family Applications After (1)

Application Number Title Priority Date Filing Date
EP24717716.5A Pending EP4702076A1 (en) 2023-04-24 2024-04-15 Polyesters and a process for preparing these polyesters

Country Status (4)

Country Link
EP (2) EP4455182A1 (en)
JP (1) JP2026513356A (en)
CN (1) CN121039198A (en)
WO (1) WO2024223345A1 (en)

Citations (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP0934988A2 (en) 1998-02-07 1999-08-11 Hüls Aktiengesellschaft Coating compositions based on thermoplastic polyester with the addition of an unsaturated polyester as adhesion promoter
JP2001064372A (en) * 1999-06-23 2001-03-13 Daicel Chem Ind Ltd Functional polyester polymer and its production method
EP1398337A2 (en) 2002-09-12 2004-03-17 Degussa AG Adhesion promoting additive from an unsaturated, amorphous polyester
WO2011023540A2 (en) 2009-08-26 2011-03-03 Basf Se Use of cycloaliphatic diols as biocides
EP2853551A1 (en) 2013-09-27 2015-04-01 Evonik Industries AG Additive for improving liquid adhesion and method for producing the same

Patent Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP0934988A2 (en) 1998-02-07 1999-08-11 Hüls Aktiengesellschaft Coating compositions based on thermoplastic polyester with the addition of an unsaturated polyester as adhesion promoter
JP2001064372A (en) * 1999-06-23 2001-03-13 Daicel Chem Ind Ltd Functional polyester polymer and its production method
EP1398337A2 (en) 2002-09-12 2004-03-17 Degussa AG Adhesion promoting additive from an unsaturated, amorphous polyester
WO2011023540A2 (en) 2009-08-26 2011-03-03 Basf Se Use of cycloaliphatic diols as biocides
US20120157548A1 (en) 2009-08-26 2012-06-21 Basf Se Use of cycloaliphatic diols as biocides
EP2853551A1 (en) 2013-09-27 2015-04-01 Evonik Industries AG Additive for improving liquid adhesion and method for producing the same

Non-Patent Citations (2)

* Cited by examiner, † Cited by third party
Title
ACS SUSTAINABLE CHEM. ENG., vol. 8, 2020, pages 15199 - 15208
J POLYM RES, vol. 23, 2016, pages 42

Also Published As

Publication number Publication date
WO2024223345A1 (en) 2024-10-31
EP4702076A1 (en) 2026-03-04
CN121039198A (en) 2025-11-28
JP2026513356A (en) 2026-04-23

Similar Documents

Publication Publication Date Title
JP2559150B2 (en) Vinyl ether end group ester from bis (hydroxyalkyl) cycloalkane
Sun et al. Synthesis of isosorbide-based polycarbonates via melt polycondensation catalyzed by quaternary ammonium ionic liquids
JPH0710920A (en) Ring-opening addition method to alcoholic hydroxyl group of cyclic carbonate compound
EP0338540B1 (en) Trimethylolheptanes and use thereof
EP0941266B1 (en) Process for preparation of modified 1,3-propanediol-based polyesters
EP1056795B1 (en) Compositions based on 2-methyl-1,3-propanediol and a phthalic acid
JP7839113B2 (en) Polyester carbonate composed of various diols in specified ratios
CN113461926A (en) Chemical synthesis method of poly beta-hydroxy fatty acid ester
TW201500400A (en) Unsaturated polycarbonate diol, procedure to obtain such polycarbonate diol and its use
EP4455182A1 (en) Polyesters and a process for preparing these polyesters
WO2009087910A1 (en) Process for production of biodegradable polymer
Nishida et al. Catalytic double ring-opening polyaddition of spiro orthoester with acid chloride for shrinkage-controlled molding
JP7839112B2 (en) Polyester carbonates from alicyclic diacids, 1,4:3,6-dianhydrohexitol, and further aliphatic dihydroxy compounds
EP2695901B1 (en) Aliphatic long-chain polycondensates
CZ336892A3 (en) Substituted 1,5-pentadiols and process for preparing thereof
JPS60237029A (en) Manufacture of hydroxyl group-containing alkoxylated productof organic carboxylic acid
EP0410964A1 (en) Vinyl ether terminated ester oligomers.
CN119661494B (en) Preparation method of bio-based cyclic ester monomer and corresponding bio-based polyester
KR20220076852A (en) Polyseter resin prepared by using anhydrosugar alcohol composition or anhydrosugar alcohol-alkylene glycol composition and method for preparing the same, and powder coating composition comprising the resin
EP0504430B1 (en) Process for producing highly pure phenyl carboxylate
EP3962985B1 (en) Polyesters from lignin-based monomers
TW486493B (en) Propanediol derivative and process for preparing copolyester using said propanediol derivative as comonomer
WO2017191282A1 (en) New adipate-type compounds and a process of preparing it
JPS6023417A (en) Synthetic resin and its preparation
JPH0517400A (en) Method for producing high-purity carboxylic acid phenyl esters

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: THE APPLICATION HAS BEEN PUBLISHED

AK Designated contracting states

Kind code of ref document: A1

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC ME MK MT NL NO PL PT RO RS SE SI SK SM TR

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: THE APPLICATION IS DEEMED TO BE WITHDRAWN

18D Application deemed to be withdrawn

Effective date: 20250501
