Abstract

A light emitting device in which: a) an absolute value of a lowest unoccupied molecular orbital (LUMO) energy level of a first electron transporting compound (ET-1) is smaller than an absolute value of a LUMO energy level of a host compound (H-1), b) an absolute value of a LUMO energy level of a second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of a third electron transporting compound (ET-3), c) and an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the first electron transporting compound (ET-1).

Description

BACKGROUND

FIELD

Embodiments of the invention relate generally to a light-emitting device and an electronic apparatus including the light-emitting device.

DISCUSSION OF THE BACKGROUND

Light-emitting devices are self-emissive devices that, as compared with devices of the related art, have wide viewing angles, high contrast ratios, short response times, and excellent characteristics in terms of brightness, driving voltage, and response speed.
Light-emitting devices may include a first electrode on a substrate, and a hole transport region, an emission layer, an electron transport region, and a second electrode sequentially stacked on the first electrode. Holes (i.e., a lack of an electron at a particular position) provided from the first electrode may move toward the emission layer through the hole transport region, and electrons provided from the second electrode may move toward the emission layer through the electron transport region. Carriers, such as holes and electrons, recombine in the emission layer to generate light.
The above information disclosed in this Background section is only for understanding of the background of the inventive concepts, and, therefore, it may contain information that does not constitute prior art.

SUMMARY

Inventive concepts consistent with one or more embodiments of the invention provide for a device having improved efficiency and lifespan, as compared with devices in the related art.
Additional features of the inventive concepts will be set forth in the description which follows, and in part will be apparent from the description, or may be learned by practice of the inventive concepts.
According to one or more embodiments, a light-emitting device includes a first electrode, a second electrode facing the first electrode, and an interlayer located between the first electrode and the second electrode and including an emission layer, wherein the emission layer includes a host compound (H-1) and a dopant compound (D), the interlayer includes a first buffer layer including a first electron transporting compound (ET-1), a second buffer layer including a second electron transporting compound (ET-2), and an electron transport layer including a third electron transporting compound (ET-3), an absolute value of a lowest unoccupied molecular orbital (LUMO) energy level of the first electron transporting compound (ET-1) is smaller than an absolute value of a LUMO energy level of the host compound (H-1), an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the third electron transporting compound (ET-3), and an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the first electron transporting compound (ET-1).
According to one or more embodiments, an electronic apparatus may include the light-emitting device.
At least some of the above and other features of the invention are set out in the claims.
It is to be understood that both the foregoing general description and the following detailed description are illustrative and explanatory and are intended to provide further explanation of the invention as claimed.

BRIEF DESCRIPTION OF THE DRAWINGS

The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate illustrative embodiments of the invention, and together with the description serve to explain the inventive concepts.

FIG. 1 is a schematic view of a light-emitting device according to an embodiment that is constructed according to principles of the invention.
FIG. 2 is a schematic view of a light-emitting device according to an embodiment.
FIG. 3 is a schematic cross-sectional view of a light-emitting apparatus according to an embodiment.
FIG. 4 is a schematic cross-sectional view of a light-emitting apparatus according to another embodiment.

DETAILED DESCRIPTION

In the following description, for the purposes of explanation, numerous specific details are set forth in order to provide a thorough understanding of various embodiments or implementations of the invention. As used herein "embodiments" and "implementations" are interchangeable words that are non-limiting examples of devices or methods employing one or more of the inventive concepts disclosed herein. It is apparent, however, that various embodiments may be practiced without these specific details or with one or more equivalent arrangements. In other instances, well-known structures and devices are shown in block diagram form in order to avoid unnecessarily obscuring various embodiments. Further, various embodiments may be different, but do not have to be exclusive. For example, specific shapes, configurations, and characteristics of an embodiment may be used or implemented in another embodiment without departing from the inventive concepts.
Unless otherwise specified, the illustrated embodiments are to be understood as providing illustrative features of varying detail of some ways in which the inventive concepts may be implemented in practice. Therefore, unless otherwise specified, the features, components, modules, layers, films, panels, regions, and/or aspects, etc. (hereinafter individually or collectively referred to as "elements"), of the various embodiments may be otherwise combined, separated, interchanged, and/or rearranged without departing from the inventive concepts.
The use of cross-hatching and/or shading in the accompanying drawings is generally provided to clarify boundaries between adjacent elements. As such, neither the presence nor the absence of cross-hatching or shading conveys or indicates any preference or requirement for particular materials, material properties, dimensions, proportions, commonalities between illustrated elements, and/or any other characteristic, attribute, property, etc., of the elements, unless specified. Further, in the accompanying drawings, the size and relative sizes of elements may be exaggerated for clarity and/or descriptive purposes. When an embodiment may be implemented differently, a specific process order may be performed differently from the described order. For example, two consecutively described processes may be performed substantially at the same time or performed in an order opposite to the described order. Also, like reference numerals denote like elements.
When an element, such as a layer, is referred to as being "on," "connected to," or "coupled to" another element or layer, it may be directly on, connected to, or coupled to the other element or layer or intervening elements or layers may be present. When, however, an element or layer is referred to as being "directly on," "directly connected to," or "directly coupled to" another element or layer, there are no intervening elements or layers present. To this end, the term "connected" may refer to physical, electrical, and/or fluid connection, with or without intervening elements. For the purposes of this disclosure, "at least one of X, Y, and Z" and "at least one selected from the group consisting of X, Y, and Z" may be construed as X only, Y only, Z only, or any combination of two or more of X, Y, and Z, such as, for instance, XYZ, XYY, YZ, and ZZ. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.
Although the terms "first," "second," etc. may be used herein to describe various types of elements, these elements should not be limited by these terms. These terms are used to distinguish one element from another element. Thus, a first element discussed below could be termed a second element without departing from the teachings of the disclosure.
Spatially relative terms, such as "beneath," "below," "under," "lower," "above," "upper," "over," "higher," "side" (e.g., as in "sidewall"), and the like, may be used herein for descriptive purposes, and, thereby, to describe one element's relationship to another element(s) as illustrated in the drawings. Spatially relative terms are intended to encompass different orientations of an apparatus in use, operation, and/or manufacture in addition to the orientation depicted in the drawings. For example, if the apparatus in the drawings is turned over, elements described as "below" or "beneath" other elements or features would then be oriented "above" the other elements or features. Thus, the term "below" can encompass both an orientation of above and below. Furthermore, the apparatus may be otherwise oriented (e.g., rotated 90 degrees or at other orientations), and, as such, the spatially relative descriptors used herein interpreted accordingly.
The terminology used herein is for the purpose of describing particular embodiments and is not intended to be limiting. As used herein, the singular forms, "a," "an," and "the" are intended to include the plural forms as well, unless the context clearly indicates otherwise. Moreover, the terms "comprises," "comprising," "includes," and/or "including," when used in this specification, specify the presence of stated features, integers, steps, operations, elements, components, and/or groups thereof, but do not preclude the presence or addition of one or more other features, integers, steps, operations, elements, components, and/or groups thereof. It is also noted that, as used herein, the terms "substantially," "about," and other similar terms, are used as terms of approximation and not as terms of degree, and, as such, are utilized to account for inherent deviations in measured, calculated, and/or provided values that would be recognized by one of ordinary skill in the art.
Various embodiments are described herein with reference to sectional and/or exploded illustrations that are schematic illustrations of embodiments and/or intermediate structures. As such, variations from the shapes of the illustrations as a result, for example, of manufacturing techniques and/or tolerances, are to be expected. Thus, embodiments disclosed herein should not necessarily be construed as limited to the particular illustrated shapes of regions, but are to include deviations in shapes that result from, for instance, manufacturing. In this manner, regions illustrated in the drawings may be schematic in nature and the shapes of these regions may not reflect actual shapes of regions of a device and, as such, are not necessarily intended to be limiting.
Unless otherwise defined, all terms (including technical and scientific terms) used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this disclosure is a part. Terms, such as those defined in commonly used dictionaries, should be interpreted as having a meaning that is consistent with their meaning in the context of the relevant art and should not be interpreted in an idealized or overly formal sense, unless expressly so defined herein.
In the related art, when a light-emitting device includes a phosphorescent green emission layer, electron injection from an electron transport layer to an emission layer may occur rapidly, and thus, an exciton profile in the phosphorescent green emission layer may be biased toward a hole transport region. That is, excitons may be formed at an interface between the emission layer and the hole transport region.
In addition, due to rapid electron injection to the green emission layer, a narrow recombination zone may be formed, and triplets in such a narrow recombination zone may undergo triplet-triplet annihilation (TTA) rather than contribute to emission, thus causing roll-off.
According to an embodiment, a light-emitting device includes: a first electrode, a second electrode facing the first electrode; and an interlayer located between the first electrode and the second electrode and including an emission layer, wherein the emission layer includes a host compound (H-1) and a dopant compound (D), the interlayer includes a first buffer layer including a first electron transporting compound (ET-1), a second buffer layer including a second electron transporting compound (ET-2), and an electron transport layer including a third electron transporting compound (ET-3), an absolute value of a lowest unoccupied molecular orbital (LUMO) energy level of the first electron transporting compound (ET-1) is smaller than an absolute value of a LUMO energy level of the host compound (H-1), an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the third electron transporting compound (ET-3), and an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the first electron transporting compound (ET-1).
In the light-emitting device according to one or more embodiments, electrons may be injected from an electron transport layer through a second buffer layer having a shallow LUMO. In this embodiment, electron injection may be controlled by a barrier due to a LUMO difference between the electron transport layer and the second buffer layer.
A LUMO difference between the host compound (H-1) and the first electron transporting compound (ET-1) of the first buffer layer may be small, and a LUMO difference between the second electron transporting compound (ET-2) of the second buffer layer and the first electron transporting compound (ET-1) of the first buffer layer may also be small. Thus, electron injection to the emission layer may be smooth.
The host compound (H-1) may be, for example, an electron transporting host compound.
Due to the second buffer layer, electron injection may be controlled. Thus, a recombination zone of electrons and holes in the emission layer may be formed relatively broadly, and thus, the recombination zone may be biased toward the inside of the emission layer at an interface between the emission layer and the hole transport layer.
In addition, due to formation of the broad recombination zone, probability of occurrence of triplet-triplet annihilation (TTA) in the emission layer may be lowered, thus improving roll-off
In some embodiments, the first electrode may be an anode, the second electrode may be a cathode, a hole transport region may be between the first electrode and the emission layer and may include a hole injection layer, a hole transport layer, an electron blocking layer, or any combination thereof, and/or an electron transport region may be between the second electrode and the emission layer and may include a hole blocking layer, an electron injection layer, or any combination thereof.
The electron transport region may include the electron transport layer.
In an embodiment, the first buffer layer may be in contact with the emission layer. For example, the first buffer layer may be physically in direct contact with the emission layer.
In an embodiment, the second buffer layer may be in contact with the electron transport layer. For example, the second buffer layer may be physically in direct contact with the electron transport layer.
In an embodiment, the first buffer layer may be in contact with the second buffer layer. For example, the first buffer layer may be physically in direct contact with the second buffer layer.
In some embodiments, the LUMO energy level of the first electron transporting compound (ET-1) and the LUMO energy level of the host compound (H-1) may satisfy Equation (1): $|E_{LUMO_ET - 1} - E_{LUMO_H - 1}| \leq 0.20 eV$
When the LUMO energy level difference between the first electron transporting compound (ET-1) and the host compound (H-1) is greater than 0.20 eV, electron injection to the host may not be relatively smooth, and thus charge balance in the emission layer may not be good.
In some embodiments, the LUMO energy level of the first electron transporting compound (ET-1) and the LUMO energy level of the second electron transporting compound (ET-2) may satisfy Equation (3): $|E_{LUMO_ET - 2} - E_{LUMO_ET - 1}| \leq 0.20 eV$
When the LUMO energy level difference between the first electron transporting compound (ET-1) and the second electron transporting compound (ET-2) is greater than 0.20 eV, electron flow to a direction of electron injection may not be relatively smooth, and thus charge balance in the emission layer may not be good.
When the LUMO energy level of the first electron transporting compound (ET-1), the LUMO energy level of the second electron transporting compound (ET-2), and the LUMO energy level of the host compound (H-1) satisfy Equations (1) and (3), electron injection to the emission layer may be relatively smooth . As a result, charge balance in the emission layer may be good.
In some embodiments, the LUMO energy level of the second electron transporting compound (ET-2) and the LUMO energy level of the third electron transporting compound (ET-3) may satisfy Equation (2): $E_{LUMO_ET - 2} - E_{LUMO_ET - 3} | \geq 0.20 eV$
When the LUMO energy level difference between the second electron transporting compound (ET-2) and the third electron transporting compound (ET-3) is smaller than 0.20 eV, it may be difficult to control electron injection by a low barrier due to the LUMO difference between the electron transport layer and the second buffer layer. As a result, a recombination zone of electrons and holes inside the emission layer may move toward the interface between the emission layer and the hole transport layer, and deterioration of the hole transport layer may occur in an early stage.
When the relationship between the LUMO energy level of the second electron transporting compound (ET-2) and the LUMO energy level of the third electron transporting compound (ET-3) satisfies Equation (2), electron injection may be controlled easily.
For example, the LUMO energy level of the host compound (H-1) and the LUMO energy level of the electron transporting host compound may each be in a range of about -2.5 eV to about -2.7 eV.
For example, the LUMO energy level of the first electron transporting compound (ET-1) may be in a range of about -2.4 eV to about -2.8 eV.
For example, the LUMO energy level of the second electron transporting compound (ET-2) may be in a range of about -2.3 eV to about -2.7 eV.
For example, the LUMO energy level of the third electron transporting compound (ET-3) may be in a range of about -2.6 eV to -2.8 eV.
In an embodiment, the emission layer may include a single host or mixed hosts.
For example, when the emission layer further includes at least one other host compound, e.g., a hole transporting host compound, an absolute value of the LUMO energy level of the at least one other host compound may be smaller than or equal to an absolute value of the LUMO energy level of the host compound (H-1).
In some embodiments, a mol% of the host compound (H-1) may be in a range of about 90 mol% to about 10 mol%, based on the total hosts in the emission layer. As electrons may flow to the LUMO of the host compound (H-1), a mol% of the host compound (H-1) may be 10 mol% or higher.
In an embodiment, the first buffer layer may include only the first electron transporting compound (ET-1) and the second buffer layer may include only the second electron transporting compound (ET-2), or the first buffer layer and the second buffer layer may each independently further include at least one other transporting compound.
For example, when the first buffer layer further includes at least one other electron transporting compound, an absolute value of the LUMO energy level of the at least one other electron transporting compound may be greater than or equal to an absolute value of the LUMO energy level of the first electron transporting compound (ET-1). That is, in the first buffer layer, the first electron transporting compound (ET-1) may have the most shallow LUMO. Electrons may flow to the LUMO of the first electron transporting compound (ET-1).
In this embodiment, for example, a mol% of the first electron transporting compound (ET-1) may be in a range of about 90 mol% to about 30 mol%, based on the total compounds of the first buffer layer. As electrons flow to the LUMO of the first electron transporting compound (ET-1), a mol% of the first electron transporting compound (ET-1) may be 30 mol% or higher.
For example, when the second buffer layer further includes at least one other electron transporting compound, an absolute value of the LUMO energy level of the at least one other electron transporting compound may be greater than or equal to an absolute value of the LUMO energy level of the second electron transporting compound (ET-2). That is, in the second buffer layer, the second electron transporting compound (ET-2) may have the most shallow LUMO. Electrons may flow to the LUMO of the second electron transporting compound (ET-2).
In this embodiment, for example, a mol% of the second electron transporting compound (ET-2) may be in a range of about 90 mol% to about 30 mol%, based on the total compounds of the second buffer layer. As electrons flow to the LUMO of the second electron transporting compound (ET-2), a mol% of the second electron transporting compound (ET-2) may be 30 mol% or higher.
In some embodiments, the dopant compound (D) may be a phosphorescent dopant compound. The dopant will be described in detail in the following description.
In an embodiment, the emission layer may be a green or red emission layer.
In an embodiment, the first electron transporting compound (ET-1) and the second electron transporting compound (ET-2) may each independently be one of Formulae 312-1 to 312-4 and 313:

wherein, in Formulae 312-1 to 312-4, 313, and 313A,

X321 to X328 are each independently N or C[(L₃₂₄)_xb24-R₃₂₄],
Y₃₂₁ is ^∗-O-^∗', ^∗-S-^∗', ^∗-N[(L₃₂₅)_xb25-R_325]-^∗', ^∗-C[(L₃₂₅)_xb25-R₃₂₅][(L₃₂₆)_xb26-R₃₂₆]-^∗', ^∗-C[(L₃₂₅)_xb25-R₃₂₅]=C[(L₃₂₆)_xb26-R₃₂₆]-^∗', ^∗-C[(L₃₂₅)_xb25-R₃₂₅]=N-^∗', or ^∗-N=C[(L₃₂₆)_xb26-R₃₂₆]-^∗',
k21 is 0, 1, or 2, and when k21 is 0, Y₃₂₁ is not present,
xb21 to xb26 are each independently 0, 1, 2, 3, 4, or 5,
A₃₁, A₃₂, and A₃₄ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group or a C₁-C₃₀ (e.g. C₁-C₂₀) heterocyclic group,

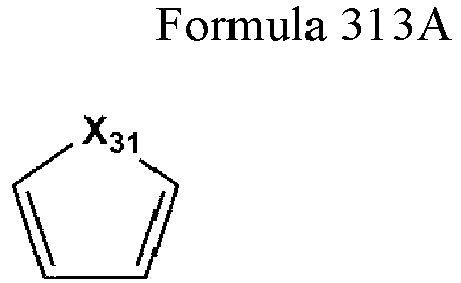

A₃₃ is a group represented by Formula 313A,
X₃₁ is N[(L₃₃₅)_xb35-(R₃₃₅)], O, S, Se, C[(L₃₃₅)_xb35-(R₃₃₅)][(L₃₃₆)_xb36-(R₃₃₆)], or Si[(L₃₃₅)_xb35-(R₃₃₅)][(L₃₃₆)_xb36-(R₃₃₆)],
xb31 to xb36 are each independently 0, 1, 2, 3, 4, or 5,
xb42 to xb44 are each independently 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10,
L₃₂₁ to L₃₂₆ and L₃₃₁ to L₃₃₆ are each independently a single bond, a C₁-C₂₀ (e.g. C₁-C₁₀) alkylene group unsubstituted or substituted with at least one R_10a, a C₂-C₂₀ (e.g. C₂-C₁₀) alkenylene group unsubstituted or substituted with at least one R_10a, a C₂-C₂₀ (e.g. C₂-C₁₀) alkynylene group unsubstituted or substituted with at least one R_10a, a C₃-C₁₀ cycloalkylene group unsubstituted or substituted with at least one R_10a, a C₁-C₁₀ heterocycloalkylene group unsubstituted or substituted with at least one R_10a, a C₃-C₁₀ cycloalkenylene group unsubstituted or substituted with at least one R_10a, a C₁-C₁₀ heterocycloalkenylene group unsubstituted or substituted with at least one R_10a, a C₆-C₆₀ (e.g. C₆-C₃₀) arylene group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heteroarylene group unsubstituted or substituted with at least one R_10a, a divalent non-aromatic condensed polycyclic group unsubstituted or substituted with at least one R_10a, or a divalent non-aromatic condensed heteropolycyclic group unsubstituted or substituted with at least one R_10a,
R₃₂₁ to R₃₂₆ and R₃₃₁ to R₃₃₆ are each independently hydrogen, deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, an amidino group, a hydrazino group, a hydrazono group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group unsubstituted or substituted with at least one R_10a, a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group unsubstituted or substituted with at least one R_10a, a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group unsubstituted or substituted with at least one R_10a, a C₃-C₁₀ cycloalkyl group unsubstituted or substituted with at least one R_10a, a C₁-C₁₀ heterocycloalkyl group unsubstituted or substituted with at least one R_10a, a C₃-C₁₀ cycloalkenyl group unsubstituted or substituted with at least one R_10a, a C₁-C₁₀ heterocycloalkenyl group unsubstituted or substituted with at least one R_10a, a C₆-C₆₀ (e.g. C₆-C₃₀) aryl group unsubstituted or substituted with at least one R_10a, a C₆-C₆₀ (e.g. C₆-C₃₀) aryloxy group unsubstituted or substituted with at least one R_10a, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heteroaryl group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heteroaryloxy group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heteroarylthio group unsubstituted or substituted with at least one R_10a, a monovalent non-aromatic condensed polycyclic group unsubstituted or substituted with at least one R_10a, a monovalent non-aromatic condensed heteropolycyclic group unsubstituted or substituted with at least one R_10a, -Si(Q₁)(Q₂)(Q₃), -B(Q₁)(Q₂), - N(Q₁)(Q₂), -P(Q₁)(Q₂), -C(=O)(Q₁), -S(=O)(Q₁), -S(=O)₂(Q₁), -P(=O)(Q₁)(Q₂), or - P(=S)(Q₁)(Q₂),
at least two adjacent groups of R₃₂₁ to R₃₂₄ may optionally be bound to form a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₅-C₆₀ (e.g. C₅-C₃₀) heterocyclic group unsubstituted or substituted with at least one R_10a, and
R_10a may be: deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, or a nitro group; a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group, or a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group, each unsubstituted or substituted with deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, a C6-C60 (e.g. C₆-C₃₀) aryloxy group, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group, a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group, - Si(Q₁₁)(Q₁₂)(Q₁₃), -N(Q₁₁)(Q₁₂), -B(Q₁₁)(Q₁₂), -C(=O)(Q₁₁), -S(=O)₂(Q₁₁), - P(=O)(Q₁₁)(Q₁₂), or any combination thereof; a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, a C₆-C₆₀ (e.g. C₆-C₃₀) aryloxy group, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group, a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group, or a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group, each unsubstituted or substituted with deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, a C₆-C₆₀ (e.g. C₆-C₃₀) aryloxy group, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group, a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group, -Si(Q₂₁)(Q₂₂)(Q₂₃), -N(Q₂₁)(Q₂₂), -B(Q₂₁)(Q₂₂), -C(=O)(Q₂₁), -S(=O)₂(Q₂₁), - P(=O)(Q₂₁)(Q₂₂), or any combination thereof; or -Si(Q₃₁)(Q₃₂)(Q₃₃), -N(Q₃₁)(Q₃₂), - B(Q₃₁)(Q₃₂), -C(=O)(Q₃₁), -S(=O)₂(Q₃₁), or -P(=O)(Q₃₁)(Q₃₂),
wherein Q₁ to Q₃, Q₁₁ to Q₁₃, Q₂₁ to Q₂₃, and Q₃₁ to Q₃₃ may each independently be: hydrogen; deuterium; -F; -Cl; -Br; -I; a hydroxyl group; a cyano group; a nitro group; a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group; a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group; a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group; a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group; a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, each unsubstituted or substituted with deuterium, -F, a cyano group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group, a phenyl group, a biphenyl group, or any combination thereof; a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group; or a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group.

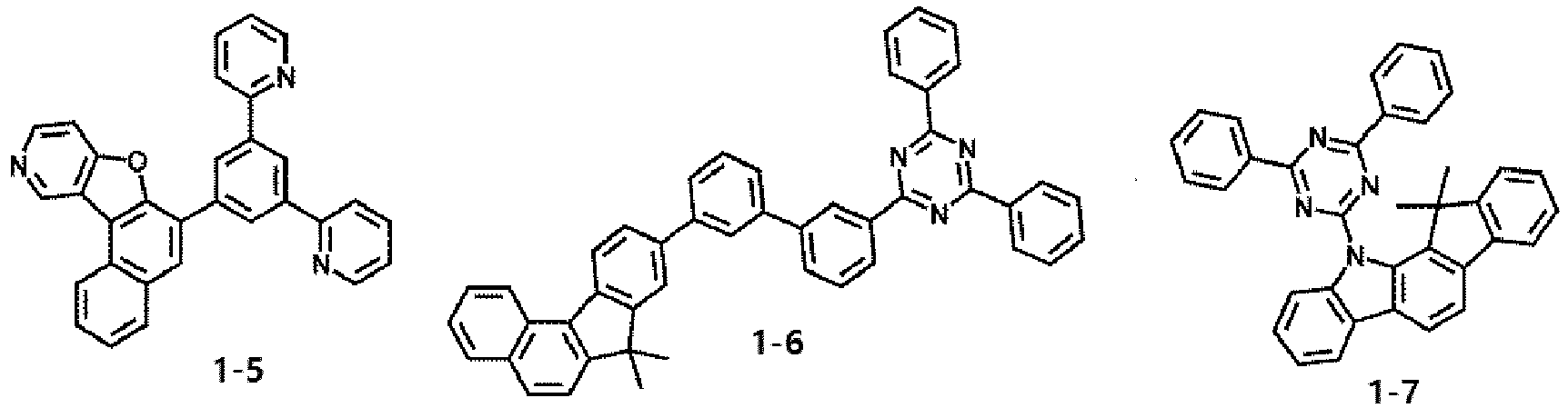

In an embodiment, the first electron transporting compound (ET-1) may be selected from following compounds:

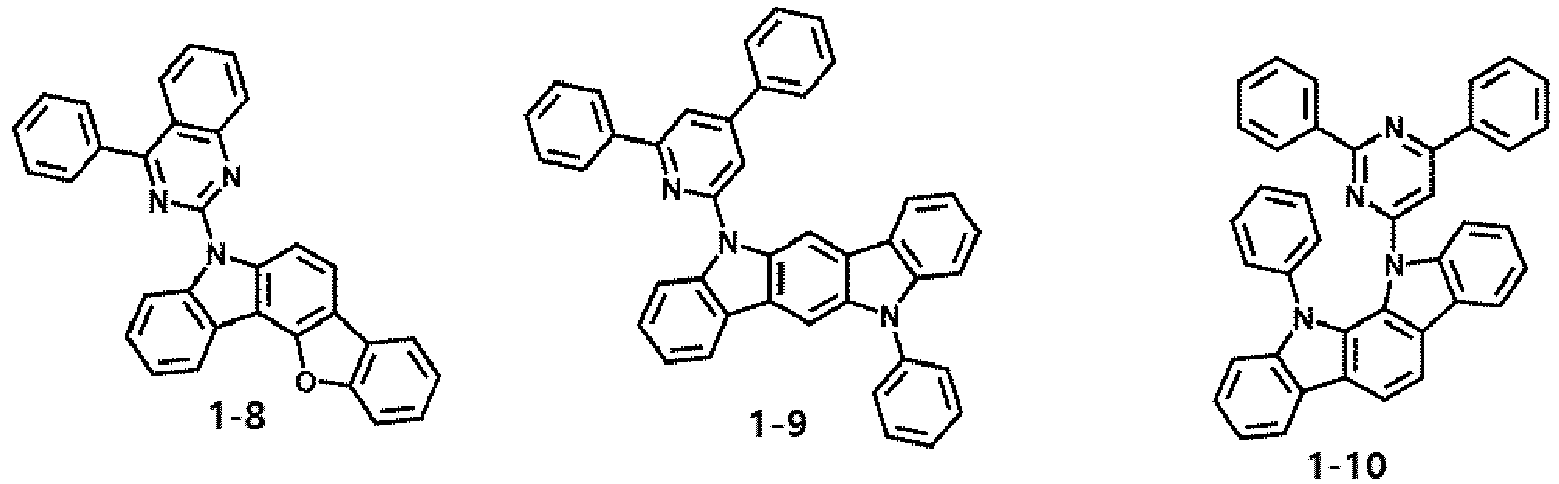

In an embodiment, the second electron transporting compound (ET-2) may be selected from following compounds:

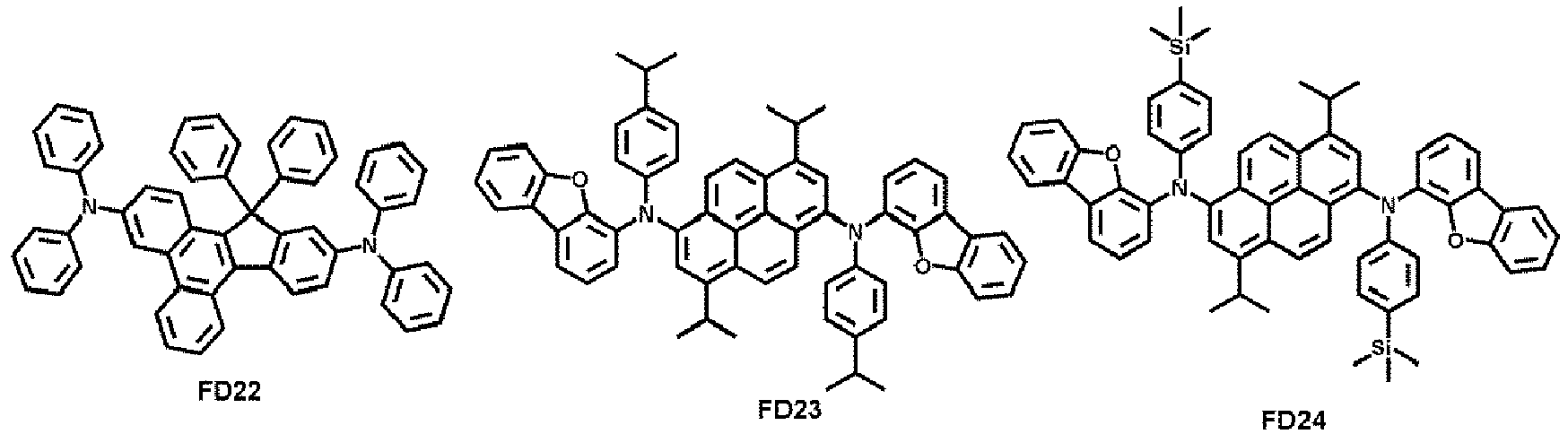

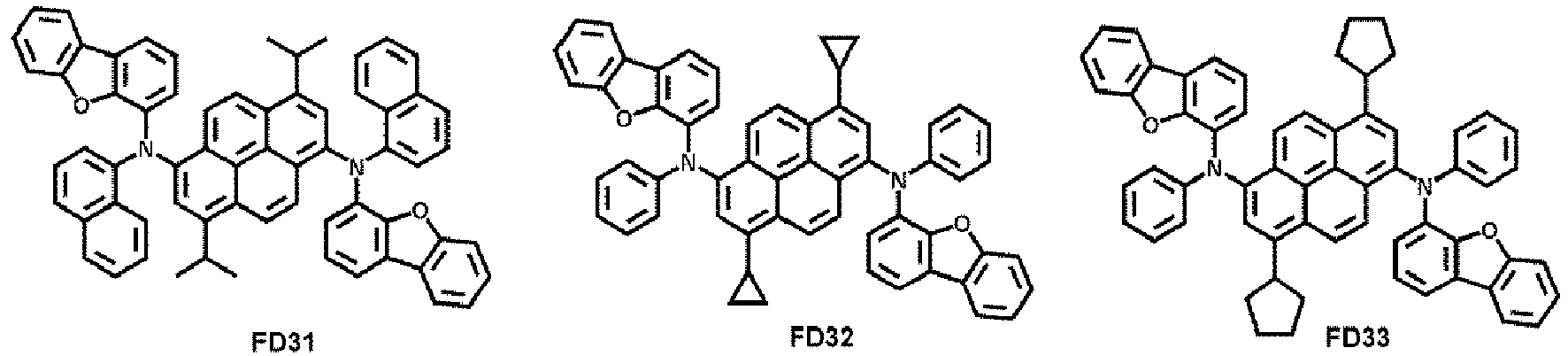

In an embodiment, the dopant compound (D) may have a maximum emission wavelength in a range of about 490 nm to about 580 nm. In an embodiment, the dopant compound (D) may have a maximum emission wavelength in a range of about 510 nm to about 545 nm.
In some embodiments, the interlayer may include emission units in the number of m; and charge generating unit(s) in the number of (m-1), between the emission units that are adjacent to each other, and any one unit of the emission units in the number of m may include the emission layer, the first buffer layer, the second buffer layer, and the electron transport layer.
The light-emitting device layer may include charge generating unit(s) in the number of (m-1), between the emission units in the number of m that are adjacent to each other.
As shown in FIG. 2, a light-emitting device includes an interlayer that may include emission units 145(1), 145(m-1), and 145(m) in the number of m; and charge generating unit(s) 144(m-1) in the number of (m-1), between the emission units that are adjacent to each other, wherein any one unit of emission units in the number of m may include the emission layer, the first buffer layer, the second buffer layer, and the electron transport layer.
For example, when m is 2, a first electrode, a first emission unit, a first charge generating unit, and a second emission unit may be sequentially stacked. In this embodiment, the first emission unit may emit a first color light, the second emission unit may emit a second color light, and a maximum emission wavelength of the first color light may be identical to or different from a maximum emission wavelength of the second color light. In this embodiment, any one unit of the first emission unit and the second emission unit may include the emission layer, the first buffer layer, the second buffer layer, and the electron transport layer.
For example, when m is 3, a first electrode, a first emission unit, a first charge generating unit, a second emission unit, a second charge generating unit, and a third emission unit may be sequentially stacked. In this embodiment, the first emission unit may emit a first color light, the second emission unit may emit a second color light, the third emission unit may emit a third color light, and a maximum emission wavelength of the first color light, a maximum emission wavelength of the second color light, and a maximum emission wavelength of the third color light may be identical to or different from one another. In this embodiment, at least one unit of the first emission unit, the second emission unit, and the third emission unit may include the emission layer, the first buffer layer, the second buffer layer, and the electron transport layer.
For example, when m is 4, a first electrode, a first emission unit, a first charge generating unit, a second emission unit, a second charge generating unit, a third emission unit, a third charge generating unit, and a fourth emission unit may be sequentially stacked. In this embodiment, the first emission unit may emit a first color light, the second emission unit may emit a second color light, the third emission unit may emit a third color light, the fourth emission unit may emit a fourth color light, and a maximum emission wavelength of the first color light, a maximum emission wavelength of the second color light, a maximum emission wavelength of the third color light, and a maximum emission wavelength of the fourth color light, may be identical to or different from one another.
In this embodiment, at least one unit of the first emission unit, the second emission unit, the third emission unit, and the fourth emission unit may include the emission layer, the first buffer layer, the second buffer layer, and the electron transport layer.
When m is in a range of 5 to 7, the above description may also be applied.
For example, when m is 4 or greater, at least one emission unit may be a light-emitting device, in which an emission layer includes a host compound (H-1) and a dopant compound (D), an interlayer includes a first buffer layer including a first electron transporting compound (ET-1), a second buffer layer including a second electron transporting compound (ET-2), and an electron transport layer including a third electron transporting compound (ET-3), an absolute value of a lowest unoccupied molecular orbital (LUMO) energy level of the first electron transporting compound (ET-1) is smaller than an absolute value of a LUMO energy level of the host compound (H-1), an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the third electron transporting compound (ET-3), and an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the first electron transporting compound (ET-1).
The rest of at least three emission units may be a light-emitting device including a blue emission layer.
In some embodiments, a maximum emission wavelength emitted from at least one of the emission units in the number of m may differ from that of light emitted from at least one of the other emission units.
As shown in FIG. 2, from among the emission units in the number of m, an emission unit that may be m^th from the first electrode may be indicated as a m^th emission unit ELU(m).
Among the emission units in the number of m, an emission unit closest to the first electrode may be indicated as a first emission unit ELU(1), an emission unit farthest from the first electrode may be indicated as the m^th emission unit ELU(m), and the first emission unit to the m^th emission unit ELU(m) may be sequentially located. That is, a (m-1)^th charge generating unit CGU(m-1) may be between the first electrode and the m^th emission unit ELU(m).
At least one of the charge generating unit(s) may include an n-type charge generating layer n-CGL, a p-type charge generating layer p-CGL, and/or a hole transport region.
The hole transport region may include a hole injection layer, a hole transport layer, an electron blocking layer, or any combination thereof.
In some embodiments, in the charge generating unit in the number of (m-1), a charge generating unit that may be (m-1)^th from a first electrode may be indicated as a (m-1)^th charge generating unit.
In some embodiments, the (m-1)^th charge generating unit CGU(m-1) may include a (m-1)^th n-type charge generating layer, a (m-1)^th p-type charge generating layer, and/or a (m-1)^th hole transport region.
For example, from among the (m-1)^th charge generating unit CGU(m-1), the (m-1)^th n-type charge generating layer, a (m-1)^th p-type charge generating layer pCGL(m-1), and a (m-1)^th hole transport region may be sequentially stacked.
In some embodiments, the (m-1)^th p-type charge generating layer pCGL(m-1) may be in direct contact with the (m-1)^th n-type charge transport layer nCGL(m-1) and the hole transport region.
According to one or more embodiments, an electronic apparatus includes the light-emitting device. The electronic apparatus may further include a thin-film transistor. In some embodiments, the electronic apparatus may further include a thin-film transistor including a source electrode and drain electrode, and a first electrode of the light-emitting device may be electrically connected to the source electrode or the drain electrode.
The electronic apparatus may further include a color filter, a color-conversion layer, a touchscreen layer, a polarizing layer, or any combination thereof. The electronic apparatus may be understood by referring to the description of the electronic apparatus provided herein.
The term "interlayer" as used herein refers to a single layer and/or a plurality of all layers located between a first electrode and a second electrode in a light-emitting device.

Description of FIG. 1

FIG. 1 is a schematic view of a light-emitting device 10 according to an embodiment that is constructed according to principles of the invention. The light-emitting device 10 includes a first electrode 110, an interlayer 130, and a second electrode 150.
Hereinafter, the structure of the light-emitting device 10 according to an embodiment and a method of manufacturing the light-emitting device 10 according to an embodiment will be described in connection with FIG. 1.

First electrode 110

In FIG. 1, a substrate may be additionally located under the first electrode 110 or above the second electrode 150. The substrate may be a glass substrate or a plastic substrate. The substrate may be a flexible substrate including plastic having excellent heat resistance and durability, for example, polyimide, polyethylene terephthalate (PET), polycarbonate, polyethylene naphthalate, polyarylate (PAR), polyetherimide, or any combination thereof.
The first electrode 110 may be formed by depositing or sputtering, on the substrate, a material for forming the first electrode 110. When the first electrode 110 is an anode, a high work function material that may easily inject holes may be used as a material for a first electrode.
The first electrode 110 may be a reflective electrode, a semi-transmissive electrode, or a transmissive electrode. When the first electrode 110 is a transmissive electrode, a material for forming the first electrode 110 may be indium tin oxide (ITO), indium zinc oxide (IZO), tin oxide (SnO₂), zinc oxide (ZnO), or any combination thereof. In some embodiments, when the first electrode 110 is a semi-transmissive electrode or a reflective electrode, magnesium (Mg), silver (Ag), aluminium (Al), aluminium-lithium (Al-Li), calcium (Ca), magnesium-indium (Mg-In), magnesium-silver (Mg-Ag), or any combination thereof may be used as a material for forming the first electrode 110.
The first electrode 110 may have a single-layered structure consisting of a single layer or a multi-layered structure including two or more layers. In some embodiments, the first electrode 110 may have a triple-layered structure of ITO/Ag/ITO.

Interlayer 130

The interlayer 130 is on the first electrode 110. The interlayer 130 includes an emission layer.
The interlayer 130 may further include a hole transport region between the first electrode 110 and the emission layer and an electron transport region between the emission layer and the second electrode 150.
The interlayer 130 may further include metal-containing compounds such as organometallic compounds, inorganic materials such as quantum dots, and the like, in addition to various organic materials.
The interlayer 130 may include: i) at least two emitting layers sequentially stacked between the first electrode 110 and the second electrode 150; and ii) a charge-generation layer located between the at least two emitting layers. When the interlayer 130 includes the at least two emitting layers and the charge generation layer, the light-emitting device 10 may be a tandem light-emitting device.

Hole transport region in interlayer 130

The hole transport region may have i) a single-layered structure consisting of a single layer consisting of a single material, ii) a single-layered structure consisting of a single layer including a plurality of different materials, or iii) a multi-layered structure having a plurality of layers including a plurality of different materials.
The hole transport region may include a hole injection layer, a hole transport layer, an emission auxiliary layer, an electron blocking layer, or a combination thereof.
For example, the hole transport region may have a multi-layered structure, e.g., a hole injection layer/hole transport layer structure, a hole injection layer/hole transport layer/emission auxiliary layer structure, a hole injection layer/emission auxiliary layer structure, a hole transport layer/emission auxiliary layer structure, or a hole injection layer/hole transport layer/electron blocking layer structure, wherein layers of each structure are sequentially stacked on the first electrode 110 in each stated order.
For example, the hole transport region may have a multi-layered structure, e.g., a hole transport layer/emission auxiliary layer structure, or a hole transport layer/electron blocking layer structure, wherein layers of each structure are sequentially stacked on the first electrode 110 in each stated order.
The hole transport region may include the compound represented by Formula 201, the compound represented by Formula 202, or any combination thereof:

wherein, in Formulae 201 and 202,

L₂₀₁ to L₂₀₄ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
L₂₀₅ is ^∗-O-^∗', ^∗-S-^∗', ^∗-N(Q₂₀₁)-^∗', a C₁-C₂₀ (e.g. C₁-C₁₀) alkylene group unsubstituted or substituted with at least one R_10a, a C₂-C₂₀ (e.g. C₂-C₁₀) alkenylene group unsubstituted or substituted with at least one R_10a, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a, or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
xa1 to xa4 are each independently an integer from 0 to 5,
xa5 is an integer from 1 to 10,
R₂₀₁ to R₂₀₄ and Q₂₀₁ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
R₂₀₁ and R₂₀₂ are optionally bound to each other via a single bond, a C₁-C₅ alkylene group unsubstituted or substituted with at least one R_10a, or a C₂-C₅ alkenylene group unsubstituted or substituted with at least one R_10a to form a C₈-C₆₀ (e.g. C₈-C₃₀) polycyclic group (e.g., a carbazole group or the like) unsubstituted or substituted with at least one R_10a (e.g., Compound HT16 described herein),
R₂₀₃ and R₂₀₄ are optionally bound to each other via a single bond, a C₁-C₅ alkylene group unsubstituted or substituted with at least one R_10a or a C₂-C₅ alkenylene group unsubstituted or substituted with at least one R_10a to form a C₈-C₆₀ (e.g. C₈-C₃₀) polycyclic group unsubstituted or substituted with at least one R_10a, and
na1 is an integer from 1 to 4.

In some embodiments, Formulae 201 and 202 may each include at least one of the groups represented by Formulae CY201 to CY217:

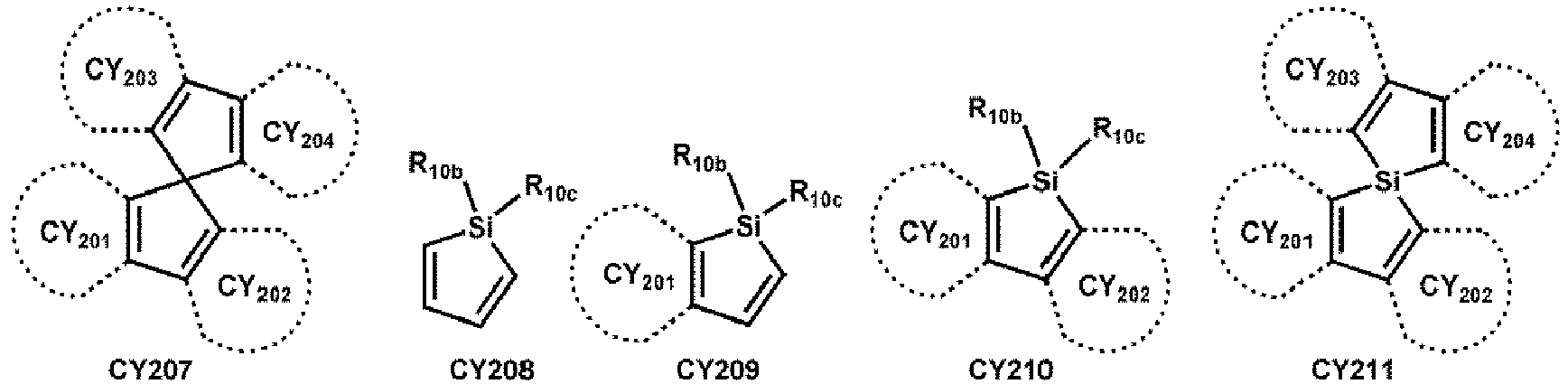

wherein, in Formulae CY201 to CY217, R_10b and R_10c may each be understood by referring to the descriptions of R_10a. ring CY₂₀₁ to ring CY₂₀₄ may each independently be a C₃-C₂₀ carbocyclic group or a C₁-C₂₀ heterocyclic group, and at least one hydrogen in Formulae CY201 to CY217 may be unsubstituted or substituted with R_10a.
In an embodiment, in Formulae CY201 to CY217, ring CY₂₀₁ to ring CY₂₀₄ may each independently be a benzene group, a naphthalene group, a phenanthrene group, or an anthracene group.
In one or more embodiments, Formulae 201 and 202 may each include at least one of the groups represented by Formulae CY201 to CY203.
In one or more embodiments, Formula 201 may include at least one of the groups represented by Formulae CY201 to CY203 and at least one of the groups represented by Formulae CY204 to CY217.
In one or more embodiments, in Formula 201, xa1 may be 1, R₂₀₁ may be represented by one of Formulae CY201 to CY203, xa2 may be 0, and R₂₀₂ may be represented by one of Formulae CY204 to CY207.
In one or more embodiments, Formulae 201 and 202 may each not include groups represented by Formulae CY201 to CY203.
In one or more embodiments, Formulae 201 and 202 may each not include groups represented by Formulae CY201 to CY203, and include at least one of groups represented by Formulae CY204 to CY217.
In one or more embodiments, Formulae 201 and 202 may each not include groups represented by Formulae CY201 to CY217.

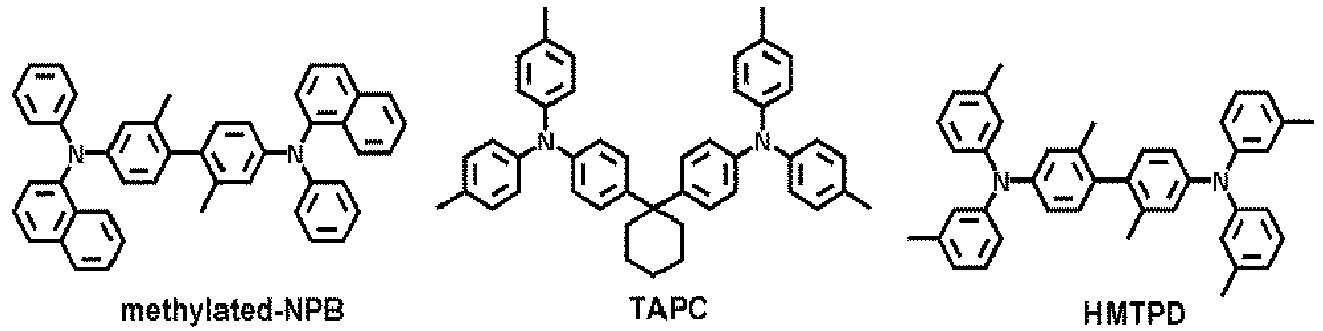

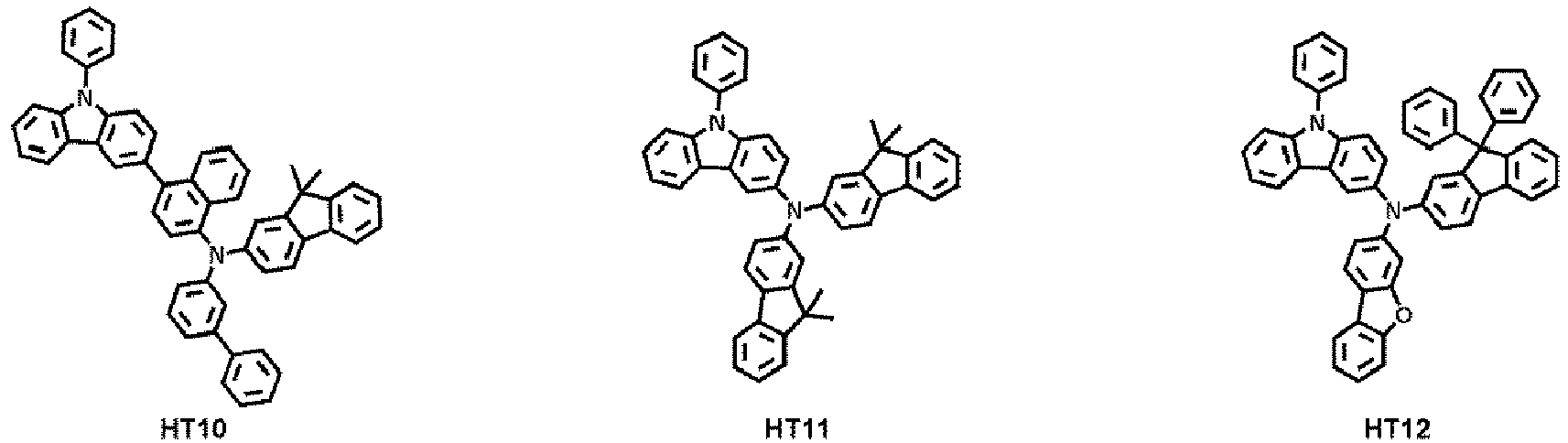

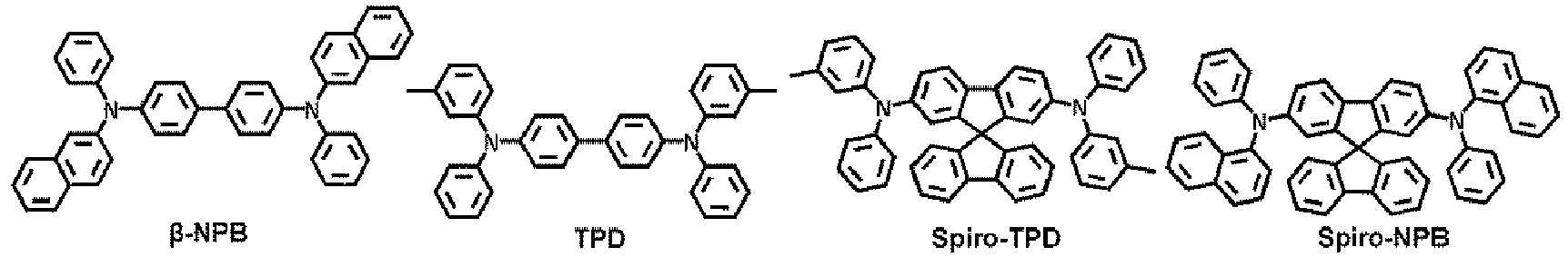

In some embodiments, the hole transport region may include one of Compounds HT1 to HT46 and m-MTDATA, TDATA, 2-TNATA, NPB (NPD), β-NPB, TPD, spiro-TPD, spiro-NPB, methylated-NPB, TAPC, HMTPD, 4,4',4"-tris(N-carbazolyl)triphenylamine (TCTA), polyaniline/dodecylbenzenesulfonic acid (PANI/DBSA), poly(3,4-ethylenedioxythiophene)/poly(4-styrenesulfonate) (PEDOT/PSS), polyaniline/camphorsulfonic acid (PANI/CSA), polyaniline/poly(4-styrenesulfonate (PANI/PSS), or any combination thereof:
The thickness of the hole transport region may be in a range of about 50 Angstroms (Å) to about 10,000 Å, for example, about 100 Å to about 4,000 Å. When the hole transport region includes a hole transport layer, an electron blocking layer, or any combination thereof, the thickness of the hole transport layer may be in a range of about 50 Å to about 2,000 Å, or for example, about 100 Å to about 1,500 Å. When the thicknesses of the hole transport region and the hole transport layer are within any of these ranges, excellent hole transport characteristics may be obtained without a substantial increase in driving voltage.
The emission auxiliary layer may increase light emission efficiency by compensating for an optical resonance distance according to the wavelength of light emitted by an emission layer. The electron blocking layer may prevent leakage of electrons to a hole transport region from the emission layer. Materials that may be included in the hole transport region may also be included in an emission auxiliary layer and an electron blocking layer.

p-dopant

The hole transport region may include a charge generating material as well as the aforementioned materials to improve conductive properties of the hole transport region. The charge generating material may be substantially homogeneously or non-homogeneously dispersed (for example, as a single layer consisting of charge generating material) in the hole transport region.
The charge generating material may include, for example, a p-dopant.
In some embodiments, a lowest unoccupied molecular orbital (LUMO) energy level of the p-dopant may be -3.5 eV or less.
In some embodiments, the p-dopant may include a quinone derivative, a compound containing a cyano group, a compound containing element EL1 and element EL2, or any combination thereof.
Examples of the quinone derivative may include TCNQ, F4-TCNQ, and the like.
Examples of the compound containing a cyano group include HAT-CN, a compound represented by Formula 221, and the like:

wherein, in Formula 221,

R₂₂₁ to R₂₂₃ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
at least one of R₂₂₁ to R₂₂₃ is each independently: a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, substituted with a cyano group; -F; -Cl; -Br; -I; a C₁-C₂₀ alkyl group substituted with a cyano group, -F, -Cl, -Br, -I, or any combination thereof; or any combination thereof.

In the compound containing element EL1 and element EL2, element EL1 may be a metal, a metalloid, or a combination thereof, and element EL2 may be non-metal, a metalloid, or a combination thereof.
Examples of the metal may include: an alkali metal (e.g., lithium (Li), sodium (Na), potassium (K), rubidium (Rb), cesium (Cs), or the like); an alkaline earth metal (e.g., beryllium (Be), magnesium (Mg), calcium (Ca), strontium (Sr), barium (Ba), or the like); a transition metal (e.g., titanium (Ti), zirconium (Zr), hafnium (Hf), vanadium (V), niobium (Nb), tantalum (Ta), chromium (Cr), molybdenum (Mo), tungsten (W), manganese (Mn), technetium (Tc), rhenium (Re), iron (Fe), ruthenium (Ru), osmium (Os), cobalt (Co), rhodium (Rh), iridium (Ir), nickel (Ni), palladium (Pd), platinum (Pt), copper (Cu), silver (Ag), gold (Au), or the like); post-transition metal (e.g., zinc (Zn), indium (In), tin (Sn), or the like); a lanthanide metal (e.g., lanthanum (La), cerium (Ce), praseodymium (Pr), neodymium (Nd), promethium (Pm), samarium (Sm), europium (Eu), gadolinium (Gd), terbium (Tb), dysprosium (Dy), holmium (Ho), erbium (Er), thulium (Tm), ytterbium (Yb), lutetium (Lu), or the like); and the like.
Examples of the metalloid may include silicon (Si), antimony (Sb), tellurium (Te), and the like.
Examples of the non-metal may include oxygen (O), halogen (e.g., F, Cl, Br, I, and the like), and the like.
For example, the compound containing element EL1 and element EL2 may include a metal oxide, a metal halide (e.g., metal fluoride, metal chloride, metal bromide, metal iodide, and the like), a metalloid halide (e.g., a metalloid fluoride, a metalloid chloride, a metalloid bromide, a metalloid iodide, and the like), a metal telluride, or any combination thereof.
Examples of the metal oxide may include a tungsten oxide (e.g., WO, W₂O₃, WO₂, WO₃, or W₂O₅), a vanadium oxide (e.g., VO, V₂O₃, VO₂, or V₂O₅), a molybdenum oxide (MoO, Mo₂O₃, MoO₂, MoO₃, or Mo₂O₅), and a rhenium oxide (e.g., ReO₃).
Examples of the metal halide may include alkali metal halide, alkaline earth metal halide, transition metal halide, post-transition metal halide, lanthanide metal halide, and the like.
Examples of the alkali metal halide may include LiF, NaF, KF, RbF, CsF, LiCl, NaCl, KCl, RbCl, CsCl, LiBr, NaBr, KBr, RbBr, CsBr, LiI, NaI, KI, RbI, CsI, and the like.
Examples of the alkaline earth metal halide may include BeF₂, MgF₂, CaF₂, SrF₂, BaF₂, BeCl₂, MgCl₂, CaCl₂, SrCl₂, BaCl₂, BeBr₂, MgBr₂, CaBr₂, SrBr₂, BaBr₂, BeI₂, MgI₂, CaI₂, SrI₂, and BaI₂.
Examples of the transition metal halide may include a titanium halide (e.g., TiF₄, TiCl₄, TiBr₄, or TiI₄), a zirconium halide (e.g., ZrF₄, ZrCl₄, ZrBr₄, or ZrI₄), a hafnium halide (e.g., HfF₄, HfCl₄, HfBr₄, or HfI₄), a vanadium halide (e.g., VF₃, VCl₃, VBr₃, or VI₃), a niobium halide (e.g., NbF₃, NbCl₃, NbBr₃, or NbI₃), a tantalum halide (e.g., TaF₃, TaCl₃, TaBr₃, or TaI₃), a chromium halide (e.g., CrF₃, CrCl₃, CrBr₃, or Crl₃), a molybdenum halide (e.g., MoF₃, MoCl₃, MoBr₃, or MoI₃), a tungsten halide (e.g., WF₃, WCl₃, WBr₃, or WI₃), a manganese halide (e.g., MnF₂, MnCl₂, MnBr₂, or MnI₂), a technetium halide (e.g., TcF₂, TcCl₂, TcBr₂, or TCl₂), a rhenium halide (e.g., ReF₂, ReCl₂, ReBr₂, or ReI₂), an iron halide (e.g., FeF₂, FeCl₂, FeBr₂, or FeI₂), a ruthenium halide (e.g., RuF₂, RuCl₂, RuBr₂, or RuI₂), an osmium halide (e.g., OsF₂, OsCl₂, OsBr₂, or OsI₂), a cobalt halide (e.g., CoF₂, CoCl₂, CoBr₂, or CoI₂), a rhodium halide (e.g., RhF₂, RhCl₂, RhBr₂, or RhI₂), an iridium halide (e.g., IrF₂, IrCl₂, IrBr₂, or IrI₂), a nickel halide (e.g., NiF₂, NiCl₂, NiBr₂, or NiI₂), a palladium halide (e.g., PdF₂, PdCl₂, PdBr₂, or PdI₂), a platinum halide (e.g., PtF₂, PtCl₂, PtBr₂, or PtI₂), a copper halide (e.g., CuF, CuCl, CuBr, or CuI), a silver halide (e.g., AgF, AgCl, AgBr, or AgI), and a gold halide (e.g., AuF, AuCl, AuBr, or AuI).
Examples of the post-transition metal halide may include a zinc halide (e.g., ZnF₂, ZnCl₂, ZnBr₂, or ZnI2), an indium halide (e.g., InI₃), and a tin halide (e.g., SnI₂).
Examples of the lanthanide metal halide may include YbF, YbF₂, YbF₃, SmF₃, YbCl, YbCl₂, YbCl₃ SmCl₃, YbBr, YbBr₂, YbBr₃ SmBr₃, YbI, YbI₂, YbI₃, and SmI₃.
Examples of the metalloid halide may include an antimony halide (e.g., SbCl₅).
Examples of the metal telluride may include an alkali metal telluride (e.g., Li₂Te, Na₂Te, K₂Te, Rb₂Te, or Cs₂Te), an alkaline earth metal telluride (e.g., BeTe, MgTe, CaTe, SrTe, or BaTe), a transition metal telluride (e.g., TiTe₂, ZrTe₂, HfTe₂, V₂Te₃, Nb₂Te₃, Ta₂Te₃, Cr₂Te₃, Mo₂Te₃, W₂Te₃, MnTe, TcTe, ReTe, FeTe, RuTe, OsTe, CoTe, RhTe, IrTe, NiTe, PdTe, PtTe, Cu₂Te, CuTe, Ag₂Te, AgTe, or Au₂Te), a post-transition metal telluride (e.g., ZnTe), and a lanthanide metal telluride (e.g., LaTe, CeTe, PrTe, NdTe, PmTe, EuTe, GdTe, TbTe, DyTe, HoTe, ErTe, TmTe, YbTe, or LuTe).

Emission layer in interlayer 130

When the light-emitting device 10 is a full color light-emitting device, the emission layer may be patterned into a red emission layer, a green emission layer, and/or a blue emission layer, according to a sub-pixel. In one or more embodiments, the emission layer may have a stacked structure. The stacked structure may include two or more layers selected from a red emission layer, a green emission layer, and a blue emission layer. The two or more layers may be in direct contact with each other. In some embodiments, the two or more layers may be separated from each other. In one or more embodiments, the emission layer may include two or more materials. The two or more materials may include a red light-emitting material, a green light-emitting material, or a blue light-emitting material. The two or more materials may be mixed with each other in a single layer. The two or more materials mixed with each other in the single layer may emit white light.
The emission layer includes a host and a dopant. The host and the dopant may be understood by referring to the descriptions of the host and the dopant provided herein.
The amount of the dopant in the emission layer may be in a range of about 0.01 parts to about 15 parts by weight based on 100 parts by weight of the host.
The thickness of the emission layer may be in a range of about 100 Å to about 1,000 Å, and in some embodiments, about 200 Å to about 600 Å. When the thickness of the emission layer is within any of these ranges, improved luminescence characteristics may be obtained without a substantial increase in driving voltage.

Host

The host may include a compound represented by Formula 301:

Formula 301 [Ar₃₀₁]_xb11-[(L₃₀₁)_xb1-R₃₀₁]_xb21

wherein, in Formula 301,

Ar₃₀₁ and L₃₀₁ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
xb11 is 1, 2, or 3,
xb1 is an integer from 0 to 5,
R₃₀₁ is hydrogen, deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group unsubstituted or substituted with at least one R_10a, a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group unsubstituted or substituted with at least one R_10a, a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group unsubstituted or substituted with at least one R_10a, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a, -Si(Q₃₀₁)(Q₃₀₂)(Q₃₀₃), - N(Q₃₀₁)(Q₃₀₂), -B(Q₃₀₁)(Q₃₀₂), -C(=O)(Q₃₀₁), -S(=O)₂(Q₃₀₁), or -P(=O)(Q₃₀₁)(Q₃₀₂),
xb21 is an integer from 1 to 5, and
Q₃₀₁ to Q₃₀₃ may each be understood by referring to the description of Q₁ provided herein.

In some embodiments, when xb11 in Formula 301 is 2 or greater, at least two Ar₃₀₁(s) may be bound via a single bond.
In some embodiments, the host may include a compound represented by Formula 301-1, a compound represented by Formula 301-2, or any combination thereof:

wherein, in Formulae 301-1 to 301-2,

ring A₃₀₁ to ring A₃₀₄ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
X₃₀₁ is O, S, N-[(L₃₀₄)_xb4-R₃₀₄], C(R₃₀₄)(R₃₀₅), or Si(R₃₀₄)(R₃₀₅),
xb22 and xb23 are each independently 0, 1, or 2,
L₃₀₁, xb1, and R₃₀₁ may respectively be understood by referring to the descriptions of L₃₀₁, xb1, and R₃₀₁ provided herein,
L₃₀₂ to L₃₀₄ may each be understood by referring to the description of L₃₀₁ provided herein,
xb2 to xb4 may each be understood by referring to the description of xbl provided herein, and
R₃₀₂ to R₃₀₅ and R₃₁₁ to R₃₁₄ may each be understood by referring to the description of R₃₀₁ provided herein.

In some embodiments, the host may include an alkaline earth-metal complex, a post-transitional metal complex, or any combination thereof. For example, the host may include a Be complex (e.g., Compound H55), a Mg complex, a Zn complex, or any combination thereof.

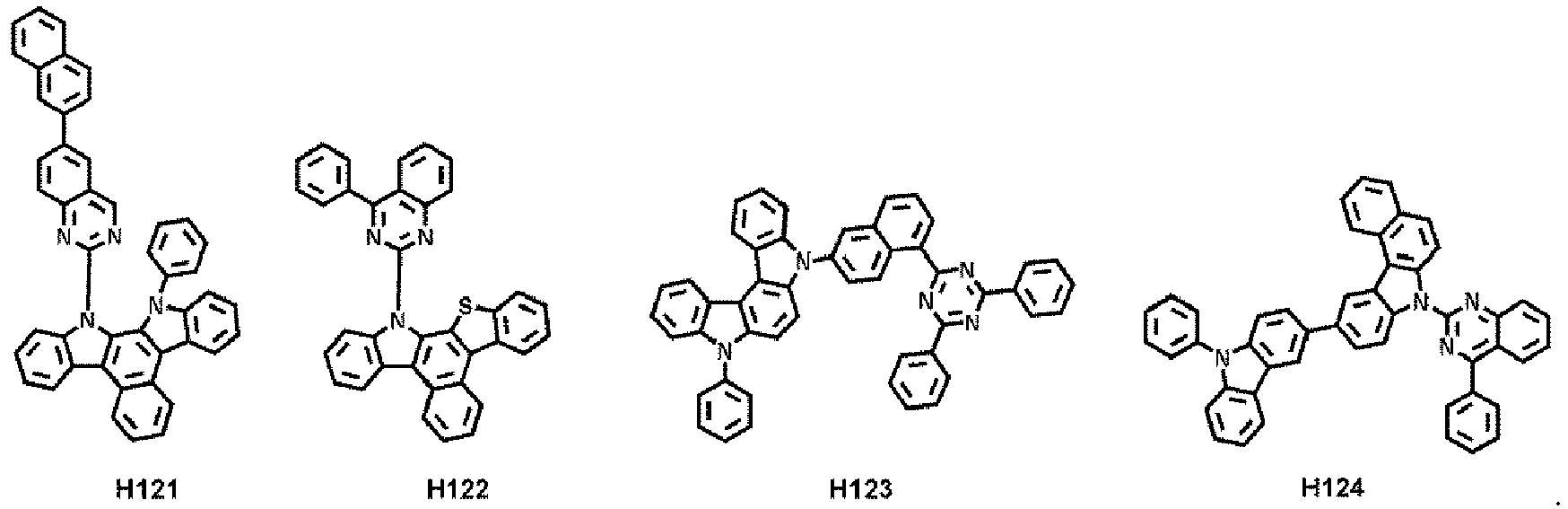

In some embodiments, the host may include one of Compounds HI to H124, 9,10-di(2-naphthyl)anthracene (ADN), 2-methyl-9,10-bis(naphthalen-2-yl)anthracene (MADN), 9,10-di(2-naphthyl)-2-t-butyl-anthracene (TBADN), 4,4'-bis(N-carbazolyl)-1,1'-biphenyl (CBP), 1,3-di-9-carbazolylbenzene (mCP), 1,3,5-tri(carbazol-9-yl)benzene (TCP), or any combination thereof:

Phosphorescent dopant

The phosphorescent dopant may include at least one transition metal as a center metal.
The phosphorescent dopant may include a monodentate ligand, a bidentate ligand, a tridentate ligand, a tetradentate ligand, a pentadentate ligand, a hexadentate ligand, or any combination thereof.

The phosphorescent dopant may be electrically neutral.

In some embodiments, the phosphorescent dopant may include an organometallic complex represented by Formula 401:

Formula 401 M(L₄₀₁)_xc1(L₄₀₂)_xc2

wherein, in Formulae 401 and 402,

M is a transition metal (e.g., iridium (Ir), platinum (Pt), palladium (Pd), osmium (Os), titanium (Ti), gold (Au), hafnium (Hf), europium (Eu), terbium (Tb), rhodium (Rh), rhenium (Re), or thulium (Tm)),
L₄₀₁ is a ligand represented by Formula 402, and xc1 is 1, 2, or 3, and when xc1 is 2 or greater, at least two L₄₀₁(s) may be identical to or different from each other,
L₄₀₂ is an organic ligand, and xc2 is an integer from 0 to 4, and when xc2 is 2 or greater, at least two L₄₀₂(s) may be identical to or different from each other,
X₄₀₁ and X₄₀₂ are each independently nitrogen or carbon,
ring A₄₀₁ and ring A₄₀₂ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group,
T₄₀₁ is a single bond, -O-, -S-, -C(=O)-, -N(Q₄₁₁)-, -C(Q₄₁₁)(Q₄₁₂)-, -C(Q₄₁₁)=C(Q₄₁₂)-, - C(Q₄₁₁)=, or =C=,
X₄₀₃ and X₄₀₄ are each independently a chemical bond (e.g., a covalent bond or a coordinate bond), O, S, N(Q₄₁₃), B(Q₄₁₃), P(Q₄₁₃), C(Q₄₁₃)(Q₄₁₄), or Si(Q₄₁₃)(Q₄₁₄),
wherein Q₄₁₁ to Q₄₁₄ may each be understood by referring to the description of Q₁ provided herein,
R₄₀₁ and R₄₀₂ are each independently hydrogen, deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₁-C₂₀ alkyl group unsubstituted or substituted with at least one R_10a, a C₁-C₂₀ alkoxy group unsubstituted or substituted with at least one R_10a, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a, - Si(Q₄₀₁)(Q₄₀₂)(Q₄₀₃), -N(Q₄₀₁)(Q₄₀₂), -B(Q₄₀₁)(Q₄₀₂), -C(=O)(Q₄₀₁), -S(=O)₂(Q₄₀₁), Or - P(=O)(Q₄₀₁)(Q₄₀₂),
wherein Q₄₀₁ to Q₄₀₃ may each be understood by referring to the description of Q₁ provided herein,
xc11 and xc12 are each independently an integer from 0 to 10, and

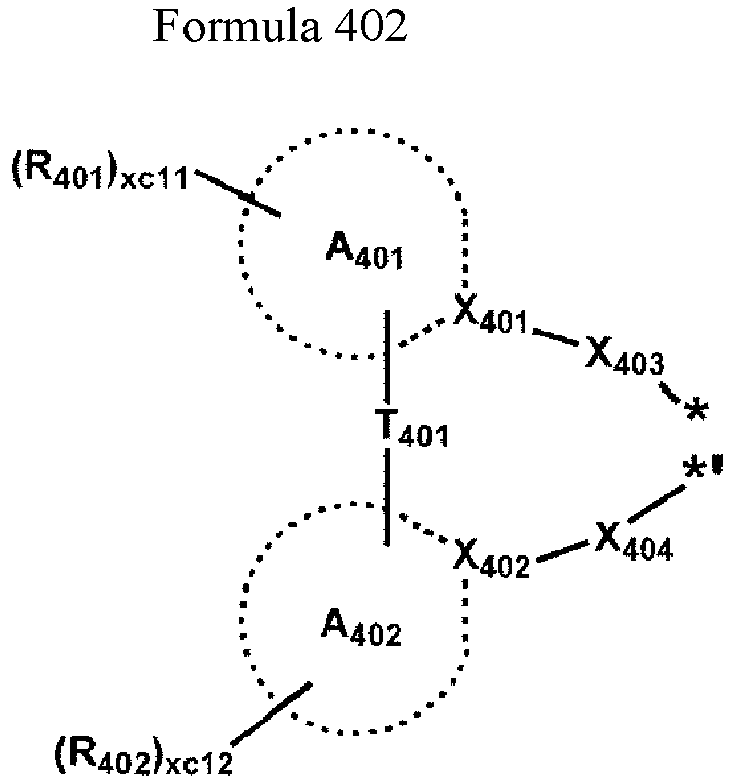

^∗ and ^∗' in Formula 402 each indicate a binding site to M in Formula 401.

For example, in Formula 402, i) X₄₀₁ may be nitrogen, and X₄₀₂ may be carbon, or ii) X₄₀₁ and X₄₀₂ may each be nitrogen.
In one or more embodiments, when xc1 in Formula 401 is 2 or greater, two ring A₄₀₁(s) of at least two L₄₀₁(s) may optionally be bound via T₄₀₂ as a linking group, or two ring A₄₀₂(s) may optionally be bound via T₄₀₃ as a linking group (see Compounds PD1 to PD4 and PD7). T₄₀₂ and T₄₀₃ may each be understood by referring to the description of T₄₀₁ provided herein.
In Formula 401, L₄₀₂ may be any suitable organic ligand. For example, L₄₀₂ may be a halogen group, a diketone group (e.g., an acetylacetonate group), a carboxylic acid group (e.g., a picolinate group), -C(=O), an isonitrile group, -CN, or a phosphorus group (e.g., a phosphine group or a phosphite group).
The phosphorescent dopant may be, for example, one of Compounds PD1 to PD25, G-1 to G-12, or any combination thereof:
In one or more embodiments, the dopant compound may be selected from Compounds G-1 to G-12.
The fluorescent dopant may include an amine group-containing compound, a styryl group-containing compound, or any combination thereof.
In some embodiments, the fluorescent dopant may include a compound represented by Formula 501:

wherein, in Formula 501,

Ar₅₀₁, L₅₀₁ to L₅₀₃, R₅₀₁, and R₅₀₂ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
xd1 to xd3 are each independently 0, 1, 2, or 3, and
xd4 is 1, 2, 3, 4, 5, or 6.

In some embodiments, in Formula 501, Ar₅₀₁ may include a condensed ring group (e.g., an anthracene group, a chrysene group, or a pyrene group) in which at least three monocyclic groups are condensed.
In some embodiments, xd4 in Formula 501 may be 2.

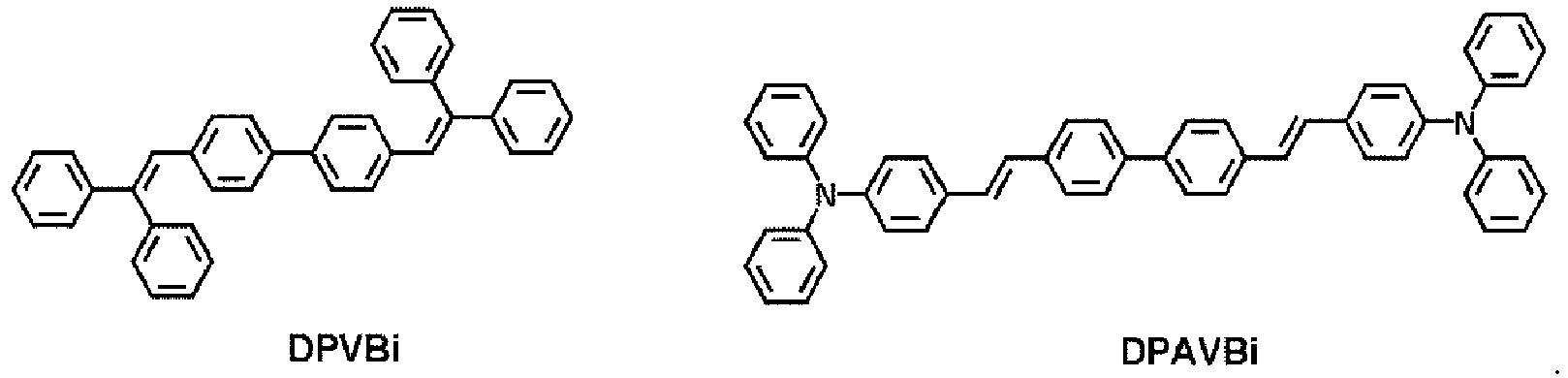

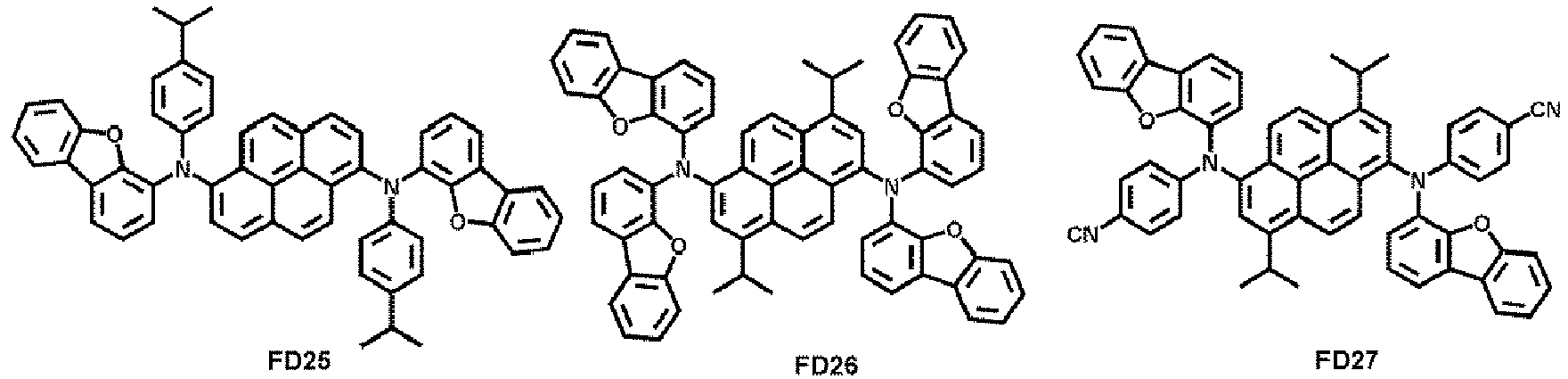

In some embodiments, the fluorescent dopant may include one of Compounds FD1 to FD36, DPVBi, DPAVBi, or any combination thereof:

Delayed fluorescence dopant

The emission layer may include a delayed fluorescence dopant.
The delayed fluorescence dopant described herein may be any suitable compound that may emit delayed fluorescence according to a delayed fluorescence emission mechanism.
The delayed fluorescence dopant included in the emission layer may serve as a host or a dopant, depending on types of other materials included in the emission layer.
In some embodiments, a difference between a triplet energy level (eV) of the delayed fluorescence dopant and a singlet energy level (eV) of the delayed fluorescence dopant may be about 0 eV or greater and about 0.5 eV or less. When the difference between a triplet energy level (eV) of the delayed fluorescence dopant and a singlet energy level (eV) of the delayed fluorescence dopant is within this range, up-conversion from a triplet state to a singlet state in the delayed fluorescence dopant may be effectively occurred, thus improving luminescence efficiency and the like of the light-emitting device 10.
In some embodiments, the delayed fluorescence dopant may include: i) a material including at least one electron donor (e.g., a π electron-rich C₃-C₆₀ (e.g. C₃-C₃₀) cyclic group such as a carbazole group) and at least one electron acceptor (e.g., a sulfoxide group, a cyano group, or a π electron-deficient nitrogen-containing C₁-C₆₀ (e.g. C₁-C₃₀) cyclic group), ii) a material including a C₈-C₆₀ (e.g. C₈-C₃₀) polycyclic group including at least two cyclic groups condensed to each other and sharing boron (B), or any combination thereof.
Examples of the delayed fluorescence dopant may include at least one of Compounds DF1 to DF9:

Quantum dots

The electronic apparatus may include quantum dots. For example, the electronic apparatus may include a color-conversion layer, and the color-conversion layer may include quantum dots.
The term "quantum dot" as used herein refers to a crystal of a semiconductor compound and may include any suitable material capable of emitting emission wavelengths of various lengths according to the size of the crystal.
The diameter of the quantum dot may be, for example, in a range of about 1 nm to about 10 nm.
Quantum dots may be synthesized by a wet chemical process, an organic metal chemical vapor deposition process, a molecular beam epitaxy process, or any similar process.
The wet chemical process is a method of growing a quantum dot particle crystal by mixing a precursor material with an organic solvent. When the crystal grows, the organic solvent may naturally serve as a dispersant coordinated on the surface of the quantum dot crystal and control the growth of the crystal. Thus, the wet chemical method may be easier to perform than the vapor deposition process such a metal organic chemical vapor deposition (MOCVD) or a molecular beam epitaxy (MBE) process. Further, the growth of quantum dot particles may be controlled with a lower manufacturing cost.
The quantum dot may include a group II-VI semiconductor compound; a group III-V semiconductor compound; a group III-VI semiconductor compound; a group I-III-VI semiconductor compound; a group IV-VI semiconductor compound; a group IV element or compound; or any combination thereof.
Examples of the group II-VI semiconductor compound may include a binary compound such as CdS, CdSe, CdTe, ZnS, ZnSe, ZnTe, ZnO, HgS, HgSe, HgTe, MgSe, or MgS; a ternary compound such as CdSeS, CdSeTe, CdSTe, ZnSeS, ZnSeTe, ZnSTe, HgSeS, HgSeTe, HgSTe, CdZnS, CdZnSe, CdZnTe, CdHgS, CdHgSe, CdHgTe, HgZnS, HgZnSe, HgZnTe, MgZnSe, or MgZnS; a quaternary compound such as CdZnSeS, CdZnSeTe, CdZnSTe, CdHgSeS, CdHgSeTe, CdHgSTe, HgZnSeS, HgZnSeTe, or HgZnSTe; or any combination thereof.
Examples of the group III-V semiconductor compound may include a binary compound such as GaN, GaP, GaAs, GaSb, AlN, AlP, AlAs, AlSb, InN, InP, InAs, or InSb; a ternary compound such as GaNP, GaNAs, GaNSb, GaPAs, GaPSb, AlNP, AINAs, AINSb, AlPAs, AlPSb, InGaP, InNP, InAIP, InNAs, InNSb, InPAs, or InPSb; a quaternary compound such as GaAlNP, GaAlNAs, GaAlNSb, GaAlPAs, GaAlPSb, GaInNP, GaInNAs, GaInNSb, GaInPAs, GaInPSb, InAINP, InAlNAs, InAlNSb, InAIPAs, or InAlPSb; or any combination thereof. In some embodiments, the group III-V semiconductor compound may further include a group II element. Examples of the group III-V semiconductor compound further including the group II element may include InZnP, InGaZnP, InAlZnP, and the like.
Examples of the group III-VI semiconductor compound may include a binary compound such as GaS, GaSe, Ga₂Se₃, GaTe, InS, InSe, In₂Se₃, or InTe; or a ternary compound such as InGaS₃ or InGaSe₃; or any combination thereof.
Examples of the group I-III-VI semiconductor compound may include a ternary compound such as AgInS, AgInS₂, CuInS, CuInS₂, CuGaO₂, AgGaO₂, or AgAlO₂; or any combination thereof.
Examples of the group IV-VI semiconductor compound may include a binary compound such as SnS, SnSe, SnTe, PbS, PbSe, or PbTe; a ternary compound such as SnSeS, SnSeTe, SnSTe, PbSeS, PbSeTe, PbSTe, SnPbS, SnPbSe, or SnPbTe; a quaternary compound such as SnPbSSe, SnPbSeTe, or SnPbSTe; or any combination thereof.
The group IV element or compound may be a single element material such as Si or Ge; a binary compound such as SiC or SiGe; or any combination thereof.
Individual elements included in the multi-element compound, such as a binary compound, a ternary compound, and a quaternary compound, may be present in a particle thereof at a uniform or non-uniform concentration.
The quantum dot may have a single structure in which the concentration of each element included in the quantum dot is uniform or a core-shell double structure. In some embodiments, materials included in the core may be different from materials included in the shell.
The shell of the quantum dot may serve as a protective layer for preventing chemical denaturation of the core to maintain semiconductor characteristics and/or as a charging layer for imparting electrophoretic characteristics to the quantum dot. The shell may be a monolayer or a multilayer. An interface between a core and a shell may have a concentration gradient where a concentration of elements present in the shell decreases toward the core.
Examples of the shell of the quantum dot include metal, metalloid, or nonmetal oxide, a semiconductor compound, or a combination thereof. Examples of the metal, the metalloid, or the nonmetal oxide may include a binary compound such as SiO₂, Al₂O₃, TiO₂, ZnO, MnO, Mn₂O₃, Mn₃O₄, CuO, FeO, Fe₂O₃, Fe₃O₄, CoO, Co₃O₄, or NiO; a ternary compound such as MgAl₂O₄, CoFe₂O₄, NiFe₂O₄, or CoMn₂O₄; or any combination thereof. Examples of the semiconductor compound may include a group II-VI semiconductor compound; a group III-V semiconductor compound; a group III-VI semiconductor compound; a group I-III-VI semiconductor compound; a group IV-VI semiconductor compound; or any combination thereof. In some embodiments, the semiconductor compound may be CdS, CdSe, CdTe, ZnS, ZnSe, ZnTe, ZnSeS, ZnTeS, GaAs, GaP, GaSb, HgS, HgSe, HgTe, InAs, InP, InGaP, InSb, AlAs, AlP, AlSb, or any combination thereof.
The quantum dot may have a full width of half maximum (FWHM) of a spectrum of an emission wavelength of about 45 nm or less, about 40 nm or less, or about 30 nm or less. When the FWHM of the quantum dot is within this range, color purity or color reproducibility may be improved. In addition, because light emitted through the quantum dots is emitted in all directions, an optical viewing angle may be improved.
In addition, the quantum dot may be specifically, a spherical, pyramidal, multi-arm, or cubic nanoparticle, nanotube, nanowire, nanofiber, or nanoplate particle.
By adjusting the size of the quantum dot, the energy band gap may also be adjusted, thereby obtaining light of various wavelengths in the quantum dot emission layer. By using quantum dots of various sizes, a light-emitting device that may emit light of various wavelengths may be realized. In some embodiments, the size of the quantum dot may be selected such that the quantum dot may emit red, green, and/or blue light. In addition, the size of the quantum dot may be selected such that the quantum dot may emit white light by combining various light colors.

Electron transport region in interlayer 130

The electron transport region may have i) a single-layered structure consisting of a single layer consisting of a single material, ii) a single-layered structure consisting of a single layer including a plurality of different materials, or iii) a multi-layered structure having a plurality of layers including a plurality of different materials.
The electron transport region may include a buffer layer, an electron transport layer, a hole blocking layer, an electron injection layer, or any combination thereof. The buffer layer may include the first buffer layer and the second buffer layer.
For example, the electron transport region may include a first buffer layer/second buffer layer/electron transport layer structure, wherein layers of each structure are sequentially stacked on the emission layer in each stated order.
The electron transport region (e.g., a hole blocking layer or an electron transport layer in the electron transport region) may include a metal-free compound including at least one π electron-deficient nitrogen-containing C₁-C₆₀ (e.g. C₁-C₃₀) cyclic group.
In some embodiments, the electron transport region may include a compound represented by Formula 601:

Formula 601 [Ar₆₀₁]_xe11-[(L₆₀₁)_xe1-R₆₀₁]_xe21

wherein, in Formula 601,

Ar₆₀₁ and L₆₀₁ are each independently a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a,
xe11 is 1, 2, or 3,
xe1 is 0, 1, 2, 3, 4, or 5,
R₆₀₁ is a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a, -Si(Q₆₀₁)(Q₆₀₂)(Q₆₀₃), -C(=O)(Q₆₀₁), -S(=O)₂(Q₆₀₁), or -P(=O)(Q₆₀₁)(Q₆₀₂),
wherein Q₆₀₁ to Q₆₀₃ may each be understood by referring to the description of Q₁ provided herein,
xe21 is 1, 2, 3, 4, or 5, and
at least one of Ar₆₀₁, L₆₀₁, and R₆₀₁ is independently a π electron-deficient nitrogen-containing C₁-C₆₀ (e.g. C₁-C₃₀) cyclic group unsubstituted or substituted with at least one R_10a.

For example, in Formula 601, when xe11 is 2 or greater, at least two Ar₆₀₁(s) may be bound to each other via a single bond.
In some embodiments, in Formula 601, Ar₆₀₁ may be a substituted or unsubstituted anthracene group.
In some embodiments, the electron transport region may include a compound represented by Formula 601-1:
wherein, in Formula 601-1,

X₆₁₄ is N or C(R₆₁₄), X₆₁₅ is N or C(R₆₁₅), X₆₁₆ is N or C(R₆₁₆), and at least one of X₆₁₄ to X₆₁₆ is N,
L₆₁₁ to L₆₁₃ may each be understood by referring to the description of L₆₀₁ provided herein,
xe611 to xe613 may each be understood by referring to the description of xe1 provided herein,
R₆₁₁ to R₆₁₃ may each be understood by referring to the description of R₆₀₁ provided herein, and
R₆₁₄ to R₆₁₆ are each independently hydrogen, deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₁-C₂₀ (e.g. C₁-C₁₀) alkyl group, a C₁-C₂₀ (e.g. C₁-C₁₀) alkoxy group, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group unsubstituted or substituted with at least one R_10a, or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group unsubstituted or substituted with at least one R_10a.
For example, in Formulae 601 and 601-1, xe1 and xe611 to xe613 may each independently be 0, 1, or 2.

The electron transport region may include one of Compounds ET1 to ET45, 2,9-dimethyl-4,7-diphenyl-1,10-phenanthroline (BCP), 4,7-diphenyl-1,10-phenanthroline (Bphen), Alq₃, BAlq, TAZ, NTAZ, or any combination thereof:
Compounds included in the first buffer layer and the second buffer layer may be understood by referring to the descriptions of the compound provided herein.
The thickness of the electron transport region may be in a range of about 100 Angstroms (Å) to about 5,000 Å, for example, about 160 Å to about 4,000 Å. When the electron transport region includes a hole blocking layer, an electron transport layer, or any combination thereof, the thicknesses of the hole blocking layer or the electron transport layer may each independently be in a range of about 20 Å to about 1,000 Å, for example, about 30 Å to about 300 Å, and the thickness of the electron transport layer may be in a range of about 100 Å to about 1,000 Å, for example, about 150 Å to about 500 Å. When the thickness of the hole blocking layer and/or the electron transport layer is within any of these ranges, excellent electron transport characteristics may be obtained without a substantial increase in driving voltage.
The thickness of the first buffer layer and the thickness of the second buffer layer may each independently be in a range of about 10 Å to about 500 Å, for example, about 30 Å to about 300 Å, or for example, about 60 Å to about 150 Å. When the first buffer layer and the second buffer layer each have a thickness less than 10 Å, it may be difficult to control electron injection, and when the first buffer layer and the second buffer layer each have a thickness greater than 500 Å, driving voltage may rapidly increase.
The electron transport region (for example, the electron transport layer in the electron transport region) may further include, in addition to the materials described above, a metal-containing material.
The metal-containing material may include an alkali metal complex, an alkaline earth metal complex, or any combination thereof. A metal ion of the alkali metal complex may be a lithium (Li) ion, a sodium (Na) ion, a potassium (K) ion, a rubidium (Rb) ion, or a cesium (Cs) ion. A metal ion of the alkaline earth metal complex may be a beryllium (Be) ion, a magnesium (Mg) ion, a calcium (Ca) ion, a strontium (Sr) ion, or a barium (Ba) ion. Each ligand coordinated with the metal ion of the alkali metal complex and the alkaline earth metal complex may independently be hydroxyquinoline, hydroxyisoquinoline, hydroxybenzoquinoline, hydroxyacridine, hydroxyphenanthridine, hydroxyphenyloxazole, hydroxyphenylthiazole, hydroxyphenyloxadiazole, hydroxyphenylthiadiazole, hydroxyphenylpyridine, hydroxyphenylbenzimidazole, hydroxyphenylbenzothiazole, bipyridine, phenanthroline, cyclopentadiene, or any combination thereof.
For example, the metal-containing material may include a Li complex. The Li complex may include, e.g., Compound ET-D1 (LiQ) or Compound ET-D2:
The electron transport region may include an electron injection layer that facilitates injection of electrons from the second electrode 150. The electron injection layer may be in direct contact with the second electrode 150.
The electron injection layer may have i) a single-layered structure consisting of a single layer consisting of a single material, ii) a single-layered structure consisting of a single layer including a plurality of different materials, or iii) a multi-layered structure having a plurality of layers including a plurality of different materials.
The electron injection layer may include an alkali metal, an alkaline earth metal, a rare earth metal, an alkali metal-containing compound, an alkaline earth metal-containing compound, a rare earth metal-containing compound, an alkali metal complex, an alkaline earth metal complex, a rare earth metal complex, or any combination thereof
The alkali metal may be Li, Na, K, Rb, Cs or any combination thereof. The alkaline earth metal may be Mg, Ca, Sr, Ba, or any combination thereof. The rare earth metal may be Sc, Y, Ce, Tb, Yb, Gd, or any combination thereof.
The alkali metal-containing compound, the alkaline earth metal-containing compound, and the rare earth metal-containing compound may respectively be oxides, halides (e.g., fluorides, chlorides, bromides, or iodides), tellurides, or any combination thereof of each of the alkali metal, the alkaline earth metal, and the rare earth metal.
The alkali metal-containing compound may be alkali metal oxides such as Li₂O, Cs₂O, or K₂O, alkali metal halides such as LiF, NaF, CsF, KF, LiI, NaI, CsI, or KI, or any combination thereof. The alkaline earth-metal-containing compound may include alkaline earth-metal oxides, such as BaO, SrO, CaO, Ba_xSr_1-xO (wherein x is a real number satisfying 0<x<1), or Ba_xCa_1-xO (wherein x is a real number satisfying 0<x<1). The rare earth metal-containing compound may include YbF₃, ScF₃, Sc₂O₃, Y₂O₃, Ce₂O₃, GdF₃, TbF₃, YbI₃, ScI₃, TbI₃, or any combination thereof. In some embodiments, the rare earth metal-containing compound may include a lanthanide metal telluride. Examples of the lanthanide metal telluride include LaTe, CeTe, PrTe, NdTe, PmTe, SmTe, EuTe, GdTe, TbTe, DyTe, HoTe, ErTe, TmTe, YbTe, LuTe, La₂Te₃, Ce₂Te₃, Pr₂Te₃, Nd₂Te₃, Pm₂Te₃, Sm₂Te₃, Eu₂Te₃, Gd₂Te₃, Tb₂Te₃, Dy₂Te₃, Ho₂Te₃, Er₂Te₃, Tm₂Te₃, Yb₂Te₃, and Lu₂Te₃.
The alkali metal complex, the alkaline earth metal complex, and the rare earth metal complex may include: i) one of ions of the alkali metal, alkaline earth metal, and rare earth metal described above and ii) a ligand bond to the metal ion, e.g., hydroxyquinoline, hydroxyisoquinoline, hydroxybenzoquinoline, hydroxyacridine, hydroxyphenanthridine, hydroxyphenyloxazole, hydroxyphenylthiazole, hydroxyphenyloxadiazole, hydroxyphenylthiadiazole, hydroxyphenylpyridine, hydroxyphenylbenzimidazole, hydroxyphenylbenzothiazole, bipyridine, phenanthroline, cyclopentadiene, or any combination thereof.
The electron injection layer may consist of an alkali metal, an alkaline earth metal, a rare earth metal, an alkali metal-containing compound, an alkaline earth metal-containing compound, a rare earth metal-containing compound, an alkali metal complex, an alkaline earth metal complex, a rare earth metal complex, or any combination thereof, as described above. In some embodiments, the electron injection layer may further include an organic material (e.g., a compound represented by Formula 601).
In some embodiments, the electron injection layer may consist of i) an alkali metal-containing compound (e.g., alkali metal halide), or ii) a) an alkali metal-containing compound (e.g., alkali metal halide); and b) an alkali metal, an alkaline earth metal, a rare earth metal, or any combination thereof. In some embodiments, the electron injection layer may be a KI:Yb co-deposition layer, a RbI:Yb co-deposition layer, and the like.
When the electron injection layer further includes an organic material, the alkali metal, the alkaline earth metal, the rare earth metal, the alkali metal-containing compound, the alkaline earth metal-containing compound, the rare earth metal-containing compound, the alkali metal complex, the alkaline earth metal complex, the rare earth metal complex, or any combination thereof may be homogeneously or non-homogeneously dispersed in a matrix including the organic material.
The thickness of the electron injection layer may be in a range of about 1 Å to about 100 Å, and in some embodiments, about 3 Å to about 90 Å. When the thickness of the electron injection layer is within any of these ranges, excellent electron injection characteristics may be obtained without a substantial increase in driving voltage.

Second electrode 150

The second electrode 150 is on the interlayer 130. In an embodiment, the second electrode 150 may be a cathode that is an electron injection electrode. In this embodiment, a material for forming the second electrode 150 may be a material having a low work function, for example, a metal, an alloy, an electrically conductive compound, or any combination thereof.
The second electrode 150 may include lithium (Li), silver (Ag), magnesium (Mg), aluminium (Al), aluminium-lithium (Al-Li), calcium (Ca), magnesium-indium (Mg-In), magnesium-silver (Mg-Ag), ytterbium (Yb), silver-ytterbium (Ag-Yb), ITO, IZO, or any combination thereof. The second electrode 150 may be a transmissive electrode, a semi-transmissive electrode, or a reflective electrode.
The second electrode 150 may have a single-layered structure, or a multi-layered structure including two or more layers.

Capping layer

A first capping layer may be located outside the first electrode 110, and/or a second capping layer may be located outside the second electrode 150. In some embodiments, the light-emitting device 10 may have a structure in which the first capping layer, the first electrode 110, the interlayer 130, and the second electrode 150 are sequentially stacked in this stated order, a structure in which the first electrode 110, the interlayer 130, the second electrode 150, and the second capping layer are sequentially stacked in this stated order, or a structure in which the first capping layer, the first electrode 110, the interlayer 130, the second electrode 150, and the second capping layer are sequentially stacked in this stated order.
In the light-emitting device 10, light emitted from the emission layer in the interlayer 130 may pass through the first electrode 110 (which may be a semi-transmissive electrode or a transmissive electrode) and through the first capping layer to the outside. In the light-emitting device 10, light emitted from the emission layer in the interlayer 130 may pass through the second electrode 150 (which may be a semi-transmissive electrode or a transmissive electrode) and through the second capping layer to the outside.
The first capping layer and the second capping layer may improve the external luminescence efficiency based on the principle of constructive interference. Accordingly, the optical extraction efficiency of the light-emitting device 10 may be increased, thus improving the luminescence efficiency of the light-emitting device 10.
The first capping layer and the second capping layer may each include a material having a refractive index of 1.6 or higher (at 589 nm).
The first capping layer and the second capping layer may each independently be a capping layer including an organic material, an inorganic capping layer including an inorganic material, or an organic-inorganic composite capping layer including an organic material and an inorganic material.
At least one of the first capping layer and the second capping layer may each independently include carbocyclic compounds, heterocyclic compounds, amine group-containing compounds, porphine derivatives, phthalocyanine derivatives, naphthalocyanine derivatives, alkali metal complexes, alkaline earth metal complexes, or any combination thereof The carbocyclic compound, the heterocyclic compound, and the amine group-containing compound may optionally be substituted with a substituent of O, N, S, Se, Si, F, Cl, Br, I, or any combination thereof. In some embodiments, at least one of the first capping layer and the second capping layer may each independently include an amine group-containing compound.
In some embodiments, at least one of the first capping layer and the second capping layer may each independently include the compound represented by Formula 201, the compound represented by Formula 202, or any combination thereof.
In one or more embodiments, at least one of the first capping layer and the second capping layer may each independently include one of Compounds HT28 to HT33, one of Compounds CP1 to CP6, β-NPB, or any combination thereof:

Electronic apparatus

The light-emitting device may be included in various electronic apparatuses. In some embodiments, an electronic apparatus including the light-emitting device may be a light-emitting apparatus or an authentication apparatus.
The electronic apparatus (e.g., a light-emitting apparatus) may further include, in addition to the light-emitting device, i) a color filter, ii) a color-conversion layer, or iii) a color filter and a color-conversion layer. The color filter and/or the color-conversion layer may be disposed on at least one traveling direction of light emitted from the light-emitting device. For example, light emitted from the light-emitting device may be blue light. The light-emitting device may be understood by referring to the descriptions provided herein. In some embodiments, the color-conversion layer may include quantum dots. The quantum dot may be, for example, the quantum dot described herein.
The electronic apparatus may include a first substrate. The first substrate may include a plurality of sub-pixel areas, the color filter may include a plurality of color filter areas respectively corresponding to the plurality of sub-pixel areas, and the color-conversion layer may include a plurality of color-conversion areas respectively corresponding to the plurality of sub-pixel areas.
A pixel-defining film may be located between the plurality of sub-pixel areas to define each sub-pixel area.
The color filter may further include a plurality of color filter areas and light-blocking patterns between the plurality of color filter areas, and the color-conversion layer may further include a plurality of color-conversion areas and light-blocking patterns between the plurality of color-conversion areas.
The plurality of color filter areas (or a plurality of color-conversion areas) may include: a first area emitting first color light; a second area emitting second color light; and/or a third area emitting third color light, and the first color light, the second color light, and/or the third color light may have different maximum emission wavelengths. In some embodiments, the first color light may be red light, the second color light may be green light, and the third color light may be blue light. In some embodiments, the plurality of color filter areas (or the plurality of color-conversion areas) may each include quantum dots. In some embodiments, the first area may include red quantum dots, the second area may include green quantum dots, and the third area may not include a quantum dot. The quantum dot may be understood by referring to the description of the quantum dot provided herein. The first area, the second area, and/or the third area may each further include an emitter.
In some embodiments, the light-emitting device may emit first light, the first area may absorb the first light to emit 1-1 color light, the second area may absorb the first light to emit 2-1 color light, and the third area may absorb the first light to emit 3-1 color light. In this embodiment, the 1-1 color light, the 2-1 color light, and the 3-1 color light may each have a different maximum emission wavelength. In some embodiments, the first light may be blue light, the 1-1 color light may be red light, the 2-1 color light may be green light, and the 3-1 light may be blue light.
The electronic apparatus may further include a thin-film transistor, in addition to the light-emitting device. The thin-film transistor may include a source electrode, a drain electrode, and an active layer, wherein one of the source electrode and the drain electrode may be electrically connected to one of the first electrode and the second electrode of the light-emitting device.
The thin-film transistor may further include a gate electrode, a gate insulating film, or the like.
The active layer may include a crystalline silicon, an amorphous silicon, an organic semiconductor, and an oxide semiconductor.
The electronic apparatus may further include an encapsulation unit for sealing the light-emitting device. The encapsulation unit may be located between the color filter and/or the color-conversion layer and the light-emitting device. The encapsulation unit may allow light to pass to the outside from the light-emitting device and prevent the air and moisture from permeating the light-emitting device at the same time. The encapsulation unit may be a sealing substrate including transparent glass or a plastic substrate. The encapsulation unit may be a thin-film encapsulating layer including at least one of an organic layer and/or an inorganic layer. When the encapsulation unit is a thin-film encapsulating layer, the electronic apparatus may be flexible.
In addition to the color filter and/or the color-conversion layer, various functional layers may be disposed on the encapsulation unit depending on the use of an electronic apparatus. Examples of the functional layer may include a touch screen layer, a polarizing layer, or the like. The touch screen layer may be a resistive touch screen layer, a capacitive touch screen layer, or an infrared beam touch screen layer. The authentication apparatus may be, for example, a biometric authentication apparatus that identifies an individual according to biometric information (e.g., a fingertip, a pupil, or the like).
The authentication apparatus may further include a biometric information collecting unit, in addition to the light-emitting device described above.
The electronic apparatus may be applicable to various displays, an optical source, lighting, a personal computer (e.g., a mobile personal computer), a cellphone, a digital camera, an electronic note, an electronic dictionary, an electronic game console, a medical device (e.g., an electronic thermometer, a blood pressure meter, a glucometer, a pulse measuring device, a pulse wave measuring device, an electrocardiograph recorder, an ultrasonic diagnosis device, or an endoscope display device), a fish finder, various measurement devices, gauges (e.g., gauges of an automobile, an airplane, or a ship), and a projector.

Descriptions of FIGS. 3 and 4

FIG. 3 is a schematic cross-sectional view of an embodiment of an electronic apparatus.
An electronic apparatus in FIG. 3 may include a substrate 100, a thin-film transistor, a light-emitting device, and an encapsulation unit 300 sealing the light-emitting device.
The substrate 100 may be a flexible substrate, a glass substrate, or a metal substrate. A buffer layer 210 may be on the substrate 100. The buffer layer 210 may prevent penetration of impurities through the substrate 100 and provide a flat surface on the substrate 100.
A thin-film transistor may be on the buffer layer 210. The thin-film transistor may include an active layer 220, a gate electrode 240, a source electrode 260, and a drain electrode 270.
The active layer 220 may include an inorganic semiconductor such as silicon or polysilicon, an organic semiconductor, or an oxide semiconductor and include a source area, a drain area, and a channel area.
A gate insulating film 230 for insulating the active layer 220 and the gate electrode 240 may be on the active layer 220, and the gate electrode 240 may be on the gate insulating film 230.
An interlayer insulating film 250 may be on the gate electrode 240. The interlayer insulating film 250 may be between the gate electrode 240 and the source electrode 260 and between the gate electrode 240 and the drain electrode 270 to provide insulation therebetween.
The source electrode 260 and the drain electrode 270 may be on the interlayer insulating film 250. The interlayer insulating film 250 and the gate insulating film 230 may be formed to expose the source area and the drain area of the active layer 220, and the source electrode 260 and the drain electrode 270 may be adjacent to the exposed source area and the exposed drain area of the active layer 220.
Such a thin-film transistor may be electrically connected to a light-emitting device to drive the light-emitting device and may be protected by a passivation layer 280. The passivation layer 280 may include an inorganic insulating film, an organic insulating film, or a combination thereof. A light-emitting device may be on the passivation layer 280. The light-emitting device includes a first electrode 110, an interlayer 130, and a second electrode 150.
The first electrode 110 may be on the passivation layer 280. The passivation layer 280 may not fully cover the drain electrode 270 and expose a specific area of the drain electrode 270, and the first electrode 110 may be disposed to connect to the exposed area of the drain electrode 270.
A pixel-defining film 290 may be on the first electrode 110. The pixel-defining film 290 may expose a specific area of the first electrode 110, and the interlayer 130 may be formed in the exposed area of the first electrode 110. The pixel-defining film 290 may be a polyimide or polyacryl organic film. Some higher layers of the interlayer 130 may extend to the upper portion of the pixel-defining film 290 and may be disposed in the form of a common layer, in some implementations of this embodiment.
The second electrode 150 may be on the interlayer 130, and a capping layer 170 may be additionally formed on the second electrode 150. The capping layer 170 may be formed to cover the second electrode 150.
The encapsulation unit 300 may be on the capping layer 170. The encapsulation unit 300 may be on the light-emitting device to protect a light-emitting device from moisture or oxygen. The encapsulation unit 300 may include: an inorganic film including silicon nitride (SiN_x), silicon oxide (SiO_x), indium tin oxide, indium zinc oxide, or any combination thereof; an organic film including PET, polyethylene naphthalate, polycarbonate, polyimide, polyethylene sulfonate, polyoxy methylene, poly arylate, hexamethyl disiloxane, an acrylic resin (e.g., polymethyl methacrylate, polyacrylic acid, and the like), an epoxy resin (e.g., aliphatic glycidyl ether (AGE) and the like), or any combination thereof; or a combination of the inorganic film and the organic film.
FIG. 4 is a schematic cross-sectional view of another embodiment of an electronic apparatus.
The electronic apparatus shown in FIG. 4 may be substantially identical to the light-emitting apparatus shown in FIG. 3, except that a light-shielding pattern 500 and a functional area 400 are additionally located on the encapsulation unit 300. The functional area 400 may be i) a color filter area, ii) a color-conversion area, or iii) a combination of a color filter area and a color-conversion area. In some embodiments, the light-emitting device shown in FIG. 4 included in the electronic apparatus may be a tandem light-emitting device.

Manufacturing method

The layers constituting the hole transport region, the emission layer, and the layers constituting the electron transport region may be formed in a specific region by using one or more suitable methods such as vacuum deposition, spin coating, casting, Langmuir-Blodgett (LB) deposition, ink-jet printing, laser printing, and laser-induced thermal imaging.
When layers constituting the hole transport region, an emission layer, and layers constituting the electron transport region are each independently formed by vacuum-deposition, the vacuum-deposition may be performed at a deposition temperature in a range of about 100 °C to about 500 °C, at a vacuum degree in a range of about 10^-8 torr to about 10^-3 torr, and at a deposition rate in a range of about 0.01 Angstroms per second (Å/sec) to about 100 Å/sec, depending on the material to be included in each layer and the structure of each layer to be formed.
When layers constituting the hole transport region, the emission layer, and layers constituting the electron transport region are each independently formed by spin coating, the spin coating may be performed at a coating rate of about 2,000 revolutions per minute (rpm) to about 5,000 rpm and at a heat treatment temperature of about 80 °C to 200 °C, depending on the material to be included in each layer and the structure of each layer to be formed.

General definitions of terms

The term "C₃-C₆₀ carbocyclic group" as used herein refers to a cyclic group consisting of carbon atoms only and having 3 to 60 carbon atoms as ring-forming atoms. The term "C₁-C₆₀ heterocyclic group" as used herein refers to a cyclic group having 1 to 60 carbon atoms in addition to a heteroatom as ring-forming atoms other than carbon atoms. The C₃-C₆₀ carbocyclic group and the C₁-C₆₀ heterocyclic group may each be a monocyclic group consisting of one ring or a polycyclic group in which at least two rings are condensed. For example, the number of ring-forming atoms in the C₁-C₆₀ heterocyclic group may be in a range of 3 to 61.
The term "cyclic group" as used herein may include the C₃-C₆₀ carbocyclic group and the C₁-C₆₀ heterocyclic group.
The term "π electron-rich C₃-C₆₀ cyclic group" refers to a cyclic group having 3 to 60 carbon atoms and not including ^∗-N=^∗' as a ring-forming moiety. The term "π electron-deficient nitrogen-containing C₁-C₆₀ cyclic group" as used herein refers to a heterocyclic group having 1 to 60 carbon atoms and ^∗-N=^∗' as a ring-forming moiety.
In some embodiments, the C₃-C₆₀ carbocyclic group may be i) a T1 group or ii) a group in which at least two T1 groups are condensed (for example, a cyclopentadiene group, an adamantane group, a norbornane group, a benzene group, a pentalene group, a naphthalene group, an azulene group, an indacene group, an acenaphthylene group, a phenalene group, a phenanthrene group, an anthracene group, a fluoranthene group, a triphenylene group, a pyrene group, a chrysene group, a perylene group, a pentaphene group, a heptalene group, a naphthacene group, a picene group, a hexacene group, a pentacene group, a rubicene group, a coronene group, an ovalene group, an indene group, a fluorene group, a spiro-bifluorene group, a benzofluorene group, an indenophenanthrene group, or an indenoanthracene group),

the C₁-C₆₀ heterocyclic group may be i) a T2 group, ii) a group in which at least two T2 groups are condensed, or iii) a group in which at least one T2 group is condensed with at least one T1 group (for example, a pyrrole group, a thiophene group, a furan group, an indole group, a benzoindole group, a naphthoindole group, an isoindole group, a benzoisoindole group, a naphthoisoindole group, a benzosilole group, a benzothiophene group, a benzofuran group, a carbazole group, a dibenzosilole group, a dibenzothiophene group, a dibenzofuran group, an indenocarbazole group, an indolocarbazole group, a benzofurocarbazole group, a benzothienocarbazole group, a benzosilolocarbazole group, a benzoindolocarbazole group, a benzocarbazole group, a benzonaphthofuran group, a benzonapthothiophene group, a benzonaphthosilole group, a benzofurodibenzofuran group, a benzofurodibenzothiophene group, a benzothienodibenzothiophene group, a pyrazole group, an imidazole group, a triazole group, an oxazole group, an isoxazole group, an oxadiazole group, a thiazole group, an isothiazole group, a thiadiazole group, a benzopyrazole group, a benzimidazole group, a benzoxazole group, a benzoisoxazole group, a benzothiazole group, a benzoisothiazole group, a pyridine group, a pyrimidine group, a pyrazine group, a pyridazine group, a triazine group, a quinoline group, an isoquinoline group, a benzoquinoline group, a benzoisoquinoline group, a quinoxaline group, a benzoquinoxaline group, a quinazoline group, a benzoquinazoline group, a phenanthroline group, a cinnoline group, a phthalazine group, a naphthyridine group, an imidazopyridine group, an imidazopyrimidine group, an imidazotriazine group, an imidazopyrazine group, an imidazopyridazine group, an azacarbazole group, an azafluorene group, an azadibenzosilole group, an azadibenzothiophene group, an azadibenzofuran group, and the like),
the π electron-rich C₃-C₆₀ cyclic group may be i) a T1 group, ii) a condensed group in which at least two T1 groups are condensed, iii) a T3 group, iv) a condensed group in which at least two T3 groups are condensed, or v) a condensed group in which at least one T3 group is condensed with at least one T1 group (for example, a C₃-C₆₀ carbocyclic group, a 1H-pyrrole group, a silole group, a borole group, a 2H-pyrrole group, a 3H-pyrrole group, a thiophene group, a furan group, an indole group, a benzoindole group, a naphthoindole group, an isoindole group, a benzoisoindole group, a naphthoisoindole group, a benzosilole group, a benzothiophene group, a benzofuran group, a carbazole group, a dibenzosilole group, a dibenzothiophene group, a dibenzofuran group, an indenocarbazole group, an indolocarbazole group, a benzofurocarbazole group, a benzothienocarbazole group, a benzosilolocarbazole group, a benzoindolocarbazole group, a benzocarbazole group, a benzonaphthofuran group, a benzonapthothiophene group, a benzonaphthosilole group, a benzofurodibenzofuran group, a benzofurodibenzothiophene group, a benzothienodibenzothiophene group, and the like), and
the π electron-deficient nitrogen-containing C₁-C₆₀ cyclic group may be i) a T4 group, ii) a group in which at least two T4 groups are condensed, iii) a group in which at least one T4 group is condensed with at least one T1 group, iv) a group in which at least one T4 group is condensed with at least one T3 group, or v) a group in which at least one T4 group, at least one T1 group, and at least one T3 group are condensed (for example, a pyrazole group, an imidazole group, a triazole group, an oxazole group, an isoxazole group, an oxadiazole group, a thiazole group, an isothiazole group, a thiadiazole group, a benzopyrazole group, a benzimidazole group, a benzoxazole group, a benzoisoxazole group, a benzothiazole group, a benzoisothiazole group, a pyridine group, a pyrimidine group, a pyrazine group, a pyridazine group, a triazine group, a quinoline group, an isoquinoline group, a benzoquinoline group, a benzoisoquinoline group, a quinoxaline group, a benzoquinoxaline group, a quinazoline group, a benzoquinazoline group, a phenanthroline group, a cinnoline group, a phthalazine group, a naphthyridine group, an imidazopyridine group, an imidazopyrimidine group, an imidazotriazine group, an imidazopyrazine group, an imidazopyridazine group, an azacarbazole group, an azafluorene group, an azadibenzosilole group, an azadibenzothiophene group, an azadibenzofuran group, and the like),
wherein the T1 group may be a cyclopropane group, a cyclobutane group, a cyclopentane group, a cyclohexane group, a cycloheptane group, a cyclooctane group, a cyclobutene group, a cyclopentene group, a cyclopentadiene group, a cyclohexene group, a cyclohexadiene group, a cycloheptene group, an adamantane group, a norbornane (or bicyclo[2.2.1]heptane) group, a norbornene group, a bicyclo[1.1.1]pentane group, a bicyclo[2.1.1]hexane group, a bicyclo[2.2.2]octane group, or a benzene group,
the T2 group may be a furan group, a thiophene group, a 1H-pyrrole group, a silole group, a borole group, a 2H-pyrrole group, a 3H-pyrrole group, an imidazole group, a pyrazole group, a triazole group, a tetrazole group, an oxazole group, an isoxazole group, an oxadiazole group, a thiazole group, an isothiazole group, a thiadiazole group, an azasilole group, an azaborole group, a pyridine group, a pyrimidine group, a pyrazine group, a pyridazine group, a triazine group, a tetrazine group, a pyrrolidine group, an imidazolidine group, a dihydropyrrole group, a piperidine group, a tetrahydropyridine group, a dihydropyridine group, a hexahydropyrimidine group, a tetrahydropyrimidine group, a dihydropyrimidine group, a piperazine group, a tetrahydropyrazine group, a dihydropyrazine group, a tetrahydropyridazine group, or a dihydropyridazine group,
the T3 group may be a furan group, a thiophene group, a 1H-pyrrole group, a silole group, or a borole group, and
the T4 group may be a 2H-pyrrole group, a 3H-pyrrole group, an imidazole group, a pyrazole group, a triazole group, a tetrazole group, an oxazole group, an isoxazole group, an oxadiazole group, a thiazole group, an isothiazole group, a thiadiazole group, an azasilole group, an azaborole group, a pyridine group, a pyrimidine group, a pyrazine group, a pyridazine group, a triazine group, or a tetrazine group.

The term "cyclic group", "C₃-C₆₀ carbocyclic group", "C₁-C₆₀ heterocyclic group", "π electron-rich C₃-C₆₀ cyclic group", or "π electron-deficient nitrogen-containing C₁-C₆₀ cyclic group" as used herein may be a group condensed with any suitable cyclic group, a monovalent group, or a polyvalent group (e.g., a divalent group, a trivalent group, a quadvalent group, or the like), depending on the structure of the formula to which the term is applied. For example, a "benzene group" may be a benzene ring, a phenyl group, a phenylene group, or the like, and this may be understood by one of ordinary skill in the art, depending on the structure of the formula including the "benzene group".
In some embodiments, examples of the monovalent C₃-C₆₀ carbocyclic group and monovalent C₁-C₆₀ heterocyclic group may include a C₃-C₁₀ cycloalkyl group, a C₁-C₁₀ heterocycloalkyl group, a C₃-C₁₀ cycloalkenyl group, a C₁-C₁₀ heterocycloalkenyl group, a C₆-C₆₀ aryl group, a C₁-C₆₀ heteroaryl group, a monovalent non-aromatic condensed polycyclic group, and a monovalent non-aromatic condensed heteropolycyclic group, and examples of the divalent C₃-C₆₀ carbocyclic group and the divalent C₁-C₆₀ heterocyclic group may include a C₃-C₁₀ cycloalkylene group, a C₁-C₁₀ heterocycloalkylene group, a C₃-C₁₀ cycloalkenylene group, a C₁-C₁₀ heterocycloalkenylene group, a C₆-C₆₀ arylene group, a C₁-C₆₀ heteroarylene group, a divalent non-aromatic condensed polycyclic group, and a substituted or unsubstituted divalent non-aromatic condensed heteropolycyclic group.
The term "C₁-C₆₀ alkyl group" as used herein refers to a linear or branched aliphatic hydrocarbon monovalent group having 1 to 60 carbon atoms, and examples thereof include a methyl group, an ethyl group, an n-propyl group, an isopropyl group, an n-butyl group, a sec-butyl group, an isobutyl group, a tert-butyl group, an n-pentyl group, a tert-pentyl group, a neopentyl group, an isopentyl group, a sec-pentyl group, a 3-pentyl group, a sec-isopentyl group, an n-hexyl group, an isohexyl group, a sec-hexyl group, a tert-hexyl group, an n-heptyl group, an isoheptyl group, a sec-heptyl group, a tert-heptyl group, an n-octyl group, an isooctyl group, a sec-octyl group, a tert-octyl group, an n-nonyl group, an iso-nonyl group, a sec-nonyl group, a tert-nonyl group, an n-decyl group, an isodecyl group, a sec-decyl group, and a tert-decyl group. The term "C₁-C₆₀ alkylene group" as used herein refers to a divalent group having substantially the same structure as the C₁-C₆₀ alkyl group. Corresponding definitions apply to other ranges given for the number of carbon atoms in an alkyl/alkylene group.
The term "C₂-C₆₀ alkenyl group" as used herein refers to a hydrocarbon group having at least one carbon-carbon double bond in the middle or at the terminus of the C₂-C₆₀ alkyl group. Examples thereof include an ethenyl group, a propenyl group, and a butenyl group. The term "C₂-C₆₀ alkenylene group" as used herein refers to a divalent group having substantially the same structure as the C₂-C₆₀ alkenyl group. Corresponding definitions apply to other ranges given for the number of carbon atoms in an alkenyl/alkenylene group.
The term "C₂-C₆₀ alkynyl group" as used herein refers to a monovalent hydrocarbon group having at least one carbon-carbon triple bond in the middle or at the terminus of the C₂-C₆₀ alkyl group. Examples thereof include an ethynyl group and a propynyl group. The term "C₂-C₆₀ alkynylene group" as used herein refers to a divalent group having substantially the same structure as the C₂-C₆₀ alkynyl group. Corresponding definitions apply to other ranges given for the number of carbon atoms in an alkynyl/alkynylene group.
The term "C₁-C₆₀ alkoxy group" as used herein refers to a monovalent group represented by -OA₁₀₁ (wherein A₁₀₁ is a C₁-C₆₀ alkyl group). Examples thereof include a methoxy group, an ethoxy group, and an isopropyloxy group. Corresponding definitions apply to other ranges given for the number of carbon atoms in an alkoxy group.
The term "C₃-C₁₀ cycloalkyl group" as used herein refers to a monovalent saturated hydrocarbon monocyclic group including 3 to 10 carbon atoms. Examples of the C₃-C₁₀ cycloalkyl group as used herein include a cyclopropyl group, a cyclobutyl group, a cyclopentyl group, a cyclohexyl group, a cycloheptyl group, a cyclooctyl group, an adamantanyl group, a norbomanyl (bicyclo[2.2.1]heptyl) group, a bicyclo[1.1.1]pentyl group, a bicyclo[2.1.1]hexyl group, or a bicyclo[2.2.2]octyl group. The term "C₃-C₁₀ cycloalkylene group" as used herein refers to a divalent group having substantially the same structure as the C₃-C₁₀ cycloalkyl group.
The term "C₁-C₁₀ heterocycloalkyl group" as used herein refers to a monovalent cyclic group including at least one heteroatom other than carbon atoms as a ring-forming atom and having 1 to 10 carbon atoms. Examples thereof include a 1,2,3,4-oxatriazolidinyl group, a tetrahydrofuranyl group, and a tetrahydrothiophenyl group. The term "C₁-C₁₀ heterocycloalkylene group" as used herein refers to a divalent group having substantially the same structure as the C₁-C₁₀ heterocycloalkyl group.
The term "C₃-C₁₀ cycloalkenyl group" as used herein refers to a monovalent cyclic group that has 3 to 10 carbon atoms and at least one carbon-carbon double bond in its ring, and is not aromatic. Examples thereof include a cyclopentenyl group, a cyclohexenyl group, and a cycloheptenyl group. The term "C₃-C₁₀ cycloalkenylene group" as used herein refers to a divalent group having substantially the same structure as the C₃-C₁₀ cycloalkenyl group.
The term "C₁-C₁₀ heterocycloalkenyl group" as used herein refers to a monovalent cyclic group including at least one heteroatom other than carbon atoms as a ring-forming atom, 1 to 10 carbon atoms, and at least one double bond in its ring. Examples of the C₁-C₁₀ heterocycloalkenyl group include a 4,5-dihydro-1,2,3,4-oxatriazolyl group, a 2,3-dihydrofuranyl group, and a 2,3-dihydrothiophenyl group. The term "C₁-C₁₀ heterocycloalkylene group" as used herein refers to a divalent group having substantially the same structure as the C₁-C₁₀ heterocycloalkenyl group.
The term "C₆-C₆₀ aryl group" as used herein refers to a monovalent group having a carbocyclic aromatic system having 6 to 60 carbon atoms. The term "C₆-C₆₀ arylene group" as used herein refers to a divalent group having a carbocyclic aromatic system having 6 to 60 carbon atoms. Examples of the C₆-C₆₀ aryl group include a phenyl group, a pentalenyl group, a naphthyl group, an azulenyl group, an indacenyl group, an acenaphthyl group, a phenalenyl group, a phenanthrenyl group, an anthracenyl group, a fluoranthenyl group, a triphenylenyl group, a pyrenyl group, a chrysenyl group, a perylenyl group, a pentaphenyl group, a heptalenyl group, a naphthacenyl group, a picenyl group, a hexacenyl group, a pentacenyl group, a rubicenyl group, a coronenyl group, and an ovalenyl group. When the C₆-C₆₀ aryl group and the C₆-C₆₀ arylene group each independently include two or more rings, the respective rings may be fused. Corresponding definitions apply to other ranges given for the number of carbon atoms in an aryl/arylene group.
The term "C₁-C₆₀ heteroaryl group" as used herein refers to a monovalent group having a heterocyclic aromatic system further including at least one heteroatom other than carbon atoms as a ring-forming atom and 1 to 60 carbon atoms. The term "C₁-C₆₀ heteroarylene group" as used herein refers to a divalent group having a heterocyclic aromatic system further including at least one heteroatom other than carbon atoms as a ring-forming atom and 1 to 60 carbon atoms. Examples of the C₁-C₆₀ heteroaryl group include a pyridinyl group, a pyrimidinyl group, a pyrazinyl group, a pyridazinyl group, a triazinyl group, a quinolinyl group, a benzoquinolinyl group, an isoquinolinyl group, a benzoisoquinolinyl group, a quinoxalinyl group, a benzoquinoxalinyl group, a quinazolinyl group, a benzoquinazolinyl group, a cinnolinyl group, a phenanthrolinyl group, a phthalazinyl group, and a naphthyridinyl group. When the C₁-C₆₀ heteroaryl group and the C₁-C₆₀ heteroarylene group each independently include two or more rings, the respective rings may be fused. Corresponding definitions apply to other ranges given for the number of carbon atoms in an heteroaryl/heteroarylene group
The term "monovalent non-aromatic condensed polycyclic group" as used herein refers to a monovalent group that has two or more condensed rings and only carbon atoms (e.g., 8 to 60 carbon atoms) as ring forming atoms, wherein the molecular structure when considered as a whole is non-aromatic. Examples of the monovalent non-aromatic condensed polycyclic group include an indenyl group, a fluorenyl group, a spiro-bifluorenyl group, a benzofluorenyl group, an indenophenanthrenyl group, and an indenoanthracenyl group. The term "divalent non-aromatic condensed polycyclic group" as used herein refers to a divalent group having substantially the same structure as the monovalent non-aromatic condensed polycyclic group.
The term "monovalent non-aromatic condensed heteropolycyclic group" as used herein refers to a monovalent group that has two or more condensed rings and at least one heteroatom other than carbon atoms (e.g., 1 to 60 carbon atoms), as a ring-forming atom, wherein the molecular structure when considered as a whole is non-aromatic. Examples of the monovalent non-aromatic condensed heteropolycyclic group include a pyrrolyl group, a thiophenyl group, a furanyl group, an indolyl group, a benzoindolyl group, a naphthoindolyl group, an isoindolyl group, a benzoisoindolyl group, a naphthoisoindolyl group, a benzosilolyl group, a benzothiophenyl group, a benzofuranyl group, a carbazolyl group, a dibenzosilolyl group, a dibenzothiophenyl group, a dibenzofuranyl group, an azacarbazolyl group, an azafluorenyl group, an azadibenzosilolyl group, an azadibenzothiophenyl group, an azadibenzofuranyl group, a pyrazolyl group, an imidazolyl group, a triazolyl group, a tetrazolyl group, an oxazolyl group, an isoxazolyl group, a thiazolyl group, an isothiazolyl group, an oxadiazolyl group, a thiadiazolyl group, a benzopyrazolyl group, a benzimidazolyl group, a benzoxazolyl group, a benzothiazolyl group, a benzooxadiazolyl group, a benzothiadiazolyl group, an imidazopyridinyl group, an imidazopyrimidinyl group, an imidazotriazinyl group, an imidazopyrazinyl group, an imidazopyridazinyl group, an indenocarbazolyl group, an indolocarbazolyl group, a benzofurocarbazolyl group, a benzothienocarbazolyl group, a benzosilolocarbazolyl group, a benzoindolocarbazolyl group, a benzocarbazolyl group, a benzonaphthofuranyl group, a benzonaphthothiophenyl group, a benzonaphthosilolyl group, a benzofurodibenzofuranyl group, a benzofurodibenzothiophenyl group, and a benzothienodibenzothiophenyl group. The term "divalent non-aromatic condensed heteropolycyclic group" as used herein refers to a divalent group having substantially the same structure as the monovalent non-aromatic condensed heteropolycyclic group.
The term "C₆-C₆₀ aryloxy group" as used herein refers to -OA₁₀₂ (wherein A₁₀₂ is a C₆-C₆₀ aryl group). The term "C₆-C₆₀ arylthio group" as used herein refers to -SA₁₀₃ (wherein A₁₀₃ is a C₆-C₆₀ aryl group). Corresponding definitions apply to other ranges given for the number of carbon atoms in an aryloxy group and an arylthio group.
The term "C₇-C₆₀ aryl alkyl group" as used herein refers to -A₁₀₄A₁₀₅(wherein A₁₀₄ is a C₁-C₅₄ alkylene group, and A₁₀₅ is a C₆-C₅₉ aryl group). The term "C₂-C₆₀ heteroaryl alkyl group" as used herein refers to -A₁₀₆A₁₀₇ (wherein A₁₀₆ is a C₁-C₅₉ alkylene group, and A₁₀₇ is a C₁-C₅₉ heteroaryl group).
The term "R_10a" as used herein may be:

deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, or a nitro group;
a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group, or a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group, each unsubstituted or substituted with deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, a C₆-C₆₀ (e.g. C₆-C₃₀) aryloxy group, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group, a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group, -Si(Q₁₁)(Q₁₂)(Q₁₃), -N(Q₁₁)(Q₁₂), -B(Q₁₁)(Q₁₂), - C(=O)(Q₁₁), -S(=O)₂(Q₁₁), -P(=O)(Q₁₁)(Q₁₂), or any combination thereof;
a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, a C₆-C60 (e.g. C₆-C₃₀) aryloxy group, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group, a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group, or a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group, each unsubstituted or substituted with deuterium, -F, -Cl, -Br, -I, a hydroxyl group, a cyano group, a nitro group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group, a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group, a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, a C₆-C₆₀ (e.g. C₆-C₃₀) aryloxy group, a C₆-C₆₀ (e.g. C₆-C₃₀) arylthio group, a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group, a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group, - Si(Q₂₁)(Q₂₂)(Q₂₃), -N(Q₂₁)(Q₂₂), -B(Q₂₁)(Q₂₂), -C(=O)(Q₂₁), -S(=O)₂(Q₂₁), -P(=O)(Q₂₁)(Q₂₂), or any combination thereof; or
-Si(Q₃₁)(Q₃₂)(Q₃₃), -N(Q₃₁)(Q₃₂), -B(Q₃₁)(Q₃₂), -C(=O)(Q₃₁), -S(=O)₂(Q₃₁), or - P(=O)(Q₃₁)(Q₃₂).

Q₁ to Q₃, Q₁₁ to Q₁₃, Q₂₁ to Q₂₃, and Q₃₁ to Q₃₃ may each independently be: hydrogen; deuterium; -F; -Cl; -Br; -I; a hydroxyl group; a cyano group; a nitro group; a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group; a C₂-C₆₀ (e.g. C₂-C₂₀) alkenyl group; a C₂-C₆₀ (e.g. C₂-C₂₀) alkynyl group; a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group; a C₃-C₆₀ (e.g. C₃-C₃₀) carbocyclic group or a C₁-C₆₀ (e.g. C₁-C₂₀) heterocyclic group, each unsubstituted or substituted with deuterium, -F, a cyano group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkyl group, a C₁-C₆₀ (e.g. C₁-C₂₀) alkoxy group, a phenyl group, a biphenyl group, or any combination thereof; a C₇-C₆₀ (e.g. C₇-C₃₀) aryl alkyl group; or a C₂-C₆₀ (e.g. C₂-C₂₀) heteroaryl alkyl group.
The term "heteroatom" as used herein refers to any atom other than a carbon atom. Examples of the heteroatom may include O, S, N, P, Si, B, Ge, Se, or any combination thereof.
A third-row transition metal as used herein may include hafnium (Hf), tantalum (Ta), tungsten (W), rhenium (Re), osmium (Os), iridium (Ir), platinum (Pt), or gold (Au).
"Ph" used herein represents a phenyl group, "Me" used herein represents a methyl group, "Et" used herein represents an ethyl group, "ter-Bu" or "Bu^t" used herein represents a tert-butyl group, and "OMe" used herein represents a methoxy group.
The term "biphenyl group" as used herein refers to a phenyl group substituted with a phenyl group. The "biphenyl group" belongs to "a substituted phenyl group" having a "C₆-C₆₀ aryl group" as a substituent.
The term "terphenyl group" as used herein refers to a phenyl group substituted with a biphenyl group. The "terphenyl group" belongs to "a substituted phenyl group" having a "C₆-C₆₀ aryl group substituted with a C₆-C₆₀ aryl group" as a substituent.
The symbols ^∗ and ^∗' as used herein, unless defined otherwise, refer to a binding site to an adjacent atom in a corresponding formula.
Hereinafter, a light-emitting device and a compound according to one or more embodiments will be described in more detail with reference to Examples.

Examples

Manufacture of light-emitting device

Comparative Example 1 (no buffer layer)

A 15 Ohms per square centimeter (Ω/cm²) (800 Å) ITO/Ag/ITO glass substrate (available from Corning Co., Ltd) was cut to a size of 50 millimeters (mm) x 50 mm x 0.7 mm, sonicated in isopropyl alcohol and pure water for 5 minutes in each solvent, cleaned with ultraviolet rays for 15 minutes, and then ozone, and was mounted on a vacuum deposition apparatus.
HAT-CN was deposited on the glass substrate of ITO/Ag/ITO anode to form a hole injection layer having a thickness of 50 Å, and HLT1 was deposited on the hole injection layer to form a hole transport layer having a thickness of 600 Å, BH and BD were co-deposited on the hole transport layer at a weight ratio of 97:3 to form a first emission layer (blue) having a thickness of 200 Å, and TPM-TAZ and LiQ were co-deposited on the first emission layer at a weight ratio of 1:1 to form an electron transport layer having a thickness of 200 Å.
Subsequently, BCP and Li were co-deposited at a weight ratio of 99:1 to form an n-type charge generating layer having a thickness of 150 Å, and HAT-CN was deposited on the n-type charge generating layer to form a p-type charge generating layer having a thickness of 50 Å.
HLT1 was deposited on the p-type charge generating layer to form a hole transport layer having a thickness of 500 Å, BH and BD was co-deposited at a weight ratio of 97:3 on the hole transport layer to form a second emission layer (blue) having a thickness of 200 Å, and TPM-TAZ and LiQ were co-deposited at a weight ratio of 1:1 on the second emission layer having to form an electron transport layer having a thickness of 200 Å.
Subsequently, BCP and Li were co-deposited at a weight ratio of 99:1 to form an n-type charge generating layer having a thickness of 150 Å, and HAT-CN was deposited on the n-type charge generating layer to form a p-type charge generating layer having a thickness of 50 Å.
Subsequently, HLT1 was deposited to form a hole transport layer having a thickness of 400 Å, BH and BD was co-deposited at a weight ratio of 97:3 on the hole transport layer to form a third emission layer (blue) having a thickness of 200 Å, and TPM-TAZ and LiQ were co-deposited at a weight ratio of 1:1 on the third emission layer having to form an electron transport layer having a thickness of 200 Å.
Subsequently, BCP and Li were co-deposited at a weight ratio of 99:1 to form an n-type charge generating layer having a thickness of 150 Å, and HAT-CN was deposited on the n-type charge generating layer to form a p-type charge generating layer having a thickness of 50 Å.
Subsequently, HLT1 was deposited to form a hole transport layer having a thickness of 600 Å, Compounds GH1 and GH2 as a host (weight ratio of 5:5) and G-9 as a dopant were co-deposited on the hole transport layer to form a fourth emission layer (green) having a thickness of 200 Å (a doping concentration of 3 wt%).
ETL1 and LiQ were co-deposited at a weight ratio of 1:1 on the fourth emission layer to form an electron transport layer having a thickness of 300 Å.
Then, Yb was deposited thereon to a thickness of 10 Å, and Ag and Mg were co-deposited at a weight ratio of 9:1 to form a cathode having a thickness of 100 Å, thereby manufacturing a tandem light-emitting device.

Comparative Example 2

A light-emitting device was manufactured in the same manner as in Comparative Example 1, except that Compound 1-23 was deposited on the fourth emission layer to form a single buffer layer having a thickness of 200 Å, and an electron transport layer was formed.

Comparative Example 3

A light-emitting device was manufactured in the same manner as in Comparative Example 2, except that Compound 2-14 was deposited on the fourth emission layer to form a single buffer layer having a thickness of 200 Å, and an electron transport layer was formed.

Comparative Example 4

A light-emitting device was manufactured in the same manner as in Comparative Example 2, except that Compound 2-14 was deposited on the fourth emission layer to form a first buffer layer having a thickness of 100 Å, and then Compound 1-23 was deposited to form the second buffer layer having a thickness of 100 Å.

Example 1

A light-emitting device was manufactured in the same manner as in Comparative Example 1, except that Compound 1-23 was deposited on the fourth emission layer to form a first buffer layer having a thickness of 100 Å, and then Compound 2-14 was deposited to form the second buffer layer having a thickness of 100 Å.
The driving voltage, efficiency, and lifespan were measured at a current density of 10 mA/cm² to evaluate characteristics of the light-emitting devices manufactured in Comparative Examples 1 to 4 and Example 1. The results are shown in Table 2.
The driving voltage and the current density of the light-emitting devices were measured using a source meter (Keithley Instrument, 2400 series). The efficiencies of the light-emitting devices were measured using Hammamastu Absolute PL Measurement System C9920-2-12.

The LUMO energy level values of Host Compound GH-1 of the emission layer (green), GH-2, Buffer Layer Compounds 1-23 and 2-14, and Electron Transport Layer Compound ETL1 are shown in Table 1.

Table 1

Compound	LUMO energy level value (eV)
GH-1	-2.38
GH-2	-2.60
1-23	-2.40
2-14	-2.25
ETL1	-2.75

Table 2

	Structure	Driving voltage @100 nit (V)	Efficienc y @100 nit (Cd/A)	Efficienc y @1,000 nit (Cd/A)	Efficienc y @10,000 nit (Cd/A)	Lifespan @10,000 nit (T95)
Comparativ e Example 1	G-EML/ETL (No buffer)	100%	100%	91 %	80%	400 hours
Comparativ e Example 2	G-EML/Buffer 1/ETL	95 %	105 %	88%	75 %	350 hours
Comparativ e Example 3	G-EML/Buffer 2/ETL	115 %	95 %	92%	91 %	450 hours
Comparativ e Example 4	G-EML/Buffer 2/Buffer 1/ETL	115 %	97%	85 %	77%	380 hours
Example 1	G-EML/Buffer 1/Buffer 2/ETL	96%	102%	96%	93 %	430 hours

"G-EML" in Table 2 indicates a green emission layer.
The light-emitting device of Example 1 was found to have a low driving voltage, as compared with the light-emitting devices of Comparative Examples 1, 3, and 4.
The efficiency decreased greater, as the luminance was higher. For example, efficiency at 10,000 nit is each 80%, 75%, 91% and 77% in Comparative Examples 1 to 4, while efficiency at 10,000 nit is 93% in Example 1. Thus, the light-emitting device of Example 1 was found to have improved roll-off ratio, as compared with the light-emitting devices of the Comparative Examples.
The light-emitting device of Example 1 included two buffer layers, the absolute value of the LUMO energy level of the first buffer layer compound was smaller than the absolute value of the LUMO energy level of the host compound, the absolute value of the LUMO energy level of the second buffer layer compound was smaller than the absolute value of the LUMO energy level of the electron transport layer compound, and the absolute value of the LUMO energy level of the second buffer layer compound was smaller than the absolute value of the LUMO energy level of the first buffer layer compound.
The light-emitting device of Comparative Example 1 did not include a buffer layer, the light-emitting devices of Comparative Examples 2 and 3 each included a single buffer layer, and the light-emitting device of Comparative Example 4 included two buffer layers, but the LUMO energy level relationship in the compounds did not satisfy each of Equations (1) to (3).
As apparent from the foregoing description, a light-emitting device according to one or more embodiments may have excellent efficiency and long lifespan, as compared with devices in the related art.
Although certain embodiments and implementations have been described herein, other embodiments and modifications will be apparent from this description. Accordingly, the inventive concepts are not limited to such embodiments, but rather to the broader scope of the appended claims and various obvious modifications and equivalent arrangements as would be apparent to a person of ordinary skill in the art.

Claims

A light-emitting device comprising:
a first electrode;

a second electrode facing the first electrode; and

an interlayer located between the first electrode and the second electrode and comprising an emission layer,

wherein the emission layer comprises a host compound (H-1) and a dopant compound (D),

the interlayer comprises a first buffer layer comprising a first electron transporting compound (ET-1), a second buffer layer comprising a second electron transporting compound (ET-2), and an electron transport layer comprising a third electron transporting compound (ET-3),

an absolute value of a lowest unoccupied molecular orbital (LUMO) energy level of the first electron transporting compound (ET-1) is smaller than an absolute value of a LUMO energy level of the host compound (H-1),

an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the third electron transporting compound (ET-3), and

an absolute value of a LUMO energy level of the second electron transporting compound (ET-2) is smaller than an absolute value of a LUMO energy level of the first electron transporting compound (ET-1).
The light-emitting device of claim 1, wherein the first buffer layer is in contact with the emission layer.
The light-emitting device of claim 1 or claim 2, wherein the second buffer layer is in contact with the electron transport layer.
The light-emitting device of any one of claims 1 to 3, wherein the first buffer layer is in contact with the second buffer layer.
The light-emitting device of any one of claims 1 to 4, wherein the LUMO energy level of the first electron transporting compound (ET-1) and the LUMO energy level of the host compound (H-1) satisfy the following equation: $|E_{LUMO_ET - 1} - E_{LUMO_H - 1}| \leq 0.20 eV$
The light-emitting device of any one of claims 1 to 5, wherein the LUMO energy level of the second electron transporting compound (ET-2) and the LUMO energy level of the third electron transporting compound (ET-3) satisfy the following equation: $|E_{LUMO_ET - 2} - E_{LUMO_ET - 3}| \geq 0.20 eV$
The light-emitting device of any one of claims 1 to 6, wherein the LUMO energy level of the first electron transporting compound (ET-1) and the LUMO energy level of the second electron transporting compound (ET-2) satisfy the following equation: $|E_{LUMO_ET - 2} - E_{LUMO_ET - 1}| \leq 0.20 eV$
The light-emitting device of any one of claims 1 to 7, wherein the emission layer further comprises at least one other host compound, and an absolute value of a LUMO energy level of the at least one other host compound is smaller than or equal to an absolute value of the LUMO energy level of the host compound (H-1), optionally wherein a mol% of the host compound (H-1) is in a range of about 90 mol% to about 10 mol%, based on the total hosts in the emission layer.
The light-emitting device of any one of claims 1 to 8, wherein the first buffer layer further comprises at least one other electron transporting compound, and an absolute value of a LUMO energy level of the at least one other electron transporting compound is greater than or equal to an absolute value of a LUMO energy level of the first electron transporting compound (ET-1), optionally wherein a mol% of the first electron transporting compound (ET-1) is in a range of about 90 mol% to about 30 mol%, based on the total compounds in the first buffer layer.
The light-emitting device of any one of claims 1 to 9, wherein the second buffer layer further comprises at least one other electron transporting compound, and an absolute value of a LUMO energy level of the at least one other electron transporting compound is greater than or equal to an absolute value of a LUMO energy level of the second electron transporting compound (ET-2), optionally wherein a mol% of the second electron transporting compound (ET-2) is in a range of about 90 mol% to about 30 mol%, based on the total compounds in the second buffer layer.
The light-emitting device of any one of claims 1 to 10, wherein the dopant compound (D) is a phosphorescent dopant compound.
The light-emitting device of any one of claims 1 to 11, wherein the first electron transporting compound (ET-1) is selected from following compounds:
The light-emitting device of any one of claims 1 to 12, wherein the second electron transporting compound (ET-2) is selected from following compounds:
The light-emitting device of any one of claims 1 to 13, wherein the dopant compound (D) is selected from Compounds G-1 to G-12:
The light-emitting device of any one of claims 1 to 14, wherein the interlayer comprises: emission units in the number of m; and charge generating unit(s) in the number of (m-1), between the emission units that are adjacent to each other, and
any one unit of the emission units in the number of m comprises the emission layer, the first buffer layer, the second buffer layer, and the electron transport layer.
The light-emitting device of claim 15, wherein the emission units in the number of m comprise 1 to 7 blue emission units.
An electronic apparatus comprising the light-emitting device of any one of claims 1 to 16.
