Abstract

There are prepared compounds of the formulae
Figure imga0001
Figure imga0002
 where R is a lower alkyl, chlorine, or bromine and n is an integer from 1 to 5. The compounds of formula (1) can be used to make erythro-9-(2-hydroxy-3-nonyl) hypoxanthine and its homologues and also to make the compounds of formulae (2) and (3). All three classes of compounds are useful as immunomodulators.

Description

    BACKGROUND OF THE INVENTION
  • Simon U.S. patents 4,221,909 and 4,211,794 and Giner-Sorolla U.S. patent 4,221,910 and Faanes International Journal of Immunopharmacology, Vol. 2, No. 3, page 197 (1980), Florentine, International Journal of Immunpharmacology, Vol. 2, No. 3, page 240 (1980), Hadden, International Journal of Immunopharmacology, Vol. 2, No. 3, page 198 (1980), Pahwa, International Journal of Immunopharmacology, Vol. 2, No. 3, page 199 (1980), Wybran, International Journal of Immunopharmacology, Vol. 2, No. 3, page 201 (1980) and Simon, 4th International Congress of Immunology, Paris (1980) show that erythro-9-(2- hydrcxy-3-nonyl)-hypoxanthine (NPT 15392), as well as other members of the series described in the patents cited above are potent immunomodulating agents which have been demonstrated to enhance depressed immunity in both animals possessing tumors, Sato, International Journal of Immunopharmacology, Vol. 2, No. 3, page 200 (1980), as well as in humans with various tumors, Simon, American Chemical Society Book of Abstracts, 182nd American Chemical Society Meeting (1981). While the synthesis of these therapeutically useful agents can be carried out by the methods described in the patents cited above, their production, e.g. the production of NPT 15392, on a large scale using those methods was cumbersome, costly, and time consuming.
    • SUMMARY OF THE INVENTION

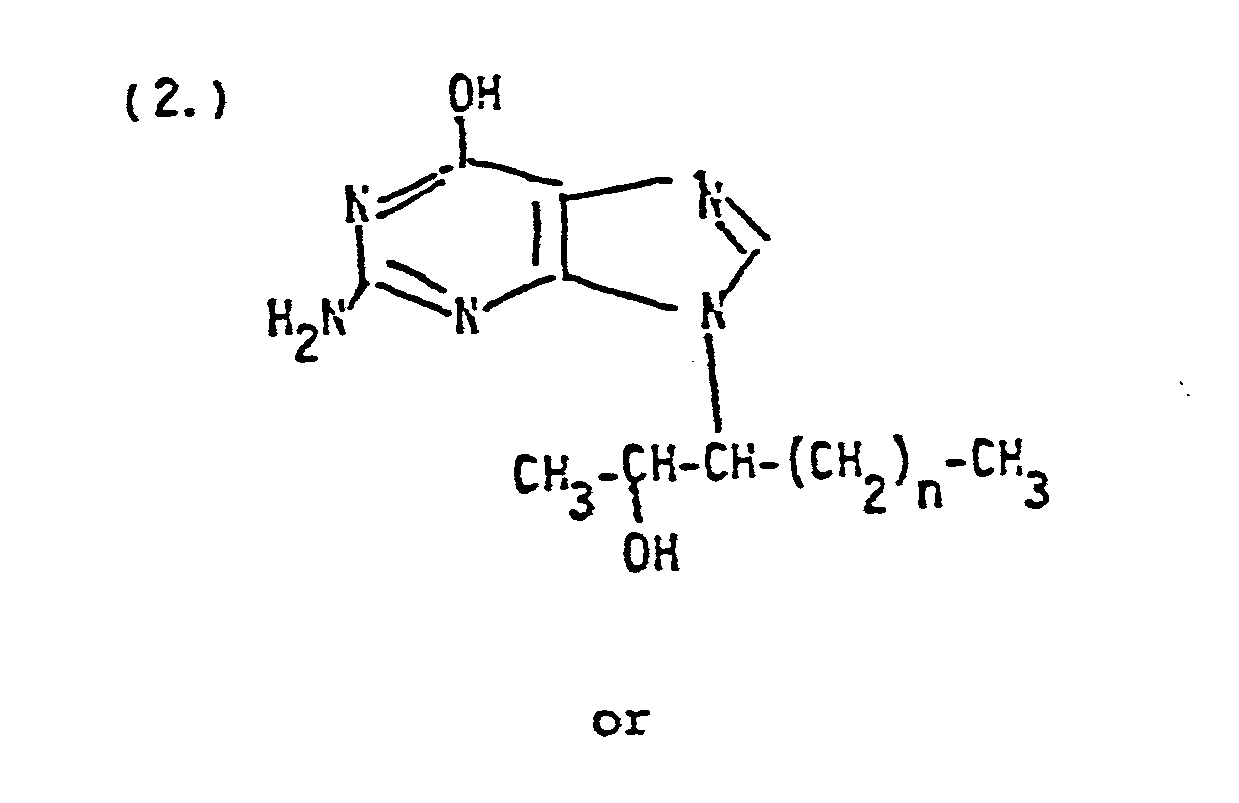

  • There are prepared compounds of the formulae
    Figure imgb0001
    Figure imgb0002
    Figure imgb0003
     where R is lower alkyl, e.g. of 1 to 4 carbon atoms such as methyl, ethyl, propyl, or butyl or halogen of atomic weight 35 to 80, i.e. chlorine or bromine.
  • The compound erythro-3-(2-hydroxy-3-nonyl)-4-amino-imidazole-5-carboxamide (NPT 15459) is useful in producing NPT 15392 and its homologues of formula (1) above are useful in making the corresponding homologues of NPT 15392. In addition to being useful in making NPT 15392 and its homologues, NPT 15459 and its homologues are useful in preparing novel analogues of NPT 15392 (and its homologues which contain various functional groups in the 2-position of the purine ring, e.g. the compounds of formulae (2) and (3). Such derivatives would be difficult to prepare without the aid of NPT 15359 and its homologues.
  • The compounds of formulae (1), (2), and (3) also have immunomodulating or immunopotentiating activity.
  • An immunopotentiator or immunomodulator is any agent which either restores depressed immune function, or enhances normal immune function, or both. Immune function is defined as the development and expression of humoral (antibody-mediated) immunity, cellular (thymocyte-mediated) immunity, or macrophage and granulocyte mediated resistance. It logically includes agents acting directly on the cells involved in the expression of immune response, or on cellular or molecular mechanisms which, in turn, act to modify the function of cells involved in immune response. Augmentation of immune function may result from the action of an agent to abrogate suppressive mechanisms derived by negative-feedback influences endogenous or exogenous to the immune system. Thus, immune potentiators have diverse mechanisms of action. Despite the diversity of cell site of action and biochemical mechanism of action of immunopotentiators, their applications are essentially the same; that is, to enhance host resistance.
    • Applications of Immunopotentiators
    • 1) The principal protective function of the immune system relates to resistance to invasion by pathogens, including viruses, rickettsia, myco- plasma, bacteria, fungi, and parasites of all types. Thus, improvement of immune response, particularly when depressed, would calculatedly improve resistance in infection or infestation by any of the above pathogens. An immunopotentiator alone or in combination with anti-infective therapy can be applied to any and all infectious diseases.
    • 2) A second protective function of the immune system is thought to be resistance to engraftment of foreign tissue, either natural as in the fetal-maternal relationship; or unnatural as performed by the transplant physician. Immunopotentiators can also be used to facilitate rejection of fetal or placental tissues or to modify or induce tolerance to grafts.
    • 3) A third protective function of the immune system is thought to be resistance to malignant cell development as in cancer. The use of immunopotentiators can be used in cancer treatment to enhance tumor rejection and to inhibit tumor recurrences followling other forms of therapy.
    • 4) A fourth protective function involves the capacity to recognize foreignness and to maintain nonreactivity to self by positive suppressor mechanisms. In auto-immune and related disorders, immune reactivity directed at self antigens or exaggerated, elevated responses are apparent which are self-destructive. Immunopotentiators can be used to restore normal suppressor mechanisms, induce tolerance, or otherwise promote a normal immune response.
  • Each of the protective functions of the immune system can be modified by non-specific therapy with immunopotentiators alone or in combination with other agents employed to improve resistance or to kill the invading pathogen. In addition, specific resistance can be augmented by use of immunopotentiators in conjunction with some form of antigen as in a vaccine employing, for example, virus, tumor cells, etc. This use can be to induce either specific immunity or tolerance. The latter might be exemplified by use with antigen in allergy or auto-immune diseases. Use of immunopotentiators may be either therapeutic or prophylactic; the latter particularly in aging, where infection, auto-immunity, and cancer are more common. The timing of administration and routes are variable and may be critical in determining whether a positive or negative response results. Any agent capable of augmenting immune response may inhibit it depending on timing and dose; thus, under certain circumstances an immunopotentiator could be used as an immunosuppressive agent for use in allergy, auto-immunity and transplantation.
  • Various procedures for determining immunomodulating activity are shown in Simon E.P.O. published application 0036077,
  • Illustrative of compounds within the invention in addition to NPT 15459 are:
    • erythro-3-(2-hydroxy-3-amyl)-4-amino- imidazole-5-carboxamide,
    • erythro-3-(2-hydroxy-3-hexyl)-4-amino- imidazole-5-carboxamide,
    • erythro-3-(2-hydroxy-3-heptyl)-4-amino- imidazole-5-carbozamide,
    • erythro-3-(2-hydroxy-3-octyl)-4-amino- imidazole-5-carboxamide,
    • erythro-9-(2-hydroxy-3-nonyl)-2-amino-hypoxanthine,
    • erythro-9-(2-hydroxy-3-amyl)-2-amino-hypoxanthine,
    • erythro-9-(2-hydroxy-3-hexyl)-2-amino-hypoxanthine,
    • erythro-9-(2-hydroxy-3-heptyl)-2-amino-hypoxanthine,
    • erythro-9-(2-hydroxy-3-octyl)-2-amino-hypoxanthine,
    • erythro-9-(2-hydroxy-3-nonyl)-2-chloro- hypoxanthine,
    • erythro-9-(2-hydroxy-3-amyl)-2-chloro- hypoxanthine,
    • erythro-9-(2-hydroxy-3-hexyly-2-chloro- hypoxanthine,
    • erythro-9-(2-hydroxy-3-heptyl)-2-chloro- hypoxanthine,
    • erythro-9-(2-hydroxy-3-octyl)-2-chloro- hypoxanthine,
    • erythro-9-(2-hydroxy-3-nonyl)-2-bromo- .hypoxanthine, erythro-9-(2-hydroxy-3-amyl)-2-bromo- hypoxanthine,
    • erythro-9-(2-hydroxy-3-nonyl)-2-methyl- hypoxanthine, erythro-9-(2-hydroxy-3-amyl)-2-methyl- hypoxanthine,
    • erythro-9-(2-hydroxy-3-hexyl)-2-methyl- hypoxanthine,
    • erythro-9-(2-hydroxy-3-heptyl)-2-methyl- hypoxanthine,
    • erythro-9-(2-hydroxy-3-octyl)-2-methyl- hypoxanthine,
    • - erythro-9-(2-hydroxy-3-nonyl)-2-ethyl- hypoxanthine,
    • erythro-9-(2-hydorxy-3-hexyl)-2-ethyl- hypoxanthine, and
    • erythro-9-(2-hydroxy-3-amyl)-2-ethyl- hypoxanthine.
    BRIEF DESCRIPTION OF THE DRAWINGS
    • Figure 1 is the IR-spectrum of NPT 15459, and
    • Figure 2 is the UV-spectrum of NPT 15459.
    DETAILED DESCRIPTION
  • The synthesis of NPT 15459 is carried out according to the scheme presented below:
    Figure imgb0004
    Figure imgb0005
  • The other compounds within formula (1) can be prepared in the same manner by replacing erythro-3-amino-2-nonanol by the corresponding aminoalcohol, e.g. erythro-3-amino-2-pentanol and erythro-3-amino-2-octanol. In place of ethyl orthoformate there can be used other lower alkyl orthoformates, e.g. methyl orthoformate, propyl orthoformate and butyl orthoformate.
    • Example 1 Synthesis of Erythro-3-(2-hydroxy-3-nonyl)-4-amino-imidazole-5-carboxamide (NPT 95459 (V))
  • For improved yield, reactions (1) and (2) above are carried out sequentially without isolation of the intermediate product III. 2-amino-2-cyano- acetamide (1) (171 g, 1.71 moles) is suspended in 2200 ml of acetonitrile. Orthoformic acid triethylester (II) (334 ml - 2.0 moles) and 2 ml of pyridine are added to the suspension with stirring. The suspension is heated to reflux temperature, using an oil bath preheated to 100°C. The suspension is held at boiling temperature for 40 to 60 minutes. III is produced in situ. 272.5 g of erythro-3-amino-2-nonanol (IV) (1.71 moles) are then added over a 3 to 5 minute period and boiling is continued for an additional 10 to 15 minutes. The reaction is quickly chilled to room temperature. The erythro-3-(2-hydroxy-3-nonyl)-4-amino-imidazole-5-carboxamide (NPT 15459) (V) crystallizes. It is filtered by suction, washed with a small amount of acetonitrile and dried in vacuo at 70°C.
  • Yield: 330.4 g, 72% of theory Melting point (after recrystallization from acetonitrile): 154-158°C.
  • SUMMARY OF CHEMICAL PROPERTIES OF (NPT 15459)
    Figure imgb0006
  • Identity
    Figure imgb0007
    • UTILIZATION OF NPT 15459 TO PRODUCE NPT 15392
  • The reaction scheme described below illustrates the use of NPT 15459 in the synthesis of NPT 15352:
    • Reaction Scheme:
      Figure imgb0008
  • The homologues of NPT 15392 can be prepared in the same manner from the corresponding homologues of NPT 15459. In place of ethyl orthoformate there can be employed the other lower alkyl orthoformates, e.g. the methyl, propyl, and butyl orthoformates. In forming NPT 15392 the acetic anhydride forms the acetate of NPT 15392 and this is then hydrolized with alkali, e.g. sodium hydroxide.
  • In place of an orthoformic acid ester formic acid can also be used.
    • Example 2 UTILIZATION OF NPT 15459 TO PRODUCE NPT 15392. (Erythro-9-(2-hydroxy-3-nonyl)hypoxanthine)
  • 415 g of erythro-3-(2-hydroxy-3-nonyl)-4-amino-imidazole-5-carboxamide (V) (1.55 moles) are suspended in 385 ml of orthoformic acid triethylester. 220 ml of acetic acid anhydride are added with stirring. The suspension that is obtained is heated with stirring up to 100-105°C. An exothermic reaction ensues with liberation of ethanol. The liberated ethanol is separated by distillation. The temperature of the reaction mixture is increased slowly up to 130-140°C. Stirring is continued for about 3 hours, while the liberated ethanol is continuously separated by distillation. The reaction mixture is concentrated to a viscous syrup, which is stirred into a mixture of 415 ml of 30% aqueous NaOH and 1.68 liter of water. The brown solution is slightly acidified by addition of a solution of 123 ml of acetic acid in 1.5 liter of water. Erythro-9-(2-hydroxy-3-nonyl)-hypoxanthine (VI) crystallizes, is filtered by suction, washed with water and dried in vacuo at 60°C. Yield: 350 g corresponding to 81.4% of theory Melting point (after repeated recrystallization from aqueous ethanol): 200-201°C Content by titration: 99.4% Content of threo isomer: 0.9%
    • UTILIZATION OF NPT 15459 TO PRODUCE NOVEL DERIVATIVES OF NPT 15392
  • NPT 15459 and its homologues possess the ability to react with a variety of reagents which could lead to ring closure and the production of novel purine derivatives. By the judicious choice of reagents, it is possible to produce a number of 2-substituted derivatives of NPT 15392 and its homologues that could not be produced by other means. The scheme provided in the following diagram illustrates a number of such examples.
    Figure imgb0009
    erythro-2-amino-g-(2-hydroxy-3-nouyl)-hypoxuathine
  • In the reaction scheme just set forth R1 is the group
    Figure imgb0010
  • The 2,6-dichloro-purine compound in the above scheme can be converted to the 2-chloro hypoxanthine using conventional procedures, e.g. by refluxing with sodium hydroxide in the manner shown in Simon U.S. patent 4,221,909 Method D. The latter compound can then be converted to the corresponding 2-amino-hypoxanthine by reacting with methanolic ammonia in a manner analogous to that shown in Simon U.S. patent 4,221,909 Method B.
  • Compounds of formula (3) where R is methyl can be made by reacting NPT 15459 or its homologues with ethyl orthcacetate rather than ethyl orthoformate. Compounds of formula (3) where R is ethyl can be made in similar manner by reacting NPT 15459 with ethyl orthopropionate.
  • The immunomodulating activity of NPT 15459 was determined. The results are set forth below in Tables 1 and 2.
  • In Table 1 the effect of NPT 15459 on con A Induced Proliferation is described. The procedure is described in Simon U.S. patent 4,221,909, column 24, line 12 to column 25, line 10.
  • In Table 1 the effect of NPT 15459 on LPS Induced Proliferation is described.
  • In Table 2 the SRBC Induced Antibody Formation procedure employed was that shown in Simon EPO application 0036077 page 46.
    Figure imgb0011
    Figure imgb0012
    • Formulations
  • The compounds of the present invention can be fed to a mammal at a dosage of 1-1000 mg/kg of body weight and could be anticipated to be active at levels as low as 0.0005 mg/kg.

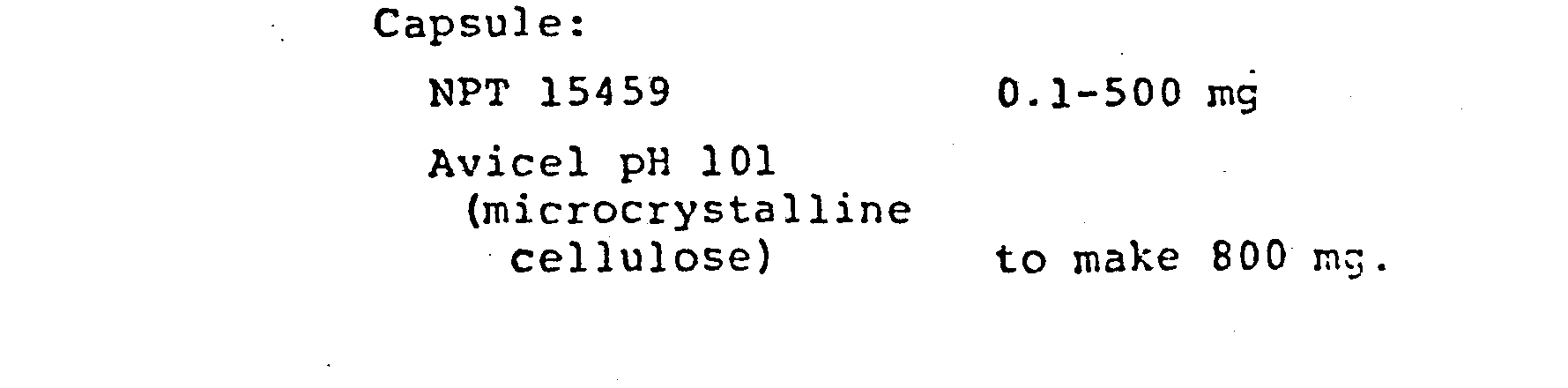

  • It is anticipated they may be administered in tablet or capsule form to humans and where solubility permits in the form of an aqueous syrup, or as solutions in oil, or where insoluble as a supension. Typical pharmaceutical formulations are described below:
    Figure imgb0013
     Suspension
  • Aqueous suspensions can be made with a number of suspending agents incorporated with the active drug substances. Included as suspending agents are such substances as sodium carboxymethylcellulose, Na alginate gum, tragacanth, Avicel RC-591 (microcellulose), methylcellulose, Veegum, Xanthan gum. In addition to a suspending agent such substances as sweetners, flavors, colorants, preservatives, protective colloids, and dispersants may be added.
    • Syrup Formulation
  • Figure imgb0014
     Tablet Formulation
    Figure imgb0015

Claims (19)

1. A compound having one of the formulae
Figure imgb0016
Figure imgb0017
or
Figure imgb0018
 where R is a lower alkyl, chlorine, or bromine and n is an integer from 1 to 5.
2. A compound according to claim 1 having formula (1).
3. A compound according to claim 1 having formula (2)..
4. A compound according to claim 1 having formula (3).
5. A compound according to claim 4 where R is lower alkyl.
6. A compound according to claim 4 wherein R is chlorine or bromine.
7. A method of preparing a compound of claim 1 having formula (1) comprising reacting 2-amino-2-cyano-acetamine with an equimolar amount of a lower alkyl orthoformate to form a compound having the formula
Figure imgb0019
where R2 is lower alkyl and reacting this compound with an equimolar amount of erythro
Figure imgb0020
. 8. A process according to claim 7 carried out in the presence of acetonitrile as a solvent and pyridine as a catalyst.
9. A process of preparing a compound of the formula
Figure imgb0021
comprising reacting a compound of formula (1) of claim 1 with an equimolar amount of a lower alkyl orthoformate in the presence of acetic anhydride.
10. A process according to claim 9 comprising removing the alcohol formed in the reaction and adding alkali after removing the alcohol to neutralize the acetic anhydride.
ll. A process of preparing a compound having the formula
Figure imgb0022
 comprising reacting a compound of formula (1) of claim 1 with an equimolar amount of cyanogen bromide.
12. A process of preparing a compound having the formula
Figure imgb0023
comprising reacting a compound of formula (1) of claim 1 with
Figure imgb0024
where X- is the anion of an acid.
13. A process of preparing a compound of the formula (4)
Figure imgb0025
 comprising reacting a compound of formula (1) of claim 1 with an equimolar amount of phosgene.
14. A process according to claim 13 including the additional step of replacing the two ring attached oxygen atoms with chlorine or bromine comprising reaction 1 mole of the compound of formula (4) with 2 moles of POCl3 or POBr3.
15. A composition comprising a compound according to any one of Claims 1 to 6 and a pharmaceutical carrier.
16. A composition according to Claim 15 in unit dosage form..
17. A compound according to any one of Claims 1 to 6 for use as an immunomodulator or an immunopotentiator.
18. Use of a compound according to Claim 1 having formula (1) for preparing erythro-9-(2-hydroxy-3-nonyl) hypoxanthine and its homologues, or for preparing a compound of formula (2) or (3).
EP83302986A 1983-05-24 1983-05-24 Process for preparing imidazole compounds Expired - Lifetime EP0126813B1 (en)

Priority Applications (4)

Application Number Priority Date Filing Date Title
HU85312A HUT36464A (en) 1983-05-24 1983-01-31 Process for producing erythro-4-amino-3-/2-hydroxy-3-alkyl/-imidazol-5-carboxamide
EP83302986A EP0126813B1 (en) 1983-05-24 1983-05-24 Process for preparing imidazole compounds
DE8383302986T DE3382080D1 (en) 1983-05-24 1983-05-24 METHOD FOR PRODUCING IMIDAZOLE COMPOUNDS.
AT83302986T ATE59639T1 (en) 1983-05-24 1983-05-24 PROCESS FOR THE PREPARATION OF IMIDAZOLE COMPOUNDS.

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
EP83302986A EP0126813B1 (en) 1983-05-24 1983-05-24 Process for preparing imidazole compounds

Publications (2)

Publication Number Publication Date
EP0126813A1 true EP0126813A1 (en) 1984-12-05
EP0126813B1 EP0126813B1 (en) 1991-01-02

Family

ID=8191164

Family Applications (1)

Application Number Title Priority Date Filing Date
EP83302986A Expired - Lifetime EP0126813B1 (en) 1983-05-24 1983-05-24 Process for preparing imidazole compounds

Country Status (4)

Country Link
EP (1) EP0126813B1 (en)
AT (1) ATE59639T1 (en)
DE (1) DE3382080D1 (en)
HU (1) HUT36464A (en)

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GR900100212A (en) * 1989-03-20 1990-07-31 Gea Farmaceutisk Fabrik As A process for the preparation of 9-substituted guanine derivatives and intermediates for use in the process
CN1318029C (en) * 1995-07-21 2007-05-30 巧妙疗法股份有限公司 Use of aminoimidazole carboxamide and 5-amino or substituted amino 1,2,3-triazole salt in preparation of pharmaceutical composition for treating and preventing tumors

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US4221909A (en) * 1978-09-15 1980-09-09 Sloan-Kettering Institute For Cancer Research P-Acetamidobenzoic acid salts of 9-(hydroxyalkyl) purines
EP0036077A2 (en) * 1980-03-14 1981-09-23 Newport Pharmaceuticals International, Inc. Esters of hydroxylalkyl-purines, processes for preparing them and therapeutical composition containing these esters as active ingredients
EP0066909A2 (en) * 1981-05-15 1982-12-15 FISONS plc Imidazole derivatives, pharmaceutical compositions containing them and processes for their production
EP0072027A1 (en) * 1981-08-11 1983-02-16 The Wellcome Foundation Limited Antiviral compounds

Family Cites Families (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
IL64501A (en) * 1980-12-22 1985-07-31 Astra Laekemedel Ab 9-substituted 4-hydroxybutyl guanine derivatives,their preparation and antiviral use

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US4221909A (en) * 1978-09-15 1980-09-09 Sloan-Kettering Institute For Cancer Research P-Acetamidobenzoic acid salts of 9-(hydroxyalkyl) purines
EP0036077A2 (en) * 1980-03-14 1981-09-23 Newport Pharmaceuticals International, Inc. Esters of hydroxylalkyl-purines, processes for preparing them and therapeutical composition containing these esters as active ingredients
EP0066909A2 (en) * 1981-05-15 1982-12-15 FISONS plc Imidazole derivatives, pharmaceutical compositions containing them and processes for their production
EP0072027A1 (en) * 1981-08-11 1983-02-16 The Wellcome Foundation Limited Antiviral compounds

Non-Patent Citations (1)

* Cited by examiner, † Cited by third party
Title
JOURNAL OF THE CHEMICAL SOCIETY. PERKIN I., Nr. 17, 1976 W.F. KEIR et al. "Amidinoacetamides in the synthesis of pyrimidines, imidazoles and purines", pages 1847-1852 *

Cited By (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GR900100212A (en) * 1989-03-20 1990-07-31 Gea Farmaceutisk Fabrik As A process for the preparation of 9-substituted guanine derivatives and intermediates for use in the process
WO1990011283A1 (en) * 1989-03-20 1990-10-04 A/S Gea Farmaceutisk Fabrik A process for the preparation of 9-substituted guanine derivatives and intermediates for use in the process
US5223619A (en) * 1989-03-20 1993-06-29 A/S Gea Farmaceutisk Fabrik Process for the preparation of 9-substituted guanine derivatives
HRP920907A2 (en) * 1989-03-20 1994-04-30 A/S Gea Farmaceutisk Fabrik A process for the preparation of 9-substituted guanine derivatives and intermediates for use in the process
CN1318029C (en) * 1995-07-21 2007-05-30 巧妙疗法股份有限公司 Use of aminoimidazole carboxamide and 5-amino or substituted amino 1,2,3-triazole salt in preparation of pharmaceutical composition for treating and preventing tumors

Also Published As

Publication number Publication date
EP0126813B1 (en) 1991-01-02
ATE59639T1 (en) 1991-01-15
DE3382080D1 (en) 1991-02-07
HUT36464A (en) 1985-09-30

Similar Documents

Publication Publication Date Title
US4181658A (en) Certain nicotinamido-n-benzoic acid derivatives
US4233303A (en) Xanthine derivatives
US4451478A (en) Imidazole compounds
IL29569A (en) 1,4-dihydropyridine derivatives and their production
EP0308897A1 (en) Quinoline derivatives
RU1796625C (en) 3-amino-7-nitro-4-(2,3,4-trimethoxyphenyl)-2-phenyl-1(2h) isoquinolone having analeptic effect
JPS6136282A (en) Medicine comprising heterocyclic compound containing nitrogen and manufacture
EP0126813B1 (en) Process for preparing imidazole compounds
US4602089A (en) Process for preparing purine compounds
CA1270248A (en) Imidazole compounds as immunomodulating agents
US3457273A (en) Derivative of phenylbutazone
NZ212631A (en) Process for the preparation of erythro-9-(2-hydroxy-3-(c5-9 alkyl)hypoxanthine derivatives
SU1579459A3 (en) Method of obtaining derivatives of 1-methylaminoquinolinecarboxylic acid or their salts connecting pharmaceutically acceptable acids
US4524147A (en) Uracil derivatives, process for preparing same, and pharmaceutical compositions comprising same
US3518256A (en) 2 - (2 - (5 - nitro - 2 - furyl)vinyl)pyridine derivatives and process for preparation thereof
US3998955A (en) Antihypertensive compositions
KR890000615B1 (en) Preparation method for imidazole compounds
EP0025965A2 (en) Organogermanium compounds, a method for producing them and pharmaceutical compositions comprising them
JPH0751572B2 (en) Heterocyclic disulfite
US5395936A (en) 7-(4-[4-aminophenyl)sulphonyl]-1-piperazinyl fluorquinolonic derivatives and synthesis
US3468889A (en) O-and/or s-nicotinoyl diacylthiamines and acylation process for preparing the same
KR810001697B1 (en) Novel Method for Preparing Isobutyramid Derivatives
US3271402A (en) Carbon-z-thiobarbituric acids
US4209525A (en) Imidazole acetic acid derivatives
US4001415A (en) Composition for and method of treating diseases caused by protozoa

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

AK Designated contracting states

Designated state(s): AT BE CH DE FR GB IT LI LU NL SE

17P Request for examination filed

Effective date: 19850522

17Q First examination report despatched

Effective date: 19860916

GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): AT BE CH DE FR GB IT LI LU NL SE

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SE

Effective date: 19910102

Ref country code: AT

Effective date: 19910102

REF Corresponds to:

Ref document number: 59639

Country of ref document: AT

Date of ref document: 19910115

Kind code of ref document: T

REF Corresponds to:

Ref document number: 3382080

Country of ref document: DE

Date of ref document: 19910207

ITF It: translation for a ep patent filed
ET Fr: translation filed
PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LI

Effective date: 19910531

Ref country code: CH

Effective date: 19910531

PLBE No opposition filed within time limit

Free format text: ORIGINAL CODE: 0009261

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT

26N No opposition filed
REG Reference to a national code

Ref country code: CH

Ref legal event code: PL

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 19920420

Year of fee payment: 10

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: GB

Payment date: 19920421

Year of fee payment: 10

Ref country code: DE

Payment date: 19920421

Year of fee payment: 10

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: BE

Payment date: 19920514

Year of fee payment: 10

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: LU

Payment date: 19920521

Year of fee payment: 10

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: NL

Payment date: 19920531

Year of fee payment: 10

EPTA Lu: last paid annual fee
PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LU

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 19930524

Ref country code: GB

Effective date: 19930524

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: BE

Effective date: 19930531

BERE Be: lapsed

Owner name: NEWPORT PHARMACEUTICALS INTERNATIONAL INC.

Effective date: 19930531

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: NL

Effective date: 19931201

NLV4 Nl: lapsed or anulled due to non-payment of the annual fee
GBPC Gb: european patent ceased through non-payment of renewal fee

Effective date: 19930524

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: FR

Effective date: 19940131

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: DE

Effective date: 19940201

REG Reference to a national code

Ref country code: FR

Ref legal event code: ST
