Abstract

A Buckle for Waist straps made of leather or synthetic fibers vaulting, - lungier, - or Chains characterized in that on a conventional above straps at the end on both sides ever a large D-ring (1) (1.1) made of metal, by means of flat rivets and or sewn and / or glued, is arranged.

Description

The Invention relates to a leather or synthetic fibers formed, Vaulting, - lunging, or girth.

such Vaulting, - lunging, - or driving belts are being distributed for the works used with a horse.

Usually In this case, two belly strips are attached to the straps, which by means of a gut belt from the classic riding style held on the horse's body become. The usual Allow for belly stripping a Nachgurten the abdominal belt to slip the o.g. belts to prevent / reduce.

It it has now been found that such abdominal stripping the Nachgurten not exactly easier. One is forced by means of great expenditure of energy the strap securely on the horse's body to fix, or to take a belt tensioner to help, often The horse on the stomach feel an unpleasant great pressure.

With the invention is achieved that the known vaulting, - Lunging, - and belts are trained, a buckling to the Nachgurten create which comfortably and with less effort too deal with is.

to solution the task is at the lower end of the belt, the conventional Buckling (2 belly stripping) by a large D-ring replaced.

An embodiment of the invention will be described with reference to 1 to 4 explained. Show it:

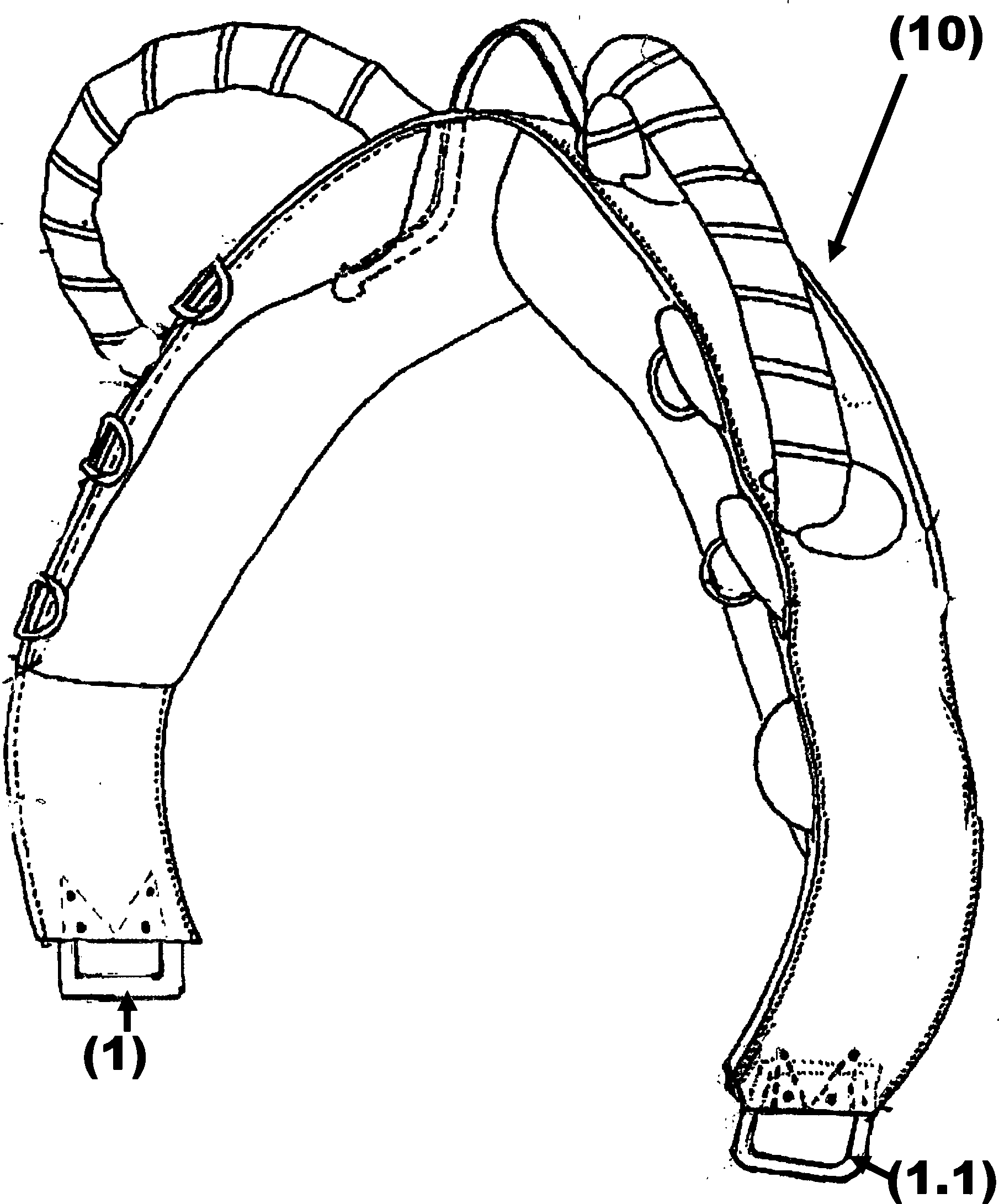

1 an example taken vaulting belt, with D-ring belting

2 a side view of the right belt with the D-ring, for buckling with short leather strap

3 a side view of the left belt with the D-ring for buckling with a long leather strap

4 Belly strap for attaching the strap to the horse's abdomen

1

Here is an example of a vaulting belt ( 10 ) taken with 2 large D-ring ( 1 u. ( 1.1 ) has been shown.

2 :

The D-ring ( 1 ) respectively. ( 1.1 ) is at the bottom of the belt, sewn between the upper and lower leather of the belt, glued and / or riveted to ensure a secure stability.

At this D-ring then on one side (here the right side) a double leather strap ( 2 ), about 4.5 cm wide and about 0.20 m in length, (measured simply), attached, which is provided by the vertical line of the belt with a series of holes attached. There is also the possibility of a longer strap ( 3 ), which is in 3 is described at ( 1.1 ), as you like.

4

This belt ( 2 ) is fitted with a waist belt ( 5 ), by ( 6 ), connected by the leather strap through the D-ring ( 6 ) and the D-ring mandrel ( 8th ) into a hole of the belt ( 2 ) is introduced. The belly strap is about 26 '' (66 cm) long. This can also have a shorter or longer dimension. The abdominal belt ( 5 ) can be made of leather, synthetic fibers or animal materials, such as mohair, wool. The abdominal belt has an eyelet / small D-ring in its middle at the outer edge ( 9 ) on. Auxiliary reins can be attached to this

3 :

On the other side of the strap (here on the left side), a long leather strap ( 3 ), about 4.5 cm wide and about 0.50 m also provided with holes through the vertical of the belt, on the D-ring ( 1 ) attached. The leather strap ( 3 ) can be customized to the desired length.

Execution:

Now to clarify how easy it is now the Nachgurten, take the waist belt ( 5 ) attached to the belt ( 2 ) is fastened under the horse's belly by to the left side of the horse to the belt ( 3 ). The longer strap ( 3 ) leads from the top through the D-ring ( 6 ) of the abdominal belt, then back up, from the front to the back through the D-ring ( 1 ) between the horse's stomach and the belt ( 3 ), Towards the abdominal belt downwards, and again through the ring ( 6 ). The whole 2 ×, so that a pulley effect arises. Now you can pull on the remaining end of the belt ( 3 ), by the resulting leverage the abdominal belt ( 5 ) fixed to the equine abdomen without much effort. The thorn ( 8th ) of the abdominal belt ( 5 ) is then inserted into a hole in the belt ( 3 ), thus a self-opening of the abdominal belt ( 5 ) not possible. The remaining end is replaced by the incorporated support loops ( 7 ) on the abdominal belt ( 5 ) postponed. The opening of the abdominal belt is also done without much effort, only in the reverse order.

1

D-ring right side

1.1

D-ring left side

2

short belt

3

longer belt

4

re. Belt Page

5

waist belt

6

D-ring from abdominal belt

7

loops

8th

mandrel from D-ring

9

Eye / D-ring

10

Voltigiergurt

Claims (7)

A buckling for abdominal straps made of leather or synthetic fibers vaulting, - Lunging, - or Fahrgurten characterized in that on a conventional belt mentioned above at the end on both sides each have a large D-ring ( 1 ) ( 1.1 ) made of metal, by means of flat rivets and or sewn and or glued, is arranged. Belt according to claim 1, characterized in that, at one end of the belt on the D-ring ( 1.1 ) a shorter belt ( 2 ) is attached. Belt according to claim 1, characterized in that, at one end of the belt on the D-ring ( 1 ) a longer belt ( 3 ) is attached. Belt according to claim 1, characterized in that, on the short belt ( 2 ) a waist belt ( 5 ) with D-rings ( 6 ), is fastened. Belt according to claim 1 according to at least one of claims 1-4, characterized in that, at both ends of the belt at the D-rings ( 1 ) and ( 1.1 ) a longer belt ( 3 ) is attached. Belt according to claim 1 or 3-5, characterized in that, the abdominal belt ( 5 ) with the longer strap ( 3 ) is closed. Belly belt according to claim 1, characterized in that, these retaining loops ( 7 ) has around the tail of the longer belt ( 3 ), one eyelet / small ring ( 9 ) made of metal for auxiliary reins, that this worked straight or anatomically shaped (as in 3 ).
