Abstract
本发明公开了一种能够把混杂的硬币自动分类的装置。适用于伍分、贰分、壹分等混杂硬币的分类。
把混杂的硬币投入落币口后，不同值的硬币即被分开，分装在各自抽屉中。
The invention discloses a device capable of automatically sorting mixed coins. It is suitable for the classification of mixed coins such as five cents, two cents and one cent.
After the mixed coins are put into the coin drop slot, the coins of different values are separated and packed in their respective drawers.
Description
The invention relates to a device capable of automatically classifying mixed coins.
The basic principle of the invention is as follows: when the coins roll downwards along the coin sliding inclined rail by means of dead weight, two coins of five minutes, two coins of two minutes and one minute coins of different diameters are separated by the aid of two guide bent plates which are arranged on the coin sliding inclined rail and are different in height from the rail bottom.
The invention will be described in detail below with reference to the following drawings:

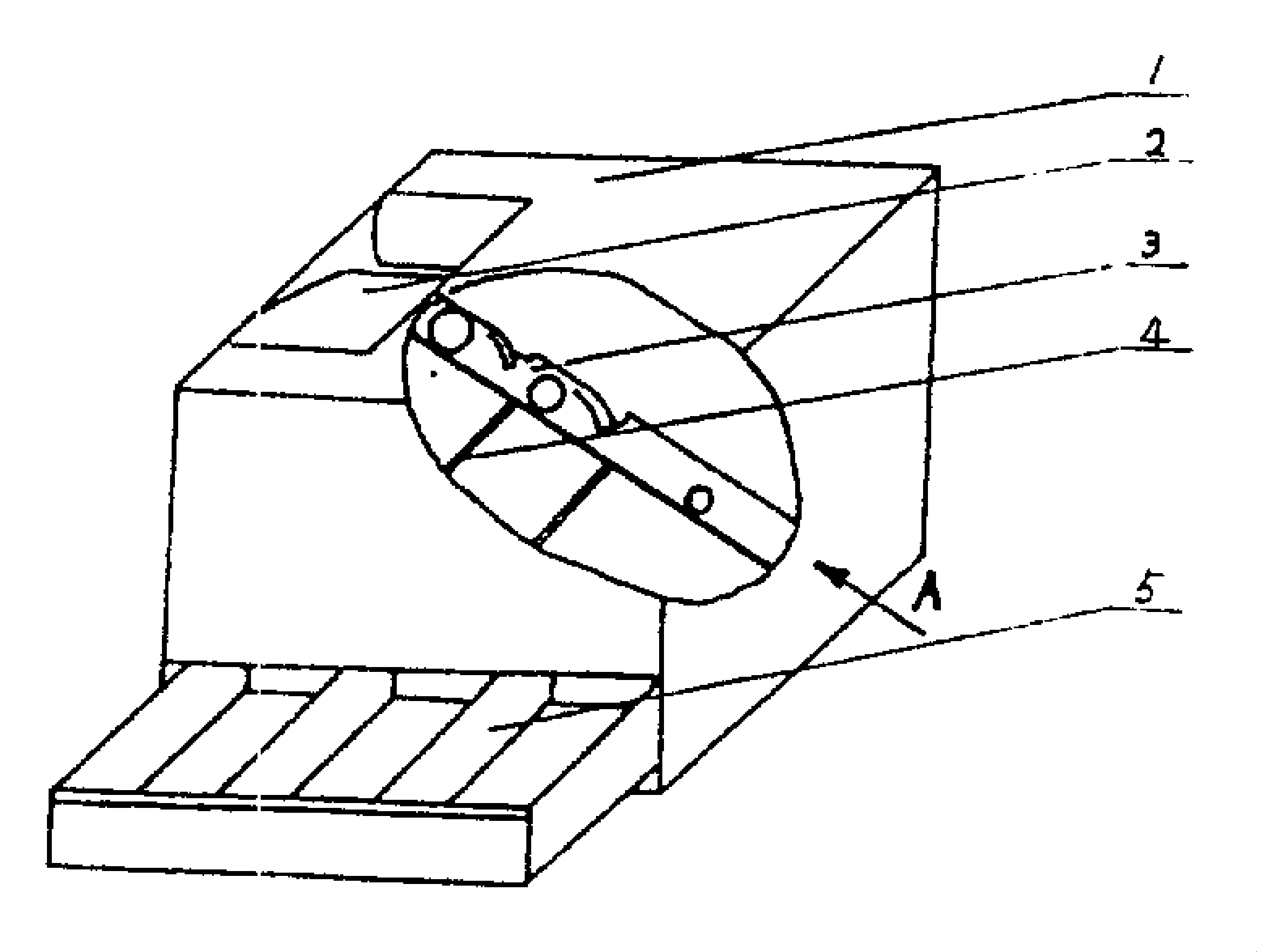

FIG. 1 is a schematic diagram of a specific structure of the present invention.
Fig. 2 is a schematic view of the structure of the invention, wherein the coin to be separated passes through the first guide bent plate on the inclined rail of the coin chute.
FIG. 3 is a schematic view of the configuration of the present invention in which a wood coin is separated by a first guide ramp on the chute.
The invention consists of five parts: 1. the coin sorting machine comprises a box body, 2 coin falling openings, 3 coin sliding inclined rails, 4 partition plates and 5 coin sorting drawers.
When the mixed coins roll downwards along the inclined coin sliding rail III through the coin falling port II, the coins higher than the guide bent plate are separated and fall into the coin separating drawer II through the partition plate II, and the coins lower than the guide bent plate smoothly pass through the coin separating drawer II. Fig. 3 is a schematic view of the separation of the coins by the first guide curved plate. Fig. 2 is a schematic view of a two-part coin passing through a first guide curved plate. Similarly, the second coin is separated by the second guide curved plate and the first coin passes through smoothly.
In order to ensure that the coins roll downwards close to the coin sliding inclined rail, the included angle between the coin sliding inclined rail and the horizontal direction is 22-25 degrees, and the included angle between the coin sliding inclined rail and the vertical direction is 1-2 degrees, as shown in figure 3.
Claims (2)
1. An automatic sorting device for RMB coins is composed of five major parts: (1) the coin sorting machine comprises a box body, (2) a coin falling port, (3) a coin sliding inclined rail, (4) a partition plate and (5) a coin sorting drawer. When mixed stereoplasm through falling coin mouth (2) down along swift current coin inclined rail (3) when rolling, the coin that is higher than the direction bent plate is promptly separated, through baffle (4) fall into coin drawer (5), and the coin that is less than the direction bent plate is promptly passed through smoothly, its characterized in that:
a. and the guide bent plates on the coin sliding inclined rail (3) are different in height from the rail bottom.
2. The coin-sliding inclined rail (3) as claimed in claim 1, wherein:
a. in order to ensure that the coins roll downwards close to the coin sliding inclined rail (3), the included angle between the coin sliding inclined rail (3) and the horizontal direction (namely, the angle formed by the longitudinal central line of the coin sliding inclined rail (3) and the base of the box body (1)) is 22-25 degrees,
b. the inclined coin sliding rail (3) is inclined from the vertical direction (namely, the angle formed by the transverse end surface of the inclined coin sliding rail (3) and the base of the box body (1)) is 1-2 degrees.
