Abstract

本发明为一新式通用手柄。可用于各种物品，而以球拍、球棒、刀剑为主。目的在于加强手柄之功能。本发明即以一个横向之扁圆球体(1)接半个左右之扁椭圆球体(或正椭圆球体)(2)，然后经过一段普通手柄(3)后再与一十字齿轮形手柄(4)相连接。用之于各种球拍，则拍柄宽度之中心线与拍面相垂直，用之于乒乓球拍，则须将妨碍手指对拍柄旋转的拍面去除之(6)。本发明之优点是：1，灵活；2，有力。

Figure 87100715

The invention is a novel universal handle. Can be used for various items, but mainly rackets, bats, and swords. The purpose is to enhance the function of the handle. The present invention promptly connects about half an oblate spheroid (or positive ellipsoid) (2) with a horizontal oblate spheroid (1), and then connects with a cross gear-shaped handle (4) after a section of common handle (3) connected. For various rackets, the centerline of the width of the handle is perpendicular to the racket face, and for table tennis rackets, the racket face that hinders the rotation of the handle by the fingers must be removed (6). The advantages of the present invention are: 1, flexible; 2, powerful.

Figure 87100715

Description

Novel universal handle
The present invention is a new type universal handle. Can be used for various articles, mainly for rackets, bats and swords. Aims to strengthen the function of the handle and fully exert the strength and dexterity of the hand.
The handle used at present is basically a straight stick or a stick close to the straight stick, and cannot be in time with the fingers of people, so that the power and the dexterity on the handle cannot be fully exerted and transmitted, and the problem of serious power and dexterity waste exists.
Only take a badminton racket as an example for explanation:
1. is not flexible
The racket handle is a straight rod type flat octagon. When the racket is rotated by fingers, the racket has a too long diameter and can be circulated without tracks, so that the racket cannot be adjusted to various angles.
2. Without force
(1) The thumb not only has a force of clamping the index finger and the middle finger, but also has a force of forward impact of the thumb, and the component of the force cannot be exerted on the straight stick-like handle. Therefore, when the badminton is buckled by the reverse hand, the thumb slides forwards by one piece when the badminton is buckled once.
(2) When the racket is swung, a strong centrifugal force is inevitably generated, and the straight stick type racket handle is not blocked and is easy to slide out. The fingers must therefore exert an unnecessary grip to prevent the racquet from being dropped out.
(3) When the palm exerts force on the wide side of the handle, there is no obvious point of exertion, and thus the grip strength cannot be exerted effectively.
(4) Because the center line of the width of the racket handle is in the same direction with the racket face, the racket handle is not used for a knife edge (racket frame) but used for batting, and is powerless. Meanwhile, the forehand and the backhand must use the two sides of the racket to hit the ball, and the action of adjusting the beat shape by the fingers is large, so the motion is slow.
In view of the above disadvantages, the present invention (see the attached drawings) adopts the following measures to overcome:
first, the front end of the racket handle is made into a horizontal oblate spheroid (1) with circular arc edge, the upper part is a crown-shaped reinforcing body (5), and the lower part is connected with a half of oblate ellipsoid (or regular ellipsoid) (2) through a thinner neck part. Then the handle passes through a section of common handle (3) and is connected with a crossed gear-shaped handle (4) with alternate concave and convex. When the racket is connected, the center line of the width of the racket handle is vertical to the racket face, and a 90-degree interchange type is formed.
After the measures are taken, the thumb and the forefinger can not only pass through the thinner neck part to facilitate the free rotation of the racket, but also can be sleeved on the neck part, so that the racket is not easy to go out. Meanwhile, the forward impact of the thumb is intercepted by the transverse oblate spheroid, and the full play is finally obtained. And because the back half section of the racket handle is in a cross gear shape, the palm can exert force on all angles of the racket handle in a balanced way. In addition, the center line of the width of the racket handle is vertical to the racket surface, so that the front hand and the back hand can hit the ball by one surface or two surfaces of the racket, and the racket is quick and powerful.
As mentioned above, the advantages of the new universal handle are: 1. flexible and 2 powerful.
In the following, some specific application problems are explained:
1. when the invention is used for various rackets, the connection between the handle and the racket face does not adopt a vertical structure (the center line of the width of the handle is vertical to the racket face). Or the rear half section does not adopt a cross gear shape, which is the simple type of the invention.
2. The invention is used for a round stick-shaped (or regular polygon-shaped) handle, and a regular oval sphere (2) is connected with a round handle (3) and then is connected with a regular cross gear-shaped handle (4).
3. The flat elliptic sphere (2) and the general handle (3) can be made into a gear shape with alternate concave and convex for skid resistance. (tooth shape, tooth number, tooth depth are not limited).
4. When the invention is used for table tennis bat, the bat surface (6) which prevents the fingers from rotating the bat handle is removed. A crown-shaped reinforcing body (5) is provided above the oblate spheroid regardless of size and shape.
5. When the invention is used for other articles, the parts except the characteristic parts of the oblate spheroid and the oblate ellipsoid can be changed at will. Or continue to cure the old case, or develop a new way.
6. The term "connection" as used herein refers to a connection of shapes.
7. The present invention has low requirements for differences in accuracy, data and scale. Slight deviations should not be considered as falling within the scope of protection of the present claims.
8. The present invention is suitable for different sizes and models when being put into production.

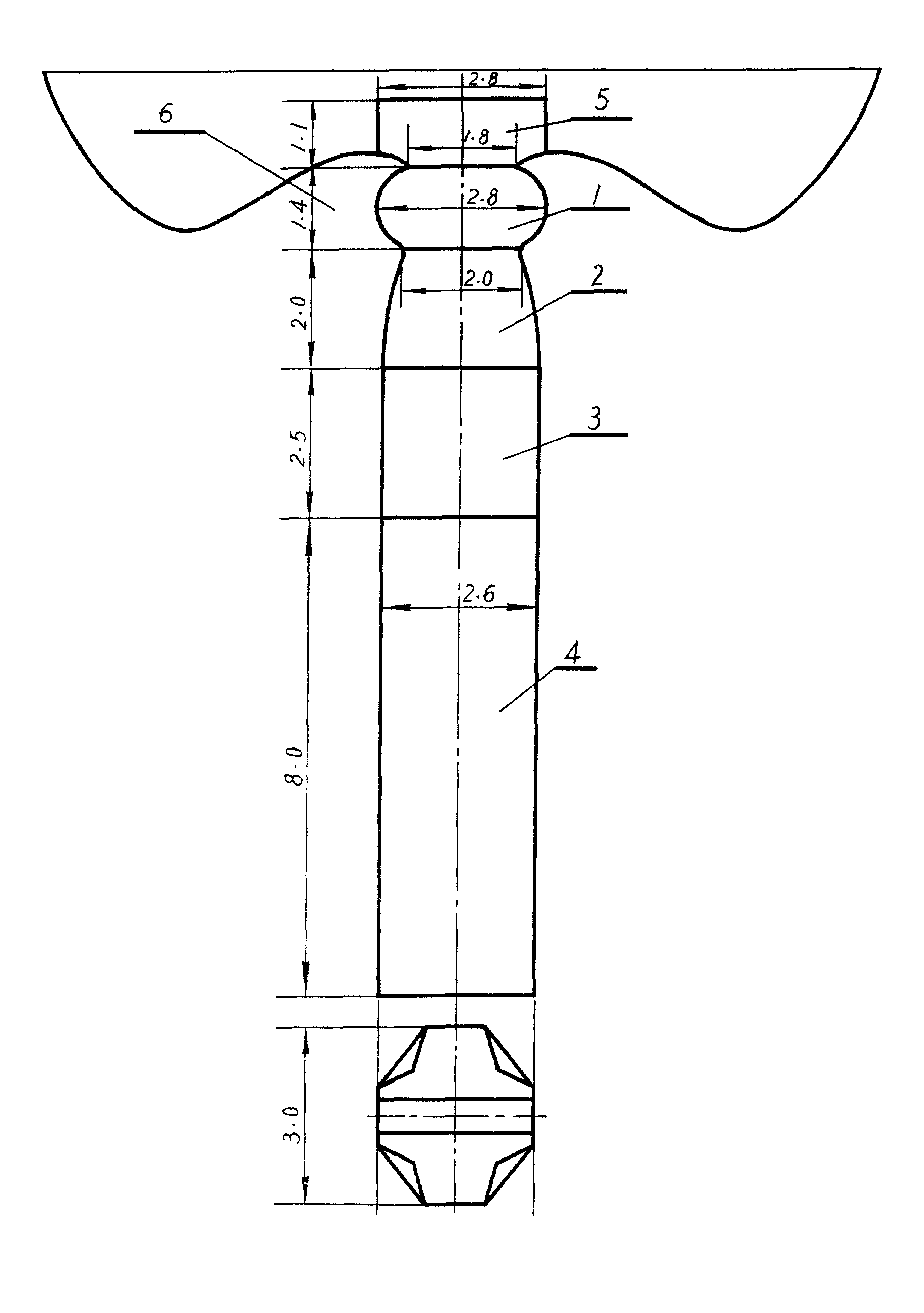

FIG. 1 is a front view of a table tennis bat. Fig. 2 is a side view. The ratio is 1: 1. Unit: centimeters. The part with unchanged shot surface is omitted in the drawing.

Claims (1)

  1. The novel universal handle is characterized in that the shape is as follows:
    1. the front end of the handle is a transverse oblate spheroid (or oblate ellipsoid) (1), the upper part is a crown-shaped reinforcing body (regardless of size and shape, and optionally depending on the article) (5), and the lower part is connected with a half of the oblate ellipsoid (or regular ellipsoid) (2) through a thinner neck.
    2. The latter half section of the invention is a cross gear-shaped (or flat or regular) handle (tooth shape, tooth depth is not limited) (4).
    3. When the invention is used for various rackets, the connection between the handle and the racket face is vertical (the center line of the width of the handle is vertical to the racket face).
    4. The invention is used for table tennis bat, and a gap belt (6) is respectively arranged on two sides of the oblate spheroid.
