Abstract

The utility model discloses a dishwasher, which belongs to tableware washing machines. The technical problem to be solved by the utility model is to design a dishwasher, which not only has a high degree of cleanliness but also has the function of soaking. The technical scheme of the utility model is that the dishwasher includes a water tank, a spray device and a bracket, and the ports of the two water tanks are provided with connected guide rails opposite to the rollers in the lower port groove of the cover, and the curved hoses One end communicates with the spray device in the cover, and the other end communicates with the high-pressure pump on the water inlet pipe and the spray device at the bottom of a water tank. Valves are respectively set on the drain pipe and water inlet pipe of the water tank. Between the high-pressure water pump and the valve A pipe is connected on the water inlet pipe between the pipes, and the other end of the pipe is communicated with the drain pipe between the drain outlet of the water tank and the valve, and the pipe is provided with a valve.

Description

dishwasher

Technical field:

The utility model relates to a tableware washing machine, in particular to a dishwasher.

Background technique:

There are two main types of dishwashers currently on the market, one is a spray dishwasher, and the other is an ultrasonic dishwasher. The former dishwasher can dry and sterilize tableware. It is relatively complete and has a high degree of automation, but this kind of dishwasher does not have the function of soaking tableware. It requires immediate cleaning after meals. It takes nearly 30 minutes to clean once, but most families require cleaning once a day is more convenient. And the latter kind of ultrasonic dishwasher, although it overcomes the deficiency that the former cannot be soaked, it has no flushing function, and it needs to be manually rinsed after washing, which is also very inconvenient. Ultrasonic dishwashers are expensive and unacceptable to ordinary families. Due to the deficiencies in the above-mentioned dishwashers, the occupancy rate of household dishwashers is only about 1%.

Invention content:

The technical problem to be solved by the utility model is to design a dishwasher, which not only has a high degree of cleanliness but also has the function of soaking. The technical scheme of the utility model is that the multifunctional tableware washing machine includes a water tank, a spray device and a bracket, and is characterized in that: the ports of the two water tanks are provided with connected guide rails and rollers in the groove of the lower port of the cover On the contrary, one end of the curved hose communicates with the spray device in the cover, and the other end communicates with the high-pressure water pump on the water inlet pipe and the spray device at the bottom of a sink. Valves are respectively provided on the drain pipe and the water inlet pipe of the sink. A pipe is connected on the water inlet pipe between the high-pressure water pump and the valve, and the other end of the pipe communicates with the drain pipe between the water outlet of the water tank and the valve, and the valve is arranged on the pipe. An electric heating pipe is arranged in the cavity below the water outlet of the water tank, and a valve is arranged on the pipe connecting the fan and the cavity. An ozone generator is provided on the inner surface of the cover. An overflow pipe is connected to the side wall of the upper part of the water tank to communicate with the drain pipe. The utility model adopts a water tank capable of storing water, electric heating tube heating, electric hot air drying, ozone disinfection device, and two water tanks and spraying devices arranged in parallel, so the utility model has functional advantages compared with the prior art. Advantages of safety and family use.

Description of drawings:

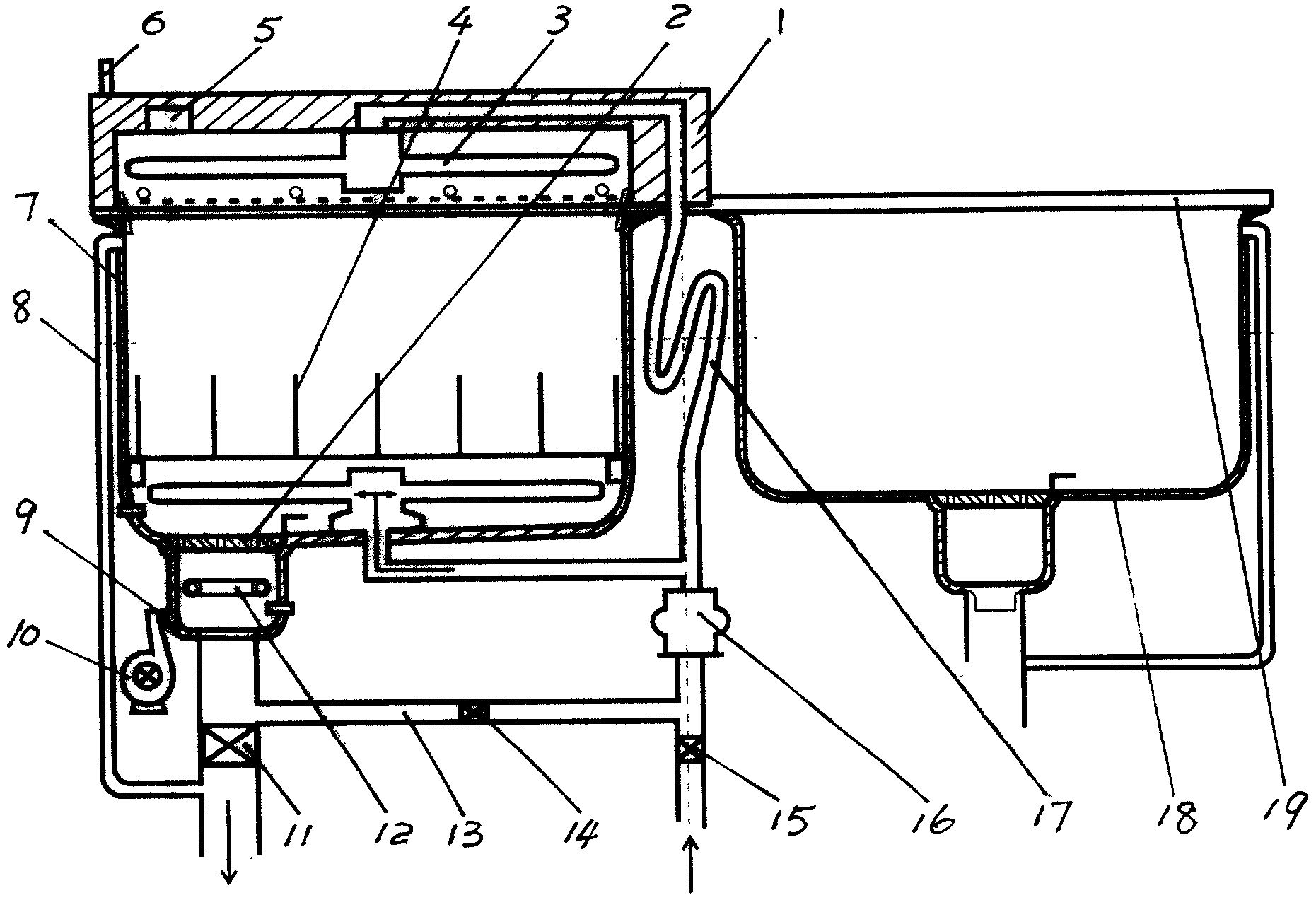

Fig. 1 is a sectional view of the utility model, Fig. 2 is a top view of Fig. 1, Fig. 3 is a left side view of Fig. 1, and Fig. 4 is a partially enlarged view of Fig. 3 .

Detailed ways

The utility model is described in detail in conjunction with the above accompanying drawings. The utility model has two sinks 7, 18, wherein the sink 18 can replace the kitchen sink, and the ports of the sinks 7, 18 are provided with two connected guide rails 19, A roller 20 is arranged in the groove of the lower port of the cover 1 and is opposite to the above-mentioned guide rail. One end of the curved hose 17 is connected with the high-pressure water pump 16 on the water inlet pipe, and the other end is connected with the water spray device 3 in the cover. There is a bracket 4, the water outlet at the bottom is connected to the drain pipe, the solenoid valve 11 is arranged on the drain pipe, and the electric heating tube 12 is arranged in the cavity below the drain outlet of the water tank 7 to be opposite to the drain pipe mouth, and the air outlet of the fan 10 In communication with this cavity, a valve 9 is located on the pipe between the fan and the cavity. A strainer 2 is provided at the water tank outlet, one end of the overflow pipe 8 is connected with the drain pipe, and the other end is connected with the drain hole on the upper part of the water tank 7, an ozone generator 5 is installed on the inner surface of the cover, and on the inner wall of the water tank 7 port A waterproof skirt 21 is provided. Switches are arranged on the circuits of the water pump, the heating pipe, the electromagnetic valve and the fan.

The operation method of the present utility model is, hand-hold handle 6 and cover is moved on the water tank 18, the tableware after using is placed on the bracket in the water tank 7, opens the faucet above the water tank 7 and pours water into the water tank so that the tableware is soaked in the water, from the new The cover is moved to the top of the water tank 7. For small population families, the tableware for breakfast and lunch can be soaked in the water tank. After dinner, it will be cleaned together with the dinner utensils. Open the valve 14 and the high-pressure water pump 13. Now the water in the water tank is Circular jet cleaning, after cleaning, open valves 11 and 15, close valve 15 and the pump after flushing with clear water, and stop cleaning. Open the valve 9 and turn on the fan 10 and the electric heating pipe 12 to dry, and turn on the ozone generator to disinfect the tableware. This kind of dishwasher not only has multiple functions, but also solves the problem of soaking after a meal. If the above functions are automatically controlled by a computer program, fully automatic cleaning can be realized.

Claims (4)

1. Dishwasher, including a water tank, a spray device and a bracket, characterized in that: on the ports of the two water tanks, there are connected guide rails opposite to the rollers in the lower port groove of the cover, and one end of the curved hose is connected to the The spray device in the cover is connected, and the other end is connected with the high-pressure pump on the water inlet pipe and the spray device at the bottom of a water tank. Valves are respectively set on the drain pipe and water inlet pipe of the water tank. A pipe is connected to the water inlet pipe, and the other end of the pipe communicates with the drain pipe between the drain outlet of the water tank and the valve, and the valve is arranged on the pipe. 2. The dishwasher according to claim 1, characterized in that: an electric heating tube is provided in the cavity below the water outlet of the sink, and a valve is provided on the tube connecting the fan and the cavity. 3. The dishwasher according to claim 1, characterized in that an ozone generating device is provided on the inner surface of the cover. 4. The dishwasher according to claim 1, wherein an overflow pipe is connected to the side wall of the upper part of the sink to communicate with the drain pipe.
