Abstract
The utility model relates to a bookmark with scales, which belongs to a relative auxiliary device used with a printed matter, particularly an article of a bookmark class. The utility model comprises a plate body. The utility model is characterized in that at least one side of one surface of the plate body is provided with standard size scales, and one end of the other surface is provided with a clamping plate. The utility model can be used as a ruler, a book clip and a bookmark, and integrates various functions into a whole. The utility model has the advantages of simple operation and convenient use, and is an ideal article for working and studying.
Description
Technical field
The utility model belongs to and the relevant servicing unit of printed matter use, is specifically related to bookmarker class article.
Background technology
Bookmark miscellaneous is arranged in the market, is the hard paper mostly, and what have puts on aperture in its end, fastens Hua Sui, very exquisite.People's learning life is given in the use of bookmark, bring convenience in particular for the data of searching later on, but in the process of books study, common bookmark has certain limitation at aspects such as keeping the books open mode.In the daily study, the application of ruler is also very frequent, and particularly stationery such as pupil's ruler, bookmark are available in all varieties, gives to carry and use results in hand cramps.
The utility model content
At above-mentioned existing in prior technology drawback, goal of the invention of the present utility model is to provide a kind of bookmark that has scale, and this utility model both can be used as ruler, can be used as bookmark again, and is easy to use, is easy to carry.
For achieving the above object, the utility model is to realize by following technical scheme:
Design a kind of bookmark that has scale, comprise the plate face, it is characterized in that: at least one sideband of the one side of plate body has standard-sized scale; One end of another side is provided with clamping plate.
Described plate face is a hard material, and is safe and reliable when preserving and use.
Described plate body and clamping plate connect by rotating shaft and spring assembly, form clip.
Adopt such structure, compared with prior art have the following advantages:
The utility model both can be used as ruler, can work as book clamp again, can also be used as bookmark, integrated multiple function, and was easy to use, was easy to carry.
Description of drawings
Fig. 1 is a structure schematic top plan view of the present utility model;

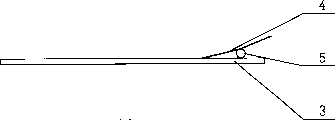

Fig. 2 is a structure schematic side view of the present utility model.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is further described:
Among the figure: the 1-clip; The 2-scale; The 3-plate body; 4-clamping plate: 5-rotating shaft and spring assembly.
As shown in the figure, the bookmark that has scale described in the utility model comprises plate body 3, Yi Bian plate body 3---and face has and has a standard-sized scale 2; Another side is provided with clamping plate 4.Wherein plate body 3 is regular for having scale 2 on one side, and other limits can be arbitrary shape.Plate body 3 and clamping plate 4 constitute by rotating shaft and spring assembly 5, are fixedly set on the plate body.It is that common clip is that slideway is arranged on the plate body by slide rail with the plate body that the utility model can also be designed to.
During use, can utilize the scale 2 on the plate body 3 to measure drawing; Clamp books, keep the opening of books: plate body 3 is placed in the book served as bookmark.
The utility model can be decorateeed various patterns thereon as required.
The utility model is of many uses, and is simple to operate, easy to use, is the desirable articles for use of work and study.
Claims (3)
1, a kind of bookmark that has scale comprises plate body, it is characterized in that: at least one sideband of the one side of plate body has standard-sized scale; One end of another side is provided with clamping plate.
2, the bookmark that has scale according to claim 1 is characterized in that plate body is a hard material.
3, the bookmark that has scale according to claim 1 is characterized in that plate body and clamping plate connect by rotating shaft and spring assembly, form clip.
