Abstract
The utility model relates to a folding type packing box, which comprises a box body which is folded by a plane surface paperboard, wherein four sides of a rectangular base board of the box body are respectively connected with side boards, corresponding sides of the side boards which are connected with the base board are respectively connected with protective wings, the corresponding sides of the side boards which are connected with the base board are respectively connected with cover boards, the other two sides of the side boards are respectively connected with wing sheets, sides of end parts of the wing sheets are provided with arc grooves and connecting points between each component are provided with creases. One cover board is provided with an insert socket, and the other cover board is provided with an insert tongue which is matched with the insert socket. Since the utility model is made by the method that a complete sheet is folded, inserted and connected, adhesive and bookbinding technology and equipment are omitted, so production cost is effectively reduced. Meanwhile, the box body can not be disassembled caused by the action of deliquescence mould or oxidation, etc. The utility model can be made into a square cube, an oblong cube or other various shaped box bodies. The utility model has the advantages of simple folding and packing, safe packing, convenient opening, small occupation of land and convenient transportation.
Description
Technical field
The utility model relates to the packing of product, is specifically related to a kind of folding package box.
Background technology
Existing packing box is medicine packing box especially, the moulding of its box body is generally by gluing or bookbinding, need to increase gluing or binding device in the production, not only increased productive costs, simultaneously this box body in use since during the cargo storage deliquescence go mouldy or effect such as oxidation, make box body disintegrate easily and have influence on the quality and the safety of commodity and deposit, sell in gluing or bookbinding place.
Summary of the invention
For avoiding weak point of the prior art, the utility model provides a kind of modern design, technology is simple, packing is reliable, open folding package box easily.
The purpose of this utility model is achieved in that this folding package box comprises the box body that is made of a plane folding cardboard, four limits that it is characterized in that the rectangular base plate of box body link to each other with side plate respectively, link to each other with flap respectively with the corresponding sides of base plate bonded assembly side plate, link to each other with cover plate respectively with the corresponding sides of base plate bonded assembly side plate, two limits in addition of side plate link to each other with fin respectively, junction between described each parts is equipped with folding line, cover plate is provided with socket, and another cover plate is provided with the tongue that matches with socket.
The technological advance that the utility model is obtained:
1. owing to adopt a complete sheet material to make, saved gluing and binding process and equipment, thereby effectively reduced the production cost through folding pegging graft.
2. owing to do not use adhesion agent and binding needle, thereby can not take place because deliquescence goes mouldy or effect such as oxidation is disintegrated box body.
3. be schistose texture before using, FOLD AND PACK is simple, pack safe and reliablely, and it is convenient to open, and the occupation of land space is little, is convenient to transport.
4. can form the box body of multiple shape, as the box body of square, cuboid or other shapes.
Description of drawings

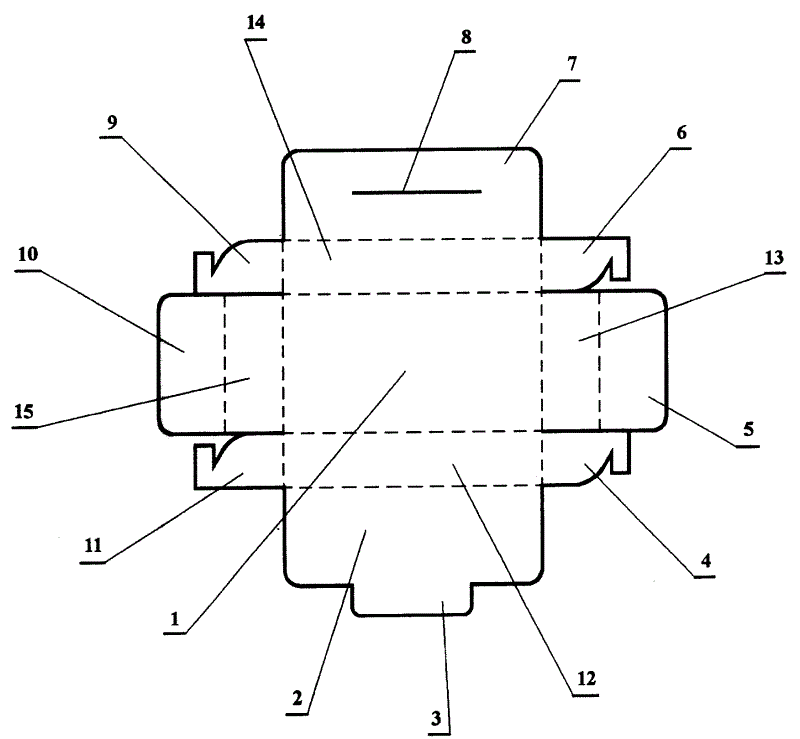

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
For further describing the utility model, the utility model is described in further detail below in conjunction with accompanying drawing:
As shown in Figure 1, folding package box of the present utility model comprises the box body that is made of a plane folding cardboard, the base plate 1 of box body is an oblong, four limits of base plate 1 respectively with side plate 12, side plate 13, side plate 14, side plate 15 links to each other, with base plate 1 bonded assembly side plate 13, the corresponding sides of side plate 15 link to each other with flap 10 with flap 5 respectively, with base plate 1 bonded assembly side plate 12, the corresponding sides of side plate 14 link to each other with cover plate 7 with cover plate 2 respectively, in addition two limits of side plate 12 respectively with fin 4, fin 11 connects, side plate 14 in addition two limits respectively with fin 6, fin 9 links to each other, at fin 4 with end, fin 6 and fin 9, the unidirectional side in the end of fin 11 is offered arc gap groove respectively, for ease of FOLD AND PACK, junction between described each parts all is provided with folding line, cover plate 7 is provided with socket 8, and cover plate 2 is provided with the tongue 3 that matches with socket 8.
Can be each flap is folding to same direction during use along folding line, the end side is offered the fin 4 of arc gap groove and 6 of fins and fin 9 and 11 mutual hooks of fin to link together, roll flap 5, flap 10 well, the socket 8 on tongue on the cover plate 2 and the cover plate 7 is plugged together get final product then.
Claims (2)
1. folding package box, comprise the box body that constitutes by a plane folding cardboard, it is characterized in that box body rectangular base plate (1) four limits respectively with side plate (12), side plate (13), side plate (14), side plate (15) links to each other, with base plate (1) bonded assembly side plate (13), the corresponding sides of side plate (15) link to each other with flap (10) with flap (5) respectively, with base plate (1) bonded assembly side plate (12), the corresponding sides of side plate (14) link to each other with cover plate (7) with cover plate (2) respectively, side plate (12), in addition two limits of side plate (14) respectively with fin (4,11) and fin (6,9) link to each other, junction between described each parts is equipped with folding line, cover plate (7) is provided with socket (8), and cover plate (2) is provided with the tongue (3) that matches with socket (8).
2. folding package box according to claim 1 is characterized in that described fin (4,6,9,11) end side is respectively equipped with arc gap groove.
