CN2832672Y - Special tool for opening currency package box by hand - Google Patents

Abstract

The utility model relates to a special tool for unpacking a banknote packing box. It consists of a pressure handle, a four-bar linkage mechanism for a pressure head, a head-cut crank slider mechanism, a connecting rod, a handle, and an opening spring. The rod (20) and the lower pressure handle (22); the upper handle (1) is fixedly connected with the upper pressure handle (2) by screws, and the lower handle (23) is fixedly connected with the lower pressure handle (22) by screws; the opening spring (18) One end is connected on the pressing handle (22) by pin (17), and the other end is connected with intermediate link (20) by pin (21). The utility model adopts the force-increasing performance of the lever, which can conveniently and labor-savingly press down the lock pin of the box cover and cut it off at the same time. Compared with the previous method of hitting the punch with a hand hammer to remove the cover, the production efficiency is improved, and the labor intensity of the unpacking process is reduced, and the lock pin is cut off so that the box body can be reused, and the indenter and the cutting head can be replaced. In line with the design principles of ergonomics.

Description

Special tools for manual unpacking of banknote packaging plastic boxes

technical field

The utility model relates to the technology of a special manual tool, in particular to a special tool for manual unpacking of a banknote packaging plastic box.

Background technique

The cover of the banknote plastic cash transport box related to the utility model adopts a multi-point disposable locking structure in order to enhance safety. If you want to open the plastic box, you must use the operation of destroying the box cover to remove the box cover, and in order to reduce the cost, it is required that the box body is not damaged and can be recycled. Due to the particularity of the structure and cover of the plastic cash transport box, it is very difficult to open the cover. There is no ready-made tool for removing the cover. Generally, a hammer is used to hit a rectangular punch aligned with the cover lock pin to separate the lock pin from the cover and remove the cover, or use other general tools to destroy the cover. The latch is partially covered. These methods have many disadvantages. First, the process of removing the cover is very time-consuming and laborious; second, although the lock pin is separated from the box cover, it is still stuck in the lock pin hole of the box body and is difficult to remove; third, it often causes damage to the box body and cannot be recycled. use.

Utility model content

The technical problem to be solved by the utility model is to provide a special tool for manual unpacking of plastic banknote packaging boxes. Aiming at the multi-point one-time locked capping structure of the new plastic cash transport box, a special manual special tool for uncapping is designed. . It mainly solves the following technical problems: (1) The two action functions of punching down the lock pin in the up and down direction and separating the box cover and cutting the lock pin in the middle of the horizontal direction are completed in one manual action stroke. (2) Design an appropriate force transmission mechanism to be light and labor-saving. (3) Ensure that the main box structure is not damaged when the tool is operated. (4) Design the unique indenter and cutting head structure suitable for the lock pin structure, and the indenter and the cutting head can be replaced. (5) Conform to the design principles of ergonomics.

The technical solution of the utility model to solve the technical problem is to design a special tool for unpacking the banknote packaging box, which is characterized in that it includes a pressure head four-bar linkage mechanism, a head cutting crank slider mechanism, an upper handle 1, and a lower handle 23 And mouth opening spring 18 constitutes, and described pressure head four-bar linkage mechanism comprises upper pressure handle 2, upper pincer clip 5, lower pressure handle 22, middle connecting rod 20, and its connection mode is that upper pressure handle 2 takes bearing pin 4 as The shaft is hinged with the two upper pliers clips 5, and is hinged with the middle connecting rod 20 with the pin shaft 3 as the axis; The shaft is hinged with the two upper pincer clips 5; the upper connecting block 8 is fastened on the left and right upper pincer clips 5 by fastening screws 7, and the upper cutter head 9 is connected with the upper connecting block 8 by a top screw. The head-cutting crank slider mechanism includes an intermediate connecting rod 20, an oblique push rod 16, a guide groove 15 of a lower pressure handle 22, a lower cutter head 11 and a lower connecting block 13, and the connection mode is that the intermediate connecting rod 20 is connected with a pin shaft 19 The shaft is hinged with the two lower handles 22, and the pin 3 is hinged with the oblique push rod 16; the oblique push rod 16 is hinged with the lower connecting block 13 with the pin shaft 14 as the axis, and the pin shaft 14 can be hinged between the two lower pressure handles. The guide groove 15 on the 22 slides, drives the lower connecting block 13 to reciprocate, and the lower cutter head 11 is fixed on the lower connecting block 13 by a top screw, and moves back and forth with the lower connecting block 13, while the lower supporting block 10 is fastened on the lower pressing block by screws. Put 22. The four-bar linkage mechanism of the pressing head shares the middle connecting rod 20 and the lower pressing handle 22 with the head-cutting crank-slider mechanism. The upper handle 1 is fixedly connected with the upper press handle 2 by screws, and the lower handle 23 is fixedly connected with the lower press handle 22 by screws to provide the power required by the tool. One end of the opening spring 18 is connected to the lower handle 22 through the pin 17 , and the other end is connected to the intermediate link 20 through the pin 21 .

The beneficial effects of the utility model, compared with the prior art, has the following advantages:

With the use of leverage boosting performance, it is convenient and labor-saving to press down the lock pin of the box cover and cut it off at the same time. Compared with the previous method of hitting the punch with a hand hammer to remove the cover, the production efficiency is improved, the labor intensity of the unpacking process is reduced, and the lock pin is cut off so that the box body can be reused.

Description of drawings

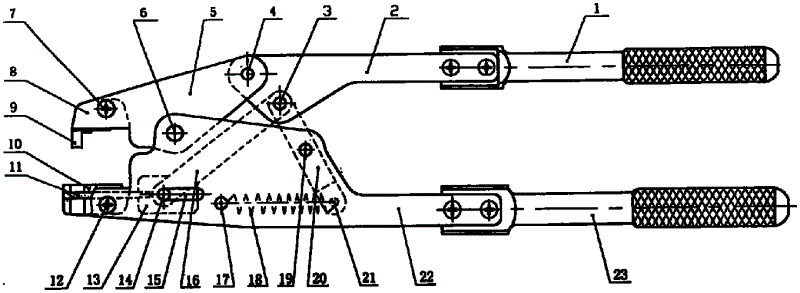

Fig. 1 is a structural schematic diagram of a special tool for unpacking plastic boxes for banknote packaging.

Detailed ways

With reference to accompanying drawing 1, banknote packing box unpacking special tool is to comprise four-bar linkage mechanism of pressure head, crank slider mechanism of cutting head, upper handle 1, lower handle 23 and opening spring 18 and constitutes, and described four-bar linkage mechanism of pressure head comprises The upper pressing handle 2, the upper clamp head clip 5, the lower pressing handle 22, and the middle connecting rod 20 are connected in such a way that the upper pressing handle 2 is hinged with the two upper clamp head clips 5 with the pin shaft 4 as the axis, and the pin shaft 4 is used as the axis. The shaft 3 is hinged with the middle connecting rod 20; the two lower pressure handles 22 are hinged with the middle connecting rod 20 with the pin shaft 19 as the shaft, and are hinged with the two upper pliers clips 5 with the pin shaft 6 as the shaft; the upper connection The block 8 is fastened on the left and right two upper pliers clips 5 by fastening screws 7, and the upper cutter head 9 is connected with the upper connecting block 8 by a top screw. The head-cutting crank slider mechanism includes an intermediate connecting rod 20, an oblique push rod 16, a guide groove 15 of a lower pressure handle 22, a lower cutter head 11 and a lower connecting block 13, and the connection mode is that the intermediate connecting rod 20 is connected with a pin shaft 19 The shaft is hinged with the two lower handles 22, and the pin 3 is hinged with the oblique push rod 16; the oblique push rod 16 is hinged with the lower connecting block 13 with the pin shaft 14 as the axis, and the pin shaft 14 can be hinged between the two lower pressure handles. The guide groove 15 on the 22 slides, drives the lower connecting block 13 to reciprocate, and the lower cutter head 11 is fixed on the lower connecting block 13 by a top screw, and moves back and forth with the lower connecting block 13, while the lower supporting block 10 is fastened on the lower pressing block by screws. Put 22. The four-bar linkage mechanism of the pressing head shares the middle connecting rod 20 and the lower pressing handle 22 with the head-cutting crank-slider mechanism. The upper handle 1 is fixedly connected with the upper press handle 2 by screws, and the lower handle 23 is fixedly connected with the lower press handle 22 by screws to provide the power required by the tool. One end of the opening spring 18 is connected to the lower handle 22 through the pin 17 , and the other end is connected to the intermediate link 20 through the pin 21 .

Fig. 1 is the fully pressed position of the special tool. The tool as a whole is a multi-link mechanism (double four-bar linkage mechanism), wherein the upper pressing handle 2, the upper pincer clip 5, the lower pressing handle 22, and the middle connecting rod 20 constitute a four-bar linkage mechanism; the middle connecting rod 20, The inclined push rod 16, the guide groove 15 and the lower cutter head 11 and the lower connecting block 13 of pressing down the handle 22 constitute another deformed four-bar mechanism (slider crank mechanism).

The action process of the special tool from the pressing position to the opening position is: the middle connecting rod 20 drives the upper pressing handle 2 to rotate under the pull of the opening spring 18, thereby driving the upper clamp head clip 5 to rotate around the pin shaft 6, The tool jaws are opened thereupon, and the intermediate connecting rod 20 moves around the pin shaft 19, pulling the inclined push rod 16, so that the pin shaft 14 drives the lower cutter head 11 to move in the guide groove 15, and pulls the lower cutter head 11 to move backward.

The action process of the working stroke of the special tool is: pressing the upper handle 1 drives the lower pressing handle 2 to rotate counterclockwise, and the pin 4 drives the upper jaw clip 5 to rotate around the pin 6, thereby driving the upper cutter head 9 downward Movement; at the same time, press down the handle 2 to push the oblique push rod 16 down to the left through the pin shaft 3, so that the pin shaft 14 drives the lower cutter head 11 to move forward in the guide groove 15. Reasonable design of the length of each connecting rod can make the upper cutter head 9 move faster downward when the first half of the stroke of the upper handle 1 is pressed, while the lower cutter head 11 moves forward slowly. When the upper cutter head 9 moves to When the stroke is set, the lower cutter head 11 starts the working stroke to cut off the lock pin punched down by the upper cutter head 9, thereby realizing that the lid lock pin is punched down by the upper cutter head 9 in one stroke of pressing the upper handle 1 Two actions that are cut off by lower cutter head 11 again afterward.

The distance from the pin shaft 6 to the pin shaft 4 of the special tool is greater than the distance from the pin shaft 6 to the upper cutter head 9, and the distance from the pin shaft 3 to the force point at the grip of the upper pressing handle 2 is far greater than that from the The distance from bearing pin 3 to bearing pin 4, two lever mechanisms are labor-saving mechanisms. The combination of these two labor-saving mechanisms makes the special tool have labor-saving characteristics.

Claims (3)

1. A special tool for manual unpacking of banknote packaging plastic boxes, which is characterized in that it includes a pressure handle, a four-bar linkage mechanism for a pressure head, a crank slider mechanism for cutting head, a connecting rod, a handle, and an opening spring. The connecting rod mechanism shares the middle connecting rod (20) and the lower pressure handle (22) with the described head-cut crank slider mechanism; the upper handle (1) is fixedly connected with the upper pressure handle (2) by screws, and the lower handle ( 23) be fixedly connected by screw and press down handle (22); One end of opening spring (18) is connected on the press down handle (22) by pin (17), and the other end is connected with intermediate link (20) by pin (21). 2. The special tool for manual unpacking of banknote packaging plastic boxes according to claim 1, characterized in that the four-bar linkage mechanism of the pressing head consists of an upper pressing handle (2), an upper pincer clip (5), and a lower pressing Handle (22), middle connecting rod (20) constitutes, and its connection mode is that upper pressure handle (2) is hinged with pin shaft (4) with two upper jaw clips (5) with pin shaft (3) ) is hinged with the middle connecting rod (20) for the shaft; The clamp clips (5) are hinged; the upper connecting block (8) is fastened to the left and right upper clamp clips (5) by fastening screws (7), and the upper cutter head (9) is connected to the upper connecting block through the top wire (8) CONNECTION. 3. The special tool for manually unpacking banknote packaging plastic boxes according to claim 1, characterized in that the head-cutting crank slider mechanism consists of an intermediate connecting rod (20), an inclined push rod (16), and a downward pressure handle ( 22), the guide groove (15) and the lower cutter head (11) and the lower connecting block (13) are formed. Hinged, hinged with bearing pin (3) and oblique push rod (16) again; Diagonal push rod (16) is hinged with lower connection block (13) with bearing pin (14), and bearing pin (14) can be in two Press down the guide groove (15) on the handle (22) to slide in, driving the lower connecting block (13) to reciprocate, the lower cutter head (11) is fixed on the lower connecting block (13) by the top wire, and the lower connecting block (13) ) reciprocating movement, and the lower support block (10) is fastened to the lower pressure handle (22) by screws.
